Soul Electronics SE45 Emotion - Superior High Performance True Wireless Earphones User Manual

Soul Electronics Limited Emotion - Superior High Performance True Wireless Earphones

User Manual

 1 / 6  MS01W (BES2000-U) True Wireless Stereo Earphone   User Manual & Specifications   ---Version 20180412   Earphone Basic Specifications ■Size: single-earphone  23.6×16.3×23.7mm ■Weight: 4.4g(single-earphone) ■Charging port: magnetic type   ■Keys: 1 (MFB button) ■Charge indicator: Green LED light (Charging) / light off (Charging completed) ■Battery :Lithium-ion Polymer rechargeable battery, 551215 , 55mAh ■Earphone Charging Current:55mA ■ Earphone Charging time: 1 hour ■Working Voltage: 3.3V~4.2V ■Standby time: about 40 hours ■ Battery and Power ■ Earphone with Charging case:   Music Time:6~7hours Talking Time:8 hours   ■ Earphone(single charge):   Music Time: 2~2.5 hours   Talking Time: 2 hours ※ Working time of main earphone in the state of two earphones:<3 Hours ■ Bluetooth version: Bluetooth 4.2
 2 / 6  ■Bluetooth chipset: BES2000-U ■ Support Profile: HSP, HFP, A2DP, AVRCP ■ The remote control to speaker: MFB (Play/Pause/Stop; Next song/ Previous song) ■ Paring name: MS01W ■ Password: 0000 ■ RF transmit: class 2 ■RF input impedance: 50ohm ■RF Emissive Power: 9 dBm ■ Receive sensitivity: -89dBm ■ Transmission Range (Hz): 2.40GHz ~ 2.48GHz ■ Transmission distance: 10m ■ TWS function: after two headsets pair and connect, they can work as true wireless stereo headset ■ Audio sampling accuracy: 16bits ■ Audio sampling rate: Up to 96 kHz ■ Audio encoding format: CVSD、mSBC、SBC、ACC ■SNR: >95dB ■ Working temperature: -15℃~+60℃ ■ Working humidity: 10%~85%( in a non-frozen state)  Speaker ■Speaker specifications / mode: Φ6mm ■Impedance: 16Ω/ typ ■Frequency(Hz): 20Hz~20KHz ■Sensitivity: 93±3dB ■Output Power: 2 mW ( normal), 5mW ( maximum)  MIC ■ MIC type: silicon MIC ■ MIC sensitivity: -42±3dB ■   SPL:130dB  Basic Specifications of Charging Case ■Size: 59.65x34.66x27.4mm ■Weight:26.6g ■Charging Port: Micro USB ■Charging LED indicator/charging completed indicator: Blink blue/Blue LED lighting ■Charging base(Full) provide power to earphone: 2 times

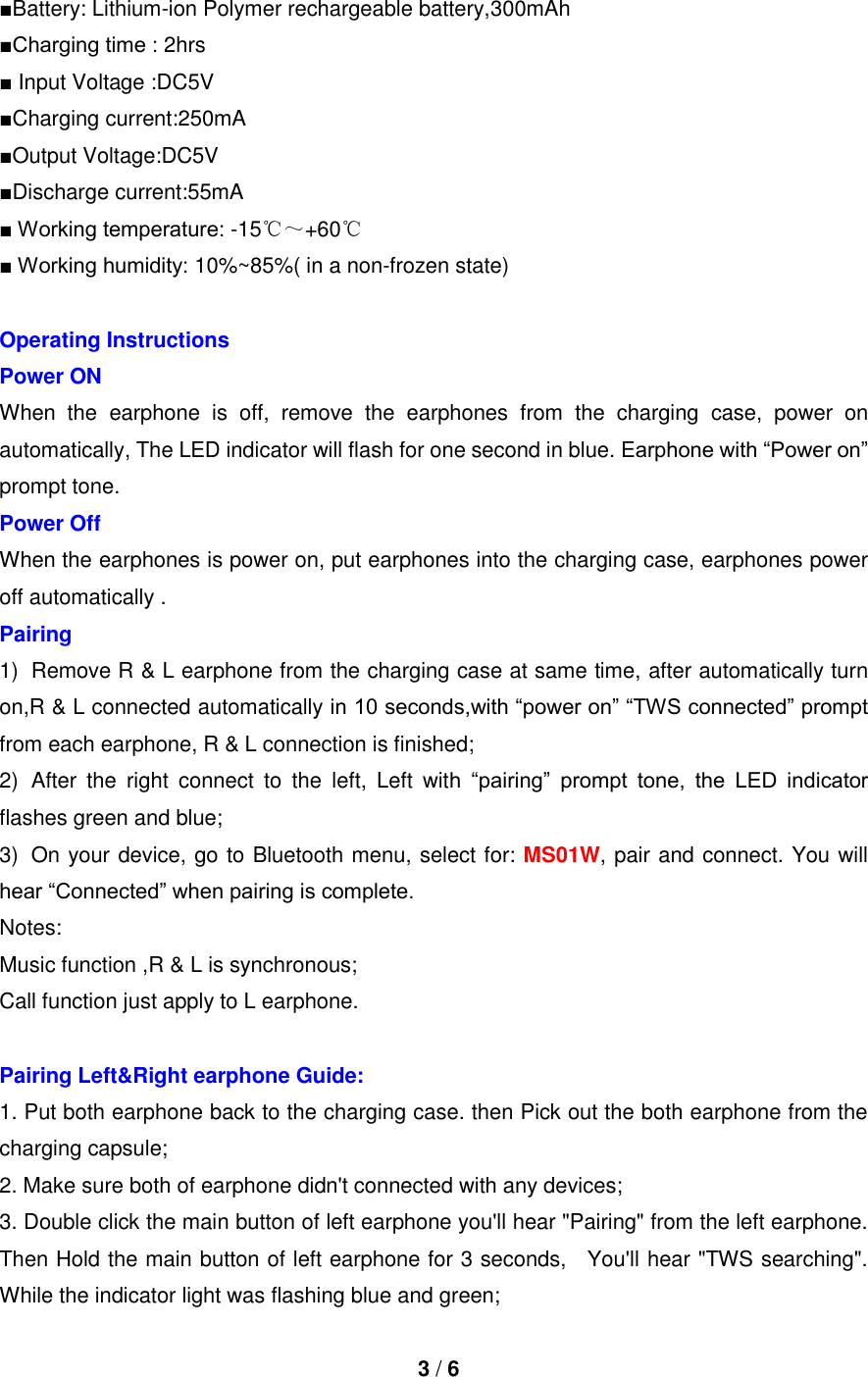

 3 / 6  ■Battery: Lithium-ion Polymer rechargeable battery,300mAh ■Charging time : 2hrs ■ Input Voltage :DC5V ■Charging current:250mA ■Output Voltage:DC5V ■Discharge current:55mA ■ Working temperature: -15℃~+60℃ ■ Working humidity: 10%~85%( in a non-frozen state)  Operating Instructions Power ON When  the  earphone  is  off,  remove  the  earphones  from  the  charging  case,  power  on automatically, The LED indicator will flash for one second in blue. Earphone with “Power on” prompt tone. Power Off   When the earphones is power on, put earphones into the charging case, earphones power off automatically . Pairing   1)  Remove R & L earphone from the charging case at same time, after automatically turn on,R & L connected automatically in 10 seconds,with “power on” “TWS connected” prompt from each earphone, R & L connection is finished; 2)  After  the  right  connect  to  the  left,  Left  with  “pairing”  prompt  tone,  the  LED  indicator flashes green and blue; 3)  On your device, go to Bluetooth menu, select for: MS01W, pair and connect. You will hear “Connected” when pairing is complete. Notes:   Music function ,R & L is synchronous;   Call function just apply to L earphone.  Pairing Left&Right earphone Guide: 1. Put both earphone back to the charging case. then Pick out the both earphone from the charging capsule; 2. Make sure both of earphone didn't connected with any devices; 3. Double click the main button of left earphone you'll hear "Pairing" from the left earphone.   Then Hold the main button of left earphone for 3 seconds,    You'll hear "TWS searching". While the indicator light was flashing blue and green;

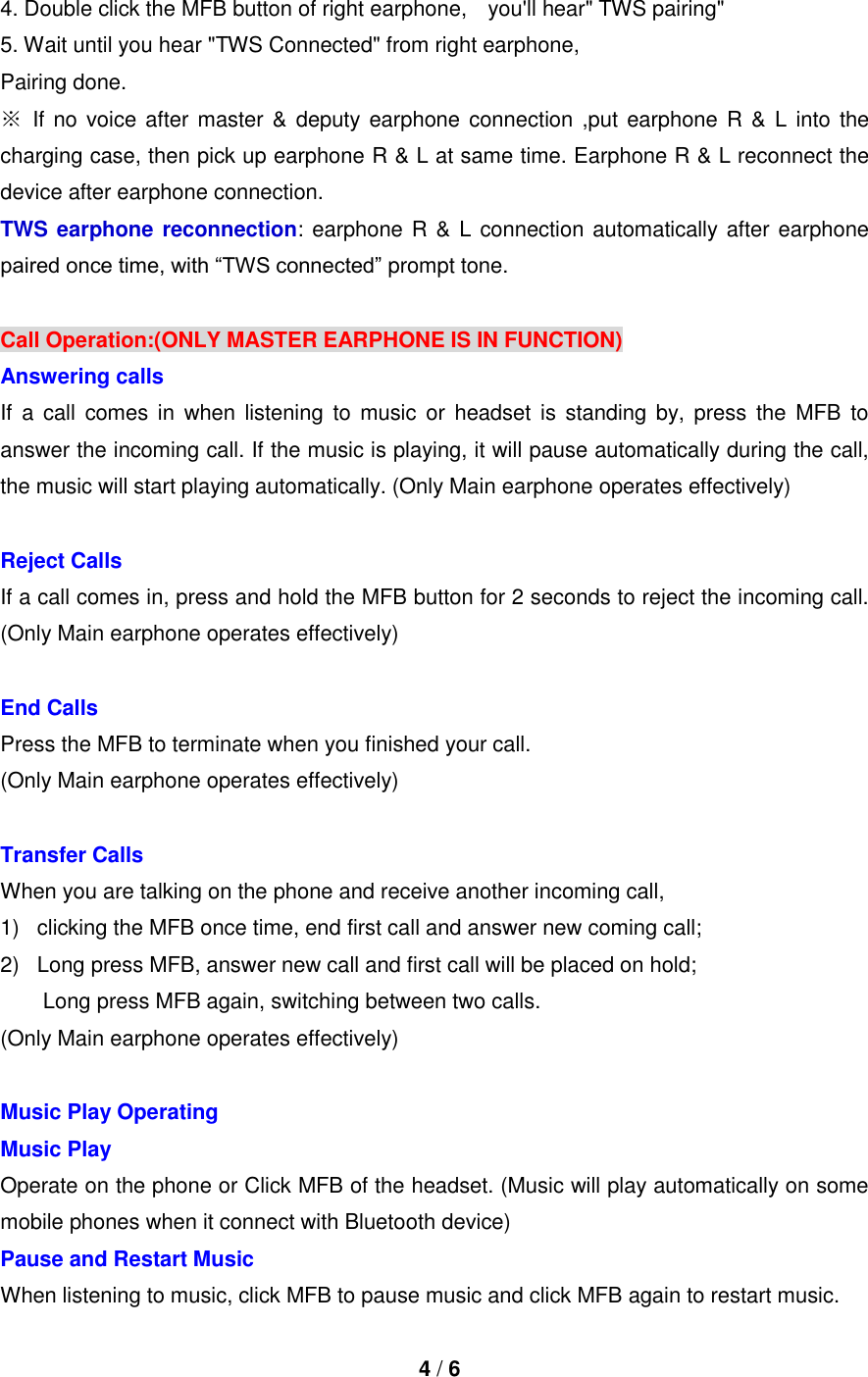

 4 / 6  4. Double click the MFB button of right earphone,    you'll hear" TWS pairing" 5. Wait until you hear "TWS Connected" from right earphone, Pairing done. ※ If no voice after master & deputy earphone connection ,put earphone R  & L into the charging case, then pick up earphone R & L at same time. Earphone R & L reconnect the device after earphone connection. TWS earphone reconnection: earphone R & L connection automatically after earphone paired once time, with “TWS connected” prompt tone.  Call Operation:(ONLY MASTER EARPHONE IS IN FUNCTION) Answering calls If  a  call comes  in  when  listening  to music  or  headset  is standing  by,  press the MFB  to answer the incoming call. If the music is playing, it will pause automatically during the call, the music will start playing automatically. (Only Main earphone operates effectively)  Reject Calls If a call comes in, press and hold the MFB button for 2 seconds to reject the incoming call. (Only Main earphone operates effectively)  End Calls   Press the MFB to terminate when you finished your call. (Only Main earphone operates effectively)  Transfer Calls When you are talking on the phone and receive another incoming call,   1)  clicking the MFB once time, end first call and answer new coming call; 2)  Long press MFB, answer new call and first call will be placed on hold;         Long press MFB again, switching between two calls. (Only Main earphone operates effectively)  Music Play Operating Music Play Operate on the phone or Click MFB of the headset. (Music will play automatically on some mobile phones when it connect with Bluetooth device) Pause and Restart Music   When listening to music, click MFB to pause music and click MFB again to restart music.

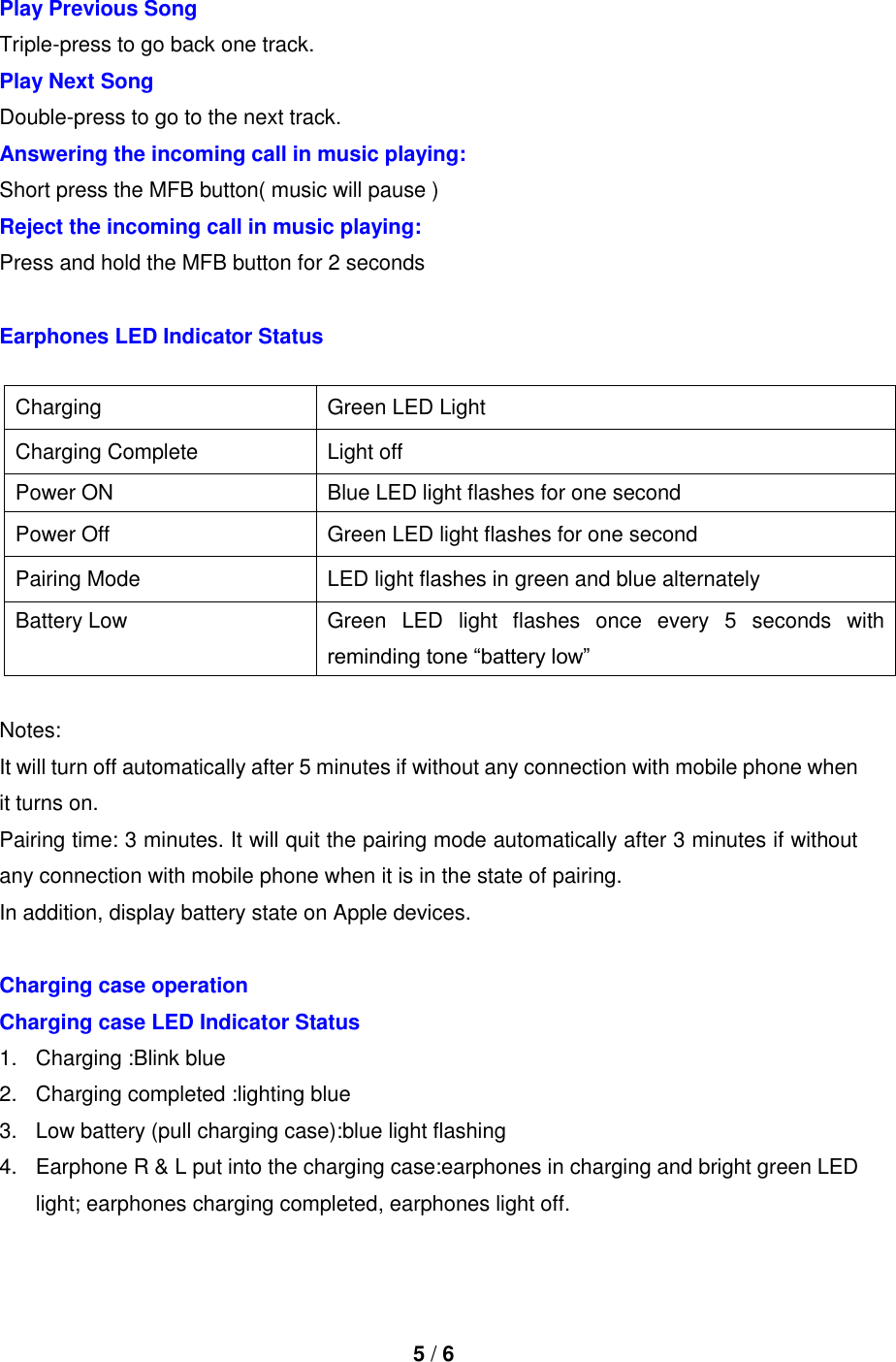

 5 / 6  Play Previous Song   Triple-press to go back one track. Play Next Song   Double-press to go to the next track. Answering the incoming call in music playing:   Short press the MFB button( music will pause ) Reject the incoming call in music playing:   Press and hold the MFB button for 2 seconds    Earphones LED Indicator Status  Notes: It will turn off automatically after 5 minutes if without any connection with mobile phone when it turns on. Pairing time: 3 minutes. It will quit the pairing mode automatically after 3 minutes if without any connection with mobile phone when it is in the state of pairing. In addition, display battery state on Apple devices.  Charging case operation   Charging case LED Indicator Status 1.  Charging :Blink blue 2.  Charging completed :lighting blue 3.  Low battery (pull charging case):blue light flashing 4.  Earphone R & L put into the charging case:earphones in charging and bright green LED light; earphones charging completed, earphones light off. Charging   Green LED Light   Charging Complete   Light off Power ON Blue LED light flashes for one second   Power Off   Green LED light flashes for one second Pairing Mode   LED light flashes in green and blue alternately   Battery Low   Green  LED  light  flashes  once  every  5  seconds  with reminding tone “battery low”

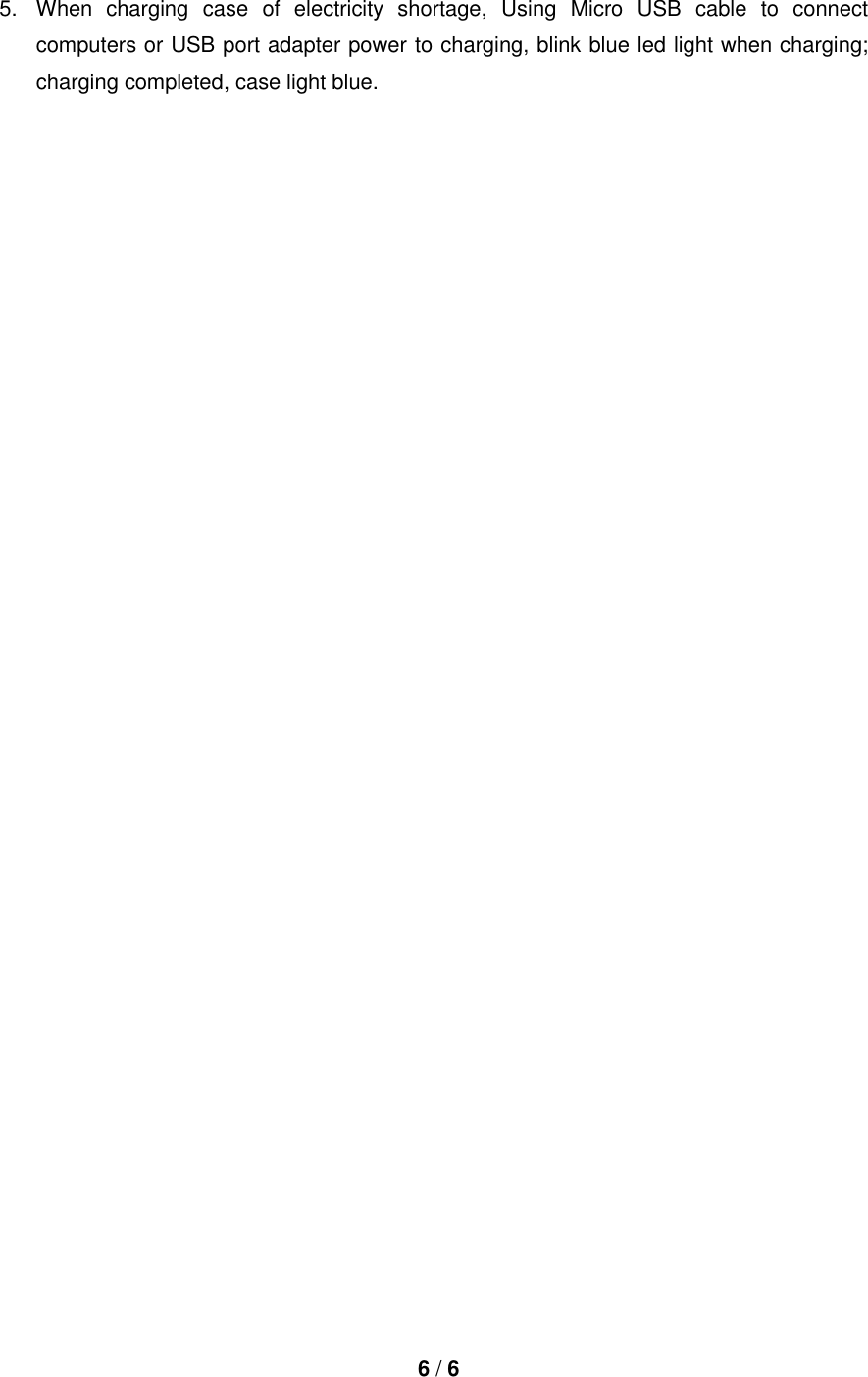

 6 / 6  5.  When  charging  case  of  electricity  shortage,  Using  Micro  USB  cable  to  connect computers or USB port adapter power to charging, blink blue led light when charging; charging completed, case light blue.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help  Changes or modifications not expressly approved by the party responsible for compliance  could void the user's authority to operate the equipment.   This device complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions:  (1) this device may not cause harmful interference, and  (2) this device must accept any interference received,  including interference that may cause undesired operation.
