Soul Electronics SR10 RUN FREE PRO HD - Balanced Armature Sports Earphones With Bluetooth User Manual 161118 RFPHD manual EN
Soul Electronics Limited RUN FREE PRO HD - Balanced Armature Sports Earphones With Bluetooth 161118 RFPHD manual EN
User manual
Balanced Armature Sports Earphones With Bluetooth
User GUIDE
RUN FREE PRO HD
REGULAR
IN-EAR
WEARING
1. Choose the proper ear tips (Small, Medium, Large)
that fit most comfortably and snuggly inside your ears for
the ultimate secure fit and best sound quality.
Note: Medium size is installed on the earphones
2. Customize your Ear Locks (Expanded Fit, Regular Fit)
Note: Regular Fit Ear Lock is installed on the earphones.
3. Insert the earphones snuggly into your ears.
Right side ear
01
02 03

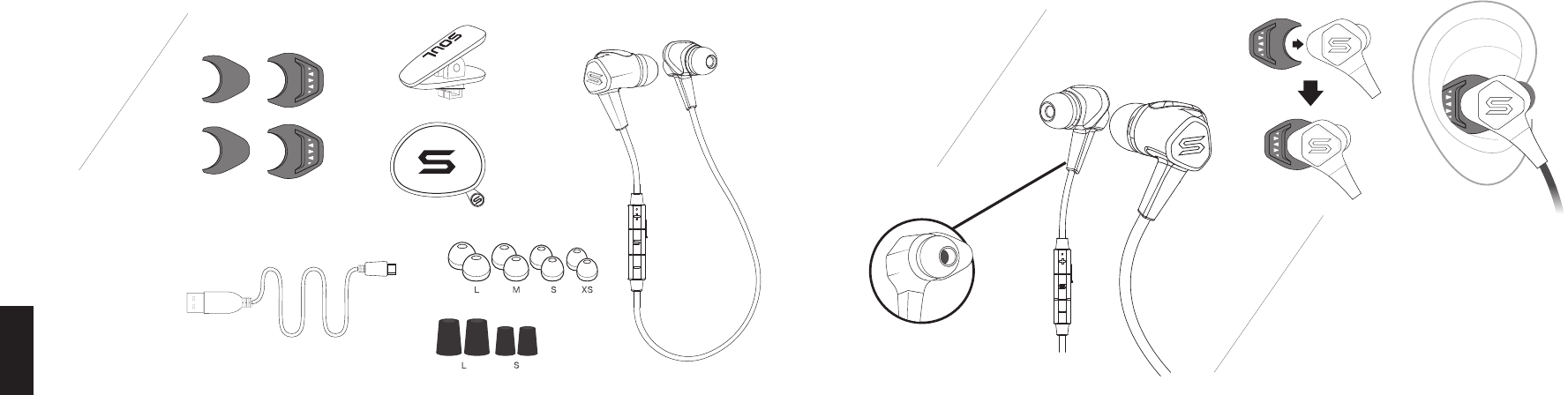

WHAT’S
IN
THE
BOX
01
01 Customizable Earlocks
02 USB Charging Cable
03 Cable Clip
04 Carrying Case
05 Exchangeable Ear Tips
06 Foam Ear Tips
05
06
02
03
04
06
Regular Expanded
RUN FREE PRO HD
Earphones
ENGLISH

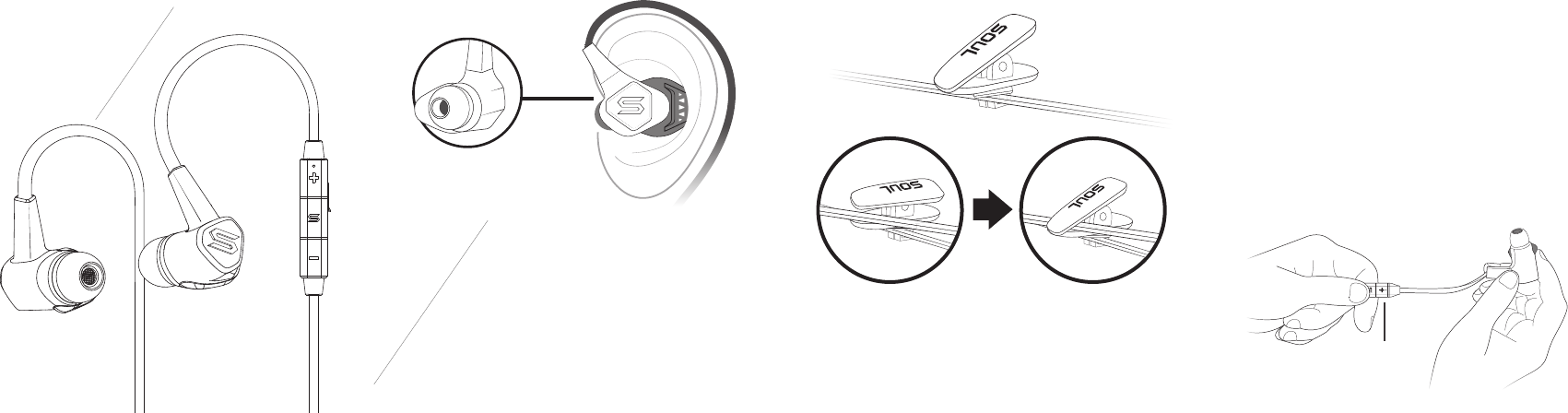

OVER-EAR
WEARING
(Optional for
Training)
NOTE: Over-ear wearing option is not designed for calls.
Enjoy your music with the cord behind your neck while
you train!
1. Choose the proper ear tips.
2. Customize your Ear Locks (Expanded Fit, Regular Fit)
Note: Regular Fit Ear Lock is installed on the earphones.
3. Reverse the earphones before inserting into your ears.
Left side ear
PAIRING
TIP: The cable will be longer in this wearing option. You can use the clip to
shorten the cable so it won’t interfere your training. Blue / Red
LED light
1. In the “OFF” position. Turn “ON” pairing mode by pressing and holding
the center button on the remote for 5 seconds until the Blue/Red LED light
starts to flash on the earphones.
2. On your phone/music devices, turn Bluetooth on.
It should start searching for devices.
3. Find “SOUL RUN FREE PRO HD” and select
(You may need to enter passcode 0000 if prompted)
4. Voice prompt or beeping sound will indicate that the
RUN FREE PRO HD is connected.
5. If pairing fails, turn off the earphones by pressing on the center
button for 5 seconds then repeat the process.
(You may also see your phone/music devices instructions for more information)
R
SPECIFICATIONS
Bluetooth Version:
V4.1 + EDR with Apt-X decoder support
Profile:
A2DP, AVRCP, HSP, and HFP.
Range:
10 meters (33 feet)
Charging time (Full charge):
Approx. 2 hours
Working time:
up to 12 hours (Varies by volume and content)
Standby time:
up to 12 days
Dimensions:
17H x 19W x 32D (mm) earphone size, 580mm cord length
Weight:
15g
BATTERY
LIFE AND
CHARGING
1. Charging the battery prior to first
use is recommended but not required.
The RUN FREE PRO HD is pre-charged
however initial charge will vary.
2. Battery life status will be indicated at the
top right corner of your iPhone screen.
3. Low battery indicator on earphones is shown
by a Red LED light. Charge the earphone when the
flashing light turns Red.
4. When charging, Red LED light means the earphones
are being charged. A Blue LED light means the earphones
are fully charged.
AUTO
PAIRING
MODE

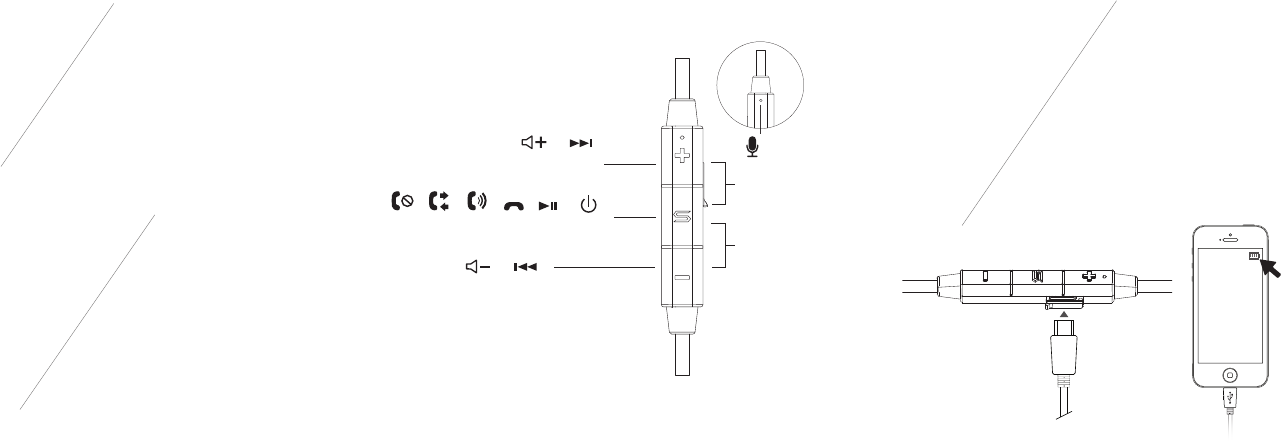

REMOTE
MIC
CONTROLS
1. Paired devices will remember each other
unless pairing information is deleted.
2. After initial pairing, simply press the center
button for 3 seconds and the earphones will be
paired with the phone/music device automatically.
3. To pair a new phone/music device, go into Bluetooth
settings on your phone/music device, delete paired device
and repeat the “PAIRING” instructions above.
MULTIPOINT
(PAIRING WITH MORE
THAN ONE DEVICE)
1. With SOUL multipoint technology,
you can pair and connect up to two
Bluetooth devices to your earphones.
2. The headset must be in standby mode
(Not connected with any device or phone)
3. To turn on, user can press the volume “+” and
“Multifunction” buttons together. User will hear a
tone which indicates the activation of this feature.
4. To turn off, user can press the volume “-” and
“Multifunction” buttons together. User will hear a tone
which indicates the deactivation of this feature.
VOLUME
UP ( > 2sec )
FORWAED
TRACK
VOLUME
DOWN ( 2sec )
BACKWARD
TRACK
MIC
ON / OFFPLAY/
PAUSE
END
CALL
ANSWER
CALL
LAST
CALL
REDIAL
REFUSE
CALL
( double click )
( 2sec ) ( 3sec / 5sec )
STEP 2
STEP 1
MULTIPOINT
OFF
MULTIPOINT
ON
TIP:
* Once Multipoint is on, please be sure to repeat
“PAIRING” instructions for both phones/devices.
**Please make sure the multipoint function is off
when not connected to 2 phones/devices.

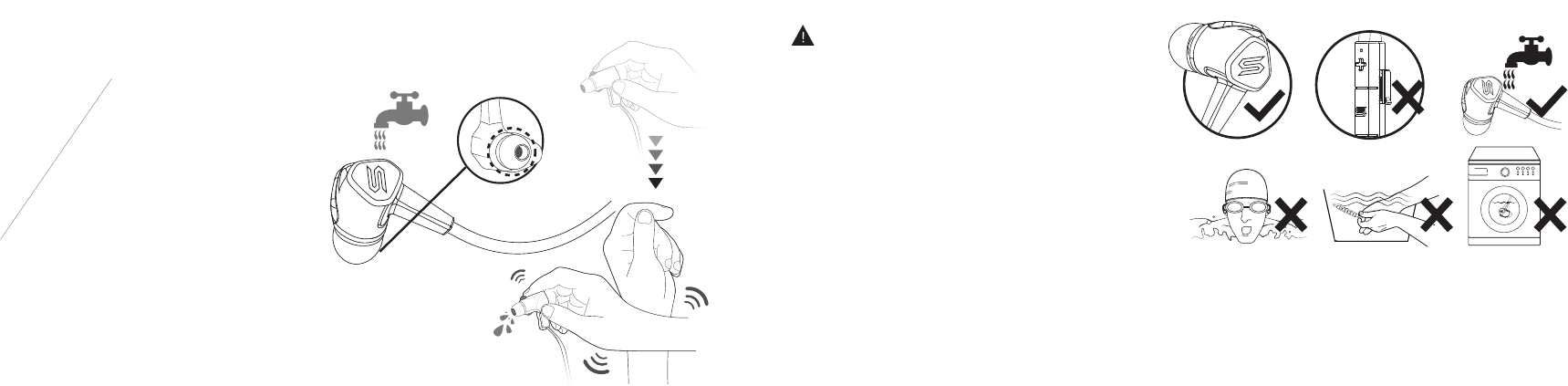

WATER/
SWEAT
PROOF
1. The earphone unit is not
completely waterproof where the
sound is output. Sound may become
muffled if water gets inside.
2. When this happens, hold the earphones
as shown and pat 10-20 times to remove the
water. Place a dry cloth underneath the
earphones for 2-3 hours.
Please ensure the USB battery door is completely
closed and locked securely before cleaning.
WARNING
DO NOT WASH THE EARPHONES WHEN THE USB BATTERY
DOOR IS OPENED OR LOOSE
DO NOT use alcohol, paint thinners, detergent, shampoo, or other
solvents for cleaning purposes.
DO NOT intentionally immerse the earphones under water.
DO NOT wear the earphones to swim.
DO NOT wash the earphones in washing machine.
NOTE: The Remote Control Microphone is only water resistant to a degree
equivalent to IPX2 drip-proof specification. Do not wash them in running water
in the same way as you would wash the earphone unit.
CONNECT AND GET LISTENING !
01 02
NOTE:
1. Sweat resistance performance of your earphones is based on measurements
stated in this manual. Malfunctions as a result by misuse by the customer are not
covered by the warranty.
2. It is recommended to dry off the device for 24 hours in a dry environment before
charging after exposure to water or sweat.
Compliance with FCC rules (U.S.A., only)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning
Changes or modifications to this unit not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Join #SOULNATION
Please follow us on our social media platforms for news and updates !
Soul Electronics
Soul Electronics
@Soulelectronics
SR10-UG-ML-1 www.soulelectronics.com
