Users Manual
Rev0
SoundBar
Model:HR917
Manufacturer:SoundCrushCompanyLimited
OPERATINGINSTRUCTIONS
PLEASEREADTHISUSERMANUALCOMPLETELYBEFORE
OPERATINGTHISUNITANDRETAINTHISBOOKLETFOR
FUTUREREFERENCE.
Box Contents:
1 x Sound Bar 1 x AC adaptor 1 x Optical cable 1 x RCA cable
1 x Users manual 1 x AUX cable,
Layout of operation buttons and connections
Power button
Mode
Volume +
Play/Pause
Volume -
AUX / RCA / USB PLAY / OPTICAL mode indicator
Rev0
Power on
Plug in the adapter and connect to electric outlet, press power button to turn on the unit.
Blue LED light is on and blinks when the unit goes into Bluetooth mode as default.
Power off
Press power button to turn off the unit, blue LED light turns off.
AUX-IN
RCA port
DC-IN
USB port
OPTICAL
NFC
Rev0
Volume +/-, PREVIOUS, NEXT
long press”volume +/-
“to adjust volume, short press”volume +”to go to next song, shot press”volume –
“to go to previous song
Pair SoundBar with other Bluetooth enabled devices
1. Turn on the unit, the power button LED (in front of the grill) blinks indicating it is searching
Bluetooth devices.
2. Activate the Bluetooth function on your mobile devices, search and select SB01 in the
Bluetooth device list.
3. After successful paired, select "SB01" in the Bluetooth device list, and press connect.
4. LED turns to solid blue indicating the speaker is paired with your device via Bluetooth.
Pair SB01 via NFC function with NFC enabled devices
1. Power ON the unit
2. Enable NFC and Bluetooth on your phone(NFC settings may be found under your devices'
"More/Additional Settings")
3.Lightly swipe your phone down the NFC logo on top of device, while making minimal contact. The
indicator shall turns solid ON that means successfully paired.
AUX-in
1. Press power button to power on the unit.
2. Press mode button to switch mode: Bluetooth>AUX
3. Connect SB01 with music device via AUX cable.
4. Play music from your music devices.
RCA
1.Press power button to power on the unit
2. Press mode button to switch mode: Bluetooth> AUX > RCA
3. Connect SB01 with music device via RCA cable.
4. Play music from your music devices.
USB PLAY
1.Press power button to power on the unit
2. Press mode button to switch mode: Bluetooth> AUX > RCA >USB PLAY
3. Connect SB01 with music device via USB cable.
Rev0
4. Play music from your music devices.
OPTICAL
1.Press power button to power on the unit
2. Press mode button to switch mode: Bluetooth> AUX > RCA >USB PLAY> OPTICAL
3. Play music from your music devices.
P.S. SB01 goes to last mode you were playing automatically after restart.

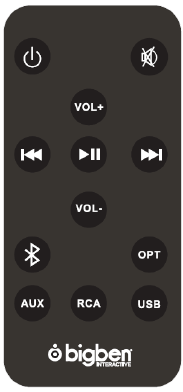

Remote Control
You can also operate via remote control according to instruction above.
Specifications
Multimedia wireless Soundbar 2.0
Output power: 30W RMS
Speaker driver: 2"x 4
Power supply by ac 100~240v ac adapter
TROUBLE SHOTTING / Q & A
Q1: If the pairing is not successful?
A1: Turn of the speaker and turn on again, then repair again.
Q2: The sound is low or completely silent.
A2: Make sure the connection (either Bluetooth or AUX) is fully functioning and secure.
If you are using the AUX port check the cable is connected properly.
Check the speaker and audio device volume and that an audible music track is playing.
Q3: My device cannot find the speaker
A3: Ensure the Bluetooth is on and not hidden on your audio device and that the speaker is
not paired to another device.
Rev0
FCCWarning:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer
could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
