Sound Crush V9 Bluetooth Speaker User Manual
Sound Crush Company Limited Bluetooth Speaker
User Manual
BluetoothSpeaker
Model:V9
TradeMark:
Manufacturer:SoundCrushCompanyLimited
- Read all instructions carefully before use.
- Retain manuals for future reference.
- Refer all servicing to qualified service personnel.
- Servicing is required when the apparatus has been damaged in any way: such as liquid has
been spilled or objects haven fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped. Don't attempt to service
this product yourself. Opening or removing covers may expose you to dangerous voltages or
other hazards.
- Only use attachments/accessories specified by the manufacturer.
- Only use a water-dampened soft-cloth to clean the surface of this product.
- The following will damage this product: extreme heat; cold.
- It is recommended to thoroughly charge electronic devices for the first time overnight.
Subsequent charges can be as needed. During charging, or extended use, the product may
become warm.
- Use proper power sources – Plug the product into a proper power source, as described in
operation instructions or as marked on product.
- Un-authorized attempts to dismantle or repair this product will void product warranty.
- Using this device near other electronic devices may cause interference.
- Do not use this product in electrical storms.
N/A
Whats in the box
1 x V9 Bluetooth speaker 1 x Micro USB charge cable 1 x Carry Bag
1 x Users manual 1 x AUX cable
Charging the V9 (3.7V rechargeable battery built-in)
1- Turn off V9 before charging
2- Connect V9 with PC/Laptop/Mac or any 5V USB adaptor(not included) with the USB cable
included
3- Red LED turns ON during charging, turns OFF after fully charged.
4- Unplug USB cable after fully charged, it costs about 2 hours to fully charge the speaker.
5- Red LED twinkles when low power(<21%), with indication sound.
Turn ON/OFF V9 Bluetooth speaker
1- Hold the Power button for 3 seconds to turn on the speaker, battery indicator and Bluetooth
indicator turn on at the same time.
2- Hold the Power button for 3 seconds to turn off.
Paring V9 with mobiles (Bluetooth enabled) and Tablets.
1- Please keep the speaker and mobile within 1 meter.
2- Turn on V9, blue/red LED blinks quickly, the speaker is standby for pairing.
3- Start the Bluetooth function of mobile and search the Bluetooth devices, after searched,
select “V9” in the Bluetooth device list.As per of the pairing process, you may need to enter a
passkey (0000) depending on Bluetooth version of devices.
4- After successful pairing, select “V9” in the Bluetooth device list, and press “connect”
5- After successful connecting, LED changes to solid blue.
Note:
1: If the pairing is not successful, turn off speaker and re-pair again.
2: After successful pairing, paired devices will remember each other. Unless pairing information is
deleted, no need to pair when use next time.
3: Pair with new device according to steps 1-5 above after disconnecting existing pair.
Paring V9 with iPhone, iPad
1- Please keep V9 and iPhone (iPad) in the range of 1 meter when pairing.
2- Turn on V9, blue/red LED blinks quickly, the unit is standby for pairing.
3- In iPhone (iPad) General > Bluetooth, tap on Bluetooth function, and search the Bluetooth
devices, tap V9 to connect it.
Paring V9 with PC or notebook
1- Please keep V9 and PC in the range of 1 meter when pairing.
2- Turn on V9, blue/red LED blinks quickly, the unit is standby for pairing.
3- Run Bluetooth program of your system.
4- Please use “Search new device” function in the program.
5- Your system should find V9 on your dialog, then double click the icon to confirm the program
should show the connection has been made. As per of the pairing process, you may need to
enter a passkey (0000) depending on Bluetooth version of devices.
Pairing V9 with Mac OS X 10 or above
1- Please keep V9 and Mac in the range of 1 meter when pairing.
2- Turn on V9, blue/red LED blinks quickly, the unit is standby for pairing.
3- Pair it with Mac – choose setup Bluetooth Device from the Bluetooth status menu in the
menu bar, and follow the onscreen instructions to pair with the speaker. If the Bluetooth
status menu is not available, open Bluetooth Preference and select the “Show Bluetooth
status in the menu bar” checkbox. As per of the pairing process, you may need to enter a
passkey (0000) depending on Bluetooth version of devices.
4- Open System Preferences and click Sound.
5- Click Output and select the Bluetooth speaker.
6- Click Input and select your speaker. Adjust the Input and Output volume.
Re-connecting to a paired device
Every time V9 is turned on, it has one of 2 conditions as below
1- connect to last connected devices automatically, then just start music playback.
2- be listed in the screen of devices as a output channel, then please select V9 as output
channel and play music.

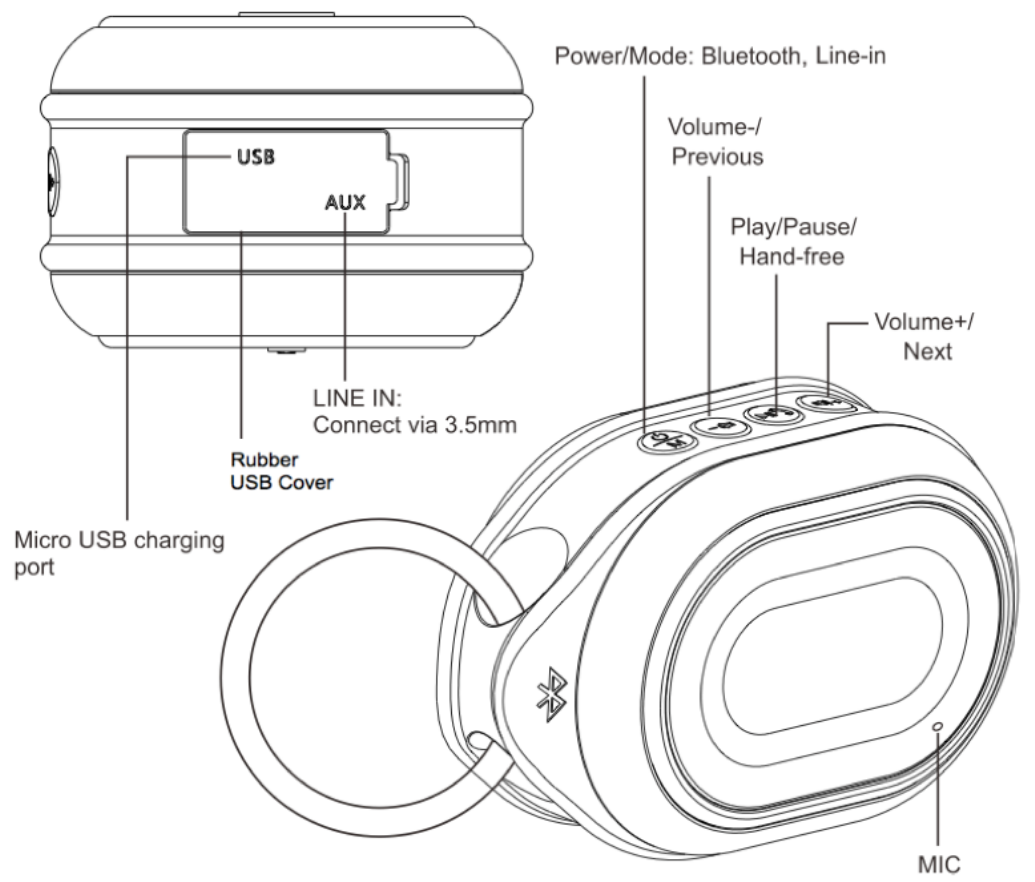

Press MODE button to switch between below modes
1- Bluetooth, play music wirelessly.
2- Line-in, connect V9 with other music devices via the 3.5mm cable supplied.
Hand-free – where have a coming call
1- Short press “Hand-free” to answer phone call, short press again to end a call.
2- Hold “Hand-free” button to reject coming call.
Play/Pause, Volume +/-
1- Short press Play/Pause to pause, press again to play
2- Short press Volume +/- to go to next/previous song, long press Volume+/- to turn up/down
volume.
LINE-in
1- You can connect AUX port to any music devices via the AUX cable included.
2- Then play music through the devices connected.
Water-Resistant
1- V9 is compliant with IPX4 waterproof standard “splash proof in all directions”
2- Neither put V9 under jet-water nor sink into water.
Specifications (subject to be changed without prenotice)
Produce Name: Waterproof Portable Bluetooth Speaker
Model No.: V9
Input: DC 5V
Battery: 3.7V 800mAh
Power output: RMS 3W x 1
Bluetooth profile: A2DP, AVRCP
Wireless transmission: 10 meters.
TROUBLE SHOTTING / Q & A
Q1: If the pairing is not successful?
A1: Turn of the speaker and turn on again, then repair again.
Q2: The sound is low or completely silent.
A2: Make sure the connection (either Bluetooth or AUX) is fully functioning and secure.
If you are using the AUX port check the cable is connected properly.
Check the speaker and audio device volume and that an audible music track is playing.
Q3: My device cannot find the speaker
A3: Ensure the Bluetooth is on and not hidden on your audio device and that the speaker is
not paired to another device.
Q4: The person on the other end of my call cannot hear me or I cannot hear them.
A4: Make sure the volume is turned up on both the speaker and phone.
Make sure there is no obstruction to the microphone (which is positioned in the front behind
the speaker grille)
Disposal information:
The symbol on the product or its packaging indicates that this product may not be treated as
household waste. Instead it should be handed over to the applicable collection point for the
recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For more detailed
information about recycling this product, please contact your local council office, your household
waste disposal service or the shop where the product was purchased.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
o Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your
authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
