Users Manual

JCV2015BT

AM/FM/RBDS/WB/CD/USB/AUX-IN/BT/iPod Ready/CAN-BUS/SiriusXM Ready Heavy Duty Radio

Installation and Operation Manual

JCV2015BT

CONTENTS

Introduction ............................................................................................................................... 1

Safety Information .................................................................................................................... 2

Installation ................................................................................................................................ 3

Wiring ....................................................................................................................................... 5

Basic Operation ........................................................................................................................ 6

Tuner Operation........................................................................................................................ 9

CD/MP3/USB Playback ........................................................................................................... 11

Satellite Radio Operation ........................................................................................................ 12

iPod® Operation ...................................................................................................................... 15

Bluetooth Operation ................................................................................................................ 16

CANBUS Features.................................................................................................................. 17

Care and Maintenance ........................................................................................................... 18

Troubleshooting ...................................................................................................................... 18

Specifications ......................................................................................................................... 19

Copyrights and Trademarks

Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its

subsidiaries. Visit www.siriusxm.com/xmlineup for updates. All programming/channel lineup/ XM

service subject to change or preemption. All other marks and logos are the property of their

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to

connect specifically to iPod or iPhone respectively, and has been certified by the developer to

meet Apple performance standards. Apple is not responsible for the operation of this device or

its compliance with safety and regulatory standards. Please note that the use of this accessory

with iPod or iPhone may affect wireless performance.

JCV2015BT

INTRODUCTION

System Features

Features of Jensen JCV2015BT mobile audio system include:

 Full Dot Matrix LCD

 AM/FM US/EURO Tuner with 30 Presets (12AM, 18FM)

 RBDS (Radio Broadcast Data Service) with PTY Search

 Sirius XM Radio Ready

 Single In-Dash CD Player with MP3/WMA Playback Capability

 USB Playback of MP3 and WMA files

 iPod Ready (USB Interface)

 Weatherband Tuner with SAME Technology

 Mute

 Bluetooth (Supports A2DP, AVRCP and HFP)

 Hands Free Protocol feature with optional microphone (sold separately)

 Pre-set Equalizer – 5 settings (User, Flat, Pop, Classical, Rock)

 Electronic Bass, Treble, Balance and Fader Controls

 Output Power 45W x 4

 Clock 12/24 Hour Selectable

 IR Wireless Remote Control Ready (sold separately)

 2-Channel Pre-amp Line Level Outputs

 3-Wire Power with Non-Volatile Memory and Clock/Time support

 Auxiliary Audio Input (Front 3.5mm Stereo Jack, Rear Low Level Input)

 Display & Key Illumination Color (Green & Amber)

 Alarm Timer

 Sleep Timer 1 hour (15 minute increments)

 Steering Wheel Control

 Park Lights

 Illumination Dimming Input Lead

 CANBUS Connectivity

Content List

 Jensen Heavy Duty Radio

 Hardware Kit

 Quick Reference Guide

HARDWARE KIT CONTENTS

DIN SLEEVE

REMOVAL TOOL

FLANGE NUTS

MOUNTING SCREW

MOUNTING STRAP

MOUNTING BUSHING

JCV2015BT

SAFETY INFORMATION

When Driving

Keep the volume level low enough to be aware of the road and traffic conditions.

When Washing Your Vehicle

Do not expose the product to water or excessive moisture. Moisture can cause electrical shorts,

fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the

interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC negative ground battery system.

Protect the Disc Mechanism

Avoid inserting any foreign objects into the disc slot. Misuse may cause malfunction or

permanent damage due to the precise mechanism of this unit.

CAUTION:

THIS MOBILE CD PLAYER IS A CLASS I LASER PRODUCT THAT USES A VISIBLE/

INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF

IMPROPERLY DIRECTED. BE SURE TO OPERATE THE MOBILE CD PLAYER AS

INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

DISC NOTES

Depending on the recording status, conditions of the disc, and the equipment used for recording,

some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please adhere to

the following recommendations:

 Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.

 Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.

 Do not play a CD-RW which has been written more than 5 times.

Compatible Disc Types

Table 1: General Disc Information

Disc Type

Logo

Diameter/

Playable Sides

Playback Time

Audio CD

12cm single side

74 minutes

NOTE: CD-R and CD-RW discs will not play unless the recording session is closed and

the CD is finalized.

Disc Maintenance

 A dirty or defective disc may cause sound dropouts while playing. Before playing, wipe the

disc using a clean cloth, working from the center hole towards the outside edge. Never

use benzene, thinners, cleaning fluids, anti-static liquids or any other solvent.

 Be sure to use only round CDs for this unit and do not use any special shape CDs. Use of

special shape CDs may cause the unit to malfunction.

 Do not stick paper or tape on the disc. Do not use CDs with labels or stickers attached or

that have sticky residue from removed stickers.

 Do not expose discs to direct sunlight or heat sources such as hot air-ducts, or leave them

in a vehicle parked in direct sunlight where there can be a considerable rise in

temperature inside the vehicle.

NOTE: A disc may become scratched (although not enough to make it unusable)

depending on how you handle it and other conditions in the usage environment. These

scratches are not an indication of a problem with the player.

Insert label side up.

Do not bend.

Never touch the

underside of the disc.

Wipe clean from this

center to the edge.

JCV2015BT

INSTALLATION

This unit is designed for installation in vehicle cabs with an existing 1-DIN radio opening. In

many cases, a special installation kit will be required to mount the radio to the dashboard. See

the dealer where the radio was purchased for kit availability. Always check the kit application

before purchasing to make sure the kit works with your vehicle.

Before you Begin

1. Disconnect Battery

Before you begin, always disconnect the battery negative terminal.

2. Remove Transport Screws

3. Choose display and backlight color.

a. Locate display color switch (see wiring diagram on page 5)

b. Slide switch to select Green or Amber color

i. Right (A) – Amber (Default)

ii. Left (G) – Green

4. Set CANBUS Terminal Setup Switch: Provides a shunt or un-shunted 120Ω connection to

allow system installation flexibility with CANBUS systems.

a. Locate CANBUS Terminal switch (see wiring diagram on page 5)

b. Slide switch to select Shunt or Un-shunt

i. Left (S) – Shunt with 120Ω Resistor – (Default)

ii. Right (U) – Un-shunt

Note: The CANBUS switch by default is in the Shunt position. This should not need to

change unless the CANBUS system is not working while radio is plugged in. If CANBUS

system is not responding, switch to Unshunt position and retest. If the CANBUS system

does respond after switching, return switch to default location and call customer service.

Important Notes

 Before final installation, test the wiring connections to make sure the unit is connected

properly and the system works.

 Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

 Consult with your nearest dealer if installation requires the drilling of holes or other

modifications to your vehicle.

 Install the unit where it does not interfere with driving and cannot injure passengers during

a sudden or emergency stop.

 If the installation angle exceeds 30° from horizontal, the unit might not give optimum

performance.

 Avoid installing the unit where it will be subjected to high temperatures from direct sunlight,

hot air, or from a heater, or subject to excessive dust, dirt or vibration.

DIN Front Mount

1. Slide the mounting sleeve off of the

chassis if it has not already been

removed. If it is locked into position,

use the removal keys (supplied) to

disengage it. The removal keys are

depicted in “Removing the Unit” on

page 4.

2. Check the dashboard opening size

by sliding the mounting sleeve into it.

If the opening is not large enough,

carefully cut or file as necessary until

the sleeve easily slides into the

opening. Do not force the sleeve into the opening or cause it to bend or bow. Check that

there will be sufficient space behind the dashboard for the radio chassis.

3. Locate the series of bend tabs along the top, bottom and sides of the mounting sleeve.

With the sleeve fully inserted into the dashboard opening, bend as many of the tabs

outward as necessary to firmly secure the sleeve to the dashboard.

4. Place the radio in front of the dashboard opening so the wiring can be brought through the

mounting sleeve.

5. Follow the wiring diagram carefully and make certain all connections are secure and

insulated with crimp connectors or electrical tape to ensure proper operation.

6. After completing the

wiring connections, turn

the unit on to confirm

operation (vehicle

accessory switch must

be on). If the unit does

not operate, recheck all

wiring until the problem is

corrected. Once proper

operation is achieved,

turn the accessory switch

off and proceed with final

mounting of the chassis.

7. Carefully slide the radio

into the mounting sleeve making sure it is right-side-up until it is fully seated and the spring

clips lock it into place.

8. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of

the chassis using the hex nut provided. Fasten the other end of the perforated strap to a

secure part of the dashboard either above or below the radio using the screw and plain

washer provided. Bend the strap, as necessary, to position it. Some vehicle installations

JCV2015BT

provide cavity for rear support. In these applications, place the rubber bushing over the

screw stud and insert.

CAUTION: The perforated rear support strap or rear rubber mounting bushing must

be used in the installation of the radio. Installation without either may result in

damage to the radio or the mounting surface and void the manufacturer’s warranty.

9. Test radio operation by referring to the operating instructions for the unit.

Removing the Unit

To remove the radio after installation,

remove the plastic end caps, insert the

removal keys straight back until they

click, and then pull the radio out. If

removal keys are inserted at an angle,

they will not lock properly to release

the unit.

Reconnect Battery

When wiring is complete, reconnect

the battery negative terminal.

JCV2015BT

WARNING!

Do not connect the +12VDC ACC switched wire to the battery. This

wire MUST be connected to the Accessory/Ignition wire or a +12 volts

switched power source.

NOTE: Pin C27, Aux 1 On/Off is a trigger to ground.

WIRING

DETAIL A

SHOWN FROM PIN VIEW

DESCRIPTION

CAN-HI

B13

FRONT LEFT + SPEAKER

C25

AUX 1 COMM

CAN-LO

B14

FRONT LEFT - SPEAKER

C26

RIGHT AUX INPUT1

PARK LIGHTS

B15

REAR LEFT + SPEAKER

C27

AUX 1 ON/OFF

+12V IGNITION

B16

REAR LEFT - SPEAKER

C28

POWER GROUND

PWR ANTENNA / REMOTE

AMP

C17

POWER GROUND

C29

NO CONNECTION

DIM (ANALOG-PWM)

C18

AMP REMOTE LINE

C30

POWER GROUND

+12V BATT

C19

RESERVED

C31

RESERVED

POWER GROUND

C20

CELL MUTE

C32

RESERVED

REAR RIGHT + SPEAKER

C21

ANALOG STEERING

WHEEL CONTROL

C33

RESERVED

B10

REAR RIGHT - SPEAKER

C22

NO CONNECTION

C34

RESERVED

B11

FRONT RIGHT + SPEAKER

C23

LEFT AUX INPUT 1

C35

LINEOUT SHIELD/GROUND

B12

FRONT RIGHT - SPEAKER

C24

AUX SHIELDED GND

C36

NO CONNECTION

MIC CONNECTOR DETAIL

SHOWN FROM PIN VIEW

DESCRIPTION

GROUND

MIC ON/OFF

GROUND

MIC AUDIO

JCV2015BT

BASIC OPERATION

Power On/Off/Radio

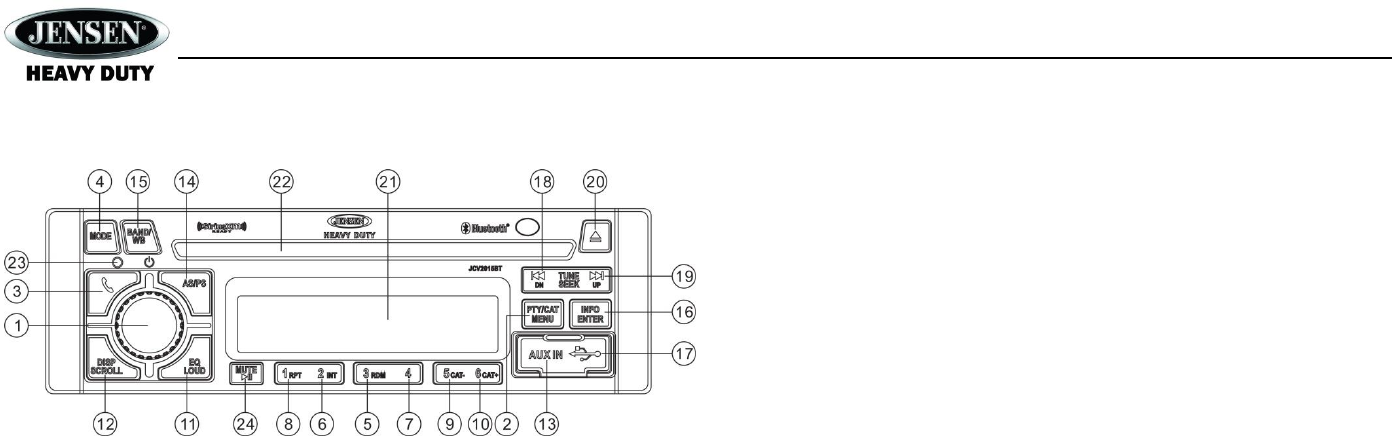

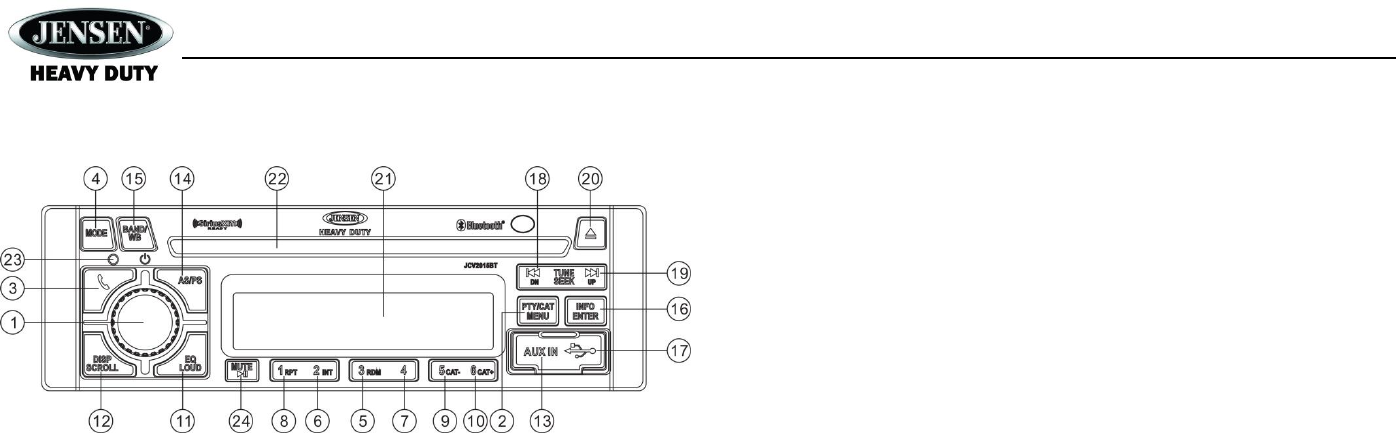

Press the rotary encoder POWER button (1) to turn the unit on or press and hold to turn off. The

unit will resume at the last mode selected (Tuner, Auxiliary, etc.).

The unit will also be able to turn on and off with ACC off. If the unit is turned on when ACC is off,

the unit will stay on for an hour. After an hour, the unit will automatically shut down. The unit can

then be turned on again by pressing the rotary encoder or turning ACC on.

Note: Setting time, sleep, battery, or alarm options will not be remembered with ACC off.

They will be seen as changed but will not be applied until set with ACC on.

Volume Control

To increase the volume, turn the rotary encoder (1) to the right. To decrease the volume, turn the

rotary encoder to the left. While adjusting the volume, the LCD displays a bar graph and

numerical representation of the level.

The maximum volume setting is 40.

Mute

Press the MUTE button (24) to mute the audio output. Press MUTE again to restore the audio

output to the previous level.

Mode

Press the MODE button (4) to select a different mode of operation, as indicated on the display

panel. Available modes include the following: Tuner (AM/FM) > SXM (SiriusXM) > iPod/USB >

CD > Auxiliary > BT Audio. Tuner is the default source when a prior source is no longer

available.

NOTE: iPod/USB, CD, or Sirius XM mode will be skipped if the device is not installed.

NOTE: SiriusXM (SXM) mode will be skipped when the Region menu option is set to

“

EURO”.

Reset

The reset button should be activated for the following reasons:

 Initial installation of the unit when all wiring is completed

 Function buttons do not operate

 Error symbol on the display

Use a ball point pen or thin metal object to press the RESET button (23). This may be necessary

should the unit display an error code.

Audio Menu

Press the POWER/AUDIO button (1) to access the audio menu. You can navigate through the

audio menu items by pressing the POWER/AUDIO button repeatedly. Once the desired menu

item appears on the display, adjust that option by turning the rotary encoder (1) within 5 seconds.

The unit will automatically exit the audio menu after five seconds of inactivity. The following

menu items can be adjusted.

Bass Level

Use the rotary encoder (1) to adjust the Bass level range from “-6” to “+6”.

Treble Level

Use the rotary encoder (1) to adjust the Treble level range from “-6” to “+6”.

Balance

Adjusting Balance controls the relative level between the left and right speakers in each pair.

JCV2015BT

Use the rotary encoder (1) to adjust the Balance between the left and right speakers from “Left

12” to “Right 12”.

Fader

Adjusting Fade controls the relative level between the front and rear speaker pairs. Use the

rotary encoder (1) to adjust the Fader between the rear and front speakers from “Rear 12” to

“Front 12”.

System Menu

1. Press and hold the PTY/CAT/MENU button (2) for more than 2 seconds to enter the

system menu. The first menu item, “Key Beep”, will appear on the display.

2. Press the TUNE/SEEK |<< / >>| (18, 19) button repeatedly to navigate the system menu.

3. Press the INFO/ENTER button (16) to select the desired item.

4. Press the INFO/ENTER button again to adjust the selected menu item.

The following items can be adjusted:

 Key Beep (On / Off): Turn the audible beep On/Off (heard when functions/buttons are

selected).

 LCD Backlight (1-10): Adjust LCD brightness.

 LCD Contrast (1-10): Adjust LCD contrast.

 Button Backlight (1-10): Adjust Button brightness.

 Set Sleep Time (off/15/30/45/60): Automatically shuts down after set time (min).

 Tuning Region (USA / EURO): Set frequency spacing for various regions.

 Power-Off Clock (Off, 1-10): Brightness setting of clock when powered off.

 Clock Format (12Hour / 24Hour): Select 12 or 24 hour display mode.

 Set Clock (HH : MM):

 Press the INFO/ENTER button (16) to view the clock set screen.

 Press the INFO/ENTER button to move to the next digit.

 Press the TUNE/SEEK |<< / >>| (18, 19) buttons to adjust the selected digit.

 Alarm Enable (Off, On): Turns alarm on or off.

 Set Alarm (HH : MM):

 Press the INFO/ENTER button (16) to view the clock set screen.

 Press the INFO/ENTER button to move to the next digit.

 Press the TUNE/SEEK |<< / >>| (18, 19) buttons to adjust the selected digit.

 Rear Aux Enable (On/Off): Turn on to allow the use of auxiliary audio input at the rear of

the radio chasis.

 Preset-Only Tuning (On / Off): Tune by presets only.

 Sirius XM Settings Menu (only appears when Sirius XM tuner is connected and in

SiriusXM mode)

 Clock Autoset (On/Off): Sets clock based on SXM data.

 Time Zone1 (Atlantic / Eastern / Central / Mountain / Pacific / Alaska)

 Daylight Saving Time (Yes/No)

 Set Lock Code: _ _ _ _

 Locked Channels: List of Channels (Locked / Unlocked)

 SXi Firmware Version

 Weather Alert Configuration

 Min Alert Level (All / None / Warnings / Watches)

 Auto-On Enable (Yes/No): Select “Enabled” to turn on the radio when NOAA alerts

are issued. This function only works when the +12V switched is on.

 Alert Volume (Select Volume Level 0-40)

 Clear SAME Codes <ENTER>

 SAME Code 1: _ _ _ _ _ _

 SAME Code 2: _ _ _ _ _ _

 SAME Code 3: _ _ _ _ _ _

 SAME Code 4: _ _ _ _ _ _

 SAME Code 5: _ _ _ _ _ _

 SAME Code 6: _ _ _ _ _ _

 SAME Code 7: _ _ _ _ _ _

 Battery Alarm (On/Off): When battery voltage is low alarm is generated.

 Battery Auto-Off (On/Off): When battery voltage reaches critical level unit automatically

shuts down

 Bluetooth Setup

 BT: On/Off

 BT HFP Volume: (Select Volume Level 0-40) Hands-free call volume.

 BT Device List <Enter>: View a list of devices paired with the unit.

• Lock

• Connect / Disconnect

• Delete

 BT Pair <Enter to enable>

 BT Auto Answer: On/Off

 Reset System Defaults <ENTER>: Press the INFO/ENTER button (16) to return the unit to

factory default set up values.

Equalizer

Press the EQ/LOUD button (11) to choose one of the following pre-defined bass and treble

curves: USER > FLAT > POP > CLASSICAL > ROCK >.

Loudness

Press and hold the EQ/LOUD button (11) to toggle loudness on/off. When listening to music at

low volumes, this feature will boost the bass and treble ranges to compensate for the

characteristics of human hearing.

JCV2015BT

Auxiliary Input

To access an auxiliary device:

1. Connect the audio player to either the AUX IN on the front panel (13) or at the rear of the

unit with the Low Level Aux leads.

a. Connecting to the front panel (13) will automatically trigger and switch to Front

Auxiliary

b. Connecting to the rear panel requires a trigger on Aux 1 On/Off wire or manually

selecting Rear Auxiliary

2. To manually select either Front or Rear Auxiliary press the MODE button (4) to select

either “Front Auxiliary” or “Rear Auxiliary”.

Liquid Crystal Display (LCD)

The current frequency and activated functions are shown on the LCD panel (21).

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for

an extended period of time. In addition, the visibility of the characters on the LCD may

decrease slightly. The LCD display will return to normal when the temperature increases

to a normal range.

Setting the Clock

To set the clock to display the current time, turn the vehicle ignition on and turn the radio on.

Enter the system menu and adjust the clock by selecting the “Set Clock” menu item.

 Press the INFO/ENTER button (16) to view the clock set screen.

 Press the INFO/ENTER button to move to the next digit.

 Press the TUNE/SEEK |<< / >>| (18, 19) buttons to adjust the selected digit.

When no adjustment is made for five seconds, the time will become set and normal operation

will resume.

Scroll

When the information is too long to be displayed on the LCD, press the DISP/SCROLL button

(12) to view the entire title. The information will scroll twice and then return to abbreviated text.

JCV2015BT

TUNER OPERATION

Select a Band

Press the BAND/WB button (15) to change between three FM bands and two AM bands.

Press and hold the BAND/WB button to access the Weatherband (WB).

Manual Tuning

Press the TUNE/SEEK |<< or >>| buttons (19, 18) to seek stations up/down step by step.

Auto Seek Tuning

Press and hold the TUNE/SEEK |<< or >>| buttons (19, 18) to automatically seek the next or

previous strong station.

NOTE: Seek tuning is not available for weather band channels. Use the up or down tuning

buttons to manually select any of the seven available weather band channels.

Preset Stations

Six numbered preset buttons store and recall stations for each band.

Store a Station

Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two

seconds. The preset number will appear on the LCD.

Recall a Station

Select a band (if needed). Press a preset button (5-10) to select the corresponding stored

station.

NOTE: Preset buttons are pre-assigned frequencies in weather band mode.

Automatically Store / Preset Scan (AS/PS)

Automatically Store

Select an AM or FM band. Press and hold the AS/PS button (14) for more than 2 seconds to

automatically select 18 strong stations (12 for AM). “Storing Presets” appears on the screen and

the new stations replace any stations already stored.

Preset Scan

Select a band. Press AS/PS (14) to scan stations stored in the current band. The unit will pause

for 5 seconds at each preset station. Press AS/PS again to stop scanning when the desired

station is reached.

RBDS Operation

This unit is equipped to display RBDS (Radio Broadcast Data Service) information when

broadcast by the radio station.

NOTE: Radio stations broadcasting RBDS may not be available in your listening area.

In FM radio mode, press the PTY/CAT/MENU button (2) to list the following Program Type

(PTY) options: ANY / News / Information / Sports / Talk / Rock / Classic Rock / Adult Hits / Soft

Rock / Top 40 / Country / Oldies / Soft / Nostalgia / Jazz / Classical / Rhythm and Blues / Soft

Rhythm & Blues / Foreign Language / Religious Music / Religious Talk / Personality / Public /

College / Weather / Emergency Test / EMERGENCY!!

To search for stations in a PTY category:

1. Press the PTY/CAT/MENU button (2) to view the current PTY category.

2. Press the TUNE/SEEK >>| or |<< buttons (19, 18) to move through the list of available

categories and select the program type you wish to search.

3. After selecting the desired PTY, press the INFO/ENTER button (16) to search the band for

broadcasts of this type. “PTY Search” is displayed while the tuner is searching.

NOTE: Performing a PTY search on “ANY” will Seek Tune and stop on any station

broadcasting RBDS, regardless of the program type.

JCV2015BT

Weather Band Operation

What is the NOAA Weather Radio/Weatheradio Canada?

NOAA (National Oceanic and Atmospheric Administration) is a nationwide system that

broadcasts local weather emergency information 24 hours a day via the National Weather

Service (NWS) network. The U.S. network has more than 530 stations covering the 50 states as

well as the adjacent costal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific

Territories. Each local area has its own transmitting station and there are a total of seven

broadcasting frequencies used. A similar system is available in Canada under the Weatheradio

Canada service administered by Environment Canada.

Tuning to Weatherband

Press and hold the BAND/WB button (15) to access the Weatherband. The indication "WB" will

appear on the display panel, along with the current number and channel indication: "WB-1",

WB-2", "WB-3", "WB-4", "WB-5", "WB-6" or "WB-7". The seven frequencies are shown in the

following table:

Table 2: WB Frequencies

Frequency (MHz)

Preset

162.400

162.425

162.450

162.475

162.500

162.525

162.550

The above table also shows which preset button will access the frequency. Note that one

frequency cannot be accessed using a preset button. The frequency can only be reached using

the tuning controls.

Use the TUNE/SEEK |<< or >>| buttons (19, 18) or the preset buttons to tune to each of the

seven channels until you find the weatherband station broadcasting in your area.

How many stations can I expect to receive?

Since the broadcasts are local weather and information, the transmission power is usually very

low (much less than standard AM or FM stations) so you will usually receive only one station

unless you are on the edge of two or more broadcast signals. The most you will receive will be

two or three, and that is rare.

Is it possible I won't receive any stations?

Depending on where you are located, there is a possibility you will receive only a very weak

signal or none at all. Also, similar to AM and FM signals, weatherband signals are subject to

surrounding conditions, weather, obstructions of the signal by hills or mountains, etc.

NOAA Weather Alert

The Weather Alert function adds an additional level of user safety by automatically switching

from any of the available function modes to weather band for a minimum of 60 seconds if a

NOAA warning tone (1050 Hz) is received/detected. If no additional warning tone is received for

60 seconds, the unit will switch back to the last known function mode. See “System Menu” on

page 7 to learn how to turn the WB Alert feature on.

SAME Decoding and Filtering

Specific Area Message Encoding (SAME) data is also broadcast prior to alert broadcasts.

SAME data contains information about the geographic region affected by the alert, the type of

alert, and its effective time. The geographic region included in the SAME data is called the

Geographical Area code and has the form PSSCCC where “P” represents a portion of the county,

“SS” is a two-digit state, territory, or offshore marine area identifier and “CCC” identifies the

county, province, or major metropolitan area within the state. This unit can be configured through

the system setting menu with up to seven Geographical Area codes to limit the automatic tuning

or power on functions described above.

SAME data also includes the type of alert being broadcast. This unit can be configured through

the System Setting Menu to limit the automatic tuning or power on functions based on the type

of alert.

SAME is activated by programming a 6 digit code - called a FIPS code - into your radio. The

FIPS code or Federal Information Processing System code is a six digit code that identifies the

states and counties (or parishes) in the United States. The first digit identifies the county

subdivision. The next two digits identify the state or territory, and the last three identify the county.

The FIPS code for your area can be found by calling the NWS toll free number or visiting the

web site.

The phone number is 1-888-NWS-SAME (1-888-697-7263). Upon calling, an automated system

will prompt you to enter your state and county. When you confirm the information, the system will

provide your six digit FIPS code.

The web site is: www.nws.noaa.gov/nwr/indexnw.htm. Upon selecting your state from the chart,

you will see a listing of all the counties in that state. For each county there is a listing of the

SAME# (FIPS code), the location of the transmitter, the WB frequency, the call sign, the

transmitter power and miscellaneous remarks.

NOTE: Because broadcast areas overlap you may want to set more than one S.A.M.E.

location. If you live near the border between counties, you may want to receive alerts

from more than one tower.

Your radio is capable of being programmed with up to 7 different FIPS location codes. The

default code has been programmed at the factory - 000000 - to respond to all messages within

your area.

JCV2015BT

CD/MP3/USB PLAYBACK

Digital File Playback

If the user inserts a data disc or connects a USB mass storage device, the radio automatically

powers on, if necessary, and switches to digital file playback mode and selects that physical

media. The bottom left corner of the LCD displays the name of the source. Changing modes or

turning off the radio pauses playback. Playback will resume exactly where paused when

returning to digital file playback mode.

Inserting and Ejecting a Disc

Insert a disc, label-side up, into the disc slot (22). The unit will automatically draw the disc in and

play the first track on the disc, whether the power was turned on or not.

Press the eject ▲ button (20) to stop disc play and eject the disc. The unit does not have to be

on to eject the disc. Disc will retract if not removed.

Inserting a USB Device

The USB connector (17) is at the bottom right corner of the panel, behind a protective rubber

cover. Pull gently to lower the rubber cover and reveal the USB sloe. Insert a USB device to

switch to USB mode and begin playback.

Controlling File Playback

Selecting Tracks

Press the TUNE/SEEK >>| (19) or TUNE/SEEK |<< button (18) to advance to the next track/

file. The selected track number will appear on the display. Press and hold the TUNE/SEEK >>|

or |<< button to fast forward or fast reverse. Playback begins when the button is released.

Play/Pause Disc Playback

Press the MUTE/>|| button (24) to suspend playback. “Pause” is displayed on the screen.

Press the MUTE/>|| button again to resume play.

Previewing Tracks

Press the 2/INT button (6) to play the first 10 seconds of each track in the current folder

sequentially. Press 2/INT again to stop Intro Scan and resume normal play at the current track.

Repeat Play

 Press the 1/RPT button (8) during disc play to repeat the current track.

 Press 1/RPT again to stop repeat play.

Random Play

 Press the 3/RDM button (5) during disc play to play all tracks in the current folder in

random, shuffled order.

 Press 3/RDM again to stop random play.

Folder Navigation (MP3 Only)

 Press the PTY/CAT/MENU button (2) to view a list of all songs in the current folder.

 Press the >>| / UP (19) and |<< / DN (18) buttons to navigate the list.

 Press the INFO/ENTER button (16) to play the highlighted song or view files in the

elected folder. Continue pressing INFO/ENTER until the desired file is selected.

 Press the PTY/CAT/MENU button again to navigate up through the file structure.

The unit will automatically exit the folder navigation menu after 5 seconds of inactivity.

MP3 Specifications

Notes on MP3 Playback

 Any directory that does not include an MP3 file is skipped

 Maximum number of folders: 512 (including skipped directories)

 Maximum number of folder levels: 12

 Maximum number of MP3 files: 999

 Maximum number of characters for MP3 file name and folder name: 32

 Maximum number of Characters of ID3 Tag:

 ID3 Tag version 1.0: 32

 ID3 Tag version 2.x: 32

File Playing Order

Files will be continually played sequentially within the current folder. To play songs in another

folder, press the PTY/CAT/MENU button (2) twice to move up a folder level. Press the >>| / UP

(19) and |<< / DN (18) buttons to navigate the list and then press the INFO/ENTER button (16)

to access the selected song or folder.

You may be able to set the order in which MP3/WMA are to be played by writing them onto a

medium such as a CD-R with their file names beginning with play sequence numbers such as

"01" to "99".

JCV2015BT

SATELLITE RADIO OPERATION

About SiriusXM

Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140

channels, including commercial-free music plus the best sports, news, talk, comedy and

entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and

Subscription are required. For more information, visit www.siriusxm.com in the US or

www.siriusxm.ca in Canada.

Switching to SiriusXM

(Requires optional SiriusXM tuner)

Press the MODE button (4) to change the mode to SiriusXM mode.

Accessing your SiriusXM ID

To display your SiriusXM radio ID, use the TUNE/SEEK |<< button to tune to channel “000”.

The screen will display “Radio ID” with the ID displayed in the middle of the LCD screen. The

SiriusXM radio ID is 8 characters long.

Selecting a Band

In SiriusXM mode, press the BAND/WB button (15) to access the SiriusXM user-preset channel

groups in the following order: SXM1, SXM2, SXM3.

Category Tuning

1. Press the PTY/CAT/MENU button (2) to access Category mode.

2. While in category mode, press 5/CAT- OR 6/CAT+ buttons (9, 10) to choose a category.

3. Press the TUNE/SEEK |<< / >>| buttons (18, 19) to navigate channels in that category.

(The current channel number within the chosen category will always be the default first

channel tuned.)

4. Press the INFO/ENTER button (16) to select the desired channel.

Channel Up/Down Tuning

Press the TUNE/SEEK |<< / >>| buttons (18, 19) to search for a channel. Press and hold the

TUNE/SEEK buttons to fast search.

Direct Tuning Mode

1. Press and hold the INFO/ENTER button (16) to enter direct tuning mode.

2. Press TUNE/SEEK |<< / >>| buttons (18, 19) to change the first of three digits for the

desired channel in the direct entry screen.

3. Press the INFO/ENTER button to confirm the entered digit and move to the second digit

field.

4. Press TUNE/SEEK |<< / >>| buttons to select the second digit.

5. Press the INFO/ENTER button to confirm the entered digit and move to the third digit field.

6. Press TUNE/SEEK |<< / >>| buttons to select the third digit.

7. Press the INFO/ENTER button to confirm the three digit channel and tune to the selected

channel.

Storing Preset Channels

The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your

favorite channels.

Programming Channels

1. Select the channel you want to store in memory.

2. Press and hold a preset button (5-10) until the corresponding preset button number

appears.

3. Repeat steps 1 and 2 to program additional channels.

Preset Recall

Press one of the six preset buttons (5-10) to directly select a preset channel stored in the current

band.

Preset Scan

Press AS/PS button (14) to scan stations stored in all three user-preset channel groups (SXM1,

SXM2 and SXM3). The unit will pause for 10 seconds at each preset station.

Preset Tuning

In Preset Tuning Mode, you can use the TUNE/SEEK |<< / >>| buttons (18, 19) to access all

18 preset stations in sequential order. Access preset tuning mode through the system menu.

Set Preset-Only Tuning to “ON.”

Alternate Display Mode

Press the DISP/SCROLL button (12) to change the display information between single and dual

line text display. In dual line mode, both artist and title are available for viewing.

Press and hold the DISP/SCROLL button to scroll the Artist/Song Title information.

While in category tuning list mode, press the DISP/SCROLL button in sequence to change the

display information from Channel Name, Artist, and Song Title.

JCV2015BT

Satellite Signal Strength

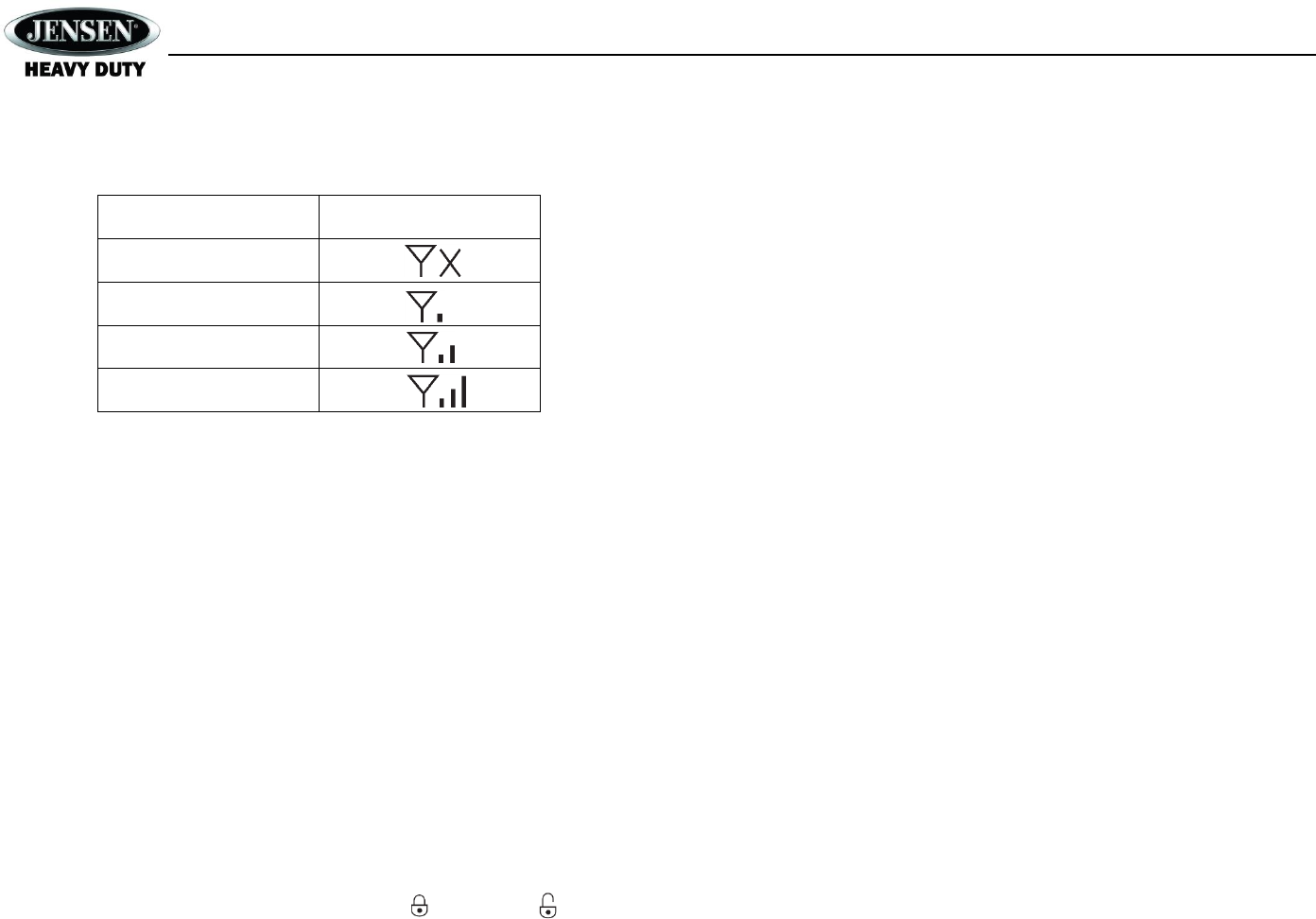

The display will indicate satellite reception strength as shown below.

Signal Strength

Strength Display

No Signal

Weak

Good

Excellent

Channel Lock

Access Channel Lock through the System Menu under the “SiriusXM Satellite Radio” menu. See

“System Menu” on page 7.

1. Select “Set Lock Code” and press the INFO/ENTER button (16).

2. Enter the default lock code of “0000”. To set the lock code:

a. Press the TUNE/SEEK |<< / >>| (18, 19) buttons to enter the first digit of the default

code.

b. Press the INFO/ENTER button to move to the next digit.

c. Repeat above steps to enter all 4 digits of the default code.

d. Press the TUNE/SEEK |<< / >>| buttons to enter the first digit of the new code.

e. Press the INFO/ENTER button to move to the next digit.

f. Repeat above steps to enter all 4 digits.

g. Repeat above steps to confirm the new code.

3. After setting a new four digit code, you can lock channels by entering the “Locked

Channels” menu.

4. Upon entering the Locked Channels list, you will be prompted to enter your four digit code.

a. Press the TUNE/SEEK |<< / >>| (18.19) buttons to enter the first digit.

b. Press the INFO/ENTER button to move to the next digit.

c. Repeat above steps to enter all 4 digits.

5. After entering the code, you can navigate the list using the TUNE/SEEK |<< / >>| buttons

to highlight the channels.

6. Press the INFO/ENTER button to Lock (indicated by a icon) or Unlock the

selected channel.

Reset SiriusXM Channel Lock Code

If you forget your Parental Control lock code, use the following directions to reset the code to the

default “0000”. Resetting the lock code will not affect the locked channels list.

1. In SiriusXM mode, tune to Channel 0

2. Set volume to 0.

3. Press and hold the volume knob to power off the unit.

4. With power off, press and hold the volume knob until the system version info is displayed

on the screen

5. Press the Preset 3 button, screen will return to the clock.

6. Press the volume knob to power on the unit.

7. The lock code has now been reset to “0000”

JCV2015BT

Advisory Messages Reported by the SiriusXM Vehicle Tuner

Table 3: SiriusXM Advisory Messages

On-Screen Display

Advisory Message

Cause

Explanation/Solution

Check Antenna

The radio has detected a fault with the SiriusXM antenna. The

antenna cable is either disconnected or damaged.

 Verify that the antenna cable is connected to the SiriusXM

Connect Vehicle Tuner.

 Inspect the antenna cable for damage and kinks. Replace the

antenna if the cable is damaged.

Check Tuner

 The radio is having difficulty communicating with the SiriusXM

Connect Vehicle Tuner.

 The tuner may be disconnected or damaged.

 Verify that the SiriusXM Connect Vehicle Tuner cable is

securely connected to the radio SiriusXM mating connector/ cable.

 If the problem persists, disconnect and reconnect the tuner and then

contact your dealer.

No signal

The SiriusXM Connect Vehicle Tuner is having difficulty receiving the

SiriusXM satellite signal.

 Verify that your vehicle is outdoors with a clear view of the southern

sky.

 Verify that the SiriusXM magnetic mount antenna is mounted on a

metal surface on the outside the vehicle.

 Move the SiriusXM antenna away from any obstructions.

 Inspect the antenna cable for damage and kinks. Replace the

antenna if the cable is damaged.

 If the problem persists, disconnect and reconnect the tuner and then

contact your dealer.

Scrolling “Subscription

Updated” – press any

key to continue”

Subscription Updated

The radio has detected a change in your SiriusXM subscription

status.

 Press ENTER to clear the message.

 No further action is required.

 Questions about your subscription in the United States please visit

www.siriusxm.com/activatenow or call SiriusXM Listener Care at

1-866-635-2349

 Questions about your subscription in Canada, please visit

www.siriusxm.ca/activatexm or call XM Listener Care at

1-877-438-96770

Chan Unavailable

Channel Not Available

The channel that you have requested is not a valid SiriusXM channel or

the channel that you were listening to is no longer available. You may

also see this message briefly when first connecting a new SiriusXM

Connect Vehicle tuner. Visit www.siriusxm.com for more information

about the SiriusXM channel lineup.

Visit www.siriusxm.com/channellineup for more information about the

SiriusXM channel lineup.

Ch Unsubscribed

Channel Not Subscribed

The channel that you have requested is not included in your SiriusXM

subscription package or the channel that you were listening to is no

longer included in your SiriusXM subscription package.

 Questions about your subscription in the United States please visit

www.siriusxm.com/activatenow or call SiriusXM Listener Care at

1-866-635-2349.

 Questions about your subscription in Canada please visit

www.siriusxm.ca/activatexm or call XM Listener Care at

1-877-438-9677.

Chan Locked

Channel Locked

The channel that you have requested is locked by the radio

Parental Control feature.

See the section on Parental Control, page 13 for more information on the

Parental Control feature and how to access locked channels.

“Enter Code?” followed

by ****

Enter Lock Code

User prompted to enter the lock/unlock code.

Enter the four digit code to play he channel

JCV2015BT

iPod® OPERATION

This unit is equipped with an iPod® ready function that will allow you to control your iPod (if

compatible) using the control panel buttons. The following models are supported:

 iPod Nano 6G, 7G

 iPod Classic

 iPod Touch 4G, 5G

 iPhone 4, 4S, 5, 5C, 5S

NOTE: Earlier model iPods are not supported because they do not implement the

required control protocol. Also, the iPod shuffle is not supported because it does not

utilize the 30-pin Apple iPod Connector. These unsupported iPod models may be

connected to the radio using one of the Auxiliary Inputs.

Accessing iPod Mode

Connect a supported iPod or iPhone to the USB

connector (17). The word “iPod” illuminates in the

upper left corner of the LCD whenever an iPod or

iPhone is attached to the USB connector. Music

playback begins automatically.

To enter iPod mode from any other source, press the

MODE button (4) until “iPod” appears on the display.

If the user connects an iPod containing no songs, the

radio will display a message stating “No Songs” when

it enters iPod mode.

Turning the iPod On/Off

The iPod power turns on automatically when an iPod is connected to the USB connector, as

long as the vehicle ignition is turned on. You can turn the iPod off by disconnecting it or by

turning the ignition off. When the ignition is turned off, the iPod will pause and then enter sleep

mode after 2 minutes. While the iPod is connected, the power cannot be turned on or off from

the iPod itself.

NOTE: The iPod will continuously recharge while in iPod playback mode.

Controlling Playback

Selecting Tracks

During playback, press the TUNE/SEEK |<< / >>| button (18, 19) to play the previous or next

track in the current category Press the TUNE/SEEK |<< button (18) once to play the song from

the start position or press TUNE/SEEK |<< twice to play the previous track. Pressing the

TUNE/SEEK |<< button (18) during the first 2 seconds of a track will play the previous track.

After 2 seconds, this action return to the beginning of the current track.

Press and hold the TUNE/SEEK |<< / >>| button (18, 19) to fast reverse/forward the song.

Pausing Playback

During playback, press the MUTE/>|| button (24) to pause playback. “Pause” will appear on the

LCD. Press MUTE/>|| again to resume playback.

Repeat Play

During playback, press the 1/RPT button (8) to repeat the current song. “RPT” will appear on

the LCD. Press 1/RPT again to stop repeat playback.

Random Play

During playback, press the 3/RDM button (5) to play all songs in the current category in random

order. Random play will begin once the current song has finished playing. “RDM” will appear on

the LCD. Press 3/RDM again to stop random playback.

NOTE: If you press and hold the TUNE/SEEK |<< or >>| button to change the current song

to the previous/next song, you will exit fast reverse/forward mode.

Playlist Search

Press the PTY/CAT/MENU button (2) to access Playlist selection mode. While in Category

mode, press the TUNE/SEEK |<< / >>| buttons (18, 19) to choose file search by Playlist, Artist,

Album, Genre, Song, Audiobook or Podcast. Press the INFO/ENTER button (16) to select the

search mode. Use the TUNE/SEEK |<< / >>| buttons to search the available files on the iPod.

Press the INFO/ENTER button to play the selected song or file.

Alternate Display Mode

Press the DISP/SCROLL button (12) to change the display information between single and

double line text display.

JCV2015BT

BLUETOOTH OPERATION

The JCV2015BT includes built-in Bluetooth technology that allows you to connect this head unit

to Bluetooth-enabled devices for streaming audio playback.

About Bluetooth Technology

Bluetooth wireless technology is a short-range wireless radio protocol. Operating in

the 2.4 GHz range, it transmits audio and data at speeds up to 2.1 Mbit/s over a

range of up to 10 meters.

Bluetooth Menu Options

NOTE: Please note that some Bluetooth menu options are only available while the unit is

in Bluetooth Audio mode.

Press and hold the PTY/CAT/MENU button (2) to enter menu adjustment mode. Press the

SEEK/TUNE buttons (18, 19) repeatedly to view the Bluetooth Setup Menu options. Press

INFO/ENTER button (16) to choose the highlighted option.

 BT ON/OFF: Press the ENTER button (16) to select "BT ON" or "BT OFF". When “On”,

the LCD will display the BT icon (default “BT ON”).

 BT HFP Volume: Press the ENTER button repeatedly to adjust the ring volume from 0-40

(default 20/previous setting).

 BT Device List: Press the ENTER button to view a list of previously paired mobile phone

device models. Press the SEEK/TUNE buttons (18, 19) to view devices from the list. You

cannot delete a device that is actively connected. Press the ENTER button to select the

device. Press the SEEK+ or SEEK- button to choose Lock/Unlock, Disconnect or Delete

for this device.

 LOCK/UNLOCK: The JCV2015BT can store up to 5 devices for BT connection. The

devices are stored in FIFO (First In First Out) order. To prevent a device from being

bumped from the list when more than 5 devices are used, you must lock the

device. To Lock/Unlock a device, press the ENTER button to display/change the

Locked or Unlocked icon.

 DISCONNECT: To disconnect a paired device, press the ENTER button to

temporarily remove the BT link. The link can be re-established through your phone

menu by selecting the JCV2015BT for connection.

 DELETE: To delete a device from the list, press the ENTER button. NOTE: Device

must be disconnected to be deleted.

 BT Pair: Press the ENTER button to turn BT Pair “On” to put the unit pairing mode to

search for and be discovered by BT devices.

 BT Auto Answer: Press the ENTER button to turn the Auto Answer function “On” or “Off”.

Pairing a Bluetooth Device

Before you begin, consult the owner’s manual for the Bluetooth device you want to pair with the

JCV2015BT.

1. Make sure the device is on and ready to receive a signal from the JCV2015BT. With the

JCV2015BT in Bluetooth Audio mode, choose “BT Pair” from the JCV2015BT menu and

press the ENTER button (16) to begin pairing. The unit is now waiting to connect to a

mobile phone device. With the BT function of the mobile device turned on, search for a

Bluetooth device.

2. When the Bluetooth device has completed its search, the mobile device will display the

Bluetooth device name (JCV2015BT).

3. Select JCV2015BT. The BT icon will appear on the radio LCD.

4. Enter the pairing password (0000), if requested.

After connecting successfully, you will be able to listen to audio from your Bluetooth enabled

device through the radio.

Bluetooth Audio (A2DP)

The A2DP music is available for Bluetooth enabled phones when the phone is connected. To

access Bluetooth mode and play songs stored in your phone, press the MODE button (4). While

in BT mode, the BT Audio icon illuminates on the LCD.

Device 1

Device 2

Device 3

Device 4

Device 5

BT Device

Press Enter

Device 1

…

Device 5

Lock/Unlock

Connect/Disconnect

Delete

Lock/Unlock

Connect/Disconnect

Delete

Press Enter

Use SEEK +/- to

Navigate the List

JCV2015BT

Selecting Tracks

During playback, press the SEEK/TUNE button (18, 19) to play the previous or next track.

Pausing Playback

During playback, press the MUTE/>|| button (24) to pause the Bluetooth audio playback. “BT

AUDIO PAUSE” will appear on the LCD. Press MUTE/>|| again to resume playback. If you

change to another mode, the mobile device audio will pause. Press the MODE button (4) to

return to BT mode and resume mobile device audio playback.

NOTE: If a Bluetooth device is disconnected due to the power being turned off or if the

device is out of range, the unit will automatically search for the matching Bluetooth

mobile device when the power is restored.

Incoming/Outgoing call

While the mobile device is connected through BT, the phone number for incoming calls will

appear on the LCD. The incoming ring will be output through the unit unless the unit is

broadcasting a Weather Band Alert or the PA system is in use.

Answer Call

If the BT Auto Answer function is turned “Off”, the user must press the button (3) to

receive and incoming call.

If the BT Auto Answer function is turned “On”, the unit will automatically receive the incoming

call after 5 seconds of ringtone.

Transfer Call

During the call, press and hold the button transfer the call between the unit and the

mobile device.

End Call

Press the button to end a call. The unit will return to the previous mode.

Reject Incoming Call

To reject an incoming call, press and hold the button.

CAN/BUS FEATURES

The JCV2015BT is able to communicate with this system to allow you to use other electronic

devices in conjunction with your radio. This includes devices such as OEM Steering Wheel

Control (SWC) functions or Rear Sleeper Accessory (RSA) audio controller.

If equipped a typical SWC module will allow you to perform basic operations like play/pause,

track up/down, volume up/down and sometimes can extend to more functions depending on the

vehicle application. These functions can be performed as stated in the manual for the SWC

module. The RSA audio controller will also allow you to perform basic operations, and the setup

is similar to the SWC module.

Possible Features (If supported by SWC or RSA):

 Play/Pause

 Track Up/Down

 Volume Up/Down

 Mode Selection

 Mute Function

 Band Controls

 Tune/Seek Up/Down

 Alarm Control

 Time Set / Display Change

 EQ and Fade settings

 Power On/Off

 Phone Volume Up/Down

 Phone Answer/End Call

 Preset Scan

JCV2015BT

CARE AND MAINTENANCE

 Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain

minerals that can corrode the electronic circuits.

 Keep the product away from dust and dirt, which can cause premature wear of parts.

 Handle the product gently and carefully. Dropping it can damage circuit boards and cases,

and can cause the product to work improperly.

 Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use

harsh chemicals, cleaning solvents, or strong detergents to clean the product.

 Use and store the product only in normal temperature environments. High temperature

can shorten the life of electronic devices, damage batteries, and distort or melt plastic

parts.

Ignition

The most common source of noise in reception is the ignition system. This is a result of the radio

being placed close to the ignition system (engine). This type of noise can be easily detected

because it will vary in intensity of pitch with the speed of the engine.

Usually, the ignition noise can be suppressed considerably by using a radio suppression type

high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ

this wire and resistor but it may be necessary to check them for correct operation.) Another

method of suppression is the use of additional noise suppressors. These can be obtained from

most CB/A radio or electronic supply shops.

Interference

Radio reception in a moving environment is very different from reception in a stationary

environment (home). It is very important to understand the difference.

AM reception will deteriorate when passing under a bridge or when passing under high voltage

lines. Although AM is subject to environmental noise, it has the ability to receive at great

distance. This is because broadcasting signals follow the curvature of the earth and are

reflected back by the upper atmosphere.

TROUBLESHOOTING

Symptom

Cause

Solution

No power

The vehicle’s accessory

switch is not on

If the power supply is properly

connected to the vehicle’s

accessory terminal, switch the

ignition key to “ACC”.

Fuse is blown

Replace the fuse.

Disc cannot be loaded or

ejected

Presence of CD disc inside

the player

Remove the disc in the player

and insert the new one.

Inserting the disc in upside

down

Insert the compact disc with the

label facing upward.

Compact disc is extremely

dirty or disc is defective

Clean the disc or try to play a new

one.

Condensation

Leave the player off for an hour or

so, then try again.

No sound

Volume too slow

Adjust volume to audible level.

Wiring is not properly

connected

Check wiring connections.

The operation keys do

not work

Control panel is not

properly installed

Reinstall control panel.

Built-in microcomputer is

not operating properly due

to noise

Press the RESET button.

Sound skips

Installation angle is more

than 30 degrees

Adjust the installation angle to

less than 30 degrees.

Disc is dirty or defective

Clean the disc and try to play

again or use a new disc.

Cannot tune to radio

station, auto-seek does

not work

Antenna cable is not

connected

Insert the antenna cable firmly.

Signals are too weak.

Select a station manually.

ERROR-01 on LCD

Database or decoder error

Change to another mode.

ERROR-02 on LCD

Disc not supported

Remove disc and insert

supported CDDA or CD-ROM

disc.

ERROR-03 on LCD

No songs on device

Remove device and add songs.

ERROR-04 on LCD

Abnormal current to USB

device

Change mode or unplug and

reconnect USB device.

ERROR-04 on LCD

iPod/iPhone is not verified

Unplug and reconnect

iPod/iPhone.

JCV2015BT

SPECIFICATIONS

Signal to Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 65 dB

Channel Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . More than 50 dB

Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Hz - 20 kHz

FM Radio

Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 107.9 MHz

Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz

Sensitivity(S/N=30dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 μV

Stereo Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dB

AM/MW

Frequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz

Frequency Range (Europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz

Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 dB

General

Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC 12 Volts

Grounding System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Negative Ground

Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8 Ω ohms per channel

Tone Controls:

Bass (at 100 Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 dB

Treble (at 10 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 dB

Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45W x 4

Idle/Standby Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 mA

Current Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Ampere Max

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175 (W) x 175 (D) x 50 (H)

FCC Notes

WARNING! Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. This transmitter with its antenna

complies with FCC RF exposure limits for general population uncontrolled exposure.

This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

ASA Electronics Corporation

www.asaelectronics.com

www.jensenheavyduty.com

v.300515

Sounding Audio JCV2015BT Heavy Duty Car Audio User Manual JCV2015BT UM

Sounding Audio Industrial Ltd. Heavy Duty Car Audio JCV2015BT UM

Users Manual

Navigation menu

Namespaces

Views

Navigation
