User Manual

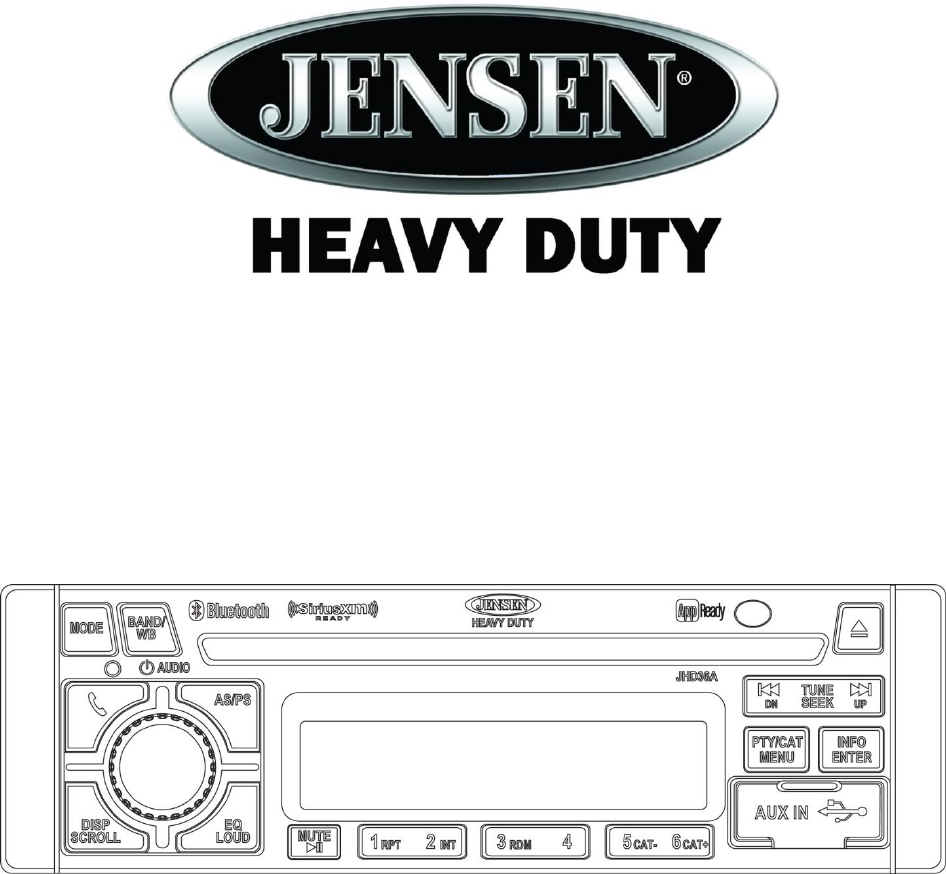

JHD36A

AM/ FM/ RBDS/ WB/ USB/ AUX-IN/ BT/ Sirius XM Ready/ APP Ready Heavy Duty Radio

Installation and Operation Manual

JHD36A

CONTENTS

Introduction ............................................................................................................................... 3

Safety Information .................................................................................................................... 4

Installation ................................................................................................................................ 5

Wiring ....................................................................................................................................... 6

Basic Operation ........................................................................................................................ 7

Tuner Operation...................................................................................................................... 10

CD/ MP3/ USB Operation ....................................................................................................... 12

SiriusXM Radio Operation ...................................................................................................... 13

iPod® Operation ...................................................................................................................... 17

Bluetooth Operation ................................................................................................................ 18

APP Operation ........................................................................................................................ 19

Care and Maintenance ........................................................................................................... 20

Troubleshooting ...................................................................................................................... 20

Specifications ......................................................................................................................... 21

JHD36A

INTRODUCTION

System Features

Features of Jensen JHD36A mobile audio system include:

 Full Dot Matrix LCD

 AM/ FM US/ EURO Tuner with 30 Presets (12AM, 18FM)

 RBDS (Radio Broadcast Data Service) with PTY Search

 Sirius XM Radio Ready

 USB Playback of MP3 and WMA files

 CD ESP (Electronic Skip Protection) 30 Sec

 iPod Ready (USB Interface)

 Weatherband Tuner with SAME Technology

 Mute

 Bluetooth (Supports A2DP, AVRCP, SPP and HFP)

 Pre-set Equalizer – 5 settings (User, Flat, Pop, Classical, Rock)

 Electronic Bass, Treble, Balance and Fader Controls

 Output Power 45W x 4

 Clock 12/ 24 Hour Selectable

 Public Announcement (PA) Feature with Optional Microphone

 IR Wireless Remote Control Ready (sold separately)

 2-Channel Pre-amp Line Level Outputs

 2- Wire Power with Non-Volatile Memory and Clock/ Time support

 Auxiliary Audio Input (Front 3.5mm Stereo Jack, Rear RCA)

 Wired Remote Control Ready(JHDHBC Sold Separately)

 APP Ready

Content List

 Jensen Heavy Duty Radio

 Hardware Kit

 Installation Manual

 Quick Reference Guide

JHD36A

SAFETY INFORMATION

When Driving

Keep the volume level low enough to be aware of the road and traffic conditions.

When Washing Your Vehicle

Do not expose the product to water or excessive moisture. Moisture can cause electrical shorts,

fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the

interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC negative ground battery system.

Protect the Disc Mechanism

Avoid inserting any foreign objects into the disc slot. Misuse may cause malfunction or

permanent damage due to the precise mechanism of this unit.

CAUTION:

THIS MOBILE CD PLAYER IS A CLASS I LASER PRODUCT THAT USES A VISIBLE/

INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF

IMPROPERLY DIRECTED. BE SURE TO OPERATE THE MOBILE CD PLAYER AS

INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

DISC NOTES

Depending on the recording status, conditions of the disc, and the equipment used for recording,

some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please adhere to

the following recommendations:

 Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.

 Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.

 Do not play a CD-RW which has been written more than 5 times.

Compatible Disc Types

Table 1: General Disc Information

Disc Type

Logo

Diameter/

Playable Sides

Playback Time

Audio CD

12cm single side

74 minutes

NOTE: CD-R and CD-RW discs will not play unless the recording session is closed and

the CD is finalized.

Disc Maintenance

 A dirty or defective disc may cause sound dropouts while playing. Before playing, wipe the

disc using a clean cloth, working from the center hole towards the outside edge. Never

use benzene, thinners, cleaning fluids, anti-static liquids or any other solvent.

 Be sure to use only round CDs for this unit and do not use any special shape CDs. Use of

special shape CDs may cause the unit to malfunction.

 Do not stick paper or tape on the disc. Do not use CDs with labels or stickers attached or

that have sticky residue from removed stickers.

 Do not expose discs to direct sunlight or heat sources such as hot air-ducts, or leave them

in a vehicle parked in direct sunlight where there can be a considerable rise in

temperature inside the vehicle.

NOTE: A disc may become scratched (although not enough to make it unusable)

depending on how you handle it and other conditions in the usage environment. These

scratches are not an indication of a problem with the player.

Insert label side up.

Do not bend.

Never touch the

underside of the disc.

Wipe clean from this

center to the edge.

JHD36A

INSTALLATION

This unit is designed for installation in vehicle cabs with an existing 1-DIN radio opening. In

many cases, a special installation kit will be required to mount the radio to the dashboard. See

the dealer where the radio was purchased for kit availability. Always check the kit application

before purchasing to make sure the kit works with your vehicle.

Before you Begin

1. Disconnect Battery

Before you begin, always disconnect the battery negative terminal.

2. Remove Transport Screws

Important Notes

 Before final installation, test the wiring connections to make sure the unit is connected

properly and the system works.

 Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

 Consult with your nearest dealer if installation requires the drilling of holes or other

modifications to your vehicle.

 Install the unit where it does not interfere with driving and cannot injure passengers during

a sudden or emergency stop.

 If the installation angle exceeds 30° from horizontal, the unit might not give optimum

performance.

 Avoid installing the unit where it will be subjected to high temperatures from direct sunlight,

hot air, or from a heater, or subject to excessive dust, dirt or vibration.

DIN Front Mount

1. Slide the mounting sleeve off of the

chassis if it has not already been

removed. If it is locked into position,

use the removal keys (supplied) to

disengage it. The removal keys are

depicted in “Removing the Unit” on

page 5.

2. Check the dashboard opening size by

sliding the mounting sleeve into it. If

the opening is not large enough,

carefully cut or files as necessary until

the sleeve easily slides into the

opening. Do not force the sleeve into the opening or cause it to bend or bow. Check that

there will be sufficient space behind the dashboard for the radio chassis.

3. Locate the series of bend tabs along the top, bottom and sides of the mounting sleeve.

With the sleeve fully inserted into the dashboard opening, bend as many of the tabs

outward as necessary to firmly secure the sleeve to the dashboard.

4. Place the radio in front of the dashboard opening so the wiring can be brought through the

mounting sleeve.

5. Follow the wiring diagram carefully and make certain all connections are secure and

insulated with crimp connectors or electrical tape to ensure proper operation.

6. After completing the

wiring connections, turn

the unit on to confirm

operation (vehicle

accessory switch must be

on). If the unit does not

operate, recheck all

wiring until the problem is

corrected. Once proper

operation is achieved,

turn the accessory switch

off and proceed with final

mounting of the chassis.

7. Carefully slide the radio

into the mounting sleeve

making sure it is right-side-up until it is fully seated and the spring clips lock it into place.

8. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of

the chassis using the hex nut provided. Fasten the other end of the dashboard either

above or below the radio using the screw and plain washer provided. Bend the strap, as

necessary, to position it. Some vehicle installations provide cavity for rear support. In

these applications, place the rubber bushing over the screw stud and insert.

CAUTION: The perforated rear support strap or rear rubber mounting bushing must

be used in the installation of the radio. Installation without either may result in

damage to the radio or the mounting surface and void the manufacturer’s warranty.

9. Test radio operation by referring to the operating instructions for the unit.

Removing the Unit

To remove the radio after installation,

remove the plastic end caps, insert the

removal keys straight back until they

click, and then pull the radio out. If

removal keys are inserted at an angle,

they will not lock properly to release the

unit.

Reconnect Battery

When wiring is complete, reconnect the

battery negative terminal.

JHD36A

WIRING

DETAIL A

SHOWN FROM PIN VIEW

PIN NO.

DESCRIPTION

RIGHT REAR SPEAKER (+)

RIGHT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (+)

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER ()

LEFT FRONT SPEAKER ()

RIGHT FRONT SPEAKER ()

RIGHT REAR SPEAKER ()

NO CONNECTION

GROUND

NO CONNECTION

+12V ACC SWITCHED

NO CONNECTION

WARNING!

Do not connect the +12VDC ACC switched

wire to the battery. This wire MUST be

connected to the Accessory/ Ignition wire

or a +12 volts switched power source.

JHD36A

BASIC OPERATION

Power On/ Off/ Radio

Press the rotary encoder POWER/AUDIO button (1) to turn the unit on or press and hold to turn

off. The unit will resume at the last mode selected (Tuner, Auxiliary, etc.).

Volume Control

To increase the volume, turn the rotary encoder (1) to the right. To decrease the volume, turn the

rotary encoder to the left. While adjusting the volume, the LCD displays a bar graph and

numerical representation of the level.

The maximum volume setting is 40.

Mute

Press the MUTE button (24) to mute the audio output. Press MUTE again to restore the audio

output to the previous level.

Mode

Press the MODE button (4) to select a different mode of operation, as indicated on the display

panel. Available modes include the following: Tuner (AM/ FM) > SXM (SiriusXM) > iPod/ USB >

CD > Auxiliary > BT Audio. Tuner is the default source when a prior source is no longer

available.

NOTE: CD, iPod, USB or SiriusXM (SXM) mode will be skipped if the device is not

installed.

NOTE: SiriusXM (SXM) mode will be skipped when the Region menu option is set to

“

EURO”.

Reset

The reset button should be activated for the following reasons:

 Initial installation of the unit when all wiring is completed

 Function buttons do not operate

 Error symbol on the display

Use a ball point pen or thin metal object to press the RESET button (23). This may be necessary

should the unit display an error code.

Audio Menu

Press the POWER/AUDIO button (1) to access the audio menu. You can navigate through the

audio menu items by pressing the POWER/AUDIO button repeatedly. Once the desired menu

item appears on the display, adjust that option by turning the rotary encoder (1) within 5 seconds.

The unit will automatically exit the audio menu after five seconds of inactivity. The following

menu items can be adjusted.

Bass Level

Use the rotary encoder (1) to adjust the Bass level range from “-6” to “+6”.

Treble Level

Use the rotary encoder (1) to adjust the Treble level range from “-6” to “+6”.

Balance

Adjusting Balance controls the relative level between the left and right speakers in each pair.

Use the rotary encoder (1) to adjust the Balance between the left and right speakers from “Left

12” to “Right 12”.

Fader

Adjusting Fade controls the relative level between the front and rear speaker pairs. Use the

JHD36A

rotary encoder (1) to adjust the Fader between the rear and front speakers from “Rear 12” to

“Front 12”.

System Menu

1. Press and hold the PTY/CAT/MENU button (2) for more than 2 seconds to enter the

system menu. The first menu item, “Key Beep”, will appear on the display.

2. Press the TUNE/SEEK |<< / >>| (18, 19) button repeatedly to navigate the system menu.

3. Press the INFO/ENTER button (16) to select the desired item.

4. Press the INFO/ENTER button again to adjust the selected menu item.

The following items can be adjusted:

 Key Beep (On / Off): Turn the audible beep On/ Off (heard when functions/ buttons are

selected).

 LCD Backlight (1-10): Adjust LCD brightness.

 LCD Contrast (1-10): Adjust LCD contrast.

 Tuning Region (USA / EURO): Set frequency spacing for various regions.

 Power-Off Clock (Off, 1-10): Brightness setting of clock when powered off

 Clock Format (12Hour / 24Hour): Select 12 or 24 hour display mode.

 Set Clock (HH : MM):

 Press the INFO/ENTER button (16) to view the clock set screen.

 Press the INFO/ENTER button to move to the next digit.

 Press the TUNE/SEEK |<< / >>| (18, 19) buttons to adjust the selected digit.

 Rear Aux Enable (On/ Off): Turn on to allow the use of auxiliary audio output at the rear of

the radio chassis.

 Preset-Only Tuning (On/ Off)

 Sirius XM Settings Menu (only appears when Sirius XM tuner is connected and in Sirius

XM mode)

 Clock Autoset (On/ Off): Sets clock based on SXM data

 Time Zone1 (Atlantic / Eastern / Central / Mountain / Pacific / Alaska)

 Daylight Saving Time (Yes/ No)

 Set Lock Code: _ _ _ _

 Locked Channels: List of Channels (Locked / Unlocked)

 SXi Firmware Version

 Weather Alert Configuration

 Min Alert Level (All / None / Warnings / Watches)

 Auto-On Enable (Yes/ No): Select “Enabled” to turn on the radio when NOAA alerts

are issued. This function only works when the +12V switched is on.

 Alert Volume (Select Volume Level 0-40)

 Clear SAME Codes <ENTER>

 SAME Code 1: _ _ _ _ _ _

 SAME Code 2: _ _ _ _ _ _

 SAME Code 3: _ _ _ _ _ _

 SAME Code 4: _ _ _ _ _ _

 SAME Code 5: _ _ _ _ _ _

 SAME Code 6: _ _ _ _ _ _

 SAME Code 7: _ _ _ _ _ _

 Battery Alarm (On/ Off)

 Battery Auto-Off (On/ Off)

 Bluetooth Setup

 BT: (On/ Off)

 BT HFP Volume: (Select Volume Level 0-40) Hands-free call volume

 BT Device List <Enter>: View a list of devices paired with the unit

• Lock

• Connect / Disconnect

• Delete

 BT Pair <Enter to enable>

 BT Auto Answer: (On/ Off)

 Reset System Defaults <ENTER>: Press the INFO/ENTER button (16) to return the

EEPROM to factory default set up values.

Equalizer

Press the EQ/LOUD button (11) to choose one of the following pre-defined bass and treble

curves: USER > FLAT > POP > CLASSICAL > ROCK .

Loudness

Press and hold the EQ/LOUD button (11) to toggle loudness on/ off. When listening to music at

low volumes, this feature will boost the bass and treble ranges to compensate for the

characteristics of human hearing.

Auxiliary Input

To access an auxiliary device:

1. Connect the portable audio player to the 1/8” AUX IN on the front panel (13)

2. Press the MODE button (4) to select “Auxiliary” mode.

3. Press MODE again to cancel “Auxiliary” mode and go to the next mode.

PA Operation

 Connect PA Microphone (JMICHFP) with a 4-PIN connector to the 4-PIN socket on the

rear of the unit.

 The unit will automatically switch to PA mode when the mic switch is pushed “ON”.

 The PA output level can be adjusted using the rotary volume encoder (1).

 With radio power off, the radio will wake up when PA mic button is pressed to make an

announcement. Please note that it will take a few seconds before the radio “wakes up”

and PA is active. Radio will return to the off state when the PA mic is released.

JHD36A

Liquid Crystal Display (LCD)

The current frequency and activated functions are shown on the LCD panel (21).

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for

an extended period of time. In addition, the visibility of the characters on the LCD may

decrease slightly. The LCD display will return to normal when the temperature increases

to a normal range.

Setting the Clock

To set the clock to display the current time, turn the vehicle ignition on and turn the radio on.

Enter the system menu and adjust the clock by selecting the “Set Clock” menu item.

 Press the INFO/ENTER button (16) to view the clock set screen.

 Press the TUNE/SEEK |<< / >>| (18, 19) buttons to adjust the selected digit.

Press the INFO/ENTER button to move to the next digit. When no adjustment is made for five

seconds, the time will become set and normal operation will resume.

Scroll

When the information is too long to be displayed on the LCD, press the DISP/SCROLL button

(12) to view the entire title. The information will scroll twice and then return to abbreviated text.

JHD36A

TUNER OPERATION

Select a Band

Press the BAND/WB button (15) to change between three FM bands and two AM bands.

Press and hold the BAND/WB button to access the Weather band (WB).

Manual Tuning

Press the TUNE/SEEK |<< or >>| buttons (18, 19) to seek stations up/ down step by step.

Auto Seek Tuning

Press and hold the TUNE/SEEK |<< or >>| buttons (18, 19) to automatically seek the next or

previous strong station.

NOTE: Seek tuning is not available for weather band channels. Use the up or down tuning

buttons to manually select any of the seven available weather band channels.

Preset Stations

Six numbered preset buttons store and recall stations for each band.

Store a Station

Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two

seconds. The preset number will appear on the LCD.

Recall a Station

Select a band (if needed). Press a preset button (5-10) to select the corresponding stored

station.

NOTE: Preset buttons are pre-assigned frequencies in weather band mode.

Automatically Store/ Preset Scan (AS/PS)

Automatically Store

Select an AM or FM band. Press and hold the AS/PS button (14) for more than 2 seconds to

automatically select 18 strong stations (12 for AM). “Storing Presets” will appear on the screen

and the new stations will replace any stations previously stored.

Preset Scan

Select a band. Press AS/PS (14) to scan preset stations stored in the current band. The unit will

pause for 5 seconds at each preset station. Press AS/PS again to stop scanning when the

desired station is reached.

RBDS Operation

This unit is equipped to display RBDS (Radio Broadcast Data Service) information if broadcast

by the current radio station.

NOTE: Radio stations broadcasting RBDS may not be available in your listening area.

In FM radio mode, press the PTY/CAT/MENU button (2) to list the following Program Type

(PTY) options: ANY / News / Information / Sports / Talk / Rock / Classic Rock / Adult Hits / Soft

Rock / Top 40 / Country / Oldies / Soft / Nostalgia / Jazz / Classical / Rhythm and Blues / Soft

Rhythm & Blues / Foreign Language / Religious Music / Religious Talk / Personality / Public /

College / Weather / Emergency Test / EMERGENCY!

To search for stations in a PTY category:

1. Press the PTY/CAT/MENU button (2) to view the current PTY category.

2. Press the TUNE/SEEK|<< or >>| buttons (18, 19) to move through the list of available

categories and select the program type you wish to search.

3. After selecting the desired PTY, press the INFO/ENTER button (16) to search the band for

broadcasts of this type. “PTY Search” is displayed while the tuner is searching.

NOTE: Performing a PTY search on “ANY” will Seek Tune and stop on any station

broadcasting RBDS, regardless of the program type.

JHD36A

Weather Band Operation

What is the NOAA Weather Radio/ Weatheradio Canada?

NOAA (National Oceanic and Atmospheric Administration) is a nationwide system that

broadcasts local weather emergency information 24 hours a day via the National Weather

Service (NWS) network. The U.S. network has more than 530 stations covering the 50 states as

well as the adjacent coastal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific

Territories. Each local area has its own transmitting station and there are a total of seven

broadcasting frequencies used. A similar system is available in Canada under the Weatheradio

Canada service administered by Environment Canada.

Tuning to Weatherband

Press and hold the BAND/WB button (15) to access the Weatherband. The indication "WB" will

appear on the display panel, along with the current number and channel indication: "WB-1",

WB-2", "WB-3", "WB-4", "WB-5", "WB-6" or "WB-7". The seven frequencies are shown in the

following table:

WB Frequencies

Frequency (MHz)

Preset

162.400

162.425

162.450

162.475

162.500

162.525

162.550

The above table also shows which preset button will access the frequency. Note that one

frequency cannot be accessed using a preset button. The frequency can only be reached using

the tuning controls.

Use the TUNE/SEEK |<< or >>| buttons (18, 19) or the preset buttons to tune to each of the

seven channels until you find the weatherband station broadcasting in your area.

How many stations can I expect to receive?

Since the broadcasts are local weather and information, the transmission power is usually very

low (much less than standard AM or FM stations) so you will usually receive only one station

unless you are on the edge of two or more broadcast signals. The most you will receive will be

two or three, and that is rare.

Is it possible I won't receive any stations?

Depending on where you are located, there is a possibility you will receive only a very weak

signal or none at all. Also, similar to AM and FM signals, weatherband signals are subject to

surrounding conditions, weather, obstructions of the signal by hills or mountains, etc.

NOAA Weather Alert

The Weather Alert function adds an additional level of user safety by automatically switching

from any of the available function modes to weather band for a minimum of 60 seconds if a

NOAA warning tone (1050 Hz) is received/ detected. If no additional warning tone is received for

60 seconds, the unit will switch back to the last known function mode. See “System Menu” on

page 8 to learn how to turn the WB Alert feature on.

SAME Decoding and Filtering

Specific Area Message Encoding (SAME) data is also broadcast prior to alert broadcasts.

SAME data contains information about the geographic region affected by the alert, the type of

alert, and its effective time. The geographic region included in the SAME data is called the

Geographical Area code and has the form PSSCCC where “P” represents a portion of the county,

“SS” is a two-digit state, territory, or offshore marine area identifier and “CCC” identifies the

county, province, or major metropolitan area within the state. This unit can be configured through

the system setting menu with up to seven Geographical Area codes to limit the automatic tuning

or power on functions described above.

SAME data also includes the type of alert being broadcast. This unit can be configured through

the System Setting Menu to limit the automatic tuning or power on functions based on the type

of alert.

SAME is activated by programming a 6 digit code - called a FIPS code - into your radio. The

FIPS code or Federal Information Processing System code is a six digit code that identifies the

states and counties (or parishes) in the United States. The first digit identifies the county

subdivision. The next two digits identify the state or territory, and the last three identify the county.

The FIPS code for your area can be found by calling the NWS toll free number or visiting the

web site.

The phone number is 1-888-NWS-SAME (1-888-697-7263). Upon calling, an automated system

will prompt you to enter your state and county. When you confirm the information, the system will

provide your six digit FIPS code.

The web site is: www.nws.noaa.gov/nwr/indexnw.htm. Upon selecting your state from the chart,

you will see a listing of all the counties in that state. For each county there is a listing of the

SAME# (FIPS code), the location of the transmitter, the WB frequency, the call sign, the

transmitter power and miscellaneous remarks.

NOTE: Because broadcast areas overlap you may want to set more than one S.A.M.E.

location. If you live near the border between counties, you may want to receive alerts

from more than one tower.

Your radio is capable of being programmed with up to 7 different FIPS location codes. The

default code has been programmed at the factory - 000000 - to respond to all messages within

your area.

JHD36A

CD/ MP3/ USB OPERATION

Digital File Playback

If the user connects a USB mass storage device, the radio automatically powers on, if necessary,

and switches to digital file playback mode. Changing modes or turning off the radio pauses

playback. Playback shall resume exactly where paused when returning to digital file playback

mode.

Inserting and Ejecting a Disc

Insert a disc, label-side up, into the disc slot (22). The unit will automatically draw the disc in and

play the first track on the disc, whether the power was turned on or not.

Press the eject button (20) to stop disc play and eject the disc. The unit does not have to be on

to eject the disc. Disc will retract if not removed.

Inserting a USB Device

The USB connector (17) is located on the right side of the front panel, behind a protective rubber

cover. Pull gently to lower the rubber cover and reveal the USB slot. Insert a USB device to

switch to USB mode and begin playback.

Controlling File Playback

Selecting Tracks

 Press the TUNE/SEEK|<< or >>| buttons (18, 19) to advance to the next track/ file. The

selected track number will appear on the display.

 Press and hold the TUNE/SEEK|<< or >>| buttons button to fast forward or fast reverse.

Playback begins when the button is released.

Play/ Pause Disc Playback

 Press the MUTE/>|| button (22) to pause playback. “Pause” is displayed on the screen.

 Press the MUTE/>|| button again to resume play.

Previewing Tracks

 Press the 2/INT button (6) to play the first 10 seconds of each track in the current folder

sequentially.

 Press 2/INT again to stop Intro Scan and resume normal playback at the current track.

Repeat Play

 Press the 1/RPT button (8) during disc playback to repeat the current track.

 Press 1/RPT again to stop repeat playback.

Random Play

 Press the 3/RDM button (5) during playback to play all tracks in the current folder in

random, shuffled order.

 Press 3/RDM again to stop random playback.

Folder Navigation (MP3 Only)

 Press the PTY/CAT/MENU button (2) to view a list of all songs in the current folder.

 Press the TUNE/SEEK|<< or >>| buttons (18, 19) to navigate the list.

 Press the INFO/ENTER button (16) to play the highlighted song or view files in the

selected folder. Continue pressing INFO/ENTER button until the desired file is selected.

 Press the PTY/CAT/MENU button again to navigate up through the file structure.

 The unit will automatically exit the folder navigation menu after 5 seconds of inactivity.

MP3 Specifications

Notes on MP3 Playback

 Any directory that does not include an MP3 file is skipped

 Maximum number of folders: 512 (including skipped directories)

 Maximum number of folder levels: 12

 Maximum number of MP3 files: 999

 Maximum number of characters for MP3 file name and folder name: 32

 Maximum number of Characters of ID3 Tag:

 ID3 Tag version 1.0: 32

 ID3 Tag version 2.x: 32

File Playing Order

Files will be continually played sequentially within the current folder. To play songs in another

folder, press the PTY/CAT/MENU button (2) twice to move up a folder level. Press the

TUNE/SEEK|<< or >>| buttons (18, 19) to navigate the list and then press the INFO/ENTER

button (16) to access the selected song or folder.

You may be able to set the order in which MP3/WMA are to be played by writing them onto a

medium such as a CD-R with their file names beginning with play sequence numbers such as

"01" to "99".

JHD36A

SIRIUSXMTM RADIO OPERATION

About SiriusXM

Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its

subsidiaries. Visit www.siriusxm.com/xmlineup for updates. All programming/ channel lineup/

XM service subject to change or preemption. All other marks and logos are the property of their

NOTE: The SiriusXM Satellite Radio controls on this unit are available only when an

optional SiriusXM Connect Vehicle Tuner is connected.

Accessing SIRIUSXM Mode

(Requires optional SIRIUSXM tuner)

Press the MODE button (4) to change the mode to SiriusXM mode.

Accessing your SiriusXM Radio ID

The SiriusXM ID is required for activation. To display your SiriusXM radio ID, use the

TUNE/SEEK |<< (18) button to tune to channel “000”. The screen will display “SIRIUSXM ID”

with the ID displayed in the middle of the LCD screen. The SiriusXM radio ID is 8 characters

long and does not include the letters I, O, S, or F.

Selecting a Band

In SiriusXM mode, press the BAND/WB button (15) to access the SiriusXM user-preset channel

groups in the following order: SXM1, SXM2, SXM3.

Category Tuning

1. Press the PTY/CAT/MENU button (2) to access Category mode.

2. While in category mode, press 5/CAT- OR 6/CAT+ buttons (9, 10) to choose a category.

3. Press the TUNE/SEEK|<< or >>| buttons (18, 19) to navigate channels in that category.

(The current channel number within the chosen category will always be the default first

channel tuned.)

4. Press the INFO/ENTER button (16) to select the desired channel.

Channel Up/ Down Tuning

Press the TUNE/SEEK|<< or >>| buttons to search for a channel. Press and hold the

TUNE/SEEK|<< or >>| buttons to fast search.

Direct Tuning Mode

1. Press and hold the INFO/ENTER (16) button to enter direct tuning mode.

2. Press TUNE/SEEK|<< or >>| (18, 19) buttons to change the first of three digits for the

desired channel in the direct entry screen.

3. Press the INFO/ENTER button to confirm the entered digit and move to the second digit

field.

4. Press TUNE/SEEK|<< or >>| buttons to select the second digit.

5. Press the INFO/ENTER button to confirm the entered digit and move to the third digit field.

6. Press TUNE/SEEK|<< or >>| buttons to select the third digit.

7. Press the INFO/ENTER button to confirm the three digit channel and tune to the selected

channel.

Storing Preset Channels

The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your

favorite channels.

Programming Channels

1. Select the channel you want to store in memory.

2. Press and hold a preset button (5-10) until the corresponding preset button number

appears.

3. Repeat steps 1 and 2 to program additional channels.

Preset Recall

Press one of the six preset buttons (5-10) to directly select a preset channel stored in the current

band.

Preset Scan

Press AS/PS button (14) to scan stations stored in all three user-preset channel groups (SXM1,

SXM2 and SXM3). The unit will pause for 10 seconds at each preset station.

Preset Tuning

In Preset Tuning Mode, you can use the TUNE/SEEK|<< or >>| (18, 19) buttons to access all

18 preset stations in sequential order. Access preset tuning mode through the system menu.

Set Preset-Only Tuning to “ON.”

Alternate Display Mode

Press the DISP/SCROLL button (12) to change the display information between single and dual

line text display. In dual line mode, both artist and title are available for viewing.

Press and hold the DISP/SCROLL button to scroll the Artist/ Song Title information.

While in category tuning list mode, press the DISP/SCROLL button in sequence to change the

display information from Channel Name, Artist, and Song Title.

JHD36A

Satellite Signal Strength

The display will indicate satellite reception strength as shown below.

Signal Strength

Strength Display

No Signal

Weak

Good

Excellent

Channel Lock

Access Channel Lock through the System Menu under the “SiriusXM Satellite Radio” menu. See

“System Menu” on page 8.

1. Select “Set Lock Code” and press the INFO/ENTER button (16).

2. Enter the default lock code of “0000”. To set the lock code:

a. Press the TUNE/SEEK|<< or >>| (18, 19) buttons to enter the first digit of the default

code.

b. Press the INFO/ENTER button to move to the next digit.

c. Repeat above steps to enter all 4 digits of the default code.

d. Press the TUNE/SEEK|<< or >>| buttons to enter the first digit of the new code.

e. Press the INFO/ENTER button to move to the next digit.

f. Repeat above steps to enter all 4 digits.

g. Repeat above steps to confirm the new code.

3. After setting a new four digit code, you can lock channels by entering the “Locked

Channels” menu.

4. Upon entering the Locked Channels list, you will be prompted to enter your four digit code.

a. Press the TUNE/SEEK|<< or >>| buttons to enter the first digit.

b. Press the INFO/ENTER button to move to the next digit.

c. Repeat above steps to enter all 4 digits.

5. After entering the code, you can navigate the list using the TUNE/SEEK|<< or >>| buttons

to highlight the channels.

6. Press the INFO/ENTER button to Lock, indicated by a ( ), or Unlock ( ) the selected

channel.

Reset SiriusXM Channel Lock Code

If you forget your Parental Control lock code, use the following directions to reset the code to the

default “0000”. Resetting the lock code will not affect the locked channels list.

1. In SiriusXM mode, tune to Channel 0

2. Set volume to 0.

3. Press and hold the rotary encoder (1) to power off the unit.

4. With power off, press and hold the rotary encoder until the system version info is displayed

on the screen

5. Press the 3/RDM button (5), the screen will return to the clock.

6. Press the rotary encoder to power on the unit.

7. The lock code has now been reset to “0000”

JHD36A

Advisory Messages Reported by the SiriusXM Vehicle Tuner

On-Screen Display

Advisory Message

Cause

Explanation/ Solution

Check Antenna

The radio has detected a fault with the SiriusXM antenna. The

antenna cable is either disconnected or damaged.

 Verify that the antenna cable is connected to the SiriusXM

Connect Vehicle Tuner.

 Inspect the antenna cable for damage and kinks. Replace the

antenna if the cable is damaged.

Check Tuner

 The radio is having difficulty communicating with the SiriusXM

Connect Vehicle Tuner.

 The tuner may be disconnected or damaged.

 Verify that the SiriusXM Connect Vehicle Tuner cable is securely

connected to the radio SiriusXM mating connector/ cable.

 If the problem persists, disconnect and reconnect the tuner and

then contact your dealer.

No signal

The SiriusXM Connect Vehicle Tuner is having difficulty receiving

the SiriusXM satellite signal.

 Verify that your vehicle is outdoors with a clear view of the

southern sky.

 Verify that the SiriusXM magnetic mount antenna is mounted on

a metal surface on the outside the vehicle.

 Move the SiriusXM antenna away from any obstructions.

 Inspect the antenna cable for damage and kinks. Replace the

antenna if the cable is damaged.

 If the problem persists, disconnect and reconnect the tuner and

then contact your dealer.

Scrolling “Subscription

Updated” – press any

key to continue”

Subscription Updated

The radio has detected a change in your SiriusXM subscription

status.

 Press any key to clear the message.

 No further action is required.

 Questions about your subscription in the United States please

visit www.siriusxm.com/activatenow or call SiriusXM Listener

Care at 1-866-635-2349

 Questions about your subscription in Canada, please visit

www.siriusxm.ca/activatexm or call XM Listener Care at

1-877-438-9677

Chan Unavailable

Channel Not Available

The channel that you have requested is not a valid SiriusXM channel

or the channel that you were listening to is no longer available. You

may also see this message briefly when first connecting a new

SiriusXM Connect Vehicle tuner. Visit www.siriusxm.com for more

information about the SiriusXM channel lineup.

Visit www.siriusxm.com/channellineup for more information about

the SiriusXM channel lineup.

Ch Unsubscribed

Channel Not Subscribed

The channel that you have requested is not included in your

SiriusXM subscription package or the channel that you were

listening to is no longer included in your SiriusXM subscription

package.

 Questions about your subscription in the United States please

visit www.siriusxm.com/activatenow or call SiriusXM Listener

Care at 1-866-635-2349.

 Questions about your subscription in Canada please visit

www.siriusxm.ca/activatexm or call XM Listener Care at

1-877-438-9677.

JHD36A

On-Screen Display

Advisory Message

Cause

Explanation/ Solution

Chan Locked

Channel Locked

The channel that you have requested is Locked by the radio

Parental Control feature.

See the section on Parental Control, page 14 for more information

on the Parental Control feature and how to access locked channels.

Enter Code: _ _ _ _

Enter Lock Code

User prompted to enter the lock/ unlock code.

Enter the four digit code to unlock the channel

Wrong Code

Invalid Lock Code

The unlock code entered by the user is incorrect

 Input the correct four digit code to unlock the channel.

 Reset lock code to default following instructions on page 14.

JHD36A

IPOD® OPERATION

This unit is equipped with an iPod ready function that will allow you to control your iPod (if

compatible) using the control panel buttons. The following iPod versions are supported:

 iPod Nano 5G, 6G, 7G

 iPod Classic

 iPod Touch 3G, 4G, 5G

 iPhone 4, 4S, 5, 5C, 5S

NOTE: Earlier model iPod’s are not supported because they do not implement the

required control protocol. Also, the iPod shuffle is not supported because it does not

utilize the 30-pin Apple iPod Connector. These unsupported iPod models may be

connected to the radio using one of the Auxiliary Inputs.

Accessing iPod Mode

Connect a supported iPod or iPhone to the front

panel USB (or Rear USB) connector (17). The iPod

icon illuminates in the bottom left corner of the LCD

whenever an iPod or iPhone is attached to the USB

connector. Music playback begins automatically. To

enter iPod mode from any other source, press the

MODE button (4) until “iPod” appears on the display.

If the user connects an iPod containing no songs, the

radio will display a message stating “No Songs” in

iPod mode.

Turning the iPod On/ Off

The iPod power turns on automatically when it is connected to the front panel USB port, as long

as the vehicle ignition is turned on. You can turn the iPod off by disconnecting it or by turning the

ignition off. When the ignition is off, the iPod will pause and then enter sleep mode after 2

minutes. While the iPod is connected, the power cannot be turned on or off from the iPod itself.

NOTE: The iPod will continuously recharge while in iPod playback mode.

Controlling Playback

Pausing Playback

During playback, press the MUTE/>|| button (24) to pause the iPod player. “Pause” will appear

on the LCD. Press MUTE/>|| again to resume playback.

Repeat Play

During playback, press the 1/RPT button (8) to repeat the current song. “RPT” will appear on the

LCD. Press 1/RPT again to stop repeat playback.

Random Play

During playback, press the 3/RDM button (5) to play all songs in the current category in random

order. Random play will begin once the current song has finished playing. “RDM” will appear on

the LCD. Press 3/RDM again to stop random playback.

Selecting Tracks

During playback, press the TUNE/SEEK|<< or >>| buttons (18, 19) to play the previous or next

track in the current category. Press the TUNE/SEEK |<< button once to play the song from the

start position or press TUNE/SEEK |<< twice to play the previous track. Pressing the

TUNE/SEEK |<< button during the first 2 seconds of a track will play the previous track.

After 2 seconds, this action returns to the beginning of the current track.

Press and hold the TUNE/SEEK|<< or >>| button to fast reverse/forward the song.

NOTE: If you press and hold the TUNE/SEEK|<< or >>| button to change the current song

to the previous/next song, you will exit fast reverse/forward mode.

Alternate Display Mode

Press the DISP/SCROLL button (12) to change the display information between single and

double line text display.

Playlist Search

Press the PTY/CAT/MENU button (2) to access Playlist selection mode. While in Category

mode, press the TUNE/SEEK|<< or >>| buttons to choose file search by Playlist, Artist, Album,

Genre, Song, Audiobook or Podcast. Press the INFO/ENTER button (16) to select the search

mode. Use the TUNE/SEEK|<< or >>| buttons to search the available files on the iPod.

Press the INFO/ENTER button to play the selected song or file.

JHD36A

BLUETOOTH OPERATION

The JHD36A includes built-in Bluetooth technology that allows you to wirelessly connect this

head unit to Bluetooth devices for streaming audio playback

About Bluetooth Technology

Bluetooth is a short-range wireless radio technology. Operating in the 2.4 GHz frequency range,

it transmits voice and data at speeds up to 2.1 Mbit/s over a range of up to 10 meters.

Bluetooth Menu Options

NOTE: Please note that some BT menu options are only available while the unit is in

Bluetooth Audio mode.

Press and hold the PTY/CAT/MENU button (2) to enter menu adjustment mode. Repeatedly

press the TUNE/SEEK|<< or >>| buttons (18, 19) to access the “Bluetooth On/ Off” menu

function. Press the INFO/ENTER button (16) to turn the Bluetooth function On or Off. The

following menu options are available when the unit is in Bluetooth mode.

 BT ON/ OFF: Press the INFO/ENTER button (16) to select "BT ON" or "BT OFF". When

“On”, the LCD will display the Bluetooth icon (default “BT ON”).

 BT HFP Volume: Press the INFO/ENTER button repeatedly to adjust the ring volume from

0-40 (default 35/previous setting).

 BT Device List: Press the INFO/ENTER button to view a list of previously paired mobile

phone device models. Press the TUNE/SEEK|<< or >>| buttons (18, 19) to view devices

from the list. You cannot delete a device that is actively connected. Press the ENTER

button to select the device. Press the TUNE/SEEK|<< or >>| button to choose Lock/

Unlock, Disconnect or Delete for this device.

 LOCK/ UNLOCK: The JHD36A can store up to 5 devices for Bluetooth connection.

The devices are stored in FIFO (First in First Out) order. To prevent a device from

being bumped from the list when more than 5 devices are used, you must lock the

device. To lock/ unlock a device, press the INFO/ENTER button to display/ change

the Locked or Unlocked icon.

 DISCONNECT: To disconnect a paired device, press the INFO/ENTER button to

temporarily remove the Bluetooth link. The link can be re-established through your

phone menu by selecting the JHD36A for connection.

 DELETE: To delete a device from the list, press the INFO/ENTER button.

NOTE: Device must be disconnected to be deleted.

 BT Pair: Press the INFO/ENTER button to turn BT Pair “On” to put the unit pairing mode

to search for and be discovered by Bluetooth devices.

 BT Auto Answer: Press the INFO/ENTER button to turn the Auto Answer function “On” or

“Off”.

Pairing a Bluetooth Device

Before you begin, consult the owner’s manual for the Bluetooth device you want to pair with the

JHD36A.

1. Make sure the device is on and ready to receive a signal from theJHD36A. With the

JHD36A in Bluetooth Audio mode, choose “BT Pair” from the JHD36A menu and press the

INFO/ENTER button (16) to begin pairing. The unit is now waiting to connect to a mobile

phone device. With the Bluetooth function of the mobile phone device turned on, search

for a Bluetooth device.

2. When the Bluetooth device has completed its search, the mobile phone will display the

Bluetooth device name (JHD36A).

3. Select JHD36A. The BT AUDIO icon ( ) will appear on the radio LCD.

4. Enter the pairing password (0000), if requested.

After connecting successfully, you will be able to listen to music stored on your Bluetooth

enabled device through the radio.

Device 1

Device 2

Device 3

Device 4

Device 5

BT Device

Press Enter

Device 1

…

Device 5

Lock/ Unlock

Connect/ Disconnect

Delete

Lock/ Unlock

Connect/ Disconnect

Delete

Press Enter

Use

TUNE/SEEK|<< or

>>|

to Navigate the List

JHD36A

Bluetooth Audio (A2DP)

The A2DP music is available for Bluetooth enabled phones when the phone is connected. To

access Bluetooth mode and play songs stored on your phone, press the MODE button (4).

While in BT mode, the BT AUDIO icon ( ) will illuminates on the LCD.

Selecting Tracks

During playback, press the TUNE/SEEK|<< or >>| (18, 19) buttons to play the previous or next

track.

Pausing Playback

During playback, press the MUTE/>|| button (24) to pause the BT AUDIO player. “BT Audio

Pause” will appear on the LCD. Press MUTE/>|| again to resume playback. If you change to

another mode, the mobile phone audio will pause. Press the MODE (4) button to return to

Bluetooth mode and resume mobile phone audio playback.

NOTE: If a Bluetooth device is disconnected due to the power being turned off or if the

device is disconnected inadvertently, the unit will automatically search for the matching

Bluetooth device when the power is restored.

Incoming/ Outgoing calls

While the mobile device is connected through Bluetooth, the phone number for incoming calls

will appear on the LCD. The incoming ring will be output through the unit unless the unit is

broadcasting a Weather Band Alert or the PA system is in use.

Answer Call

If the Bluetooth Auto Answer function is turned “Off”, the user must press the "CALL" button (3)

to receive and incoming call.

If the BT Auto Answer function is turned “On”, the unit will automatically receive the incoming call

after 5 seconds of ringing.

While the microphone (JMICHFP) is connected to the unit, the user can answer incoming calls

through the Microphone.

Transfer Call

During the call, press and hold the "CALL" button transfer the call between the unit and the

mobile device.

End Call

Press the “CALL” button to end a call. The unit will return to the previous mode.

Reject Incoming Call

To reject an incoming call, press and hold the “CALL” button.

APP OPERATION

JENSEN® Specialty Controller is the ultimate wireless remote control for your JENSEN stereo

system. Store away your old remotes and enjoy the convenience of all the primary functions of

your JENSEN stereo right from your phone or tablet by transforming your mobile device into a

functional stereo remote control!

Features

This app controls all of the primary functions of your stereo features including:

 Power on/ off

 Volume and mute

 CD/ DVD player

 AM/FM radio tuner: access station, recall, store presets, switch songs

 NOAA weather band and alert

 Bluetooth® streaming audio

 File structure visibility, track selection, track audible scan up and down via USB

 iPod/ iPhone/ iPad® control capabilities via USB

 Auxiliary audio input control –auxiliary analog 1 & 2, auxiliary digital coaxial, auxiliary

digital optical

 Speaker selection A, B and/ or C

 Audio menu controls- bass, treble, balance, fader, equalizer, volume and speaker

selection settings

 Clock with sleep time and alarm

 Visual display feedback so you can see artist title and album on your mobile screen

Connecting and using jHDControl app

The jHDControl app can be found on the App Store for Apple Devices and the Google Play Store

for Android Devices. After downloading and installing jHDControl app on your apple device, pair

your device to the JHD36A as stated above for Bluetooth paring. Once your device is paired you

can open the app and use as instructed with the jHDControl app manual found at

http://asaelectronics.com/manuals-guides.

When jHDControl is installed on Android operating system, close the app before Bluetooth

pairing, otherwise there may be errors on Bluetooth connection.

JHD36A

CARE AND MAINTENANCE

 Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain

minerals that can corrode the electronic circuits.

 Keep the product away from dust and dirt, which can cause premature wear of parts.

 Handle the product gently and carefully. Dropping the unit can damage circuit boards and

cases, which may cause the product to work improperly.

 Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use

harsh chemicals, cleaning solvents, or strong detergents to clean the product.

 Use and store the product only in normal temperature environments. High temperature

can shorten the life of electronic devices, damage batteries, and distort or melt plastic

parts.

Ignition

The most common source of noise in reception is the ignition system. This is a result of the radio

being placed close to the ignition system (engine). This type of noise can be easily detected

because it will vary in intensity of pitch with the speed of the engine.

Usually, the ignition noise can be suppressed considerably by using a radio suppression type

high voltage ignition wire and suppressor resistor in the ignition system. (Most vehicles employ

this wire and resistor but it may be necessary to check them for correct operation.) Another

method of suppression is the use of additional noise suppressors. These can be obtained from

most CB radio or electronic supply shops.

Interference

Radio reception in a moving environment is very different from reception in a stationary

environment (home). It is very important to understand the difference.

AM reception will deteriorate when passing under a bridge or when passing under high voltage

lines. Although AM is subject to environmental noise, it has the ability to be received at great

distance. This is because broadcasting signals follow the curvature of the earth and are

reflected back by the upper atmosphere.

TROUBLESHOOTING

Symptom

Cause

Solution

No power

The vehicle’s accessory

switch is not on

If the power supply is properly

connected to the vehicle’s

accessory terminal, switch the

ignition key to “ACC”.

Fuse is blown

Replace the fuse.

No sound

Volume too low

Adjust volume to audible level.

Wiring is not properly

connected

Check wiring connections.

The operation keys do

not work

Control panel is not

properly installed

Reinstall control panel.

Built-in microcomputer is

not operating properly

due to noise

Press the RESET button.

Cannot tune to radio

station, auto-seek does

not work

Antenna cable is not

connected

Insert the antenna cable firmly.

Signals are too weak.

Select a station manually.

ERROR-01 on LCD

Database or decoder

error

Change to another mode.

ERROR-02 on LCD

No songs on device

Remove device and add songs.

ERROR-03 on LCD

Abnormal current to USB

device

Change mode or unplug and

reconnect USB device.

ERROR-04 on LCD

iPod/ iPhone is not

verified

Unplug and reconnect iPod/

iPhone.

ERROR-05 on LCD

Disc not supported

Remove disc and insert supported

CDDA or CD-ROM disc

JHD36A

SPECIFICATIONS

USB

Signal to Noise Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 65 dB

Channel Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . More than 50 dB

Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Hz - 20 kHz

FM Radio

Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 107.9 MHz

Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz

Sensitivity (S/N = 30dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2μV

Stereo Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dB

AM/ MW

Frequency Range (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz

Frequency Range (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz

Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB

General

Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC 12 Volts

Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Negative Ground

Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8 ohms per channel

Tone Controls:

Bass (at 100 Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 dB

Treble (at 10 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 dB

Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45W x 4

Idle/ Standby Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 A

Current Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Ampere Max

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 (W) x 175 (D) x 50 (H)

FCC Notes

WARNING! Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment .

This equipment should be installed and operated with minimum distance 20cm between the

radiator& your body.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference (2 )This

device must accept any interference received, including interference that may cause

undesired operation.

This transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

ASA Electronics Corporation

www.asaelectronics.com

www.jensenheavyduty.com

v.180716

Sounding Audio JHD36A Heavy Duty Car Audio User Manual JHD36A U M

Sounding Audio Industrial Ltd. Heavy Duty Car Audio JHD36A U M

User Manual

Navigation menu

Namespaces

Views

Navigation
