Sounding Audio MA300 MARINE AUDIO SYSTEM User Manual MA300
Sounding Audio Industrial Ltd. MARINE AUDIO SYSTEM MA300
Users Manual
MA300
MARINE AUDIO SYSTEM
Installation and Operation Manual
iPhone, iPod, iPod Classic, iPod Nano, iPod Shuffle, and iPod Touch are trademarks
of Apple Inc., registered in the U.S. and other countries.
MA300
ii
CONTENTS
Warnings and Compliance ........................................................................................................ 1
Introduction ............................................................................................................................... 2
Installation ................................................................................................................................ 3
Wiring ....................................................................................................................................... 4
Basic Operation ........................................................................................................................ 5
Tuner Operation........................................................................................................................ 7
Weather Band Operation .......................................................................................................... 8
MP3/USB Operation ................................................................................................................. 9
iPod® Operation ...................................................................................................................... 10
Bluetooth Operation ................................................................................................................. 11
APP Operation ........................................................................................................................ 12
Care and Maintenance ........................................................................................................... 13
Troubleshooting ...................................................................................................................... 13
Specifications ......................................................................................................................... 14
www.asaelectronics.com
877.305.0445
Copyrights and Trademarks
iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to
connect specifically to iPod or iPhone respectively, and has been certified by the developer to
meet Apple performance standards. Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards. Please note that the use of this accessory
with iPod or iPhone may affect wireless performance..
MA300
1
WARNINGS AND COMPLIANCE
Important Safety Instructions
NOTE: Keep the volume level low enough to be aware of your surroundings.
NOTE: USE THE PROPER POWER SUPPLY! This product is designed to operate with a 12
volt DC negative ground battery system.
FCC Notes
WARNING! Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
MA300
2
INTRODUCTION
System Features
Features of the Marine Audio MA300 include:
White LED Backlit LCD
iPx6 Waterproof
Low Battery Alarm
AM/FM US/EURO Tuner with 30 Presets (12 AM, 18 FM)
Weatherband with Weather Alert
Bluetooth (Supports A2DP and AVRCP)
APP Ready
USB Playback of MP3/WMA Files
Made for iPod/iPhone (USB Input)
Mute
Pre-set Equalizer - 5 settings (User > Flat > Pop > Classical > Rock)
Electronic Bass, Treble, Balance and Fader Controls
Output Power 22W x 4
Wired Remote Control Ready (supports MWR75 / MWR100 / MWR150/ MARC100)
2-Channel Pre-amp Line Level Outputs
Auxiliary Audio Input (Rear RCA)
Content List
Marine Audio MA300 Radio
Installation Opening Cutout Template
M4 x 0.7 Screws (x4)
MA300
3
INSTALLATION
Before you Begin
Before you begin, always disconnect the negative battery terminal.
Important Notes
Before final installation, test the wiring connections to make sure the unit is connected
properly and the system works.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications to your vehicle.
Install the unit where it does not interfere with diving and cannot injure passengers if there
is a sudden or emergency stop.
Front Mount

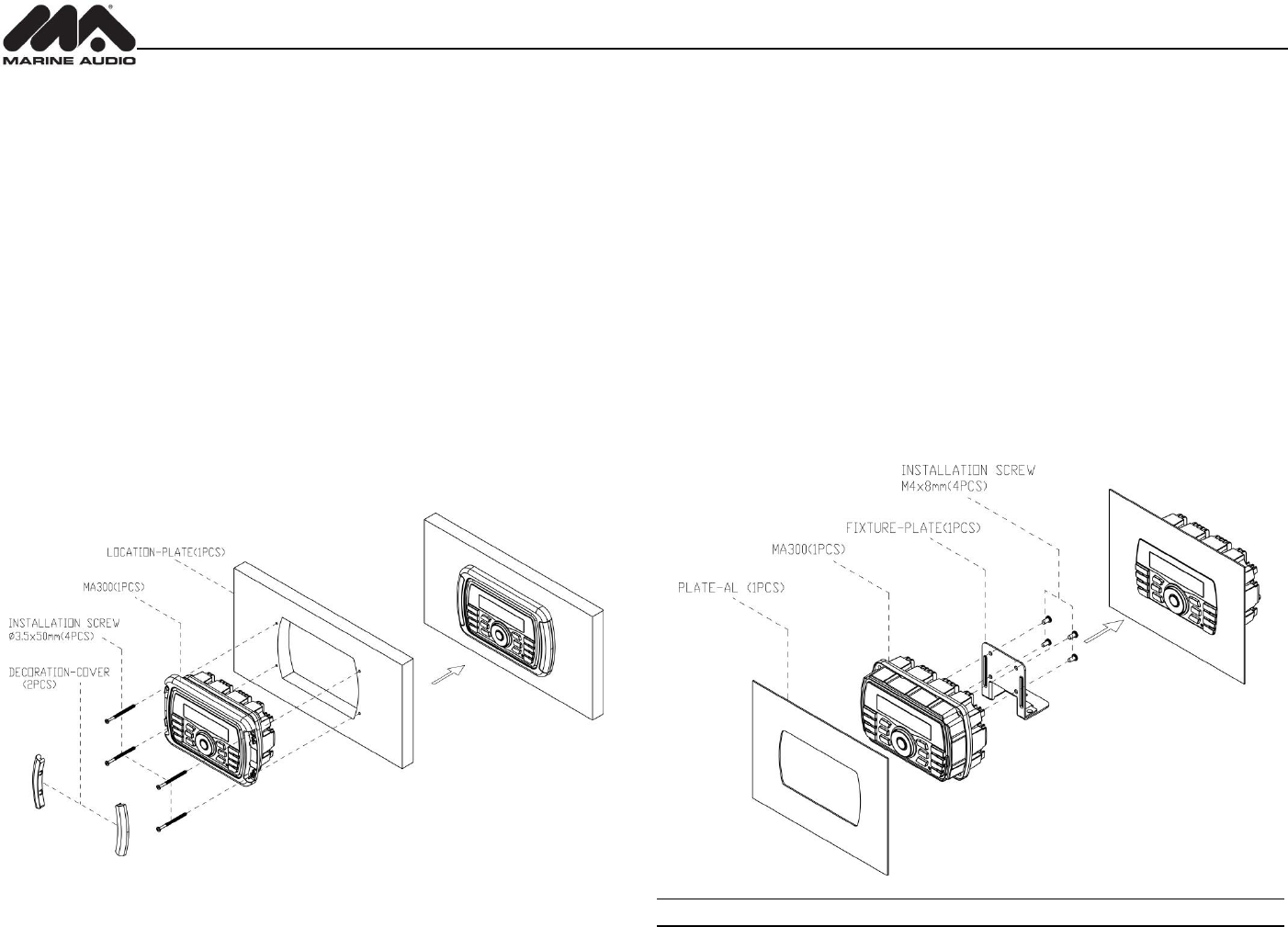

1. Use the included template to cut the installation opening.
2. Check the dashboard opening size by sliding the radio into it. If the opening is not large
enough, carefully cut or file as necessary until the radio slides into the opening. Check that
there will be sufficient space behind the dashboard for the radio chassis.
3. Place the radio in front of the dashboard opening so the wiring can be brought through the
opening.
4. Follow the wiring diagram carefully and make certain all connections are secure to ensure
proper operation.
5. After completing the wiring connections, temporarily reconnect the battery terminal and
turn the unit on to confirm operation (vehicle accessory switch must be on). If the unit does
not operate, recheck all wiring until the problem is corrected. Once proper operation is
achieved, turn the accessory switch off and proceed with final mounting of the chassis.
6. Carefully slide the radio into the opening, making sure it is right-side-up.
7. Secure the radio to the dashboard using #6 stainless steel pan head screws (not
provided).
8. Replace the covers on either side of the radio.
9. Test radio operation by referring to the operating instructions for the unit.
Removing the Unit
To remove the radio after front mount installation, remove the covers, unscrew the installation
screws and pull the radio out.
Reconnect Battery
When wiring is complete, reconnect the battery negative terminal.
Bracket Mount
The VOSHD4MNT (sold separately) is a versatile mounting base/bracket for easy installation on
most flat surfaces. Please use the included M4 screws to attach the radio to the bracket, as
shown in the diagram below.
NOTE: Use only the M4 x 7-10mm length screws, included.
MA300
4

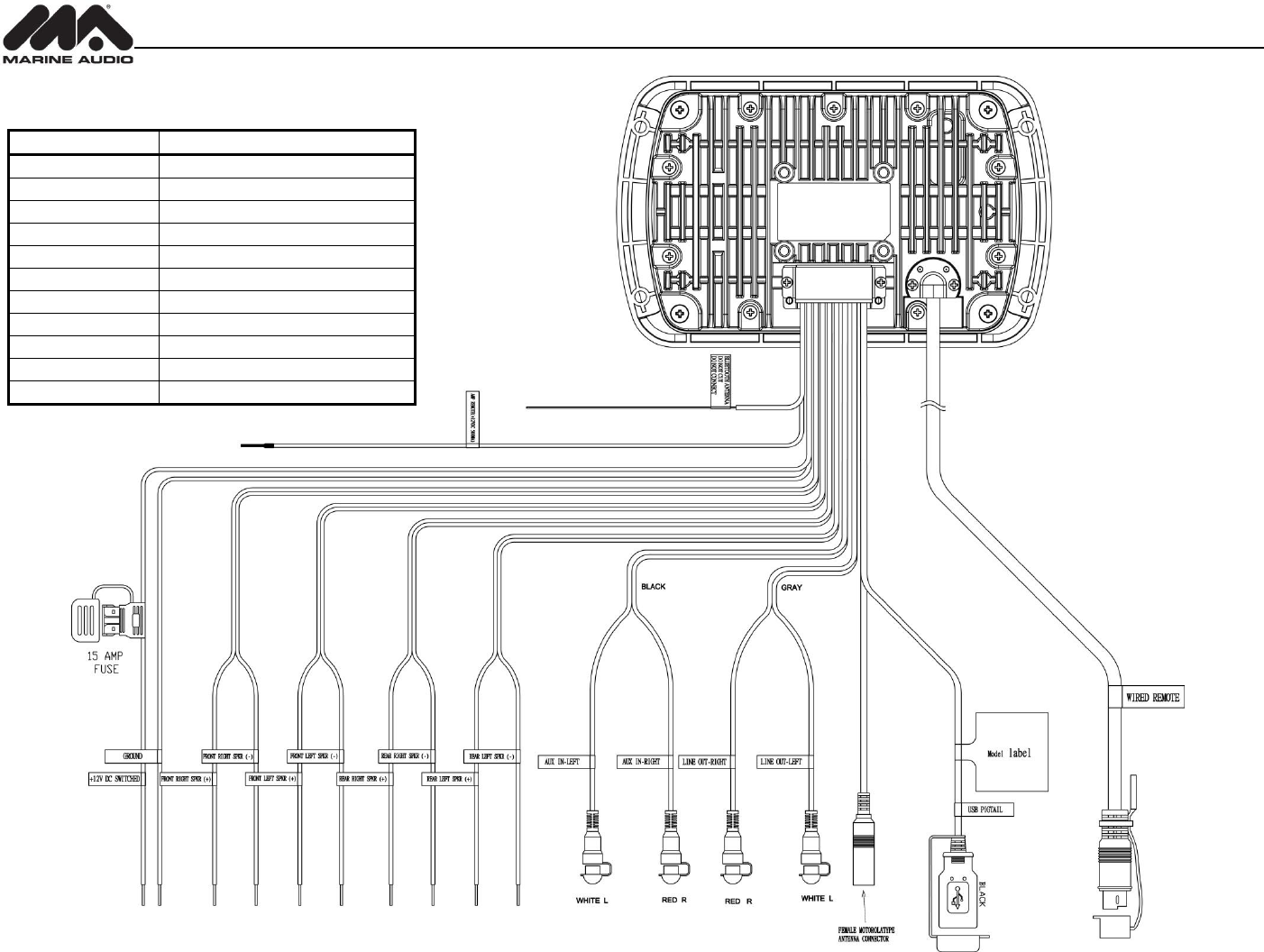

WIRING
WIRE COLOR
DESCRIPTION
BLUE
AMP REMOTE (+12VDC 500MA)
RED
+12V SWITCHED
GRAY
FRONT RIGHT SPEAKER (+)
WHITE
FRONT LEFT SPEAKER (+)
PURPLE
REAR RIGHT SPEAKER (+)
GREEN
REAR LEFT SPEAKER (+)
BLACK
GROUND
PURPLE/BLACK
REAR RIGHT SPEAKER (-)
WHITE/BLACK
FRONT LEFT SPEAKER (-)
GRAY/BLACK
FRONT RIGHT SPEAKER (-)
GREEN/BLACK
REAR LEFT SPEAKER (-)
MA300
5

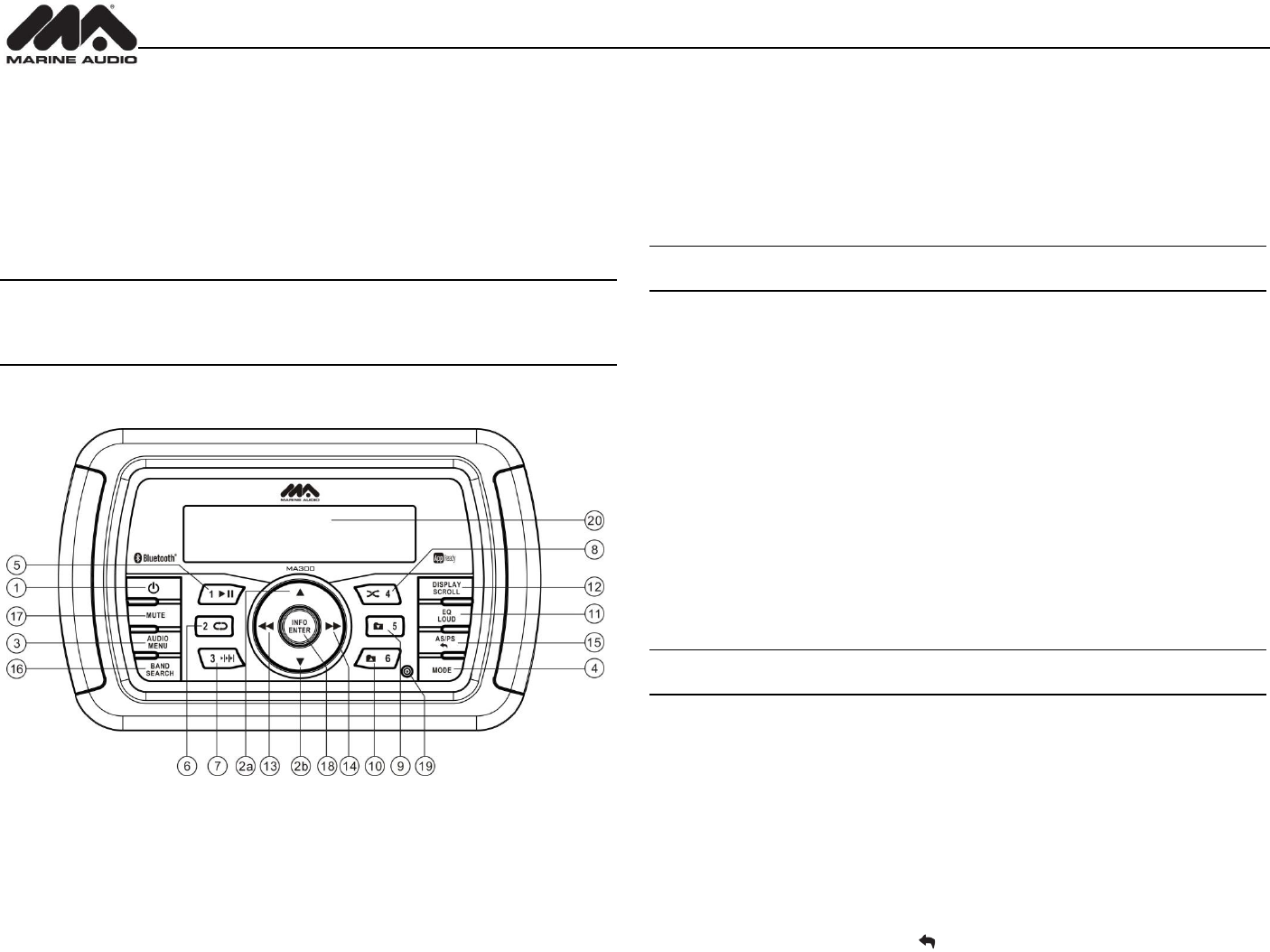

BASIC OPERATION
Power On/Off

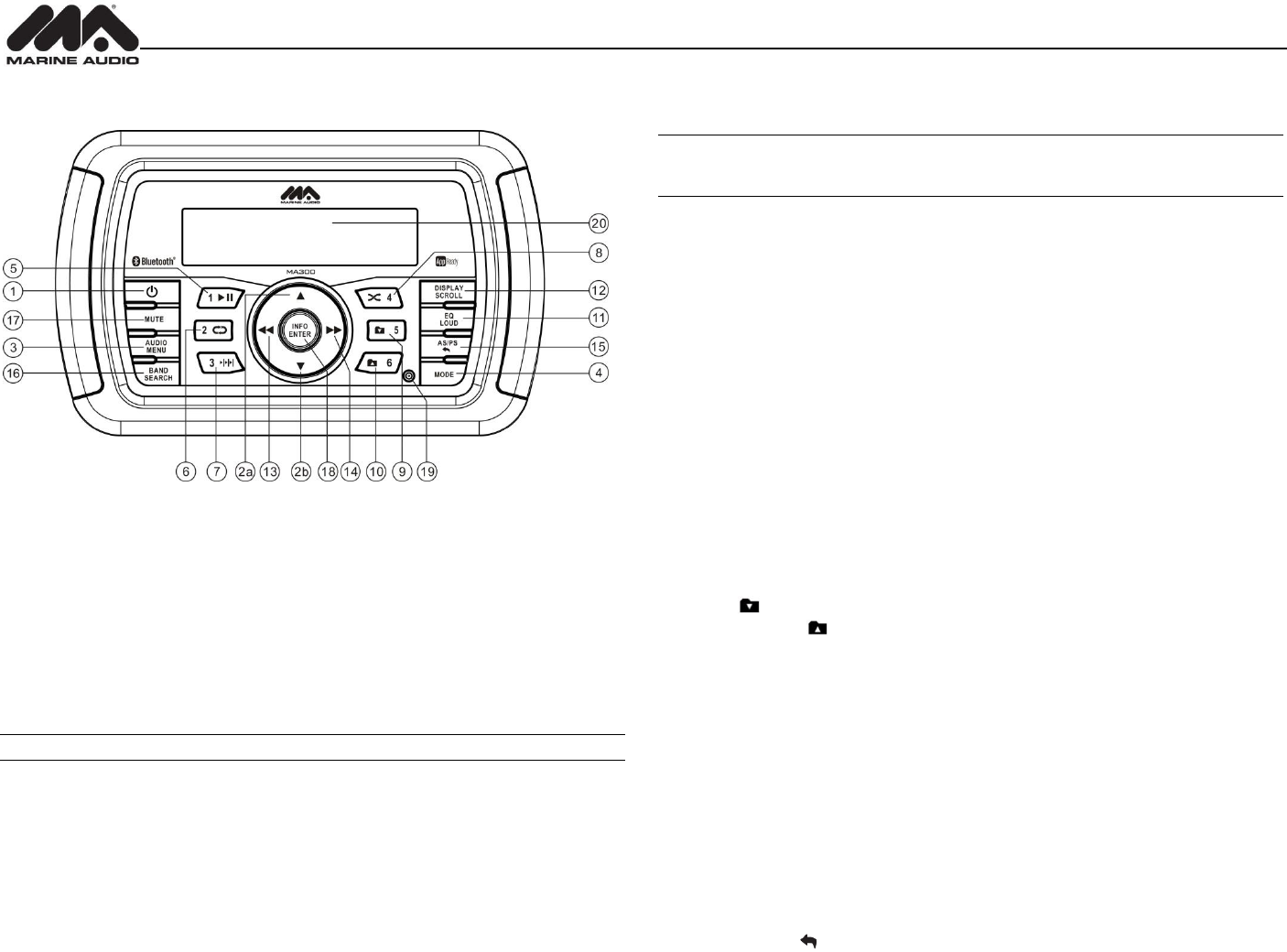

Press the power button (1) on the front panel to turn the unit on or off.
Volume Control
To increase the volume, press the ▲ button (2a). To decrease the volume, press the
▼button (2b).
Mute
Press the MUTE button (17) on the control panel to mute the audio output. Press MUTE again to
restore the audio output to the previous level.
Mode
Press the MODE button (4) on the control panel to select a different mode of operation, as
indicated on the display panel. Available modes include AM/FM Tuner, Weatherband, iPod, USB,
AUX In (optional Auxiliary Input), and Bluetooth Audio.
Reset
The reset button should be activated for the following reasons:
initial installation of the unit when all wiring is completed
function buttons do not operate
error symbol on the display
Use a ball point pen or similar object to press the RESET button (19). This may be necessary
should the unit display an error code.
You can recover factory default settings using the RESET function located in the system menu.
With “Reset to Defaults?” flashing, press the INFO/ENTER button (18) to activate.
Audio Menu
Press the AUDIO/MENU button (3) on the control panel to access the audio menu. You can
navigate through the audio menu items by pressing the AUDIO/MENU button repeatedly. Once
the desired menu item appears on the display, adjust that option by pressing the ▲/▼ buttons
(2) within 5 seconds. The unit will automatically exit the audio menu after five seconds of
inactivity. The following menu items can be adjusted.
Bass
Use the ▲▼ buttons to adjust the bass level range from “-6” to “+6”.
Treble
Use the ▲▼ buttons to adjust the treble level range from “-6” to “+6”.
Balance
Use the ▲▼ buttons to adjust the balance between the left and right speakers from “L12” (full
left) to “R12” (full right).
Fade
Use the ▲▼ buttons to adjust the fader between the rear and front speakers from “R12” (full
rear) to “F12” (full front).
System Menu
1. Press and hold the AUDIO/MENU button (3) for more than 2 seconds to enter the system
menu.
2. Press the ▲/▼ buttons (2) repeatedly to navigate the system menu and select the
desired item.
3. Press the INFO/ENTER or ◄◄/►►button (18 ) to adjust the selected menu item.
4. Press the AS/PS button (15) to return to the previous operation.
The following items can be adjusted:
Key Beep (On/Off): Turn the audible beep On/Off (heard when functions/buttons are
selected). NOTE: Beep tone off will not affect Battery Alarm audible tone.
LCD Backlight (1/10 – 10/10): Adjust LCD brightness.
LCD Contrast (1/10 – 10/10): Set LCD contrast.
Tuning Region (USA/Europe/China/Latin/Aus/Russia/Japan): Set frequency spacing for
various regions.
Weather Alert Configure: Press the INFO/ENTER button (18) to see weather alert options.
Weather Alert (On/Off): Determines if the weather band alert feature is activated.
Alert Volume (1/40 – 40/40): Set default volume for weather alert broadcasts.
Battery Alarm (On/Off): Monitor voltage on ACC line and send alert when voltage is low.
Battery Auto-Off (On/Off): Automatically turn off power to radio when battery voltage is low.
Bluetooth Device (Lock/Unlock, Disconnect/Connect, Delete): View, lock and delete from
a list of previously paired mobile phone device models.
MA300
6
Bluetooth Pair (On/Off): Choose “INFO/ENTER” to automatically pair a device.
Bluetooth (On/Off): Choose “Bluetooth On” or “Bluetooth Off”.
Volume Preset (1/40 – 40/40): Select an automatic turn-on volume.
Reset to Defaults <ENTER>: Return the EEPROM to factory default set up values. Press
the INFO/ENTER button (18) to select.
NOTE: BT Pair and BT Device menu options are only available while the Bluetooth feature
is ON and the radio is in Bluetooth Audio mode.
NOTE: A locked Bluetooth device will not be overwritten from the list.
Battery Alarm Operation
If Battery Alarm is set to “On”, an alarm will sound (8 beeps every 30 sec) when the voltage
drops to 10.5V (+/- 0.3V). A visual warning (Low Battery) will appear flashing (8 flashes every 30
sec) in the LCD display.
NOTE: “Off” is the default setting for Battery Alarm. If the audio is muted or the volume is
set to 0, the audible beep will not be heard.
Equalizer
Press the EQ/LOUD button (11) to turn on the equalization function and select between five
pre-defined bass and treble curves: User > Flat > Pop > Classical > Rock.
Loudness
Press and hold the EQ/LOUD button (11) to toggle true loudness on/off. When listening to music
at low volumes, this feature will boost the bass ranges to compensate for the characteristics of
human hearing.
Auxiliary Input
To access an auxiliary device:
1. Connect the portable audio player to the AUX IN cables routed from the rear of the radio.
2. Press the MODE button (4) to select Aux In mode.
3. Press MODE again to cancel Aux In mode and switch to the next mode.
Liquid Crystal Display (LCD)
The current frequency and activated functions are shown on the LCD panel (20).
NOTE: LCD panels may take longer to respond when subjected to cold temperatures for
an extended period of time. In addition, the visibility of the numbers on the LCD may
decrease slightly. The LCD display will return to normal when the temperature increases
to a normal range.
Quick Exit Hot Key
In the following modes and conditions, press the AS/PS button (15) < 3 seconds to quickly
exit the current operation without waiting for the system default time out:
System menu operation
Searching mode
Audio menu operation
MA300
7
TUNER OPERATION
Select a Band
Press the BAND/SEARCH button (16) to change between three FM bands and two AM (MW)
bands.
Manual Tuning
Press the ◄◄or ►► buttons (13, 14) to seek stations up/down step by step.
Auto Seek Tuning
Press and hold the ◄◄or ►► buttons (13, 14) to automatically seek the next or previous
strong station.
Preset Stations
Six numbered preset buttons store and recall stations for each band.
Store a Station
Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two
seconds. The preset number will appear in the display.
Recall a Station
Select a band (if needed). Press a preset button (5-10) to select the corresponding stored
station.
Automatically Store / Preset Scan (AS/PS )
Automatically Store
Select an AM or FM band. Press and hold the AS/PS button (15) for more than two seconds
to automatically select strong stations and store them in all bands. The new stations replace any
stations already stored in that band.
Preset Scan
Select a band (if needed). Press the AS/PS button (15) to scan stations stored in all bands.
The unit will pause for ten seconds at each preset station. Press AS/PS again to stop
scanning when the desired station is reached.
MA300
8
WEATHER BAND OPERATION
Accessing the Weather Band
Press the MODE button (4) to access the weather band mode.
What is the NOAA Weather Radio?
NOAA is a nationwide system that broadcasts local weather emergency information 24 hours a
day. The U.S. network has more than 530 stations covering the 50 states, as well as the
adjacent coastal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific Territories.
Each local area has its own transmitting station and there are a total of seven broadcasting
frequencies used: 162.400MHz (CH2), 162.425MHz (CH4), 162.450MHz (CH5), 162.475MHz
(CH3), 162.500MHz (CH6), 162.525MHz (CH7) and 162.550MHz (CH1).
How many stations can I expect to receive?
Since the broadcasts pertain to local weather and information, the transmission power is usually
very low (much less than AM or FM stations) which means you will usually receive only one
station unless you are on the edge of two or more broadcast signals. The most you will receive
is two or three, and that is rare.
Is it possible I won't receive any stations?
Depending on location, it’s possible to receive a very weak signal or none at all. Also, similar to
AM and FM signals, weather band signals are subject to surrounding conditions, weather,
obstructions of the signal by hills or mountains, etc. If no NOAA signals are found, the tuner will
scan all seven NOAA frequencies every 30 seconds.
How will I know I am tuned to the weather band?
When you select the weather band, the “WB” icon will appear on the display panel, along with
the current channel indication. Press the ◄◄or ►► buttons (13, 14) to tune to each of the
seven channels until you find the weather band station broadcasting in your area.
NOAA Weather Alert
The Weather Alert function adds an additional level of user safety by automatically switching
from the current function mode to weather band mode for a minimum of 60 seconds if a NOAA
warning tone (1050 Hz) is received. If no additional warning tone is received for 60 seconds, the
unit will switch back to the last known function mode.
The Weather Alert function can be turned “on” or “off” by the INFO/ENTER button (18), as
described on page 5. When set to “ON”, the weather tuner remains active in the background,
even when the radio is turned off (as long as the power is still applied to the radio). If a weather
alert is issued, the radio will turn on and play the announcement, then turn back off and revert to
weather alert monitor mode.
The radio will not respond to any weather alerts when it is off and will not automatically switch to
the weather band if an alert is issued.
NOTE: If the unit is programmed for European operation, the WB function will be
disabled.
MA300
9

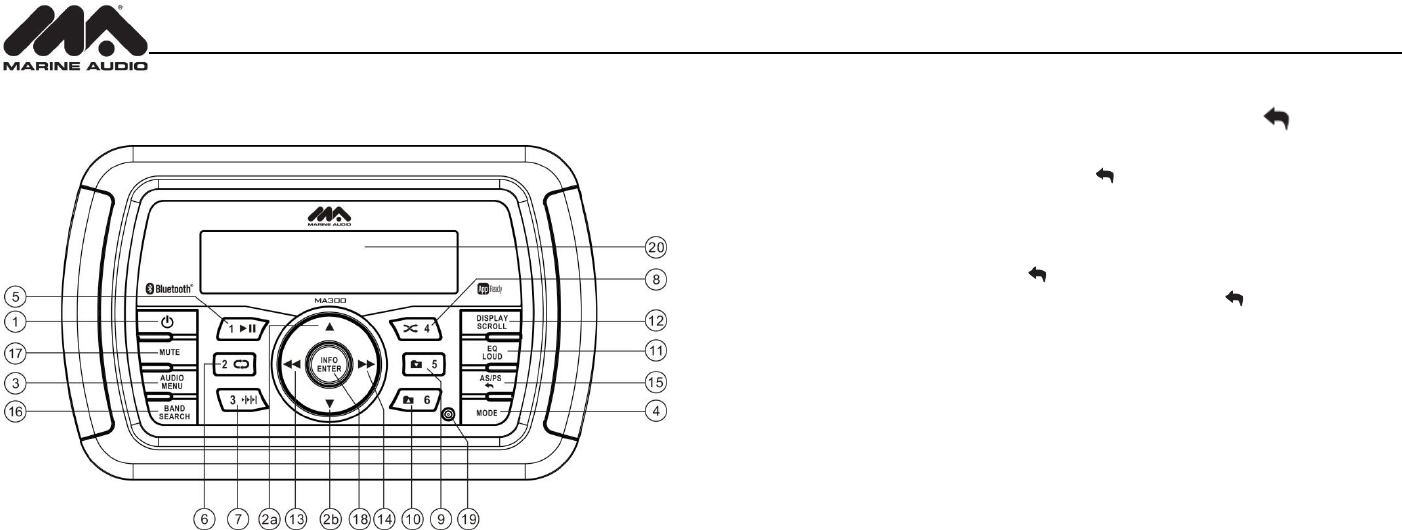

MP3/USB OPERATION
MP3 Specifications
• T A directory that does not include an MP3 file is skipped.
• Maximum number of folders: 512 (including skipped directories)
• Maximum number of folder levels: 12
• Maximum number of MP3 files: 999
• Maximum number of characters for MP3 file name and folder name: 32
• Sampling frequency: 16KHz, 22.05KHz, 24KHz, 32KHz, 44.1KHz, 48KHz.
• Bit rates: maximum 384 Kbps.
• Maximum number of Characters of ID3 Tag:
• ID3 Tag version 1.0: 32
• ID3 Tag version 2.x: 32
NOTE: USB flash drives with a capacity of up to 64 GB are supported.
Inserting and Removing a USB Device
Inserting a USB Device
Insert the USB device into the USB connector routed from the rear of the radio and display will
show the “Loading…” message. The unit will read the files on the USB device automatically.
Removing a USB Device
Press the MODE button (4) to select another mode and then remove the USB device from the
USB connector.
NOTE: After loading a USB device, files and folders are accessed in the order in which
they were written to the device. Therefore, the playing order may not be the same as the
order in which they are expected to be played.
Controlling Playback
Pause/Play
Press the 1 || button (5) to suspend playback. Press the 1 || button again to resume play.
Track Select
Press the ►► (14) or ◄◄ (13) button for less than one second to advance to the next file, or
press and hold to fast forward or fast reverse. Playback begins when the button is released.
Repeat (RPT)
Press the 2 button (6) to repeatedly play the current file. Press 2 again to repeat all songs in the
current folder. Press 2 a third time to resume normal playback.
Intro Scan (INT)
Press the 3 button (7) once to play the first 10 seconds of each file in the current device.
When the desired file is reached, press 3 again to end the scan and play the selected file.
Random (RDM)
Press the 4 button (8) to randomly play all files in the current folder. Press 4 again to resume
normal playback.
Navigating Folders
Press the 5 button (10) to move to the previous folder and begin playback of the first song in
the folder. Press the 6 button (9) to advance to the next folder and begin playback of the first
song in the folder.
Alternate Display Information
Press the DISP/SCROLL button (12) to change the display information from file name default
display to Artist/Song Title double line display mode.
MP3/WMA Directory Search
1. Press the BAND/SEARCH button (16) to enter directory search mode.
2. The LCD will display the folder list for the current directory. Press the BAND/SEARCH
button to view the folder directory list.
3. Navigate the folder list by pressing the ▲/▼ buttons (2).
4. Press the INFO/ENTER button to select a folder. The LCD will display the list of files within
that folder.
5. Navigate the file list by pressing the ▲/▼ buttons.
6. Press the INFO/ENTER button to select a file.
7. Use the AS/PS button (15) to reverse navigate the list.
MA300
10

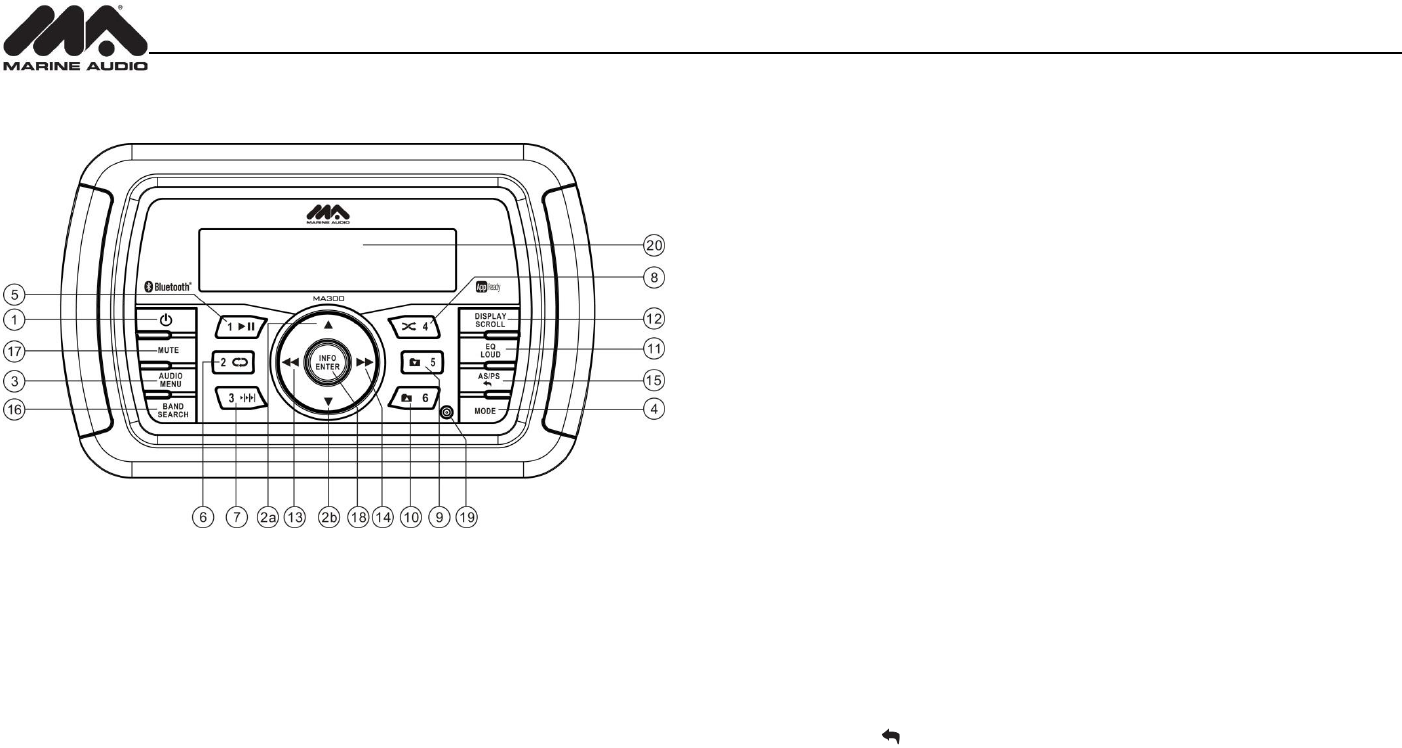

iPod® OPERATION
This unit is equipped with an iPod ready function that will allow you to control your iPod (if
compatible) using the control panel buttons. The following iPod versions are supported:
iPod Nano – 6G, 7G
iPod Classic
iPod Touch – 4G, 5G
iPhone – 4, 4S, 5, 5C, 5S
NOTE: Earlier model iPods are not supported because they do not implement the
required control protocol. Also, the iPod shuffle is not supported because it does not
utilize the 30-pin Apple iPod Connector. These unsupported iPod models may be
connected to the radio using the Auxiliary Input.
Accessing iPod Mode
Connect a supported iPod or iPhone to the USB connector. The iPod icon illuminates in the
bottom left corner of the LCD whenever an iPod or iPhone is attached to the USB connector.
Music playback begins automatically.
To enter iPod mode from any other source, press the MODE button (4) until “LOADING” appears
on the display. If the user connects an iPod containing no file, the radio will display a
message stating “No Songs” when it enters iPod mode.
Turning the iPod On/Off
The iPod power turns on automatically when an iPod is connected to the USB connector, as
long as the vehicle ignition is turned on. You can turn the iPod off by disconnecting it or by
turning the ignition off. When the ignition is turned off, the iPod will pause and then enter sleep
mode after 2 minutes. While the iPod is connected, the power cannot be turned on or off from
the iPod itself.
NOTE: The iPod will continuously recharge when connected to the unit, as long as the
vehicle ignition is turned on.
Controlling Playback
Selecting Tracks
During playback, press the ►►button (14) to play the next track in the current category. Press
the ◄◄button (13) twice to play the previous track. Press and hold the ◄◄ or ►► button
(13/14) to fast reverse/forward the song.
Pausing Playback
During playback, press the 1|| button (5) to pause the iPod player. “Pause” will appear on the
LCD. Press 1|| again to resume playback.
Repeat Play
During playback, press the 2 button (6) to repeat the current song. “Repeat One” will appear on
the LCD. Press 2 again to stop repeat playback.
Random Play
During playback, press the 4 button (8) to play all songs in the current category in random order.
Random play will begin once the current song has finished playing. “Random On” will appear on
the LCD. Press 4 again to stop random playback.
NOTE: If you press and hold the ◄◄ / ►► button to change the current song to the
previous/next song, you will exit fast reverse/forward mode.
Alternate Display Information
Press the DISP/SCROLL button (12) to change the display information from single line default
display to Artist/Song Title double line display mode.
Search Mode
Press the BAND/SEARCH button (16) to enter iPod search mode and choose from the following
search criteria: Playlist, Artist, Album, Song, Genre, Composer, Audiobooks and Podcasts
(consecutively).
When search mode is selected, press the INFO/ENTER button (18) to confirm selection. Use
the ▲/▼ buttons (2) to navigate through various list selections. Press INFO/ENTER (18) to
make your final selection. Use the AS/PS button (15) to reverse navigate the list.
MA300
11
Device 1
Device 2
Device 3
Device 4
Device 5
BT Device
Press
INFO/ENTER
Device 1
…
…
…
Device 5
Lock/Unlock
Connect/Disconnect
Delete
Lock/Unlock
Connect/Disconnect
Delete
Use ◄◄ / ►►
to Navigate
the List
BLUETOOTH OPERATION
The MA300 includes built-in Bluetooth technology that allows you to wirelessly connect
Bluetooth devices to this head unit for streaming audio playback.
About Bluetooth Technology
Bluetooth is a short-range wireless radio technology. Operating in the 2.4 GHz frequency range,
it transmits voice and data at speeds up to 2.1 Mbit/s over a range of up to 10 meters.
Bluetooth Menu Options
NOTE: Please note that some BT menu options are only available while the unit is in
Bluetooth Audio mode.
Press and hold the AUDIO/MENU button (3) to enter menu adjustment mode. Repeatedly press
the AUDIO/MENU button to access the following Bluetooth Menu options:
BT ON/OFF: Press the ▲/▼ buttons (2) to choose “BT ON” or “BT OFF”.
BT PAIR: Press the ▲/▼ buttons to choose “ON” or “OFF”, and then press the
INFO/ENTER button (18) to enter the selection.
Bluetooth Pair <ENTER>: Press the INFO/ENTER button to begin pairing with a Bluetooth
enabled device is pairing mode.
BT DEVICE: Press the INFO/ENTER button to view devices from the list. Press the ◄◄ /
►► buttons (13, 14) to view a list of previously paired mobile devices. Press the
INFO/ENTER button to select the device. Press the ◄◄ / ►► button to choose
Lock/Unlock, Disconnect or Delete for this device. You cannot delete a device that is
actively connected.
LOCK/UNLOCK: The MA300 can store up to 5 devices for BT connection. The
devices are stored in FIFO (First In First Out) order. To prevent a device from being
bumped from the list when more than 5 devices are used, you must lock the device.
To Lock/Unlock a device, press the INFO/ENTER button to display/change the
Locked ( ) or Unlocked ( ) icon.
DISCONNECT: To disconnect a paired device, press the INFO/ENTER button to
temporarily remove the BT link. The link can be re-established through your phone
menu by selecting the MA300 for connection.
DELETE: To delete a device from the list, press the INFO/ENTER button.
Pairing a Bluetooth Device
Before you begin, consult the owner’s manual for the Bluetooth device you want to pair with the
MA300.
1. Make sure the device is on and ready to receive a signal from the MA300. With the MA300
in BT Audio mode, choose BT Pair from the MA300 menu and press the INFO/ENTER
button to select ON. The unit is waiting to connect to a mobile device. With the Bluetooth
function of the mobile device turned on, search for a Bluetooth device.
2. When the Bluetooth device has completed its search, the mobile device will display the
Bluetooth device name (MA300).
3. Select MA300. The BT Audio icon ( ) on the LCD will display.
4. Enter the pairing password (0000), if requested. After connecting successfully, you will be
able to listen to music stored on your Bluetooth enabled device through the radio.
Answering a call While Listening to Music
When answering a call using a connected phone, Bluetooth audio playback will pause. After
hanging up from the call, Bluetooth audio will continue on some phones. It may be necessary to
press the play button to resume Bluetooth audio playback.
Press
INFO/ENTER
MA300
12
Bluetooth Audio (A2DP)
The A2DP music is available for Bluetooth enabled phones when the phone is connected. To
access Bluetooth mode and play songs stored on your phone, press the MODE button (4).
While in BT mode , the BT Audio icon ( ) illuminates on the LCD.
Selecting Tracks
During playback, press the ◄◄ / ►► button (13, 14) to play the previous or next track.
Pausing Playback
During playback, press the 1|| button (5) to pause the Bluetooth audio playback. “BT Audio
Pause” will appear on the LCD. Press 1|| button again to resume playback.
If you change to another mode, the mobile phone audio will pause. Press the MODE button (4)
to return to BT mode and resume mobile phone audio playback.
NOTE: If a Bluetooth device is disconnected due to the power being turned off or if the
device is disconnected inadvertently, the unit will automatically search for the matching
Bluetooth device when the power is restored.
APP OPERATION
MARINE AUDIO® Specialty Controller is the ultimate wireless remote control for your MARINE
AUDIO stereo system. Store away your old remotes and enjoy the convenience of all the
primary functions of your MARINE AUDIO stereo right from your phone or tablet by transforming
your mobile device into a functional stereo remote control!
Features
This app controls all of the primary functions of your stereo features including:
Power on/off
Volume and mute
AM/FM radio tuner: access station, recall, store presets
Bluetooth® streaming audio
File structure visibility, track selection, track audible scan up and down via USB
iPod/iPhone/iPad® control capabilities via USB
Auxiliary audio input control
Audio menu controls- bass, treble, balance, fader, equalizer and volume
Visual display feedback so you can see artist title and album on your mobile screen
Connecting and using MARINE AUDIO app
After downloading and installing MARINE AUDIO app on your device, pair your device to the
MA300 as stated above for Bluetooth pairing.
When Marine Audio is installed on Android operating system, close the app before Bluetooth
pairing, otherwise there may be errors on Bluetooth connection.
Once your device is paired you can open the
app and use as instructed with the MARINE AUDIO app manual found at
http://www.asaelectronics.com/manuals-guides
MA300
13
CARE AND MAINTENANCE
Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain
minerals that can corrode the electronic circuits.
Keep the product away from dust and dirt, which can cause premature wear of parts.
Handle the product gently and carefully. Dropping it can damage circuit boards and cases,
and can cause the product to work improperly.
Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use
harsh chemicals, cleaning solvents, or strong detergents to clean the product.
Use and store the product only in normal temperature environments. High temperature
can shorten the life of electronic devices, damage batteries, and distort or melt plastic
parts.
Ignition
The most common source of noise in reception is the ignition system. This is a result of the radio
being placed close to the ignition system (engine). This type of noise can be easily detected
because it will vary in intensity of pitch with the speed of the engine.
Usually, the ignition noise can be suppressed considerably by using a radio suppression type
high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ
this wire and resistor but it may be necessary to check them for correct operation.) Another
method of suppression is the use of additional noise suppressors. These can be obtained from
most CB/A radio or electronic supply shops.
Interference
Radio reception in a moving environment is very different from reception in a stationary
environment (home). It is very important to understand the difference.
AM reception will deteriorate when passing under a bridge or when passing under high voltage
lines. Although AM is subject to environmental noise, it has the ability to be received at great
distance. This is because broadcasting signals follow the curvature of the earth and are
reflected back by the upper atmosphere.
TROUBLESHOOTING
Symptom
Cause
Solution
No power
The vessel’s accessory
switch is not on
If the power supply is properly
connected to the vessel’s
accessory terminal, switch the
ignition key to “ACC”.
Fuse is blown
Replace the fuse.
No sound
Volume too slow
Adjust volume to audible level.
Wiring is not properly
connected
Check wiring connections.
The operation keys do
not work
The built-in
microprocessor is not
operating properly due to
noise
Press the reset button (19).
Cannot tune to radio
station, auto-seek does
not work
Antenna cable is not
connected
Insert the antenna cable firmly.
Signals are too weak.
Select a station manually.
MA300
14
SPECIFICATIONS
FM Radio
Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 107.9 MHz
Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz
Sensitivity (S/N=30dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 μV
Image Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>45 dB
Stereo Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dB
AM/MW
Frequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz
Frequency Range (Europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz
Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB
General
Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .DC 12 Volts
Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Negative Ground
Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 8 Ω (ohms) per channel
Tone Controls:
Bass (at 100 Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±14 dB
Treble (at 10 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±13 dB
Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 W x 4
Fuse Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Ampere (max.)
Chassis Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 (L) x 52.2 (W) x 173 (H)
Front Panel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .188 (L) x 58 (W) x 21 (H)
.
www.asaelectronics.com
v.300615
