Sounding Audio MS40BT MARINE AUDIO SYSTEM User Manual
Sounding Audio Industrial Ltd. MARINE AUDIO SYSTEM Users Manual
Users Manual
MS40BT
MARINE AUDIO SYSTEM
Installation and Operation Manual
iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
MS40BT
ii
CONTENTS
Warnings and Compliance ........................................................................................................ 1
Introduction ............................................................................................................................... 2
Installation ................................................................................................................................ 3
Wiring ....................................................................................................................................... 4
Basic Operation ........................................................................................................................ 5
Tuner Operation........................................................................................................................ 7
Weather Band Operation .......................................................................................................... 8
MP3/WMA OPERATION ........................................................................................................... 9
iPod Operation......................................................................................................................... 11
Bluetooth Operation ................................................................................................................ 13
Care and Maintenance ........................................................................................................... 15
Troubleshooting ...................................................................................................................... 15
Specifications ......................................................................................................................... 16
Copyrights and Trademarks
iPhone, iPod, iPod classic, iPod shuffle and iPod touch are trademarks of Apple Inc., registered
in the U.S. and other countries.
MS40BT
1
WARNINGS AND COMPLIANCE
Important Safety Instructions
NOTE: Keep the volume level Iow enough to be aware of your surroundings.
NOTE: USE THE PROPER POWER SUPPLY! This product is designed to operate with a 12
volt DC negative ground battery system.
FCC Notes
WARNING! Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
MS40BT
2
INTRODUCTION
System Features
Features of the Jensen MS40BT Marine audio system include:
White LED Backlit LCD
iPx6 Waterproof
Low Battery Alarm
AM/FM US/EURO Tuner with 30 Presets (12 AM, 18 FM)
Weatherband with Weather Alert
Bluetooth (Supports A2DP and AVRCP)
USB Playback of MP3/WMA Files
Made for iPod/iPhone (USB Input)
Mute
Pre-set Equalizer - 5 settings (User > Flat > Pop > Classical > Rock)
Electronic Bass, Treble, Balance and Fader Controls
Output Power 22W x 4
Wired Remote Control Ready (support MWR75/MWR100/ MWR150)
2-Channel Pre-amp Line Level Outputs
Auxiliary Audio Input (Rear RCA)
Content List
Jensen MS40BT Radio
Installation Opening Cutout Template
M4 x 0.7 Screws (x4)
MS40BT
3
INSTALLATION
Before you Begin
Before you begin, always disconnect the AC power.
Important Notes
Before final installation, test the wiring connections to make sure the unit is connected
properly and the system works.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications to your vehicle.
Install the unit where it does not interfere with diving and cannot injure passengers if there
is a sudden or emergency stop.
Front Mount
1. Use the included template to cut the installation opening.
2. Check the dashboard opening size by sliding the radio into it. If the opening is not large
enough, carefully cut or file as necessary until the radio slides into the opening. Check that
there will be sufficient space behind the dashboard for the radio chassis.
3. Place the radio in front of the dashboard opening so the wiring can be brought through the
opening.
4. Follow the wiring diagram carefully and make certain all connections are secure to ensure
proper operation.
5. After completing the wiring connections, turn the unit on to confirm operation (vehicle
accessory switch must be on). If the unit does not operate, recheck all wiring until the
problem is corrected. Once proper operation is achieved, turn the accessory switch off
and proceed with final mounting of the chassis.
6. Carefully slide the radio into the opening, making sure it is right-side-up.
7. Secure the radio to the dashboard using #6 pan head screws (not provided).
8. Replace the covers on either side of the radio.
9. Test radio operation by referring to the operating instructions for the unit.
Removing the Unit
To remove the radio after front mount installation, remove the covers, unscrew the installation
screws and pull the radio out.
Reconnect Battery
When wiring is complete, reconnect the battery negative terminal.
Bracket Mount

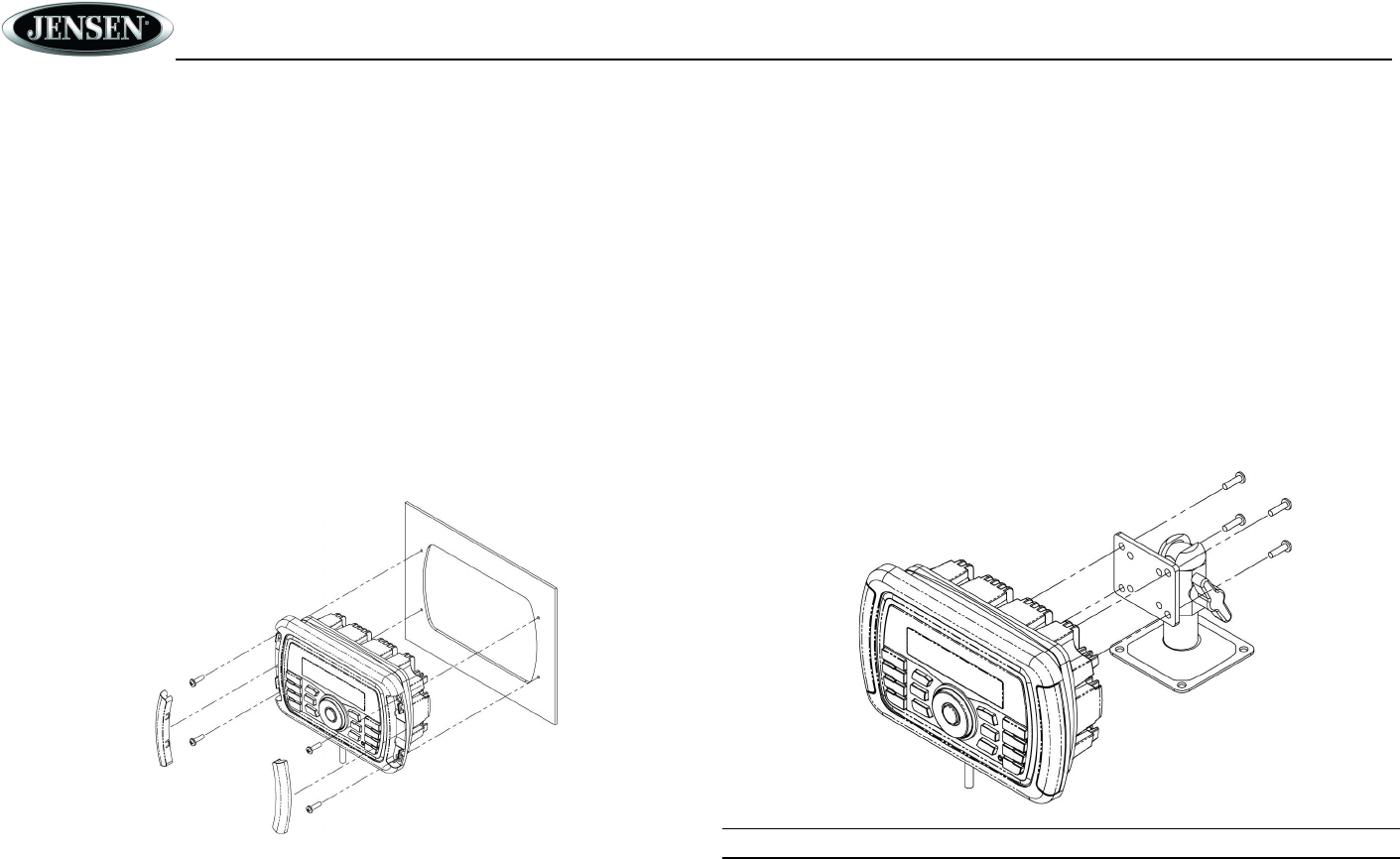

The VOSHD4MNT (sold separately) is a versatile mounting base/bracket for easy installation on
most flat surfaces. Please use the included M4 screws to attach the radio to the bracket, as
shown in the diagram below.
NOTE: Use only the M4 x 7-10mm length screws, included.
M4x.7 41mm Max
Length
MS40BT
4

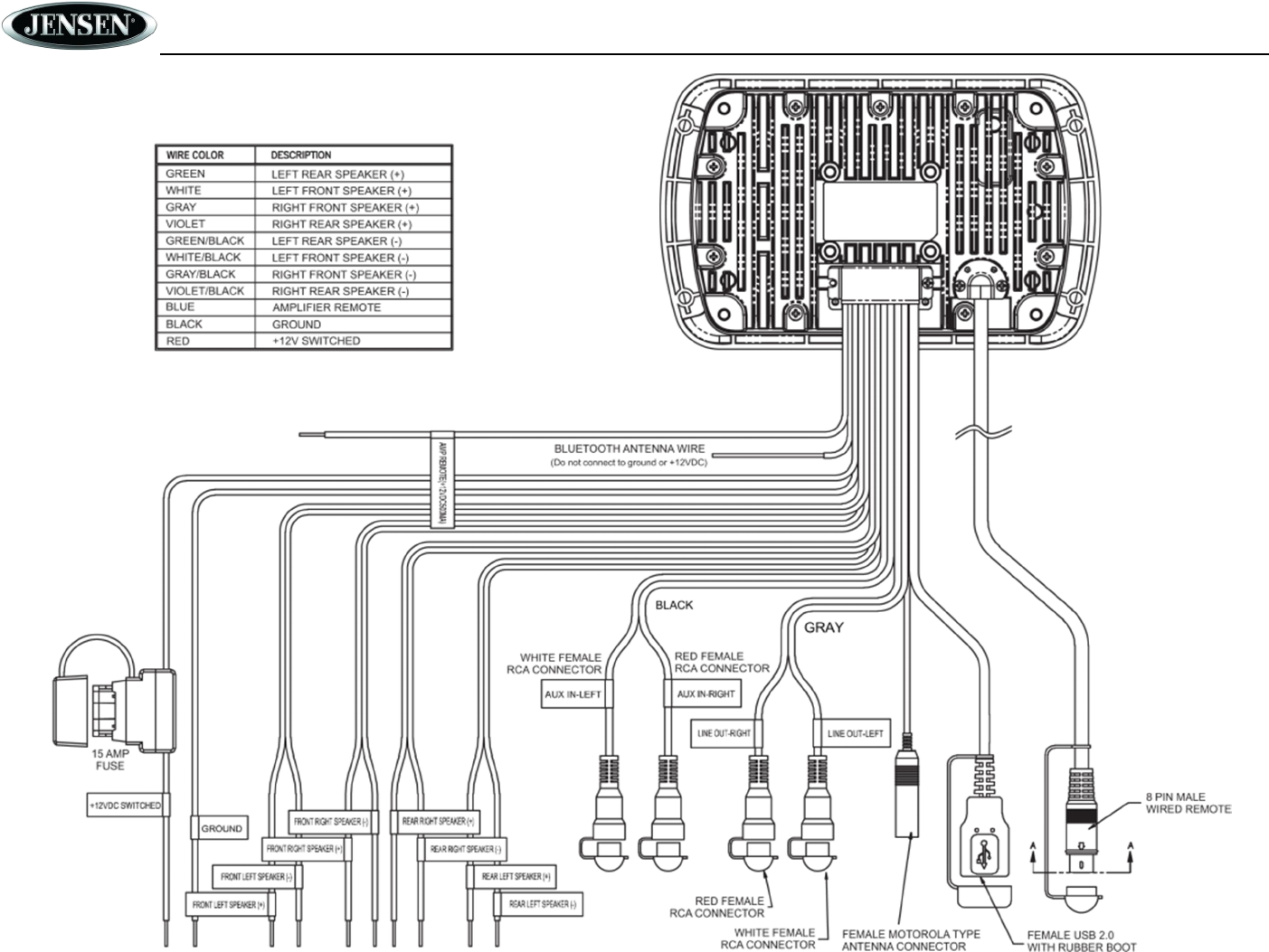

WIRING
MS40BT
5

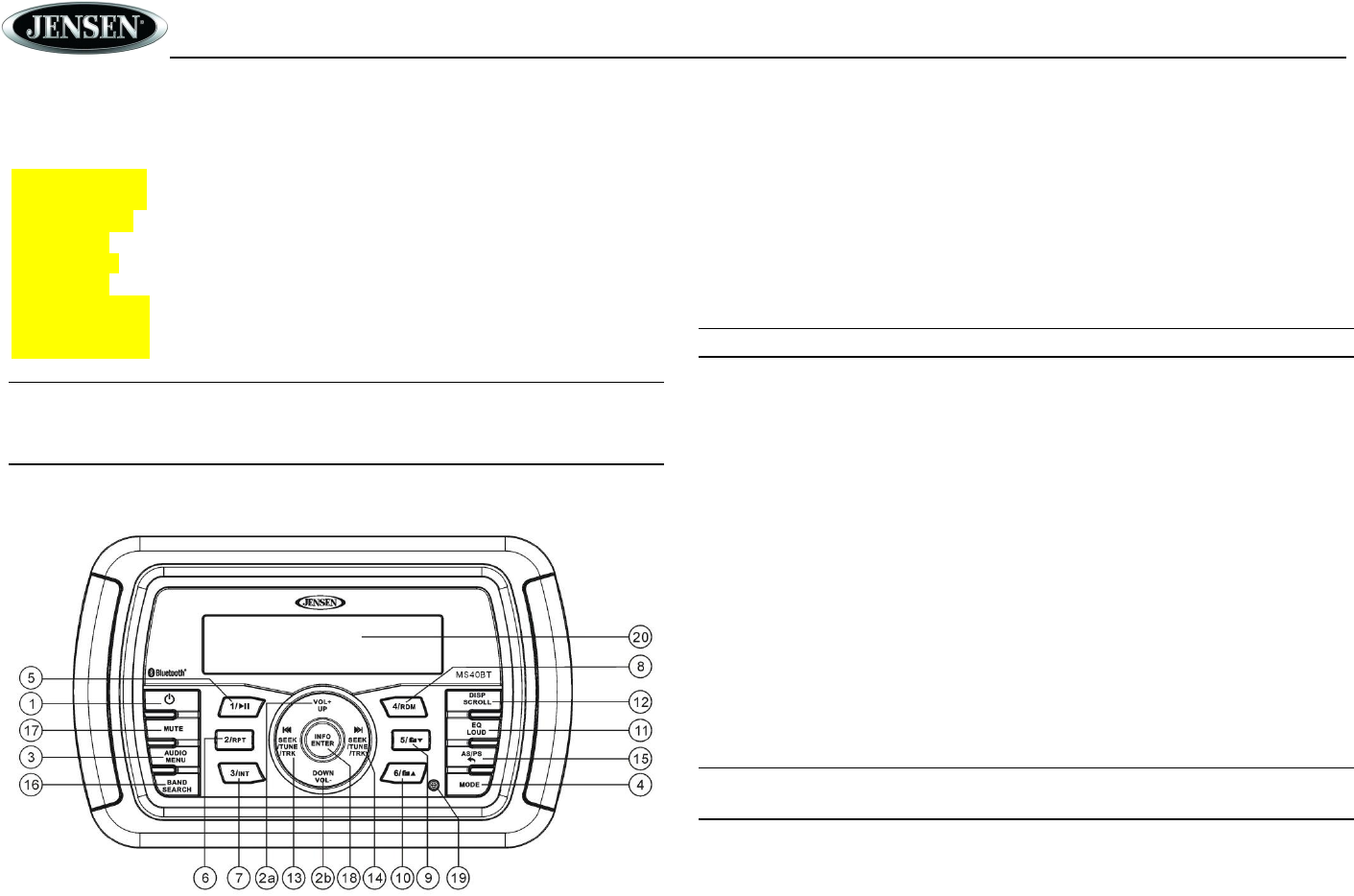

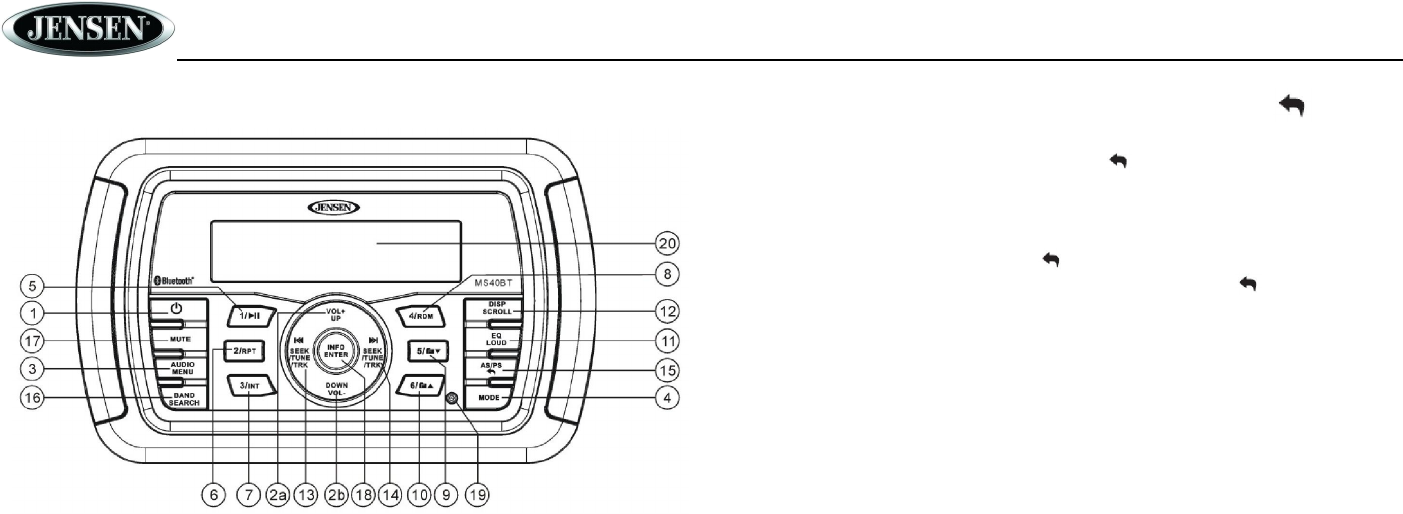

BASIC OPERATION
Power On/Off

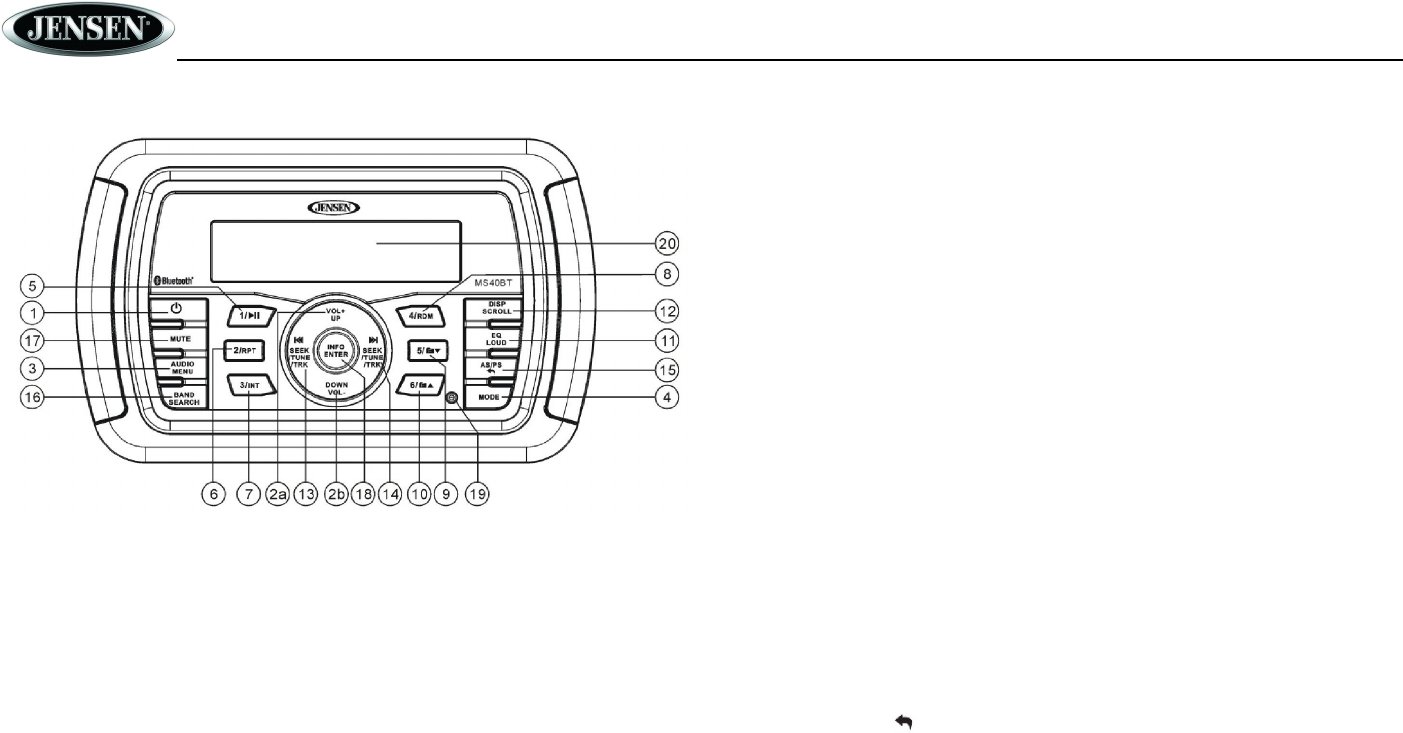

Press the power button (1) on the front panel to turn the unit on or off.
Volume Control
To increase the volume, press the VOL + button (2a). To decrease the volume, press the
VOL - button (2b).
Mute
Press the MUTE button (17) on the control panel to mute the audio output. Press MUTE again to
restore the audio output to the previous level.
Mode
Press the MODE button (4) on the control panel to select a different mode of operation, as
indicated on the display panel. Available modes include AM/FM Tuner, Weatherband, iPod, USB,
AUX In (optional Auxiliary Input), BT Audio.
Reset
The reset button should be activated for the following reasons:
initial installation of the unit when all wiring is completed
function buttons do not operate
error symbol on the display
Use a ball point pen or similar object to press the RESET button (19). This may be necessary
should the unit display an error code.
You can recover factory default settings using the RESET function located on the system menu.
With “Reset to Defaults?” flashing, press the INFO/ENTER button (18) to activate.
Audio Menu
Press the AUDIO/MENU button (3) on the control panel to access the audio menu. You can
navigate through the audio menu items by pressing the AUDIO/MENU button repeatedly. Once
the desired menu item appears on the display, adjust that option by pressing the VOL +/-
buttons (2) within 5 seconds. The unit will automatically exit the audio menu after five seconds of
inactivity. The following menu items can be adjusted.
Bass
Use the VOL buttons to adjust the bass level range from “-6” to “+6”.
Treble
Use the VOL buttons to adjust the treble level range from “-6” to “+6”.
Balance
Use the VOL buttons to adjust the balance between the left and right speakers from “L12” (full
left) to “R12” (full right).
Fade
Use the VOL buttons to adjust the fader between the rear and front speakers from “R12” (full
rear) to “F12” (full front).
System Menu
1. Press and hold the AUDIO/MENU button (3) for more than 2 seconds to enter the system
menu.
2. Press the VOL +/- buttons (2) repeatedly to navigate the system menu and select the
desired item.
3. Press the INFO/ENTER or SEEK +/- button (18 ) to adjust the selected menu item.
4. Press the AS/PS button (15) to return to the previous operation.
The following items can be adjusted:
Key Beep (On/Off): Turn the audible beep On/Off (heard when functions/buttons are
selected). NOTE: Beep tone off will not affect Battery Alarm audible tone.
LCD Backlight (1/10 - 10/10): Adjust LCD brightness.
LCD Contrast (1/10 - 10/10): Set LCD contrast.
Tuning Region (USA/Europe/China/Latin/Aus/Russia/Japan): Set frequency spacing for
various regions.
Weather Alert Configure: Press the INFO/ENTER button (18) to see weather alert options.
Weather Alert (On/Off): Determines if the weather band alert feature is activated.
Alert Volume (1/40-40/40): Set default volume for weather alert broadcasts.
Battery Alarm (On/Off): Monitor voltage on ACC line and send alert when voltage is low.
Battery Auto-Off (On/Off): Automatically turn off power to radio when battery voltage is low.
Bluetooth Device (Lock/Unlock, Disconnect/Connect, Delete): View, lock and delete from
a list of previously paired mobile phone device models.
MS40BT
6
Bluetooth Pair (On/Off): Choose “INFO/ENTER” to automatically pair a device.
Bluetooth (On/Off): Choose “Bluetooth On” or “Bluetooth Off”.
Volume Preset (1/40-40/40): Select an automatic turn-on volume.
Reset to Defaults <ENTER>: Return the EEPROM to factory default set up values. Press
the INFO/ENTER button (18) to select.
NOTE: BT Pair and BT Device menu options are only available while the BT feature is
ON and the radio is in BT Audio mode.
NOTE: A locked Bluetooth device will not be overwritten from the list.
Battery Alarm Operation
If Battery Alarm is set to “On”, an alarm will sound (8 beeps every 30 sec) when the voltage
drops to 10.5V (+/- 0.3V). A visual warning (Low Battery) will appear flashing (8 flashes every 30
sec) in the LCD display.
NOTE: “Off” is the default setting for Battery Alarm. If the audio is muted or the volume is
set to 0, the audible beep will not be heard.
Equalizer
Press the EQ/LOUD button (11) to turn on the equalization function and select between five
pre-defined bass and treble curves: User > Flat > Pop > Classical > Rock.
Loudness
Press and hold the EQ/LOUD button (11) to toggle true loudness on/off. When listening to music
at low volumes, this feature will boost the bass ranges to compensate for the characteristics of
human hearing.
Auxiliary Input
To access an auxiliary device:
1. Connect the portable audio player to the AUX IN cables routed from the rear of the radio.
2. Press the MODE button (4) to select Aux In mode.
3. Press MODE again to cancel Aux In mode and switch to the next mode.
Liquid Crystal Display (LCD)
The current frequency and activated functions are shown on the LCD panel (20).
NOTE: LCD panels may take longer to respond when subjected to cold temperatures for
an extended period of time. In addition, the visibility of the numbers on the LCD may
decrease slightly. The LCD display will return to normal when the temperature increases
to a normal range.
Quick Exit Hot Key
In the following modes and conditions, press the AS/PS button (15) < 3 seconds to quickly
exit the current operation without waiting for the system default time out:
System menu operation
Searching mode
Audio menu operation
MS40BT
7
TUNER OPERATION
Select a Band

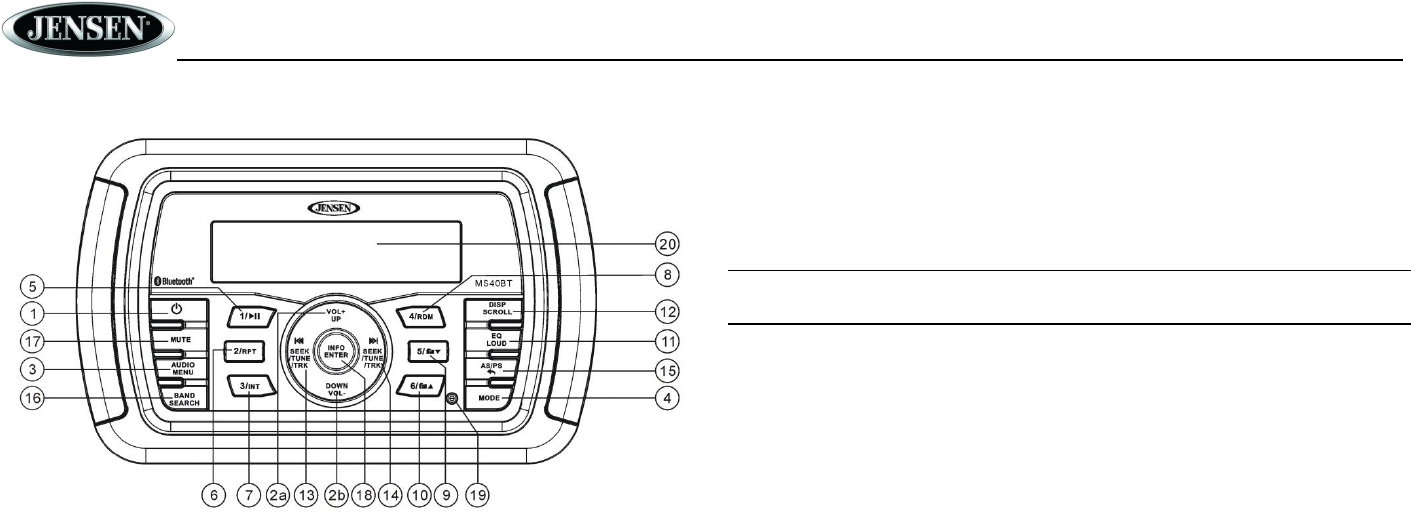

Press the BAND/SEARCH button (16) to change between three FM bands and two AM (MW)
bands.
Manual Tuning
Press the SEEK/TUNE/TRK |<< or >>| buttons (13, 14) to seek stations up/down step by step.
Auto Seek Tuning
Press and hold the SEEK/TUNE/TRK |<< or >>| buttons (13, 14) to automatically seek the next
or previous strong station.
Preset Stations
Six numbered preset buttons store and recall stations for each band.
Store a Station
Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two
seconds. The preset number will appear in the display.
Recall a Station
Select a band (if needed). Press a preset button (5-10) to select the corresponding stored
station.
Automatically Store / Preset Scan (AS/PS )
Automatically Store
Select an AM or FM band. Press and hold the AS/PS button (15) for more than two seconds
to automatically select strong stations and store them in all bands. The new stations replace any
stations already stored in that band.
Preset Scan
Select a band (if needed). Press the AS/PS button (15) to scan stations stored in all bands.
The unit will pause for ten seconds at each preset station. Press AS/PS again to stop
scanning when the desired station is reached.
MS40BT
8
WEATHER BAND OPERATION
Accessing the Weather Band
Press the MODE button (4) to access the weather band mode.
What is the NOAA Weather Radio?
NOAA is a nationwide system that broadcasts local weather emergency information 24 hours a
day. The U.S. network has more than 530 stations covering the 50 states, as well as the
adjacent coastal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific Territories.
Each local area has its own transmitting station and there are a total of seven broadcasting
frequencies used: 162.400MHz (CH2), 162.425MHz (CH4), 162.450MHz (CH5), 162.475MHz
(CH3), 162.500MHz (CH6), 162.525MHz (CH7) and 162.550MHz (CH1).
How many stations can I expect to receive?
Since the broadcasts pertain to local weather and information, the transmission power is usually
very low (much less than AM or FM stations) which means you will usually receive only one
station unless you are on the edge of two or more broadcast signals. The most you will receive
is two or three, and that is rare.
Is it possible I won't receive any stations?
Depending on location, it’s possible to receive a very weak signal or none at all. Also, similar to
AM and FM signals, weather band signals are subject to surrounding conditions, weather,
obstructions of the signal by hills or mountains, etc. If no NOAA signals are found/received, the
tuner will scan all seven NOAA frequencies every 30 seconds.
How will I know I am tuned to the weather band?
When you select the weather band, the “WB” icon will appear on the display panel, along with
the current channel indication. Press the SEEK/TUNE/TRK |<< or >>| buttons (13, 14) to tune to
each of the seven channels until you find the weather band station broadcasting in your area.
NOAA Weather Alert
The Weather Alert function adds an additional level of user safety by automatically switching
from the current function mode to weather band mode for a minimum of 60 seconds if a NOAA
warning tone (1050 Hz) is received/detected. If no additional warning tone is received for 60
seconds, the unit will switch back to the last known function mode.
The Weather Alert function can be turned “on” or “off” by the Audio/Menu key, as described on
page three. When “ON”, the weather tuner remains active, even when the radio is turned off (as
long as the power is still applied to the radio). If a weather alert is issued, the radio will turn on
and play the announcement, then turn back off and revert to weather alert monitor mode.
The radio will not respond to any weather alerts when it is off and will not automatically switch to
the weather band if an alert is issued.
NOTE: If the unit is programmed for European operation, the WB function will be
disabled.
MS40BT
9
MP3/WMA OPERATION
MP3/WMA File Requirements
This unit can play MP3 (MPEG1, 2, 2.5 Audio Layer 2/3) and WMA (version 7/8/9).
Media Requirements
The following formats are available for the media used in this unit. The maximum number of
characters used for file name including the delimiter (".") and three-character extension are
indicated in parentheses.
ISO 9660 Level 1 (11 characters)
ISO 9660 Level 2 (31 characters)
Joliet (31 characters)
Romeo (31 characters)
The media reproducible on this unit has the following limitations:
Maximum number of nested folders: 8
Maximum number of files per device: 999
Maximum number of folders per device: 99
Use the following settings when compressing audio data in MP3 data with the MP3 encoder.
Transfer bit rate: 32 - 320 kbps
Sampling frequency
MPEG1: 32/44.1/48 KHz
MPEG2:16/22.05/24 KHz
MPEG2.5: 8/11.025/12KHz
WMA: 22/32/44/48KHz
Maximum file/directory name: 64 bytes
ID3 Support
This unit supports ID3 tag versions 1.0, 1.1, 2.0 and 2.3 (Max 32 bytes).
Installing a USB Device
Insert your USB thumb drive into the USB connector routed from the rear of the radio. The unit
will automatically search for MP3 and WMA files on the device and begin playback. You can
access USB mode from any other mode by pressing the MODE button (4).
WARNING: Do not remove the device when USB PLAY mode is active. Press MODE (4) to
change to another mode before removing the device
Controlling Playback
Pause/Play
Press the 1 >/|| button (5) to suspend playback. Press the 1 >/|| button again to resume play.
Track Select
Press the SEEK/TUNE/TRK >>| (14) or |<< (13) button for less than one second to advance to
the next file, or press and hold to fast forward or fast reverse. Playback begins when the button
is released.
Repeat (RPT)
Press the 2 RPT button (6) to repeatedly play the current file. Press 2 RPT again to repeat all
songs in the current folder. Press 2 RPT a third time to resume normal playback.
Intro Scan (INT)
Press the 3 INT button (7) once to play the first 10 seconds of each file in the current device.
When the desired file is reached, press 3 INT again to end the scan and play the selected file.
Random (RDM)
Press the 4 RDM button (8) to randomly play all files in the current folder. Press 4 RDM again to
resume normal playback.
Navigating Folders
Press the 5 button (9) to move to the previous folder and begin playback of the first song in the
folder. Press the 6 button (10) to advance to the next folder and begin playback of the first song
in the folder.
Alternate Display Information
Press the DISP/SCROLL button (12) to change the display information from file name default
display to Artist/Song Title double line display mode.
MP3/WMA Directory Search
1. Press the BAND/SEARCH button (16) to enter directory search mode.
2. The LCD will display the folder list for the current directory. Press the BAND/SEARCH
MS40BT
10
button to view the folder directory list.
3. Navigate the folder list by pressing the VOL +/- buttons (2).
4. Press the INFO/ENTER button to select a folder. The LCD will display the list of files within
that folder.
5. Navigate the file list by pressing the VOL +/- buttons.
6. Press the INFO/ENTER button to select a file.
7. Use the AS/PS button (15) to reverse navigate the list.
MS40BT
11
iPod OPERATION
This unit is equipped with an iPod ready function that will allow you to control your iPod (if
compatible) using the control panel buttons. The following iPod versions are supported:
iPod nano 5G
iPod nano 6G
iPod classic
iPhone4
iPhone4S
iPhone5
iPod touch 3G
iPod touch 4G
iPod touch 5G
NOTE: Earlier model iPods are not supported because they do not implement the
required control protocol. Also, the iPod shuffle s not supported because it does not
utilize the 30-pin Apple iPod Connector. These unsupported iPod models may be
connected to the radio using one of the Auxiliary Inputs.
Accessing iPod Mode
Connect a supported iPod or iPhone to the USB connector. The iPod icon illuminates in the
bottom left corner of the LCD whenever an iPod or iPhone is attached to the USB connector.
Music playback begins automatically.
To enter iPod mode from any other source, press the MODE button (4) until “LOADING” appears
on the display. If the user connects an iPod containing no file, the radio will display a
message stating “No Songs” when it enters iPod mode.
Turning the iPod On/Off
The iPod power turns on automatically when an iPod is connected to the USB connector, as
long as the vehicle ignition is turned on. You can turn the iPod off by disconnecting it or by
turning the ignition off. When the ignition is turned off, the iPod will pause and then enter sleep
mode after 2 minutes. While the iPod is connected, the power cannot be turned on or off from
the iPod itself.
NOTE: The iPod will continuously recharge while in iPod playback mode.
Controlling Playback
Selecting Tracks
During playback, press the SEEK/TUNE/TRK >>| button (14) to play the next track in the current
category. Press the SEEK/TUNE/TRK |<< button (13) twice to play the previous track. Press
and hold the SEEK/TUNE/TRK |<< / >>| button (13/14) to fast reverse/forward the song.
Pausing Playback
During playback, press the 1/>|| button (5) to pause the iPod player. “Pause” will appear on the
LCD. Press 1/>|| again to resume playback.
Repeat Play
During playback, press the 2 RPT button (6) to repeat the current song. “Repeat One” will
appear on the LCD. Press 2 RPT again to stop repeat playback.
Random Play
During playback, press the 4 RDM button (8) to play all songs in the current category in random
order. Random play will begin once the current song has finished playing. “Random On” will
appear on the LCD. Press 4 RDM again to stop random playback.
NOTE: If you press and hold the SEEK/TUNE/TRK |<< / >>| button to change the current
song to the previous/next song, you will exit fast reverse/forward mode.
Alternate Display Information
Press the DISP/SCROLL button (12) to change the display information from single line default
display to Artist/Song Title double line display mode.
Search Mode
Press the BAND/SEARCH button (16) to enter iPod search mode and choose from the following
MS40BT
12
search criteria: Playlist, Artist, Album, Song, Genre, Composer, Audiobooks and Podcasts
(consecutively).
When search mode is selected, press the INFO/ENTER button (18) to confirm selection. Use
the VOL +/- buttons (2) to navigate through various list selections. Press INFO/ENTER (18) to
make your final selection. Use the AS/PS button (15) to reverse navigate the list.
MS40BT
13
Device 1
Device 2
Device 3
Device 4
Device 5
BT Device
Press ENTER
Device 1
…
…
…
Device 5 Lock/Unlock
Connect/Disconnect
Delete
Lock/Unlock
Connect/Disconnect
Delete
Press ENTER
Use SEEK/TUNE/TRK
to Navigate
the List
BLUETOOTH OPERATION
The MS40BT includes built-in Bluetooth technology that allows you to wirelessly connect
Bluetooth devices to this head unit for streaming audio playback.
About Bluetooth Technology
Bluetooth is a short-range wireless radio connectivity technology developed as a cable
replacement for various electronic devices. Bluetooth operates in 2.4 GHz frequency range and
transmits voice and data at speeds up to 1 megabit per second. Bluetooth was launched
by a special interest group (SIG) comprised of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba
and IBM in 1998, and it is currently developed by nearly 2,000 companies worldwide. The
Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks
is under license. Other trademarks and trade names are those of their respective owners.
Bluetooth Menu Options
NOTE: Please note that some BT menu options are only available while the unit is in BT
Audio mode.
Press and hold the AUDIO/MENU button (3) to enter menu adjustment mode. Repeatedly press
the VOL +/- buttons (2) to access the “Bluetooth On/Off” menu function. Press the INFO/ENTER
button (18) to turn the Bluetooth function On or Off. The following menu options are available
when the unit is in Bluetooth mode.
Bluetooth Pair <ENTER>: Press the INFO/ENTER button to begin pairing with a Bluetooth
enabled device is pairing mode.
Bluetooth Device: Press the INFO/ENTER button to view a list of previously paired mobile
phone device models. Press the SEEK/TUNE/TRK buttons (13, 14) to view devices from
the list. You cannot delete a device that is actively connected. Press the INFO/ENTER
button to select the device. Press the SEEK/TUNE/TRK buttons to choose Lock/Unlock,
Disconnect or Delete for this device.
Lock/Unlock: The MS40BT can store up to 5 devices for BT connection. The devices
are stored in FIFO (First In First Out) order. To prevent a device from being bumped
from the list when more than 5 devices are used, you must lock the device. To
Lock/Unlock a device, press the INFO/ENTER button to display/change the Locked
( ) or Unlocked ( ) icon.
Disconnect: To disconnect a paired device, press the INFO/ENTER button to
temporarily remove the BT link. The link can be re-established through your phone
menu by selecting the JHD40BT for connection.
Delete: To delete a device from the list, press the INFO/ENTER button.
Pairing a Bluetooth Device
Before you begin, consult the owner’s manual for the Bluetooth device you want to pair with the
MS40BT.
1. Make sure the device is on and ready to receive a signal from the MS40BT. With the
MS40BT in BT Audio mode, choose BT Pair from the MS40BT menu and press the
INFO/ENTER button to select ON. The unit is waiting to connect to a mobile device. With
the BT function of the mobile device turned on, search for a Bluetooth device.
2. When the Bluetooth device has completed its search, the mobile device will display the
Bluetooth device name (MS40BT).
3. Select MS40BT. The BT Audio icon ( ) on the LCD will display.
4. Enter the pairing password (0000), if requested.
After connecting successfully, you will be able o listen to music stored on your Bluetooth
enabled device through the radio.
Answering a call
When answering a call using a connected phone, BT AUDIO will pause. After hanging up from
the call, BT AUDIO will continue on some phones. It may be necessary to press the play button
to resume BT AUDIO.
MS40BT
14
BT Audio (A2DP)
The A2DP music is available for Bluetooth enabled phones when the phone is connected. To
access Bluetooth mode and play songs stored on your phone, press the MODE button (4).
While in BT mode , the BT Audio icon ( ) illuminates on the LCD.
Selecting Tracks
During playback, press SEEK/TUNE/TRK button (13, 14) to play the previous or next track.
Pausing Playback
During playback, press the 1 />|| button (5) to pause the BT AUDIO player. “BT Audio Pause” will
appear on the LCD. Press 1 />|| button again to resume playback.
If you change to another mode, the mobile phone audio will pause. Press the MODE button (4)
to return to BT mode and resume mobile phone audio playback.
NOTE: If a Bluetooth device is disconnected due to the power being turned off or if the
device is disconnected inadvertently, the unit will automatically search for the matching
Bluetooth device when the power is restored.
MS40BT
15
CARE AND MAINTENANCE
Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain
minerals that can corrode the electronic circuits.
Keep the product away from dust and dirt, which can cause premature wear of parts.
Handle the product gently and carefully. Dropping it can damage circuit boards and cases,
and can cause the product to work improperly.
Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use
harsh chemicals, cleaning solvents, or strong detergents to clean the product.
Use and store the product only in normal temperature environments. High temperature
can shorten the life of electronic devices, damage batteries, and distort or melt plastic
parts.
Ignition
The most common source of noise in reception is the ignition system. This is a result of the radio
being placed close to the ignition system (engine). This type of noise can be easily detected
because it will vary in intensity of pitch with the speed of the engine.
Usually, the ignition noise can be suppressed considerably by using a radio suppression type
high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ
this wire and resistor but it may be necessary to check them for correct operation.) Another
method of suppression is the use of additional noise suppressors. These can be obtained from
most CB/A radio or electronic supply shops.
Interference
Radio reception in a moving environment is very different from reception in a stationary
environment (home). It is very important to understand the difference.
AM reception will deteriorate when passing under a bridge or when passing under high voltage
lines. Although AM is subject to environmental noise, it has the ability to be received at great
distance. This is because broadcasting signals follow the curvature of the earth and are
reflected back by the upper atmosphere.
TROUBLESHOOTING
Symptom Cause Solution
No power The vessel’s accessory
switch is not on
If the power supply is properly
connected to the vessel’s
accessory terminal, switch the
ignition key to “ACC”.
Fuse is blown Replace the fuse.
No sound Volume too slow Adjust volume to audible level.
Wiring is not properly
connected
Check wiring connections.
The operation keys do
not work
The built-in microcomputer
is not operating properly
due to noise
Press the reset button (19).
Cannot tune to radio
station, auto-seek does
not work
Antenna cable is not
connected
Insert the antenna cable firmly.
Signals are too weak. Select a station manually.
MS40BT
16
SPECIFICATIONS
FM Radio
Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 107.9 MHz
Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz
Sensitivity (S/N=30dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 μV
Image Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>45 dB
Stereo Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dB
AM/MW
Frequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz
Frequency Range (Europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz
Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB
General
Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .DC 12 Volts
Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Negative Ground
Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8 Ω(ohms) per channel
Tone Controls:
Bass (at 100 Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±14 dB
Treble (at 10 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±13 dB
Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22W x 4
Fuse Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Ampere (max.)
Chassis Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182(L) x 52.2(W) x 173(H)
Front Panel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188(L) x 58(W) x 21(H)
.
ASA Electronics Corporation
www.asaelectronics.com
www.jensenmarinedirect.com
