South Pacific Electronics Ltd. 27MHz Handheld Gigalink Transmitter, Model GLT270X User guide
User guide
GLT2700/1/2/3/4
27MHz HAND HELD GIGALINK™ TRANSMITTERS
The hand held GIGALINK transmitters are the most advanced Remote Control technology available
in the world today. GIGALINK is an invention that has revolutionised the entire Remote Control
technology including Elsema’s earlier version of FMT- … and FMR- … series. The GLT2701/2/3/4
state-of-the-art invention brings a new dimension in the world of Remote Control technology in
domestic, commercial and industrial applications.
GIGALINK
TYPE: GLT2701
GIGACODE MODULATION
TM
GIGALINK
TYPE: GLT2702
GIGACODE MODULATION
TM
GIGALINK
TYPE: GLT2703
GIGACODE MODULATION
TM
GIGALINK
TYPE: GLT2704
GIGACODE MODULATION
TM
The innovative microcontroller technology replaces the traditional dip switch coding by eliminating
any possible code grabbing. Special features such as over four billion code combinations and the
ability to program any number of transmitters to a receiver adds to the most advanced and secure
Remote Controls available.
The hand held GIGALINK transmitters have a microcontroller in-built single and channelised code
programming system that provides flexibility in programming each channel to different receivers. Each
transmitter can store to its EEPROM, up to four random channels allowing the user to program each
channel from different single channel receivers. This is achieved when single code programming the
transmitter channels from a GLR2701, which is a single channel GIGALINK receiver. If the
transmitter is single code programmed from a multi channel receiver, the selected receiver’s channel is
programmed to the selected transmitter channel. The channels can be selected by using the dip
switches on the receiver and by pressing the appropriate channel button on the transmitter.
Channelised code programming programs all the channels, from a multi channel receiver, to the multi
channel transmitter. That is, channel one on the transmitter activates channel one on the receiver and
alternatively. Channelised system can be either used as simple on/off functions or for several channels
to operate simultaneously such as dual or multi action control for example crane transmission control.
The transmitter can be single or channelised code programmed without power connected.
Single Code Programming
This is used for programming one channel at a time to the transmitter. To single code program a
transmitter read receivers setup instructions.
Channelised Code Programming
This is used to program all channels from a multi channel receiver to the multi channel transmitter. To
channelise code program a transmitter read receivers setup instructions.
Applications
The code programming becomes a powerful feature that allows the hand held transmitters to be used in
many diverse applications such as security, gate operation, panic buttons, multiple on/off functions etc.
Battery or DC Supply
Battery operation is optimised using the built-in battery monitoring system. The battery monitoring
system alerts the user when the battery level falls below the low battery voltage. The 1 Hz flash from
the LED during a transmission indicates low battery. This is an indication that replacement of a battery
is necessary.
Normal Operation
The LED flickers at 12.5Hz during normal operation.
Channels
The hand held transmitters are available with 1, 2, 3 and 4 channels.
Custom made front Membrane
Membrane is the front label with the channel etched/printed to it. Customers can purchase the
GLT2700, which is a hand held GIGALINK transmitter without the front membrane. This enables
the customers to fit their custom made membrane that can be a 1, 2, 3 or 4 channels. This has the
advantage of customers only stocking one model to function as a 1, 2, 3 and 4 channel. Details of
membrane dimensions are given on the following page. Customers can even use Elsema’s membrane
tools to manufacture their own membranes.
Continuous or Burst Transmission
The hand held transmitters can be purchased with a choice of continuous or burst transmission.
Continuous transmission will transmit as long as the channel is activated.
Burst transmission will transmit for a predetermined time when a channel is activated. Burst
transmission locks on a transmission, which ensures a fail-safe transmission from a short activation of
a channel. Burst transmission is also required in certain countries where limited transmission time is
allowed.
Unique Code System
The microcontroller EEPROM allows large volume users to have a unique code. This enables Elsema
to offer everyone “your own” radio control.
Case
The hand held GIGALINK transmitters are supplied with a case. There is also sufficient space on the
rear of the case to place additional stickers such as your telephone contact, local authorities approval
numbers etc.
REGULATORY COMPIANCE STAEMENTS
American Users
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)
This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Notice
This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This device generates, uses, and can radiate radio
frequency energy and, if installed and used in accordance with the instruction, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this device does cause harmful interference to radio or television
reception, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the computer and receiver.
• Connect the computer into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void
the user’s authority to operate the equipment.
Canadian Users
This Class [B] digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe [B] respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Users
This information Technology Equipment has been tested and found to comply with the following
European directives:
- ETS 300 683
- I-ETS 300 220
Australian and New Zealand Users
This device has been tested and found to comply with the limits for a Class [B] digital device, pursuant
to the Australian/New Zealand standard AS 4268.2 (1995) set out by the Spectrum Management
Agency.
TECHNICAL DATA ON GLT2701/2/3/4
POWER SOURCE : 9-Volt Battery (Applied to the battery clip)
CURRENT CONSUMPTION : Maximum 45mA at 8VDC supply (Only when
transmitting).
STANDBY CURRENT : 10 uA (typical)
TRANSMISSION MODES
CONTINUES : Transmits as long as the channel is activated. Minimum
transmission time is 640 msec.
BURST (B version) : Transmits one 640 msec burst for each channel activation,
even if channel is activated for less than 640msec.
BATTERY MONITOR : LED flashes at 1 Hz, during transmission, when
battery voltage is at 6.5 volts (flat 9 volt battery).
NORMAL OPERATION : The LED flickers at 12.5Hz during normal operation.
OPERATING FREQUENCY : 27.195MHz (Other frequencies available on 27.045,
27.145 and 27.455 MHz)
CARRIER FREQUENCY TOLERANCE : Crystal controlled 30 parts per million.
OPERATING TEMPERATURE RANGE : -5 to +50°C
RADIATED R.F. POWER OUTPUT : 2.23µW (CKC test result)
ANTENNA : Built in 50mm long dilec rod.
TYPE OF EMISSION : Narrow-band-width Frequency Modulation (FM).
FREQUENCY DEVIATION LIMITING : 1600 - 1900 Hz non-return to zero.
MODULATION FREQUENCY : 1.8 kHz (0.56 ms/bit) (15% tolerance).
SPURIOUS TRANSMISSION : At least -60dB/carrier
NECESSARY BAND WIDTH : + - 2.5 kHz
DIGITAL CODING SYSTEM : Microcontroller based 96-bit word.
CODE COMBINATION : 4,294,967,296
DIGITAL CHANNELS : 1, 2, 3 or 4 channels. The type of membrane label
determines the number of channels. Customers can fit
custom-made membrane labels.
DIMENSION : 81 X 56 X 24 mm
WEIGHT : 51 grams excluding battery
USABLE RECEIVERS : GLR … series
USEABLE OPERATING RANGE : up to 250 metres depending on building structure.

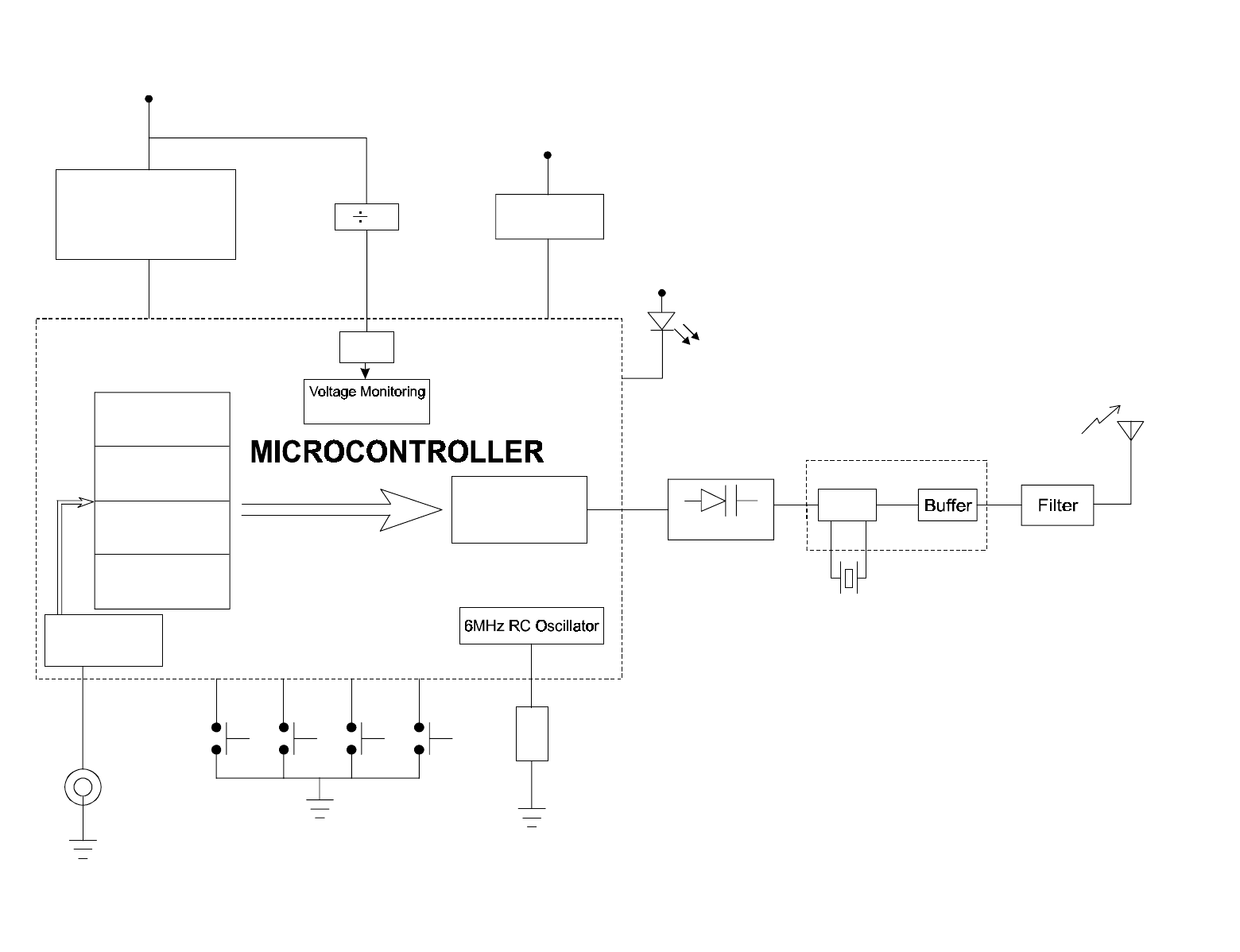

BLOCK DIAGRAM
EEPROM
Channel 1
36 bit Code
Channel 2
36 bit Code
Channel 3
36 bit Code
Channel 4
36bit Code
CODE Fetching
Algoritham
Encoding
R
Regulator
5V
9V Battery
Algoritham
A/D
2
MOD
5V Flickering at 12.5Hz for Normal Transmision
Flashing at 1Hz for Low Battery (Below 6.5V)
OSC
27.195MHz
Coding Socket
Voltage
Supervisor
5V
RESET
Algoritham
Ch1 Ch2 Ch3 Ch4
Red
LED

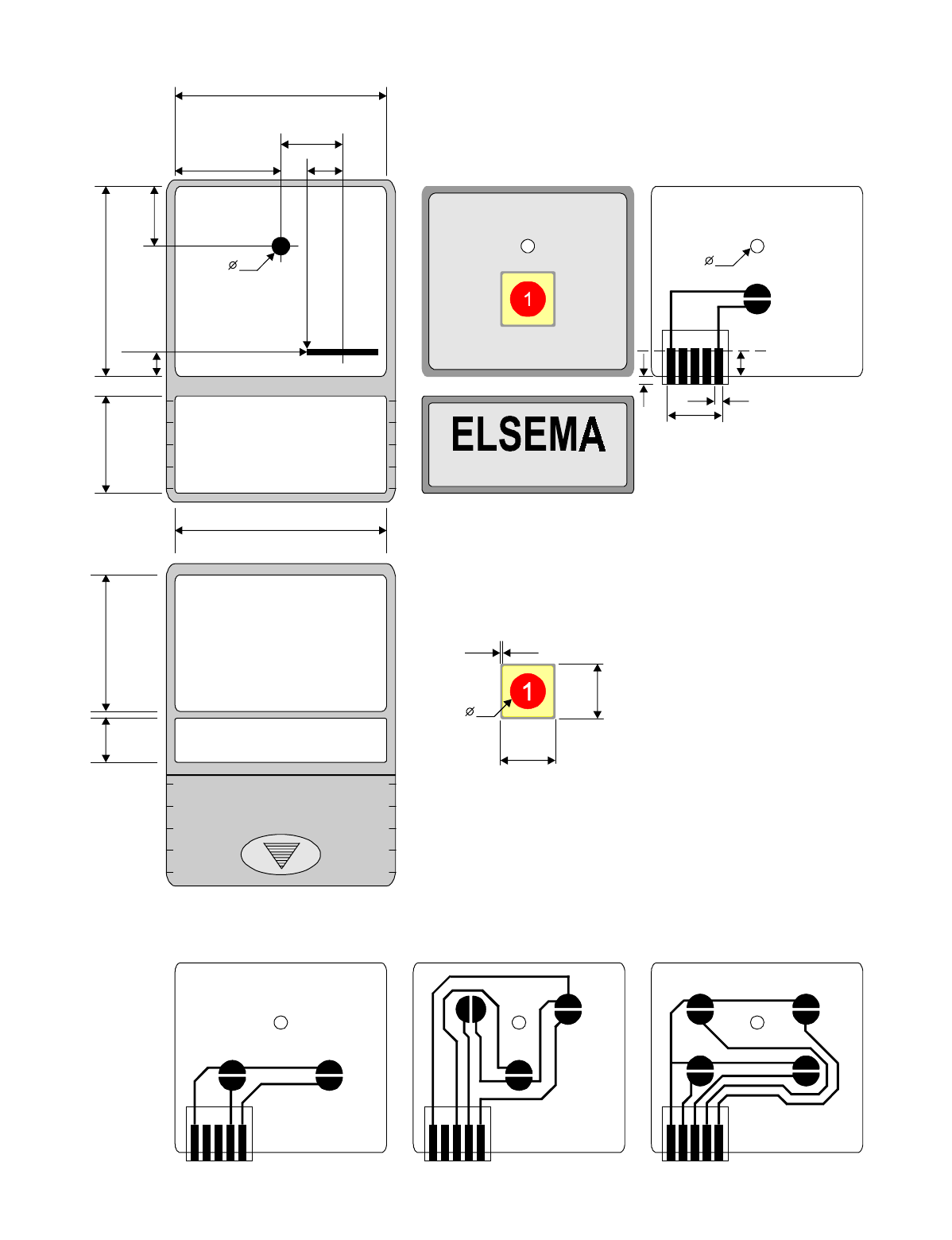

DIMEMSIONS FOR CUSTOMISED MEMBRANE AND LABELS
GIGALINK
TYPE: GLT2701
GIGACODE MODULATION
TM
TM
43.0
1.8
5.5
11.8
1.7
22.0
31.0
10.2
5.3
13.5
48.0
48.0
12.5
0.80
12.5
24.0
14.0
8.0
4.0 2.7
(90 deg. fold)
CCC111222333444
GIGALINK Case Front Membrane/
Customer Label Back View of
Membrane
(GLT2701)
Back View
(GLT2704)
Back View
(GLT2703)
Back View
(GLT2702)
Size, St
y
le and
Colour of Button
Button has Tactile action and
10.7 mm round Pillow emboss.
Font for number is Arial 14
Colour : Red Centre
Chalk Fill
8.0
