1,2,3,4,8 -Channel 27MHz GIGALINK™ Transmitter GLT2700,GLT2701,GLT2702,GLT2703,GLT2704,GLT2708
GLT2700, GLT2701, GLT2702, GLT2703, GLT2704 and
GLT2708

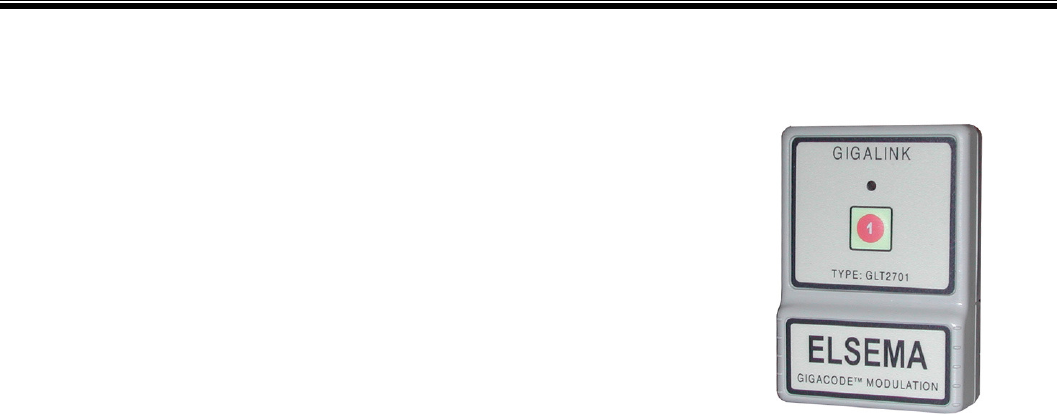

27MHz HAND HELD GIGALINK™TRANSMITTERS
Features
• Over 4 billion code combinations
• Can program any number of transmitters to a receiver
• High Security
Applications
• Remote control of garage doors, gates, lights, alarms
Description
The hand held GIGALINK™ transmitters are the most advanced Remote Control technology available in the
world today. GIGALINK™ is an invention that has revolutionised the entire Remote Control technology
including Elsema's earlier version of FMT- … and FMR- … series. The GLT2700/1/2/3/4/8 state-of-the-art
invention brings a new dimension in the world of Remote Control technology in domestic, commercial and
industrial applications.
The innovative microcontroller technology replaces the traditional dip switch coding which eliminates any
possible code grabbing. Special features such as over four billion code combinations and the ability to
program any number of transmitters to a receiver, adds to the most advanced and secure Remote Controls
available.
The hand held GIGALINK™ transmitters have a microcontroller in-built single and channelised code
programming system that provides flexibility in programming each channel to different receivers. Each
transmitter can store to its EEPROM, up to four random channels allowing the user to program each channel
from different single channel receivers. This is achieved when single code programming the transmitter
channels from a GLR2701, which is a single channel GIGALINK™ receiver. If the transmitter is single code
programmed from a multi channel receiver, the selected receiver's channel is programmed to the selected
transmitter channel. The channels can be selected by using the dip switches on the receiver and by pressing the
appropriate channel button on the transmitter.
Channelised code programming programs all the channels, from a multi channel receiver, to the multi channel
transmitter. That is, channel one on the transmitter activates channel one on the receiver and alternatively.
Channelised system can be either used as simple on/off functions or for several channels to operate
simultaneously such as dual or multi action control for example crane transmission control.
The transmitter can be single or channelised code programmed without power connected.
Single Code Programming
This is used for programming one channel at a time to the transmitter. To single code program a transmitter read
receivers setup instructions.
Channelised Code Programming
This is used to program all channels from a multi channel receiver to the multi channel transmitter. To
channelise code program a transmitter read receivers setup instructions.
ELSEMA
1,2,3,4,8 -Channel 27MHz GIGALINK™ Transmitter GLT2700,GLT2701,GLT2702,GLT2703,GLT2704,GLT2708
Operating Distance
An operating distance (in conjunction with our GLR27 series receivers) of 350 metres is possible.
The operating distance depends upon the receiver antenna and location. An independent test revealed the
following ranges:
Range (Metres) Receiver Antenna Receiver Type
50 250 mm Long Wire GLR27.…
200 1000 mm Long Wire GLR27.…
350 ANT27M GLR27.…
Range tests were done in an open area test site with line-of-sight operation and the receiver antenna wire was
fixed vertically, away from any metal objects.
Applications
The code programming becomes a powerful feature that allows the hand held transmitters to be used in many
diverse applications such as security, gate operation, panic buttons, multiple on/off functions etc.
Battery or DC Supply
Battery operation is optimised using the built-in battery monitoring system. The battery monitoring system
alerts the user when the battery level falls below the low battery voltage. The 1 Hz flash from the LED during a
transmission indicates low battery. This is an indication that replacement of a battery is necessary.
The GLT2708NC has the option to operate from a 9-volt battery or DC power supply. DC power supply is
connected to the 2-way terminal block. Do not connect the supply to the 2.5-mm coding socket since connection
may damage the microcontroller. Also available with a 5-Pin header for inputs.
Channels
The hand held transmitters are available with 1, 2, 3, 4 and 8 channels.
Custom made front Membrane
Membrane is the front label with the channel etched/printed to it. Customers can purchase the GLT2700, which
is a hand held GIGALINK™ transmitter without the front membrane. This enables the customers to fit their
custom made membrane that can be a 1, 2, 3 or 4 channels. This has the advantage of customers only stocking
one model to function as a 1, 2, 3 and 4 channels. Details of membrane dimensions are given on the following
page. Customers can even use Elsema's membrane tools to manufacture their own membranes.
The GLT2708 is also available without membrane, allowing customers to stick their own custom made
membranes. Part number is GLT2708NL
Unique Code System
The microcontroller EEPROM allows large volume users to have a unique code. This enables Elsema to offer
everyone “your own” radio control.
Case
The hand held GIGALINK™ transmitters are supplied with a case. There is also sufficient space on the rear of
the case to place additional stickers such as your telephone contact, local authorities approval numbers etc.
The GLT2700NC and GLT2708NC are No Case versions. This allows the transmitter to be integrated according
to your needs.
ELSEMA
1,2,3,4,8 -Channel 27MHz GIGALINK™ Transmitter GLT2700,GLT2701,GLT2702,GLT2703,GLT2704,GLT2708

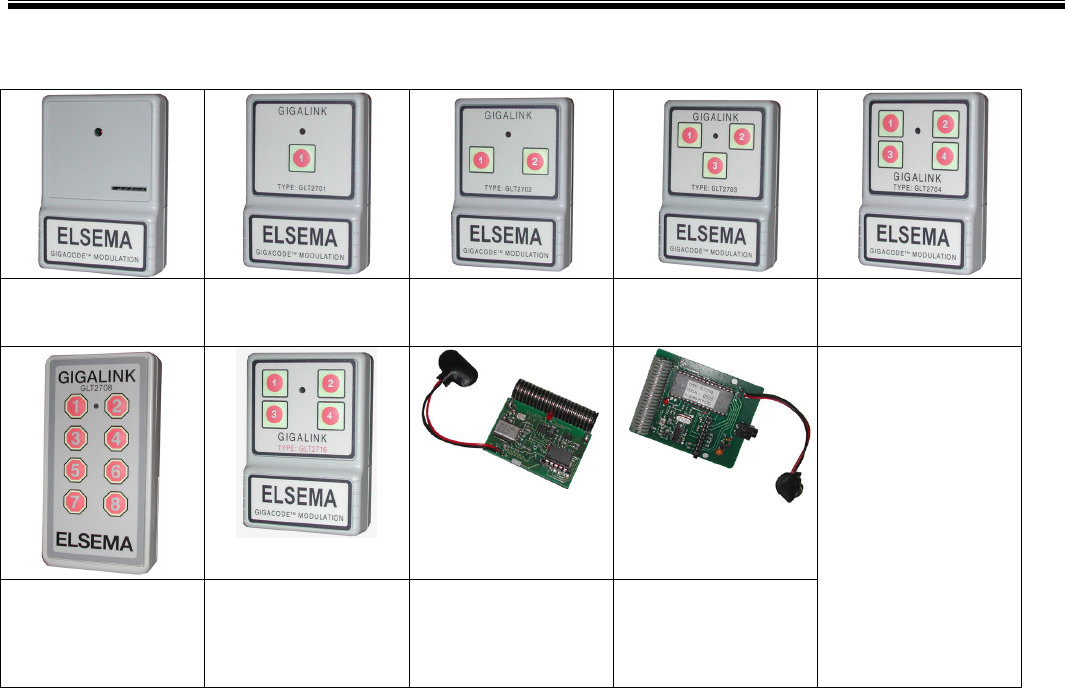

Products in the Range
GLT2700
Transmitter
GLT2701
1-Channel
GLT2702
2-Channel
GLT2703
3-Channel
GLT2704
4-Channel
NL: No label
The Elsema Label
is absent.
GLT2708
8-Channel
GLT2716
2-Stroke,
16-Channel
GLT2700NC
Transmitter,
No Case
Option Pin header
GLT2708NC
8-Channel,
No Case
ELSEMA
1,2,3,4,8 -Channel 27MHz GIGALINK™ Transmitter GLT2700,GLT2701,GLT2702,GLT2703,GLT2704,GLT2708
Technical Data
Model GLT2701, GLT2702,
GLT2703, GLT2704
GLT2708
Power Supply 9V Battery (Applied to the
battery Clip)
9V Battery (Applied to the battery
Clip) or
10-16VDC (Only applied to + & -
terminals)
Current Consumption Max 45mA at 8VDC (Only
when transmitting)
Max 70mA at 12VDC (Only when
transmitting)
Standby Current 10uA (Typical)
Transmission Modes Continuous - Transmits as long as the channel is activated.
Battery Monitor LED flashes at 1Hz, during transmission, when battery voltage is
at 6.5V (flat 9V battery)
Operating Freq 27.195MHz (Other frequencies available: 27.045, 27.145 &
27.455MHz. NB. 27.455MHz is available for Europe Only)
Carrier Freq Tolerance Crystal controlled 30 parts per million
Operating Temperature
Range
-5 to 50°C
Radiated RF Power Output Refer to compliance test reports
Antenna Built-in 50mm long dilec rod
Type of Emission Narrow-bandwidth Frequency Modulation (5K00F1D)
Freq Deviation Limiting 1600 - 1900Hz non-return to zero
Modulation Freq 1.8kHz (1.737kb) (15%
tolerance)
1.8kHz (0.56 ms/bit) (15%
tolerance)
Necessary Bandwidth ±2.5kHz
Digital Coding System Microcontroller based 96-bit word
Code Combination 4,294,967,296
Digital Channels 1, 2, 3 or 4 channels. The
type of membrane label
determines the number of
channels. Customers can fit
custom-made membrane
labels
8 channels. On board 16-pin IC
socket. Channels are addressed by
joining opposite side of the IC
socket pins. Elsema has a 16-pin
35cmm ribbon cable plug
available
Dimension 81 x 56 x 24mm 130 x 67 x 27mm (GLT2708)
70 x 50 x 14mm (GLT2708NC)
Weight 51g excluding battery 60g (GLT2708)
35g (GLT2708NC)
Useable Receivers GLR... series
Useable Operating Range Up to 350m; depending on receiver antenna and location
ELSEMA
1,2,3,4,8 -Channel 27MHz GIGALINK™ Transmitter GLT2700,GLT2701,GLT2702,GLT2703,GLT2704,GLT2708

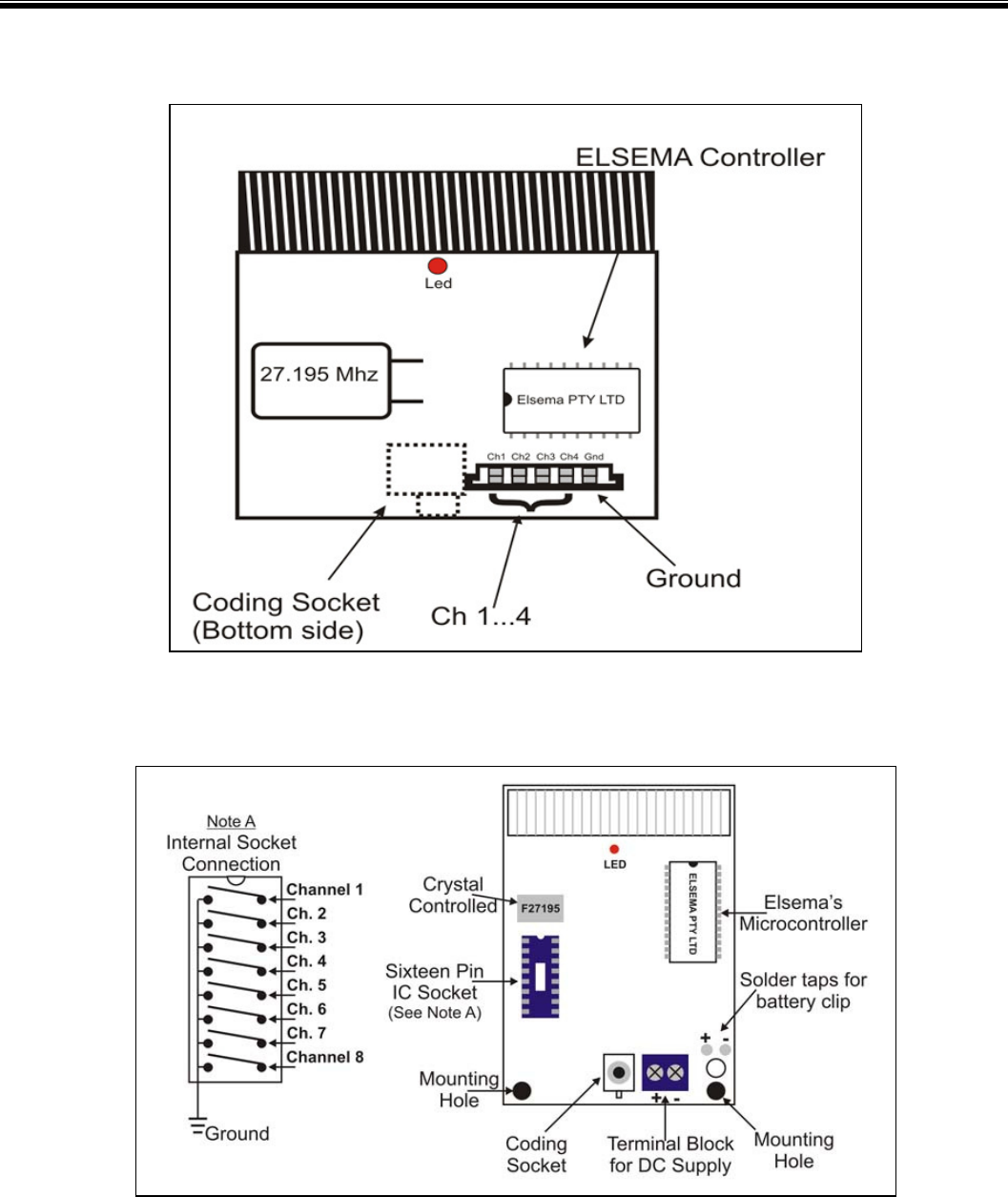

Connection Diagram GLT2700NC
Connection Diagram GLT2708NC
ELSEMA
1,2,3,4,8 -Channel 27MHz GIGALINK™ Transmitter GLT2700,GLT2701,GLT2702,GLT2703,GLT2704,GLT2708

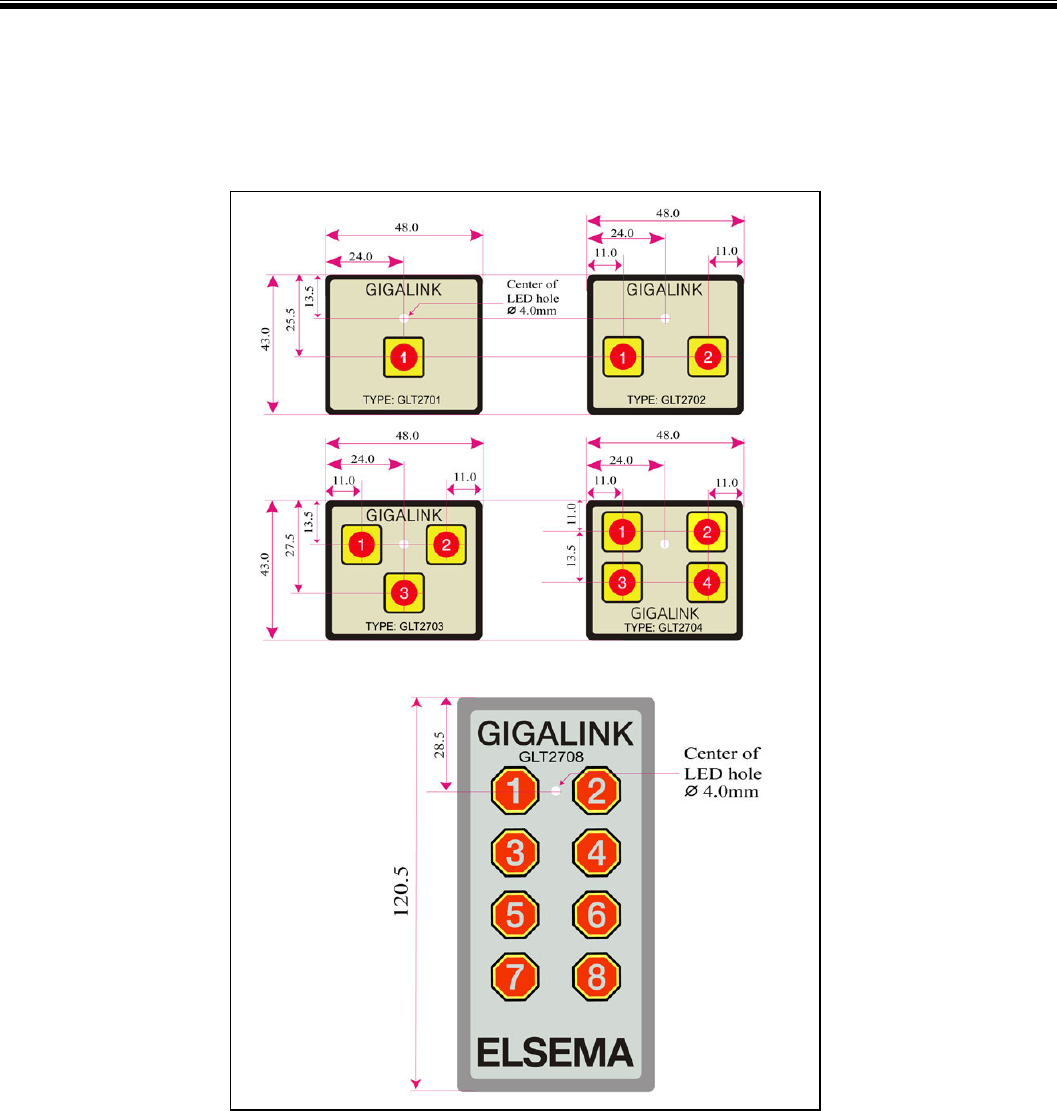

Customised labels
The transmitters are available without the front labels. Customers can purchase the GLT2700NL, which is a
hand held GIGALINK™ transmitter without the front labels. This enables the customers to fit their custom
made labels that can be a 1, 2, 3 or 4 channels. This has the advantage of customers only stocking one model to
function as a 1, 2, 3 and 4 channels. Details of label dimensions are given below.
Customers who wish to have their own membranes can contact us with their designs on (+61) 2 9609 4668
You can have your own company logo and specific text printed on the membranes. e.g. Up, Down, Right and
Left or Start, Stop etc.
The minimum quantity for custom membranes is 10 pieces per order.
ELSEMA
1,2,3,4,8 -Channel 27MHz GIGALINK™ Transmitter GLT2700,GLT2701,GLT2702,GLT2703,GLT2704,GLT2708
REGULATORY COMPLIANCE STATEMENTS
American Users
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Notice
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses, and can radiate radio frequency energy and, if installed and
used in accordance with the instruction, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the computer and receiver.
• Connect the computer into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the
user’s authority to operate the equipment.
Canadian Users
This Class [B] digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe [B] respecte toutes les exigences du Règlement sur le matériel brouilleur du
Canada.
European Users
This information Technology Equipment has been tested and found to comply with the following European
directives:
- ETS 300 683
- I-ETS 300 220
Australian and New Zealand Users
This device has been tested and found to comply with the limits for a Class [B] digital device, pursuant to the
Australian/New Zealand standard AS/NZ 4268:2008 set out by the Spectrum Management Agency.
