USER MANUAL
PWC10
Wireless Charger
FCC ID: 2ABV4-PWC10
2

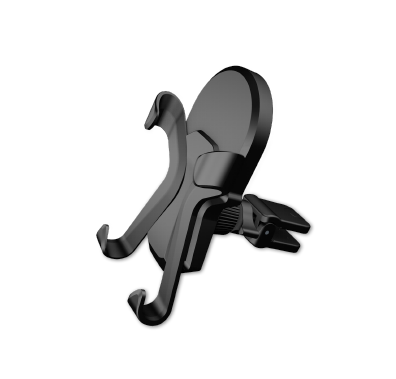

Wireless Charging
Mount
Car Airvent
3
How to Use
Setting Up your Wireless Charging Pad
•Plug a Micro USB Cable into the Charging Pad's Micro USB
port. Next, plug the other end into a power adapter (not
included).
•After plugging the adapter into a power source, wait for the
Wireless Power Indicator to light up. Once the light appears,
you are ready to charge.
Charging your Mobile Device
•Place your phone with its back against the Charging Pad.
Check to see if your phone lights up/ indicates that it is
charging properly.
•If the Wireless Power Indicator begins blinking, there is an
issue with the Charging Pad's voltage, current, or
temperature. To resolve the issue, remove your device from
the charger, unplug the Charging Pad, and repeat the set-up
process.
4
Compatible Devices
iPhone X
iPhone 8 / 8+
Samsung Galaxy S9 / S9+
Samsung Galaxy S8 / S8+
Samsung Galaxy S7 / S7
Edge
Samsung Galaxy S6 /
S6 Edge / S6 Edge+
Samsung Galaxy Note
5 / 7 / 8
Google Nexus 4 / 5 / 6 / 7
LG G2 / G3 / G4 / G6
HP EliteX3
HTC BX
Droid DNA
Motorola Droid Maxx /
Mini/Turbo
Microsoft Lumia 950 XL/ 950
Nokia Lumia 735 / 830 / 920
928/930/ 1520
Nokia Lumia Icon
Blackberry Z30
LG Lucid 1 / 2
Sony Xperia Z3V / Z4V
Specifications
•Maximum input: 5V 2A
•Maximum Output: 5V 1A
•Transmission Distance:<8mm
•Frequency: 110~205KHZ
•Output power: 5W
5
• Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
Changes or modifications not expressly approved by the party
responsible for compliancecould void the user's authority to
operate the equipment.
RF Exposure Warning Statements:This equipment complies with
FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment shall be installed and operated with
minimum distance 20cm between the radiator & body.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
