SA505 Bluetooth Stereo Headphone User's Guide 1 User Manual for SA505 Bluetooth Stereo Headphones

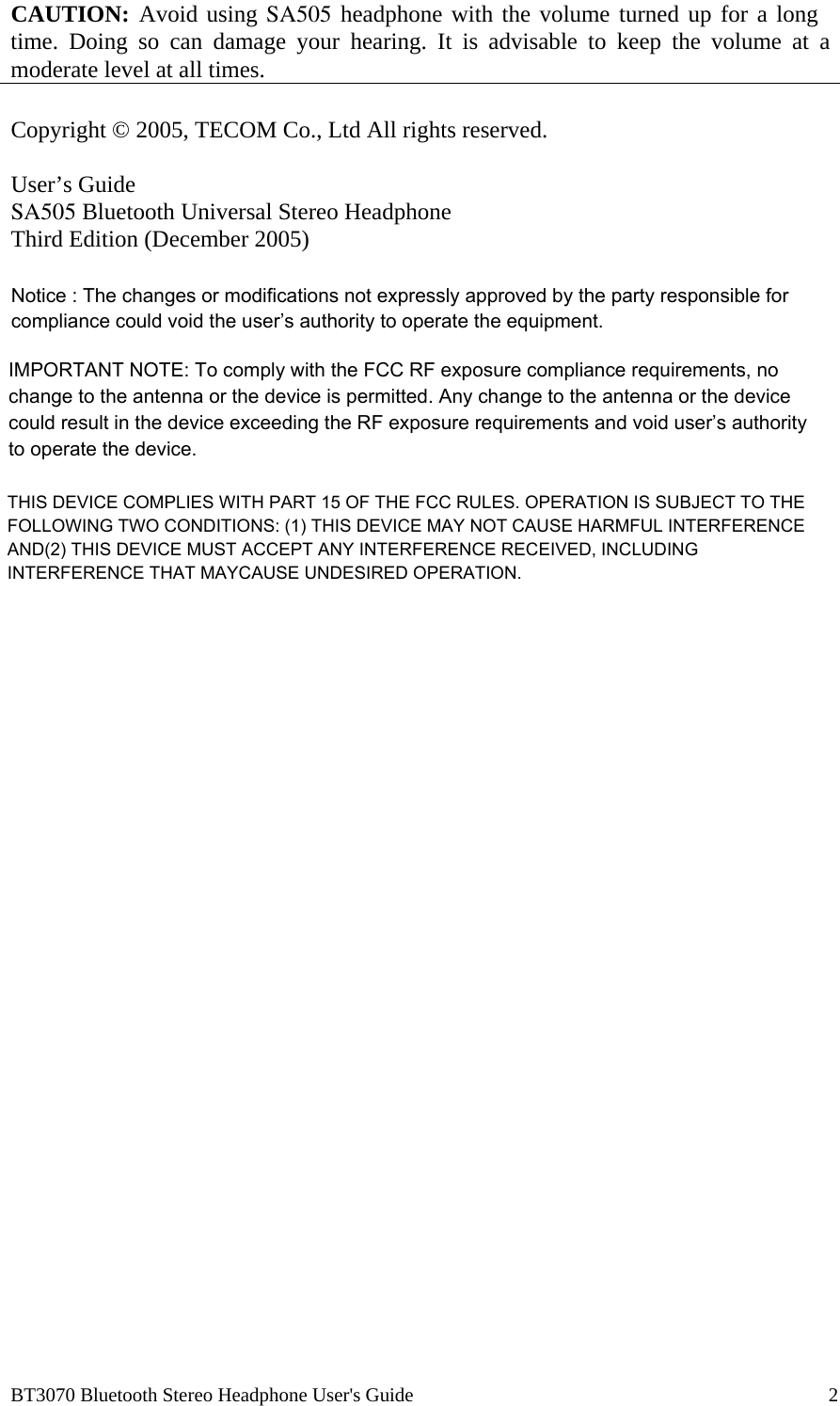

BT3070 Bluetooth Stereo Headphone User's Guide 2 CAUTION: Avoid using SA505 headphone with the volume turned up for a long time. Doing so can damage your hearing. It is advisable to keep the volume at a moderate level at all times. Copyright © 2005, TECOM Co., Ltd All rights reserved. User’s Guide SA505 Bluetooth Universal Stereo Headphone Third Edition (December 2005) Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THEFOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION.

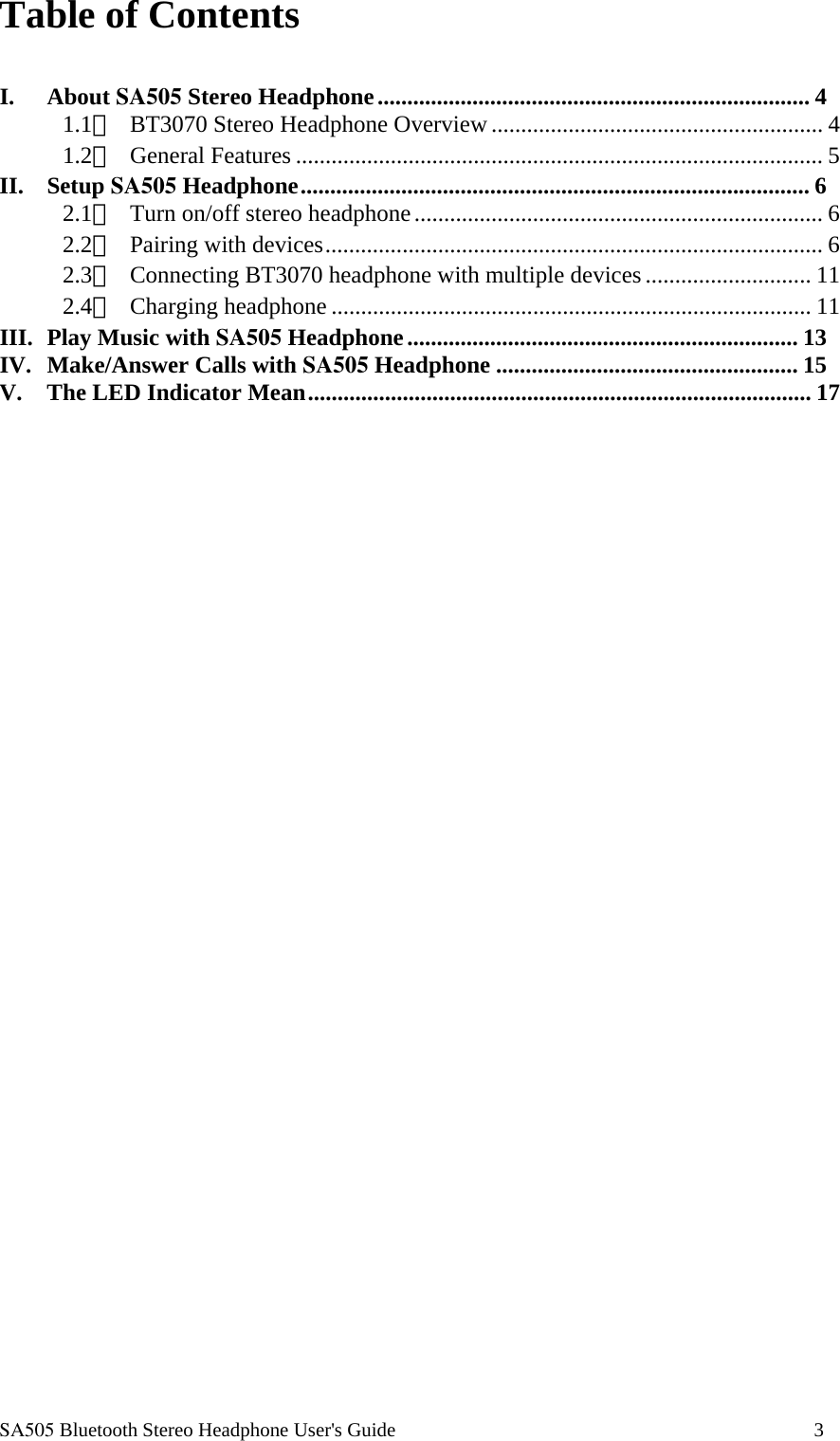

SA505 Bluetooth Stereo Headphone User's Guide 3 Table of Contents I. About SA505 Stereo Headphone......................................................................... 4 1.1、 BT3070 Stereo Headphone Overview ........................................................ 4 1.2、 General Features ......................................................................................... 5 II. Setup SA505 Headphone...................................................................................... 6 2.1、 Turn on/off stereo headphone..................................................................... 6 2.2、 Pairing with devices.................................................................................... 6 2.3、 Connecting BT3070 headphone with multiple devices............................ 11 2.4、 Charging headphone ................................................................................. 11 III. Play Music with SA505 Headphone.................................................................. 13 IV. Make/Answer Calls with SA505 Headphone ................................................... 15 V. The LED Indicator Mean..................................................................................... 17

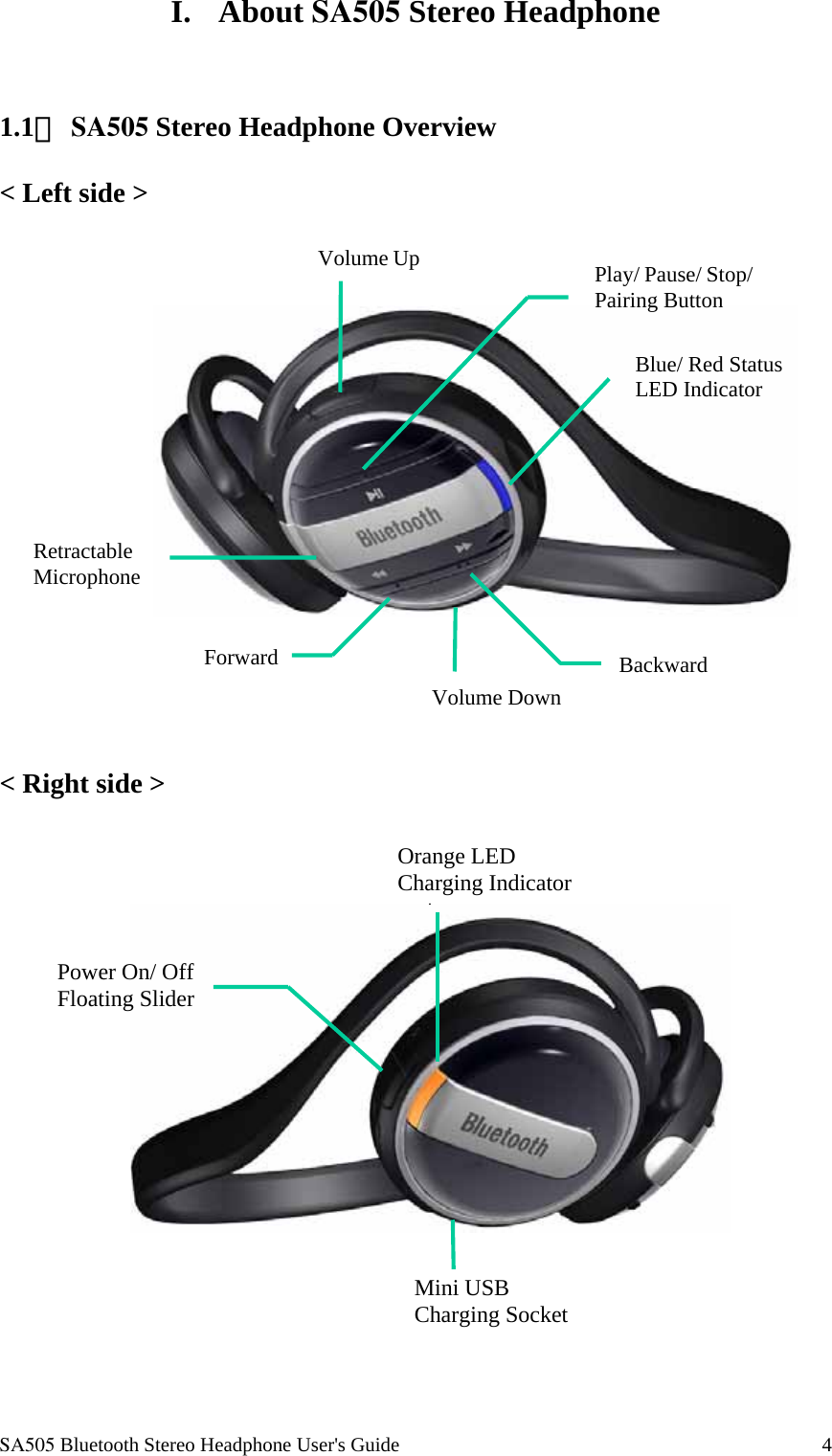

SA505 Bluetooth Stereo Headphone User's Guide 4 I. About SA505 Stereo Headphone 1.1、 SA505 Stereo Headphone Overview < Left side > < Right side > Blue/ Red Status LED Indicator Volume Up Play/ Pause/ Stop/Pairing Button Volume DownForward Backward Retractable Microphone Orange LED Charging IndicatorPower On/ Off Floating Slider Mini USB Charging Socket

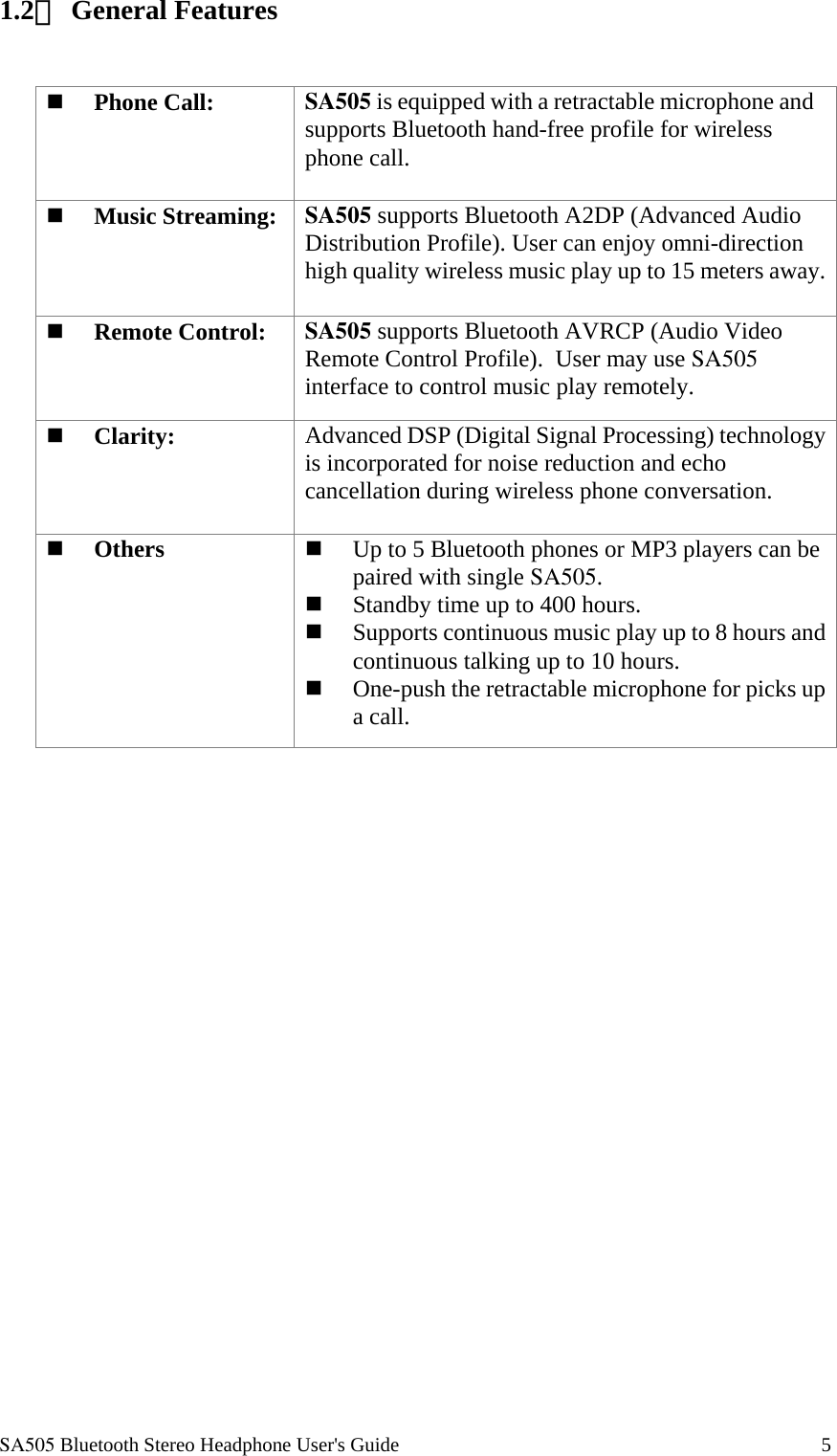

SA505 Bluetooth Stereo Headphone User's Guide 5 1.2、 General Features  Phone Call: SA505 is equipped with a retractable microphone and supports Bluetooth hand-free profile for wireless phone call.  Music Streaming: SA505 supports Bluetooth A2DP (Advanced Audio Distribution Profile). User can enjoy omni-direction high quality wireless music play up to 15 meters away. Remote Control: SA505 supports Bluetooth AVRCP (Audio Video Remote Control Profile). User may use SA505 interface to control music play remotely.  Clarity: Advanced DSP (Digital Signal Processing) technology is incorporated for noise reduction and echo cancellation during wireless phone conversation.  Others  Up to 5 Bluetooth phones or MP3 players can be paired with single SA505.  Standby time up to 400 hours.  Supports continuous music play up to 8 hours and continuous talking up to 10 hours.  One-push the retractable microphone for picks up a call.

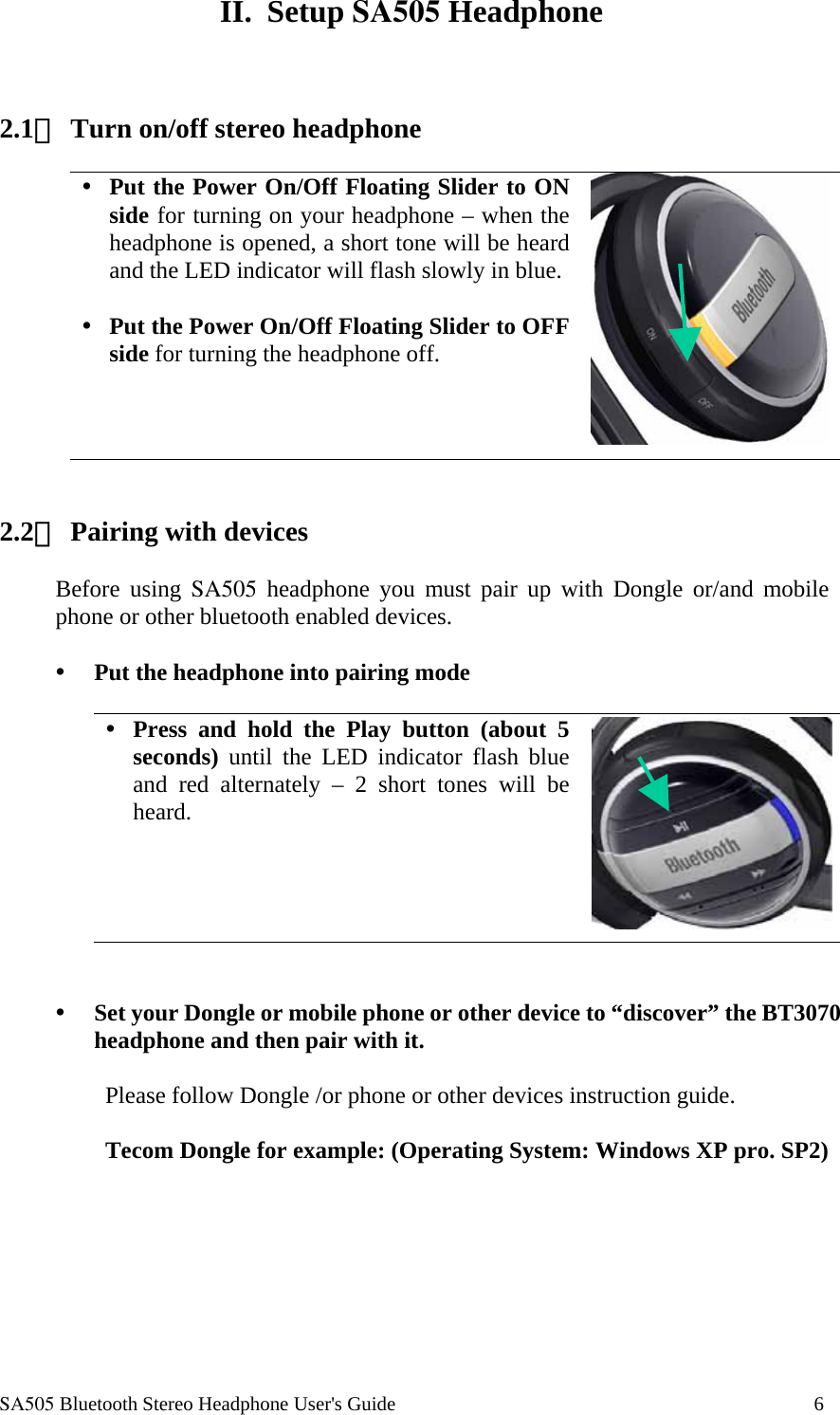

SA505 Bluetooth Stereo Headphone User's Guide 6 II. Setup SA505 Headphone 2.1、 Turn on/off stereo headphone  Put the Power On/Off Floating Slider to ON side for turning on your headphone – when the headphone is opened, a short tone will be heard and the LED indicator will flash slowly in blue.  Put the Power On/Off Floating Slider to OFF side for turning the headphone off. 2.2、 Pairing with devices Before using SA505 headphone you must pair up with Dongle or/and mobile phone or other bluetooth enabled devices.  Put the headphone into pairing mode  Press and hold the Play button (about 5 seconds) until the LED indicator flash blue and red alternately – 2 short tones will be heard.  Set your Dongle or mobile phone or other device to “discover” the BT3070 headphone and then pair with it. Please follow Dongle /or phone or other devices instruction guide. Tecom Dongle for example: (Operating System: Windows XP pro. SP2)

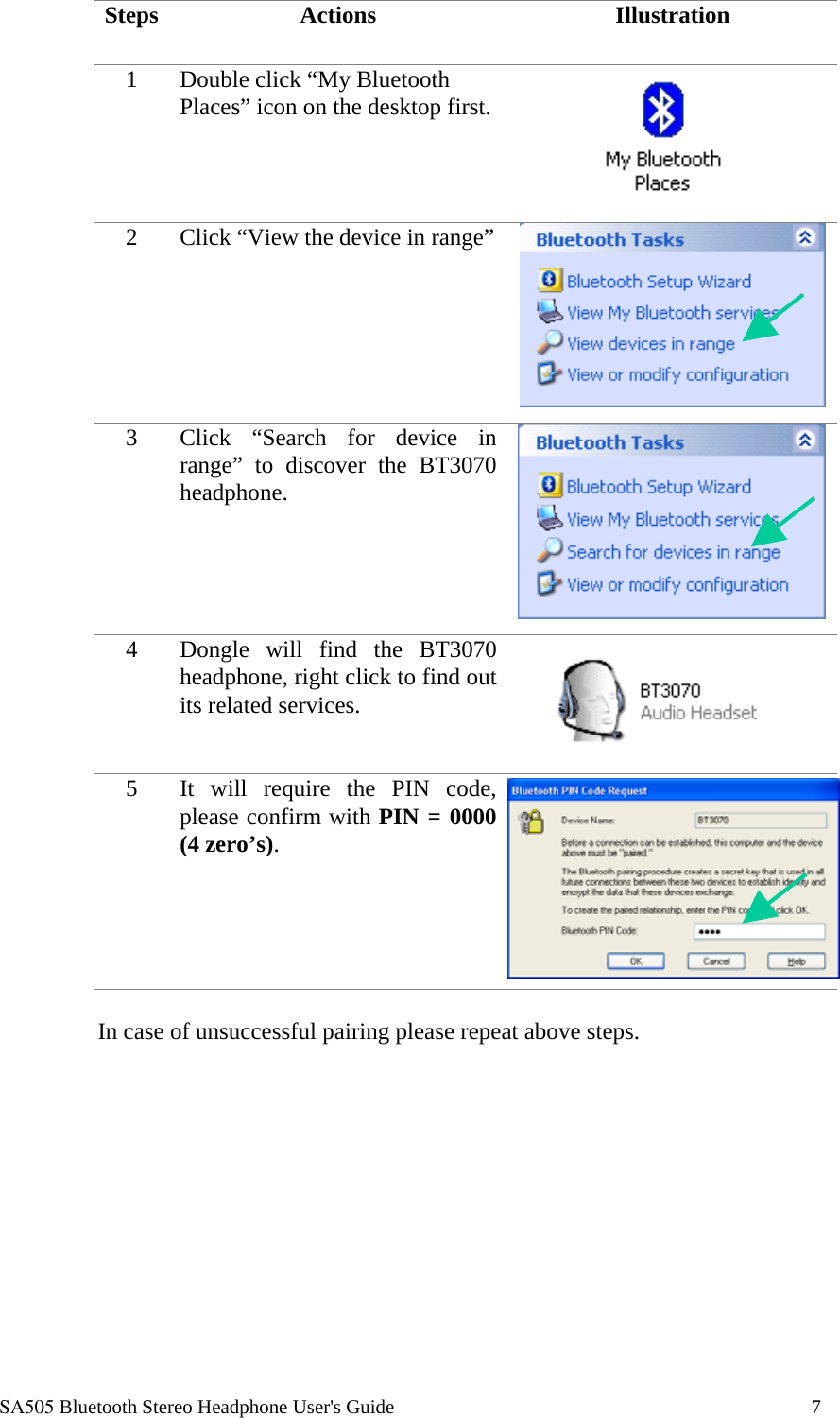

SA505 Bluetooth Stereo Headphone User's Guide 7 Steps Actions Illustration 1 Double click “My Bluetooth Places” icon on the desktop first. 2 Click “View the device in range” 3 Click “Search for device in range” to discover the BT3070 headphone. 4 Dongle will find the BT3070 headphone, right click to find out its related services. 5 It will require the PIN code, please confirm with PIN = 0000 (4 zero’s). In case of unsuccessful pairing please repeat above steps.

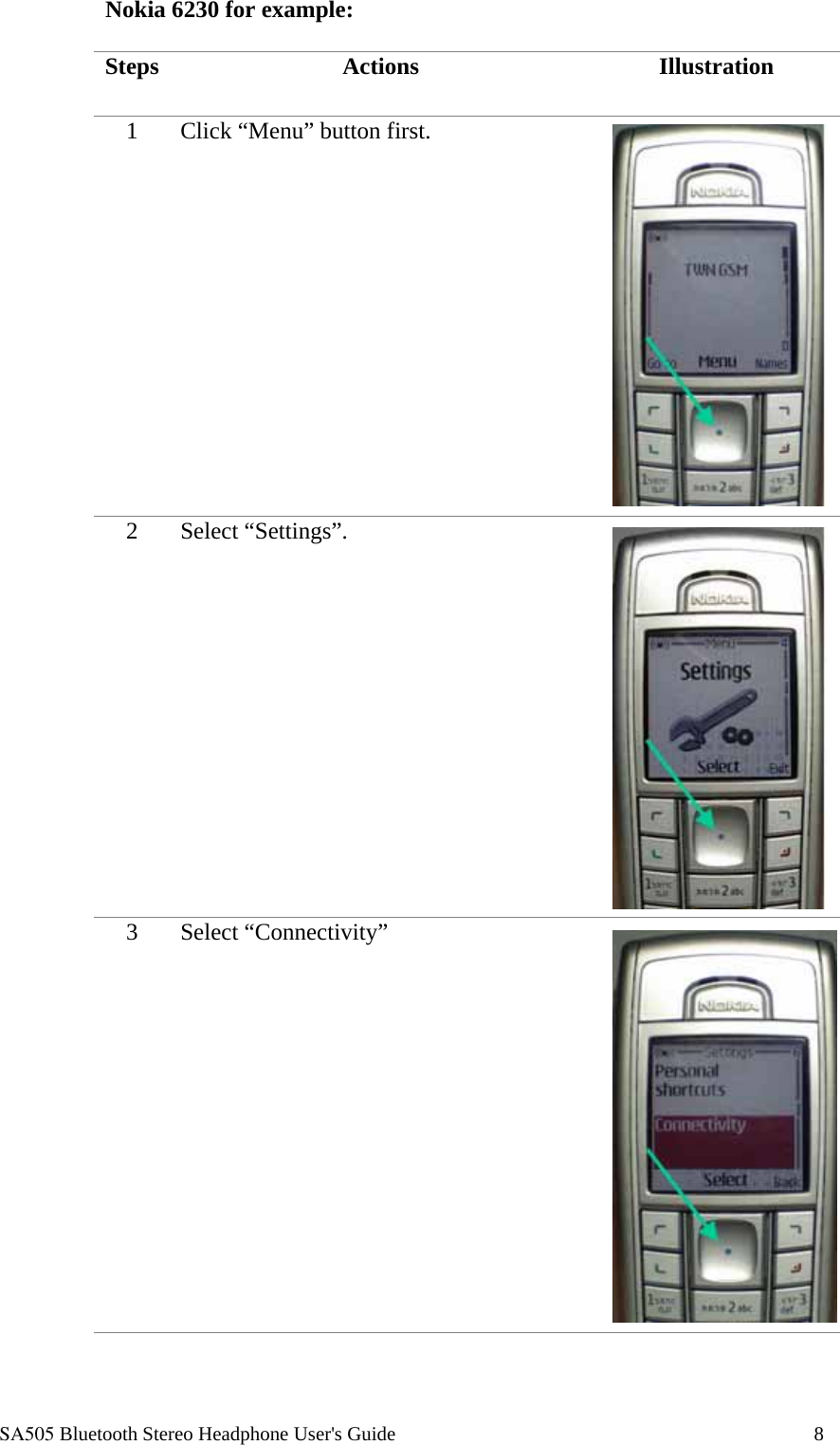

SA505 Bluetooth Stereo Headphone User's Guide 8 Nokia 6230 for example: Steps Actions Illustration 1 Click “Menu” button first. 2 Select “Settings”. 3 Select “Connectivity”

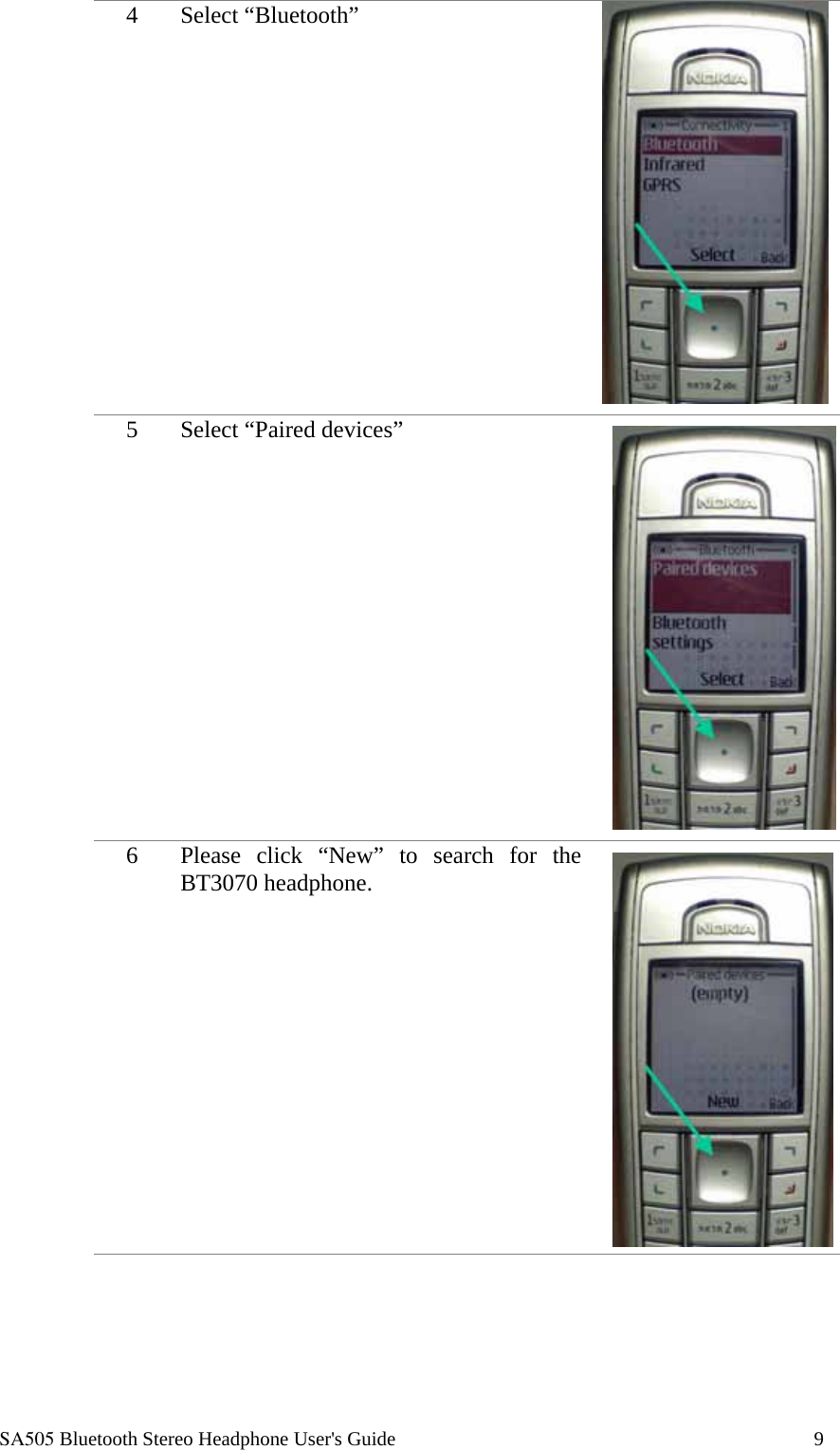

SA505 Bluetooth Stereo Headphone User's Guide 9 4 Select “Bluetooth” 5 Select “Paired devices” 6 Please click “New” to search for the BT3070 headphone.

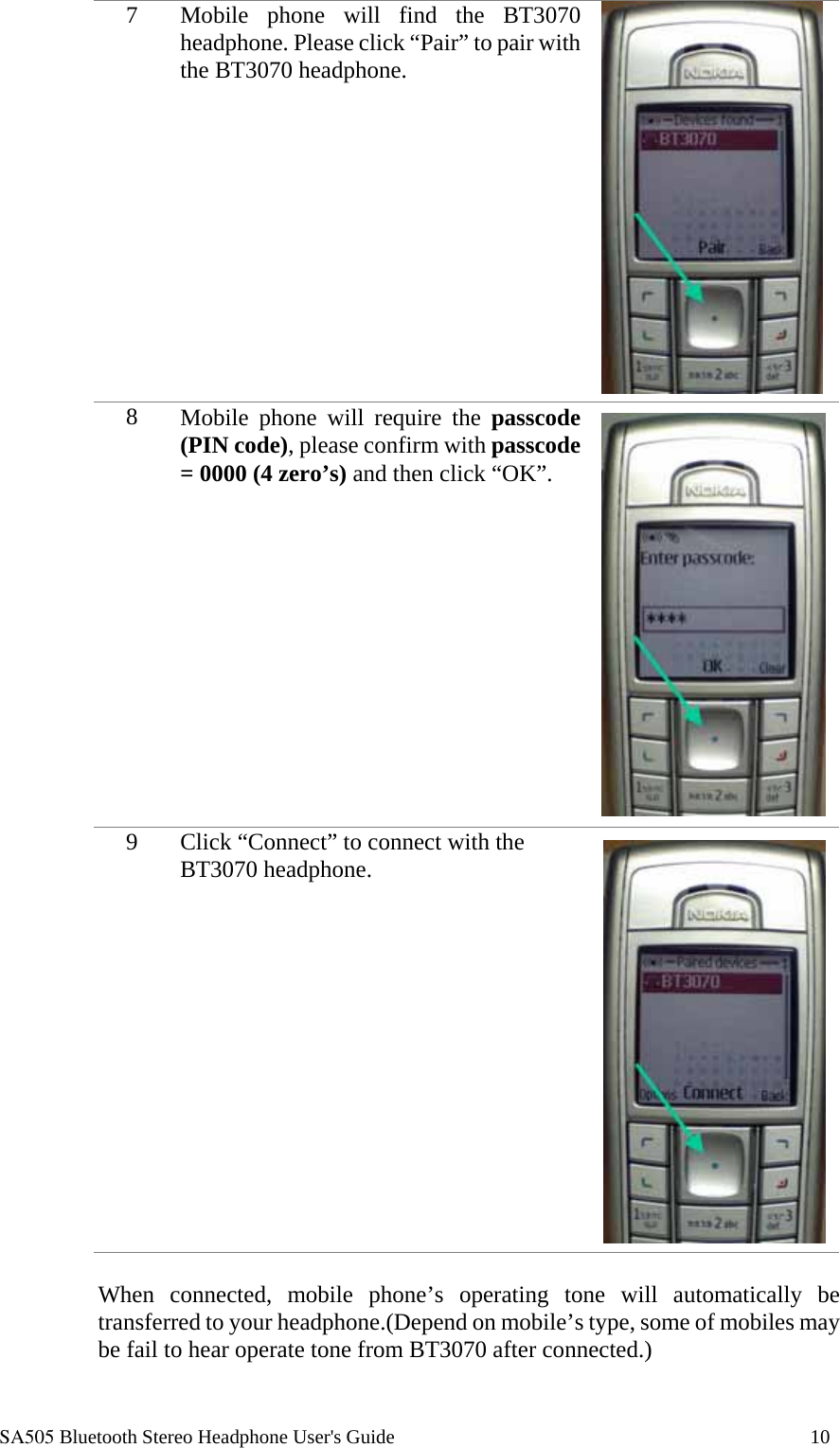

SA505 Bluetooth Stereo Headphone User's Guide 10 7 Mobile phone will find the BT3070 headphone. Please click “Pair” to pair with the BT3070 headphone. 8 Mobile phone will require the passcode (PIN code), please confirm with passcode = 0000 (4 zero’s) and then click “OK”. 9 Click “Connect” to connect with the BT3070 headphone. When connected, mobile phone’s operating tone will automatically be transferred to your headphone.(Depend on mobile’s type, some of mobiles may be fail to hear operate tone from BT3070 after connected.)

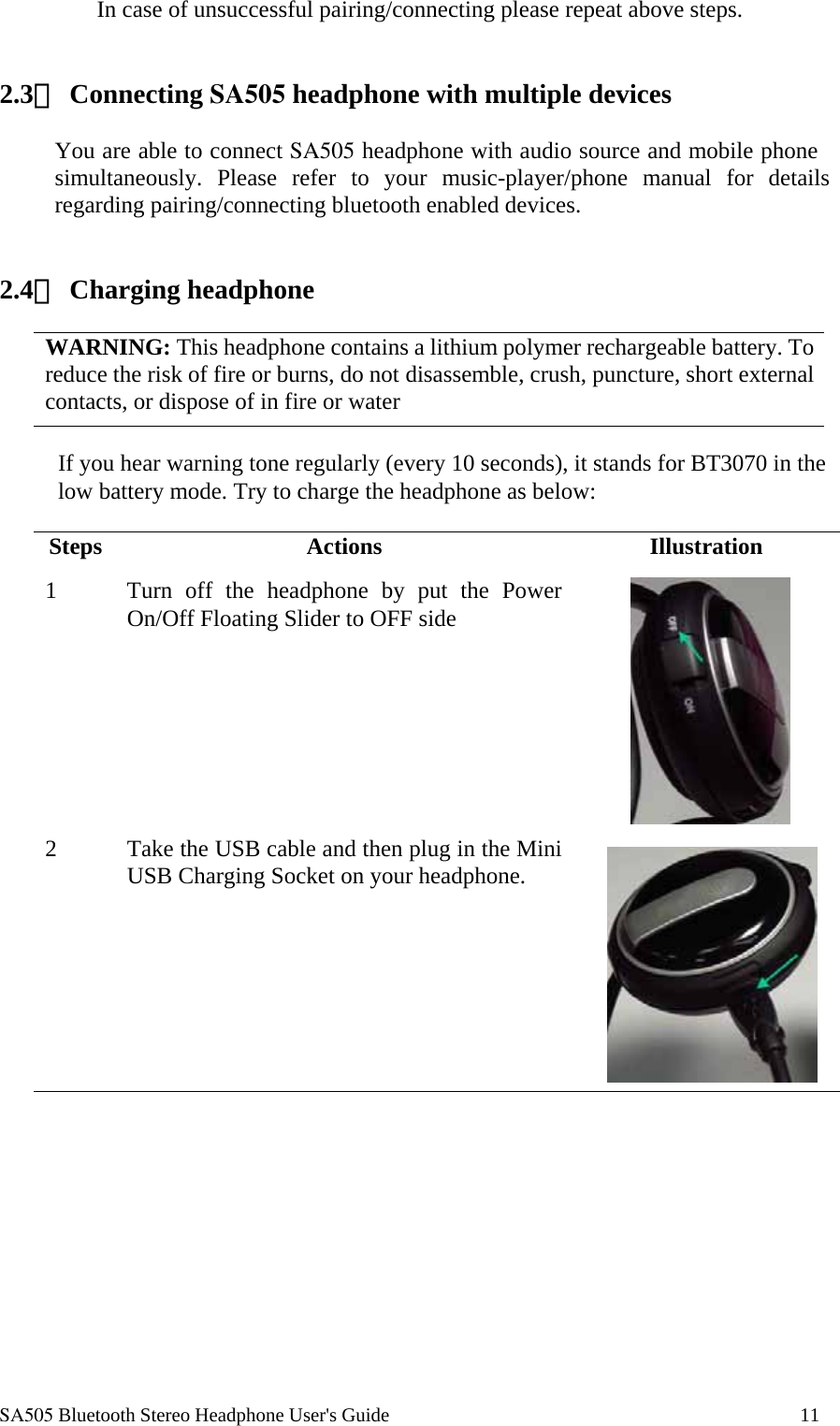

SA505 Bluetooth Stereo Headphone User's Guide 11 In case of unsuccessful pairing/connecting please repeat above steps. 2.3、 Connecting SA505 headphone with multiple devices You are able to connect SA505 headphone with audio source and mobile phone simultaneously. Please refer to your music-player/phone manual for details regarding pairing/connecting bluetooth enabled devices. 2.4、 Charging headphone WARNING: This headphone contains a lithium polymer rechargeable battery. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water If you hear warning tone regularly (every 10 seconds), it stands for BT3070 in the low battery mode. Try to charge the headphone as below: Steps Actions Illustration 1 Turn off the headphone by put the Power On/Off Floating Slider to OFF side 2 Take the USB cable and then plug in the Mini USB Charging Socket on your headphone.

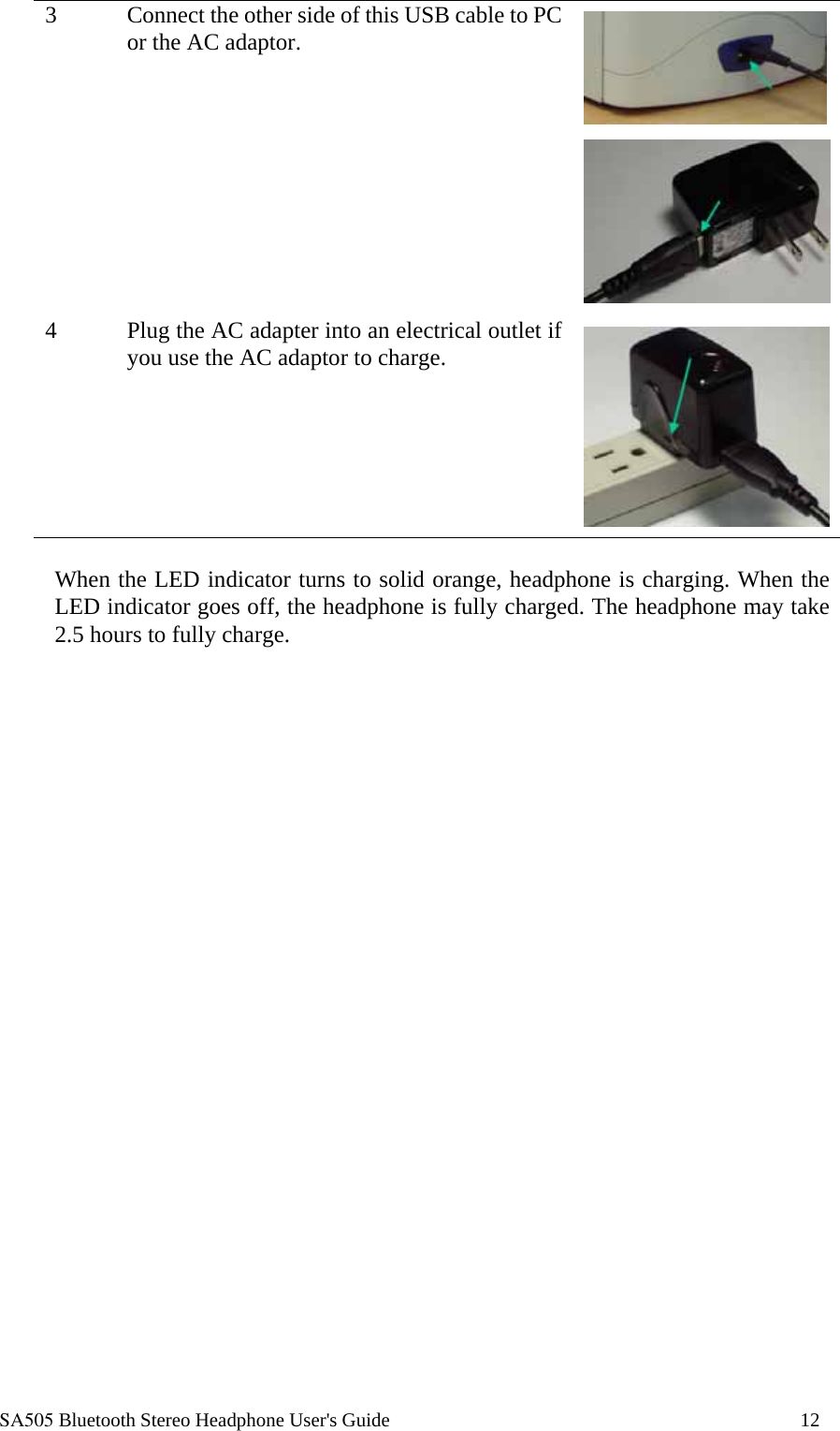

SA505 Bluetooth Stereo Headphone User's Guide 12 3 Connect the other side of this USB cable to PC or the AC adaptor. 4 Plug the AC adapter into an electrical outlet if you use the AC adaptor to charge. When the LED indicator turns to solid orange, headphone is charging. When the LED indicator goes off, the headphone is fully charged. The headphone may take 2.5 hours to fully charge.

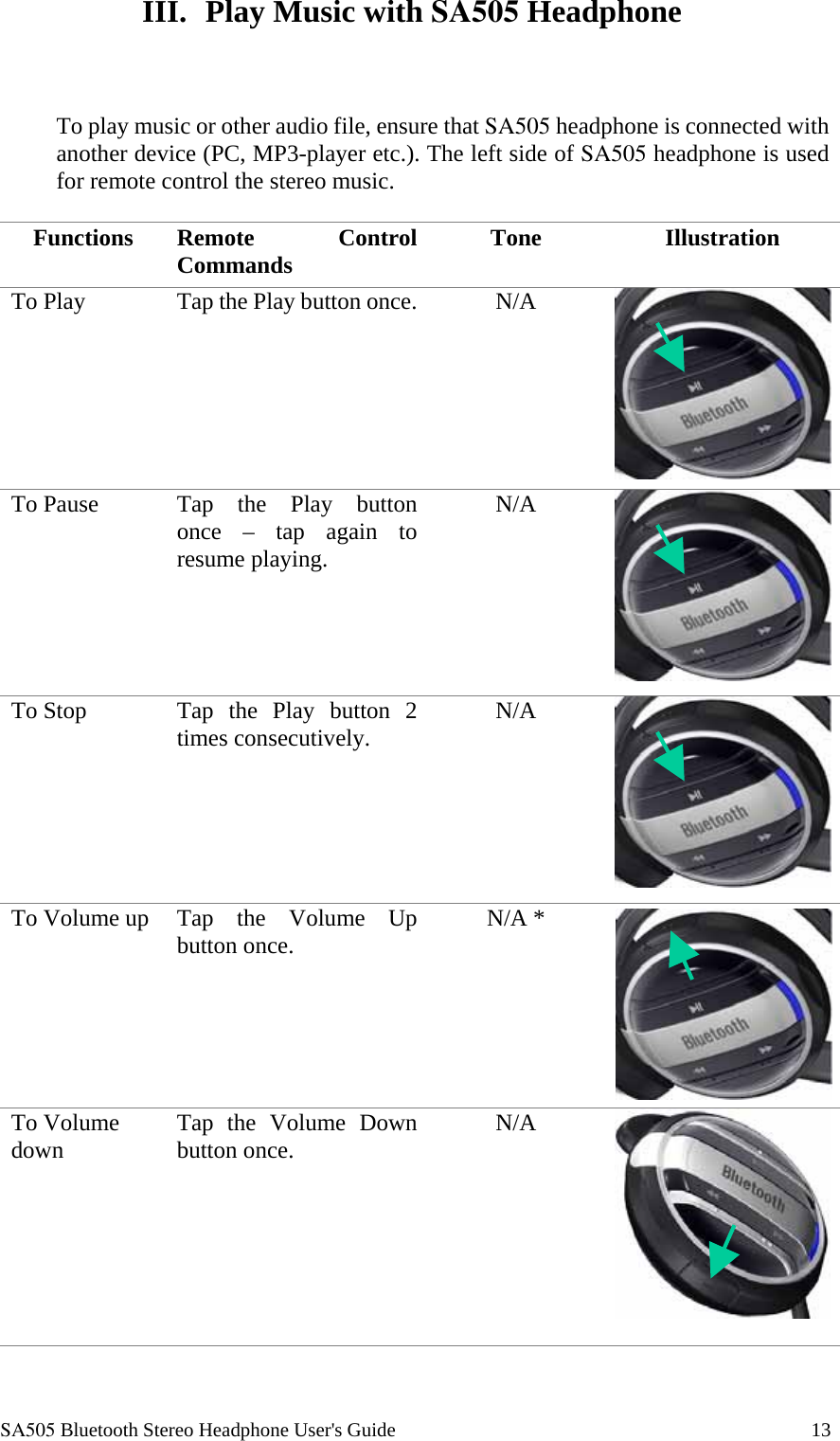

SA505 Bluetooth Stereo Headphone User's Guide 13 III. Play Music with SA505 Headphone To play music or other audio file, ensure that SA505 headphone is connected with another device (PC, MP3-player etc.). The left side of SA505 headphone is used for remote control the stereo music. Functions Remote Control Commands Tone Illustration To Play Tap the Play button once. N/A To Pause Tap the Play button once – tap again to resume playing. N/A To Stop Tap the Play button 2 times consecutively. N/A To Volume up Tap the Volume Up button once. N/A * To Volume down Tap the Volume Down button once. N/A

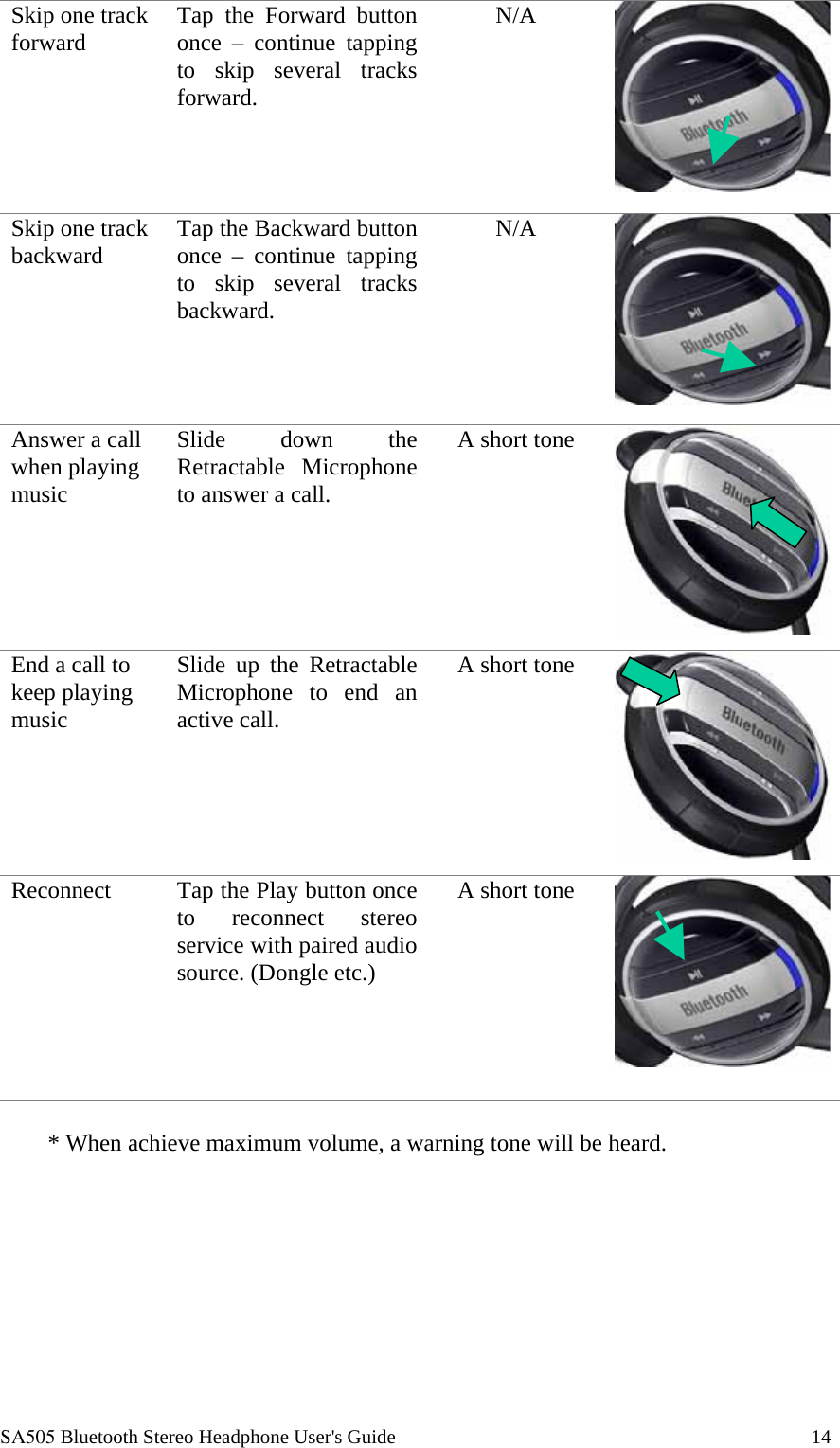

SA505 Bluetooth Stereo Headphone User's Guide 14 Skip one track forward Tap the Forward button once – continue tapping to skip several tracks forward. N/A Skip one track backward Tap the Backward button once – continue tapping to skip several tracks backward. N/A Answer a call when playing music Slide down the Retractable Microphone to answer a call. A short tone End a call to keep playing music Slide up the Retractable Microphone to end an active call. A short tone Reconnect Tap the Play button once to reconnect stereo service with paired audio source. (Dongle etc.) A short tone * When achieve maximum volume, a warning tone will be heard.

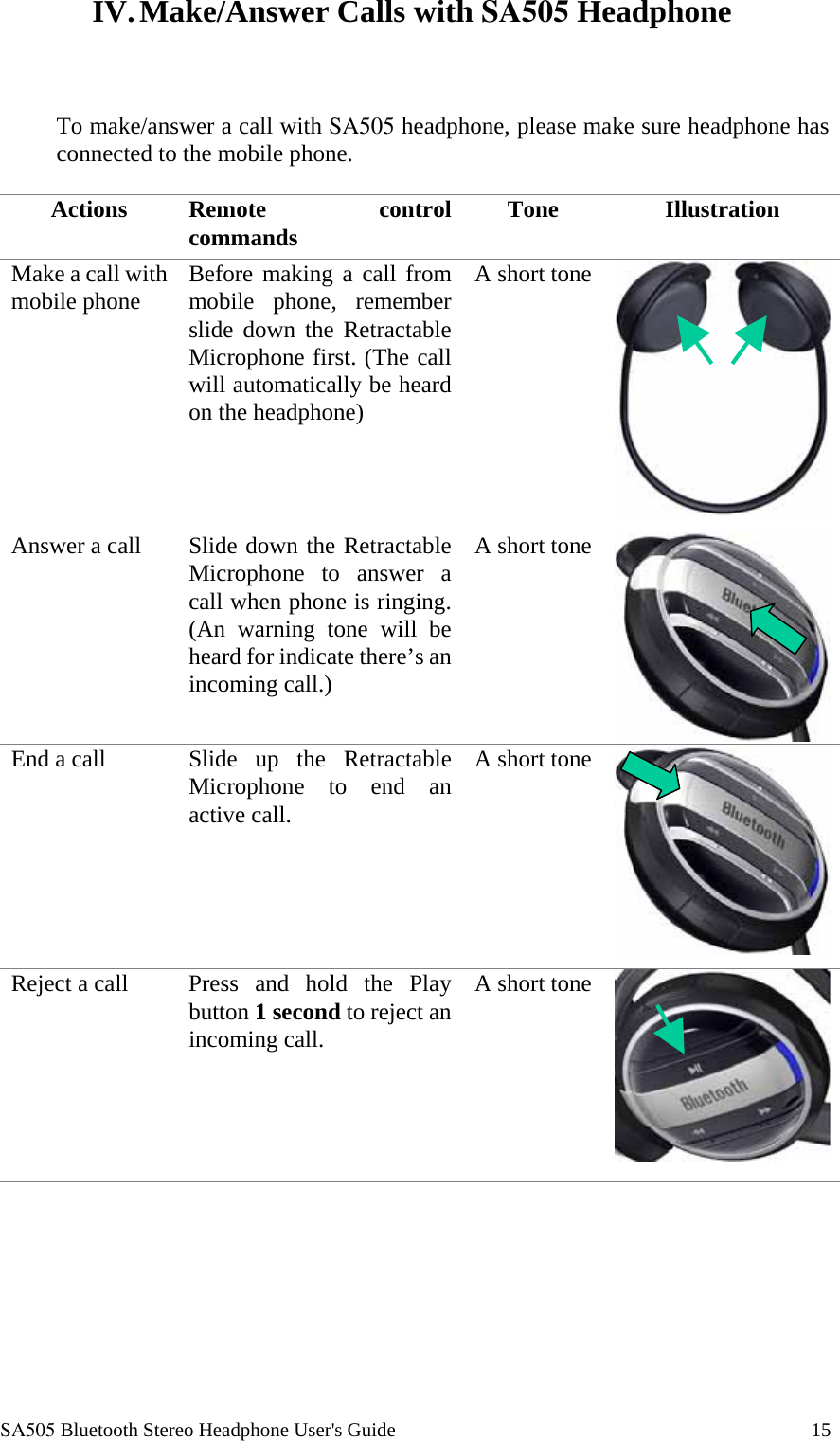

SA505 Bluetooth Stereo Headphone User's Guide 15 IV. Make/Answer Calls with SA505 Headphone To make/answer a call with SA505 headphone, please make sure headphone has connected to the mobile phone. Actions Remote control commands Tone Illustration Make a call with mobile phone Before making a call from mobile phone, remember slide down the Retractable Microphone first. (The call will automatically be heard on the headphone) A short toneAnswer a call Slide down the Retractable Microphone to answer a call when phone is ringing. (An warning tone will be heard for indicate there’s an incoming call.) A short toneEnd a call Slide up the Retractable Microphone to end an active call. A short toneReject a call Press and hold the Play button 1 second to reject an incoming call. A short tone

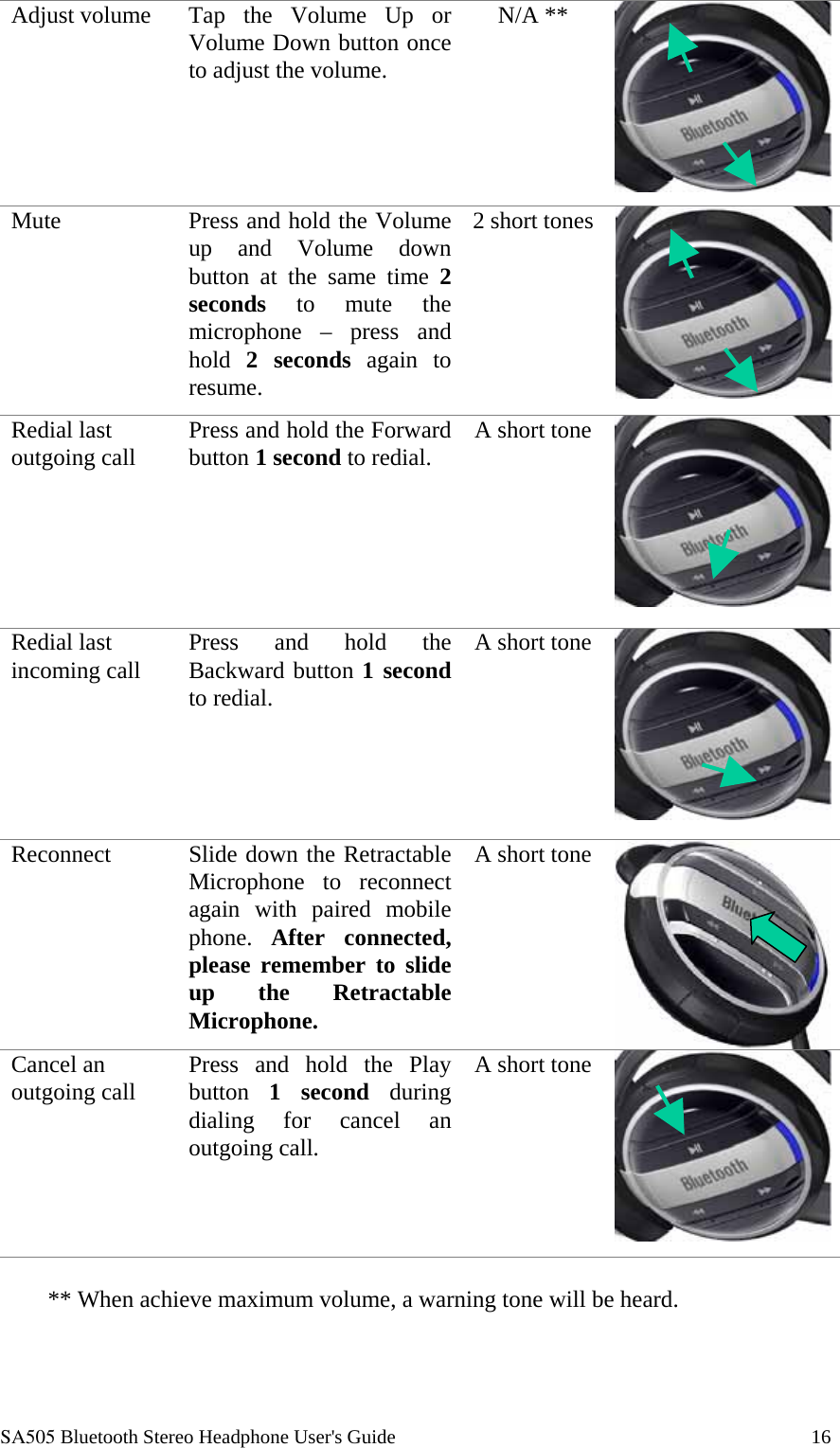

SA505 Bluetooth Stereo Headphone User's Guide 16 Adjust volume Tap the Volume Up or Volume Down button once to adjust the volume. N/A ** Mute Press and hold the Volume up and Volume down button at the same time 2 seconds to mute the microphone – press and hold 2 seconds again to resume. 2 short tones Redial last outgoing call Press and hold the Forward button 1 second to redial. A short tone Redial last incoming call Press and hold the Backward button 1 second to redial. A short toneReconnect Slide down the Retractable Microphone to reconnect again with paired mobile phone. After connected, please remember to slide up the Retractable Microphone. A short toneCancel an outgoing call Press and hold the Play button 1 second during dialing for cancel an outgoing call. A short tone ** When achieve maximum volume, a warning tone will be heard.

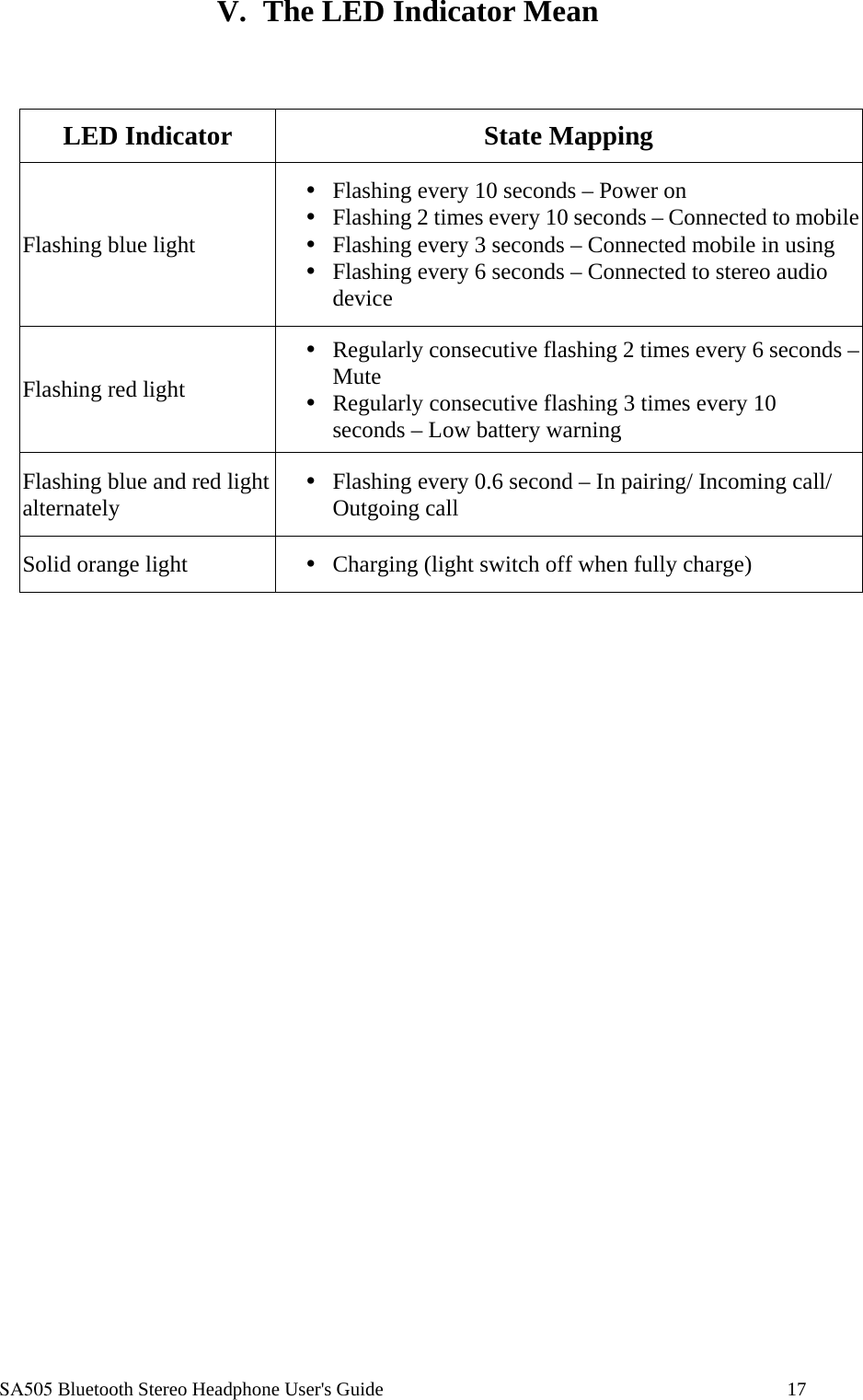

SA505 Bluetooth Stereo Headphone User's Guide 17 V. The LED Indicator Mean LED Indicator State Mapping Flashing blue light  Flashing every 10 seconds – Power on  Flashing 2 times every 10 seconds – Connected to mobile  Flashing every 3 seconds – Connected mobile in using  Flashing every 6 seconds – Connected to stereo audio device Flashing red light  Regularly consecutive flashing 2 times every 6 seconds –Mute  Regularly consecutive flashing 3 times every 10 seconds – Low battery warning Flashing blue and red light alternately  Flashing every 0.6 second – In pairing/ Incoming call/ Outgoing call Solid orange light  Charging (light switch off when fully charge)
