Southwing S L TERE Bluetooth Hands free Car kit User Manual

Southwing S.L. Bluetooth Hands free Car kit Users Manual

Users Manual

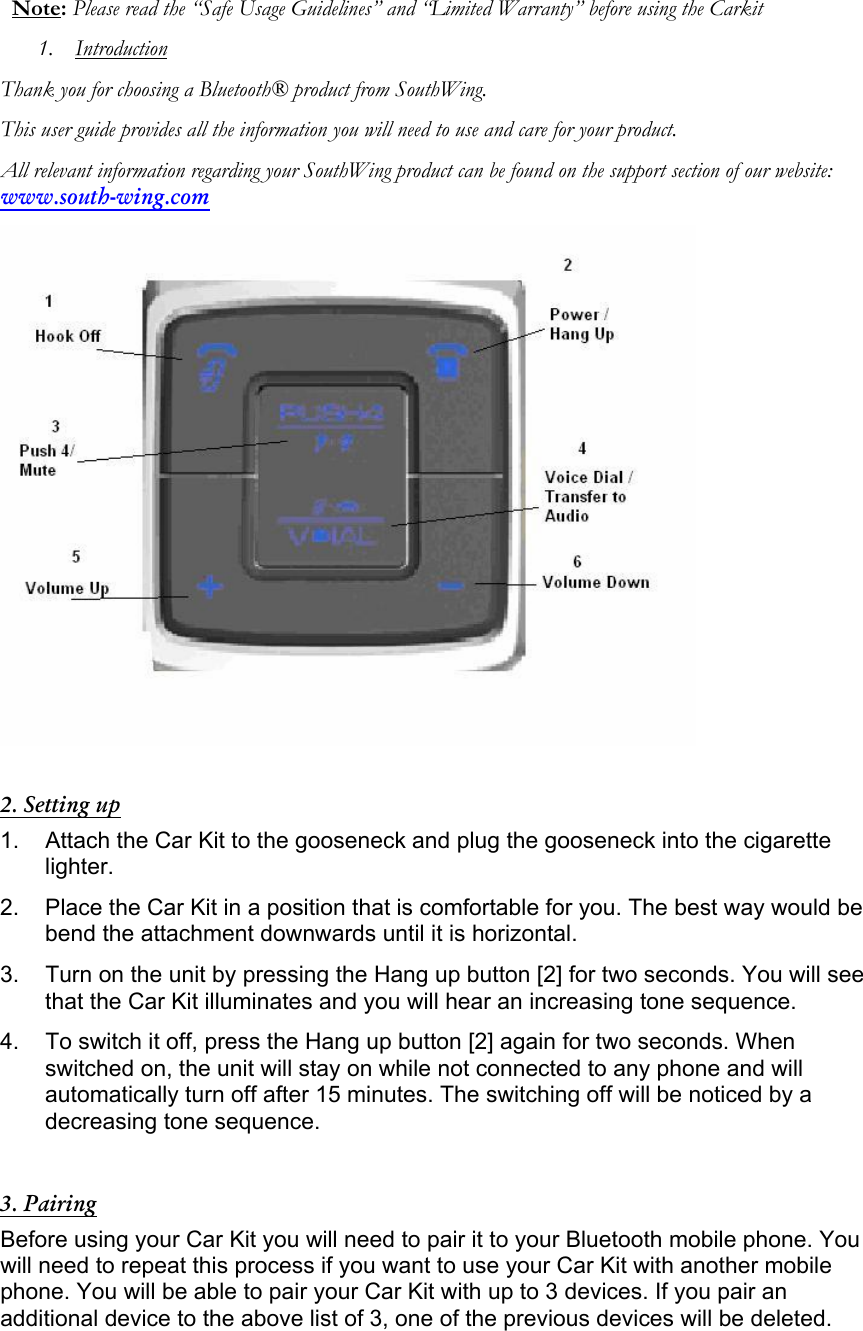

Note: Please read the “Safe Usage Guidelines” and “Limited Warranty” before using the Carkit 1. Introduction Thank you for choosing a Bluetooth® product from SouthWing. This user guide provides all the information you will need to use and care for your product. All relevant information regarding your SouthWing product can be found on the support section of our website: www.south-wing.com 2. Setting up 1. Attach the Car Kit to the gooseneck and plug the gooseneck into the cigarette lighter. 2. Place the Car Kit in a position that is comfortable for you. The best way would be bend the attachment downwards until it is horizontal. 3. Turn on the unit by pressing the Hang up button [2] for two seconds. You will see that the Car Kit illuminates and you will hear an increasing tone sequence. 4. To switch it off, press the Hang up button [2] again for two seconds. When switched on, the unit will stay on while not connected to any phone and will automatically turn off after 15 minutes. The switching off will be noticed by a decreasing tone sequence. 3. Pairing Before using your Car Kit you will need to pair it to your Bluetooth mobile phone. You will need to repeat this process if you want to use your Car Kit with another mobile phone. You will be able to pair your Car Kit with up to 3 devices. If you pair an additional device to the above list of 3, one of the previous devices will be deleted.

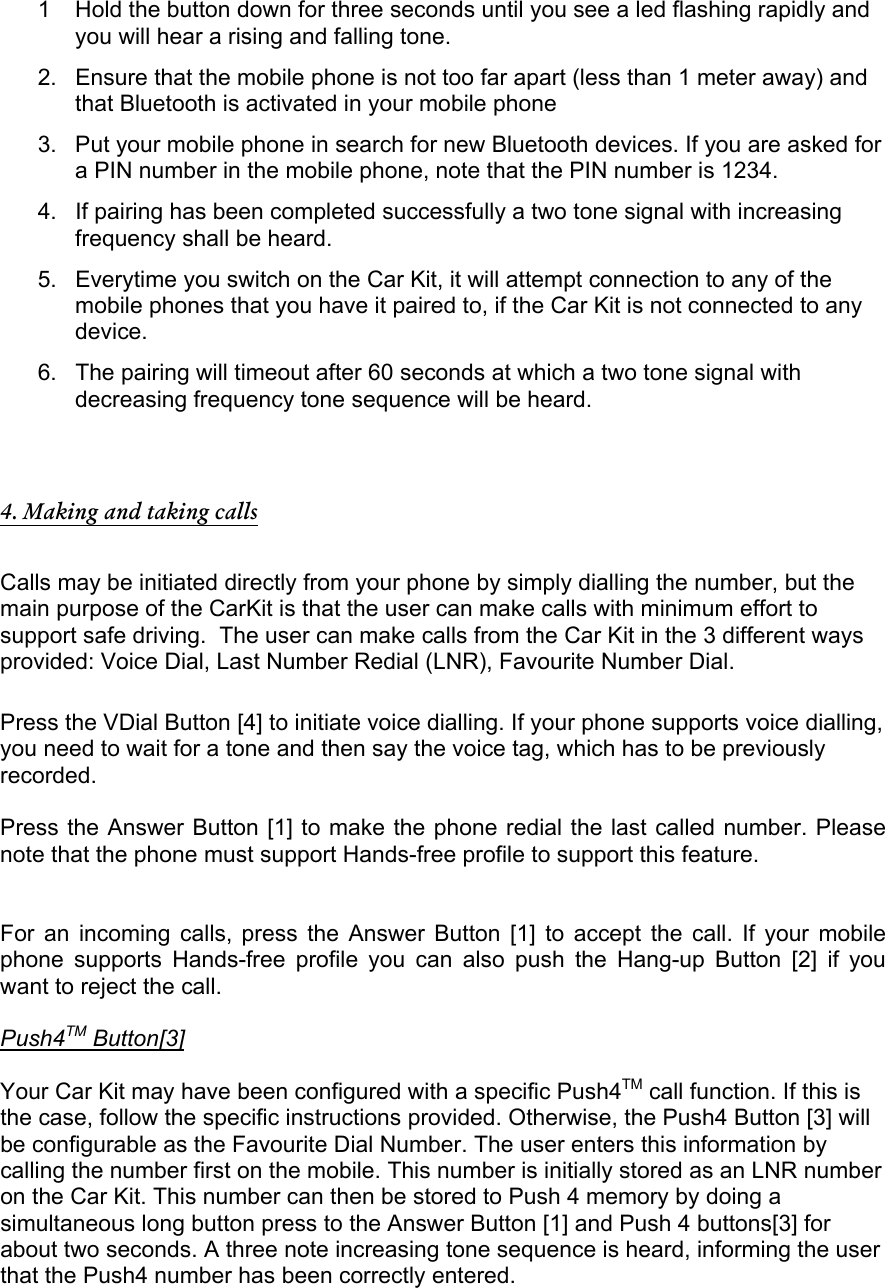

1 Hold the button down for three seconds until you see a led flashing rapidly and you will hear a rising and falling tone. 2. Ensure that the mobile phone is not too far apart (less than 1 meter away) and that Bluetooth is activated in your mobile phone 3. Put your mobile phone in search for new Bluetooth devices. If you are asked for a PIN number in the mobile phone, note that the PIN number is 1234. 4. If pairing has been completed successfully a two tone signal with increasing frequency shall be heard. 5. Everytime you switch on the Car Kit, it will attempt connection to any of the mobile phones that you have it paired to, if the Car Kit is not connected to any device. 6. The pairing will timeout after 60 seconds at which a two tone signal with decreasing frequency tone sequence will be heard. 4. Making and taking calls Calls may be initiated directly from your phone by simply dialling the number, but the main purpose of the CarKit is that the user can make calls with minimum effort to support safe driving. The user can make calls from the Car Kit in the 3 different ways provided: Voice Dial, Last Number Redial (LNR), Favourite Number Dial. Press the VDial Button [4] to initiate voice dialling. If your phone supports voice dialling, you need to wait for a tone and then say the voice tag, which has to be previously recorded. Press the Answer Button [1] to make the phone redial the last called number. Please note that the phone must support Hands-free profile to support this feature. For an incoming calls, press the Answer Button [1] to accept the call. If your mobile phone supports Hands-free profile you can also push the Hang-up Button [2] if you want to reject the call. Push4TM Button[3] Your Car Kit may have been configured with a specific Push4TM call function. If this is the case, follow the specific instructions provided. Otherwise, the Push4 Button [3] will be configurable as the Favourite Dial Number. The user enters this information by calling the number first on the mobile. This number is initially stored as an LNR number on the Car Kit. This number can then be stored to Push 4 memory by doing a simultaneous long button press to the Answer Button [1] and Push 4 buttons[3] for about two seconds. A three note increasing tone sequence is heard, informing the user that the Push4 number has been correctly entered.

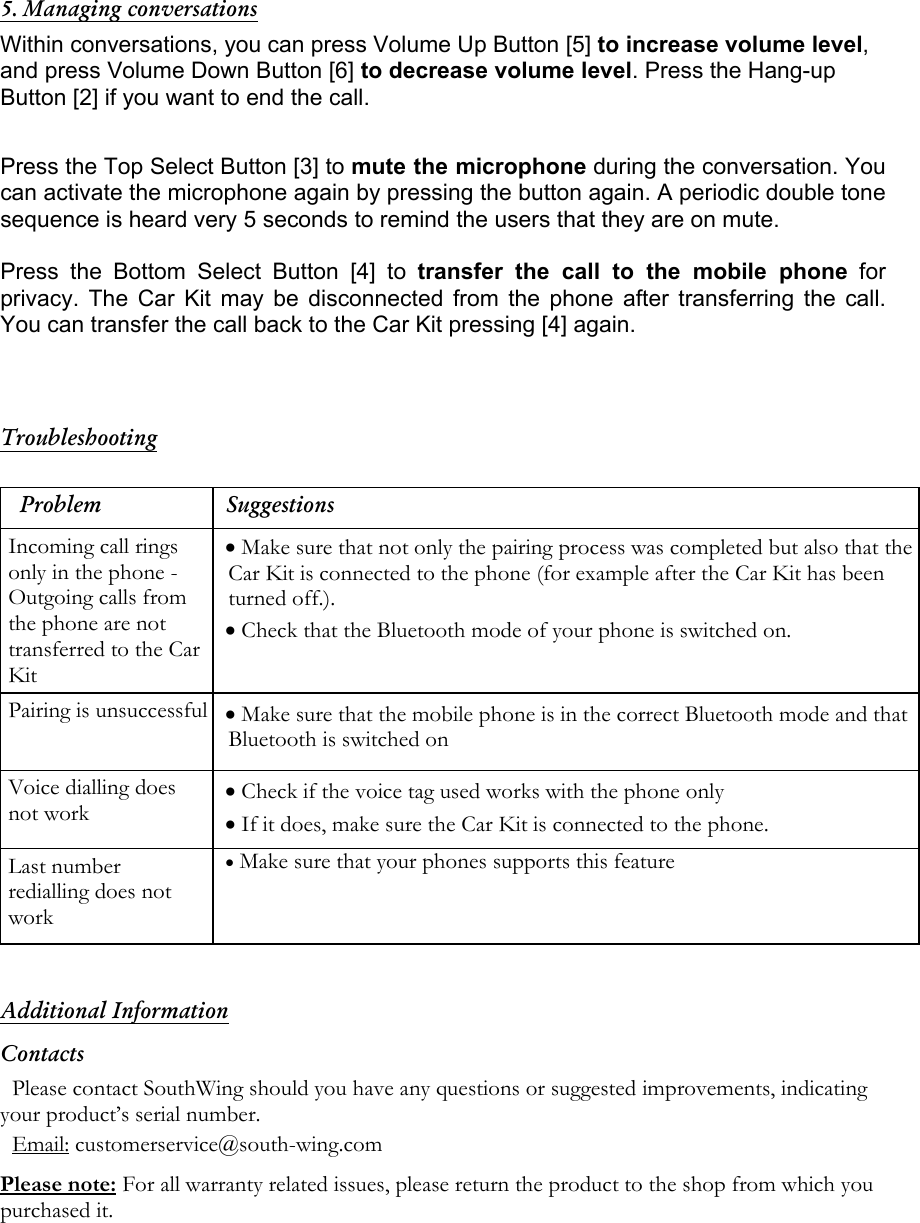

5. Managing conversations Within conversations, you can press Volume Up Button [5] to increase volume level, and press Volume Down Button [6] to decrease volume level. Press the Hang-up Button [2] if you want to end the call. Press the Top Select Button [3] to mute the microphone during the conversation. You can activate the microphone again by pressing the button again. A periodic double tone sequence is heard very 5 seconds to remind the users that they are on mute. Press the Bottom Select Button [4] to transfer the call to the mobile phone for privacy. The Car Kit may be disconnected from the phone after transferring the call. You can transfer the call back to the Car Kit pressing [4] again. Troubleshooting Problem Suggestions Incoming call rings only in the phone - Outgoing calls from the phone are not transferred to the Car Kit • Make sure that not only the pairing process was completed but also that the Car Kit is connected to the phone (for example after the Car Kit has been turned off.). • Check that the Bluetooth mode of your phone is switched on. Pairing is unsuccessful • Make sure that the mobile phone is in the correct Bluetooth mode and that Bluetooth is switched on Voice dialling does not work • Check if the voice tag used works with the phone only • If it does, make sure the Car Kit is connected to the phone. Last number redialling does not work • Make sure that your phones supports this feature Additional Information Contacts Please contact SouthWing should you have any questions or suggested improvements, indicating your product’s serial number. Email: customerservice@south-wing.com Please note: For all warranty related issues, please return the product to the shop from which you purchased it.

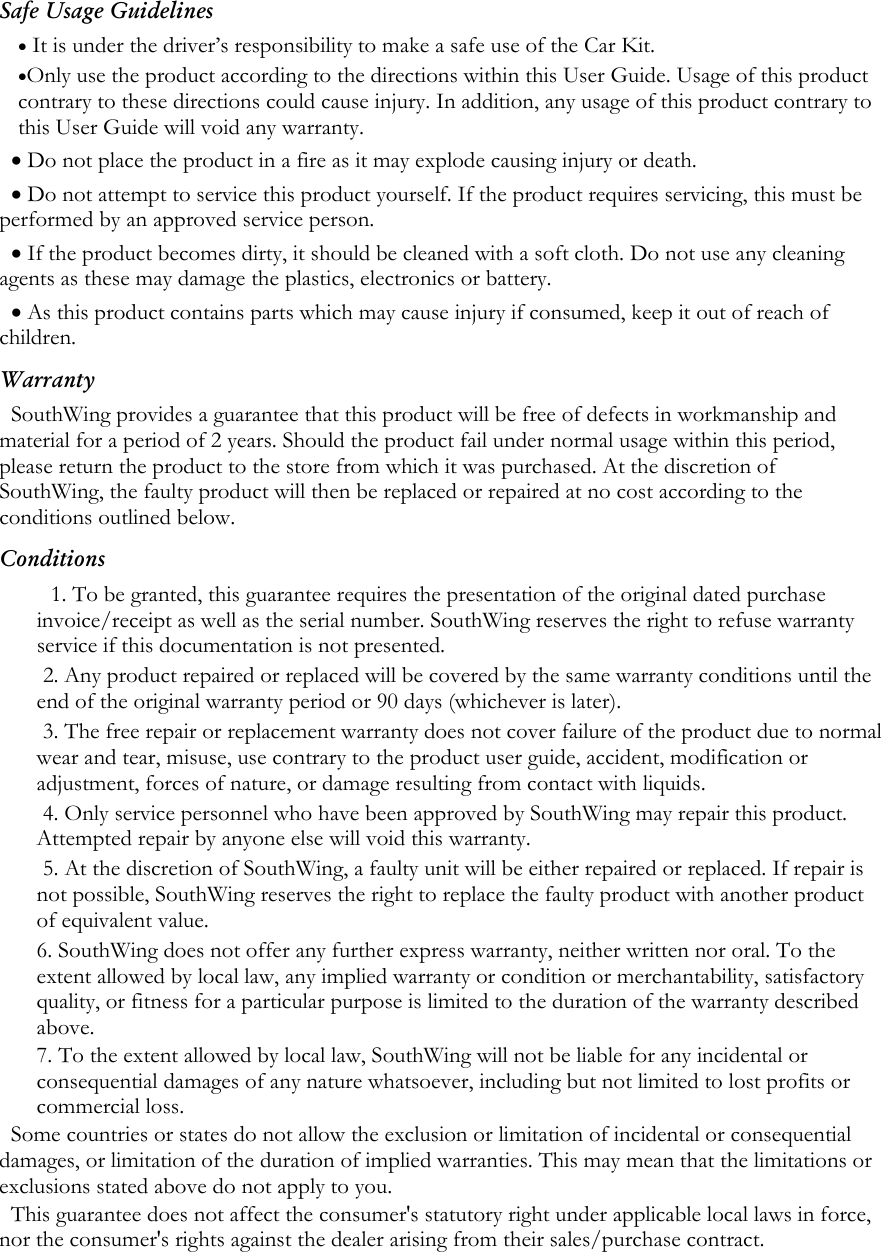

Safe Usage Guidelines • It is under the driver’s responsibility to make a safe use of the Car Kit. •Only use the product according to the directions within this User Guide. Usage of this product contrary to these directions could cause injury. In addition, any usage of this product contrary to this User Guide will void any warranty. • Do not place the product in a fire as it may explode causing injury or death. • Do not attempt to service this product yourself. If the product requires servicing, this must be performed by an approved service person. • If the product becomes dirty, it should be cleaned with a soft cloth. Do not use any cleaning agents as these may damage the plastics, electronics or battery. • As this product contains parts which may cause injury if consumed, keep it out of reach of children. Warranty SouthWing provides a guarantee that this product will be free of defects in workmanship and material for a period of 2 years. Should the product fail under normal usage within this period, please return the product to the store from which it was purchased. At the discretion of SouthWing, the faulty product will then be replaced or repaired at no cost according to the conditions outlined below. Conditions 1. To be granted, this guarantee requires the presentation of the original dated purchase invoice/receipt as well as the serial number. SouthWing reserves the right to refuse warranty service if this documentation is not presented. 2. Any product repaired or replaced will be covered by the same warranty conditions until the end of the original warranty period or 90 days (whichever is later). 3. The free repair or replacement warranty does not cover failure of the product due to normal wear and tear, misuse, use contrary to the product user guide, accident, modification or adjustment, forces of nature, or damage resulting from contact with liquids. 4. Only service personnel who have been approved by SouthWing may repair this product. Attempted repair by anyone else will void this warranty. 5. At the discretion of SouthWing, a faulty unit will be either repaired or replaced. If repair is not possible, SouthWing reserves the right to replace the faulty product with another product of equivalent value. 6. SouthWing does not offer any further express warranty, neither written nor oral. To the extent allowed by local law, any implied warranty or condition or merchantability, satisfactory quality, or fitness for a particular purpose is limited to the duration of the warranty described above. 7. To the extent allowed by local law, SouthWing will not be liable for any incidental or consequential damages of any nature whatsoever, including but not limited to lost profits or commercial loss. Some countries or states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties. This may mean that the limitations or exclusions stated above do not apply to you. This guarantee does not affect the consumer's statutory right under applicable local laws in force, nor the consumer's rights against the dealer arising from their sales/purchase contract.

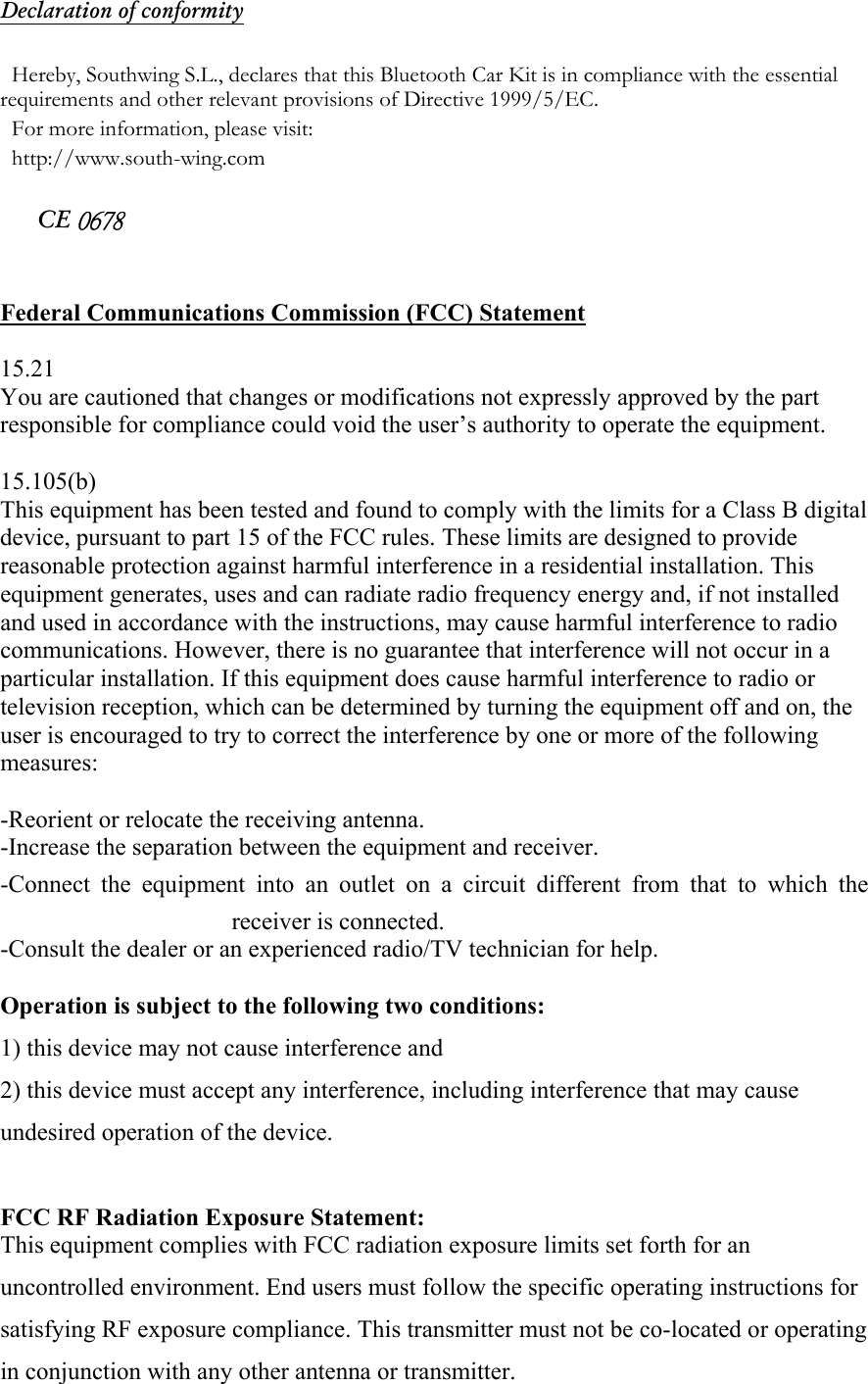

Declaration of conformity Hereby, Southwing S.L., declares that this Bluetooth Car Kit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For more information, please visit: http://www.south-wing.com CE 0678 Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
