SY-6BA+ IV

Motherboard

****************************************************

Pentium®

III, Pentium®

II & Celeron

Processor supported

82440 BX AGP/PCI Motherboard

66 & 100 MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Manual

SOYO™SY-6BA+ IV

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: November 1999

Version 1.2

6BA+ IV SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-6BA+ IV

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION .............................1

1-1 INTRODUCTION...........................................................1

1-2 KEY FEATURES ............................................................1

1-3 HANDLING THE MOTHERBOARD .............................5

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS ........5

1-5 SY-6BA+ IV MOTHERBOARD LAYOUT.....................6

1-6 SY-6BA+ IV MOTHERBOARD COMPONENTS ..........7

1-7 MICROPROCESSOR......................................................9

1-8 MEMORY.......................................................................9

1-9 CHIPSET ......................................................................11

1-10 I/O INTERFACE CONTROLLER .................................16

1-11 HARDWARE MONITOR..............................................18

1-12 WAKE ON LAN TECHNOLOGY.................................18

CHAPTER 2 HARDWARE INSTALLATION..................................19

2-1 PREPARATIONS ..........................................................19

2-2 UNPACKING THE MOTHERBOARD .........................20

2-3 INSTALLATION GUIDE..............................................21

2-3.1 CPU Fan Installation.................................................. 22

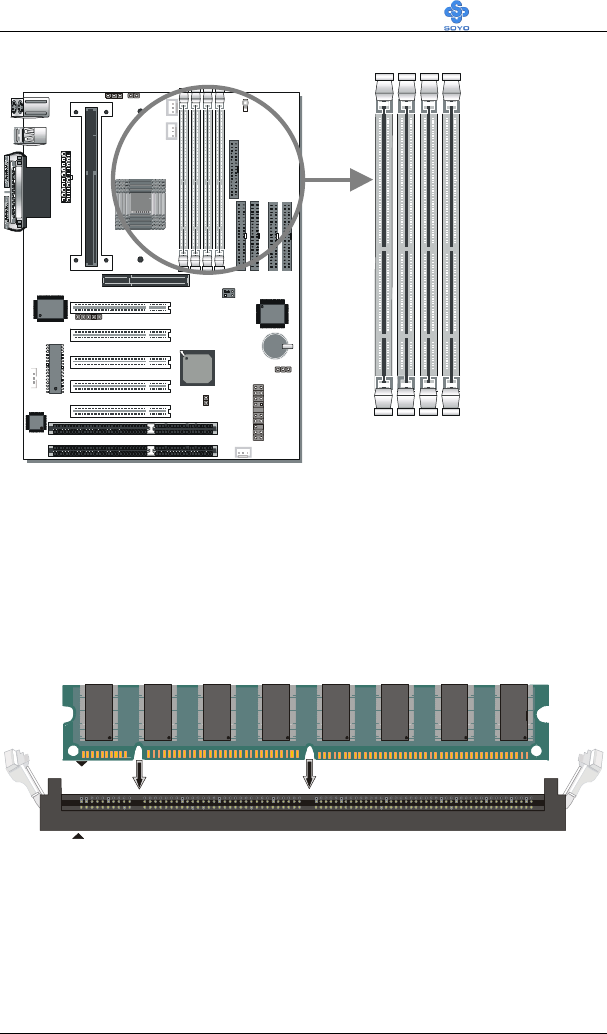

2-3.2 SDRAM Memory Module Installation.......................... 26

2-3.3 Motherboard Connector.............................................. 28

3-3.4 Jumper Setting............................................................ 43

2-3.5 CMOS Clearing (JP5)................................................. 45

2-3.6 Power On ................................................................... 46

2-3.7 Quick BIOS Setup....................................................... 47

2-3.8 Troubleshooting at First Start ..................................... 50

2-3.9 Power Off................................................................... 51

CHAPTER 3 BIOS SETUP UTILITY ..............................................52

Table of Contents SY-6BA+ IV

3-1 SOYO COMBO SETUP................................................54

3-2 STANDARD CMOS SETUP .........................................61

3-3 BIOS FEATURES SETUP.............................................64

3-4 CHIPSET FEATURES SETUP......................................69

3-5 POWER MANAGEMENT SETUP................................72

3-6 PNP/PCI CONFIGURATION SETUP............................76

3-7 LOAD SETUP DEFAULTS...........................................79

3-8 INTEGRATED PERIPHERALS ....................................80

3-9 SUPERVISOR PASSWORD..........................................85

3-10 USER PASSWORD.......................................................86

3-11 IDE HDD AUTO DETECTION.....................................87

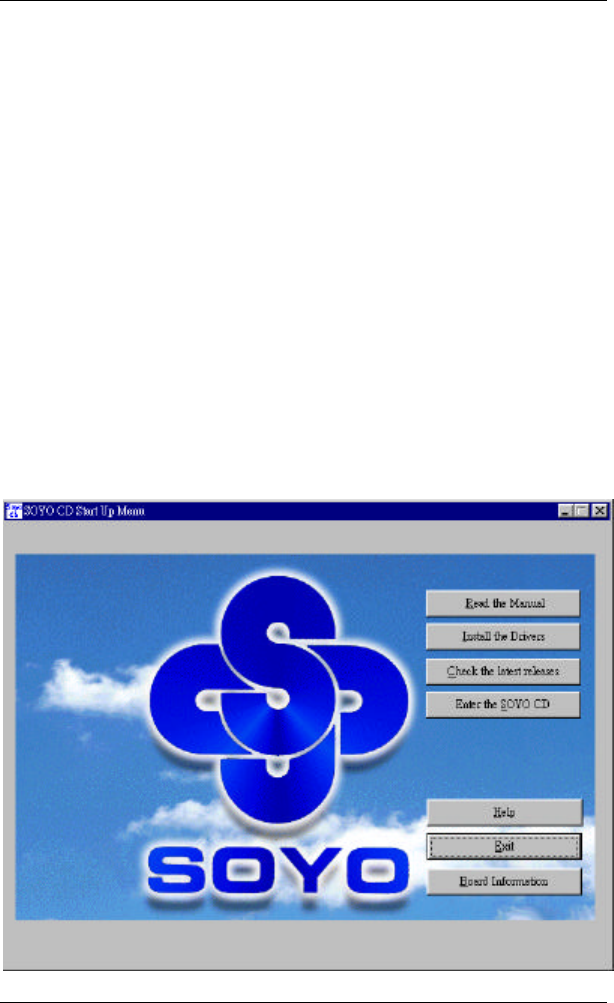

CHAPTER 4 DRIVERS INSTALLATION ........................................88

CHAPTER 5 THE ATA 66 DRIVER INSTALLATION...................94

Motherboard Description SY-6BA+ IV

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-6BA+ IV AGP/PCI Motherboard is a high-performance Slot 1

supported ATX form-factor system board. SY-6BA+ IV uses the Intel®

Chipset technology and supports Slot 1 class processors. This

Motherboard is fully compatible with industry standards and adds many

technical enhancements.

1-2 KEY FEATURES

Ø CPU SUPPORT

The SY-6BA+ IV supports a wide range of INTEL CPUs:

n Intel Pentium III 450~600 MHz

n Intel Pentium II 233~450 MHz

n Intel Celeron 266~433 MHz

New released Intel Slot 1 CPUs will very likely be supported by the SY-

6BA+ IV as well.

Ø CPU SETTINGS

The SY-6BA+ IV provides the user with a very complete and convenient

CPU setting environment. The CPU settings are all adjusted through the

special SOYO COMBO page in the BIOS, therefore rendering the use of

jumpers obsolete.

n CPU FSB Frequency

The SY-6BA+ IV supports an incredible wide range of CPU FSB

frequency settings:

66, 75, 81, 83, 90, 95, 100, 105, 110, 112, 113, 115, 117, 118, 120, 122,

124, 126, 133, 135, 137, 138, 140, 142, 144, 150 and 155 MHz.

This ensures that the SY-6BA+ IV has an overwhelming overclocking

potential.

Motherboard Description SY-6BA+ IV

n CPU Multiplier

The SY-6BA+ IV supports a wide range of multipliers:

2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x, 5.5x, 6.0x, 6.5x, 7.0x, 7.5x and

8.0x

n CPU Core Voltage

The CPU Core voltage is set automatically according to CPU needs. The

SY-6BA+ IV supports an advanced Core voltage feature; it can be

adjusted through the BIOS directly without setting jumper. In normal

mode the voltage will be standard, apart from that the user can specify

increments of 2.5%, 5%, 7.5% and 10% on top of the standard voltage.

This will provide the CPU with the power it needs for overclocking.

Ø EXPANDABILITY

The SY-6BA+ IV provides all the standard expansion slots, and many

more additional expansion features:

u Expansion slots

n 1 x 32-bit bus mastering AGP slot

n 5 x 32-bit bus mastering PCI slots

n 2 x 16-bit ISA slots

u Enhanced IO

n Floppy disk controller

n 2x EIDE controllers with support for up to 4 Ultra DMA 33/66

devices

n Standard/EPP/ECP parallel port

n 2x 16550 compatible serial ports

n IrDA compatible infrared port

n 2x USB (Universal Serial Bus) connectors

n PS/2 mouse connector

n PS/2 keyboard connector

Ø ADVANCED FUNCTIONS

The SY-6BA+ IV supports advanced functions such as:

n ATA 66 IDE Ports

In addition to the original two ATA33 (Ultra DMA/33) IDE ports, the

SY-6BA+ IV supports two ATA66 (Ultra DMA/66) IDE ports that is

Motherboard Description SY-6BA+ IV

capable of transferring data up to 66 Mbytes/sec (IDE DMA Mode 4).

n Wake-On-LAN

Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector is

provided by the SY-6BA+ IV to support this function).

n Multiple boot

The SY-6BA+ IV supports booting from devices such as CD-ROM.

n Power on by modem or alarm

If the SY-6BA+ IV system is in suspend mode, it can be switched

back on through the modem or RTC alarm through this function. This

opens a lot of possibilities, such as remote access that switches the

system on only after the modem receives a call.

Ø FAIL SAFE

The SY-6BA+ IV comes with added functionality to make managing the

system easy and safe

u Hardware Monitor

The integrated Winbond Hardware Monitor IC and Hardware doctor

software enables the user the monitor system voltages, temperatures and

FAN speeds. This makes sure that the user is full control of the system

u Power Failure Resume Function

This function can be set in the BIOS, and determines whether the system

will automatically turn on again after a power failure. This function is

indispensable for server systems that need to always be on line.

u 5VSB Indicator

This green LED gives an indication of the presence of the 5V Standby

voltage. This voltage is always fed into the motherboard and is used for

functions such as WOL.

Ø NORTON SOFTWARE PACK

n Antivirus

n Ghost

n Virtual Drive

Motherboard Description SY-6BA+ IV

Ø COMPLIANCE

The SY-6BA+ IV complies with all important industry standards. The

following underlines the reliability of the SY-6BA+ IV, a motherboard to

trust.

n Year 2000 compliant

n PC98 compliant

n FCC/CE complaint

Ø USER FRIENDLY

n SOYO Combo Setup

n Jumperless design

n You can set up the following options trough the BIOS setting

 CPU FSB frequency

 CPU multiplier

 CPU Vcore voltage

 PCI clock

 AGP Clock

 SDRAM Clock

Motherboard Description SY-6BA+ IV

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

Ø Before handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

Ø Remove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

Ø Check the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

Ø Do not remove the anti-static packaging until you are ready to install.

Ø Ground yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

Ø Frequently ground yourself while working or use a grounding strap.

Ø Handle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-6BA+ IV

1-5 SY-6BA+ IV MOTHERBOARD LAYOUT

Back Panel SY-6BA+ IV Platform

COM 1

COM 2

PRT

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector JP10

PCI Slot #1

PCI Slot #2

PCI Slot #3

PCI Slot #4

PCI Slot #5

ISA Slot #1

ISA Slot #2

JP1

JP8 LED1

Lithium

Battery

SB-LINK

(PC PCI)

IR1

CPUFAN

PWRFAN

ITE 8671

I/O Chipset

IDE 1

IDE4

IDE 2

IDE 3

FDC

AGP Slot

ATX

Power

Flash BIOS

Slot 1

Intel

82371 EB

DIMM 1

DIMM 2

DIMM 3

DIMM 4

8 2 8 A C

Hardware

Monitoring

Winbond

W83782M

Intel

82443 BX

CHAFAN

Speaker

Keylock

Power

LED

Tubro

LED

HDD

LED

Reset

PWRBT

JP5

Jumper

CMOS Clear

JP44

WOL

Header

ATA 33

ATA 66

Motherboard Description SY-6BA+ IV

1-6 SY-6BA+ IV MOTHERBOARD COMPONENTS

8 2 8 A C

Motherboard Description SY-6BA+ IV

AATX Power Supply Connector

BSlot 1 Connector

CPower On by Keyboard Jumper

DCPU multiplier release Jumper

EIntel 82440 BX PCI/AGP Set

FCPU Cooling Fan Connector

GPower Cooling Fan Connector

HDIMM Bank

I5V Stand-by indicator LED

JFloppy Disk Drive (FDD) Port

KBus Mastering E-IDE/ATAPI Ports

L32-bit AGP Slot

MPCI Audio Card Header

NHigh Point PHT 366 ATA66 Controller

O32-bit PCI Mastering Slots

P3V Lithium Battery

QCMOS Clear Jumper

RIntel 82371 EB PIIX4 Chip

SFront panel connectors

TChassis Cooling Fan Connector

UExternal Suspend Button Header

V16-bit ISA Slots

WWinboand W83782M hardware monitoring

XFlash BIOS Chip

YWake-On-LAN (WOL) Header

ZSerial Infrared (IrDA) Device Header

AA ITE 8671 super I/O Controller

AB Back panel Connectors

Motherboard Description SY-6BA+ IV

1-7 MICROPROCESSOR

The motherboard supports a single Slot 1 processor. The processor’ s VID

pins automatically program the voltage regulator on the motherboard to

the required processor voltage. In addition, the front side bus speed (66

MHz and 100 MHz) is automatically selected. The motherboard supports

all current Slot 1 processor speeds, voltages, and bus frequencies.

1-7.1 Microprocessor Packaging

The processor is packaged in a Single Edge Contact Cartridge (SECC or

SECC2) or Single Edge Processor Package (S.E.P.P). The cartridge

includes the processor core, second-level cache subsystem, thermal plate,

and back cover.

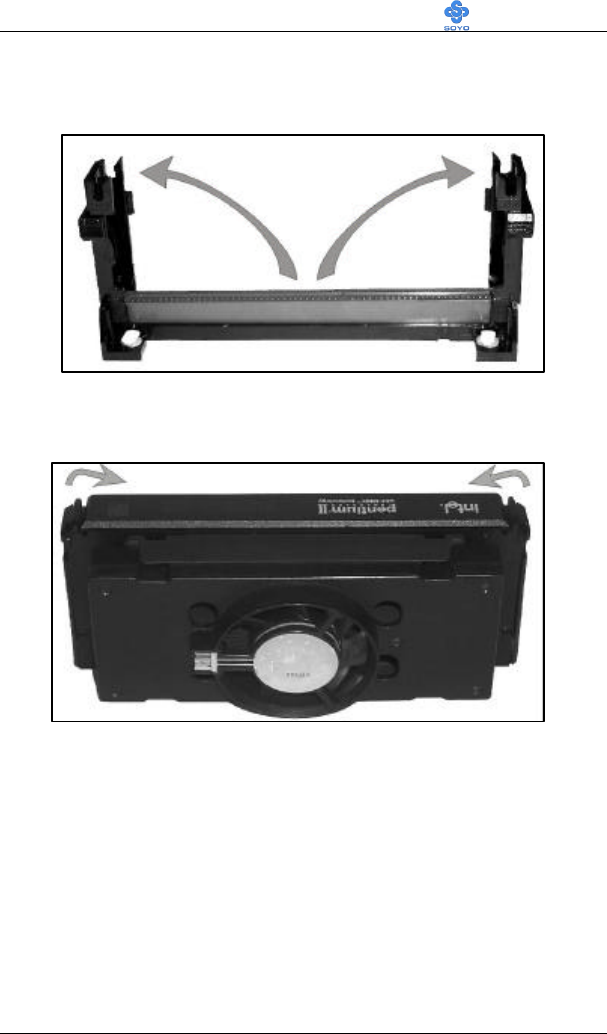

The processor connects to the motherboard through the Slot1 connector, a

242-pin edge connector. When mounted in Slot1, the processor is secured

by a retention mechanism attached to the motherboard. A passive heatsink

is stabilized by the heatsink supports.

1-7.2 Second Level Cache

The second-level cache is located on the substrate of the CPU package.

The cache includes 0KB/128KB (Celeron) or 512 KB (PII/PIII) of

synchronous pipelined burst static RAM. All supported onboard memory

can be cached.

1-7.3 Microprocessor Upgrades

The motherboard can be upgraded with Slot 1 processors that run at higher

speeds. When upgrading the processor, use the BIOS configuration mode

to change the processor speed.

1-8 MEMORY

1-8.1 Main Memory

The motherboard has four DIMM sockets. SDRAM can be installed in one,

Motherboard Description SY-6BA+ IV

two, three, or four sockets. Using the serial presence detect (SPD) data

structure, programmed into an E²PROM on the DIMM, the BIOS can

determine the SDRAM’s size and speed. Minimum DIMM memory size is

8 MB; maximum DIMM memory size is 256MB. Memory size and speed

can vary between sockets.

The motherboard supports the following memory features:

l 168-pin DIMMs with gold-plated contacts

l 66/100/133 MHz SDRAM

l Non-ECC (64-bit) and ECC (72-bit) memory

l 3.3V memory only

l Supports 8/16/32/64/128/256 MB DIMM Modules

l Support unbuffered or registered single- or double-sided DIMMs

Note

Slot 1 processors with 100 MHz front-side bus should be paired only with

100 MHz SDRAM. Processors with 66 MHz front side bus can be paired

with either 66 MHz or 100 MHz SDRAM.

1-8.2 SDRAM

SDRAM improves memory performance through memory access that is

synchronous with the front-side bus clock. Burst transfer rates at x-1-1-1

timing can be achieved using SDRAM, while asynchronous memory

subsystem are typically limited at x-2-2-2 transfer rates.

Note

All memory components and DIMMs used with the SY-6BA+ IV

motherboard must comply with the PC SDRAM specifications. These

include: the PC SDRAM Specification (memory component specific), the

PC Unbuffered DIMM Specification, and the PC Serial Presence Detect

Specification.

Motherboard Description SY-6BA+ IV

1-8.3 ECC Memory

ECC memory detects multiple-bit errors and corrects single-bit errors.

When ECC memory is installed, the BIOS supports both ECC and non-

ECC mode. ECC mode is enabled in the Setup program. The BIOS

automatically detects if ECC memory is installed and provides the Setup

option for selecting ECC mode. If any non-ECC memory is installed, the

Setup option for ECC configuration does not appear and ECC operation is

not available.

1-9 CHIPSET

The Intel 440BX PCIset includes a Host-PCI bridge integrated with both

an optimized DRM controller and an A.G.P. interface. The I/O subsystem

of the 440BX is based on the PIIX4E, which is a highly integrated PCI-

ISA/IDE Accelerator Bridge. This chipset consists of the Intel 82443BX

PCI/A.G.P. controller (PAC) and the Intel 82371EB PCI/ISA IDE

Xcelerator (PIIX4E) bridge chip.

1-9.1 Intel 82443Bx PCI/A.G.P. Controller (PAC)

The PAC provides bus-control signals, address paths, and data paths for

transfers between the processor’ s host bus, PCI bus, the A.G.P., and main

memory. The PAC features:

l Processor interface control

Ø Support for processor host bus frequencies of 100 MHz or 66MHz

Ø 32-bit addressing

Ø Desktop Optimized GTL+ compliant host bus interface

l Integrated DRAM controller, with support for:

Ø +3.3 V only DIMM DRAM configurations

Ø Up to four double sided DIMMs

Ø 100-MHz or 66MHz SDRAM

Ø DIMM serial presence detect via SMBus interface

Ø 16-and 64-Mbit devices with 2K, 4K, and 8K page sizes

Ø SDRAM 64-bit data interface with ECC support

Ø Symmetrical and asymmetrical DRAM addressing

Motherboard Description SY-6BA+ IV

l A.G.P. interface

Ø Complies with the A.G.P. specification

Ø Support for +3.3 V A.G.P.-66/ devices

Ø Synchronous coupling to the host-bus frequency

l PCI bus interface

Ø Complies with the PCI specification

Ø Asynchronous coupling to the host-bus frequency

Ø PCI parity generation support

Ø Data streaming supports from PCI-to-DRAM

Ø Support for five PCI bus masters in addition to the host and PCI-

to-ISA I/O bridge

Ø Support for concurrent host, A.G.P., and PCI transactions to main

memory

l Data buffering

Ø DRAM write buffer with read-around-write capability

Ø Dedicated host-to-DRAM, PCI-to-DRAM, and PCI-A.G.P.-to-

DRAM read buffers

Ø A.G.P. dedicated inbound/outbound FIFOs (133/66 MHz), used for

temporary data storage

l Power management functions

Ø Support for system suspend/resume (DRAM and power-on

suspend)

Ø Compliant with ACPI power management

l SMBus support for desktop management functions

l Support for system management mode (SMM)

1-9.2 Intel 82371EB PCI ISA IDE Xcelerator (PIIX4E)

The PIIX4E is a multifunction PCI device implementing the PCI-to-ISA

bridge, PCI IDE functionality, USB host/hub functionality, and enhanced

power management. The PIIX4E features:

l Multifunction PCI-to-ISA bridge

Ø Support for the PCI bus at 33 MHz

Motherboard Description SY-6BA+ IV

Ø Complies with the PCI specification

Ø Full ISA bus support

l USB controller

Ø Two USB ports

Ø Support for legacy keyboard and mouse

Ø Support for UHCI interface

l Integrated dual-channel enhanced IDE interface

Ø Support for up to four IDE devices

Ø PIO mode 4 transfers at up to 16 MB/sec

Ø Support for Ultra DMA/33 synchronous DMA mode transfers up

to 33 MB/sec

Ø Bus master mode with an 8 x 32-bit buffer for bus master PCI IDE

burst transfers

l Enhanced DMA controller

Ø Two 8237-based JDMA controllers

Ø Supports for PCI DMA with three PC/PCI channels and distributed

DMA protocols

l Interrupt controller based on 82C59

Ø Support for 15 interrupts

Ø Programmable for edge/level sensitivity

l Power management logic

Ø Sleep/resume logic

Ø Support for wake-on-modem, Wake on LAN technology, and

w3ake on PME

Ø Support for ACPI

l Real-Time Clock

Ø 256-byte battery-backed CMOS SRAM

Ø Includes date alarm

l 16-bit counters/timers based on 82C54

1-9.3 Accelerated Graphics Port (A.G.P.)

A.G.P. is a high-performance bus for graphics-intensive applications, such

as 3D applications. A.G.P., while based on the PCI Local Bus

Motherboard Description SY-6BA+ IV

Specifications, Rev 2.1, is independent of the PCI bus and is intended for

exclusive use with graphical display devices. A.G.P. overcomes certain

limitations of the PCI bus related to handling a large amount of graphics

data with the following features:

l Pipelined memory read and write operations that hide memory access

latency

l Demultiplexing of address and data on the bus for near 100 percent

bus efficiency

l AC timing for 133 MHz data transfer rates, allowing real data

throughput in excess of 500 MB/sec

1-9.4 Universal Serial Bus (USB)

The motherboard has two USB ports; one USB peripheral can be

connected to each port. For more than two USB devices, an external hub

can be connected to either port. The motherboard fully supports the

universal host controller interface (UHCI) and used UHCI-compatible

software drivers.

Specification USB features include:

l Self-identifying peripherals that can be plugged in while the

computer is running

l Automatic mapping of function to driver and configuration

l Support for isochronous and asynchronous transfer types over the

same set of wires

l Support for up to 127 physical devices

l Guaranteed bandwidth and low latencies appropriate for telephony,

audio, and other applications

l Error-handling and fault-recovery mechanisms built into the protocol

Note

Computer systems that have an unshielded cable attached to a USB port

may not meet FCC Class B requirements, even if no device or a low-speed

USB device is attached to the cable. Use shielded cable that meets the

requirements for a full-speed USB device.

Motherboard Description SY-6BA+ IV

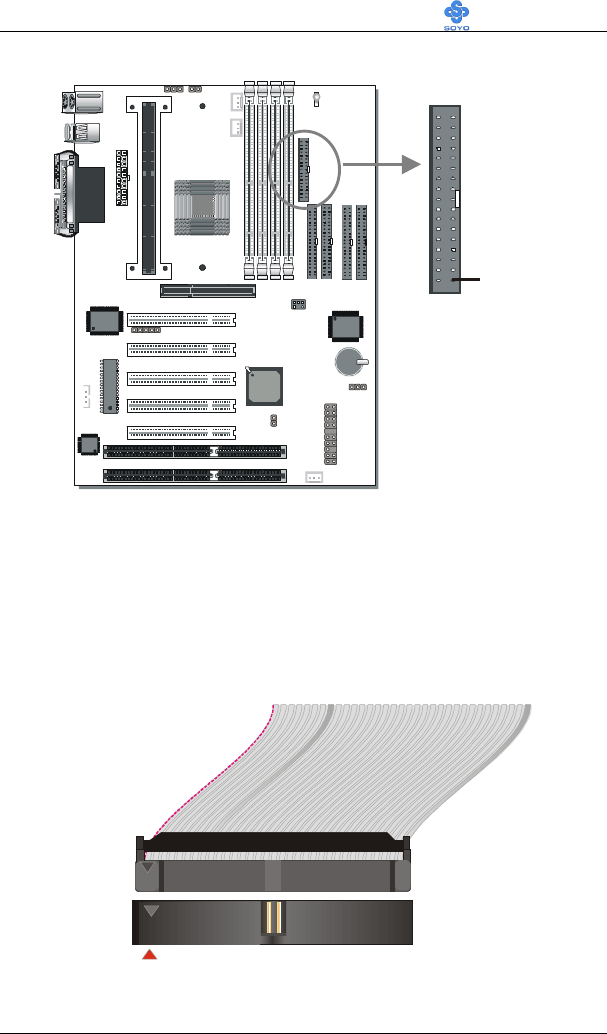

1-9.5 IDE Support

The motherboard has two independent ATA 33 and two independent ATA

66 bus-mastering PCI IDE interfaces. These interfaces support PIO Mode3,

PIO Mode 4, ATAPI devices (e.g., CD-ROM), and Ultra DMA/33 (IDE1,

IDE2) or Ultra DMA/66 (IDE3, IDE4) synchronous-DMA mode transfers.

See “IDE Device installation” (on page 29) for more information. The

BIOS supports logical block addressing (LBA) and extended cylinder head

sector (ECHS) translation modes. The BIOS automatically detects the IDE

device transfer rate and translation mode.

Programmed I/O operations usually require a substantial amount of

processor bandwidth. However, in multitasking operating systems, the

bandwidth freed by bus mastering IDE can be devoted to other tasks while

disk transfers are occurring.

The motherboard also supports laser servo (LS-120) drives. LS-120

technology allows the user to perform read/write operations to LS-120

(120MB) and conventional 1.44MB and 720KB diskettes. An optical

servo system is used to precisely position a dual-gap head to access the

diskett’s 2,490 tracks per inch (tpi) containing up to 120 MB of data

storage. A conventional diskette uses 135 tpi for 1.44 MB of data storage.

LS-120 drivers are ATAPI-compatible and connect to the motherboard’s

IDE interface. (LS-120 drives are also available with SCJSI and parallel

port interfaces.) Some versions of Windows 95 and Windows NT

operating systems recognize the LS-120 drive as a bootable device in both

120 MB and 1.44 MB mode.

Connection of an LS-120 drive and a standard 3.5-inch diskette drive is

allowed. The LS-120 drive can be configured as a boot device if selected

as Drive A in the BIOS setup program.

Note

If you connect at LS-120 drive to an IDE connector and configure it as

the :boot: drive and configure a standard 3.5-inch diskette drive as a “B”

drive, the standard diskette drive is not seen by the operating system.

When the LS-120 drive is configured as the “boot: device, the system will

Motherboard Description SY-6BA+ IV

recognize it as both the A and B drive

1-9.6 Real-Time Clock, CMOS SRAM, and Battery

The real-time clock is compatible with DS1287 and MC146818

components. The clock provides a time-of-day clock and a multicentury

calendar with alarm features and century rollover. The real-time clock

supports 256 bytes of battery-backed CMOS SRAM in two banks that are

reserved for BIOS use.

The time, date, and CMOS values can be specified in the Setup program.

The CMOS values can be returned to their defaults by using the Setup

program.

1-10 I/O INTERFACE CONTROLLER

The motherboard uses the ITE 8671 super I/O controller which features:

l Single diskette drive interface

l ISA Plug-and-Play compatible register set

l Two serial ports

l FIFO supports on both serial and diskette interfaces

l One parallel port with Extended Capabilities Port (ECP) and

Enhanced Parallel Port (EPP) support

l PS/2 style mouse and keyboard interfaces

l PCI PME interface

l Vialigent auto power management, including:

Ø Shadowed write-only registers for ACPI compliance

Ø Programmable wake-up event interface

The Setup program provides configuration option for the I/O controller.

1-10.1 Serial Ports

The NS16C5450-compatible UARTs support data transfers at speeds up to

115.2 Kbits/sec with BIOS support.

1-10.2 Parallel Port

In the Setup program, there are four options for parallel port operation:

l Compatible (standard mode)

Motherboard Description SY-6BA+ IV

l Bi-directional (PS/2 compatible)

l Bi-directional EPP. A driver from the peripheral manufacturer is

required for operation.

l Bi-directional high-speed ECP

1-10.3 Diskette Drive Controller

The I/O controller is software compatible with the 82077 diskette drive

controller and supports both PC-AT and PS/2 modes. In the Setup program,

the diskette drive interface can be configured for the following diskette

drive capacities and sizes.

l 360 KB, 5.25-inch

l 1.2 MB, 5.25-inch

l 720 KB, 3.5-inch

l 1.2 MB. 3.5-inch (driver required)

l 1.25-1.44 MB, 3.5-inch

l 2.88 MB, 3.5-inch

1-10.4 Keyboard and Mouse Interface

The +5 V lines to keyboard and mouse connectors are protected with a

fuse that prevents motherboard components from being damaged when an

over-current condition occurs.

The keyboard controller contains code, which provides the traditional

keyboard and mouse control functions, and also supports Power On/Reset

password protection. Power On/Reset password can be specified in the

BIOS Setup program.

The keyboard controller also supports the hot-key sequence

<Ctrl><Alt><Del>, software reset. This key sequence resets the

computer’ s software by jumping to the beginning of the BIOS code and

running the Power On Self Test (POST).

1-10.5 Infrared Support

The IR connection can be used to transfer files to or from portable devices

like laptops, PDAs, and printers.

Motherboard Description SY-6BA+ IV

1-11 HARDWARE MONITOR

The optional hardware monitor subsystem provides low-cost

instrumentation capabilities. The features of the hardware monitor

subsystem include:

Ø An integrated ambient temperature sensor

Ø Fan speed sensors, which monitor the fan 1 and fan 2 connectors

Ø Power supply voltage monitoring to detect levels above or below

acceptable values

When suggested ratings for temperature, fan speed, or voltage are

exceeded, an interrupt is activated. The hardware monitor component

connects to the SMBus.

1-12 WAKE ON LAN TECHNOLOGY

Wake on LAN technology enables remote wakeup of the computer

through a network. Wake on LAN technology requires a PCI add-in

network interface card (NIC) with remote wakeup capabilities. The remote

wakeup connector on the NIC must be connected to the onboard Wake on

LAN technology connector. The NIC monitors network traffic at the MII

interface; upon detecting a Magic Packet, the NIC asserts a wakeup signal

that powers up the computer. To access this feature uses the Wake on LAN

technology connector.

CAUTION

For Wake on LAN, the 5-V standby line for the power supply must be

capable of delivering +5V ±5 % at 720 mA. Failure to provide adequate

standby current when implementing Wake on LAN can damage the power

supply.

Hardware Installation SY-6BA+ IV

Chapter 2

HARDWARE INSTALLATION

Congratulations on your purchase of SY-6BA+ IV Motherboard. You are

about to install and connect your new Motherboard.

Note: Do not unpack the Motherboard from its protective anti-

static packaging until you have made the following preparations.

2-1 PREPARATIONS

Gather and prepare all the following hardware equipment to complete the

installation successfully:

1. Slot 1 processor with built-in CPU cooling fan (boxed type).

Note: This Motherboard supports non-boxed type CPUs. The heavier

CPU cooling fan requires the installation of a CPU support stand.

2. DIMM memory module

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. PS/2 Keyboard

6. Pointing Device (PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Hardware Installation SY-6BA+ IV

2-2 UNPACKING THE MOTHERBOARD

When unpacking the Motherboard, check for the following items:

u The SY-6BA+ IV 82440 BX AGP/PCI

Motherboard

u The Quick Start Guide

u The Installation CD-ROM

u SOYO 3-in-1 Bonus Pack CD-ROM (Norton

AntIVirus, Ghost and Virtual Drive)

u The CPU Retention Set

u One IDE Device ATA 66 Flat Cable

u One IDE Device Flat Cable

u One Floppy Disk Drive Flat Cable

Warning: Do not unpack the Motherboard from its anti-static

packaging until you are ready to install it.

Like most electronic equipment, your Motherboard may be damaged by

electrostatic discharge. To avoid permanent damage to components ground

yourself while working by using a grounding strap. Otherwise, ground

yourself frequently by touching the unpainted portion of the computer

chassis to drain the static charges.

Handle the Motherboard carefully, holding it by the edges.

You are now ready to start the installation.

Hardware Installation SY-6BA+ IV

2-3 INSTALLATION GUIDE

We will now begin the installation of the Motherboard. Please follow the

step-by-step procedure designed to lead you to a complete and correct

installation.

Warning: Turn off the power to the Motherboard, system

chassis, and peripheral devices before performing any work on

the Motherboard or system.

BEGIN THE INSTALLATION

Hardware Installation SY-6BA+ IV

2-3.1 CPU Installation

Your SY-6BA+ IV motherboard comes with a CPU retention set kit. The

retention set is used to hold the processor attached to the Slot 1 CPU

connector on the motherboard.

Mark your CPU Frequency:

Record the working frequency of

your CPU that should be clearly marked on the CPU cover.

FSB 66MHz

266MHz (66 x 4.0) 333MHz (66 x 5.0) 400MHz (66 x 6.0)

300MHz (66 x 4.5) 366MHz (66 x 5.5) 433MHz (66 x 6.5)

FSB 100MHz

350MHz (100 x 3. 5) 450MHz (100 x 4.5) 550MHz (100 x 5.5)

400MHz (100 x 4.0) 500MHz (100 x 5.0) 600MHz (100 x 6.0)

Follow these instructions to install your Slot 1 processor correctly.

Ø Retention Module

Hardware Installation SY-6BA+ IV

1. Open the two sides by folding them up.

2. Push the locks on top of the CPU inward.

Hardware Installation SY-6BA+ IV

3. Insert the CPU into the retention module. The CPU fits in the CPU slot in

only ONE way, do not try to force it in.

4. After completely inserting the CPU, push the two locks on top of the CPU

outward. Now your CPU is ready for use.

To remove the CPU, press the two notches on top of the CPU inward.

Now press the two slides on the retention module down and remove

the CPU.

Hardware Installation SY-6BA+ IV

Note: Installing a heat sink and cooling fan on top of your CPU is

necessary for proper heat dissipation. Failing to install these items

may result in overheating and possible burn-out of your CPU.

2-3.1.1 CPU Fan Installation

Your Slot 1 processor kit comes with a cooling fan. Mount the fan on the

processor according to the instructions provided by the manufacturer. The

fan is a key component that will ensure system stability. The fan prevents

overheating, therefore prolonging the life of your CPU.

Note: Remember to connect the fan to the appropriate power source.

Hardware Installation SY-6BA+ IV

2-3.2 SDRAM Memory Module Installation

Your board comes with four DIMM sockets, providing support for up to

512 Mbytes or 1GB (with registered DIMMs). For 66MHz front side bus

CPUs use 12ns or faster memory; for 100MHz front side bus CPUs use

8ns (100MHz, PC100 compliant) memory.

828A C

DIMM 1

DIMM 2

DIMM 3

DIMM 4

184

Hardware Installation SY-6BA+ IV

Number of Memory

Modules DIMM 1 DIMM 2 DIMM 3 DIMM 4

11st

21st 2nd

31st 2nd 3rd

41st 2nd 3rd 4th

RAM Type SDRAM

Memory Module

Size (MB) 8/16/32/64/128/256 Mbytes

Note: (1) 256 MB memory modules available on PC registered DIMM only.

(2) Always install memory modules in the order prescribed in this table.

(3) Do not install unbuffered and registered memory modules together.

Important: It is of prime importance that you install DIMM modules as

outlined in the table above in order to preserve signal integrity on 100MHz

front side bus systems.

Hardware Installation SY-6BA+ IV

IDE 1

IDE4

IDE 2

IDE 3

ATA 33ATA 66

2-3.3 Motherboard Connector

2-3.3.1 IDE Device Installation (HDD, CD-ROM)

The 6BA+ IV comes with four IDE connectors, with support

for up to 8 IDE Devices. For the supported interface modes,

refer to the table below:

IDE

Connector PIO mode DMA

Mode

ULTRA

DMA33

(ATA 33)

ULTRA

DMA66

(ATA 66)

IDE 1 & 2 Yes Yes Yes No

IDE 3 & 4 Yes Yes Yes Yes

Note: It is required to connect the ATA66 HDDs with the ATA66 flat cable

to the motherboard to maintain proper functionality and stability of

the ATA66 high speed interface.

Connect one side of the ATA 33 or ATA 66 flat cable to the IDE device

(HDD or CD-ROM) and plug the other end to the IDE1~IDE4

directionally keyed IDE connector on the Motherboard. ATA66 cable can

be used backward compatible with ATA33 HDD.

828A C

Hardware Installation SY-6BA+ IV

40-pin

ATA 66

Flat Cable

80-Conductor

Hardware Installation SY-6BA+ IV

2-3.3.2 Floppy Drive Installation

The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,

1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard supports a

3-mode (720KB/1.2MB/1.44MB) floppy commonly used in Japan.

Connect one side of the 34-pin flat cable to the floppy drive and plug the

other end to the floppy drive connector on the Motherboard.

This Motherboard can support up to 2 floppy drives.

828A C

FDC

Pin -1

Floppy Drive

Connector

Hardware Installation SY-6BA+ IV

2-3.3.3 Front Panel Connections

Plug the computer case's front panel devices to the corresponding headers

on the Motherboard.

1. Power LED & KeyLock

Plug the Power LED cable into the 5-pin Keylock header.

Some systems may feature a KeyLock function with a front panel switch

for enabling or disabling the keyboard. Connect the KeyLock switch to the

5-pin Keylock header on the Motherboard.

Please install according to the following pin assignment: pin 1,3 are for

Power LED and pin 4,5 are for Keylock.

828A C

Power LED

Pin Assignment

+5V+5V

GND

NCNC

Key Lock

Pin Assignment

Control Pin

GND

Power LED

Key Lock

Speaker

Reset

PWRBT

Turbo LED

HDD LED

Hardware Installation SY-6BA+ IV

2. Reset

Plug the Reset push-button cable into the 2-pin Reset header on the

Motherboard. Pushing the Reset button on the front panel will cause the

system to restart the boot-up sequence.

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker header on

the Motherboard.

4. Turbo LED

Connecting the 2-pin Turbo LED cable to the corresponding Turbo LED

header will cause the LED to light whenever the system is in Turbo mode.

The manufacturer has permanently set this Motherboard in Turbo mode

due to most hardware and software compliance to turbo mode.

Reset Pin Assignment

Power Good

GND

Speaker Pin Assignment

+5V

Speaker out

NC NC

Turbo LED Pin Assignment

LED Cathode

GND

Hardware Installation SY-6BA+ IV

5. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE LED

header on the Motherboard. This will cause the LED to lighten when an

IDE (HDD, CD-ROM) device is active.

6. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT header for turning

On or Off your ATX power supply.

HDD LED Pin Assignment

LED Anode

LED Cathode

PWRBT Pin Assignment

Power On/Off

GND

Hardware Installation SY-6BA+ IV

2-3.3.4 Back Panel Connections

All external devices such as the PS/2 keyboard, PS/2 mouse, printer,

modem, USB can be plugged directly onto the Motherboard back panel.

Only after you have fixed and locked the Motherboard to the computer

case can you start connecting the external peripheral devices.

When connecting an external device, use the following figure to locate and

identify which back panel connector to plug the device to.

8 2 8 A C

COM 1

COM 2

PRT

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

Hardware Installation SY-6BA+ IV

1. Onboard Serial Ports COM1/COM2

External peripherals that use serial transmission scheme include:

- serial mouse,

- and modem.

Plug the serial device cables directly into the COM1/COM2 9-pin male

connectors located at the rear panel of the Motherboard.

2. Parallel Port PRT

This parallel port is used to connect the printer or other parallel devices.

Plug the parallel device cable into the 25-pin female connector located at

the rear panel of the Motherboard.

3. PS/2 Keyboard

Plug the keyboard jack directly into the 6-pin female PS/2 keyboard

connector located at the rear panel of the Motherboard.

4. PS/2 Mouse

Similarly, plug the mouse jack directly into the 6-pin female PS/2 mouse

connector.

Pin5

KBD Clock

Pin6

Pin3

GND

Pin1

KBD DATA

Pin2

Pin4

VCC

Pin6

Pin5

Mouse Clock

Pin4

VCCPin3

GND

Pin2

NCPin1

Mouse DATA

Hardware Installation SY-6BA+ IV

5. Universal Serial Bus USB1/USB2

This Motherboard provides two USB ports for your additional devices.

Plug the USB device jack into the available USB connector USB1 or

USB2.

- Standard device drivers come with the Win98 for commonly used

USB devices.

- With Win95, use the flow UHCI specifications. To use USB devices

under Win95, usually you have to install the device driver comes

with the USB device you have purchased.

Hardware Installation SY-6BA+ IV

2-3.3.5 Other Connections

1. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the Wake-

On-LAN (WOL) function to the JP44 header on the Motherboard. This

WOL function lets users wake up the connected computer through the

LAN card.

Please install according to the following pin assignment:

Wake-On-LAN

JP44 Pin Assignment

MP-Wake-up

GND

5VSB1

Hardware Installation SY-6BA+ IV

2. Infrared (IR1)

Plug the 5-pin infrared device cable to the IR1 header. This will enable the

infrared transfer function. This Motherboard meets both the ASKIR and

HPSIR specifications.

Please install according to the following pin assignment:

3. Other Display Cards

Insert other types of VGA cards into the PCI or ISA expansion slots

according to card specifications.

Serial Infrared (IR1) Connector

IR1 Pin Assignment

VCC

IRRX

GND

IRTX

Hardware Installation SY-6BA+ IV

4. Cooling Fan Installation

(1) CPU Cooling Fan

After you have seated the CPU properly on the processor, attach the 3-pin

fan cable to the CPUFAN connector on the Motherboard. The fan will stop

when the system enters into Suspend Mode. (Suspend mode can be

enabled from the BIOS Setup Utility, [POWER MANAGEMENT] menu.)

To avoid damage to the system, install according to the following pin

assignment:

CPU Cooling Fan

CPUFAN Pin Assignment

SENSOR

12V

GND 1

Hardware Installation SY-6BA+ IV

(2) Chassis Cooling Fan

Some chassis also feature a cooling fan. This Motherboard features a

CHAFAN connector to provide 12V power to the chassis fan. Connect the

cable from the chassis fan to the CHAFAN 3-pin connector. Install

according to the following pin assignment:

Note: CPUFAN must be installed for this Motherboard, CHAFAN is

optional.

Chassis Cooling Fan

CHAFAN Pin Assignment

SENSOR

12VGND

Hardware Installation SY-6BA+ IV

2-3.3.6 AGP VGA Card

Insert the AGP VGA card into the AGP slot. Then connect the monitor

information cable to the AGP card back plane external connector.

Follow the manufacturer's instructions to perform the AGP VGA drivers

installation.

Other Display Cards: Insert other types of VGA cards into the PCI or

ISA expansion slots according to card specifications.

2-3.3.7 PCI Audio Card

Some PCI soundcards require a PC-PCI DMA channel. Attach the 5-pin

cable from your PCI audio card to the SB-LINK™ header on the

Motherboard. The SB-LINK™ will forward requests for legacy DMA

channel to the PCI Bus.

DGND

PC/PCI Request

Sideband Signal

PC/PCI Grant

Sideband SignalSerial IRQ

SB-LINK (PC/PCI)

Pin Assignment

Hardware Installation SY-6BA+ IV

2-3.3.8 ATX Power Supply

Plug the connector from the power directly into the 20-pin male ATX PW

connector on the Motherboard, as shown in the following figure.

Warning: Follow these precautions to preserve your

Motherboard from any remnant currents when connecting to

power supply:

Turn off the power supply and unplug the power cord of the

power supply before connecting to PW connector.

828A C

ATX Power

Hardware Installation SY-6BA+ IV

3.3V

-12V

GND

PS-ON

GND

-5V

3.3V

GND

PW-OK

5VSB

12V

ATX Power

This motherboard requires a power supply, that meets the ATX 2.03

specifications. Make sure the power supply can support at least 720mA on

the 5V Standby lead.

Please install the ATX power according to the following pin assignment:

Ø Pay special care to the directionality.

2-3.4 Jumper Setting

Step 1. 5V Stand-by indicator LED (LED 1)

This LED is lit whenever the 5V Standby voltage coming from the ATX

power supply is available. If you have connected your ATX power supply

to the motherboard, LED 1 should be lit.

Step 2. External Suspend Button (JP1)

Some cases come with a suspend button, insert the plug into JP1. In

addition to this button, the system can also enter the suspend mode

through your OS.

Note: Suspend mode only functions if your Power Management mode is APM.

Make sure that the BIOS setting for Power Management is APM. Windows 98

can be installed with ACPI Power Management (default is APM), in this case

suspend mode will not function either.

Hardware Installation SY-6BA+ IV

Step 3. CPU multiplier release Jumper: (JP8)

Closing JP8 can make higher multiplier settings available on some

INTEL CPUs. For technical details read the following:

Your Pentium CPU has an input pin B21 (100/66# signal) to tell it at

what Front Side Bus (FSB) Frequency it is running; JP8 is connected to

this input pin. The actual FSB Frequency is however set through the

BIOS and it may therefore differ from the Frequency specified to the

CPU through JP8.

Because some INTEL CPUs have their multipliers limited at a FSB

Frequency of 100MHz and higher, telling the CPU that it is running at

66MHz though JP8 while setting a different (higher) FSB Frequency in

the BIOS may allow the user to set a higher multiplier value. Doing so

will however force your CPU to operate out of its specifications, and

therefore SOYO can not guarantee the proper functioning of your

system.

Refer to the following table:

Mode JP8

66MHz FSB clock CPUs Setting

66MHz FSB clock CPUs must use

this setting short

100MHz FSB clock CPUs Setting

Normal open

Possible higher multiplier limit short

Note: Shorting the jumper will tell the CPU that it is running on

66MHz, this will release more multiplier settings on some INTEL

CPUs, but will make the system operate out of its specifications if

the actual frequency is 100 MHz or higher.

Hardware Installation SY-6BA+ IV

Step 4. Power-On by Keyboard Jumper (JP10)

You can choose to enable the Power-On by Keyboard function by shorting

pin 1-2 on jumper JP10, otherwise, short pin 2-3 to disable this function.

Power-On by

Keyboard Enable Disable

JP10 Setting

Short pin 1-2 to

enable the Power-

On by Keyboard

function.

Short pin 2-3 and

the Power-On by

Keyboard function

is disabled.

Note: When using the Power-On by Keyboard function, please

make sure the ATX power supply can take at least 720mA load

on the 5V Standby lead (5VSB) to meet the standard ATX

specification.

2-3.5 CMOS Clearing (JP5)

After you have turned off your computer, clear the CMOS memory by

momentarily shorting pins 2-3 on jumper JP5, for a few seconds. Then

restore JP5 to the initial 1-2 jumper setting in order to recover and retain

the default settings.

Jumper JP5 can be easily identified by its white colored cap.

CMOS

Clearing Clear CMOS Data Retain CMOS Data

JP5 Setting Short pin 2-3 for

at least 5 seconds to

clear the CMOS

Short pin 1-2

to retain new

settings

Note: You must unplug the ATX power cable from the ATX power

connector when performing the CMOS Clear operation.

Hardware Installation SY-6BA+ IV

2-3.6 Power On

You have now completed the hardware installation of your Motherboard

successfully.

1. Turn the power on

2. To enter the BIOS Setup Utility, press the <DEL> key while the system

is performing the diagnostic checks,

Note: If you have failed to enter the BIOS, wait until the boot up

sequence is completed. Then push the RESET button and press

<DEL> key again at the beginning of boot-up, during diagnostic

checks.

Repeat this operation until you get the following screen.

3. The BIOS Setup screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

SOYO COMBO SETUP

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

Hardware Installation SY-6BA+ IV

2-3.7 Quick BIOS Setup

This Motherboard does not use any hardware jumpers to set the CPU

frequency. Instead, CPU settings are software configurable with the BIOS

[SOYO COMBO SETUP]. The [SOYO COMBO SETUP] menu

combines the main parameters that you need to configure, all in one menu,

for a quick setup in BIOS.

After the hardware installation is complete, turn the power switch on, then

press the <DEL> key during the system diagnostic checks to enter the

Award BIOS Setup program. The CMOS SETUP UTILITY will display

on screen. Follow these steps to configure the CPU settings.

SETUP UTILITY will display on screen. Then, follow these steps

to configure the CPU settings.

Step 1. Select [STANDARD CMOS SETUP]

Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to

“Auto”.

Step 2. Select [LOAD SETUP DEFAULT]

Select the “LOAD SETUP DEFAULT” menu and type “Y” at the prompt

to load the BIOS optimal setup.

Step 3. Select [SOYO COMBO SETUP]

Move the cursor to the [CPU Frequency] field to set the CPU frequency.

(1) CPU Name & CPU ID

The BIOS will read the CPU name string and CPU ID code From the CPU and it

will display it here. This item provides information only and can not be change.

Hardware Installation SY-6BA+ IV

(2) CPU Frequency

Available [CPU Frequency] settings on your SY-6BA+ IV Motherboard

are detailed in the following table.

CPU Frequency (MHz)

Manual 350MHz (100 x 3.5)

266MHz (66 x 4 ) 400MHz (100 x 4 )

300MHz (66 x 4.5) 450MHz (100 x 4.5)

333MHz (66 x 5 ) 500MHz (100 x 5 )

366MHz (66 x 5.5) 550MHz (100 x 5.5)

400MHz (66 x 6 ) 600MHz (100 x 6 )

433MHz (66 x 6. 5) 650MHz (100 x 6.5)

466MHz ( 66 x 7 ) 700MHz (100 x 7 )

500MHz ( 66 x 7.5)

Select the working frequency of

your Pentium®

III, Pentium®

II,

Celeron processor among these

preset values.

Note: Mark the checkbox that

corresponds to the working

frequency of your Pentium®

III,

Pentium®

II, Celeron processor

in case the CMOS configuration

should be lost.

If you set this field to [Manual], you are then required to fill in the next

two consecutive fields: (a) the CPU Host/PCI Clock, and (b) the CPU

Ratio.

(a) CPU Host/PCI Clock

CPU Host / PCI Clock

o66/33 o95/31 o115/38 o124/41 o140/35

o75/37 o100/33 o117/39 o126/31 o142/35

o78/39 o105/35 o118/39 o133/33 o144/36

o81/40 o110/36 o120/40 o135/33 o150/37

o83/40 o112/37 o122/37 o137/34 o155/38

o90/30 o113/37 o124/31 o138/34

Under this item you find the

frequencies your PCI and AGP

slots run at. These frequencies

are derived from the CPU host

clock in the following way:

CPU host clock > 100MHz

PCI = CPU host clock /3,

CPU host clock < 100MHz

PCI = CPU host clock /2,

(b) CPU Ratio

After you have selected the CPU Host/ PCI Clock, choose the right

multiplier for the CPU. CPU Ratio options are:

o x 2 o x 2.5 o x 3 o x 3.5 o x 4

o x 4.5 o x 5 o x 5.5 o x 6 o x 6.5

o x 7 o x 7.5 o x 8

The CPU frequency is then defined as [host clock freq.] x [multiplier], and

should the working frequency of your CPUs processor.

Hardware Installation SY-6BA+ IV

This option allows you to manually adjust the AGP host bus clock

frequency to a value determined as a fraction of the CPU host clock.

For example:

With a CPU front side bus of 100MHz,

[Auto] sets

When [auto] is selected and the (FSB Frequency) is

less then 100MHz, it will be divided by [/ 1]. Otherwise it will

be divided by [/ 1.5].

[/ 1] sets

AGP Clock = 100MHz

[/ 1.5] sets àAGP Clock = 66.6MHz

AGP Clock options are:

o Auto o ÷1.0 o÷1.5

(d) Vcore Voltage Adjust

The CPU notifies the board of what core voltage it requires by its VID

outputs. The on-board voltage regulator uses the VID code to set the core

voltage. If the Vcore Voltage Adjust is set to normal, the Vcore will be

exactly what the VID code specifies. If an adjustment percentage is

selected the Vcore will be that percentage higher than the VID code

specifies. For instance the CPU VID code specifies 2.0V and the Vcore

Voltage adjust is set to +10.0% the actual CPU Voltage will be 2.2V. This

function should only be used if the CPU is running on FSB Frequencies

beyond the CPU specifications, note that SOYO does not guarantee

system stability if this item is not set to normal.

Don’t forget to raise the upper limit of the CPU Vcore monitoring voltage

in the Hardware Doctor utility if Vcore is set to higher voltage than VID

specifies.

o Normal o + 2.5 % o + 5.0 % o + 7.5% o +10.0 %

Step 4. Select [SAVE & EXIT SETUP]

Press <Enter> to save the new configuration to the CMOS memory, and

continue the boot sequence.

Hardware Installation SY-6BA+ IV

2-3.8 Troubleshooting at First Start

l What should I do if the Motherboard refuses to start?

1. Check that all DIMM memory modules are inserted completely.

Sometimes a DIMM that is not inserted properly can cause boot

problems.

2. Check whether all Add-on cards have been inserted properly. Re-

insert the Add-on cards to make sure that they make proper contact

with the slots. Try removing all Add-on cards one by one to see

whether or not one of them is causing problems. (Switch the system

off before removing any of the cards.

3. Verify that speed settings are not exceeding specifications. This

applies to the PCI bus, that is specified to run at 33 MHz. Also check

the speed setting for the memory, make sure conservative setting is

used. If the CPU is overclocked the system may not start up, read the

section below.

4. Make sure that the Harddisk IDE cables are attached properly, if not

the system will not boot. In case of doubt try reversing the IDE

connector on one end of the cable.

5. Verify that the 110/220V switch on the back of the power supply is

set correctly.

6. Go through the jumper setting section again to make sure that all

jumpers are set correctly.

Note on Over-clocking Capability

The SY-6BA+ IV provides over-clocking capability. Due to the over-

clocking setting your system may fail to boot up or hang during run time.

Please perform the following steps to recover your system from the

abnormal situation :

1. Turn off system power (If you use an ATX power supply, and

depending on your system, you may have to press the power button

for more than 4 seconds to shut down the system.)

Hardware Installation SY-6BA+ IV

2. Set the JP8 and JP9 to short if you use a FSB 66MHz CPU

3. Press and hold down the <Insert> key while turning on the system

power. Keep holding down the <Insert> key until you see the message

of the CPU type and frequency shown on the screen.

4. Press the <Del> key during the system diagnostic checks to enter the

Award BIOS Setup program.

5. Select [SOYO COMBO SETUP] and move the cursor to the [CPU

Frequency] field to set the proper working frequency.

6. Select [Save & Exit SETUP] and press <Enter> to save the new

configuration to the CMOS memory, and continue the boot sequence.

Note: SOYO does not guarantee system stability if the user over

clocks the system. Any malfunctions due to over-clocking are not

covered by the warranty.

2-3.9 Power Off

There are two possible ways to turn off the system:

1. Use the Shutdown command in the Start Menu of Windows 95/98

to turn off your computer.

2. Press the mechanical power-button and hold down for over 4

seconds, to shutdown the computer. If you press the power-button for

less than 4 seconds, then your system will enter into Suspend Mode.

You are now ready to configure your system with the BIOS setup program.

Go to Chapter 3: BIOS SETUP

BIOS Setup Utility SY-6BA+ IV

Chapter 3

BIOS SETUP UTILITY

This Motherboard's BIOS setup program uses the ROM PCI/ISA BIOS

program from Award Software Inc.

To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the Award

BIOS Setup Utility.

Selecting items

l Use the arrow keys to move between items and select fields.

l From the Main Menu press arrow keys to enter the selected submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected fields.

Some fields let you enter values directly.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

SOYO COMBO SETUP

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

BIOS Setup Utility SY-6BA+ IV

Hot Keys: Function keys give you access to a group of commands

throughout the BIOS utility.

Function Command Description

F1 Help Gives the list of options available for each item.

Shift F2 Color Change the color of the display window.

F5 Old values Restore the old values. These are the values that the user

started the current session with.

F6 Load BIOS

Defaults Loads all options with the BIOS Setup default values.

F7 Load Setup

Defaults Loads all options with the Power-On default values.

F10 Save & Exit

Setup Saves your changes and reboots the system.

[Esc] Quit Lets you return at anytime and from any location to the

Main Menu.

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to save

data to CMOS and exit the setup utility. This option saves all your changes

and causes the system to reboot.

Type [Y] to save the changes

and exit or [N] to return to

the Main Menu and keep

current values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to abandon

all data and exit setup, therefore ignoring all your changes.

Type [Y] to abandon changes

and exit or [N] to return to

the Main Menu and keep

current values.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑

↓

→

←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

SAVE to CMOS and EXIT (Y/N)? _

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑

↓

→

←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

Quit Without Saving (Y/N)? _

BIOS Setup Utility SY-6BA+ IV

3-1 SOYO COMBO SETUP

This Motherboard does not use any hardware jumpers to set the CPU

frequency. Instead, CPU settings are software configurable with the BIOS

[SOYO COMBO SETUP].

After the hardware installation is complete, turn the power switch on, then

press the <DEL> key during the system diagnostic checks to enter the

Award BIOS Setup program. The CMOS SETUP UTILITY will display

on screen. Then, select the [SOYO COMBO SETUP] option from the

main menu and press the <Enter> key.

ROM PCI/ISA BIOS

SOYO COMBO SETUP

AWARD SOFTWARE, INC.

CPU Name : Pentium II, CPU ID : 0665 CPU Warning Temperature : Disabled

CPU Frequency (MHz) : Manual Current System Temp. : 26 ½ C / 78 ½ F

CPU Host/PCI Clock : 100/33 MHz Current CPU Dio Temp. : 28 ½ C / 82 ½ F

CPU Ratio : X 3.5 = 350MHz Current CPUFAN Speed : 5433 RPM

AGP Clock : = 66MHz Current PWRFAN Speed : 0 RPM

Vcore Voltage Adjust : Normal Current CHAFAN Speed : 0 RPM

Boot Sequence : A,C,SCSI Vcore : 1.98 V VTT (V) : 1.50 V

Processor Number Feature : Enabled 3.3 (V) : 3.55 V + 5 (V) : 4.94 V

CPU L2 Cache ECC Checking : Enabled +12 (V) : 11.97 V -12 (V) : -12.04 V

CPU L2 Latency Adjust : Def 02 - 5 (V) : - 0.02 V VBAT(V) : 3.07 V

C.I.H. 4-WAY Protection : Enabled 5VSB(V) : 5.02 V

Quick Power On Self Test : Enabled

POWER ON Function : BUTTYON ONLY CPUFAN Off In Suspend : Enabled

RTC Y2K H/W Roll over : Disabled

ESC : Quit ↑ ↓ → ←: Select Item:

Soft – Off by PWR-BTTN : Instant-Off F1 : Help PU / PD / + / - : Modify

Power-On by Ring/LAN : Enabled F5 : Old Values (Shift) F2 : Color

Resume by Alarm : Disabled F7 : Load Setup Defaults

The [SOYO COMBO SETUP] menu combines the main parameters that

you need to configure, all in one menu, for a quick setup in BIOS.

BIOS Setup Utility SY-6BA+ IV

3-1.1 Quick CPU Frequency Setup

Quick CPU

Frequency Setup Setting Description Note

CPU Name & CPU

The BIOS will read the CPU name string and CPU ID code

From the CPU and it will display it here. This item provides

information only and can not be change.

Manual

266MHz (66 x 4)

300MHz (66 x 4.5)

333MHz (66 x 5)

366MHz (66 x 5.5)

400MHz (66 x 6)

433MHz (66 x 6.5)

466MHz (66 x 7)

500MHz (66 x 7.5)

350MHz (100 x 3.5)

400MHz (100 x 4)

450MHz (100 x 4.5)

500MHz (100 x 5)

550MHz (100 x 5.5)

600MHz (100 x 6)

650MHz (100 x 6.5)

CPU Frequency

700MHz (100 x 7)

Select the working

frequency of your Slot 1

processor among these

preset values.

Note: Setting this field to

[Manual] requires you to fill

in the next two consecutive

fields: (1) the CPU Host/PCI

Clock, and (2) the CPU

Ratio.

If [CPU Frequency] field is set to [Manual]

66/33 MHz 120/40 MHz

75/37 MHz 122/37 MHz

78/39 MHz 124/31 MHz

81/40 MHz 124/41 MHz

83/40 MHz 126/31 MHz

90/30 MHz 133/33 MHz

95/31 MHz 135/33 MHz

100/33 MHz 137/34 MHz

105/35 MHz 138/34 MHz

110/36 MHz 140/35 MHz

112/37 MHz 142/35 MHz

113/37 MHz 144/36 MHz

115/38 MHz 150/37 MHz

117/39 MHz 155/38 MHz

CPU Host/PCI

Clock

118/39 MHz

Select the host clock of

your Slot 1 processor

among these values.

Note: For the ZX

chipset, 66 and 100

MHz host clock

frequencies are

acceptable. However,

the system stability

is not guaranteed for

other frequencies due

to the limitations of

this chipset.

BIOS Setup Utility SY-6BA+ IV

Quick CPU Frequency Setup (Continued)

Quick CPU

Frequency Setup Setting Description Note

If [CPU Frequency] field is set to [Manual]

CPU Ratio After you have selected the host clock, choose the right

multiplier for the CPU. Options are: [2, 2.5, 3., 3.5, 4, 4.5,

5, 5.5,6,6.5,7.0,7.5,8.0]. The CPU frequency is then

defined as [host clock freq.]x[multiplier], and should the

working frequency of your Pentium®

III, Pentium®

II &

Celeron processor.

Auto Default

/ 1

/ 1.5

AGP Clock This option allows you to manually adjust the

AGP host bus clock frequency to a value

determined as a fraction of the CPU host clock.

For example:

With a CPU front side bus of 66MHz,

[/ 1] sets à AGP Clock = 66MHz

[ / 1.5] sets à AGP Clock = 44MHz

Normal Default

+2.5 %

+5.0%

+7.5 %

Vcore voltage

Adjust

+10.0%

The CPU notifies the board of what core

voltage it requires by its VID outputs. The

on-board voltage regulator uses the VID

code to set the core voltage. If the Vcore

Voltage adjust is set to normal, the Vcore

will be exactly what the VID code

specifies. If an adjustment percentage is

selected the Vcore will be that percentage

higher than the VID code specifies. If for

instance the VID code specifies 2.0V and

the Vcore Voltage Adjust is set to +10.0%

the actual CPU voltage will be 2.2V. This

function should only be used if the CPU is

running on FSB Frequencies beyond the

CPu specifications.

BIOS Setup Utility SY-6BA+ IV

3-1.2 System Boot Control Settings

System Boot

Control Settings Setting Description Note

A, C, SCSI

C, A, SCSI

C, CD-ROM, A

CD-ROM, C, A

D, A, SCSI

E, A, SCSI

F, A, SCSI

SCSI, A, C

SCSI, C, A

C only

Boot Sequence

LS/ZIP, C

Choose the boot sequence

adapted to your needs, for

example:

l [A, C, SCSI] means

the BIOS will look for an

operating system first in

drive A, then in drive C,

and eventually in SCSI

device.

3-1.3 Processor Number Feature Setting

Setting Description Note

Disabled

Processor

Number Feature Enabled

Setting this item to enabled will

allow application programs to

read the ID-code in your Pentium

III CPU, disabling this item will

not allow any program to read

the CPU ID code.

Default

3-1.4 L2 Cache Memory

Setting Description Note

Disabled

CPU L2 Cache

ECC Checking Enabled This option activates the CPU L2

cache ECC checking function. Default

Def 02

CPU L2 Cache

Latency Adjust Set 01~15

This item allows the user to adjust

the CPU L2 cache latency. This

item should only be used by

experienced users. Setting it to an

inappropriate value can crash the

system.

Default

BIOS Setup Utility SY-6BA+ IV

3-1.5 C.I.H. 4-WAY Protection Setting

Setting Description Note

Disabled

C.I.H. 4-WAY

Protection Enabled

When set to enabled, the BIOS can

only be programmed through

AWDFLASH, making sure that any

virus is unable to program the system

BIOS. Set to disable the BIOS can be

programmed the traditional way.

Default

3-1.6 Quick Power On Self Test Setting

Setting Description Note

Disabled

Quick Power On

Self Test Enabled Provides a fast POTS at

boot-up. Default

3-1.7 Power Management

PM Events Setting Description Note

BUTTON-ONLY Disables the Wake-Up by

Keyboard function. Default

KB Power ON

Password Enables you to wake-up the

system by entering a password at

the keyboard.

POWER ON

Function

Hot Key You can wake-up the system by

pressing the key combination of

your choice (Ctrl-F1~F12).

If [POWER ON Function] is set to [KB Power ON Password]

KB Power ON

Password Enter (your

password) Set the password that will wake-up your

system.

If [POWER ON Function] is set to [Hot Key]

KB Power ON

Password Ctrl-

F1~F12 Choose the key combination that will wake-

up the system. [Ctrl-F1 to Ctrl-F12]

Instant-off Default

Soft-Off by

PWR-BTTN Delay 4

Sec. Turns off the system power 4

seconds after pushing the power

button.

BIOS Setup Utility SY-6BA+ IV

Power Management (Continued)

PM Events Setting Description Note

Disabled Default

Power-On by

Ring/LAN Enabled The system will self-power on me

when the modem is ringing.

Disabled The system ignores the alarm. Default

Resume by

Alarm Enabled Set alarm to power on the system by

the date (1-31) or time (hh:mm:ss).

If the date is set to [0], the system

will self-power on by alarm

everyday at the set time.

3-1.8 CPU Device Monitoring

CPU Device

Monitoring Setting Description Note

Disabled Default

CPU Warning

Temperature Enabled Set CPU temperature from

50°C to 70°C. The CPU will

slow down when CPU

temperature goes beyond the

preset value. The CPU will

continue to run slow until the

temperature returns back

within the safe range.

BIOS Setup Utility SY-6BA+ IV

CPU Device Monitoring (Continued)

CPU Device

Monitoring Setting Description Note

Current System

Temp. °C/°FShow the current status of the

system temperature.

Current CPU

Temperature °C/°FShow the current status of

CPU temperature.

Current CPUFAN

Speed °C/°FShow the current status of

CPU Fan

Current PWRFAN

Speed °C/°FShow the current status of the

Power Fan

Current CHAFAN

Speed °C/°FShow the current status of the

chassis Fan

Vcore, VTT, 3.3V,

+12V, -5V, +5V,

-12V, VBAT, 5VSB VShow the current voltage

status.

Disabled Disables the PM timer.

CPUFAN Off In

Suspend Enabled Switches off the CPU Fan

when the system enters

Suspend Mode.

Default

Disabled Default

RTC Y2K H/W

Roll over Enabled Setting this item to enabled

will help the system pass some

Y2K test programs. The system

performance is influenced by

enabling this item, set it to

disabled if not necessary.

BIOS Setup Utility SY-6BA+ IV

3-2 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu and

press [Enter] key.

This screen allows you to modify the basic CMOS settings.

After you have completed the changes, press [Esc] key to return to the

Main Menu.

3-2.1 Date & Time

Display Setting Please Note

Date mm/dd/yyyy Type the current date You can also the

PUp/PDn keys to toggle

Time hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed as

15:15:00

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Date (mm:dd:yy)

Time (hh:mm:ss)

: Fri, July 31 1998

: 11 : 30 : 33

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master

Primary Slave

Secondary Master

Secondary Slave

: AUTO

: None

AUTO

- - - -

Base Memory:

Extended Memory:

Other Memory:

640K

3328K

128K

Drive A : 1.44M, 3.5 in.

Drive B : None

Floppy 3 Mode Support : Disabled

Video : EGA/VGA

Halt On : All Errors Total Memory: 4096K

Esc

: Quit

: Help

↑ ↓ → ←

(Shift) F2

: Select Item

: Change Color

PU/PD/+/-

: Modify

: Toggle Calendar

BIOS Setup Utility SY-6BA+ IV

3-2.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already

installed.

Primary

(Secondary)

Master & Slave

Setting Description Note

Auto BIOS detects hard disk type

automatically.Default

User User defines the type of hard disk.

Type

None

Auto BIOS detects hard disk mode

automatically.Default

Normal Normal IDE hard disk <528MB

LBA Enhanced IDE hard disk >528MB

Mode

Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or mode, ask

your hard disk provider or previous user for details.

3-2.3 Floppy Drives

Floppy Drives Setting Description Note

360KB, 5.25 in.

1.2MB, 5.25 in.

720KB, 3.5 in.

1.44MB, 3.5 in. Default

2.88MB, 3.5 in.

Drives A & B

None Not installed

Disabled Default

Floppy 3-Mode

Support Drive A

Drive B

Both

Supports 3-mode

floppy diskette:

740KB/1.2MB/

1.44MB on selected

disk drive.

Special disk drive

commonly used in

Japan

BIOS Setup Utility SY-6BA+ IV

3-2.4 Video

Select the video mode: EGA/VGA (Default), CGA 40, CGA 80, Mono

(Monochrome).

3-2.5 Halt On

When the BIOS detects system errors, this function will stop the system.

Select which type of error will cause the system halt: All Errors (Default),

No Errors, All But Diskette, All But Keyboard, All But Disk/Key.

BIOS Setup Utility SY-6BA+ IV

3-3 BIOS FEATURES SETUP

Select the [BIOS FEATURES SETUP] option from the Main Menu and

press [Enter] key.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Anti - Virus Protection : Disabled Assign IRQ For VGA : Enabled

CPU Internal Cache : Enabled HDD S.M.A.R.T. capability : Disabled

External Cache : Enabled

Video BIOS Shadow : Enabled

Swap Floppy Drive : Disabled C8000-CBFFF Shadow : Disabled

Report No FDD For WIN 95 : Yes CC000-CFFF Shadow : Disabled

D000-D3FFF Shadow : Disabled

Boot Up NumLock Status : On D4000-D7FFF Shadow : Disabled

Security Option : Setup D8000-DBFFF Shadow : Disabled

PCI/VGA Palette Snoop : Disabled DC000-DFFFF Shadow : Disabled

OS Select For DRAM > 64 MB : Non-OS2

Typematic Rate Setting : Disabled

Typematic Rate (Chars/Sec) : 6

Typematic Delay (Msec) : 250 ESC : Quit

↑

↓

→

←

: Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift) F2 : Color

F7 : Load Setup Defaults

After you have completed the changes, press [Esc] key and follow the

instructions on your screen to save your settings or exit without saving.

BIOS Setup Utility SY-6BA+ IV

3-3.1 Virus Warning

Setting Description Note

Disabled Default

Anti - Virus

Protection Enabled If set to enabled, the Paragon

Anti-Virus. Function will scan

your boot drive for boot

virusses. If a boot virus is

detected, the BIOS will display

a warning message.

3-3.2 Cache Memory Options

Setting Description Note

Disabled

CPU Internal Cache Enabled Enables the CPU's

internal cache. Default

Disabled

External Cache Enabled Enables the external

memory.Default

3-3.3 Floppy Driver Settings

Floppy Driver

Settings Setting Description Note

Disabled Default

Swap Floppy

Drive Enabled Changes the sequence of A and B

drives.

Yes Windows will release IRQ line 6

(normally used by the Floppy

Disk Drive) after you disable

your on-board FDD and set this

field to [Yes].

Report No

FDD For WIN

No Windows will reserve INT 6 for

your FDD, whether it is disabled

or not.

BIOS Setup Utility SY-6BA+ IV

3-3.4 Other Control Options

Other Control

Options Setting Description Note

On Puts numeric keypad in

NumLock mode at boot-up. Default

Boot Up

NumLock

Status Off Puts numeric keypad in arrow key

mode at boot-up.

3-3.5 Security Option

Use this feature to prevent unauthorized system boot-up or use of BIOS

Setup. The following table describes the security settings.

Setting Description

System Each time the system is booted, the

password prompt appears.

Security Option

Setup If a password is set, the password prompt

only appears when you attempt to enter the

BIOS Setup program.

3-3.6 Other Control Options

Other Control

Options Setting Description Note

Disabled Default

Enabled

PCI/VGA

Palette Snoop The color of the monitor may be altered when

using an MPEG card. Enable this option to

restore the monitor's normal color.

OS2 When using an OS2 operating

system.

OS Select for

DRAM>64MB Non-OS2 When using another,

non-OS2 operating system. Default

BIOS Setup Utility SY-6BA+ IV

3-3.7 Typematic Settings

Typematic Settings Setting Description Note

Disabled Default

Typematic

Rate Setting Enabled Enables to adjust the

keystroke repeat rate.

The following [Typematic Rate] and [Typematic Delay] fields are active

only if [Typematic Rate Setting] is set to [Enabled]

Typematic Rate 6 (Char/sec)

8 (Char/sec)

10 (Char/sec)

12 (Char/sec)

15 (Char/sec)

20 (Char/sec)

24 (Char/sec)

30 (Char/sec)

Choose the rate at which a

character is repeated when

holding down a key.

Default

Typematic Delay 250 (msec)

500 (msec)

750 (msec)

1000 (msec)

Choose how long after

you press a key down the

character begins

repeating.

Default

3-3.8 Other Control Options

Other Control

Options Setting Description Note

Disabled

Assign IRQ

For VGA Enabled Use this default setting. Default

Disabled

HDD

S.M.A.R.T.

capability Enabled Enable this field when your HDD

supports the S.M.A.R.T. function.

Consult your HDD provider for

details.

BIOS Setup Utility SY-6BA+ IV

Other Control Options

Other Control

Options Setting Description Note

Disabled

Enabled

Video or

Adapter BIOS

Shadow The BIOS is shadowed in a 16K segment if it

is enabled and if it has BIOS present.

These 16 segments can be shadowed from

ROM to RAM. BIOS shadow copies BIOS

code from slower ROM to faster RAM. BIOS

can then execute from RAM.

Default

BIOS Setup Utility SY-6BA+ IV

3-4 CHIPSET FEATURES SETUP

Caution: Change these settings only if you are already familiar

with the Chipset.

The [CHIPSET FEATURES SETUP] option changes the values of the

chipset registers. These registers control the system options in the

computer.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

CHIPSET FEATURES SETUP

Auto Configuration : Enabled Passive Release : Enabled

SDRAM RAS-to CAS Delay : 3 Delayed Transaction : Disabled

SDRAM RAS Precharge Time : 3

SDRAM CAS latency Time : 3 AGP Aperture Size : 64

SDRAM Precharge Control : Disabled

DRAM Data Integrity Mode : Non-ECC

System BIOS Cacheable : Disabled

Video BIOS Cacheable : Disabled

Video RAM Cacheable : Disabled

8 Bit I/O Recovery Time : 1

16 Bit I/O Recovery Time : 1

Memory Hole At 15M –16M : Disabled ESC : Quit

↑

↓

→

←

: Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift) F2 : Color

F7 : Load Setup Defaults

After you have completed the changes, press [Esc] and follow the

instructions on your screen to save your settings or exit without saving.

The following table describes each field in the CHIPSET FEATURES

SETUP Menu and how to configure each parameter.

BIOS Setup Utility SY-6BA+ IV

CHIPSET FEATURES SETUP

CHIPSET

FEATURES Setting Description Note

Disabled

Auto

Configuration Enabled It is strongly recommended to

enable this option so that the

system automatically sets all

chipset feature options on the

left panel of the screen (except

for cache update & BIOS

cacheable).

Default

SDRAM RAS-to-

CAS Delay 3

2Use the default setting Default

SDRAM RAS

Precharge Time 3

2Use the default setting Default

SDRAM Cache

Latency Time 3Use the default setting Default

SDRAM Precharge

Control Disabled

Enabled Use the default setting Default

Non-ECC Default

DRAM Data

Integrity Mode ECC

Choose according to the

DRAM type you have.

Disabled

System BIOS

Cacheable Enabled The ROM area F0000H-

FFFFFH is cacheable. Default

Disabled

Video BIOS

Cacheable Enabled The video BIOS C0000H-

C7FFFH is cacheable. Default

Disabled Default

Video RAM

Cacheable Enabled The ROM area A0000-BFFFF

is cacheable.

8 BIT I/O

Recovery Time 1Use the default setting Default

BIOS Setup Utility SY-6BA+ IV

CHIPSET FEATURES SETUP (Continued)

CHIPSET

FEATURES Setting Description Note

16 BIT I/O

Recovery Time 1Use the default setting Default

Disabled Default

Memory Hole At

15M-16M Enabled Some interface cards will map

their ROM address to this area.

If this occurs, select [Enabled]

in this field.

Passive Release Enabled Use the default setting Default

Delayed

Transaction Enabled Use the default setting Default

AGP Aperture Size 64

4-256MB AGP could use the DRAM as

its video RAM. Choose the

DRAM size that you wish to

allocate as video RAM.

Default

Disabled Default

Spread Spectrum

Modulated Enabled When using Spread Spectrum

Modulated 1.5% or 6% for

FCC or DOC testing.

BIOS Setup Utility SY-6BA+ IV

3-5 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power saving

functions.

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI function : Enabled ** Reload Global Timer Events **

PM Control by APM : Yes

Video Off Method : V/H SYNC+Blank IRQ [3-7, 9-15], NMI : Disabled

Video Off After : Standby Primary IDE 0 : Disabled

MODEM Use IRQ : 3 Primary IDE1 : Disabled

Secondary IDE 0 : Disabled

Power Management : User Define Secondary IDE1 : Disabled

Doze Mode : Disable Floppy Disk : Disabled

Standby Mode : Disable Serial Port : Enabled

Suspend Mode : Disable Parallel Port : Disabled

HDD Power Down : Disabled

PCI/VGA Act-Monitor : Disabled

IRQ 8 Break Suspend : Disabled ESC : Quit ↑ ↓ → ←: Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift) F2 : Color

F7 : Load Setup Defaults

After you have completed the Power Management Setup, press [Esc] to

return to the Main Menu.

BIOS Setup Utility SY-6BA+ IV

3-5.1 Power Management Controls

Power

Management

Controls

Setting Description Note

Disabled Default

ACPI function Enabled ACPI (Advanced

Configuration Power

Management Interface)

Yes To use Advanced Power

Management (APM) you must

run [power.exe] under DOS

V6.0 or later version.

Default

PM Control

by APM

V/H

Sync+Blank Default

Blank screen

Video Off

Method

DPMS

Supported

Selects the method by which

the monitor is blanked.

Standby

Suspend

Video Off

After Doze

Choose the PM mode you want

video to go off after the mode

is being active.

3Default

MODEM Use

IRQ 3-11, NA

Assigns an IRQ# to the modem

device.

BIOS Setup Utility SY-6BA+ IV

3-5.2 PM Timers

PM Timers Setting Description Note

User Define Lets you define the HDD and

system power down times. Default

Disable Disables the Green PC

Features.

Doze timer Standby

timer Suspend

timer HDD

power down

Min Saving 1 Hour 1 Hour 1 Hour 15 Min

Power

Management

Max Saving 1 Min 1 Min 1 Min 1 Min

The following [Doze Mode] field may be configured only if [Power

Management] is set to [User Define]

Disable Default

Doze Mode 1Min-

1Hour When the set time has

elapsed, BIOS sends a

command to the system to

enter Doze Mode.

System clock

drops to 33MHz.

The following [Standby Mode] field may be configured only if [Power

Management] is set to [User Define]

Disable Default

Standby Mode 1Min-

1Hour When the set time has

elapsed, BIOS sends a

command to the system to

enter Standby Mode.

The following [Suspend Mode] field may be configured only if [Power

Management] is set to [User Define]

Disable Default

Suspend Mode 1Min-

1Hour In Suspend mode, the CPU

stops completely (no

instructions are executed.)

Only an SL-

Enhanced (or

SMI) CPU can

enter this mode.

Disabled Default

HDD Power

Down 1-15Min When the set time has

elapsed, BIOS sends a

command to the HDD to

power down. This turns off

the HDD motor.

Some older model

HDDs may not

support this

advanced function.

BIOS Setup Utility SY-6BA+ IV

3-5.3 PM Events

PM Events Setting Description Note

Disabled

VGA Active

Monitor Enabled Enables the power management

timers when a [no activity] event

is detected.

Default

Disabled Default

IRQ 8 Break

Suspend Enabled Alarm function is active.

3-5.4 Reload Global Timer Events

Power Down

& Resume

Events

Setting Description Note

Disabled

IRQ [3-7,9-

15], NMI Enabled The system monitors these

elements for activity. The system

will resume if [IRQ activity] is

detected.

Default

Disabled Default

IDE0, IDE1

Ø Primary

Ø Secondary Enabled Enables the PM timers when [No

Activity Event] is detected.

Disabled Default

Floppy Disk

Serial Port

Parallel Port Enabled Enables the PM timers when [No

Activity Event] is detected.

BIOS Setup Utility SY-6BA+ IV

3-6 PNP/PCI CONFIGURATION SETUP

This option sets the Motherboard's PCI Slots.

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Resources Controlled By : Manual Slot 1,5 /AGP Use IRQ : Auto

Reset Configuration Data : Disabled Slot 2 Use IRQ : Auto

Slot 3 Use IRQ : Auto

IRQ - 3 assigned to : Legacy ISA Slot 4/USB Use IRQ : Auto

IRQ - 4 assigned to : Legacy ISA

IRQ - 5 assigned to : PCI/ISA PnP Used MEM base addr : N/A

IRQ - 7 assigned to : PCI/ISA PnP

IRQ - 9 assigned to : PCI/ISA PnP

IRQ - 10 assigned to : PCI/ISA PnP Assign IRQ For USB : Enabled

IRQ - 11 assigned to : PCI/ISA PnP

IRQ – 12 assigned to : PCI/ISA PnP PNP OS Installed : No

IRQ - 14 assigned to : PCI/ISA PnP

IRQ - 15 assigned to : PCI/ISA PnP

DMA - 0 assigned to : PCI/ISA PnP

DMA - 1 assigned to : PCI/ISA PnP

DMA - 3 assigned to : PCI/ISA PnP ESC : Quit ↑ ↓ → ←: Select Item

DMA - 5 assigned to : PCI/ISA PnP F1 : Help PU/PD/+/- : Modify

DMA - 6 assigned to : PCI/ISA PnP F5 : Old Values (Shift) F2 : Color

DMA - 7 assigned to : PCI/ISA PnP F7 : Load Setup Defaults

Note: Starred (*) items will disappear when the [Resources

Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc] and

follow the instructions on your screen to save your settings or exit without

saving.

BIOS Setup Utility SY-6BA+ IV

3-6.1 PNP/PCI Configuration Controls

PNP/PCI

Controls Setting Description Note

Manual BIOS does not manage PCI/ISA PnP

card IRQ assignment.

Requires to assign IRQ-# and DMA-# to PCI or

ISA PnP manually.

IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _

DMA-0,1,3,5,6,7 assigned to: _

Resources

Controlled By

Auto The Plug-and-Play BIOS

auto manages PCI/ISA PnP

card IRQ assignment

automatically.

Recommended

Disabled Retain PnP configuration

data in BIOS. Default

Reset

Configuration

Data Enabled Reset PnP configuration data

in BIOS.

3-6.2 PNP/PCI Configuration Setup

PNP/PCI Setup Setting Description Note

If [Resources Controlled By] is set to [Manual]

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to

PCI/ISA PnP card.

IRQ-3,4,5,7,9,10,

11,12,14,15

DMA-0,1,3,5,6,7

IRQ-# and

DMA-#

assigned to: Legacy ISA Choose IRQ-# and

DMA-# assigned to

Legacy ISA card.

IRQ-3,4,5,7,9,10,

11,12,14,15

DMA-0,1,3,5,6,7

Under this item the user can assign an IRQ to a PCI slot. However, there under

some conditions the IRQ will not be assigned as selected under this item:

1. IRQs 0, 1, 2, 6, 8, 13 can NOT be assigned, because they are fixed.

2. IRQs 5, 9, 10, 11 are available

3. IRQs 3,4,7,12,14 and 15 will only be assigned if they are free. See the table

below on how to free them:

BIOS Setup Utility SY-6BA+ IV

PNP/PCI Configuration Setup (Continued)

PNP/PCI

Setup Setting Description Note

How to set the BIOS to release the IRQ to the PnP Interrupt pool:

Interrupt

Line PnP / PCI configuration Integrated Peripherals

IRQ 15 IRQ 15: PCI / ISA PnP On-Chip Secondary PCI IDE: disabled

IRQ 14 IRQ 14: PCI / ISA PnP On-Chip Primary PCI IDE: disabled

IRQ 12 IRQ 12: PCI / ISA PnP

Interrupt 12 will be released by the PnP

BIOS automatically if the PS/2 Mouse Port

is not used.

IRQ 7 IRQ 7: PCI / ISA PnP Onboard parallel port: disabled

IRQ 4 IRQ 4: PCI / ISA PnP Onboard Serial port 1: disabled

IRQ 3 IRQ 3: PCI / ISA PnP Onboard Serial port 2: disabled

4. Your OS may reassign another interrupt to a PCI slot after BIOS passes control

to the OS, especially if you use Windows 95, 98 or NT.

Auto Default

Slot 1/2/3/4

Use IRQ NO. Select one of the interrupts.

Note: The selected IRQ will

only be assigned if it is

available. (Windows may

reassign IRQs).

Used MEM

base addr Memory

length 8K,16K,32K,64K.

(Please ask your card provider

for the exactly memory length

of this add-on card.)

This item

appears only

when the [Based

MEM base

addr] set to I/O

address.

Enabled BIOS will assign IRQ for

USB port. Default

Assign IRQ

For USB Disabled BIOS won’t assign IRQ for

USB port.

Yes Set this field to [Yes] if you

are running Windows 95,

which is PnP compatible.

PnP OS

Installed

No If the OS you are running

does not support PnP

configuration.

Default

(If there is any

doubt, set this

field to [No])

BIOS Setup Utility SY-6BA+ IV

3-7 LOAD SETUP DEFAULTS

Select the [LOAD SETUP DEFAULTS] option from the Main Menu to

load the system values you have previously saved. This option is

recommended if you need to reset the system setup and to retrieve the old

values.

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to

return to the Main Menu and keep current values.

Warning: If you run into any problem after changing the BIOS

configuration, please load the SETUP DEFAULTS for stable

performance.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

SOYO COMBO SETUP

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

Load SETUP Defaults (Y/N)? _

BIOS Setup Utility SY-6BA+ IV

3-8 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already familiar

with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of the

chipset registers. These registers control the system options in the

computer.

The following screen shows setup default settings.

ROM PCI/ISA BIOS

INTEGRATED PWEIPHERALS

AWARD SOFTWARD, INC.

IDE HDD Block Mode : Enabled Onboard FDC Controller : Enabled

IDE Primary Master PIO : Auto Onboard Serial Port 1 : 3F8/IRQ4

IDE Primary Slave PIO : Auto Onboard Serial Port 2 : 2F8/IRQ3

IDE Secondary Master PIO : Auto

IDE Secondary Slave PIO : Auto UR2 Mode : Standard

IDE Primary Master UDMA : Auto

IDE Primary Slave UDMA : Auto

IDE Secondary Master UNMA : Auto Onboard Parallel Port : 378/IRQ7

IDE Secondary Slave UDMA : Auto Parallel Port Mode : SPP

On-Chip Primary PCI IDE : Enabled

On-Chip Secondary PCI IDE : Enabled PWRON After PWR-Fail : Off

USB Keyboard Support : Disabled

Init Display First : PCI Slot

ESC : Quit ↑ ↓ → ←: Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift) F2 : Color

F7 : Load Setup Defaults

The following tables describe each field in the INTEGRATED

PERIPHERALS Menu and provide instructions on how to configure the

IDE controls, FDC controls, and the onboard serial and parallel ports.

BIOS Setup Utility SY-6BA+ IV

3-8.1 IDE Device Controls

IDE Controls Setting Description Note

Disabled

IDE HDD Block Mode Enabled Invokes multi-sector

transfer instead of one

sector per transfer. Not

all HDDs support this

function.

Default

mode 0-4 0 is the slowest speed

4 is the fastest speed

IDE

Ø Primary Master PIO

Ø Primary Slave PIO

Ø Secondary Master PIO

Ø Secondary Slave PIO

Auto For better performance

and stability, we suggest

you use the Auto setting

to set the HDD control

timing.

Default

Disabled

IDE

Ø Primary Master UDMA

Ø Primary Slave UDMA

Ø Secondary Master UDMA

Ø Secondary Slave UDMA

Auto Select Auto to enable

Ultra DMA Mode

support.

Default

Disabled Turn off the on-board

IDE

On-Chip PCI IDE

Ø Primary

Ø Secondary Enabled Use the on-board IDE Default

3-8.2 Keyboard Controls

Keyboard Controls Setting Description Note

Disabled Turn off the on-board IDE Default

USB Keyboard Support Enabled Use a USB keyboard

PCI Slot Default

Init Display First AGP

Choose which card –

AGP Display card or PCI

VGA card – to initialize

first.

BIOS Setup Utility SY-6BA+ IV

3-8.3 FDC Controls

FDC Controls Setting Description Note

Disabled Turn off the on-board

floppy controller

Onboard FDC

controller Enabled Use the on-board floppy

controller Default

3-8.4 Onboard Serial Ports

Onboard Serial

Ports Setting Description Note

Disabled

3F8/IRQ4 Default

(port 1)

2F8/IRQ3 Default

(port 2)

3E8/IRQ4

2E8/IRQ3

Onboard UART 1

Onboard UART 2

Auto

Choose serial port 1 &

2's I/O address.

Do not set port 1 & 2 to

the same address except

for Disabled or Auto.

Standard Supports a Standard

serial infrared IrDA. Default

IrDA 1.0

UR2 Mode

ASKIR Supports a Sharp serial

interface format.

If [UR2 Mode] is set to [IrDA 1.0]/[ASKIR]

Half Default

UR2 Duplex Mode Duplex Choose [Half] or

[Duplex] to set UR2 in

half duplex mode or full

duplex mode

respectively. Refer to

your IR device

specifications to select

the suitable mode.

BIOS Setup Utility SY-6BA+ IV

3-8.5 Onboard Parallel Ports

Onboard Parallel

Ports Setting Description Note

378H/IRQ7 Default

3BCH/IRQ7

Onboard Parallel

Port 278H/IRQ5

Choose the printer I/O

address.

ECP/EPP Default

SPP

ECP

Parallel Port Mode

EPP/SPP

The mode depends on your

external device that

connects to this port.

If [Parallel Port Mode] is set to [ECP] mode

3Choose DMA3 Default

ECP Mode use

DMA 1Choose DMA1

If [Parallel Port Mode] is set to [EPP] mode

EPP 1.9 Select EPP port type 1.9

EPP Mode Select EPP 1.7 Select EPP port type 1.7 Default

On The system will switch on

when power comes back

after a power failure.

Off The system will remain off

when power comes back

after a power failure.

Default

PWRON After

PWR-Fail

Former-sts The system will return to

the state it was in before the

power failure when power

returns. (i.e: If the system

was on, it will switch on

again, if it was off, it will

remain off)

BIOS Setup Utility SY-6BA+ IV

3-8.6 MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

LPT1 378H 7ECP/EPP

COM1 3F8H 4

COM2 2F8H 3

Warning: If a default I/O address conflicts with other I/O cards

such as sound card, you must change one of the I/O addresses to

remedy to this address conflict. (I/O addresses can be adjusted from

the BIOS Setup Utility)

BIOS Setup Utility SY-6BA+ IV

3-9 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the [BIOS

FEATURES SETUP] section, the password prevents access to the system

or the setup program by unauthorized users. Follow this procedure to set a

new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and press

[Enter]. Select the [Security Options] item and set the field to:

a. [System]: The password is required every time the system is

booted. This means only a person who knows the password can

use this computer.

b. [Setup]: The password is required only when you attempt to

enter the BIOS Setup program.

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and

press [Enter]. The following prompt appear:

Warning: If you forget or lose the password, the only way to

access the system is to set jumper JP5 to clear the CMOS RAM.

All setup information is lost and you must run the BIOS setup

program again.

Note: If you do not wish to use the password function, press

[Enter] directly and the following message appears:

Enter Password:

Password Disabled!!

BIOS Setup Utility SY-6BA+ IV

3. Enter your new password and press [Enter]. The following message

appears, prompting to confirm the new password:

4. Re-enter your password and then press [Enter] to exit to the Main

Menu.

This diagram outlines the password selection procedure:

3-10 USER PASSWORD

When the user password option is on, you are not allowed to change any

setting in the [CMOS SETUP UTILITY] except for changing the user's

password.

The password setting procedure is similar to that for the [SUPERVISOR

PASSWORD] (Refer to section 3-9).

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

Enter Password:

Enter Password: ∗∗∗∗∗ Password Disabled!!

Confirm Password: ∗∗∗∗∗

Press:

↔

Without entering password

Type the Password

Press:

↔

After you confirm the

password, press

to exit

Type the Password

and Press: <Enter>

Press <Enter> without

entering the password

After you confirm the password,

press <Esc> to exit

Confirm Password:

BIOS Setup Utility SY-6BA+ IV

3-11 IDE HDD AUTO DETECTION

This Main Menu function automatically detects the hard disk type and

configures the STANDARD CMOS SETUP accordingly.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master :

Select Primary Master Option (N=Skip) : N

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

2(Y) 1707 827 64 0 3308 63 LBA

11707 3309 16 65535 3308 63 NORMAL

31707 827 64 65535 3308 63 LARGE

Note: Some Oses( SCO-UNIX Before v5.0) must use “NORMAL” for installation

Note: This function is only valid for IDE type of hard disk drives.

ESC : Skip

Drivers installation SY-6BA+ IV

Chapter 4

DRIVERS INSTALLATION

Your SY-6BA+ IV Motherboard comes with a CD-ROM labeled "SOYO

CD." The SOYO CD contains the user's manual file for your new

Motherboard, the drivers software available for installation, and a database

in HTML format with information on SOYO Motherboards and other

products.

The SOYO CD Start Up Program automatically detects which SOYO

Motherboard you own and displays the corresponding model name.

Step 1. Insert the SOYO CD into the CD-ROM drive

The SOYO CD will auto-run, and the SOYO CD Start Up Menu will

display as shown below.

Drivers installation SY-6BA+ IV

Step 2. Read SOYO [6BA+ IV] Manual

Click the Read Manual button to open the user's manual file of your

Motherboard.

Please note that if the Start Up program was unable to determine which

SOYO Motherboard you own, the manual selection menu will pop up, as

shown below. Then select the user's manual file that corresponds to your

Motherboard model name and click OK.

(Manual Selection Menu)

The user's manual files included on the SOYO CD can be read in PDF

(Postscript Document) format. In order to read a PDF file, the appropriate

Acrobat Reader software must be installed in your system.

Note: The Start Up program automatically detects if the Acrobat Reader

utility is already present in your system, and otherwise prompts you on

whether or not you want to install it. You must install the Acrobat Reader

utility to be able to read the user's manual file. Follow the instructions on

your screen during installation, then once the installation is completed,

restart your system and re-run the SOYO CD.

SOYO CD Manuals

Please select your manual in the box below

and click OK.

686 boards:586 boards:

OKBack

6BA+

Drivers installation SY-6BA+ IV

Step 3. Install Drivers

Click the Install Drivers button to display the list of drivers software that

can be installed with your Motherboard. The Start Up program displays

the drivers available for the particular model of Motherboard you own. We

recommend that you only install those drivers.

However, to display the list of all drivers software available with SOYO

Motherboards, click the Display all drivers on the SOYO CD button.

Please make sure to install only the drivers adapted to your system, or

otherwise this cause system malfunctions.

The following drivers are available for Windows 95

(Driver Installation Menu)

Please select the driver you want to install and click OK, You will have to

restart your system after installation. Only the drivers that are relevant

to your board are displayed initially.

Intel .inf utility for Win 95

Intel BusMaster Drivers for Win95

Intel BusMaster Drivers for Win NT

Intel BusMaster Drivers for OS/2

Winbond hardware doctor for win 95/98

CancelDisplay all drivers

on the SOYO CDOK

Driver Installation

Drivers installation SY-6BA+ IV

The following drivers are available for Windows 98

(Driver Installation Menu)

A short description of all available drivers follows:

Ø Intel .inf utility for Win 95

Because Windows 95 does not recognize the Southbridge of the newer

Intel chipsets (TX, BX, ZX etc) this utility has to be run, it will update the

necessary Windows .inf files. (Only for Windows 95)

Ø Intel Busmaster Drivers for Windows 95

Ø Intel Busmaster Drivers for Win NT

Ø Intel Busmaster Drivers for OS/2

These are the official busmaster drivers as supplied by Intel.

Note: Do NEVER install two types of busmaster drivers on your

system, this will lead to conflicts and system instability.

Ø Winbond hardware doctor for Windows 9x

Please select the driver you want to install and click OK, You will have to

restart your system after installation. Only the drivers that are relevant

to your board are displayed initially.

Intel BusMaster Drivers for Win NT

Intel BusMaster Drivers for OS/2

Winbond hardware doctor for win 95/98

CancelDisplay all drivers

on the SOYO CDOK

Driver Installation

Drivers installation SY-6BA+ IV

Your motherboard comes with a hardware monitoring IC. By installing

this utility Temperature, Fan speed and Voltages can be monitored. It is

also possible to set alarms when current system values exceed or fall

below pre-set values.

This utility comes with a preset monitoring rage for the CPU voltage.

However, the core voltage of the processor you purchased may fall out of

this preset range, so you may need to adjust the pre-set value. Please refer to

the SY-6BA+ IV Motherboard’s CD manual for the details.

Select which driver you want to install and click OK, or click Cancel to

abort the driver installation and return to the main menu.

Note: Once you have selected a driver, the system will automatically exit

the SOYO CD to begin the driver installation program. When the

installation is complete, most drivers require to restart your system before

they can become active.

l Core voltage

The core voltage differs between generations of Intel CPUs, if the

Hardware monitor gives a warning, the settings for the safe range of the

core voltage has to be adjusted. This can be done by simply clicking and

dragging the upper and lower limit bars.

For example:

Newer Slot 1 CPUs have a core voltage of 2.0V. Therefore, set the CPU

Vcore limits to 1.8V and 2.2V. For 2.8V core voltage CPUs the limits

would be 2.6V and 3.0V.

l Fan speed

The Hardware monitor can keep track of three fans. If the user does not

use all fans, the fans that are not in use should be disabled in the Hardware

monitor program, otherwise the Hardware monitor will give an alarm. If

this happens, make sure to disable monitoring for that fan.

Note: However, to display the list of all drivers software available with

SOYO Motherboards, click the Display all drivers on the SOYO CD

Drivers installation SY-6BA+ IV

button. Please make sure to install only the drivers adapted to your system,

or otherwise this cause system malfunctions.

Step 4. Check the Latest Releases

Click the 'Check the latest Releases' button to go the SOYO Website to

automatically find the latest BIOS, manual and driver releases for your

motherboard. This button will only work if your computer is connected to

the internet through a network or modem connection. Make sure to get

your modem connection up before clicking this button.

Step 5. Select which driver you want to install and click OK

Notice 1: Once you have selected a driver, the system will automatically exit

the SOYO CD to begin the driver installation program. When the

installation is complete, most drivers require to restart your system

before they can become active.

Notice 2: You may click Cancel to abort the driver installation and return to

the main menu.

Notice 3: Once you have selected a driver, the system will automatically exit

the SOYO CD to begin the driver installation program. When the

installation is complete, most drivers require to restart your system

before they can become active.

The ATA 66 Driver installation SY-6BA+ IV

Chapter 5

THE ATA 66 DRIVER INSTALLATION

Ø Installing the Windows 95/98 Drivers

Usually, when you boot up the Windows 95/98 system for the first time,

the system will be able to detect the HPT366 Ultra DMA host Adapter

automatically and ask you to install the driver for HPT366. You can just

follow the instructions promted by the system to install the driver. The

driver is located in the following directory:

D:\drivers\hp-ata66\Win9X (Where D is your CD-ROM driver letter)

Otherwise, you can install the driver by the following steps:

1. Windows 95/98 must be installed on the system prior to installing the

driver.

2. Close any running applications.

3. Open "My Computer".

4. Double click on the "Control Panel" icon.

5. Double click on the "Add New Hardware" applet.

6. Click on the "Next" button.

7. When asked "Do you want Windows to search for your new

hardware?", choose "No" then click on the "Next" button.

8. When asked to select the hardware type, select the "SCSI controllers"

and click on the "Next" button.

9. Make sure that the SOYO-CD is in your CD-ROM drive and click on

the "Have Disk..." button.

10. Select the D:\drivers\hp-ata66\Win9X directory (Where D is your

CD-ROM driver letter) and click on the "OK" button.

11. Click on the "Next" button.

12. If there is a window showing the settings (resources) to be used by

the driver, then click on the "Next" again. At this point, the system

will install the driver.

The ATA 66 Driver installation SY-6BA+ IV

13. Click on the "Finish" button.

14. Then the system will ask you to restart the system. If the settings

reported in step 12 are not what set on the host adapter, you must

adjust the settings by using the device manager in the System control

panel before restarting your computer.

15. The driver for ACPI function is useful only if hardware supports

ACPI function.

Uninstalling the Driver

You can use the device manager in the System control panel to remove the

driver.

Ø Installing the Windows NT 4.0 Drivers

When Windows NT is up, install the HPT366 device driver as follows:

1. Installing Device Driver

(1.) Open My Computer

(2.) Open Control Panel

(3.) Double click icon SCSI Adapters

(4.) Click Drivers

(5.) Click Add...

(6.) Click Have Disk...

(7.) Insert the SOYO-CD with the HPT366 Windows NT 4.0 device

driver into your CD-ROM drive, and type "D:\drivers\hp-

ta66\NT40[Enter]", then click OK. (for D type your CD-ROM

driver letter)

(8.) Select HPT366 Ultra DMA Controller, you will be asked to enter

the full path to the HPT366 Ultra DMA Controller files, type in

D:\drivers\hp-ata66\NT40 and then click Continue

(9.) When asked to restart your computer, click Yes

Your hard disk drive attached to the HPT366 host adapter must be

partitioned and formatted before you can access it. Please see Partitioning

The ATA 66 Driver installation SY-6BA+ IV

Your Hard Disk to know how to partition and format a hard disk drive.

2. Checking the Installation

If you want to check if the HPT366 host adapter and its device driver are

correctly installed, you can:

(1.) Open My Computer

(2.) Open Control Panel

(3.) Double click icon SCSI Adapters

(4.) You should see the item HPT366 Ultra DMA Controller (started)

listed

3. Partitioning Your Hard Disk

If the hard disk drive attached to the HPT366 host adapter has not been

partitioned and formatted yet, you need to partition it first. To partition the

hard disk drive attached to the HPT366 host adapter, follow the following

steps:

(1.) Click the Startup button

(2.) Go to Administrative Tools (Common)

(3.) Run Disk Administrator

(4.) Select disk number you would like to partition

(5.) Select the menu Partition

(6.) Decide the partition size create partition of the size

(7.) Exit Disk Administrator

(8.) Select the new created partition (logical disk drive) and format it

4. Troubleshooting

The boot manager for Windows NT contains recovery logic to allow you

to return to the last known good configuration. If you have changed your

host adapter configuration and Windows NT no longer boots, follow these

steps to recover:

1. Undo any hardware changes you have made to the computer since it

was last operational.

2. Reboot the computer. Watch the display carefully during booting up.

If the following message appears, press the Spacebar and follow the

The ATA 66 Driver installation SY-6BA+ IV

instructions on the display screen to continue booting with the last

known good configuration: Press spacebar NOW to invoke the Last

Known Good menu

3. Once your computer is operational again, check all of the hardware

and software configuration changes you want to make. Look

specially for conflicts with parts of the existing system configuration

that are not being changed.

If Windows NT can boot but the driver has not been started (see Checking

the Installation), please check the following:

1. Make sure the host adapter is properly installed, and the device is

correctly connected to the adapter. Double check that the cable

between the adapter and the devices is correctly attached. Also check

if the jumper setting on the drive is correct.

2. Make sure that a power cable is properly attached to each drive

attached to the HPT366 host adapter.

If the driver has started and you still cannot access the hard disk drive

attached to the HPT366 host adapter, the hard disk drive might have not

been partitioned and formatted yet. You may need to partition and format

it.

New Driver releases and Support

If you have questions about installing or using this HighPoint product,

check this user's guide or the readme file first, you will find answers to

most of your questions here. If you need further assistance, we offer the

following support and information services:

3. The Web Site provides information on software upgrades, answers to

common questions, and other topics. The Web Site is available from

Internet 24 hours a day, 7 days a week, at http://www.highpoint-

tech.com.

4. For technical support, send an e-mail to support@highpoint-

tech.com.

The ATA 66 Driver installation SY-6BA+ IV

NOTE: Before you send an e-mail, please visit our Web Site

(http://www.highpoint-tech.com) to check if there is a new or updated

HPT366 device driver for your operating system.

The ATA 66 Driver installation SY-6BA+ IV

Soyo Motherboard Sy 6Ba Iv Users Manual 6ba+410

SY-6BA+ IV to the manual d01be6c5-8ee4-4cb5-8dd7-6f9b388dc4b8

Navigation menu

Versions of this User Manual:

Views

Navigation
