SparkLAN Communications WCM100 802.11g Wireless Ethernet Adapter User Manual Manual
SparkLAN Communications, Inc. 802.11g Wireless Ethernet Adapter Manual
Manual
802.11g Wireless Ethernet Adapter
User’s Manual
Version 1.0
User’s Guide 1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The WCM-100 ( FCC ID: RYK-WCM100 ) is limited in CH1~CH11 for 2.4 GHz by specified
firmware controlled in U.S.A.
User’s Guide 2
Copyright Statement
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the
prior writing of the publisher.
Mar. 2006
User’s Guide 3
Contents
1. Introduction............................................................................................................... 4
2. Safety Notification .................................................................................................... 5
3. Hardware Installation................................................................................................ 6
4. Web Management Settings ...................................................................................... 7
4.1 Configuration…………………………………………………………………………………………………8
4.2 Local Area Network………………………………………………………………………………………….9
4.3 Wireless……………………………………………………………………………………………………..11
4.4 Security……………………………………………………………………………………………………...14

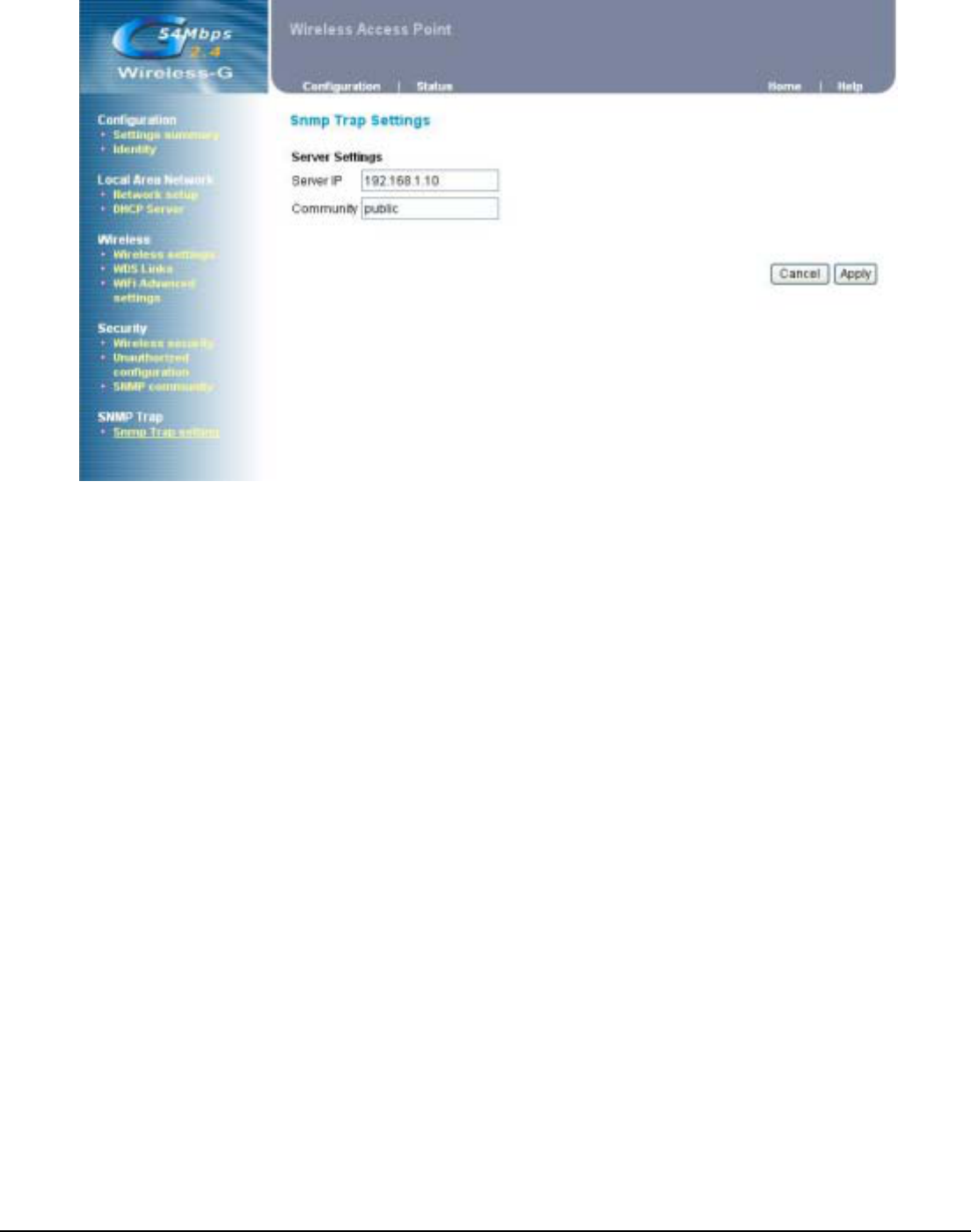

4.5 SNMP Trap Settings……………………………………………………………………………………….18
4.6 Status Overview……………………………………………………………………………………………19

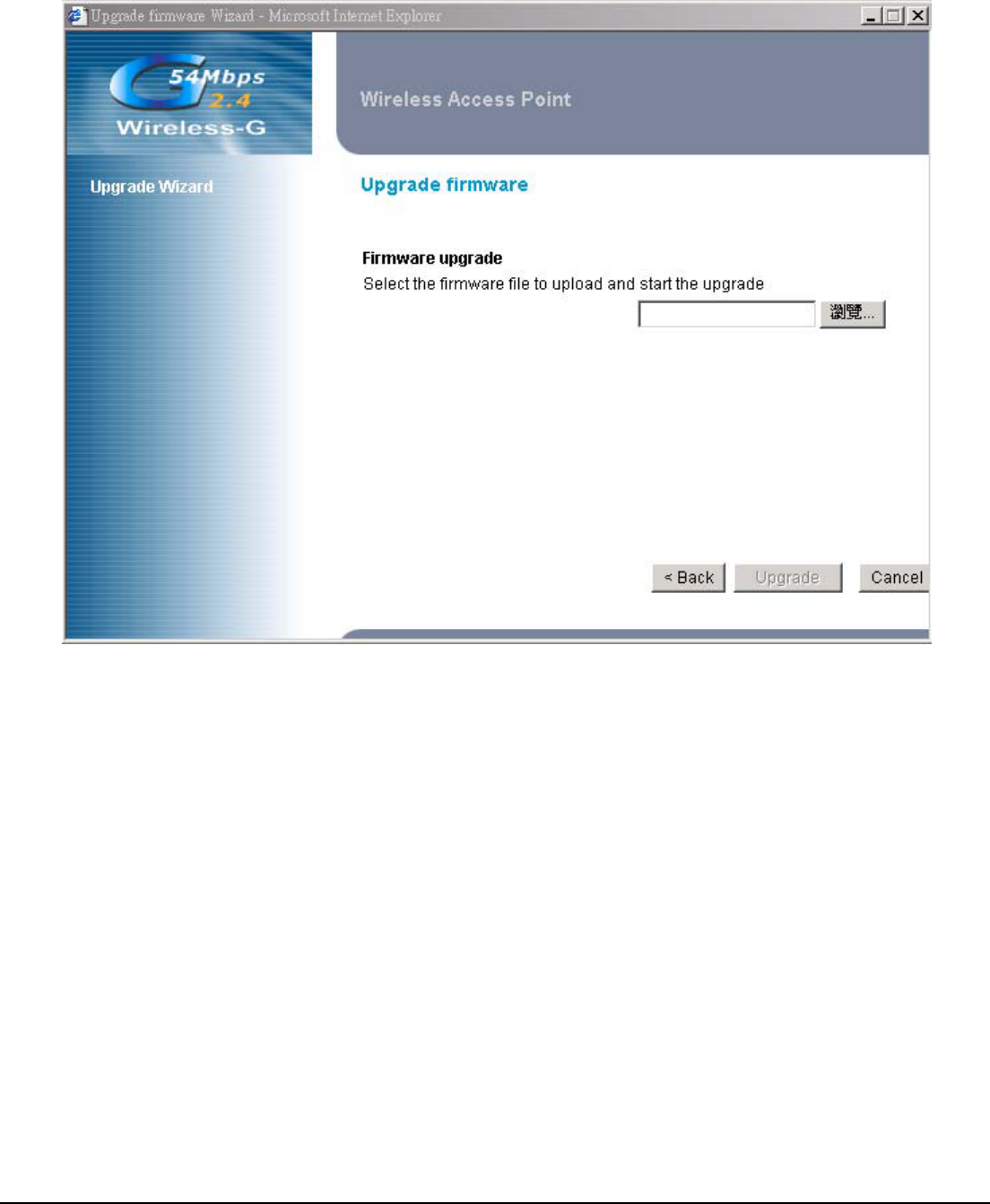

4.7 Upgrade Firmware…………………………………………………………………………………………20

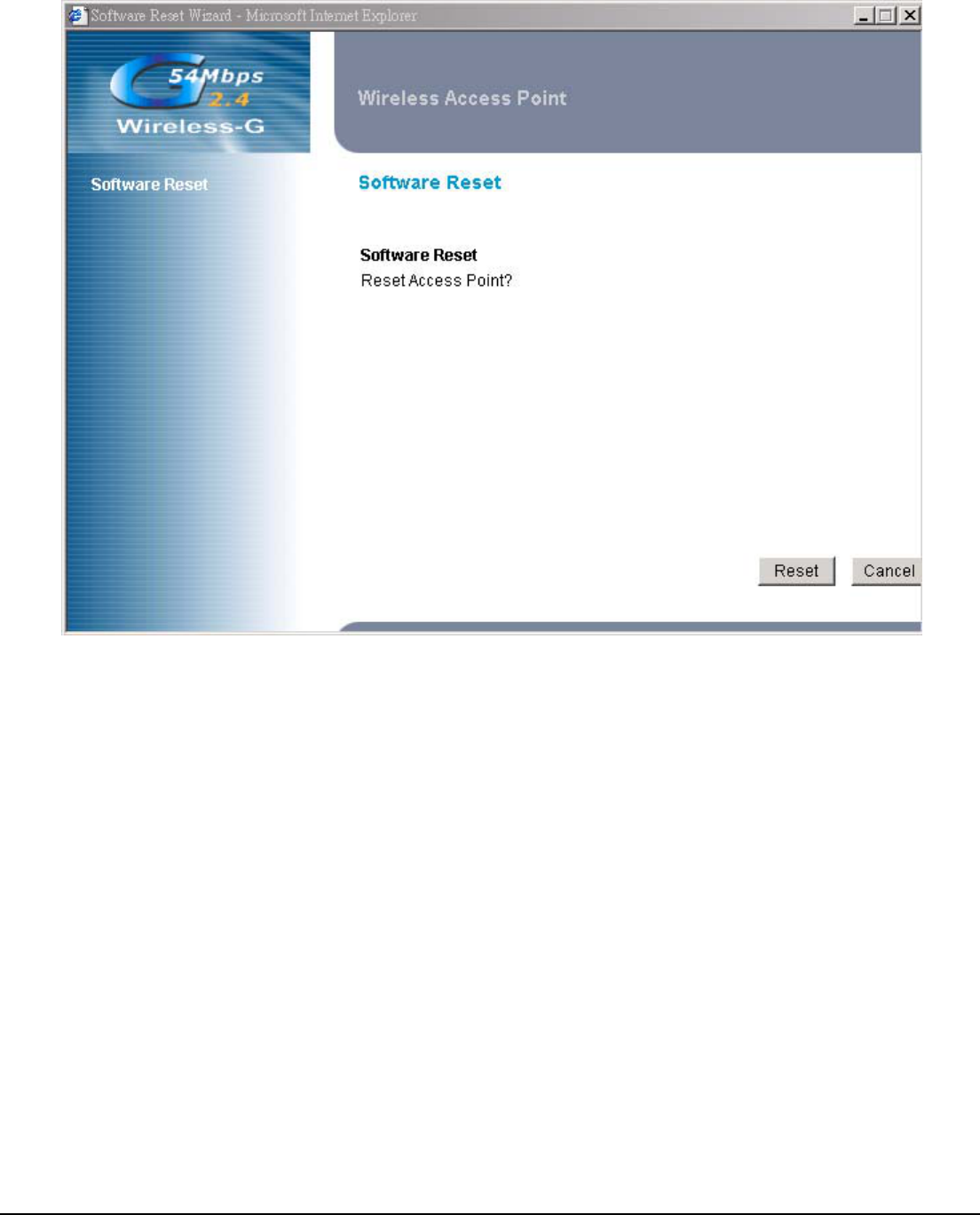

4.8 Reboot Access Point………………………………………………………………………………………21
4.9 Restore Factory Defaults………………………………………………………………………………….22

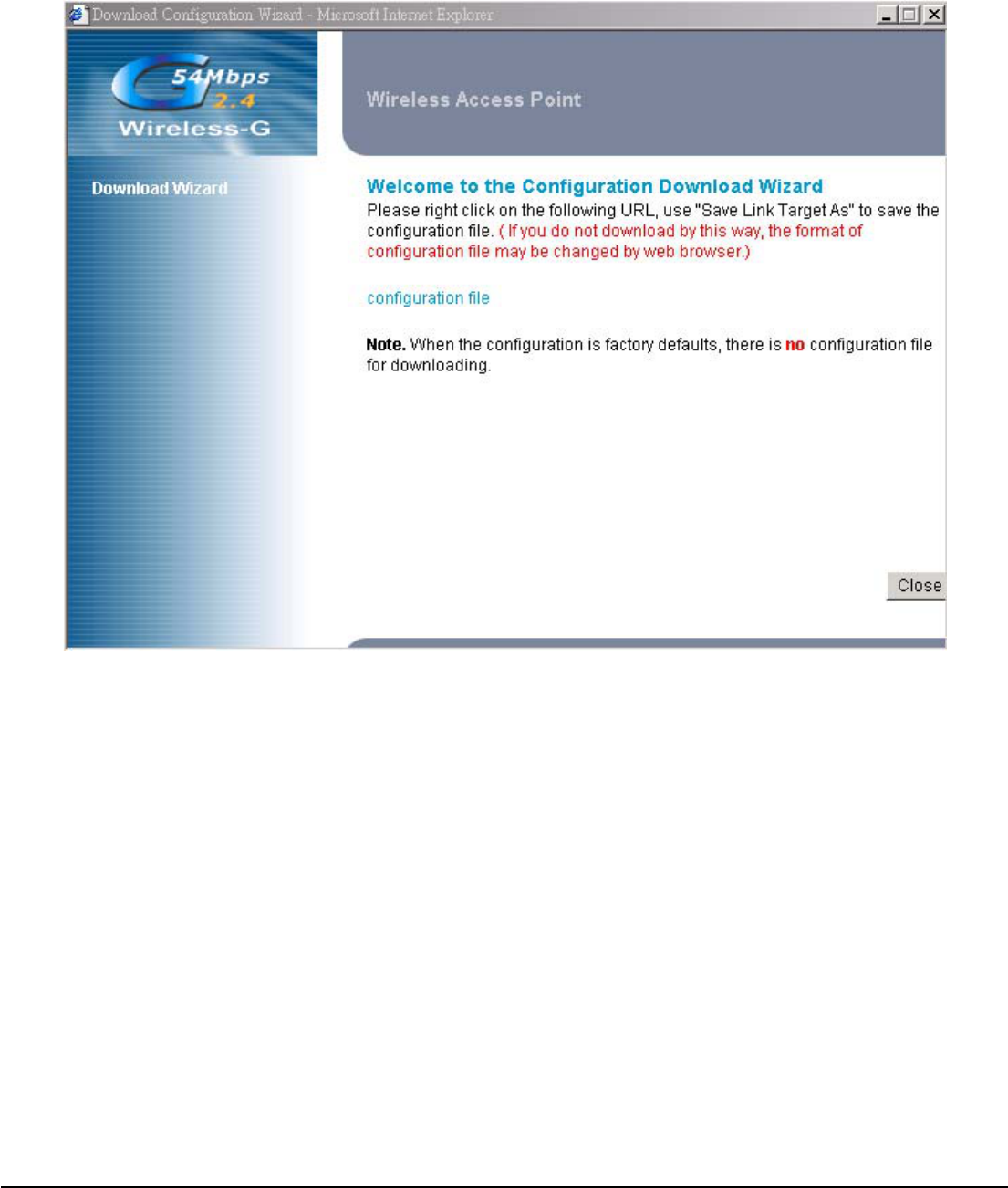

4.10 Configuration Profile Download....………………………………………………………………………23
4.11 Configuration Profile Upload…………………………………………………………………………….24
5. Appendix.................................................................................................................. 25
6. Troubleshooting...................................................................................................... 26
User’s Guide 4
1. Introduction
Thank you for purchasing 802.11g Wireless Ethernet Adapter.
This user guide will assist you with the installation procedure.
The package you have received should contain the following items:
802.11g Wireless Ethernet Adapter
Quick Installation Guide
Combo Cable
User Manual CD
Note: if anything is missing, please contact your vendor
User’s Guide 5
2. Safety Notification
Your Wireless Ethernet Adapter should be placed in a safe and secure location. To ensure proper
operation, please keep the unit away from water and other damaging elements. Please read the user
manual thoroughly before you install the device. The device should only be repaired by authorized and
qualified personnel.
Please do not try to open or repair the device by yourself.
Do not place the device in a damp or humid location, i.e. a bathroom.
The device should be placed in a sheltered and non-slip location within a temperature range of
+5 to +40 Celsius degree.
Please do not expose the device to direct sunlight or other heat sources. The housing and
electronic components may be damaged by direct sunlight or heat sources.
User’s Guide 6
3. Hardware Installation
Front Panel
The front panel provides LED’s for device status. Refer to the following table for the meaning of each
feature.
LED STATUS Description
Off No power
Green On 1. Power on 2. Reset to default 3. Firmware upgrade (first 1
minute)
POWER
Green
Blink 1. System up 2. Power on 3. Firmware upgrade
Off No Ethernet link detected
Green On 10/100Mbps Fast Ethernet link detected.
LINK
Green
Blink Indicates data traffic on the 10/100 Mbps LAN
ACT Green
Blink Indicates the device is linking or active data through wireless
links
Side Panel
The side panel features 1 LAN ports and Reset button. Refer to the following table for the meaning of
each feature.
Power (DC 5v)
Used to connect to the power outlet. Only use the power
adapter provided with the device. Use of an unauthorized
power adapter may cause damage to your device and
violate your warranty.
Reset Press the Reset Button for approximate ten seconds, all
configurations will set to factory default settings.
LAN The RJ-45 Ethernet port used to connect your PC, hub,
switch or Ethernet network.
AP Default Settings
The default settings are shown following.
User
Password admin
AP IP Address 192.168.1.250
AP Subnet Mask 255.255.255.0
RF ESSID ap11g
11g RF Channel 6
Mode 11b+g
Encryption Disabled
User’s Guide 7
4. Web Management Settings
START UP & LOGIN
In order to configure the Wireless 11g AP, you must use your web browser and manually input
http://192.168.1.250 into the Address box and press Enter on explorer. The Main Page will appear.
Once you have logged-in this unit, it is a good idea to enable the password protection to ensure a
secure protection to the Wireless 11g AP. The Security Settings section described later in this manual
describes how to change the password.
Once you have input the correct password and logged-in, the screen will change to the Setup page
screen.
TURN ON POWER SUPPLY
Quick power cycle can caused system corruption. When power on, be careful not to shut down in
about 5 seconds, because data is writing to the flash.
Before Starting
The default IP address setting for the unit is a class C IP address (192.168.1.250/ 255.255.255.0).
Please make sure that the current workstation is following the class C IP address range, from
192.168.1.1 to 192.168.1.254 if
y
ou would like to do an
y
confi
g
uration b
y
this workstation.
User’s Guide 8

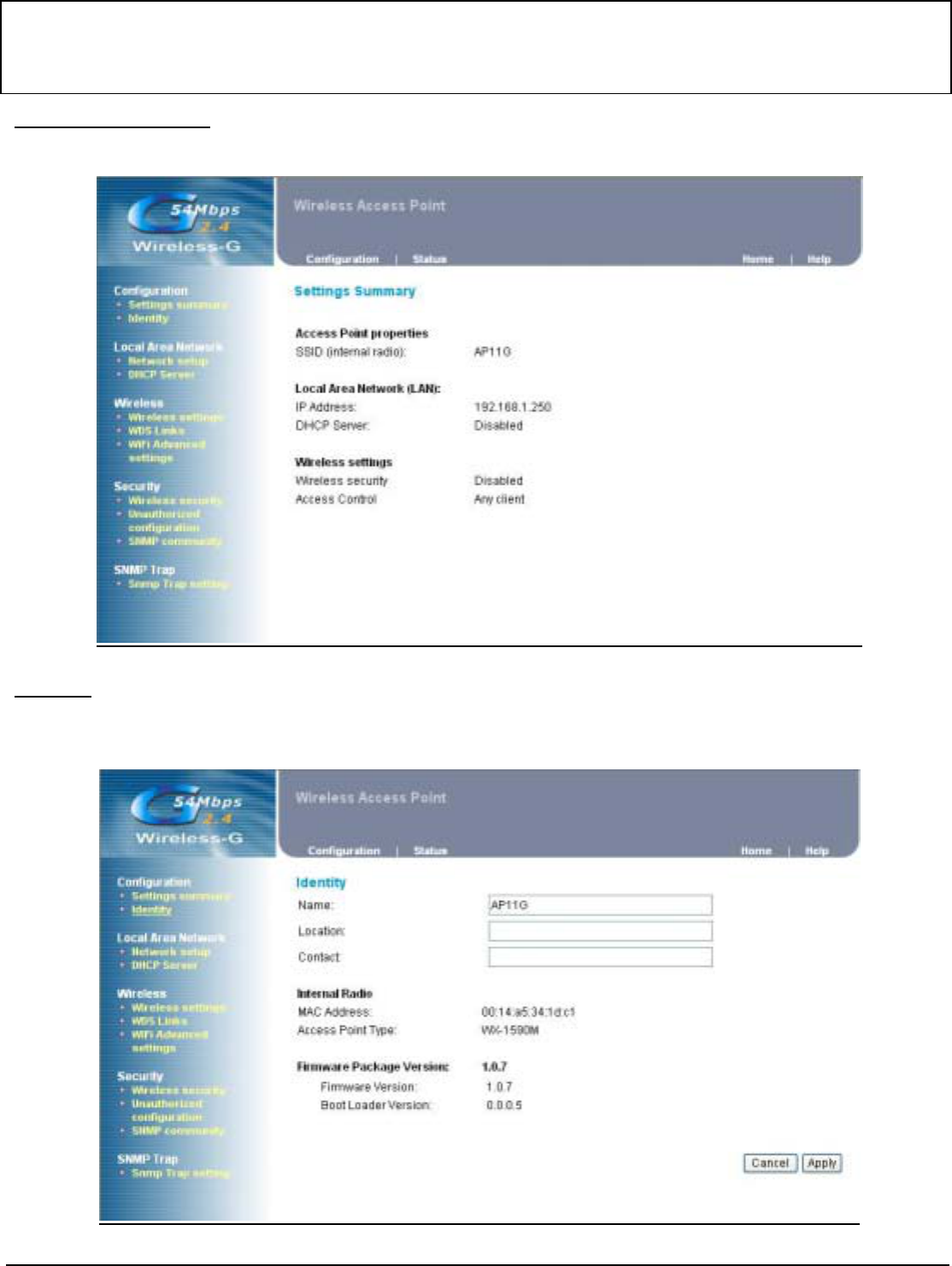

4.1 Configuration
Settings Summary
This section contains the AP's basic settings information.
Identity
This section contains the AP's current firmware version. Also It can allow user to define the identity
information for this unit if there are many same type units locate at one network.
MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER
To change the configuration, use Internet Explorer (IE) or Netscape Communicator to connect the
WEB management 192.168.1.250.
User’s Guide 9

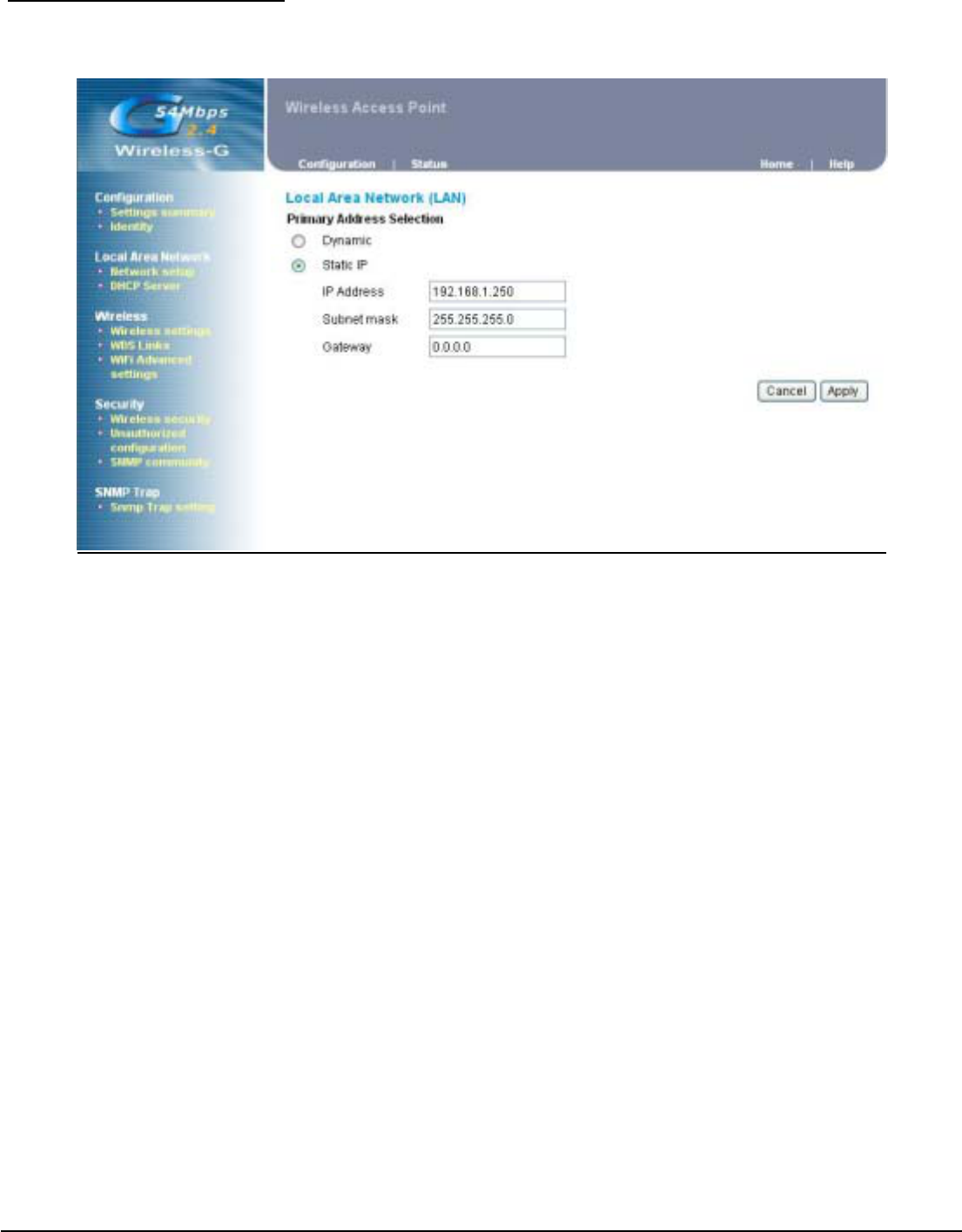

4.2 Local Area Network
Local Area Network(LAN)
This is the AP's IP Address and Subnet Mask as seen on the internal LAN. The default value is
192.168.1.250 for IP Address and 255.255.255.0 for Subnet Mask.
User’s Guide 10

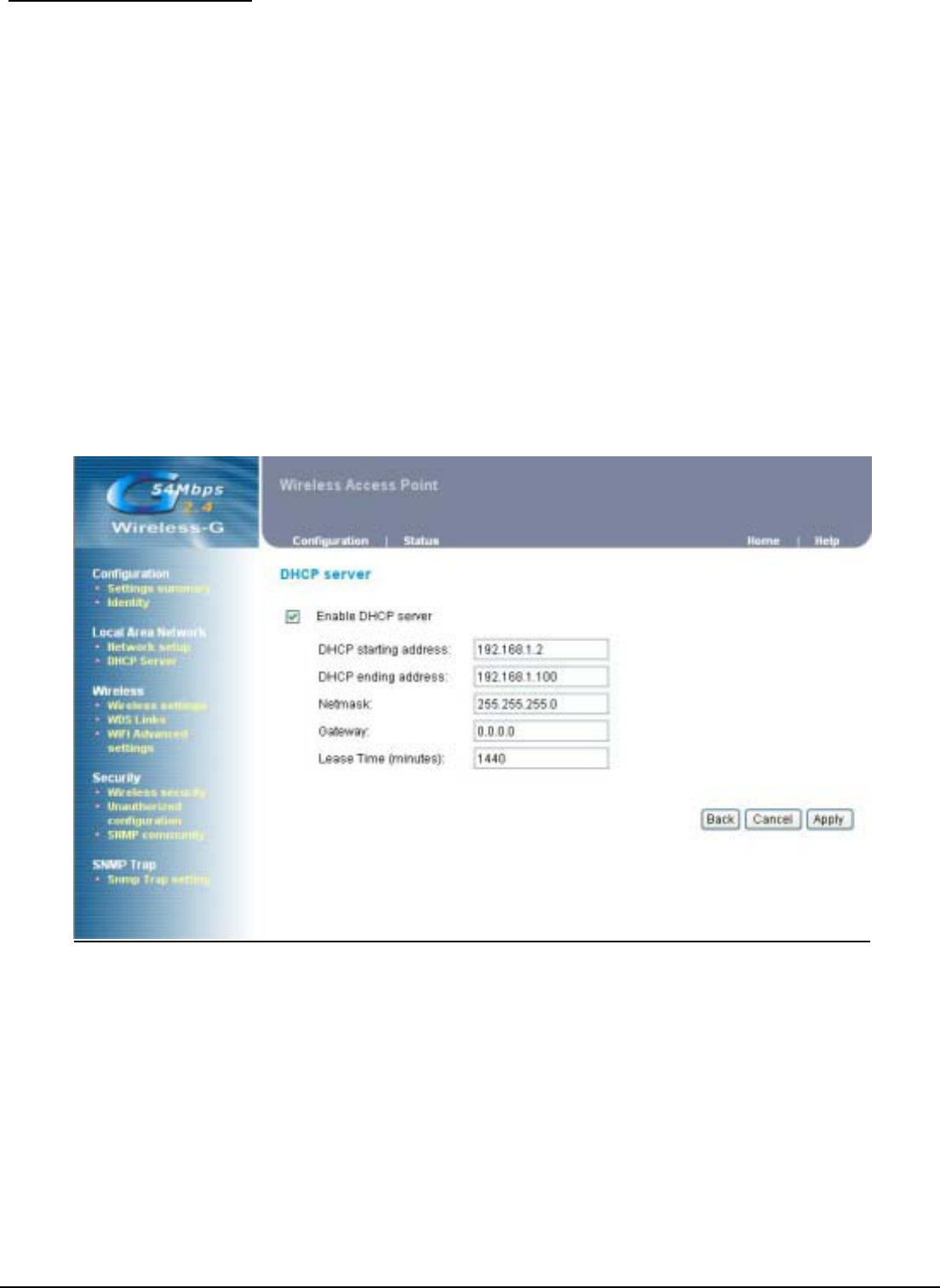

DHCP Server Settings
The DHCP Server section allows you to configure the settings for the AP's Dynamic Host
Configuration Protocol (DHCP) server function. The AP can be used as a DHCP server for your
network. A DHCP server automatically assigns an IP address to each computer on your network. If
you choose to enable the AP's DHCP server option, you must configure your entire network PCs to
connect to a DHCP server, the AP.
If you disable the AP's DHCP server function, you must configure the IP Address, Subnet Mask, and
DNS for each network computer (note that each IP Address must be unique).
Global Settings: Select the Enable option to enable the AP's DHCP server option.
If you already have a DHCP server on your network or you do not want a DHCP
server, then select Disable from the options.
If you enable the DHCP server function, you have to enter a numerical value for the
DHCP server starting and ending addresses. Then the DHCP server will follow this
range to assign IP address for each DHCP clients.
If your DHCP clients must route to other network or with internet service, then the
Gateway IP address will be necessary.
User’s Guide 11
4.3 Wireless
SSID : only Access Points and clients that share this SSID are able to communicate with
each other. Your networking client allows you to choose to which network you
connect. The network names you see there are SSIDs.
Band : select the policy for internal radio. There are 3 types of band setting, the default
mode is Mixed.
Radio Channel : select the appropriate channel from the list provided to correspond with your
network settings. You shall assign a different channel for each AP to avoid
signal interference.
Broadcast SSID : this setting is related with SSID for whether it can be broadcasted by wireless
or not.
Enable L2 Isolation: enable this setting will reject clients to communicate between themselves by this
AP.
Preamble Type : select the head length of the packet. There are 2 types can be supported, long
and short.
User’s Guide 12

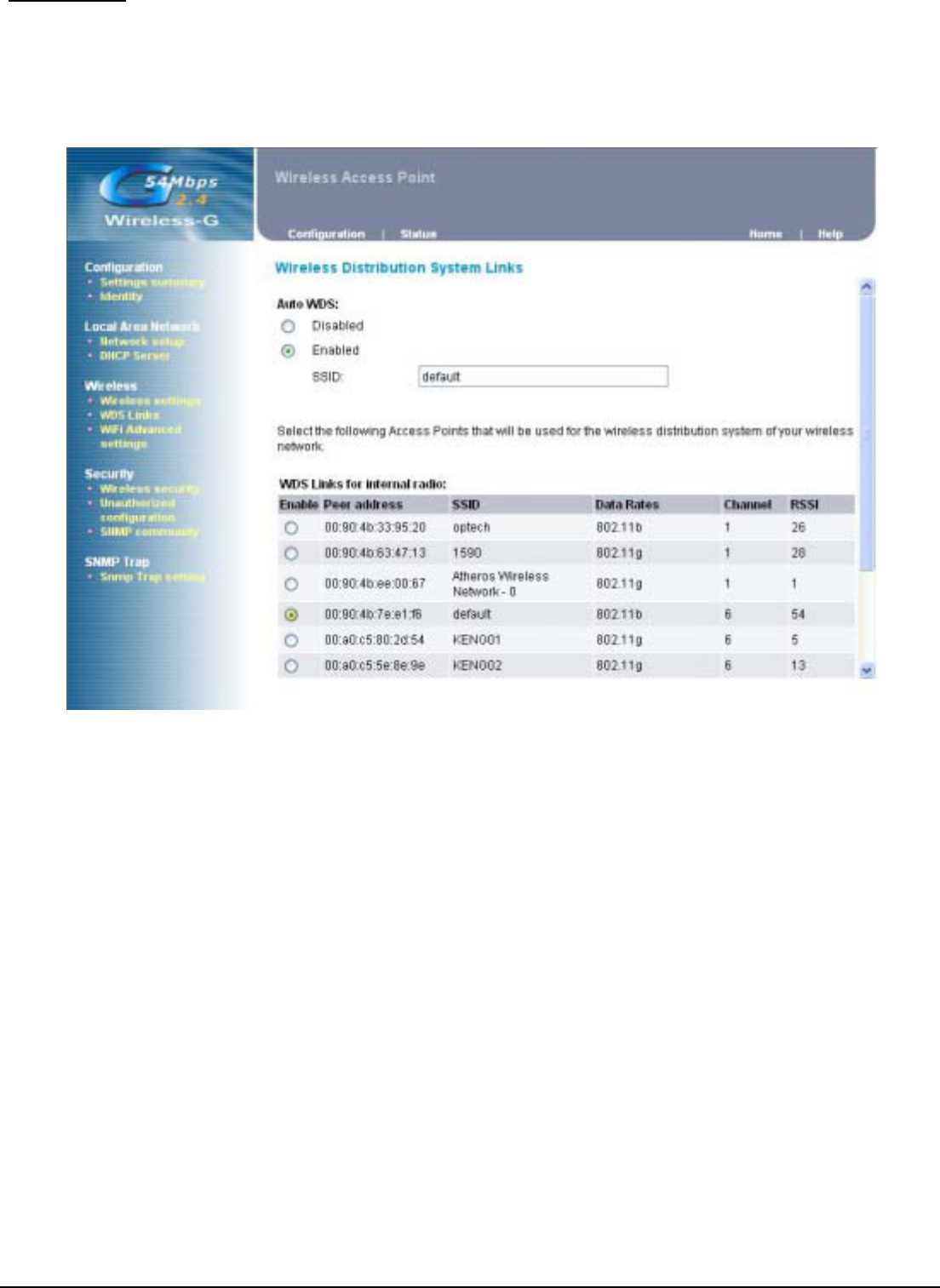

WDS Links
This mode allows the AP to keep the AP function role and at the same time performing a
communication with other 802.11g AP to establish and extend your Wireless Network coverage.
Please select the checkbox to enable AP on the WDS list to perform WDS application or enter the
Remote Access Point’s MAC address to enable this feature.
User’s Guide 13

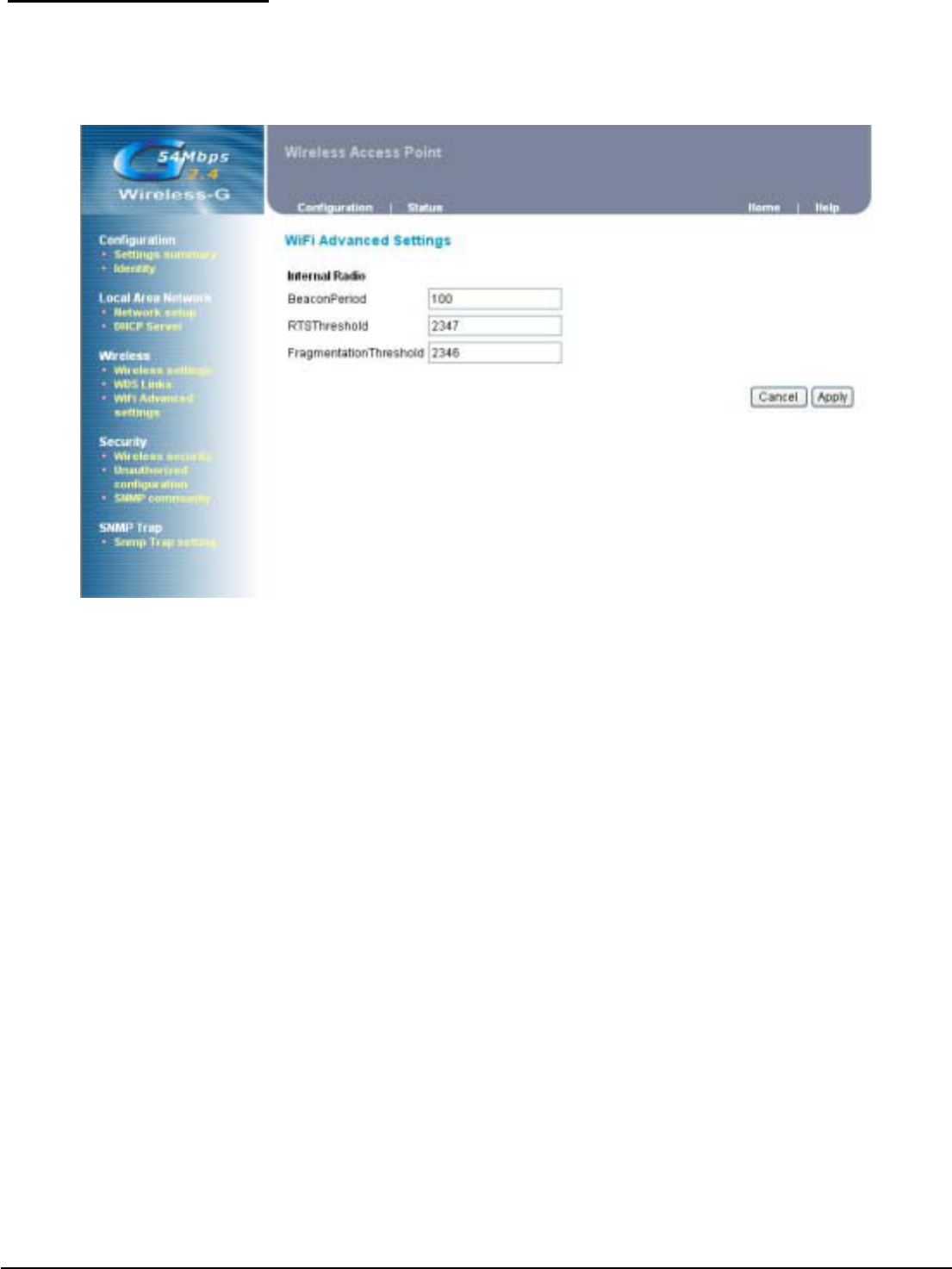

WiFi Advanced Setting
In this page you can configure the WiFi advance settings: Beacon Period, RTS Threshold and the
Fragmentation Threshold. The default value of Beacon Period is 100, RTS Threshold is 2347 and the
Fragmentation Threshold is 2346.
User’s Guide 14

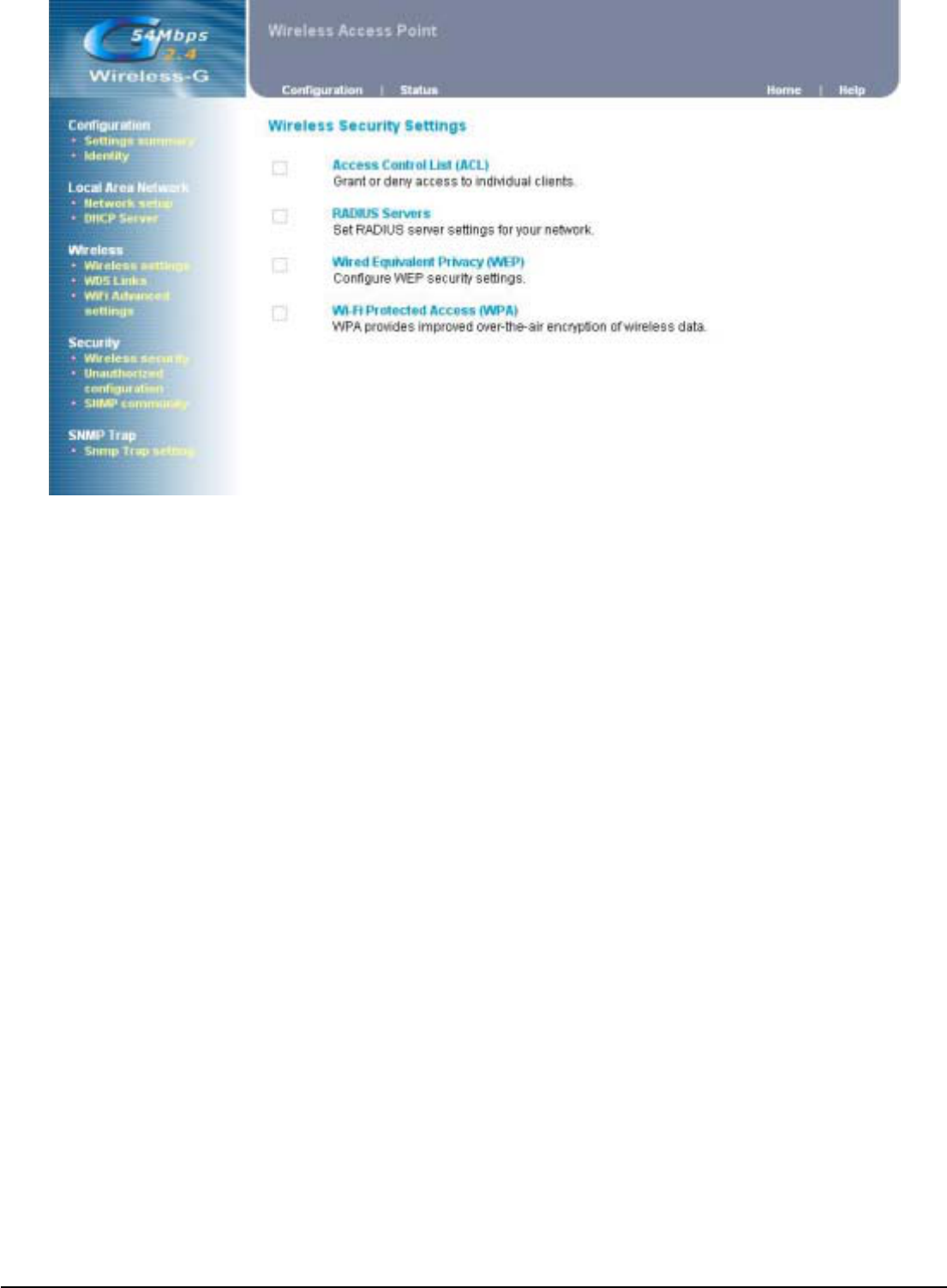

4.4 Security
Wireless Security
The Wireless Security Setting separates 4 items setting. They are included ACL, RADIUS Server,
WEP and WPA.
Access Control List : This function will allow administrator to have access control by enter MAC
address of client stations.
RADIUS Servers : With this option you use a RADIUS server to handle access control.
RADIUS (“Remote Authentication Dial In User Service” is a standard for user authentication. The
RADIUS server contains a database with users and their access rights. When a user wants to use the
Access Point, the Access Point contacts the RADIUS server to see if this is permitted.
To add a RADIUS server:
1. Click Add to add a RADIUS server.
2. In the window that appears, enter the following data:
- IP Address: the IP address of the RADIUS server.
- UDP Port: the UDP port number of the RADIUS server.
- Secret: the password for access to the RADIUS server.
3. Click OK. The server is now added to the list.
You can add more than one RADIUS server. The first server in the list will be used by default, the
second will be used if the first is not available, etc.
To delete a RADIUS server from the list:
1. Click Delete.
2. Select the RADIUS server that you want to remove from the list.
3. Click OK. The list is updated.
Wired Equivalent Privacy (WEP) : select the check box will enable WEP function. WEP security
supports 2 types encrypted format, one is Hexadecimal and the other is ASCII format.
Wi-Fi Protected Access (WPA) : The WPA security pre-shared key supports TKIP and AES
algorithm. TKIP and AES utilize a stronger encryption method and incorporates Message Integrity
Code (MIC) to provide protection against hackers. To use WPA Pre-Shared Key, enter a password in
the WPA Shared Key field between 8 and 63 characters long. You may also enter a Group Key
renewal interval time. You also can using WPA RADIUS to enlaces the wireless security.
User’s Guide 15
User’s Guide 16

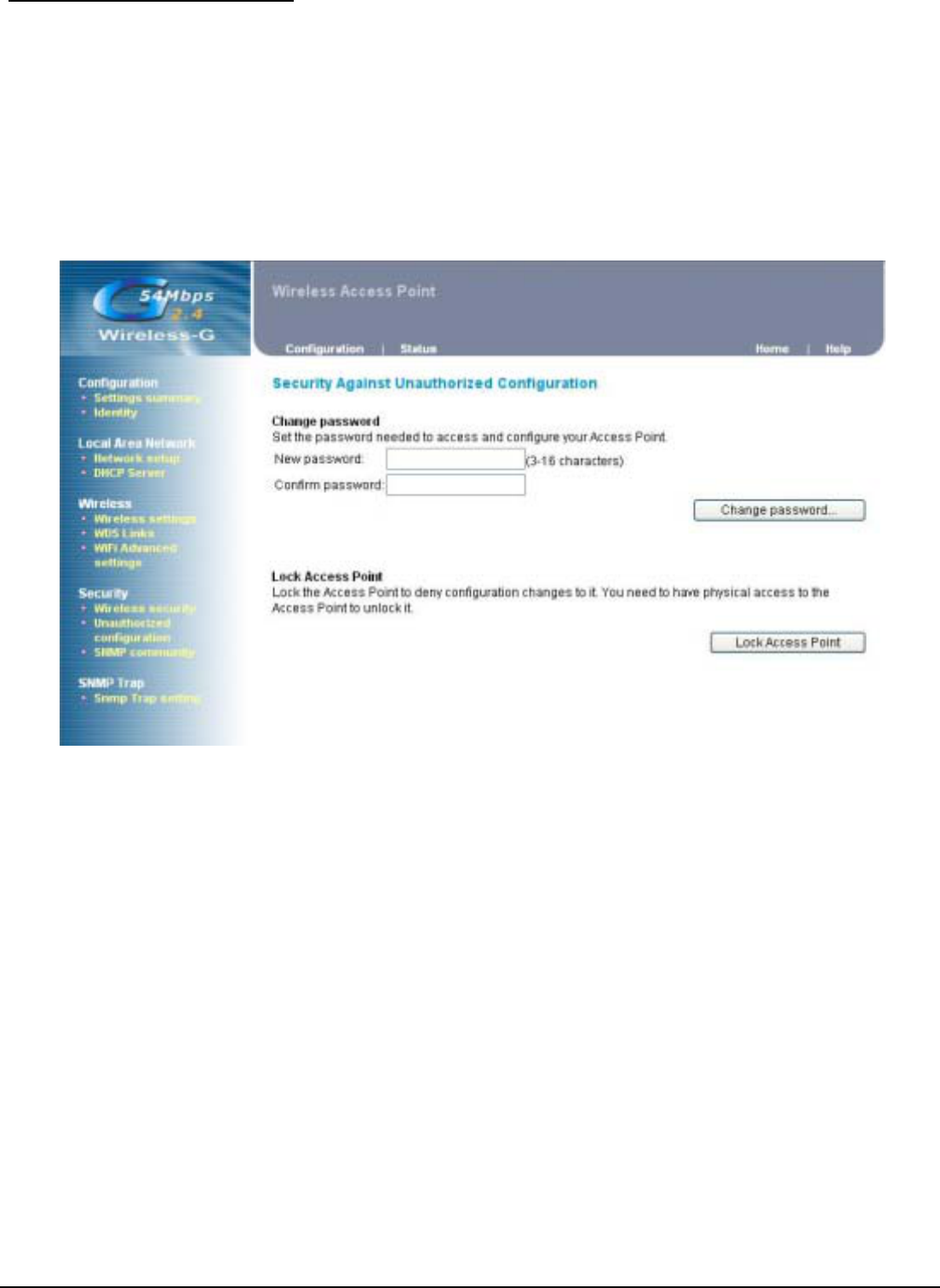

Unauthorized configuration
Changing the password for the AP is as easy as typing the password into the New Password field.
Then, type it again into the Confirm password to confirm.
There is no default password when you first open the configuration pages, after you have configured
these settings, you should set a new password for the AP (using the Password screen). This will
increase security, protecting the AP from unauthorized changes.
Also you can lock this AP to deny any configuration changes. Once you lock this AP, only by hardware
reset can unlock this device.
User’s Guide 17

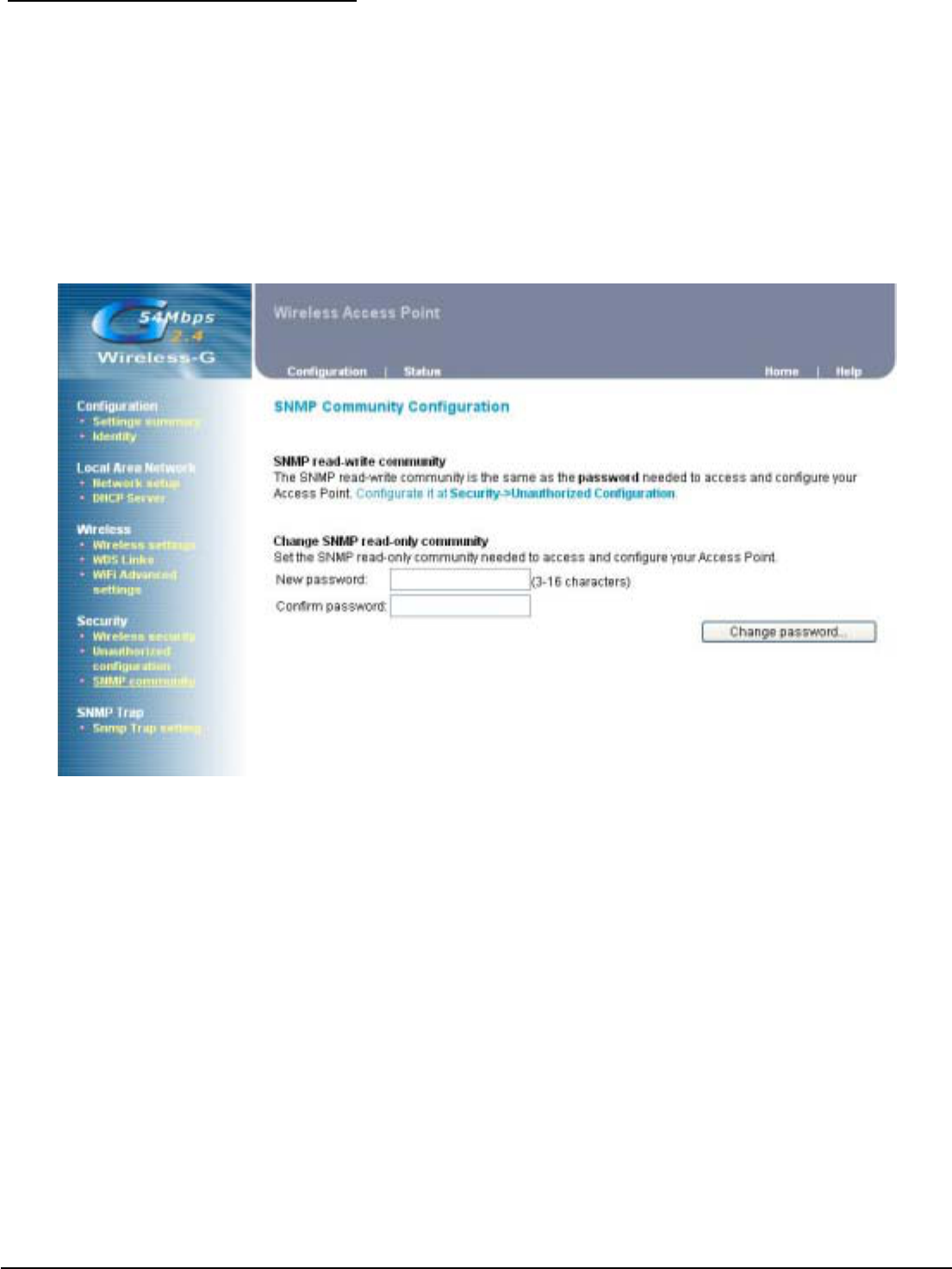

SNMP Community Configuration
In this page you can configure the following settings:
SNMP read-write community
The SNMP read-write community is the same as the password needed to access and configure your
Access Point.
Change SNMP read-only community
Set the SNMP read-only community needed to access and configure your Access Point.
User’s Guide 18
4.5 SNMP Trap Settings
In this page you can configure the SNMP trap Settings
User’s Guide 19

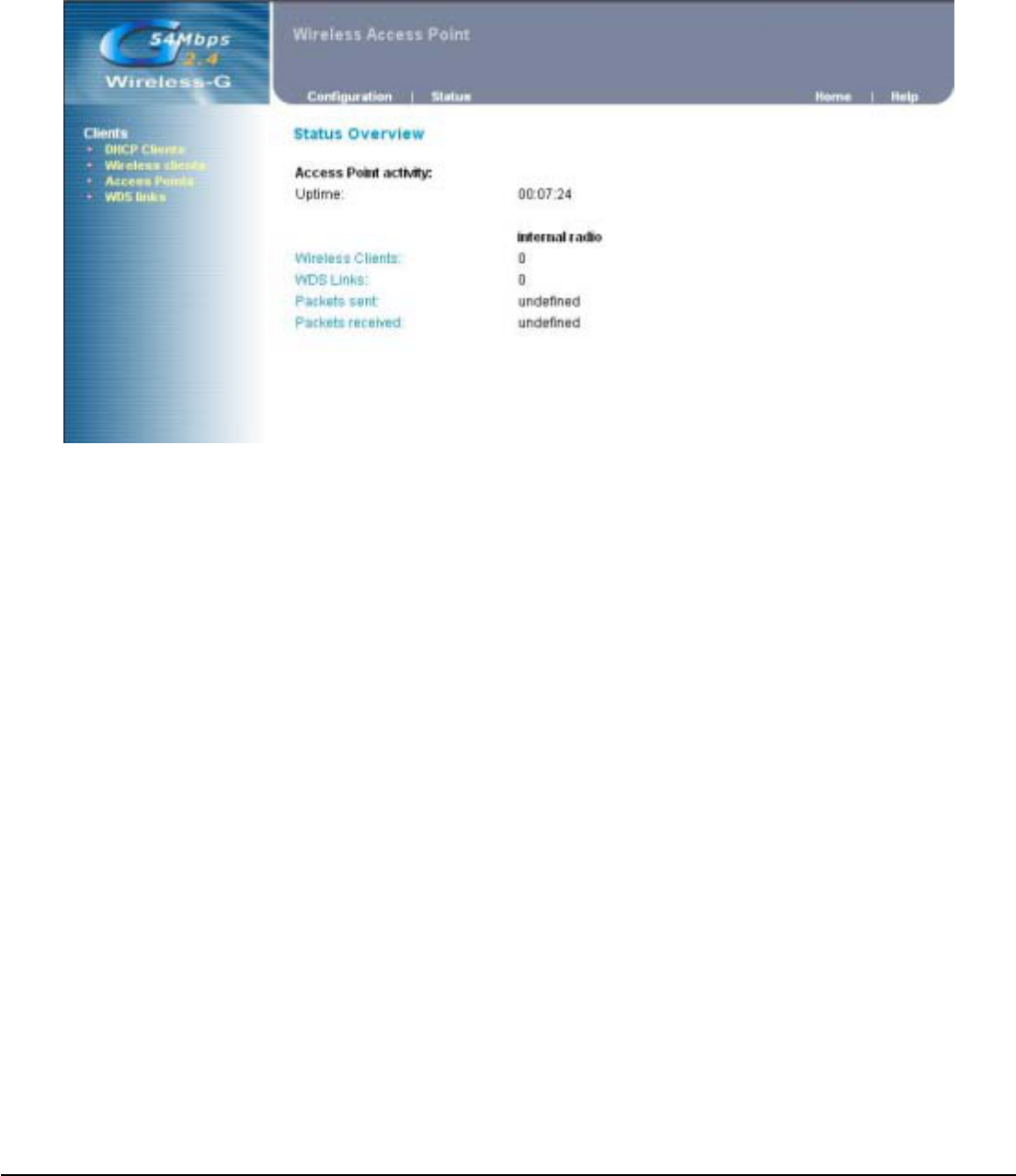

4.6 Status Overview
In this section, we provide a series of statistics about this AP. User can check each status via this
page. For example, if you would like to check how many clients already associated on this AP, you
may click the link on left site “ Wireless clients “ for detail. For other detail information, please tip other
links for reference.
User’s Guide 20
4.7 Upgrade Firmware
Click the Upgrade button to load new firmware onto the AP. If the AP is not experiencing difficulties,
then there is no need to download a more recent firmware version, unless that version has a new
feature that you want to use.
User’s Guide 21
4.8 Reboot Access Point
This function provides AP performing an initial action by web management. Same result could be done
by power off/on this unit.
User’s Guide 22
4.9 Restore Factory Defaults
Click the Reset button to reset all configuration settings to factory default values.
Note: Any settings you have saved will be lost when the default settings are restored.
User’s Guide 23
4.10 Configuration Profile Download
This function provides AP configuration download, user can save current AP settings in one profile for
later restored usage. Using this way can save more time for configure this device again if it has been
reset factory default.
User’s Guide 24
4.11 Configuration Profile Upload
This function provides AP configuration upload, user can use profile that saved before for restore this
unit.
User’s Guide 25
5. Appendix

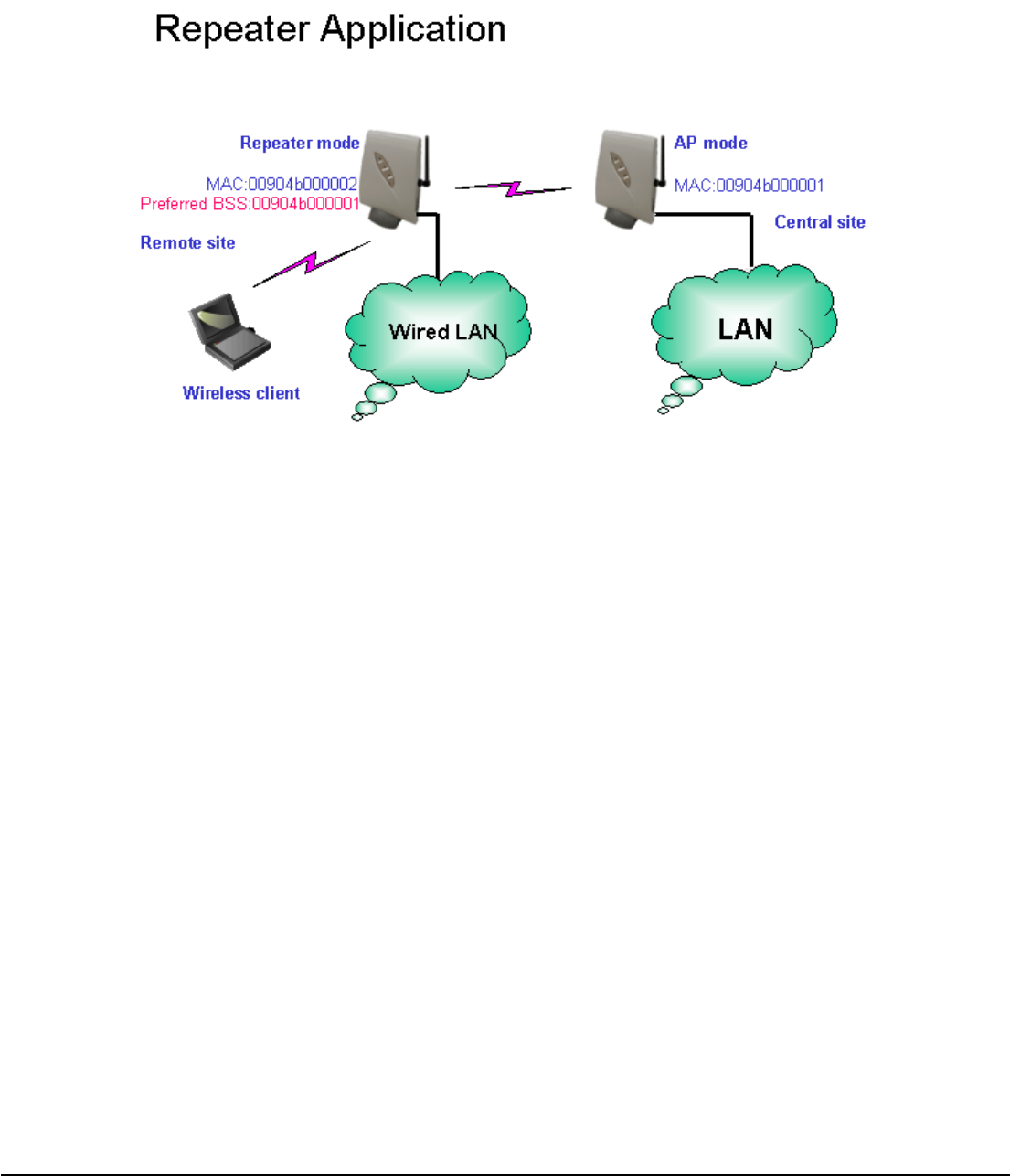

WDS Links Application: Enable WDS function can perform following application
WDS (AP Repeater): This mode allows the AP to keep the AP function role and at the same time
performing a communication with other 802.11g AP to establish and extend your Wireless Network
cover. Please enter the Remote Access Point’s MAC address to enable this feature.
User’s Guide 26
6. Troubleshooting
Basic Functions
My Wireless AP will not turn on. No LED’s light up.
Cause:
The power is not connected.
Resolution:
Connect the power adapter to your AP and plug it into the power outlet.
Note: Only use the power adapter provided with your AP. Using any other adapter may damage your
AP.
LAN Connection Problems I can’t access my AP.
Cause:
The unit is not powered on.
There is not a network connection.
The computer you are using does not have a compatible IP Address.
Resolution:
Make sure your AP is powered on.
Make sure that your computer has a compatible IP Address. Be sure that the IP Address used on
your computer is set to the same subnet as the AP. For example, if the AP is set to 192.168.1.250,
change the IP address of your computer to 192.168.1.15 or another unique IP Address that
corresponds to the 192.168.1.X subnet.
Use the Reset button located on the rear of the AP to revert to the default
settings.
I can’t connect to other computers on my LAN.
Cause:
The IP Addresses of the computers are not set correctly.
Network cables are not connected properly.
Windows network settings are not set correctly.
Resolution:
Make sure that each computer has a unique IP Address. And the IP must be in the same subnet as
the AP.
Make sure that the Link LED is on. If it is not, try a different network cable.
Check each computer for correct network settings.
User’s Guide 27
Wireless Troubleshooting
I can’t access the Wireless AP from a wireless network card
Cause:
Out of range.
IP Address is not set correctly.
Resolution:
Make sure that the Mode, SSID, Channel and encryption settings are set the same on each
wireless adapter.
Make sure that your computer is within range and free from any strong electrical devices that may
cause interference.
Check your IP Address to make sure that it is compatible with the Wireless AP.
