User’s Guide 0
Wireless 802.11N Compact AP/Client
Adapter
WCR-150GN
User’s Manual
Version 1.1
User’s Guide 1
Copyright Statement
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the
prior writing of the publisher.
Jan. 2010
User’s Guide 2
Contents
1. Introduction ................................................................................................................. 3
2. Safety Notification ....................................................................................................... 4
3. Hardware Installation .................................................................................................. 5
4. First Time Configuration .............................................................................................. 8
4.1 Install Wizard ............................................................................................................ 9
4.2 Operation Mode .......................................................................................................15
5. Internet Settings .........................................................................................................16
5.1 Configuring WAN Interface ......................................................................................16
5.2 Configuring LAN Interface ........................................................................................19
5.3 DHCP Client List ......................................................................................................20
6. Wireless Settings .......................................................................................................21
6.1 Access Point & Router mode ...................................................................................21
6.2 AP Client mode ........................................................................................................30
7. Firewall .......................................................................................................................38
7.1 DMZ .........................................................................................................................38
8. Administration ............................................................................................................39
8.1 Management ............................................................................................................39
8.2 Firmware Update .....................................................................................................40
8.3 Settings Management ..............................................................................................41
8.4 Status .......................................................................................................................42
8.5 Statistics ...................................................................................................................43
9. Troubleshooting – Q & A ............................................................................................44
User’s Guide 3
1. Introduction
Thank you for purchasing your WCR-150GN.
This user guide will assist you with the installation procedure.
The package you have received should contain the following items:
WCR-150GN
User Guide CD-ROM
2dBi detachable RSMA Antenna
Universal AC/DC Power Adapter
Combo Cable for RJ-45 Network and Power
Note: if anything is missing, please contact your vendor
User’s Guide 4
2. Safety Notification
Your WCR-150GN should be placed in a safe and secure location. To ensure proper operation, please
keep the unit away from water and other damaging elements. Please read the user manual thoroughly
before you install the device.
The device should only be repaired by authorized and qualified personnel.
Please do not try to open or repair the device yourself.
Do not place the device in a damp or humid location, i.e. a bathroom.
The device should be placed in a sheltered and non-slip location within a temperature range of +5
to +40 Celsius degree.
Please do not expose the device to direct sunlight or other heat sources. The housing and
electronic components may be damaged by direct sunlight or heat sources.
User’s Guide 5
3. Hardware Installation
Front Panel

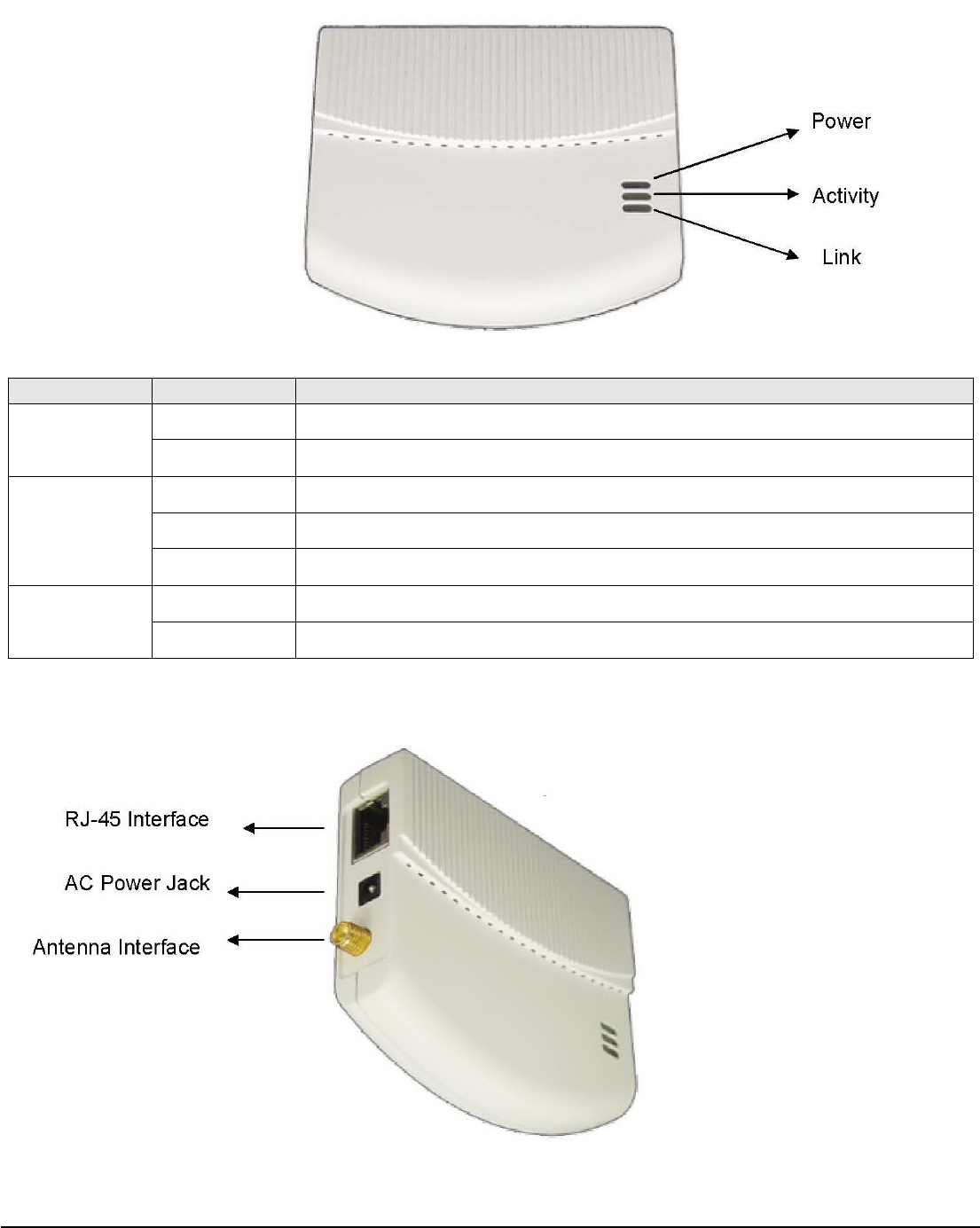

The front panel provides LED status of device. Refer to the following table for the meaning of each
feature.
LED Name Light Status Description
Power On The device is on and ready.
Off The device is off.
Activity
On The device is on and ready.
Off The device is off.
Flashing The device is transmitting or receiving data.
Link On The device is connected to an Ethernet network.
Off The device is off or there is no Ethernet connection.
Side view
User’s Guide 6
Rear Panel

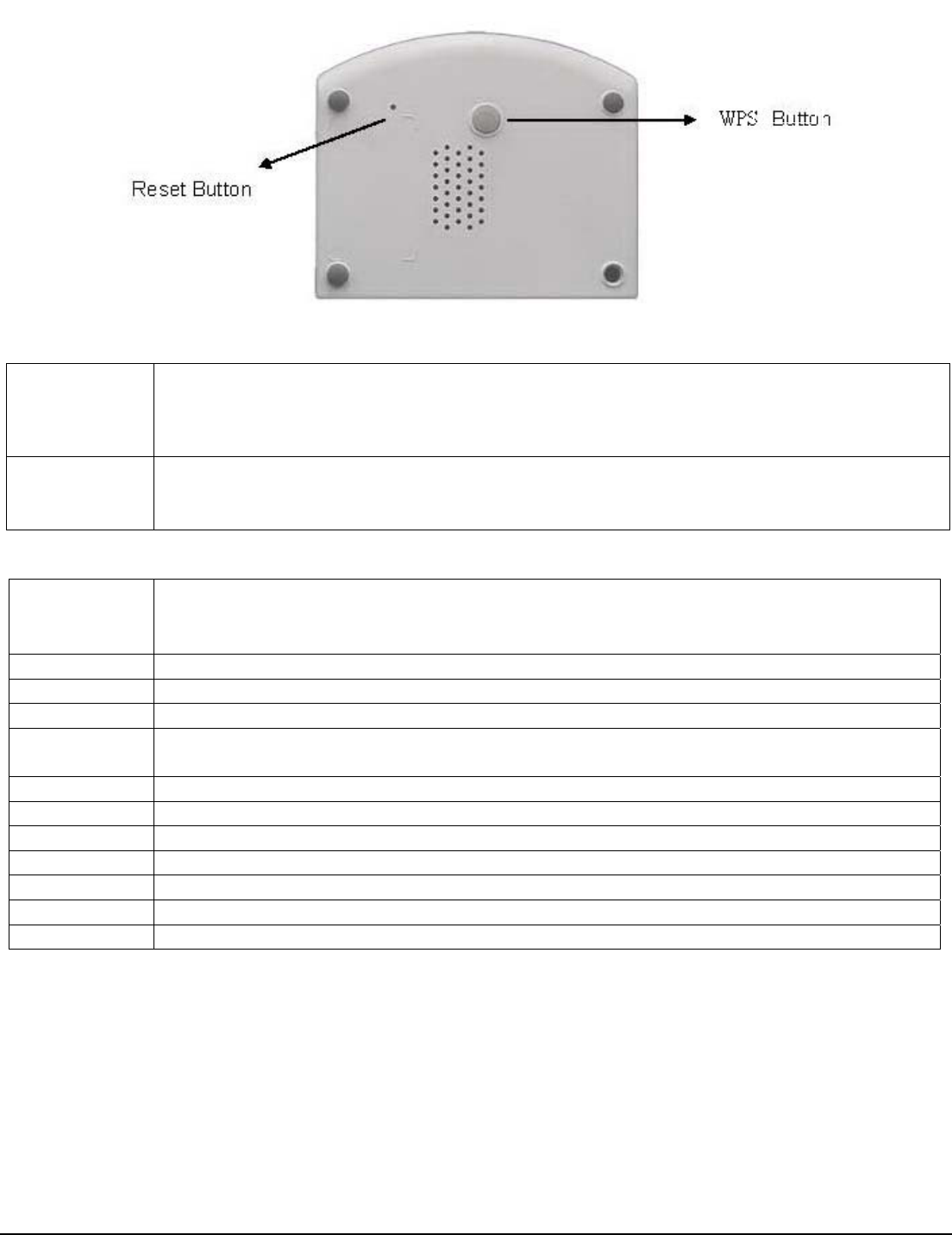

The rear panel features Reset button and WPS Button. Refer to the following table for the meaning
of each feature.
Ethernet RESET/WPS Power
RESET Button The RESET button can restore device to factory default settings by press this button
for approx.
WPS Button Press this button to start WPS function..
Default Settings
Operation
Mode
Access Point
Router
●AP Client
User admin
Password admin
IP Address 192.168.1.250
Router Mode
IP Address 172.32.1.254
Subnet Mask 255.255.255.0
SSID SparkLAN_11N_AP
Channel 6
Mode 11b/g/n mixed mode
Encryption Disabled
WPS Function Disabled
DHCP Server Enabled
User’s Guide 7

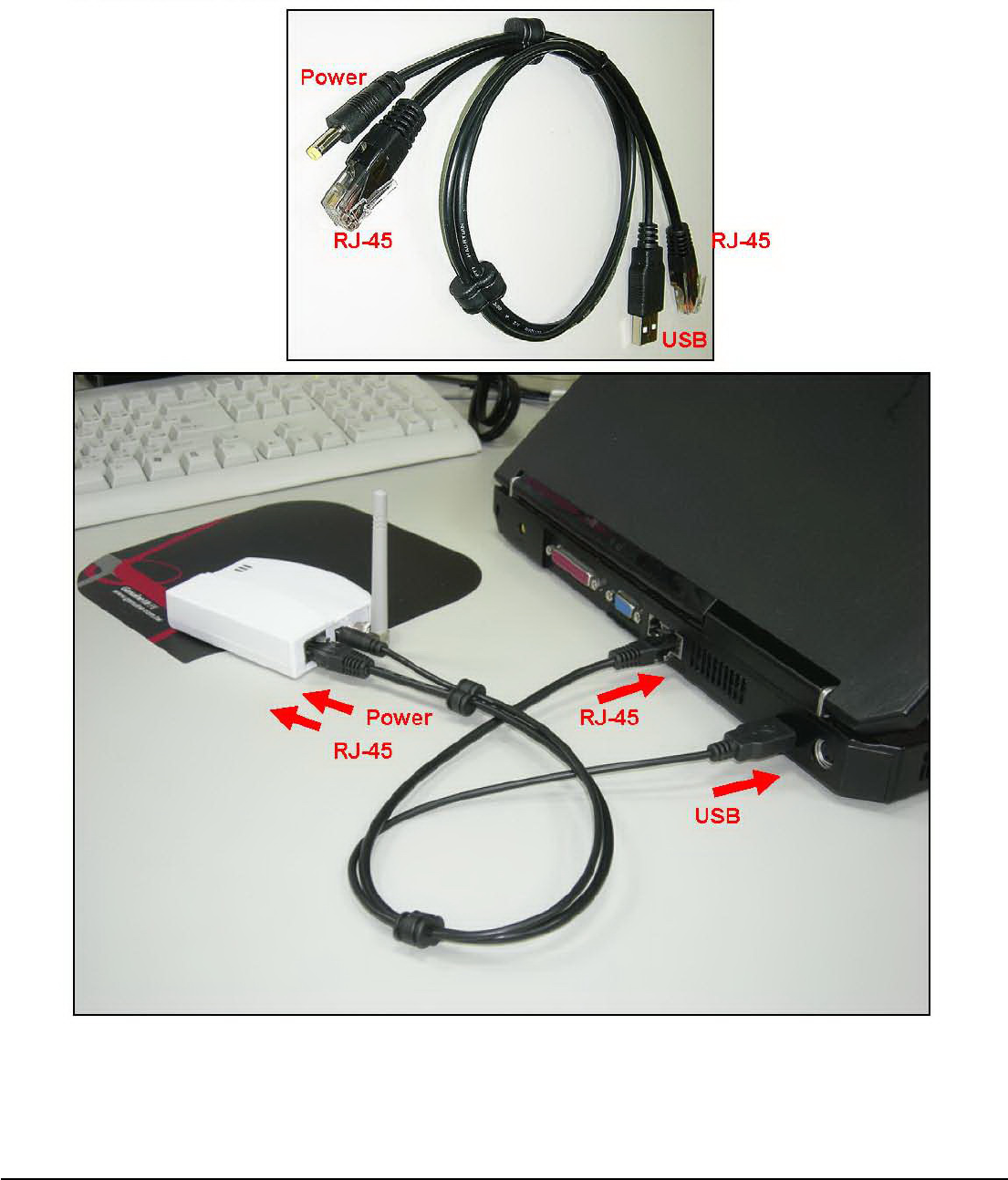

Hardware Installation for Connection to Your local network
1. Connect the antenna with the WCR-150GN.
2. Plug the power connection into the AC-in port on the unit, and plug the other end into a USB
interface of laptop..
3. Connect the WCR-150GN with your PC or notebook via a LAN cable.
User’s Guide 8
4. First Time Configuration
TURN ON POWER SUPPLY
Quick power cycle would cause system corruption. When power on, be careful not to shut down in
about 5 seconds, because data is writing to the flash.
START UP & LOGIN

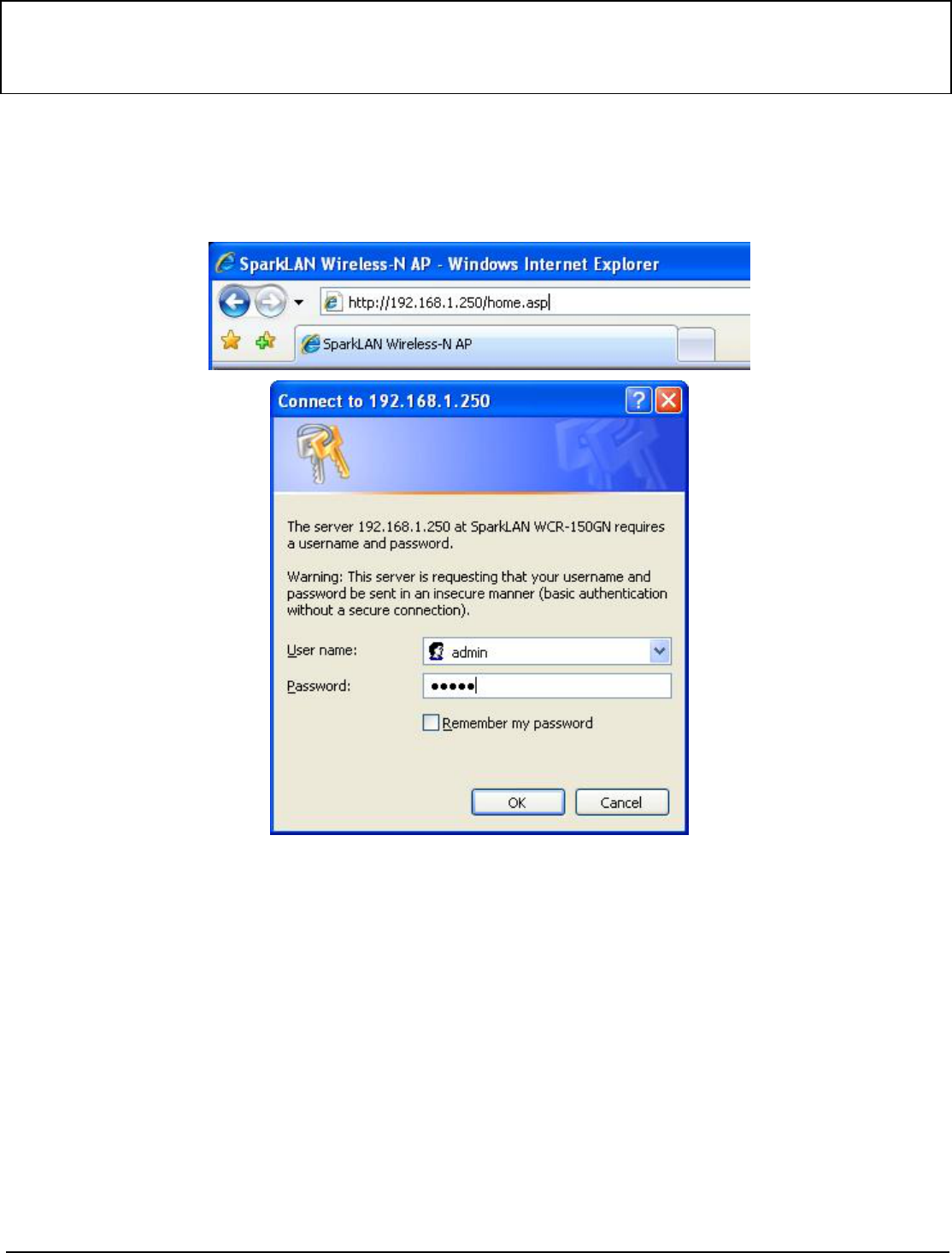

In order to configure the WCR-150GN, you must use web browser and manually input
http://192.168.1.250 into the Address box and press Enter. The Main Page will appear.
The configuration of this device is through web-browser. To access the configuration interfaces,
make sure you are using a computer connected to the same network as the device. The default IP
address of the device is 192.168.1.250, and the subnet-mask is 255.255.255.0. For the first time
configuration, please login with username: admin and password: admin.
Once you have logged-in as administrator, it is a good idea to change the administrator password to
ensure a secure protection to the WCR-150GN. The “Administrators Settings” can let you change the
password.
Once you have input the correct password and logged-in, the screen will change to the Setup page
screen.
User’s Guide 9
4.1 Install Wizard
This following screen contains all of the AP's basic setup functions.
MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER
To change the configuration, use Internet Explorer (IE) or Netscape Communicator to connect the
WEB management 192.168.1.250.
Please go to Quick Setup menu by clicking ‘Install Wizard’ button.
User’s Guide 10

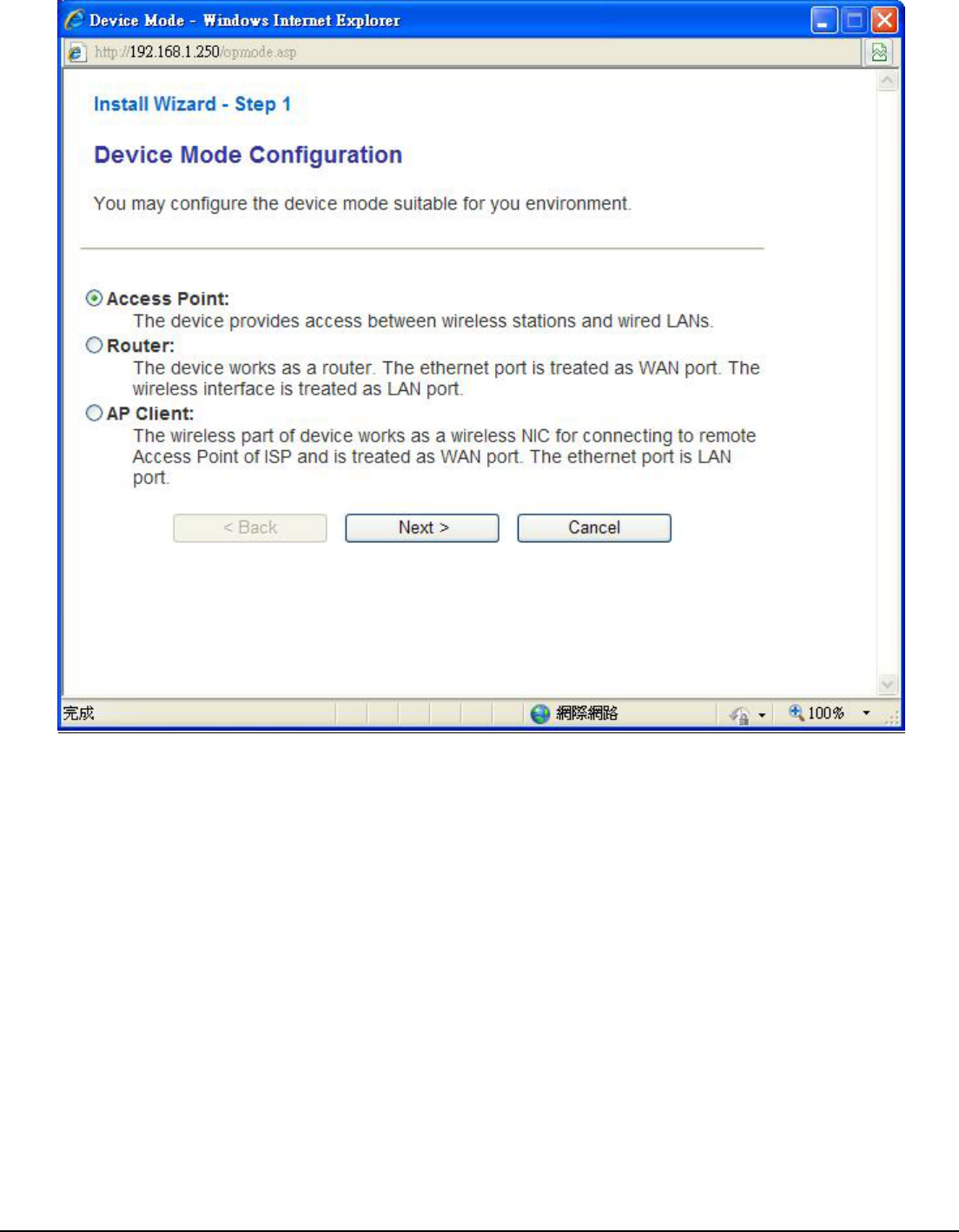

Choose the Device Operation Mode:
You can refer to Chapter 4.2 to choose the mode which you want to perform in this device.
After you finish with all settings, please click ‘Next’ button.
User’s Guide 11
This Step is for Router Mode. If you use Access Point mode, please jump to next Step.

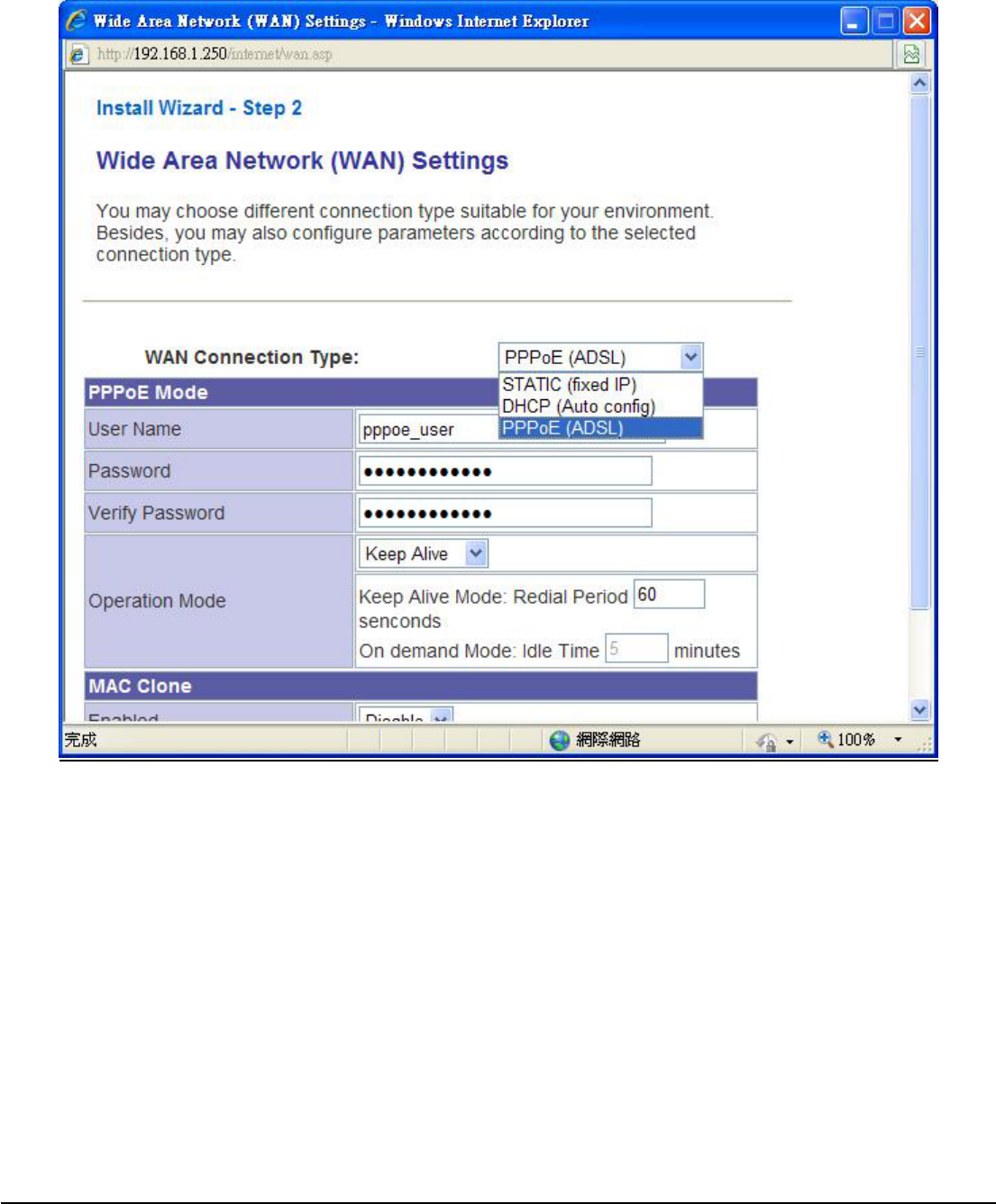

Wide Area Network (WAN) Settings:
Choose the Network Type your ISP provides.
You can refer to Chapter 5.1 to setup the different WAN Type.
After you finish with all settings, please click ‘Next’ button.
User’s Guide 12

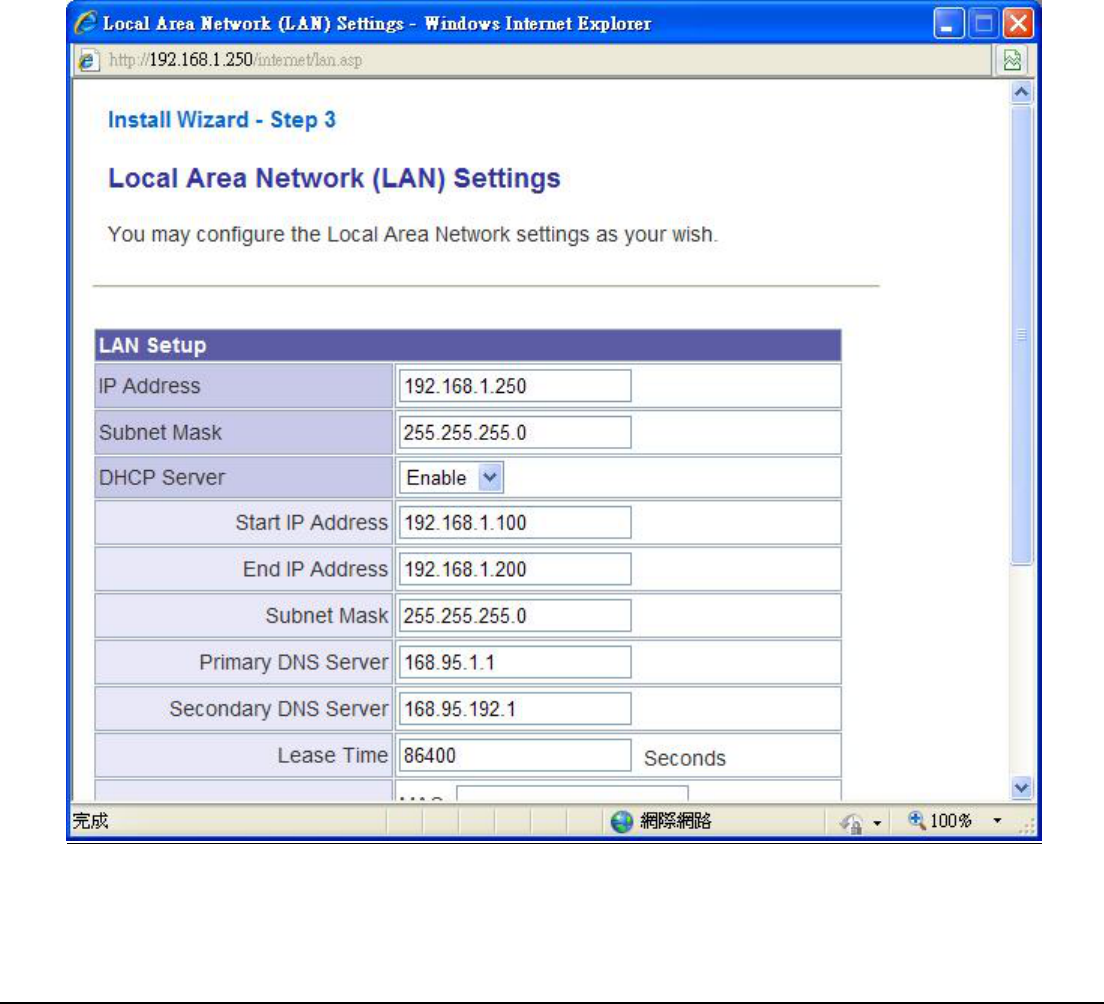

LAN Settings:
IP address:
Please input the IP address of this device.
Subnet Mask:
Please input subnet mask for this network.
DHCP Server:
If you want to activate DHCP server function of this router, select ‘Enabled’, or set it to ‘Disabled’.
Start IP Address:
Please input the start IP address of the IP range.
End IP Address:
Please input the end IP address of the IP range.
Other Settings can refer to Chapter 5.2.
After you finish with all settings, please click ‘Next’ button.
User’s Guide 13

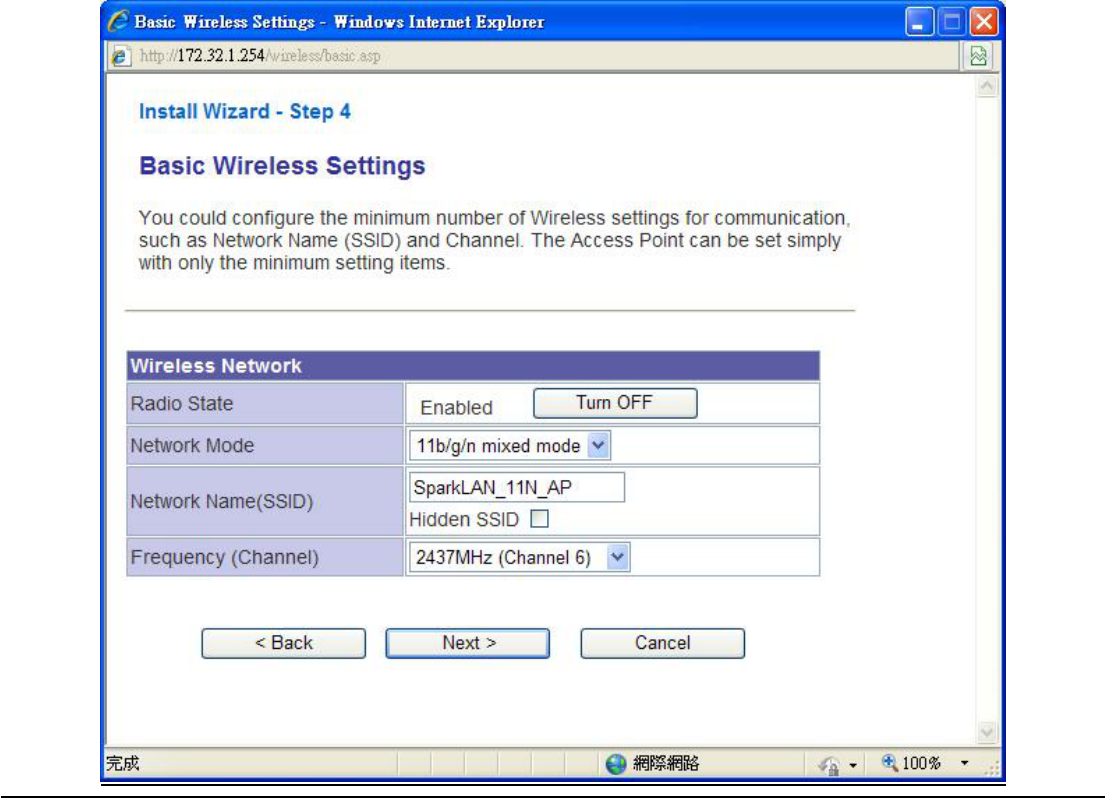

Basic Wireless Settings:
Radio State:
If you want to disable wireless function, please select ‘Turn OFF’.
Network mode:
Please select the radio band you want to use.
Network name (SSID):
This is the name of WCR-150GN. You can type any alphanumerical characters here, maximum 32
characters. SSID is used to identify your own wireless AP from others when there are other wireless
APs in the same area.
Hidden SSID:
This option can decide if the wireless AP will broadcast its own SSID or not. You can hide the SSID
of your WCR-150GN, so only people those who know the SSID of your WCR-150GN can get
connected.
Frequency (Channel):
You can keep the default channel setting ‘AutoSelect’ or select a channel from the dropdown list of
‘Channel’. Select one proper channel which does not employ in your environment can reduce radio
interference possibility.
After you finish with all settings, please click ‘Next’ button.
User’s Guide 14

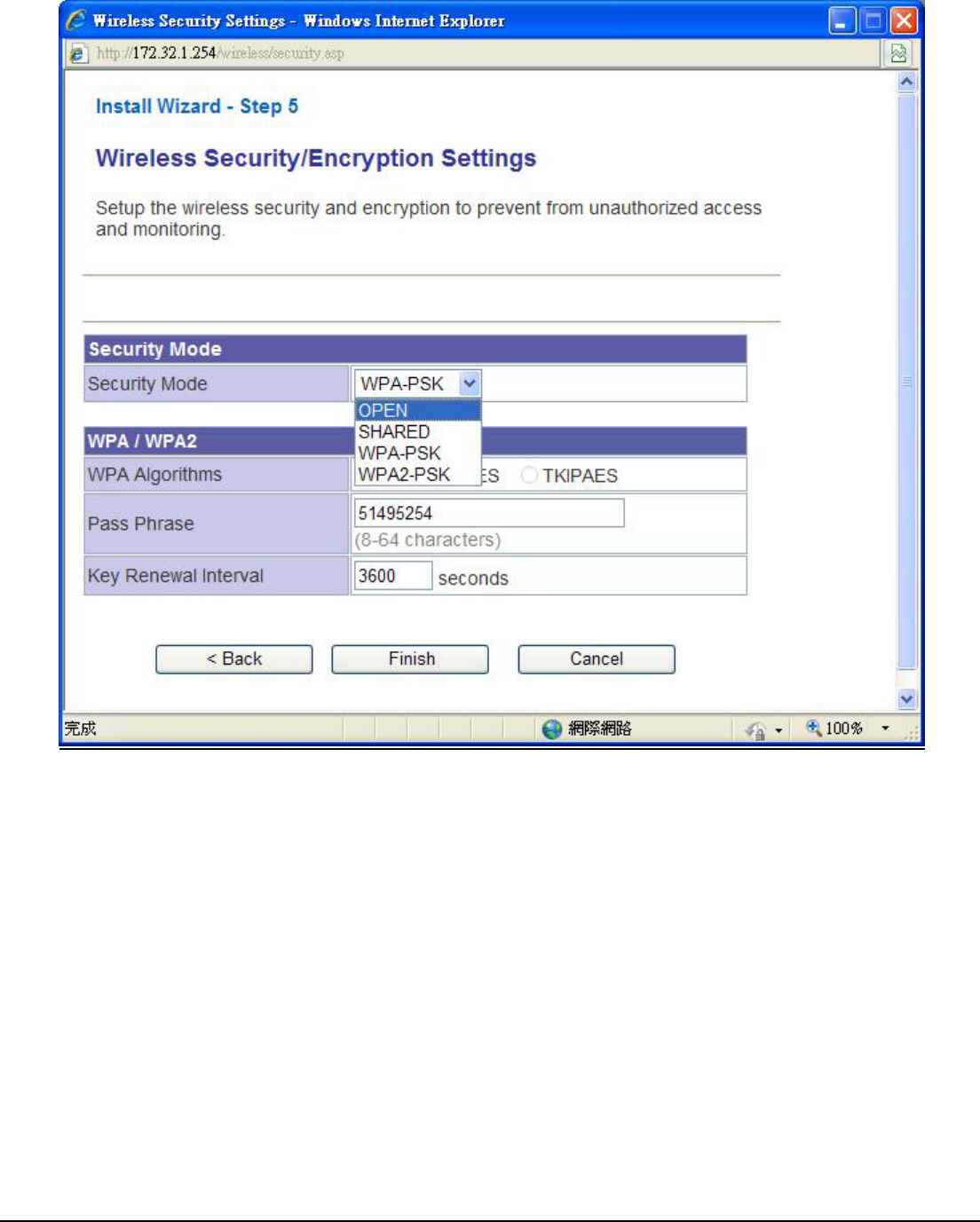

Wireless Security/Encryption Settings:
Please select an encryption method from ‘Security Mode’ dropdown menu, there are four options:
You can refer to Chapter 6.1 for the detail explaining.
After you finish with all settings, please click ‘Finish’ button.
User’s Guide 15
4.2 Operation Mode

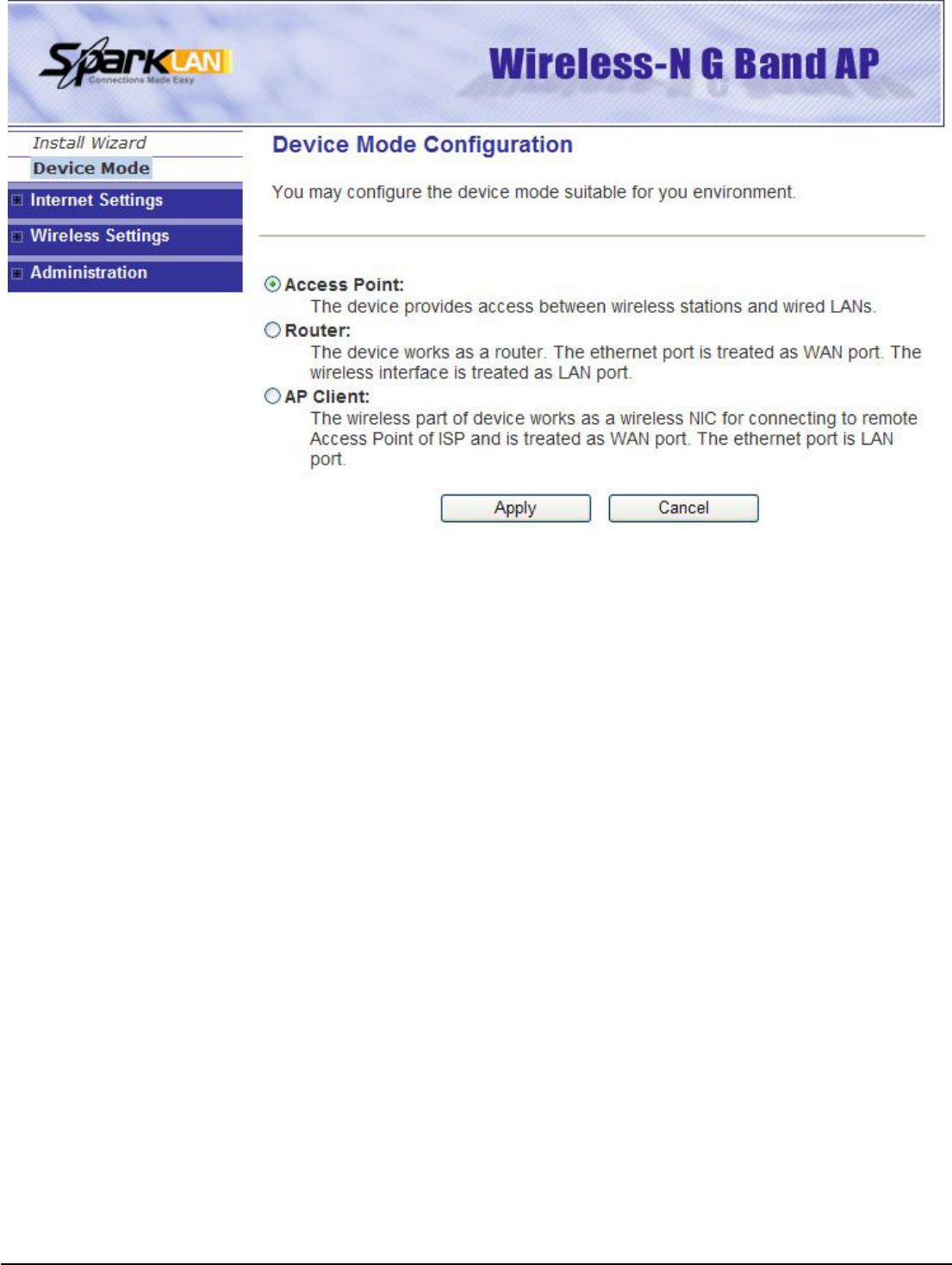

This device supports 3 modes for the IP network. Choose the Device Mode and click the “Apply”
button to change the modes.
Access Point: The device provides access between wireless stations and LANs. In this mode, the
Ethernet port becomes a “LAN” port.
Router: The device provides Router function. Choose this option, the Ethernet port will be acted as
WAN port. You can connect this port to the ADSL, cable modem or other devices for outbound
connection. At the same time, the WLAN interface will be LAN port in this operating mode.
AP Client: In this operating mode, the WLAN interface will be acted as “WAN” and “Wireless
Station (Client mode)” role. In this moment the NAT is enabled. This mode is usually used in WISP
(Wireless Internet Service Provider) application.
User’s Guide 16
5. Internet Settings
5.1 Configuring WAN Interface

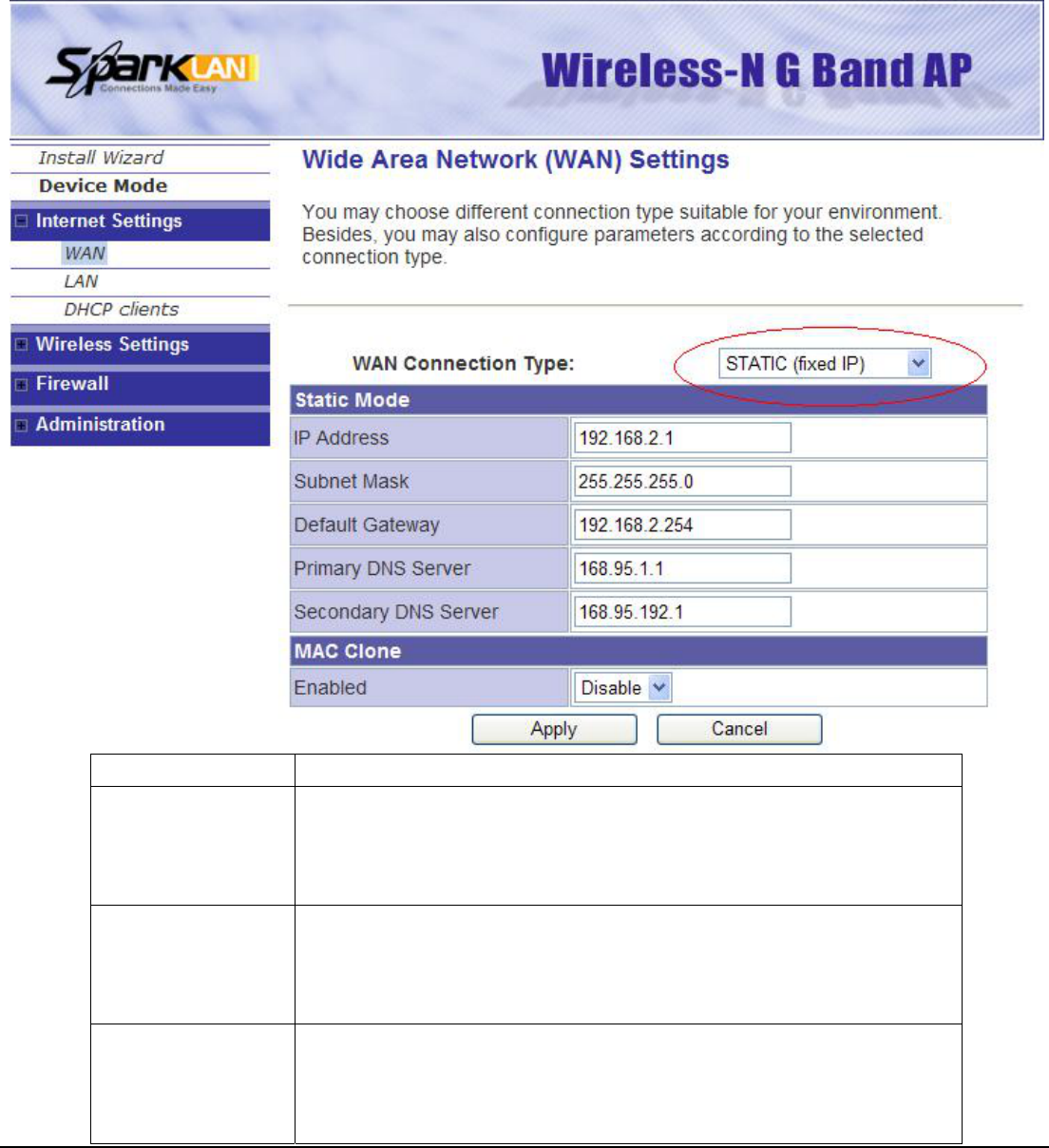

The device supports three kinds of IP configuration for WAN interface, including Static IP, DHCP
Client and PPPoE. You can select one of the WAN Access Types that depend on your ISP required.
The default WAN Access Type is “Static IP”
STATIC: You can get the IP configuration data of Static-IP from your ISP. You will need to fill the
fields of IP address, subnet mask, gateway address, and one of the DNS addresses.
Item Description
IP Address
The Internet Protocol (IP) address of WAN interface provided
by your ISP or MIS. The address will be your network
identifier besides your local network.
Subnet Mask
The number used to identify the IP subnet network,
indicating whether the IP address can be recognized on the
LAN or if it must be reached through a gateway.
Default
Gateway
The IP address of Default Gateway provided by your ISP or
MIS.
Default Gateway is the intermediate network device that has
User’s Guide 17
knowledge of the network IDs of the other networks in the
Wide Area Network, so it can forward the packets to other
gateways until they are delivered to the one connected to the
specified destination.
Primary &
Secondary DNS
The IP addresses of DNS provided by your ISP.
DNS (Domain Name Server) is used to map domain names
to IP addresses. DNS maintain central lists of domain
name/IP addresses and map the domain names in your
Internet requests to other servers on the Internet until the
specified web site is found.
MAC Clone
Clone device MAC address to the specify MAC address
required by your ISP.
Fill my MAC button: You can manually input the MAC
Address for MAC clone, or click the button to input the MAC
Address of the PC which you are using it to configure the
device.

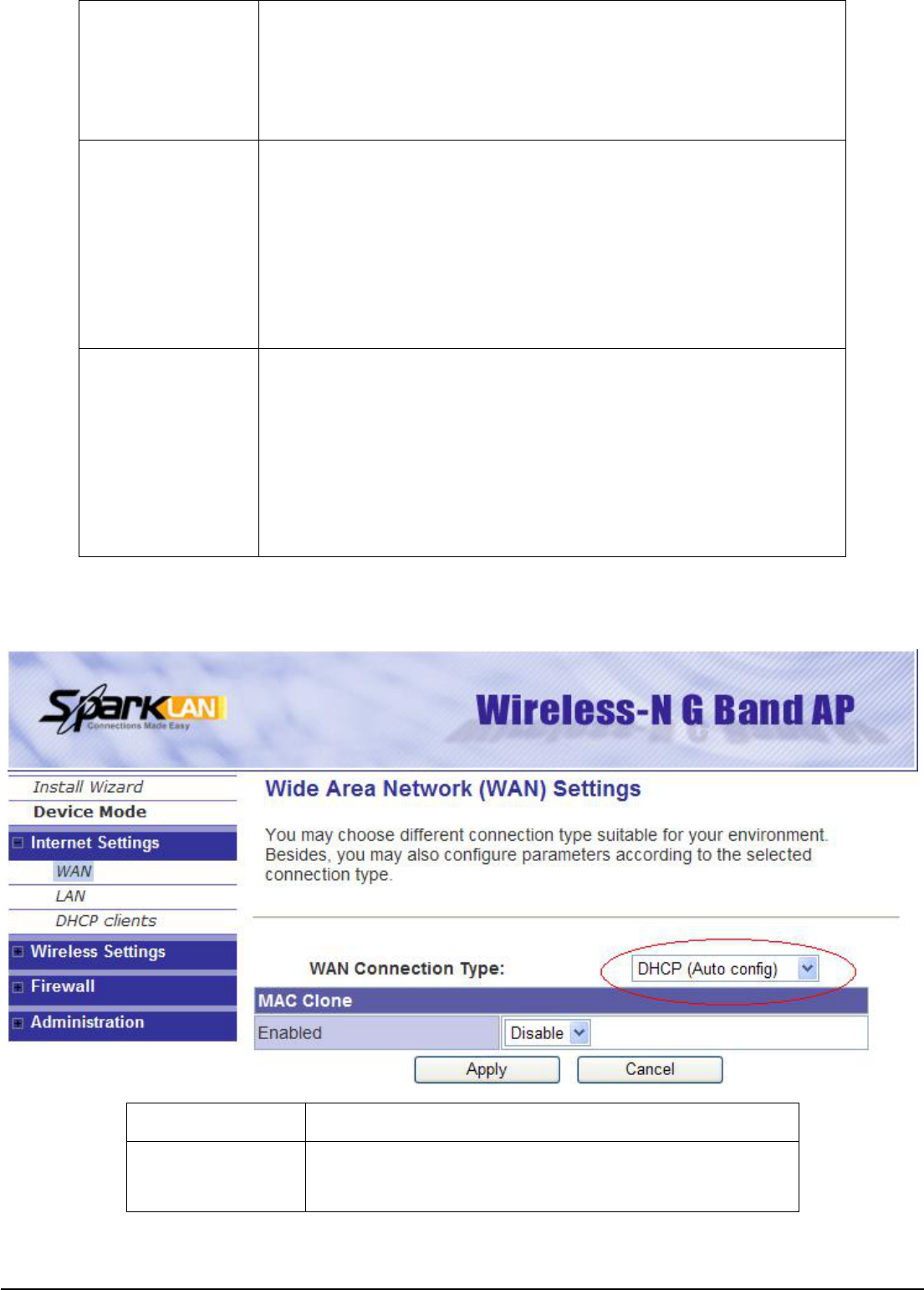

DHCP: All IP configuration data will obtain from the DHCP server when DHCP (Auto config) is
selected.
Item Description
MAC Clone Clone device MAC address to the specify MAC
address required by your ISP
User’s Guide 18
PPPoE: When the PPPoE (Point to Point Protocol over Ethernet) WAN Access Type is selected,
you must fill the fields of User Name, Password provided by your ISP. The IP configuration will be
done when the device successfully authenticates with your ISP.
Item Description
User Name The account is provided by your ISP.
Password/
Verify
Password
The password for your account. It is required to input again in
‘Verify Password’ in order to make sure the input password is
correct.
Operation
Mode
When selecting the “Keep Alive” mode, the redial time can be
set in this field. It will redial the connection to keep it online. The
default value is 60 seconds.
On demand: When selecting the “On Demand” mode, the idle
time can be set in this field. If the network is idle more than this
time, the WAN will disconnect.
MAC Clone Clone device MAC address to the specify MAC address
required by your ISP
User’s Guide 19

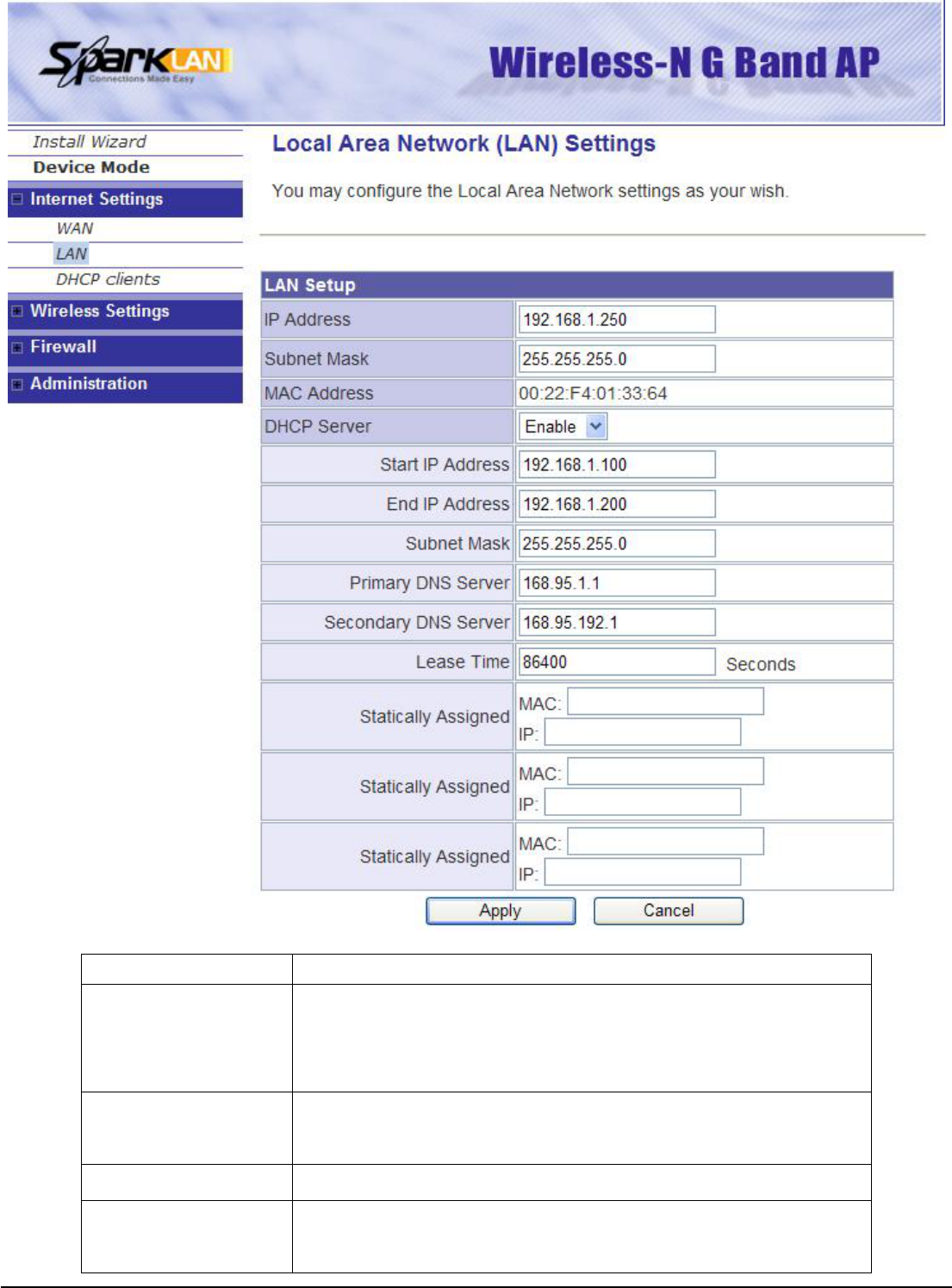

5.2 Configuring LAN Interface
Item Description
IP Address
This is the IP Address for this device. You can login this
device by the IP Address via LAN or WLAN physical
interface and do any necessary configuration change.
Subnet Mask This is the subnet mask for the LAN. The default value is
“255.255.255.0”.
MAC Address The MAC Address of LAN is shown in this field.
DHCP Server You can select to enable DHCP server. When enabling
the DHCP server, you must setup the information below.
User’s Guide 20
Start IP Address This is the first IP Address of the IP pool which the server
assigns the IP Address from.
End IP Address This is the last IP Address of the IP pool.
Subnet mask This is the subnet mask of this domain. The default value
is “255.255.255.0”.
Primary DNS
Server
This is the primary DNS server for the LAN PCs.
Secondary DNS
Server
This is the second DNS server for the LAN PCs.
Lease Time
This is the DHCP lease time. When it is short, the issued
IP address to DHCP clients will be updated frequently. It
is recommended to keep default setting except for
another purpose.
Statically
Assigned
You can manually assign the IP Address to the certain
PCs. Enter the MAC Address and IP Address in the table.

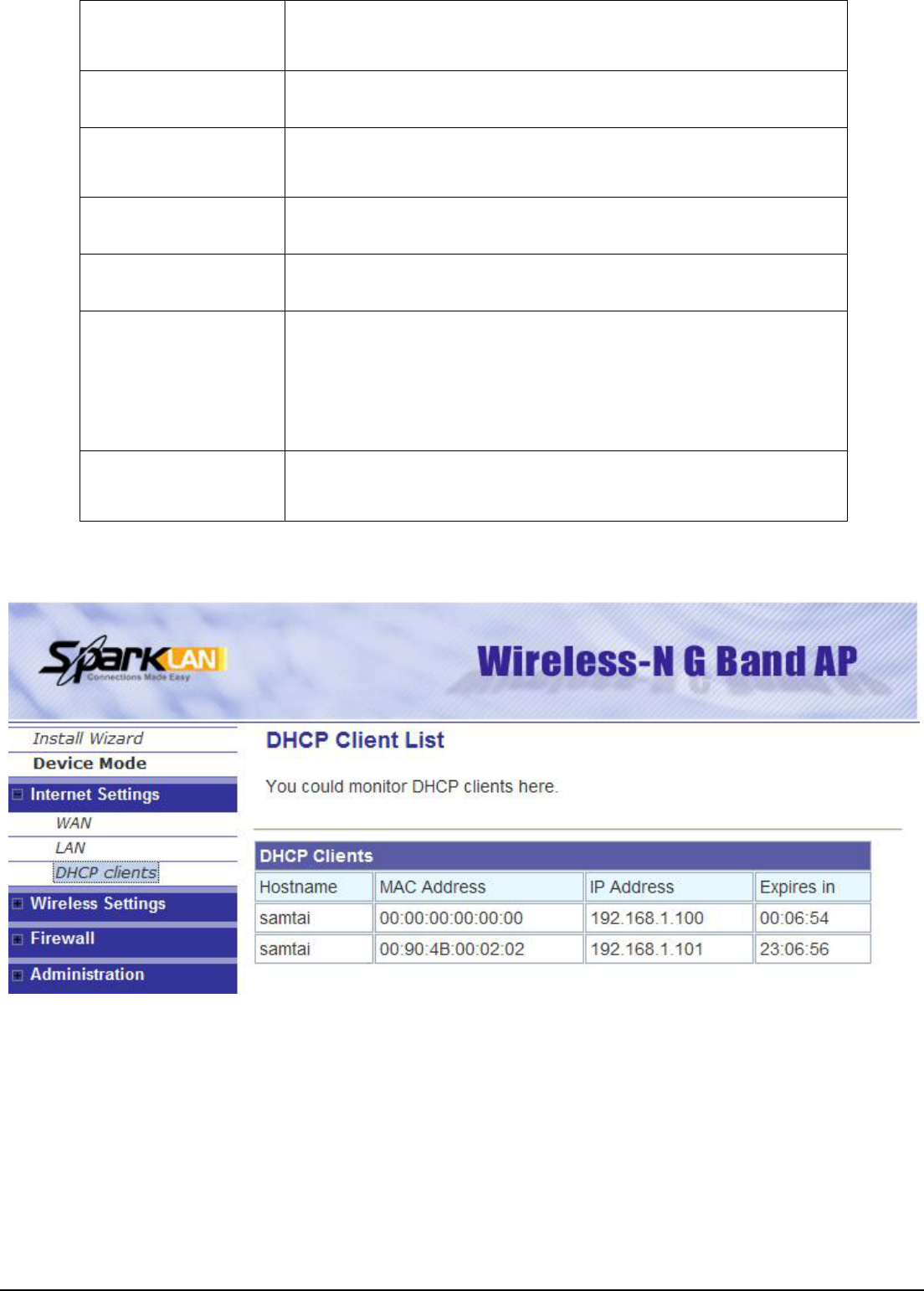

5.3 DHCP Client List
User’s Guide 21
6. Wireless Settings

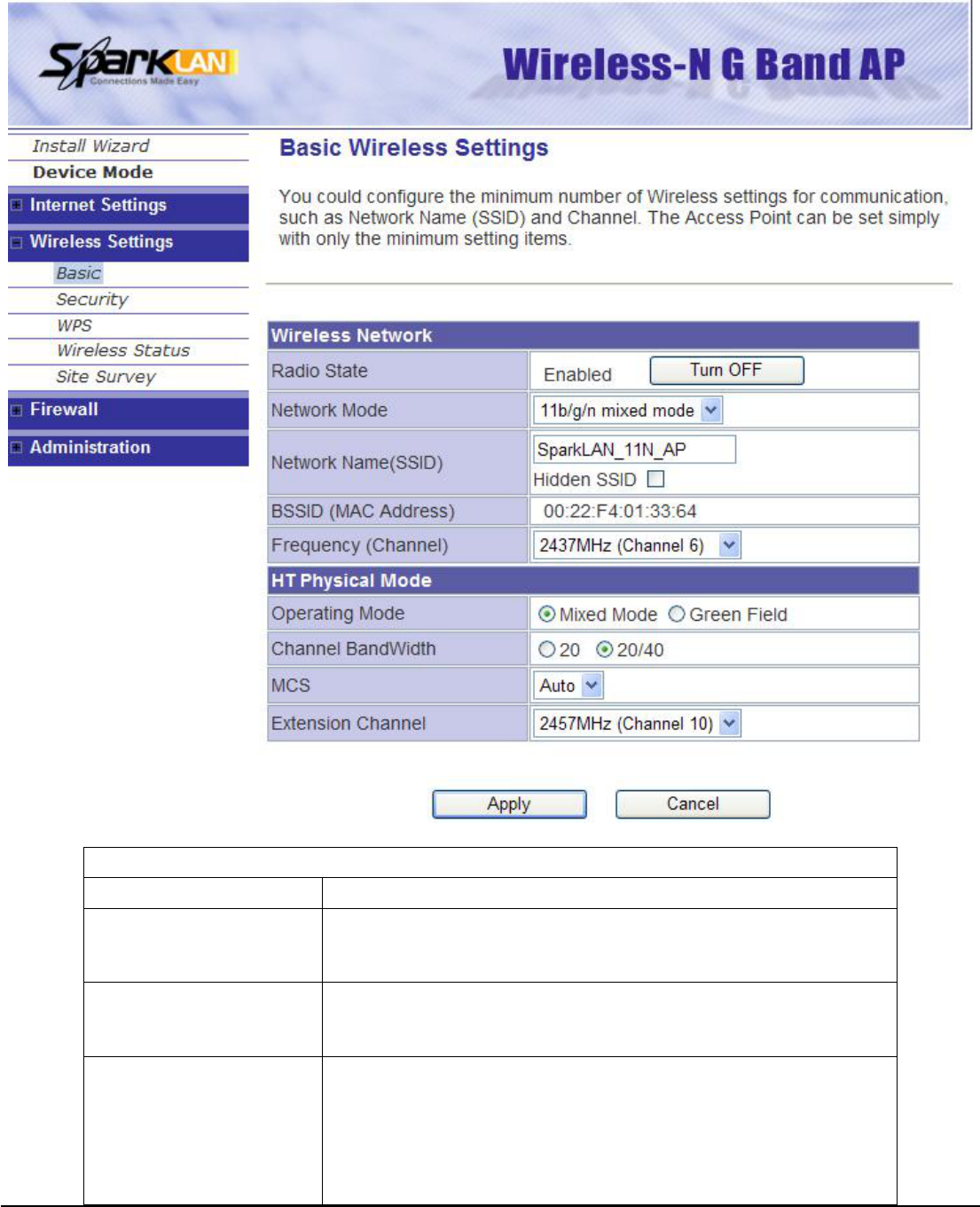

6.1 Access Point & Router mode
Basic
Basic Settings
Item Description
Turn On/Off Click the “Turn OFF” button to turn off the radio. Click it
again to turn on the radio.
Network Mode The available options are “11b/g mixed mode”, “11b
only”, “11g only”, 11n only, and “11b/g/n mixed mode”.
Network Name
(SSID)
The SSID is a unique identifier that wireless networking
devices use in order to establish and maintain wireless
connectivity. Multiple access point/bridges on a network
or sub-network can use the same SSID. SSIDs are
User’s Guide 22
case sensitive and can contain up to 32 alphanumeric
characters.
HT Physical Mode
Item Description
Operating Mode
Default: Mixed (Mixed, Green Field).
Mixed mode: In this mode the device transmits the
packets with preamble compatible legacy (802.11g), so
they can be decoded by legacy devices. The device
receives and decodes both Mixed Mode packets and
legacy packets.
Green Field mode: the device transmits HT packets
without legacy compatible part. But the device receives
and decodes both Green Field and legacy packets.
Channel Bandwidth
This option only works when selecting Band mode in
11b/g/n mixed mode. Click the radio button to choose
between 20 MHz or 20/40MHz. This option affects the
Phy data rate of radio. Please refer to the table below
MCS
It is Modulation Coding Scheme. The available options
are “Auto, 0, 1, …, 32”. It changes the modulation of
this device and effect the maximum Physical data rate.
We recommend “Auto” setting. For the details, please
refer to the table below.
Extension Channel
The “20/40” bandwidth mode uses 5 channels. For
example, selecting channel 7 and you can select 3 or
11 for extension channel. Choose the unused channel
for the extension channel.
The table below shows the relationship among Physical data rate, Bandwidth and Guard Interval.
Data
Rate
Mbps
MCS
Bandwidth = 20MHz Bandwidth = 40MHz
Short Guard
Interval Long Guard
Interval Short
Guard
Interval
Long
Guard
Interval
0 (1S) 7.2 6.5 15 13.5
1 14.4 13 30 27
2 21.7 19.5 45 40.5
3 28.9 26 60 54
4 43.3 39 90 81
5 57.8 52 120 108
6 65 58.5 135 121.5
7 72.2 65 150 135
User’s Guide 23
8 (2S) 14.4 13 30 27
9 28.9 26 60 54
10 43.3 39 90 81
11 57.8 52 120 108
12 86.7 78 180 162
13 115.6 104 240 216
14 130 117 270 243
15 144.4 130 300 270
32 Not
Supported Not
Supported 6.7 6
MCS: Modulation Coding Scheme
MCS=0~7 (1S, One Tx Stream)
MCS=8~15 (2S, Two Tx Stream)
MCS 32: BPSK
User’s Guide 24
Security
Wireless Security/Encryption Settings
Wireless Security/Encryption Settings
Item Description
Security Mode OPEN, SHARED, WPA-PSK, WPA2-PSK
The available options are shown according to the numbers of the BSSID in the Basic Setting. Each
SSID can setup different encryption type. For example, set up 4 BSSID and 4 sets of security
shows on this page:
Security Mode: Choose one as the wireless authentication among the following types: OPEN,
SHARED, WPA-PSK,, WPA2-PSK
Encryption Type: Select one for the encryption type. The options vary depending on the
Authentication mode. The corresponding options shows below.
Authentication Encryption
type Key option
Open/Shared/WEP
Auto WEP Default Key ID, Key content of Key
1/2/3/4
WPA/WPA2-PSK
(Pre-Shared Key)
TKIP, AES,
TKIP/AES
(both)
Pass Phrase (8-64 characters),
Key Renewal Interval
User’s Guide 25
WEP Encryption Setting
Wired Equivalent Privacy (WEP) is implemented in this device to prevent unauthorized access to
your wireless network. The WEP setting must be as same as each client in your wireless network.
Authentication Type: Open, Shared and Auto. When choose “Open” or “Shared”, all of the
clients must select the same authentication to associate this AP. If select “WEP Auto”, the clients
don’t have to use the same “Open” or “Shared” authentication. They can choose any one to
authenticate.
Default Key ID: Select whether the Key ID as the default Key.
Key 1/2/3/4: Select “ASCII” or “Hex” and then type the key in the text field.
64-bit WEP Encryption：64-bit WEP keys are as same as the encryption method of 40-bit WEP.
When input 10 hexadecimal digits (0-9, a-f or A-F) or 5 ACSII chars as the key, it is using 64-bit
WEP encryption.
128-bit WEP Encryption：128-bit WEP keys are as same as the encryption method of 104-bit
WEP. When input 26 hexadecimal digits (0-9, a-f or A-F) or 13 ACSII chars, it is using 128-bit
WEP encryption.
WPA/WPA2-PSK:
Pass Phrase:
Option: Pass Phrase (8-64 characters). This mode requires only an access point and client station
that supports WPA-PSK. The WPA-PSK settings include Key Format, Length and Value. They
must be as same as each wireless client in your wireless network. When Key format is
Passphrase, the key value should have 8-64 ACSII characters.
Key Renewal Interval:
The WPA Algorithm will regroup the key for a period. The default value is 3600 seconds and you
can adjust the time interval.

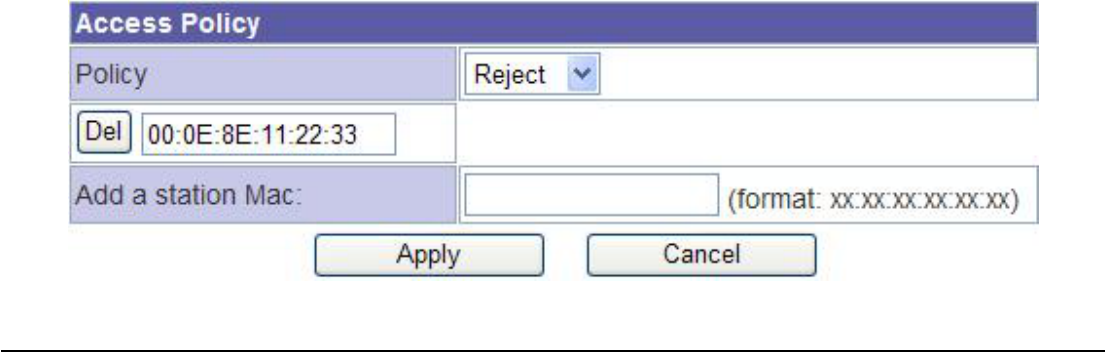

Access Policy
For each SSID, the Access Policy can be selected and setup. The policy includes “Reject” and
“Allow”. The Reject policy rejects the station according to the MAC table in the policy configuration,
and let the other stations to connect. The allow policy performs reversely.
Add a station MAC: Key in station MAC Address in the text field. The valid format of the MAC
Address should be “xx:xx:xx:xx:xx:xx”. The station MAC Address can be found on the label or
configure utility of the WLAN card. For deleting one record in the table, click the “Del” button of the
record.
User’s Guide 26

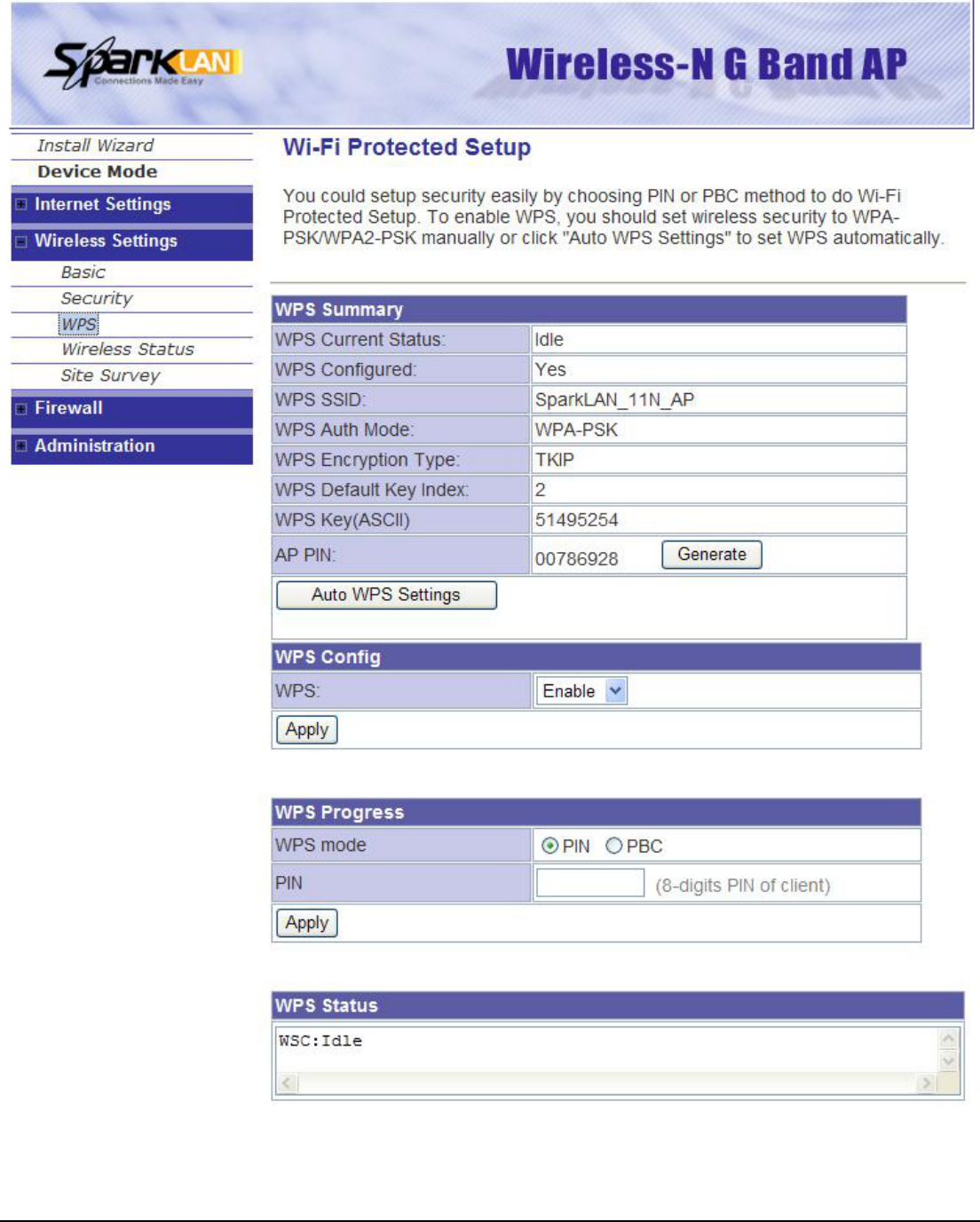

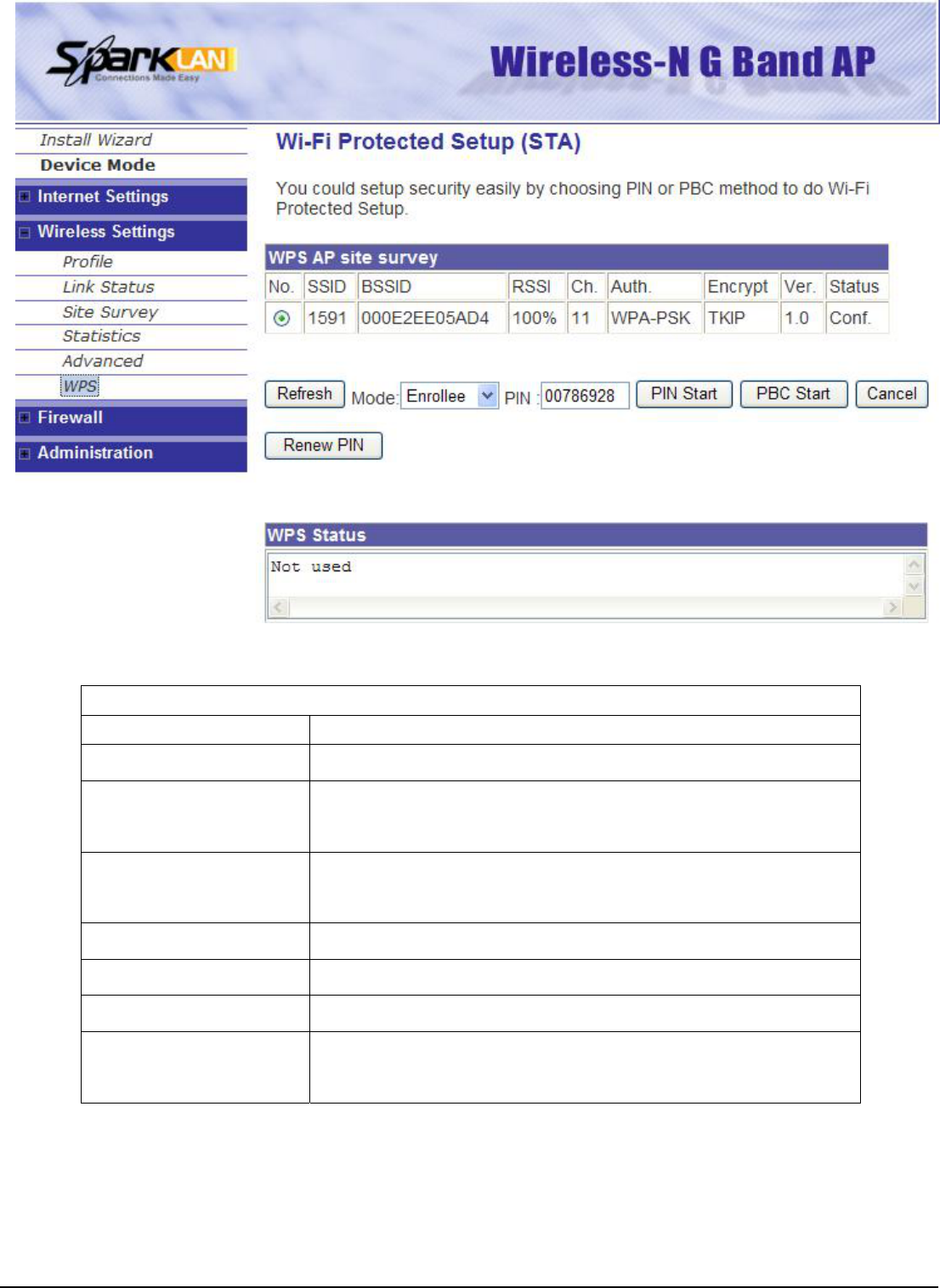

WPS
This function helps to establish the Wi-Fi security. For AP mode, it can be setup one WPS method
including PIN (Personal Identification Number) and PBC (Push Button Communication).
To begin the WPS progress, the WLAN security must be setup first. Please setup one among
WPAPSK, WPA2PSK and then apply WPS setting.
PIN: query the PIN code in the utility of WLAN client, and then enter it in the PIN field. The Wi-Fi
link between the WLAN client and the device should be encrypted.
User’s Guide 27
PBC: Select PBC, and then you can begin the PBC process. Press the PBC button in the rear
panel can also trigger this process. Press or click the PBC button on the WLAN client to finish the
communication. You can press the PBC button on the WLAN client first and then click the PBC
button on this device to establish the encryption.
The options and the information fields are shown below.
WPS Config
Item Description
WPS Through drop-down manual to enable / disable this
function.
WPS Summary
Item Description
WPS Current Status It shows the current status of the WPS process.
WPS Configured It indicated whether the WPS is configured.
WPS SSID It is the SSID of this device.
WPS Auth Mode It indicates the authenticate mode of this device. It can
be configured in the wireless security page.
WPS Encryption
Type
It indicates the encryption method of this device. Like
WPS authentication mode, it can be configured in the
wireless security page.
AP PIN It shows the current PIN number of this device.
Auto WPS Settings Press this button to setup the WPS of this device.
WPS Progress
Item Description
WPS mode Choose to use PIN (Personal Identification Number) or
PBC (Push Button Communication).
PIN Input the 8-digits PIN of client.
User’s Guide 28

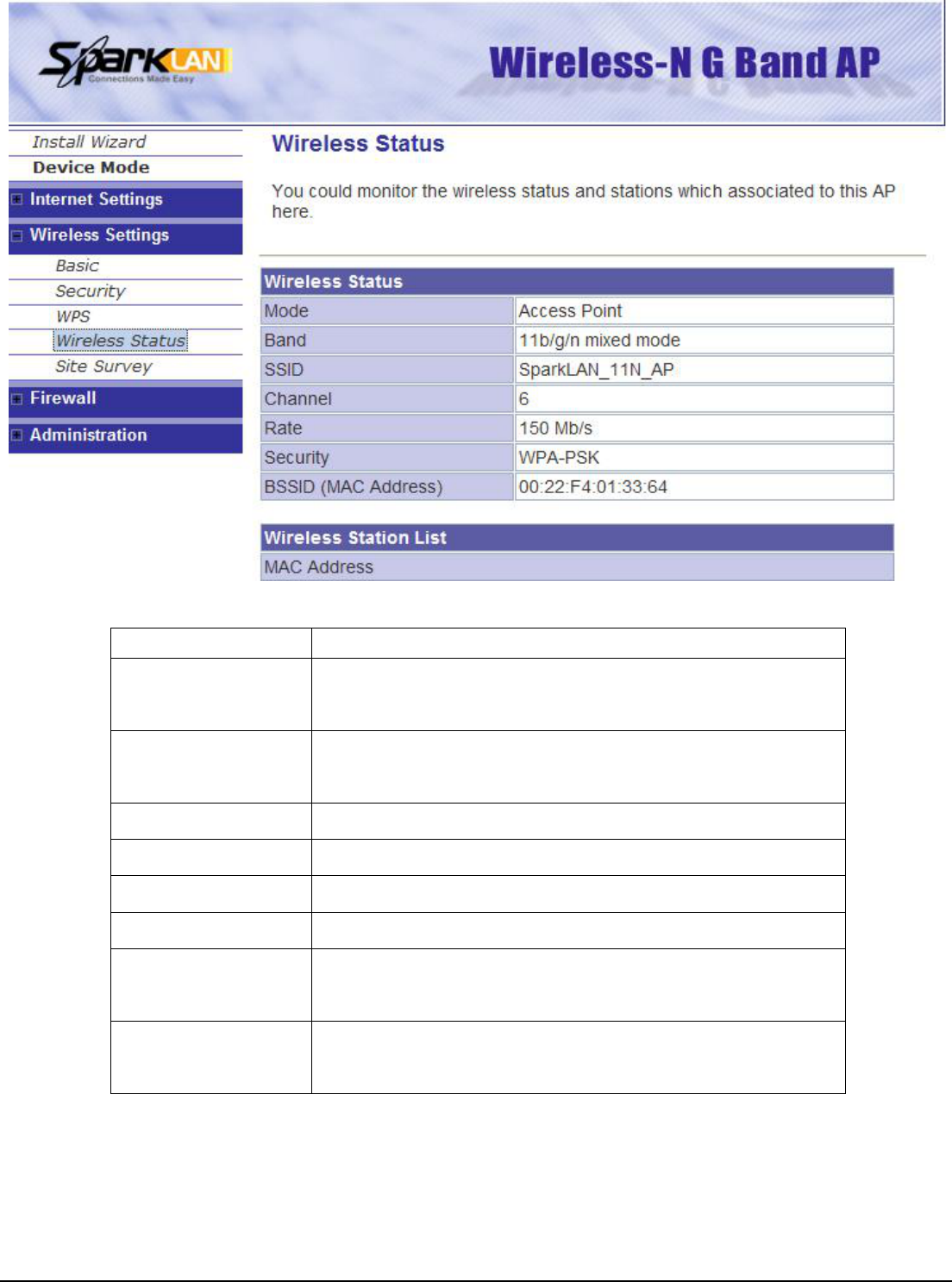

Wireless Status
Item Description
Mode This is the wireless mode for the device such as AP,
client mode.
Band It shows the current radio mode such as “B/G/N”,
“B/G”, “B only” and “G only”.
SSID It shows the SSID of this device.
Channel It shows the current channel of the radio.
Rate The data rate of this device.
Security It indicates the encryption type for the radio.
BSSID It is the current BSSID of the radio. In this device, it
is also the MAC Address of the WLAN interface.
Wireless Station
List
The number of associated WLAN clients show in this
field.
User’s Guide 29

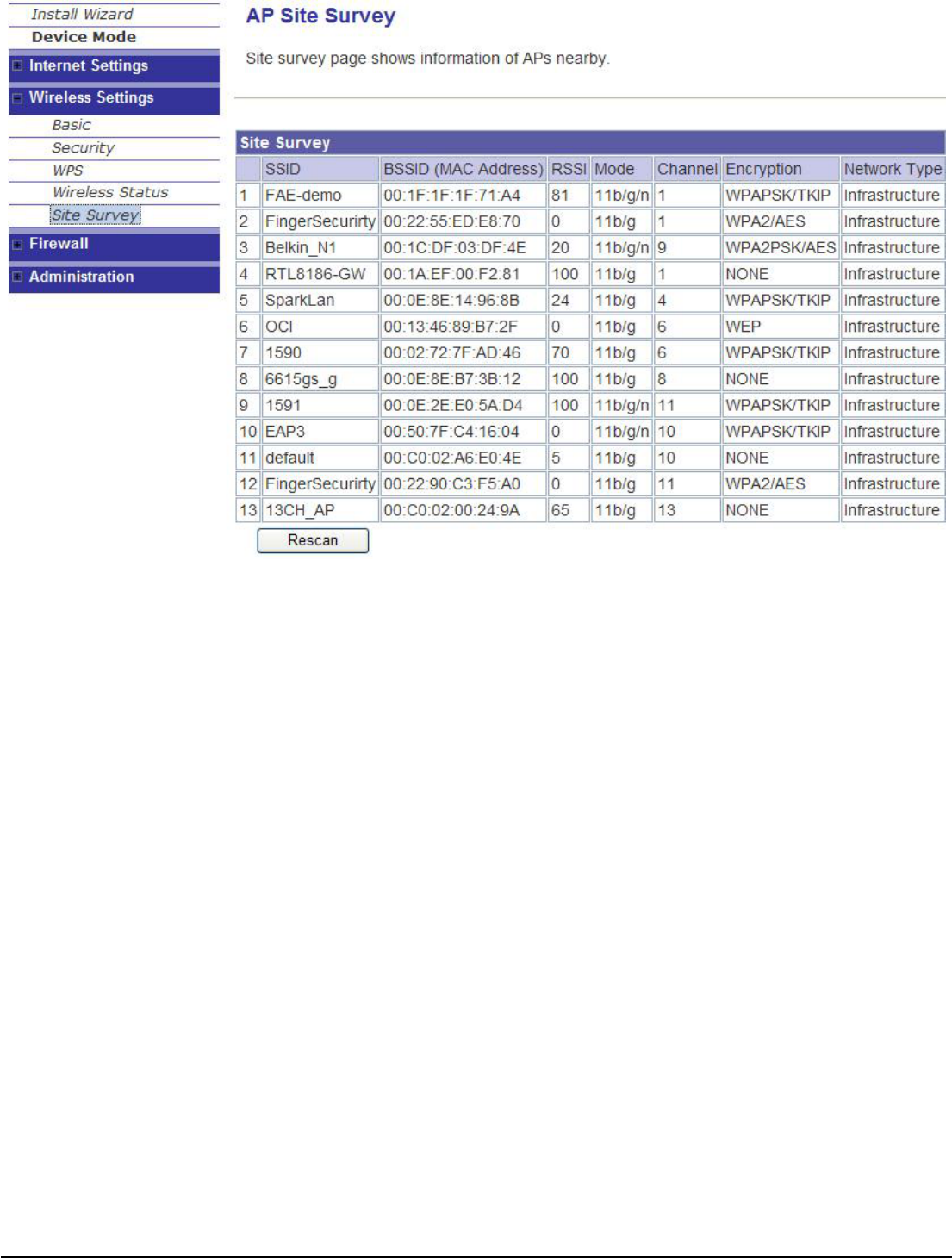

Site Survey
In the Site Survey, the information of nearby APs will be shown here.
User’s Guide 30

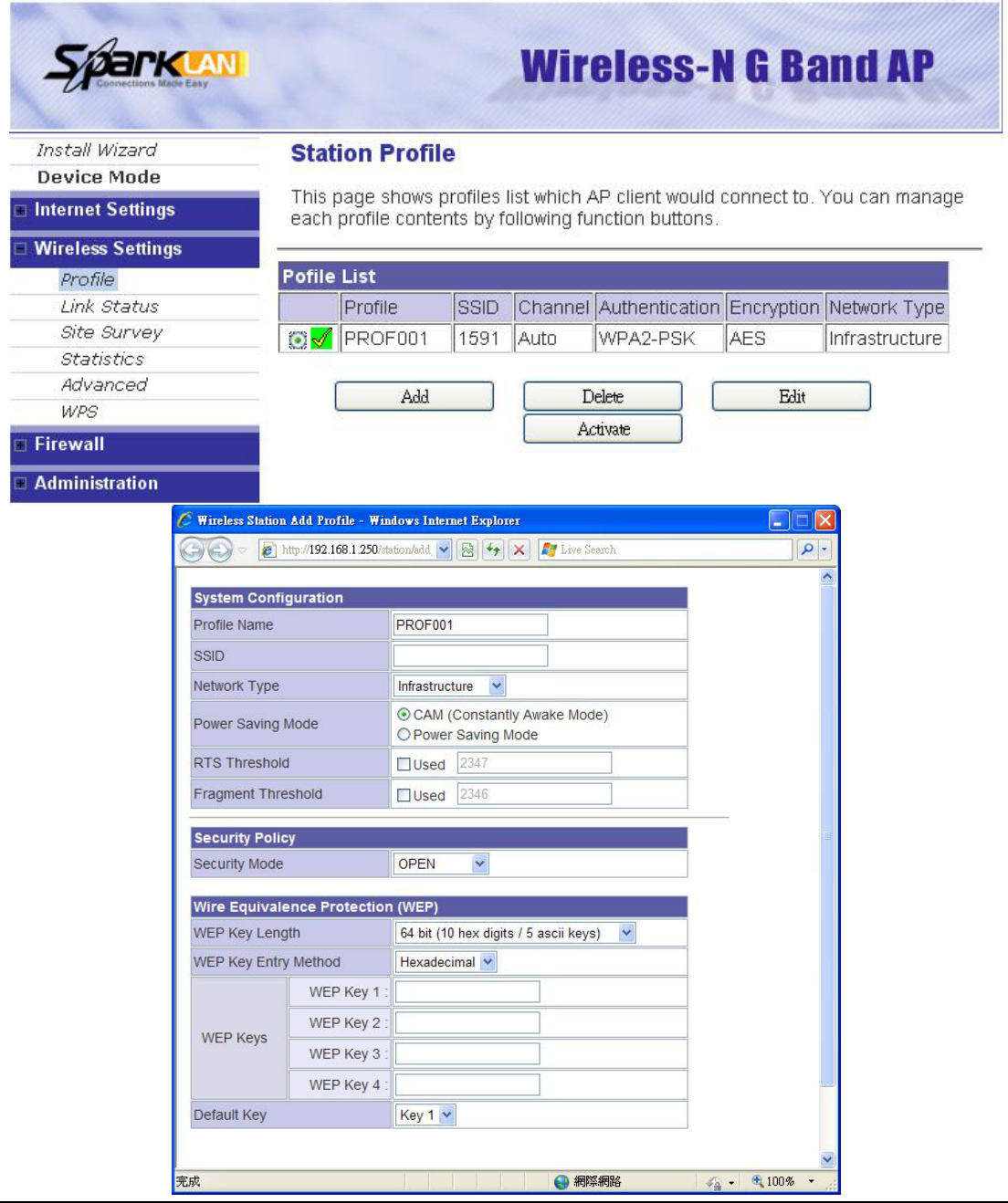

6.2 AP Client mode
Profile
In the first page, you can see the profile list to show the information including Profile name, SSID,
Network Type, Power Saving Mode, RTS Threshold, Fragment Threshold. Use four buttons to
manage the profile list. The “Add” button is to add a new profile. The “Delete” button is to delete
the selected profile. The “Edit” button is to edit the selected profile. The “Activate” button is to
enable the selected button, so this device will associate to the AP according to the profile.
User’s Guide 31
System Configuration
Item Description
Profile Name Enter your profile name.
SSID Enter the SSID of the AP or Ad Hoc network.
Network Type Choose one between “802.11Ad Hoc” and
Infrastructure.
Power Saving Mode
For the Infrastructure network, this device can be setup
to CAM (Constantly Awake Mode) or Power Saving
Mode.
RTS Threshold Check the box to setup the RTS Threshold. The default
value is 2347 and the available range is from 0 to 2432.
Fragment Threshold
Check the box to setup the Fragment Threshold. The
default value is 2346 and the available range is from
256 to 2432.
Security Policy
Item Description
Security Mode
Please choose the encryption method. The available
options are OPEN, SHARED, WPA-Personal and
WPA2-Personal.
Wire Equivalence Protection (WEP)
Item Description
WEP Key Length Choose to use 64bit or 128bit length of key.
WEP Key Entry
Method
Select the key type. The available options are ASCII
Text or Hexadecimal.
WEP Keys For WEP key, please input the key1-4. The key text and
the length must match the above settings.
Default Key Select the default Tx WEP key.
User’s Guide 32

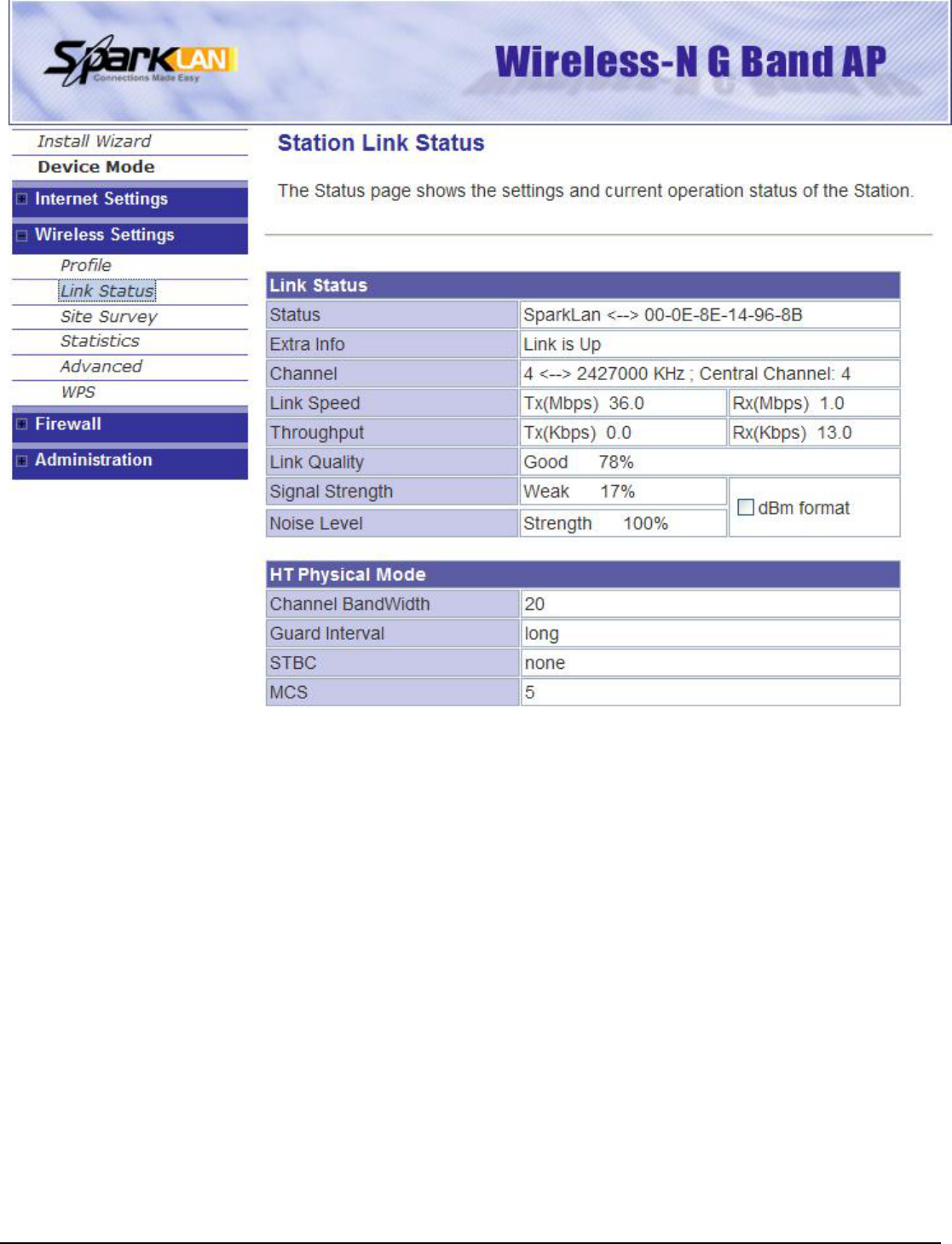

Link Status
The status of the radio shows in this field.
User’s Guide 33

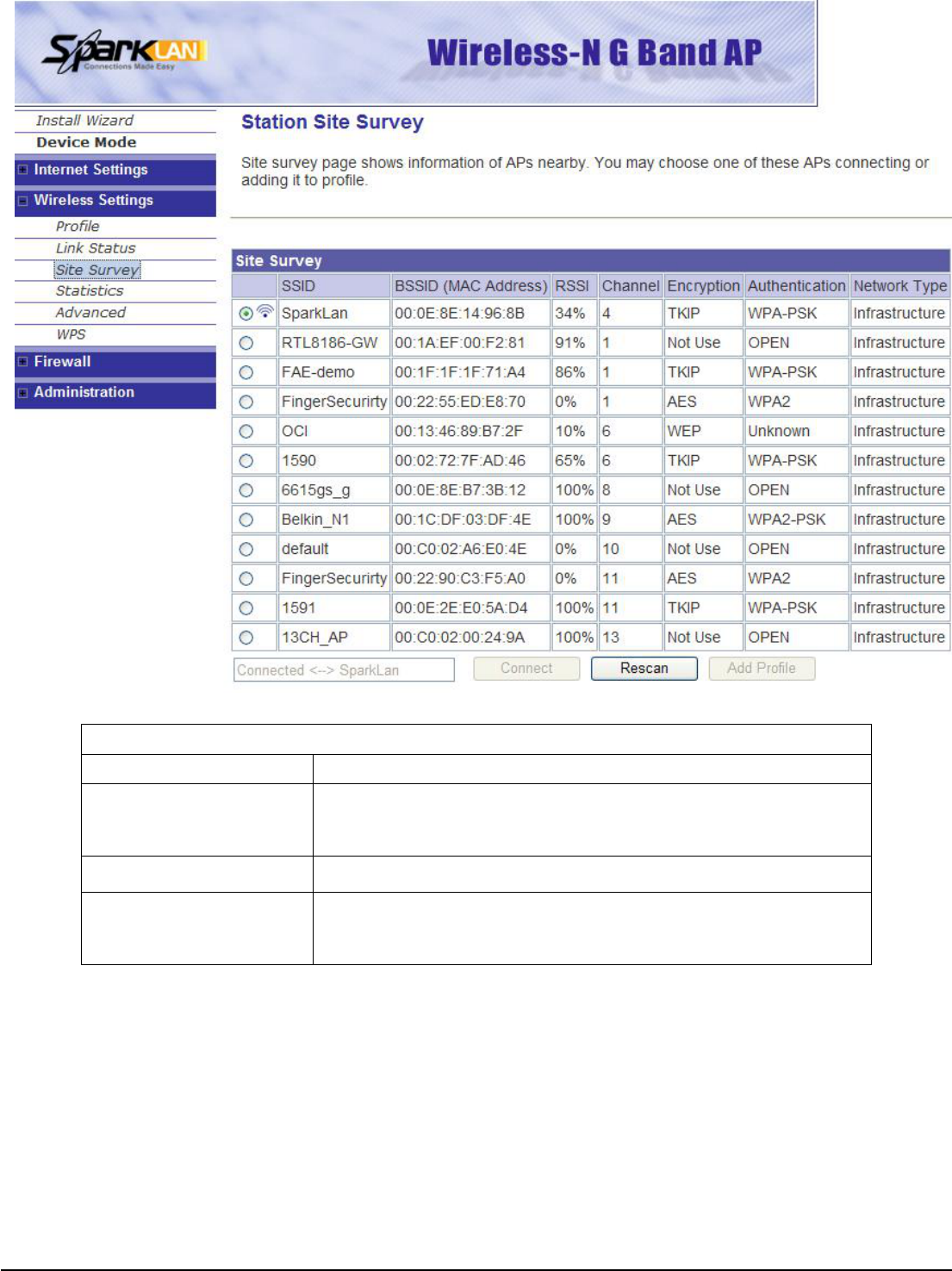

Site Survey
Site Survey
Item Description
Connect Check the radio button in front of the SSID and click
“Connect” button to connect.
Rescan Click this button to refresh the list.
Add Profile Check the radio button in front of the SSID and click
“Add Profile” to add the SSID to the profile.
User’s Guide 34

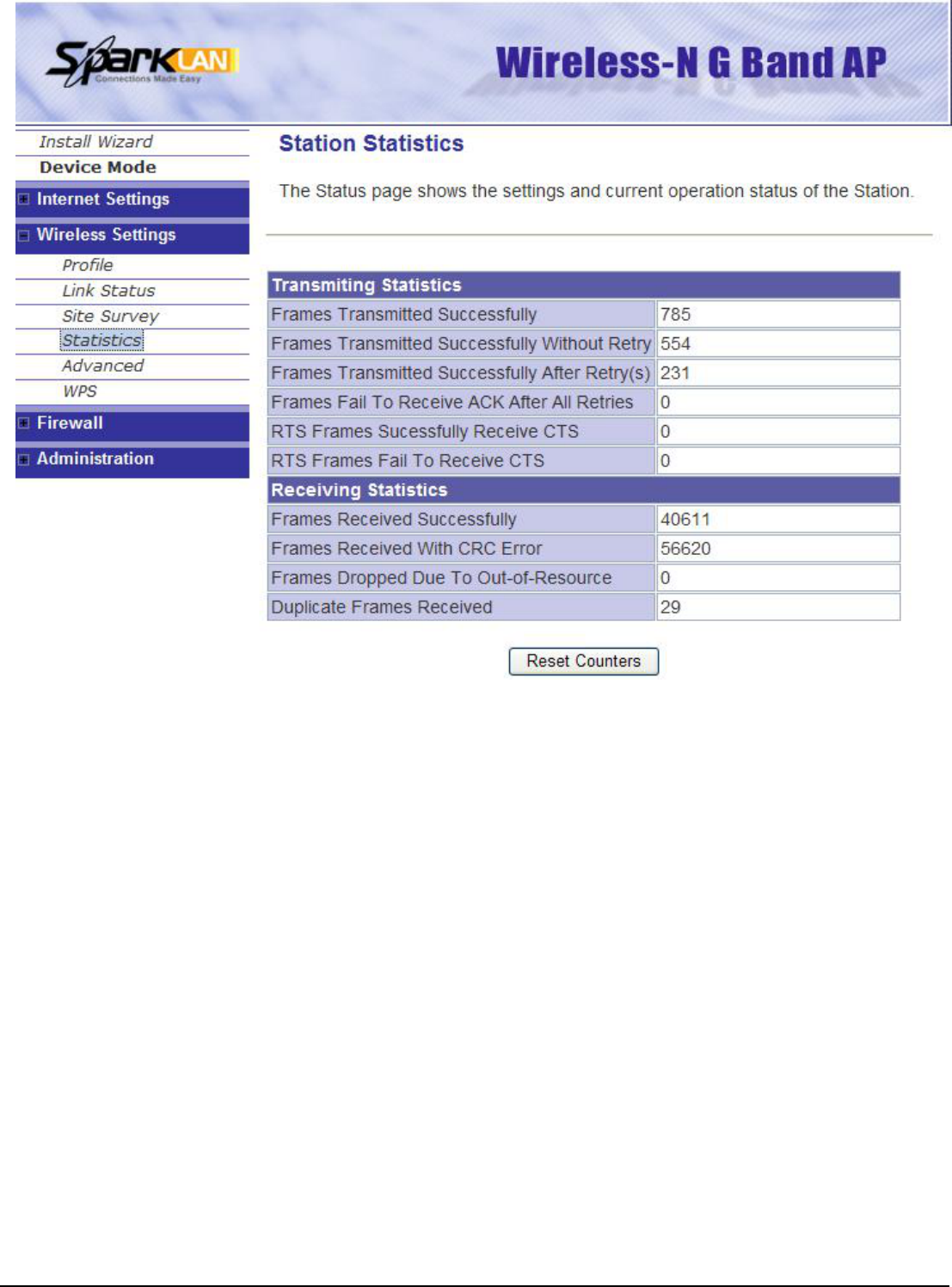

Statistics
User’s Guide 35

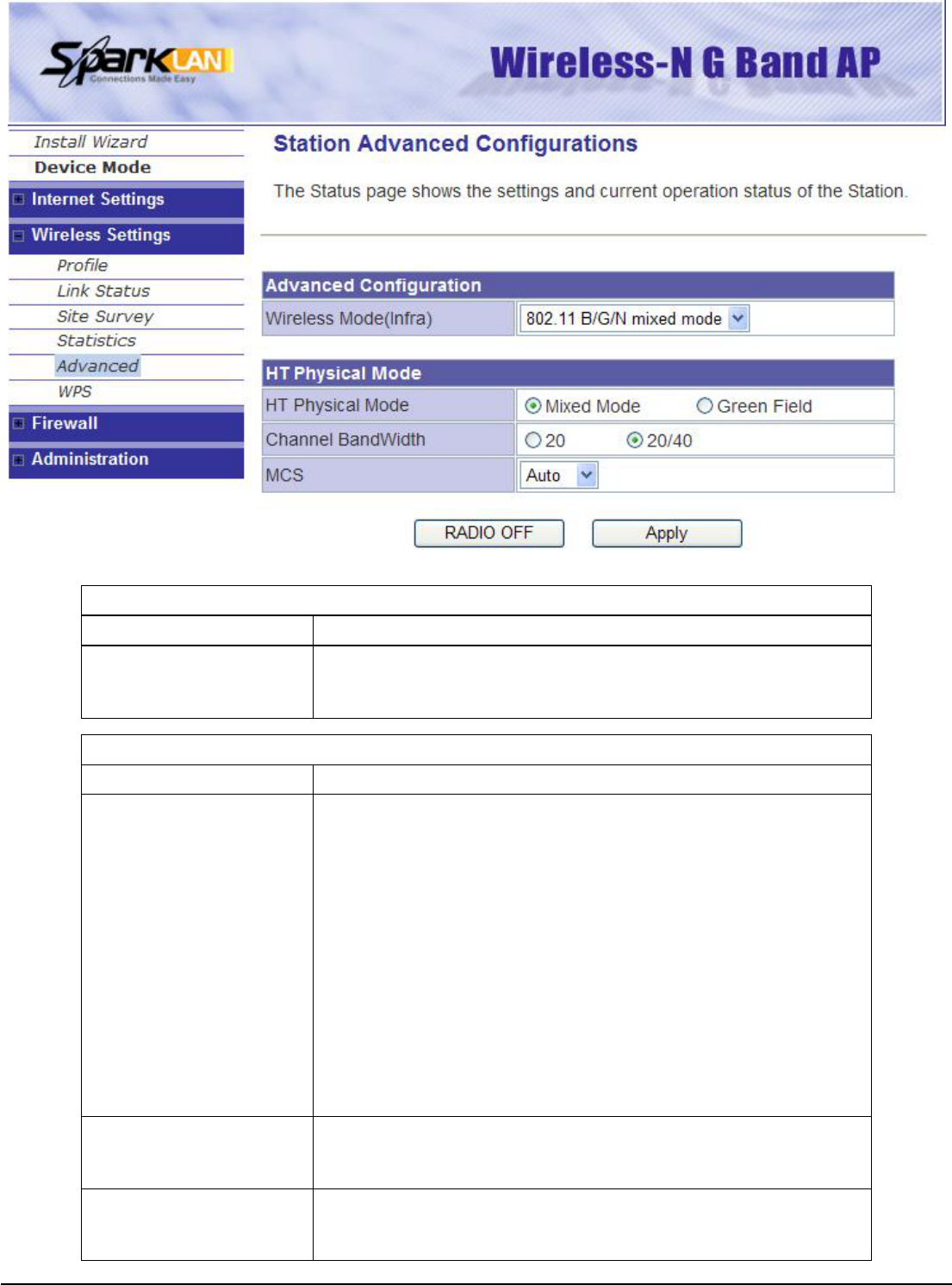

Advanced
Advanced Configuration
Item Description
Wireless Mode
(Infrastructure)
Choose the proper Wireless Mode to connect remote
AP which provided by your WISP.
HT Physical Mode
Item Description
HT Physical Mode
(High throughput)
MM (Mixed Mode) or GF (Green Field).
Mixed mode: In this mode the device transmits the
packets with preamble compatible legacy (802.11g), so
they can be decoded by legacy devices. The device
receives and decodes both Mixed Mode packets and
legacy packets.
Green Field mode: the device transmits HT packets
without legacy compatible part. But the device receives
and decodes both Green Field and legacy packets.
Channel Bandwidth Choose “20” for the standard bandwidth or “Auto” to
use the 40MHz bandwidth automatically.
MCS (Modulation
Coding Scheme)
Choose MCS. Please refer to the section of Access
Point.
User’s Guide 36
WPS
The WPS AP lists in the top of the page. The bottom panel shows the status of WPS.
Please refer to the section 6.1, WPS section of Access Point mode for the operation.
WPS configuration
Item Description
Refresh Click this button to refresh the WPS AP list.
Mode This device supports Enrollee and Registrar in AP
Client mode.
PIN This is the PIN code for PIN communication. Click
“Renew PIN” to generate a new PIN code.
PIN Start Click this button to start PIN process.
PBC Start Click this button to start PBC communication.
Cancel Click this button to cancel the establishing WPS link.
Renew PIN Click this button to discard current PIN and generate a
new PIN code.

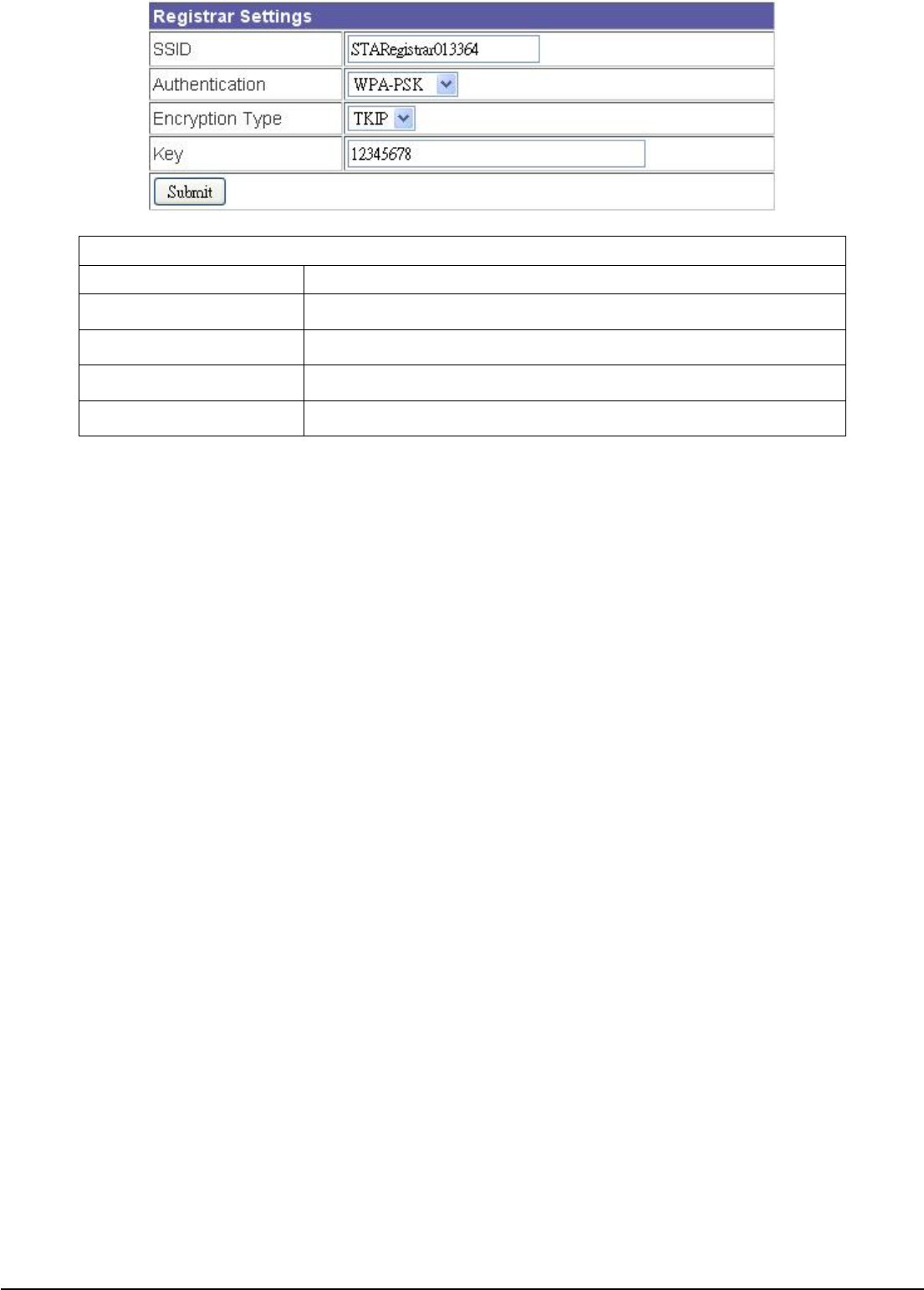

Registrar Mode can let you change the AP, which you connect, information as below.
User’s Guide 37
Registrar Settings
Item Description
SSID The SSID that you want to change
Authentication WPA-PSK, WPA2-PSK
Encryption TKIPP, AES
Key Pass Phrase (8-64 characters), Key Renewal Interval
User’s Guide 38
7. Firewall
7.1 DMZ
A De-Militarized Zone is used to provide Internet services without sacrificing unauthorized access
to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic,
such as Web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers. So that all
inbound packets will be redirected to the computer you set. Generally it is not recommended to
setup DMZ due to fully exposed the PC/server to the Internet, but for some application using
uncertain incoming ports such as Internet games, it is could be useful to setup DMZ for the
application.

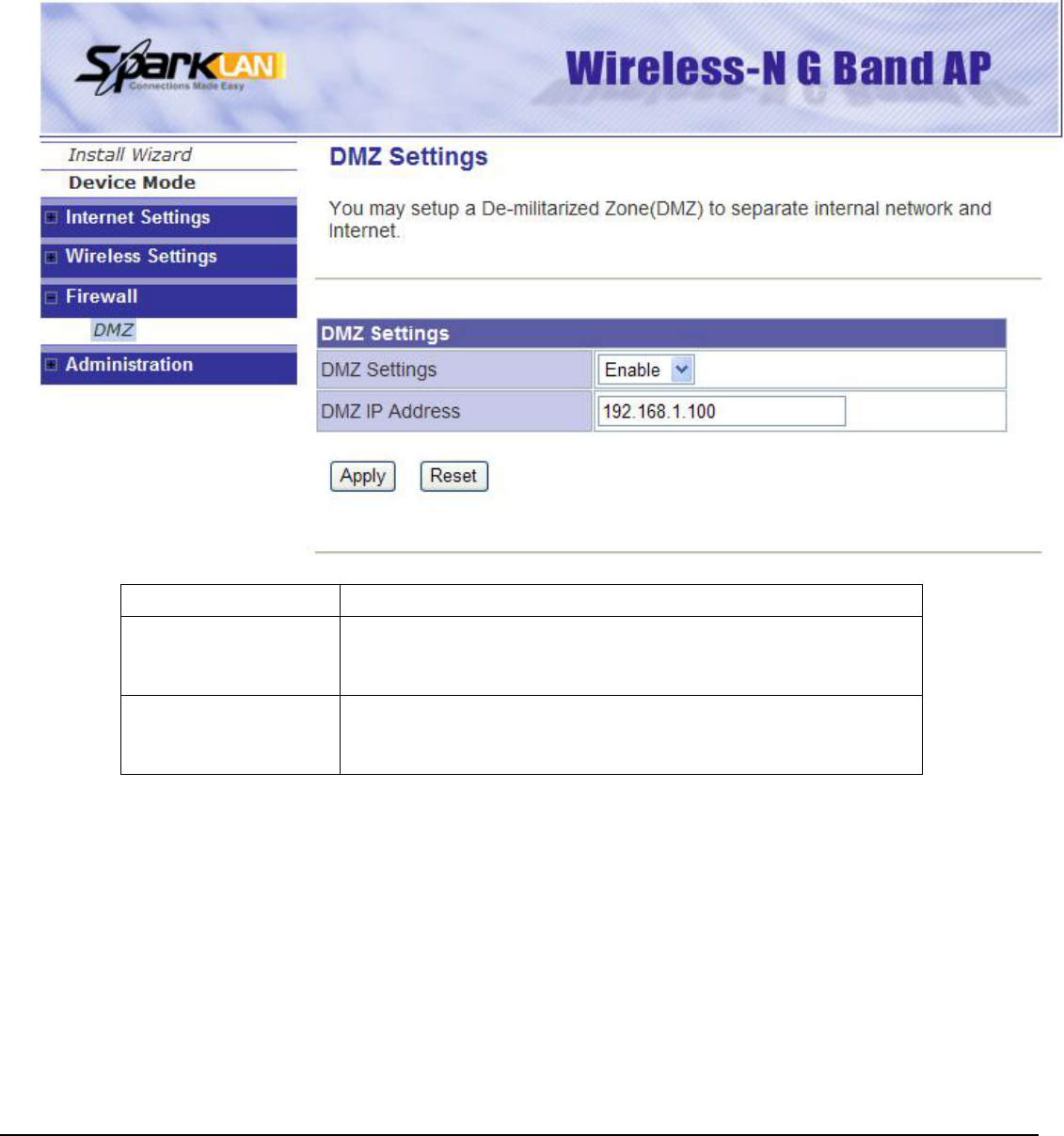

Item Description
DMZ Settings Enable this setting, and then click “Apply” button to
save the changes.
DMZ IP Address Input the IP Address of the computer that you want
to expose to Internet.
User’s Guide 39
8. Administration
8.1 Management

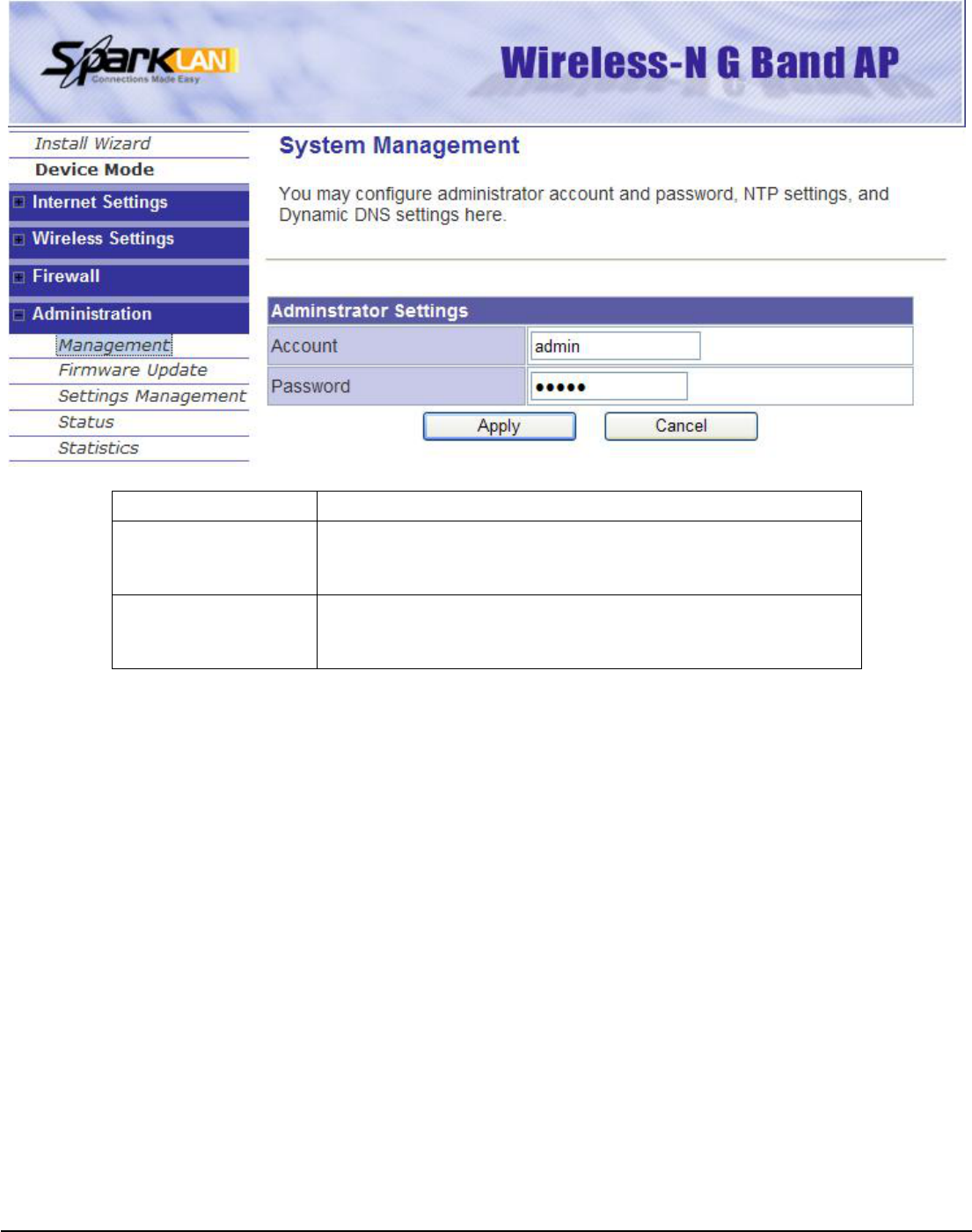

Item Description
Account Enter the name for login. The default name is
“admin”.
Password Enter the password for login. The default password
is “admin”.
User’s Guide 40
8.2 Firmware Update

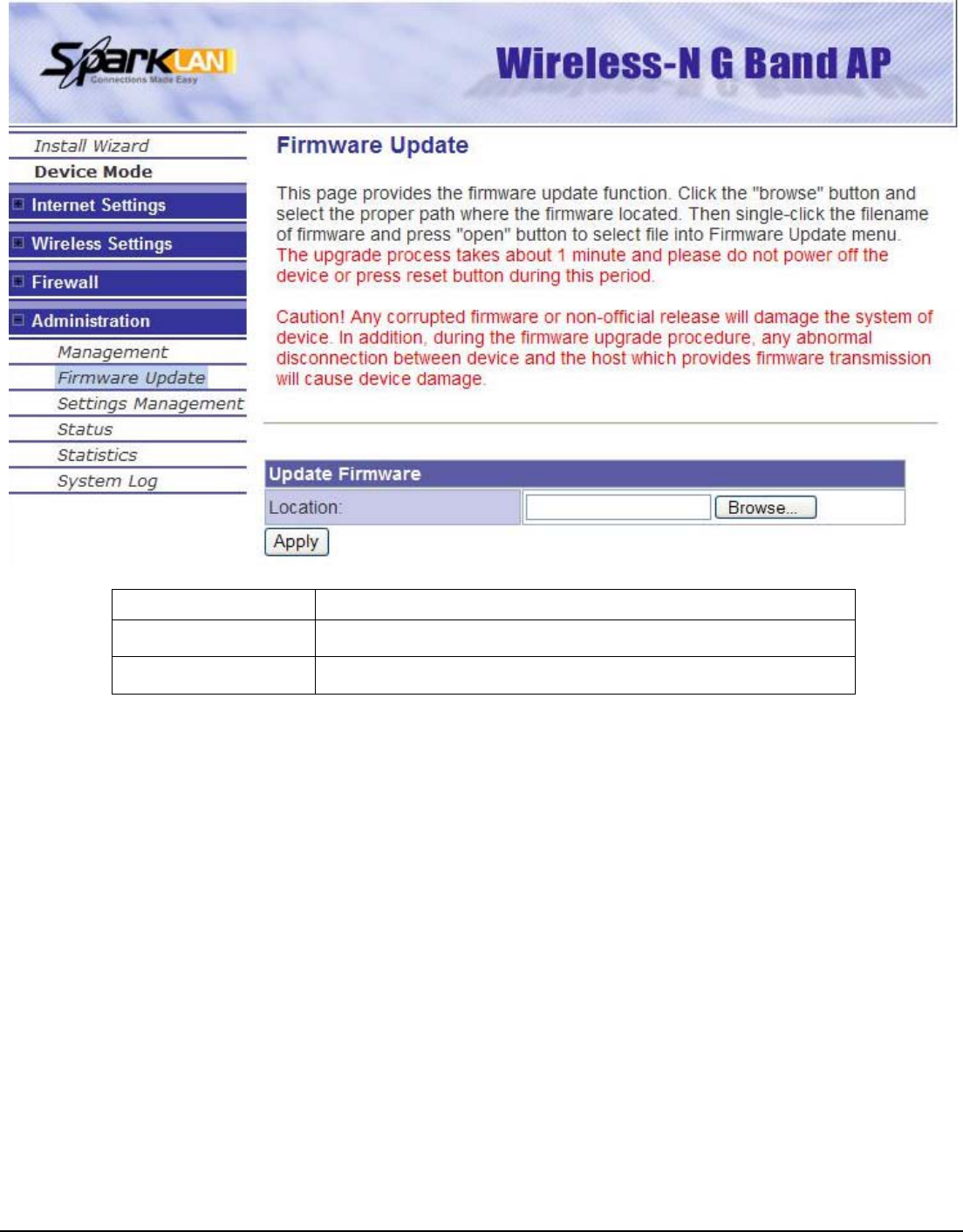

This page provides the firmware update function. Click the browse button to browse the file and click
“open” button to select the file. The update process takes about 1 minute and do not power off the
device during this period.
Item Description
Browse Click the “Browse” to choose the Firmware.
Apply Click to start update Firmware.
User’s Guide 41
8.3 Settings Management

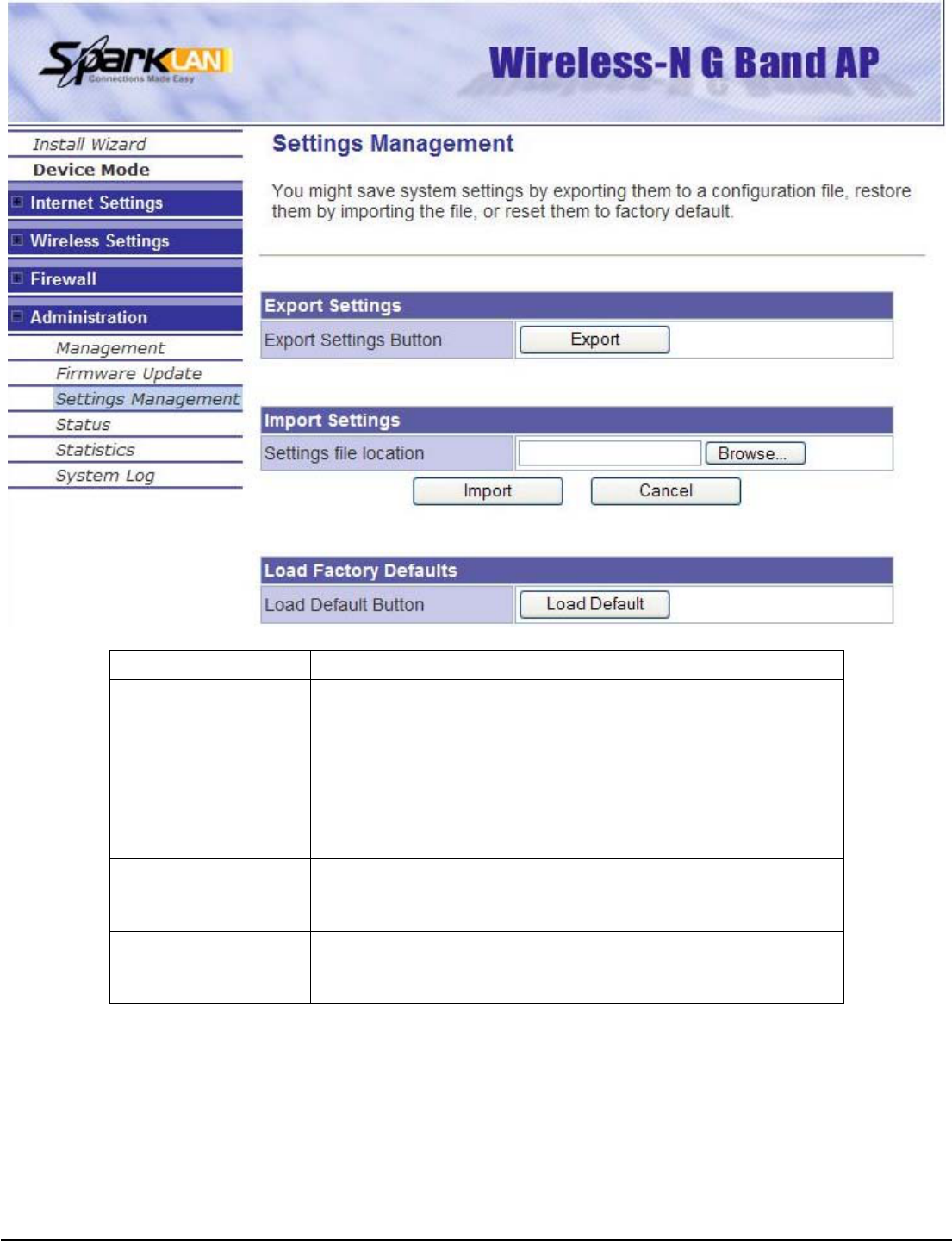

In this page, you can export the setting, import the setting or load the factory default.
Item Description
Export Settings
To export the settings, click “Export” button to save
the configuration. In the pop up window, click “Open”
to open the configuration. You can read the
configuration in the next page. Click “Save” to save
the configuration file. The file extension is “.dat”.
Import Settings To import the settings, click “Browse” to browse the
file, and then click “Import” to import the setting file.
Load Factory
Defaults
Click “Load Default” button to reset the device to
factory default. All users’ settings will be erased.
User’s Guide 42

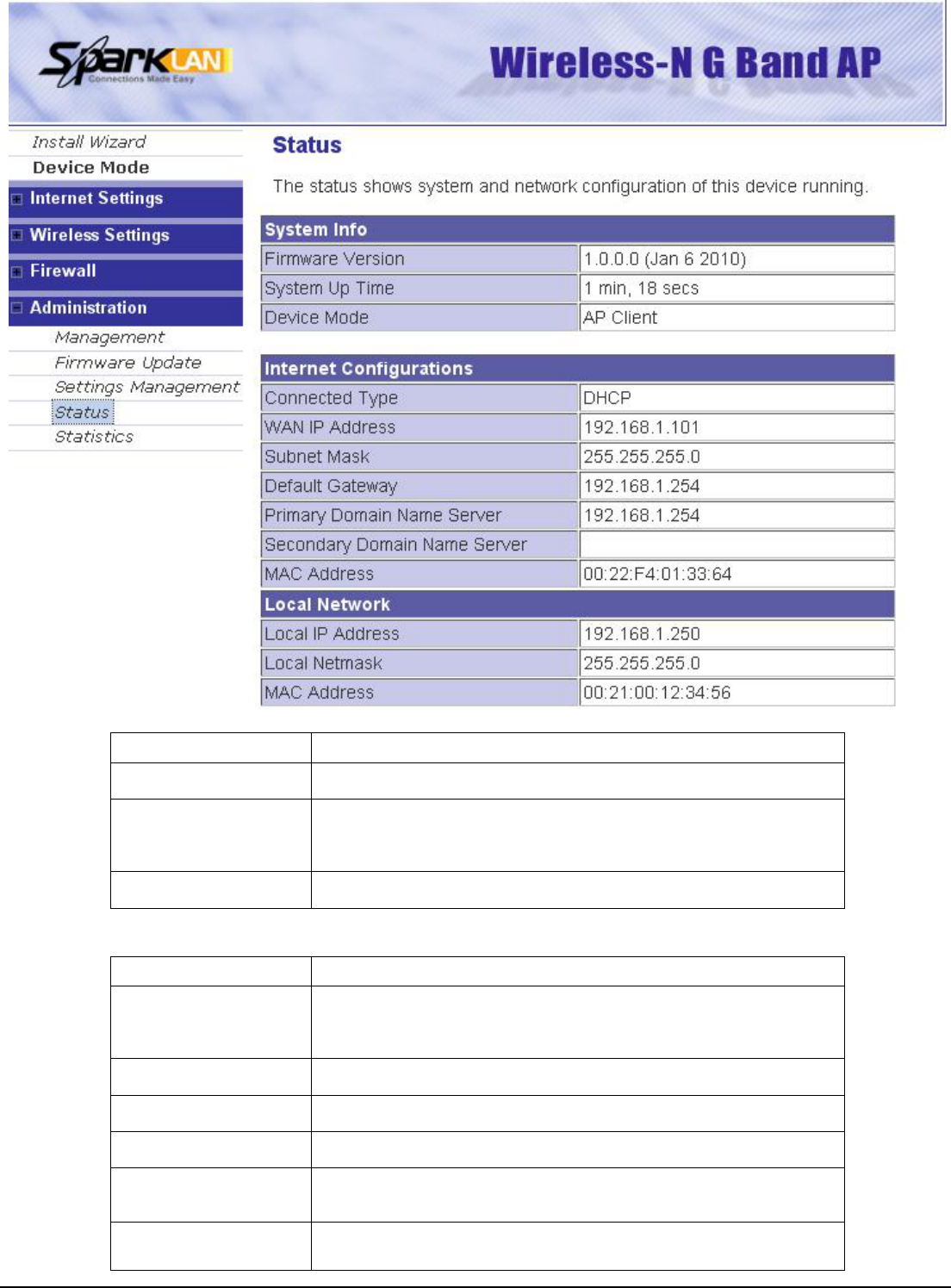

8.4 Status
System Info Item Description
Firmware Version It shows the version of firmware on this device.
System Up Time It indicates the time on this device. If the NTP client
is enabled, the time will sync with the NTP server.
Device Mode It shows the operation mode of this device.
Internet Configurations
Item Description
Connected Type It shows the WAN type information such as DHCP,
Static IP, PPPoE, etc.
WAN IP Address It shows the IP Address of the WAN interface.
Subnet Mask This is subnet mask of the WAN interface.
Default Gateway It is the default gateway of WAN interface.
Primary Domain
Name Server It shows the primary DNS server.
Secondary
Domain Name It shows the current secondary DNS server.
User’s Guide 43
Server
MAC Address This is the MAC Address of the WAN interface.
Local Network Item Description
Local IP Address This is the IP Address of the LAN interface.
Local Netmask This is the Netmask for the LAN.
MAC Address This is the MAC Address of the LAN interface.
8.5 Statistics

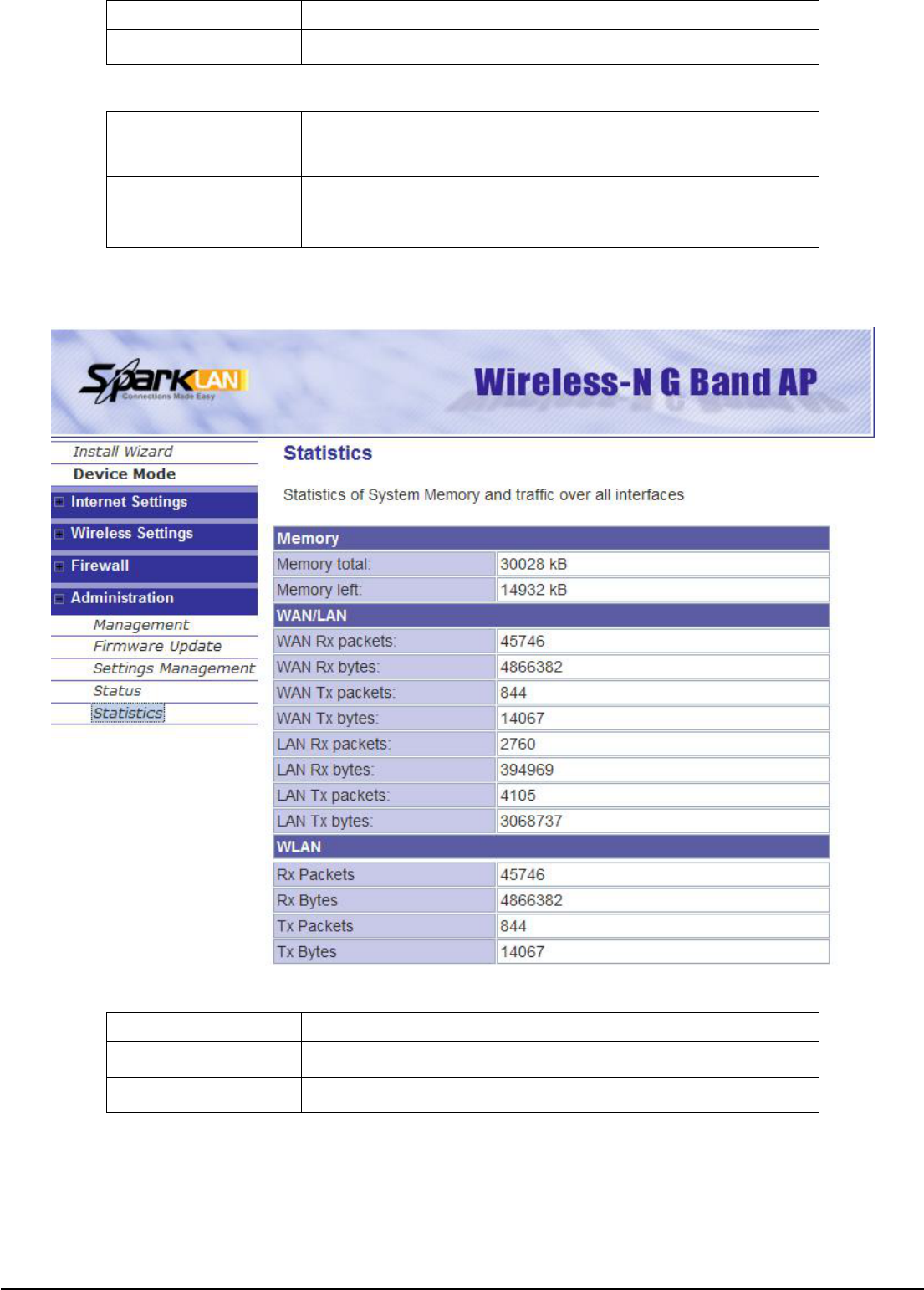

Memory Item Description
Memory total This is the total memory size for this device.
Memory left The available memory size shows in this field.
WAN/LAN
The information shows packet accumulation during each interface transmission
WLAN
The information shows packet accumulation during WLAN transmission
User’s Guide 44
9. Troubleshooting – Q & A
1. I’m trying to log on the AP’s Web configuration page, but I do not see the login screen.
Answer:
1. Please make sure the IP address that you input on address field of IE browser is correct.
2. Make sure the physical layer connection is established. If you are using wired to connect this AP,
check the relevant LAN LED whether is lit or not.
3. On Command Prompt screen, using “ ping “ command to probe this AP, check if you got reply
from it.
Command: ping < Destination IP address >
4. If you have any TCP/IP setting problem, please refer to the Quick Installation Guide.
2. I forgot my password, how to log on this AP for configuration?
Answer:
1. Reset the AP to factory default by pressing the Reset button for 10 seconds then releasing it.
2. Log on the AP’s web management by http://192.168.1.250
Enter the username “admin” and enter the default password “admin”.
3. How to set the AP to factory default setting.
Answer:
1. Reset the AP to factory default by pressing the Reset button for 10 seconds then releasing it.
2. After release the Reset button, the AP will get back all setting to factory default and reboot
system.
3. While the reboot is complete, log on the AP’s web management by default IP
http://192.168.1.250
Enter the username “admin” and enter the default password “admin”.
4. My AP will not turn on. No LED’s light up.
Answer:
Usually it is caused by the power is not connected.
Please double check the power adapter if it connected to your AP and the other side is plugged into
the power outlet.
If it still has no power, please contact your reseller.
5. I can’t access the AP from a wireless client.
Answer:
Generally to make the wireless client unable to access AP with following possible issues:
1. Settings are different among each wireless station.
2. Out of range.
3. Wrong security key.
Resolution:
User’s Guide 45
Make sure that mode, SSID, Channel and encryption settings are set the same on each wireless
adapter. Make sure that your computer is within range and free from any strong electrical devices
that may cause interference.
6. What devices cause interference?
Answer:
The AP is operating in the unlicensed 2.4 GHz band. Other devices operate in this frequency range
that may cause interference include microwave ovens and 2.4 GHz portable phones. PCs or analog
cellular phones do not operate at 2.4 GHz and do not cause interference. Proper placement of
access points usually eliminates interference problems created by other 2.4 GHz devices.
EC Declaration of Conformity
Name applicant:
Sparklan Communications, Inc.
8F #257, Sec 2, Tiding Blvd,
Neihu District, (11493)
Taipei, Taiwan
Hereby declares under sole responsibility that product
Brand name: Sparklan
Product number: WCR-150GN/WAPR-150GN
Product description: 802.11bgn smart client/802.11bgn AP
To which this declaration relates complies with the requirements of the following standards:
EN 300 328 V1.7.1 (2006-10)
EN 301 489-1 V1.8.1(2008-04)
EN 301 489-17 V2.1.1(2009-05)
EN 50385 (2002-08)
EN 60950-1: 2006
This certifies that the designated product as described above complies with the directives described
above and carries the CE marking accordingly.
This declaration has been signed under responsibility of the manufacturer / importer.
This document is only valid in connection with the test report no.:
RE990429C04,RM990429C04,SE990429C04,LD990429C04
Test laboratory: Advanced Data Technology Corporation
Lab Address: No. 47, 14th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan. ROC
Name manufacturer / importer:
Sparklan Communications, Inc.
May 3, 2010 Mike Chen
President
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
NCC statement:
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並
改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電
機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
