SparkLAN Communications WL660GS Wireless Super-G PCI Adapter User Manual Updated
SparkLAN Communications, Inc. Wireless Super-G PCI Adapter Updated
Manual
User Manual
Model: WL-660GS
Wireless PCI Adapter
Before You Begin
You must have at least the following:
• A desktop computer with an available PCI 2.2, 32-bit, 5 volt PCI slot
• At least a 500MHz processor and 128MB of memory
• An 802.11a, 802.11b or 802.11g Access Point (for
Infrastructure
Mode) or another 802.11a, 802.11b, or 802.11g wireless adapter (for Ad-Hoc
;
Peer-to-Peer networking mode.)
Continued...

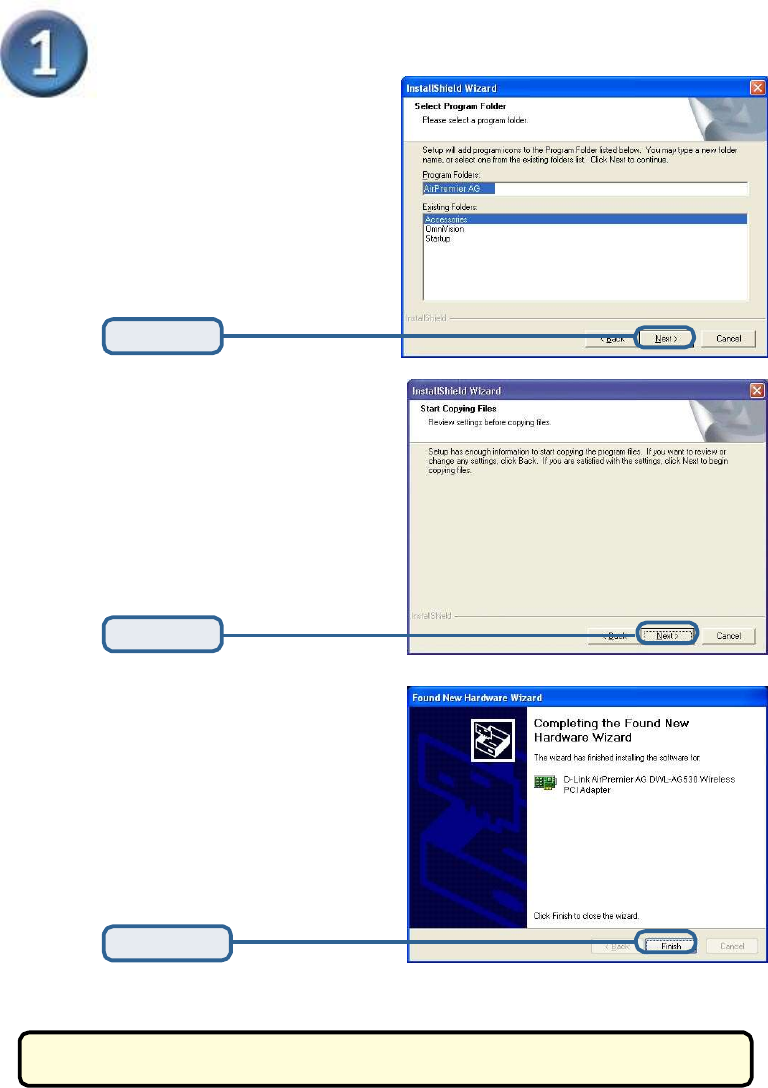

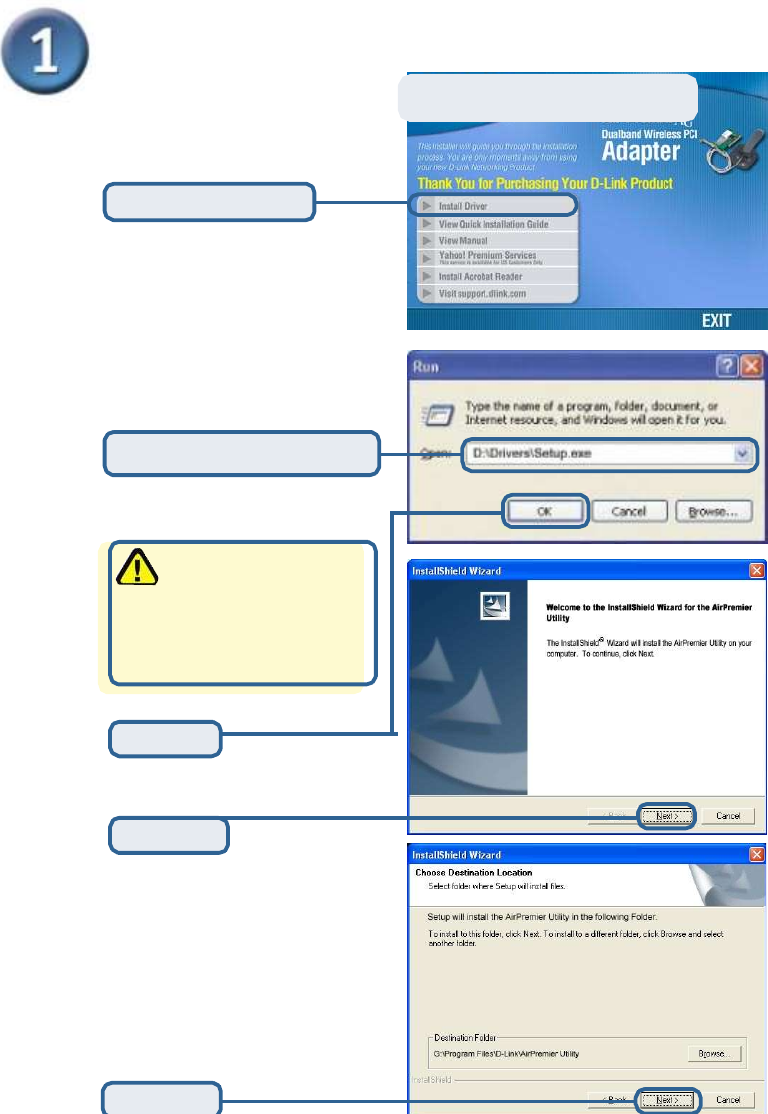

The Install Screen will appear.
Click Install Driver
If the CD Autorun function
does not automatically start
on your computer , go to Start
> Run and type “D:\Driver\
setup.exe.” If it does start,
proceed to the next screen.
Type “D:\Driver\setup.exe.”
The letter “D”
represents the
letter of the CD-ROM
drive. Your CD-ROM
drive may be a different
drive letter.
Click OK
Click Next
Click Next
Continued...
Click Next
Click Next
Click Finish
Shut down your computer
Installing the WL-660GS
Wireless PCI Adapter in Your
Computer
A. Make sure to turn off your computer
and unplug the power cord before
you begin. Remove the back or side
cover of the computer.
B. Carefully guide the WL-660GS
antenna through the PCI bracket opening
adjacent to the PCI slot you intend to use
for the WL-660GS
C. Install the WL-660GS
carefully, and rmly set it into the
available PCI slot (which is
typically white or cream-colored).
D. Secure the WL-660GS
back panel bracket with its mounting
screw.
E. Replace the computer cover.

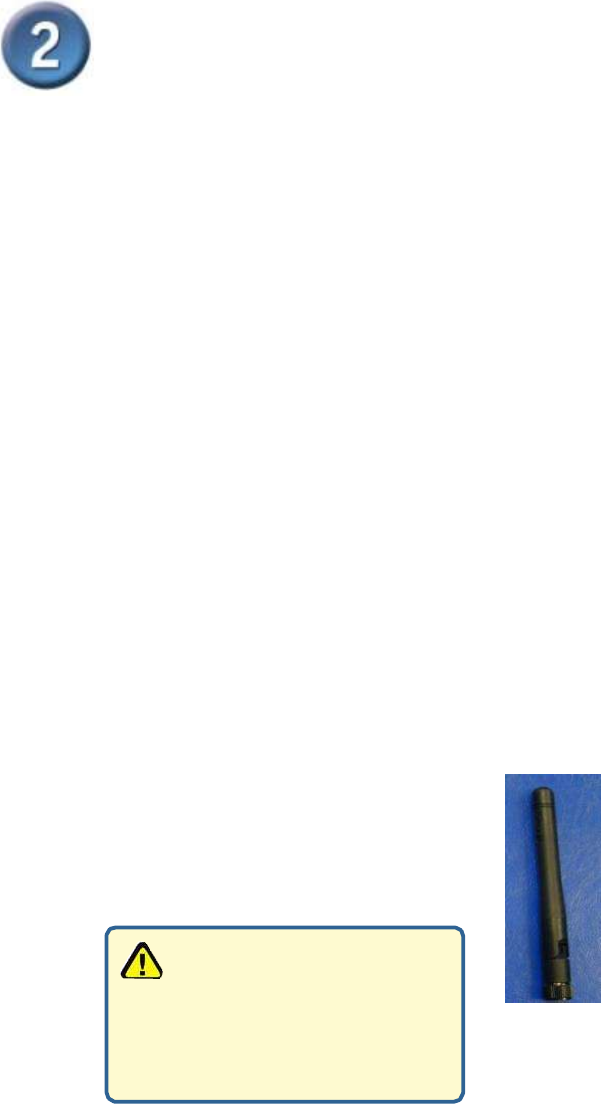

Pls. Note that the ant. Should be this one
To avoid damage caused by
static electricity, make sure to
properly ground yourself by rst
touching a metal part of your
computer to discharge any static
electricity before working with
the WL-660GS.
4
Installing the WL-660GS
Wireless PCI Adapter in Your
Computer(cont.)
F. Gently connect the antenna to the
antenna stand.
G. Finished!
Restart Your Computer

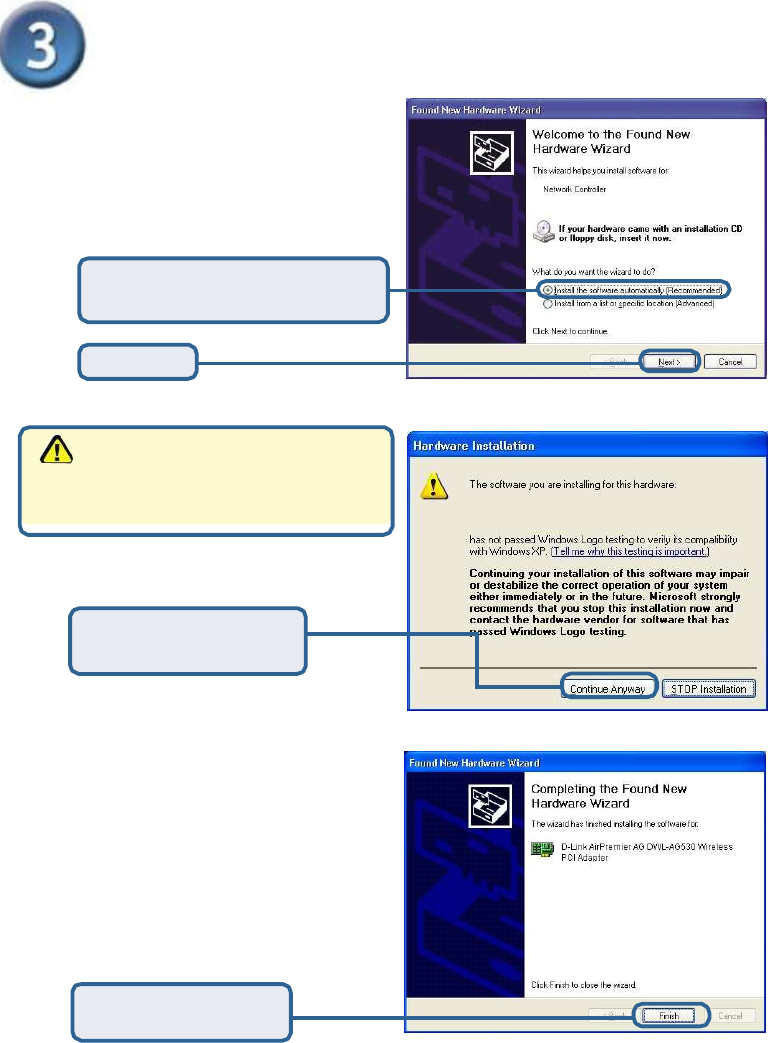

When you restart your computer
this Found New Hardware
Wizard (Windows XP) screen
will appear:
Select Install the software
automatically (Recommended)
Click Next
For Windows XP: This
Hardware Installation alert screen
may appear after the desktop
computer restarts.
Click Continue Anyway
to nalize the installation
Click Finish to nalize
the installation.
Continued...

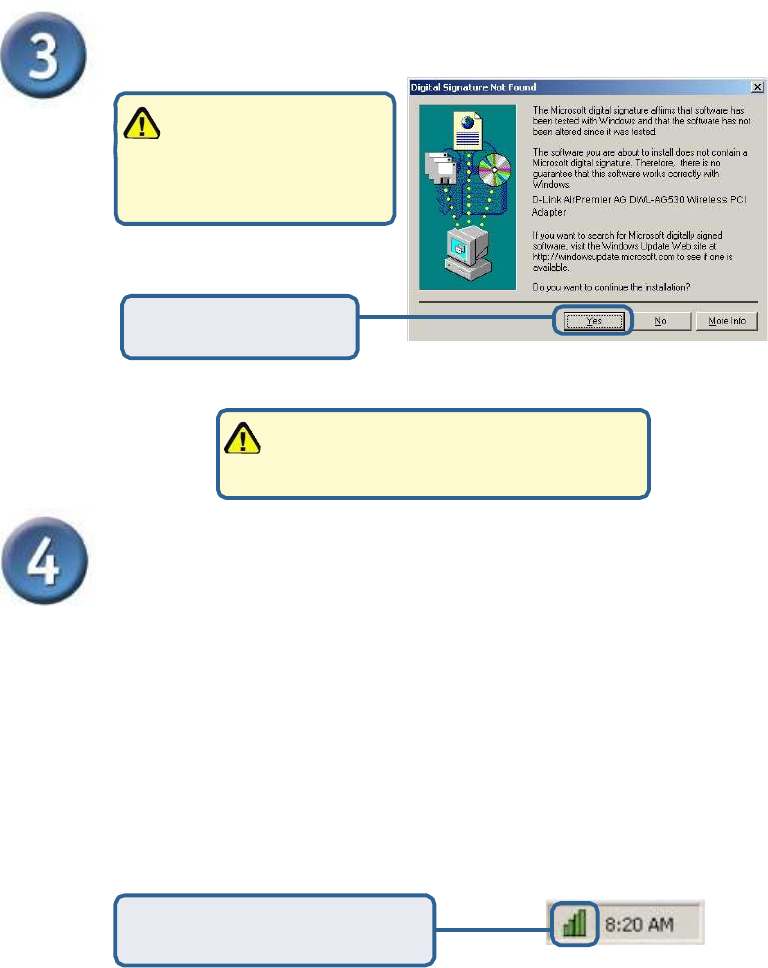

For Windows 2000, this
Digital Signature Not
Found screen may appear
after your computer
restarts.
Click Yes to nalize the
installation.
The software for this device is
undergoing Windows Logo testing. Microsoft
certication is pending.
Your Installation is Complete!
After you have nished the installation in Windows XP, 2000, Me, or
98SE, the WL-660GS Conguration Utility will automatically start and
the utility icon will appear in the bottom right hand corner of the desktop
screen (systray). If this icon appears GREEN, then you have
successfully installed the WL-660GS, are connected to a wireless
network and are ready to communicate!
Double-click the utility icon to
use the conguration utility.
7
Appendix
For Windows XP, if you wish to use the utility, please do the following
steps.
Click the XP Networking icon
to use the Zero Conguration
Wireless Settings.
Click Advanced
Uncheck “Use
Windows to congure
my wireless network
settings.”
Click OK
Appendix (Continued)

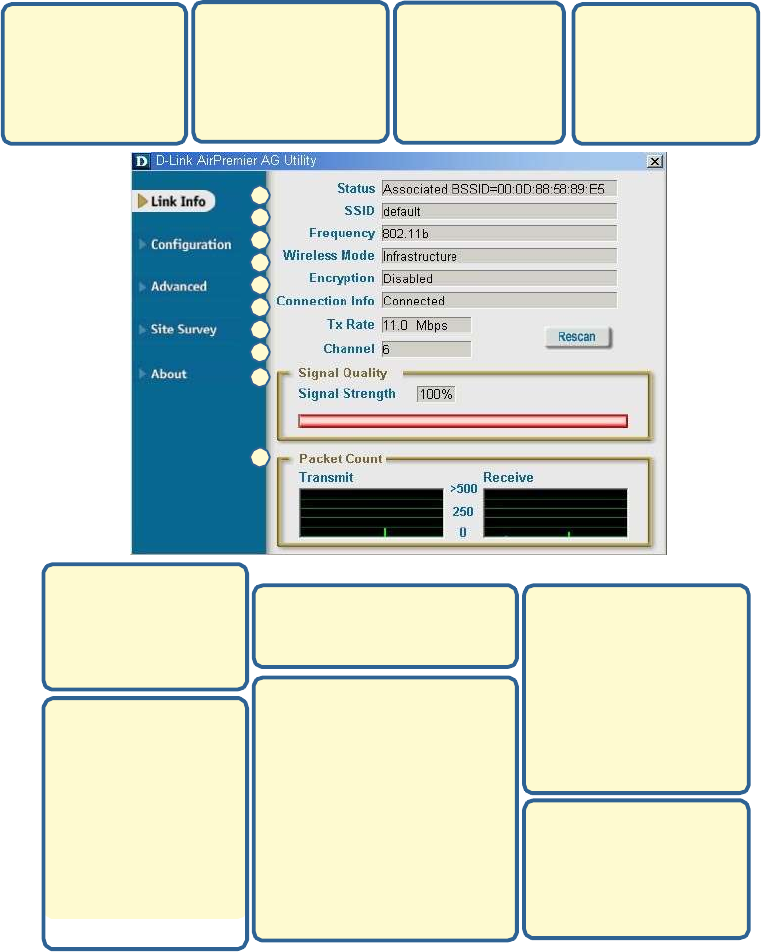

Using the Conguration Utility
A. Status: Displays
the MAC address
of the access point
that is associated
with the WL-660GS.
B. SSID: The Service
Set Identier is the
name assigned to the
wireless network. The
factory SSID setting
is set to default.
C. Frequency:
Displays the
current frequency
used by the current
connection to the
access point.
D. Wireless Mode:
The factory setting is
set to Infrastructure.
Ad-Hoc mode is used
for Peer-to-Peer
networking.
A
B
C
D
E
F
G
H
I
J
E. Encryption:
Displays the current
encryption status
of the wireless
connection.
H. Channel: Displays
the channel
information. By
default, the channel is
set to 6 and selection
is automatically
determined by the
wireless access point
or router.
F. Connection Info:Displays
connected or authenticated
information.
I. Link Quality / Signal
Strength: Displays the Link
Quality for the WL-660GS
wireless connection to the
access point. The Signal
Strength represents the
wireless signal between the
access point and the WL-
660GS. The percentage
coincides with the graphical
bar.
G. Tx Rate: The default
setting is Auto; meaning,
Tx Rate settings are
automatically determined
by the DWL-WL-660GS
depending on the
distance from the access
point.
J. Packet Count:
Graphically displays
the statistics of data
transmitted and
received.

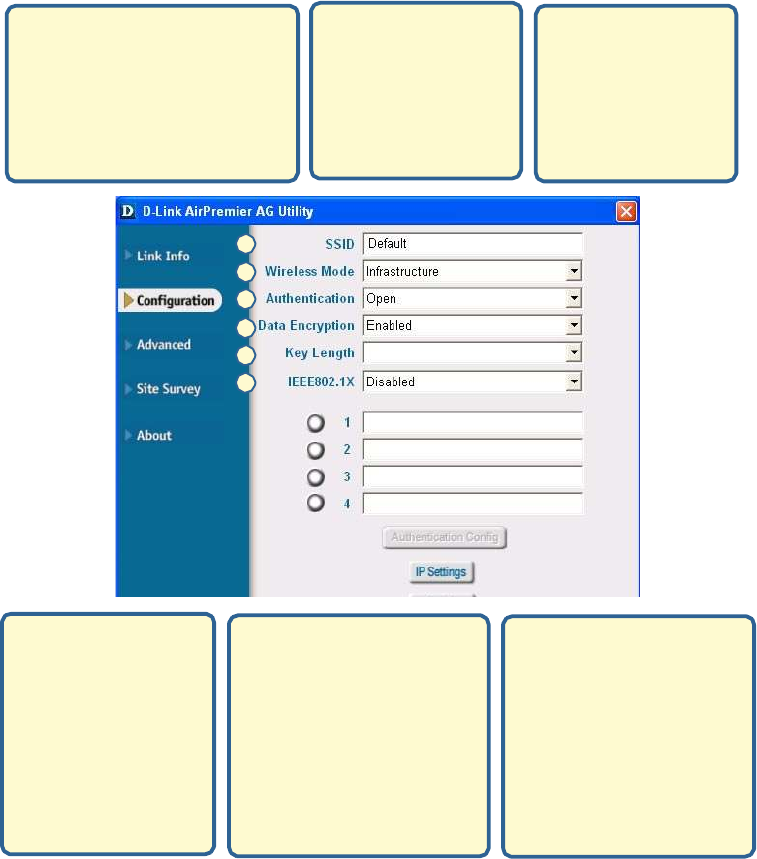

k. SSID: The Service Set
Identier is the name assigned
to the wireless network. The
factory SSID setting is set to
default. Make changes here
to match the SSID on existing
wireless router or access point.
L. Wireless Mode:
The factory setting is
set to Infrastructure.
Ad-Hoc mode is used
for Peer-to-Peer
networking.
M. Authentication:
You can specify the
authentication mode
for the wireless
network. The default
setting is set to Open
Authentication.
K
L
M
N
O
P
N. Data Encryption:
The default setting is
set to Disable. The
adapter supports
WEP and AES
when encryption is
enabled.
O. Key Length:When
encryption is enabled, you
will have the option to specify
the level and key format of the
encryption used. Select the
appropriate Key Index:
1-4 and enter ACSII or
hexadecimal digits in the
appropriate eld.
P. IEEE 802.1X:
When encryption is
enabled, you will have
the option to specify if
you wish to use 802.1x
authentication.

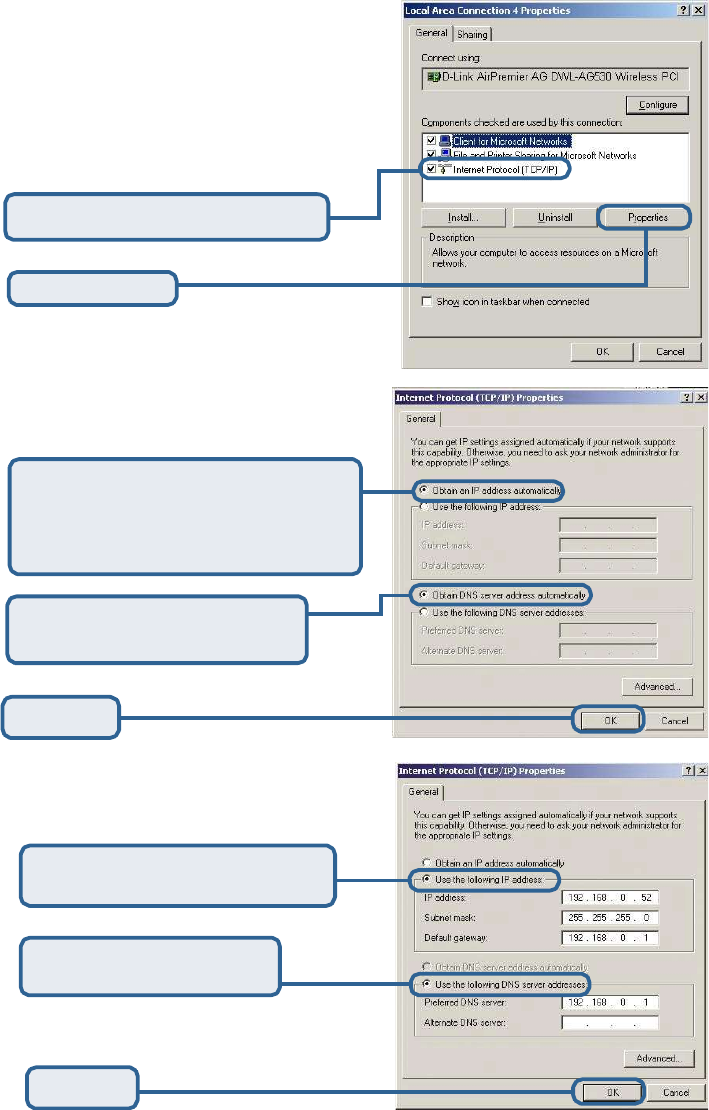

IP
Address Conguration
To connect to a network, make sure
the proper network settings are
congured for WL-660GS.
For Microsoft Windows XP:
Go to Start > Right-click on
My Network Places >select Properties >
Right-click and select Properties on the Network
Connection associated with the DWL-AG530.
Click Internet Protocol (TCP/IP)
Click Properties
Dynamic IP address setup
Used when a DHCP server is available on
the local network. (i.e. Router)
Select Obtain an IP address
automatically (if the wireless
router or access point has DHCP
server enabled)
Select Obtain DNS server
address automatically
Click OK
Static IP address setup
Used when a DHCP server is not
available on the local network.
Select Use the following IP address
IP address: 192.168.0.52
Subnet mask: 255.255.255.0
Input a static IP address in the same range as the
wireless router or access point.
Click OK
F
or
W
indows 2000 users:
Go to Start > Settings > Network and Dial-
up Connections > Right Click and select
Properties on the Local Area Connection
associated with the WL-660GS.
Click Internet Protocol (TCP/IP)
Click Properties
Dynamic IP address setup
Used when a DHCP server is available on
the local network. (i.e. Router)
Select Obtain an IP address
automatically (if the wireless router
or access point has DHCP server
enabled)
Select Obtain DNS server
address automatically
Click OK
Static IP address setup
Used when a DHCP server is not
available on the local network.
Select Use the following IP
address
IP address: 192.168.0.52
Subnet mask: 255.255.255.0
Input a static IP address in the same range as
the wireless router or access point.
Click OK
