SparkLAN Communications, Inc. Wireless 802.11a/b/g Mini PCI module Installation Guide
Manual

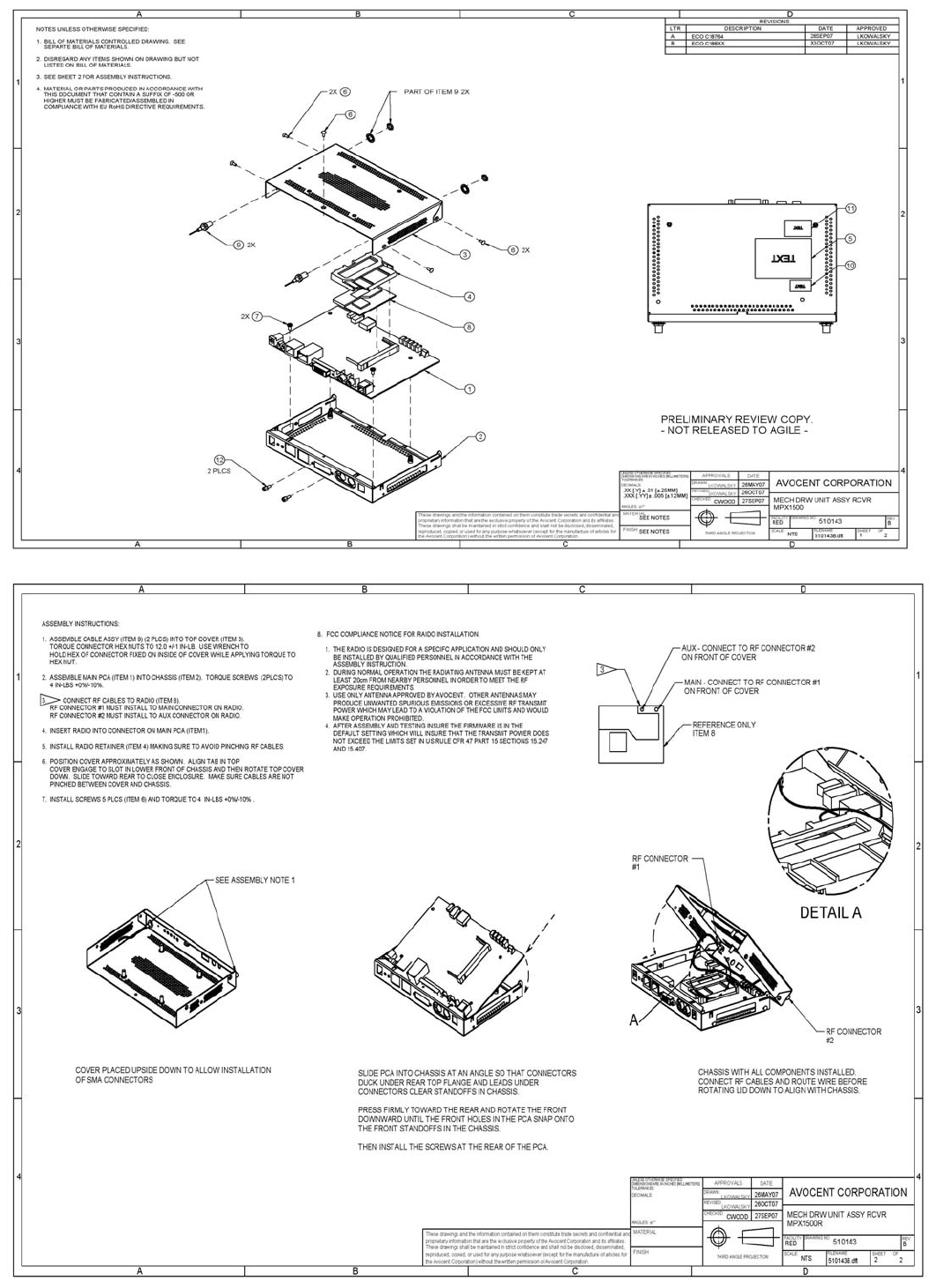

Installation Guide
The combination of Antennas Type
Ant model: Gain form antenna spec ANT.Type
No1 EA-292B-1 2.4GHz:N/A
5.5~5.825GHz:4.15dBi
Dipole Antenna
No2 EA-292B 2.4GHz:N/A
5.15~5.35GHz:4.56dBi
Dipole Antenna
No3 HAO9SDP 2.4~2.5GHz:9dBi
5GHz:N/A
High-Gain outdoor Directional antenna
No4 HG2409UM 2.4GHz:8.5dBi
5GHz:N/A
Omnidirectional WLAN marine antenna
No5 HGA51G 2.4GHz:N/A
5.5~5.85GHz:8.0dBi
TIKI (Printed antenna)
Comment:
Need professional installation to prefer only HAO9SDP part
Please be notice that the end product which module installed for professional installation should
meet the requirements as below:
1) Marketing
* The device cannot be sold retail,to the general public or by mail order. It must be sold to
dealers.
2) Requires professional installation;
- installation must be controlled.
- installed by licensed professionals ( EUT sold to dealer who hire installers)
- installation requires special training ( special programming, access to keypad, field
strength measurements made), this product is designed for specific application and needs to be
installed by a qualified personal who has RF and related rule knowledge. The general user shall not
attempt to install or change the setting.
3) Application
-The intended use is generally not for the general public. It is generally for
industry/commercial use.
Warning: The antenna “HAO9SDP”, listed above, has non-unique antenna
coupler (standard N type connector); this specific antenna can be used only
with professional installed products when following conditions are all
justified. Marketing of this antenna with retail product is serious
violating of US FCC regulation.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for
2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info
to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed (for example, Indoor & Outdoor
HD Multipoint Extender, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: RYK-WMIA139AGX”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
