WPEQ-256ACNRBI
WPEQ-256ACN
PRODUCT APPROVAL SHEET –WPEQ-256ACNRBI [W]
2
Product Introduction
Standard IEEE802.11ac/a/b/g/n
Chipset solution QCA9892-BR4B
Radio stream [Note1] 2T2R
Antenna type / connector. External with IPEX connector
Bus Interface PCI Express
Form Factor Mini-PCIe
Data Rate
802.11b: 11, 5.5, 2, 1 Mbps;
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 15 for HT20MHz
MCS 0 to 15 for HT40MHz
802.11ac:
MCS 0 to 8 for HT20MHz
MCS 0 to 9 for HT40MHz
MCS 0 to 9 for HT80MHz
1. In HT (High Throughput) mode, the data rate depends on the MCS Index.
2. The MCS index for HT (High Throughput) mode is from 0 to 32 as described
in the MCS table.
Spreading /Modulation
Techniques
802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11b: DSSS (DBPSK, DQPSK, CCK)
802.11g: OFDM (BPSK,QPSK,16-QAM,64-QAM)
802.11n: OFDM (BPSK,QPSK,16-QAM,64-QAM)
802.11ac: OFDM (BPSK,QPSK,16-QAM,64-QAM, 256-QAM)
Frequency Range
[Note2]
11b/g/n: 2.412GHz ~ 2.484GHz
11ac/a/n: 5.15GHz ~ 5.85GHz
PRODUCT APPROVAL SHEET –WPEQ-256ACNRBI [W]
3
Transmit Output Power
(Tolerance: +/-2dBm)
802.11a: 14dBm@54Mbps
802.11b: 20dBm@11Mbps
802.11g: 16dBm@54Mbps
802.11gn HT20: 15dBm@MCS7
802.11gn HT40: 15dBm@MCS7
802.11an HT20: 13dBm@MCS7
802.11an HT40: 13dBm@MCS7
802.11ac VHT80: 10dBm@MCS9
Receiver Sensitivity
802.11a: ≤-74dBm@54Mbps
802.11b: ≤-87dBm@11Mbps
802.11g: ≤-74dBm@54Mbps
802.11gn HT20: ≤-70dBm@MCS7
802.11gn HT40: ≤-68dBm@MCS7
802.11an HT20: ≤-71dBm@MCS7
802.11an HT40: ≤-68dBm@MCS7
802.11ac VHT80: ≤-59dBm@MCS9
Operating Voltage DC 3.3V
Power Consumption TX Mode:1050mA (Max.)
Temperature Range -40°C~+85°C (Operating), -40°C~+85°C (storing)
Humidity (non-condensing) 10~85 % (Operating), 5~90 % (Storing) [Note3]
Security WEP / WPA / WPA2,802.1X
OS supported Linux (Linux supports have different versions based on different CPU platforms
and O/S. Please contact SPK support group.)
Note:
1. For Radio stream with diversity or MIMO design, all RF connectors on the module must
be fitting antennas in order to guarantee the module performance.
2. The frequency range is subject to local regulations.
3. The storing condition is only for product functionality, no included for parts appearance.
PRODUCT APPROVAL SHEET –WPEQ-256ACNRBI [W]
4
2. Hardware Specification

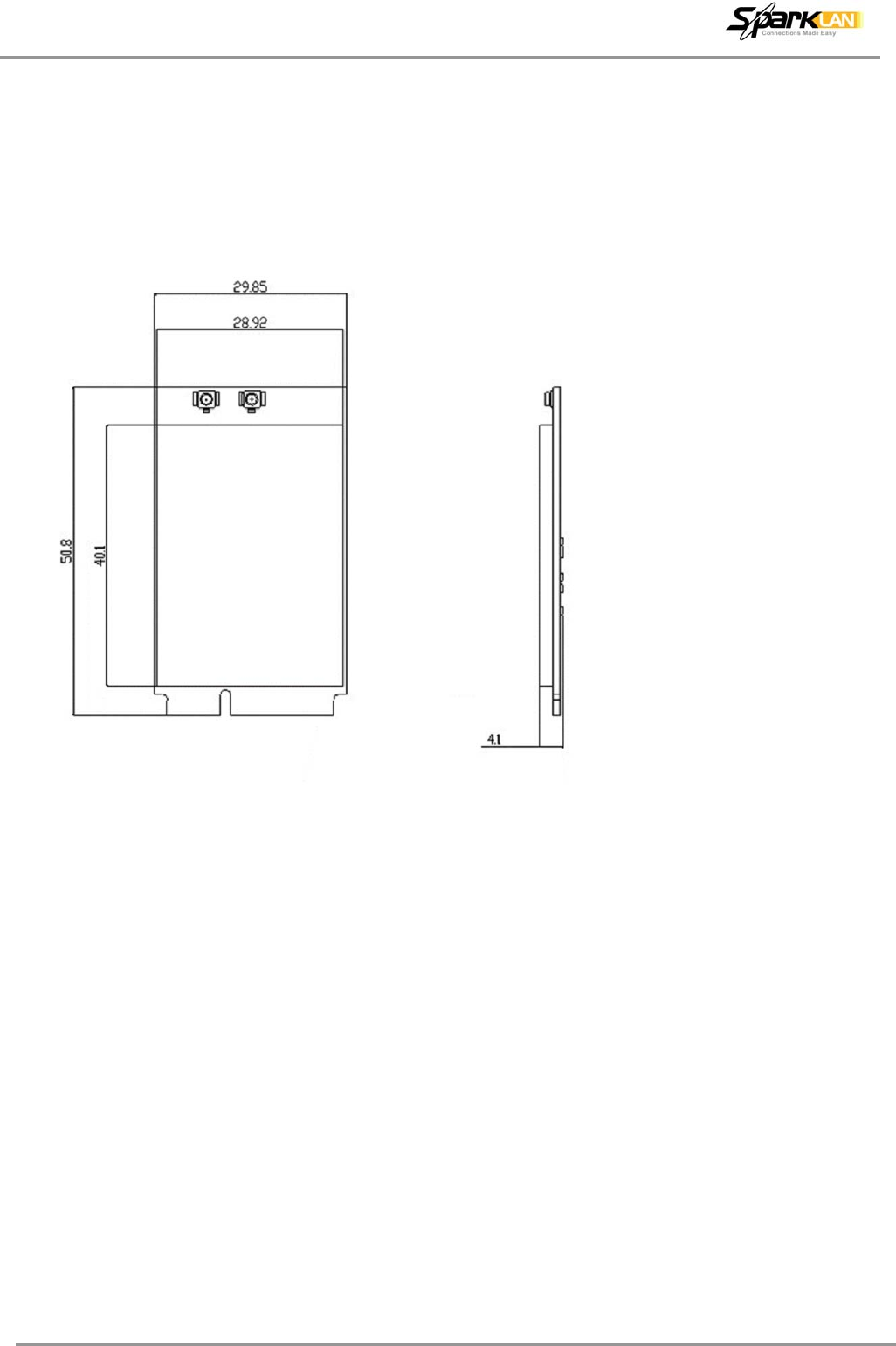

2.1 Hardware Dimension
Dimension: 50.8mm * 29.85mm * 4.1mm(±0.5mm)
PRODUCT APPROVAL SHEET –WPEQ-256ACNRBI [W]
5
The following section illustrate signal pin-outs for the system connector.
2.3 Pin Assignment
Pin# Pin Name Description Pin# Pin Name Description
1 WAKE_L(NA)
Output and open Drain
active Low signal. This
signal is used to request
that the system return
from a sleep/suspended
state to service a
function initiated wake
event.
2 +3.3V +3.3V
3 No Connection - 4 GND GND
5 No Connection - 6 No Connection -
7 CLKREQ_L Output for reference
clock request signal 8 No Connection -
9 GND GND 10 No Connection -
11 REFCLK-
Input signal for PCI
Express differential
reference clock (100
MHz)
12 No Connection -
13 REFCLK+
Input signal for PCI
Express differential
reference clock (100
MHz)
14 No Connection -
15 GND GND 16 No Connection -
17 No Connection - 18 GND GND
19 No Connection - 20 W_DISABLE_L
(OPT)
Input and active low
signal. This signal is
used by the system to
disable radio
operation on add-in
cards that implement
radio frequency
applications.
When implemented,
PRODUCT APPROVAL SHEET –WPEQ-256ACNRBI [W]
6
this signal requires a
pull-up resistor on the
card
21 GND GND 22 PERST_L
Input signal for
functional reset to the
card
23 PERn0
PCI Express x1 data
interface: one differential
receive pair
24 +3.3V +3.3V
25 PERp0
PCI Express x1 data
interface: one differential
receive pair
26 GND GND
27 GND GND 28 No Connection -
29 GND GND 30 No Connection -
31 PETn0
PCI Express x1 data
interface: one differential
transmit pair
32 No Connection -
33 PETp0
PCI Express x1 data
interface: one differential
transmit pair
34 GND GND
35 GND GND 36 No Connection -
37 GND GND 38 No Connection -
39 No Connection - 40 GND GND
41 No Connection - 42 No Connection -
43 GND GND 44 LED_WLAN_L
(OPT)
Output and open drain
active low signal. This
signal is used to allow
the PCI Express Mini
Card add-in card to
provide status indicators
via LED devices that will
be provided by the
system
45 No Connection - 46 No Connection -
47 No Connection - 48 No Connection -
49 No Connection - 50 GND GND
51 No Connection - 52 +3.3V +3.3V
PRODUCT APPROVAL SHEET –WPEQ-256ACNRBI [W]
7
* NA: No active
* OPT: Optional (Depends on S/W and H/W design of the module and customer platform
main board, functionalities of end devices and drivers.)
PRODUCT APPROVAL SHEET –WPEQ-256ACNRBI [W]
8
