SparkLAN Communications WPER150GN 802.11 b/g/n USB Half Mini Card User Manual
SparkLAN Communications, Inc. 802.11 b/g/n USB Half Mini Card
User manual
1
WPER-150GN
IEEE 802.11b/g/n
USB Half-Mini-Card Module
2
I. Introduction
i. Overview
SparkLAN Communications, Inc. introduces the pioneer of the IEEE 802.11b/g/n USB
Half-Mini-Card wireless module --- WPER-150GN. The WPER-150GN USB Half-Mini-Card wireless
module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the
digital content through the latest wireless technology without using the extra cables and cords. It
enables a high performance, cost effective, low power, compact solution that easily fits onto one
side of a USB Half-Mini-Card.
Compliant with the IEEE 802.11b/g/n standard, the WPER-150GN uses Direct Sequence Spread
Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and
QAM baseband modulation technologies.
A high level of integration and full implementation of the power management functions specified in
the IEEE 802.11 standard minimize system power requirements by using WPER-150GN.
Longer Range and Faster Speed
Comparing to 802.11g technology, 802.11n draft 3.0 standard make big improvement on speed and
range. It Increases wireless range by up to 2 times and reduces dead spots in coverage area. The
data rate can up to 150Mbps data rate.
ii. Features
USB Half-Mini-Card.
Compliant with IEEE802.11n Draft 3.0 standard
2 antennas to support 1(Transmit) × 1(Receive) Diversity technology
High speed wireless connection up to 150MbpsLow power consumption and high
performance
Enhanced wireless security
3
iii. Product Review
1. Connection Mode
◎Infrastructure Mode
Infrastructure mode needs an access point to establish the network, which can provide wireless accesses
within valid range for users to communicate with others or transmit data with a wired network. There are
several benefits of Infrastructure networking:
√ Roaming: a wireless LAN enabled computer can physically move from the operating range of one
access point to the other without losing connection. There is a quick association made between new
access point and wireless device as the computer traverses from the coverage of one access point to
another.
√ Range Extension: each wireless LAN enabled computer within the range of access point can
communicate with other wireless LAN enabled computers within the effective range from the access
point.
√ Wired to wireless LAN connection: the access point will establish a bridge between wireless LAN
and other wired counterparts.

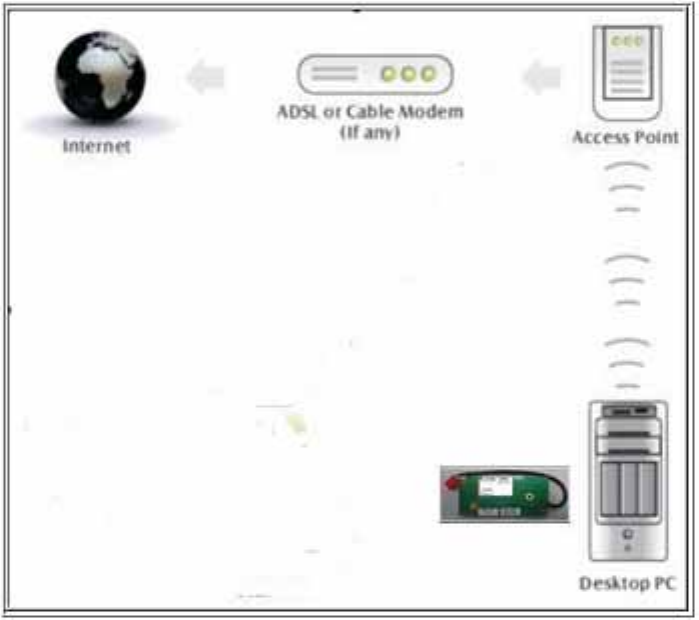

Infrastructure Mode
4
◎Ad-hoc Mode
The difference between Ad-hoc mode and Infrastructure mode is that Ad-hoc mode does not need the
access point or router. When you use this mode, your computer will act as a server within the valid range
and connect directly to others in the same LAN workgroup.

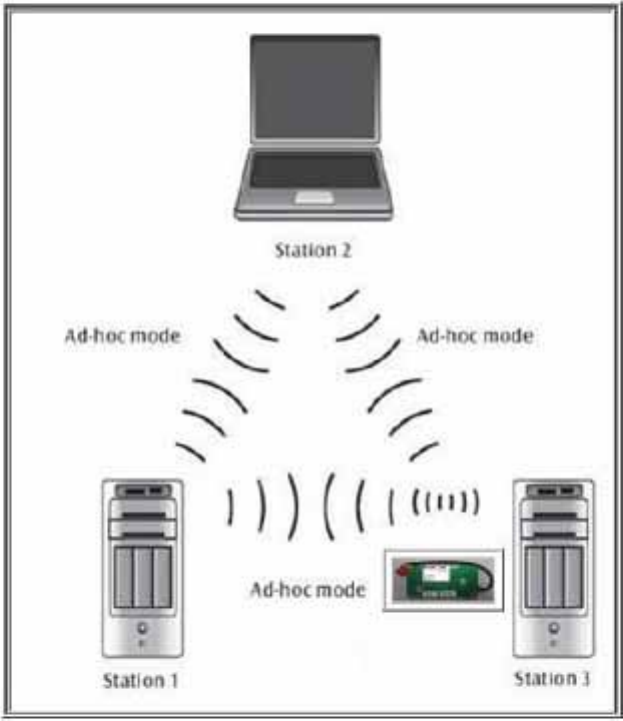

Ad-hoc Mode
It is recommended to choose this mode when there is no access point showed on your wireless
network.
5
II. Installation
i. System Requirements
*Minimum of 64MB system memory
*Operating system: XP/Vista
* Driver installation
ii. Setup: Windows XP OS
1. Find out the Driver, and launch the Setup Wizard

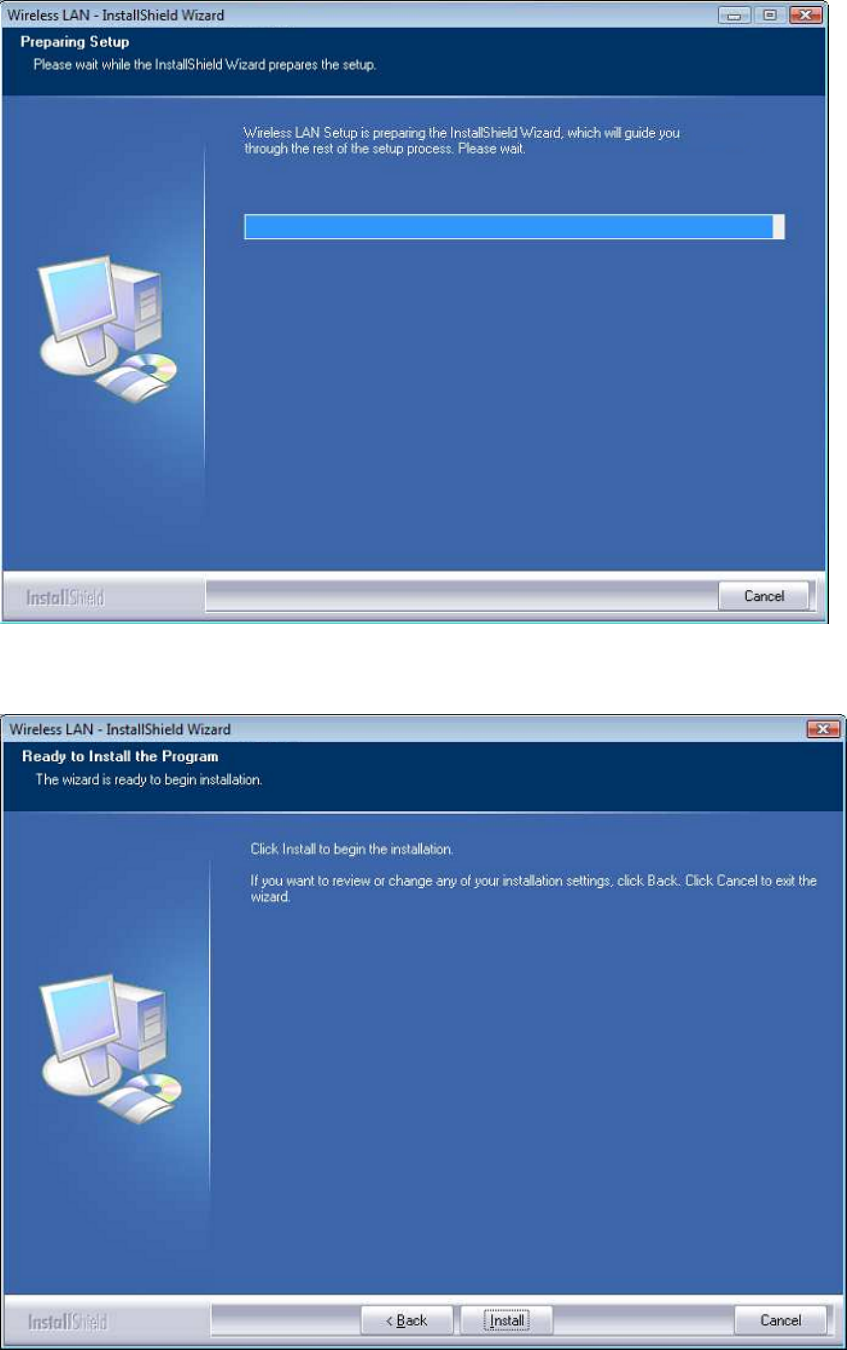

2. Please wait few seconds for wizard to prepare installation
6

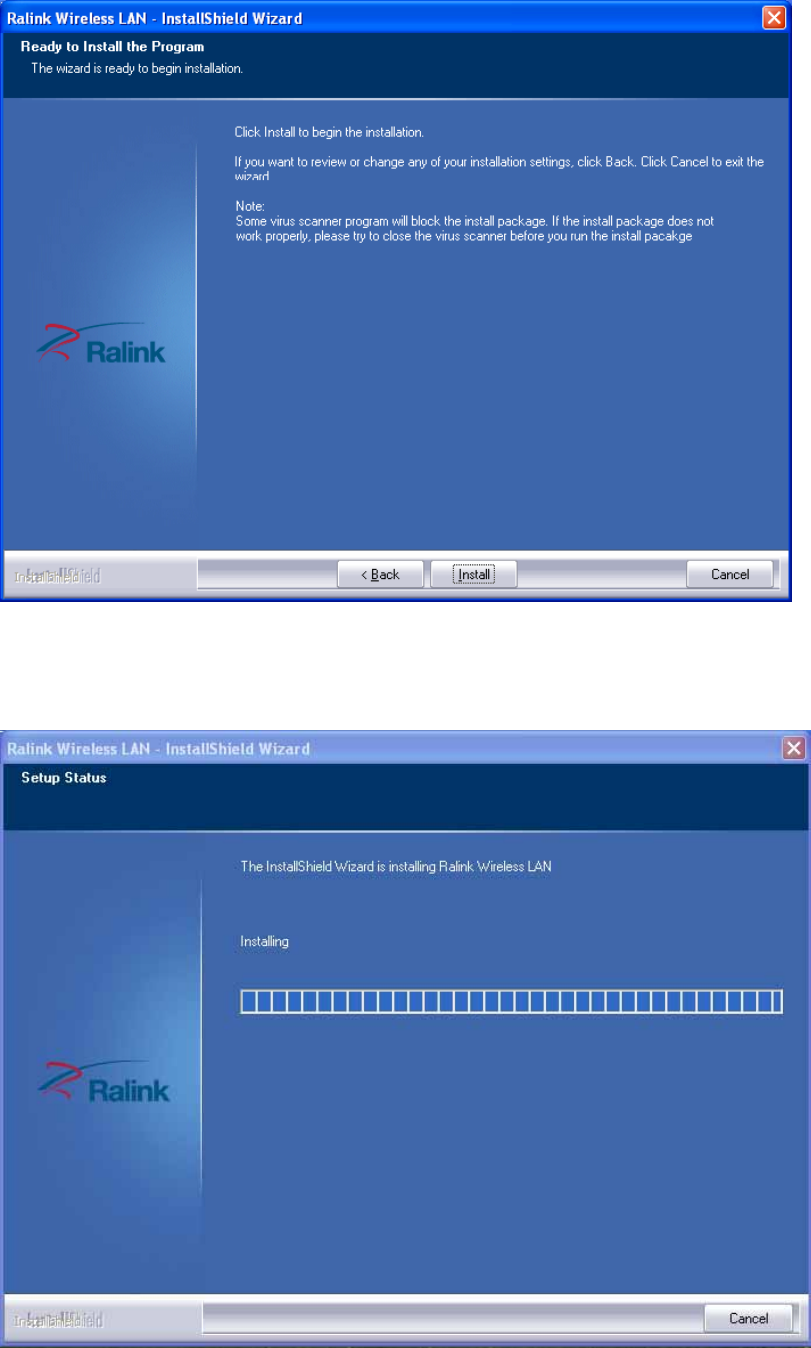

3. Please select click [Install] to proceed

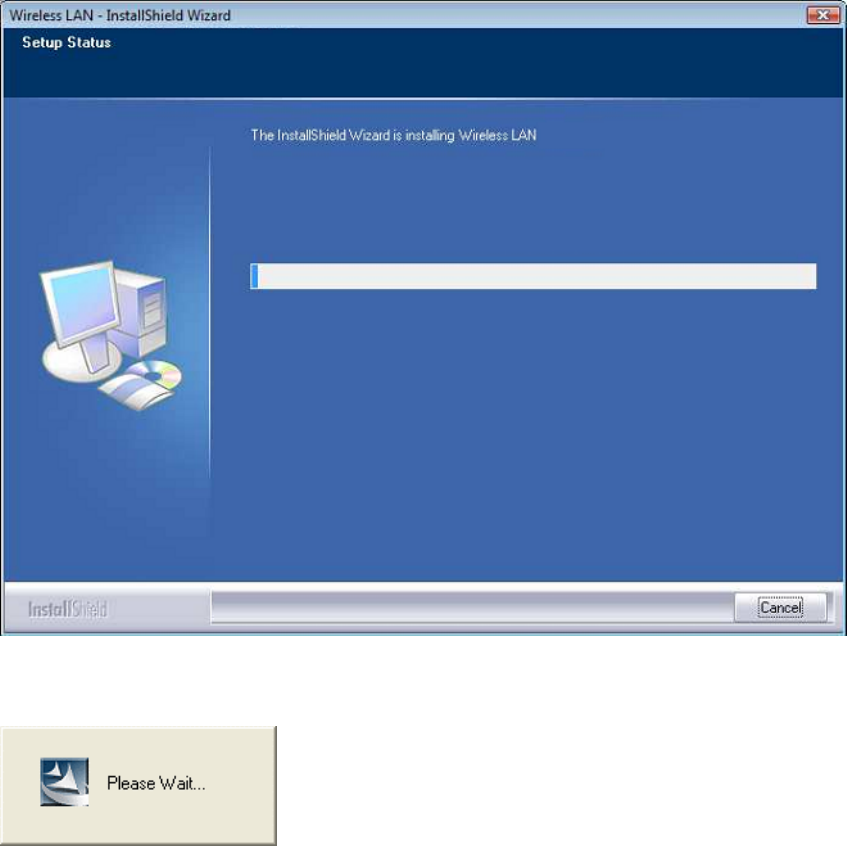

4. The Wizard is running installation
7

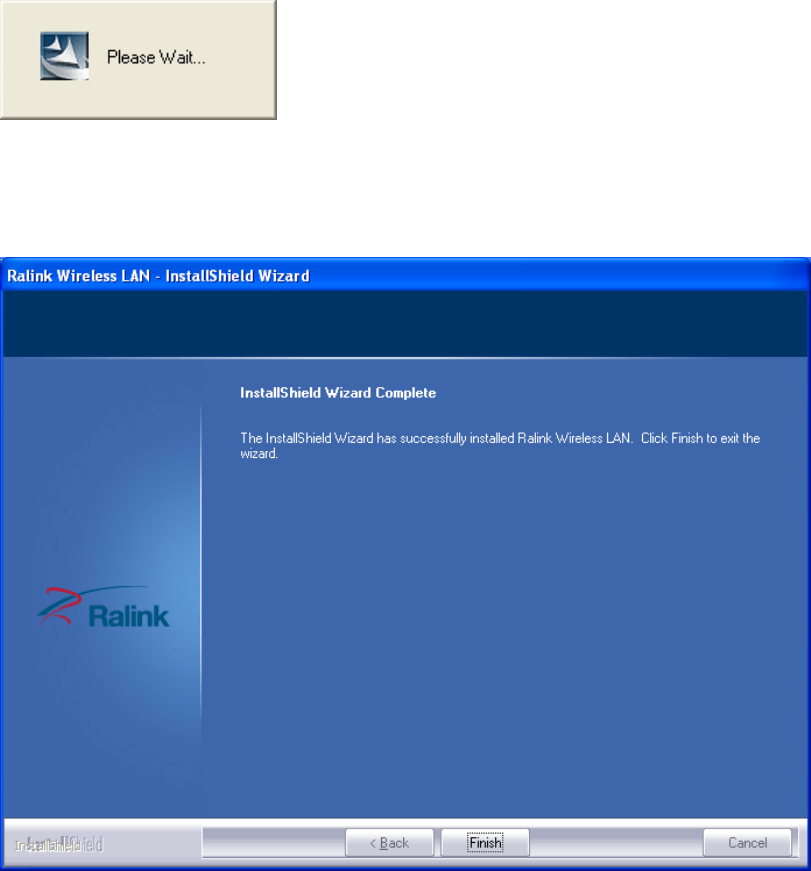

5. Please wait few seconds for Wizard to setup
6. When it is completed, please click [Finish]
8
iii. Setup: Windows Vista OS
Please follow the steps to complete installation.

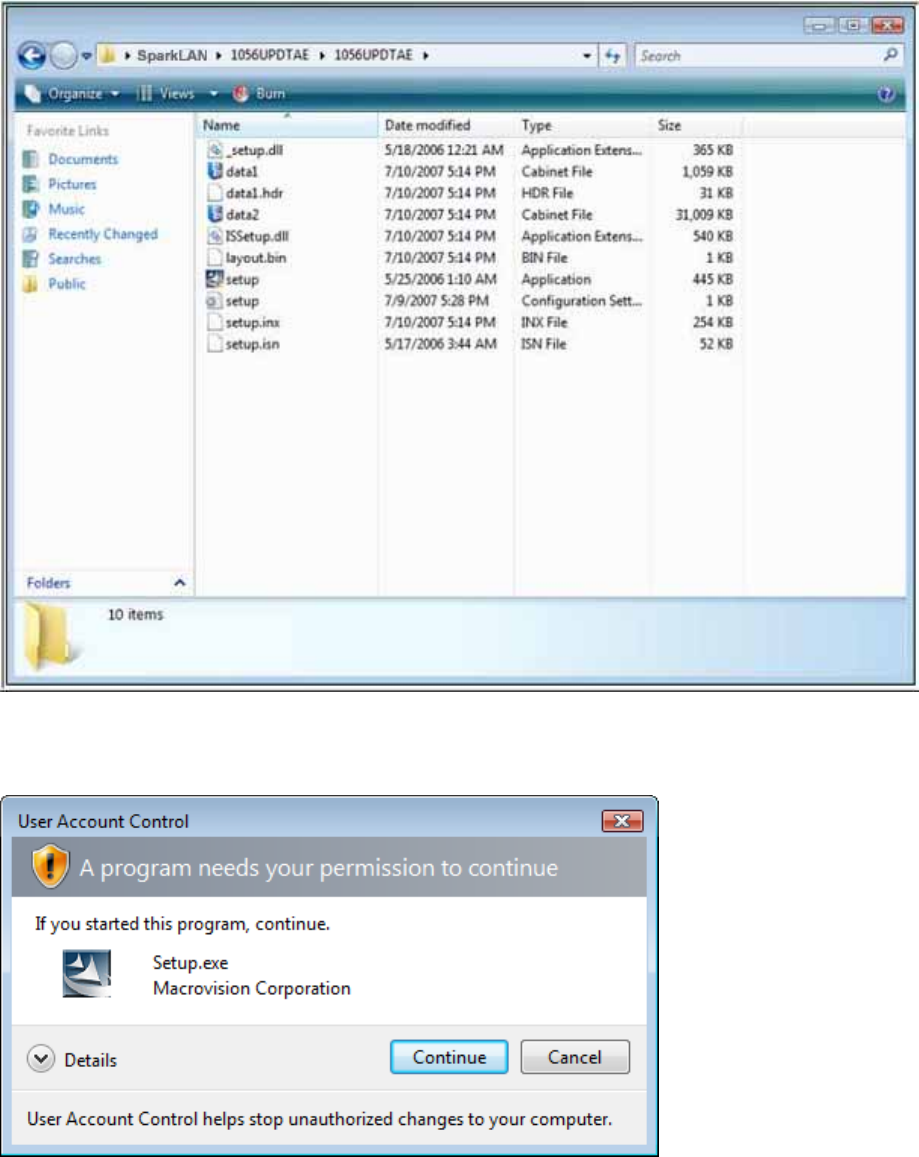

1. Launch the setup driver
2. When you see the permission dialogue box, please click [Continue]
9
3. Now the Wizard is preparing installation
4. Please click [Install] to proceed
10
5. The system is processing installation
6. Please wait few seconds for Wizard to setup
11

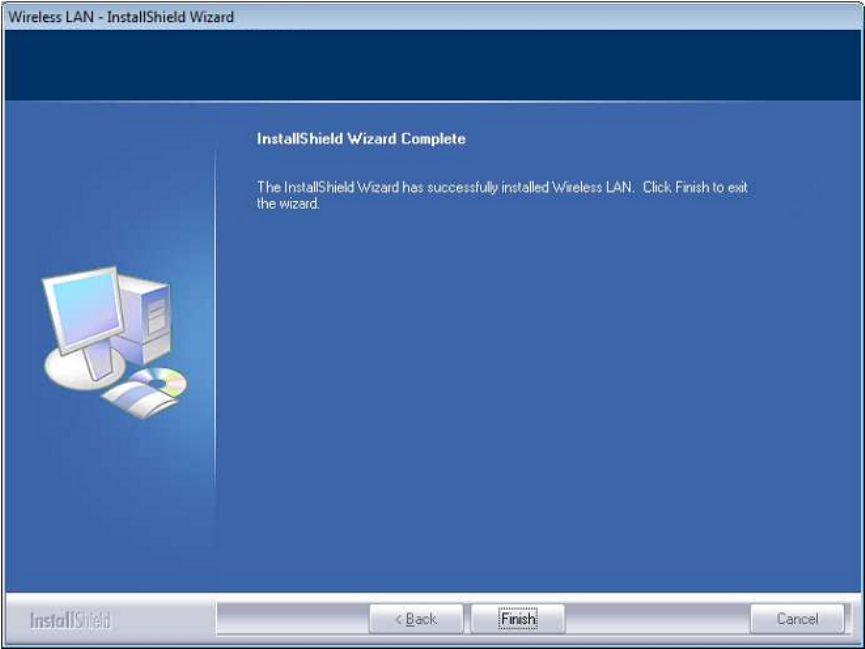

7. When the setup is completed, please click [Finish]
12
III. Network Connection
i. For Windows XP OS
Please see the following steps to setup network connection for Windows XP.
1. Find the network icon on the desktop shortcut and right-click on it. Choose “View Available
Wireless networks”
2. You will see several options, please select one and click [Connect]
13

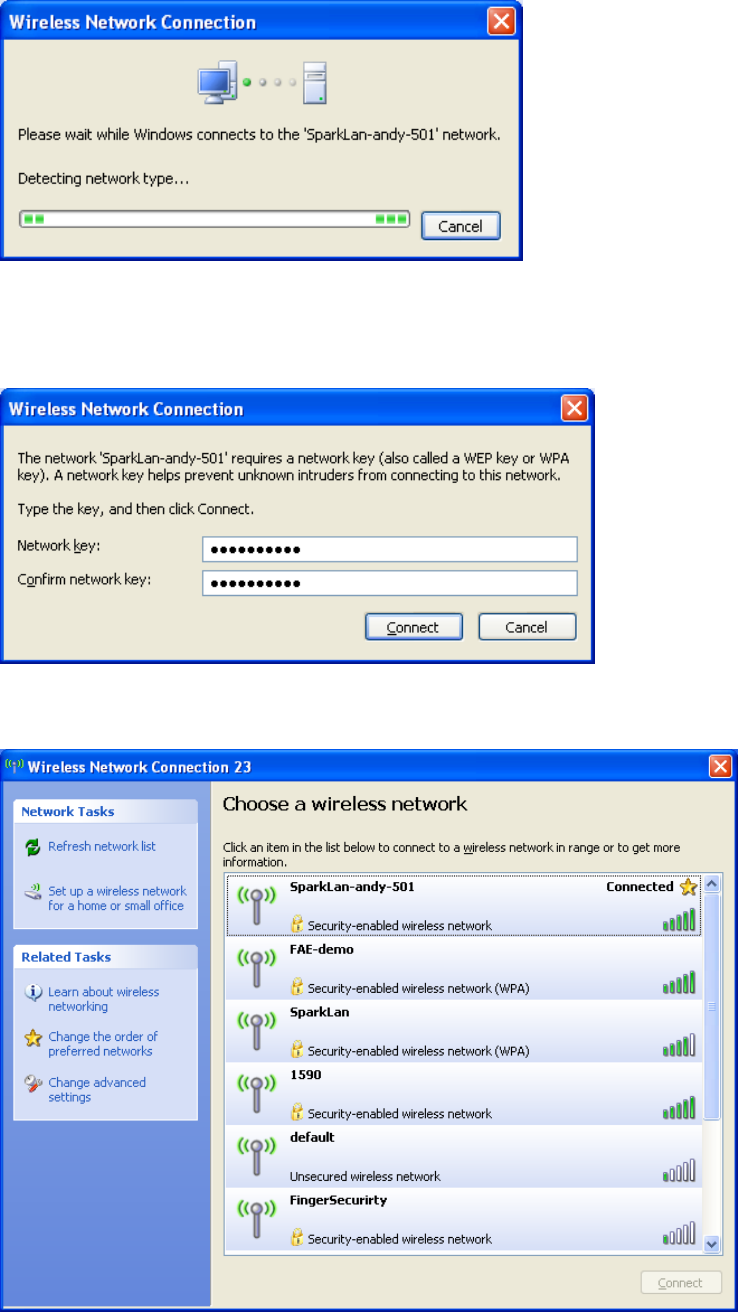

3. Please wait for few seconds to let system connecting to selected wireless network
4. You may need to type the network key when it is required (if the network doesn’t request the key,
the network will connect directly.)
5. Now the selected wireless network is connected
14

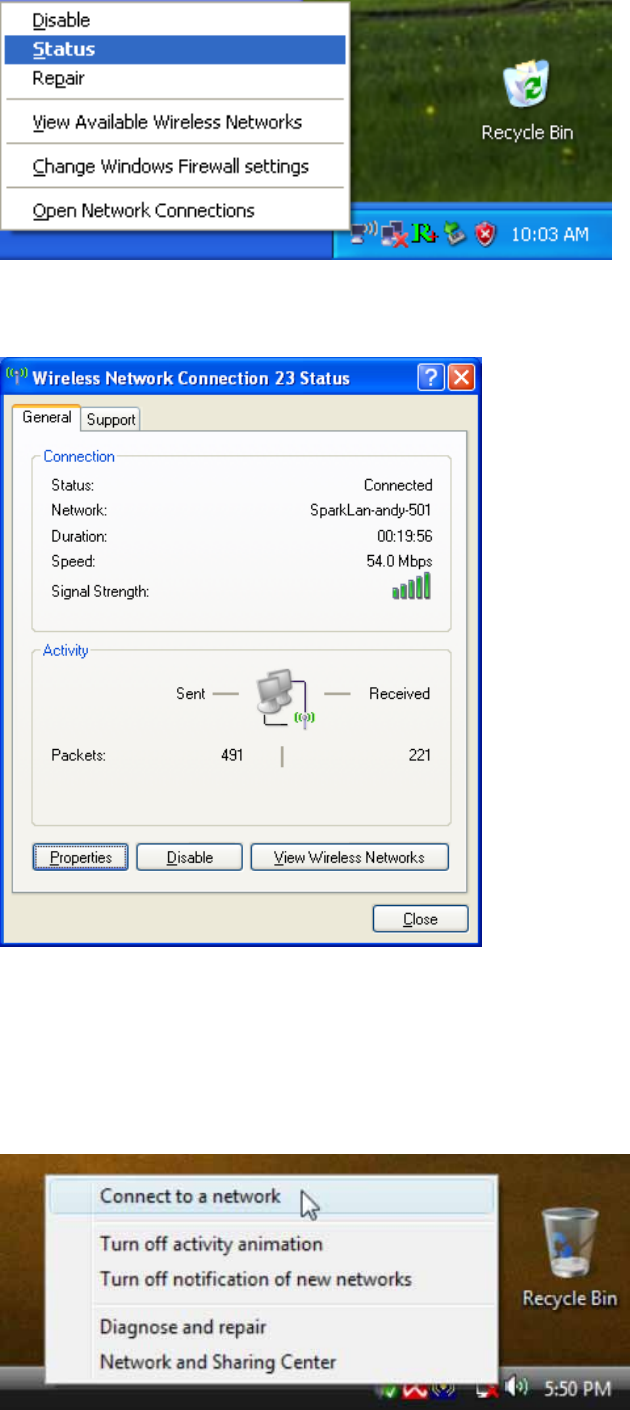

6. You can check the connection status by clicking [Status] in the pop-up dialogue
7. Here is the wireless network connection status
ii. For Windows Vista OS
Following are the instructions to setup wireless connection for Windows Vista.
1. Right-click on the network icon located on desktop shortcut. When you see the dialogue, please
click [Connect to a network]
15

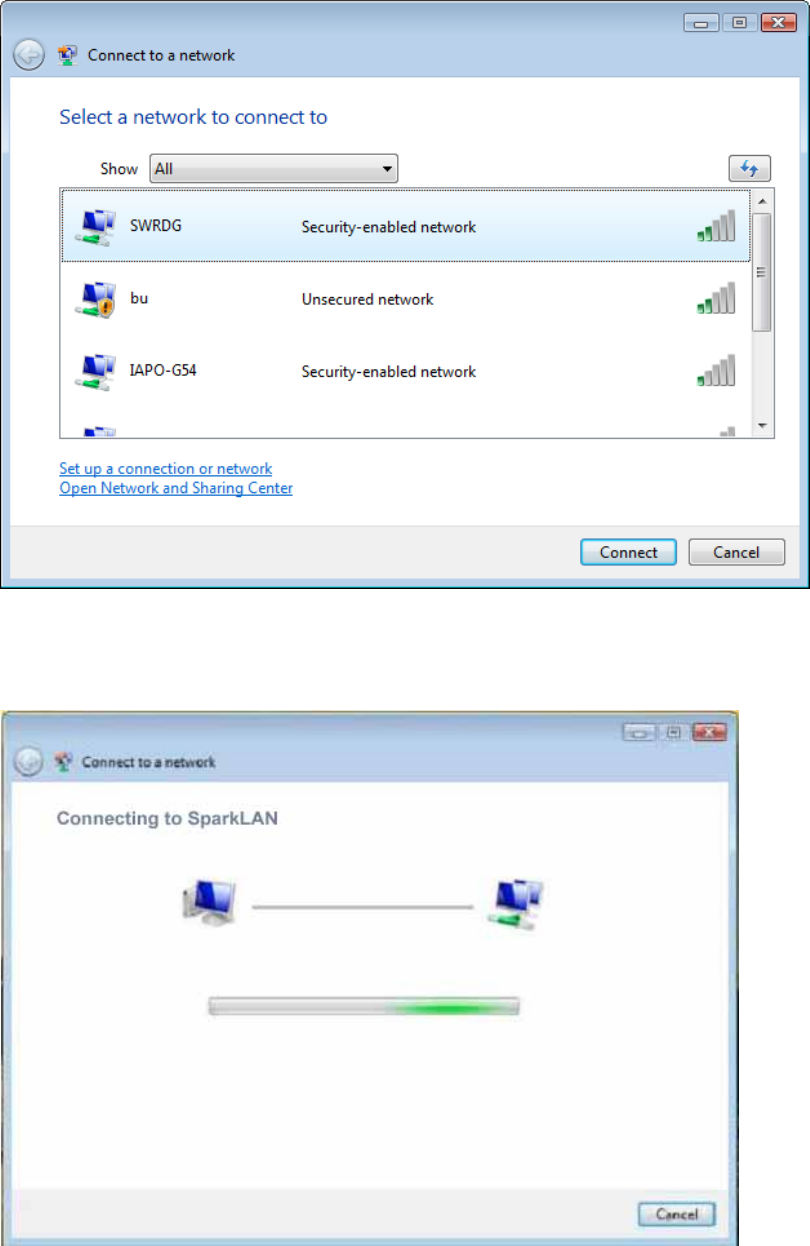

2. Choose wireless network within your range and click [Connect]
* If selected network is not secure, please choose [Connect anyway]
3. You may need to wait for few seconds when Windows connects to wireless network
16
4. Now the selected wireless network is connected
5. If you want to see the connection status, please right-click on the network you choose and select
[Status]
17
6. This is the information of network status
18
IV. Setup for Ad-hoc Mode
i. For Windows XP OS
If you want to choose Ad-hoc mode, please right-click network icon on desktop shortcut and choose
“Open Network Connections”, or go to [Control Panel] and double-click “Network Connection”
icon.
When you see the “Network Connections” screen, please follow the steps below to setup Ad-hoc
mode.
19

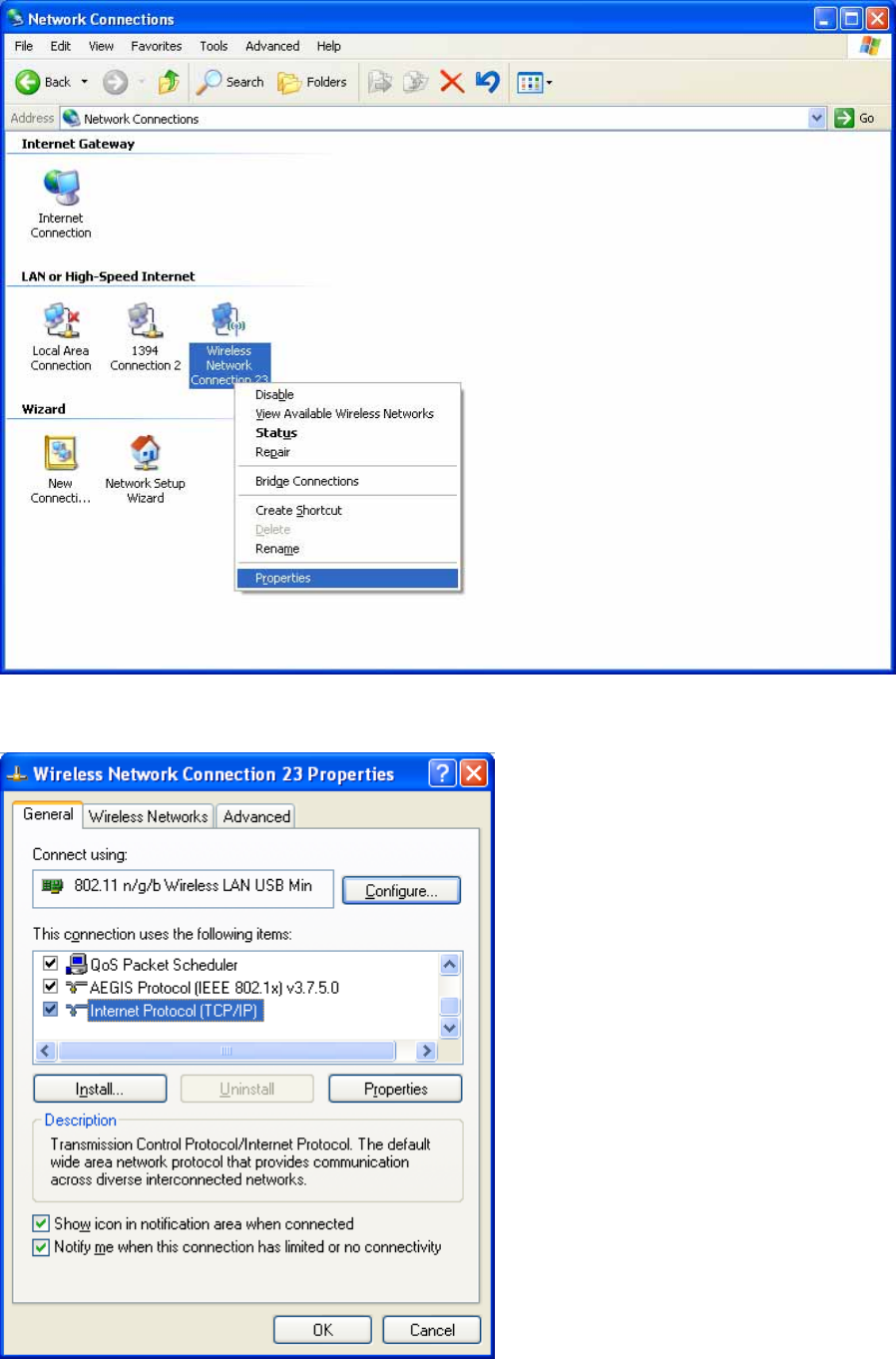

1. Double-click “Wireless Network Connection” icon to enter its properties
2. Click "General” tab and double-click the “Internet Protocol (TCP/IP)” item
20

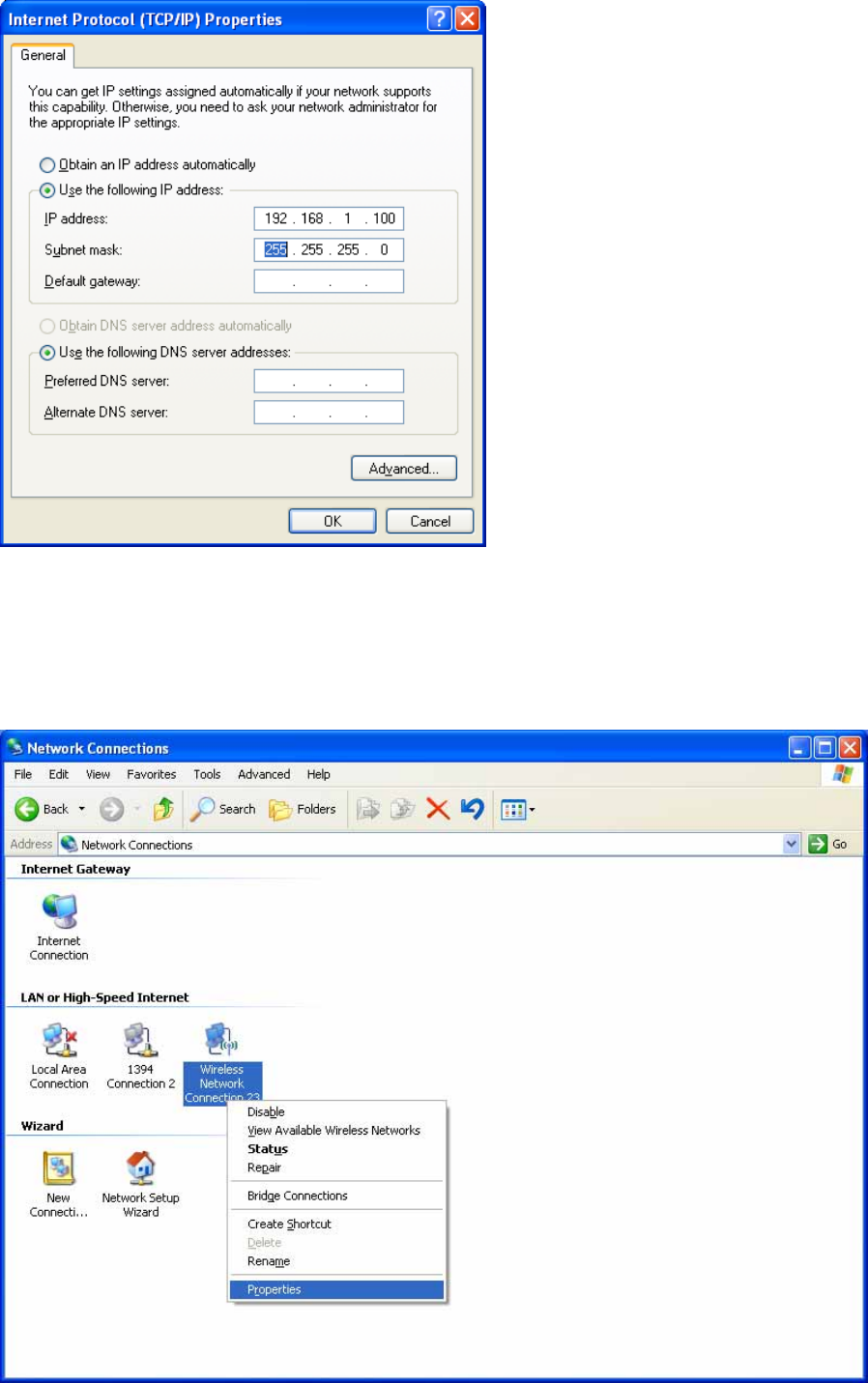

3. Choose “Use the following IP address:” and type the IP address; then click [OK]
*Note: the IP address of the other wireless card should be set with the same subnet mask
4. Right-click the “Wireless Network Connection” icon and choose “properties”
21

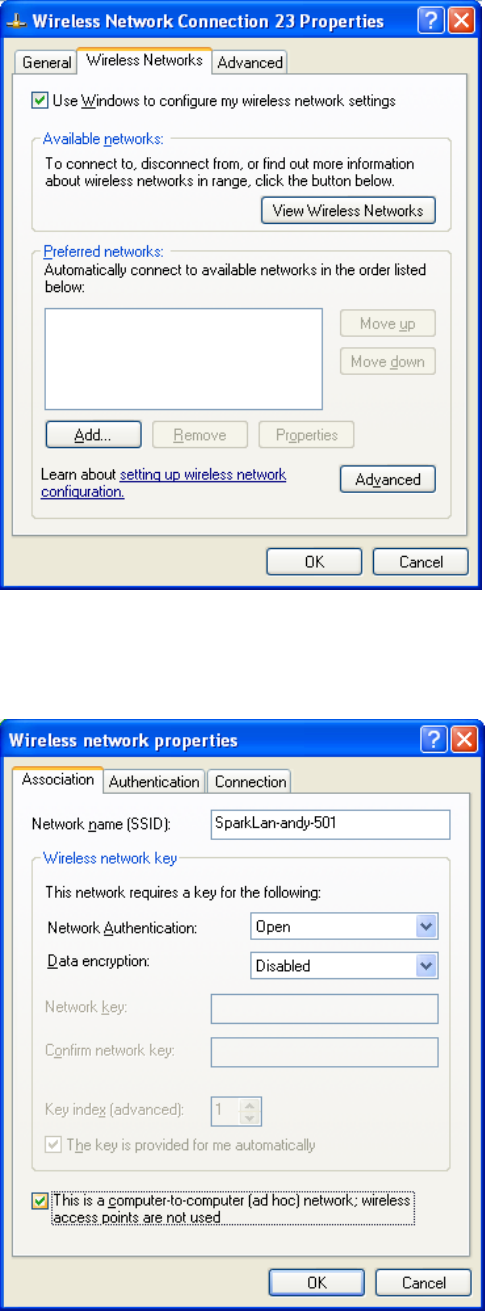

5. Select “Wireless Network” tab and choose [Add]
6. Type “Network name (SSID)” and choose “Data encryption” if you want to protect the network
security
22

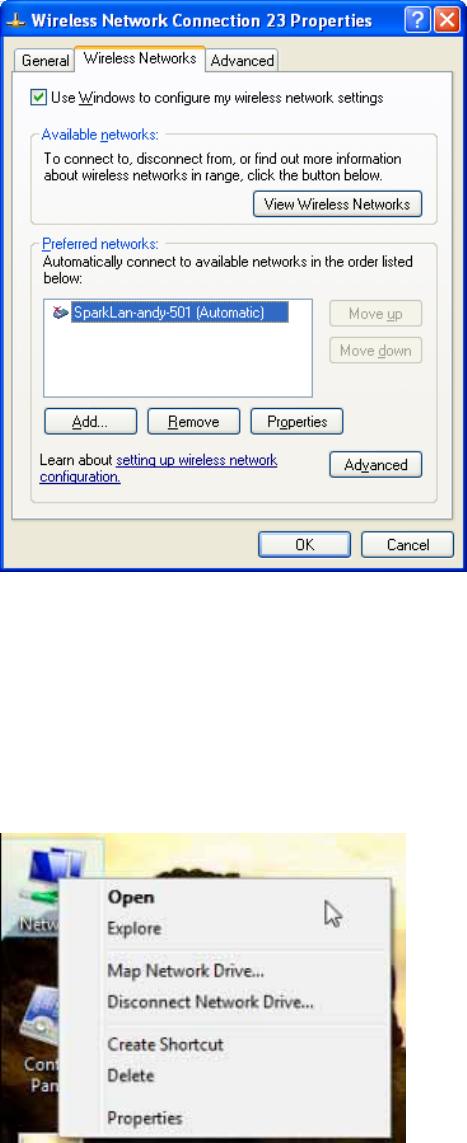

7. When you see the dialogue showing your network is unsecured, please click [Continue Anyway]
8. Now your network is in Ad-hoc mode
ii. For Windows Vista OS
Please follow the steps to setup Ad-hoc mode for Windows Vista.

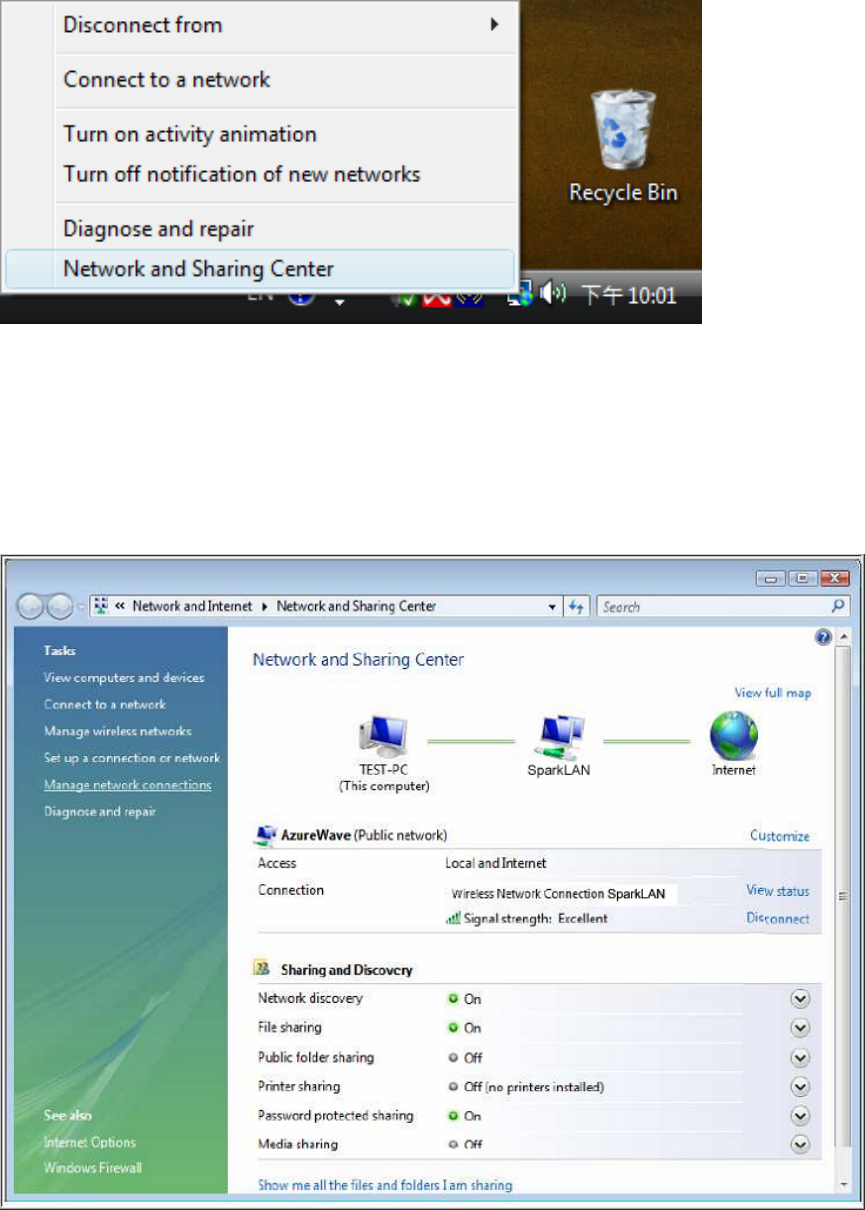

1. Right-click the Network neighbor to choose “properties,” or you can right-click network icon on
desktop shortcut and choose “Network and Sharing Center”
23
2. When you see the “Network and Sharing Center” windows, please select “Manage network
connection” bar
24

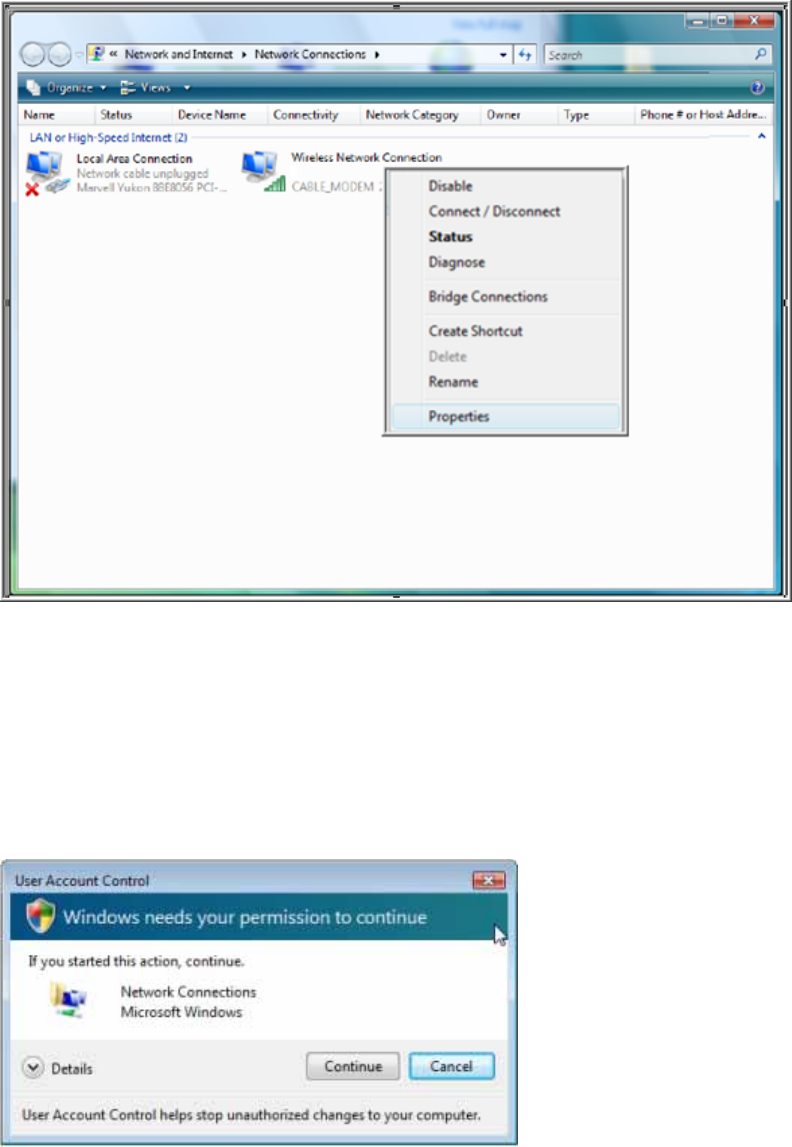

3. Right-click the connected network icon and choose “Properties”
4. When you see the warning message, please click [Continue]
25

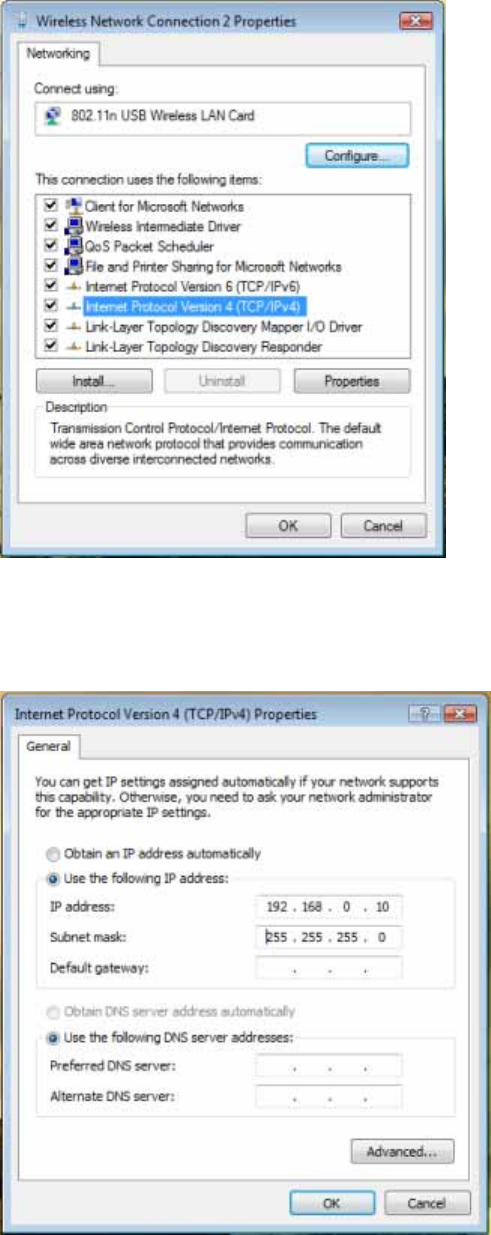

5. Choose “Networking” tab and double-click the “Internet Protocol Version 4 (TCP/IPv4)” item
6. Choose “Use the following IP address:” and type the IP address; then click [OK]
*Note: the IP address of the other wireless card should be set with the same subnet mask
26

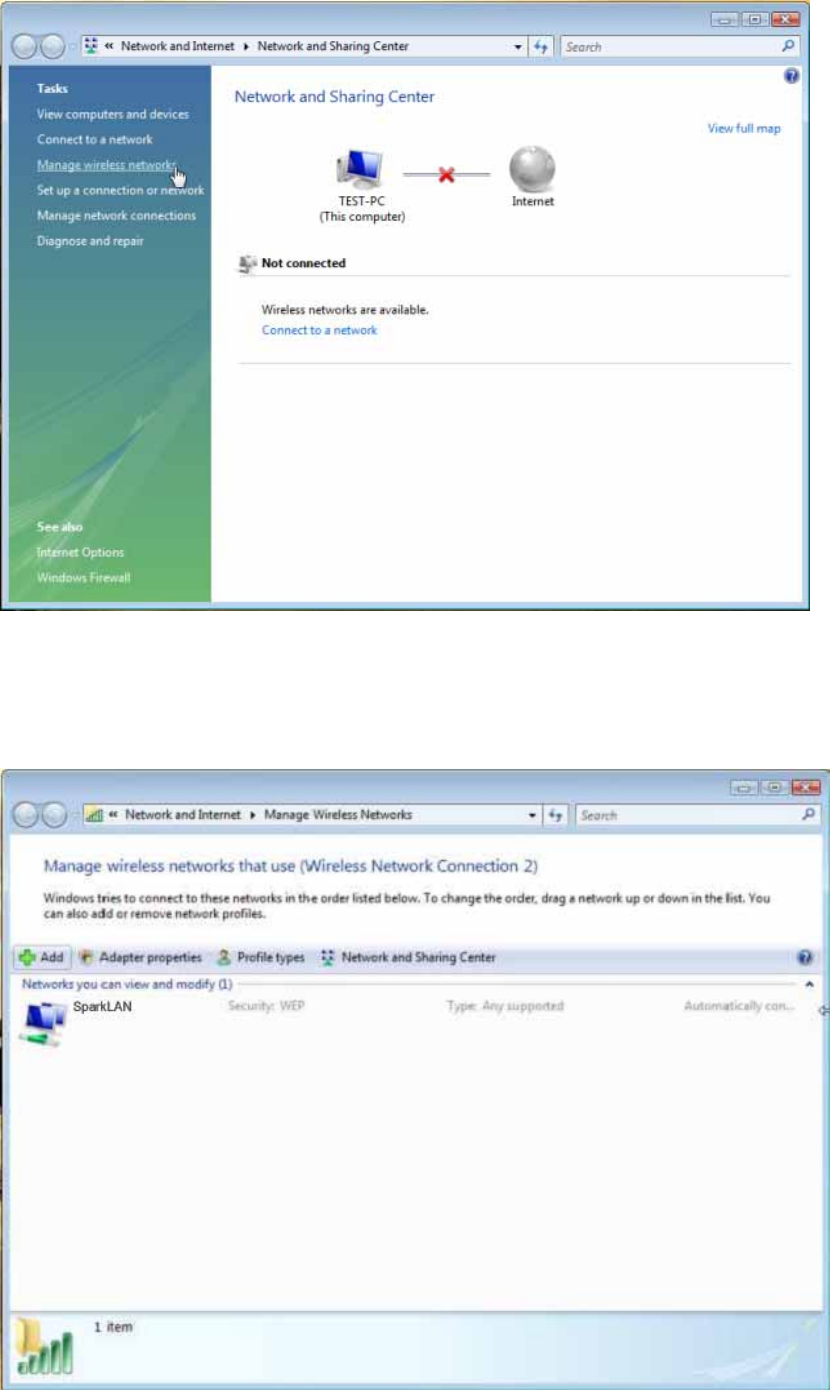

7. Choose “Manage wireless networks” bar
8. Select [Add]
27

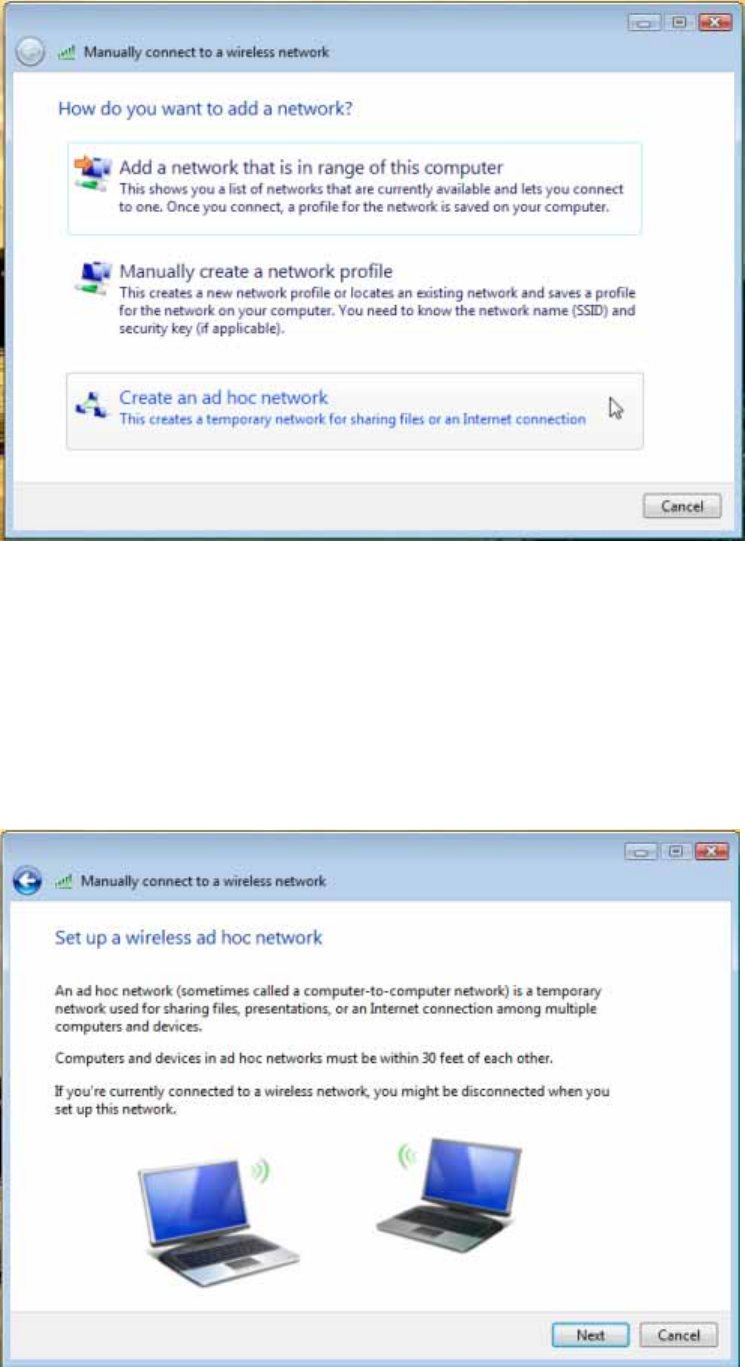

9. Choose “Create ad-hoc network”
10. Please click [Next]
28

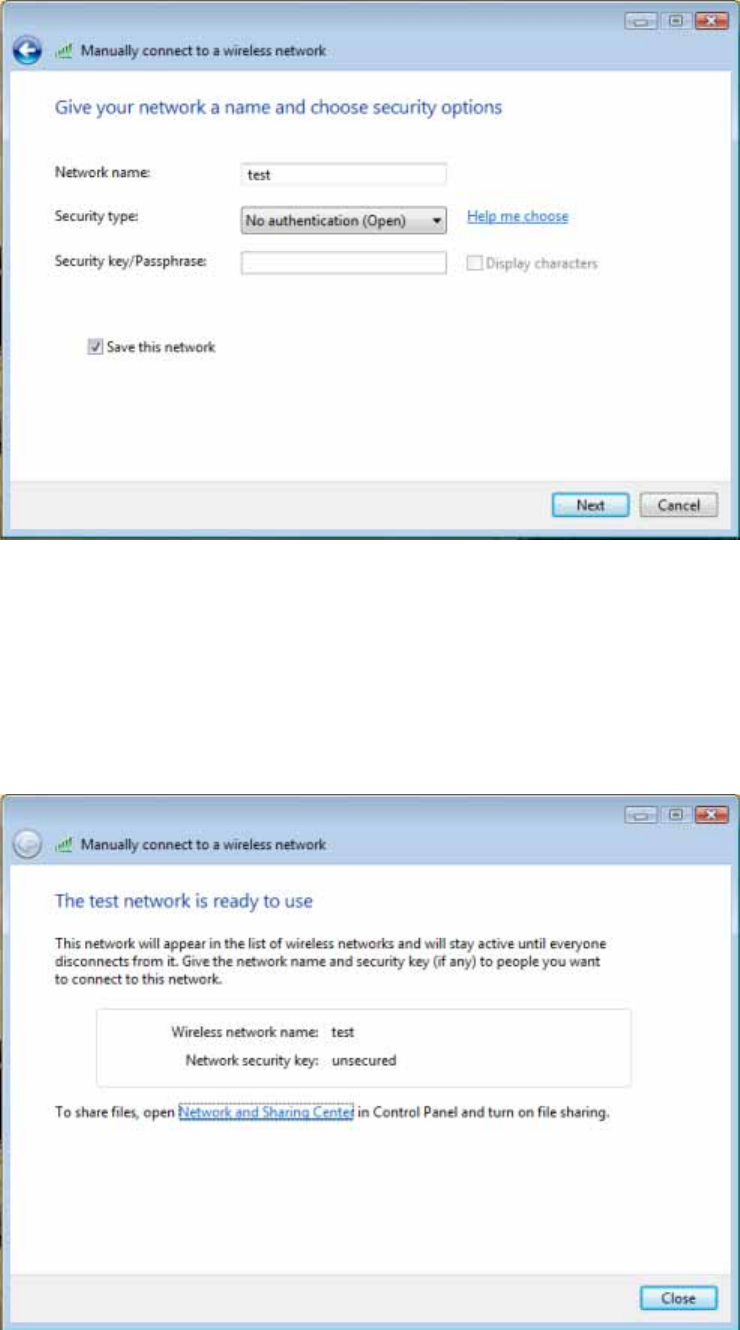

11. Enter “Network name” and if you want to protect the network security, please choose in
“security type”; then click [Next]
12. Now your network is in Ad-hoc mode
29
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of
the R&TTE Directive 1999/5/EC:
- EN 60950-1: 2006
Safety of Information Technology Equipment
- EN50371
- EN 300 328 V1.7.1: (2006-10)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.6.1: (2005-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
- EN 301 489-17 V1.2.1 (2002-08)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband
transmission systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member
states and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output
power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed
information the end-user should contact the national spectrum authority in France.
0560
30

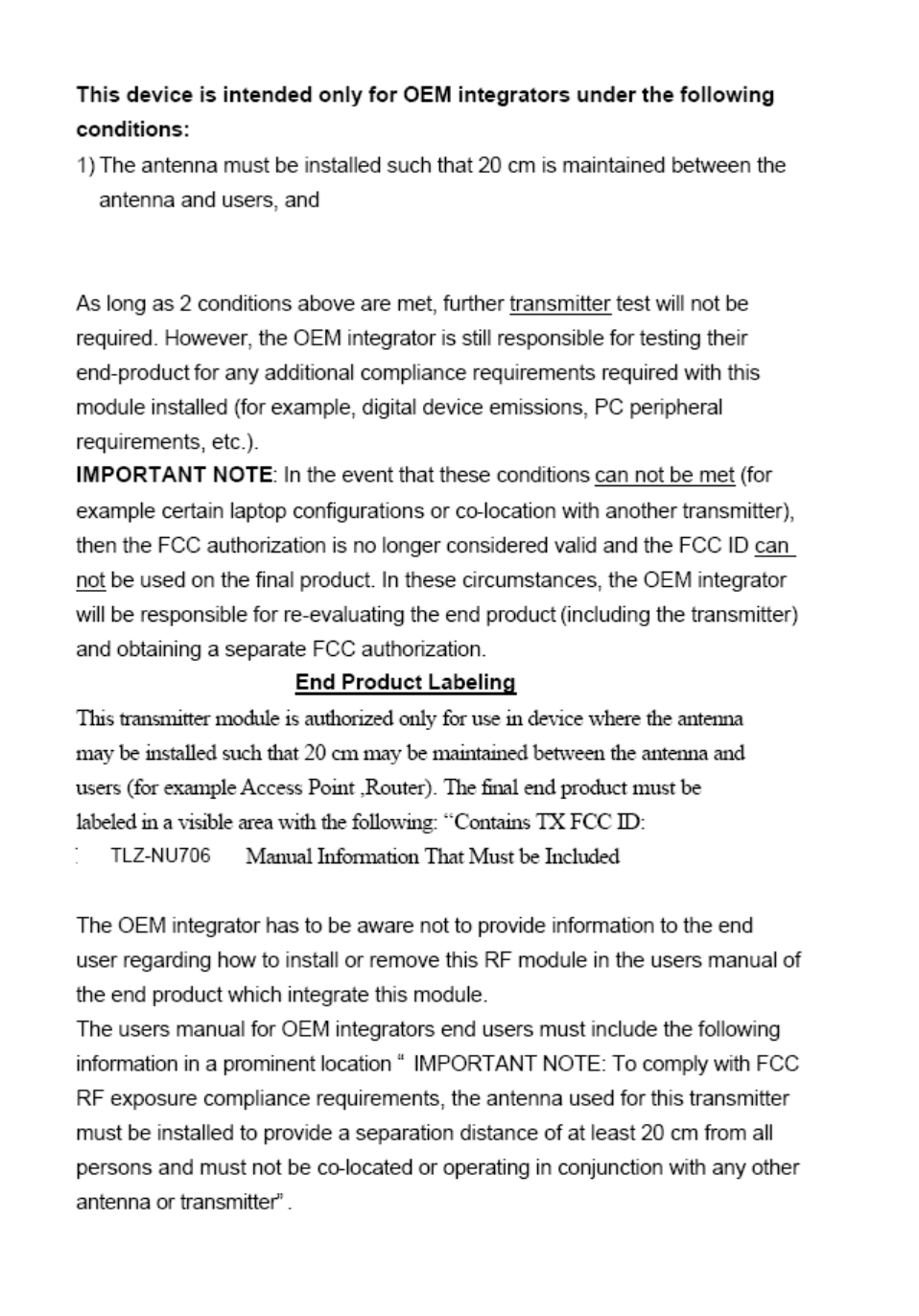

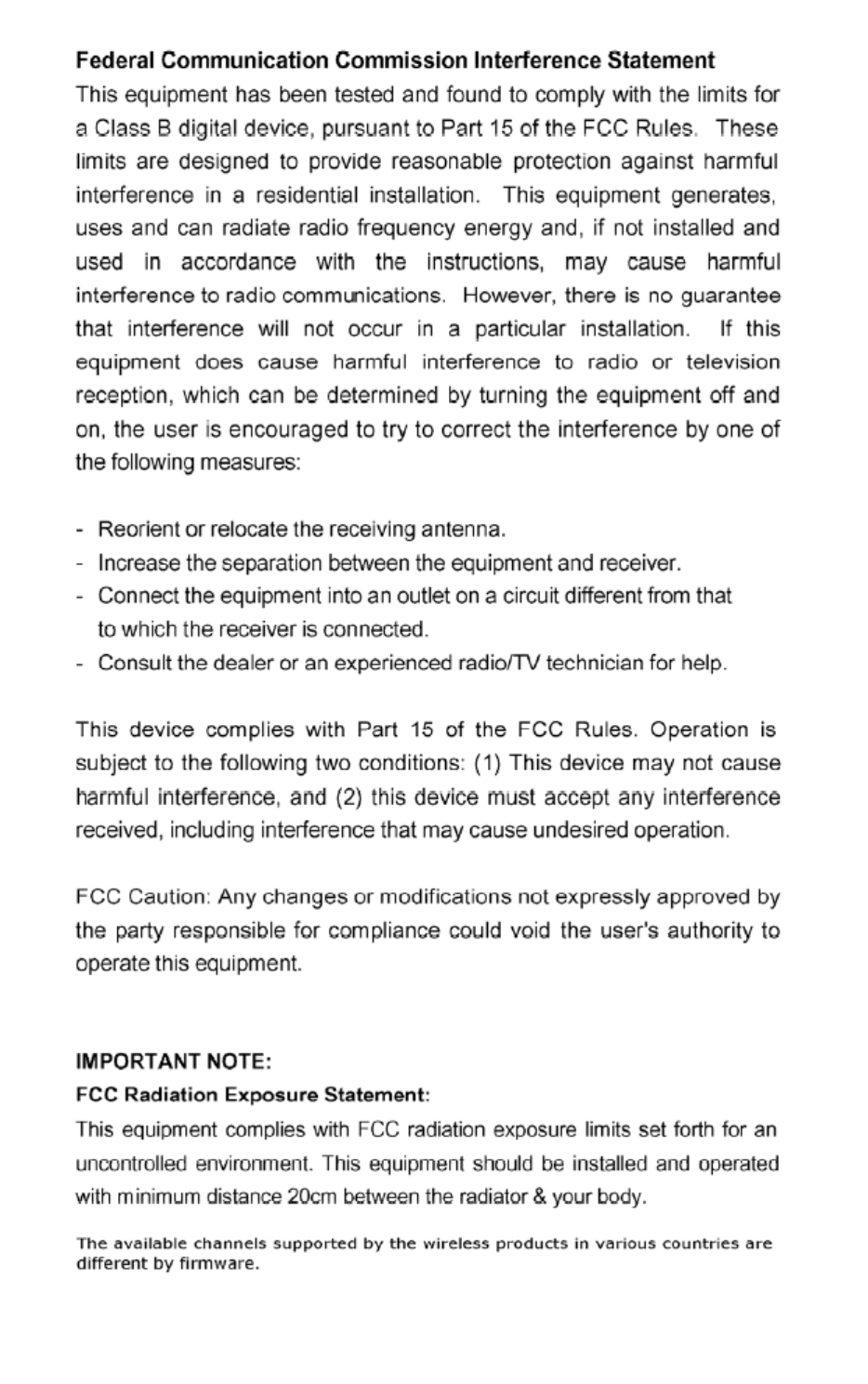

● Switch off the radio components (Bluetooth or wireless LAN) on the device when you are in a
