SparkLAN Communications, Inc. Wifi USB module Users Manual

Users Manual

All Rights Reserved, Sparklan may make changes to specifications and descriptions at any time without prior notice.
www.sparklan.com / sales@sparklan.com /+886-2-26591880 WUBQ-159ACN(BT)
ver.1.0

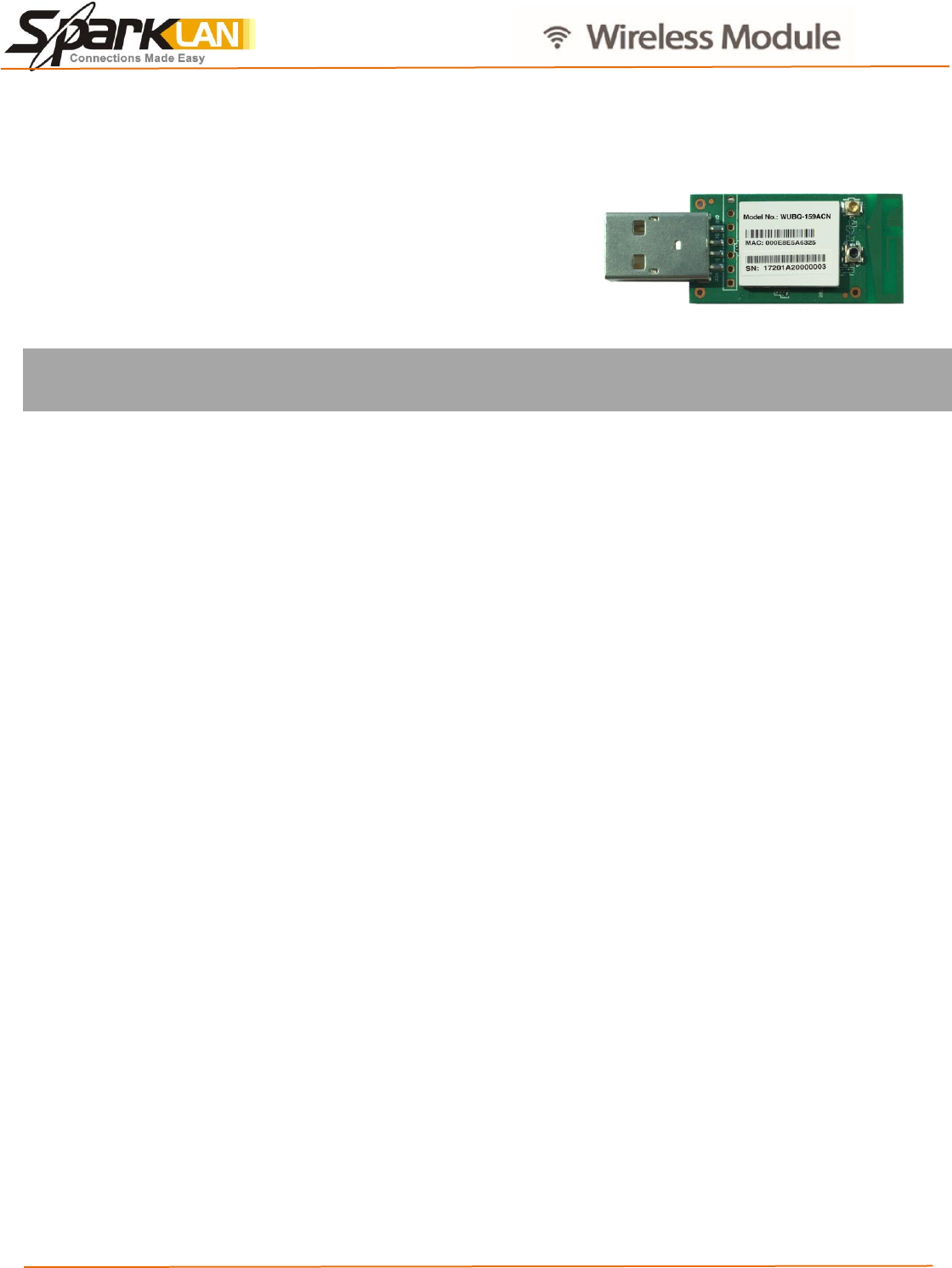

Wireless USB Module for Embedded Solution
WUBQ-159ACN(BT)
802.11ac/abgn Dual-Band
1T1R USB Module
Dual-Band 802.11ac Solution
SparkLAN WUBM-159ACN(BT) is an 802.11ac/b/g/n 2.4GHz + 5GHz USB module based on Qualcomm QCA9377 chipset.
It supports 1T1R with RX diversity (Support Wi-Fi/BT co-existence) technology, which runs up to 433Mbps and 1~3Mbps
EDR for BT, provides higher throughput performance, reliability and range. The WUBQ-159ACN(BT) supports
20/40/80MHz and 256-QAM to maximize bandwidth efficiency.
Embedded Application :
Applications include medical devices, security systems,
industrial, PoS, digital signs, Gaming machine, Medical
equipment, thin client devices, and many more.
Key Feature :
●Qualcomm Atheros QCA9377-7
● Antenna: Printed antennas or 1 x U.FL connectors
(optional), 1T1R
● Data Rates: allows link speeds up to 433Mbps.
●Support Win7, Win8.1, Win10
All Rights Reserved, Sparklan may make changes to specifications and descriptions at any time without prior notice.
www.sparklan.com / sales@sparklan.com /+886-2-26591880 WUBQ-159ACN(BT)
ver.1.0
Chipset:
Data Rate:
Operating Frequency:
Interface:
Form Factor:
Antenna:
Modulation:
Power consumption
Operating Voltage:
Temperature Range:
Humidity
(Non-Condensing)
Dimension (in mm):
Weight (g):
Driver Support:
Security
Specification:
All Rights Reserved, Sparklan may make changes to specifications and descriptions at any time without prior notice.
www.sparklan.com / sales@sparklan.com /+886-2-26591880 WUBQ-159ACN(BT)
ver.1.0
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this equipment. (Example -
use only shielded interface cables when connecting to computer or peripheral devices).
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be installed such that
20 cm may be maintained between the antenna and users. The final end product must be labeled in visible
area with the following: “Contains FCC ID: RYK-WUBQ159ACNBT”
”
End Product Manual Information
The user manual for end users must include the following information in a prominent location “IMPORTANT
NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter
must be installed to provide a separation distance of at least 20cm from all persons and must not be
colocated or operating in conjunction with any other antenna or transmitter.” This device complies with
part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause
harmful interference and (2) This device must accept any interference received, including interference
that may cause undesired operation.
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or colocation with another transmitter), then the FCC authorization is no longer considered
valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will
be responsible for reevaluating the end product (including the transmitter) and obtaining a separate FCC
authorization. This device is intended only for OEM integrators under the following conditions: The
antenna must be installed such that 20 cm is maintained between the antenna and users. As long as a
condition above is met, further transmitter test will not be required. However, the OEM integrator is still
All Rights Reserved, Sparklan may make changes to specifications and descriptions at any time without prior notice.
www.sparklan.com / sales@sparklan.com /+886-2-26591880 WUBQ-159ACN(BT)
ver.1.0
responsible for testing their end product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral requirements, etc.).
