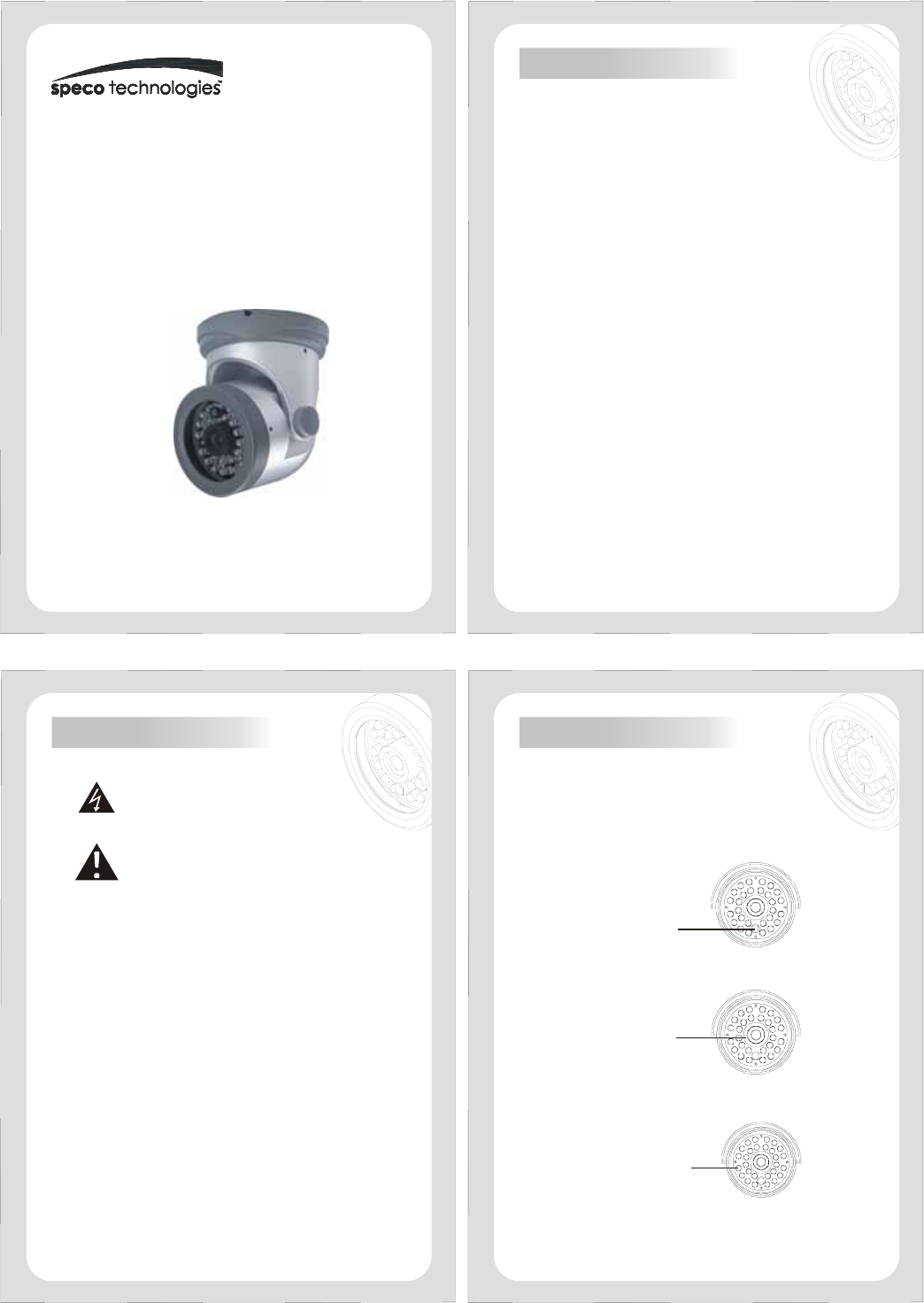

VL-12 Series Weatherproof
IR Color Camera with Extreme
Adjustability – Wall & Ceiling Mount
CONTENTS
CONTENTS……….…………………………………………..………………. 2
SAFETY PRECAUTIONS………………………………………................. 3
FEATURES…………………………………………………………………… 4
CDS …………………………………………………..……………. 4
AWB ………………………………………..……………………… 4
IR LENS ………………………………..………………………….. 4
Mount….………………………………………………………….. 5
Sunshade………………………….……………………………….. 5
Power and Video Output Jack…………………………………… 5
INSTALLATION……….. …………………………………………………….. 6
SPECIFICATIONS …….…………………………………………………….. 7
DIMENSIONS………………………………………………………………... 8
2
Please read before using
1. Please read the service manual before using.
2. Do not disassemble the camera-no user serviceable parts inside
3. The product is IP-66 rated.
4. Do not attempt to service the unit yourself unless you are
authorized to do so. Opening cover may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified personnel only.
5. Turn off the power before cleaning the camera body; use only a
clean damp cloth. Do not use any soap or cleaners.
3
SAFETY PRECAUTIONS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of insulated dangerous Voltage within the
product’s enclosure that may be sufficient magnitude
to constitute risk of electrical shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in
the literature accom
p
an
y
in
g
the a
pp
liance.
FEATURES
200 New Highway. Amityville, NY 11701
1-800-645-5516 FAX:631-957-9142
www.specotech.com
AWB: The camera includes auto white balance mode and auto capture
color temperature. The range is 2400k~9400K
CDS：The IR LED only activates when needed.
Illumination is 4 LUX±2LUX (LED on) / 8LUX±2LUX(LED off)。
LENS：Super sensitivity BOARD LENS for optimum low light pictures..
IR LED：Super power LED IR light，wavelength is 840nm for maximum
illumination.
4
CDS SENSOR
LENS
IR LEDS
INSTALLATION
8

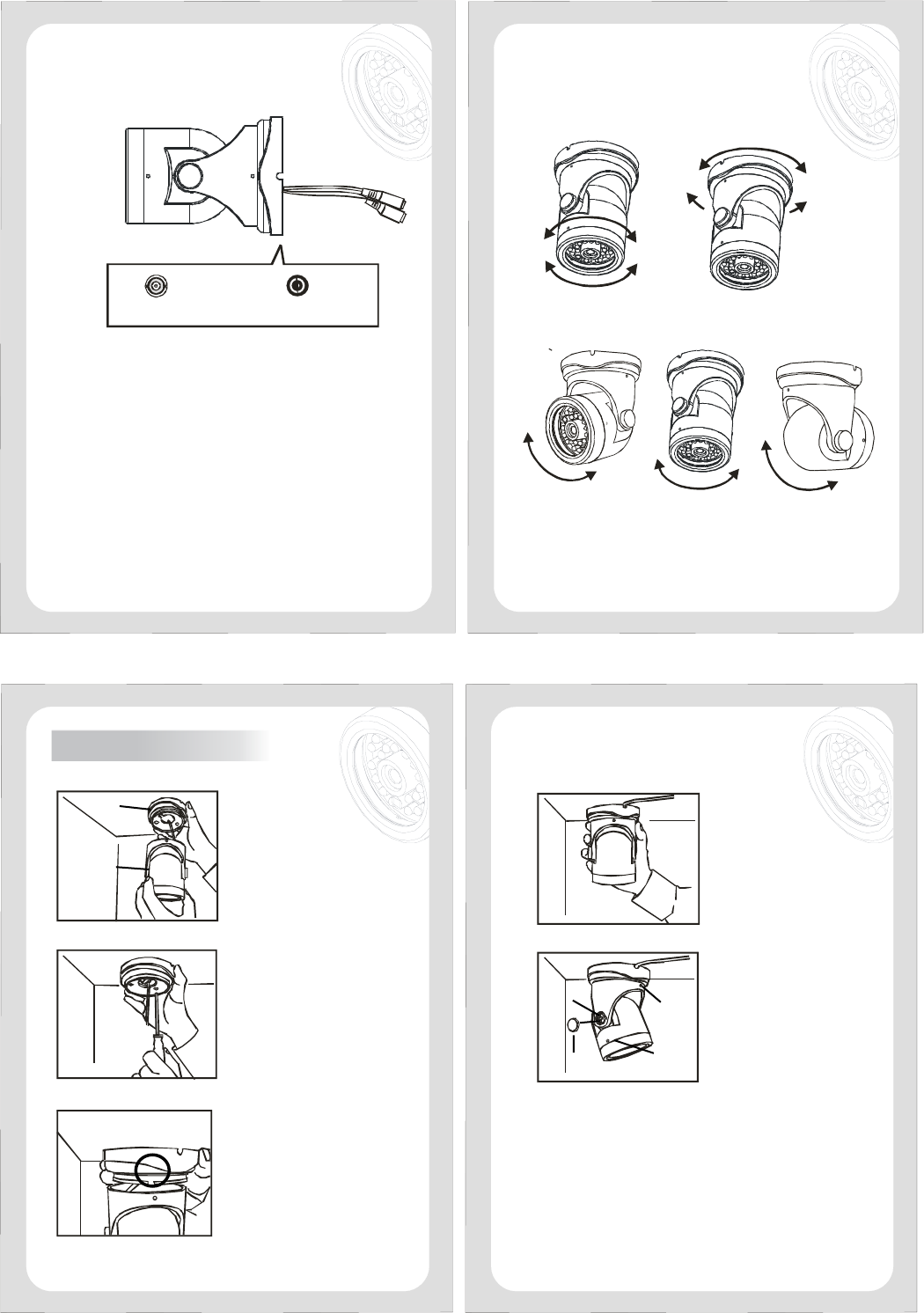

Power and video connections：
Power: Regulated 12 Volts DC, center pin is positive (+)
Video: BNC, 1 Volt p-p
5
DC Power
BNC Video Output
Pan-Tilt-Twist (P-T-T) : Adjustable Manual X-Y-Z position
Pan: 360 degree
Tilt : 150 degree
Twist : 360 degree turning (one turn only)
Twist : 360 degree Pan: 360 degree
Grasp the front ring of the hosing and twist as required to make the
picture straight.
Tilt: 180 degree
6
Step 1
Loosen the set screw and
remove the base
Step 2
Attach the base to the wall or
ceiling.
Step 3
Line up the set screw on the
body to the slot on the base.
7
Step 4
Attach the body to the base
Step 5
Adjust the angel then tighten
screw 1,2 & 3.
base
body
Screw 3
Screw 1
Screw 2
Screw cover
Model VL-12 VL-12/4
Pick Up Device 1/3” Interline transfer CCD
Resolution 420TV Lines
Lens 6.0mm board lens 4.0mm board lens
Total Pixels NTSC:537(H) x 505(V)
Sync system 2：1 Internal
Scanning system 525 line / 30 frames
Video Output Composite 1.0 Vp-p / 75 ohms
Auto White Balance 2400°K~9400°K
Backlight / Flicker /
Mirror
Built-in
Minimum Illumination 0.5 lux color / 0 lux with IR on
IR Radiant Distance 40 feet (28pcs IR LED)
IR Trigger 4 lux / 8 lux IR ON/OFF
X-Y-Z Position Adjustable manual P-T-T (Pan-Tilt-Twist)
S/N Ratio 50dB (AGC off)
Electronic Shutter Auto 1/60sec. to 1/100,000dec. NTSC
Gamma Correct 0.45
Horizontal Frequency 15.734KHz
Vertical Frequency 59.94Hz
Backlight
Compensation
Built-in (Option Jumper ON / OFF )
Operating Temp -14 to 122℉
Power Supply Regulated 12V DC power supply
required-model PSW-5
Consumption Current Max. 300mA
Weight One Pound
Dimensions 2.8” dia x 3.7”H
9

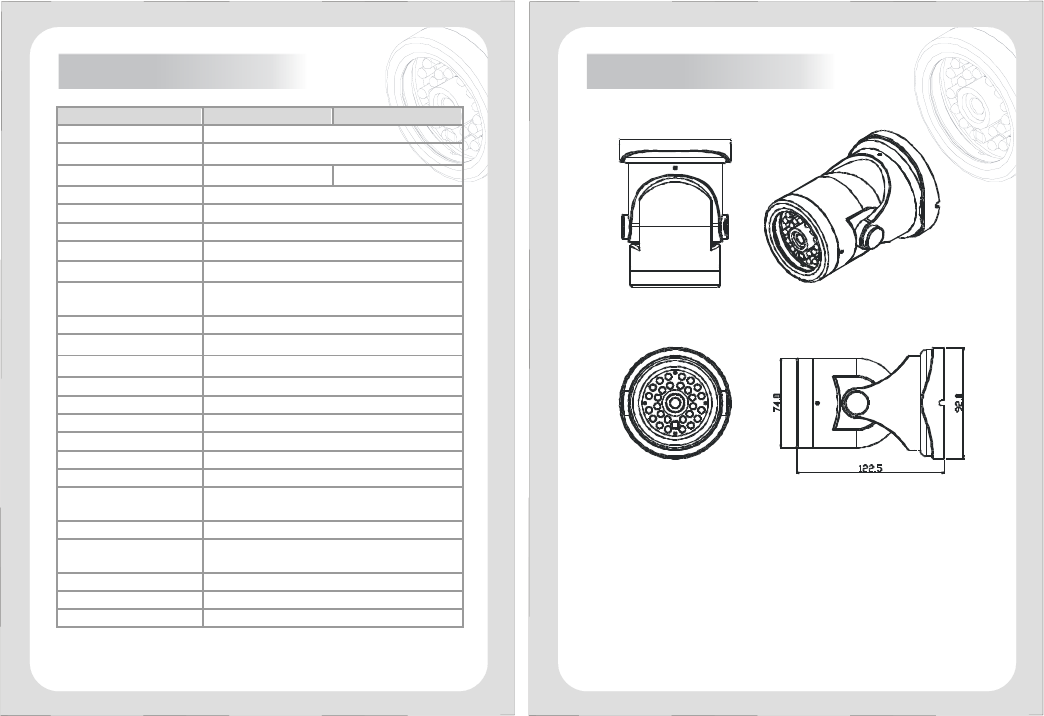

SPECIFICATIONS
10
DIMENSIONS
