Spectec Computer MINIWLAN11B Mini SDIO Wireless LAN Card User Manual Spectec mini user s guid indd

Spectec Computer Co., Ltd Mini SDIO Wireless LAN Card Spectec mini user s guid indd

Contents

Users Manual 2 of 2

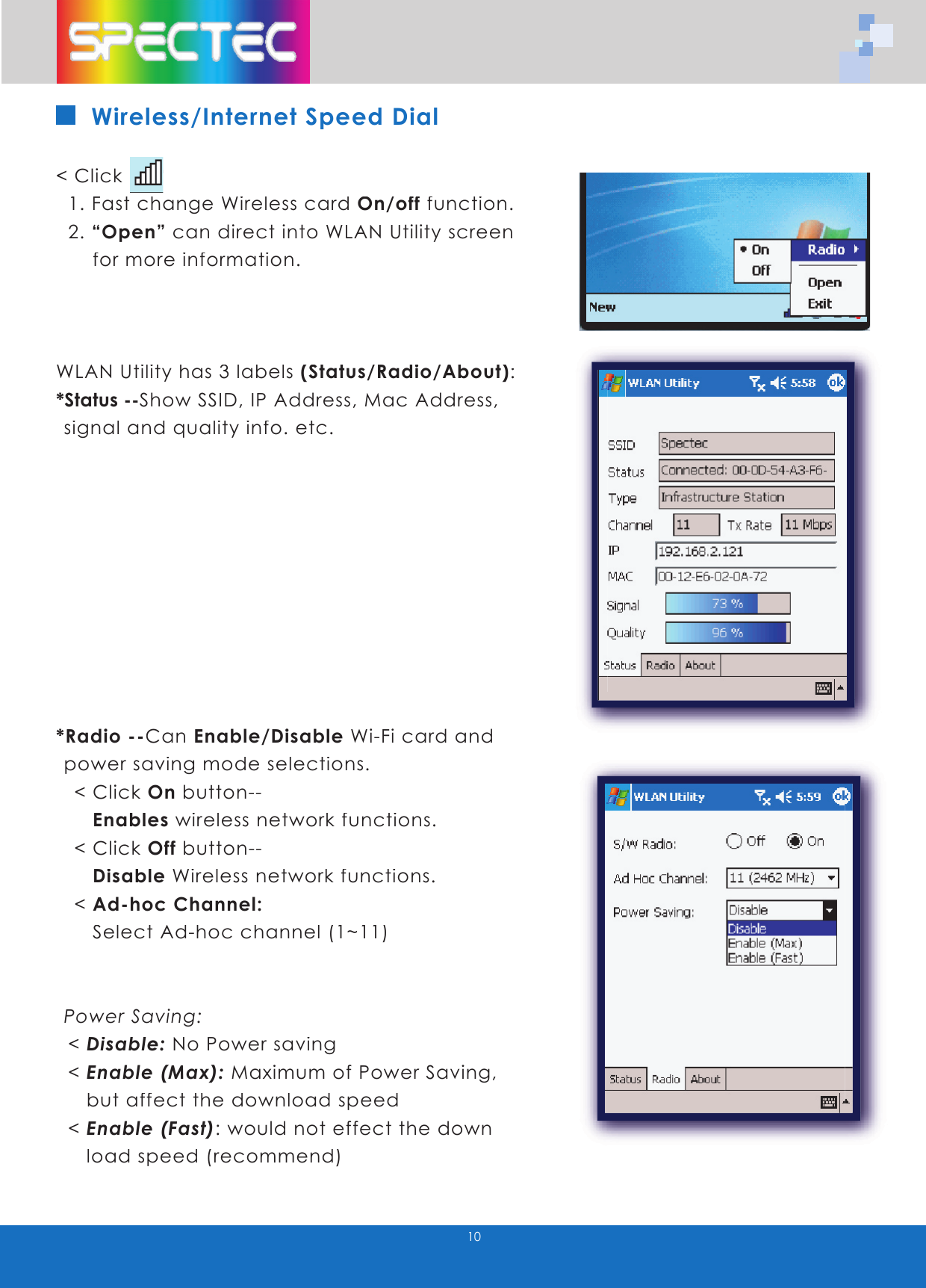

10Wireless/Internet Speed Dial< Click 1. Fast change Wireless card On/off function. 2. “Open” can direct into WLAN Utility screen for more information.WLAN Utility has 3 labels (Status/Radio/About):*Status --Show SSID, IP Address, Mac Address, signal and quality info. etc.*Radio --Can Enable/Disable Wi-Fi card and power saving mode selections. < Click On button-- Enables wireless network functions. < Click Off button-- Disable Wireless network functions. < Ad-hoc Channel: Select Ad-hoc channel (1~11)Power Saving: < Disable: No Power saving < Enable (Max): Maximum of Power Saving, but affect the download speed < Enable (Fast): would not effect the down load speed (recommend)

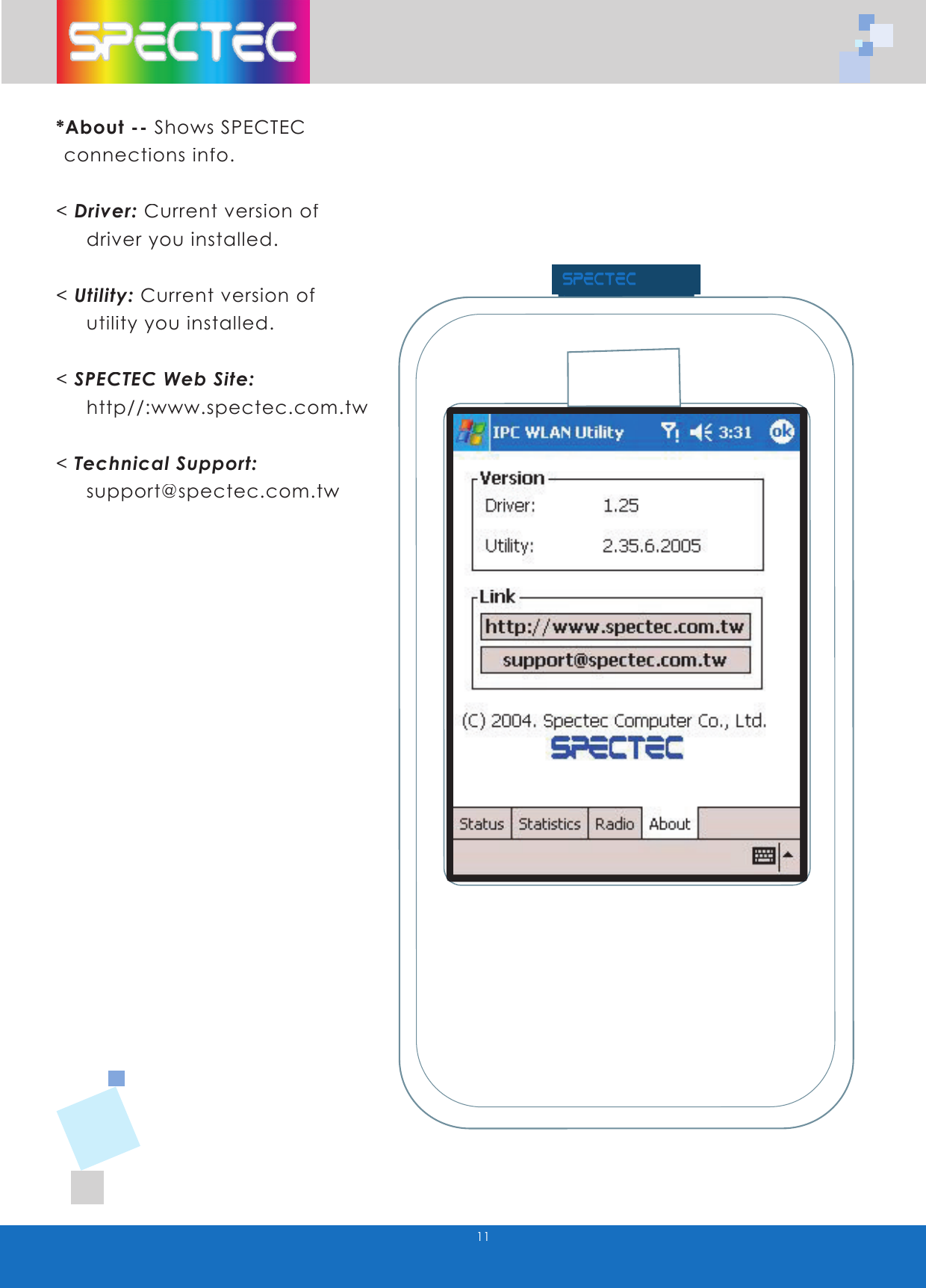

11*About -- Shows SPECTEC connections info.< Driver: Current version of driver you installed.< Utility: Current version of utility you installed.< SPECTEC Web Site: http//:www.spectec.com.tw< Technical Support: support@spectec.com.tw

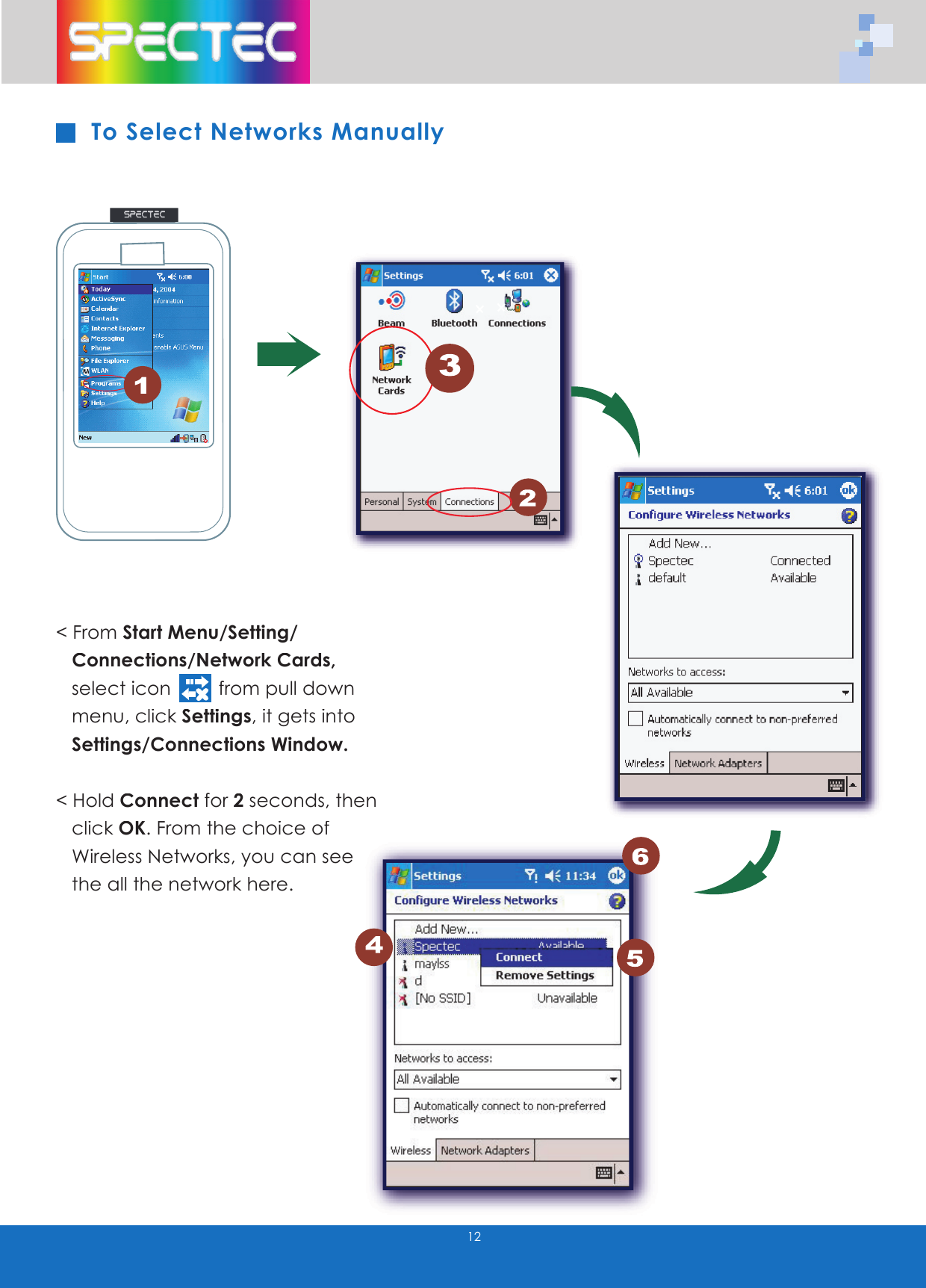

12< From Start Menu/Setting/ Connections/Network Cards, select icon from pull down menu, click Settings, it gets into Settings/Connections Window. < Hold Connect for 2 seconds, then click OK. From the choice of Wireless Networks, you can see the all the network here. To Select Networks Manually1

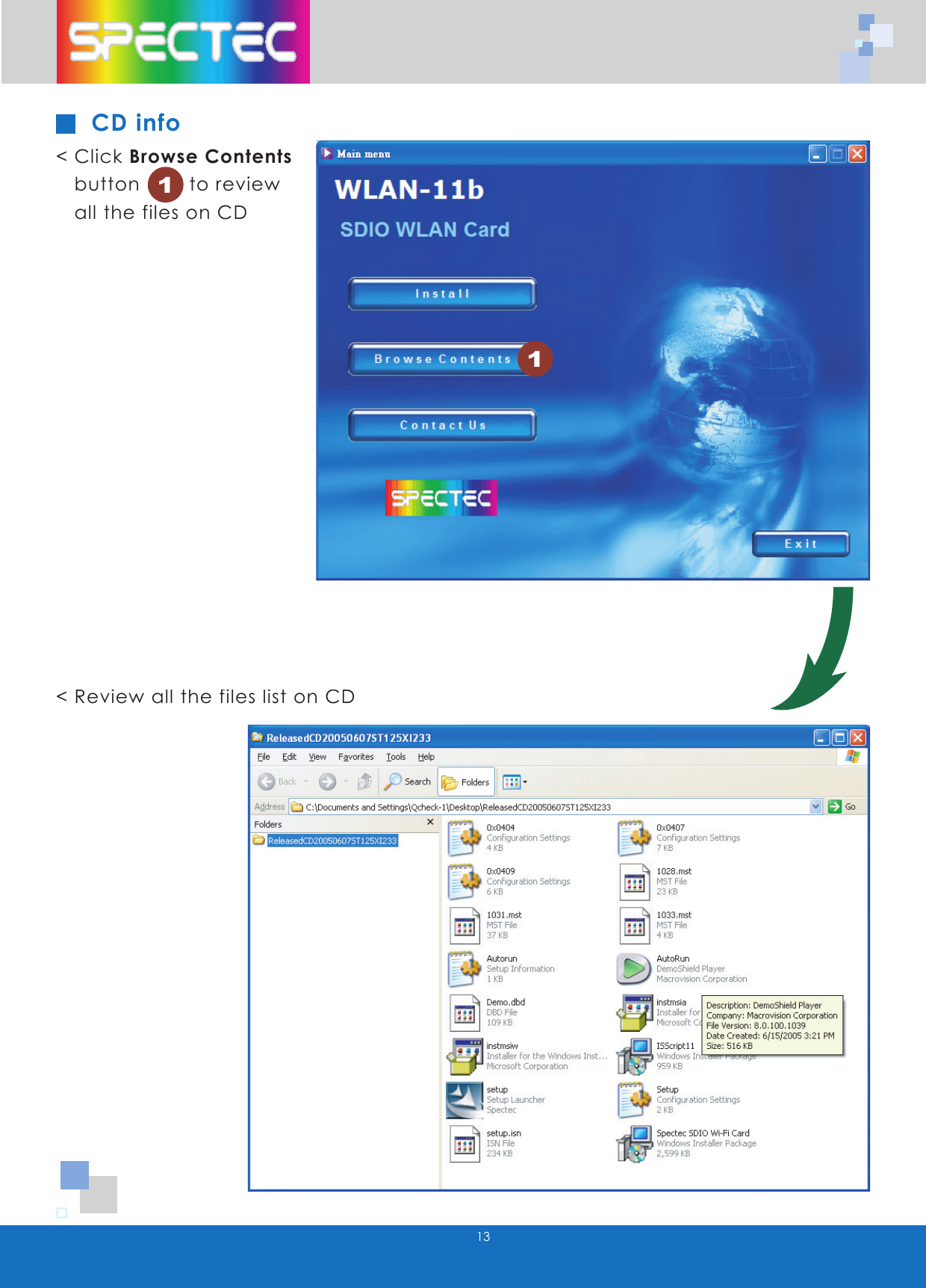

13CD info< Click Browse Contents button to review all the files on CD1< Review all the files list on CD1

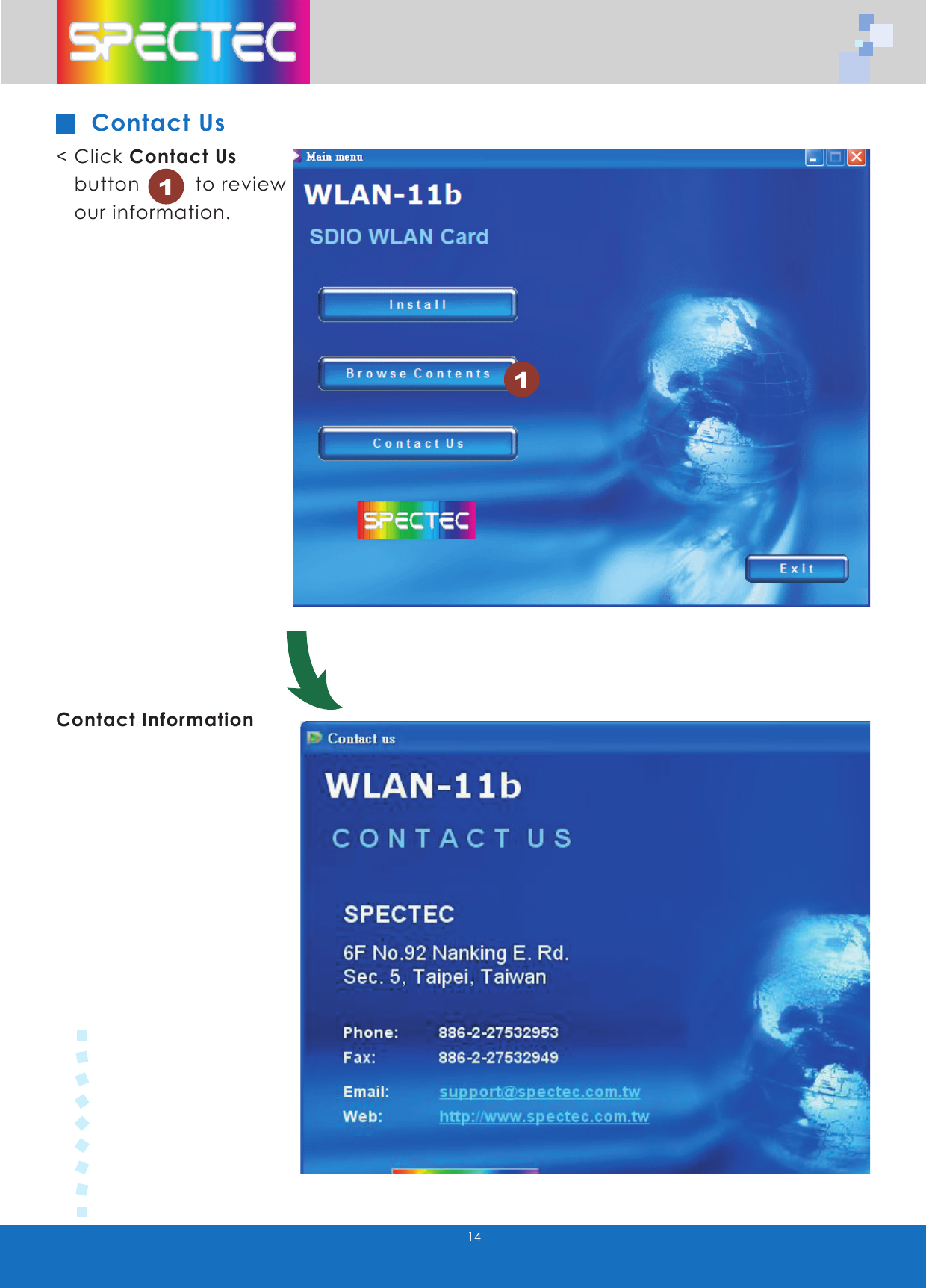

14Contact Us< Click Contact Us button to review our information.11Contact Information

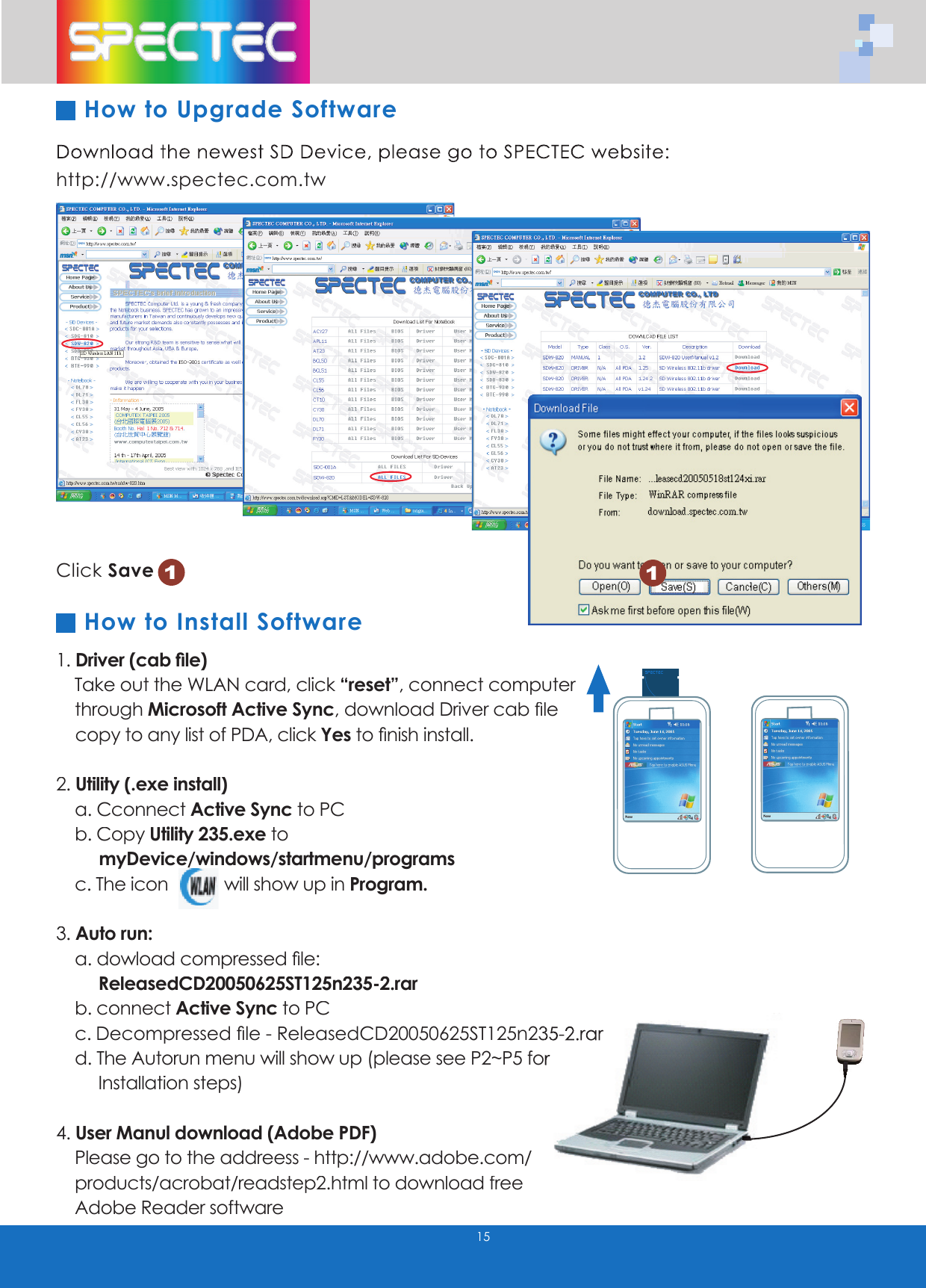

Download the newest SD Device, please go to SPECTEC website: http://www.spectec.com.tw1. Driver (cab fi le) Take out the WLAN card, click “reset”, connect computer through Microsoft Active Sync,download Driver cab fi le copy to any list of PDA, click Yesto fi nish install.2. Utility (.exe install) a. Cconnect Active Sync to PC b. Copy Utility 235.exe to myDevice/windows/startmenu/programs c. The icon will show up in Program.3. Auto run: a. dowload compressed fi le: ReleasedCD20050625ST125n235-2.rar b. connect Active Sync to PC c. Decompressed fi le - ReleasedCD20050625ST125n235-2.rar Decompressed fi le - ReleasedCD20050625ST125n235-2.rar d. The Autorun menu will show up (please see P2~P5 for d. The Autorun menu will show up (please see P2~P5 for Installation steps)4. User Manul download (Adobe PDF) Please go to the addreess - http://www.adobe.com/ http://www.adobe.com/ products/acrobat/readstep2.html to download free products/acrobat/readstep2.html to download free Adobe Reader softwareClick Save1How to Upgrade Software15How to Install Software1

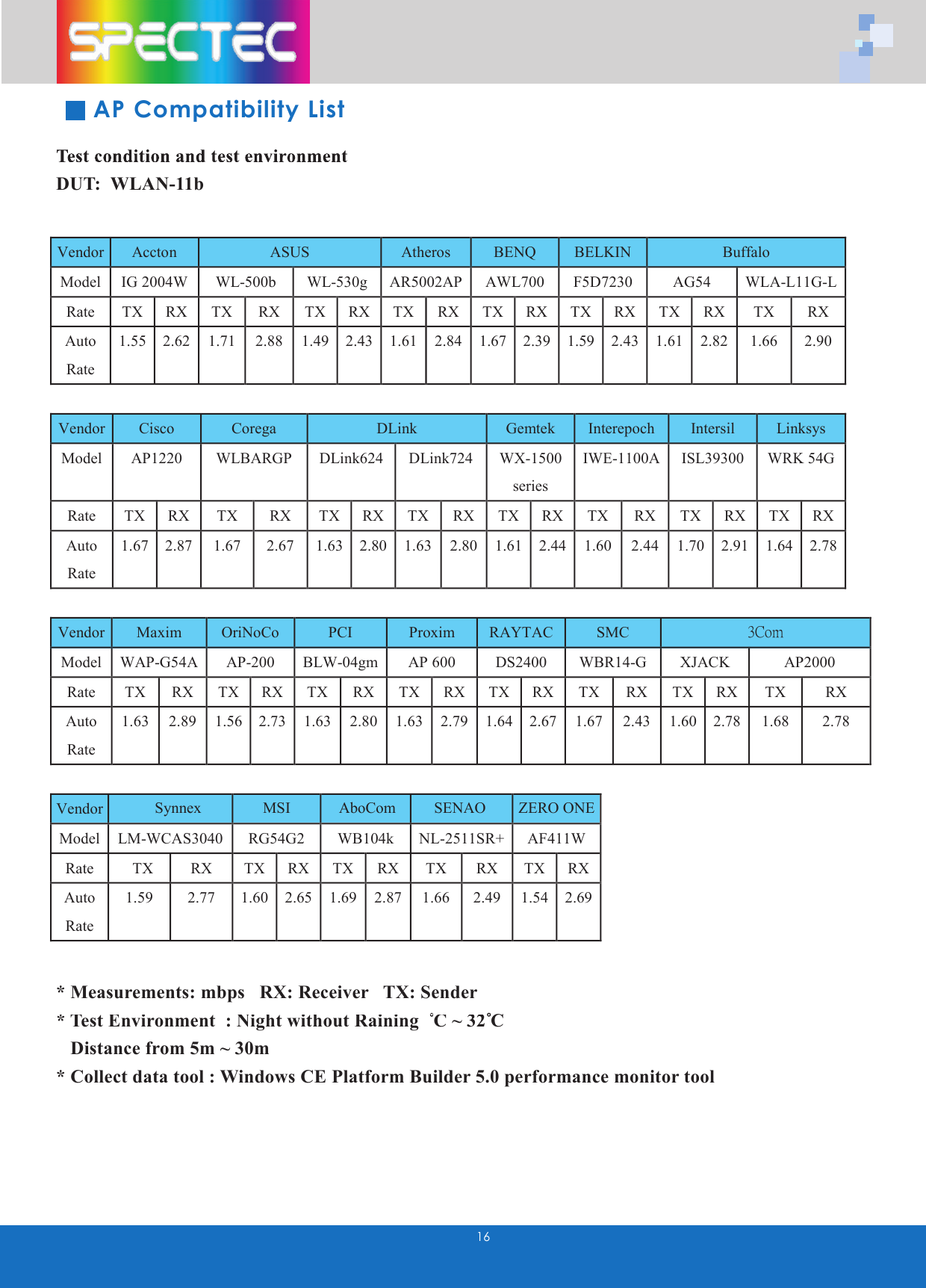

16AP Compatibility ListTest condition and test environmentDUT: WLAN-11b * Measurements: mbps RX: Receiver TX: Sender* Test Environment : Night without Raining C ~ 32 C Distance from 5m ~ 30m* Collect data tool : Windows CE Platform Builder 5.0 performance monitor tool* Test Environment : Night without Raining C ~ 32 Vendor Accton ASUS Atheros BENQ BELKIN Buffalo Model IG 2004W WL-500b WL-530g AR5002AP AWL700 F5D7230 AG54 WLA-L11G-L Rate TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX Auto Rate 1.55 2.62 1.71 2.88 1.49 2.43 1.61 2.84 1.67 2.39 1.59 2.43 1.61 2.82 1.66 2.90 Vendor Cisco Corega DLink Gemtek Interepoch Intersil Linksys Model AP1220 WLBARGP DLink624 DLink724 WX-1500 series IWE-1100A ISL39300 WRK 54G Rate TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX Auto Rate 1.67 2.87 1.67 2.67 1.63 2.80 1.63 2.80 1.61 2.44 1.60 2.44 1.70 2.91 1.64 2.78 Vendor Maxim OriNoCo PCI Proxim RAYTAC SMC 3Com Model WAP-G54A AP-200 BLW-04gm AP 600 DS2400 WBR14-G XJACK AP2000 Rate TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX Auto Rate 1.63 2.89 1.56 2.73 1.63 2.80 1.63 2.79 1.64 2.67 1.67 2.43 1.60 2.78 1.68 2.78 Vendor Synnex MSI AboCom SENAO ZERO ONE Model LM-WCAS3040 RG54G2 WB104k NL-2511SR+ AF411W Rate TX RX TX RX TX RX TX RX TX RX Auto Rate 1.59 2.77 1.60 2.65 1.69 2.87 1.66 2.49 1.54 2.69

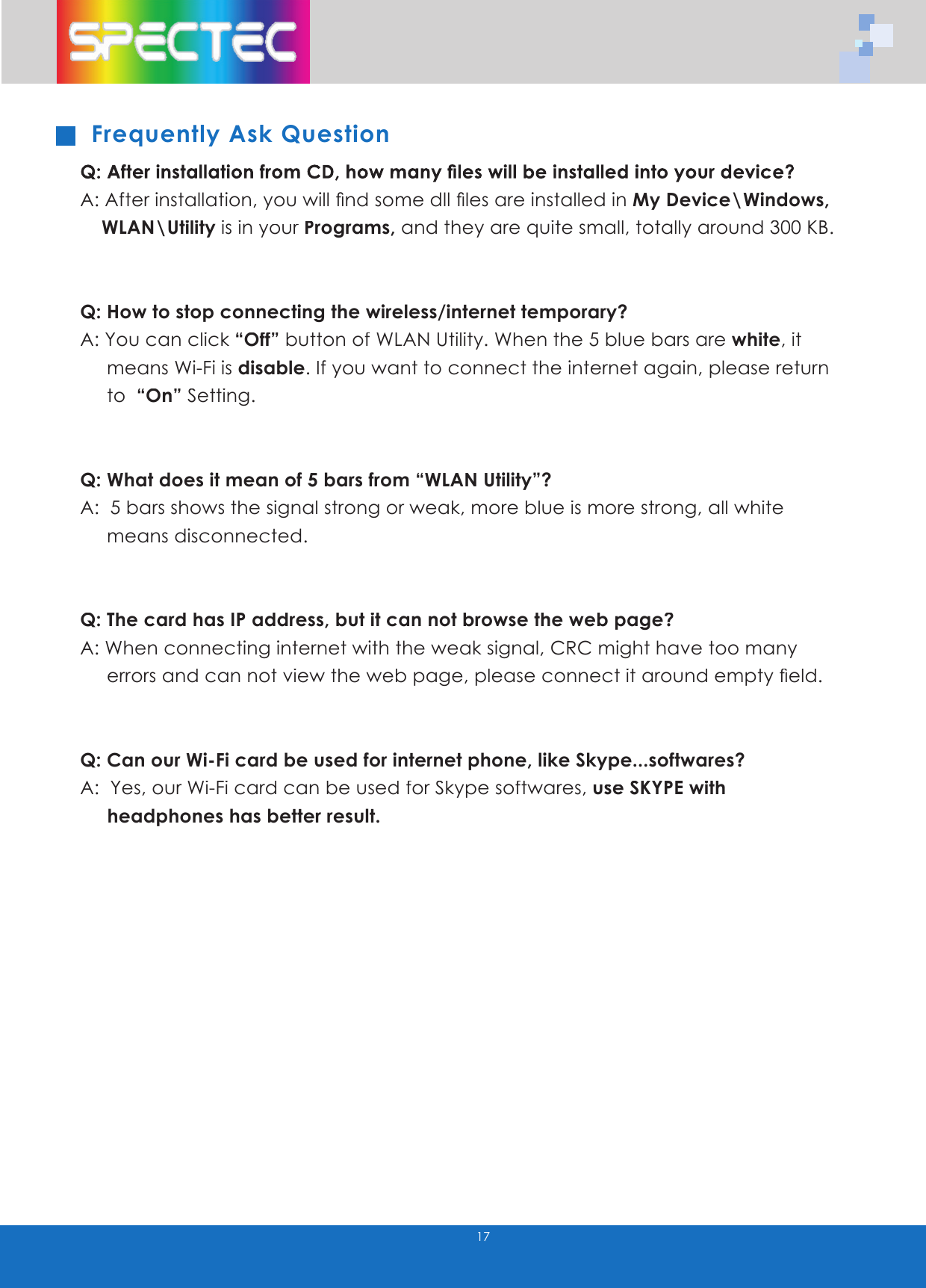

Frequently Ask QuestionQ: After installation from CD, how many fi les will be installed into your device?A: After installation, you will fi nd some dll fi les are installed in My Device\Windows, WLAN\Utility is inyour Programs,your Programs,your and they are quite small, totally around 300 KB.Q: How to stop connecting the wireless/internet temporary?A: You can click “Off” button of WLAN Utility. When the 5 blue bars are white, it means Wi-Fi is disable. If you want to connect the internet again, please return to “On” Setting. Q: What does it mean of 5 bars from “WLAN Utility”?A: 5 bars shows the signal strong or weak, more blue is more strong, all white means disconnected.Q: The card has IP address, but it can not browse the web page?A: When connecting internet with the weak signal, CRC might have too many errors and can not view the web page, please connect it around empty fi eld. Q: Can our Wi-Fi card be used for internet phone, like Skype...softwares?A: Yes, our Wi-Fi card can be used for Skype softwares, useSKYPE with headphones has better result.17

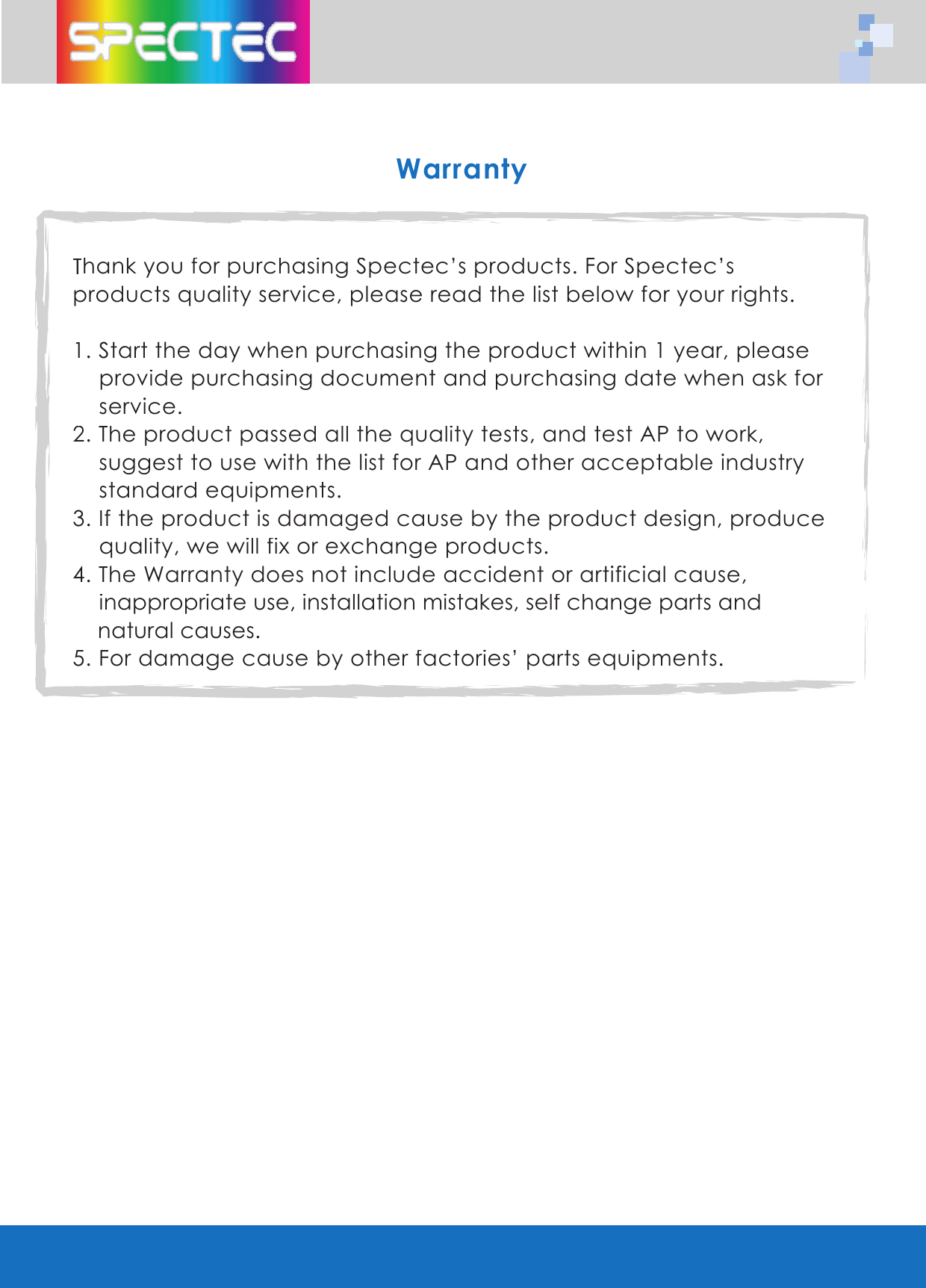

WarrantyThank you for purchasing Spectec’s products. For Spectec’s products quality service, please read the list below for your rights.1. Start the day when purchasing the product within 1 year, please provide purchasing document and purchasing date when ask for service.2. The product passed all the quality tests, and test AP to work, suggest to use with the list for AP and other acceptable industry standard equipments.3. If the product is damaged cause by the product design, produce quality, we will fix or exchange products.4. The Warranty does not include accident or artificial cause, inappropriate use, installation mistakes, self change parts and natural causes.5. For damage cause by other factories’ parts equipments.

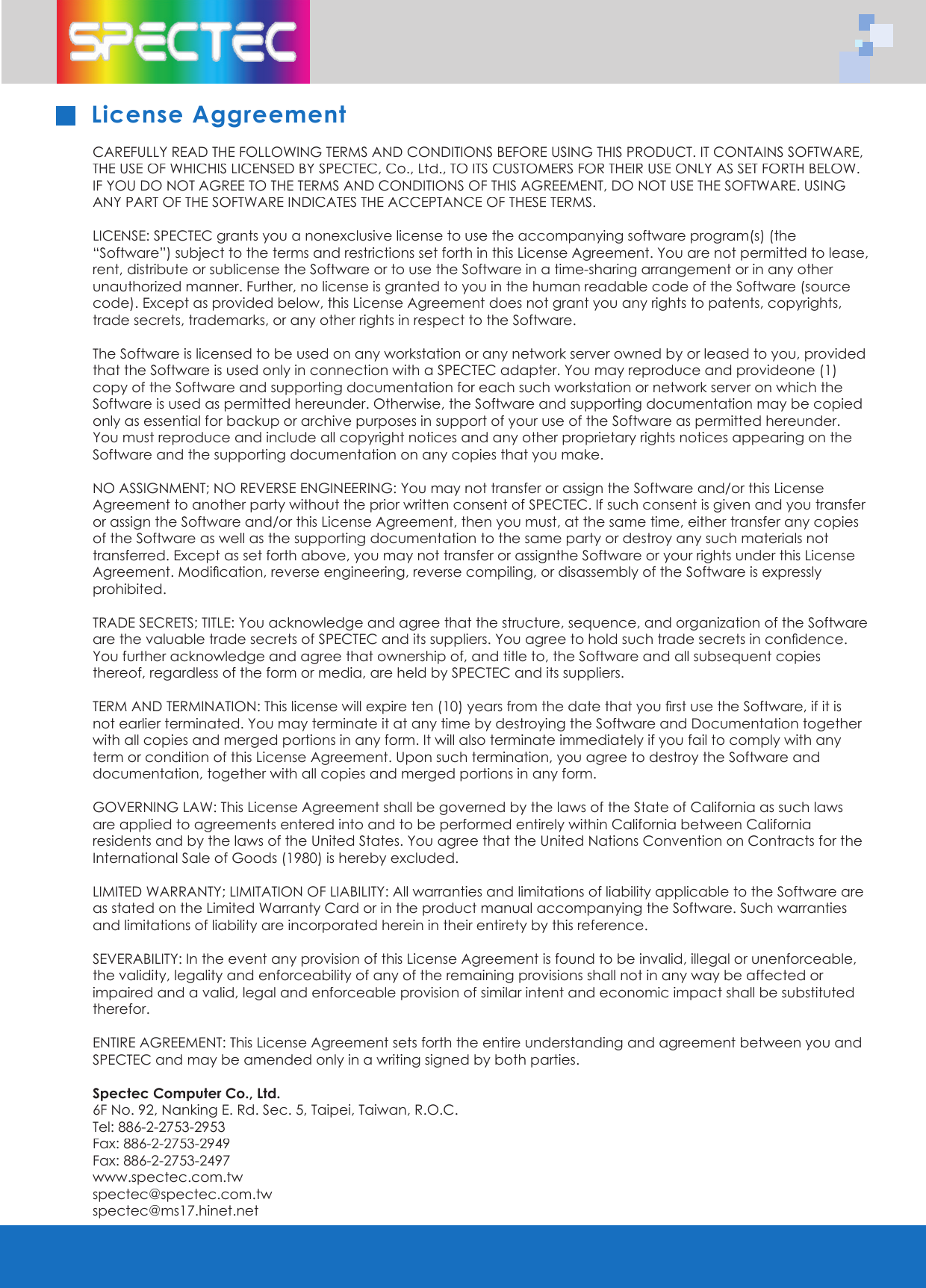

CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS PRODUCT. IT CONTAINS SOFTWARE, THE USE OF WHICHIS LICENSED BY SPECTEC, Co., Ltd., TO ITS CUSTOMERS FOR THEIR USE ONLY AS SET FORTH BELOW. IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT USE THE SOFTWARE. USING ANY PART OF THE SOFTWARE INDICATES THE ACCEPTANCE OF THESE TERMS.LICENSE: SPECTEC grants you a nonexclusive license to use the accompanying software program(s) (the “Software”) subject to the terms and restrictions set forth in this License Agreement. You are not permitted to lease, rent, distribute or sublicense the Software or to use the Software in a time-sharing arrangement or in any other unauthorized manner. Further, no license is granted to you in the human readable code of the Software (source code). Except as provided below, this License Agreement does not grant you any rights to patents, copyrights, trade secrets, trademarks, or any other rights in respect to the Software.The Software is licensed to be used on any workstation or any network server owned by or leased to you, provided that the Software is used only in connection with a SPECTEC adapter. You may reproduce and provideone (1) copy of the Software and supporting documentation for each such workstation or network server on which the Software is used as permitted hereunder. Otherwise, the Software and supporting documentation may be copied only as essential for backup or archive purposes in support of your use of the Software as permitted hereunder. You must reproduce and include all copyright notices and any other proprietary rights notices appearing on the Software and the supporting documentation on any copies that you make. NO ASSIGNMENT; NO REVERSE ENGINEERING: You may not transfer or assign the Software and/or this License Agreement to another party without the prior written consent of SPECTEC. If such consent is given and you transfer or assign the Software and/or this License Agreement, then you must, at the same time, either transfer any copies of the Software as well as the supporting documentation to the same party or destroy any such materials not transferred. Except as set forth above, you may not transfer or assignthe Software or your rights under this License Agreement. Modifi cation, reverse engineering, reverse compiling, or disassembly of the Software is expressly prohibited. TRADE SECRETS; TITLE: You acknowledge and agree that the structure, sequence, and organization of the Software are the valuable trade secrets of SPECTEC and its suppliers. You agree to hold such trade secrets in confi dence. You further acknowledge and agree that ownership of, and title to, the Software and all subsequent copies thereof, regardless of the form or media, are held by SPECTEC and its suppliers.TERM AND TERMINATION: This license will expire ten (10) years from the date that you fi rst use the Software, if it is not earlier terminated. You may terminate it at any time by destroying the Software and Documentation together with all copies and merged portions in any form. It will also terminate immediately if you fail to comply with any term or condition of this License Agreement. Upon such termination, you agree to destroy the Software and documentation, together with all copies and merged portions in any form.GOVERNING LAW: This License Agreement shall be governed by the laws of the State of California as such laws are applied to agreements entered into and to be performed entirely within California between California residents and by the laws of the United States. You agree that the United Nations Convention on Contracts for the International Sale of Goods (1980) is hereby excluded.LIMITED WARRANTY; LIMITATION OF LIABILITY: All warranties and limitations of liability applicable to the Software are as stated on the Limited Warranty Card or in the product manual accompanying the Software. Such warranties and limitations of liability are incorporated herein in their entirety by this reference. SEVERABILITY: In the event any provision of this License Agreement is found to be invalid, illegal or unenforceable, the validity, legality and enforceability of any of the remaining provisions shall not in any way be affected or impaired and a valid, legal and enforceable provision of similar intent and economic impact shall be substituted therefor.ENTIRE AGREEMENT: This License Agreement sets forth the entire understanding and agreement between you and SPECTEC and may be amended only in a writing signed by both parties. Spectec Computer Co., Ltd.6F No. 92, Nanking E. Rd. Sec. 5, Taipei, Taiwan, R.O.C. Tel: 886-2-2753-2953 Fax: 886-2-2753-2949 Fax: 886-2-2753-2497 www.spectec.com.tw spectec@spectec.com.tw spectec@ms17.hinet.net License Aggreement

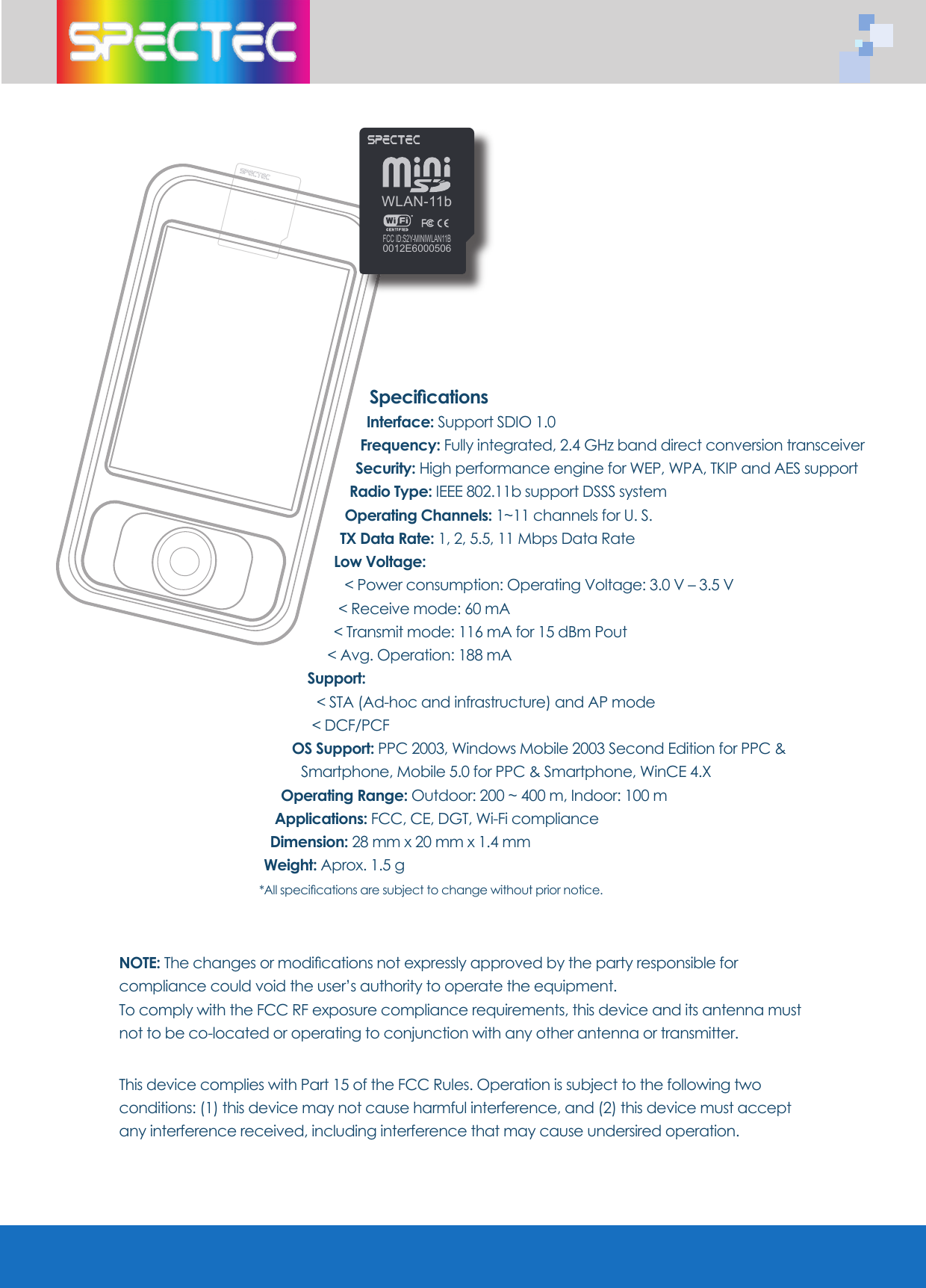

Specifi cationsInterface: Support SDIO 1.0 Frequency: Fully integrated, 2.4 GHz band direct conversion transceiverSecurity: High performance engine for WEP, WPA, TKIP and AES supportRadio Type: IEEE 802.11b support DSSS system Operating Channels: 1~11 channels for U. S.TX Data Rate: 1, 2, 5.5, 11 Mbps Data RateLow Voltage: < Power consumption: Operating Voltage: 3.0 V – 3.5 V < Receive mode: 60 mA < Transmit mode: 116 mA for 15 dBm Pout < Avg. Operation: 188 mASupport: < STA (Ad-hoc and infrastructure) and AP mode < DCF/PCF OS Support: PPC 2003, Windows Mobile 2003 Second Edition for PPC & Smartphone, Mobile 5.0 for PPC & Smartphone, WinCE 4.XOperating Range: Outdoor: 200 ~ 400 m, Indoor: 100 mApplications: FCC, CE, DGT, Wi-Fi complianceDimension: 28 mm x 20 mm x 1.4 mmWeight: Aprox. 1.5 g*All specifi cations are subject to change without prior notice.NOTE: The changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.To comply with the FCC RF exposure compliance requirements, this device and its antenna must not to be co-located or operating to conjunction with any other antenna or transmitter.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation.WLAN-11bFCC ID:S2Y-MINIWLAN11B0012E6000506

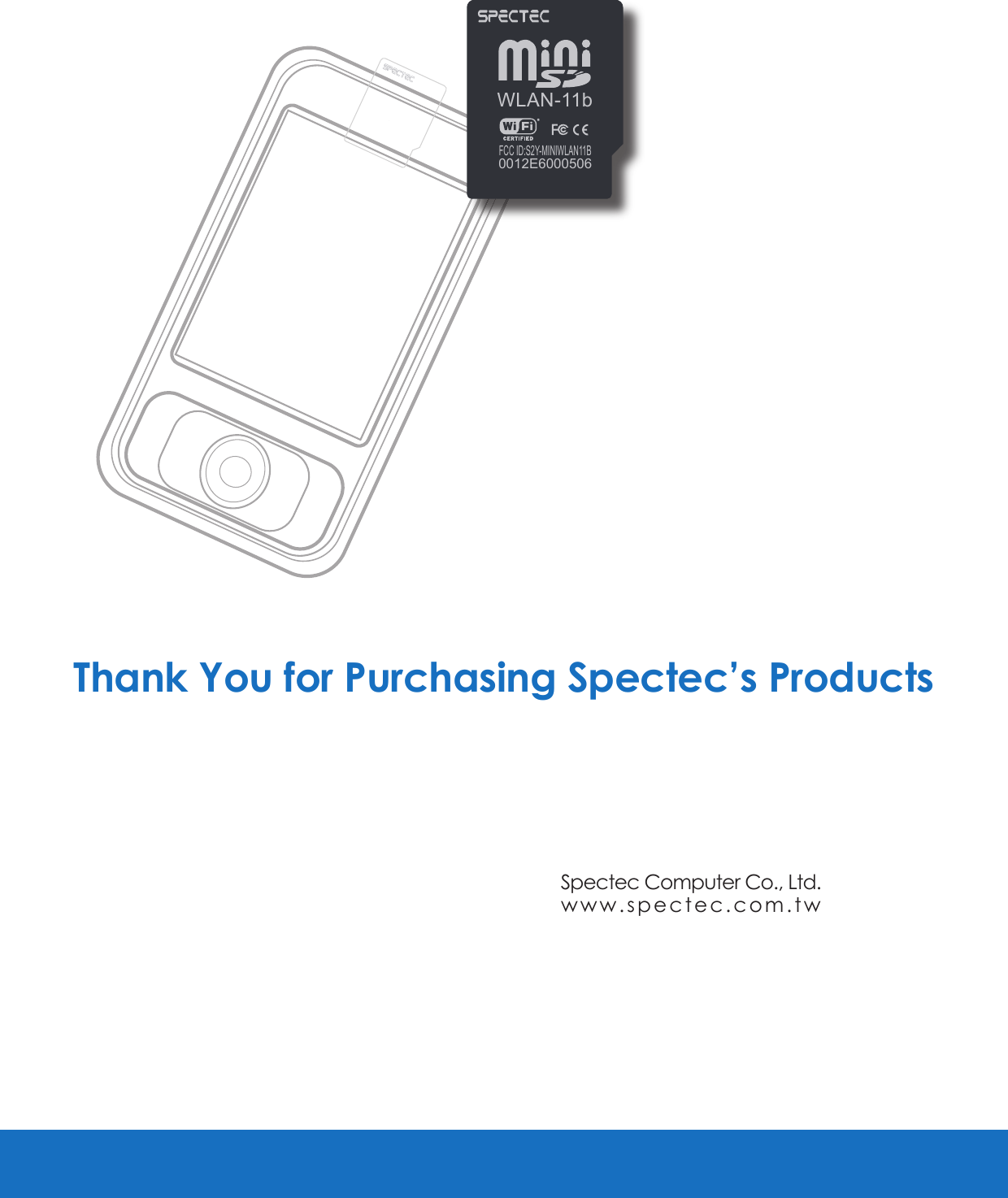

Thank You for Purchasing Spectec’s Productswww.spectec.com.twSpectec Computer Co., Ltd.WLAN-11bFCC ID:S2Y-MINIWLAN11B0012E6000506
