Wireless/InternetSDIO WLAN cardSDIO WLAN CardUser’s Manualver. 1.24WLAN-11b802.11bTMwww.spectec.com.twWLAN-11b0012E6000506FCC ID:S2YMINIWLAN11BWLAN-11b/gSDIO WLAN Cardwww.spectec.com.tw

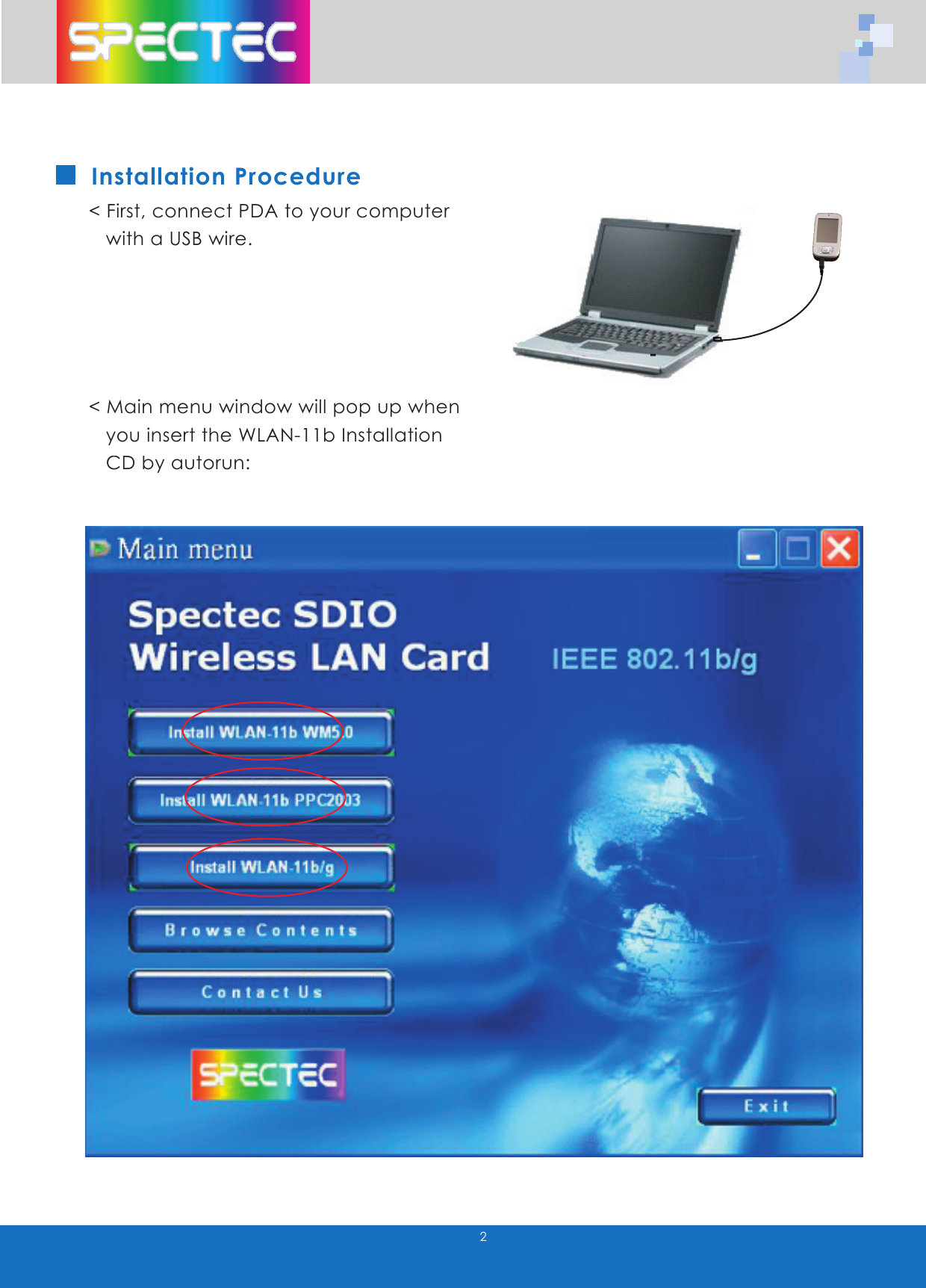

2Installation Procedure< First, connect PDA to your computer with a USB wire.< Main menu window will pop up when you insert the WLAN-11b Installation CD by autorun:

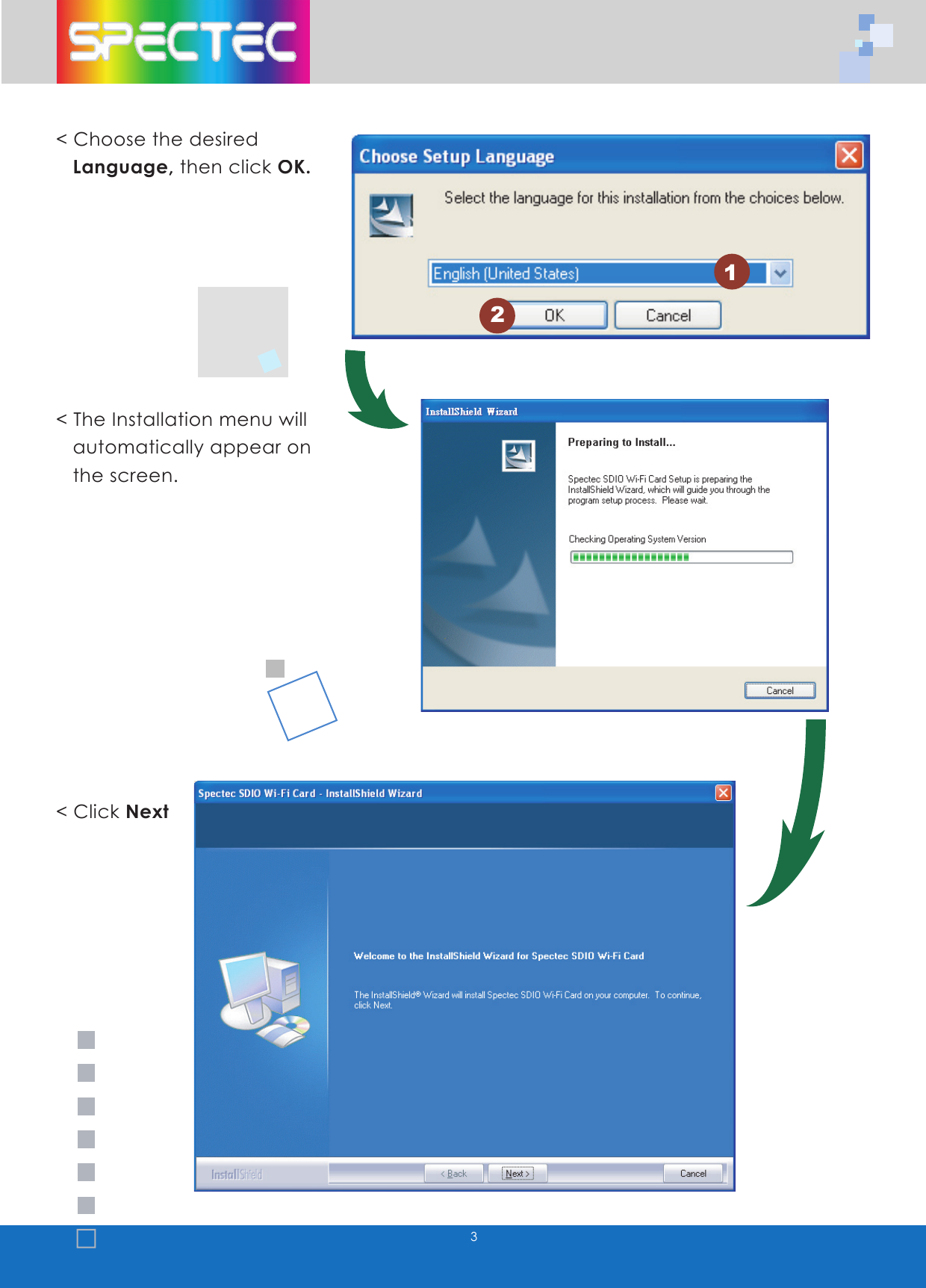

3< Choose the desired Language, then click OK.< The Installation menu will automatically appear on the screen. < Click Next12

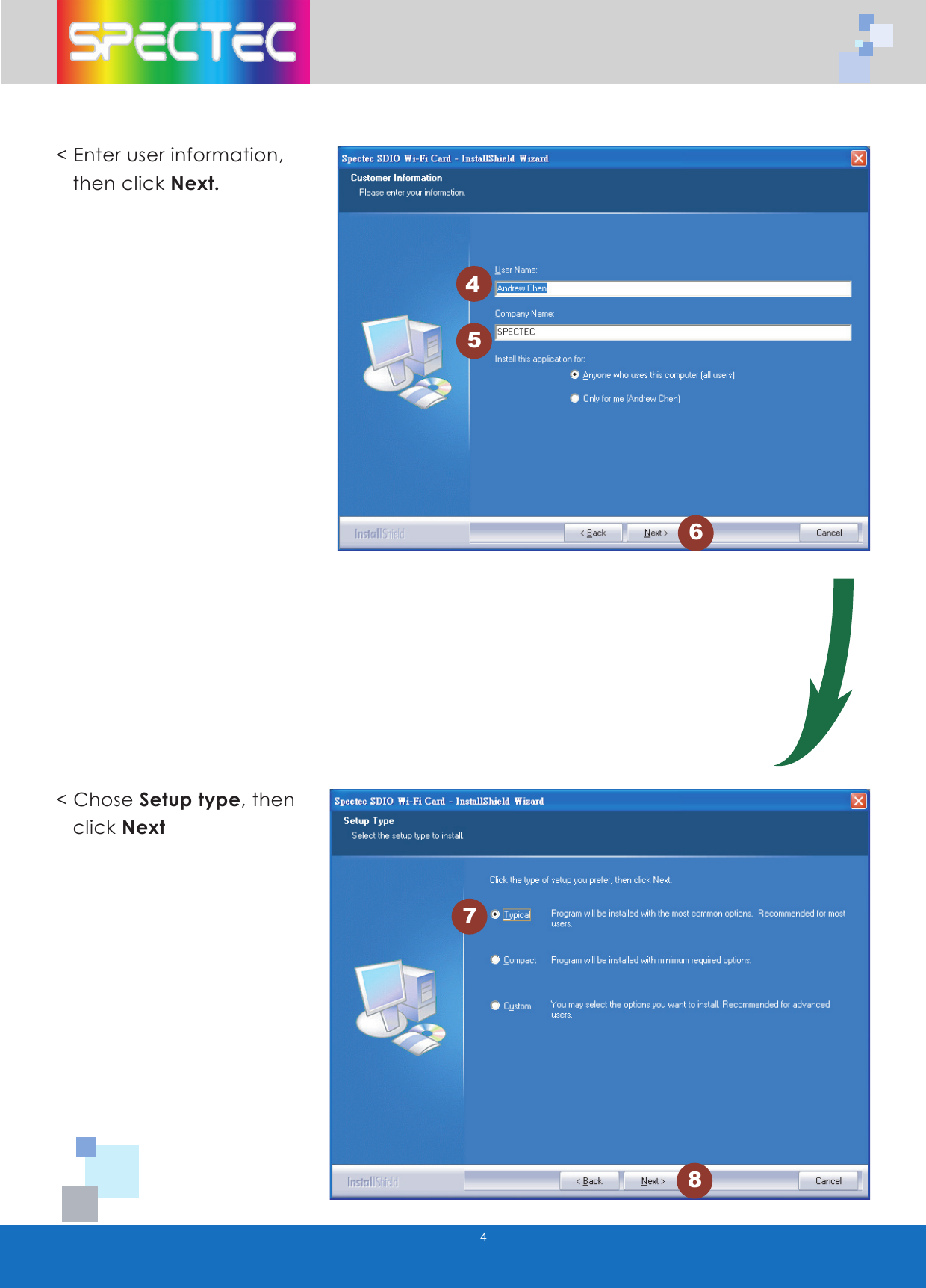

445678< Enter user information, then click Next.< Chose Setup type, then click Next

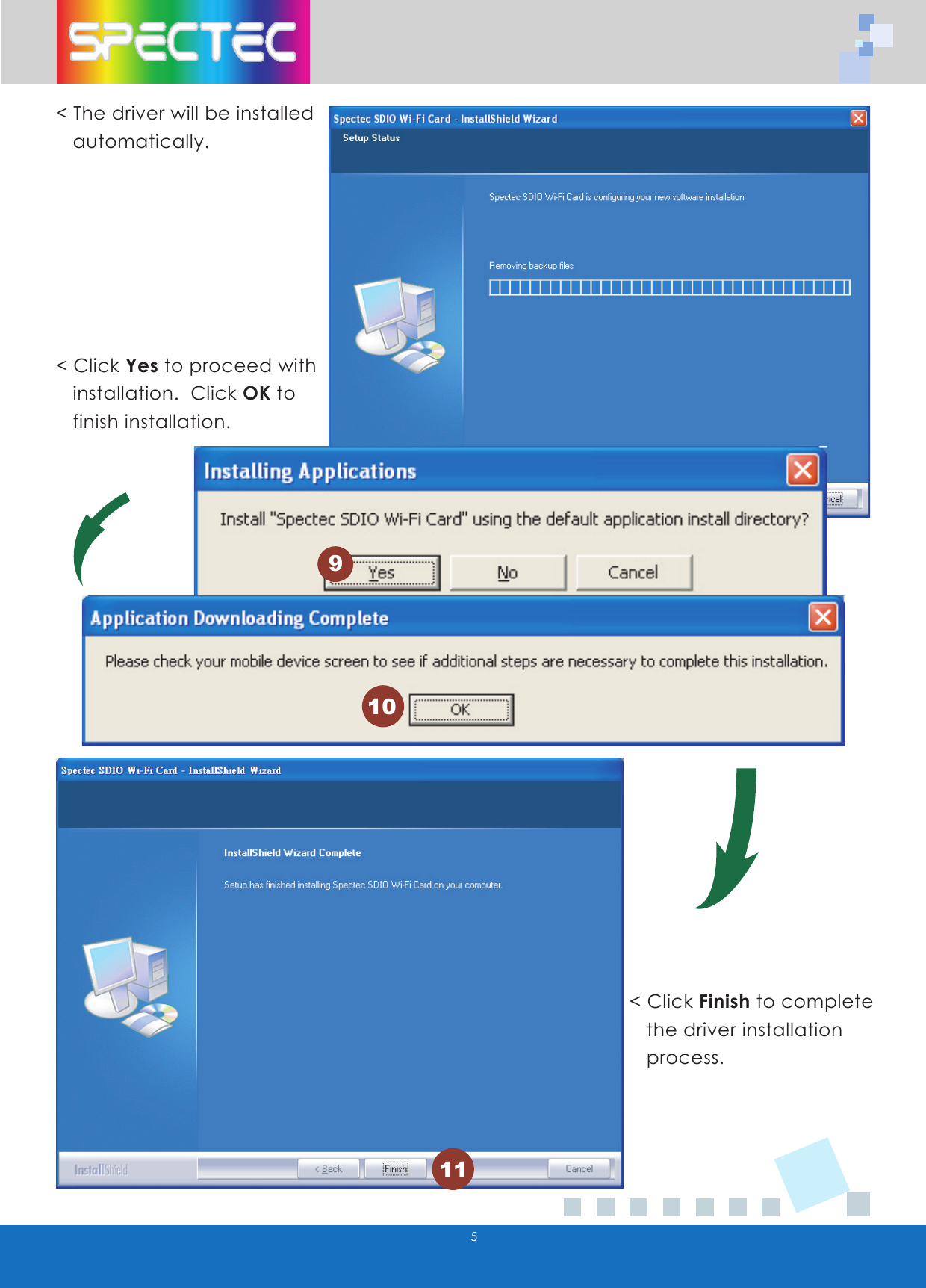

5< The driver will be installed automatically.< Click Yes to proceed with installation. Click OK to finish installation.< Click Finish to complete the driver installation process.91011

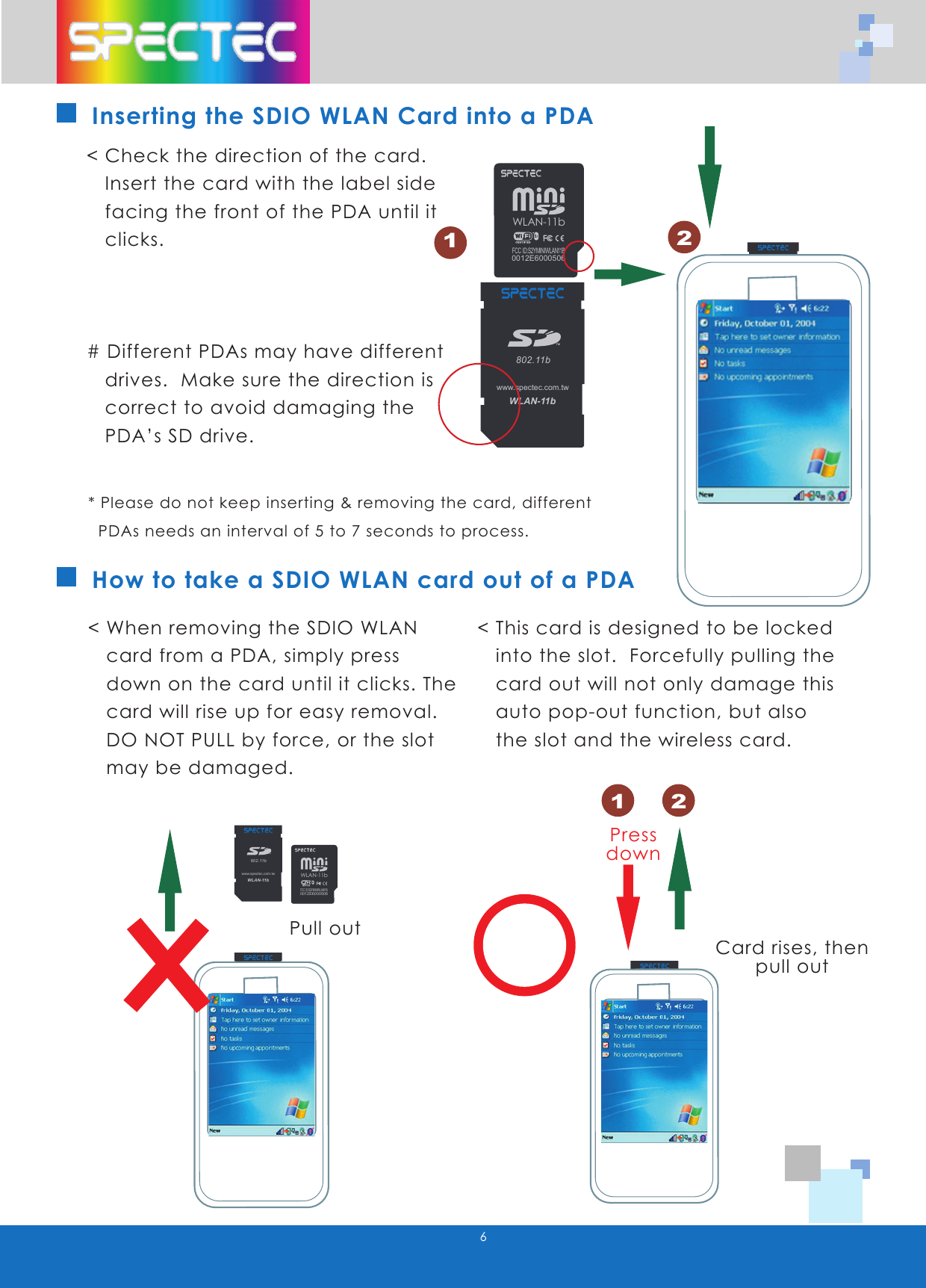

6How to take a SDIO WLAN card out of a PDA< Check the direction of the card. Insert the card with the label side facing the front of the PDA until it clicks.# Different PDAs may have different drives. Make sure the direction is correct to avoid damaging the PDA’s SD drive.< When removing the SDIO WLAN card from a PDA, simply press down on the card until it clicks. The card will rise up for easy removal. DO NOT PULL by force, or the slot may be damaged.< This card is designed to be locked into the slot. Forcefully pulling the card out will not only damage this auto pop-out function, but also the slot and the wireless card.Pull outCard rises, thenpull outPressdownInserting the SDIO WLAN Card into a PDA* Please do not keep inserting & removing the card, different PDAs needs an interval of 5 to 7 seconds to process.12WLAN-11b802.11bTMwww.spectec.com.twWLAN-11b802.11bTMwww.spectec.com.tw1 2WLAN-11b0012E6000506FCC ID:S2YMINIWLAN11BWLAN-11b802.11bTMwww.spectec.com.twWLAN-11b802.11bTMwww.spectec.com.twWLAN-11b802.11bTMwww.spectec.com.twWLAN-11b0012E6000506FCC ID:S2YMINIWLAN11B

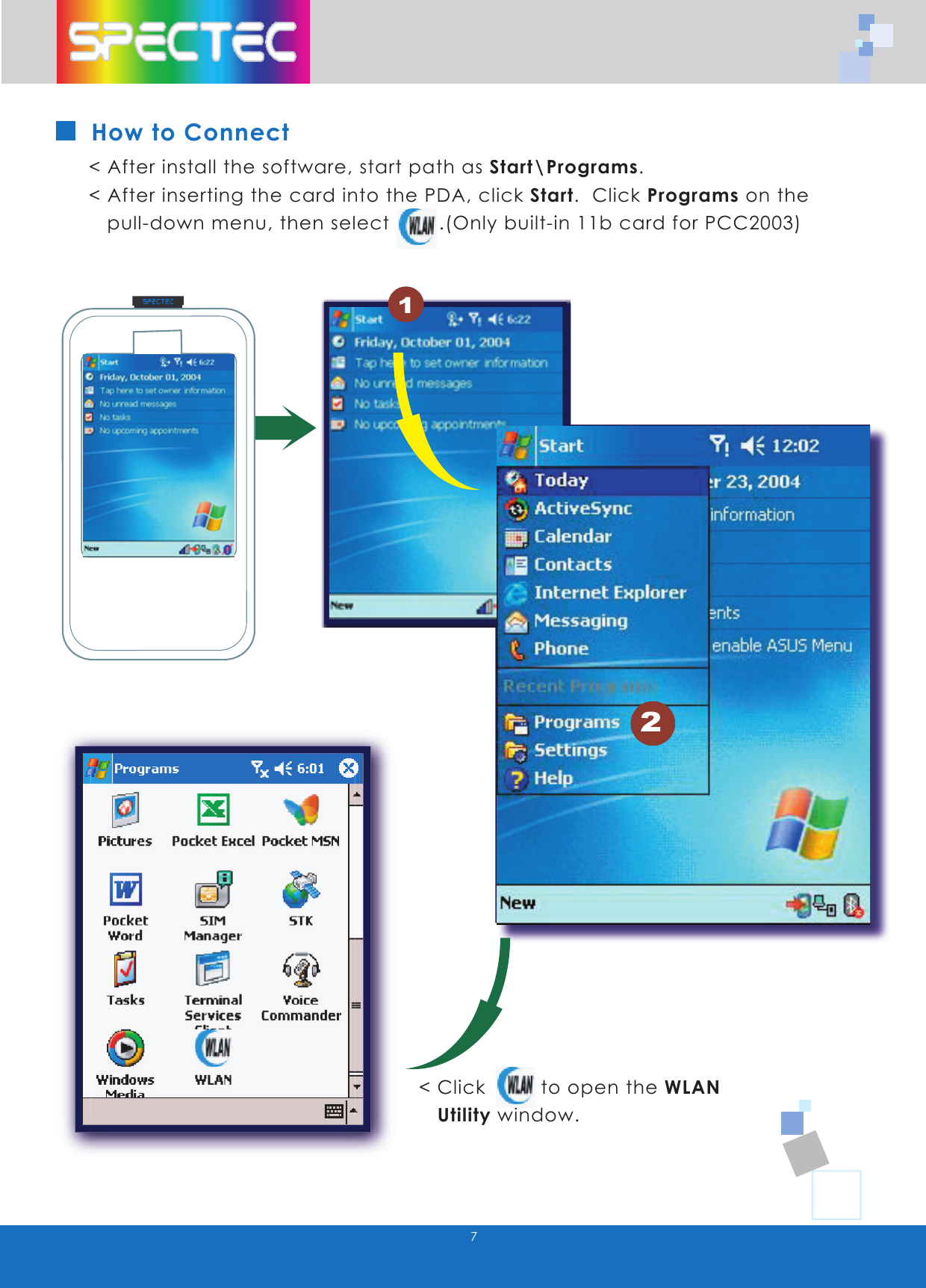

7How to Connect< After install the software, start path as Start\Programs. < After inserting the card into the PDA, click Start. Click Programs on the pull-down menu, then select .(Only built-in 11b card for PCC2003)< Click to open the WLAN Utility window.WLAN-11b802.11bTMwww.spectec.com.tw2

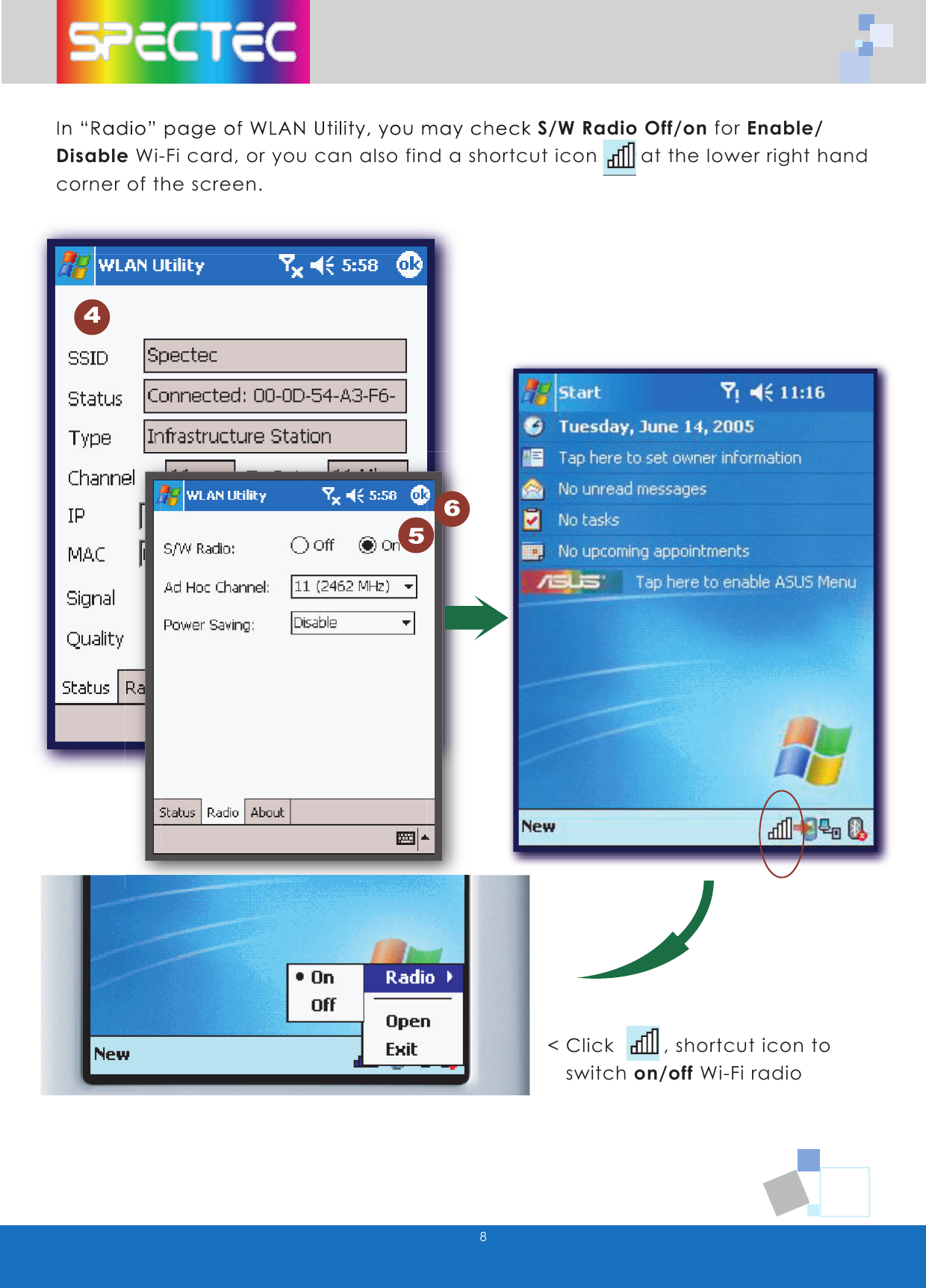

8In “Radio” page of WLAN Utility, you may check S/W Radio Off/on for Enable/ Disable Wi-Fi card, or you can also find a shortcut icon at the lower right hand corner of the screen.< Click , shortcut icon to switch on/off Wi-Fi radio

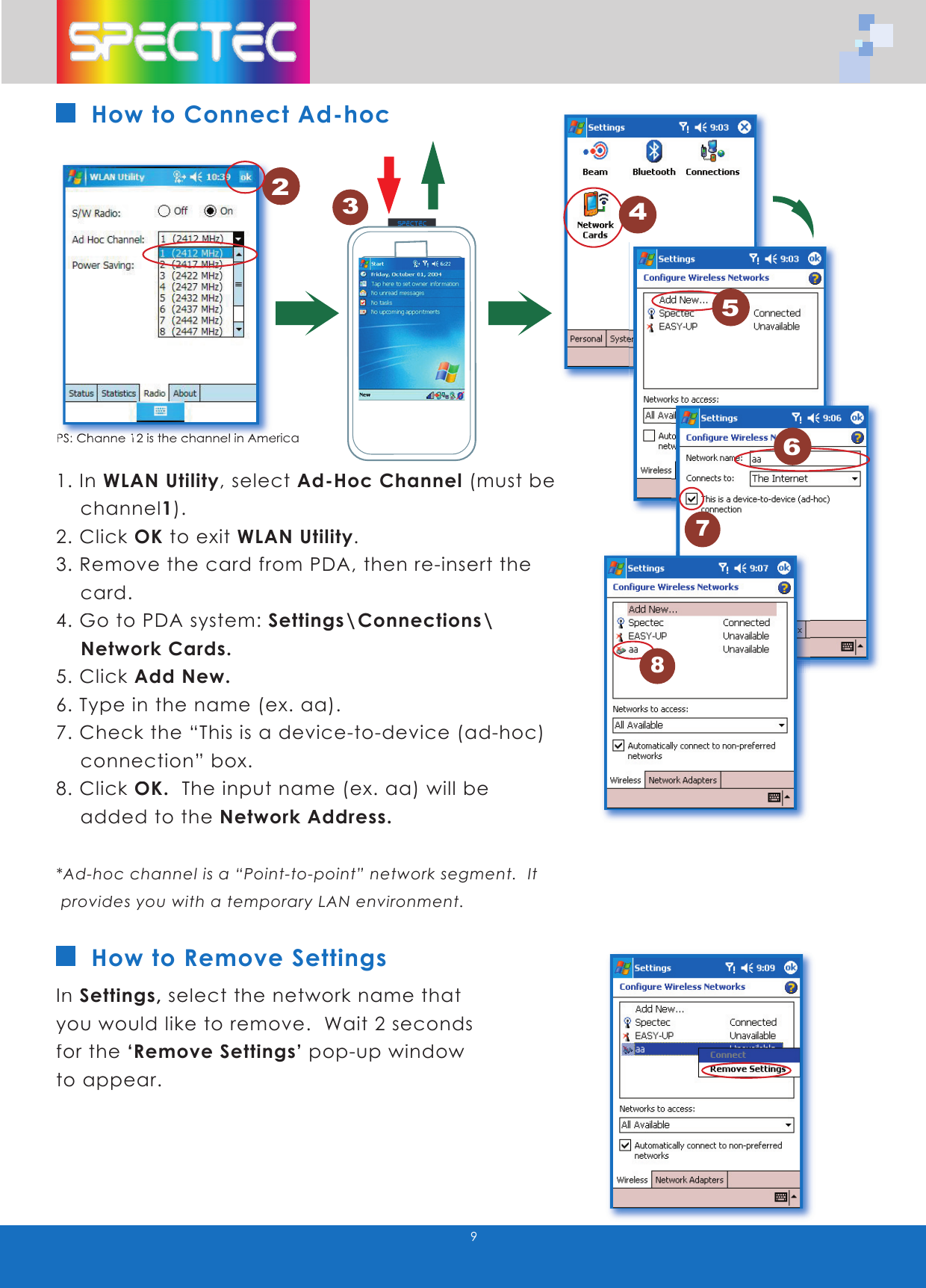

9How to Connect Ad-hoc1. In WLAN Utility, select Ad-Hoc Channel (must be channel1). 2. Click OK to exit WLAN Utility.3. Remove the card from PDA, then re-insert the card.4. Go to PDA system: Settings\Connections\ Network Cards.5. Click Add New.6. Type in the name (ex. aa).7. Check the “This is a device-to-device (ad-hoc) connection” box.8. Click OK. The input name (ex. aa) will be added to the Network Address.*Ad-hoc channel is a “Point-to-point” network segment. It provides you with a temporary LAN environment.In Settings, select the network name that you would like to remove. Wait 2 seconds for the ‘Remove Settings’ pop-up window to appear.How to Remove Settings1PS:PS: Ch Channe 1anne 12 is the channel in A2 is the channel in Americamerica2456783WLAN-11b802.11bTMwww.spectec.com.tw
