Polycom® KIRK® DECT
Application Module 6.0
Improve responsiveness
and productivity of mobile
workers dramatically
Deliver high-quality
and secure voice
communications
across all enterprise
environments
Leverage investment in
circuit-switched and IP
PBX features throughout
the workplace
Increase business
efficiency by integrating
with application systems
and business processes
Maximize employee
availability using simple,
reliable and durable
devices
Polycom proudly presents the innovative and high performance KIRK DECT Application Module
6.0 that allows you to add much more than outstanding wireless capability to your products…
Maximum Performance in Minimum Size
The KIRK DECT Application Module 6.0 is a wireless application module that
supports voice, messaging and data. It comes in two versions: either engineered
with wireless portable device functionality or with radio infrastructure functionality.
It is smaller than any existing DECT module that comprises the same features
and comes complete with an EKGAP (Enhanced KIRK Generic Access Profile)
Desktop Development Environment and pre-supplied software.
The module guarantees outstanding performance with high sensitivity and low
power consumption. It offers you the possibility of developing a complete wireless
communication solution ranging from personal wireless monitoring devices to
alarm systems connected to machinery in a factory… the only limit is imagination!
A Cost-Saving Solution for Your Wireless Product Development
The KIRK DECT Application Module 6.0 comes with onboard antennas and is
fully radio approved (EU DECT), integrating the wireless module to a mainboard
means that it is unnecessary to perform any further radio tests.
To save battery lifetime, the module is equipped with power supply management
and prepared for transmit power management as well. The power supply, which
ranges from 2.7V to 5.5V, makes the use of 3-cell or lithium ion batteries possible.
The EKGAP Desktop Development Environment is based purely on open source
available software, which cuts development costs considerably, and can be used
to program software for the module (apart from some low-level hardware drivers).
Save Time and Effort
The frontline wireless technologies developed by Polycom guarantee easy
integration with your products, since it is possible to SMD-mount the module like
any other SMD component. It requires no special handling.
About Polycom
Polycom, Inc. (NASDAQ: PLCM) is the global leader in telepresence, video,
and voice solutions and a visionary in communications that empower people to
connect and collaborate everywhere.
Companies choose Polycom solutions because they allow geographically
dispersed workforces to communicate more effectively and productively over
distances. Using Polycom voice, video, and telepresence products and services,
people connect and collaborate with one another from their desktops, meeting
rooms, class rooms, and mobile settings rather than travelling to one place to
solve problems.
Find out how your workers can quickly collaborate “face-to-face” wherever they
are. Visit www.polycom.com.
Key Features
Smaller than any existing DECT module that comprises the
same features
EKGAP Desktop Development Environment and pre-supplied
software
Outstanding performance, high sensitivity and low power
consumption
Cost-saving features:
- Fully radio approved component
- Onboard antennas
- EKGAP DDE based on open source software
• Easy to integrate (no need for special handling)
• RoHS compliant
Mounted with the use of LLP (Leadless Lead frame
Package)
• Dual antenna diversity functionality
Pre-supplied Software:
The KIRK DECT Application Module 6.0 is shipped with
default firmware, which provides default DECT behavior.
The EKGAP Desktop Development Environment is based
purely on open source available software and can be used
to program software for the module (apart from some low-
level hardware drivers). It allows you to program additional
behaviour, or completely replace the default firmware and
develop your own application based on the Polycom KIRK
DECT protocol stack.
The EKGAP DDE is integrated with the widely used Eclipse
IDE and a cross compiler. It runs on a Windows or Linux PC
and supports a number of novel debugging features:
Trace & Replay: this feature allows the developer to make a
detailed trace of a module execution scenario. This trace can
be replayed in a simulation environment.
Host Execution: the DECT protocol stack and application can
be simulated in real time on a host processor.
Technical Info:
The main parts of the KIRK DECT Application Module 6.0
are the fully integrated DECT radio transceiver and baseband
processor.
The design adds Power Amplifier, SPDT switch, ceramic
antennas and other components in order to achieve the
desired functionality required for DECT/GAP.
www.polycom.com
Polycom® KIRK® DECT Application Module 6.0
Polycom EMEA
270 Bath Road, Slough,
Berkshire SL1 4DX, UK
(T) +44 (0)1753 723000
(F) +44 (0)1753 723010
Polycom Headquarters
4750 Willow Road,
Pleasanton, CA 94588
(T) 1.800.POLYCOM
(765.9266)
for North America only
Polycom Asia Pacific
8 Shenton Way
#11-01 Temasek Tower
Singapore 068811
+65.6389.9200
For your local Polycom office please visit www.polycom.com
© 2009, Polycom, Inc. All rights reserved. POLYCOM®, the Polycom “Triangles” logo and the names and marks associated with Polycom’s products are trademarks and/or service marks of Polycom, Inc. and are
registered and/or common law marks in the United States and various other countries. All other trademarks are property of their respective owners. No portion hereof may be reproduced or transmitted in any form or
by any means, for any purpose other than the recipient’s personal use, without the express written permission of Polycom.
RF range Approved for EU DECT (1880-1896 MHz)
Prepared for the full DECT frequency range
(1870-1930 MHz)
DECT channels 60 logical duplex channels
Receiver sensitivity Typ.< -94dBm [BER, 1000 ppm]
Transmit power (NTP) Typ. 22 dBm
Power supply range 2.70 V – 5.50 V
Current consumption 200mA avg., 500mA peak
(VBAT=2.7V)
Temp. Range -20ºC to +60ºC / -4ºF and 140ºF
Size 27mm x 27mm x 3mm
(1,06” x 1,06” x 0,11”)
Fully approved:
• Radio (TBR06): EN 301 406 V1.5.1
• Safety: EN 60950-1:2006*
• EMC: EN 301 489-1 / En 301 489-6*
Health: EN 50385:2002 (R&TTE, Article 3.1a, Council
Recommendation 1999/519/EC)*
• Complies with GAP: EN 300 444
• Complies with DECT CI: EN 300 175-1 to 8
Prepared to comply with the FCC rules part15/subpart D, IC,
and UL requirements
*Type approval limited to the component supplied.

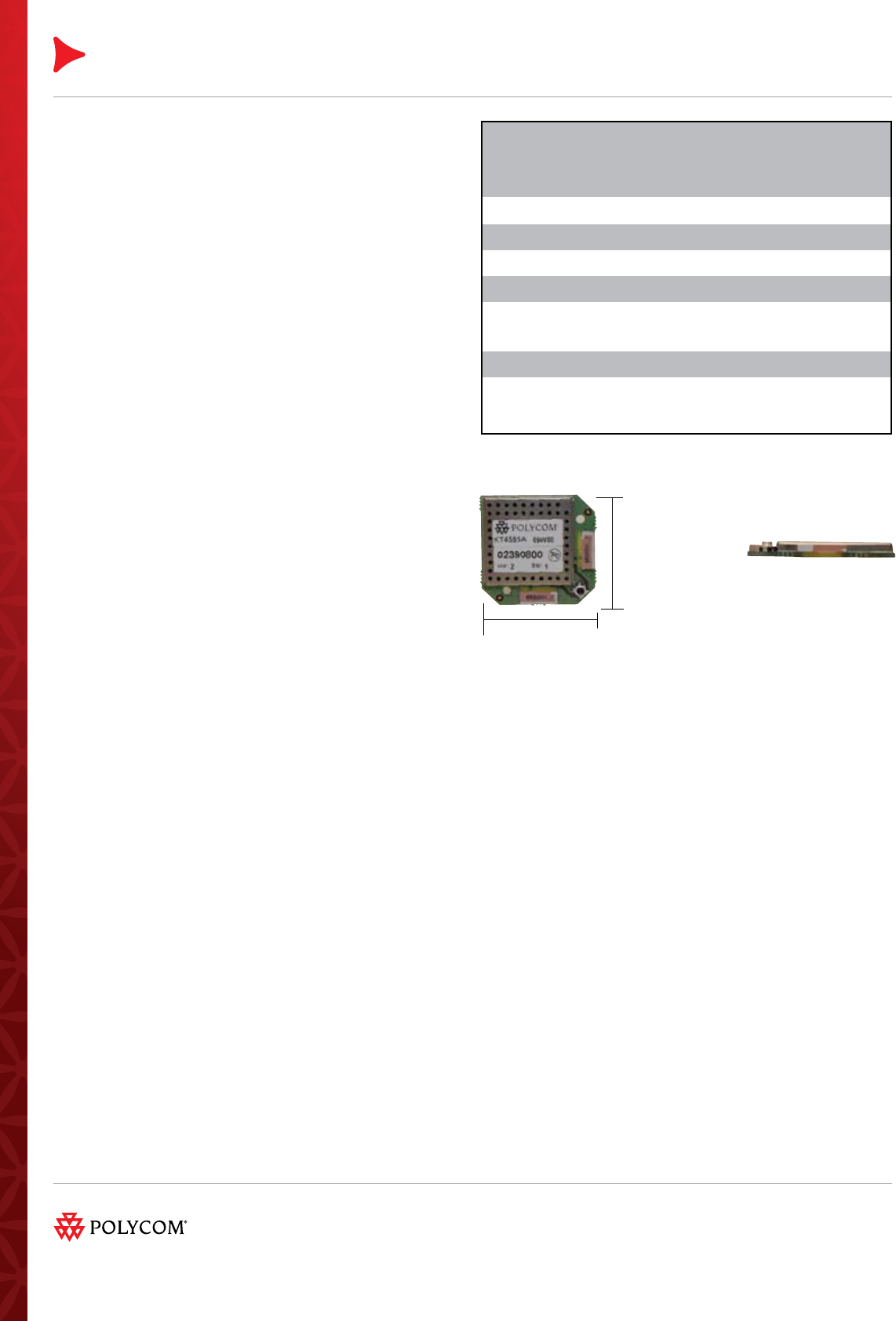

27 mm / 1,06”
27 mm / 1, 06”
Height: 3 mm / 0,11”
Part No. 3726-0610-002 Rev. 0309
