Spectrum 450191ZWV SmartCode Electronic Lock User Manual
Kwikset Corporation SmartCode Electronic Lock
Spectrum >
User Manual
HomeConnect Lock Configuration Guide
HomeConnect Lock Configuration Guide
HomeConnect Lock Configuration Guide
Home Connect
44571 / 04
English
1. Ensure you have followed all the steps in
the SmartCode Quick Installation Guide.
2. Locate and remove the interior cover from
your HomeConnect lock to expose the
Programming Instructions on the lock. See
Figure 1.
3. For inclusion or exclusion of the lock, refer
to your Z-Wave or ZigBee control system
instructions and reference Figure 2.
Notes
1. This HomeConnect lock supports 30 user
access codes. It is recommended to add
or change access code(s) directly from the
Z-Wave or ZigBee Control system.
2. Deleting access code(s) can only be
done directly from the Z-Wave or ZigBee
control system.
3. Depending on the controller location
and Z-Wave protocol version, it may be
necessary to perform the inclusion process
on the HomeConnect Lock within 12
inches from the control system. During
the inclusion process, ensure that both
the control system and HomeConnect lock
remain stationary for a total of 60 seconds
to complete the encryption exchange and
for the lock to be properly displayed on the
Z-Wave control system.
4. Z-Wave is a “Wireless mesh network,” and
although Z-Wave has an estimated open air
range of 65 feet, results may vary based on
building construction and communication
path, with 35 feet+ installed distance being
typical. It may be necessary to install a
repeatable or beaming Z-Wave device (i.e.
lamp module) to enhance the communication
path with the controller for a more robust
Z-Wave network.
5. If first inclusion attempt was unsuccessful,
perform exclusion process (see Figure 2) to reset
the lock. Then, repeat the inclusion process.
Español
1. Ensure you have followed all the steps in
the SmartCode Quick Installation Guide.
2. Locate and remove the interior cover from
your HomeConnect lock to expose the
Programming Instructions on the lock. See
Figure 1.
3. For inclusion or exclusion of the lock, refer
to your Z-Wave or ZigBee control system
instructions and reference Figure 2.
Notes
1. This HomeConnect lock supports 30 user
access codes. It is recommended to add
or change access code(s) directly from the
Z-Wave or ZigBee Control system.
2. Deleting access code(s) can only be done
directly from the Z-Wave or ZigBee control
system.
3. Depending on the controller location and
Z-Wave protocol version, it may be necessary
to perform the inclusion process on the
HomeConnect Lock within 12 inches from
the control system. During the inclusion
process, ensure that both the control system
and HomeConnect lock remain stationary
for a total of 60 seconds to complete the
encryption exchange and for the lock to be
properly displayed on the Z-Wave control
system.
4. Z-Wave is a “Wireless mesh network,” and
although Z-Wave has an estimated open air
range of 65 feet, results may vary based on
building construction and communication
path, with 35 feet+ installed distance being
typical. It may be necessary to install a
repeatable or beaming Z-Wave device (i.e.
lamp module) to enhance the communication
path with the controller for a more robust
Z-Wave network.
5. If first inclusion attempt was unsuccessful,
perform exclusion process (see Figure 2) to reset
the lock. Then, repeat the inclusion process.
Français
1. Ensure you have followed all the steps in
the SmartCode Quick Installation Guide.
2. Locate and remove the interior cover from
your HomeConnect lock to expose the
Programming Instructions on the lock. See
Figure 1.
3. For inclusion or exclusion of the lock, refer
to your Z-Wave or ZigBee control system
instructions and reference Figure 2.
Notes
1. This HomeConnect lock supports 30 user
access codes. It is recommended to add
or change access code(s) directly from the
Z-Wave or ZigBee Control system.
2. Deleting access code(s) can only be done
directly from the Z-Wave or ZigBee control
system.
3. Depending on the controller location and
Z-Wave protocol version, it may be necessary
to perform the inclusion process on the
HomeConnect Lock within 12 inches from
the control system. During the inclusion
process, ensure that both the control system
and HomeConnect lock remain stationary
for a total of 60 seconds to complete the
encryption exchange and for the lock to be
properly displayed on the Z-Wave control
system.
4. Z-Wave is a “Wireless mesh network,” and
although Z-Wave has an estimated open air
range of 65 feet, results may vary based on
building construction and communication
path, with 35 feet+ installed distance being
typical. It may be necessary to install a
repeatable or beaming Z-Wave device (i.e.
lamp module) to enhance the communication
path with the controller for a more robust
Z-Wave network.
5. If first inclusion attempt was unsuccessful,
perform exclusion process (see Figure 2) to reset
the lock. Then, repeat the inclusion process.
Copyright © 2013 Spectrum Brands, Inc.
For technical assistance,
call 1-866-863-6584
For technical assistance,
call 1-866-863-6584
For technical assistance,
call 1-866-863-6584

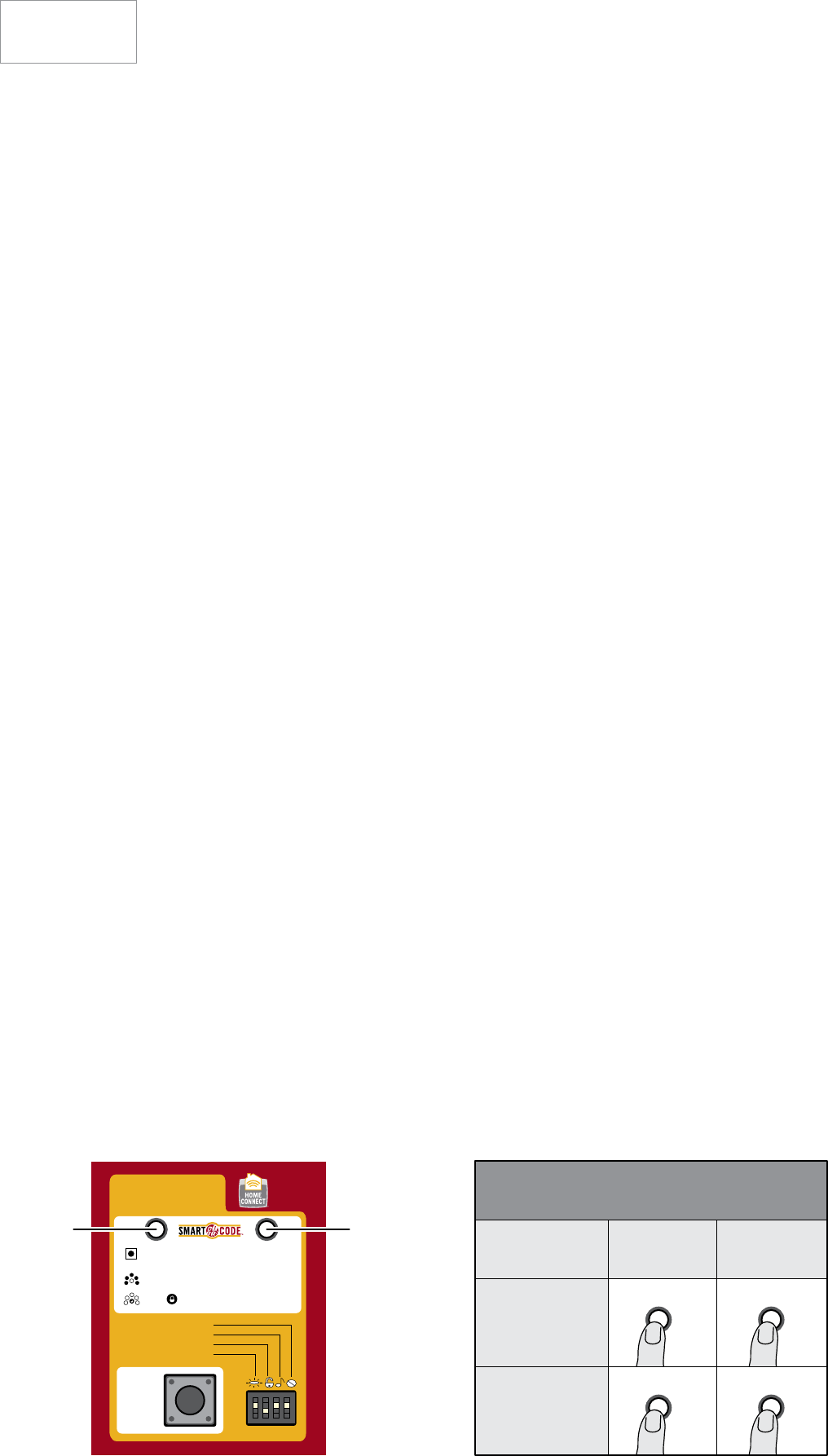

PROGRAM
BUTTON
SETTINGS
Press program button below once to enter
the 1st code & twice for the 2nd code
Enter code on exterior keypad
Press on exterior keypad to set code
PROGRAMMING
INSTRUCTIONS READY
Future Feature
Mute Beeper
Auto-Lock
LED Notification
A B
A (x1) A (x1)
A (x4) B (x9)
Inclusion
Inclusión
Inclusion
HomeConnect Lock Type
HomeConnect Lock Type
HomeConnect Lock Type
Z-Wave
Zigbee
Exclusion
Exclusión
Exclusion
Inclusion/Exclusion Configuration Process for HomeConnect Locks
Inclusion/Exclusion Conguration Process for HomeConnect Locks
Inclusion/Exclusion Conguration Process for HomeConnect Locks
Fig. 1 Fig. 2
HomeConnect Lock Configuration Guide
HomeConnect Lock Configuration Guide
HomeConnect Lock Configuration Guide
Home Connect
44571 / 04
English
REGULATORY COMPLIANCE
This product complies with standards established by the
following regulatory bodies:
•Federal Communications Commission (FCC)
•Industry Canada
FCC
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (
1 ) this device may not cause harmful interference, and
( 2 ) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communi-cations. However,
there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV
technician for help.
IMPORTANT! Changes or modifications not expressly
approved by the manufacturer could void the user’s
authority to operate the equipment.
INDUSTRY CANADA
This Class B digital apparatus complies with Canada
ICES-003. CAN/CSA-C22.2 NO. 14-05 (Industrial Control
Equipment) Operation is subject to the following two
conditions: ( 1 ) this device may not cause interference,
and ( 2 ) this device must accept any interference,
including interference that may cause undesired operation
of the device.
Z-WAVE
•Security enabled Z-Wave product
•Security enabled Z-Wave controller must be used in
order to fully utilize product.
This Z-Wave-enabled door lock can be included, operated,
and is fully interoperable with any Z-Wave secure
controller.
