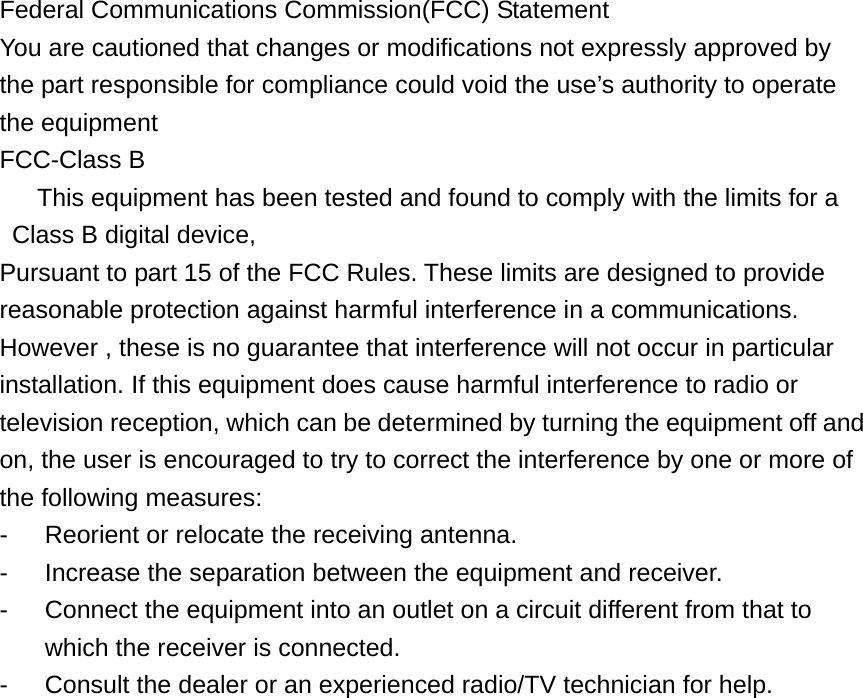

Federal Communications Commission(FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the use’s authority to operate the equipment FCC-Class B This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a communications. However , these is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

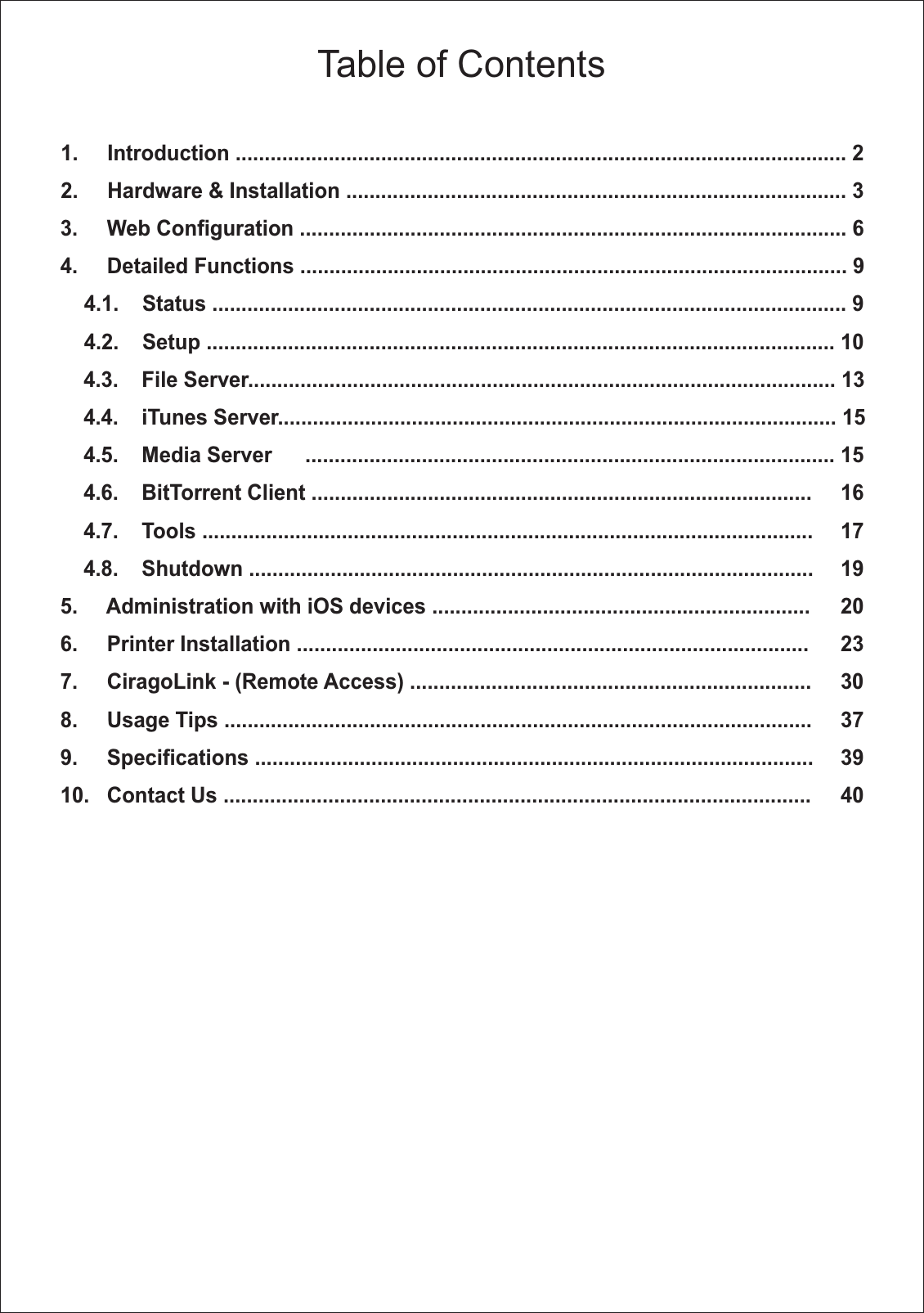

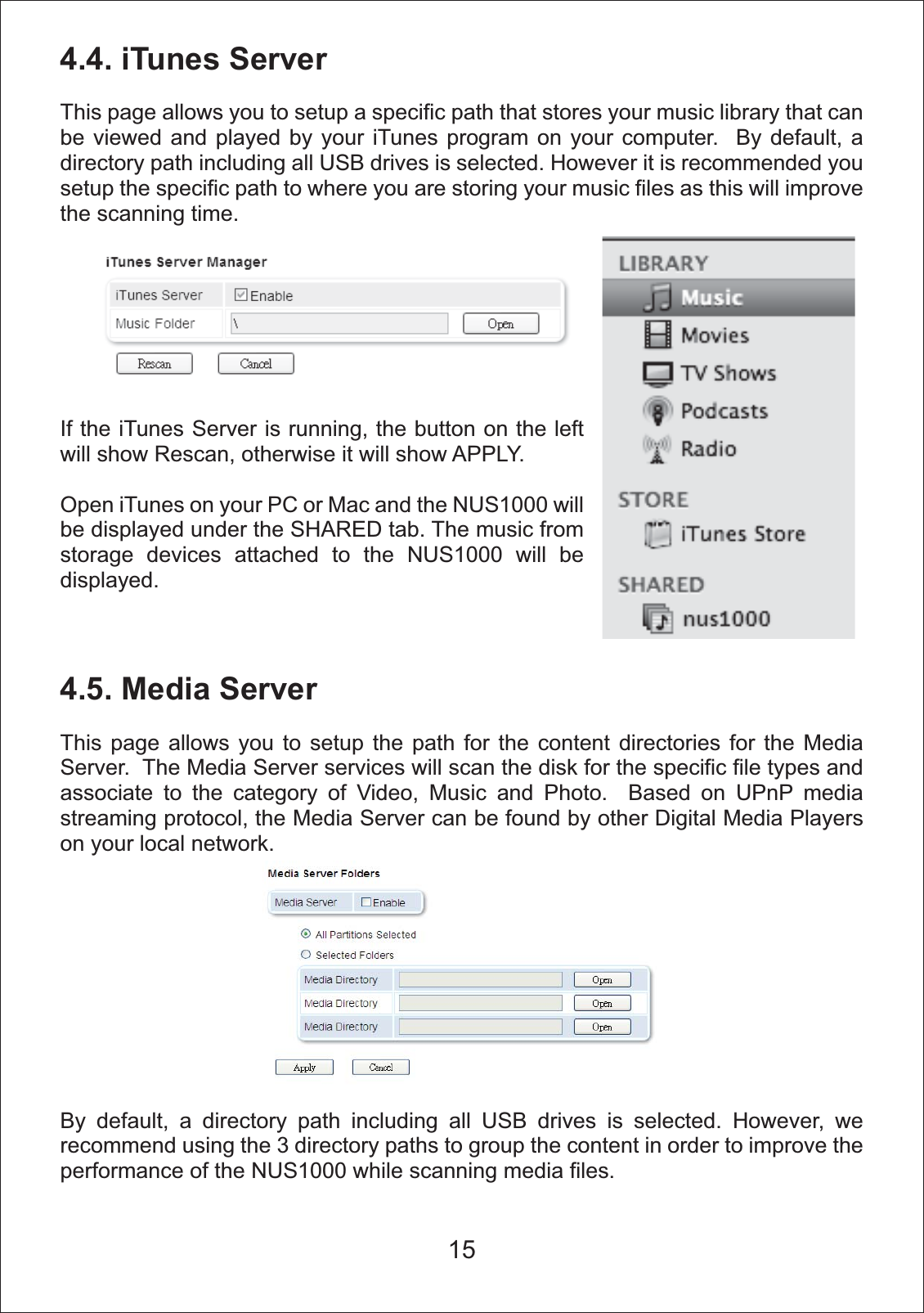

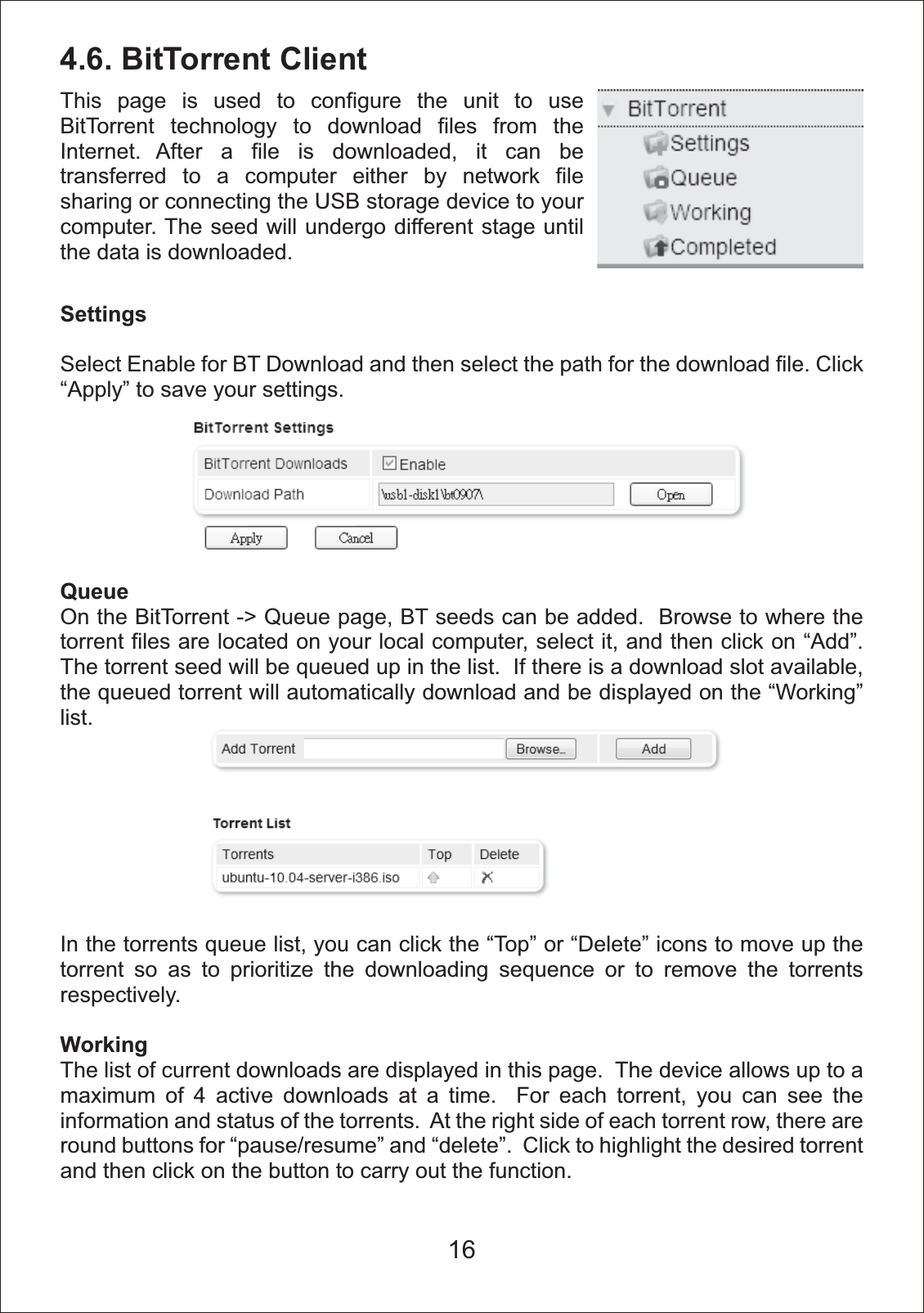

Table of Contents1. Introduction ......................................................................................................... 22. Hardware & Installation ...................................................................................... 33. Web Configuration .............................................................................................. 64. Detailed Functions .............................................................................................. 9 4.1. Status ............................................................................................................. 9 4.2. Setup ............................................................................................................ 10 4.3. File Server..................................................................................................... 13 4.4. iTunes Server................................................................................................ 15 4.5. Media Server ........................................................................................... 15 4.6. BitTorrent Client ...................................................................................... 16 4.7. Tools ......................................................................................................... 17 4.8. Shutdown ................................................................................................. 195. Administration with iOS devices ................................................................. 206. Printer Installation ........................................................................................ 237. CiragoLink - (Remote Access) ..................................................................... 308. Usage Tips ..................................................................................................... 379. Specifications ................................................................................................ 3910. Contact Us ..................................................................................................... 40

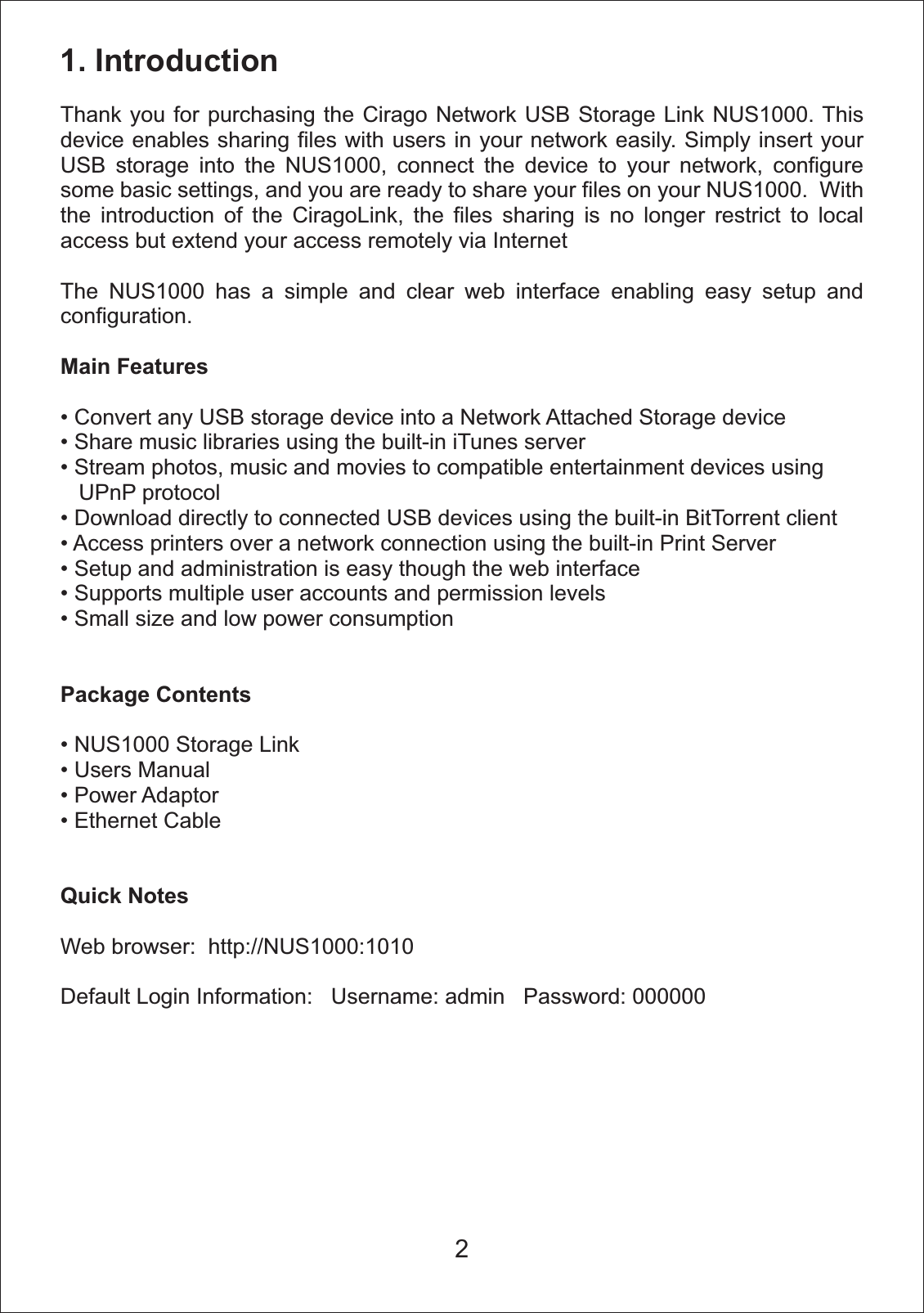

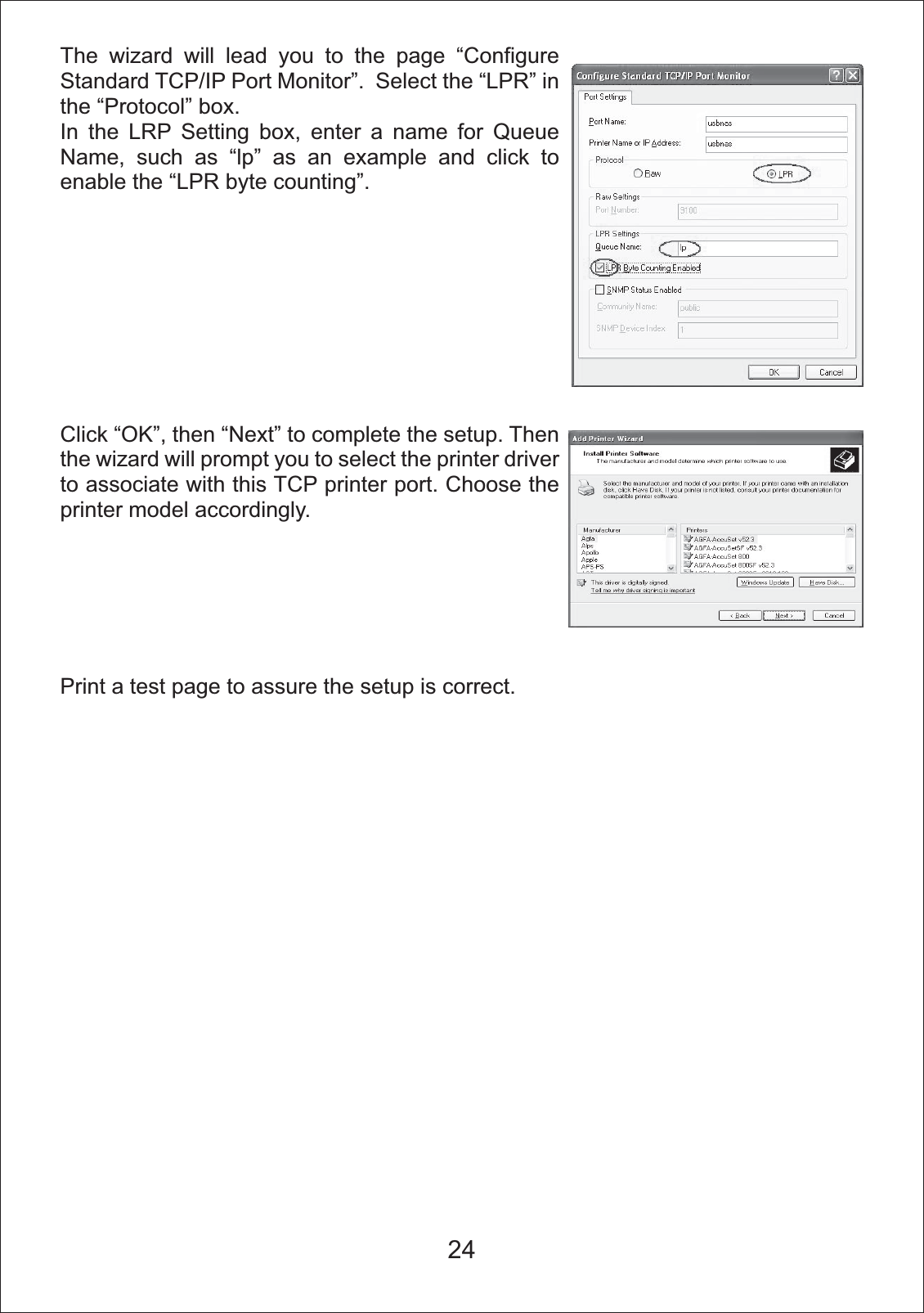

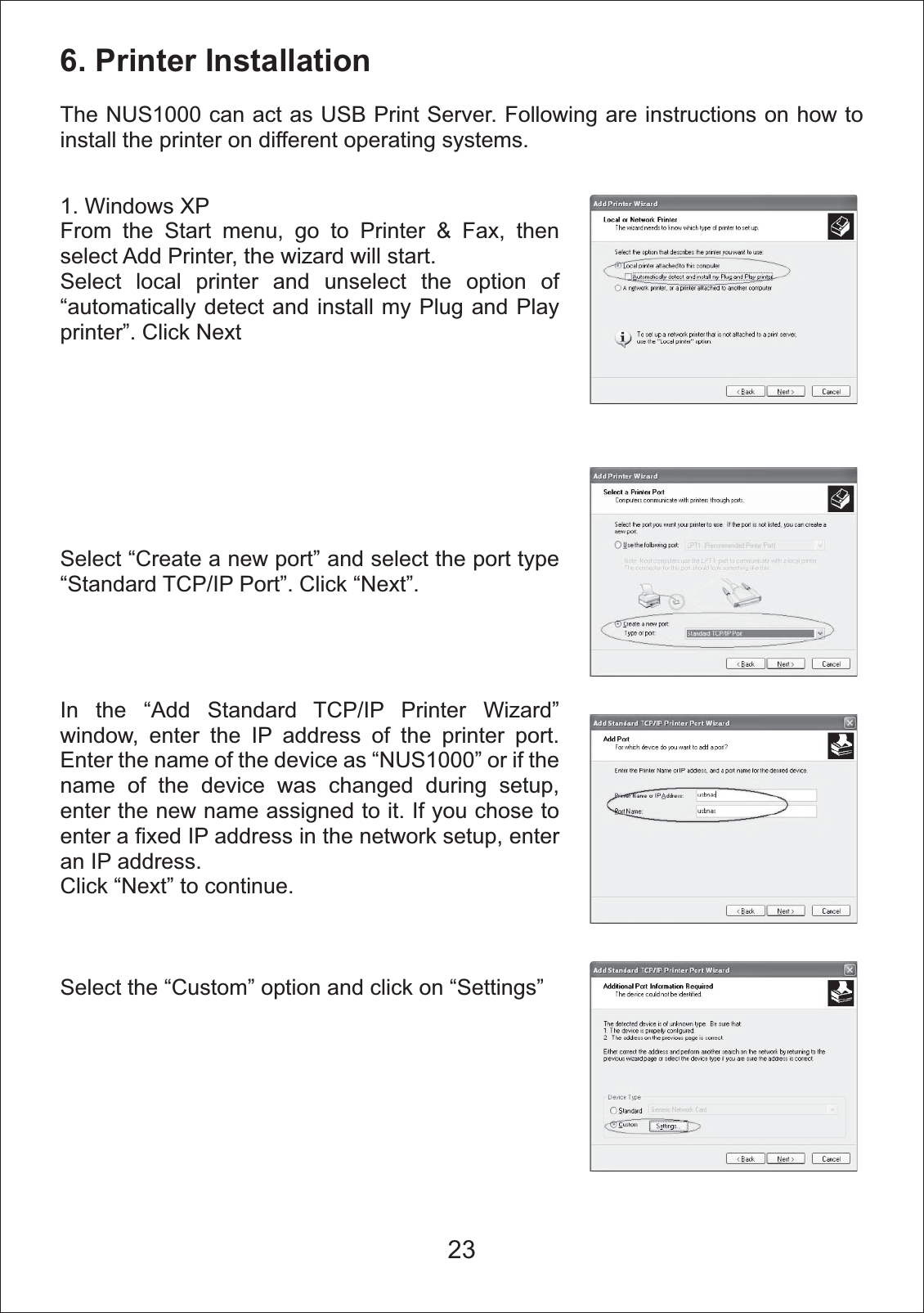

1. Introduction Thank you for purchasing the Cirago Network USB Storage Link NUS1000. This device enables sharing files with users in your network easily. Simply insert your USB storage into the NUS1000, connect the device to your network, configure some basic settings, and you are ready to share your files on your NUS1000. With the introduction of the CiragoLink, the files sharing is no longer restrict to local access but extend your access remotely via InternetThe NUS1000 has a simple and clear web interface enabling easy setup and configuration.Main FeaturesConvert any USB storage device into a Network Attached Storage deviceShare music libraries using the built-in iTunes serverStream photos, music and movies to compatible entertainment devices using UPnP protocolDownload directly to connected USB devices using the built-in BitTorrent clientAccess printers over a network connection using the built-in Print ServerSetup and administration is easy though the web interfaceSupports multiple user accounts and permission levelsSmall size and low power consumptionPackage ContentsNUS1000 Storage LinkUsers ManualPower AdaptorEthernet CableQuick NotesWeb browser: http://NUS1000:1010Default Login Information: Username: admin Password: 0000002

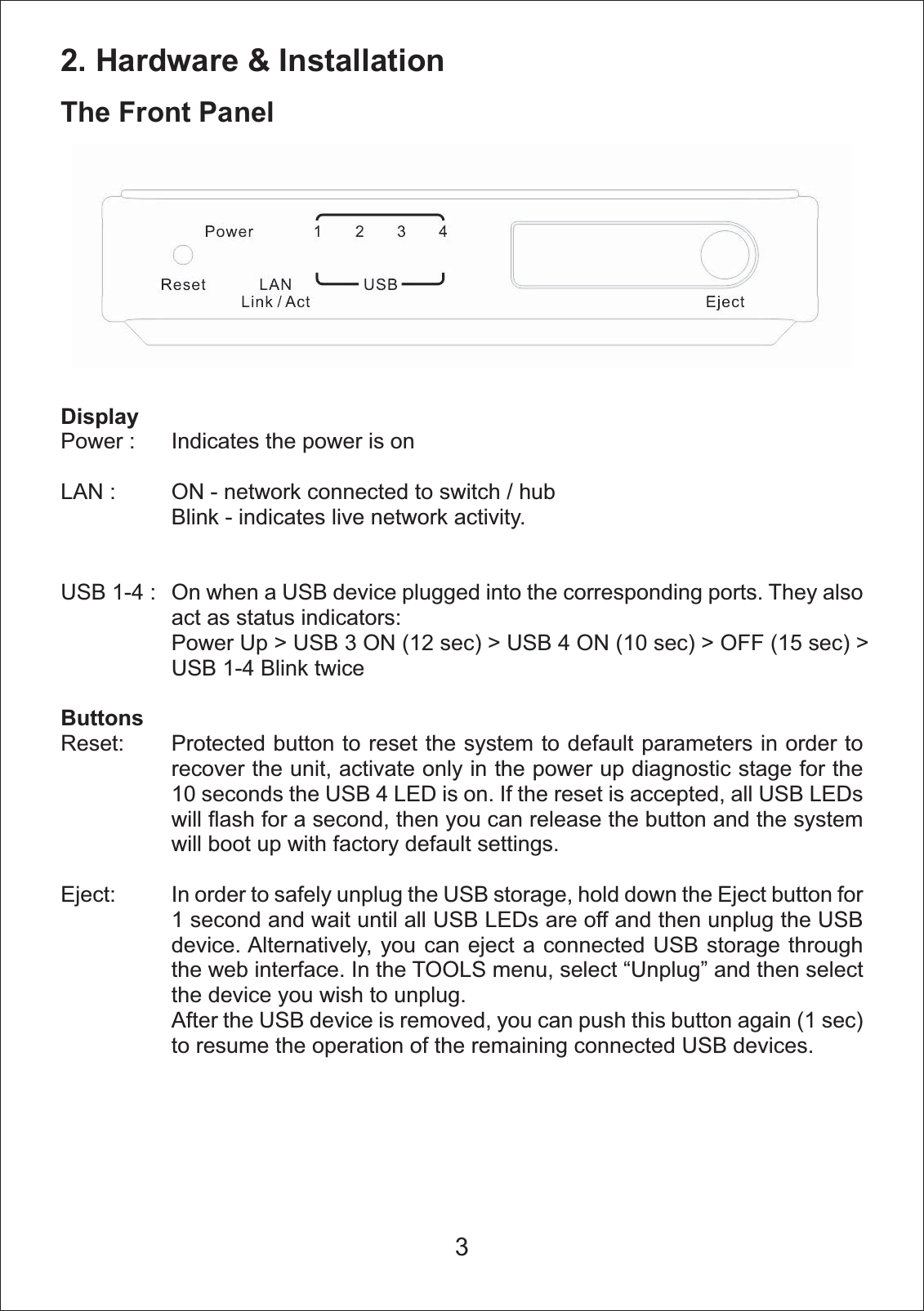

2. Hardware & InstallationThe Front PanelDisplayPower : LAN :USB 1-4 :ButtonsReset:Eject:Indicates the power is on ON - network connected to switch / hubBlink - indicates live network activity.On when a USB device plugged into the corresponding ports. They also act as status indicators:Power Up > USB 3 ON (12 sec) > USB 4 ON (10 sec) > OFF (15 sec) > USB 1-4 Blink twice Protected button to reset the system to default parameters in order to recover the unit, activate only in the power up diagnostic stage for the 10 seconds the USB 4 LED is on. If the reset is accepted, all USB LEDs will flash for a second, then you can release the button and the system will boot up with factory default settings.In order to safely unplug the USB storage, hold down the Eject button for 1 second and wait until all USB LEDs are off and then unplug the USB device. Alternatively, you can eject a connected USB storage through the web interface. In the TOOLS menu, select “Unplug” and then select the device you wish to unplug.After the USB device is removed, you can push this button again (1 sec) to resume the operation of the remaining connected USB devices.3

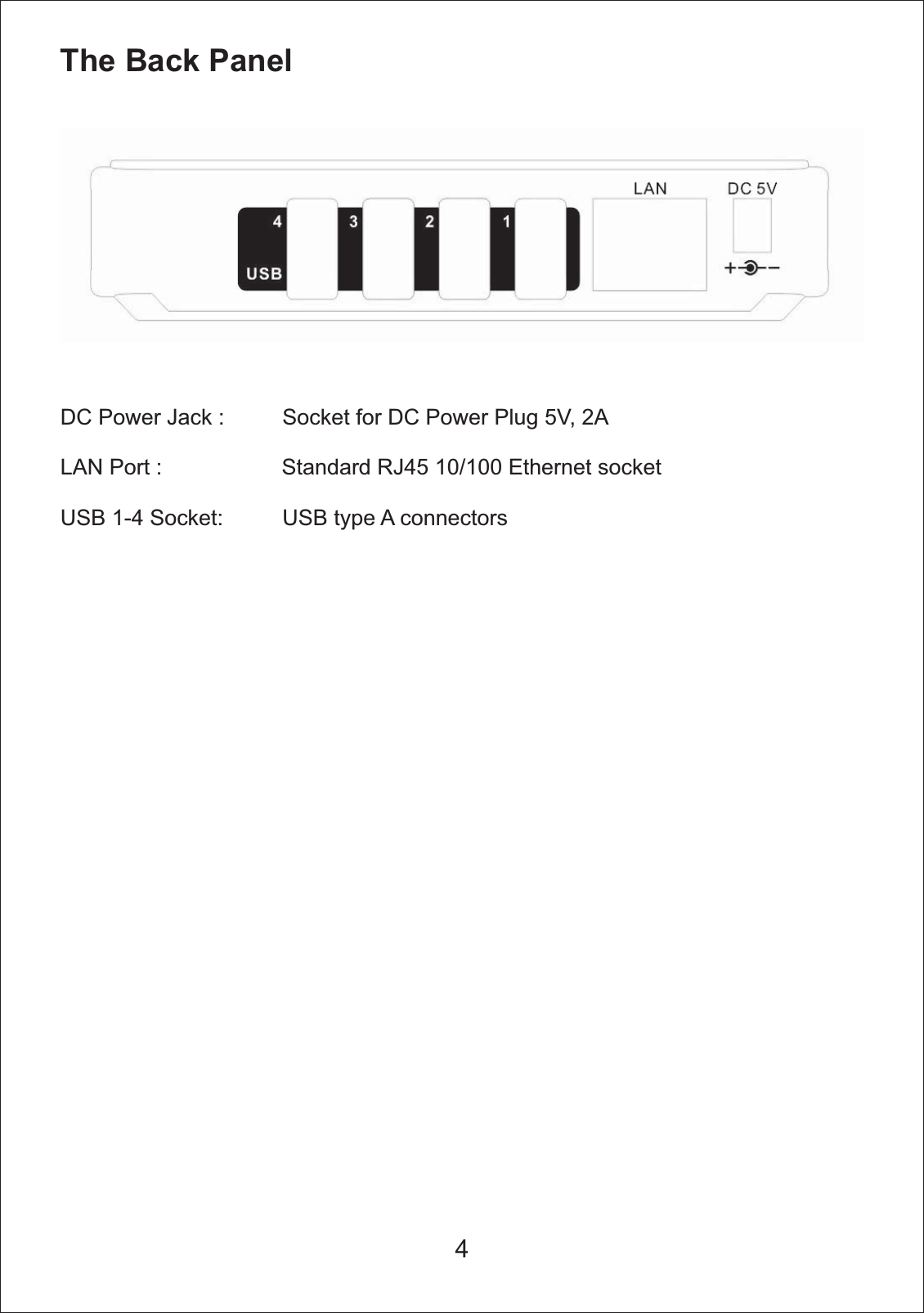

The Back PanelDC Power Jack : Socket for DC Power Plug 5V, 2ALAN Port : Standard RJ45 10/100 Ethernet socketUSB 1-4 Socket: USB type A connectors4

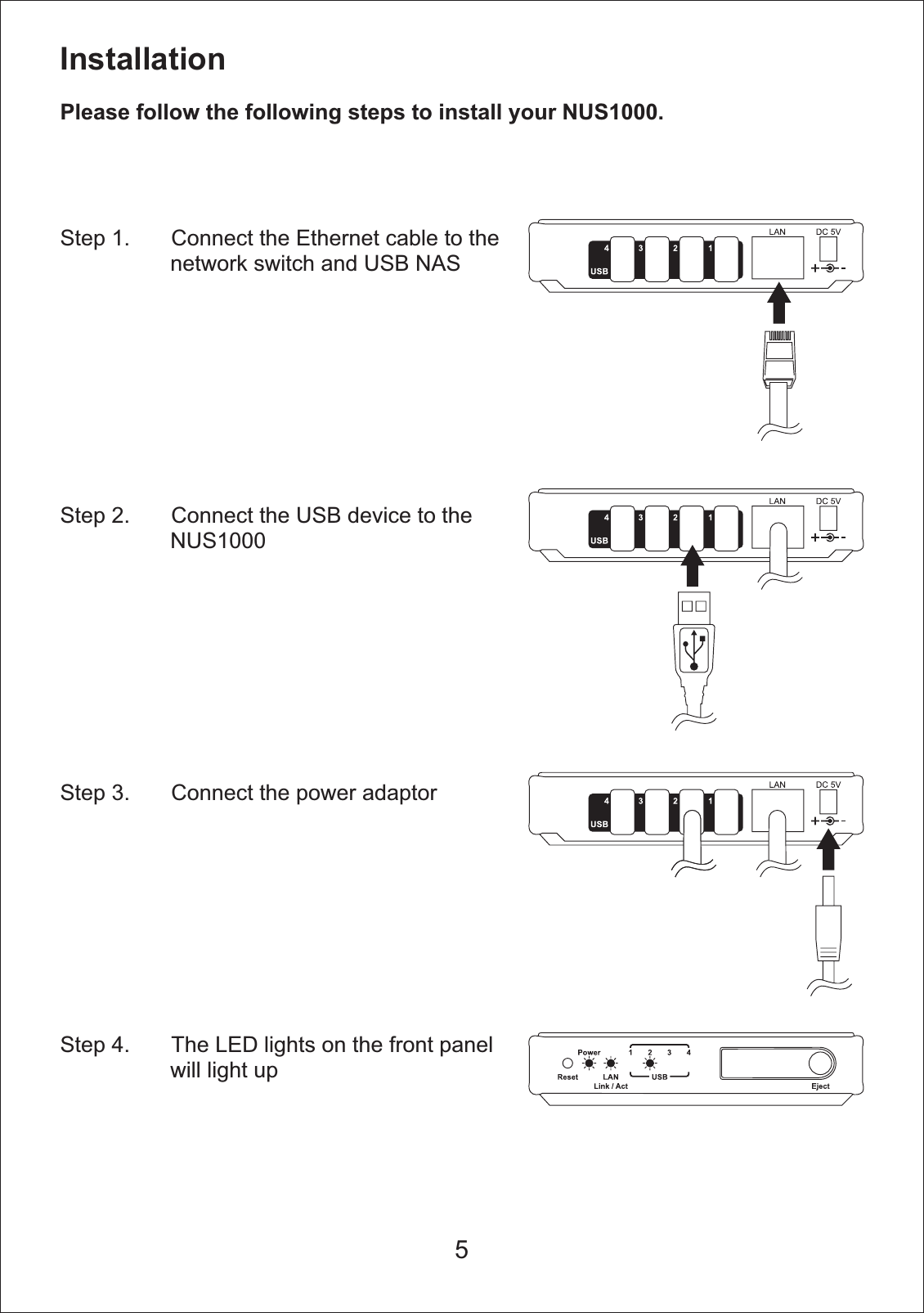

InstallationPlease follow the following steps to install your NUS1000. Step 1. Connect the Ethernet cable to the network switch and USB NASStep 2. Connect the USB device to the NUS1000Step 3. Connect the power adaptor Step 4. The LED lights on the front panel will light up5

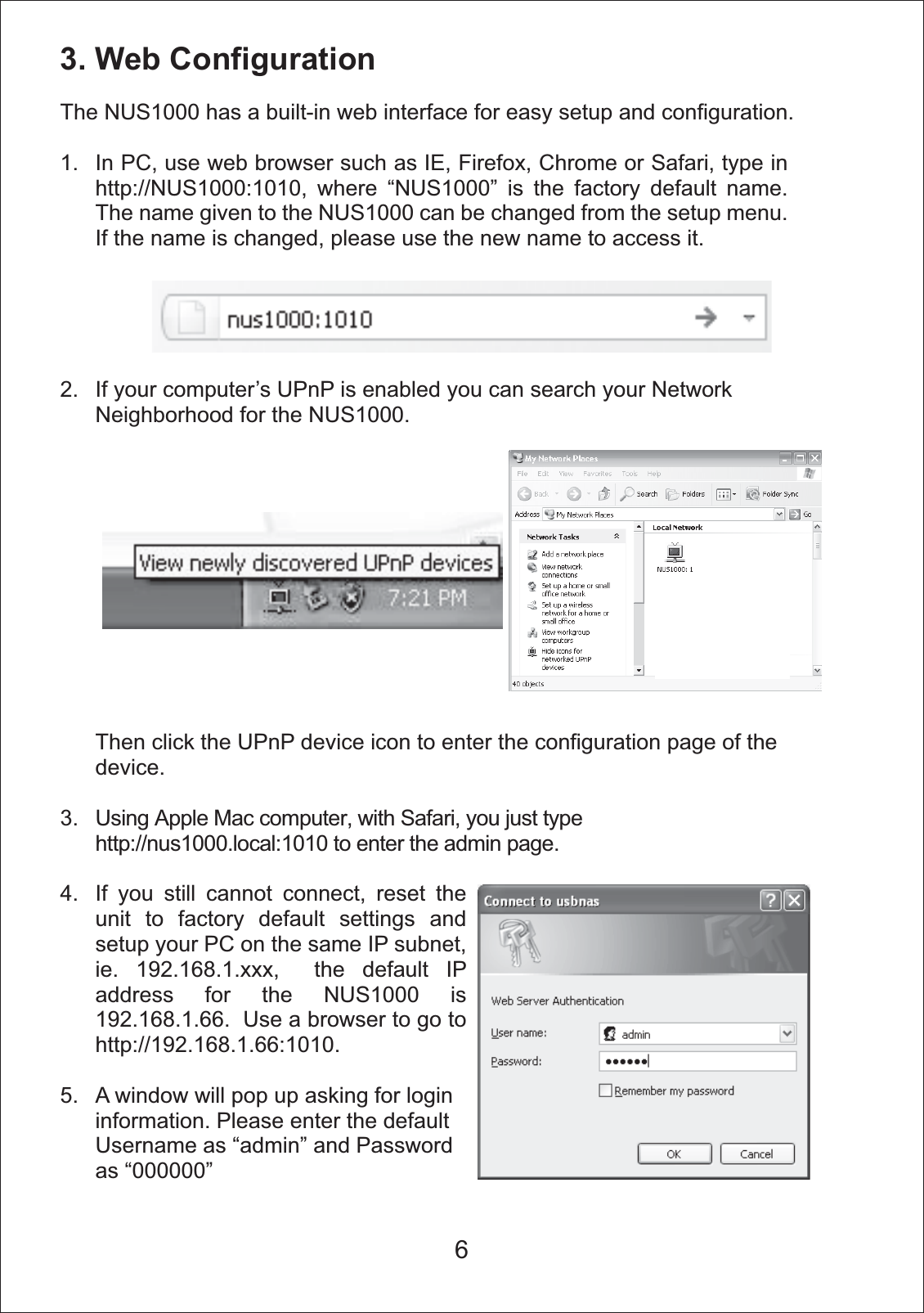

3. Web ConfigurationThe NUS1000 has a built-in web interface for easy setup and configuration. 1.2.3.4.5.In PC, use web browser such as IE, Firefox, Chrome or Safari, type in http://NUS1000:1010, where “NUS1000” is the factory default name. The name given to the NUS1000 can be changed from the setup menu. If the name is changed, please use the new name to access it. If your computer’s UPnP is enabled you can search your Network Neighborhood for the NUS1000.Then click the UPnP device icon to enter the configuration page of the device.Using Apple Mac computer, with Safari, you just type http://nus1000.local:1010 to enter the admin page.If you still cannot connect, reset the unit to factory default settings and setup your PC on the same IP subnet, ie. 192.168.1.xxx, the default IP address for the NUS1000 is 192.168.1.66. Use a browser to go to http://192.168.1.66:1010.A window will pop up asking for login information. Please enter the default Username as “admin” and Password as “000000”6

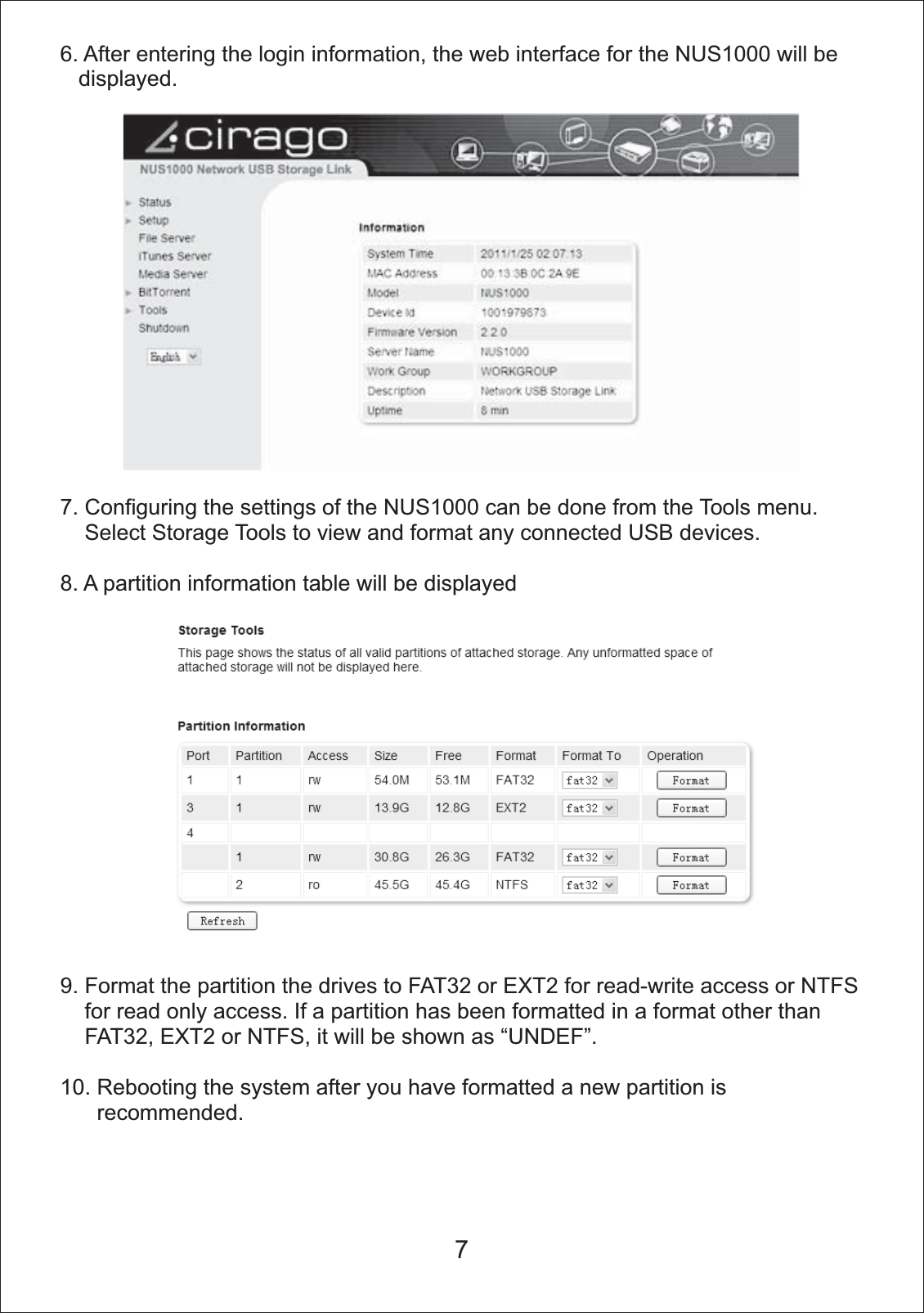

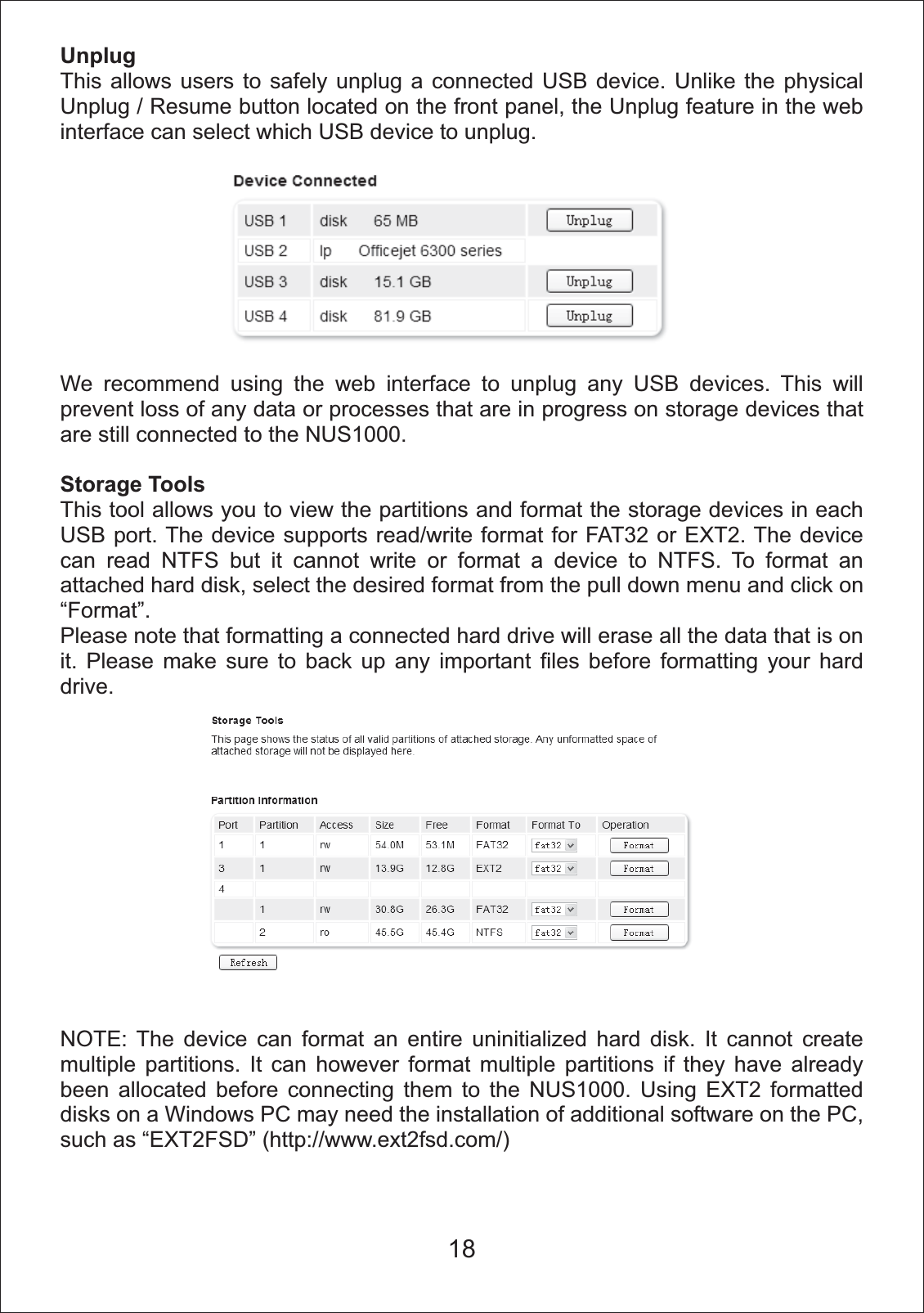

6. After entering the login information, the web interface for the NUS1000 will be displayed. 7. Configuring the settings of the NUS1000 can be done from the Tools menu. Select Storage Tools to view and format any connected USB devices. 8. A partition information table will be displayed9. Format the partition the drives to FAT32 or EXT2 for read-write access or NTFS for read only access. If a partition has been formatted in a format other than FAT32, EXT2 or NTFS, it will be shown as “UNDEF”.10. Rebooting the system after you have formatted a new partition is recommended. 7

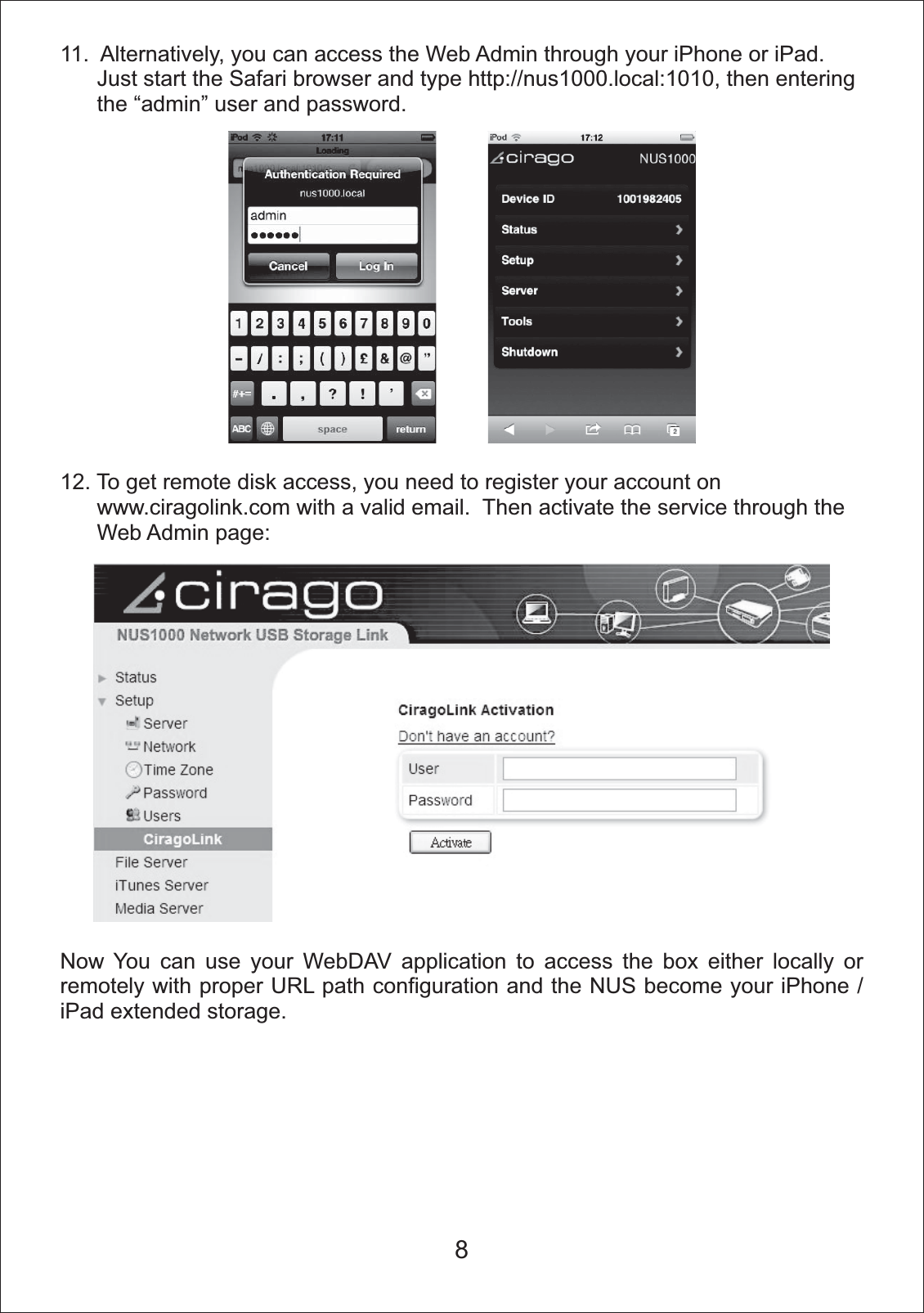

11. Alternatively, you can access the Web Admin through your iPhone or iPad. Just start the Safari browser and type http://nus1000.local:1010, then entering the “admin” user and password.12. To get remote disk access, you need to register your account on www.ciragolink.com with a valid email. Then activate the service through the Web Admin page:Now You can use your WebDAV application to access the box either locally or remotely with proper URL path configuration and the NUS become your iPhone / iPad extended storage.8

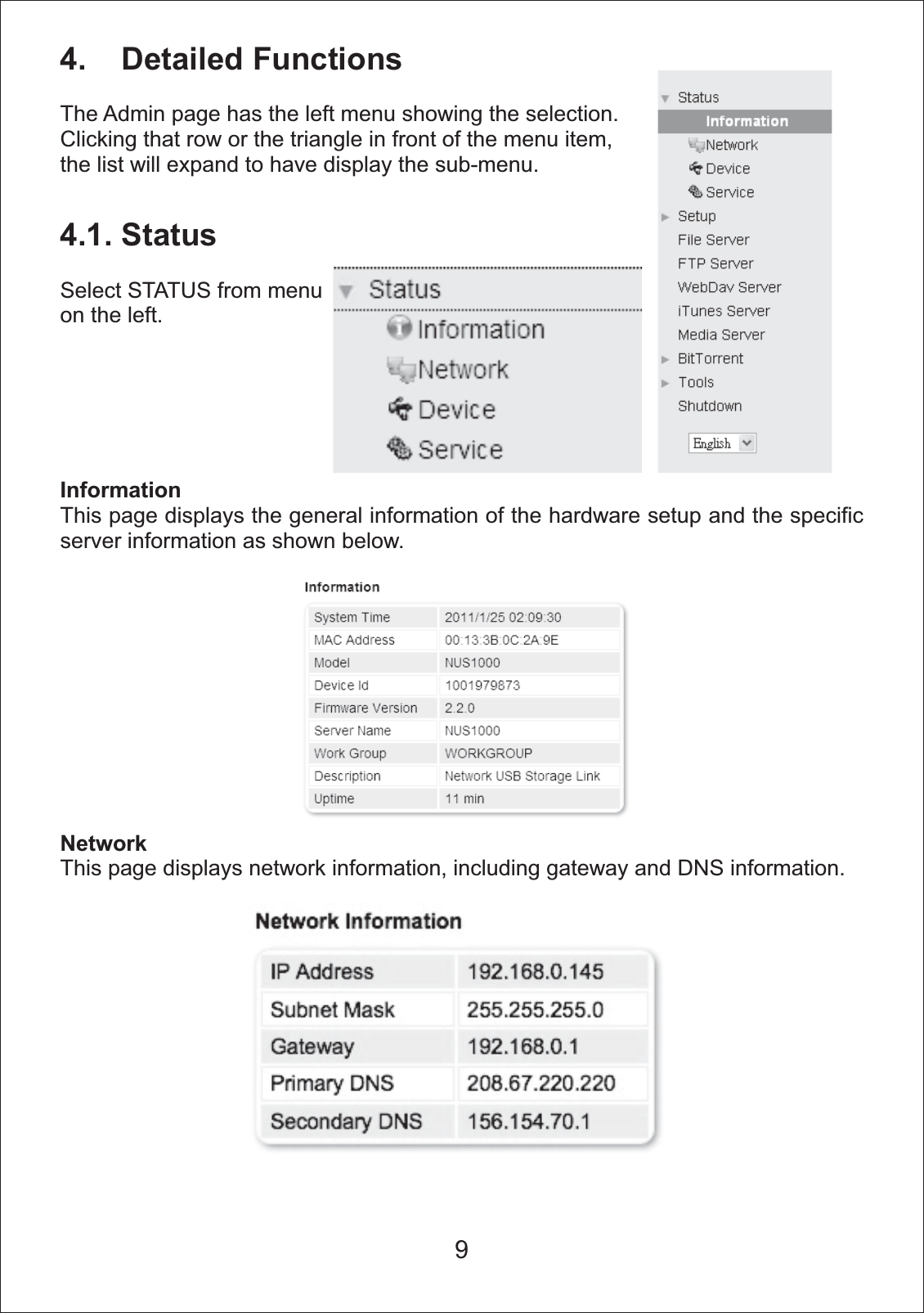

4. Detailed Functions4.1. StatusInformationThis page displays the general information of the hardware setup and the specific server information as shown below. NetworkThis page displays network information, including gateway and DNS information.The Admin page has the left menu showing the selection. Clicking that row or the triangle in front of the menu item, the list will expand to have display the sub-menu.Select STATUS from menu on the left. 9

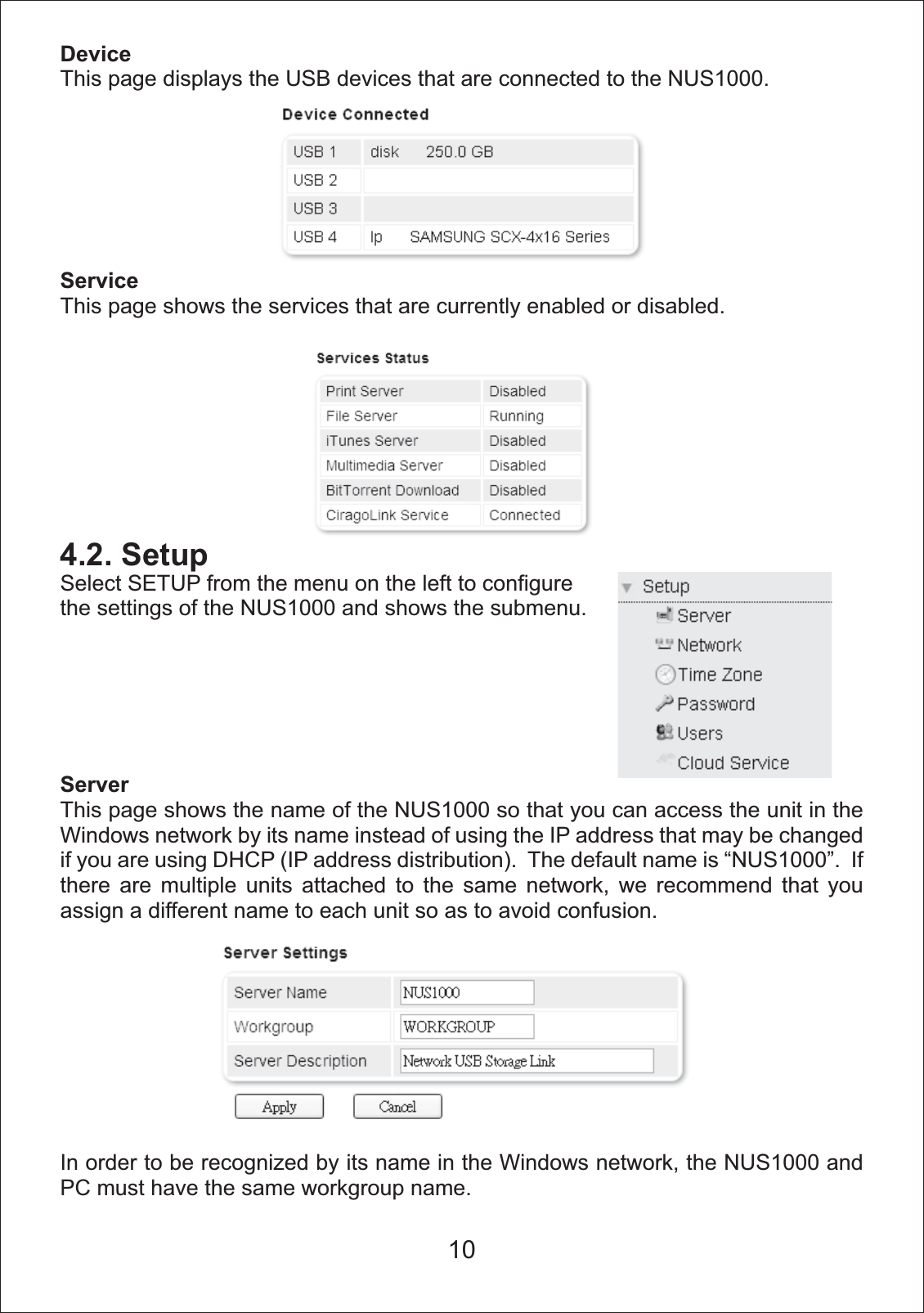

DeviceThis page displays the USB devices that are connected to the NUS1000.ServiceThis page shows the services that are currently enabled or disabled. 4.2. SetupSelect SETUP from the menu on the left to configure the settings of the NUS1000 and shows the submenu.ServerThis page shows the name of the NUS1000 so that you can access the unit in the Windows network by its name instead of using the IP address that may be changed if you are using DHCP (IP address distribution). The default name is “NUS1000”. If there are multiple units attached to the same network, we recommend that you assign a different name to each unit so as to avoid confusion.In order to be recognized by its name in the Windows network, the NUS1000 and PC must have the same workgroup name. 10

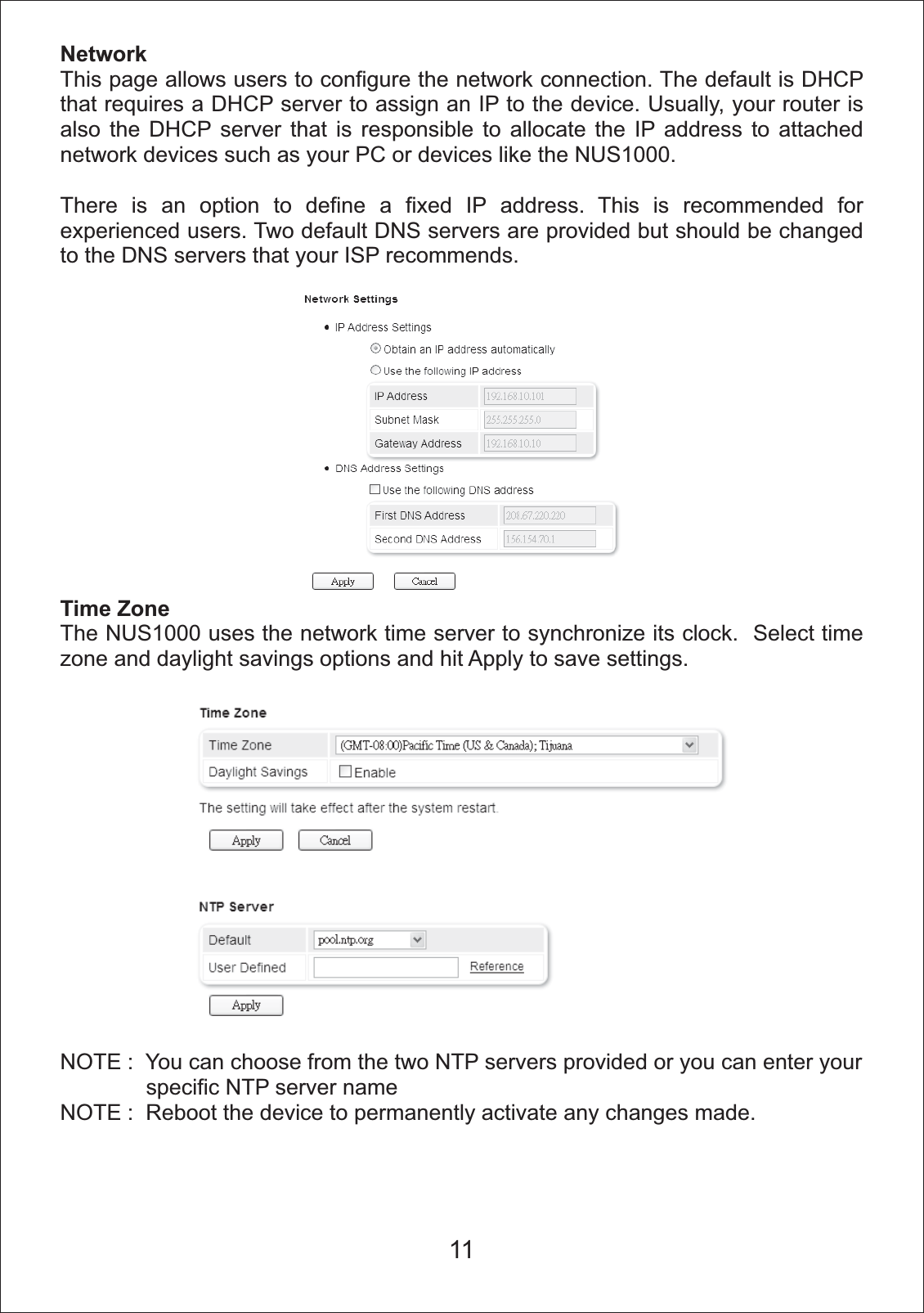

NetworkThis page allows users to configure the network connection. The default is DHCP that requires a DHCP server to assign an IP to the device. Usually, your router is also the DHCP server that is responsible to allocate the IP address to attached network devices such as your PC or devices like the NUS1000. There is an option to define a fixed IP address. This is recommended for experienced users. Two default DNS servers are provided but should be changed to the DNS servers that your ISP recommends. Time ZoneThe NUS1000 uses the network time server to synchronize its clock. Select time zone and daylight savings options and hit Apply to save settings. NOTE : You can choose from the two NTP servers provided or you can enter your specific NTP server nameNOTE : Reboot the device to permanently activate any changes made.11

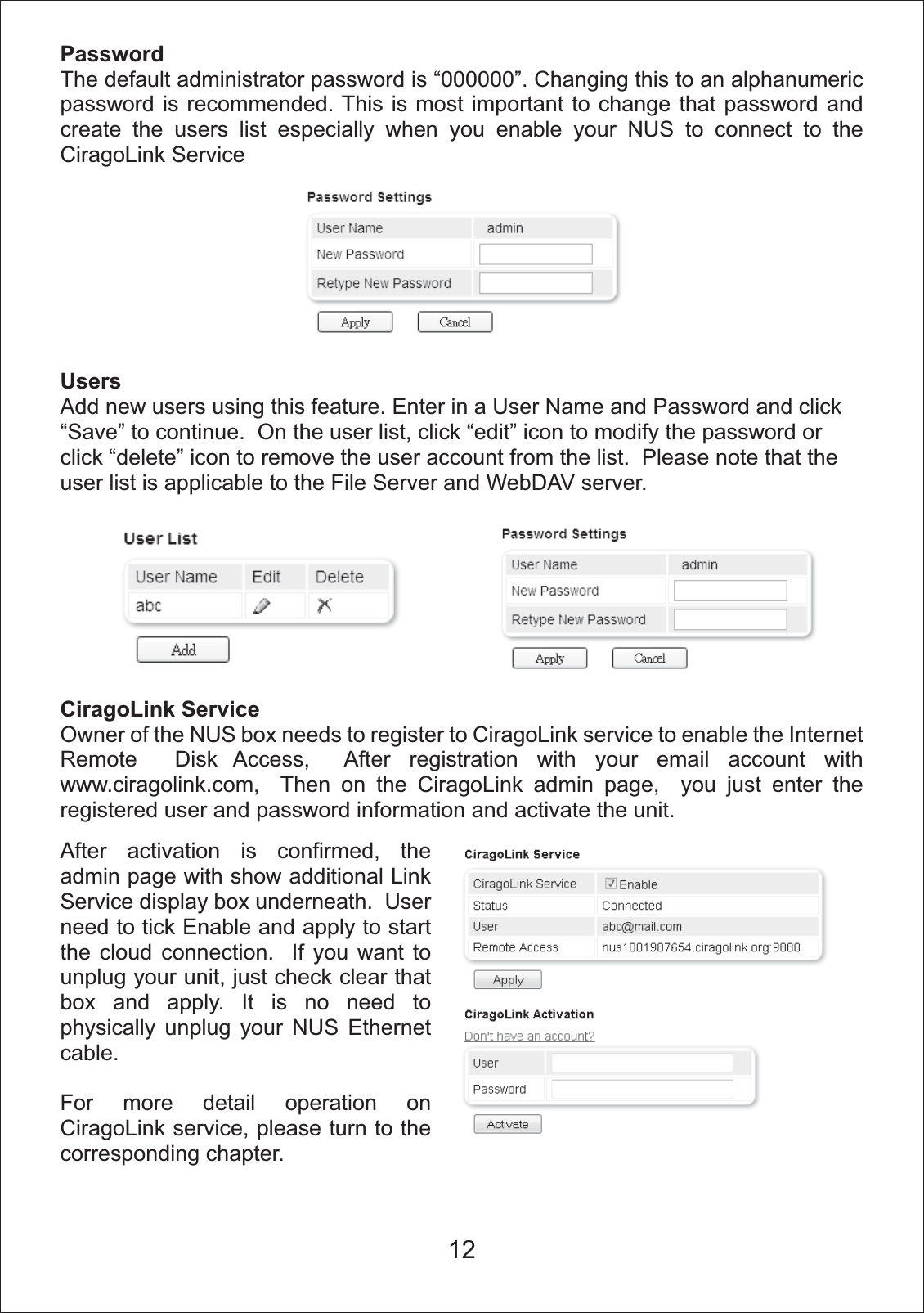

PasswordThe default administrator password is “000000”. Changing this to an alphanumeric password is recommended. This is most important to change that password and create the users list especially when you enable your NUS to connect to the CiragoLink Service UsersAdd new users using this feature. Enter in a User Name and Password and click “Save” to continue. On the user list, click “edit” icon to modify the password or click “delete” icon to remove the user account from the list. Please note that the user list is applicable to the File Server and WebDAV server.CiragoLink ServiceOwner of the NUS box needs to register to CiragoLink service to enable the Internet Remote Disk Access, After registration with your email account with www.ciragolink.com, Then on the CiragoLink admin page, you just enter the registered user and password information and activate the unit. After activation is confirmed, the admin page with show additional Link Service display box underneath. User need to tick Enable and apply to start the cloud connection. If you want to unplug your unit, just check clear that box and apply. It is no need to physically unplug your NUS Ethernet cable.For more detail operation on CiragoLink service, please turn to the corresponding chapter.12

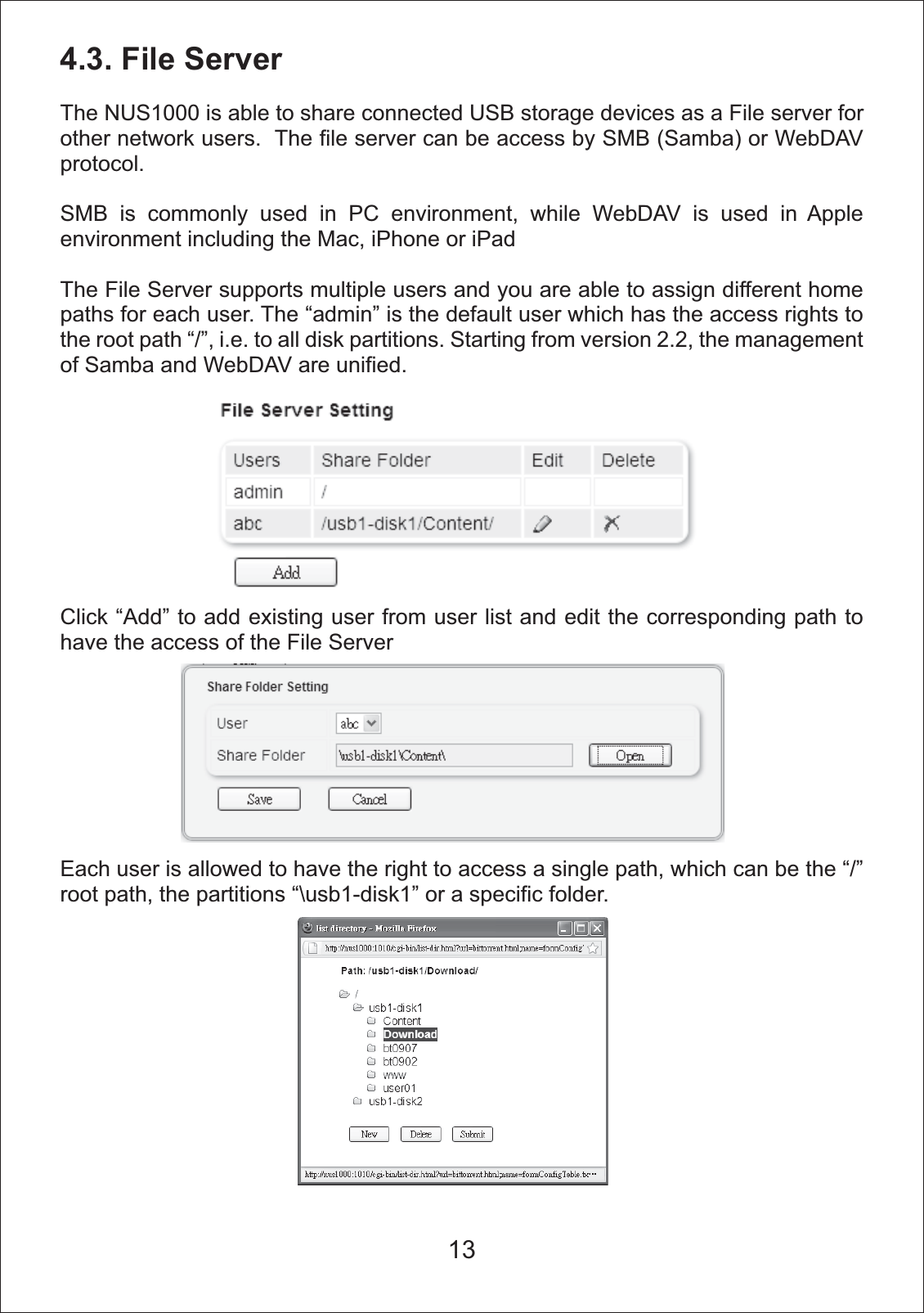

$4.3. File ServerThe NUS1000 is able to share connected USB storage devices as a File server for other network users. The file server can be access by SMB (Samba) or WebDAV protocol.SMB is commonly used in PC environment, while WebDAV is used in Apple environment including the Mac, iPhone or iPadThe File Server supports multiple users and you are able to assign different home paths for each user. The “admin” is the default user which has the access rights to the root path “/”, i.e. to all disk partitions. Starting from version 2.2, the management of Samba and WebDAV are unified. Click “Add” to add existing user from user list and edit the corresponding path to have the access of the File ServerEach user is allowed to have the right to access a single path, which can be the “/” root path, the partitions “\usb1-disk1” or a specific folder.13$

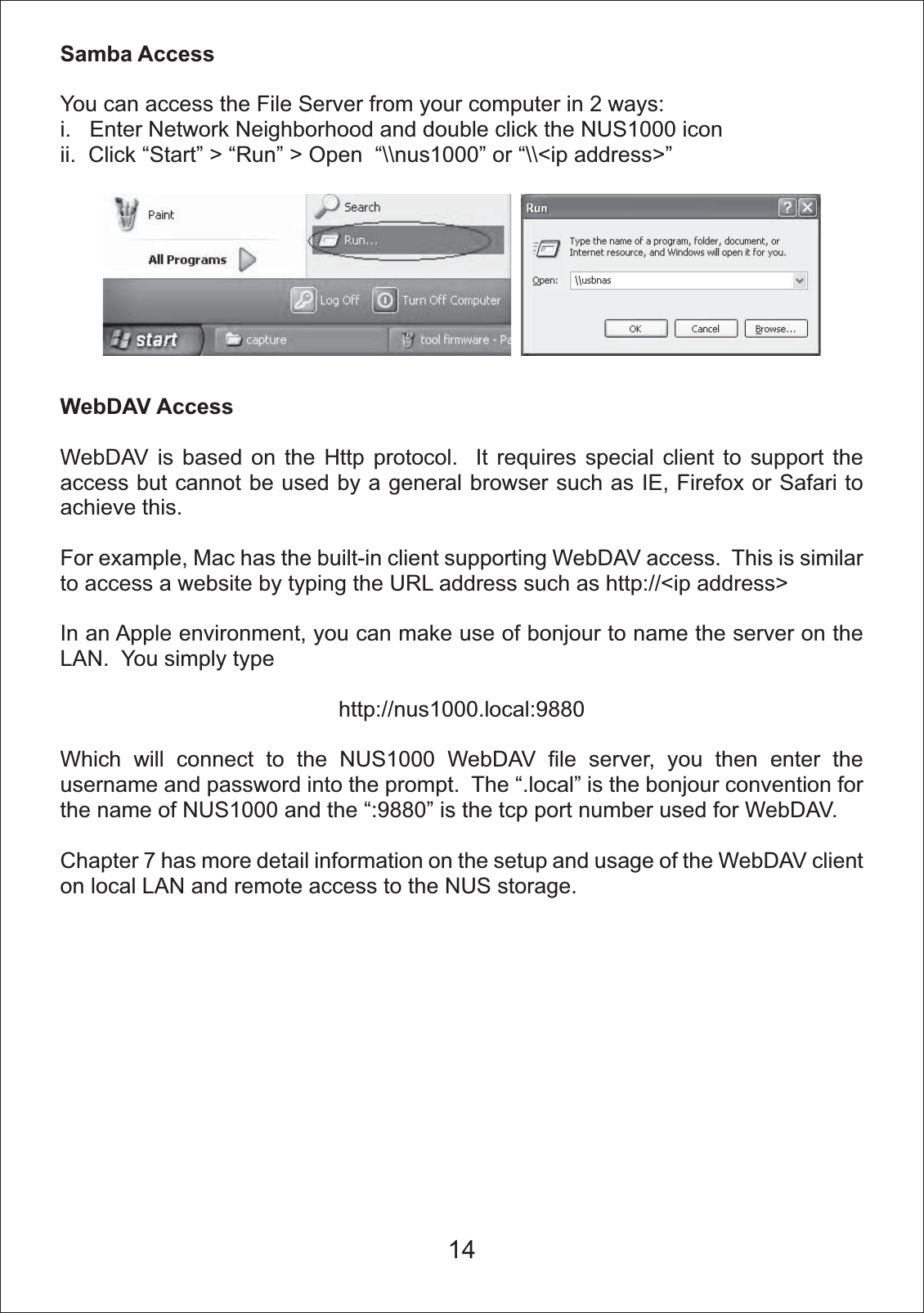

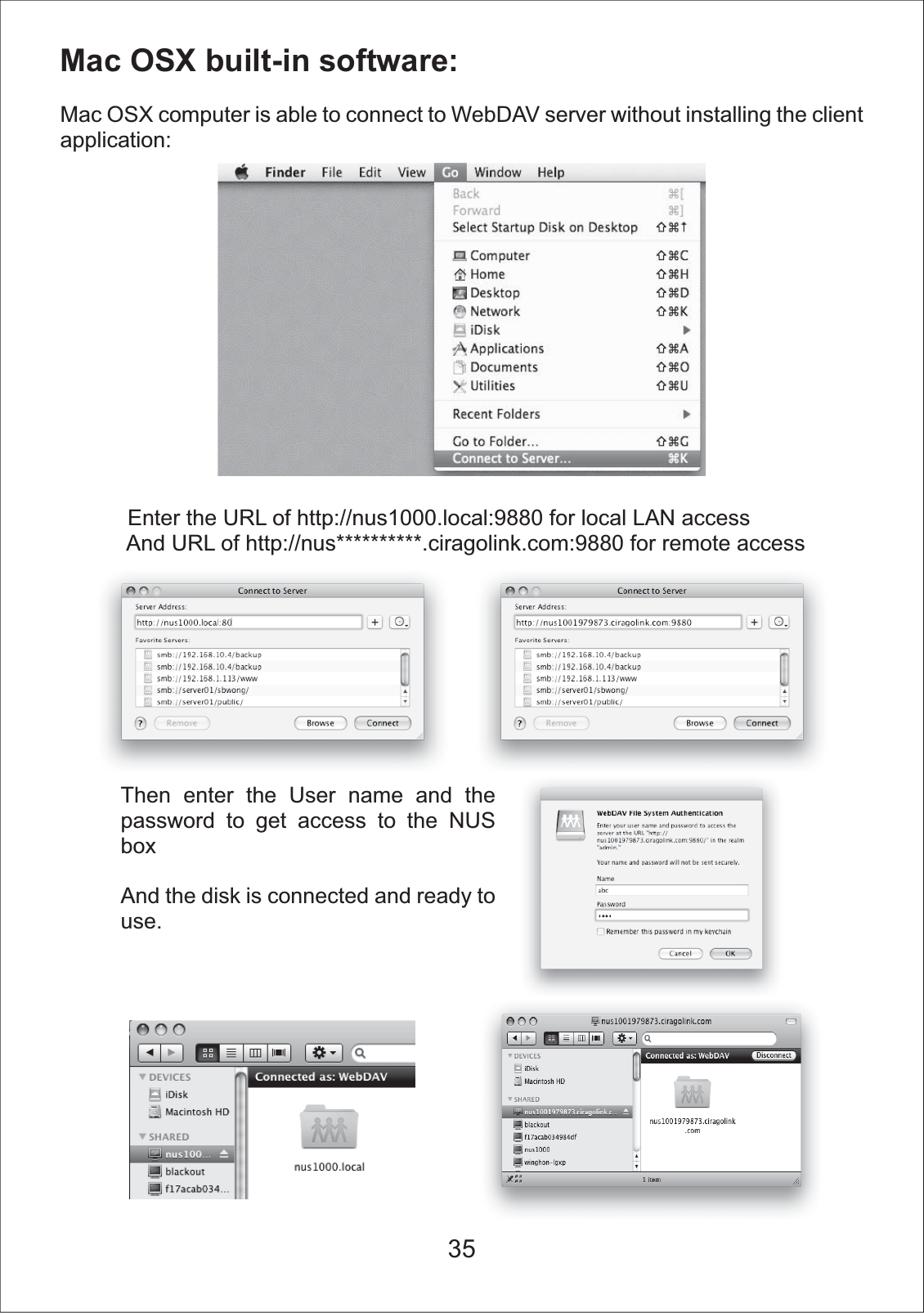

$Samba AccessYou can access the File Server from your computer in 2 ways: i. Enter Network Neighborhood and double click the NUS1000 iconii. Click “Start” > “Run” > Open “\\nus1000” or “\\<ip address>”WebDAV AccessWebDAV is based on the Http protocol. It requires special client to support the access but cannot be used by a general browser such as IE, Firefox or Safari to achieve this.For example, Mac has the built-in client supporting WebDAV access. This is similar to access a website by typing the URL address such as http://<ip address>In an Apple environment, you can make use of bonjour to name the server on the LAN. You simply typehttp://nus1000.local:9880Which will connect to the NUS1000 WebDAV file server, you then enter the username and password into the prompt. The “.local” is the bonjour convention for the name of NUS1000 and the “:9880” is the tcp port number used for WebDAV.Chapter 7 has more detail information on the setup and usage of the WebDAV client on local LAN and remote access to the NUS storage.14$
