Safety Information . . . . . 3

Before Drying . . . . . . . . . . . 6

Operating Your Dryer . . . 8

Maintenance. . . . . . . . . . . .11

Troubleshooting . . . . . . . . 13

Part No. 513218R2

June 2011

www.speedqueen.com

-2-

513218

•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

•WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

•Installation and service must be performed by a qualified installer, service agency or the gas

supplier.

W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize

the risk of fire or explosion or to prevent property damage, personal injury or

death.

W033

WARNING

-3-

513218

Safety Information

Explanation of Safety

Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for

the personal safety of the operator, user, servicer,

and those maintaining the machine.

Additional precautionary statements

(“IMPORTANT” and “NOTE”) are followed by specific

instructions.

IMPORTANT: The word “IMPORTANT” is used to

inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the dryer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the dryer.

3. Do not dry articles that have been previously

cleaned in, soaked in, washed in, or spotted

with gasoline, dry-cleaning solvents, other

flammable or explosive substances as they

give off vapors that could ignite or explode.

4. Do not allow children to play on or in the dryer.

Close supervision of children is necessary

when the dryer is used near children. This is a

safety rule for all appliances.

5. Before the dryer is removed from service or

discarded, remove the door to the drying

compartment.

6. Do not reach into the dryer if the cylinder is

revolving.

7. Do not install or store the dryer where it will be

exposed to the water and/or weather.

8. Do not tamper with the controls.

Indicates an imminently hazardous

situation that, if not avoided, will

cause severe personal injury or death.

DANGER

Indicates a hazardous situation that, if

not avoided, could cause severe

personal injury or death.

WARNING

Indicates a hazardous situation that, if

not avoided, may cause minor or

moderate personal injury or property

damage.

CAUTION

To reduce the risk of fire, electric

shock, serious injury or death to

persons when using your dryer, follow

these basic precautions:

W130

WARNING

transmitted in any form or by any means without the expressed written consent of the publisher.

-4-

513218

9. Do not repair or replace any part of the dryer,

or attempt any servicing unless specifically

recommended in the User-Maintenance

Instructions or in published user-repair

instructions that you understand and have

the skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or

product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter after every load. A

layer of lint in the filter reduces drying

efficiency and prolongs drying time.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the dryer and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. This gas appliance contains or produces a

chemical or chemicals which can cause death

or serious illness and which are known to the

State of California to cause cancer, birth

defects, or other reproductive harm. To reduce

the risk from substances in the fuel or from

fuel combustion, make sure this appliance is

installed, operated, and maintained according

to the manufacturer’s instructions.

16. Dryer will not operate with the loading door

open. DO NOT bypass the door safety switch

by permitting the dryer to operate with the

door open. The dryer will stop tumbling when

the door is opened. Do not use the dryer if it

does not stop tumbling when the door is

opened or starts tumbling without pressing or

turning the START mechanism. Remove the

dryer from use and call the service person.

17. Do not put articles soiled with vegetable or

cooking oil in the dryer, as these oils may not

be removed during washing. Due to the

remaining oil, the fabric may catch on fire by

itself.

18. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable

substances such as machine oil, flammable

chemicals, thinner, etc. or anything containing

wax or chemicals such as in mops and cleaning

cloths, or anything dry-cleaned at home with

dry-cleaning solvent in the dryer.

19. Use the dryer only for its intended purpose,

drying clothes.

20. Always disconnect the electrical power to the

dryer before attempting service. Disconnect

the power cord by grasping the plug, not the

cord.

21. If supply cord is damaged, it must be replaced

by a special cord or assembly available from

the manufacturer or its service agent.

22. Install this dryer according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding

and gas supply must comply with local codes

and be made by licensed personnel when

required. Do not do it yourself unless you know

how!

23. Remove laundry immediately after the dryer

stops.

24. Always read and follow manufacturer’s

instructions on packages of laundry and

cleaning aids. Heed all warnings or

precautions. To reduce the risk of poisoning or

chemical burns, keep them out of reach of

children at all times (preferably in a locked

cabinet).

25. Do not tumble fiberglass curtains and

draperies unless the label says it can be done.

If they are dried, wipe out the cylinder with a

damp cloth to remove particles of fiberglass.

-5-

513218

26. ALWAYS follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the dryer with any guards and/

or panels removed.

28. DO NOT operate the dryer with missing or

broken parts.

29. DO NOT bypass any safety devices.

30. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which

can produce bodily injury and/or property

damage.

NOTE: The WARNING AND IMPORTANT SAFETY

INSTRUCTIONS appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. Observe and be aware

of other labels and precautions that are located

on the machine. They are intended to provide

instructions for safe use of the machine. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the dryer.

Always contact your dealer, distributor, or service

agent about any problems or conditions you do not

understand.

-6-

513218

Before Drying

Energy Saving Tips

•Make sure the lint filter is always clean.

•Do not overload the dryer.

•Do not overdry items.

•Remove items to be ironed while still damp.

•Large loads of similar fabrics dry the most

efficiently. However, dry permanent press in

smaller loads to prevent wrinkling.

•Use the correct cycle for the type of fabric

being dried.

•Locate your dryer so the exhaust duct is as

short and straight as possible.

•Do not open the door during the drying cycle.

•Plan to do your laundry on low humidity days;

your clothes will dry faster.

•Dry multiple loads of clothes one right after

another so dryer interior does not have to be

reheated for each load.

Helps and Hints

•The directions for installation and proper

exhausting are given in the Installation

Instructions which are included with the dryer.

•Static electricity may cause garments of

synthetic fibers (as in lingerie) to cling

together, especially if they are overdried. The

use of a liquid fabric softener in the rinse

water of the washer, or a fabric softener

sheet in the dryer, will soften clothes and

reduce static electricity.

•Do not wash or dry clothes that shed lint in

the same load with permanent press or knit

garments.

•Remove permanent press loads immediately

after dryer stops.

•Follow the care labels on FLAME RETARDANT,

SCOTCH- GUARD™, etc., garments for the

proper washing and drying.

•If loads should be damp for ironing, turn timer

knob to the ENERGY SAVER setting, marked

with an asterisk (*), in AUTOMATIC or TIME

DRY cycles.

Sort

If you have correctly sorted the items for washing,

they should be properly sorted for drying too.

1. Sort by color.

2. Separate lint shedding fabrics and lint

receiving fabrics.

Towels, flannels, chenille, cottons, rugs, etc., shed

lint. Corduroys, knits (including socks), permanent

press, and synthetics attract lint.

3. Separate no heat, low heat and high heat

items.

In any kind of drying, lightweight fabrics will dry

faster than heavyweight fabrics. If mixed loads are

dried together (such as sheets and towels),

remove the lighter weight fabrics when they are dry

to prevent overdrying and wrinkling. The best

method is to dry clothes which require the same

time and temperature in the same load.

TLW1991N

-7-

513218

Load

•Do not overload your dryer. Bulk, not weight,

determines the load size. If the dryer is

overloaded, it could cause discoloration or

permanent heat damage to the load.

•There should be space in the dryer for the

clothes to tumble freely and help to reduce

wrinkles.

•Large and small pieces together make up loads

which will tumble well. Permanent press loads

should be smaller to provide room for tumbling.

Proper tumbling allows for fewer wrinkles.

•A load can be too small. Just a few small

pieces will not tumble properly. They will take

longer to dry and they may be wrinkled. For

small loads, add a couple of large towels or non

lint shedding items to aid in tumbling.

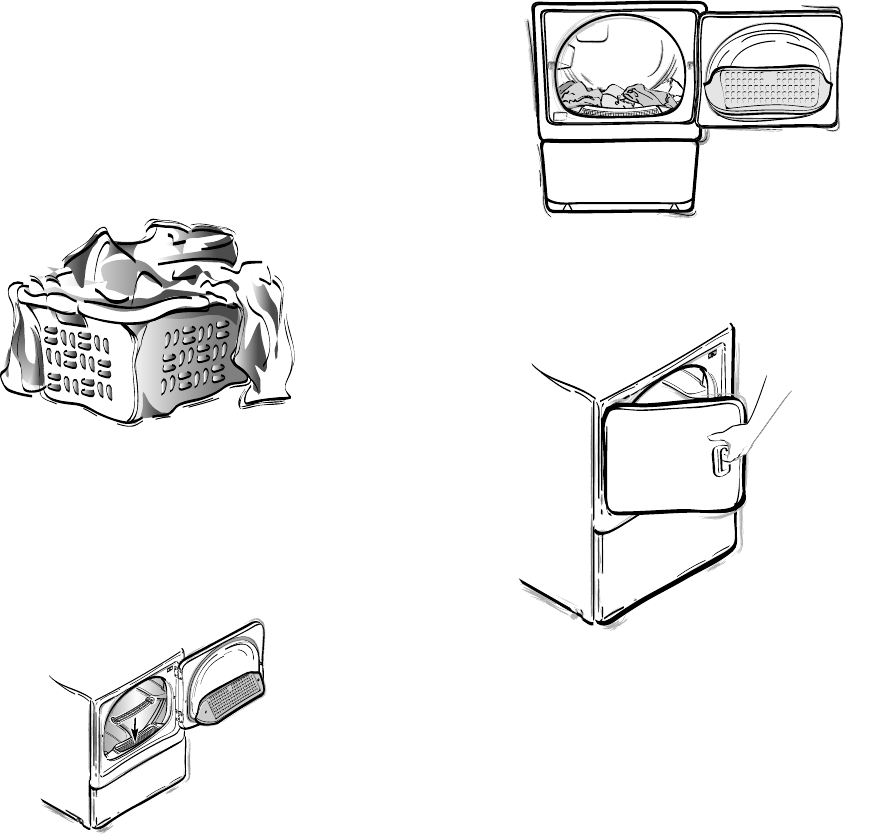

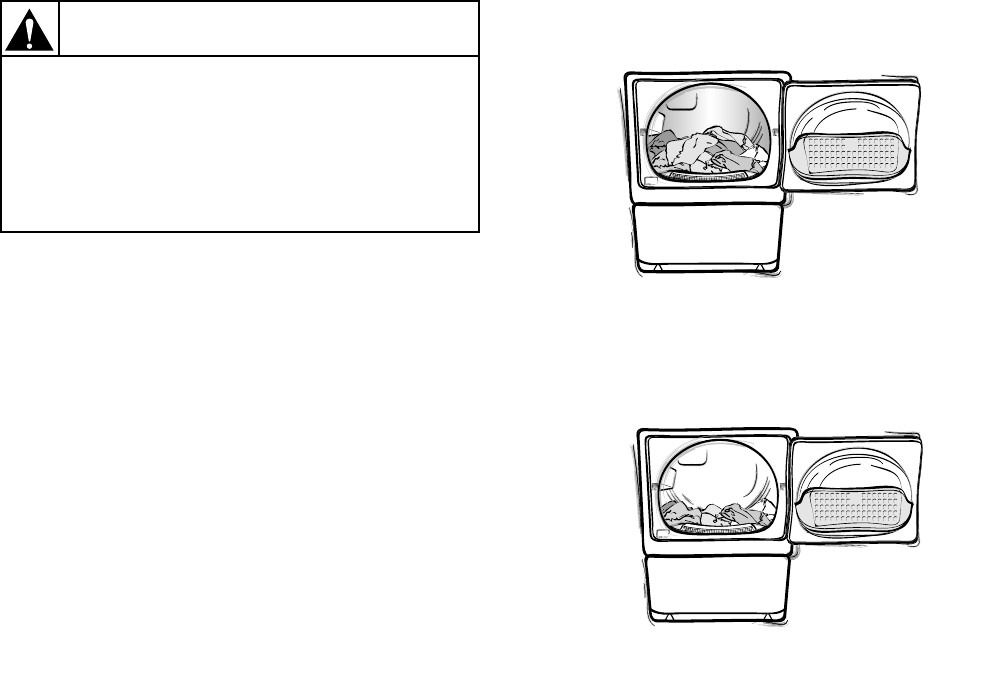

•The following illustrations show the ideal load

sizes for fabrics. The average load will fill the

cylinder one third to half full when wet.

Do not wash or dry items soiled with

vegetable or cooking oils. Some oils

may remain after washing and may

cause the fabric to catch on fire by

itself.

W527

WARNING

DRY2031N

Cylinder with wet linens and cottons

DRY2032N

Cylinder with wet permanent press items

-8-

513218

Operating Your Dryer

Available Drying Cycles

NOTE: Use the automatic cycles for drying items

that can be dried with heat. These cycles

automatically dry loads to the dryness level

selected.

MAX DRY will dry very small loads and some heavy

items, such as blue jeans, but will overdry

lightweight items, such as sheets and shirts.

Overdrying can cause wrinkling, shrinking, excessive

lint conditions, and will use more energy than

necessary.

MORE DRY will dry medium sized loads.

LESS DRY, which uses the least energy, will dry

large loads and lightweight items, such as sheets

and shirts, but might leave other items, such as

denim and heavy bath towels, more damp.

To increase energy savings and to make sure loads

are dried without overdrying, set your loads on

LESS DRY. If items are damp at the end of a cycle,

the timer knob needs to be set closer to the MORE

DRY setting the next time these loads are dried. If

items are overdry at the end of a cycle, the timer

knob should be set closer to COOL DOWN or COOL

TUMBLE when these loads are dried again.

Remember the settings that work best to get ideal

drying results.

The COOL DOWN and COOL TUMBLE period at the

end of each cycle provides items a chance to

tumble with no heat and cool down to room

temperature. This prevents wrinkles from setting if

items cannot be cared for immediately.

NOTE: The timer knob will not advance as quickly in

the AUTOMATIC cycles as it does in the TIME

DRY cycle. The time it takes for the timer to

advance depends on the type and size of the load

being dried.

The ENERGY SAVER settings, marked with an

asterisk (∗), show which settings will use the least

energy and will leave items damp for easier ironing.

Automatic Regular/Delicate Cycle

Use for sturdy items like play or work clothes and

also for delicate items. The type of heat is

determined by choosing the proper Fabric Selector

option. There are three settings in the AUTOMATIC

REGULAR/DELICATE cycle — MAX DRY, MORE

DRY, and LESS DRY.

Time Dry Cycle

This cycle will operate dryer for up to 75 minutes.

Cottons and heavyweight items dry best between

50 and 75 minutes, and lightweight items dry best

between 20 and 40 minutes.

Automatic Wrinkle Out Cycle

(available on select models only)

Use this for items that are slightly wrinkled after

sitting in a dryer or laundry basket overnight. The

cycle has a short heat setting followed by a five

minute COOL DOWN.

Automatic Permanent Press/Knits Cycle

Use for permanent press items and synthetics. The

type of heat is determined by selecting the proper

Fabric Selector option. There are two settings in

the AUTOMATIC PERMANENT PRESS/KNITS cycle

— MORE DRY and LESS DRY.

To reduce the risk of fire, electric

shock, serious injury or death to

persons, read the Safety Information

section before operating the dryer.

W520

WARNING

-9-

513218

To Dry Clothes

IMPORTANT: Refer to the INSTALLATION

INSTRUCTIONS before using dryer.

IMPORTANT: Before using dryer for the first

time, use an all-purpose cleaner or a detergent

and water solution and a damp cloth to remove

shipping dust from inside of dryer drum.

1. Sort items into separate loads.

IMPORTANT: Remove all sharp objects from

laundry to avoid tears and rips to items during

normal machine operation.

2. Remove lint filter cover, clean lint filter and

replace cover.

3. Add clothes loosely into dryer drum. Add

fabric softener sheet, if desired.

NOTE: To avoid damage to dryer, do not use more

than one fabric softener sheet per load.

4. Close loading door. Dryer will not operate with

the door open.

TLW1991N

TLW199

DRY2025

TLW2032N

DRY2026N

-10-

513218

5. Select Fabric Selector (available settings vary

by model). Follow garment manufacturer’s care

labels for recommended temperature

settings.

6. Select optional EXTEND TUMBLE (available on

select models) setting to continue tumbling

items at no heat. This prevents wrinkling when

garments cannot be removed from the dryer

immediately. By pressing the EXTEND

TUMBLE button to “ON,” the AUTOMATIC

REGULAR/DELICATE and AUTOMATIC

PERMANENT PRESS/KNITS cycles will tumble

an additional 40 minutes.

7. Select timer setting in cycle desired. These

cycles control the drying time.

The ENERGY SAVER settings, marked with an

asterisk (∗), show which dryer settings will use the

least energy and will leave items damp for easier

ironing.

8. Push timer knob in to start dryer.

NOTE: To stop dryer at any time, open the door or

turn timer knob to an OFF position. To restart

dryer, close door, reset timer if necessary, and

push in the timer knob.

End of Cycle Signal (available on select

models only)

The volume of the signal tone may be set on OFF,

LOUD or between the two selections. If a volume

level is selected, the signal will let you know when

the cycle is done. The signal will stop when the door

is opened, or when the timer is advanced to an OFF

position.

NOTE: The signal will come on every 10 minutes

when the optional EXTEND TUMBLE setting is

selected.

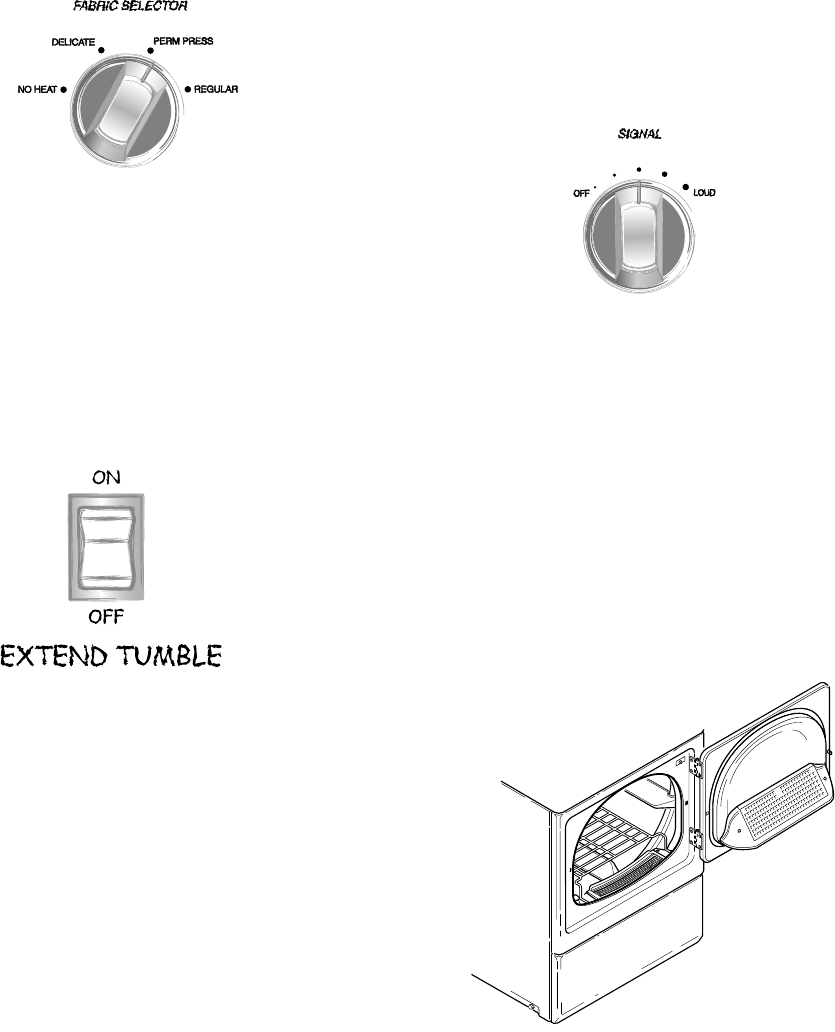

Optional Drying Rack

A drying rack, Part No. 512082, is available at

extra cost through your Factory Authorized

Service Center.

The drying rack can be used for no-tumble drying of

articles such as tennis shoes, sweaters, stuffed

toys or other delicate items.

DRY2349N

DRY2029N

DRY2350N

DRY2332NDRY2332N

DRY2332N

-11-

513218

Maintenance

Lubrication

All moving parts are sealed in a permanent supply

of lubricant or are equipped with oilless bearings.

Additional lubrication will not be necessary.

Care of Your Dryer

Dryer Interior

Wipe the surfaces using a soft cloth and household

cleaner or a non-abrasive paste of powdered

laundry detergent and hot water, followed by a

short heat cycle with a load of rags.

To remove crayon or ball point ink off the dryer

drum, put the heat on high and use old rags in the

dryer to absorb the crayon or ink. If unsuccessful,

contact the appliance dealer. DO NOT use any

chemicals in the dryer.

IMPORTANT: The use of chlorine bleach for

removing any discolorations should be avoided

because bleach could damage the finish.

Cabinet

Wipe the dryer cabinet as needed. If detergent,

bleach or other washing products have been spilled

on the dryer, wipe immediately. Some products will

cause permanent damage if spilled on the cabinet.

Control Panel

Use only a damp or sudsy cloth for cleaning the

control panel. Some spray pretreat products may

harm the finish on the control panel.

NOTE: The wiring diagram is located inside the

control panel.

Exhaust System

The exhaust duct should be inspected after one

year of use and cleaned if necessary by a qualified

service person.The exhaust duct should be

inspected and cleaned every one to two years as

required thereafter. Every two years a qualified

service person should remove all front panels and

vacuum the inside of the dryer.

NOTE: This recommended maintenance is not

covered under the terms of the warranty.

The weather hood should be checked frequently to

make sure the dampers move freely, dampers are

not pushed in and that nothing has been set

against them.

Keep dryer area clear and free from combustible

materials, gasoline and other flammable vapors and

liquids.

Do not obstruct the flow of combustion and

ventilation air.

NOTE: Verify proper operation after servicing.

Motor Overload Protector

The dryer’s motor overload protector stops the

motor automatically in the event of an overload.

After cooling, the overload protector will reset

itself. Dryer can be restarted by pushing the timer

knob in. If overload protector cycles again, remove

the dryer from use and call the service person to

correct the problem.

To reduce the risk of an electric shock,

serious injury or death, disconnect the

electrical service to the dryer before

cleaning the interior.

W132

WARNING

To reduce the risk of electric shock,

disconnect the electrical service to the

dryer before cleaning.

W043

WARNING

-12-

513218

Lint Filter

The lint filter is located at the front of the dryer in

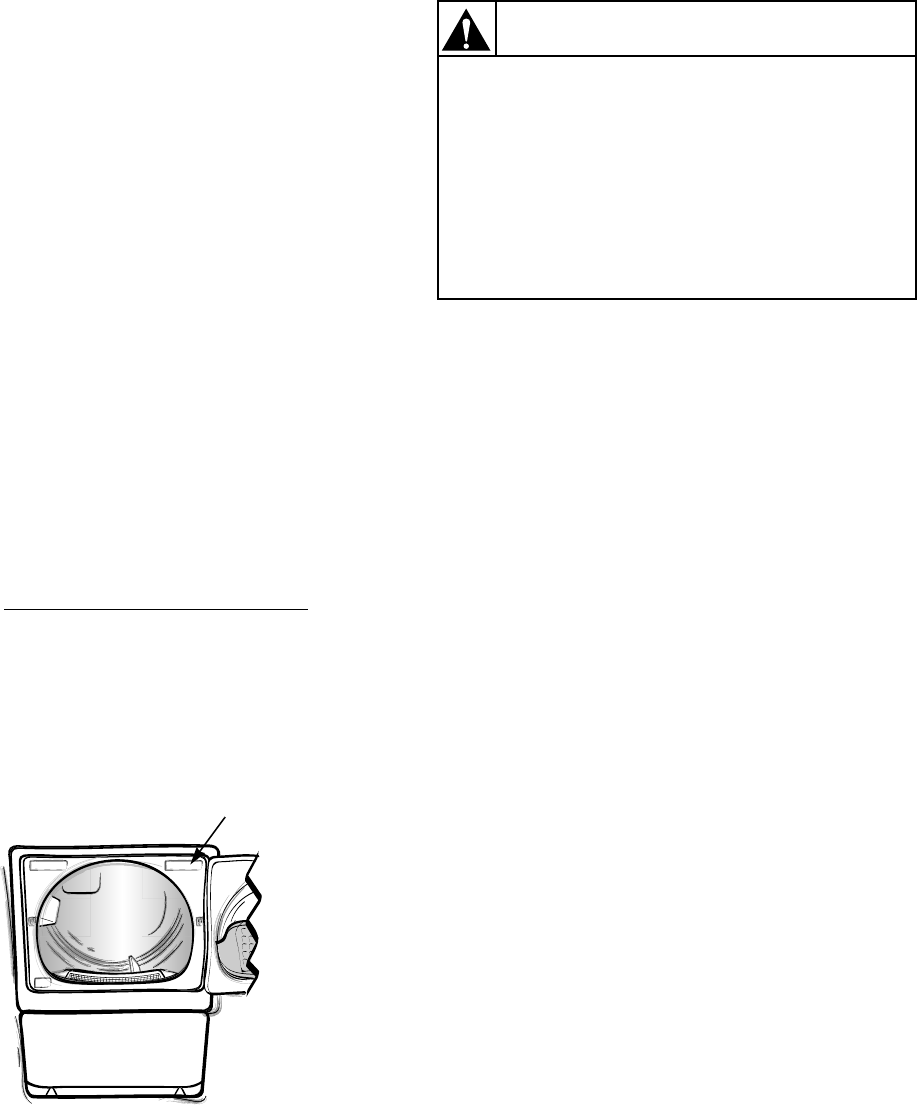

the lower part of the door opening.

CLEAN THE LINT FILTER BEFORE DRYING EACH

LOAD. Remove lint filter cover, clean lint filter and

replace cover. Annually remove lint filter and screw

to vacuum the duct under it.

Optional Control Knob Inserts

Your unit has come equipped from the factory with

a gray background on the control panel knobs. If you

wish to change the color, additional color inserts

are available at additional cost through your dealer.

DRY2025N

-13-

513218

Troubleshooting

Try these troubleshooting tips before making a service call – You may save time and money!

Dryer Symptom Possible Cause/Solution

Dryer won’t start •For dryers equipped with a power cord, make sure the power cord is plugged all the

way into the electrical outlet.

•Make sure loading door is closed.

•Push timer knob in to start dryer.

•Make sure the laundry room fuse(s) isn’t blown or loose, or circuit breakers aren’t

open. The dryer itself does not have an electrical fuse. An electric dryer has an

electrical circuit with two fuses.

•Check if motor overload protector has cycled. Wait 10 minutes and try again.

Dryer won’t heat •Make sure timer is not in COOL DOWN, COOL TUMBLE or EXTENDED TUMBLE

settings or that Fabric Selector is not set at NO HEAT.

•Electric dryers only – Some homes may have two fuses or circuit breakers for an

electric dryer; both fuses or circuit breakers should be checked. Make sure the

laundry room fuse(s) isn’t blown or loose, or that the circuit breakers aren’t open.

The electric dryer itself does not have an electrical fuse.

•Gas dryer only – Make sure equipment and main gas line valve is turned on.

•Check exhaust duct to outside to see if it is kinked, blocked or needs cleaning.

•Check weather hood to make sure flapper moves freely, has not been pushed in or

has not been blocked.

Dryer doesn’t dry clothes

satisfactorily

•Check exhaust duct to outside to see if it is kinked, blocked or needs cleaning.

•Check weather hood to make sure flapper moves freely, has not been pushed in or

has not been blocked.

•Automatic cycle – Adjust to MAX, MORE or LESS DRY setting.

•Timed cycle – Allow more or less time.

•Clean the lint filter.

•Make sure the load isn’t too small. Small loads may not tumble properly or dry

evenly.

•Check load being dried. Heavy items dried with lightweight items will not dry as

quickly as the rest of the load. Refer to Sort section for proper sorting

information.

Dryer is noisy •Check dryer for foreign objects (nails, coins, bobby pins, metal, plastic toys, etc.).

Remove items from dryer.

•Make sure dryer is level. Uneven leveling can cause vibration.

•Normal operating sounds include the tick of timer advancing, heat source going on

and off, and humming of air moving through the dryer and exhaust system.

Cycle advances too slowly •Automatic cycles advance slower than the Time Dry cycle. When in an Automatic

cycle, the time it takes for the timer to advance depends on the type and size of

the load being dried. When clothing has more moisture, the timer advances slower

than when the clothes are more dry.

Clothes are too wrinkled •Check heat setting. Overdrying can cause wrinkling.

•Check load size. Large loads may not tumble properly and may cause wrinkling.

Clothes have odor •Check room for odors before drying clothes. Any odor (fried foods, paint, varnish,

cleaners, burning wood, etc.) will transfer to clothing as the dryer draws air from

the room. Ventilate room before drying clothes.

Table 1

-14-

513218

Contact Information

If service is required, contact the nearest Factory

Authorized Service Center. To find the nearest

service center, visit us online at

www.speedqueen.com.

If you are unable to locate an authorized service

center or are unsatisfied with the service

performed on your dryer, contact:

Speed Queen

Shepard Street

P.O. Box 990

Ripon, Wisconsin 54971

www.speedqueen.com

Phone: (920)748-3121

Date Purchased___________________________

Model Number____________________________

Serial Number____________________________

When calling or writing about your dryer, PLEASE

GIVE THE MODEL AND SERIAL NUMBERS. The

model and serial numbers are located on the

nameplate. The nameplate will be in the location

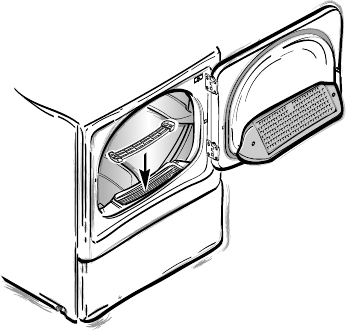

shown in the illustration below. Please include a

copy of your bill of sale and any service receipts you

have.

If replacement parts are required, contact the

source from which you purchase your dryer, or visit

us online at www.speedqueen.com.

DRY2030N

DRY2029N

Nameplate

To reduce the risk of serious injury or

death, DO NOT repair or replace any

part of the dryer or attempt any

servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and

have the skills to carry out.

W133

WARNING

Speed Queen Hvr M15N M15P Users Manual User's Guide For Your Dryer

HVR-M15NM15P to the manual 4678b168-edc0-4a60-9c07-f644b73bba9c

Navigation menu

Versions of this User Manual:

Views

Navigation
