SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc. 15
Step 2 Route the Ethernet cable through the pedestal base cable opening and through the cable
guards. Insert the RJ-45 connector into the Ethernet port as shown in Figure 13:
Figure 13 Route and Terminate the Cable
Step 3 Slide the pedestal base of the radio node into the groove opening in the mount bracket.
When the pedestal reaches the end of the trough, a spring clip will secure the unit into
place.

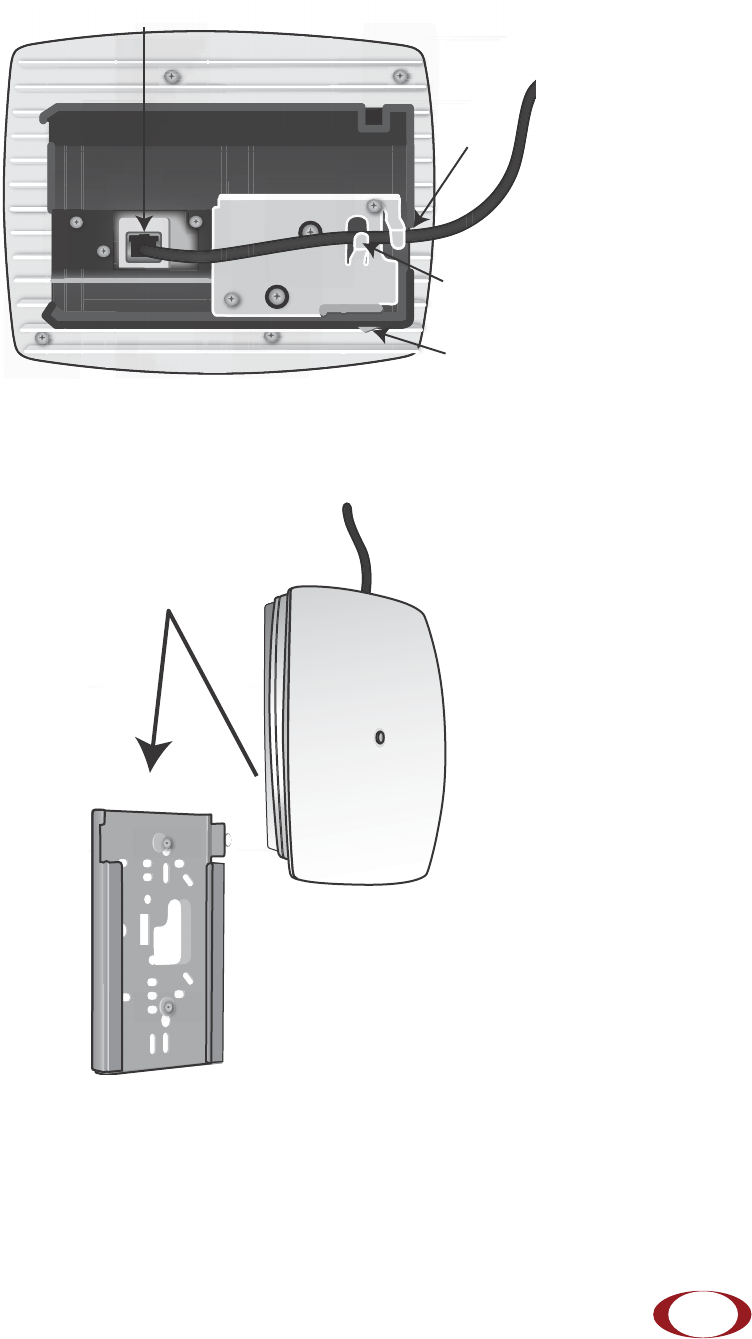

Figure 14 Fully Mounted
RJ-45 Connector in Ethernet Port
Cable
Opening
Cable
Guard
Spring
Clip
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc.
16
Installing the Radio Node (Method 2)
To route the cable directly and mount the radio node
Step 1 Route the Ethernet cable through the large hole in the mounting bracket.

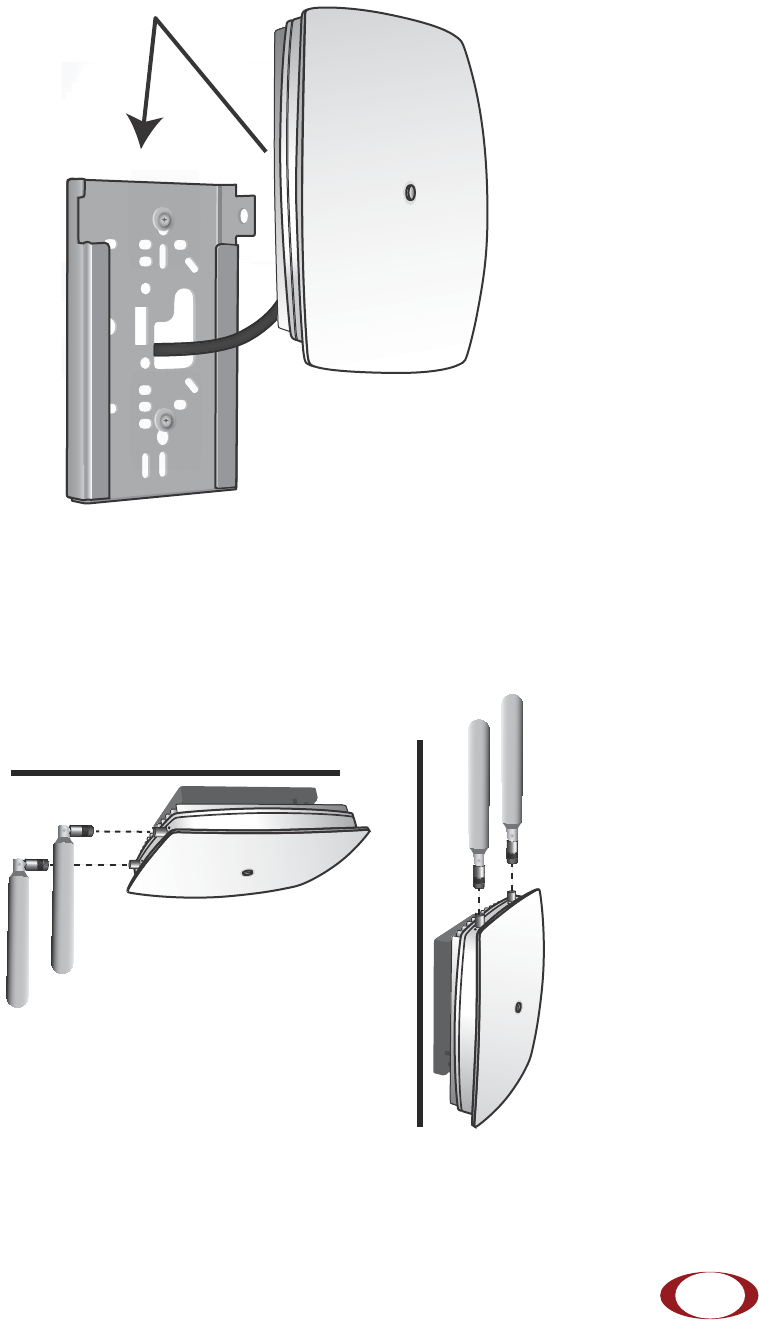

Figure 15 Mount Bracket with Direct Cable Routing
Step 2 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The
screw holes are sized for an M4 (#10) screw. Ensure the screws have a snug fit onto the
studs, sheetrock, anchor, or other material you are bolting onto.
Step 3 Insert the RJ-45 connector into the Ethernet port as shown in Figure 16:

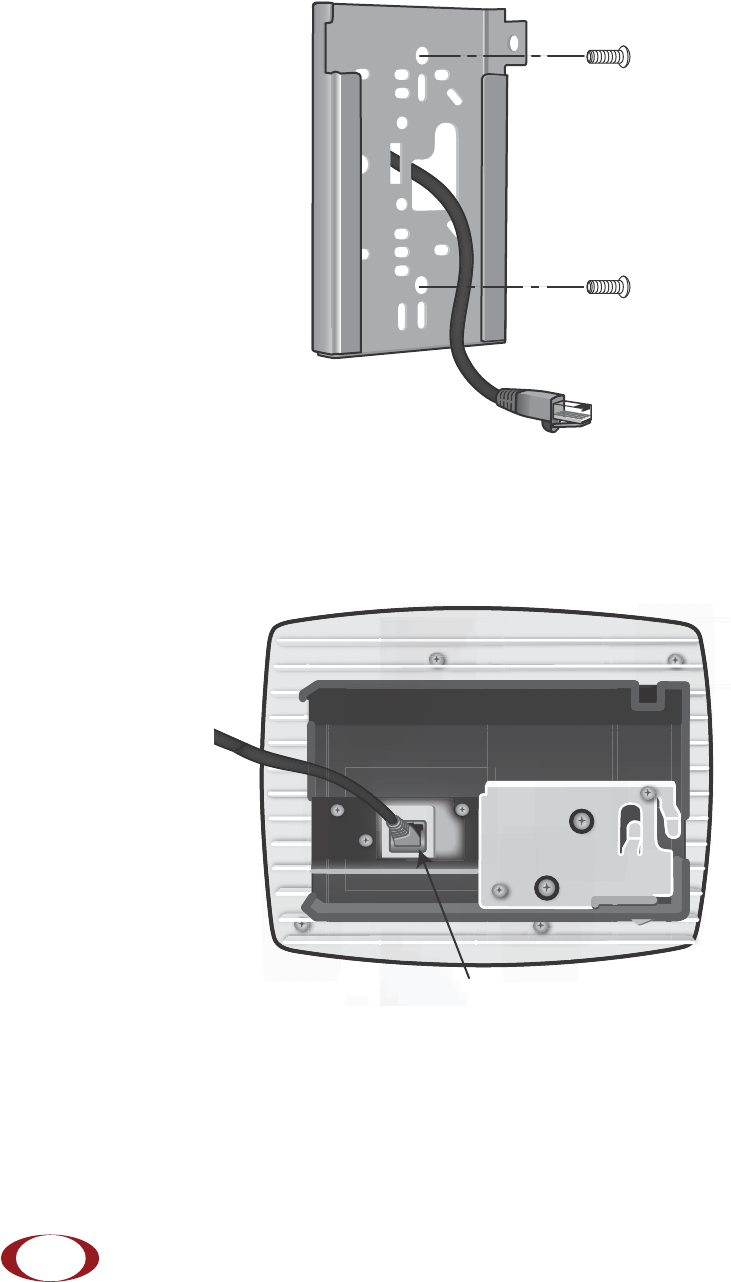

Figure 16 Route and Terminate the Cable
Step 4 Push as much cable back through the wall or ceiling as possible. The mount bracket
assembly has room for some cable slack.
RJ-45 Connector in Ethernet Port
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc. 17
Step 5 Slide the pedestal base of the radio node into the groove opening in the mount bracket.
When the pedestal reaches the end of the trough, a spring clip will secure the unit into
place.
Figure 17 Fully Mounted
Completing the Installation
Step 1 For radio nodes for use with external antennas, attach the antennas to the TNC
connectors. If the radio node is mounted on a horizontal surface, direct the antennas
downward. If it is mounted on a vertical surface, orient the antennas upward.
Figure 18 External Antenna Orientation
Ceiling
Wall
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc.
18
Step 2 Attach a padlock or cable tie wrap through the cutout lock holes in the mount bracket and
pedestal base.

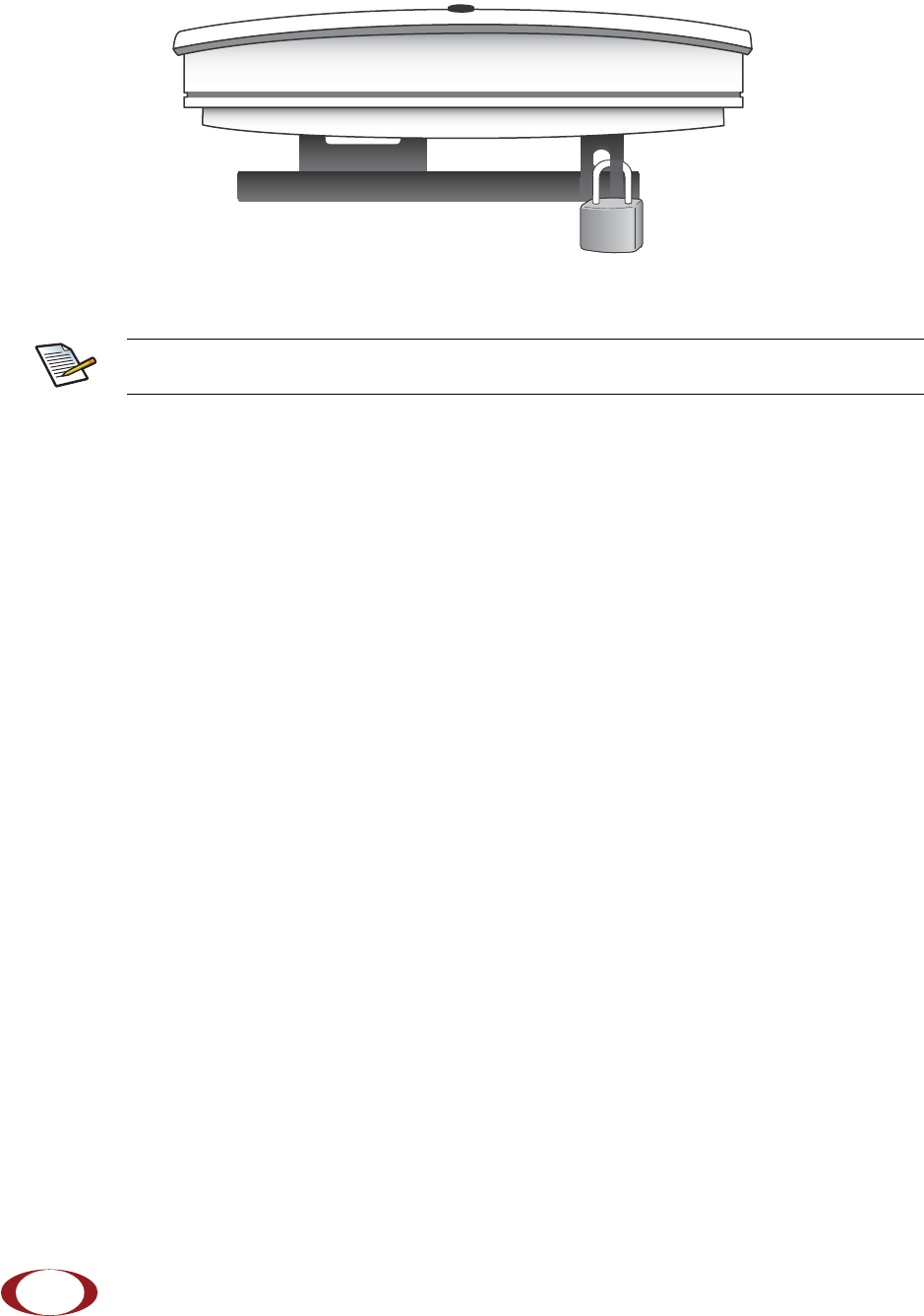

Figure 19 Padlock and Lock Holes
Step 3 The radio node boots up and attempts to connect to the services node. Refer to Boot
Sequence and Services Node Communication below for more information.
Detaching the Radio Node from the Mount Bracket
To remove the radio node from the bracket assembly
Step 1 If needed, remove the padlock or cable tie wrap securing the radio node.
Step 2 Depress the spring clip on the pedestal base and slide the radio node out of the mount
bracket.
Step 3 Detach the RJ-45 clip from the Ethernet port and remove the cable from cable brackets
and cable opening.
The lock in the above figure is shown schematically. The orientation is for illustration
purposes (not accurate) since the bracket is typically wall or ceiling mounted.
Note
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc. 19
Boot Sequence and Services Node Communication
On initial boot, the radio node performs the following boot sequence and communicates with the services
node. This sequence takes about one minute to complete. When completed, all devices are reachable:

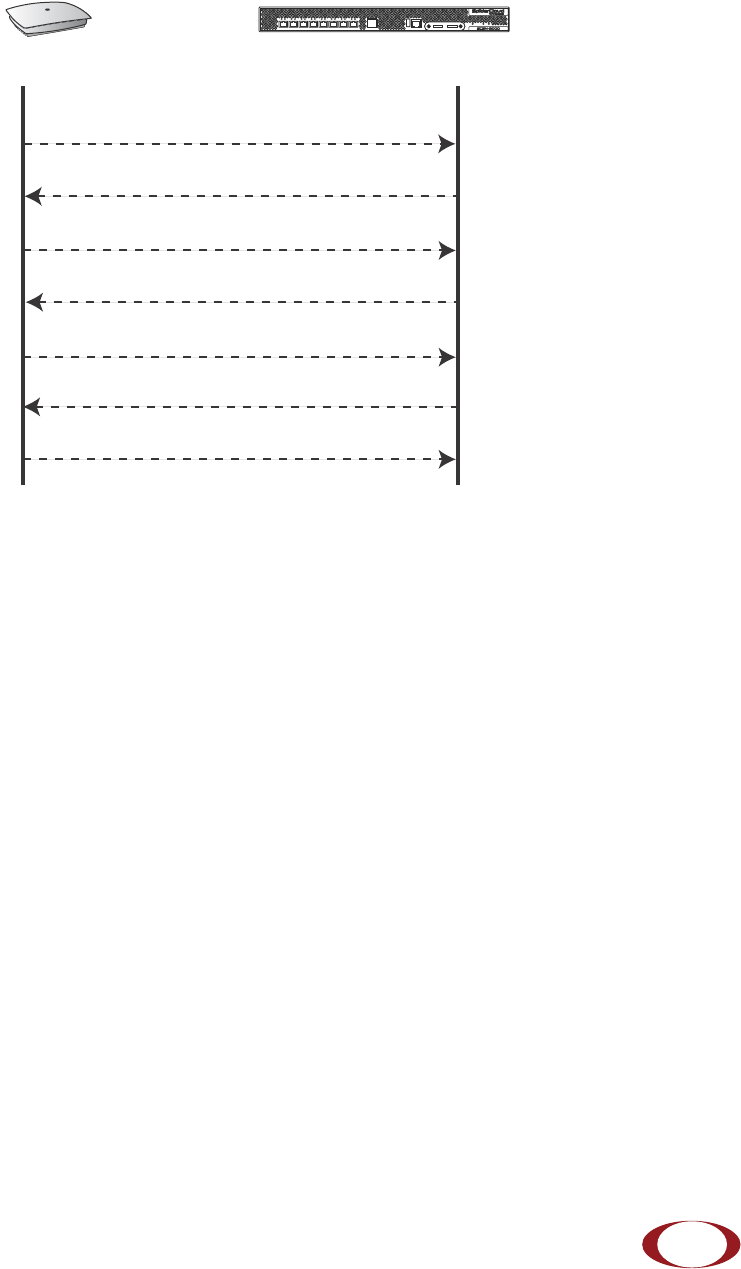

Figure 20 Radio Node Boot Sequence
Sequence description:
1. When the radio node is powered on, the device sends a DHCP Request to the services node
DHCP server to get IP information. The DHCP server is configured on the services node by default
to respond only to DHCP requests from SpiderCloud Wireless radio nodes. Refer to the
SpiderCloud OS (SCOS) Administrator Guide for more information about the services node
DHCP server configuration.
2. The server responds with the IP addresses of the radio node and the services node (the master of
the radio node).
3. Using its own IP address, the radio node sends a Join Request message to the services node. The
radio node seeks to join the cellular network.
4. The services node responds with a Join Response message indicating whether the radio node is
allowed to join the network or not.
5. The arrival sequence begins. Based on the configuration of the radio node, the radio node will join
the system and get its configuration. The services node sends the SpiderCloud software image
(the system image and configuration settings) to the radio node.
6. The radio node reboots and mounts the SpiderCloud software image as a RAM-based file system.
7. The radio node contacts the services node and joins the network.
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc.
20
Radio Node LED Boot Sequence
The radio node state machine is sequential and progresses in the following order:
State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5
A normal boot sequence transitions through all these states sequentially and the LED state transitions
accordingly. If the radio node fails to transition to the next state, the system restarts the boot sequence,
starting with State 0. You can determine the progress during the booting stages by observing the LED color
transitions. On failure, the last LED state will display the state that encountered the failure.
Table 3 shows the radio node boot sequence and corresponding LED behavior:
Table 3: Radio Node LED Boot Sequence
State LED Color Description Possible Failures and Actions
0. Power On/
Reset
Green
Flashing
This is the initial state on startup.
The radio node bootup is controlled
by firmware in this state.
It will go through a lamp test in this
state. A lamp test involves cycling
through all LED colors.
This state should be very short lived
and should transition to the next state
immediately.
A radio node should not stay in this
state indefinitely.
Note: Flashing Green is also used to
indicate a radio node that has been
administratively disabled. This can be
determined from the CLI.
1. DHCP Red
Solid
The radio node starts by sending out
a DHCP Request.
The radio node moves to the next
state (State 2) upon receiving a
DHCP response and an IP Address.
No DHCP Response, IP Address not
allocated.
Check cabling, DHCP Server
configuration.
2. Join Blue
Solid
The radio node has an IP Address
and sends a UDP Join request to
the Serving services node.
The radio node moves to the next
state (State 3) upon getting a JOIN
GRANT from the services node.
No IP reachability to the services
node.
Check IP network between radio node
and services node for routing issues.
3. TFTP Blue
Flashing
The radio node proceeds next to
download the operating system
image from the services node.
The radio node moves to the next
state (State 4) after the image has
been downloaded.
Failure to download TFTP image.
Check firewall between radio node
and services node.
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc. 21
Radio Node LED Management
The LED display is active by default, but can be deactivated in light-sensitive environments as needed.
Even when the display is disabled, the LED will be lighted during the following conditions:
• while the radio node is booting
• if the radio node or cell is in fault state
• if there is an active emergency call
• if the locate radio node feature is active
• if the follow IMSI feature is active
Table 4 shows the expected LED behavior of the radio node once it has booted and joined the network.
The LED also supports advanced troubleshooting functions when the system is operational.
* Refer to the SpiderCloud OS (SCOS) Administrator Guide for information about the locate radio node
and follow IMSI features.
4. Operating
System
Booting
Green
Flashing
The radio node loads the operating
system and starts the default
platform applications.
The radio node moves to the next
state (State 5) when it establishes
connectivity with the service node.
Failure to start the operating system.
This normally points to a software/
build issue. Please contact
SpiderCloud support.
5. Running Green
Solid
The operating system is running.
The radio node continues the
startup sequence, but is now
controlled by the services node.
The operating system is up and
running on the radio node.
Any subsequent state transitions can
now be tracked from events and logs
on the services node.
Table 4: Radio Node LED Behavior
LED Status Flash Rate
Green: slow flashing Administratively disabled Approximately ½ second on, 1½ sec. off
Green: solid Operational
Red: solid Fault
Red: fast flashing One or more emergency calls active Approximately 1 second on/off cycle
Blue: fast flashing Locate radio node enabled* Approximately 1 second on/off cycle
Blue: solid Follow IMSI enabled*
Off Powered off or LED disabled
Table 3: Radio Node LED Boot Sequence (continued)
State LED Color Description Possible Failures and Actions
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc.
22
The SpiderCloud Documentation Set
The SpiderCloud documentation set includes:
•The SpiderCloud System Description provides an overview of how the SpiderCloud system fits
within an operator’s network and in an enterprise, describes key features of the system, and
provides specifications for the services and radio nodes.
•The SpiderCloud OS (SCOS) Administrator Guide provides procedures for configuring the
software environment and internetworking between the services node and radio node devices.
•The SpiderCloud Services Node - SCSN-8000 Hardware Installation Guide provides hardware
specifications and installation instructions.
•The SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide provides hardware
specifications and installation instructions.
•The E-RAN Deployment Planning Guide provides information about planning and dimensioning
E-RAN systems.
•The SpiderCloud OS (SCOS) CLI User Guide provides an introduction to the key features and
functionalities of the SpiderCloud Command Line Interface (CLI).
•The SCOS NB Data Model Reference Guide provides details about the objects and parameters
that comprise the system configuration and operational state.
•The SpiderCloud System Commissioning Guide provides information about turning up a
SpiderCloud E-RAN with the Local Configuration Interface (LCI) graphical user interface.
•The Performance Measurements for SpiderCloud Small-Cell E-RAN provides a reference guide
to Key Performance Indicators (KPI) that monitor the health and state of the E-RAN system.
•The E-RAN Troubleshooting Guide provides information about diagnosing and correcting
problems with installing, provisioning, administrating, and maintaining SpiderCloud equipment
and services.
•The SpiderNet Management System Installation and Administration Guide provides information
about installing the SpiderNet network management server and client and using it to remotely
manage E-RAN deployments.
SpiderCloud Wireless, Inc. 23
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide

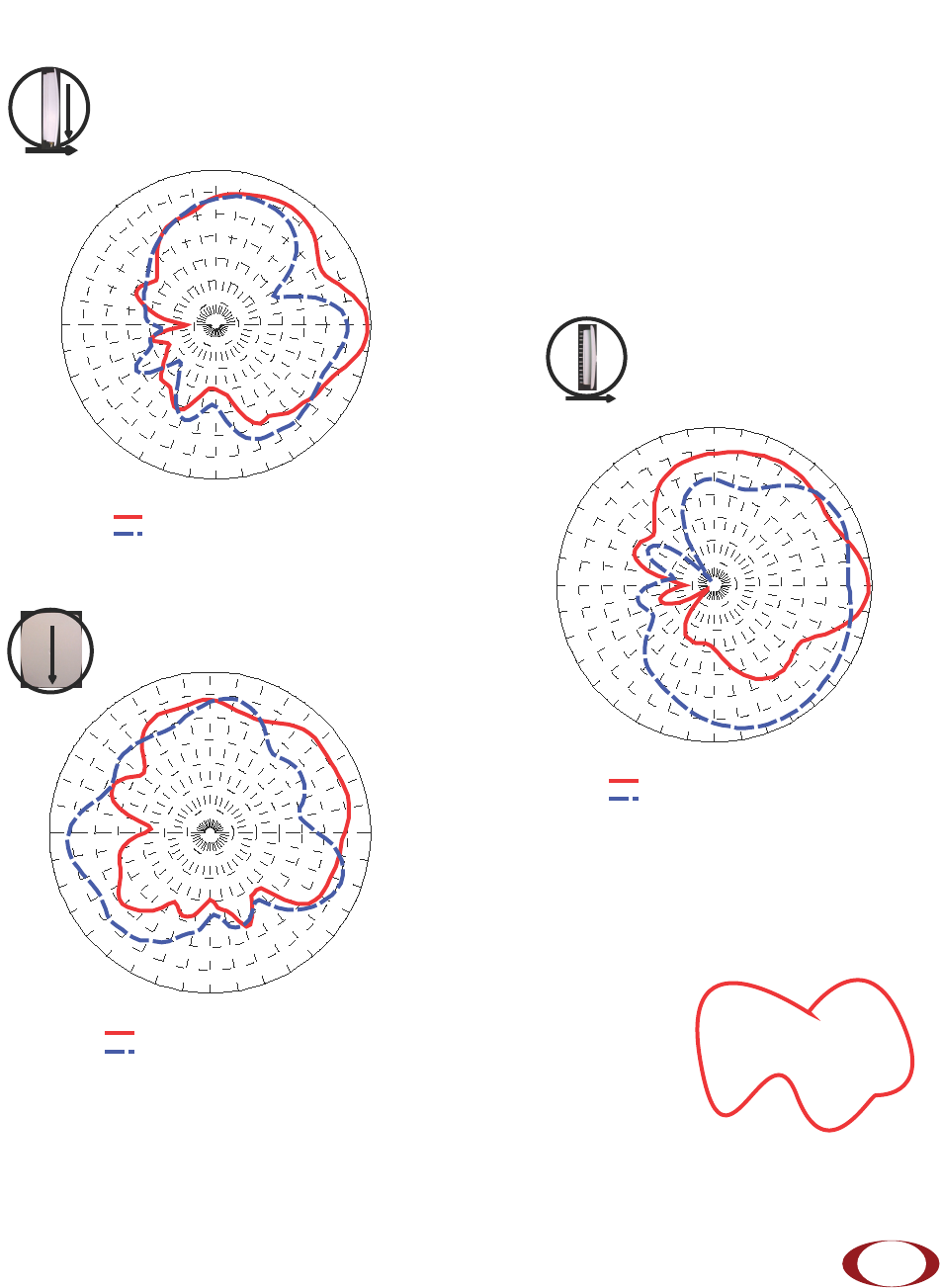

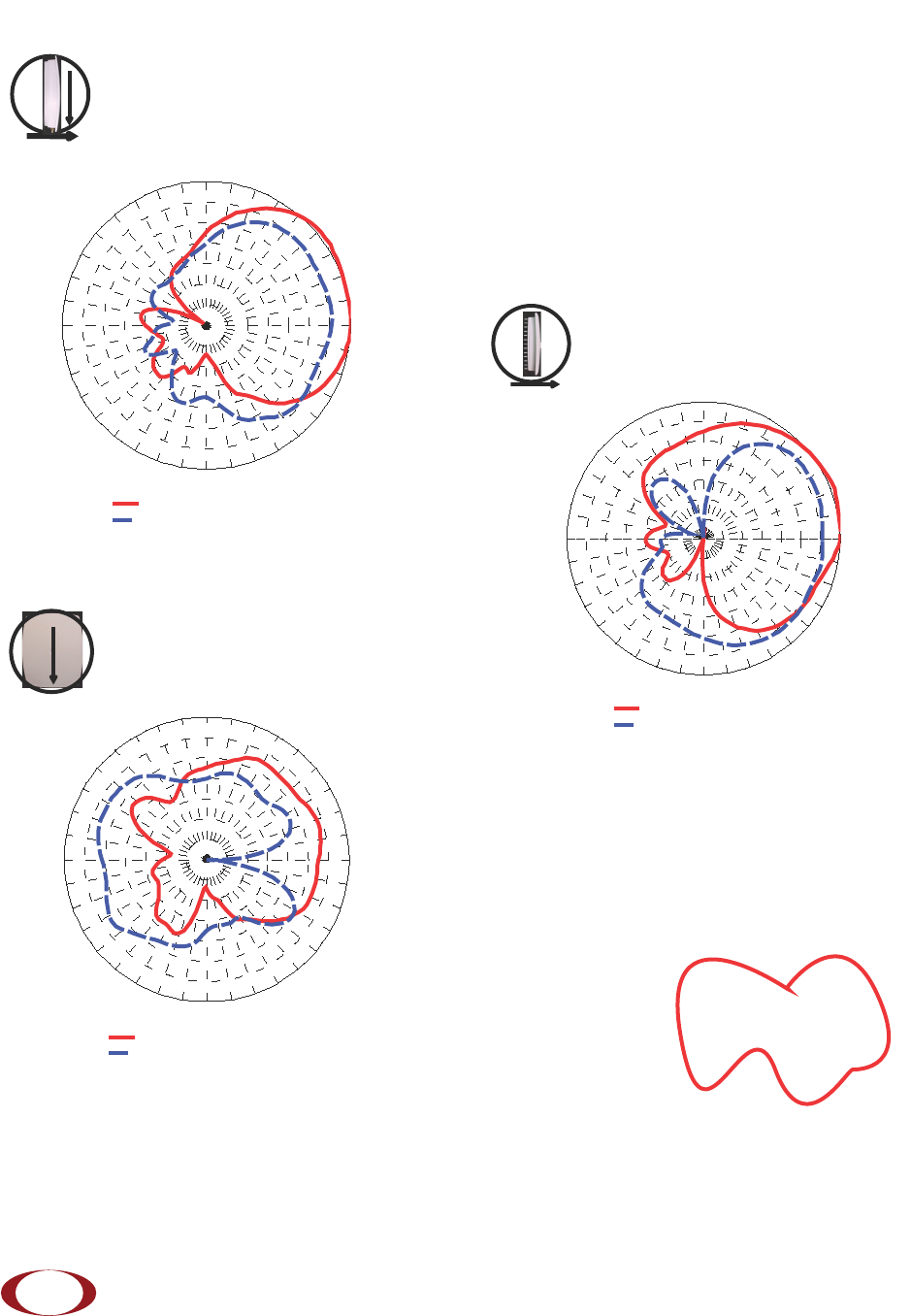

Appendix, Antenna Patterns

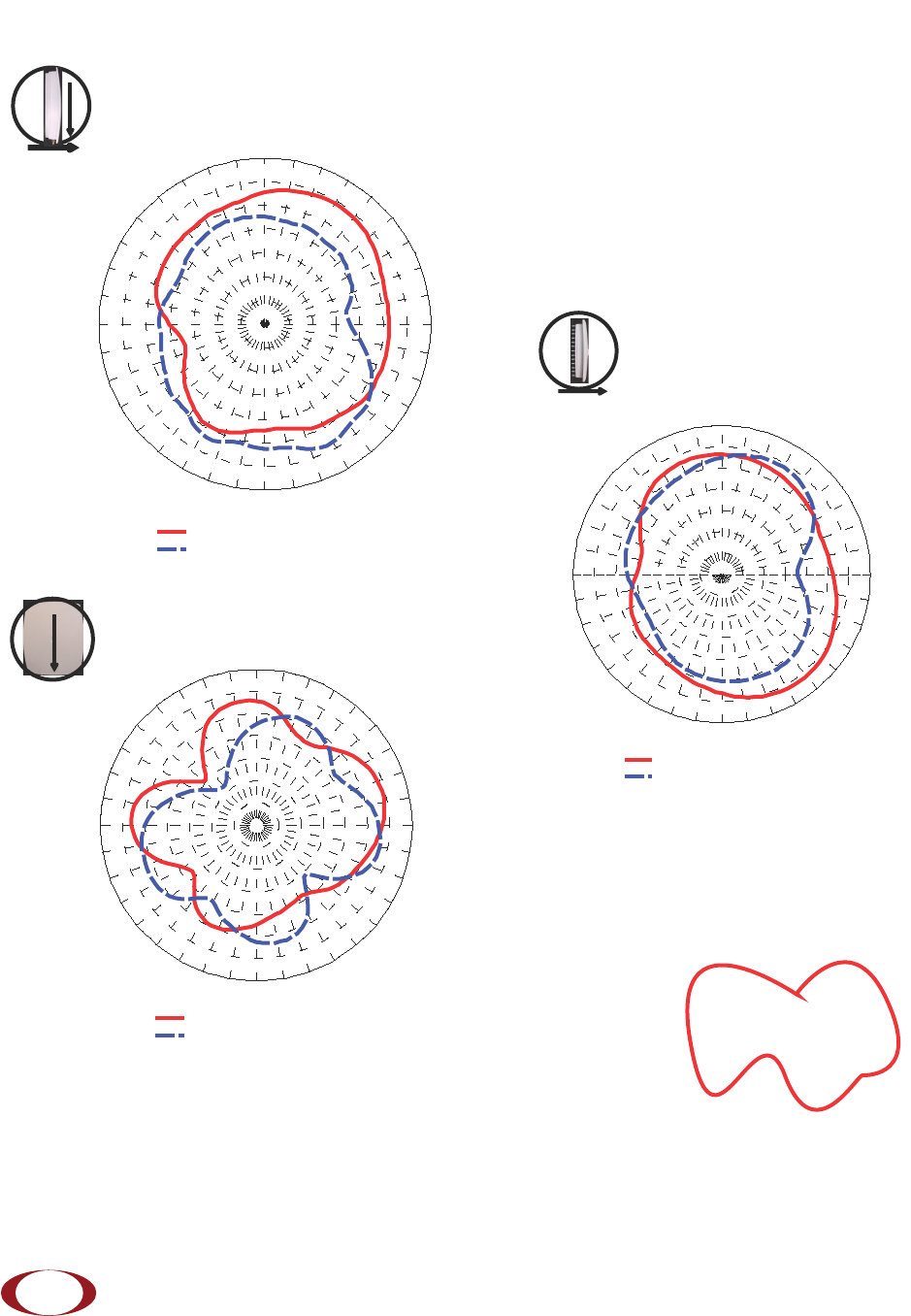

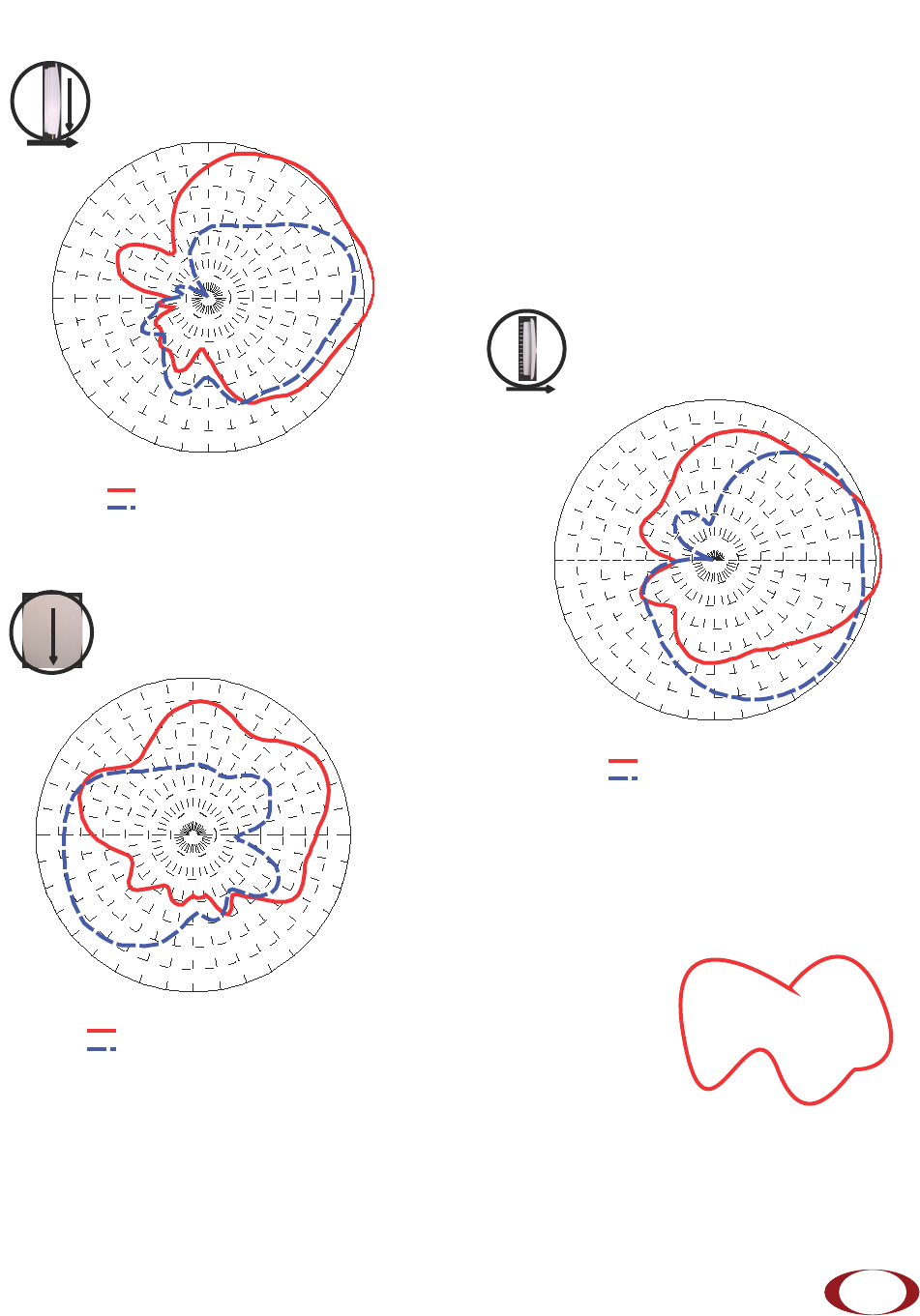

UMTS Band Antenna Patterns
0º
90º
Front
EL2 Cut (Side-to-Side)
90º
0º
Up
0º
Front
90º
Up
AZ Cut
EL1Cut (Front-to-Back) -15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
0
o
30
o
60
o
90
o
120
o
150
o
180
o
-150
o
-120
o
-90
o
-60
o
-30
o
AUT
1
@ 2140 MHz : Max Gain
1
= 2. 59 d B i at 3
o
AUT
2
@ 2140 MHz : Max Gain
2
= 2. 04 d B i at -63
o
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90
o
60
o
30
o
0
o
-30
o
-60
o
-90
o
-120
o
-150
o
180
o
150
o
120
o
AUT
1
= 214 0 MHz : M ax Gain
1
= 2. 59 d B i a t 90
o
AUT
2
= 214 0 MHz : M ax Gain
2
= -0 .0 8 dBi at 93
o
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90o
60o
30o
0o
-30o
-60o
-90o
-120o
-150o
180o
150o
120o
AUT
1
= 2140 MHz : Max Gain
1
= 0.61 dBi at 75
o
AUT
2
= 2140 MHz : Max Gain
2
= 0.69 dBi at -96
o
Transmit Antenna
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc.
24
UMTS Low Band Antenna Patterns
0º
90º
Front
Low Band, EL2 Cut (Side-to-Side)
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90
o
60
o
30
o
0
o
-30
o
-60
o
-90
o
-120
o
-150
o
180
o
150
o
120
o
AUT
1 = 915 MHz : Max Gain
1 = -0.46 dBi at 78o
AUT
2 = 915 MHz : Max Gain
2 = -1.16 dBi at 102o
90º
0º
Up
0º
Front
90º
Up
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
0o
30o
60o
90o
120o
150o
180o
-150o
-120o
-90o
-60o
-30o
AUT
1
@ 915 MHz : M ax Gain
1
= 0.76 dBi at -51
o
AUT
2
@ 915 MHz : M ax Gain
2
= -0.53 dBi at 66
o
Low Band, AZ Cut
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90
o
60
o
30
o
0
o
-30
o
-60
o
o
-120
o
-150
o
180
o
150
o
120
o
AUT
1
= 91 5 M H z : Max G ain
1
= -0.38 dBi at 30
o
AUT
2
= 91 5 M H z : Max G ain
2
= -0.72 dBi at 153
o
Low Band, EL1Cut (Front-to-Back)
Transmit Antenna
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc. 25
PCS Band Antenna Patterns
EL1 Cut (Front-to-Back)
EL2 Cut (Side-to-Side)
AZ Cut
0º
90º
Front
Transmit Antenna
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
0o
30o
60o
90o
120o
150o
180o
-150o
-120o
-90o
-60o
-30 o
AUT
1
@ 19 60 MHz : M a x Ga in
1
= 4.1 dBi at 3
o
AUT
2
@ 19 60 MHz : M a x Ga in
2
= 2.33 dBi at -36
o
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90
o
60
o
30
o
0
o
-30
o
-60
o
-90
o
-120
o
-150
o
180
o
150
o
120
o
AUT
1 = 1960 MHz : Max Gain1 = 4. 43 d B i at 84 o
AUT
2 = 1960 MHz : Max Gain2 = 2 dBi at 78o
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90o
60o
30o
0o
-30o
-60o
-90o
-120o
-150o
180o
150o
120o
AUT
1
= 19 60 MHz : M ax Gai n
1
= 1. 49 d B i a t 63
o
AUT
2
= 19 60 MHz : M ax Gai n
2
= 0. 64 d B i a t -129
o
90º
0º
Up
0º
Front
90º
Up
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide
SpiderCloud Wireless, Inc.
26
Transmit Antenna
AZ Cut
0º
90º
Front
90º
0º
Up
EL2 Cut (Side-to-Side)
0º
Front
90º
Up
EL1 Cut (Front-to-Back)
DCS Band Antenna Patterns
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90
o
60
o
30
o
0
o
-30
o
-60
o
-90
o
-120
o
-150
o
180
o
150
o
120
o
AUT
1
= 18 44 M Hz : Ma x Ga i n
1
= 3.55 dBi at 54
o
AUT
2
= 18 44 M Hz : Ma x Ga i n
2
= 0.42 dBi at 84
o
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
90
o
60
o
30
o
0
o
-30
o
-60
o
-90
o
-120
o
-150
o
180
o
150
o
120
o
AUT
1
= 1844 MHz : Max Gain
1
= -0.73 dBi at 72
o
AUT
2
= 1844 MHz : Max Gain
2
= -1.27 dBi at -123
o
-15
-15
-12
-12
-9
-9
-6
-6
-3
-3
0
0
3 dB
3 dB
0o
30o
60o
90o
120o
150o
180o
-150o
-120o
-90o
-60o
-30 o
AUT
1 @ 1844 MHz : Max Gain1
= 3. 53 dBi at 24o
AUT
2 @ 1844 MHz : Max Gain2
= 0. 9 dB i a t 3 9o
SpiderCloud Radio Node - SCRN-200 Hardware Installation Guide 27
A
activity LED 9
altitude range 7
antenna
external 6
external orientation 17
ports 10
antennas 9
B
boot sequence
LED 20
bottom view 6
C
cabling guidelines 14
CB certification 8
CE marking 8
compliance 8
connector, TNC 6
D
detaching 18
DHCP request 19
E
environmental requirements 7
F
FCC compliance 8
frequency bands of operation 7
H
height 7
I
Industry Canada
RSS-133, RSS-139, ICES-003 (Class A) 8
L
LED
boot sequence 20
management 21
length 7
link LED 9, 10
locating 12
M
mount bracket 13
N
NRTL Marking 8
O
operating humidity range 7
operating temperature range 7
P
pedestal base 13
ports 9
ports, antenna 10
power 7
R
R&TTE compliance 8
relative humidity range 7
RoHS compliance 8
S
separation distances 13
services 6
specifications 7
storage temperature range 7
system diagram 5
system specifications 7
T
TNC connector 6
top view 6
Index
SpiderCloud Wireless, Inc.
Index
28
U
UMTS bands 7
W
weight 7
width 7

Navigation menu
