SpiderCloud® Radio Node - SCRN-220 Hardware Installation GuidePart number: DOC-SCRN-220-HW-01, Rev. 1Published: April 2017®

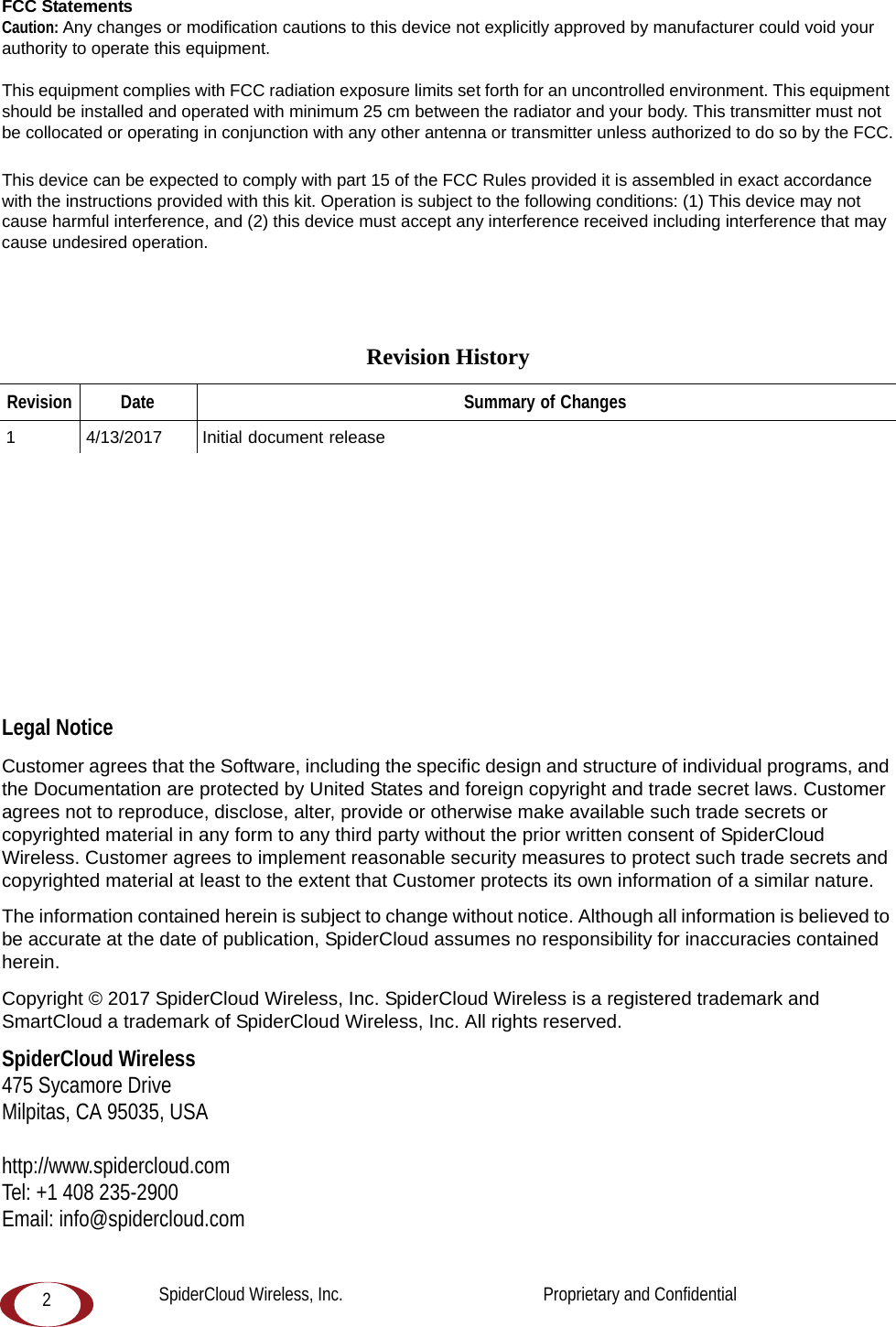

2FCC StatementsCaution: Any changes or modification cautions to this device not explicitly approved by manufacturer could void your authority to operate this equipment.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 25 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.This device can be expected to comply with part 15 of the FCC Rules provided it is assembled in exact accordance with the instructions provided with this kit. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.Legal NoticeCustomer agrees that the Software, including the specific design and structure of individual programs, and the Documentation are protected by United States and foreign copyright and trade secret laws. Customer agrees not to reproduce, disclose, alter, provide or otherwise make available such trade secrets or copyrighted material in any form to any third party without the prior written consent of SpiderCloud Wireless. Customer agrees to implement reasonable security measures to protect such trade secrets and copyrighted material at least to the extent that Customer protects its own information of a similar nature.The information contained herein is subject to change without notice. Although all information is believed to be accurate at the date of publication, SpiderCloud assumes no responsibility for inaccuracies contained herein. Copyright © 2017 SpiderCloud Wireless, Inc. SpiderCloud Wireless is a registered trademark and SmartCloud a trademark of SpiderCloud Wireless, Inc. All rights reserved.SpiderCloud Wireless475 Sycamore DriveMilpitas, CA 95035, USAhttp://www.spidercloud.comTel: +1 408 235-2900Email: info@spidercloud.comRevision HistoryRevision Date Summary of Changes1 4/13/2017 Initial document releaseSpiderCloud Wireless, Inc. Proprietary and Confidential

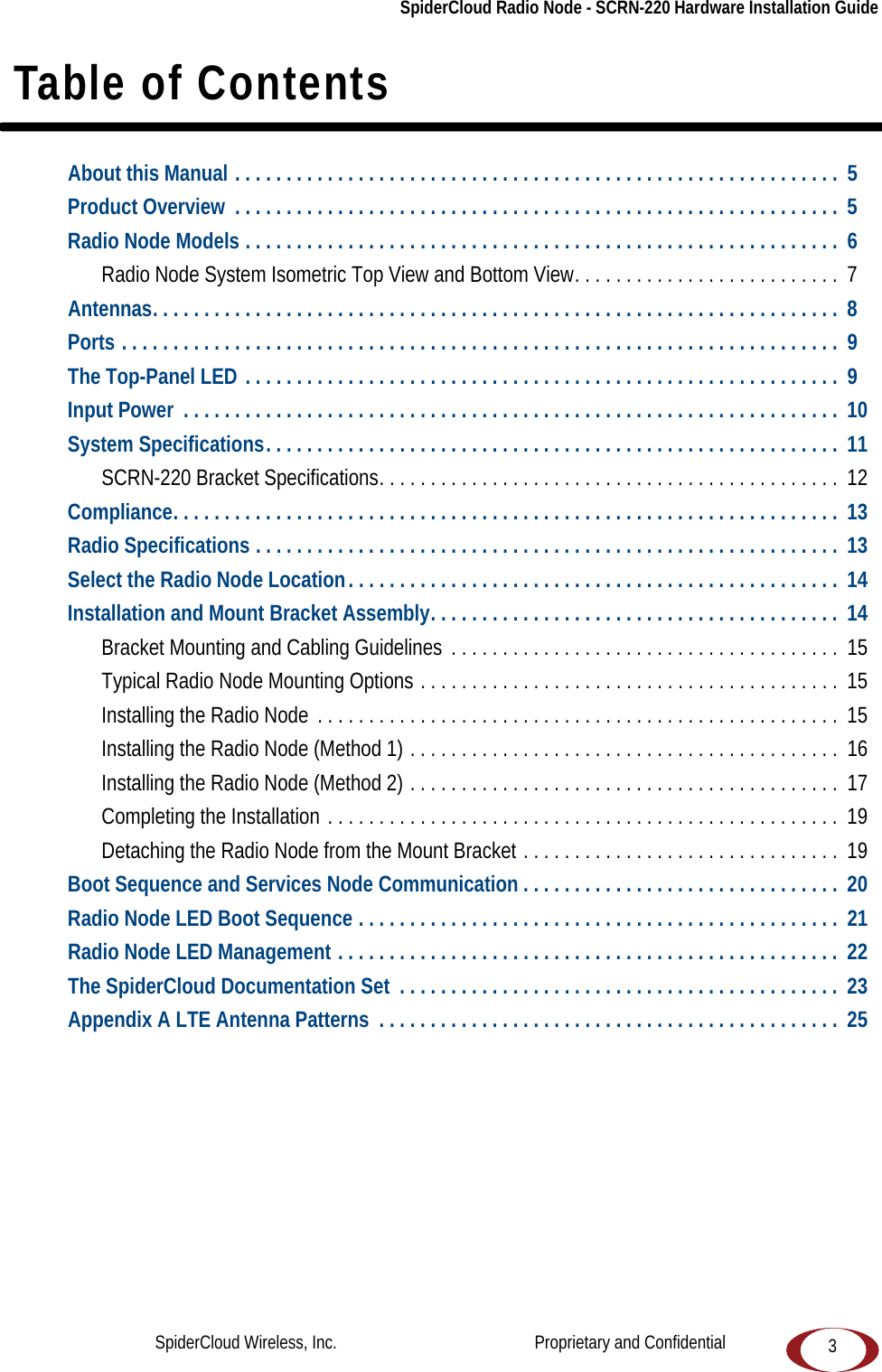

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide3 Table of ContentsAbout this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Radio Node Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Radio Node System Isometric Top View and Bottom View. . . . . . . . . . . . . . . . . . . . . . . . . . 7Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9The Top-Panel LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10System Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11SCRN-220 Bracket Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Radio Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Select the Radio Node Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Installation and Mount Bracket Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Bracket Mounting and Cabling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Typical Radio Node Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Installing the Radio Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Installing the Radio Node (Method 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Installing the Radio Node (Method 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Completing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Detaching the Radio Node from the Mount Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Boot Sequence and Services Node Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Radio Node LED Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Radio Node LED Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22The SpiderCloud Documentation Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Appendix A LTE Antenna Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25SpiderCloud Wireless, Inc. Proprietary and Confidential
Contents 4SpiderCloud Wireless, Inc. Proprietary and Confidential

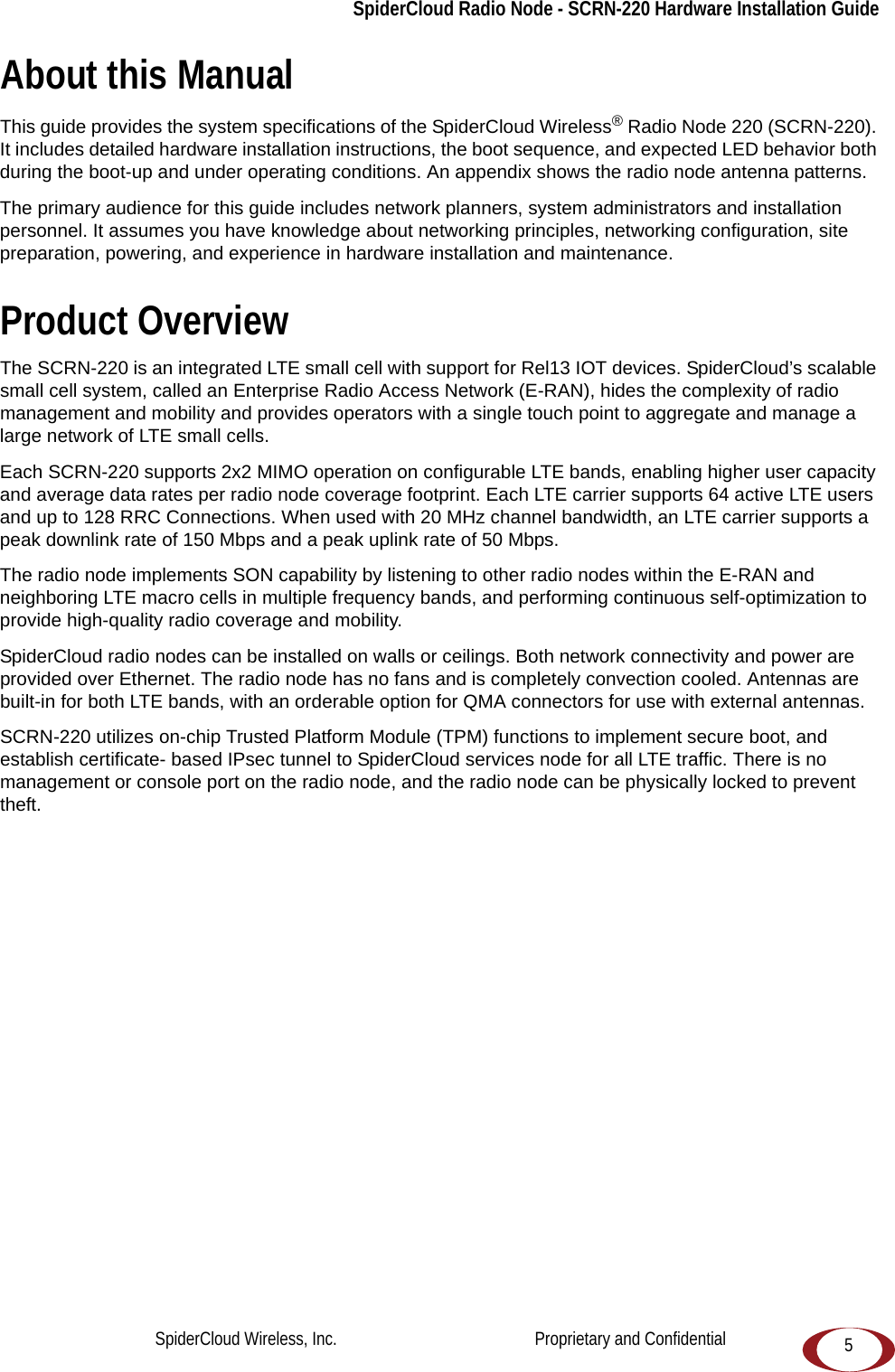

5SpiderCloud Radio Node - SCRN-220 Hardware Installation GuideAbout this ManualThis guide provides the system specifications of the SpiderCloud Wireless® Radio Node 220 (SCRN-220). It includes detailed hardware installation instructions, the boot sequence, and expected LED behavior both during the boot-up and under operating conditions. An appendix shows the radio node antenna patterns. The primary audience for this guide includes network planners, system administrators and installation personnel. It assumes you have knowledge about networking principles, networking configuration, site preparation, powering, and experience in hardware installation and maintenance.Product OverviewThe SCRN-220 is an integrated LTE small cell with support for Rel13 IOT devices. SpiderCloud’s scalable small cell system, called an Enterprise Radio Access Network (E-RAN), hides the complexity of radio management and mobility and provides operators with a single touch point to aggregate and manage a large network of LTE small cells.Each SCRN-220 supports 2x2 MIMO operation on configurable LTE bands, enabling higher user capacity and average data rates per radio node coverage footprint. Each LTE carrier supports 64 active LTE users and up to 128 RRC Connections. When used with 20 MHz channel bandwidth, an LTE carrier supports a peak downlink rate of 150 Mbps and a peak uplink rate of 50 Mbps.The radio node implements SON capability by listening to other radio nodes within the E-RAN and neighboring LTE macro cells in multiple frequency bands, and performing continuous self-optimization to provide high-quality radio coverage and mobility.SpiderCloud radio nodes can be installed on walls or ceilings. Both network connectivity and power are provided over Ethernet. The radio node has no fans and is completely convection cooled. Antennas are built-in for both LTE bands, with an orderable option for QMA connectors for use with external antennas.SCRN-220 utilizes on-chip Trusted Platform Module (TPM) functions to implement secure boot, and establish certificate- based IPsec tunnel to SpiderCloud services node for all LTE traffic. There is no management or console port on the radio node, and the radio node can be physically locked to prevent theft.SpiderCloud Wireless, Inc. Proprietary and Confidential

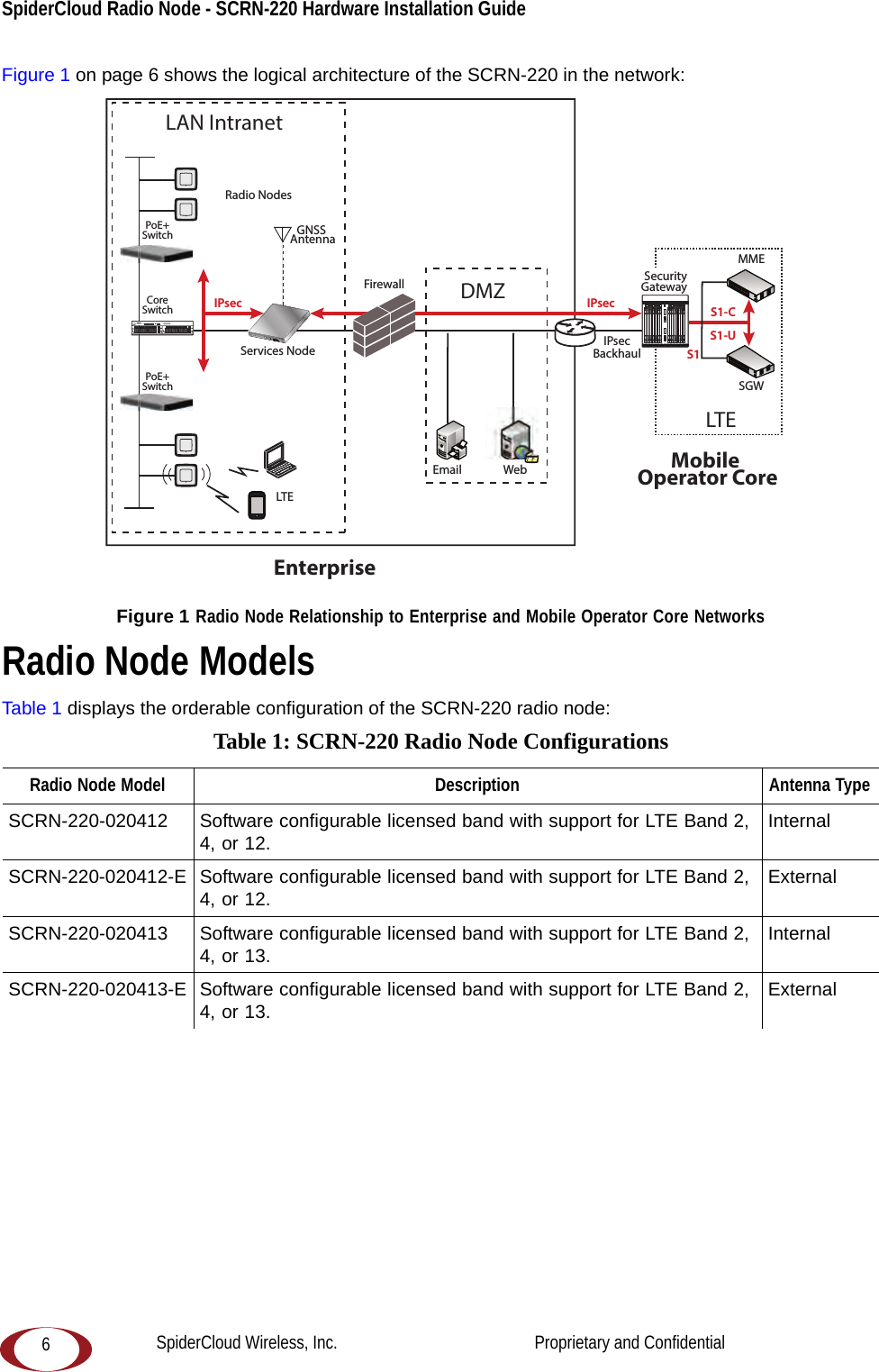

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 6Figure 1 on page 6 shows the logical architecture of the SCRN-220 in the network: Figure 1 Radio Node Relationship to Enterprise and Mobile Operator Core NetworksRadio Node ModelsTable 1 displays the orderable configuration of the SCRN-220 radio node:Table 1: SCRN-220 Radio Node ConfigurationsRadio Node Model Description Antenna TypeSCRN-220-020412 Software configurable licensed band with support for LTE Band 2, 4, or 12. InternalSCRN-220-020412-E Software configurable licensed band with support for LTE Band 2, 4, or 12. ExternalSCRN-220-020413 Software configurable licensed band with support for LTE Band 2, 4, or 13. InternalSCRN-220-020413-E Software configurable licensed band with support for LTE Band 2, 4, or 13. ExternalLAN IntranetDMZEnterpriseMobile Operator CoreEmail WebRadio NodesIPsecBackhaulIPsecCoreSwitchFirewall SecurityGatewayIPsecSGWMMELTES1-CS1-ULTES1PoE+SwitchPoE+SwitchServices NodeGNSS AntennaSpiderCloud Wireless, Inc. Proprietary and Confidential

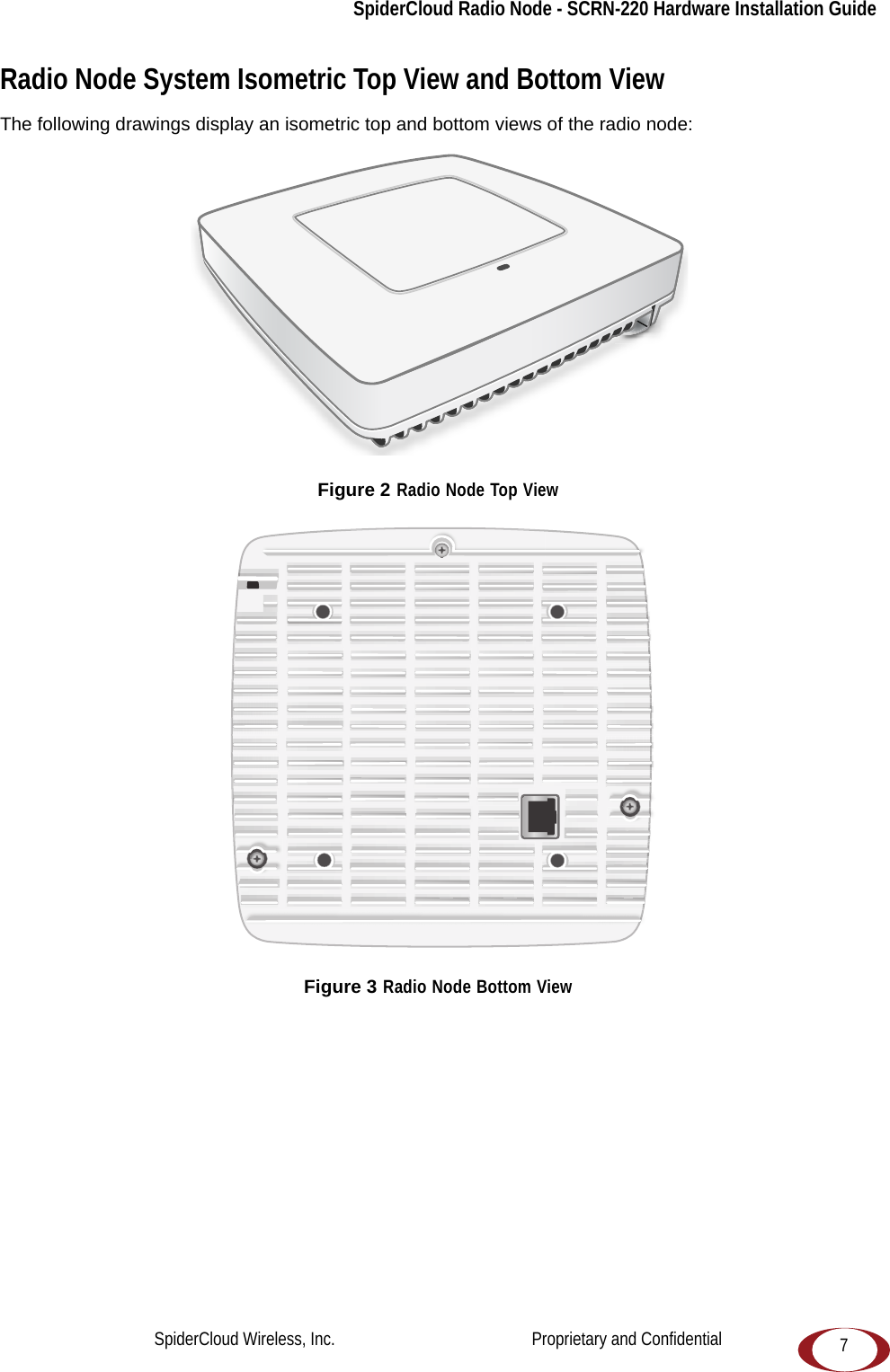

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide7Radio Node System Isometric Top View and Bottom ViewThe following drawings display an isometric top and bottom views of the radio node: Figure 2 Radio Node Top ViewFigure 3 Radio Node Bottom ViewSpiderCloud Wireless, Inc. Proprietary and Confidential

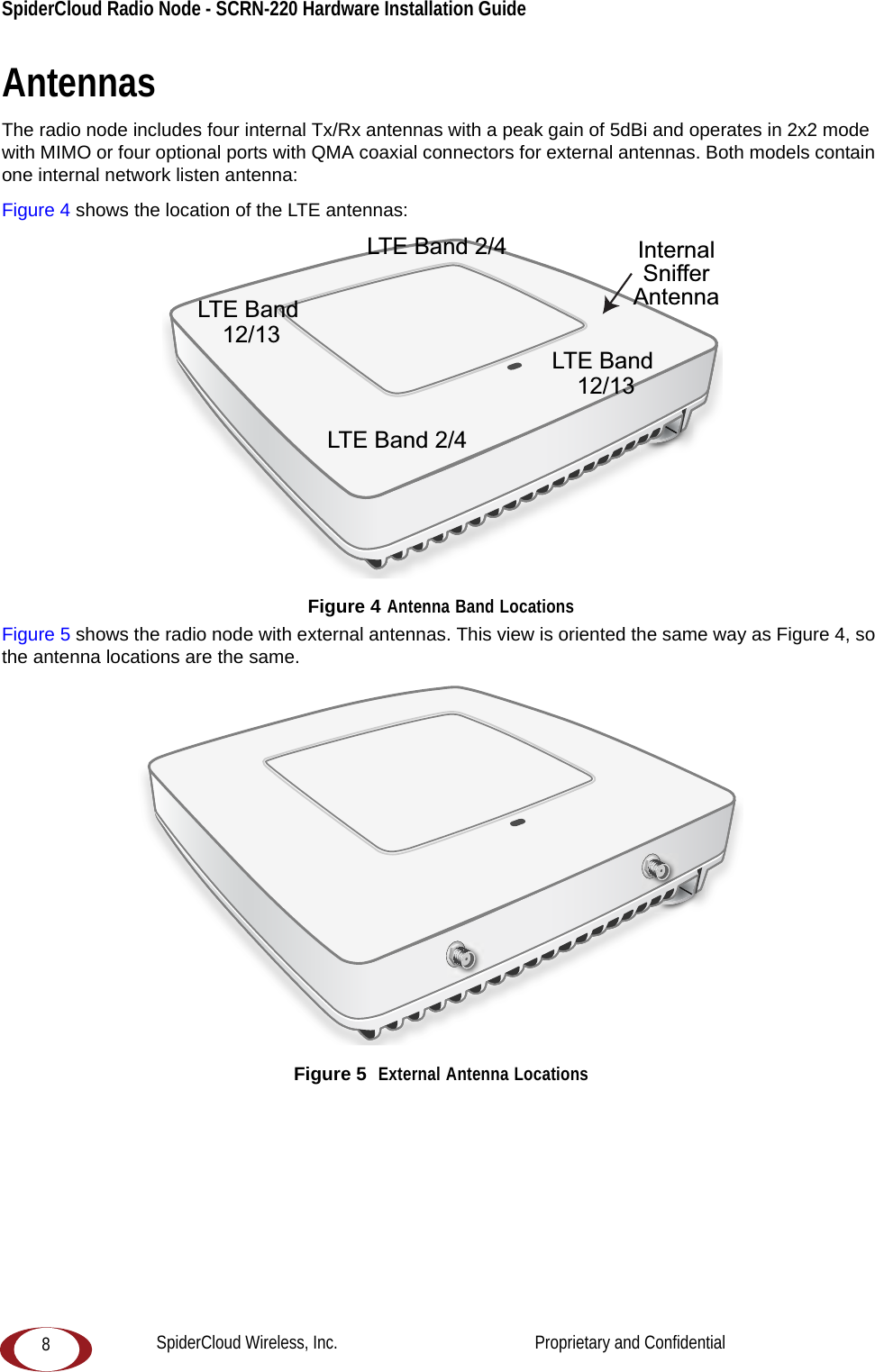

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 8AntennasThe radio node includes four internal Tx/Rx antennas with a peak gain of 5dBi and operates in 2x2 mode with MIMO or four optional ports with QMA coaxial connectors for external antennas. Both models contain one internal network listen antenna:Figure 4 shows the location of the LTE antennas: Figure 4 Antenna Band LocationsFigure 5 shows the radio node with external antennas. This view is oriented the same way as Figure 4, so the antenna locations are the same.Figure 5 External Antenna LocationsLTE Band 12/13LTE Band 2/4LTE Band 2/4InternalSnifferAntennaLTE Band 12/13SpiderCloud Wireless, Inc. Proprietary and Confidential

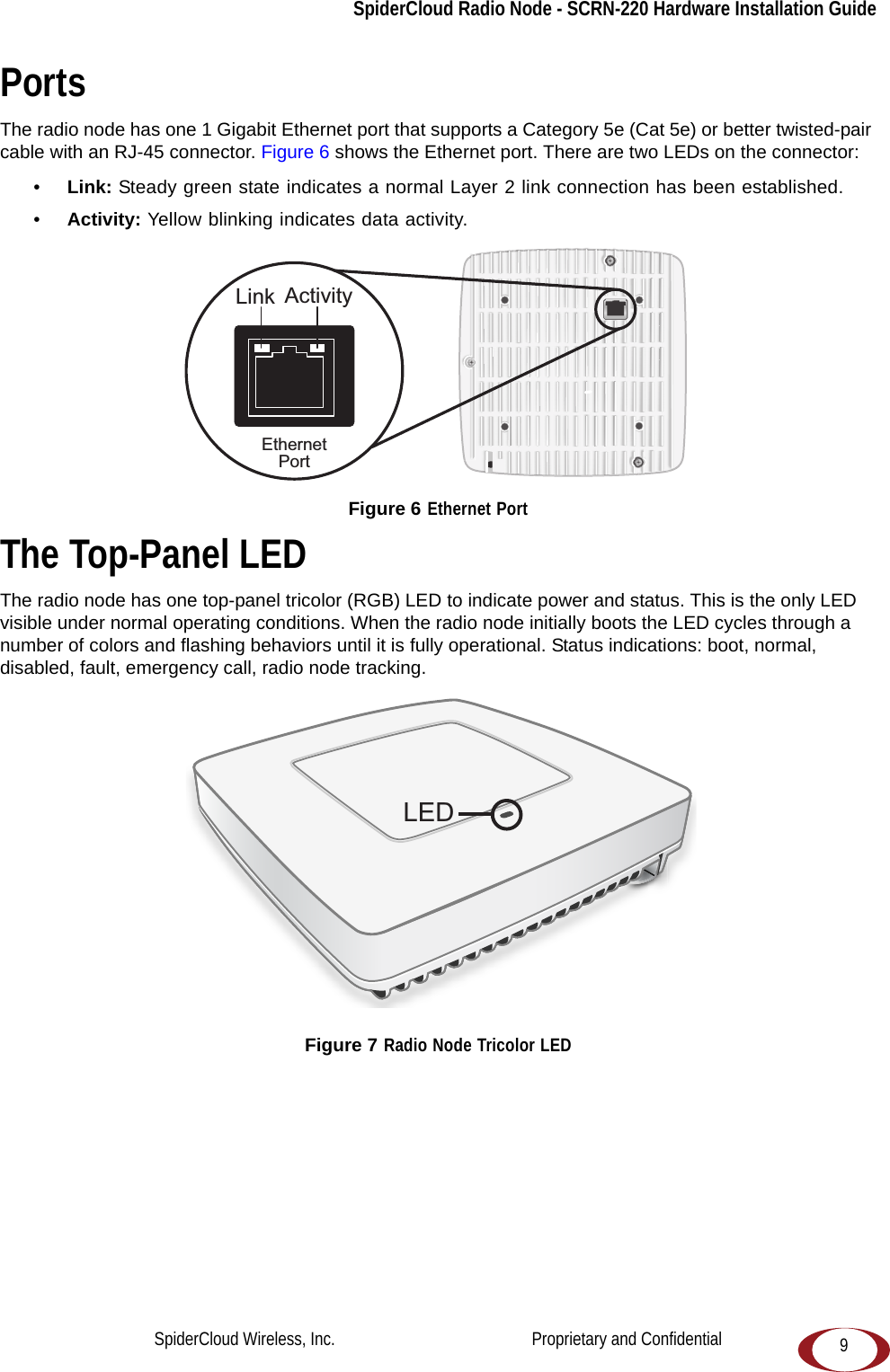

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide9Ports The radio node has one 1 Gigabit Ethernet port that supports a Category 5e (Cat 5e) or better twisted-pair cable with an RJ-45 connector. Figure 6 shows the Ethernet port. There are two LEDs on the connector:•Link: Steady green state indicates a normal Layer 2 link connection has been established. •Activity: Yellow blinking indicates data activity. Figure 6 Ethernet PortThe Top-Panel LEDThe radio node has one top-panel tricolor (RGB) LED to indicate power and status. This is the only LED visible under normal operating conditions. When the radio node initially boots the LED cycles through a number of colors and flashing behaviors until it is fully operational. Status indications: boot, normal, disabled, fault, emergency call, radio node tracking. Figure 7 Radio Node Tricolor LEDEthernetPortLink ActivityLEDSpiderCloud Wireless, Inc. Proprietary and Confidential

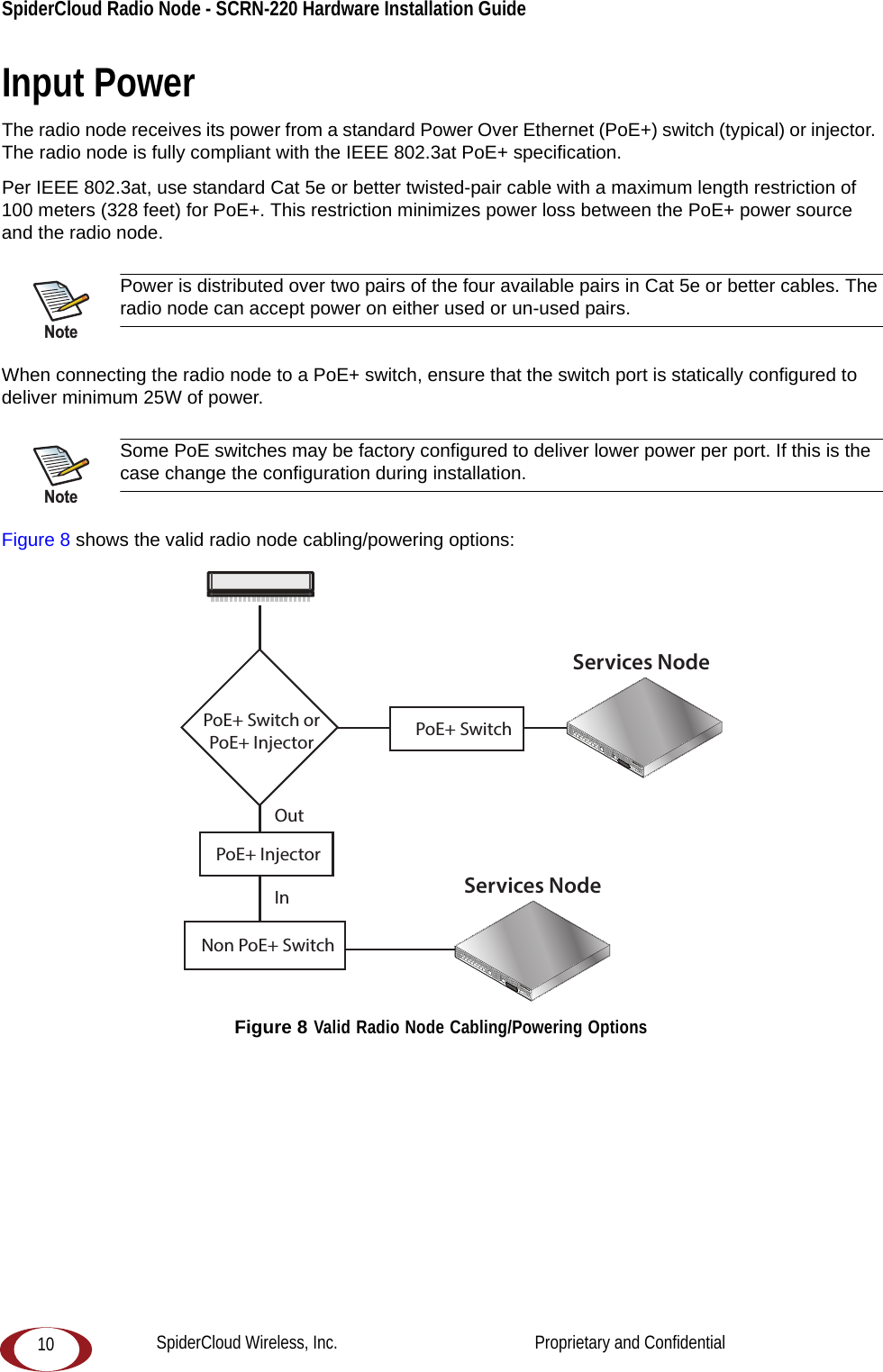

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 10Input PowerThe radio node receives its power from a standard Power Over Ethernet (PoE+) switch (typical) or injector. The radio node is fully compliant with the IEEE 802.3at PoE+ specification.Per IEEE 802.3at, use standard Cat 5e or better twisted-pair cable with a maximum length restriction of 100 meters (328 feet) for PoE+. This restriction minimizes power loss between the PoE+ power source and the radio node. When connecting the radio node to a PoE+ switch, ensure that the switch port is statically configured to deliver minimum 25W of power. Figure 8 shows the valid radio node cabling/powering options: Figure 8 Valid Radio Node Cabling/Powering OptionsPower is distributed over two pairs of the four available pairs in Cat 5e or better cables. The radio node can accept power on either used or un-used pairs.Some PoE switches may be factory configured to deliver lower power per port. If this is the case change the configuration during installation.NoteNoteServices NodePoE+ SwitchOutIn Services NodePoE+ Switch orPoE+ InjectorPoE+ InjectorNon PoE+ SwitchSpiderCloud Wireless, Inc. Proprietary and Confidential

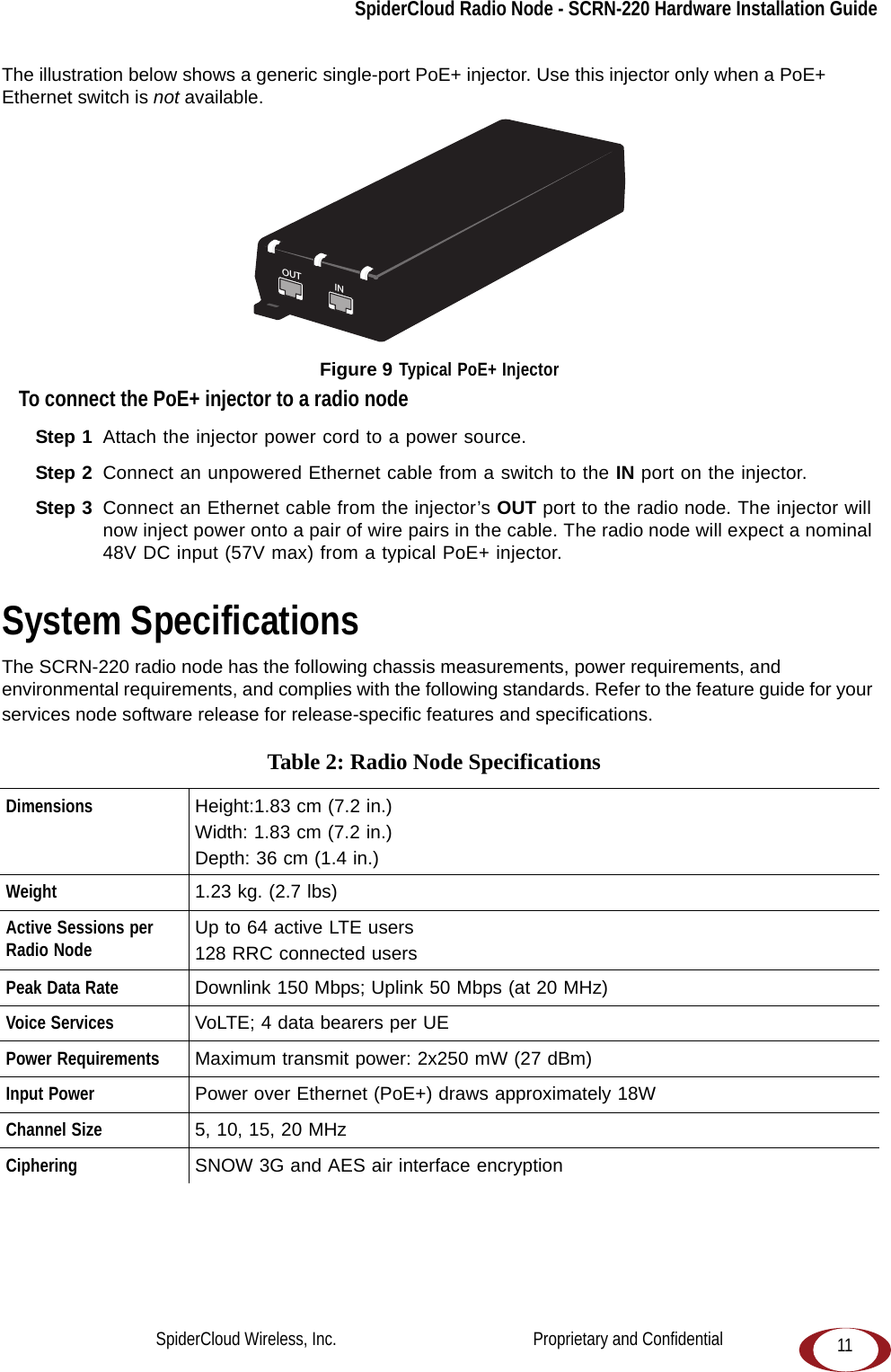

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide11The illustration below shows a generic single-port PoE+ injector. Use this injector only when a PoE+ Ethernet switch is not available. Figure 9 Typical PoE+ InjectorTo connect the PoE+ injector to a radio nodeStep 1 Attach the injector power cord to a power source.Step 2 Connect an unpowered Ethernet cable from a switch to the IN port on the injector. Step 3 Connect an Ethernet cable from the injector’s OUT port to the radio node. The injector will now inject power onto a pair of wire pairs in the cable. The radio node will expect a nominal 48V DC input (57V max) from a typical PoE+ injector.System SpecificationsThe SCRN-220 radio node has the following chassis measurements, power requirements, and environmental requirements, and complies with the following standards. Refer to the feature guide for your services node software release for release-specific features and specifications. Table 2: Radio Node Specifications Dimensions Height:1.83 cm (7.2 in.)Width: 1.83 cm (7.2 in.)Depth: 36 cm (1.4 in.)Weight 1.23 kg. (2.7 lbs)Active Sessions per Radio Node Up to 64 active LTE users128 RRC connected usersPeak Data Rate Downlink 150 Mbps; Uplink 50 Mbps (at 20 MHz)Voice Services VoLTE; 4 data bearers per UEPower Requirements Maximum transmit power: 2x250 mW (27 dBm)Input Power Power over Ethernet (PoE+) draws approximately 18WChannel Size 5, 10, 15, 20 MHzCiphering SNOW 3G and AES air interface encryptionOUT INCONNECT PoEPLUS ONSpiderCloud Wireless, Inc. Proprietary and Confidential

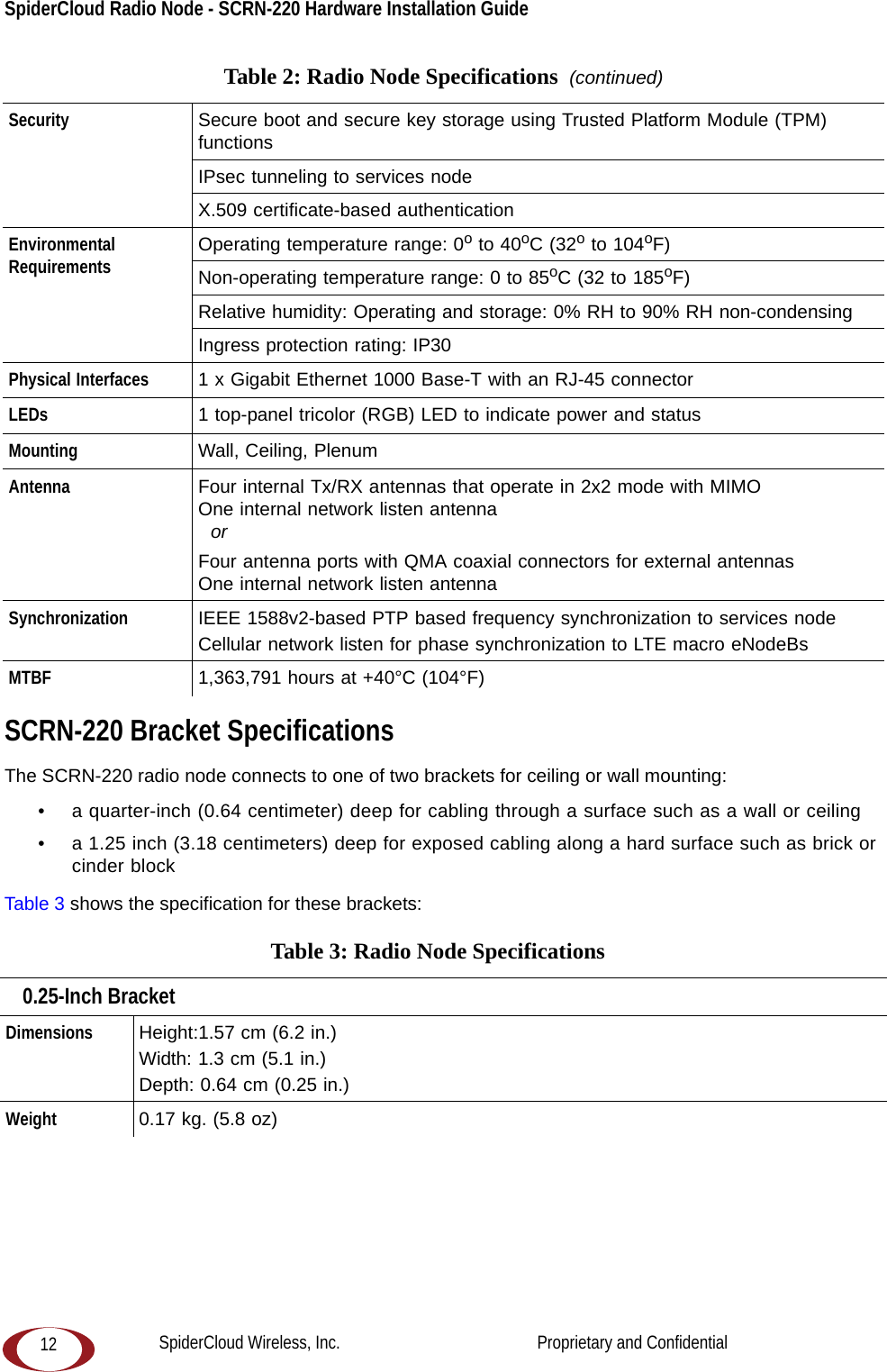

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 12SCRN-220 Bracket SpecificationsThe SCRN-220 radio node connects to one of two brackets for ceiling or wall mounting:• a quarter-inch (0.64 centimeter) deep for cabling through a surface such as a wall or ceiling• a 1.25 inch (3.18 centimeters) deep for exposed cabling along a hard surface such as brick or cinder blockTable 3 shows the specification for these brackets: Security Secure boot and secure key storage using Trusted Platform Module (TPM) functionsIPsec tunneling to services nodeX.509 certificate-based authenticationEnvironmental Requirements Operating temperature range: 0o to 40oC (32o to 104oF)Non-operating temperature range: 0 to 85oC (32 to 185oF)Relative humidity: Operating and storage: 0% RH to 90% RH non-condensingIngress protection rating: IP30Physical Interfaces 1 x Gigabit Ethernet 1000 Base-T with an RJ-45 connectorLEDs 1 top-panel tricolor (RGB) LED to indicate power and statusMounting Wall, Ceiling, PlenumAntenna Four internal Tx/RX antennas that operate in 2x2 mode with MIMOOne internal network listen antenna orFour antenna ports with QMA coaxial connectors for external antennasOne internal network listen antennaSynchronization IEEE 1588v2-based PTP based frequency synchronization to services nodeCellular network listen for phase synchronization to LTE macro eNodeBsMTBF 1,363,791 hours at +40°C (104°F)Table 3: Radio Node Specifications 0.25-Inch BracketDimensions Height:1.57 cm (6.2 in.)Width: 1.3 cm (5.1 in.)Depth: 0.64 cm (0.25 in.)Weight 0.17 kg. (5.8 oz)Table 2: Radio Node Specifications (continued)SpiderCloud Wireless, Inc. Proprietary and Confidential

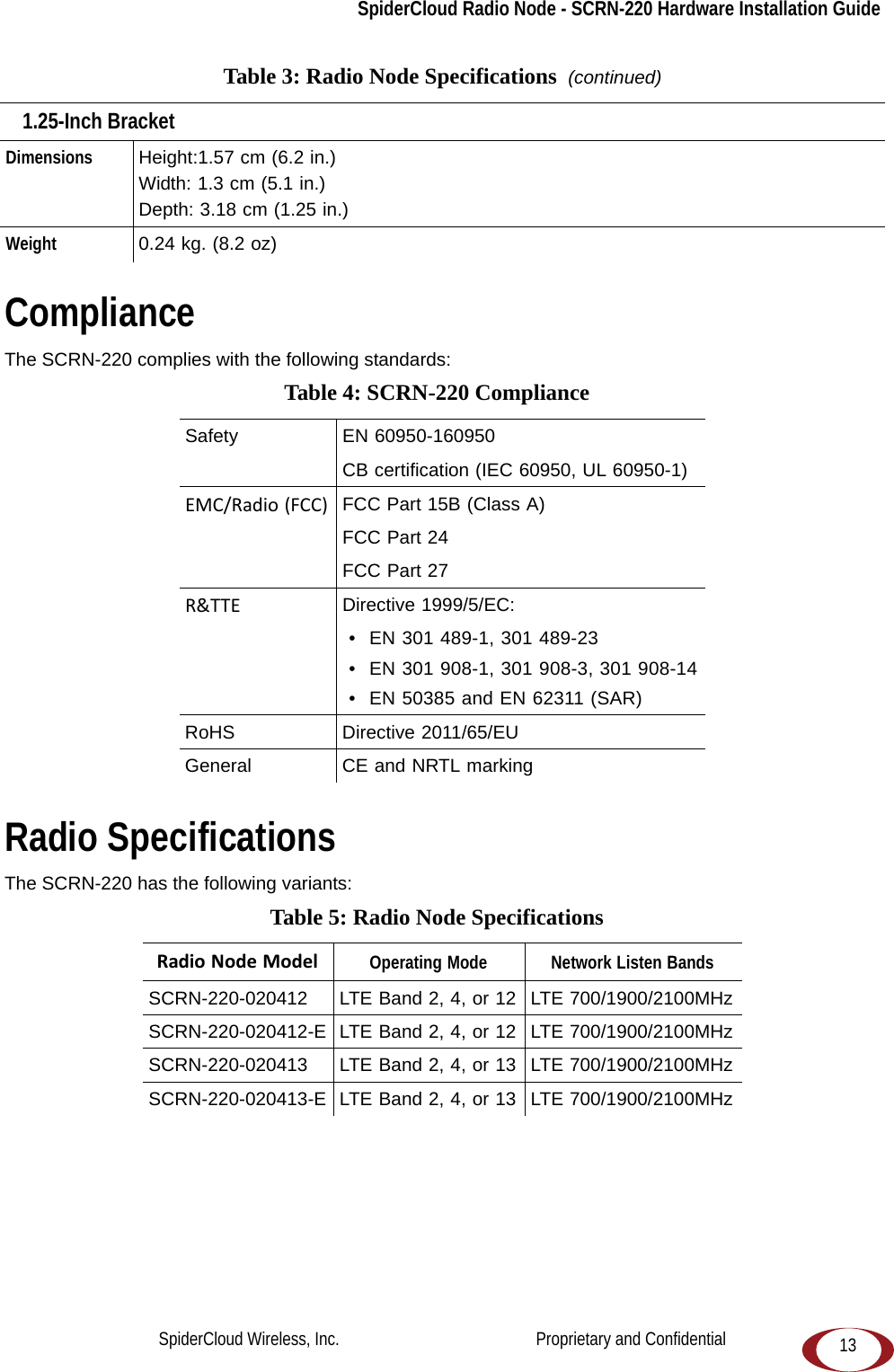

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide13ComplianceThe SCRN-220 complies with the following standards: Radio SpecificationsThe SCRN-220 has the following variants: 1.25-Inch BracketDimensions Height:1.57 cm (6.2 in.)Width: 1.3 cm (5.1 in.)Depth: 3.18 cm (1.25 in.)Weight 0.24 kg. (8.2 oz)Table 4: SCRN-220 Compliance Safety EN 60950-160950CB certification (IEC 60950, UL 60950-1)EMC/Radio(FCC) FCC Part 15B (Class A)FCC Part 24FCC Part 27R&TTE Directive 1999/5/EC: • EN 301 489-1, 301 489-23 • EN 301 908-1, 301 908-3, 301 908-14 • EN 50385 and EN 62311 (SAR)RoHS Directive 2011/65/EUGeneral CE and NRTL markingTable 5: Radio Node Specifications RadioNodeModel Operating Mode Network Listen BandsSCRN-220-020412 LTE Band 2, 4, or 12 LTE 700/1900/2100MHzSCRN-220-020412-E LTE Band 2, 4, or 12 LTE 700/1900/2100MHzSCRN-220-020413 LTE Band 2, 4, or 13 LTE 700/1900/2100MHzSCRN-220-020413-E LTE Band 2, 4, or 13 LTE 700/1900/2100MHzTable 3: Radio Node Specifications (continued)SpiderCloud Wireless, Inc. Proprietary and Confidential

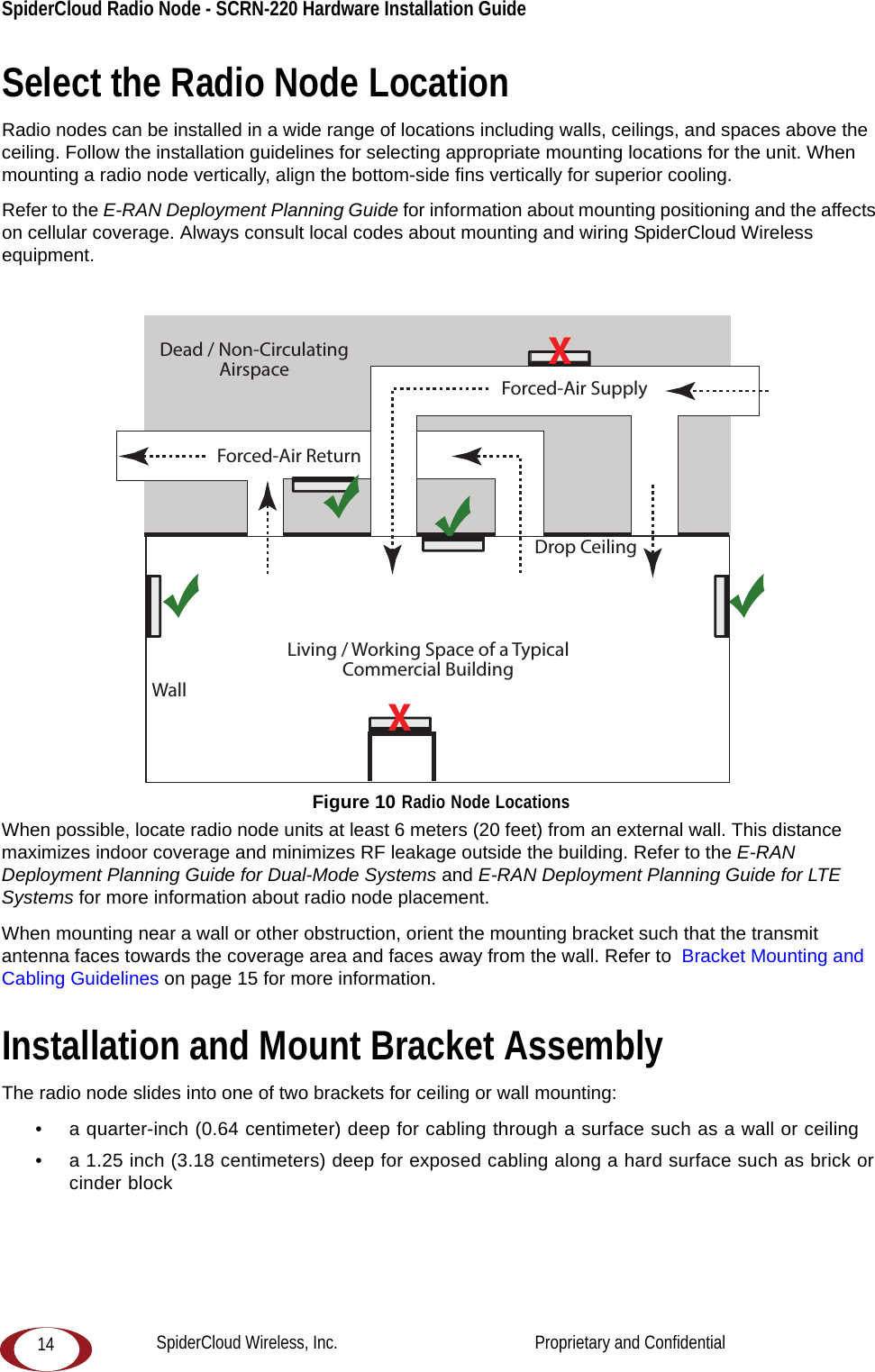

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 14Select the Radio Node LocationRadio nodes can be installed in a wide range of locations including walls, ceilings, and spaces above the ceiling. Follow the installation guidelines for selecting appropriate mounting locations for the unit. When mounting a radio node vertically, align the bottom-side fins vertically for superior cooling. Refer to the E-RAN Deployment Planning Guide for information about mounting positioning and the affects on cellular coverage. Always consult local codes about mounting and wiring SpiderCloud Wireless equipment. Figure 10 Radio Node LocationsWhen possible, locate radio node units at least 6 meters (20 feet) from an external wall. This distance maximizes indoor coverage and minimizes RF leakage outside the building. Refer to the E-RAN Deployment Planning Guide for Dual-Mode Systems and E-RAN Deployment Planning Guide for LTE Systems for more information about radio node placement.When mounting near a wall or other obstruction, orient the mounting bracket such that the transmit antenna faces towards the coverage area and faces away from the wall. Refer to Bracket Mounting and Cabling Guidelines on page 15 for more information.Installation and Mount Bracket AssemblyThe radio node slides into one of two brackets for ceiling or wall mounting:• a quarter-inch (0.64 centimeter) deep for cabling through a surface such as a wall or ceiling• a 1.25 inch (3.18 centimeters) deep for exposed cabling along a hard surface such as brick or cinder blockDead / Non-CirculatingAirspaceLiving / Working Space of a TypicalCommercial BuildingDrop CeilingWallForced-Air SupplyForced-Air ReturnXXSpiderCloud Wireless, Inc. Proprietary and Confidential

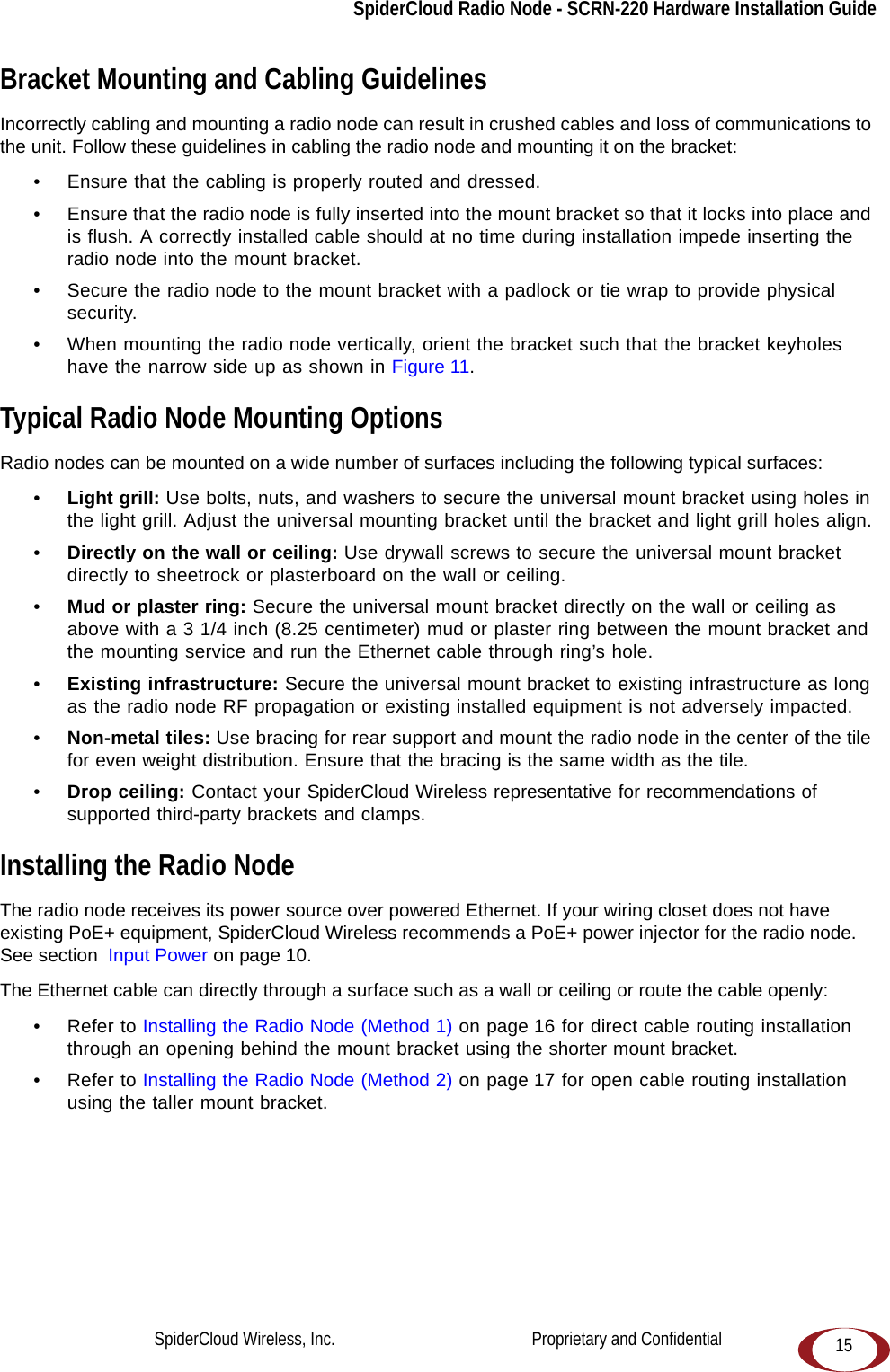

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide15Bracket Mounting and Cabling GuidelinesIncorrectly cabling and mounting a radio node can result in crushed cables and loss of communications to the unit. Follow these guidelines in cabling the radio node and mounting it on the bracket:• Ensure that the cabling is properly routed and dressed. • Ensure that the radio node is fully inserted into the mount bracket so that it locks into place and is flush. A correctly installed cable should at no time during installation impede inserting the radio node into the mount bracket. • Secure the radio node to the mount bracket with a padlock or tie wrap to provide physical security.• When mounting the radio node vertically, orient the bracket such that the bracket keyholes have the narrow side up as shown in Figure 11.Typical Radio Node Mounting OptionsRadio nodes can be mounted on a wide number of surfaces including the following typical surfaces:•Light grill: Use bolts, nuts, and washers to secure the universal mount bracket using holes in the light grill. Adjust the universal mounting bracket until the bracket and light grill holes align.•Directly on the wall or ceiling: Use drywall screws to secure the universal mount bracket directly to sheetrock or plasterboard on the wall or ceiling.•Mud or plaster ring: Secure the universal mount bracket directly on the wall or ceiling as above with a 3 1/4 inch (8.25 centimeter) mud or plaster ring between the mount bracket and the mounting service and run the Ethernet cable through ring’s hole. •Existing infrastructure: Secure the universal mount bracket to existing infrastructure as long as the radio node RF propagation or existing installed equipment is not adversely impacted.•Non-metal tiles: Use bracing for rear support and mount the radio node in the center of the tile for even weight distribution. Ensure that the bracing is the same width as the tile. •Drop ceiling: Contact your SpiderCloud Wireless representative for recommendations of supported third-party brackets and clamps.Installing the Radio NodeThe radio node receives its power source over powered Ethernet. If your wiring closet does not have existing PoE+ equipment, SpiderCloud Wireless recommends a PoE+ power injector for the radio node. See section Input Power on page 10.The Ethernet cable can directly through a surface such as a wall or ceiling or route the cable openly:• Refer to Installing the Radio Node (Method 1) on page 16 for direct cable routing installation through an opening behind the mount bracket using the shorter mount bracket.• Refer to Installing the Radio Node (Method 2) on page 17 for open cable routing installation using the taller mount bracket.SpiderCloud Wireless, Inc. Proprietary and Confidential

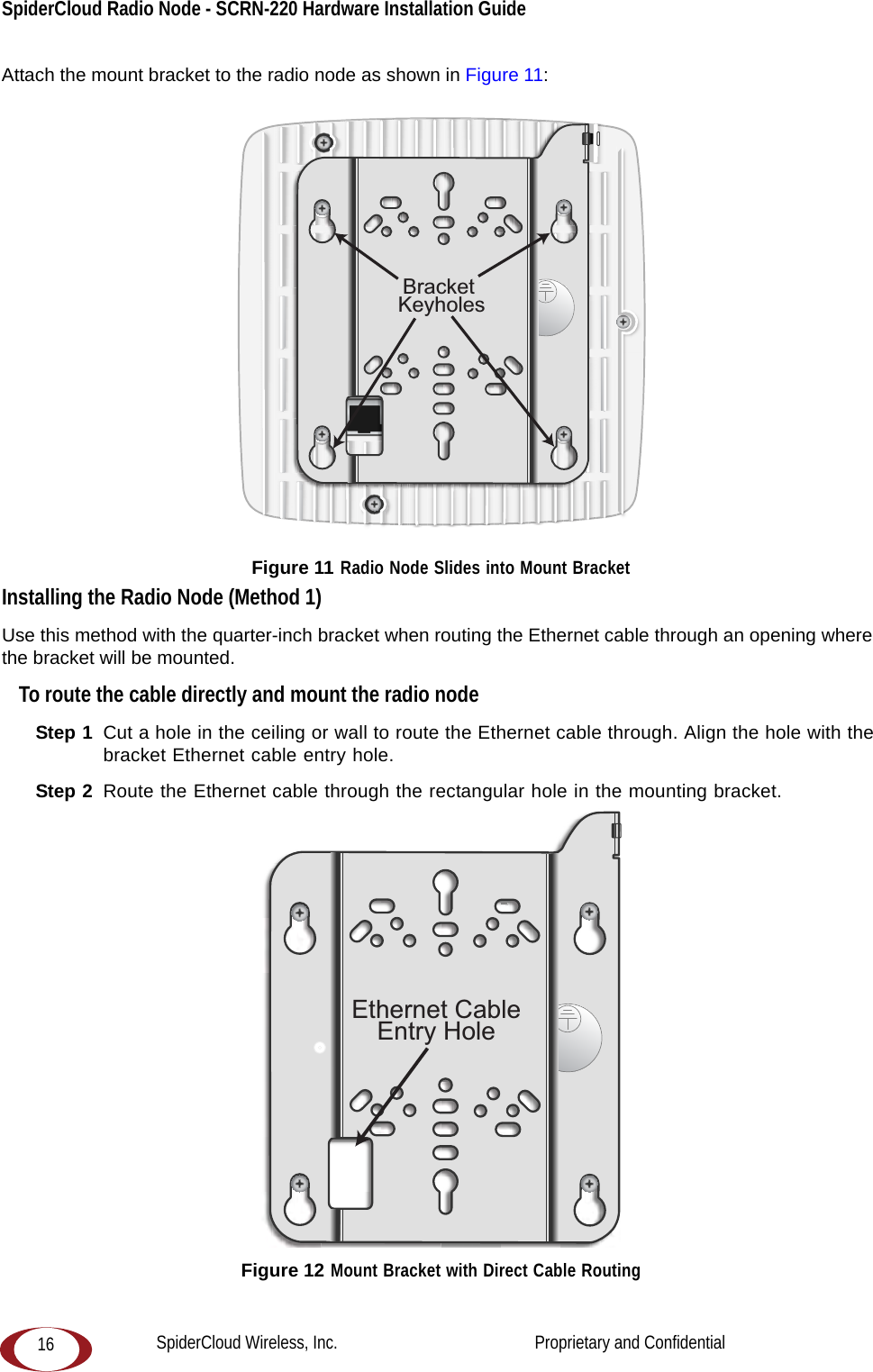

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 16Attach the mount bracket to the radio node as shown in Figure 11: Figure 11 Radio Node Slides into Mount BracketInstalling the Radio Node (Method 1)Use this method with the quarter-inch bracket when routing the Ethernet cable through an opening where the bracket will be mounted.To route the cable directly and mount the radio nodeStep 1 Cut a hole in the ceiling or wall to route the Ethernet cable through. Align the hole with the bracket Ethernet cable entry hole.Step 2 Route the Ethernet cable through the rectangular hole in the mounting bracket. Figure 12 Mount Bracket with Direct Cable RoutingBracket KeyholesEthernet CableEntry HoleSpiderCloud Wireless, Inc. Proprietary and Confidential

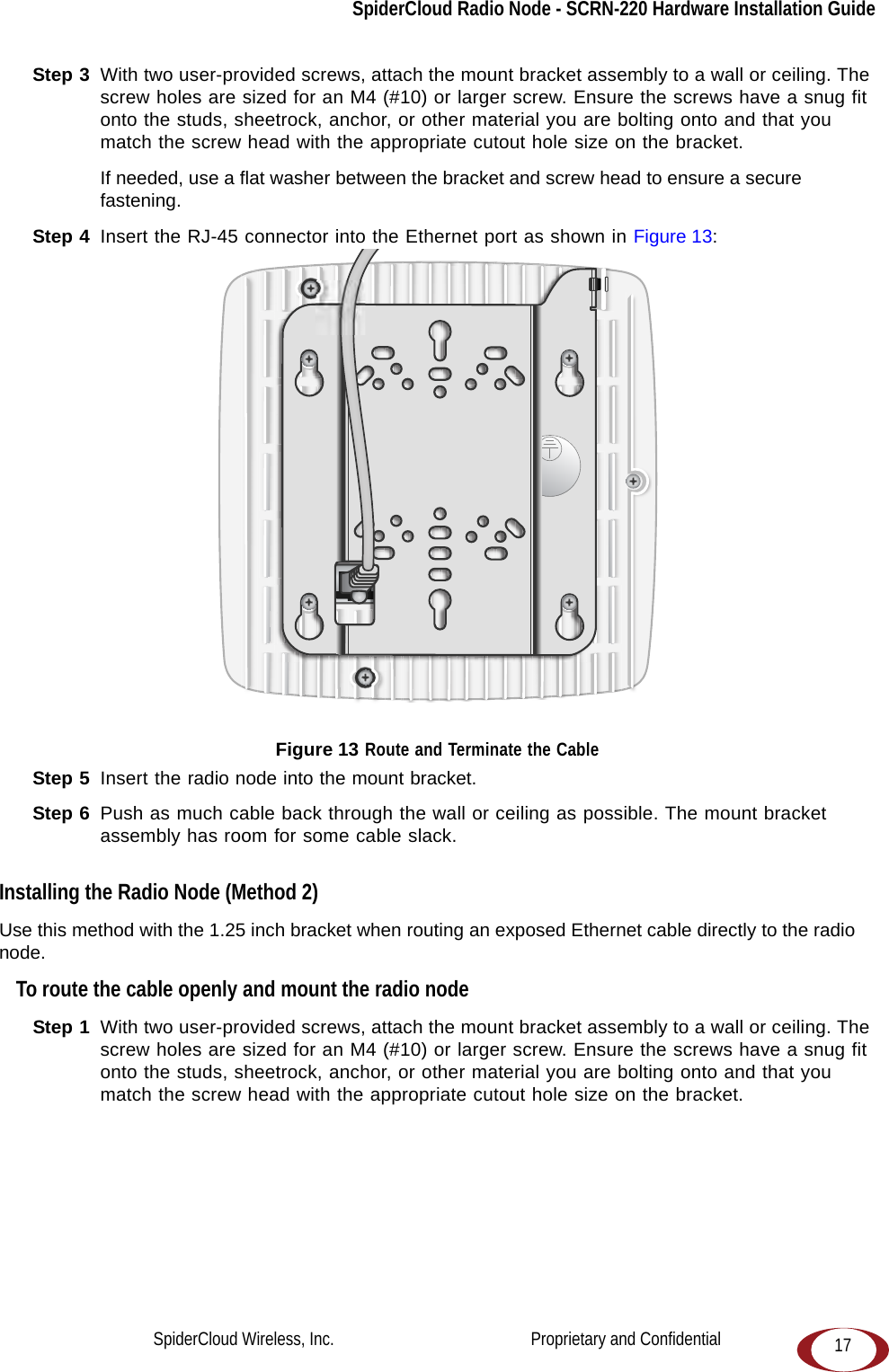

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide17Step 3 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto and that you match the screw head with the appropriate cutout hole size on the bracket. If needed, use a flat washer between the bracket and screw head to ensure a secure fastening.Step 4 Insert the RJ-45 connector into the Ethernet port as shown in Figure 13: Figure 13 Route and Terminate the CableStep 5 Insert the radio node into the mount bracket.Step 6 Push as much cable back through the wall or ceiling as possible. The mount bracket assembly has room for some cable slack. Installing the Radio Node (Method 2)Use this method with the 1.25 inch bracket when routing an exposed Ethernet cable directly to the radio node.To route the cable openly and mount the radio nodeStep 1 With two user-provided screws, attach the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) or larger screw. Ensure the screws have a snug fit onto the studs, sheetrock, anchor, or other material you are bolting onto and that you match the screw head with the appropriate cutout hole size on the bracket. SpiderCloud Wireless, Inc. Proprietary and Confidential

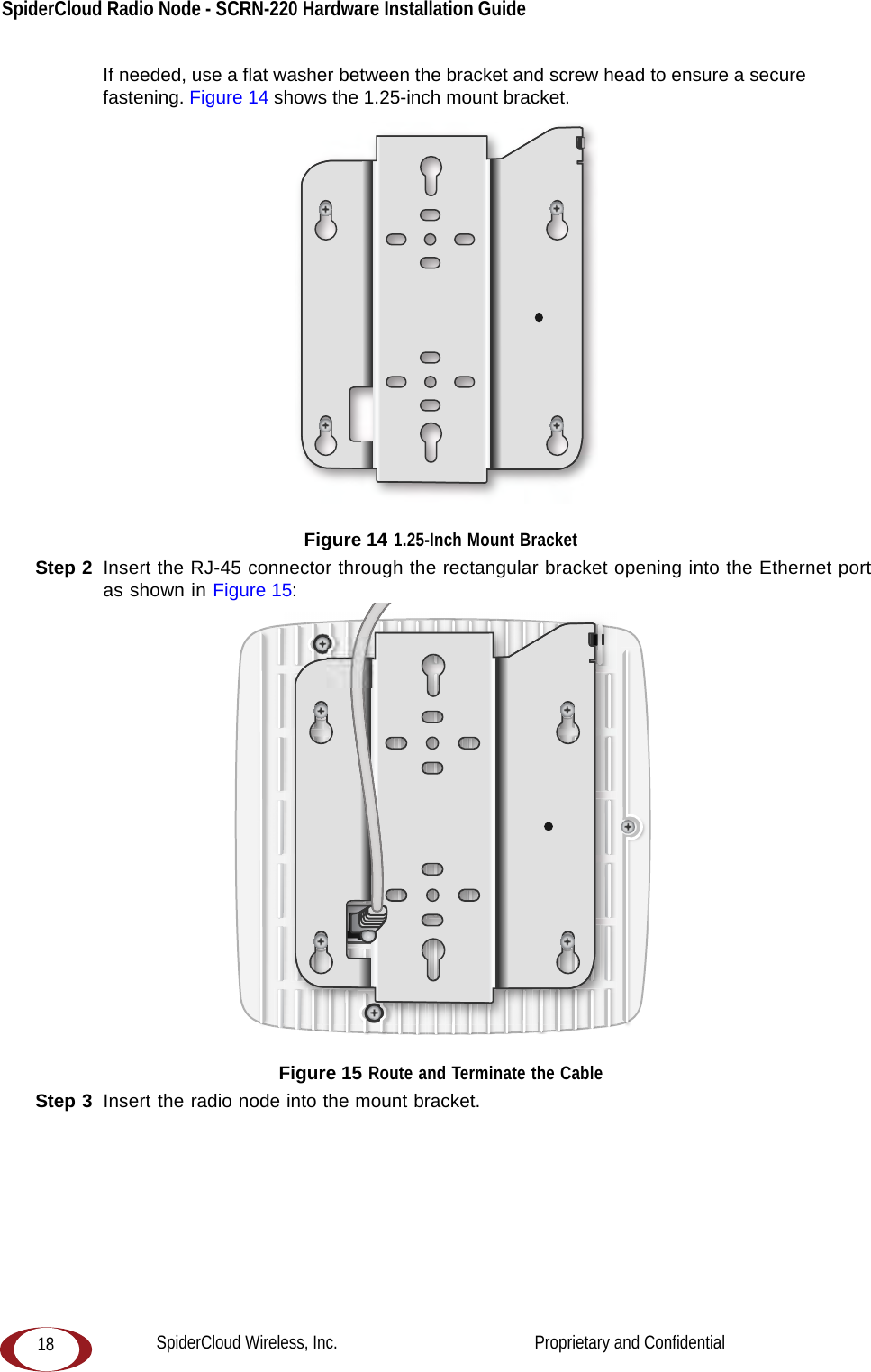

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 18If needed, use a flat washer between the bracket and screw head to ensure a secure fastening. Figure 14 shows the 1.25-inch mount bracket. Figure 14 1.25-Inch Mount BracketStep 2 Insert the RJ-45 connector through the rectangular bracket opening into the Ethernet port as shown in Figure 15: Figure 15 Route and Terminate the CableStep 3 Insert the radio node into the mount bracket. SpiderCloud Wireless, Inc. Proprietary and Confidential

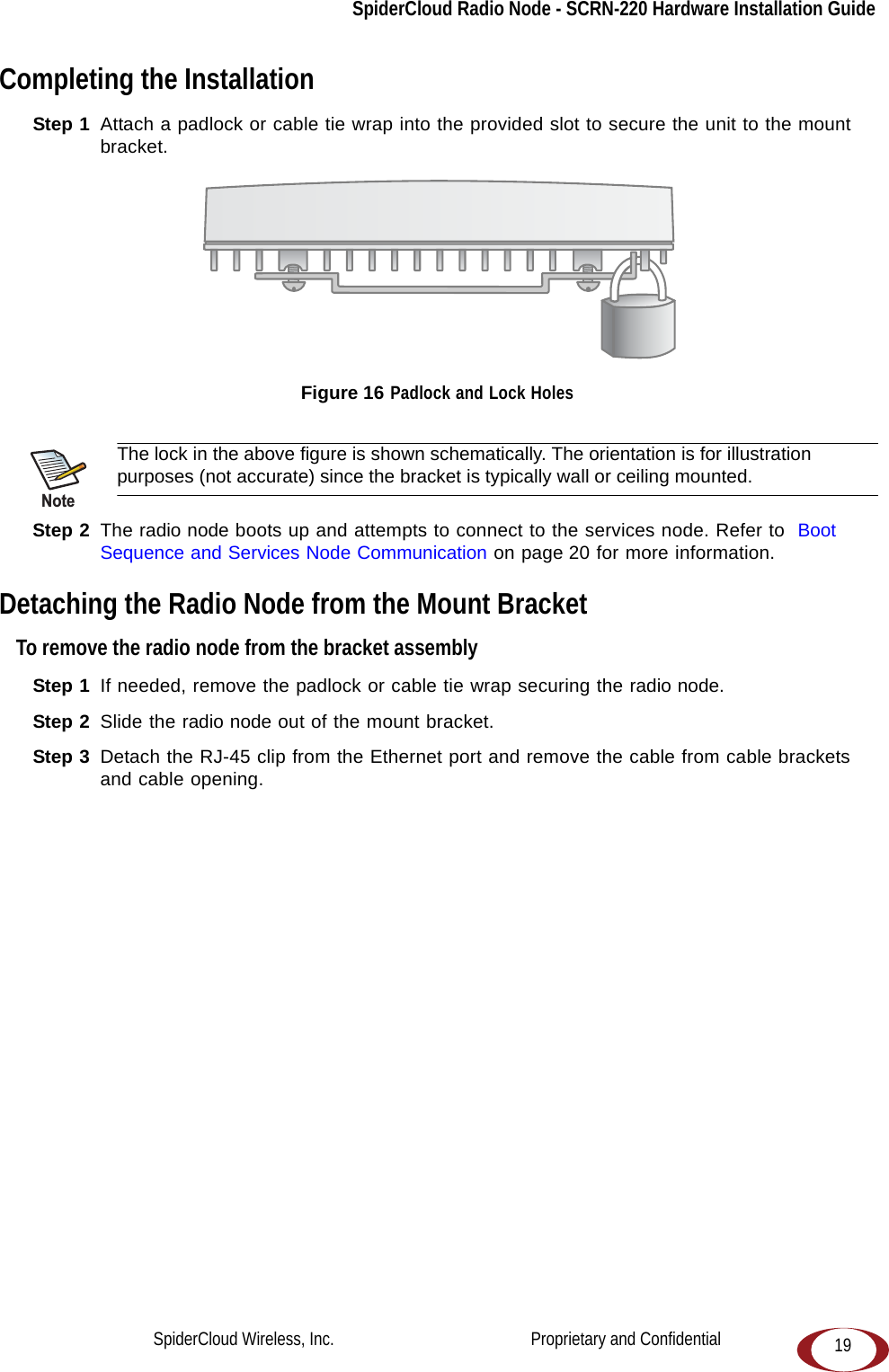

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide19Completing the InstallationStep 1 Attach a padlock or cable tie wrap into the provided slot to secure the unit to the mount bracket. Figure 16 Padlock and Lock Holes Step 2 The radio node boots up and attempts to connect to the services node. Refer to Boot Sequence and Services Node Communication on page 20 for more information.Detaching the Radio Node from the Mount BracketTo remove the radio node from the bracket assemblyStep 1 If needed, remove the padlock or cable tie wrap securing the radio node.Step 2 Slide the radio node out of the mount bracket.Step 3 Detach the RJ-45 clip from the Ethernet port and remove the cable from cable brackets and cable opening.The lock in the above figure is shown schematically. The orientation is for illustration purposes (not accurate) since the bracket is typically wall or ceiling mounted.NoteSpiderCloud Wireless, Inc. Proprietary and Confidential

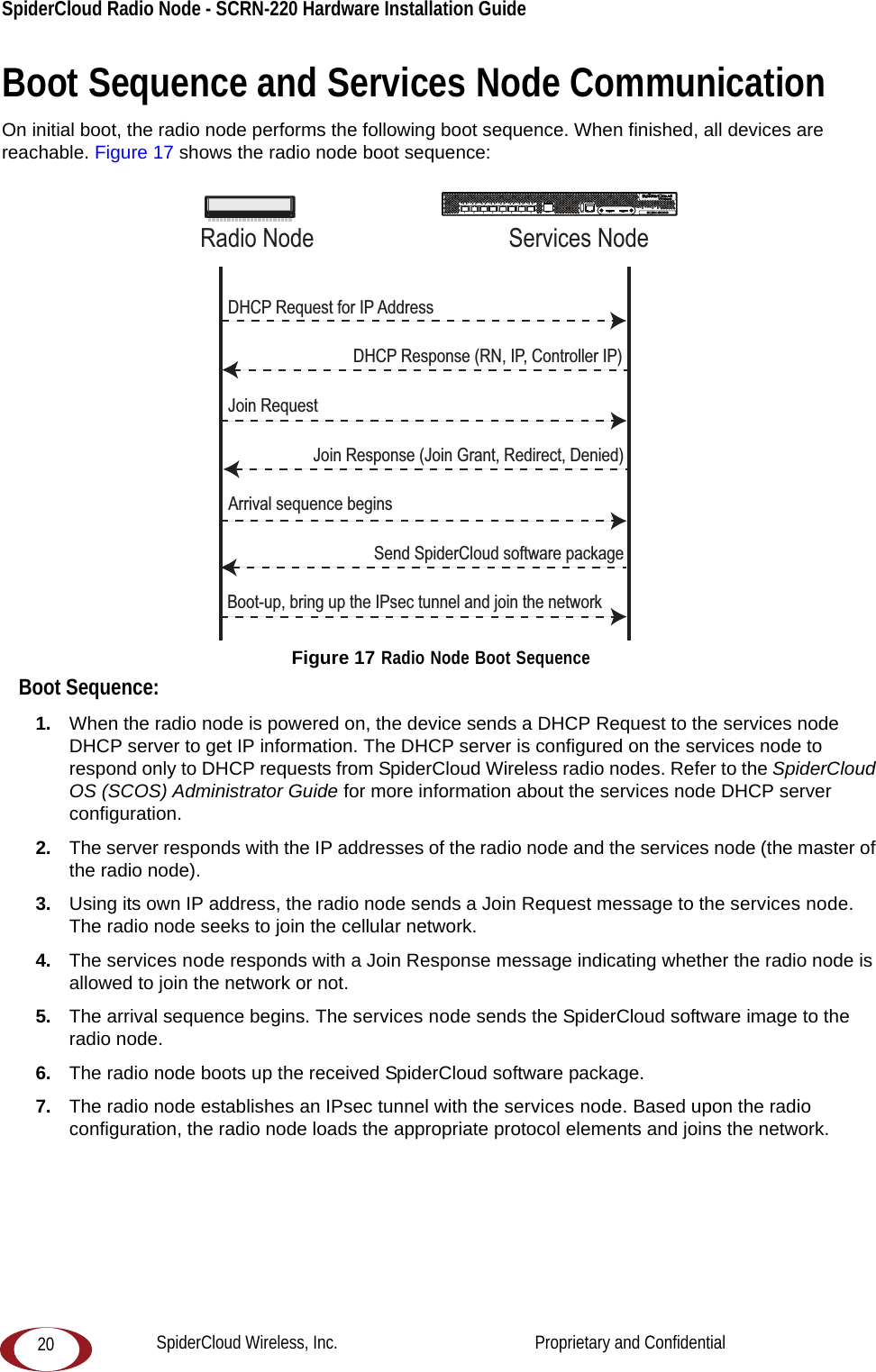

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 20Boot Sequence and Services Node CommunicationOn initial boot, the radio node performs the following boot sequence. When finished, all devices are reachable. Figure 17 shows the radio node boot sequence:Figure 17 Radio Node Boot SequenceBoot Sequence:1. When the radio node is powered on, the device sends a DHCP Request to the services node DHCP server to get IP information. The DHCP server is configured on the services node to respond only to DHCP requests from SpiderCloud Wireless radio nodes. Refer to the SpiderCloud OS (SCOS) Administrator Guide for more information about the services node DHCP server configuration.2. The server responds with the IP addresses of the radio node and the services node (the master of the radio node).3. Using its own IP address, the radio node sends a Join Request message to the services node. The radio node seeks to join the cellular network. 4. The services node responds with a Join Response message indicating whether the radio node is allowed to join the network or not.5. The arrival sequence begins. The services node sends the SpiderCloud software image to the radio node. 6. The radio node boots up the received SpiderCloud software package.7. The radio node establishes an IPsec tunnel with the services node. Based upon the radio configuration, the radio node loads the appropriate protocol elements and joins the network.USB CONSOLELK AT LK AT LK AT LK AT LK AT LK AT LK AT LK AT81234567LNK ACTMGMTPOWER STATUS 1 2SIM 0 SIM 1Radio Node Services NodeDHCP Request for IP AddressDHCP Response (RN, IP, Controller IP)Join RequestJoin Response (Join Grant, Redirect, Denied)Arrival sequence beginsSend SpiderCloud software packageBoot-up, bring up the IPsec tunnel and join the networkSpiderCloud Wireless, Inc. Proprietary and Confidential

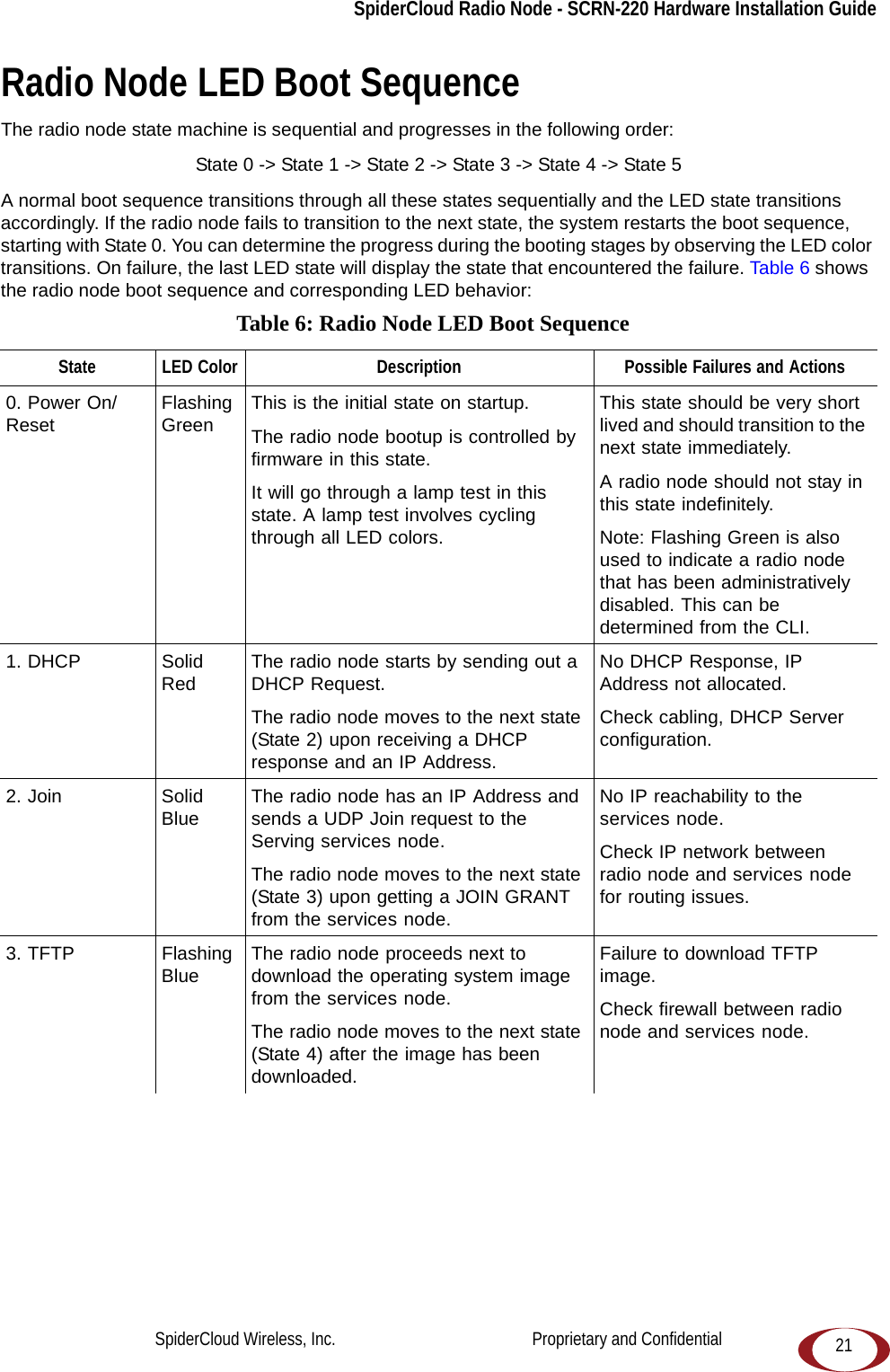

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide21Radio Node LED Boot SequenceThe radio node state machine is sequential and progresses in the following order: State 0 -> State 1 -> State 2 -> State 3 -> State 4 -> State 5A normal boot sequence transitions through all these states sequentially and the LED state transitions accordingly. If the radio node fails to transition to the next state, the system restarts the boot sequence, starting with State 0. You can determine the progress during the booting stages by observing the LED color transitions. On failure, the last LED state will display the state that encountered the failure. Table 6 shows the radio node boot sequence and corresponding LED behavior: Table 6: Radio Node LED Boot Sequence State LED Color Description Possible Failures and Actions0. Power On/Reset Flashing Green This is the initial state on startup. The radio node bootup is controlled by firmware in this state. It will go through a lamp test in this state. A lamp test involves cycling through all LED colors.This state should be very short lived and should transition to the next state immediately.A radio node should not stay in this state indefinitely. Note: Flashing Green is also used to indicate a radio node that has been administratively disabled. This can be determined from the CLI.1. DHCP Solid Red The radio node starts by sending out a DHCP Request. The radio node moves to the next state (State 2) upon receiving a DHCP response and an IP Address.No DHCP Response, IP Address not allocated. Check cabling, DHCP Server configuration.2. Join Solid Blue The radio node has an IP Address and sends a UDP Join request to the Serving services node. The radio node moves to the next state (State 3) upon getting a JOIN GRANT from the services node.No IP reachability to the services node.Check IP network between radio node and services node for routing issues.3. TFTP Flashing Blue The radio node proceeds next to download the operating system image from the services node. The radio node moves to the next state (State 4) after the image has been downloaded.Failure to download TFTP image. Check firewall between radio node and services node.SpiderCloud Wireless, Inc. Proprietary and Confidential

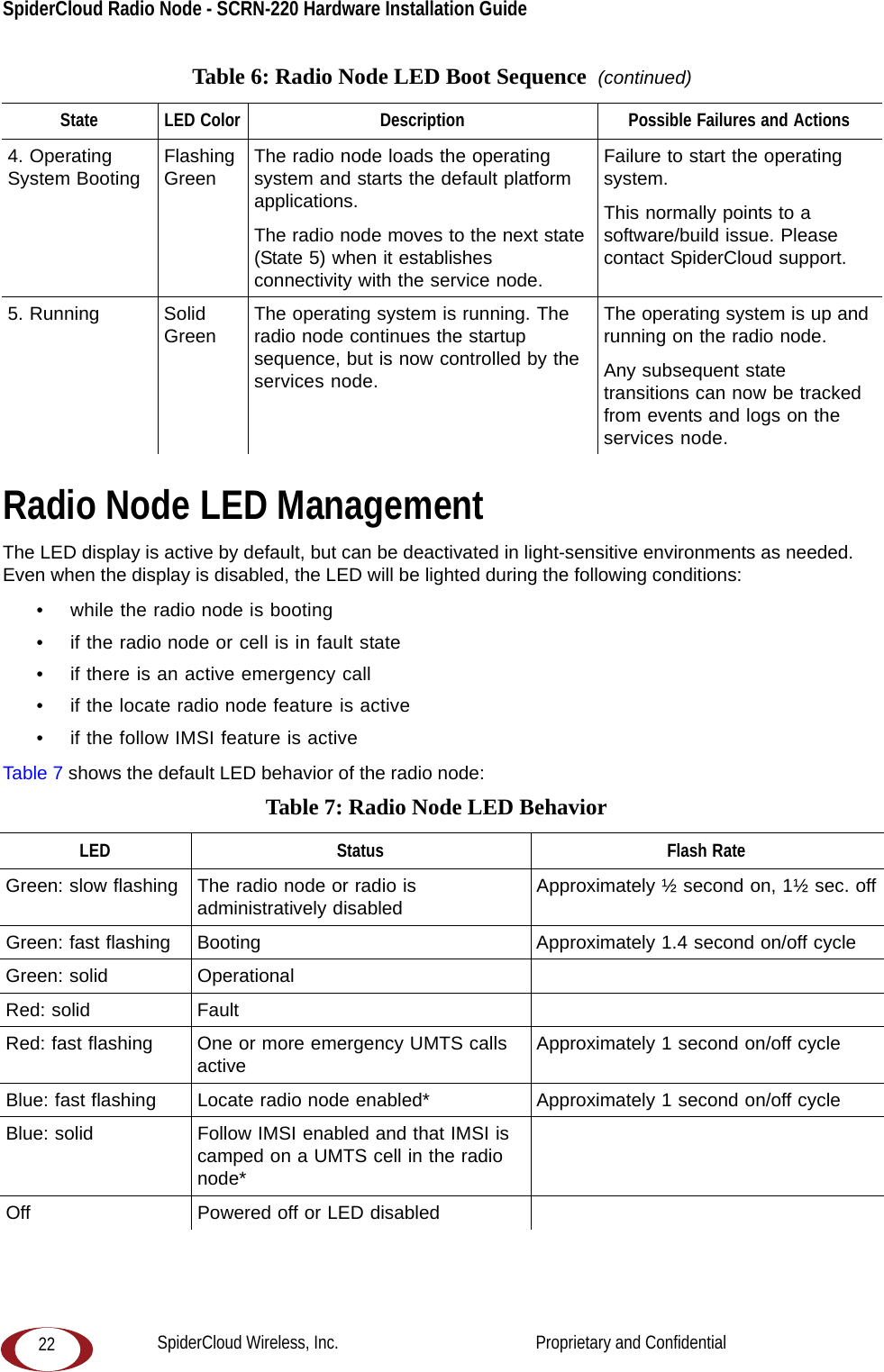

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 22Radio Node LED ManagementThe LED display is active by default, but can be deactivated in light-sensitive environments as needed. Even when the display is disabled, the LED will be lighted during the following conditions: • while the radio node is booting• if the radio node or cell is in fault state• if there is an active emergency call• if the locate radio node feature is active• if the follow IMSI feature is activeTable 7 shows the default LED behavior of the radio node: 4. Operating System Booting Flashing Green The radio node loads the operating system and starts the default platform applications. The radio node moves to the next state (State 5) when it establishes connectivity with the service node.Failure to start the operating system. This normally points to a software/build issue. Please contact SpiderCloud support.5. Running Solid Green The operating system is running. The radio node continues the startup sequence, but is now controlled by the services node.The operating system is up and running on the radio node. Any subsequent state transitions can now be tracked from events and logs on the services node.Table 7: Radio Node LED Behavior LED Status Flash RateGreen: slow flashing The radio node or radio is administratively disabled Approximately ½ second on, 1½ sec. offGreen: fast flashing Booting Approximately 1.4 second on/off cycleGreen: solid OperationalRed: solid FaultRed: fast flashing One or more emergency UMTS calls active Approximately 1 second on/off cycleBlue: fast flashing Locate radio node enabled* Approximately 1 second on/off cycleBlue: solid Follow IMSI enabled and that IMSI is camped on a UMTS cell in the radio node*Off Powered off or LED disabledTable 6: Radio Node LED Boot Sequence (continued)State LED Color Description Possible Failures and ActionsSpiderCloud Wireless, Inc. Proprietary and Confidential

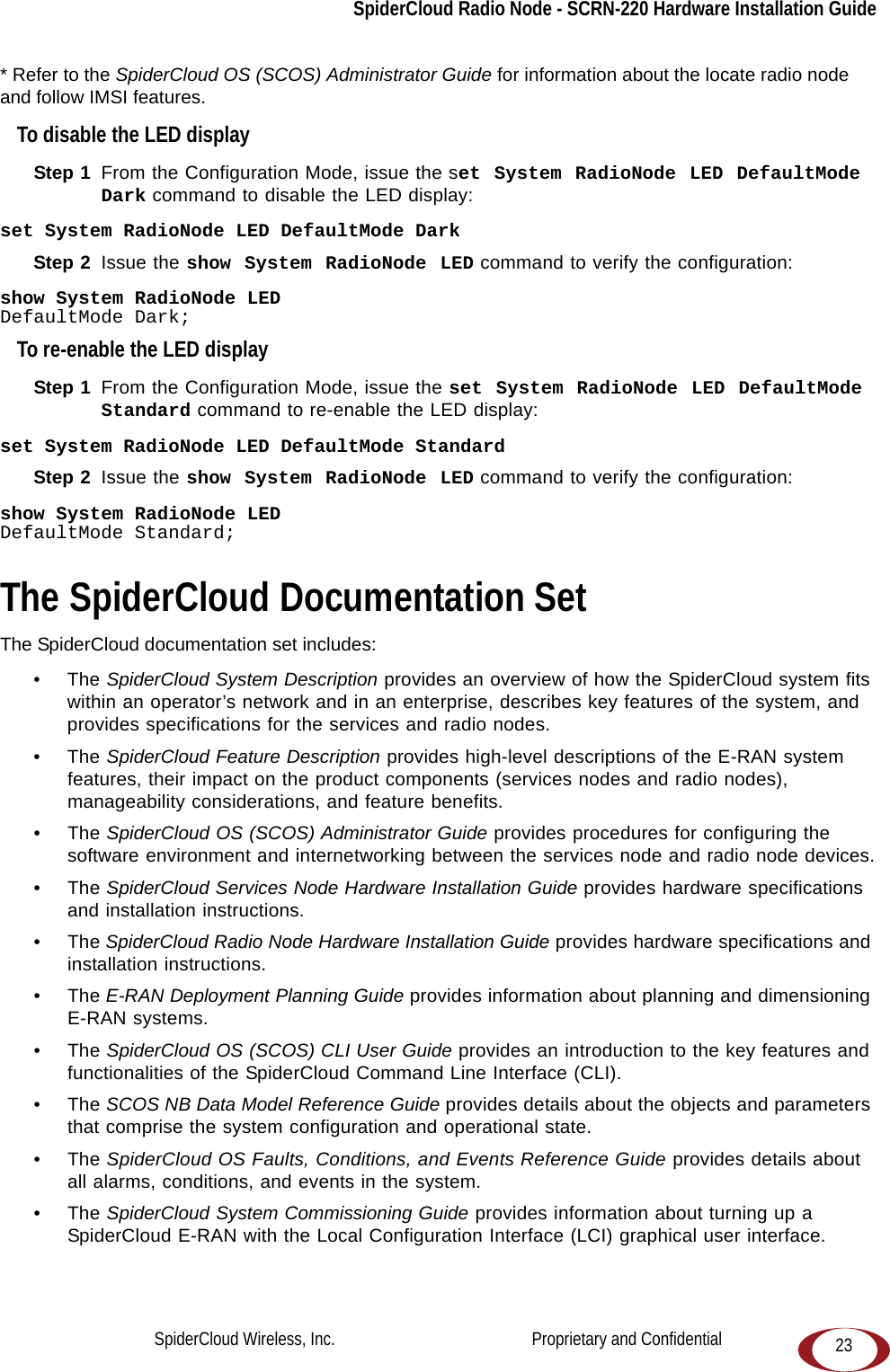

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide23* Refer to the SpiderCloud OS (SCOS) Administrator Guide for information about the locate radio node and follow IMSI features.To disable the LED displayStep 1 From the Configuration Mode, issue the set System RadioNode LED DefaultMode Dark command to disable the LED display:set System RadioNode LED DefaultMode DarkStep 2 Issue the show System RadioNode LED command to verify the configuration:show System RadioNode LEDDefaultMode Dark;To re-enable the LED displayStep 1 From the Configuration Mode, issue the set System RadioNode LED DefaultMode Standard command to re-enable the LED display:set System RadioNode LED DefaultMode StandardStep 2 Issue the show System RadioNode LED command to verify the configuration:show System RadioNode LEDDefaultMode Standard;The SpiderCloud Documentation SetThe SpiderCloud documentation set includes:•The SpiderCloud System Description provides an overview of how the SpiderCloud system fits within an operator’s network and in an enterprise, describes key features of the system, and provides specifications for the services and radio nodes.•The SpiderCloud Feature Description provides high-level descriptions of the E-RAN system features, their impact on the product components (services nodes and radio nodes), manageability considerations, and feature benefits.•The SpiderCloud OS (SCOS) Administrator Guide provides procedures for configuring the software environment and internetworking between the services node and radio node devices.•The SpiderCloud Services Node Hardware Installation Guide provides hardware specifications and installation instructions.•The SpiderCloud Radio Node Hardware Installation Guide provides hardware specifications and installation instructions.•The E-RAN Deployment Planning Guide provides information about planning and dimensioning E-RAN systems. •The SpiderCloud OS (SCOS) CLI User Guide provides an introduction to the key features and functionalities of the SpiderCloud Command Line Interface (CLI).•The SCOS NB Data Model Reference Guide provides details about the objects and parameters that comprise the system configuration and operational state.•The SpiderCloud OS Faults, Conditions, and Events Reference Guide provides details about all alarms, conditions, and events in the system.•The SpiderCloud System Commissioning Guide provides information about turning up a SpiderCloud E-RAN with the Local Configuration Interface (LCI) graphical user interface.SpiderCloud Wireless, Inc. Proprietary and Confidential

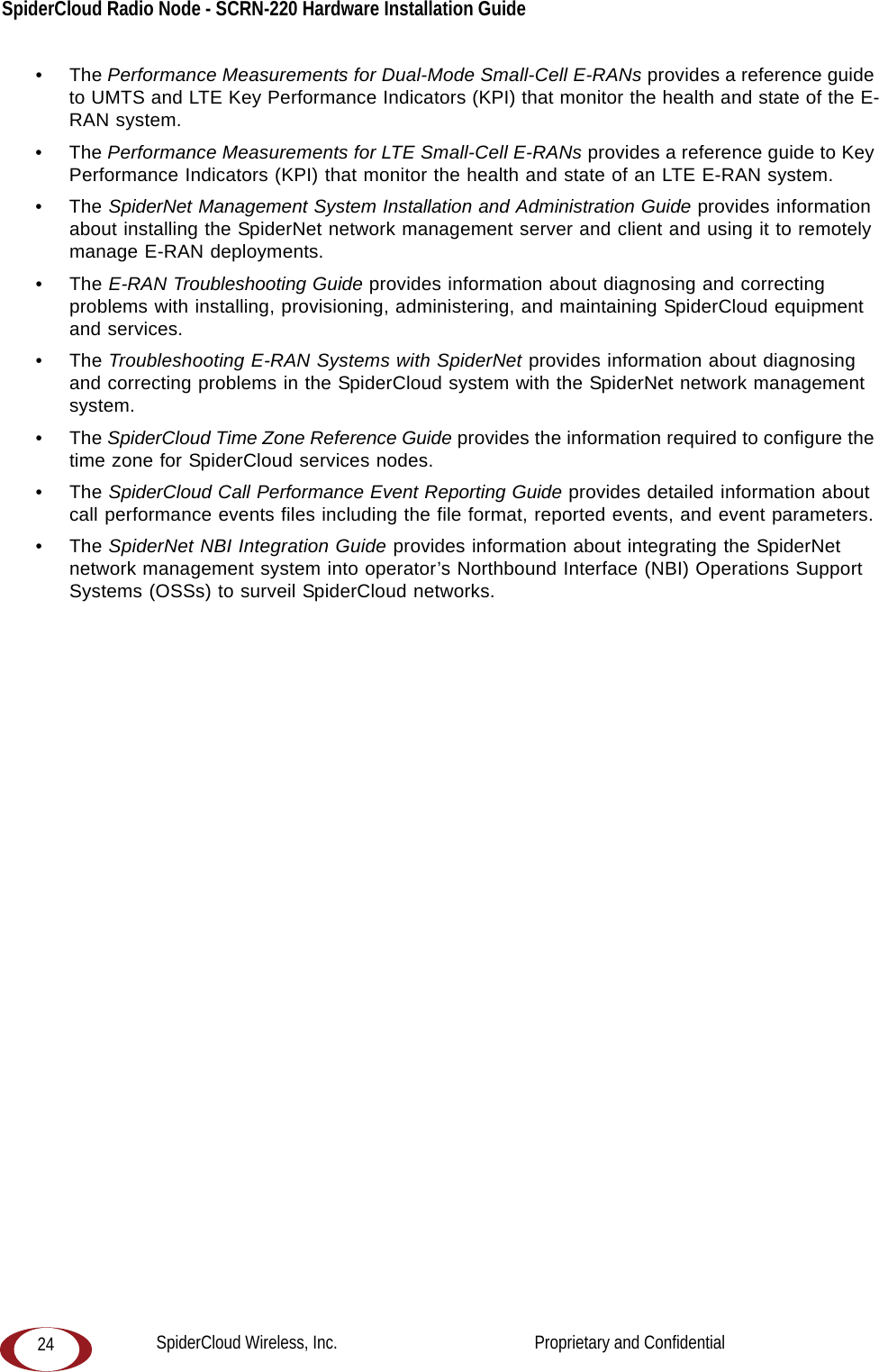

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 24•The Performance Measurements for Dual-Mode Small-Cell E-RANs provides a reference guide to UMTS and LTE Key Performance Indicators (KPI) that monitor the health and state of the E-RAN system.•The Performance Measurements for LTE Small-Cell E-RANs provides a reference guide to Key Performance Indicators (KPI) that monitor the health and state of an LTE E-RAN system.•The SpiderNet Management System Installation and Administration Guide provides information about installing the SpiderNet network management server and client and using it to remotely manage E-RAN deployments.•The E-RAN Troubleshooting Guide provides information about diagnosing and correcting problems with installing, provisioning, administering, and maintaining SpiderCloud equipment and services.•The Troubleshooting E-RAN Systems with SpiderNet provides information about diagnosing and correcting problems in the SpiderCloud system with the SpiderNet network management system.•The SpiderCloud Time Zone Reference Guide provides the information required to configure the time zone for SpiderCloud services nodes.•The SpiderCloud Call Performance Event Reporting Guide provides detailed information about call performance events files including the file format, reported events, and event parameters.•The SpiderNet NBI Integration Guide provides information about integrating the SpiderNet network management system into operator’s Northbound Interface (NBI) Operations Support Systems (OSSs) to surveil SpiderCloud networks. SpiderCloud Wireless, Inc. Proprietary and Confidential

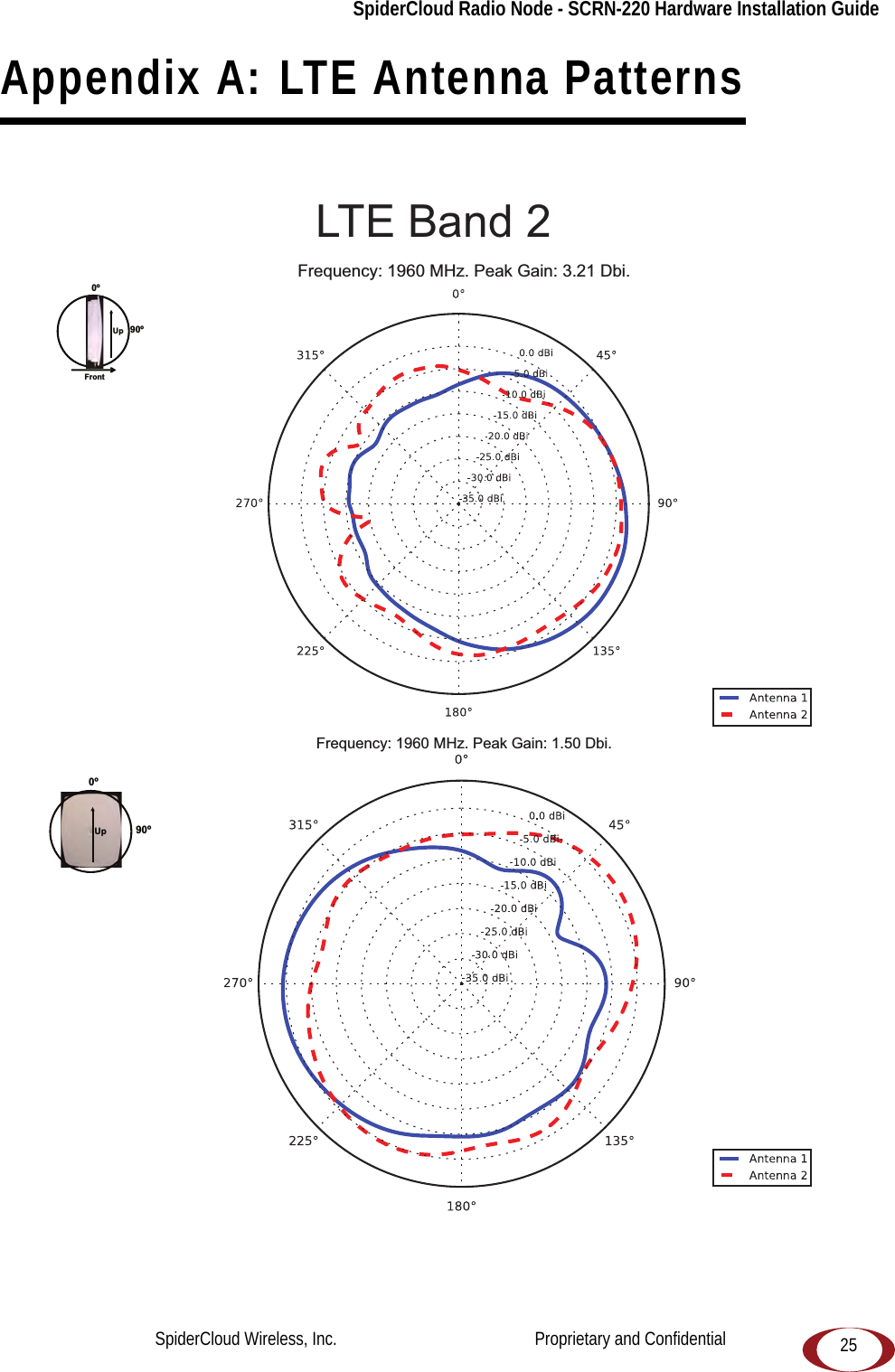

25SpiderCloud Radio Node - SCRN-220 Hardware Installation GuideAppendix A: LTE Antenna Patterns LTE Band 2Frequency: 1960 MHz. Peak Gain: 3.21 Dbi.Frequency: 1960 MHz. Peak Gain: 1.50 Dbi.0ºFront90ºUp90º0ºUpSpiderCloud Wireless, Inc. Proprietary and Confidential

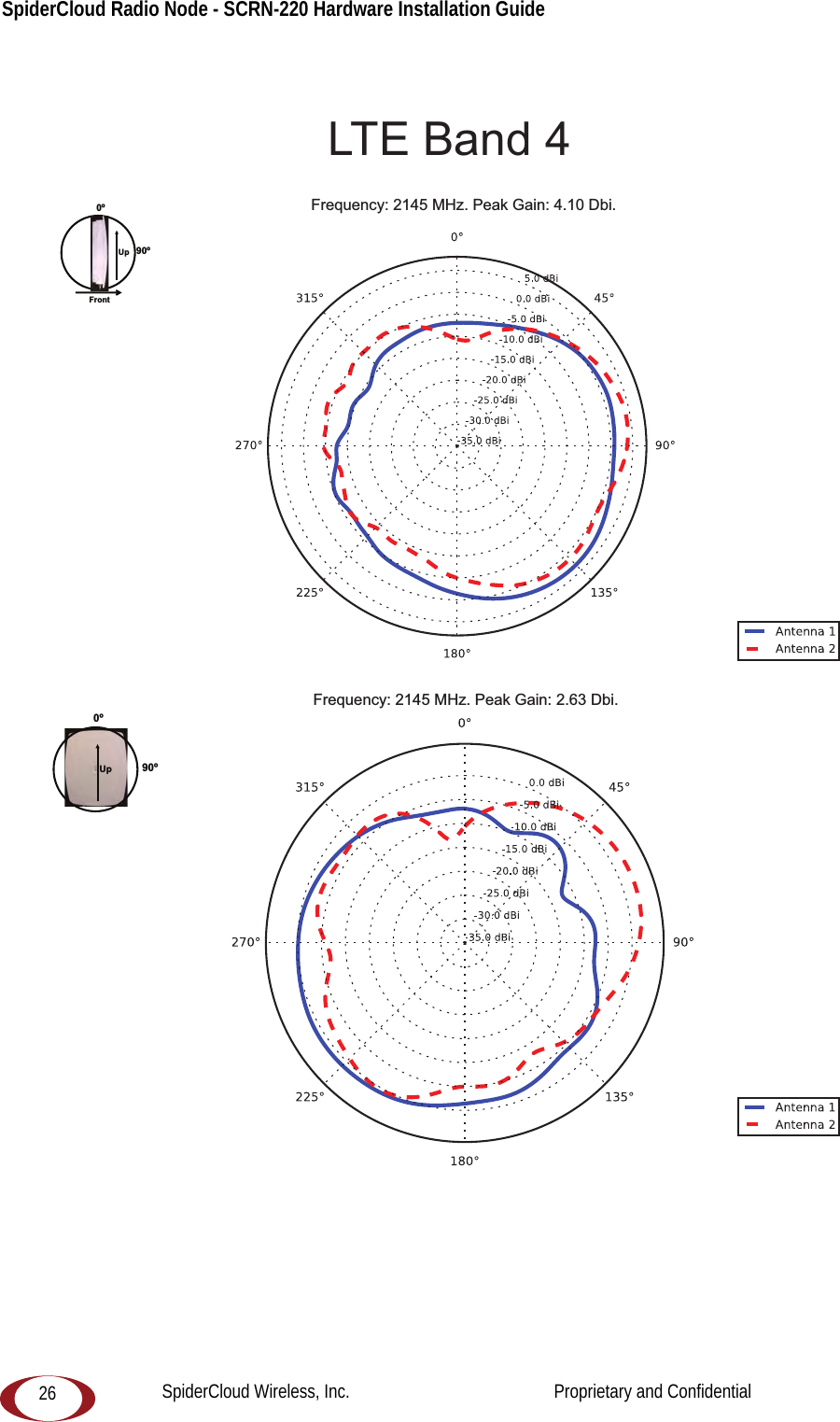

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 26LTE Band 4Frequency: 2145 MHz. Peak Gain: 4.10 Dbi.Frequency: 2145 MHz. Peak Gain: 2.63 Dbi.0ºFront90ºUp90º0ºUpSpiderCloud Wireless, Inc. Proprietary and Confidential

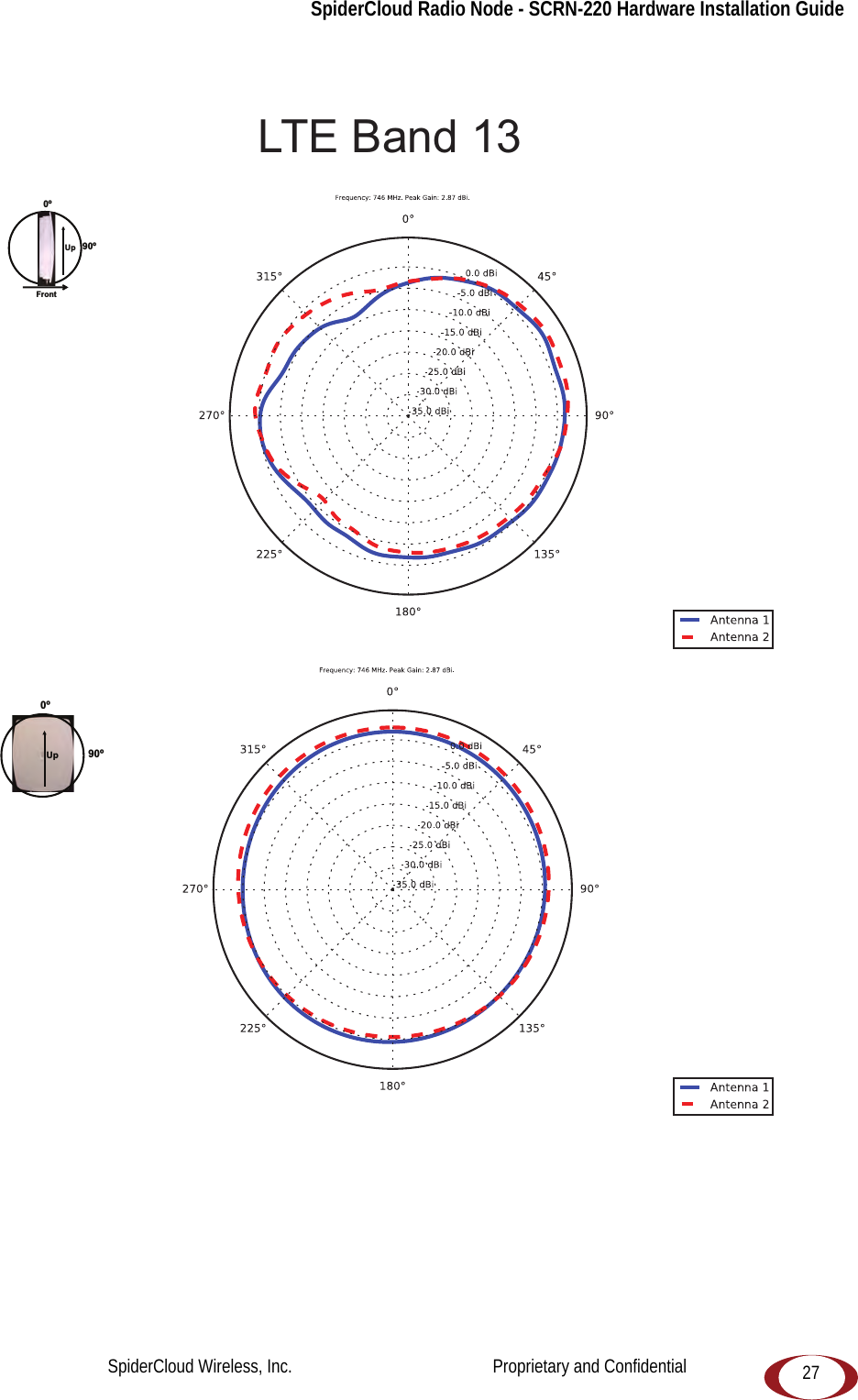

SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 27LTE Band 130ºFront90ºUp90º0ºUpSpiderCloud Wireless, Inc. Proprietary and Confidential
SpiderCloud Radio Node - SCRN-220 Hardware Installation Guide 28SpiderCloud Wireless, Inc. Proprietary and Confidential
