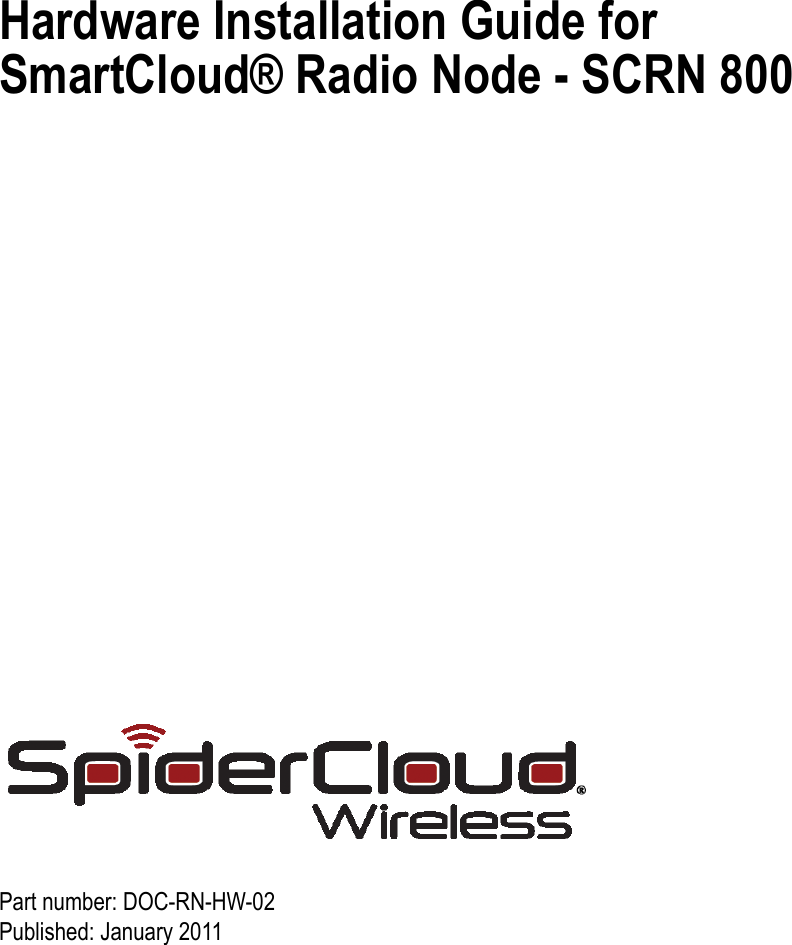

Hardware Installation Guide for SmartCloud® Radio Node - SCRN 800Part number: DOC-RN-HW-02Published: January 2011

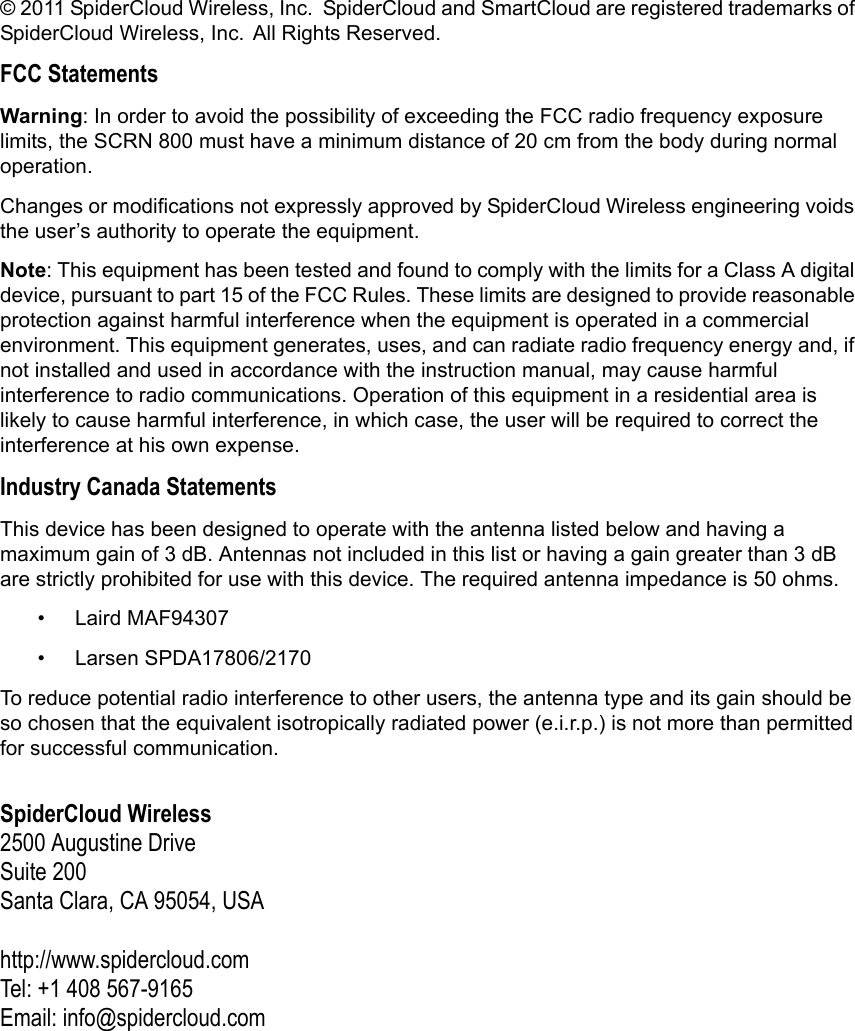

© 2011 SpiderCloud Wireless, Inc. SpiderCloud and SmartCloud are registered trademarks of SpiderCloud Wireless, Inc. All Rights Reserved.FCC StatementsWarning: In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, the SCRN 800 must have a minimum distance of 20 cm from the body during normal operation.Changes or modifications not expressly approved by SpiderCloud Wireless engineering voids the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case, the user will be required to correct the interference at his own expense.Industry Canada StatementsThis device has been designed to operate with the antenna listed below and having a maximum gain of 3 dB. Antennas not included in this list or having a gain greater than 3 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.• Laird MAF94307• Larsen SPDA17806/2170To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than permitted for successful communication. SpiderCloud Wireless2500 Augustine DriveSuite 200Santa Clara, CA 95054, USAhttp://www.spidercloud.comTel: +1 408 567-9165Email: info@spidercloud.com

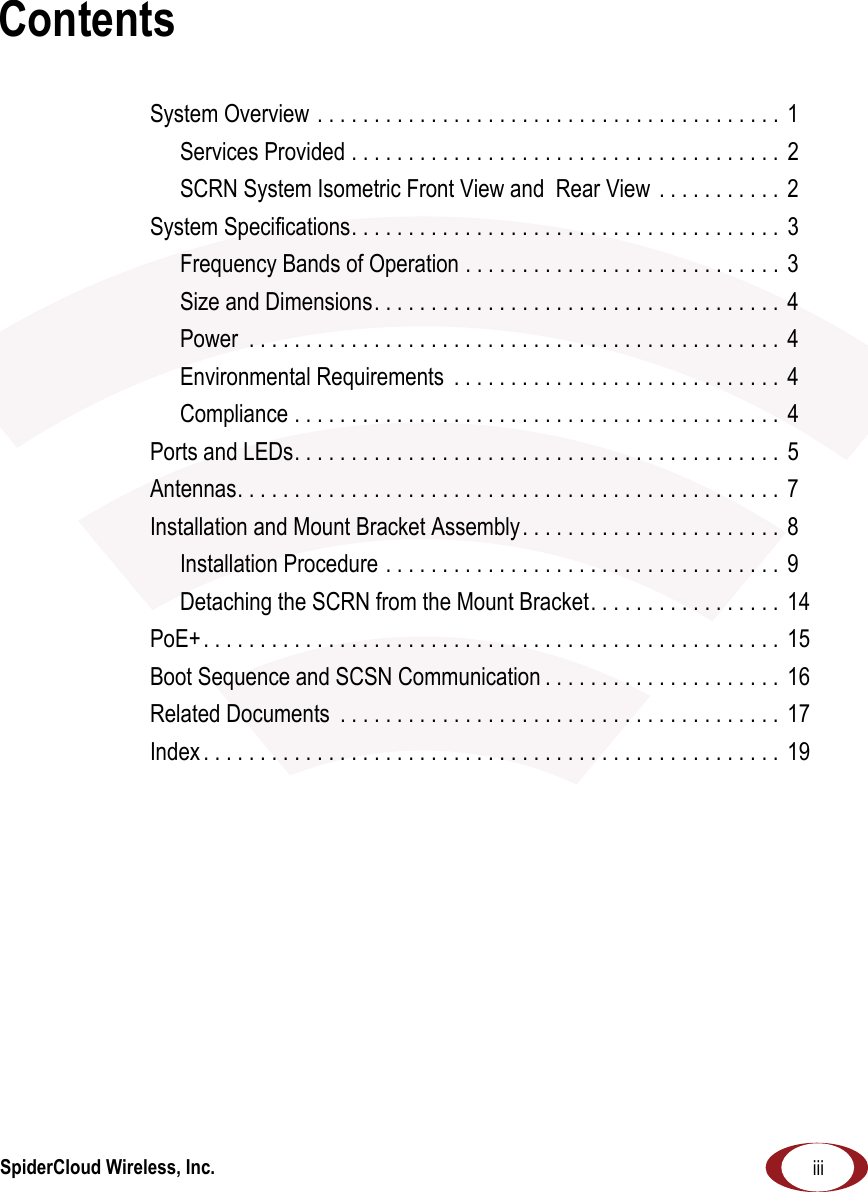

SpiderCloud Wireless, Inc. iiiContentsSystem Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1Services Provided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2SCRN System Isometric Front View and Rear View . . . . . . . . . . . 2System Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Frequency Bands of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Size and Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Ports and LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Installation and Mount Bracket Assembly. . . . . . . . . . . . . . . . . . . . . . . 8Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Detaching the SCRN from the Mount Bracket. . . . . . . . . . . . . . . . . 14PoE+. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Boot Sequence and SCSN Communication . . . . . . . . . . . . . . . . . . . . . 16Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SpiderCloud Wireless, Inc.Contents iv

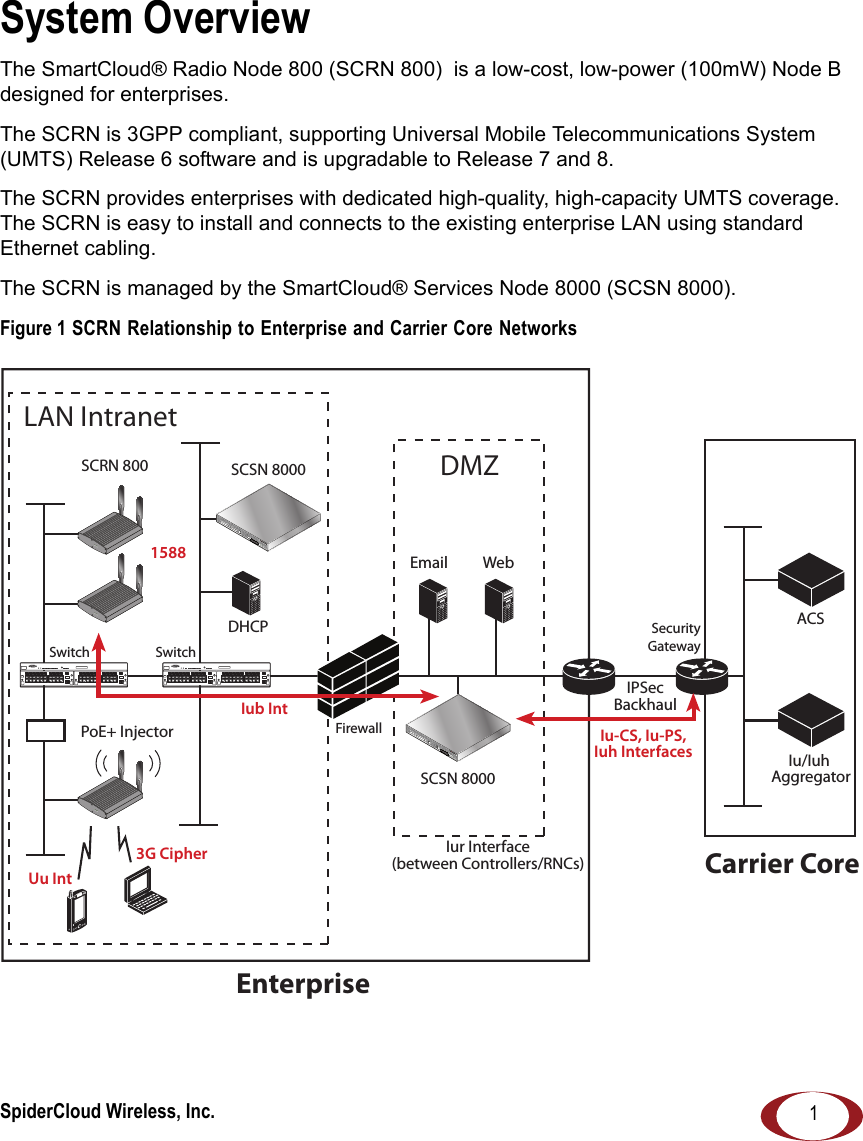

SpiderCloud Wireless, Inc. 1System OverviewThe SmartCloud® Radio Node 800 (SCRN 800) is a low-cost, low-power (100mW) Node B designed for enterprises.The SCRN is 3GPP compliant, supporting Universal Mobile Telecommunications System (UMTS) Release 6 software and is upgradable to Release 7 and 8. The SCRN provides enterprises with dedicated high-quality, high-capacity UMTS coverage. The SCRN is easy to install and connects to the existing enterprise LAN using standard Ethernet cabling.The SCRN is managed by the SmartCloud® Services Node 8000 (SCSN 8000).Figure 1 SCRN Relationship to Enterprise and Carrier Core Networks LAN IntranetDMZEnterpriseCarrier CoreDHCPEmail WebIu-CS, Iu-PS,Iuh InterfacesIur Interface(between Controllers/RNCs)3G CipherUu IntPoE+ InjectorSCRN 800Iu/Iuh AggregatorACSIPSecBackhaul1588 Iub IntRADIOSTATUSRADIOSTATUSRADIOSTATUSSwitch SwitchFirewallSecurityGatewaySCSN 8000SCSN 8000

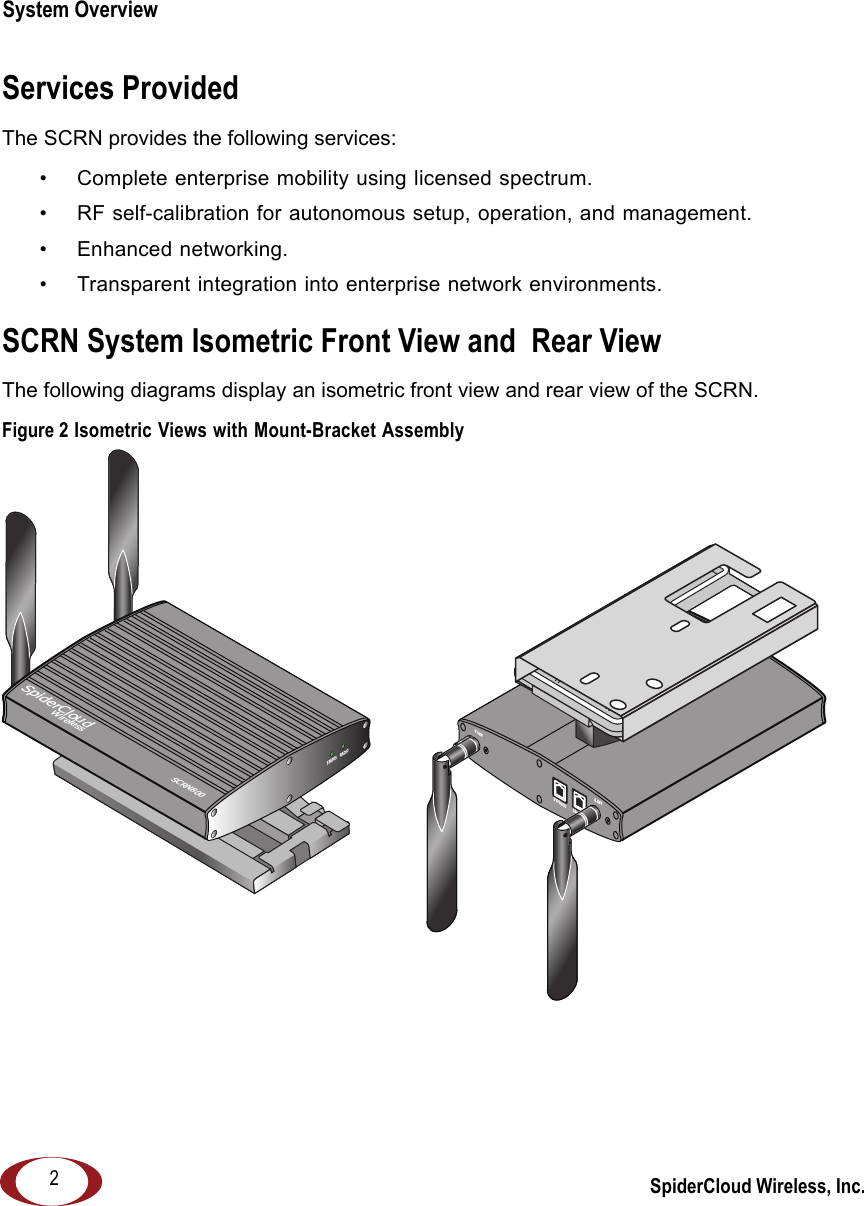

SpiderCloud Wireless, Inc.System Overview 2Services ProvidedThe SCRN provides the following services:• Complete enterprise mobility using licensed spectrum.• RF self-calibration for autonomous setup, operation, and management.• Enhanced networking.• Transparent integration into enterprise network environments.SCRN System Isometric Front View and Rear ViewThe following diagrams display an isometric front view and rear view of the SCRN.Figure 2 Isometric Views with Mount-Bracket AssemblyANT BANT AETHERNET CONSO LEANT BRADIOSTATUSSpiderCloudWirelessSCRN800

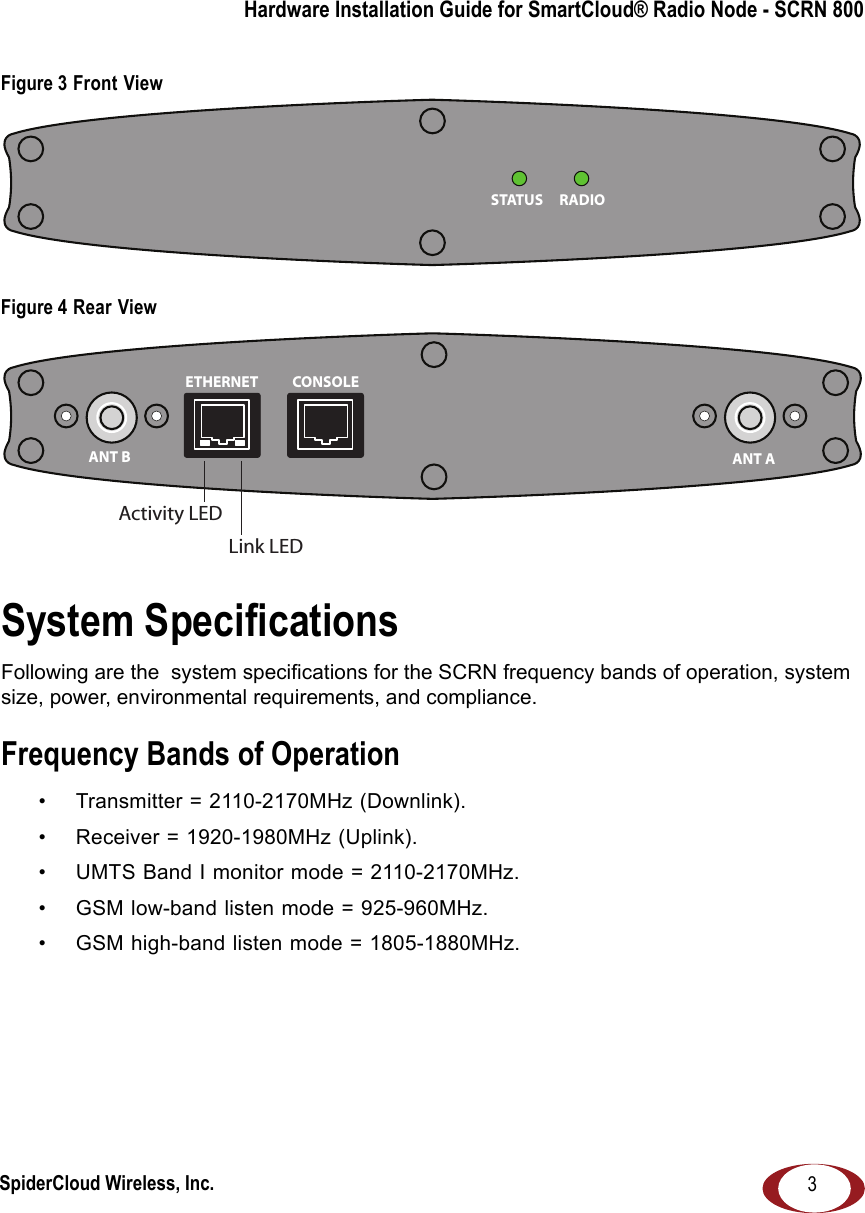

SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 8003Figure 3 Front ViewFigure 4 Rear ViewSystem SpecificationsFollowing are the system specifications for the SCRN frequency bands of operation, system size, power, environmental requirements, and compliance. Frequency Bands of Operation• Transmitter = 2110-2170MHz (Downlink).• Receiver = 1920-1980MHz (Uplink).• UMTS Band I monitor mode = 2110-2170MHz.• GSM low-band listen mode = 925-960MHz.• GSM high-band listen mode = 1805-1880MHz.RADIOSTATUSANT B ANT AETHERNET CONSOLELink LEDActivity LED

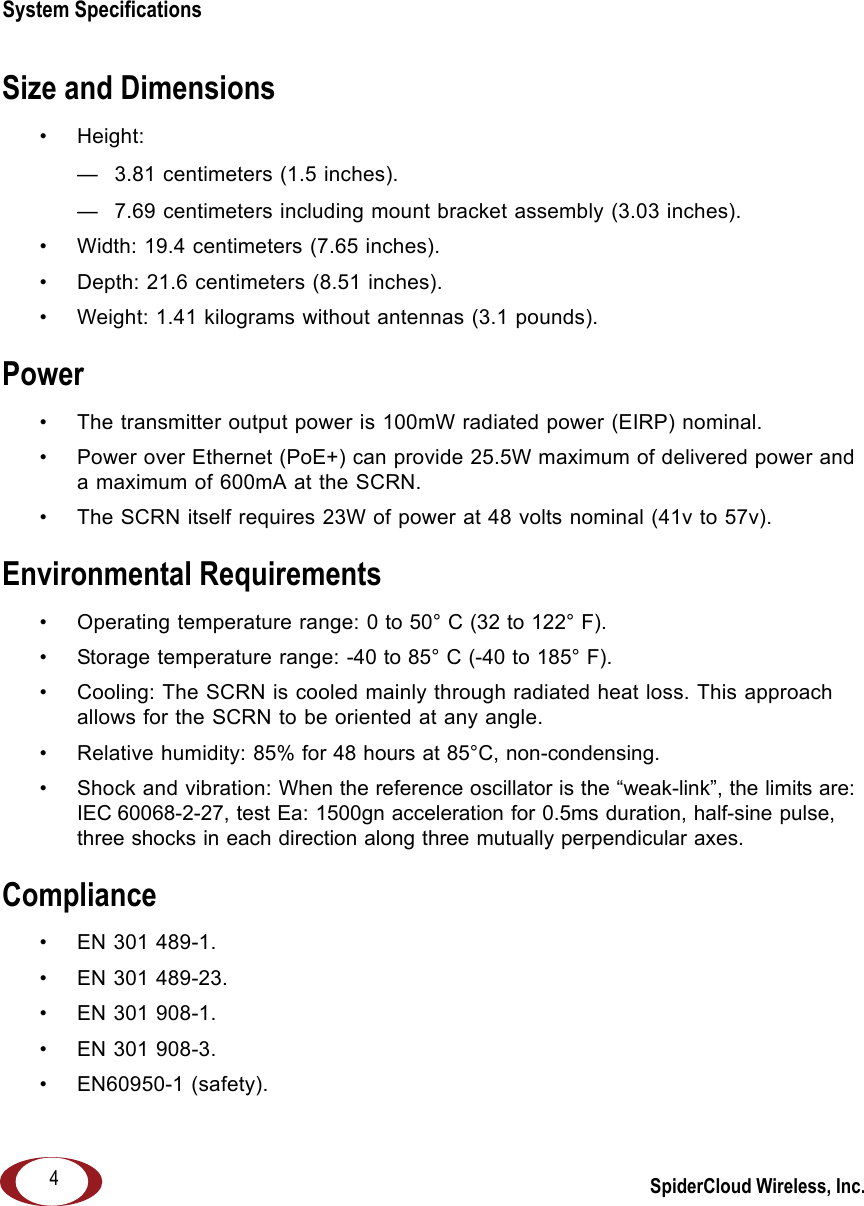

SpiderCloud Wireless, Inc.System Specifications 4Size and Dimensions• Height: — 3.81 centimeters (1.5 inches).— 7.69 centimeters including mount bracket assembly (3.03 inches).• Width: 19.4 centimeters (7.65 inches).• Depth: 21.6 centimeters (8.51 inches).• Weight: 1.41 kilograms without antennas (3.1 pounds).Power• The transmitter output power is 100mW radiated power (EIRP) nominal. • Power over Ethernet (PoE+) can provide 25.5W maximum of delivered power and a maximum of 600mA at the SCRN.• The SCRN itself requires 23W of power at 48 volts nominal (41v to 57v).Environmental Requirements• Operating temperature range: 0 to 50° C (32 to 122° F).• Storage temperature range: -40 to 85° C (-40 to 185° F).• Cooling: The SCRN is cooled mainly through radiated heat loss. This approach allows for the SCRN to be oriented at any angle.• Relative humidity: 85% for 48 hours at 85°C, non-condensing.• Shock and vibration: When the reference oscillator is the “weak-link”, the limits are: IEC 60068-2-27, test Ea: 1500gn acceleration for 0.5ms duration, half-sine pulse, three shocks in each direction along three mutually perpendicular axes.Compliance• EN 301 489-1.• EN 301 489-23.• EN 301 908-1.• EN 301 908-3.• EN60950-1 (safety).

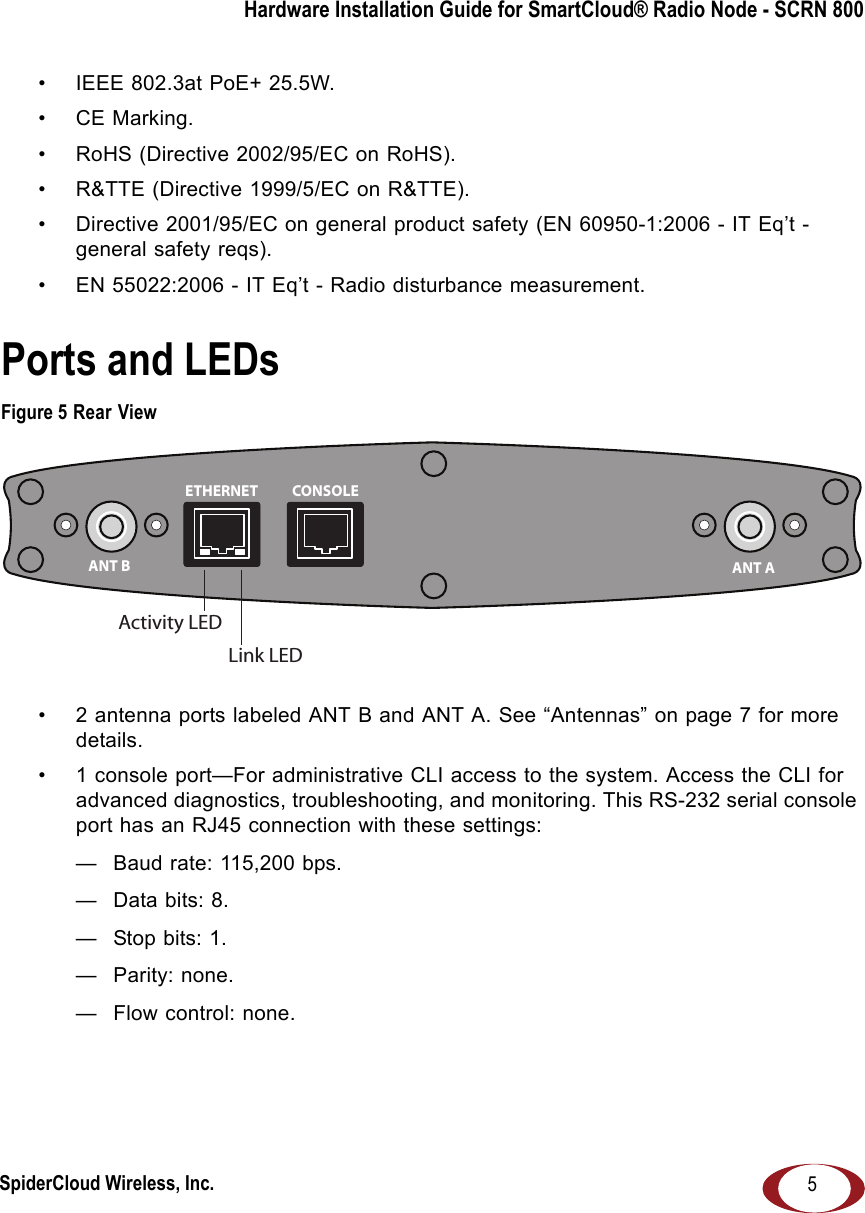

SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 8005• IEEE 802.3at PoE+ 25.5W.• CE Marking.• RoHS (Directive 2002/95/EC on RoHS).• R&TTE (Directive 1999/5/EC on R&TTE).• Directive 2001/95/EC on general product safety (EN 60950-1:2006 - IT Eq’t - general safety reqs).• EN 55022:2006 - IT Eq’t - Radio disturbance measurement.Ports and LEDsFigure 5 Rear View• 2 antenna ports labeled ANT B and ANT A. See “Antennas” on page 7 for more details.• 1 console port—For administrative CLI access to the system. Access the CLI for advanced diagnostics, troubleshooting, and monitoring. This RS-232 serial console port has an RJ45 connection with these settings:— Baud rate: 115,200 bps.— Data bits: 8.— Stop bits: 1.— Parity: none.— Flow control: none.ANT B ANT AETHERNET CONSOLELink LEDActivity LED

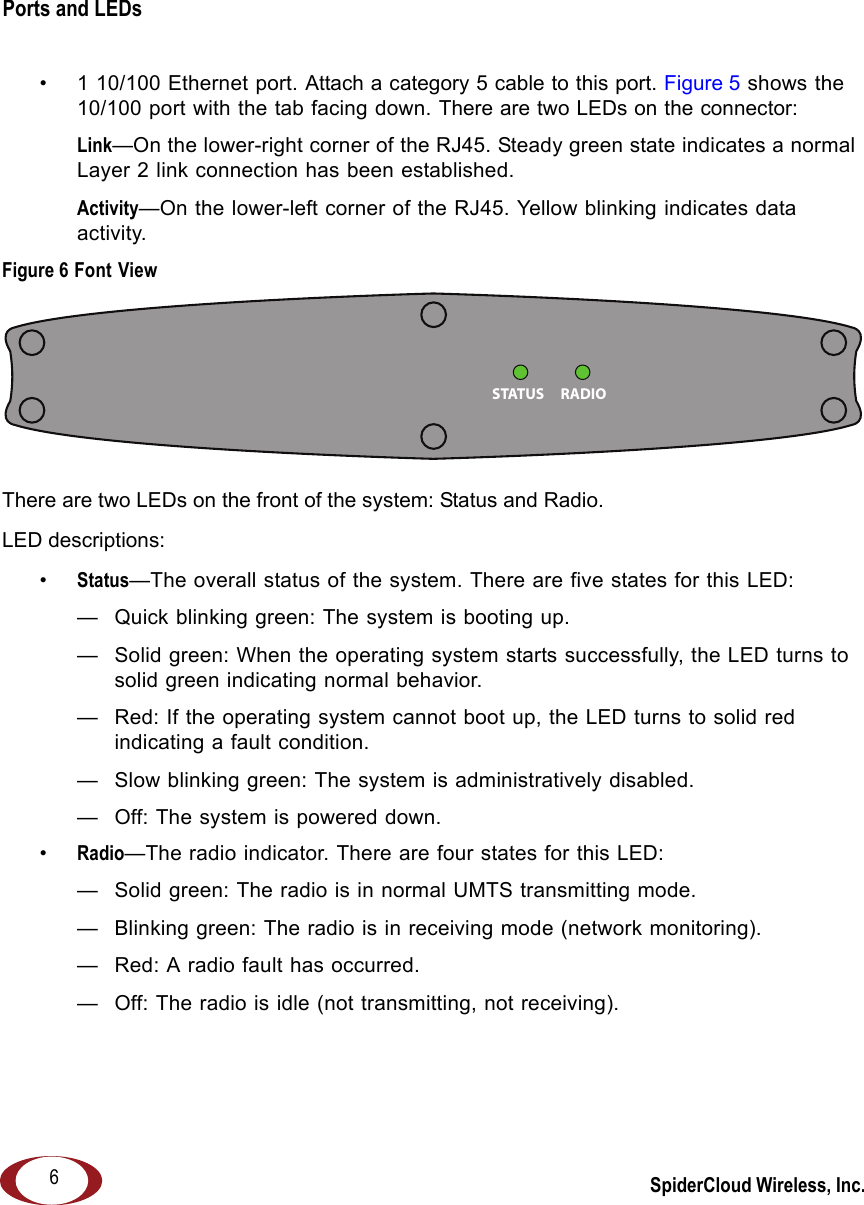

SpiderCloud Wireless, Inc.Ports and LEDs 6• 1 10/100 Ethernet port. Attach a category 5 cable to this port. Figure 5 shows the 10/100 port with the tab facing down. There are two LEDs on the connector:Link—On the lower-right corner of the RJ45. Steady green state indicates a normal Layer 2 link connection has been established. Activity—On the lower-left corner of the RJ45. Yellow blinking indicates data activity. Figure 6 Font ViewThere are two LEDs on the front of the system: Status and Radio.LED descriptions:•Status—The overall status of the system. There are five states for this LED: — Quick blinking green: The system is booting up.— Solid green: When the operating system starts successfully, the LED turns to solid green indicating normal behavior.— Red: If the operating system cannot boot up, the LED turns to solid red indicating a fault condition.— Slow blinking green: The system is administratively disabled. — Off: The system is powered down.•Radio—The radio indicator. There are four states for this LED: — Solid green: The radio is in normal UMTS transmitting mode.— Blinking green: The radio is in receiving mode (network monitoring).— Red: A radio fault has occurred. — Off: The radio is idle (not transmitting, not receiving).RADIOSTATUS

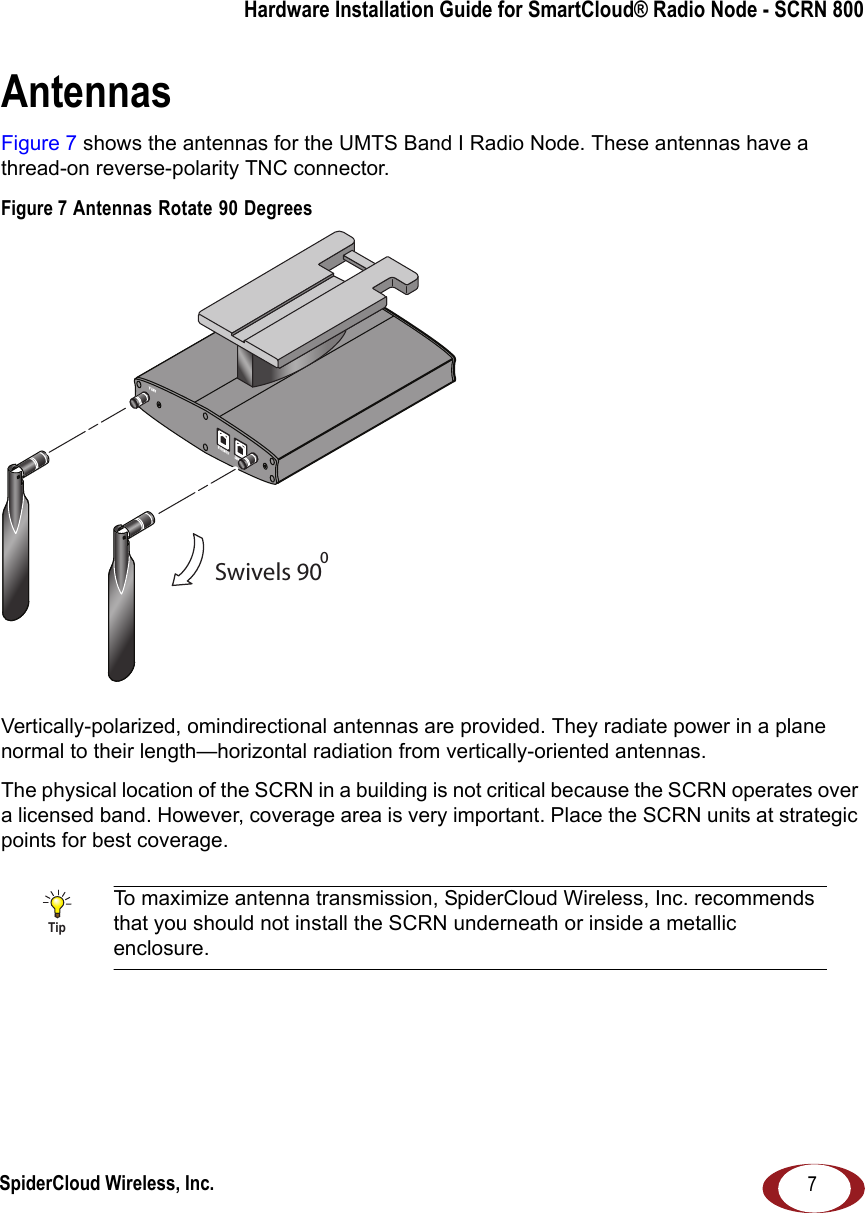

SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 8007AntennasFigure 7 shows the antennas for the UMTS Band I Radio Node. These antennas have a thread-on reverse-polarity TNC connector.Figure 7 Antennas Rotate 90 DegreesVertically-polarized, omindirectional antennas are provided. They radiate power in a plane normal to their length—horizontal radiation from vertically-oriented antennas.The physical location of the SCRN in a building is not critical because the SCRN operates over a licensed band. However, coverage area is very important. Place the SCRN units at strategic points for best coverage.TipTo maximize antenna transmission, SpiderCloud Wireless, Inc. recommends that you should not install the SCRN underneath or inside a metallic enclosure.Swivels 900ANT BANT AETHERNETCONSOLE

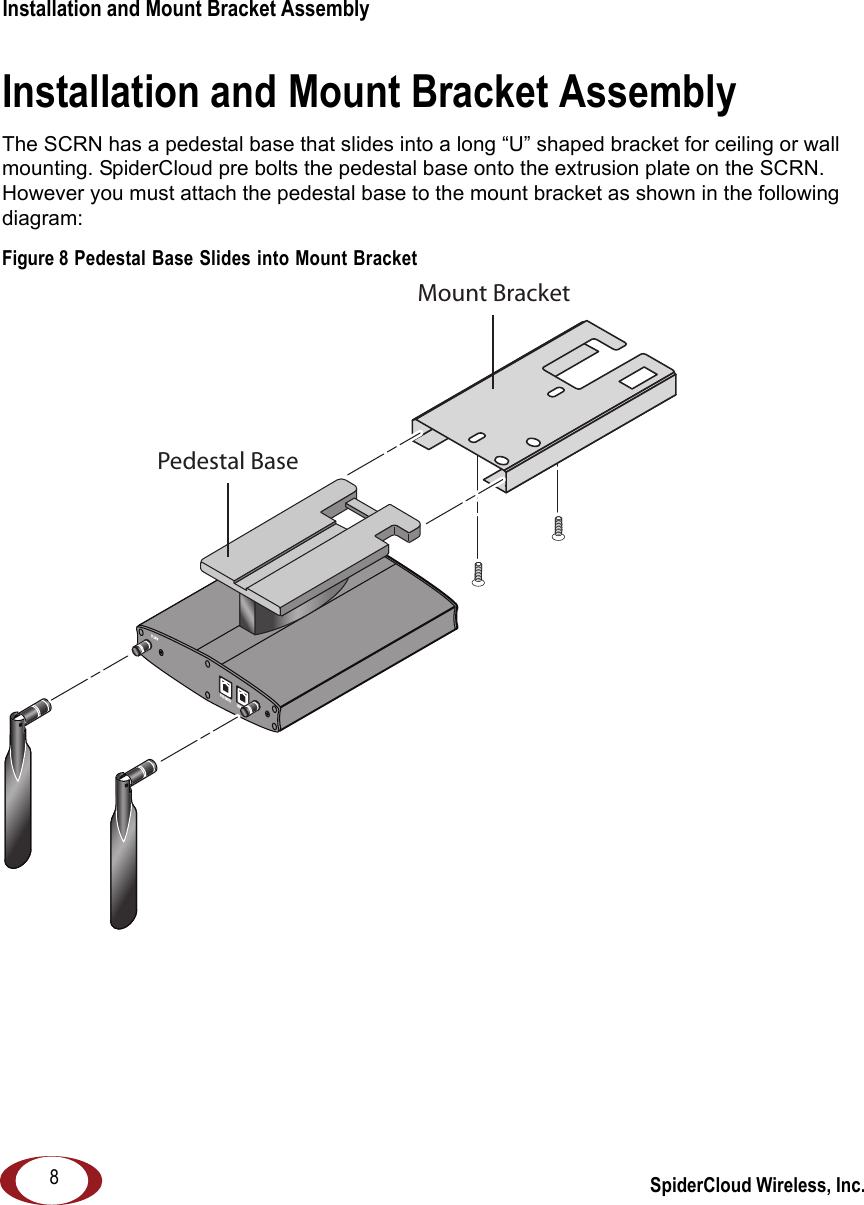

SpiderCloud Wireless, Inc.Installation and Mount Bracket Assembly 8Installation and Mount Bracket AssemblyThe SCRN has a pedestal base that slides into a long “U” shaped bracket for ceiling or wall mounting. SpiderCloud pre bolts the pedestal base onto the extrusion plate on the SCRN. However you must attach the pedestal base to the mount bracket as shown in the following diagram:Figure 8 Pedestal Base Slides into Mount BracketANT BANT AETHERNETCONSOLEMount BracketPedestal Base

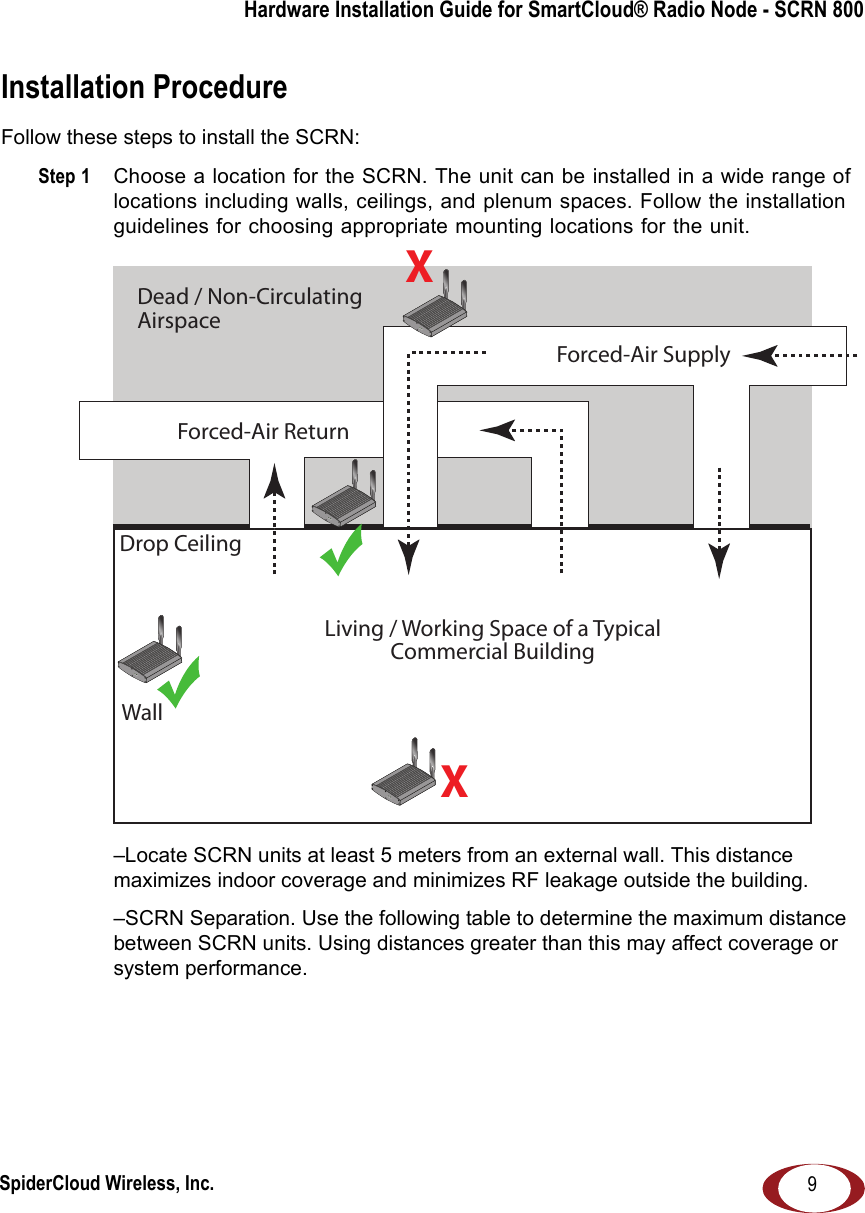

SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 8009Installation ProcedureFollow these steps to install the SCRN:Step 1 Choose a location for the SCRN. The unit can be installed in a wide range of locations including walls, ceilings, and plenum spaces. Follow the installation guidelines for choosing appropriate mounting locations for the unit.–Locate SCRN units at least 5 meters from an external wall. This distance maximizes indoor coverage and minimizes RF leakage outside the building.–SCRN Separation. Use the following table to determine the maximum distance between SCRN units. Using distances greater than this may affect coverage or system performance.RADIOSTATUSRADIOSTATUSDead / Non-CirculatingAirspaceLiving / Working Space of a TypicalCommercial BuildingDrop CeilingWallXXForced-Air SupplyForced-Air ReturnRADIOSTATUSRADIOSTATUS

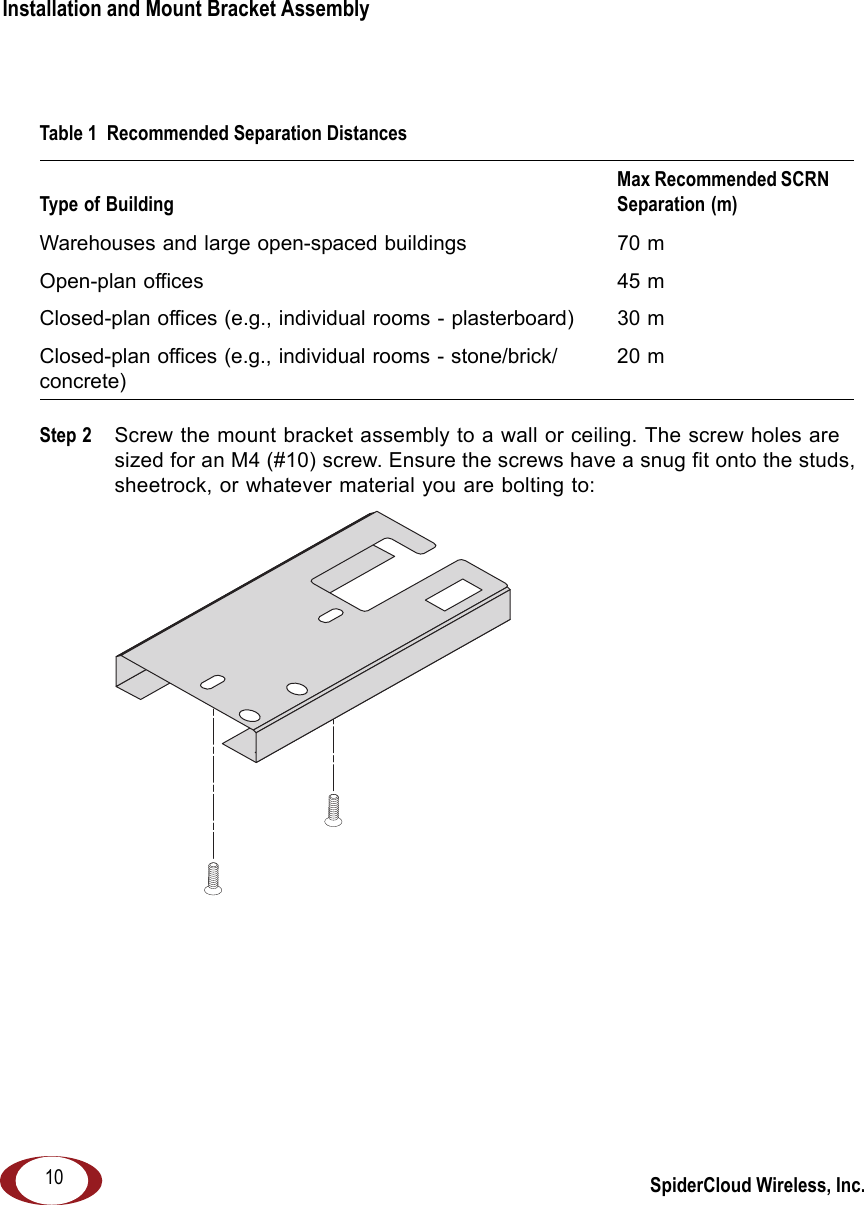

SpiderCloud Wireless, Inc.Installation and Mount Bracket Assembly 10Step 2 Screw the mount bracket assembly to a wall or ceiling. The screw holes are sized for an M4 (#10) screw. Ensure the screws have a snug fit onto the studs, sheetrock, or whatever material you are bolting to:Table 1 Recommended Separation DistancesType of BuildingMax Recommended SCRN Separation (m)Warehouses and large open-spaced buildings 70 mOpen-plan offices 45 mClosed-plan offices (e.g., individual rooms - plasterboard) 30 mClosed-plan offices (e.g., individual rooms - stone/brick/concrete)20 m

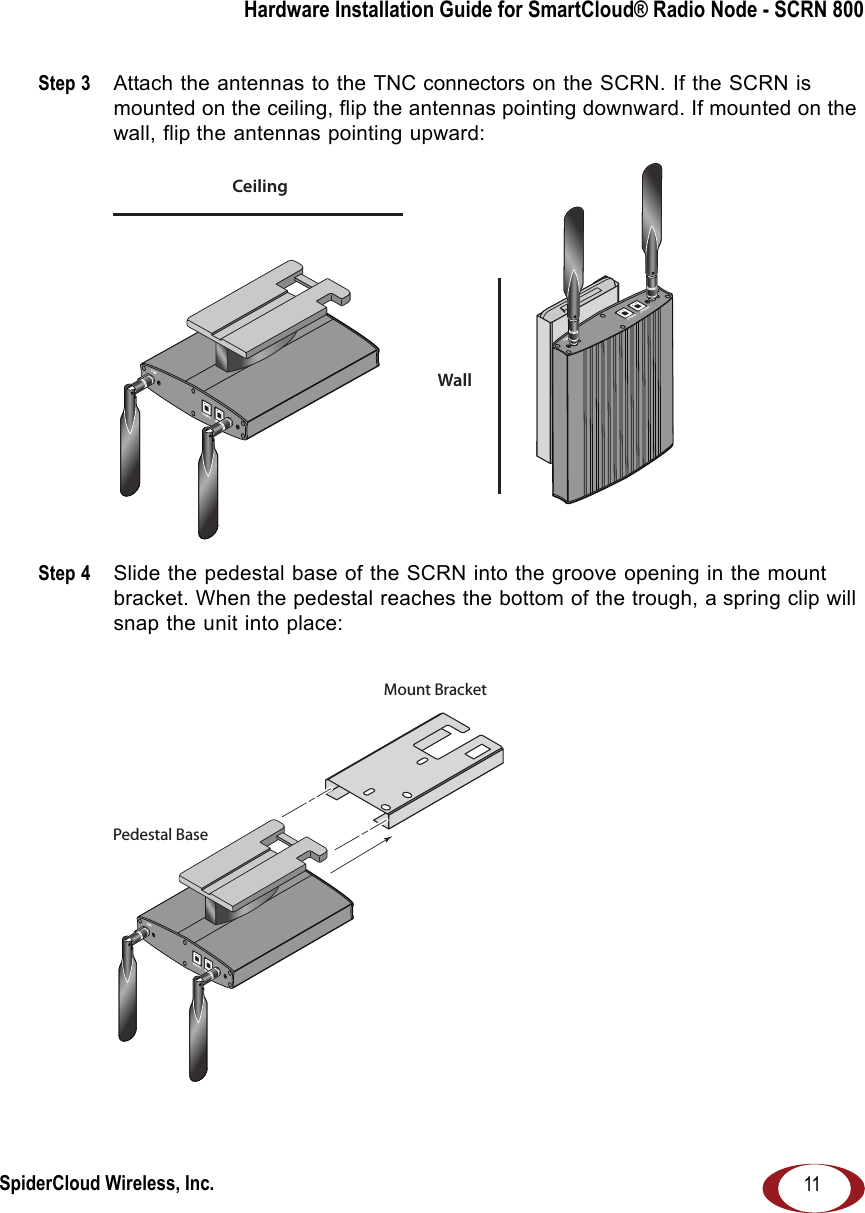

SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 80011Step 3 Attach the antennas to the TNC connectors on the SCRN. If the SCRN is mounted on the ceiling, flip the antennas pointing downward. If mounted on the wall, flip the antennas pointing upward:Step 4 Slide the pedestal base of the SCRN into the groove opening in the mount bracket. When the pedestal reaches the bottom of the trough, a spring clip will snap the unit into place:ANT BANT AETHERNETCONSOLEANT BANT AETHERNET CONSOLECeilingWallMount BracketPedestal BaseANT BANT AETHERNETCONSOLE

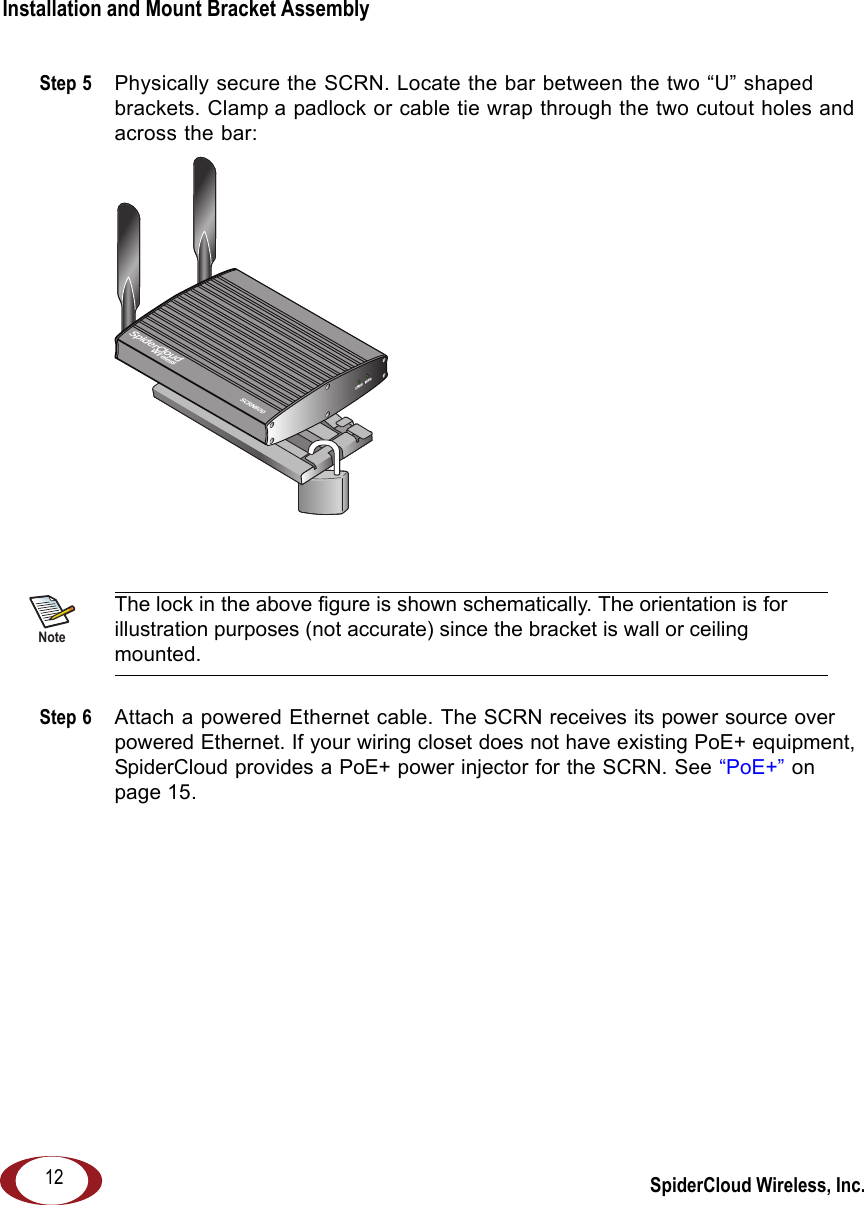

SpiderCloud Wireless, Inc.Installation and Mount Bracket Assembly 12Step 5 Physically secure the SCRN. Locate the bar between the two “U” shaped brackets. Clamp a padlock or cable tie wrap through the two cutout holes and across the bar:Step 6 Attach a powered Ethernet cable. The SCRN receives its power source over powered Ethernet. If your wiring closet does not have existing PoE+ equipment, SpiderCloud provides a PoE+ power injector for the SCRN. See “PoE+” on page 15.NoteThe lock in the above figure is shown schematically. The orientation is for illustration purposes (not accurate) since the bracket is wall or ceiling mounted.RADIOSTATUSSpiderCloudWirelessSCRN800

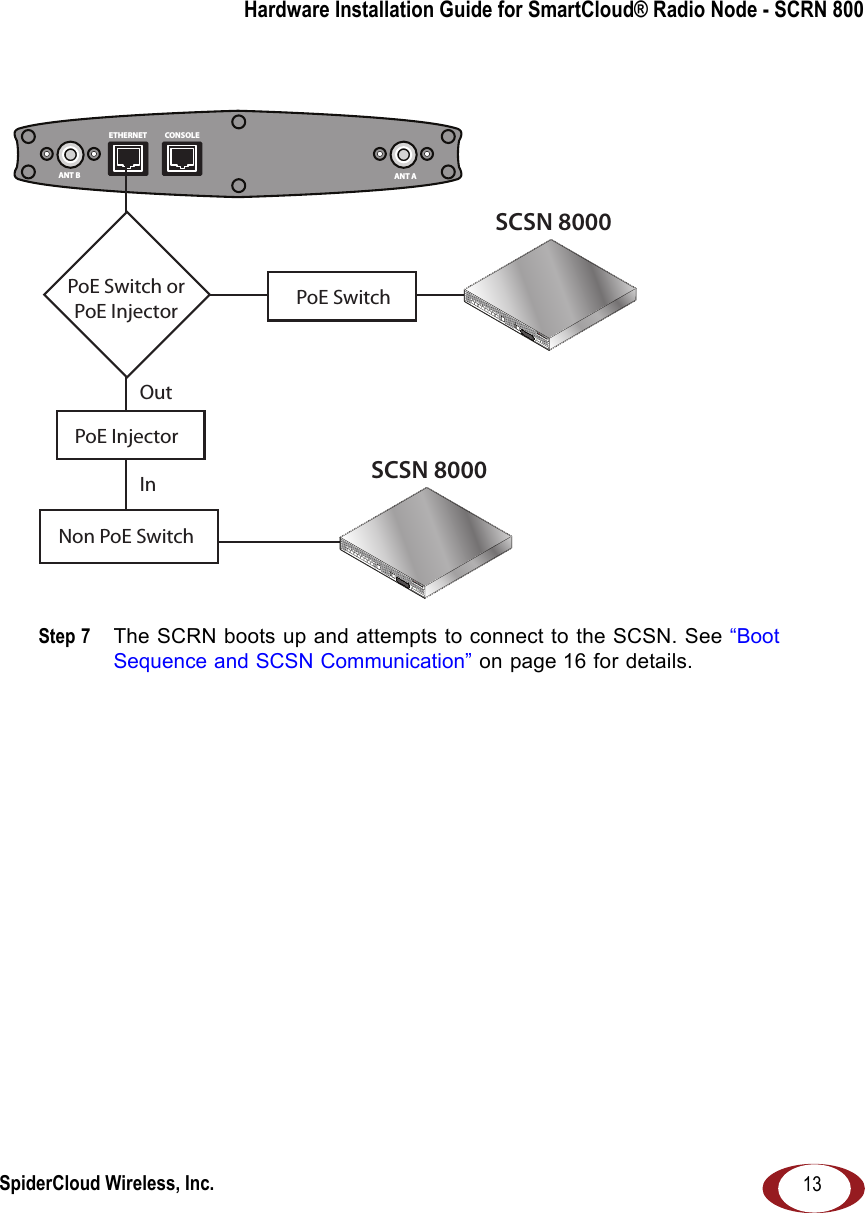

SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 80013Step 7 The SCRN boots up and attempts to connect to the SCSN. See “Boot Sequence and SCSN Communication” on page 16 for details.SCSN 8000PoE SwitchOutInANT B ANT AETHERNET CONSOLESCSN 8000PoE Switch orPoE InjectorPoE InjectorNon PoE Switch

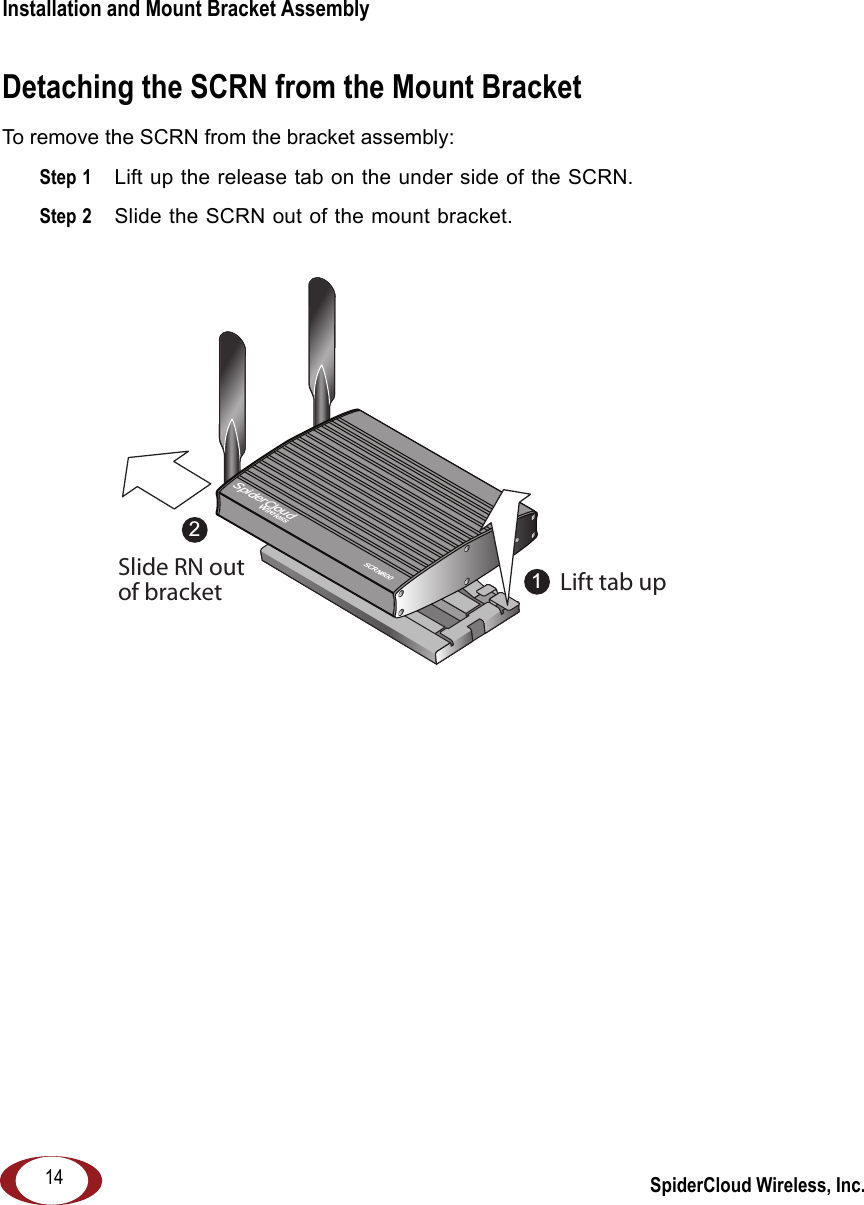

SpiderCloud Wireless, Inc.Installation and Mount Bracket Assembly 14Detaching the SCRN from the Mount BracketTo remove the SCRN from the bracket assembly:Step 1 Lift up the release tab on the under side of the SCRN.Step 2 Slide the SCRN out of the mount bracket.RADIOSTATUSSpiderCloudWirelessSCRN800Lift tab upSlide RN out of bracket12

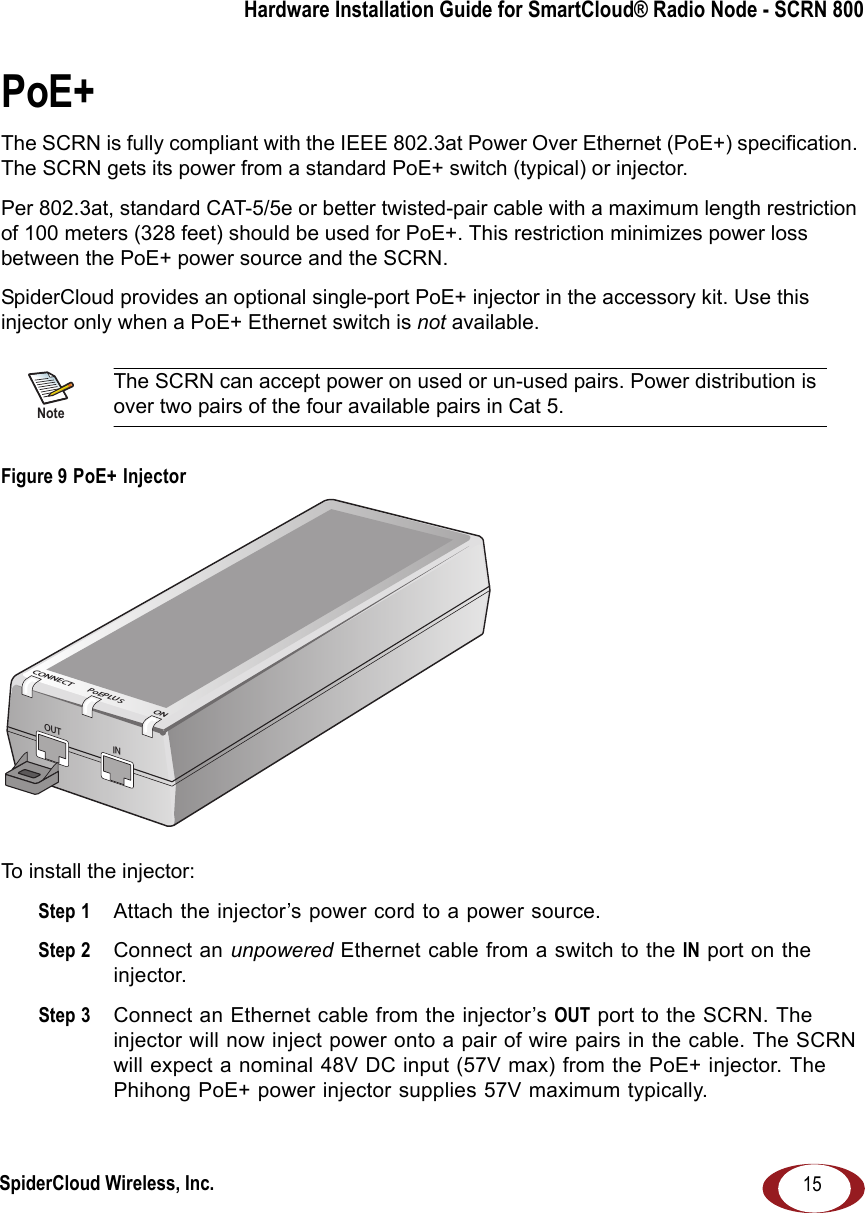

SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 80015PoE+The SCRN is fully compliant with the IEEE 802.3at Power Over Ethernet (PoE+) specification. The SCRN gets its power from a standard PoE+ switch (typical) or injector.Per 802.3at, standard CAT-5/5e or better twisted-pair cable with a maximum length restriction of 100 meters (328 feet) should be used for PoE+. This restriction minimizes power loss between the PoE+ power source and the SCRN. SpiderCloud provides an optional single-port PoE+ injector in the accessory kit. Use this injector only when a PoE+ Ethernet switch is not available. Figure 9 PoE+ Injector To install the injector:Step 1 Attach the injector’s power cord to a power source.Step 2 Connect an unpowered Ethernet cable from a switch to the IN port on the injector. Step 3 Connect an Ethernet cable from the injector’s OUT port to the SCRN. The injector will now inject power onto a pair of wire pairs in the cable. The SCRN will expect a nominal 48V DC input (57V max) from the PoE+ injector. The Phihong PoE+ power injector supplies 57V maximum typically.NoteThe SCRN can accept power on used or un-used pairs. Power distribution is over two pairs of the four available pairs in Cat 5.OUT INCONNECTPoEPLUSON

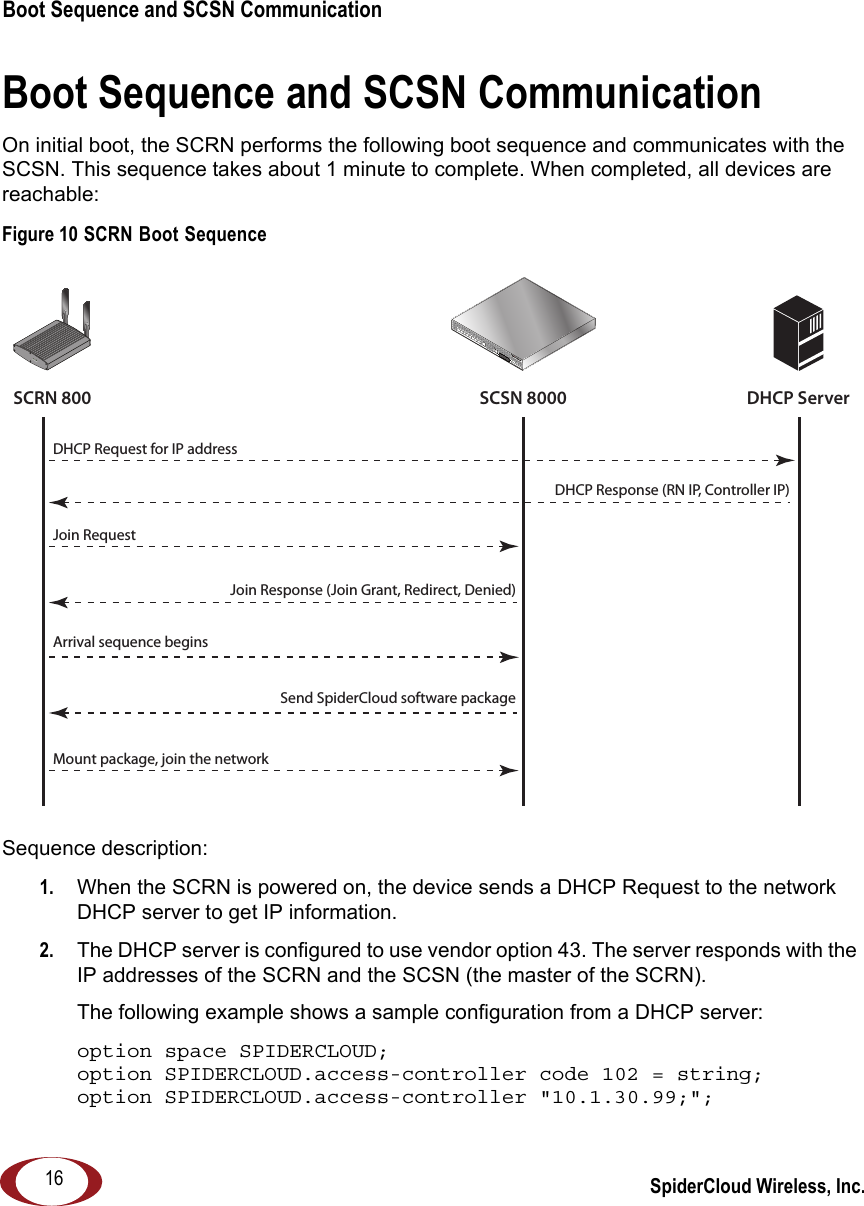

SpiderCloud Wireless, Inc.Boot Sequence and SCSN Communication 16Boot Sequence and SCSN CommunicationOn initial boot, the SCRN performs the following boot sequence and communicates with the SCSN. This sequence takes about 1 minute to complete. When completed, all devices are reachable:Figure 10 SCRN Boot SequenceSequence description:1. When the SCRN is powered on, the device sends a DHCP Request to the network DHCP server to get IP information. 2. The DHCP server is configured to use vendor option 43. The server responds with the IP addresses of the SCRN and the SCSN (the master of the SCRN).The following example shows a sample configuration from a DHCP server:option space SPIDERCLOUD;option SPIDERCLOUD.access-controller code 102 = string;option SPIDERCLOUD.access-controller "10.1.30.99;";SCRN 800SCSN 8000 DHCP ServerRADIOSTATUSDHCP Request for IP addressDHCP Response (RN IP, Controller IP)Mount package, join the networkJoin RequestArrival sequence beginsJoin Response (Join Grant, Redirect, Denied)Send SpiderCloud software package
SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 800173. Using its own IP address, the SCRN sends a Join Request message to the SCSN. The SCRN seeks to join the cellular network. 4. The Join Response from the SCSN will be one of the following:—Join Grant: Permit the SCRN to join the SCSN.—Redirect: Redirect the SCRN to join a different SCSN, if you have multiple SCSN units configured in the network. —Denied: The security signature on the SCRN does not match what the SCSN expects. The client is untrusted and treated as a rogue device. 5. The arrival sequence begins. Based on the configuration of the SCRN, the SCRN will join the system and get its configuration. The SCSN sends the SpiderCloud software image (the system image and configuration settings) to the SCRN. 6. The SCRN reboots and mounts the SpiderCloud software image as a RAM-based file system. 7. The SCRN contacts the SCSN and joins the network.Related DocumentsSee the following documents for more information:•SmartCloud® CLI Quick Start Guide Release 1.4 to configure the software environment and internetworking between the SCSN and SCRN devices.•See the Hardware Installation Guide for SmartCloud® Services Node - SCSN 8000 for hardware specifications and installation instructions.•SCOS NB Data Model Reference for reference details about Operational Mode and Configuration Mode commands.
SpiderCloud Wireless, Inc.Hardware Installation Guide for SmartCloud® Radio Node - SCRN 80018

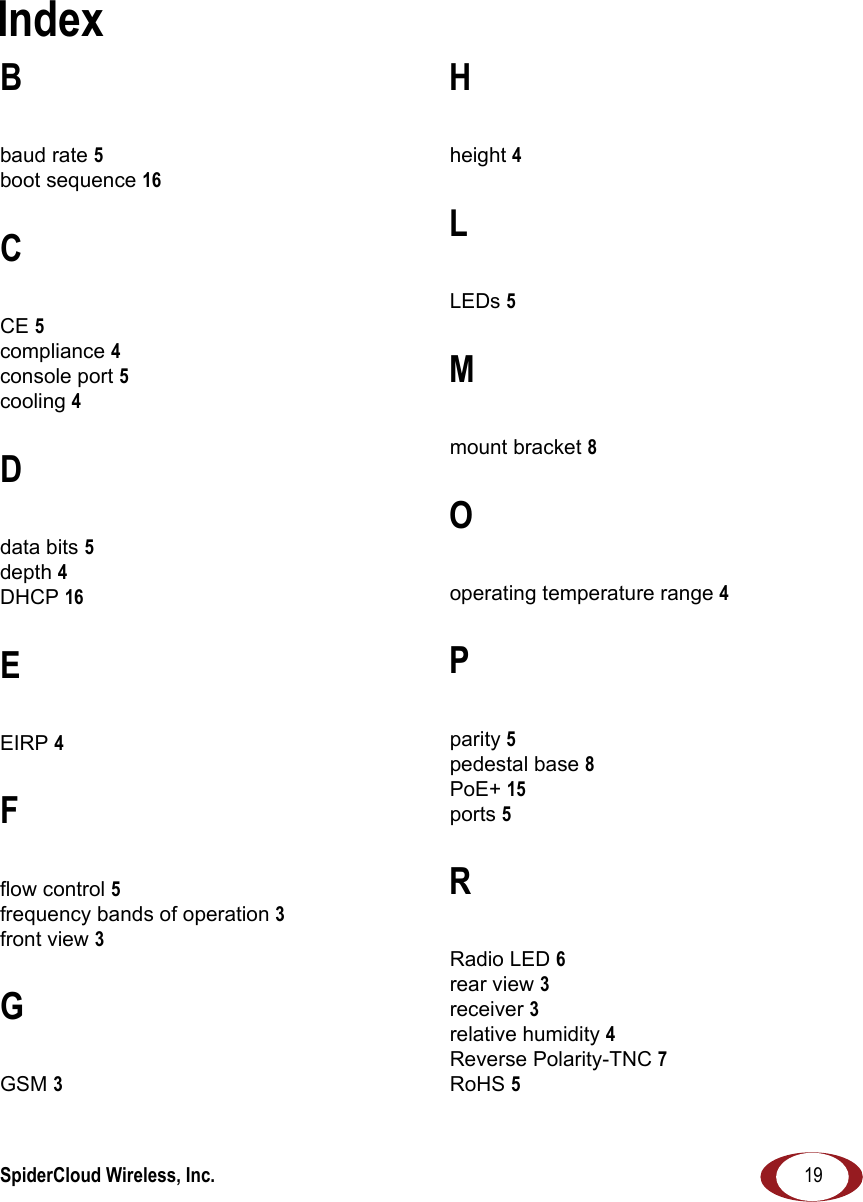

SpiderCloud Wireless, Inc. 19Bbaud rate 5boot sequence 16CCE 5compliance 4console port 5cooling 4Ddata bits 5depth 4DHCP 16EEIRP 4Fflow control 5frequency bands of operation 3front view 3GGSM 3Hheight 4LLEDs 5Mmount bracket 8Ooperating temperature range 4Pparity 5pedestal base 8PoE+ 15ports 5RRadio LED 6rear view 3receiver 3relative humidity 4Reverse Polarity-TNC 7RoHS 5Index
SpiderCloud Wireless, Inc.Index20Sscrews 10separation distances 10shock 4Status LED 6stop bits 5storage temperature range 4system diagrams 2Ttransmitter 3Vvibration 4Wweight 4width 4
