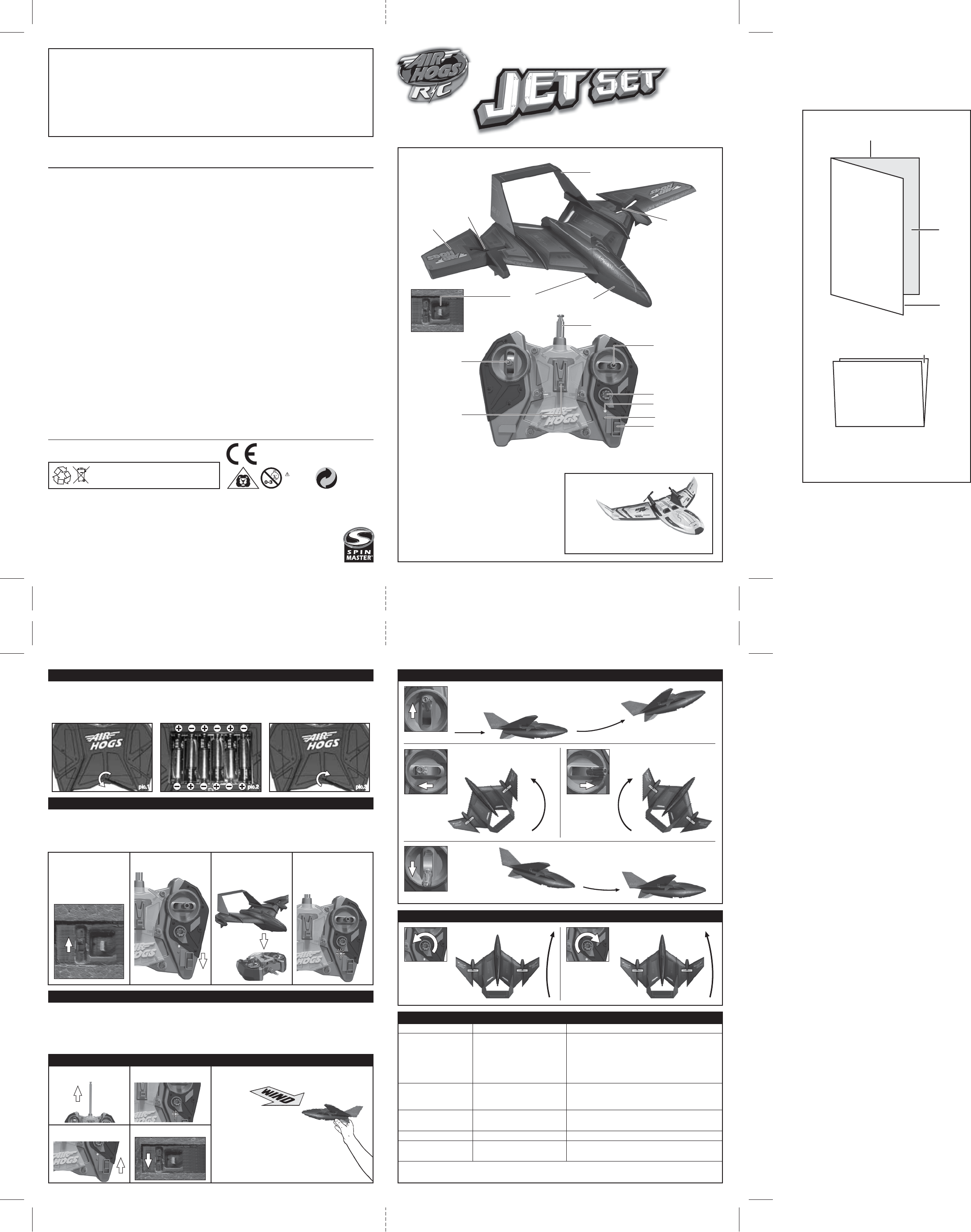

Spin Master Toys Far East 44398TX27145 ARH Jet Set II User Manual T44398 0001 20035757 GTL IS R1R1 eng
Spin Master Toys Far East Ltd. ARH Jet Set II T44398 0001 20035757 GTL IS R1R1 eng
Users Manual
®
TM
8-10
YRS
INSTRUCTION GUIDE
Contents:
1 Air Hogs® Jet
2 Spare Props
1
Remote Control/Charger
1 Antenna
1
User Instruc
tion Guide
Air Hogs®, related trademarks and © 2010 Spin Master Ltd. All rights
reserved. Manufactured for and distributed by Spin Master Ltd. This
product conforms to safety requirements of ASTM F963, EN71 &
CHPA. • Please retain this information for future reference. • Please
remove all packaging materials before giving to children. • An adult
should periodically check this toy to ensure no damage or hazards
exist, if so, remove from use. • Children should be supervised during
play. • Keep addresses and phone numbers for future reference.
• The item inside this package may vary from the photographs
and/or illustrations. Patent Pending. MADE IN CHINA.
20035757, 20032411 GTL English REV 0
T44398_0001_20035757_GTL_IS_R1R1
Spin Master Ltd., 450 Front Street West, Toronto, ON M5V 1B6 Canada
Customer Care: 1-800-622-8339 Fax: 416-364-8005 Web: www.spinmaster.com
Email: customercare@spinmaster.com
Spin Master Inc., PMB #10053, 300 International Drive, Suite 100, Williamsville,
NY 14221, USA
Spin Master Toys Far East Limited, Rm #1113, 11/F, Chinachem Golden Plaza,
77 Mody Rd., Tsimshatsui E., Kowloon, HK
Spin Master Toys UK Ltd., Riverhead House, Boston Drive, Bourne End,
Buckinghamshire, SL8 5YS, United Kingdom
Customer Service: 01628 535 000 Email: ukservice@spinmaster.com
Spin Master France – 59/60 Quai Le Gallo – 92100 Boulogne-Billancourt – France
Service Après-Vente – Numéro vert : 0800 803 355 ou
E-mail : Jouets@spinmaster.com – Site internet : www.spinmaster.fr
BATTERY SAFETY INFORMATION:
• Requires 6 x 1.5-V AA batteries (not included).
• Batteries are small objects.
• Replacement of batteries must be done by adults.
• Follow the polarity (+/-) diagram in the battery
compartment.
• Promptly remove dead batteries from the toy.
• Dispose of used batteries properly.
• Remove batteries for prolonged storage.s
• DO NOT incinerate used batteries.
• DO NOT dispose of batteries in fire, as batteries
may explode or leak.
• DO NOT mix old and new batteries or types of
batteries (i.e. alkaline/standard).
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
• DO NOT short-circuit the supply terminals.
Your Air Hogs® Jet Set™ is equipped with a
Lithium Polymer battery.
SPECIAL LiPo BATTERY INSTRUCTIONS:
• Never charge battery unattended.
• Charge battery in isolated area. Keep away from flammable materials.
• Do not expose to direct sunlight.
• There is a risk of the batteries exploding, overheating, or igniting. Do not
disassemble, modify heat, or short circuit the batteries. Do not place them in
fires or leave them in hot places.
• Do not drop or subject to strong impacts.
• Do not allow the batteries to get wet.
• Only charge the batteries with the specified Spin Master™ battery charger.
• Only use the batteries in the device specified by Spin Master™.
• Carefully read the instruction guide, and use the batteries correctly.
• In the unlikely event of leakage or explosion use sand or a chemical fire
extinguisher for the battery.
• Batteries must be recycled or disposed of properly.
PRODUCT BATTERY REMOVAL INSTRUCTIONS: Internal battery is factory installed, product disassembly and battery removal must
be performed by an adult. Do not use any tools for disassembly. Pulling, tearing, and deforming of the product during disassembly,
while necessary, should be as limited as possible. Do not compress the product at any time. Ensure product is turned off. Find a
point where the two body halves meet; the nose of the aircraft or where the wing meets the body. Start to peel the halves apart,
separating them where they are glued together; remove any tape as necessary. Separate product body halves to expose internal
electronics. To separate battery from product use scissors to cut a single battery wire, immediately wrap the cut wire end with tape
to isolate it, repeat until all battery wires are cut and isolated. Dispose of battery in accordance with your local battery recycling or
disposal laws. NOTE: Opening of product and/or removal of battery will render product inoperative and voids manufacturer
warranties, dispose of remaining product components in accordance with local laws.
4 1
2 3
This product complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for
Class B digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference to radio communications. Because this toy generates, uses, and can radiate radio frequency energy, there
can be no guarantee that interference will not occur. if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. If this toy does cause interference to radio or television reception (you can
check this by turning the toy off and on while listening for the interference), one or more of the following measures may be
useful: • Reorient or relocate the receiving antenna • Increase the separation between the toy and the radio or the TV • Consult
the dealer or an experienced TV-radio technician for help. NOTE: Changes, adjustments or modifications to this unit, including
but not limited to, replacement of any transmitter component (crystal, semiconductor, etc.) could result in a violation of FCC
rules under part 15 and/or 95 and must be expressly approved by Spin Master Ltd. or they could void the user’s authority to
operate the equipment.
ALSO AVAILABLE
Your Jet Set™ may appear
different than the one illustrated in
the following instructions, however it
functions the same.
Experience radio-controlled flight with the
Air Hogs® Jet Set™! The Jet Set™ makes
flying fun & easy! Just choose the direction
you want to fly and move the controller throttle
stick. The ultra-light Jet Set™ is powered by a
lithium polymer battery for long flights, features
precision speed control and damage-resistant
foam. The Jet Set™ also includes an
integrated controller/charger unit for
convenient portability and easy handling on
the field. Perfect for outdoor flights.
Fuselage
Jet Set™
Controller/Charger
Main Wing Propeller
Propeller
Tail Wing
Antenna
Throttle
Stick
(Speed
Control)
Power Indicator
Direction Stick
(LEFT/RIGHT)
Charging Indicator
Steering Trim Knob
Power Switch
(ON/OFF/CHG)
Charge
Rod
Charge
Port
HOW TO INSTALL YOUR BATTERIES CONTROLLING JET FLIGHT
TRIMMING YOUR JET
HOW TO CHARGE YOUR JET SET™
PRE-FLIGHT ENVIRONMENT CHECK
TROUBLESHOOTING
BATTERY INSTALLATION – CONTROLLER/CHARGER
1. Open the battery door with a screwdriver (pic.1). 2. If used batteries are present, remove these batteries from the
unit by pulling up on one end of each battery. 3. Install new batteries as shown in the polarity diagram (+/-) inside the
battery compartment (pic.2). 4. Replace battery door securely (pic.3). 5. Check your local laws and regulations for
correct recycling and/or battery disposal.
IMPORTANT CHARGING INFORMATION
• Before taking your initial flight, charge the plane for a complete charge cycle on your charger.
• Depending upon the length of future play, you will not need to complete a full charge before each flight.
NOTE: A shortened charge results in a shorter playtime (may take up to 30-40 minutes to fully charge).
For best performance, use new batteries only and let motor cool for 10-15 minutes between charges.
1. Location – Fly in a large wide-open, grassy location that is free of buildings, trees, overhead wires, and other
obstructions. Do not fly near people or animals.
2. Weather – Fly on mild, sunny days. Do not fly in electrical storms, rain, sleet, snow or other adverse weather
conditions. Do not fly if the temperature is below 7°C/45°F. In very cold temperatures, the plane will become fragile
and the engine performance will decrease.
3. Wind Conditions – Do not fly in strong wind. Strong winds may overpower the jet and make it difficult to control.
In windy conditions, it may appear as though you have no control over the jet.
pic.1pic.1 pic.2pic.2 pic.3pic.3
1. Set the switch on the
jet to OFF.
2. Set the controller/
charger switch to CHG.
3. Insert charge rod of
controller/charger into
charge plug of jet
aligning jet with charger
as shown.
4. The charging LED will
flash. When charging is
complete, both charge and
power indicators will flash
concurrently. Remove jet
from controller/charger.
1. Fully extend controller/
charger antenna.
3. Power indicator will
light up.
5. When launching the
jet, use partial throttle.
Refrain from
using the
directional
stick at initial
launch. Launch
the jet into the wind
and parallel to the
ground. When
preparing for
take off, check the
direction of the wind.
Always launch your plane
into the wind for the best take off
and flight results.
2. Set controller/
charger switch to ON.
4. Set jets’ switch to ON.
PROBLEM
Jet will not start or has
low power.
Jet will not turn.
Jet is flying too low.
Jet is flying too high.
Motors don’t stop when
controller/charger is
turned OFF.
CAUSE
1. Jet not charged.
2. Battery power is drained.
3. Jet was not set to OFF during
charging.
4. Controller/charger was not set
to CHG while trying to charge.
1. Controller/charger is not ON.
2. Controller/charger antenna is
not extended.
3. It’s a windy day.
1. Needs more power.
2. The six AA batteries in the
controller/charger are drained.
1. Need to decrease power.
1. Jet is still set to full throttle.
SOLUTION
1. Charge jet for a complete charge cycle.
2. Replace the controller/charger batteries after
approximately 8 to 10 flights.
3. The jet won’t accept a charge in the ON position.
Always set to OFF before charging.
4. The controller/charger will NOT charge in the OFF
or ON position. Always set the controller/charger to
CHG before attempting to charge.
1. Set controller/charger to ON.
2. Fully extend controller/charger antenna before flying.
3. Do not fly in strong winds. Strong windy conditions will
limit and prevent your ability to control the jet.
1. Push the throttle UP.
2. Charge jet for a complete charge cycle or, if batteries
are completely drained, replace batteries.
1. Pull the throttle DOWN.
1. Turn controller/charger ON, reduce throttle to 0 and
turn OFF.
NOTE: If normal function of the product is disturbed or interrupted, strong electro-magnetic interference may be causing the
issue. To reset product, turn it completely off, then turn it back on. If normal operation does not resume, move the product to
another location and try again. To ensure normal performance, change the batteries, as low batteries may not allow full function.
1. To make the jet climb, move the throttle
stick forward. Too much throttle can cause
a stall. To ACCELERATE upwards, move
the throttle stick further UP.
2. To FLY LEFT,
move the direction
stick left.
4. To LAND,
select a soft
grassy area
and pull the
throttle stick
back slowly.
If the jet turns
right involuntarily,
turn the trim knob
to the left until the
jet flies straight.
3. To FLY RIGHT,
move the direction
stick right.
If the jet turns left
involuntarily, turn
the trim knob to
the right until the
jet flies straight.
CANADIAN RSS-310 statement: This Category II radio communication device complies with Industry Canada
Standard RSS-310.
FLYING INSTRUCTIONS
Contains LiPo battery pack. • Battery pack must be recycled or disposed of properly.
• If at any time in the future you should need to dispose of this product please note
that Waste Electrical Products should NOT be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice. (Waste Electrical and Electronic Equipment Directive).
Warning!
Choking Hazard.
Small parts.
Hereby, Spin Master Ltd., declares that this Jet Set™ is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC. <http://www.airhogs.com>
Carrier frequency: 27.145MHz Field strength: 67.4dBuV/m at 3m.
1
4
3
2
4
1
Folding
Instructions
Fold 1
Fold 2
