Spire Technology NETIMIZERPM-12 Multi Port Mobile DM Device User Manual Solutions Introduction for NOKIA
SPIRE TECHNOLOGY INC. Multi Port Mobile DM Device Solutions Introduction for NOKIA
User Manual
Applied intelligence.
NETIMIZER PM-12
Dec. 2015

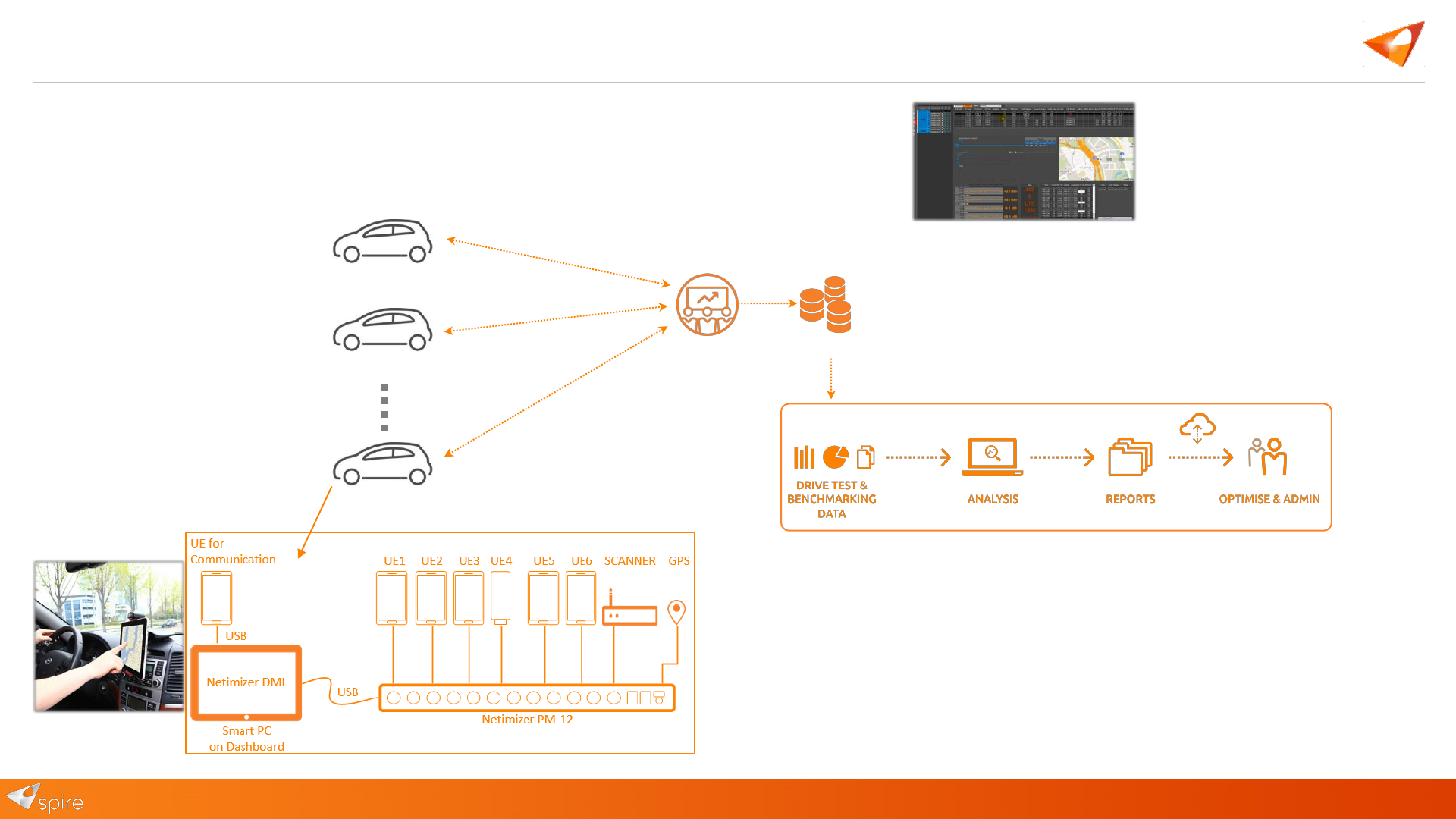

System Configuration
Proposed system configuration
DT team #1
DT team #2
DT team #100
1 car + 1 driver + 1 system
NETIMIZER DML + PM12
•Controlled by RCS, or driver
•Real-time report to RCS
•Log file upload to RCS
NETIMIZER RCS
•Remote Control Server
•Control DMLs by remote
•Receive KPIs and events from DMLs
•Monitor multiple DMLs by remote
UIs: Map, Chart, Table, Time Graph, Dashboard, etc.
•Manage uploaded log files from DMLs
Log files from DT teams
NETIMIZER DMA
•In-detail log analysis for troubleshooting
•Auto report generation
•Customized report generation for Nokia

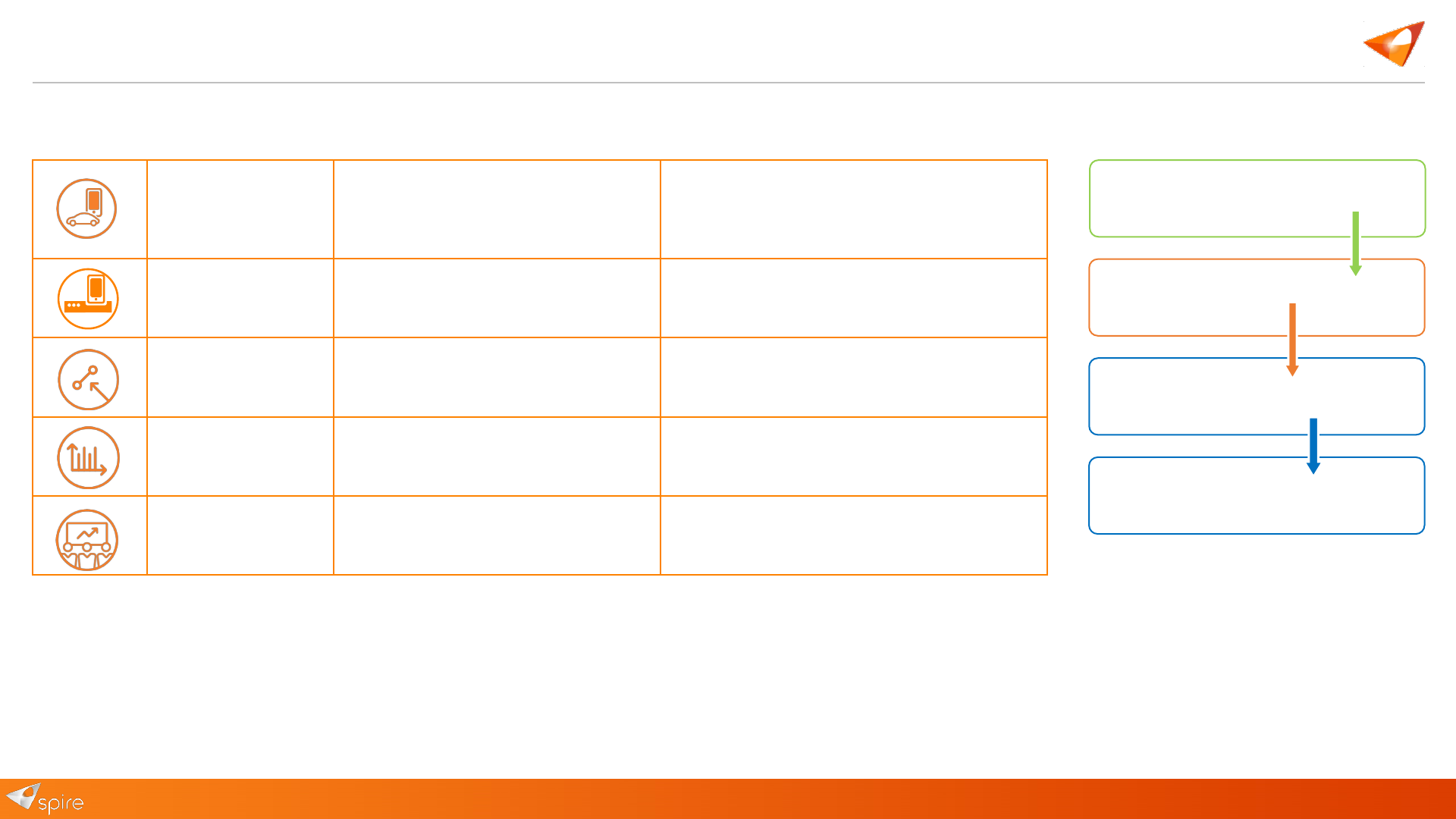

Solution
Workflow
Solutions — LTE Field Test, Remote Control/Monitoring, Server-based Data Analysis, Auto Report Generation, In-Detail Analysis for Troubleshooting, etc.
NETIMIZER DML
Drive Test Tool (max 12 UEs)
Use commercial phones as it is
Outdoor, Indoor(with indoor backpack)
No rooted device required
MOS test (1 POLQA license for multiple mobiles),
Data test
NETIMIZER PM12
Voice call QoE test device for 12 mobiles
Easy multiple device management
Drive-test and indoor test
For benchmark test
For simultaneous test with multiple service types
Any mobiles in the market
NETIMIZER RCS
Remote Control & Monitoring Server
Works with DML
Automatic report generation
For remote control/monitor
NETIMIZER DMA
Analysis tool
In-depth analysis
One-click report generation
For detail analysis
PANDORA
Web-based nation-wide analysis server
Pandora-Enterprise - Overview
Pandora-DV – Detail view
Automatic 1st level parsing, KPI calculation
Automatic report generation
Detail analysis with Netimizer DMA
12
DMA
○In-depth analysis
○Auto report generation
PANDORA
○Web-based nation-wide analysis
○Auto report generation
DML + PM12
○Outdoor, Indoor
○DM, QoE
RCS
○Real-time remote control, monitor
○Team management
Log file download
for detail analysis
Remote control/monitor
Log file upload
Proposed Products and Features
Netimizer DML + Netimizer PM12
The world’s smallest benchmark tool
Key Features
•12 mobiles support
•Comprehensive drive-test and in-building features
•Real-time UE measurement, logging and display
•Simple measurement plan (Data, Voice, MOS)
•Compatible with all technologies, from 2G to LTE and LTE-A
•In-depth diagnostic user-interface for experienced users
•Straightforward and stable device connection
•Full Log Mask
•Layer 1/2/3 message logging / display / parsing / analysis
•ITU-certified voice quality analysis ITU P.862, P.862.1 and P.863 (POLQA)
DEVICES
x12
GPS
SCANNER
PCTEL, R&S
PM12 NETIMIZER DML
QoS APPLICATIONS NETWORK
OPERATORS FREQUENCY TECHNOLOGY
RF KPIs
Voice MOS
Smartphones
Etc.
RF KPIs
Voice
FTP
HTTP
Ping
Email
Etc.
Operator A
Operator B
Operator C
Operator D
Operator E
Etc.
Band A
Band B
Band C
Band D
Band E
Etc.
LTE-A
LTE
WiMAX
DC-HSDPA
HSPA+
HSUPA
HSDPA
WCDMA
2G (GSM/CDMA)
Item
Specifications
PM12
322(W) x 145 (D) x 36(H) mm, 700 g
Cable
110 cm, 110 g, USB 2.0 or USB 3.0
Input power
DC 12V, 5A (AC/DC adaptor, or battery)
L.P.S (Limited Power Source)
Port
x12 ports for mobile (x8 USB 2.0, x4 USB 3.0),
x1 extra USB 2.0 port
PC interface
x1 USB 2.0, x1 USB 3.0
Laptop spec.
Intel Core i7-4720HQ @ 2.60GHz or higher,
8GB RAM or more, SSD, Windows 7/8/10
NETIMIZER PM12 specification
Benefits
•Battery pack operates for five hours, fully loaded
•A scalable platform that supports up to twelve (x12) test mobiles simultaneously
•When PM12 is combined with PANDORA QoS, it can assess and audit network performance
•This results in:
‐Seamless network application testing
‐Reduced costs, with a single, scalable platform
‐Improved test detail and precision
‐Easy management of significant live services
‐Enhanced time-to-market for new services
‐Smartphone-friendly
‐Upload KPIs and test results in real time
‐Conduct standards-based Voice MOS tests
•Supports HSUPA, EVDO Rev.A, Rev.B, CDMA2000, GSM, EDGE, GPRS, WCDMA, HSDPA, HSUPA, HSPA+,
DC-HSDPA, WiMax, LTE (TDD and FDD) and LTE-A
•Bluetooth/MOS cable-friendly
•Compatible with a variety of handsets
Netimizer DML + PM12
PM12 – most efficient benchmarking device – up to 12 mobiles
Item
Minimum Requirements
Recommended Requirements
CPU
Intel Core i7-4710MQ @ 2.50GHz or higher
Intel Core i7-4720HQ @ 2.60GHz or higher
RAM
8GB or more
8GB or more
Storage
7,200 RPM HDD or faster (write speed 80MB/s
or faster)
SSD (write speed 300MB/s or faster)
LCD
1920 x 1080
1920 x 1080 or higher
Operating
System
Windows 7, 8, or 10
Windows 7, 8, or 10
Interface
x1 USB 2.0, x1 USB 3.0
x1 USB 2.0, x1 USB 3.0
PM12 receives DM and TCP/IP data from 12 mobiles, thus high speed storage (SSD) is recommended
NETIMIZER DML System Requirements
Item
Specifications
PM12
322(W) x 145 (D) x 36(H) mm, 700g
Cable
110 cm, 110 g, USB 2.0 or USB 3.0
Input power
DC 12V, 6A (AC/DC adaptor, or battery)
L.P.S (Limited Power Source)
Port
x12 ports for mobile (x8 USB 2.0, x4 USB 3.0),
x1 extra USB 2.0 port
PC interface
x1 USB 2.0, x1 USB 3.0
Laptop spec.
Intel Core i7-4720HQ @ 2.60GHz or higher,
8GB RAM or more, SSD, Windows 7/8/10

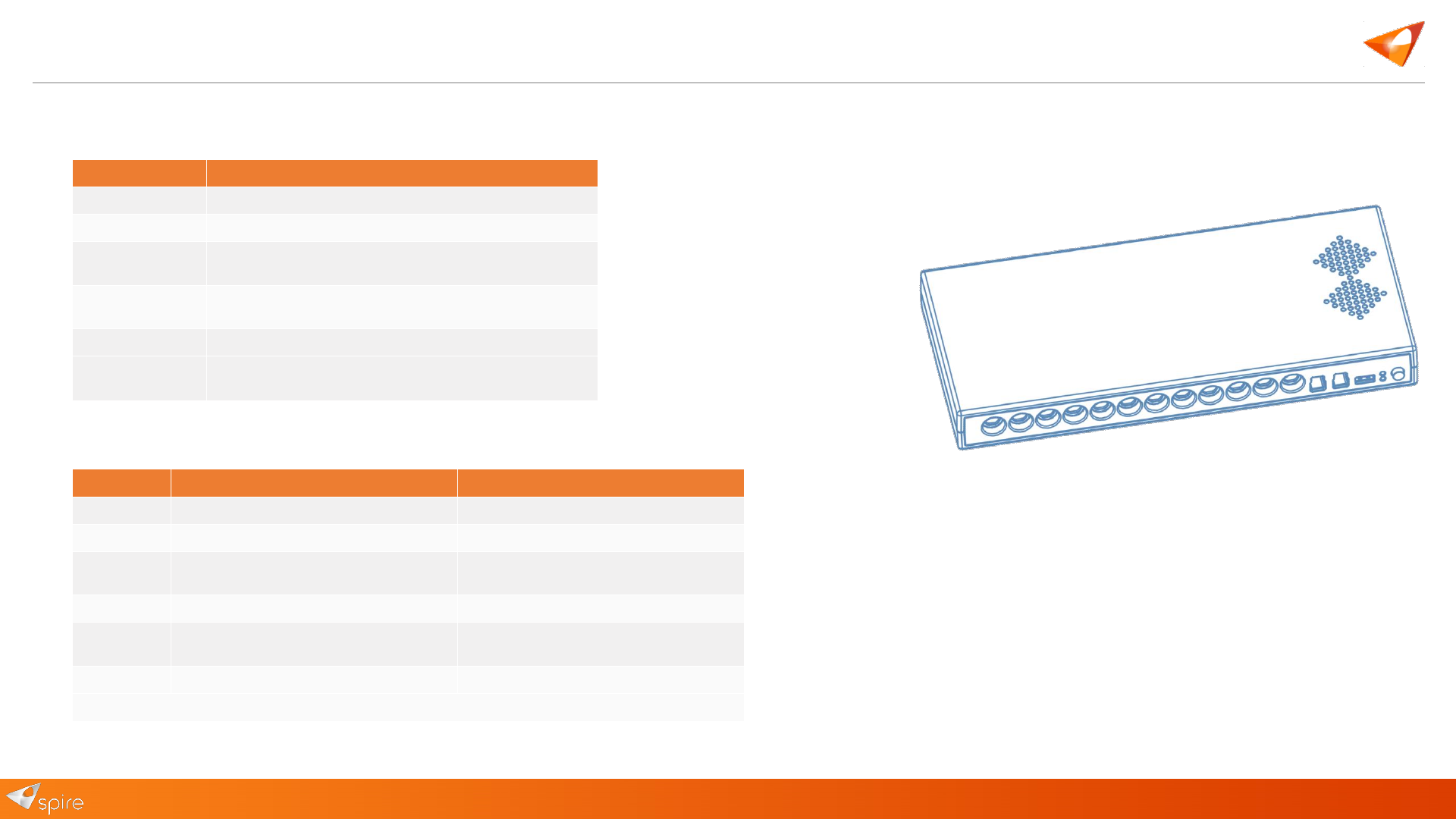

NETIMIZER PM12 Hardware Specification

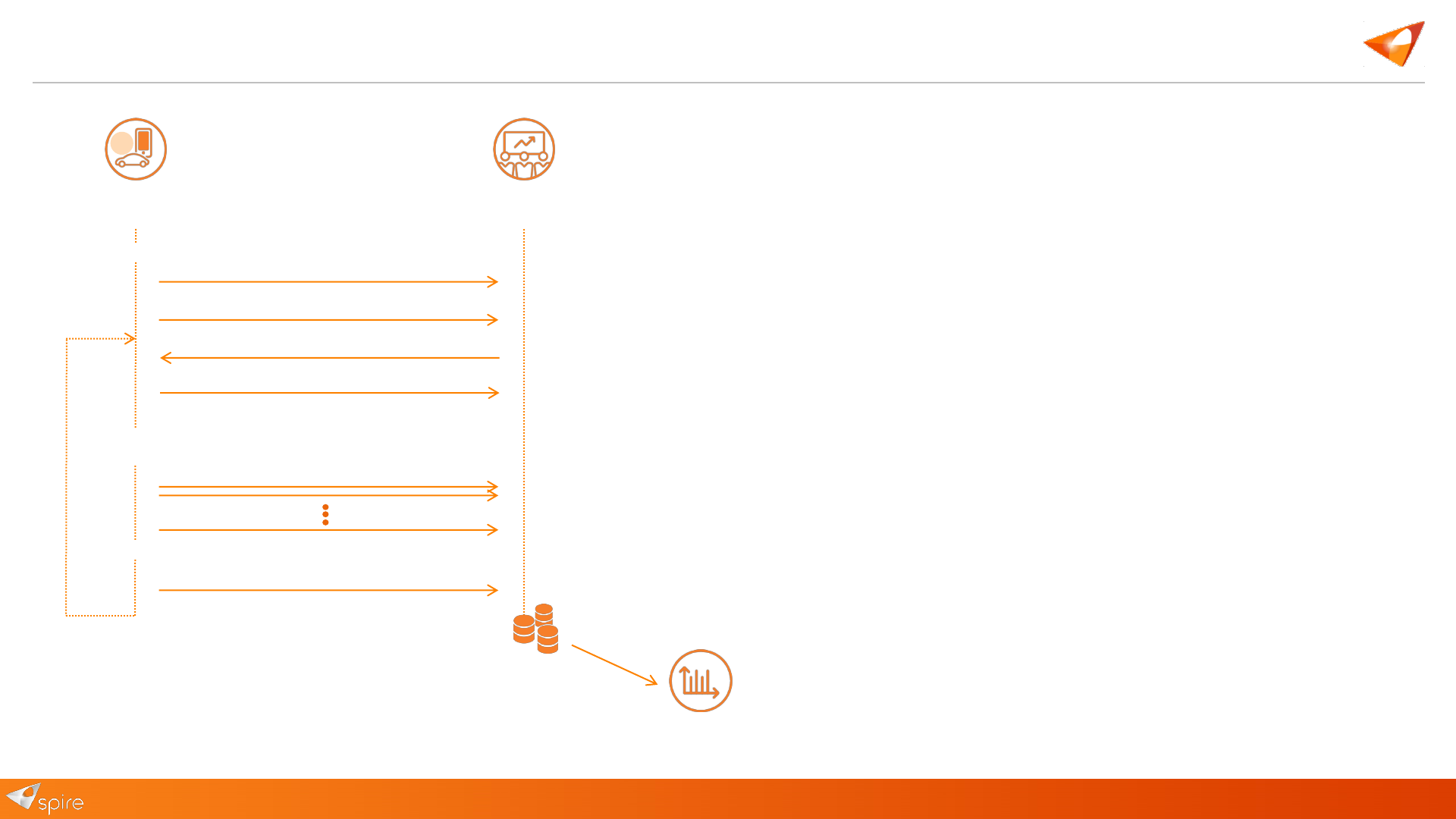

Remote Control and Monitoring Flow – between DML and RCS
Control and Monitoring Flow
NETIMIZER DML
NETIMIZER PM12
NETIMIZER RCS
x12
DML automatically connect to RCS
Register & Authentication
Download configuration and test scenario
Power On
Measure start
(Periodic or aperiodic)
Real-time KPI and event report
Log file upload
Measure stop
NETIMIZER RCS keeps configuration DB for each DML (each drive test team)
NETIMIZER RCS display location and KPIs of drive teams even during idle state
Real-time KPI and event report
Real time display of location, drive route, KPI, events on various UIs (map, chart, table,
time graph, list, etc.)
Monitor uploaded log files, and import to NETIMIZER DMA automatically (Optional)
NETIMIZER DMA
for detail analysis

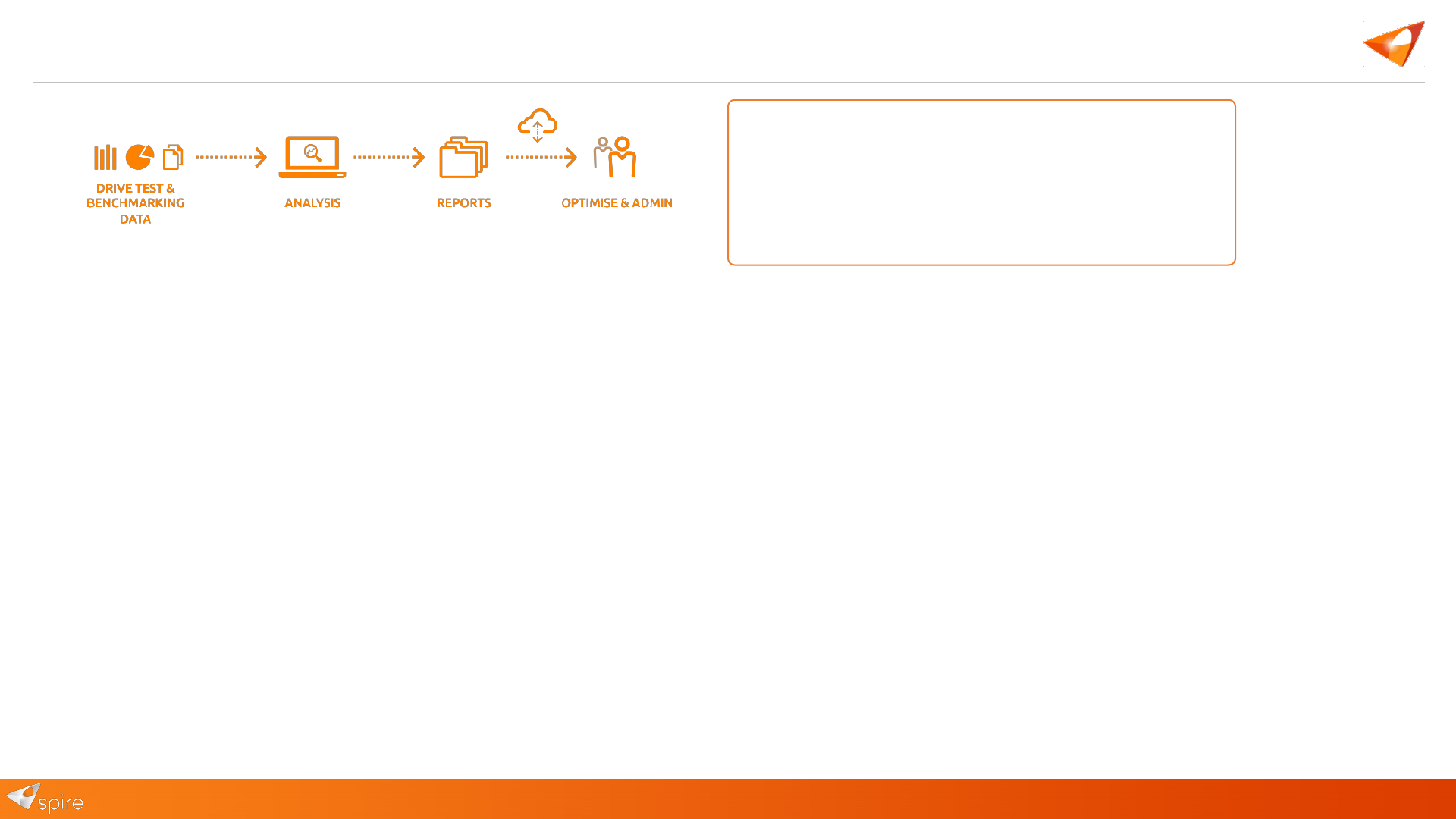

Netimizer DMA – In-detail Analysis Tool for Engineer
In-detail Analysis Tool for Engineer
Key Features
•Offers user-configurable reports with one-click
•Ensures the post-processing of shorts and overs and compares data between scanner and handset
•If numerous windows are open and an area of data is allocated in a single window, other windows display
the same time zone. This enables multidimensional post-processing of data
•Replays data in the same manner as it was logged – in tables, message windows, maps and graphs
•Abstracts data that meets specific conditions
•Imports data via CSV file for post-processing. Exports data to Google Maps, CSV, MIF, Excel or text formats
•Pilot Pollution post-processing: Abstracts polluted areas
•TTI level in-detail analysis for optimization engineers
Benefits
•Make swift decisions thanks to automated reports
•Technology-agnostic
•Easily manage and extract huge amounts of drive-test data via a robust data-management system
•Compatible with all established wireless technology: GSM, EDGE, EVDO Rev.0, Rev.A, Rev.B, GPRS, WiMAX,
CDMA2000, TD-SCDMA, WCDMA, HSDPA, HSUPA, HSPA+, DC-HSDPA, LTE and LTE-A
•Rely on a platform that’s both stable and scalable
•Modifications are welcomed and realized via yearly maintenance
•Intuitive and economical
•Flexible and robust
Use Cases
•Get a view of service and network performance geospatially
•Create and provide KPI reports enterprise-wide
•Analyze trends and complex statistics
•Assess huge amounts of drive-test data to get to the heart of issues affecting service performance
•Gauge radio / application-level metrics
•Deliver in-depth reports
•Basically, Devices are controlled by ADB App which is phone based.
•If device user using does not support “ADB” app, user can use one of “Bluetooth” instead of “ADB”.
Innovations
•Multi-dimensional KPI visibility – key statistics for accessibility, retainability, mobility, quality and packet-
switched data performance
•Swift, thorough and configurable one-click reporting
•Analyze ESP packet messages, which is essential for optimization of VoLTE
•Google Earth is supported along with numerous other map formats
•Share in-depth reports on service-specific and general network performance
•Measure radio / application-level metrics
•Create and present KPI reports enterprise-wide
•Scrutinize trends and conduct statistical analysis
•Easily manage and extract huge volumes of data
Key features
○Per-TTI analysis
○VoLTE analysis (RRC, NAS, SIP, RTP, POLQA, Durations, etc.)
○Missing neighbor, PCI pollution, etc.
○LTE, LTE-CA, CSFB, SRVCC, … — all features you need
○Auto report generation
WARNING & SAFETY INFORMATION
Netimizer DML + Netimizer PM12
Safety Symbols
•Warning
•When encountering this symbol in the manual, you must follow these recommendations to avoid
irreparable damage to your car, system or connected devices or to avoid accidents with injuries or death.
IC Information
Le present appareil est conforme aux CNR d‘Industrie Canada applicables aux appareils radio exempts de
licence.
L’exploitation est autorisee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d’en compromettre le fonctionnement.
The antenna(s) used for this device must be installed to provide a separation distance of at least 20cm from
all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC ID : 2AH34NetimizerPM-12
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Caution:
Any changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void user’s authority to operate the equipment.
This appliance and its antenna must not be co-located or operation in conjunction with any other antenna
or transmitter.
A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this
appliance to satisfy the RF exposure requirements.
FCC notification to users
This equipment has been tested and found to comply with the limits for a CLASS B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the Instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
dose cause harmful interference, the user is encouraged to try to correct the interference by consulting with
a dealer or an experienced technician for technical assistance.
Any changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void user’s authority to operate the equipment.
This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
Applied intelligence.
www.spire-technology.com
Head Office
7F, 3Dong,
Pangyo-Seven-Venture-Valley 1
SamPyeong-Dong
625, Bundang-Gu
SeongNam-Si
Gyeonggi-Do
Korea, 463-400
E-mail: sales@spiretech.co.kr
Japan Office
4-9 Michinoku Bld.
2kai
Kandasakumacho
Chiyodaku
Tokyo
101-0025
Japan
E-mail: lee@spiretech.co.jp
EMEA Office
Stanmore Business & Innovation Centre
Stanmore Place
Honeypot Lane
London
HA7 1BT
UK
E-mail: spire@spire-technology.com
USA Office
VOIDAS LLC 7928 East Drive
Eloquence Building
Suite 501
North Bay Village
FL 33142
USA
E-mail: mike.ishikawa@voidas.com
Thank You
