Coverage Extension Install Guide for Spotcell 163
Spotwave Wireless Inc. 1 Hines Road, Ottawa ON K2K 3C7 Canada
780-00009-01-01
© 2003 Spotwave Wireless Inc. All rights reserved. Printed in Canada
Spotwave and SpotCell are trademarks of Spotwave Wireless Inc. Patents pending.
SpotCell Coverage Extension Kit
Installation Guide
SpotCell Coverage Extension Kit
Installation Guide
™
www.spotwave.com

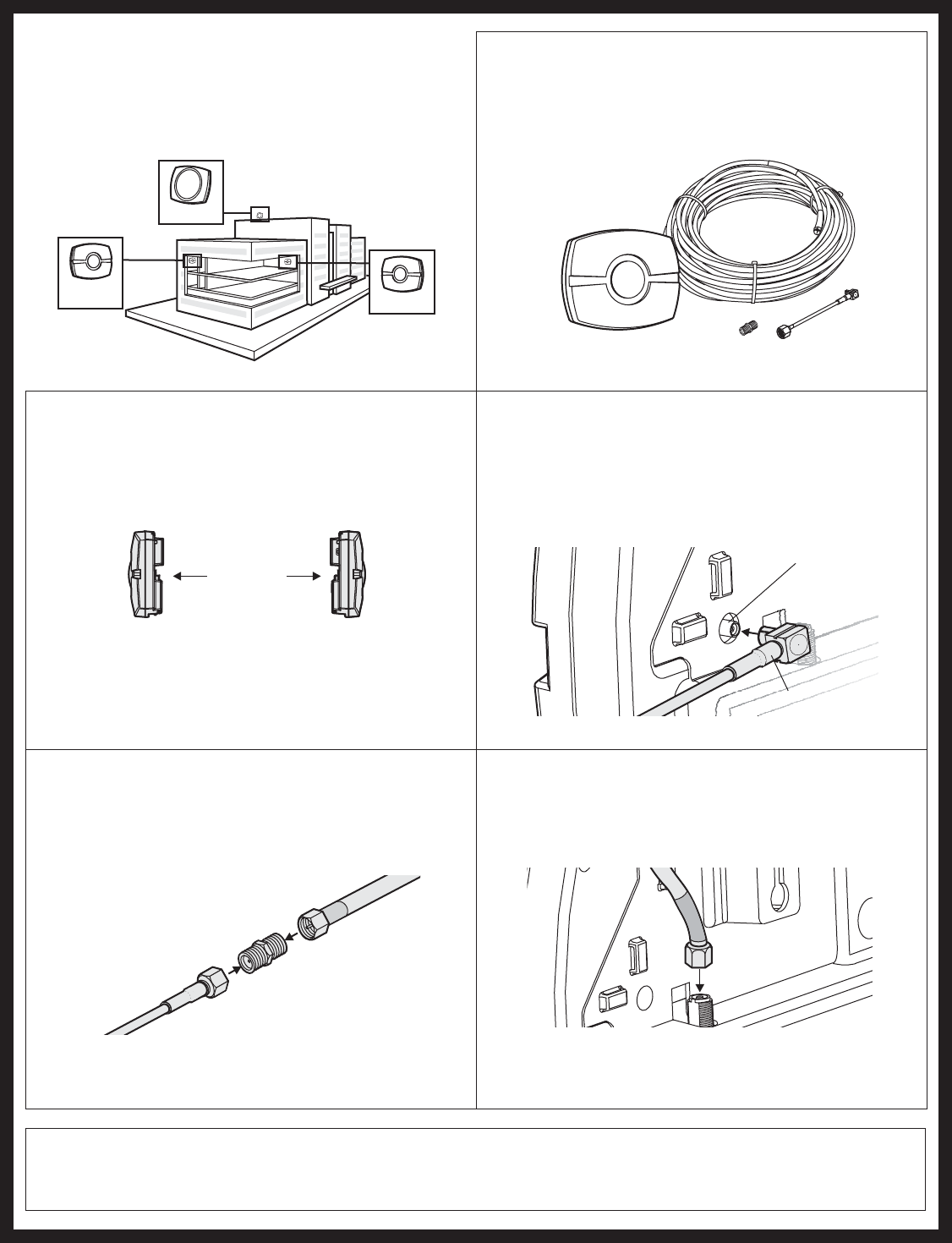

2. Extension antenna location
The only limitations to mounting the extension antenna
are the length of the RG6 cable and the minimum
required distance (10 cm) separating the Auxiliary antenna
and CU.
The SpotCell Coverage Extension should be connected to
the Coverage Unit (CU) only after the SpotCell 100 or
SpotCell 200 system has been properly installed.
The SpotCell Coverage Extension kit extends SpotCell
system coverage into hard to reach places that are blocked
by obstructions such as dense walls or shadowed by
elevator shafts or duct work.
1. Parts List
!
!
!
!
Extension antenna
Adapter cable
coax connector
25m RG6 cable
3. CU connection
Connect the Adapter cable to the auxiliary antenna
(MCX) connector on the back of the CU. The CU can be
powered and operational while connecting the auxiliary
antenna.
4. Adapter cable to RG6
Join the other end of the adapter cable to one end of the
provided RG6 cable with the supplied connector.
5. Connect RG6 to Auxiliary Antenna
Connect the other end of the RG6 cable to the F-
connector on the auxiliary antenna.
Finally, mount the antenna in a suitable location on the
wall or ceiling.
Extension
Antenna
Aux. Antenna
connector
LIMITED WARRANTY
Spotwave Wireless Inc. warrants to the original Purchaser that the Spotwave SpotCell Coverage Extension is free from defects in material and
workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave (the "Limited Warranty Period").
CU Aux. Antenna
greater
than 10 cm
Adapter
cable
Connector
RG6 cable
Adapter
cable
DU
CU
Auxiliary
Antenna
