Spyder Controls WIRE1 900MHz TRANSMITTER FOR WIRELESS IR REPEATER SYSTEM User Manual FCC Manual
Spyder Controls Corp. 900MHz TRANSMITTER FOR WIRELESS IR REPEATER SYSTEM FCC Manual
User Manual
Spyder Controls Corporation
Defining Innovation and Reliability in System Control

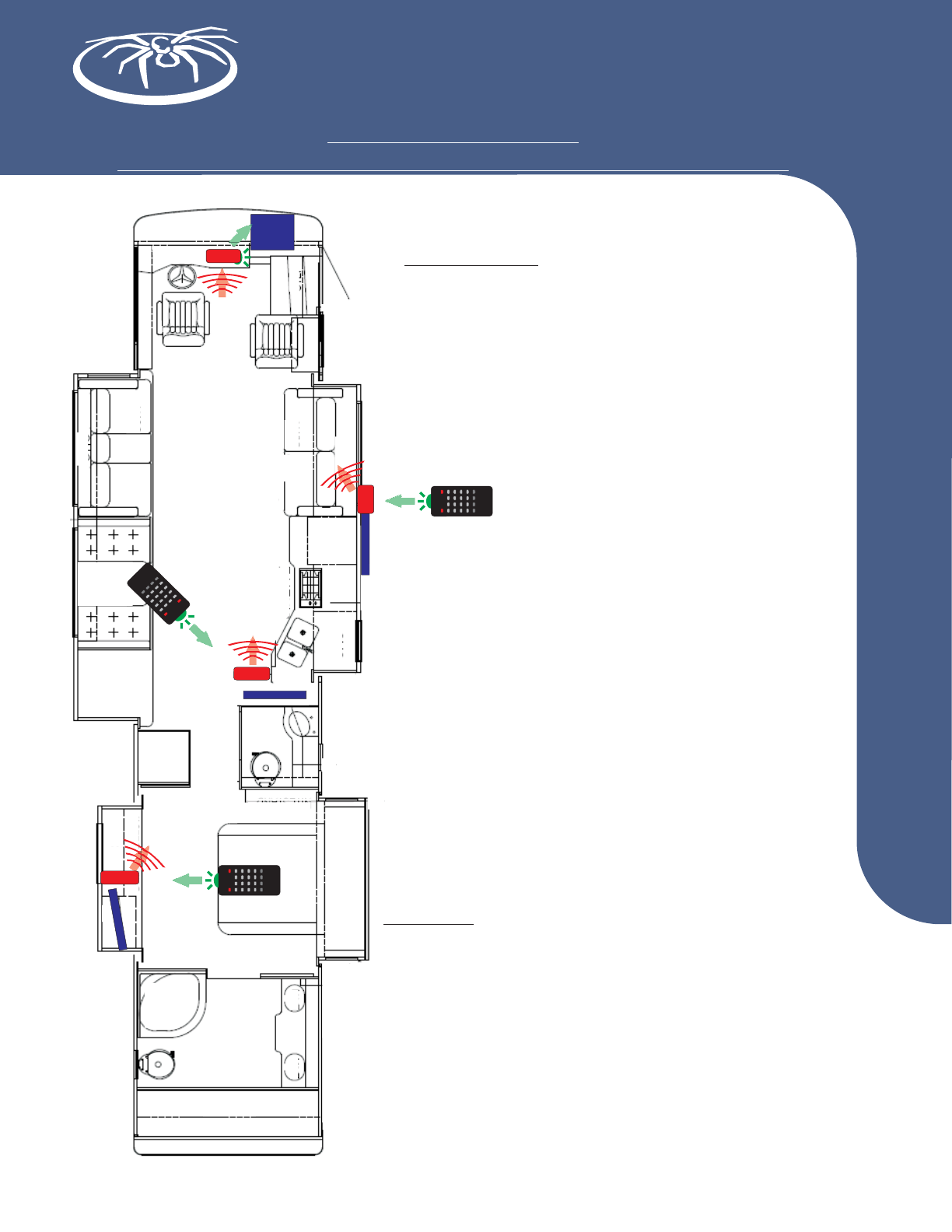

USER MANUAL FOR:
‘WIRE1’ WIRELESS INFRA-RED (IR) REPEATER SYSTEM
DVD
&
SAT
RF to IR
IR to RF
IR
to
RF
IR to RF
DESCRIPTION: The wireless IR Repeater system
allows Infra-Red (IR) signals from Audio / Video
(A/V) remote controls to be received in one location
and wirelessly transmitted to another location,
where the IR signal is then re-emitted. The system
uses proven Radio Frequency (RF) technology that
is used in numerous automotive security / alarm
systems, ensuring reliable operation.
BENEFITS:
-COST EFFECTIVE -
-WIRE REDUCTION -
-SIMPLIFIED INSTALLATION -
-NO CROSSTALK ISSUES -
Similar or less cost than conventional ’wired’ IR
Repeater systems
Wiring and connector blocks between the IR
Receivers and the IR Emitters is completely eliminated
With over 50% of the wiring and
connections removed completely
A built-in signal filtering system eliminates
IR crosstalk where multiple IR receivers are located in the same area
Rev 1.1 07/06/2012 page 1 Specifications subject to change without notice
Spyder Controls Corporation
Defining Innovation and Reliability in System Control
User Manual
WIRE1 User Manual
Rev 1.1 JULY 31, 2012 page 1 Specifications subject to change without notice
RF Characteristics:
- ISM band:
- Base frequency:
- Channel spacing:
- Over-the-air data rate:
- TX power:
- Number of channels:
900MHz;
903MHz;
199.951172MHz;
249.756 Kbs;
0 dBm;
52.
Operational Voltage Range:5to16VDC
DESCRIPTION: The wireless IR Repeater system allows Infra-Red (IR) signals from
Audio / Video (A/V) remote controls to be received in one location and wirelessly
transmitted to another location, where the IR signal is then re-emitted. The system
uses proven Radio Frequency (RF) technology that is used in numerous automotive
security / alarm systems, ensuring reliable operation.
FCC Statement:
Industry Canada Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Cet appareil est conforme la norme d'Industrie Canada exempts de license RSS (s).
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne
peut pas provoquer d'interférences, et (2) cet appareil doit accepter toute
interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement de la appareil.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
_______________________________________________________________
MODEL: WIRE1
FCC ID: OV9-WIRE1
IC: 10245A-WIRE1
Spyder Controls Corporation
Defining Innovation and Reliability in System Control

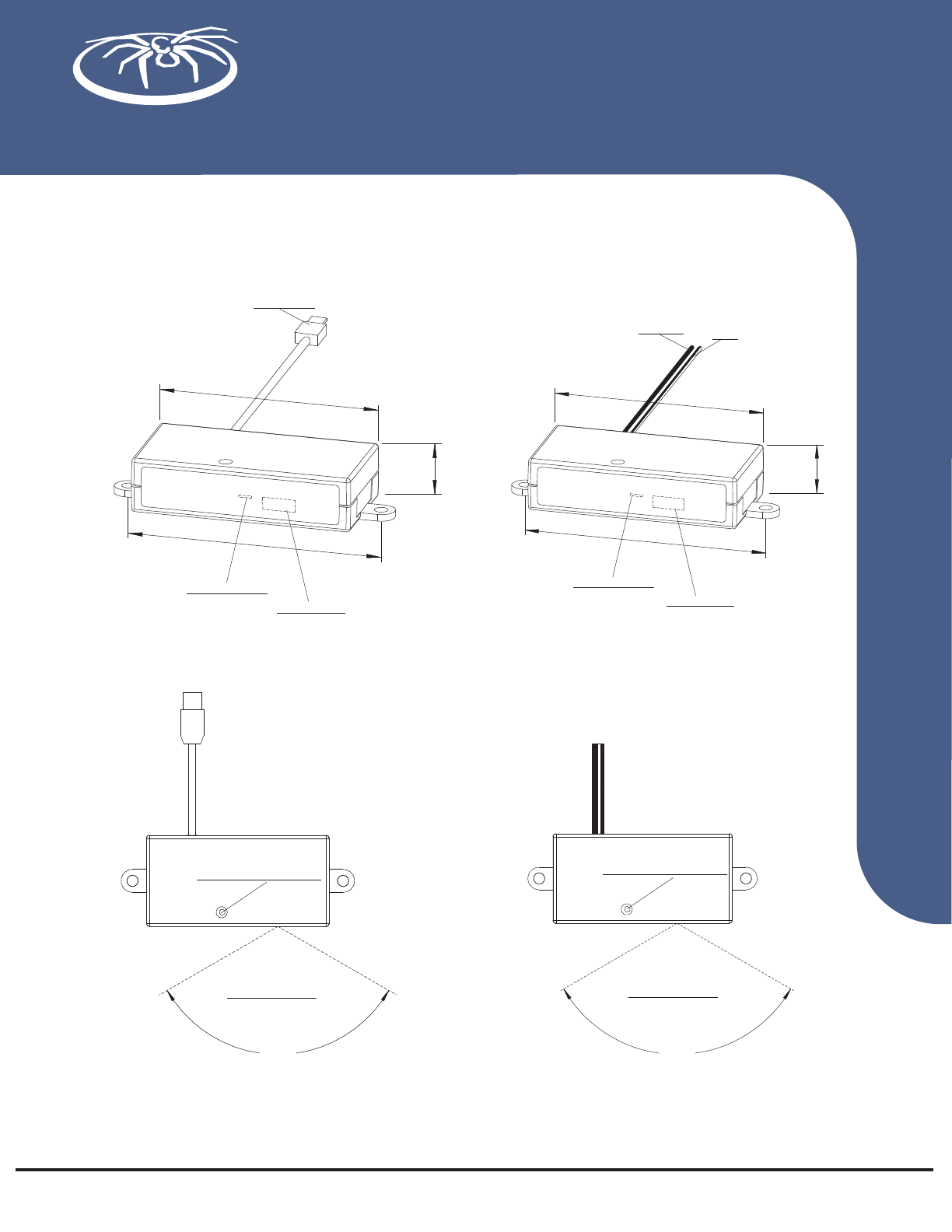

WIRe Repeater (Receiver)
LED Indicator
IR Receiver
Ground 12v*
0.5"
2.0"
2.18"
120.00°
Programming Button
Receiver Angle
LED Indicator
IR Receiver
USB cable
0.5"
2.0"
2.18"
Programming Button
Receiver Angle
120.00°
User Manual
Rev 1.1 JULY 31, 2012 page 2 Specifications subject to change without notice
Spyder Controls Corporation
Defining Innovation and Reliability in System Control

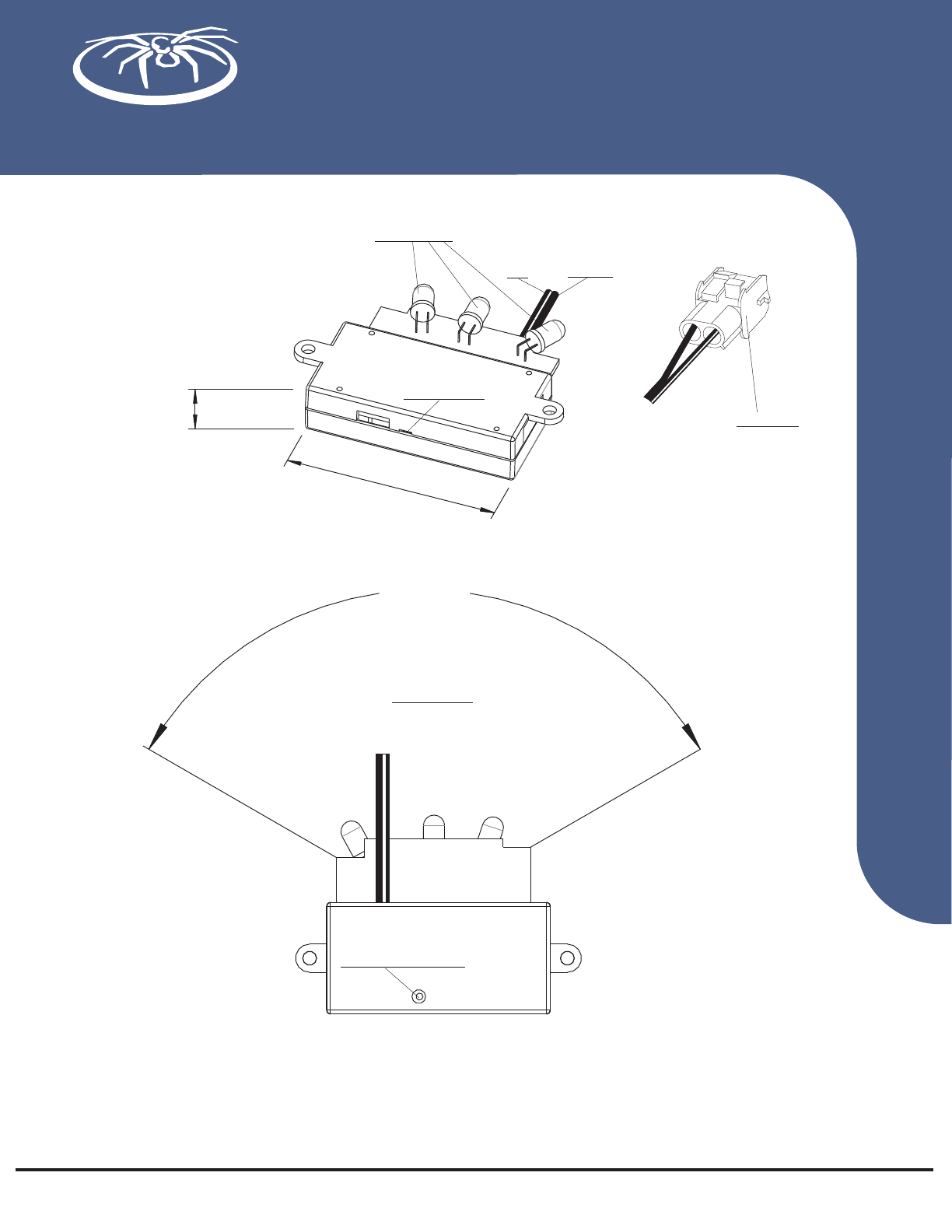

wIRe Repeater (Emitter)
Emitter LEDs
12v Ground
0.5"
2.0"
LED Indicator
Emitter Angle
Programming Button
120.00°
Connector
User Manual
Rev 1.1 JULY 31, 2012 page 3 Specifications subject to change without notice
Spyder Controls Corporation
Defining Innovation and Reliability in System Control

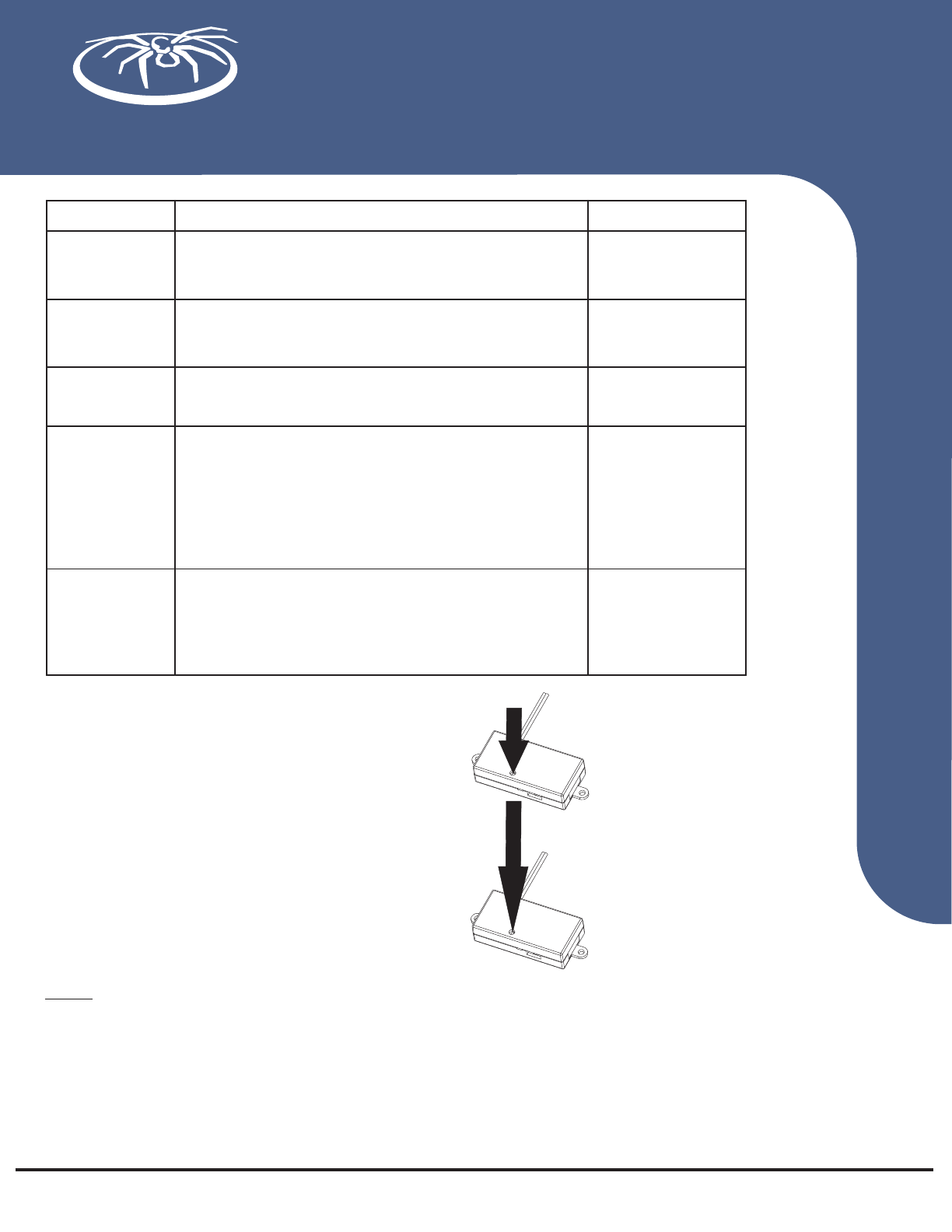

WIRE Channel Settings
Action WIRE Response Indicator
Quick press*
(once)
1. Enter the Transmit Learning Codes (TLC) state
2. Transmit "learn" packets 2 times per second
LED flashes slow (1
time per second
1/4s ON, 3/4s OFF)
Long press* 1. Increment RF channel
2. Returns to TLC state LED is ON for 1 sec
Quick press
(once)
1. Exit from TLC mode
2. Entering Main Operation mode LED stops flashing
2 Quick presses
1. Enter Listening Mode
2. Device ‘listens’ for an RF signal**.
3. Once an RF signal is received, the device learns
(memorizes) that channel.
4. Device will automatically exit Listening Mode and
resume normal operation.
LED flashes FAST (2
times per second,
1/4s ON, 1/4s OFF)
2 Quick presses
(while in
Listening Mode)
1. Manually exit from Listening Mode
2. Revert to the channel it was on before this learning
cycle started
LED stops flashing
Note:
When in Listening Mode, a WIRE will only act on learn packets that contain its traffic-type byte.
**The wIRe devices operate on 52 unique channels. When a wIRe device enters Learning Mode, it
begins with the existing channel stored in memory and ‘listens’ for a matching RF signal for 1
second. If no matching signal is received within 1 second, the wIRe device increments up to the
next channel and listens for 1 second and so on until a matching RF signal is received. It can take
up to 52 seconds for a wIRe device to find a matching signal and learn / memorize it.
* Long button press would be one that was for
about 1 second.
* Quick button press would be one that was for
less than ½ second.
User Manual
Rev 1.1 JULY 31, 2012 page 4 Specifications subject to change without notice
