VERTICAL GRID DE FILTERS

O W N E R’ S M A N U A L

INSTALLATION, OPERATION & PARTS

MODELS

S7D75 S8D110

Sta-Rite Pool/Spa Group U.S. PATENT NO. 4995523 (Other patents pending)

293 Wright Street, Delavan, WI 53115

International: 262-728-5551, FAX: 262-728-7550

www.starite.com

Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA

This manual should be furnished to

the end user of this filter; its use will

reduce service calls and chance of in-

jury and will lengthen filter life.

VERTICAL GRID DE FILTERS

To avoId unneeded service calls, prevent possible injuries, and get the most

out of your filter, READ THIS MANUAL CAREFULLY!

The Sta-Rite System 3 Vertical Grid DE Filter:

• Is designed to filter water for swimming pools.

• Is an excellent performer; durable, reliable.

Table of Contents

Safety Instructions .......................................................................................3

General Information....................................................................................4

Installation ..................................................................................................5

Specifications..............................................................................................6

Initial Startup...............................................................................................7

Filter Disassembly / Assembly .....................................................................8

Cleaning the Filter.......................................................................................9

Filter Backwash Procedure.......................................................................9

Manual Filter Cleaning Procedure..........................................................10

Chemical Cleaning Procedure................................................................11

System Inspection/Winterizing ..................................................................12

Troubleshooting Guide..............................................................................13

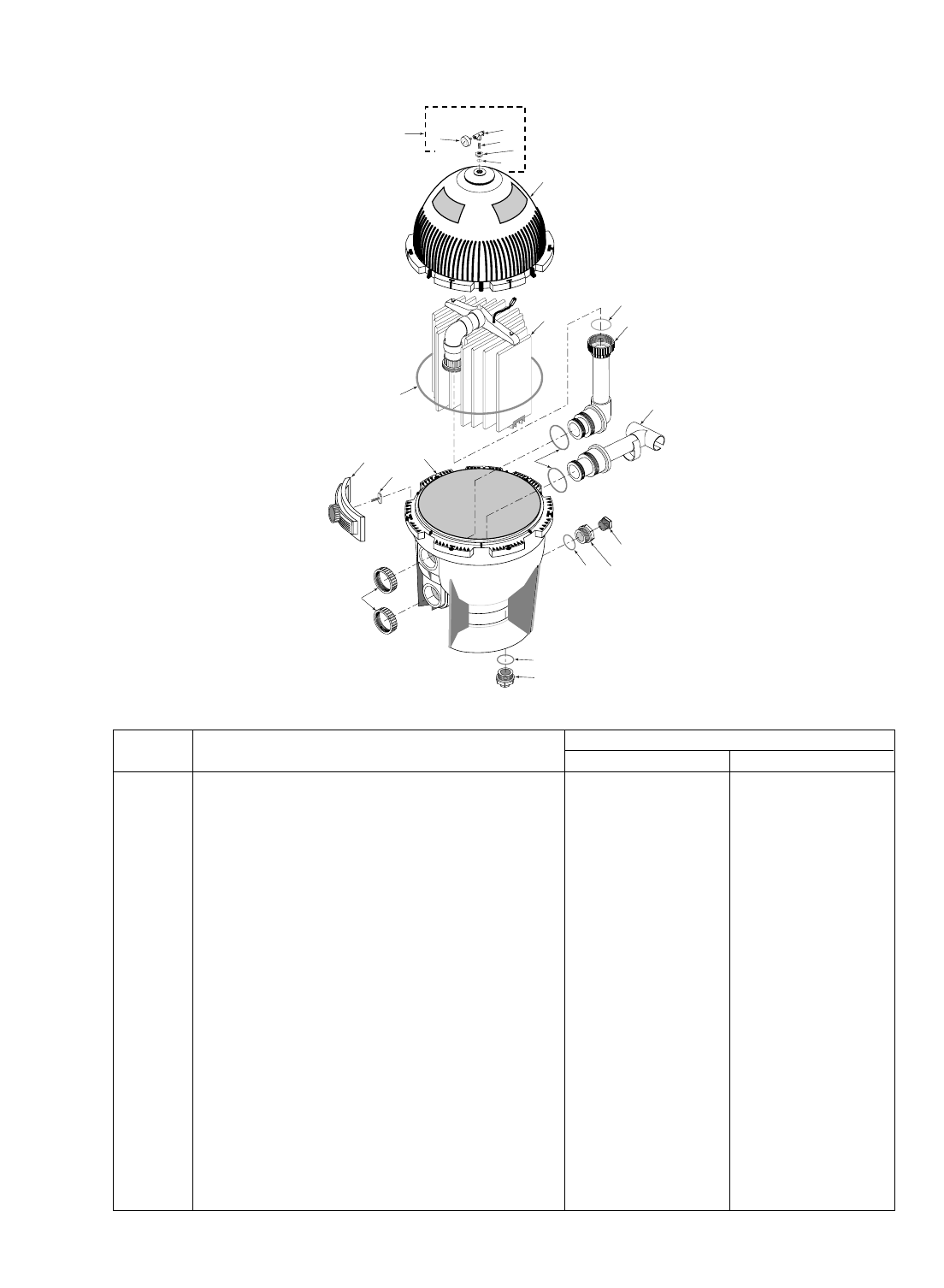

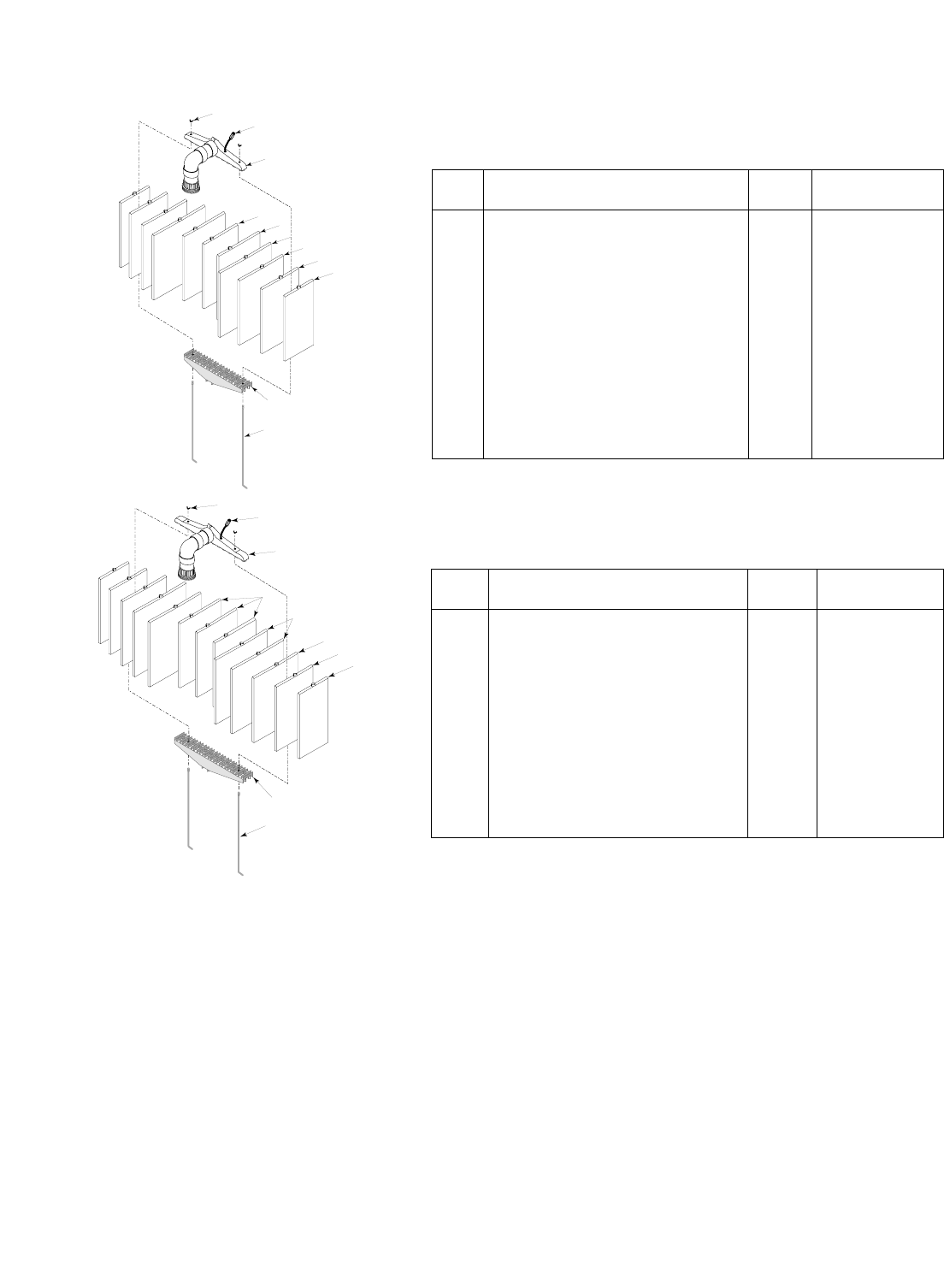

Repair Parts List ...................................................................................14-15

Warranty ...................................................................................................16

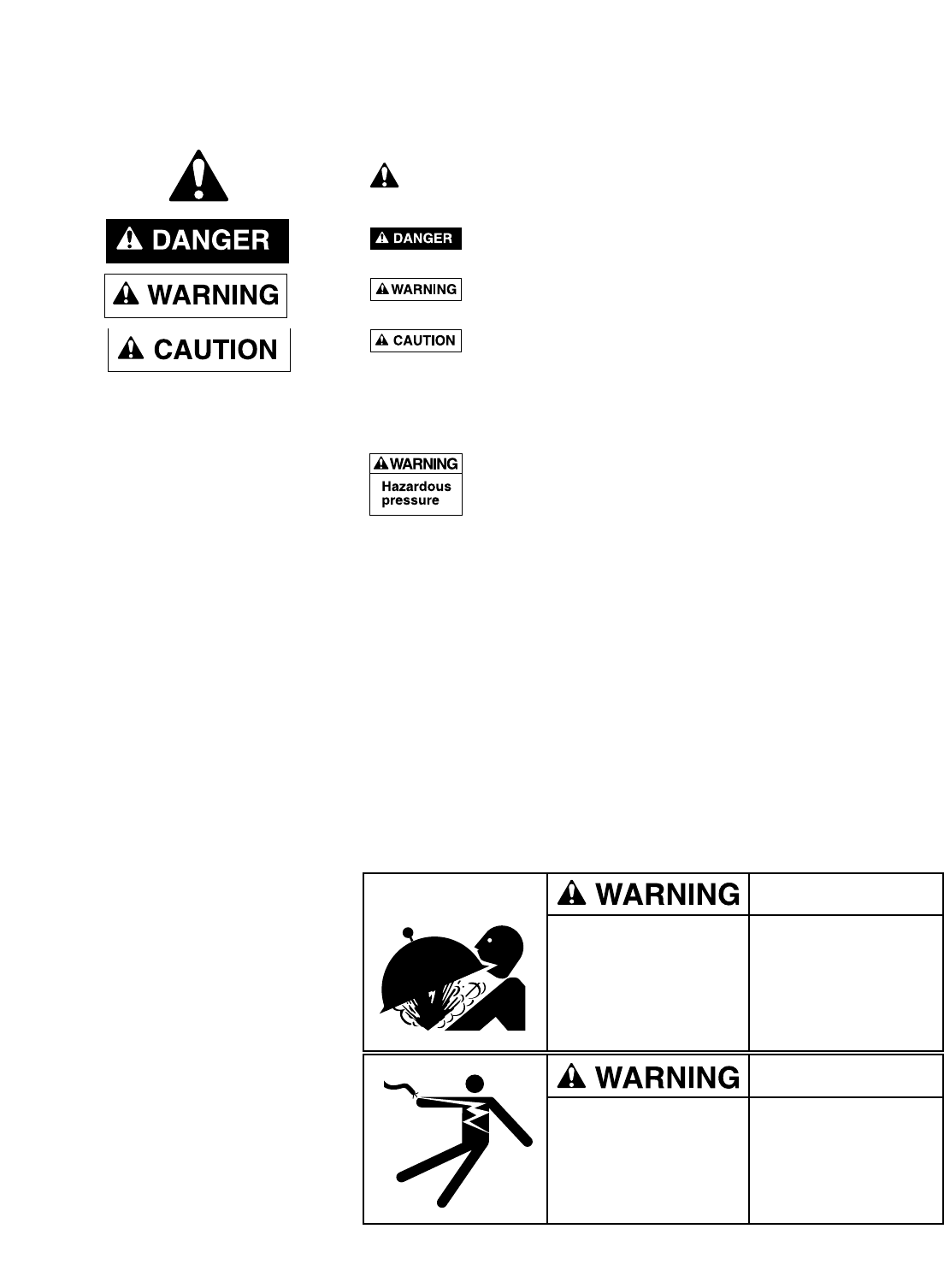

READ AND FOLLOW SAFETY

INSTRUCTIONS!

This is the safety alert symbol. When you see this symbol on your filter

or in this manual, look for one of the following signal words and be alert

to the potential for personal injury.

warns about hazards that will cause death, serious personal in-

jury, or major property damage if ignored.

warns about hazards that can cause death, serious personal in-

jury, or major property damage if ignored.

warns about hazards that will or can cause minor personal injury

or property damage if ignored.

NOTICE indicates special instructions not related to hazards.

Carefully read and follow all safety instructions in this manual and on equip-

ment. Keep safety labels in good condition; replace if missing or damaged.

Incorrectly installed or tested equipment may fail, causing

severe injury or property damage. Read and follow instructions

in owner's manual when installing and operating equipment.

Have a trained pool professional perform all pressure tests.

1. Do not connect system to a high pressure or city water system.

2. Use equipment only in a pool or spa installation.

3. Trapped air in system can cause explosion. BE SURE all air is out of system

before operating or testing equipment.

Before pressure testing, make the following safety checks:

•Check all clamps, bolts, lids, and system accessories before testing.

•Release all air in system before testing.

•Tighten Sta-Rite pump trap lids to 30 ft. lbs. (4.1 kg-cm) torque for testing.

•Water pressure for test must be less than 25 PSI (172 kPa).

•Water Temperature for test must be less than 100oF. (38oC).

•Limit test to 24 hours. After test, visually check system to be sure it is ready

for operation. Remove pump trap lid and retighten hand tight only.

NOTICE: These parameters apply to Sta-Rite equipment only. For

non-Sta-Rite equipment, consult equipment manufacturer.

If filter clamps are

adjusted or removed

under pressure,

tank may explode,

causing severe injury or

major property damage.

BEFORE WORKING

ON FILTER:

1. Stop pump.

2. Open air release

valve.

3. Release all pressure

from system.

Filter pumps require

hazardous voltage

which can shock, burn,

or cause death.

BEFORE WORKING

ON PUMP OR MOTOR

Disconnect power

to motor at main

circuit breaker.

Discharge motor

capacitor to ground.

GENERAL INFORMATION

•Clean a new pool as well as possible before filling pool and operating filter.

Excess dirt and large particles of foreign matter in the system can cause seri-

ous damage to the filter and pump.

• With a diatomaceous earth (DE) filter system in place and operating cor-

rectly, clean water is returned to the pool faster than pool water is being

contaminated. A typical pool installation will require approximately one

week to obtain and maintain the sparkle that your filter is capable of giving

you.

• DO NOT use more than the recommended amount of DE in your filter. To

do so can cause a buildup of DE and "bridging" between the elements

which will plug the filter.

If filter is improperly disassembled or assembled, it can explode under

pressure! To avoid danger of severe injury or major property damage,

always follow service instructions in this manual when working on filter!

NEVER operate this filter system at more than 50 pounds per square

inch (50 PSI/345kPa) pressure! Be sure filter pressure gauge operates

when system is operating. If pressure gauge is damaged or does not work, re-

place it.

Purge all air from system before operating system. NEVER operate filter

with air trapped inside.

• On a new pool installation, we recommend:

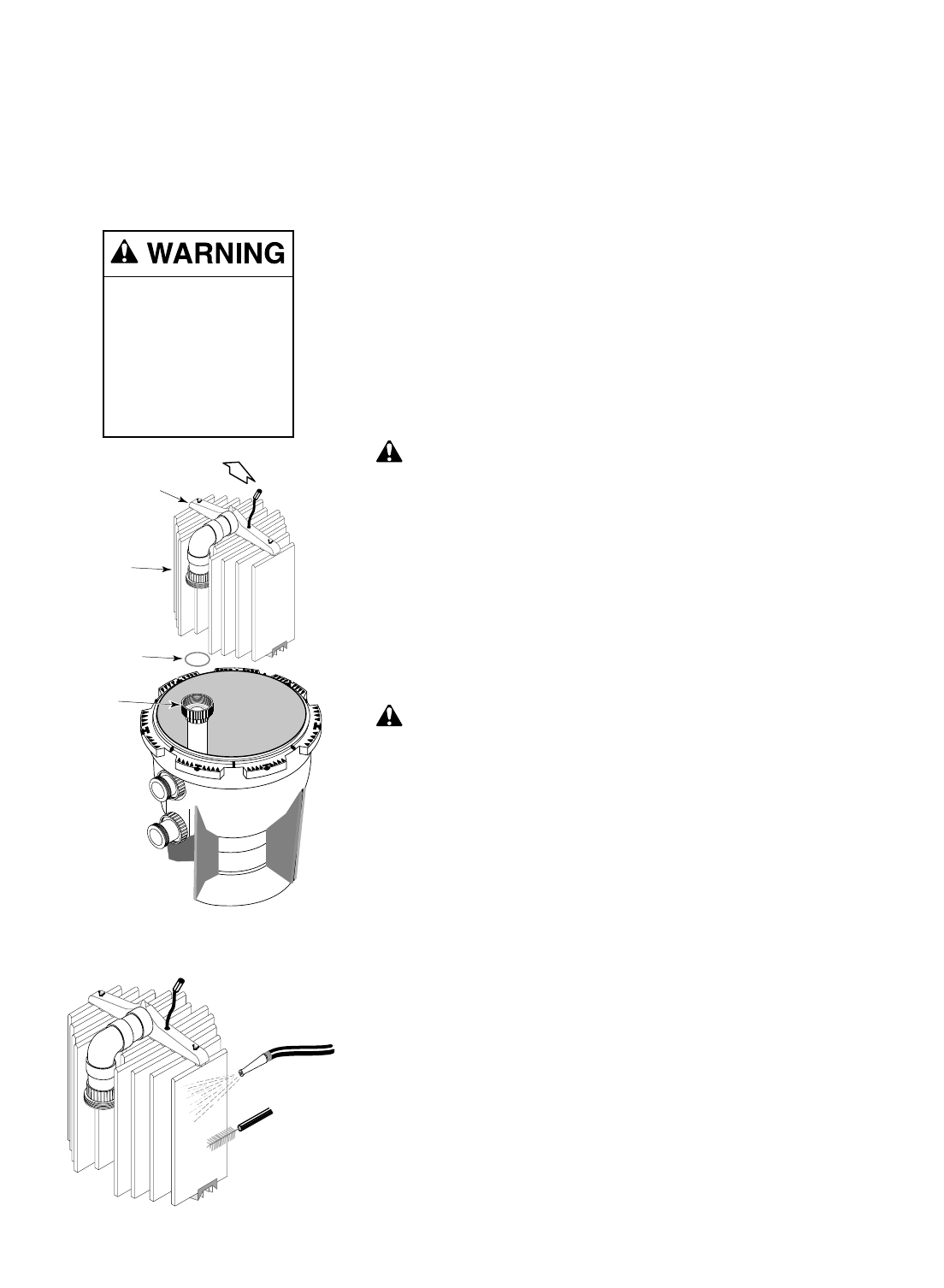

1. Disassemble the filter after the initial cleanup.

To prevent severe injury or major property damage, exactly follow "Filter

Disassembly/Assembly Procedure" on Page 8.

2. Remove and hose down the element assembly to remove contaminants.

• It is a good idea to remove the element assembly once a year and soak it in

a filter cleaning solution to remove accumulated body oils, etc.; see Page

11, "Chemical Cleaning Procedure".

• Cleaning interval is based on pressure differential, not on length of time fil-

ter is operated. Different water conditions will have different normal clean-

ing intervals. If backwashing filter is not possible, use "Manual Filter

Cleaning Procedure", Page 10, at regular intervals to clean filter.

• Check local codes for restrictions on backwash to waste piping, separation

tank requirements and spent D.E. disposal requirements.

Hazardous pressure.

Can cause severe

injury or major

property damage

from tank blow up.

Release all pressure

and read instructions

before working on filter.

INSTALLATION

Installation of filter should only be done by qualified, licensed personnel.

Filter mount must:

• Provide weather and freezing protection.

• Provide space and lighting for easy access for routine maintenance. (See

Figure 1 and Table II, Page 6, for space requirements.)

• Be on a reasonably level surface and provide adequate drainage.

• Be as close to pool as possible to reduce line loss from pipe friction.

Piping:

• Piping must conform to local/state plumbing and sanitary codes.

• Use Teflon tape or Plasto-Joint Stik' on all male connections of plastic pipe

and fittings. DO NOT use pipe compounds on plastic pipe; it will cause the

pipe to crack. Do not use sealant on unions—assemble them dry and hand

tight.

• Support pipe independently to prevent strains on filter or valve.

• Use 2” (51mm) pipe to reduce pressure losses as much as possible.

NOTICE: Filter may be located away from pool, but for adequate flow larger

pipe may be needed. Check local codes for remote installation.

• Fittings restrict flow; for best efficiency use fewest possible fittings.

• Keep piping tight and free of leaks: pump suction line leaks may cause

trapped air in filter tank or loss of prime at pump; pump discharge line leaks

may show up as dampness or jets of water.

• NOTICE: Overtightening can crack filter ports.

Valves:

• A check valve installed ahead of filter inlet will prevent contaminants from

draining back into pool.

• A check valve installed between filter and heater will prevent hot water

from backing up into filter and deforming internal components.

• Install Sta-Rite Two Position Slide Valve or Multiport Selector Valve with fil-

ter. See Table I.

• Filter ports and valve ports are furnished with union connections.

DO NOT use pipe sealants on union collar (nut).

• Use care before assembly not to damage union sealing surfaces or O Ring.

• To allow recirculation during precoat (if precoat pot is used), install a recir-

culation line with shut-off between pad return line and pump suction.

Electrical

• All wiring, grounding and bonding of associated equipment must meet local

and/or National Electrical Code standards.

1Lake Chemical Co., Chicago, IL

Port Part

Size Number

Multi-port

2" 18201-0200*

Plastic Slide

2" WC212-134P*

TABLE I - Sta-Rite valves for

use with DE filters

NOTICE: Use of valves

other than those listed

above could cause

reversed water flow

through filters and

damage to internal fil-

ter components.

*Recommended for best energy

conservation.

TABLE II - SPACE REQUIREMENTS IN INCHES (MM)

Model No. A B C* D E

S7D75 281⁄2(724) 42(1067) 7 36(914) 531⁄2(1359)

S8D110 321⁄2(826) 421⁄4(1074) 8 40(1020) 541⁄4(1378)

* Number of clamps.

TABLE III - APPROVED DE

Use only the following DE or equal:

Johns Manville Celite 545

GREFCO Dicalite 4200

Eagle-Picher Celatom

TABLE IV - FILTER SPECIFICATIONS & OPERATING INFORMATION

Filter Model: S7D75 S8D110

Filter Area in Sq. Ft. (M2)37 Sq. Ft. (3.44) 53 Sq. Ft. (4.92)

Lbs. (Kg) of D.E. Used 3.7 (1.7) 5.3 (2.4)

Max. Flow Rate in GPM (LPM) 74 (280) 106 (401)

NSF Public Pool Flow Rate in GPM (LPM) 72 (280) 106 (401)

Max. Operating Pressure in PSI (kPa) 50 (345) 50 (345)

NOTICE: 1/2 pound of DE will fill a one-pound coffee can.

INLET

OUTLET

7.812(198.4)

9.19(233.4)

2" (51mm)Sta-Rite

Union Connections

10 20 30 40 50 60 70 80 90 100 110 120

2.0

4.0

6.0

8.0

S7D75

S8D110

Gallons Per Minute

Pressure Drop (PSI)

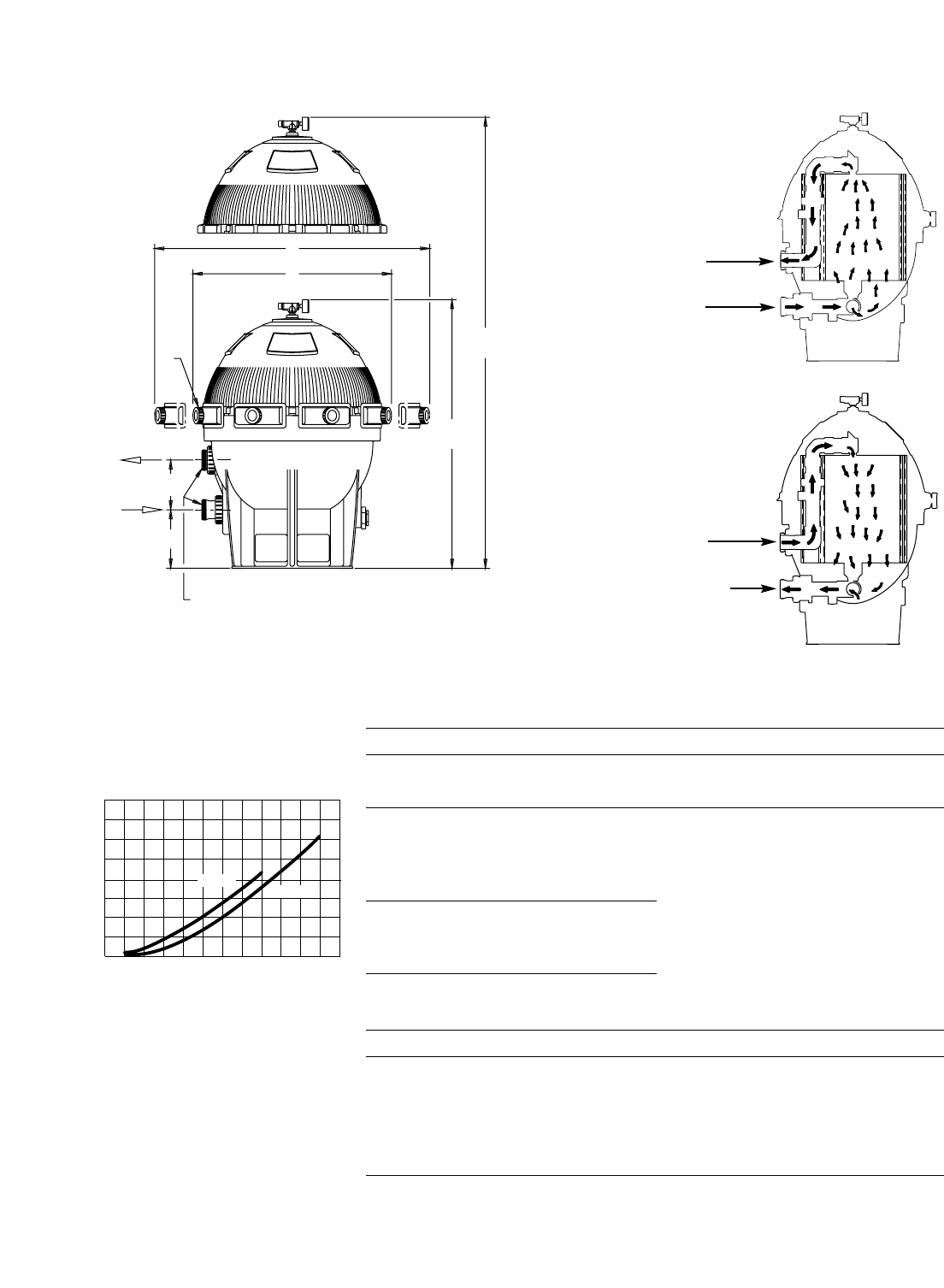

SPECIFICATIONS

FIGURE 1 – Dimensions in inches (mm)

Figure 2 – Filter Cycle

Figure 3 – Backwash Cycle

WATER OUTLET

TO POOL

WATER INLET

PUMPED

FROM POOL

WATER INLET

PUMPED

FROM POOL

WASTE PORT TO

SEPARATION TANK

Pressure Drop Curve

INITIAL START-UP

Be sure pump is OFF before starting procedure.

Do not operate these filters at more than 50 PSI (345 kPa) under any

circumstances!

To prevent serious damage to the element fabric, NEVER run

you DE filter without a diatomaceous earth precoat!

To avoid damage to internal filter components, never change

handle position on control valve while pump is running.

1. Make sure all clamps are in place and knobs are securely hand-tight.

2. Set valve to 'filter' position.

3. Fill trap on pump with water.

4. Open air release valve on top of filter assembly (Key No. 3, Page 14).

5. Start pump to purge air from system.

6. When steady stream of water comes from air release valve, close the

valve.

7. To prepare precoat slurry, mix diatomaceous earth (DE) and water. See

Table IV or instruction decal on filter shell for amount of DE to use.

8. Empty slurry slowly into skimmer to precoat filter element with an even

filtering cake.

Close valve before air is drawn into system.

NOTICE: To avoid bridging between filter grids, do not use more DE than 0.1

pound per square foot of filter area (0.49 kilos per square meter).

After filter is operating, record filter pressure gauge reading in owner's manual

for future use.

NOTICE: When installed on a newly plastered pool, after approximately 48

hours of operation disassemble filter and clean out plaster dust (see "Manual

Filter Cleaning Procedure", Page 10).

To avoid severe injury or major property damage, exactly follow in-

structions under "System Disassembly/Assembly" (Page 8)!

Remove and thoroughly clean filter element assembly. Use cleanser or deter-

gent and a bottle brush to remove plaster dust (see Figures 8 and 9, Page 10).

When installed on a pool with vinyl liner or painted bottom, thoroughly back-

wash and clean filter element after 48 hours of operation to remove construc-

tion debris (see "Filter Backwash Procedure", Page 9).

Hazardous pressure.

Can cause severe

injury or major

property damage

from tank blow up.

Release all pressure

and read instructions

before working on filter.

FILTER DISASSEMBLY/

ASSEMBLY PROCEDURE

To avoid equipment damage and personal injury, never change

handle position on control valve while pump is running.

BEFORE DISASSEMBLING FILTER:

1. STOP PUMP.

2. OPEN air release valve and drain fitting.

3. WAIT until all pressure is released and water drained from filter tank

and system before loosening clamp knobs.

Disassembly:

1. Backwash filter according to instructions under “Filter Backwash

Procedure”, Page 9.

2. Stop pump.

3. Open air release valve (Key No. 3, Page 14) on top of filter tank to release

all air pressure from inside of tank and system.

4. Remove filter drain plug and drain all water from tank.

5. To equalize flange stresses, loosen clamp knobs alternately (that is, on op-

posite sides of tank) around tank. Remove clamps.

6. Being careful not to damage cord ring (Key No. 21, Page 14), lift upper

tank shell (Key No. 7, Page 14) off lower tank shell (Key No. 20, Page 14).

Assembly:

1. Remove O-Ring slowly to avoid stretching or tearing it.

2. Inspect O-Ring (Key No. 21, Page 14) for cuts, nicks, etc. If O-Ring is

damaged, deformed, or has lost its resiliency, replace with a new one.

3. Clean O-Ring area of tank shell (both halves) and O-Ring.

4. Carefully install O-Ring and upper tank shell (Key No. 7, Page 14) on tank

bottom (Key No. 20, Page 14).

NOTICE: Do not lubricate O-Ring. Lubricants attract dirt and grit and may

(especially when petroleum based) damage O-Ring and void warranty.

NOTICE: Be sure upper tank shell contacts O-Ring surface evenly and

seal area is clean and free from dirt.

5. Install clamp bolts and clamps. Do not tighten clamps yet.

6. See Figures 4 and 5 for clamp tightening sequence. Tighten all clamp

knobs securely hand tight.

NOTICE: To equalize stresses on tank, be sure to tighten clamps in se-

quence shown. DO NOT work your way around the filter tightening adja-

cent clamps.

7. Install air relief valve and gauge assembly on tank.

Hazardous pressure.

Can cause severe

injury or major

property damage

from tank blow up.

Release all pressure

and read instructions

before working on filter.

CLEANING THE FILTER

When to Clean:

NOTICE: If installation does not allow backwashing, use manual cleaning proce-

dure regularly (see Page 10).

1. With a new filter:

A. Record filter operating pressure at startup. When pressure reaches 15

PSI (103kPa) above startup operation pressure, stop pump for 15-30

seconds to allow filtering cake to release.

B. Restart pump to form new cake. Pressure should now be less than 10

PSI (69kPa) above startup operating pressure.

C. If pressure is still more than 10 PSI (69kPa) above startup operating

pressure, backwash filter (see below).

2. Thoroughly clean air relief filter screen (Key No. 2, Page 15) on top of

manifold EVERY time filter is opened. Be sure to remove all debris from

screen. Replace filter screen if damaged.

3. At least twice a year, manually clean filter according to instructions, Page

10. At least once a year, follow instructions under "Chemical Filter

Cleaning Procedure", Page 11, as well.

Filter Backwash Procedure:

To prevent equipment damage and possible injury turn pump OFF

before changing valve position.

NOTICE: Before backwashing with a separation tank, review separation tank own-

er's manual for instructions.

1. Stop pump.

2. Change valve position.

A. If using Multi-port Valve, set to backwash position.

B. If using Two Position Slide Valve, raise handle to fully extended position.

3. Start pump, circulating water backwards through filter to flush cake and con-

taminants into separation tank or waste.

4. If system has a sight glass, backwash until water in glass runs clear.

5. If system does not have a sight glass:

A. Backwash one minute.

B. Stop pump; reset valve to 'FILTER' position.

Stop pump before changing valve setting!

C. Restart pump; filter for 20 seconds.

D. Repeat steps A, B, C three times. Cycling is effective when cake and con-

taminants are difficult to break and flush out of filter.

NOTICE: Do not vacuum pool while backwashing filter.

6. Stop pump.

7. Open air release valve and release ALL pressure from tank and system.

8. Follow 'Disassembly' procedure, Page 8, to remove top of filter.

Hazardous pressure. Risk of severe personal injury and

major property damage if tank is opened while under pressure or while

pump is running.

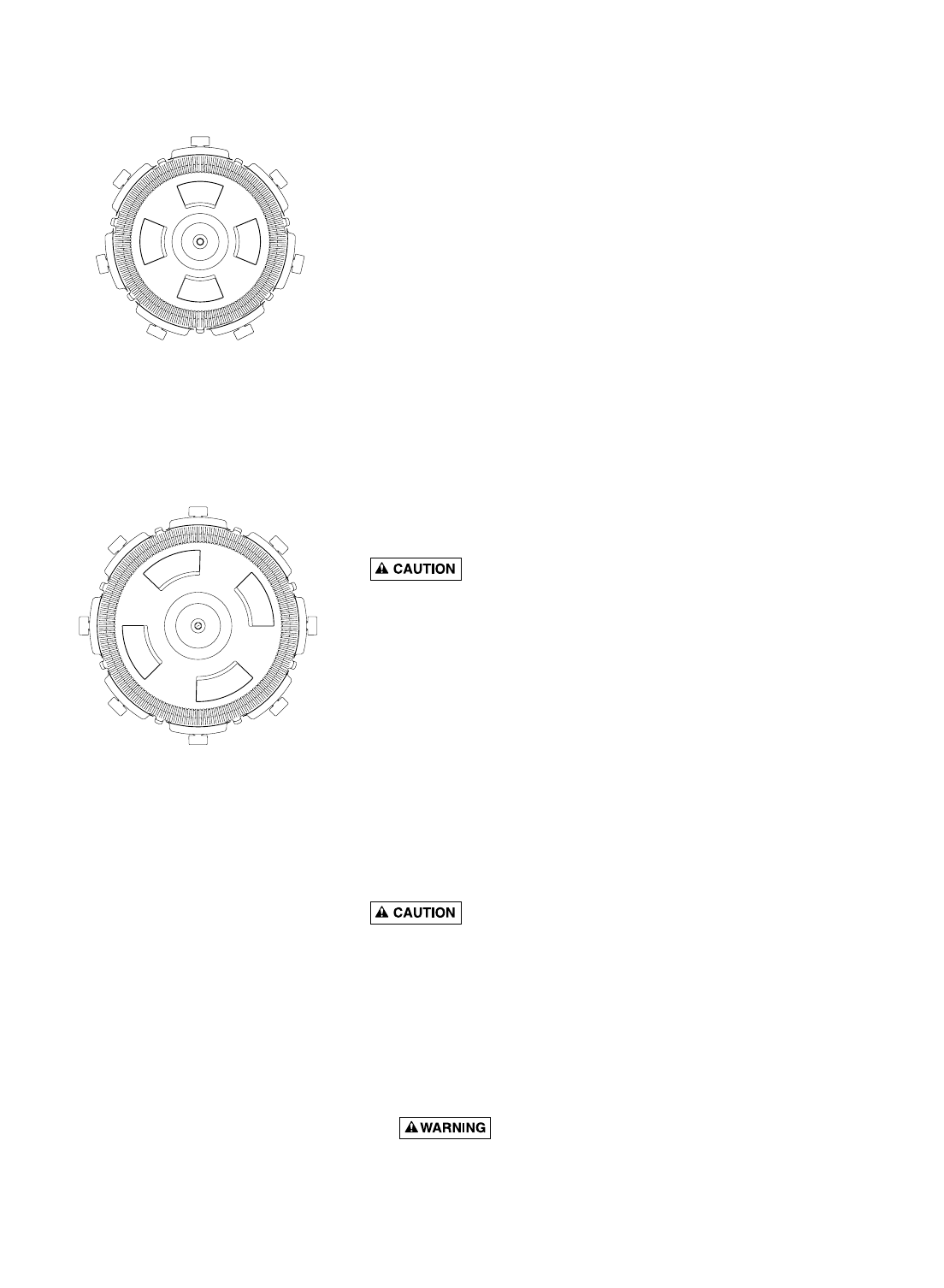

FIGURE 5 - 25" Filter clamp tight-

ening sequence.

FIGURE 4 - 21" Filter clamp tighten-

ing sequence.

9. If any DE remains on grids after backwashing, flush filter elements with

garden hose to remove it. Be sure to comply with local code for waste DE

disposal.

10. Follow instructions under 'Assembly', Page 8, to reassemble filter.

11. Follow 'Initial Start-up' procedure (Page 7, steps 4, 5, 6 and 7) to restart

system.

12. Compare pressure reading on gauge with reading recorded after initial

startup. The two readings should be very close; if not, do "Manual Filter

Cleaning Procedure", below.

MANUAL FILTER

CLEANING PROCEDURE

Before Disassembling Filter:

1. STOP PUMP.

2. OPEN air release valve.

3. WAIT until all pressure is released from filter tank and system

before loosening clamps.

NOTICE: At least twice a year, disassemble and clean filter regardless of oper-

ating pressure readings. This can be done conveniently while winterizing pool

in cold climates. Use this method regularly if no means of backwashing is

available.

1. Backwash filter as usual, but do not precoat.

2. Disassemble filter (see Page 8).

To avoid severe injury or major property damage, exactly follow in-

structions under “Disassembly” (Page 8)!

3. Unscrew union collar holding element assembly in position.

NOTICE: Be careful not to lose O-Ring.

4. Grasp element assembly at manifold (Figure 6) and remove it.

5. Hose down element assembly and clean with bottle brush (Figure 7). Use

detergent solution or filter cleanser available from a pool service store.

NOTICE: To avoid damaging fabric, do not allow filter element to rub on

concrete or any abrasive surface during cleaning.

NOTICE: Do not expose element cloth to direct sun for long periods.

Direct sun will cause the cloth to deteriorate.

6. Inspect grid cloth for tears, calcification, plugged areas, etc. If necessary,

soak element in filter cleanser to remove buildup of oils, etc. If calcified,

consult pool service company or factory for instructions.

7. Thoroughly clean air relief filter screen (Key No. 2, Page 15) on top of

manifold. Be sure to remove all debris from screen.

8. Inspect O-Ring out of the internal union (see Figure 6) for damage.

Reinstall it in the groove in the union half if it is undamaged; if it shows

tears or cuts replace it.

9. Replace filter element in tank and tighten union firmly hand tight. Union

1216 0497

Union

Collar

Element

Assembly

O-Ring

Manifold

1215 0497

FIGURE 6

FIGURE 7

Hazardous pressure.

Can cause severe

injury or major

property damage

from tank blow up.

Release all pressure

and read instructions

before working on filter.

collars may need to be cleaned before reassembly.

10. Follow filter assembly procedure, Page 8.

To avoid severe injury or major property damage, exactly follow

instructions under “Assembly” (Page 8)!

11. If unit is returning to service, see “Initial Startup”, Page 7.

12. If cleaning is part of seasonal shutdown, see “Winterizing”, Page 12.

CHEMICAL CLEANING

PROCEDURE

Before Disassembling Filter:

1. STOP PUMP.

2. OPEN air release valve.

3. WAIT until all pressure is released from filter tank and system

before loosening clamps.

NOTICE: Do not expose element cloth to direct sunlight for long periods.

Direct sunlight will cause the cloth to deteriorate.

NOTICE:To avoid damaging fabric, do not allow filter element to rub on con-

crete or any abrasive surface during cleaning.

NOTICE: Clean filter manually before doing any chemical cleaning.

Filter Disassembly:

To avoid severe injury or major property damage exactly follow

instructions under “Disassembly” (Page 8)!

1. Disassemble and inspect element grid assemblies for tears and worn

areas. Replace as needed.

2. Rinse each grid thoroughly with water.

3. Wash each grid with a mild soap solution or commercial filter cleaner. If

necessary, soak element grids in filter cleanser to remove buildup of oils,

etc.

4. Rinse thoroughly to remove all soap film.

5. If filter elements do not come clean after soaking, have your pool profes-

sional acid clean them.

Risk of burns, explosions, and environmental damage. Only

trained professionals should attempt to acid clean filter elements.

7. Reassemble element grids.

8. Inspect inside of filter tank and remove any debris which remains after

backwashing.

9. Thoroughly clean air relief filter screen (Key No. 2, Page 15) on top of

manifold. Be sure to remove all debris from screen. Replace filter screen if

damaged.

10. Follow filter assembly procedure, Page 8.

To avoid severe injury or major property damage, follow instructions

under “Assembly” (Page 8)!

11. If unit is returning to service, see “Initial Startup”, Page 7.

Hazardous pressure.

Can cause severe

injury or major

property damage

from tank blow up.

Release all pressure

and read instructions

before working on filter.

l2. If cleaning is part of seasonal shutdown, see “Winterizing”, Page 12.

SYSTEM INSPECTION

General:

Wash outside of filter with a mild detergent and water. Rinse off with hose.

NOTICE: DO NOT use solvents to clean filter; solvents may damage plastic

components in system.

NOTICE: Open air bleed valve and bleed all air from filter each time pump is

stopped and restarted.

Weekly Inspection:

1. Skimmer basket- remove debris.

Stop pump, release all pressure. Remove trap cover and basket, remove de-

bris.

3. Bleed air from filter each time system is started.

4. For systems with bypass valve, make sure separation tank is not under

pressure.

5. Check pump for leaks. If found, see pump owner's manual.

6. Check pump strainer lid for tightness. Do not over-tighten!

WINTERIZING

1. Clean filter according to instructions, Page 10, before winterizing. Do not

winterize with DE precoat on grids or with residual in tank.

2. Open air release valve; open all system valves. Position multiport valve

between port positions to allow passage to all ports.

3. Remove drain plugs from trap, pump, valve, filter and separation tank.

4. Drain system piping.

5. Loosen union nuts to drain water from filter internal piping and valve.

6. Cover with plastic or tarpaulin to prevent water entrance and freezing.

TROUBLESHOOTING GUIDE

1. Short Cycle between backwashes:

NOTICE: Time between backwashes will vary with each installation and be-

tween different areas of the country. The following causes and remedies are

for cycle times shorter than normal for your area.

A. Chlorine residual too low; maintain proper residual (consult pool pro-

fessional for recommendation).

B. Flow rate too high; restrict flow to rated capacity of filter (see instruc-

tion plate on filter or specifications on Page 6).

C. Filter too small; install larger filter or additional filter.

D. Improper/insufficient precoat; see precoat instructions (Page 7).

E. Filter elements plugged; thoroughly clean filter (see No. 4, "Plugged

Grid Cloth", below, and "Manual Filter Cleaning Procedure", Page 10).

F. Insufficient cleaning during backwash or annual cleaning; review

cleaning instructions, Pages 9-11.

G. Too much DE; check for bridging between filter elements.

H. Water is chemically out of balance; consult pool professional.

2. Low Flow/High Pressure:

A. Elements plugged; clean filter thoroughly (see Pages 9-11).

B. Pipe blocked downstream from filter; remove obstruction.

C. Piping too small; use larger pipe (consult dealer for sizing).

D. Filter area too small; install larger filter or auxiliary filter (consult dealer

for recommendation)

3. Low Flow/Low Pressure:

A. Pump too small; consult dealer for recommendations.

B. Plugged pump or plugged hair and lint trap; clean thoroughly.

4. Plugged Grid Cloth:

A. Insufficient precoat; see precoat instructions (Page 7).

B. Insufficient cleaning; follow cleaning instructions closely and clean

thoroughly (see Pages 9-11).

C. Water is chemically out of balance; consult pool service man.

D. Excessive air in filter; non-precoated areas may plug. Vent air from tank

and check for pump suction pipe leaks. Clean air bleed filter in grid as-

sembly.

5. Pool Water Not Clean:

A. Chlorine dosage too low; maintain adequate chlorine residual (consult

pool service man for recommendation).

B. Broken filter elements passing DE into pool; replace defective grids.

C. Insufficient or improper precoat; follow precoating instructions and use

recommended amount of DE (see Page 7).

D. Inadequate turnover rate; consult dealer to verify that equipment is

properly sized for your pool.

1460 0497

21 14

MODELS

S7D75

S8D110

Key Part Model No.

No. Description S7D75 S8D110

12 Inch Gauge 33600-0023 33600-0023

2Air Release Valve WC212-120P WC212-120P

3Close Nipple 1/4 in. U37-16P U37-16P

4Adapter Bushing 24900-0504 24900-0504

5O-Ring 35505-1423 35505-1423

6Upper Tank Shell Kit* 24851-9000 24851-9001

7Filter Element Assembly 23900-1220 23900-1221

8O-Ring U9-362 U9-362

9Outlet Assembly 23911-0102 23911-0102

10 Inlet Assembly 23911-0100 23911-0101

11 O-Ring 35505-1425(2) 35505-1425(2)

12 1-1/2" NPT Plug 27001-0022S 27001-0022S

13 Adapter Fitting 24900-0509 24900-0509

14 O-Ring 35505-1424 (2) 35505-1424(2)

15 Drain Plug 24900-0503 24900-0503

16 Bulkhead Retaining Nut 24752-0050(2) 24752-0050(2)

17 Clamp Assembly 24850-0101 (7) 24850-0101 (8)

18 Clamp Bolt 24850-0010(7) 24850-0010(8)

19 Lower Tank Shell 24850-0102 24851-0103

20 Tank O-Ring 24850-0008 24850-0009

21 Valve and Gauge Assembly (Includes Key Nos. 1-5) 24850-0105 24850-0105

•Warning Decal 32165-4004 32165-4005

•Decal - Model Label 32155-4031 32155-4033

•Decal - Instruction Label 32155-4032 32155-4034

•Not illustrated Quantity one unless otherwise indicated ( ).

* Includes all decals and labels.

REPAIR PARTS LIST

1063 0497

1064 0497

Key Part No. Part No.

No. Description Used 23900-1220

1Wing Nut 2 35402-0074

2Air Bleed Assembly 1 24800-0120

3Manifold 1 24800-0100

4Covered Element 12-7/16" 1 23900-1171

5Covered Element 13-13/16" 2 23900-1170

6Covered Element 16-1/2" 2 23900-0033

7Covered Element 15-3/16" 2 23900-1174

8Covered Element 12-7/16" 2 23900-1175

9Covered Element 9-11/16" 2 23900-1173

10 Element Grid Support 1 23900-0350

11 Rod 2 23900-0039

Key Part No. Part No.

No. Description Used 23900-1221

1Wing Nut 2 35402-0074

2Air Bleed Assembly 1 24800-0120

3Manifold 1 24801-0101

4Covered Element 16-1/2" 3 23900-1172

5Covered Element 19-5/16" 4 23900-0144

6Covered Element 16-1/2" 2 23900-0033

7Covered Element 15-3/16" 2 23900-1174

8Covered Element 11" 2 23900-0032

9Element Grid Support 1 23901-0350

10 Rod 2 23900-0039

FILTER ELEMENT ASSEMBLY FOR S8D110

FILTER ELEMENT ASSEMBLY FOR S7D75

Sta Rite Swimming Pool Filter S7D75 Users Manual S284/Vertical

Navigation menu

Versions of this User Manual:

Views

Navigation
