Contents
Variants MT403 403G
INSTRUCTION MANUAL
OWNER DETAILS
Name:
Address:
Phone:
Beacon UIN/15-HEX ID:
Congratulations on purchasing your new Accusat™ MT403 series EPIRB.
The Accusat™ MT403 and MT403G are the most advanced 406 MHz digital
satellite beacons available today. Using new digital frequency generation
technology, GME have developed and approved world wide, a new family
of affordable high performance 406 MHz beacons.
A CAUTIONARY NOTE: The satellite EPIRB is the most significant advance in
search and rescue technology in many years. It is not a substitute for a marine
radio – mariners should not be over-reliant on any single system. Wise, safe
mariners plan carefully, ensure that shore contacts know their sail plan, carry a
marine radio and the right range of other safety equipment and operate their
craft sensibly to suit conditions at sea.
GENERAL DESCRIPTION
The Accusat™ MT403 and MT403G digital Emergency Position Indicating
Radio Beacons (EPIRB) are designed for use when the safety of your craft
and crew is endangered and you have no other means of communication.
The EPIRB can save your life and the lives of others on board by leading an
air/sea rescue to your precise location. In the past, extensive and lengthy
searches have been carried out for missing craft, sometimes to no avail.
Your GME EPIRB is a self contained 406 MHz radio transmitter that emits an
internationally-recognised distress signal on a frequency monitored by the
COSPAS-SARSAT satellite system. The MT403 and MT403G contain a unique
identity code which can be cross referenced to a database of registered
406 MHz beacons, allowing the beacon’s owner or vessel to be immediately
identified in the event of an emergency. Both models can be manually
activated by the operator in an emergency situation and will also
automatically activate out of the mounting bracket if floated in water.
Additionally each includes a ultra high performance solid state strobe
and 121.5 MHz VHF homing beacon to assist in leading rescuers to your
precise location.
The MT403G also features an intergrated 16 Channel GPS Receiver which
will automatically acquire a position and relay the latitude and longitude of
the beacon along with the personal identifier and emergency signal.
ABOUT THE COSPAS-SARSAT SYSTEM
The COSPAS-SARSAT system is a complete global search and rescue service
using geostationary and polar orbiting satellites. Many countries provide
ground facilities known as Local User Terminals (LUTs).
Polar orbiting satellites provide complete, although non-continuous, coverage
of the earth (due to the fact that these satellites can only view a portion of
the earth at any given time) and can accurately resolve an active beacons
location. Additionally, geostationary satellites can give an immediate alerting
function in many regions of the world.
The basic COSPAS-SARSAT concept is illustrated in the figure above.
ABOUT 406 MHz BEACONS
406 MHz beacons provide more accurate and reliable alert data to search
and rescue agencies than the older 121.5/243 MHz systems presently being
phased out. The older 121.5 MHz analogue system required that the satellite
be within view of both the beacon and the LUT before it could transmit
the beacons position. This limited the coverage to an area immediately
surrounding the LUT. However, the digital nature of the 406 MHz system
means that the satellites are able to store the beacons position and digital
message, no matter where in the world it is received. These details are then
relayed to the next LUT that comes into range, giving the 406 MHz system
true global coverage.
REGISTRATION AND TRANSFER OF OWNERSHIP
Registration of your 406 MHz satellite EPIRB with the Registration Section of
your National Authority is important because of the global alerting nature of
the COSPAS-SARSAT system.
Owner Registration Forms for registering your beacon may be supplied within
the packaging, otherwise, your National Authority will be able to provide the
correct forms. Up to date forms are often available online.
The information provided in the registration is used only for search and
rescue purposes. Promptly fill in the owner registration form upon completion
of the sales transaction, then mail, fax or email it to your National Authority.
If the beacon is to enter service immediately, complete the registration form
and fax or email the information.
Should the beacon be transferred to a new owner, as the previous owner
you are to inform your National Authority by email, fax, letter or telephone
of the name and address of the new owner.
The new owner of the beacon is required to provide their National Authority
with the information as shown on the registration form. This obligation
transfers to all subsequent owners.
NOTE: Your MT403/403G EPIRB has been programmed with a unique identifying
code which will be transmitted by the beacon in an emergency. Registering
your beacon provides the authorities with immediate access to your details
when the beacon is detected. This means they will know who you are, who your
emergency contacts are and what type of vessel or craft you are in. In situations
of accidental activation they can also immediately eliminate your beacon as an
emergency situation by contacting you when activation is detected.
PREVENTING ACCIDENTAL ACTIVATION
The signal from an EPIRB is regarded by authorities as an indication of
distress and is given an appropriate response. It is the responsibility
of every owner of an EPIRB to ensure that it is not activated unintentionally
or in situations that do not justify its use.
Most cases of accidental transmission result from poor or inappropriate
storage or failure to totally disable an old model EPIRB before disposal.
The need to treat EPIRBs responsibly cannot be too highly emphasized.
The MT403/403G will not commence transmitting until approximately
60 seconds after activation, providing a safety period of audible and
visual warning. If you hear the beacon beeping while it is being carried
or stowed, you may still be able to deactivate it during this time period
without actually transmitting a distress signal. If in doubt, report the
incident to your local authorities just in case.
To minimize the possibility of accidental activation, EPIRB owners are urged
to pay careful attention to the following points:
1. Always stow the EPIRB in the mounting bracket and with the switch
cover closed. The mounting bracket and switch cover are designed
specifically to prevent accidental activation.
2. Avoid stowing the EPIRB where it may lie in water.
3. Avoid mounting the EPIRB where it will be subjected to continuous
direct sunlight. This could cause the beacon’s internal temperature
to exceed the maximum storage temperature of +70°C. Long term
stowage under these conditions could result in reduced battery life, poor
performance or degradation of the plastics due to excessive U.V. light.
4. Do not allow children to interfere with the EPIRB.
5.
Educate others on board your vessel regarding the consequences of activation.
NOTE: Always stow the EPIRB in it’s bracket to minimise the possibility of an
accidental automatic activation in the presence of moisture. The yellow collar,
provided with this model‘s bracket, contains special features which temporarily
P/N: 310424 Dwg No: 44212-1
www.gme.net.au
Standard Communications PTY LTD.
HEAD OFFICE: Locked Bag 2086, North Ryde, N.S.W. 1670, Australia.
Tel: +61 (0)2 9844 6666 Fax: +61 (0)2 9844 6600
INTERNATIONAL ENQUIRIES
International enquiries should be direccted to: export@gme.net.au
NATIONAL AUTHORITY DETAILS
Australia
24 hour Emergency Contact
Phone: 1 800 641 792
Registration
Beacon Registration Section, AusSAR
Australian Maritime Safety Authority
GPO Box 2181, Canberra ACT 2601
Fax: +61 (0)2 9332 6323
Email: ausbeacon@amsa.gov.au
Ph: Freecall* 1800 406 406 (Australia only)
+61 (0)2 6279 5766 (In Business hours
local or international)
* Calls from mobile attracts a connection
charge.
New Zealand
24 hour Emergency Contact
Phone: +64 4 577 8030
Registration
Rescue Co-ordination Centre New Zealand
PO Box: 30050, Lower Hutt 6009
Fax: +64 4 577 8041
Email: 406registry@maritimenz.govt.nz
Phone: +64 4 577 8033
NATIONAL DISTRIBUTOR DETAILS
BATTERY
Replacement Period:
Prior to expiry date marked on case.
R eplacement Method:
Service centre, or factory only (non-user replaceable).
Chemistry:
LiMnO2 (0.49 g Lithium per cell)
Configuration:
5 parallel packs each of 2 series cells.
PHYSICAL
Operating:
-20°C to +55°C.
Storage:
-30°C to +70°C.
Weight:
555 g (plus 98 g for bracket).
Compass Safe
Distance:
0.7m (incl mounting bracket) from magnetic navigational
device when inactive.
Dimensions:
260 mm (H) x 102 mm (W) x 83 mm (D) max.
when stowed in bracket.
Materials:
UV stabilized plastic chassis.
Performance:
IEC 61097; IEC 60945; AS/NZS 4280.1; ETSI EN 300 066.
Transport Class
:
Exempt from UN3091
Patent Number:
GB2420058, other patents appiled for.
OTHER FEATURES
Retention Lanyard:
Buoyant type approximately 5.5 metres long.
Reflector:
SOLAS retro-reflective tape encircling unit above waterline.
Solid-state Strobe:
High reliability solid state design exceeds IMO
requirements.
Antenna:
Flexible self straightening stainless steel design.
Bracket:
Quick release mechanism (manual). Retained by four (4)
vessel fixing points.
Specifications are subject to change without notice or obligation.
GME SIX (6) YEAR WARRANTY
GME limit this warranty to the original purchaser of the equipment.
GME warrant this product to be free from defects in material and
workmanship for a period of 6 years from the date of purchase from
the authorised retailer.
Replacement of batteries due to expiry or usage is excluded from this Warranty.
Should the product require servicing during this period, all labour and parts
used to effect repairs will be supplied free of charge. GME reserve the right
to determine whether damage has been occasioned by accident, misuse or
improper installation, whereby the Warranty could be void.
In the event of a defect occurring during the Warranty period, the original
purchaser may return the defective unit along with suitable proof of
purchase (i.e. receipt, credit card slip etc.) and a full description of the
defect to the retailer from whom the unit was purchased. The retailer
will forward the unit to an authorised GME Service Depot in your State.
All freight charges incurred for transportation by the retailer or GME are
the purchasers’ responsibility.
EMERGENCY
POSITION
INDICATING
RADIO BEACON
EPIRB
406 MHz
Homer/Strobe
MT403
Water activation
MT403 MT403G
Patent Number: GB2420058
GPS VERSION
MANUAL & WATE R
ACTIVATION
MT403G
MANUAL & WATE R
ACTIVATION
GPS antenna
Standard Communications
PTY LTD
Standard Communications
PTY LTD
METAL
TESTING THE EPIRB
It is recommended that you test the MT403/403G at regular intervals
(approximately monthly) to ensure it is fully functional. You should also test
the EPIRB prior to an extended journey.
DO NOT over test – testing consumes some battery power.
WARNING: DO NOT remove the EPIRB from its mounting bracket if the unit is wet,
it may automatically activate. Ensure the unit is thoroughly dry before removal.
You may test the EPIRB at any time using the following procedure:
1. Remove the beacon from the bracket. Keep the antenna well clear of
metalic objects during testing.
2. Lift the cover marked ‘LIFT’.
3. Briefly press then release the yellow
‘TEST’ button.
4. The unit will give a double beep
and flash of the strobe light to
show it is functioning correctly.
5. Close the switch cover and press
firmly into place until it clicks.
6. Return the beacon into the bracket.
If the EPIRB fails the testing process you should return it to your retailer or
nearest GME branch office for maintenance.
GPS SATELLITE ACQUISITION TEST (MT403G ONLY)
The standard self test procedure is more than sufficient to perform a
comprehensive check of your beacon without consuming too much battery
capacity. On occasions, and no more regularly than on average once a year,
you may wish to perform a GPS satellite acquisition check.
Whereas the routine self test verifies the GPS receiver’s circuitry, the full test
will include the operation of the special GPS antenna as well.
1. This test consumes much more power than a standard self test so choose
a test location with good visibility of the open sky above. A quick satellite
acquisition means a short test, and less wasted power consumption.
2.
Carry out a self test in the usual way but rather than releasing the
‘TEST’ button, continue to hold it in position. After the self test pass
confirmation, both the strobe flash and the internal beeper will start. Count
a further four flashes/beeps then immediately release the ‘TEST’ button
.
3. The MT403G will continue to flash and beep whilst it searches for
available satellites. This may continue for a number of minutes depending
on the number and location of satellites present. It is not possible to
abort the test once started, and note that distress signals are not radiated
as part of this test.
4. If no satellites are found after a predetermined time the repetitive flash
and beep will stop. This may indicate a fault with the GPS receiver system
within the EPIRB and you should contact your local service centre for
advice.
If the test terminates with a rapid sequence of flashes and beeps, then GPS
satellite acquisition and correct operation has been confirmed.
TRANSPORTATION
The MT403/403G use batteries with a low level of lithium content.
Consequently these EPIRBs are classified as ‘non-hazardous products’
by IATA and may be shipped without problem (accompanied or
unaccompanied) on passenger aircraft. However, it is advisable that you
check with your carrier that they do not have specific restrictions which may
apply to you.
DISPOSAL
Special precautions must be taken when finally disposing of your beacon
at the end of it’s useful life. Legislation may determine the specific
requirements which apply to you. In the first instance contact your National
Authority for advice.
The following information may also be helpful:
s¬¬¬4O¬PERMANENTLY¬DISABLE¬THE¬BEACON¬REMOVE¬THE¬¬SCREWS¬RETAINING¬THE¬
cover, open unit, unplug battery lead, then reseal.
s¬¬¬,ITHIUM¬BATTERIES¬ARE¬GENERALLY¬NOT¬CONSIDERED¬AS¬HAZARDOUS¬WASTE¬WHEN¬
fully discharged. Qualified personnel may be able to slowly and safely
discharge the cells for you.
DO NOT short circuit the cells or battery. DO NOT incinerate.
SPECIFICATIONS - MT403 AND MT403G
MODES OF OPERATION
Activated:
UHF (406) and VHF (homer) complete with high intensity
strobe and audible activation alert.
Self test:
Comprehensive internal diagnostics with visual and
audible operator feedback. UHF test message (inverted
synchronisation compatible with portable beacon testers).
OPERATION
Activation:
Manually by operator and Automatic when deployed in water.
Bracket Type:
Manual Release.
Duration:
48 hours minimum.
Transmission Delay:
121.5 and 406 MHz distress signals commence ~
60 seconds after activation.
Warm Up:
None required (due to digital frequency generation).
VHF:
121.5 MHz, 50 mW ±3 dB, swept tone AM.
UHF:
406.028 or 406.037 MHz, 5 W ± 2 dB, PSK (digital).
Strobe:
20 flashes/minute at greater than 0.75 cd
effective intensity.
COSPAS-SARSAT
Certified to C/S T.001 (Class 2) requirements.
UHF-Protocol/Data:
Serial User (Standard factory setting. Distributor
programmable via external interface.)
Repetition Period:
50 s mean, digitally generated randomization.
VHF:
Satellite compatible phase coherent.
inhibit automatic water activation of the EPIRB. If transporting the MT403/403G
out of it’s mounting bracket, ensure that it remains completely dry at all times.

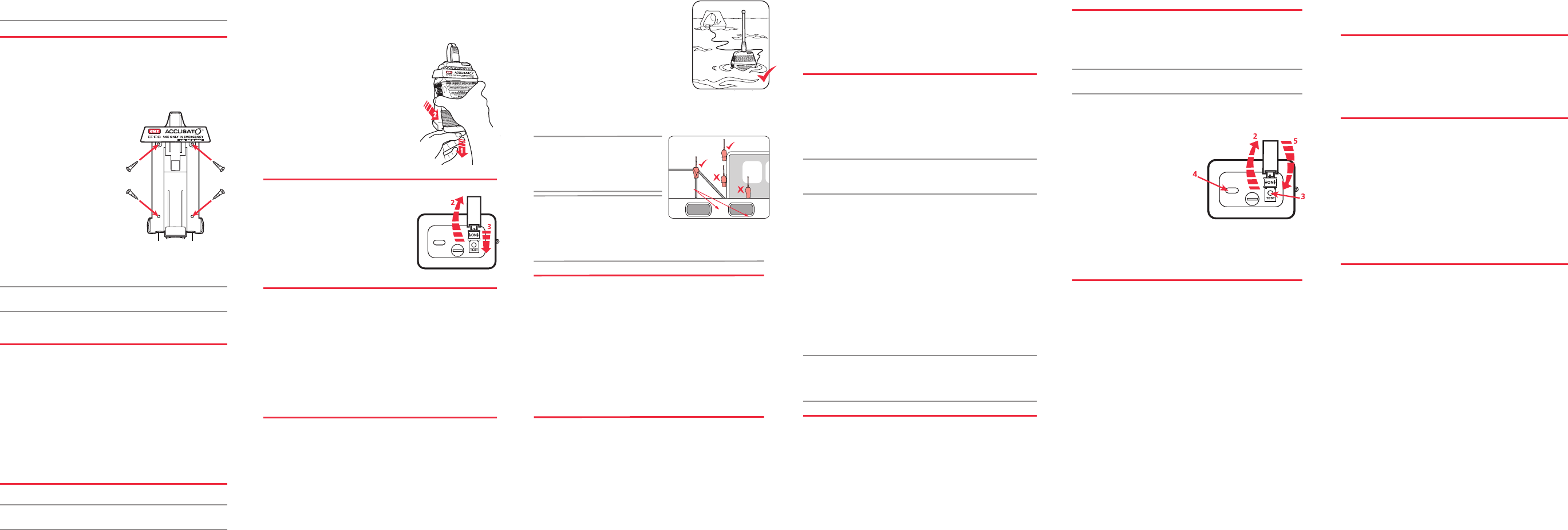

INSTALLATION
The MT403/403G can be mounted upright or horizontally against a panel
or bulkhead. When selecting a location, consider the following:
s¬¬¬3ELECT¬A¬LOCATION¬THAT¬IS¬READILY¬ACCESSIBLE¬IN¬AN¬EMERGENCY
s¬¬¬%NSURE¬THE¬UNIT¬IS¬PROTECTED¬AGAINST¬THE¬ENVIRONMENT¬!VOID¬LOCATIONS¬
where it will be subject to water spray or continuous sunlight.
s¬¬¬-OUNT¬THE¬UNIT¬IN¬A¬LOCATION¬WHERE¬IT¬
will be safe from physical damage.
s¬¬¬4HE¬SPECIlCATIONS¬SECTION¬CONTAINS¬
the ’Compass Safe Distance’ for
your particular model EPIRB. This
is the minimum distance that must
be maintained between an inactive
stowed beacon and any magnetic
navigational device.
s¬¬¬#ONlRM¬THE¬SELECTED¬LOCATION¬ALLOWS¬
sufficient clearance to remove the
beacon from the bracket when
required.
Hold the mounting bracket in place
(with the EPIRB removed) and mark the location of the mounting holes.
Screw the bracket to the panel or bulkhead using the stainless steel screws
supplied.
NOTE: The placement of the mounting holes for the mounting bracket are
identical to those used on the earlier MT300 EPIRB.
Once the bracket is fixed in place, fit the MT403/403G to the bracket.
IN AN EMERGENCY
If an emergency occurs, you should first try to use your radio to
summon assistance.
Distress procedures should only be used where grave and imminent danger
threatens your craft and assistance is required. If contact is made, it may
not be necessary to use the beacon. Notify the ‘Emergency Facility’ that you
have a beacon and that you will turn it on upon their instructions.
Use the Beacon as a Last Resort.
If dire emergency threatens life and you have been unable to make radio
contact or have lost radio contact, use the beacon. The distress signal
transmitted by your beacon identifies you as a craft in distress and will
initiate an air/sea search and rescue.
BRACKET RELEASE AND STOWAGE
To remove the EPIRB
WARNING: DO NOT remove the EPIRB from its mounting bracket if the unit is wet,
it may automatically activate. Ensure the unit is thoroughly dry before removal.
1. With one hand, press down on the tab marked ’RELEASE’ at the base of
the bracket.
2. Grasp the EPIRB with the other hand and pull it outwards and downwards.
3. The antenna will release automatically and
spring to the upright position.
To re-fit the EPIRB
1. Insert the EPIRB, antenna first, upwards into
the bracket.
2. Press the tip of the antenna against the
bottom of the three ridges in the antenna slot
and slide the EPIRB upwards into the frame of
the bracket so that the antenna folds over.
3. Press downwards on the ‘RELEASE’ lever and
push the EPIRB base firmly into the bracket
until the lever clicks upwards.
MANUAL ACTIVATION
1. Remove the beacon from the bracket.
2. Lift the switch cover (marked ‘LIFT’).
3. Slide the ‘ON’ slider switch fully forward
in the direction of the arrows. The unit will
initially self test, then after two seconds
the flashing strobe and beeps will indicate
the beacon is operating.
4. Close the cover to secure the switch.
WATER ACTIVATION
1. Remove the beacon from the bracket.
2. Deploy the beacon in water if sea conditions permit. The unit will initially
self test, then shortly after the flashing strobe and beeps will indicate the
beacon is operating.
The EPIRB has been designed to maintain continuity of operation even when
the units sensors leave the water for periods of several seconds at a time.
Uninterrupted operation is however always best guaranteed by also manually
activating the EPIRB.
If the beacon is to be deployed but not in water the manual activation
method must be used.
DEPLOYING THE EPIRB
Unwind the cord and secure the EPIRB to prevent loss.
When activated, the MT403/403G will transmit the
strongest signal
to the
satellites when:
s¬¬)T¬IS¬mOATING¬IN¬WATER
s¬¬¬)T¬IS¬WELL¬CLEAR¬OF¬SURROUNDING¬AND¬OVERHANGING¬OBJECTS
s¬¬4HE¬ANTENNA¬IS¬VERTICAL
In extreme sea conditions, you should not float the EPIRB free of the vessel or
the life raft if there is the possibility of loss or damage to the EPIRB.
2. Date, time and duration of activation.
3. Cause of activation.
4. Location at time of activation.
Search and Rescue authorities will not penalize an EPIRB owner or operator
in cases of genuine accidental activation.
BATTERIES AND MAINTENANCE
The MT403/403G is fitted with the very latest in high capacity Lithium
battery technology. These batteries are able to operate within a temperature
range of -20°C to +55°C.
The full operational capability of your beacon may not be available if the
batteries fitted have exceeded their replacement date, as shown on the body
of the unit. Prior to reaching this date, make arrangements to have your
EPIRB returned for service.
NOTE: The replacement of batteries due to expiry or usage is not covered by the
product‘s Warranty. EPIRB maintenance operations, including battery replacement,
require that the beacon be returned to a manufacturer approved service facility.
Although the MT403/403G is otherwise maintenance free, routinely
following these few simple steps will help ensure that your beacon will
be operationally ready if called upon:
1. Test the EPIRB at the recommended interval.
2. Confirm the SAFETY SEAL has not been broken.
3. Check that the batteries have not passed their replacement date.
4. Inspect the MT403/403 and bracket for damage or deterioration.
5. Keep the unit clean by wiping over with a damp cloth (warm water and
mild detergent are suitable), then dry.
6. Verify that the unit releases correctly from the bracket and is securely
retained when returned to it.
If there is any doubt as to the products’ serviceability, immediately contact
your authorised dealer or service centre for advice.
NOTE: Some installations may be covered by state, national or international
carriage requirements. Such legislation may impose additional inspection and
maintenance requirements beyond those listed above. Contact the relevant
authority for further information.
SAFETY SEAL
The safety seal which covers the tab behind the ‘
ON’
slider is designed to
tear if the unit is switched on. A safety seal that is not broken serves to
indicate that the beacon has never been manually activated.
NEVER remove or break the seal unless deploying the EPIRB in an emergency.
If the beacon has been activated for any length of time, the batteries can no
longer be guaranteed to have the capacity to operate for the minimum 48
hour period and therefore must be replaced.
By observing the following guidelines satisfactory
operation should still be achieved when operating
the EPIRB out of water.
s¬¬¬¬¬¬¬¬4HE¬%0)2"¬SIGNAL¬
will not pass through metal
but will pass through fiberglass, wood or fabric
with some loss when wet.
s¬¬¬4HE¬BODY¬OF¬THE¬%0)2"¬CAN¬BE¬ATTACHED¬TO¬
metal fittings, but the antenna must be
vertical
and clear of the metal.
s¬¬¬)F¬THE¬CABIN¬IS¬METALLIC¬SUCH¬AS¬STEEL¬OR¬ALUMINIUM¬THE¬%0)2"¬SHOULD¬BE¬
mounted on a clear space outside with the antenna vertical and clear of
surrounding objects.
WARNING: Switching a beacon on and off
interferes with the satellites ability
to determine your location. Once activated in
an emergency allow the beacon to operate
without interruption until your rescue.
NOTE: Normal operation of your beacon
will cease once battery capacity is depleted.
Special circuitry within the MT403/403
however directs any remaining capacity towards extended operation of the
homing transmitter. Although the beacon may otherwise have appeared to cease
functioning it is likely that a homing signal is still being emitted.
TURNING THE EPIRB OFF
It is important that you turn the EPIRB off as soon as possible after being
rescued. If you leave the EPIRB running when it is no longer needed it may
make it difficult for the satellites to detect other beacons that may be
transmitting in the area.
1. Remove beacon from the water.
2. Lift the switch cover (marked ‘
LIFT
’).
3. Slide the yellow slider switch fully towards the
‘
READY
’
position.
4. Close the cover to secure the switch.
5. To cancel Water Activation dry the beacon or restow the beacon in the
bracket. It may take a number of seconds for the EPIRB to de-activate.
6. Check that both the strobe light and the ‘beep’ have stopped.
IN THE EVENT OF ACCIDENTAL ACTIVATION
If you suspect that an EPIRB has been activated inadvertently, you MUST
turn it off and report it immediately to your National Authority‘s Rescue
Co-ordination Centre to prevent an unnecessary search.
If at sea call your local VHF coast station, or Rescue Co-ordination centre.
In
international waters contact a Maritime Rescue Co-ordination Centre or
Coast Radio Station (CRS) by any available means.
When reporting you should include the following:
1. Your EPIRB’s 15 character Unique Identifier Number (UIN), which is
marked on the unit body.
