K2 PRODUCT CATALOG
K2 PRODUCT CATALOG
DOOR HARDWARE
2K2 Product Catalog 1.866.590.2094
Table of Contents
A. General Information
About K2
SpecCentre Services
Product Warranty
Customizable Exit Devices
B. Mortise Locksets – Grade 1
QMS100 – Sectional
QME100 – Escutcheon
QML100 – Deadlock

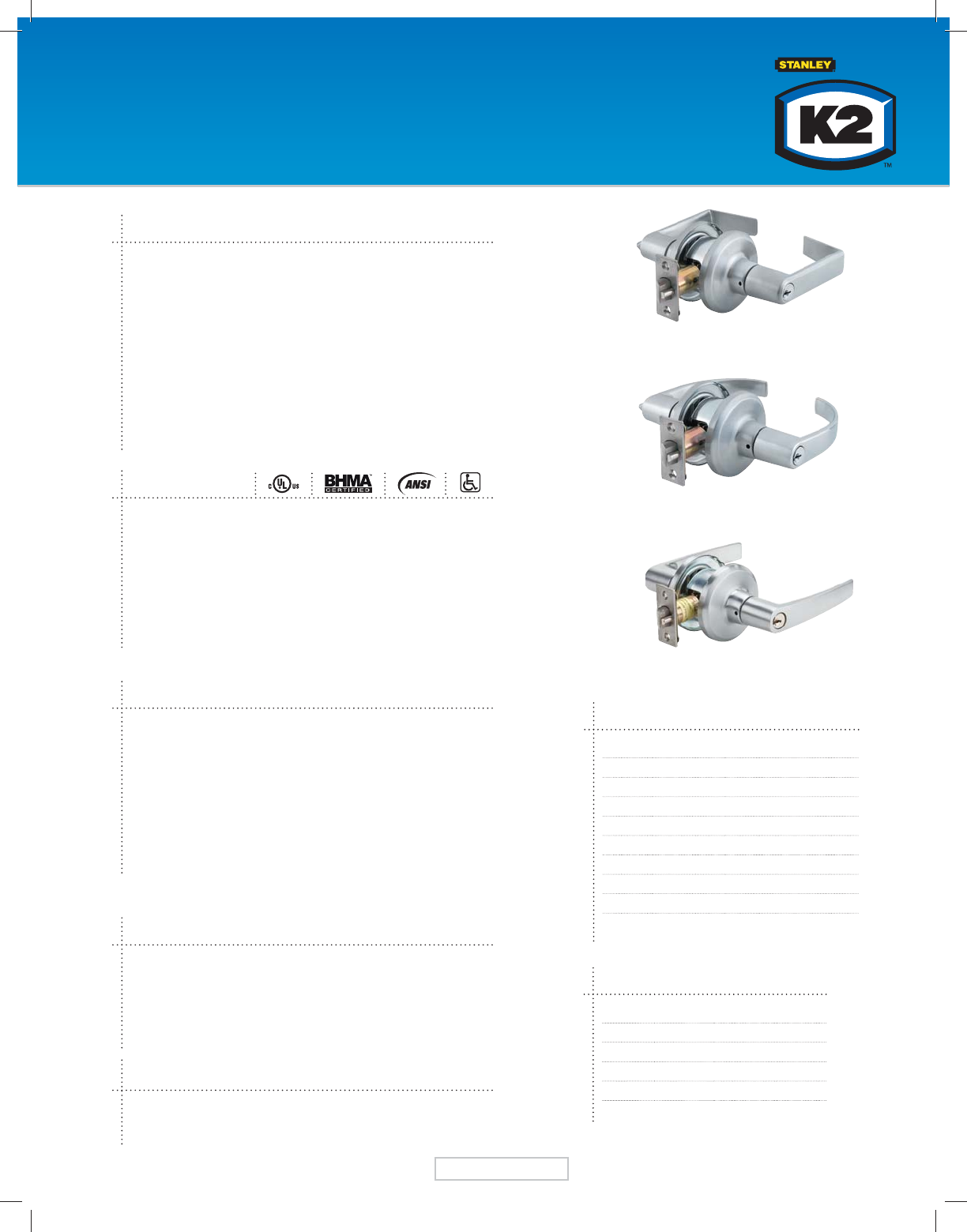

C. Cylindrical Locksets – Grade 1
QCL100 Series
D. Cylindrical Locksets – Grade 2
QCL200 Series
E. Interconnected Levers
QCI200 Series
H. Tubular Locksets
QTL200 Series

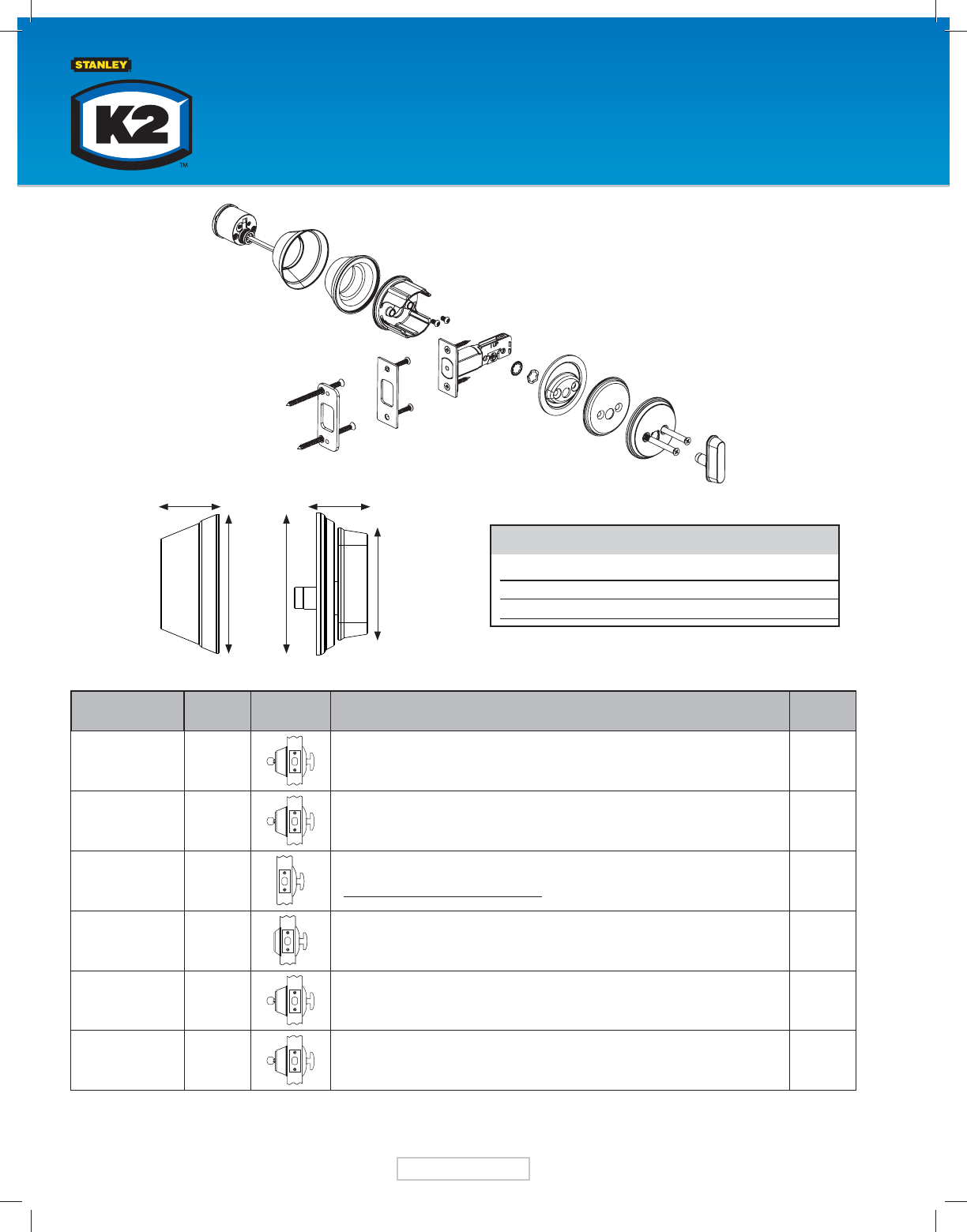

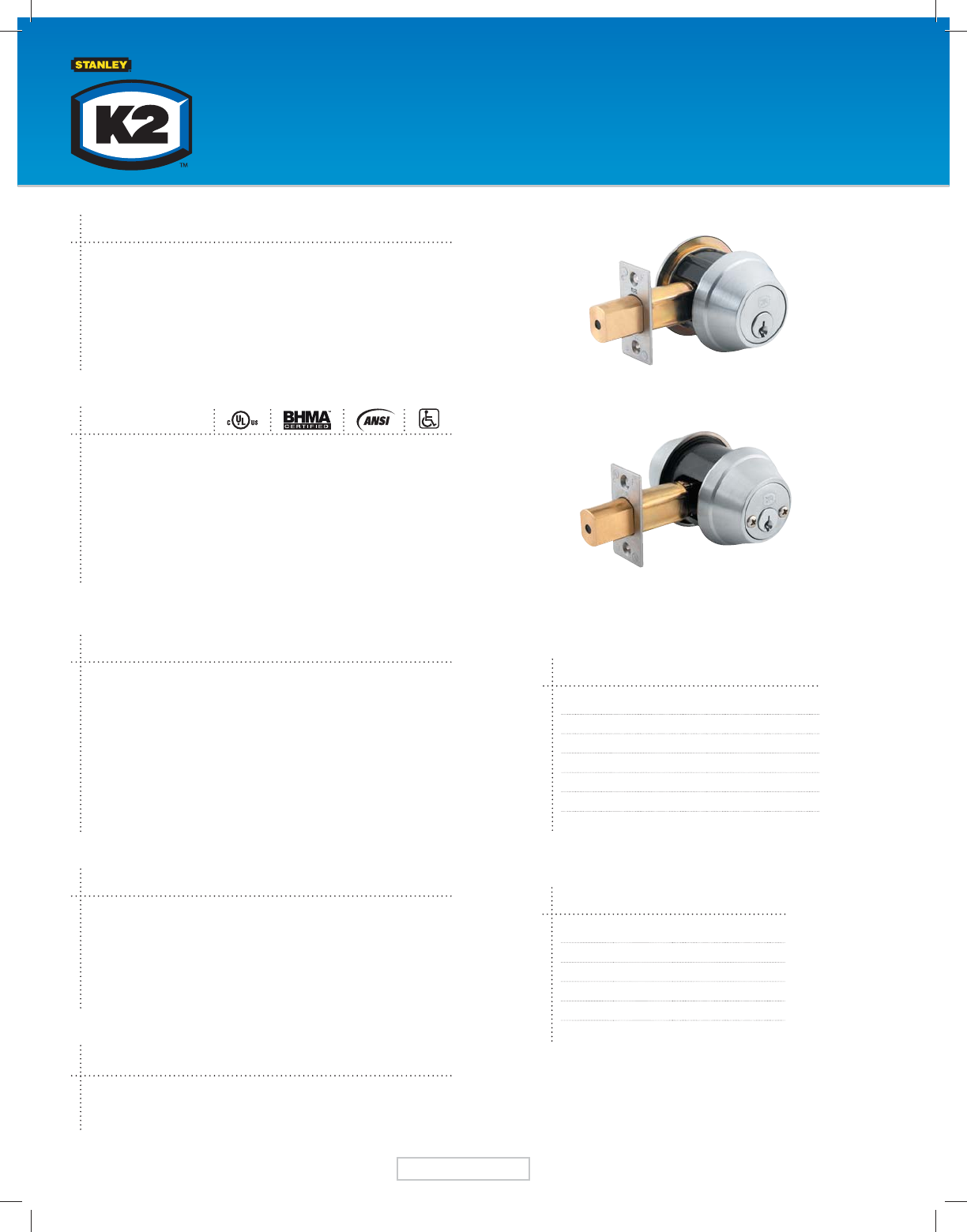

I. Auxiliary Deadbolts – Grade 1
QDB100 Series
J. Auxiliary Deadbolts – Grade 2
QDB200 Series
K. Exit Devices & Trims – Heavy Duty
QED100 Series
QET100 Series
QRM100 Series
L. Exit Devices & Trims – Standard Duty
QED300 Series
QET300 Series
QRT300 Series
QRM300 Series

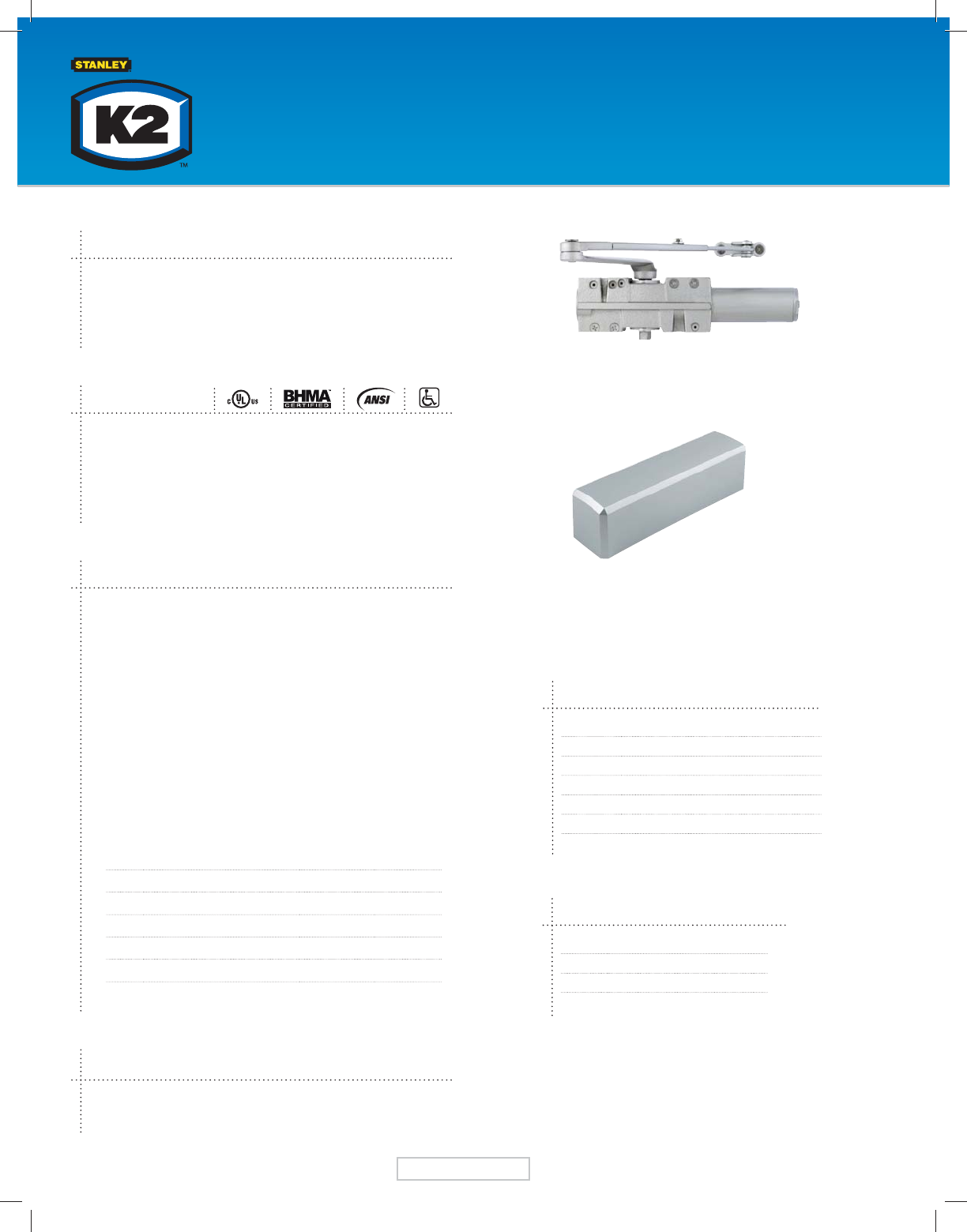

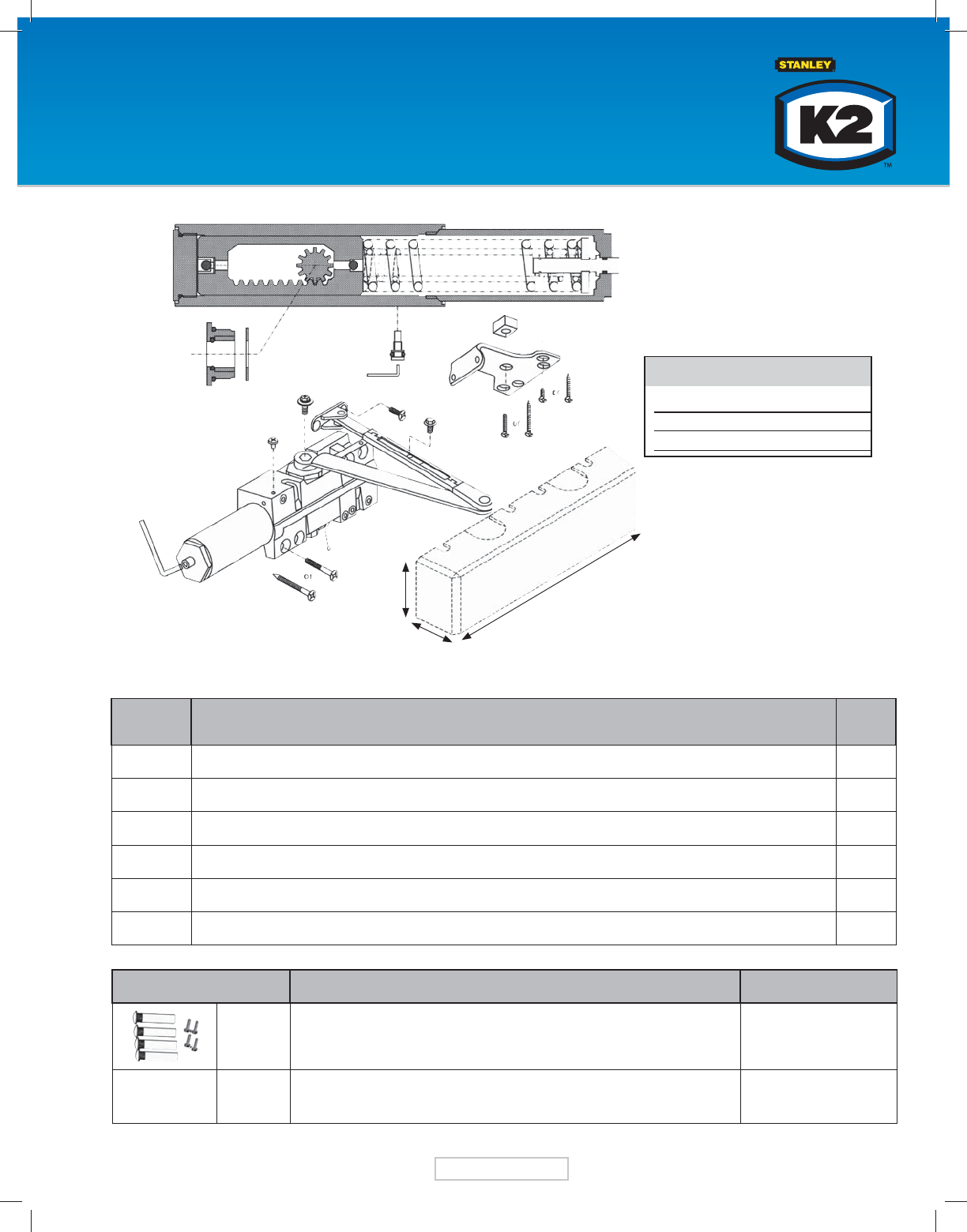

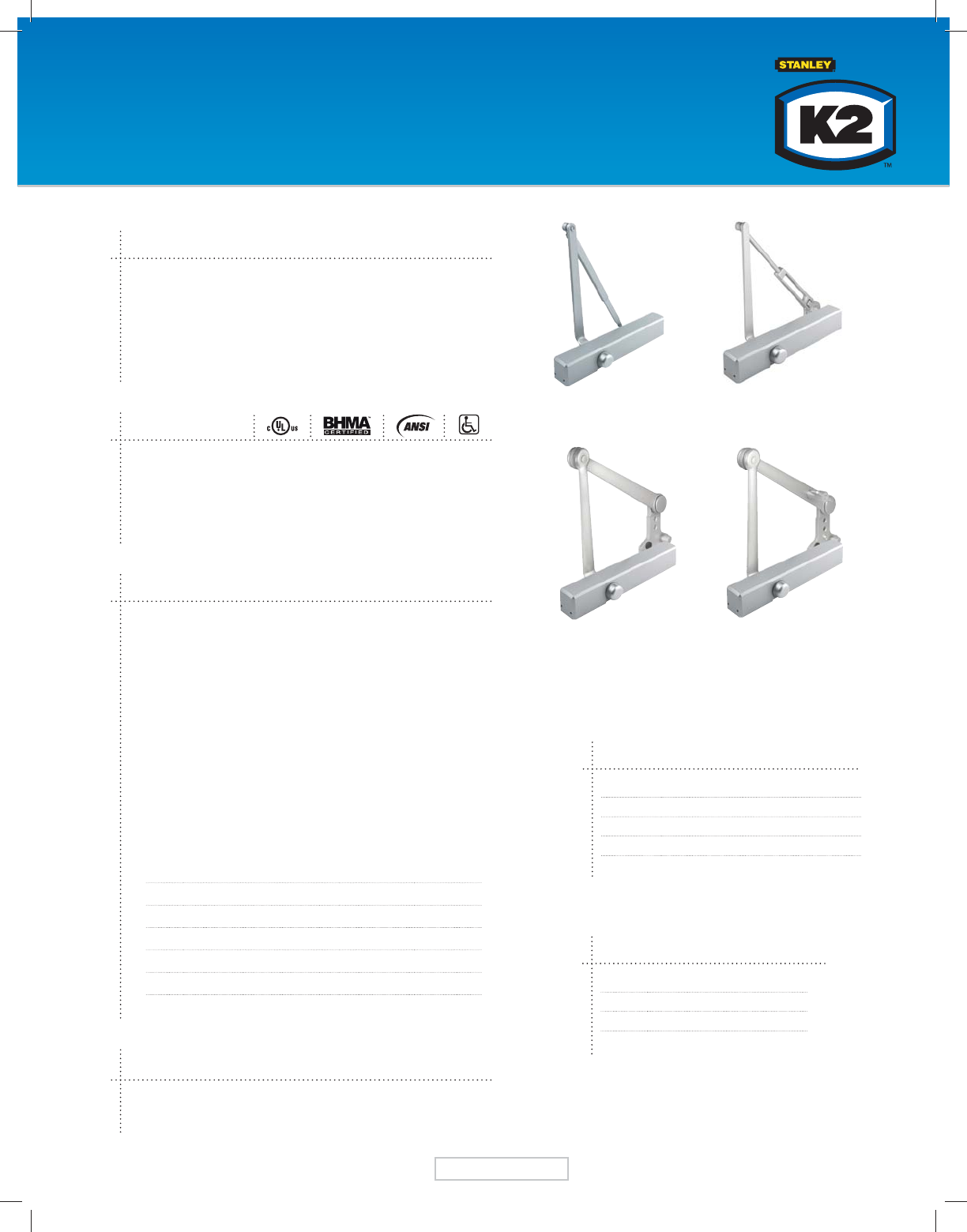

M. Door Closers – Extra Heavy Duty
QDC100 Series
N. Door Closers – Heavy Duty
QDC200 Series
O. Door Closers – Standard Duty
QDC300 Series
P. Miscellaneous
Windstorm & Hurricane Compliance
Additional Information
Competitive Cross Reference
A-1
K2 Product Catalog
www.k2commercialhardware.com
K2 offers a complete line of architectural door hardware that meets the application requirements and needs of
designers, architects, and builders specializing in projects that have a limited budget and require products that
deliver reliable performance, durability, and architectural appeal at an affordable price.
K2 products are an ideal fit for commercial projects demanding conventional keying systems in market segments
such as hotels, motels, office buildings, retail stores, shopping centers, manufacturing facilities, mixed-use buildings,
multi-family housing, and tenant improvement.
The K2 brand is endorsed by the strength and tradition of Stanley Security Solutions, one of the most respected
names in the security industry, and is built on four key pillars:
Office/Manufacturing BuildingsHotels/Motels/Resorts
Multi-Family Housing/Mixed-Use BuildingRetail Stores/Shopping Centers
t Quality and value
t Uniform style design for consistent look
t Innovative products
t Easy to do business with
About K2
A-2 K2 Product Catalog 1.866.590.2094
SpecCentre Services
What is the SpecCentre?
The SpecCentre Services is an independent organization established
specifically to support architects, engineers, and owners around the
world with the preparation of construction documents for both new
construction and retrofit projects.
The SpecCentre Services is a member of Stanley Security Solutions,
an industry powerhouse with a global footprint offering a complete
portfolio of automatic entrances, mechanical and electromechanical
architectural hardware, electronic security systems, and healthcare
solutions that provide wall-to-wall security.
What does the SpecCentre do?
Our staff of Architectural Hardware Consultants (AHC), Application
Engineers, and security experts specialize in specification writing,
owner specification manual drafting, section coordination, shop
drawing and submittal review, and continuing education (American
Institute of Architects – Continuing Education Systems).
What does the SpecCentre stand for?
We are dedicated to supporting our valued customers with quality
services and products tailored to their specific needs. Our industry
experts are committed to help customers navigate the various codes
and security challenges found on architectural projects with integrity,
speed, and accountability.
Our goal is to become your preferred choice for specification services.
Give us the opportunity to show you what we can do with your most
demanding security, safety, and access control requirements!
Our expertise covers many specification sections
including the following:
From project review to system design and
construction administration, we are equipped
to provide the support to accurately and
effectively assist you every step of the way with
your project’s architectural hardware, automatic
entrance, and security system requirements.
t 08 42 29 Automatic Entrances
t 08 42 33 Revolving Door Entrances
t 08 42 36 Balanced Door Entrances
t 08 42 43 ICU/CCU Entrances
t 08 71 00 Door Hardware
t 08 71 13 Automatic Door Operators
t 08 74 00 Access Control Hardware
t 27 52 13 Patient Monitoring &
Telemetry Systems
t 27 52 23 Nurse Call / Code Blue Systems
t 28 13 00 Access Control
t 28 16 00 Intrusion Detection
t 28 23 00 Video Surveillance
t 28 46 00 Electronic Detention
Monitoring & Control Systems
For more information on how we can assist you, visit www.
thespeccentre.com or call our office to get in contact with an
Architectural Construction Representative near you.
1-888-351-8840
7076 S Alton Way, Building D
Centennial, CO 80112
A-3
K2 Product Catalog
www.k2commercialhardware.com
t -JGFUJNF.FDIBOJDBM8BSSBOUZ
t :FBS'JOJTI8BSSBOUZ
t :FBS&MFDUSJDBM8BSSBOUZ
This product comes with a lifetime mechanical warranty and a three year finish warranty to the original user of the K2 Hardware product against
defects in material and workmanship as long as the original user occupies/manages the premises upon which the product was originally installed. The
warranty DOES NOT COVER scratches; abrasions; deterioration due to the use of paints, solvents and other chemicals; abuse; or misuse, and DOES NOT
COVER US10B/613 “Oil Rubbed Bronze” finish as it is a “Living Finish” and a change in appearance is the natural characteristics of the finish. This warranty
DOES NOT COVER defects caused by improper installation or field modification. This warranty DOES NOT COVER the cost incurred in removing and installing
a replacement product. Upon return of a defective product, K2 may repair or replace the product or refund the purchase price. K2 is not liable for incidental
or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this may not apply to you. This
warranty gives you specific legal rights and you may also have other rights that vary from state to state. If a mechanical or finish defect occurs, please call
866-590-2094 or return it to K2 at:
1SPEVDU4VQQPSU
&UI4USFFU
*OEJBOBQPMJT*/

Product Warranty Information
A-4 K2 Product Catalog 1.866.590.2094
$POUBDUZPVSMPDBM,4BMFT3FQGPSNPSFJOGPSNBUJPO
Customizable Exit Devices
t Customized exit devices with your logo.
t Make a statement on your doors.
t Your logo is anodized into the metal and won’t wear off.
t Available on all QED100 Series Exit Devices.
B-1
K2 Product Catalog
www.k2commercialhardware.com
QMS/QME
100 Series Grade 1
Extra Heavy Duty Mortise Levers
Performance Features
Keying
BHMA US Description
605 US3 Bright Brass
606 US4 Satin Brass
613 US10B Oil Rubbed Bronze
619 US15 Satin Nickel
625 US26D Bright Chrome
626 US26 Satin Chrome
Finishes
Warranty
Sectional Summit (SUM)
*Slate (SLA) Also Available
Escutcheon Sierra (SIE)
ANSI K2 Description
--- QMS/QME120 Single Dummy
--- QMS/QME122 Full Dummy
F01 QMS/QME130 Passage
F22 QMS/QME140 Privacy
F19 QMS/QME145 Privacy w/ Deadbolt
F04 QMS/QME150 Entry
F13 QMS/QME152 Exit
F20 QMS/QME154 Corridor
F11 QMS/QME158 Dormitory
F05 QMS/QME160 Classroom
F32 QMS/QME162 Classroom Security
F09 QMS/QME164 Apartment
F07 QMS/QME170 Storeroom
F30 QMS/QME172 Institutional
F14 QMS/QME174 Store Door
Functions
Product Specifications
Certifications
t Tested to exceed 2,000,000 cycles, surpassing the 1,000,000 requred to meet
Grade 1 certification.
t Clutching mechanism standard.
t Thru-Bolt design and heavy-duty spring tension provides longer
performance life and prevents lever sag.
t ADA compliant thumbturn.
t Mortise case is easily field reversible.
t Pre-assembled trims with spring loaded spindles automatically adjust to
door thickness and reduces installation time.
t Partial security seperator prevents spindle manipulation.
t Anti-friction throwbolt.
t ANSI/BHMA A156,13 - Grade 1
t UL/cUL listed (3 hours) for “A ” label single door applicatins (4’ x 8’)
t UL10C/UBC 7-2 (1997) Positive Pressure Rated
t UL10B Pressure Rated
t ADA Compliant ANSI A117.1 Accessibility Code
t California State Reference Code (formerly Title 19 - Fire Marshall)
t Template: 3 58” (92mm)
t Solid forged brass trim construction.
t Dual 8mm spindles.
t 1” (25.4mm) stainless steel dead bolt
t Floating mounting tabs adjust to door bevel.
t Toggle button locking.
t Heavy gauge steel armor face plate.
t Door Thickness - Sectional: 1 34”– 2” (44.5mm-51mm) standard; (57mm) optional
- Escutcheon: 1 34”– 2 14” (44.5mm-57mm) standard
t 6-pin or 5-pin Cylinders. Many keying options available from our factory to include,
but not limited to, master keying, grandmasterkeying, and construction keying.
t 2 keys per lockset.
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, & LC-Less Cylinder.
“Consult factory for other cylinder options.”
t Lifetime Mechanical, 3 year finish*, 1 year electrical
*(613/US10B carries no finish warranty)
B-2 K2 Product Catalog 1.866.590.2094
QMS/QME
100 Series Grade 1
Extra Heavy Duty Mortise Levers

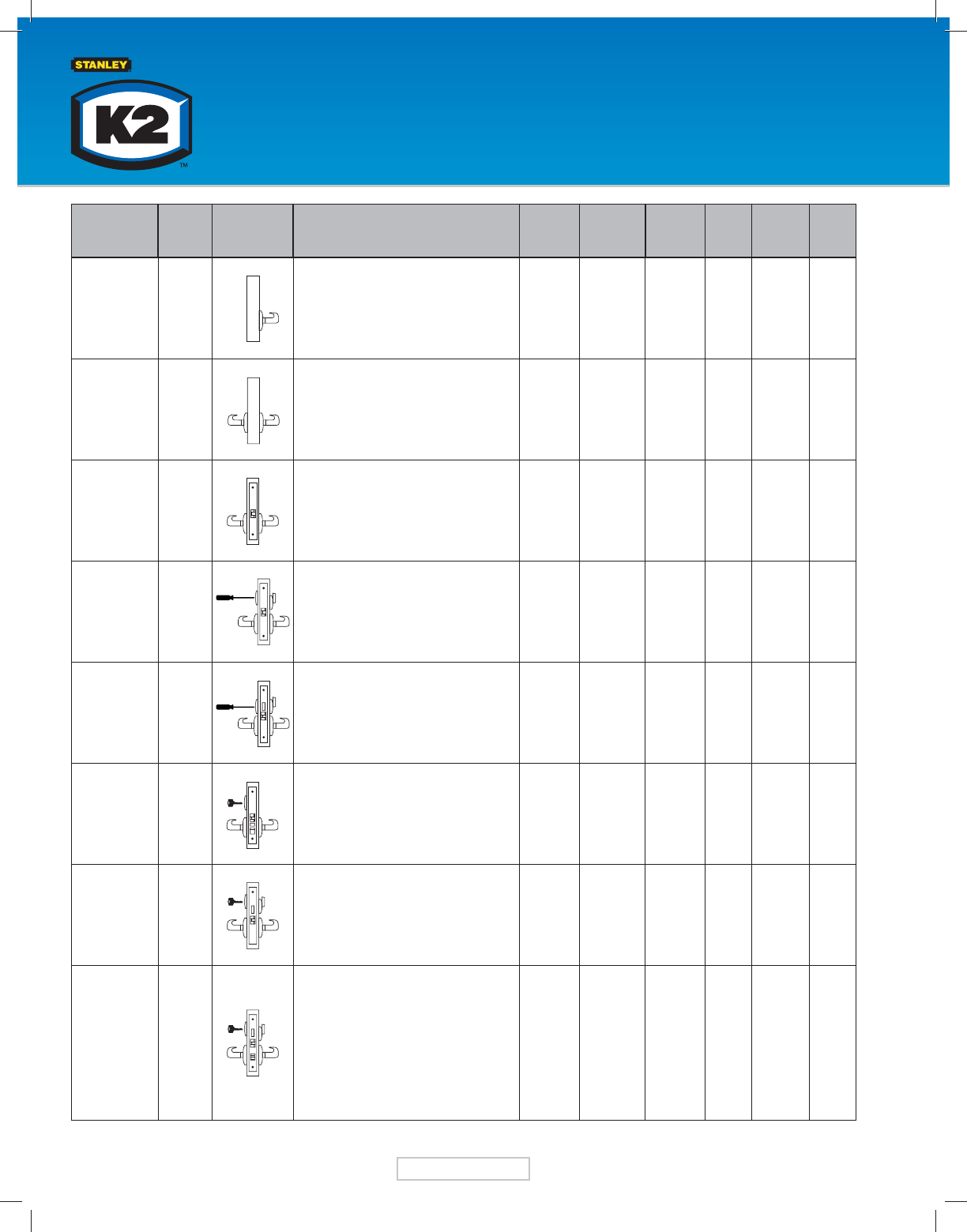

Functions ANSI Description Latchbolt Deadbolt Auxiliary Toggle Cylinders Case
Qty
QMS/
QME120
Single Dummy
--- Lever trim on one side (no mortise case). 4
QMS/
QME122
Full Dummy
--- Lever trim on both sides (no mortise case). 4
QMS/
QME130
Passage
F01 Latch bolt operated by lever from either
side at all times. X4
QMS/
QME140
Privacy
F22
Latch bolt operated by lever from either
side except when outside lever is locked
by inside trim or button. Operating inside
lever, closing door or operating outside
emergency release (accessible under
emergency cap) unlocks outside lever.
X4
QMS/
QME145
Deadbolt
F19
Latch bolt operated by lever from either
side. Deadbolt operated by turn from
inside and emergency release from
outside (accessible under emergency cap).
Operating inside lever retracts both bolts.
XX 4
QMS/
QME150
Entry
F04
Latch bolt operated by lever from either
side except when outside lever is made
inoperative by toggle. When outside lever
is locked, latch bolt is retracted by key from
outside or by operating inside lever. Auxil-
iary dead latch deadlocks latch bolt.
XXXSgl4
QMS/
QME152
Exit
F13
Latch bolt operated by lever from either
side. Deadbolt is projected by key from out-
side and turn piece from inside. Operating
inside lever retracts both bolts and unlocks
outside.
XX Sgl4
QMS/
QME154
Corridor
F20
Latch bolt operated by lever from either
side, except when outside lever is made
inoperative by toggle. Deadbolt operated
by key outside or turn inside. Key outside
operates both bolts. Operating inside lever
retracts both bolts and outside remains
locked. Latch bolt is deadlocked when
outside lever is made inoperative or when
the deadbolt is projected. When deadbolt is
retracted, lever is unlocked by toggle.
XX XSgl4
B-3
K2 Product Catalog
www.k2commercialhardware.com
QMS/QME
100 Series Grade 1
Extra Heavy Duty Mortise Levers
Functions ANSI Description Latchbolt Deadbolt Auxiliary Toggle Cylinders Case
Qty
QMS/
QME158
Dormitory
F11
Latch bolt operated by lever from either side
except when outside lever is made inoperative
by toggle. Deadbolt projected by key from
either side. Deadbolt retracted by key from
outside. Both bolts retracted by inside lever
and outside reamain locked.
X X X Dbl 4
QMS/
QME160
Classroom
F05
Latch bolt operated by lever from either side
except when outside lever is made inoperative
by key from outside. Inside lever always opera-
tive. Auxiliary dead latch deadlocks latch bolt.
XXSgl4
QMS/
QME162
Classroom
Security
F32
Latch bolt operated by lever from either side
except when outside lever is locked from inside
or outside by key. When outside lever is locked,
latch bolt is retracted by key from inside or
outside or by operating inside lever. Auxiliary
dead latch deadlocks latch bolt.
X X Dbl 4
QMS/
QME164
Apartment
F09
Latch bolt operated by lever from either side,
except when outside lever is locked by key
from inside. When outside lever is locked, latch
bolt is retracted by key from outside or by
operating inside lever. Auxiliary dead latch
deadlocks latch bolt.
X X Dbl 4
QMS/
QME170
Storeroom
F07
Latch bolt operated by key from outside or by
operating inside lever. Outside lever is always
inoperative. Auxiliary dead latch deadlocks
latch bolt.
XXSgl4
QMS/
QME172
Institutional
F30
Latch bolt operated by key from either side.
Both levers always inoperative. Auxiliary dead
latch deadlocks latch bolt.
X X Dbl 4
QMS/
QME174
Store Door
F14 Latch bolt operated by lever from either side.
Deadbolt operated by key from either side. X X Dbl 4
B-4 K2 Product Catalog 1.866.590.2094
How to Order
QMS/QME 100 Series Grade 1
Extra Heavy Duty Mortise Levers
Single Dummy 20
Full Dummy 22
Passage 30
Privacy 40
Privacy w/ Deadbolt 45
Entry 50
Exit 52
Corridor 54
Dormitory 58
Classroom 60
Classroom Security 62
Apartment 64
Storeroom 70
Institutional 72
Store Door 74
Escutcheon Trim QME1
Sectional Trim QMS1
Sierra SIE
Summit SUM
Slate SLA
KW Kwikset "KW"
WE Weiser "E"
SC Schlage "C"
GA Yale "GA"
LA Sargent "LA"
LC Less Cylinder
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
605 Polished Brass
606 Satin Brass
613 Oil Rubbed Bronze
619 Satin Nickel
625 Polished Chrome
626 Satin Chrome
Example
If you ordered: QME160 SIE 626 KW KD
You would get: Grade 1 Classroom Mortise Lockset, Sierra Lever Escutcheon Trim, Satin Chrome
Finish, Kwikset Keyway, Keyed Different.
QME1 60 SIE 626 KW KD XXXX
Series Function Lever Finish Keyway Keying Notes
B-5
K2 Product Catalog
www.k2commercialhardware.com
Functions ANSI Description Case Qty
QML180
Single Cylinder E06071 Deadbolt operated by key from outside and by
turn from inside. 10
QML182
Double Cylinder E06061 Deadbolt operated by key from either side. 10
QML184
Cylinder Only E06061 Deadbolt operated by key from one side only. 10
QML186
Classroom E06061 Deadbolt operated by key from outside. Turn on
inside retracts but does not project the deadbolt. 10

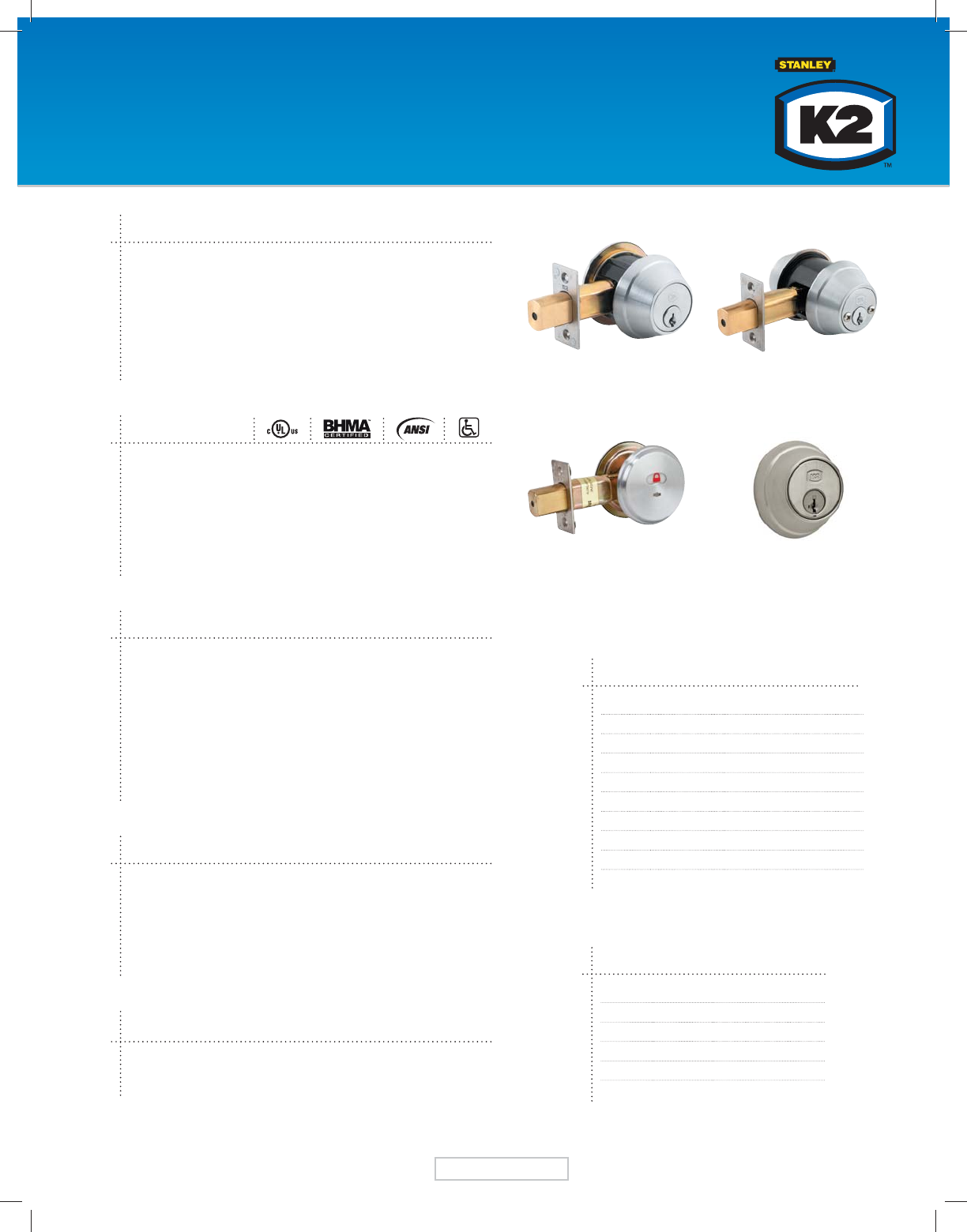

QML
100 Series Grade 1
Extra Heavy Duty Mortise Deadlocks
NOTES:
Consult factory for lead times on 605, 606, 619 & 625 finishes.
*Classroom function requires handed cylinder turn. Specify handing when ordering.
B-6 K2 Product Catalog 1.866.590.2094
How to Order
QML 100 Series Grade 1
Extra Heavy Duty Mortise Deadlocks
Single Cylinder 80
Double Cylinder 82
Cylinder Only 84
Classroom 86
Mortise Deadlock QML1 KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
KW Kwikset "KW"
WE Weiser "WE"
SC Schlage "SC"
GA Yale "GA"
LA Sargent "LA"
LC Less Cylinder
605 Polished Brass
606 Satin Brass
613 Oil Rubbed Bronze
619 Satin Nickel
625 Polished Chrome
626 Satin Chrome
QML186 Only*
RH Right Hand
LH Left Hand
Example
If you ordered: QME160 SIE 626 KW KD
You would get: Grade 1 Classroom Mortise Lockset, Sierra Lever Escutcheon Trim, Satin Chrome Finish,
Kwikset Keyway, Keyed Different.
QML1 80 626 RH KW KD XXXX
Series Function Finish Handing* Keyway Keying Notes
C-1
K2 Product Catalog
www.k2commercialhardware.com
QCL
100 Series Grade 1
Extra Heavy Duty Cylindrical Leversets
BHMA US Description
605 US3 Bright Brass
613 US10B Oil Rubbed Bronze
619 US15 Satin Nickel
625 US26D Bright Chrome
626 US26 Satin Chrome
Finishes
Sierra (SIE)
Summit (SUM)
Slate (SLA)
ANSI K2 Description
--- QCL120 Single Dummy
F75 QCL130 Passage
F111 QCL135 Communicating
F76 QCL140 Privacy
F109 QCL150 Entry/Oce
F109 QCL151 Entry/Office SFIC
F90 QCL154 Corridor
F90 QCL155 Corridor SFIC
F84 QCL160 Classroom
F84 QCL161 Classroom SFIC
F86 QCL170 Storeroom
F86 QCL171 Storeroom SFIC
Functions
Performance Features
t Tested to exceed 1,000,000 cycles, exceeding the 800,000 requred to meet
Grade 1 certification.
t Standard Clutching Mechanism provides resistance to damage caused by
physical force.
t Thru-Bolted design and heavy-duty spring tension provides longer
performance life and prevents lever sag.
t Concealed mounting screws.
t Compartmentalized packaging allows for quick and easy installation.
Certifications
t ANSI/BHMA A156.2 Series Grade 1
t ANSI A117.1 Accessibility Code (ADA Compliant)
t UL/cUL Listed (3-hours) for “A” Label Single Door applications (4’ x 8’)
(1.219mt x 2.438mt)
t UL10C / UBC 7-2 (1997) Positive Pressure Rated
UL10B Pressure Rated
t California State Reference Code (formerly Title 19 – Fire Marshall)
t Hurricane Compliant—Miami-DADE N.O.A. See page P-1 for more details.
Product Specifications
t Handing – All QCL100 Series Levers Locksets are non-handed.
t Door Thickness – 1 38” – 2” (35mm – 51mm) standard.
t Backset – 2 34” (70mm) square standard. 2 38” & 5” (60mm, 127mm) available.
t Exposed Trim – Pressure cast zinc, plated to match finish designation.
t Strike – ANSI Strike 1 14” x 4 78” (32mm x 124mm) standard.
Other strike options also available.
t Door Prep – 2 18” (54mm) diameter cross bore.
t Latchbolt – Keyed/Exterior 12” (12.7mm) steel throw;
Interior 12” (12.7mm) spring latch.
t Latch Faceplate 1 18” x 2 14” (29mm x 57 mm) standard.
t Single dummy is surface mounted.
t Electrification options available.
Keying
t 6-pin Brass Cylinders. Many keying options available from our factory to include,
but not limited to, master keying, grandmaster keying and construction keying.
t 2 keys per lockset.
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, & LC-Less Cylinder.
“Consult factory for other cylinder options.”
Warranty
t Lifetime Mechanical, 3 year finish*, and 1 year electrical
*(613/US10B carries no finish warranty)
C-2 K2 Product Catalog 1.866.590.2094
QCL
100 Series Grade 1
Extra Heavy Duty Cylindrical Leversets
QCL150
Sierra
A
B
C
D
ABCD
ABCD
Sierra 4.895" 2.985" 3.543" .407"
124.32mm 75.82mm 90mm 10.34mm
Summit 4.929" 3.034" 3.543" .407"
125.20mm 77.06mm 90mm 10.34mm
Slate 4.937" 2.993" 3.543" .407"
125.4mm 76.0mm 90mm 10.34mm
DIMENSIONS
Functions ANSI Description Case
Qty
QCL120
Single Dummy
Trim
N/A Dummy trim for one side of door. Used for door pull or as matching inactive
trim. No mechanical operation. Surface mounted single dummy trim. 12
QCL130
Passage Lock F75 Both levers always unlocked and always free for immediate ingress & egress. 6
QCL135
Communicating
Lock
F111 Blank plate outside. Inside lever always unlocked and always free. 6
QCL140
Privacy Lock F76A
Push-button locking. Can be opened from outside with a small screwdriver.
Turning inside lever or closing door releases button. Inside lever is always free
for immediate egress. Clutch feature disengages outside lever from latch when
locked to prevent vandalism.
6
QCL150/151
Entry/Office Lock F109
Turn/push-button locking; pushing and turning button locks outside lever,
requiring use of key until button is manually unlocked. Push-button locking;
pushing button locks outside lever until unlocked by key or by
depressing inside lever. Clutch feature disengages outside lever from latch when
locked to prevent vandalism. Inside lever is always free for immediate egress.
6
QCL154/155
Corridor Lock F90
Dead locking latch bolt operate by lever from either side except when outside
lever is locked by key in outside lever or by push button on inside. Key in outside
lever locks or unlocks outside lever. Operating inside lever releases push button.
Closing door releases push button. Inside lever always operates latch bolt.
6
QCL160/161
Classroom Lock F84
Key required to either lock or unlock outside lever. Inside lever is always un-
locked and free for immediate egress. Cluth feature disengages outside lever
from latch when locked to prevent vandalism.
6
QCL170/171
Storeroom Lock F86
Outside lever always locked. Entrance by key only. Inside lever unlocked and free
for immediate egress. Clutch feature disengages outside lever from latch when
locked to prevent vandalism.
6
C-3
K2 Product Catalog
www.k2commercialhardware.com
QCL
100 Series Grade 1
Extra Heavy Duty Cylindrical Leversets
Model # Description
QCL170EL
QCL171EL
Electronically locked (fail safe). Outside lever continuously locked electrically. Unlocked by
key outside, by switch, or by power failure. Inside always free for immediate egress.
QCL170EU
QCL171EU
Electronically unlocked (fail secure). Outside lever continuously locked until unlocked by
key or electric current. Inside always free for immediate egress.
QCL170X
QCL171X
Request to exit. Switch monitors inside lever rotation. Incorporates into alarm systems or
in conjunction with an electromagnet.
QCL170ELX
QCL171ELX
Electronically locked (fail safe) with request to exit. Outside lever continuously locked electrically. Unlocked by key
outside, by switch, or by power failure. Inside always free for immediate egress. Ability to tie into alarm systems.
QCL170EUX
QCL171EUX
Electronically unlocked (fail secure) with request to exit. Outside lever continuously locked until unlocked by key or
electric current. Inside always free for immediate egress. Ability to tie into alarm systems.
8Q00314 Fail Safe / Fail Secure 24VDC Power Supply
ELECTRIFIED OPTIONS (CONSULT FACTORY FOR LEAD TIMES)
t Consult Factory for lead times.
t Electrification prices should be added to list price of lock.
t Standard door prep.
t Deadlocking latch.
t Key override allows key to retract latchbolt momentarily on electronically
locked models.
t Inside lever always free for immediate egress.
t Continuous duty solenoids.
t Tie into alarm systems and electromagnetic locks.
t 12V AC/DC with .250 amp current.
24V AC/DC with .150 amp current.
t Specify voltage when ordering.
t Lifetime warranty on lock body; 1 year warranty on electric components.
t Uses power supply 8Q00314.
t Warranty: 1 Year Electrical.
t Consult Factory for lead times.
t Provides power for fail safe or fail secure locking devices.
t UL listed, US & Canada, Class 2.
t Filtered and regulated 24DC constant voltage.
t 2 AMP load capacity.
t Over voltage/short circuit protection.
t Surge suppression for locking devices.
t Interface relay to isolate the locking device current from the
control switch.
t Auxilliary 24VDC constant voltage for powering stand alone
devices such as keypads, motion detectors, status indicators, etc.
t Field terminal block set at 45° for ease of installation.
t Can power up to twelve 24V Cylindrical fail safe/ fail secure
levers—refer to installation manual for additional details.
Electrified Product Specifications Power Supply Specifications
C-4 K2 Product Catalog 1.866.590.2094
How to Order
QCL 100 Series Grade 1
Extra Heavy Duty Cylindrical Leversets
Dummy Trim 20
Passage 30
Communicating Lock 35
Privacy 40
Entry/Office Lock 50
Entry/Office Lock SFIC 51
Corridor 54
Corridor SFIC 55
Classroom Lock 60
Classroom Lock SFIC 61
Storeroom Lock 70
Storeroom Lock SFIC 71
Grade 1 Cylindrical QCL1xx Sierra SIE
Summit SUM
Slate SLA
234" Deadlatch Square 234DS
234" Deadlatch Radius 234DR
238" Deadlatch Square 238DS
238" Deadlatch Radius 238DR
234" Springlatch Square 234SS
234" Springlatch Radius 234SR
238" Springlatch Square 238SS
238" Springlatch Radius 238SR
5" Deadlatch Square 500DS
5" Springlatch Square 500SS
234" Deadlatch Square 34" Throw 234DSF
234" Deadlatch Radius 34" Throw 234DRF
234" Deadlatch Square Corridor 234DCS
234" Deadlatch Radius Corridor 234DCR
238" Deadlatch Square Corridor 238DCS
238" Deadlatch Radius Corridor 238DCR
478S ANSI 4 78" x 114" Strike
118F 118" x 234" T-Strike
Electrification Only
24V 24 Volt AC/DC
12V 12 Volt AC/DC
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
Electronically Locked (fail-safe) EL
Electronically Unlocked (fail-safe) EU
Request to Exit X
Electronically locked (fail-safe)
with request to exit ELX
Electronically unlocked (fail-safe)
with request to exit EUX
Hurricane Compliant HC
605 Bright Brass
613 Oil Rubbed Bronze
619 Satin Nickel
625 Bright Chrome
626 Satin Chrome
626x625 Satin Chrome x Bright
Chrome (Privacy Only)
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
LC Less Cylinder
Example
If you ordered: QCL170 SIE 626 234DS 487S KW CK KD
You would get: Grade 1 Cylindrical Storeroom Lever, Sierra, Satin Chrome, 2 34" Deadlatch
Square, ANSI 478" x 114" Strike, Kwikset Keyway, Construction Keyed, Keyed Different.
† Consult factory for lead times.
QCL1 70 EUX SIE 626 234DS 478S 24V KW CK XXXX
Series Function Options Design Finish Latch Strike Power Keyway Keying Notes
D-1
K2 Product Catalog
www.k2commercialhardware.com
QCL
200 Series Grade 2
Heavy Duty Cylindrical Leversets
BHMA US Description
605 US3 Bright Brass
613 US10B Oil Rubbed Bronze
619 US15 Satin Nickel
625 US26D Bright Chrome
626 US26 Satin Chrome
Finishes
Performance Features
t Tested to significantly exceed the 400,000 cycles required to meet
Grade 2 certification.
t Standard clutching mechanism provides resistance to damage caused by
physical force.
t Thru-bolted design and heavy-duty spring tension provides longer
performance life and prevents lever sag.
t Concealed mounting screws.
t Compartmentalized packaging allows for quick and easy installation.
Certifications
t ANSI/BHMA A156.2 Series Grade 2
t ANSI A117.1 Accessibility Code (ADA Compliant)
t UL/cUL Listed (3-hours) for “A” Label Single Door applications (4’ x 8’)
(1.219mt x 2.438mt)
t UL10C / UBC 7-2 (1997) Positive Pressure Rated
UL10B Pressure Rated
t California State Reference Code (formerly Title 19 – Fire Marshall)
t Hurricane Compliant—Miami-DADE N.O.A. See page P-1 for more details.
Product Specifications
t Handing – All QCL200 Series Levers Locksets are non-handed.
t Door Thickness – 1 38” – 2” (35mm – 51mm) standard.
t Backset – 2 34” (70mm) square standard.
2 38” & 5” (60mm, 127mm) available.
t Exposed Trim – Pressure cast zinc plated to match finish designation.
t Strike – ANSI Strike 1 14” x 4 78” (32mm x 124mm) standard.
Other strike options also available.
t Door Prep – 2 18” (54mm) diameter cross bore.
t Latchbolt – Keyed/Exterior 12” (12.7mm) steel throw;
Interior 12” (12.7mm) spring latch.
t Latch Faceplate 1 18” x 2 14” (29mm x 57 mm) standard.
Keying
t 6-pin Brass Cylinders. Many keying options available from our factory to include,
but not limited to, master keying, grandmaster keying and construction keying.
t 2 keys per lockset.
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, & LC-Less Cylinder.
“Consult factory for other cylinder options.”
Warranty
t Lifetime Mechanical and 3 year finish*
*(613/US10B carries no finish warranty)
Pinnacle (PNN)
Pearce (PEA)
Slate (SLA)
ANSI K2 Description
--- QCL220 Single Dummy
F75 QCL230 Passage
F111 QCL235 Communicating
F76 QCL240 Privacy
F109 QCL250 Entry/Oce
F109 QCL251 Entry/Office SFIC
F90 QCL254 Corridor
F90 QCL255 Corridor SFIC
F84 QCL260 Classroom
F84 QCL261 Classroom SFIC
F86 QCL270 Storeroom
F86 QCL271 Storeroom SFIC
Functions
D-2 K2 Product Catalog 1.866.590.2094
QCL
200 Series Grade 2
Heavy Duty Cylindrical Leversets
QCL250
Pinnacle
A
C
B
D
ABCD
ABCD
Pinnacle 4.451" 2.6" 3.366" .269"
113.06mm 66.04mm 85.5mm 6.84mm
Pearce 4.533" 2.744" 3.366" .269"
115.14mm 69.70mm 85.50mm 6.84mm
Slate 4.535" 2.87" 3.366" .269"
115.2mm 72.9mm 85.50mm 6.84mm
DIMENSIONS
Functions ANSI Description Case
Qty
QCL220
Single Dummy
Trim
N/A Dummy trim for one side of door. Used for door pull or as matching inactive
trim. No mechanical operation. Surface mounted single dummy trim. 12
QCL230
Passage Lock F75 Both levers always unlocked and always free for immediate ingress & egress. 6
QCL235
Communicating
Lock
F111 Blank plate outside. Inside lever always unlocked and always free. 6
QCL240
Privacy Lock F76A
Push-button locking. Can be opened from outside with a small screwdriver.
Turning inside lever or closing door releases button. Inside lever is always free
for immediate egress. Clutch feature disengages outside lever from latch when
locked to prevent vandalism.
6
QCL250/251
Entry/Office Lock F109
Turn/push-button locking; pushing and turning button locks outside lever,
requiring use of key until button is manually unlocked. Push-button locking;
pushing button locks outside lever until unlocked by key or by
depressing inside lever. Clutch feature disengages outside lever from latch when
locked to prevent vandalism. Inside lever is always free for immediate egress.
6
QCL254/255
Corridor Lock F90
Dead locking latch bolt operate by lever from either side except when outside
lever is locked by key in outside lever or by push button on inside. Key in outside
lever locks or unlocks outside lever. Operating inside lever releases push button.
Closing door releases push button. Inside lever always operates latch bolt.
6
QCL260/261
Classroom Lock F84
Key required to either lock or unlock outside lever. Inside lever is always un-
locked and free for immediate egress. Cluth feature disengages outside lever
from latch when locked to prevent vandalism.
6
QCL270/271
Storeroom Lock F86
Outside lever always locked. Entrance by key only. Inside lever unlocked and free
for immediate egress. Clutch feature disengages outside lever from latch when
locked to prevent vandalism.
6
D-3
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QCL 200 Series Grade 2
Heavy Duty Cylindrical Leversets
Dummy Trim 20
Passage 30
Communicating Lock 35
Privacy 40
Entry/Office Lock 50
Entry/Office Lock SFIC 51
Corridor 54
Corridor SFIC 55
Classroom Lock 60
Classroom Lock SFIC 61
Storeroom Lock 70
Storeroom Lock SFIC 71
Grade 2
Cylindrical QCL2xx
Pinnacle PNN
Pearce PEA
Slate SLA
Hurricane Compliant HC
234" Deadlatch Square -1" face 234DSN
234" Deadlatch Radius - 1" face 234DRN
238" Deadlatch Square -1" face 238DSN
238" Deadlatch Radius - 1" face 234DRN
234" Springlatch Square -1" face 234SSN
234" Springlatch Radius - 1" face 234SRN
238" Springlatch Square -1" face 238SSN
238" Springlatch Radius - 1" face 238SRN
234" Deadlatch Square -118" face 234DS
234" Deadlatch Radius - 118" face 234DR
238" Deadlatch Square - 118" face 238DS
238" Deadlatch Radius - 118" face 238DR
234" Springlatch Square -118" face 234SS
234" Springlatch Radius - 118" face 234SR
238" Springlatch Square - 118" face 238SS
238" Springlatch Radius - 118" face 238SR
334" Deadlatch Square -118" face 334DS
334" Springlatch Square -118" face 334SS
5" Deadlatch Square - 118" face 500DS
5" Springlatch Square - 118" face 500SS
234" Deadlatch Square -34" throw 234DSF
234" Deadlatch Radius - 34" throw 234DRF
234" Deadlatch Square Corridor 234DCS
234" Deadlatch Radius Corridor 234DCR
238" Deadlatch Square Corridor 238DCS
238" Deadlatch Radius Corridor 238DCR
478S ANSI 478" x 114" Strike
118F 118" x 234" T-Strike
FLS Full Lip Square Corner Strike
FLR Full Lip 14" Radius Corner Strike
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
605 Bright Brass
613 Oil Rubbed Bronze
619 Satin Nickel
625 Bright Chrome
626 Satin Chrome
626 x 625 Satin Chrome x Bright
Chrome (Privacy Only)
626 x 613 Satin Chrome x Oil Rubbed
Bronze (Privacy Only)
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
LC Less Cylinder
Example
If you ordered: QCL270 PNN 626 234DS 487S
KW CK KD
You would get: Grade 2 Cylindrical Storeroom
Lever, Pinnacle, Satin Chrome, 234" Deadlatch
Square, ANSI 478" x 114" Strike, Kwikset
Keyway, Construction Keyed, Keyed Different.
QCL2 70 HC PNN 626 234DS 478S KW CK XXXX
Series Function Options Design Finish Latch Strike Keyway Keying Notes
Consult factory for lead time.
E-1 K2 Product Catalog 1.866.590.2094
QCI
200 Series Grade 2
Heavy Duty Interconnected Leversets
BHMA US Description
605 US3 Bright Brass
613 US10B Oil Rubbed Bronze
619 US15 Satin Nickel
626 US26 Satin Chrome
Finishes
ANSI K2 Description
F95 QCI230 Single Locking (Passage Lever)
F95 QCI231 Single Locking SFIC (Passage Lever)
F97 QCI250 Double Locking (Entry Lever)
F97 QCI251 Double Locking SFIC (Entry Lever)
--- QCI285 Indicator (Passage Lever)
Functions
Performance Features
t Tested to significantly exceed the 400,000 cycles required to meet
Grade 2 certification.
t Single motion egress provides easy emergency exit.
t Full 1” (25mm) throwbolt with saw resistant hardened steel roller pin.
t Anti-drill design deadbolt—two (2) ball bearings inserted to prevent drill attacks.
t ADA thumbturn.
t Tapered latchbolt to address warped door concerns.
Applications
The QCI200 series interconnected levers are designed for multi-family, assisted
living, commercial & mixed use applications where single motion egress is
required. These leversets deliver premium performance and are designed to
withstand the physical abuses of the applied environment.
Certifications
t ANSI/BHMA A156.12 – 1999 Grade 2
t UL/cUL Listed (3-hours) for “A” Label Single Door applications (4’ x 8’)
(1.219m x 2.438m)
t UL10C / UBC 7-2 (1997) Positive Pressure Rated
UL10B Pressure Rated
t ADA Compliant ANSI A117.1 Accessibility Code
Product Specifications
t Door Range— 1 38” – 1 34” (35mm–44.5mm)
t Heavy Duty cylindrical lock body
t 4” Center to center
t Backset— 2 34” (70 mm) standard. 2 38” (60mm) available.
t Exposed Trim—Wrought brass or bronze with cast zinc lever.
t Strikes—”T” strike 1 18” x 2 34” standard for lever,
deadbolt strike 1 18” x 2 34” standard. Other strike options also available.
t Latchbolt—Keyed 12” (13mm) steel throw with auxillary latch,
passage 12” (13mm) spring latch.
t Handing—All QCI200 locksets are non-handed.
t Standard door prep: 2 18” Cross Bore (54mm)
t Latch Hole: 1” Diameter Edge Bore
t Rose Diameter: 2 12” (63mm)
t Inside Escutcheon 3” x 8” (82.5mm x 203mm)
Optional Exterior Escutcheon 3 14” x 8” (82.5mm x 203mm)
Keying
t 6-pin Brass Cylinders. Many keying options available from our factory to include,
but not limited to, master keying, grandmaster keying and construction keying.
Small Format Interchangeable Core cylinder also available.
t 2 keys per lockset.
t Offered with the following keyway options: SMT-SmartKey, KW-Kwikset, WE-Weiser,
SC-Schlage, GA-Yale, LA-Sargent, BF-SFIC “F” & LC-Less Cylinder.
“Consult factory for other cylinder options.”
Warranty
t Lifetime Mechanical, 3 year finish* and 1 year electrical *(613/US10B carries no finish warranty)
Pinnacle - Single Locking
Slate - Indicator
Pearce - Double Locking
E-2
K2 Product Catalog
www.k2commercialhardware.com
QCI
200 Series Grade 2
Heavy Duty Interconnected Leversets
Functions ANSI Description Case
Qty
QCI230/231
Single Locking
(Passage Lever)
F95
Latch bolt operated by lever from either side. Rotating turn from inside or key
from outside extends dead bolt to locked position. Both dead bolt and latch-
bolt are retracted simultaneously to unlock position by operating inside lever.
6
QCI250/251
Double Locking
(Entry Lever)
F97
Deadlocking latch bolt is operated by lever from either side except when
outside lever is made inoperable by locking device inside. When outside lever is
locked, deadlocking latch bolt is operated by key outside. Inside locking device
is manually operated to unlock outside lever. Rotating turn from inside or key
from outside extends deadbolt to locked position. Operating inside lever bolt
retracts both dead bolt and deadlocking latch simultaneously. Closing door
shall not release locking device inside.
6
QCI285
Indicator ---
Latch bolt operated by lever from either side. Rotating turn from inside extends
deadbolt to locked position. Both deadbolt and latchbolt are retracted simulta-
neously to unlock position by operating inside lever. Outside indicator visually
shows red closed padlock for locked/in-use, green open door padlock for
unlocked/vacant. Emergency key included.
6
NOTES: *QCI251 available at extended lead time. Consult factory.
SmartKey available on QCI230 functions only.
ABCD
ABCD
Pinnacle 3.96" 2.25" 2.50" .375"
100.58mm 57.15mm 63.50mm 9.52mm
Pearce 4.0" 2.20" 2.50" .375"
101.60mm 55.88mm 63.5mm 9.52mm
Slate 4.47" 4.67" 2.50" .375"
113.5mm 118.6mm 63.5mm 9.52mm
DIMENSIONS
A
B
C
D
E-3 K2 Product Catalog 1.866.590.2094
How to Order
QCI 200 Series Grade 2
Heavy Duty Interconnected Leversets
Single Locking (Passage Lever) 30
Single Locking SFIC (Passage Lever) 31
Double Locking (Entry Lever) 50
Double Locking SFIC (Entry Lever) 51
Indicator 85
Grade 2
Interconnect QCI2xx
Pinnacle PNN
Pearce PEA
Slate SLA
Order with Lock Lever Strike Deadbolt Strike
118F 118F DBS
478S 478S DBS
FLS FLS DBS
FLR FLR DBS
FLS2 FLS FLS
FLR2 FLR FLR
Order with Lock Lever Latch Deadbolt Latch
QCI230/
231
234BS 234SS 234BS
234BR 234SR 234BR
238BS 238SS 238BS
238BR 238SR 234BR
234BSN 234SSN 234BSN
234BRN 234SRN 234BRN
238BSN 238SSN 238BSN
238BRN 238SRN 234BRN
QCI250/
251
234BS 234DS 234BS
234BR 234DR 234BR
238BS 238DS 238BS
238BR 238DR 234BR
234BSN 234DSN 234BSN
234BRN 234DRN 234BRN
238BSN 238DSN 238BSN
238BRN 238DRN 234BRN
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
605 Bright Brass
613 Oil Rubbed Bronze
619 Satin Nickel
626 Satin Chrome
SMT** Smartkey available on QCI230 function only
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
BF SFIC “F”
LC Less Cylinder
Example
If you ordered: QCI230 PNN 626 234S 118F DBS KW KD
You would get: Grade 2 Interconnect Single Locking Leverset, Pinnacle, Satin Chrome, 234" Springlatch &
Deadbolt Latches Square Corner, 118" T Strike with Standard Deadbolt Strike, Kwikset Keyway, Keyed Different.
QCI2 30 PNN FT 626 234DS 478S KW CK XXXX
Series Function Design Optional Trim Finish Latch Strike Keyway Keying Notes
** SMT - Smartkey available on QCI230 functions only.
Consult factory for lead times.
H-1
K2 Product Catalog
www.k2commercialhardware.com
QTL
200 Series Grade 2
Standard Duty Tubular Leversets
BHMA US Description
605 US3 Bright Brass
613 US10B Oil Rubbed Bronze
619 US15 Satin Nickel
625 US26D Bright Chrome
626 US26 Satin Chrome
Finishes
ANSI K2 Description
F75 QTL230 Passage
F76B QTL240 Privacy
F82 QTL250 Entry/Oce
F82 QTL251 Entry/Oce SFIC
F84 QTL260 Classroom
F84 QTL261 Classroom SFIC
F86 QTL270 Storeroom
F86 QTL271 Storeroom SFIC
--- QTL220 Single Dummy
Functions
Performance Features
t Tested to significantly exceed the 400,000 cycles required to meet
Grade 2 certification.
t Heavy-duty torsion springs provide longer performance life and prevents
lever sag.
t Concealed mounting screws.
t Anti-Lockout” feature. The entry function will have a free interior. If the
door is locked from the inside, it will unlock with the push of the interior
side of the lever only or the turn of the button.
t 1/2” (13mm) latch bolt made of stainless steel black powder metallurgy for
enhanced durability and strength.
t Compartmentalized packaging allows for quick and easy installation.
Certifications
t ANSI/BHMA A156.2 Series Grade 2
t ANSI A117.1 Accessibility Code (ADA Compliant)
t UL/cUL Listed (3-hours) for “A” Label Single Door applications (4’ x 8’)
(1.219mt x 2.438mt)
t UL10C / UBC 7-2 (1997) Positive Pressure Rated
UL10B Pressure Rated
t California State Reference Code (formerly Title 19 – Fire Marshall)
t Hurricane Compliant—Miami-DADE N.O.A. See page P-1 for more details.
Product Specifications
t Handing – All QTL200 Series Levers Locksets are non-handed.
t Door Thickness – 1 38” – 1 34” (35mm – 51mm) standard.
t Backset – Universal backset standard, will fit either 2 38” or 2 34” backsets
(60mm – 70mm)
t Exposed Trim – Pressure cast zinc plated to match finish designation.
t Strike – Full-lip strike standard (57mm x 44.4mm).
Other strike options also available.
t Latchbolt –12” (13mm) steel throw.
t Latch Faceplate 1” x 2 14” (25.4mm x 57 mm) standard.
Keying
t 6-pin Brass Cylinders. Many keying options available from our factory to include,
but not limited to, master keying, grandmaster keying and construction keying.
t 2 keys per lockset.
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, & LC-Less Cylinder.
“Consult factory for other cylinder options.”
Warranty
t Lifetime Mechanical and 3 year finish*
*(613/US10B carries no finish warranty)
Nordic (NOR)
Essex (ESX)
Slate (SLA)
H-2 K2 Product Catalog 1.866.590.2094
QTL
200 Series Grade 2
Standard Duty Tubular Leversets
QTL250
Nordic
A
B
C
D
ABCD
ABCD
Nordic 4.103" 2.635" 2.953" 0.443"
104.21mm 66.93mm 75mm 11.24mm
Essex 4.224" 2.663" 2.953" .443"
107.29mm 67.64mm 75mm 11.24mm
Slate 4.488" 2.728" 2.953" .443"
114mm 69.3mm 75mm 11.24mm
DIMENSIONS
Functions ANSI Description Case
Qty
QTL220
Dummy Trim N/A For one side of door. Used for door pull or as matching inactive trim. No
mechanical operation. Surface mounted single dummy trim. 12
QTL230
Passage Lock F75 Both levers always unlocked and always free for immediate ingress & egress. 10
QTL240
Privacy Lock F76B
Turn-button locking. Can be opened from outside with small screwdriver.
Turning inside lever releases turn-button. Inside lever is always free for
immediate egress.
10
QTL250/251
Entry/Office Lock F82
Unlocked by key from outside when outside lever is locked by turn-button
on inside lever. Inside lever always unlocked and available from immediate
egress.
10
QTL260/261
Classroom Lock F84 Outside lever locked or unlocked by key. Inside lever is always unlocked and free
for immediate egress. 10
QTL270/271
Storeroom Lock F86 Outside lever always locked. Entrance by key only. Inside lever always unlocked
and free for immediate egress. 10
H-3
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QTL 200 Series Grade 2
Standard Duty Tubular Leversets
Dummy Trim 20
Passage 30
Privacy 40
Entry/Office Lock 50
Entry/Office Lock (SFIC) 51
Classroom Lock 60
Classroom Lock (SFIC) 61
Storeroom Lock 70
Storeroom Lock (SFIC) 71
Grade 2
Tubular QTL2xx Nordic NOR
Essex ESX
Slate SLA
Adjustable Backset Deadlatch Square ADLS
Adjustable Backset Deadlatch Radius ADLR
Adjustable Backset Springlatch Square ASLS
Adjustable Backset Springlatch Radius ASLR
478S ANSI 478" x 114" Strike
118F 118" x 234" T-Strike
FLS Full Lip Square Corner Strike
FLR Full Lip 14" Radius Corner Strike
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
605 Bright Brass
613 Oil Rubbed Bronze
619 Satin Nickel
625 Bright Chrome
626 Satin Chrome
626x625
Satin Chrome
x Bright Chrome
(Privacy Only)
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
BF SFIC “F”
LC Less Cylinder
Example
If you ordered: QTL260 NOR 625 ADLS FLR KW KA
You would get: Grade 2 Tubular Classroom Lever, Nordic, Bright Chrome, Adjustable Deadlatch
Square face, Full Lip 14" Radius Strike, Kwikset keyway, Keyed Alike
QTL2 60 HC NOR 625 ADLS FLR KW KD XXXX
Series Function Options Design Finish Latch* Strike Keyway Keying Notes
* 118" latch face adapter plate also available in service parts.
Consult factory for lead times.
Hurricane Compliant HC
I-1 K2 Product Catalog 1.866.590.2094
QDB
100 Series Grade 1
Extra Heavy Duty Auxiliary Deadbolts
BHMA US Description
605 US3 Bright Brass
613 US10B Oil Rubbed Bronze
619 US15 Satin Nickel
625 US26D Bright Chrome
626 US26 Satin Chrome
Finishes
ANSI K2 Description
E0151 QDB180 Single Cylinder
E0151 QDB181 Single Cylinder SFIC
E0141 QDB182 Double Cylinder
E0141 QDB183 Double Cylinder SFIC
E0171 QDB186 Classroom
E0171 QDB187 Classroom SFIC
Functions
Performance Features
t Tested to exceed 1,000,000 cycles, exceeding the 250,000 required to
meet Grade 1 certification.
t Solid forged housing provides enhanced strength and durability.
t Full 1” (25.4mm) throwbolt with saw resistant hardened steel roller pin.
t Anti-drill design—two (2) ball bearings inserted to prevent drill attacks.
t ADA thumbturn.
t Compartmentalized packaging allows for quick and easy installation.
Certifications
t ANSI/BHMA A156.5 Series Grade 1
t ANSI A117.1 Accessibility Code (ADA Compliant)
t UL/cUL Listed (3-hours) for “A” Label Single Door applications (4’ x 8’)
(1.219mt x 2.438mt)
t UL10C / UBC 7-2 (1997) Positive Pressure Rated
UL10B Pressure Rated
t California State Reference Code (formerly Title 19 – Fire Marshall)
t Hurricane Compliant—Miami-DADE N.O.A. See page P-1 for more details.
Product Specifications
t Door Range – 1 58” – 2” (40mm–51mm) standard.
Consult factory for special door ranges.
t Backset – 2 34” (70mm) square standard.
2 38” (60mm) available.
t Exposed Trim – Solid forged brass, plated to match finish designation.
t Strike – Standard deadbolt strike 1 18” x 2 34” (32mm x 70mm).
Other strike options also available.
t Door Prep – 2 18” (54mm) diameter cross bore.
t Latchbolt – Full 1” (25.4mm) Throw with hardened steel roller;
Faceplate – 1 18” x 2 14” (29mm x 57mm).
Keying
t 6-pin Brass Cylinders. Many keying options available from our factory to include,
but not limited to, master keying, grandmaster keying and construction keying.
Small Format Interchangeable Core cylinder also available.
t 2 keys per lockset.
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, BF-SFIC “F” & LC-Less Cylinder.
“Consult factory for other cylinder options.”
Warranty
t Lifetime Mechanical and 3 year finish*
*(613/US10B carries no finish warranty)
Single Cylinder
Double Cylinder
I-2
K2 Product Catalog
www.k2commercialhardware.com
QDB
100 Series Grade 1
Extra Heavy Duty Auxiliary Deadbolts
QDB180
A B C D E
1.06" .920" 2.5" 2.52" 2.02"
(26.9mm) (23.37mm) (63.5mm) (64mm) (51.31mm)
DIMENSIONS
A B
CD E
Model/
Series ANSI Functions Description Case
Qty
QDB 180/181
Single Cylinder E0151 Single
Cylinder
Deadbolt is operated by a key outside
and a thumbturn inside. 12
QDB 182/183
Double Cylinder E0141 Double
Cylinder Deadbolt is operated by a key on both sides. 12
QDB 186/187
Classroom E0171 Classroom Deadbolt is operated by a key from outside. Turnpiece
retracts deadbolt for egress but can not project it. 12
I-3 K2 Product Catalog 1.866.590.2094
How to Order
QDB 100 Series Grade 1
Extra Heavy Duty Auxiliary Deadbolts
Single Cylinder 80
Single Cylinder (SFIC) 81
Double Cylinder 82
Double Cylinder (SFIC) 83
Classroom 86
Classroom (SFIC) 87
Grade 1
Auxiliary Deadbolt QDB1xx
234" Deadbolt Latch Square - 118" Face 234BS
234" Deadbolt Latch Radius - 118" Face 234BR
238" Deadbolt Latch Square - 118" Face 238BS
238" Deadbolt Latch Radius - 118" Face 238BR
234" Deadbolt Latch Square - 1" Face 234BSN
234" Deadbolt Latch Radius - 1" Face 234BRN
238" Deadbolt Latch Square - 1" Face 238BSN
238" Deadbolt Latch Radius - 1" Face 238BRN 478S ANSI 4 78" x 114" Strike
FLS Full Lip Square Corner Strike
FLR Full Lip 14" Radius Corner Strike
DBS Standard Deadbolt Strike 118" x 2
34"
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
605 Bright Brass
613 Oil Rubbed Bronze
619 Satin Nickel
625 Bright Chrome
626 Satin Chrome
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
BF SFIC “F”
LC Less Cylinder
Example
If you ordered: QDB182 626 238BS DBS WE KD
You would get: Grade 1 Double Cylinder Auxiliary Deadbolt, Satin Chrome, 2 38" Deadbolt
Latch Square, Standard Deadbolt Strike, Weiser Keyway, Keyed Different
QDB1 82 HC 626 238BS DBS WE KD XXXX
Series Function Options Finish Latch Strike Keyway Keying Notes
Hurricane Compliant HC
J-1
K2 Product Catalog
www.k2commercialhardware.com
QDB
200 Series Grade 2
Heavy Duty Auxiliary Deadbolts
BHMA US Description
605 US3 Bright Brass
613 US10B Oil Rubbed Bronze
619 US15 Satin Nickel
625 US26D Bright Chrome
626 US26 Satin Chrome
Finishes
ANSI K2 Description
E0152 QDB280 Single Cylinder
E0152 QDB281 Single Cylinder SFIC
E0142 QDB282 Double Cylinder
E0142 QDB283 Double Cylinder SFIC
E0193 QDB284 Inside Turnbolt
--- QDB285 Indicator
E0172 QDB286 Classroom
E0172 QDB287 Classroom SFIC
E0152 QDB288 Key Control
Functions
Performance Features
t Tested to significantly exceed the 150,000 cycles required to meet Grade 2
certification.
t Full 1" (25.4mm) Throwbolt with saw resistant hardened steel roller pin.
t Free-Spinning cylinder collar prevents against wrench attacks.
t Anti-Drill Design – Two (2) ball bearings inserted to prevent drill attacks.
t ADA thumbturn.
t Compartmentalized packaging allows for quick and easy installation.
t Available with SmartKey Technology.
Certifications
t ANSI/BHMA A156.12 – 1999 Grade 2
t ANSI A117.1 Accessibility Code (ADA Compliant)
t UL/cUL Listed (3-hours) for “A” Label Single Door applications (4’ x 8’)
(1.219mt x 2.438mt)
t UL10C / UBC 7-2 (1997) Positive Pressure Rated
UL10B Pressure Rated
t Hurricane Compliant—Miami-DADE N.O.A. See page P-1 for more details.
Product Specifications
t Door Range – 1 38” – 1 34” (35mm–44.5mm)
Consult factory for special door ranges.
t Backset – 2 34” (70mm) square standard. 2 38” (60mm) available.
t Exposed Trim – Stainless steel w/ iron forged cylinder guard.
t Strike – Standard Deadbolt Strike 1 1/8" x 2 3/4" (32mm x 70mm).
Other strike options also available.
t Latchbolt – Full 1" (25.4mm) throw with hardened steel roller.
t Faceplate – 1 1/8" x 2 1/4" (29mm x 57mm) standard.
1" x 2 1/4" (25.4mm x 57mm) faceplate available.
Keying
t 6-pin Brass Cylinders. Many keying options available from our factory to include,
but not limited to, master keying, grandmaster keying and construction keying.
Small Format Interchangeable Core cylinder also available.
t 2 keys per lockset.
t Offered with the following keyway options: SMT-SmartKey, KW-Kwikset, WE-Weiser,
SC-Schlage, GA-Yale, LA-Sargent, BF-SFIC “F” & LC-Less Cylinder.
“Consult factory for other cylinder options.”
Warranty
t Lifetime Mechanical and 3 year finish*
*(613/US10B carries no finish warranty)
Single Cylinder
QDB28S Indicator
Double Cylinder
QDB288 Key Control
J-2 K2 Product Catalog 1.866.590.2094
QDB
200 Series Grade 2
Heavy Duty Auxiliary Deadbolts
A B C D E
1.06" 0.920" 2.5" 2.56" 2.02"
(26.8mm) (23.37mm) (63.5mm) (65mm) (51.31mm)
DIMENSIONS
A B
CD E
QDB280
Model/
Series ANSI Description Case
Qty
QDB 280/281
Single Cylinder E0152 Deadbolt is operated by a key outside
and a thumbturn inside. 12
QDB 282/283
Double Cylinder E0142 Deadbolt is operated by a key on both sides. 12
QDB 284
Inside Turnbolt E0193 Deadbolt is operated by a thumbturn inside.
There is no trim on the other side. 20
QDB285
Indicator ---
Deadbolt is operated by turn inside. Occupancy indicator plate on
outside. Indicator visually shows red closed padlock for locked/in use,
green opened padlock for unlocked/vacant. Emergency key included.
12
QDB286/287
Classroom E0172 Deadbolt operated by key from outside. Thumbturn retracts deadbolt for
egress but cannot project it. 12
QDB288
Key Control E0152 Deadbolt operated by either tenant or control key from outside.
Thumbturn on inside projects and retracts deadbolts. 12
NOTES:
*Classroom indicator deadbolts available in 626 finish at standard lead times. Consult factory for lead times on alternative finishes.
†Key Control Deadbolt available with SmartKey cylinders only.
J-3
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QDB 200 Series Grade 2
Heavy Duty Auxiliary Deadbolts
Single Cylinder 80
Single Cylinder (SFIC) 81
Double Cylinder 82
Double Cylinder (SFIC) 83
Inside Turnbolt Only 84
Indicator 85
Classroom 86
Classroom (SFIC) 87
Key Control88
Grade 2
Auxiliary Deadbolt QDB2xx
2 34" Deadbolt Latch Square - 118" Face 234BS
2 34" Deadbolt Latch Radius - 118" Face 234BR
2 38" Deadbolt Latch Square - 118" Face 238BS
2 38" Deadbolt Latch Radius - 118" Face 238BR
2 34" bolt latch - square corner - 1" Face 234BSN
2 34" bolt latch - radius corner - 1" Face 234BRN
2 38" bolt latch - square corner - 1" Face 238BSN
2 38" bolt latch - radius corner - 1" Face 238BRN
6 Way adjustable Latch 6WAL
QDB288 Square Corner SCAL
QDB288 Round Corner RCAL
478S ANSI 478" x 114" Strike
FLS Full Lip Square Corner Strike
FLR Full Lip 14" Radius Corner Strike
DBS Standard Deadbolt Strike 118" x 2
34" - Square
DBR Standard Deadbolt Strike 118" x 2
34" - Round
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
605 Bright Brass
613 Oil Rubbed Bronze
619 Satin Nickel
625 Bright Chrome
626 Satin Chrome
SMT Kwikset “KW SmartKey
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
BF SFIC “F”
LC Less Cylinder
Example
If you ordered: QDB282 626 238BS DBS WE KD
You would get: Grade 2 Double Cylinder Auxiliary Deadbolt, Satin Chrome, 2 3/8" Deadbolt
Latch Square, Standard Deadbolt Strike, Weiser Keyway, Keyed Different
QDB2 82 HC 626 238BS DBS WE KD XXXX
Series Function Options Finish Latch Strike Keyway Keying Notes
Key Control Deadbolt only available with Smartkey Cylinders.
Hurricane Compliant HC
K-1 K2 Product Catalog 1.866.590.2094
QED
100 Series Grade 1
Extra Heavy Duty Exit Devices
BHMA US Description
605 US3 Bright Brass
710 313AN Anodized Duranodic Bronze
626 US26D Satin Chrome
Finishes
ANSI K2 Description
02 QET120 Dummy Lever Escutcheon
02 QET125 Dummy Pull Plate
14 QET130 Passage Lever Escutcheon
08 QET160 Keyed Lever Escutcheon
05 QET165 Thumbpiece
02 QET167 Dummy Thumbpiece
09 QET170 Night Latch Lever Escutcheon
03 QET175 Night Latch Pull
01 QET190 Flat Plate
Exit Trim Offerings
QED111
Sierra (SIE) Summit (SUM) Pull Plate
K2 Description
QED111 Rim Hex Dog
QED112 Rim Cylinder Dog
QED113 Rim Fire Rated
Functions
Performance Features
t Tested and certified to significantly exceed 1,000,000 cycles—well above the
requirements for Grade 1 certification.
t Thru-bolted trim design for increased security and durability.
t Wide variety of trim options to fit any job.
t Consistent styling allows for suiting with other Stanley K2 Commercial
Hardware products.
Certifications
t ANSI/BHMA A156.13 - Grade 1
t UL/cUL listed (3 hours) for “A ” label single door applicatins (4’ x 8’)
(1.219mt x 2.438mt)
t UL10C/UBC 7-2 (1997) Positive Pressure Rated
t UL10B Pressure Rated
t ANSI A117.1 Accessibility Code (ADA Compliant).
t California State Reference Code (formerly Title 19 – Fire Marshall).
t Hurricane Compliant—Miami-DADE N.O.A. See page P-1 for more details.
Product Specifications
t Handing—All QED100 series exit devices are non-handed.
t Door Thickness – 1 34" standard (44.5mm).
t Latchbolt – Stainless Steel 34" standard (19mm).
t Fasteners – Wood screws, machine screws and sex bolts standard.
t Head cap & end cap – Zinc die-cast.
t Trims – Sierra and Summit styles available.
Escutcheon offering – Dummy, passage, keyed, night latch.
Pull plate offering – Dummy, thumbpiece, night latch, flat plate.
t Stile width – 4 14" minimum (108mm).
t Dogging – Hex key dogging and cylinder dogging available.
t 36" field sizeable to 32" door.
48" field sizeable to 36" door.
t Standard backset: 2 78" (62mm) to face of door stop.
t Electrification options available.
Keying
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, BF-SFIC "F" & LC-Less Cylinder.
“Consult factory for other cylinder options and for details on Mortise and Rim
Cylinder requirements.”
Warranty
t Lifetime Mechanical, 3 year finish*, 1 year electrical
*(613/US10B carries no finish warranty)
Rim Type
K-2
K2 Product Catalog
www.k2commercialhardware.com

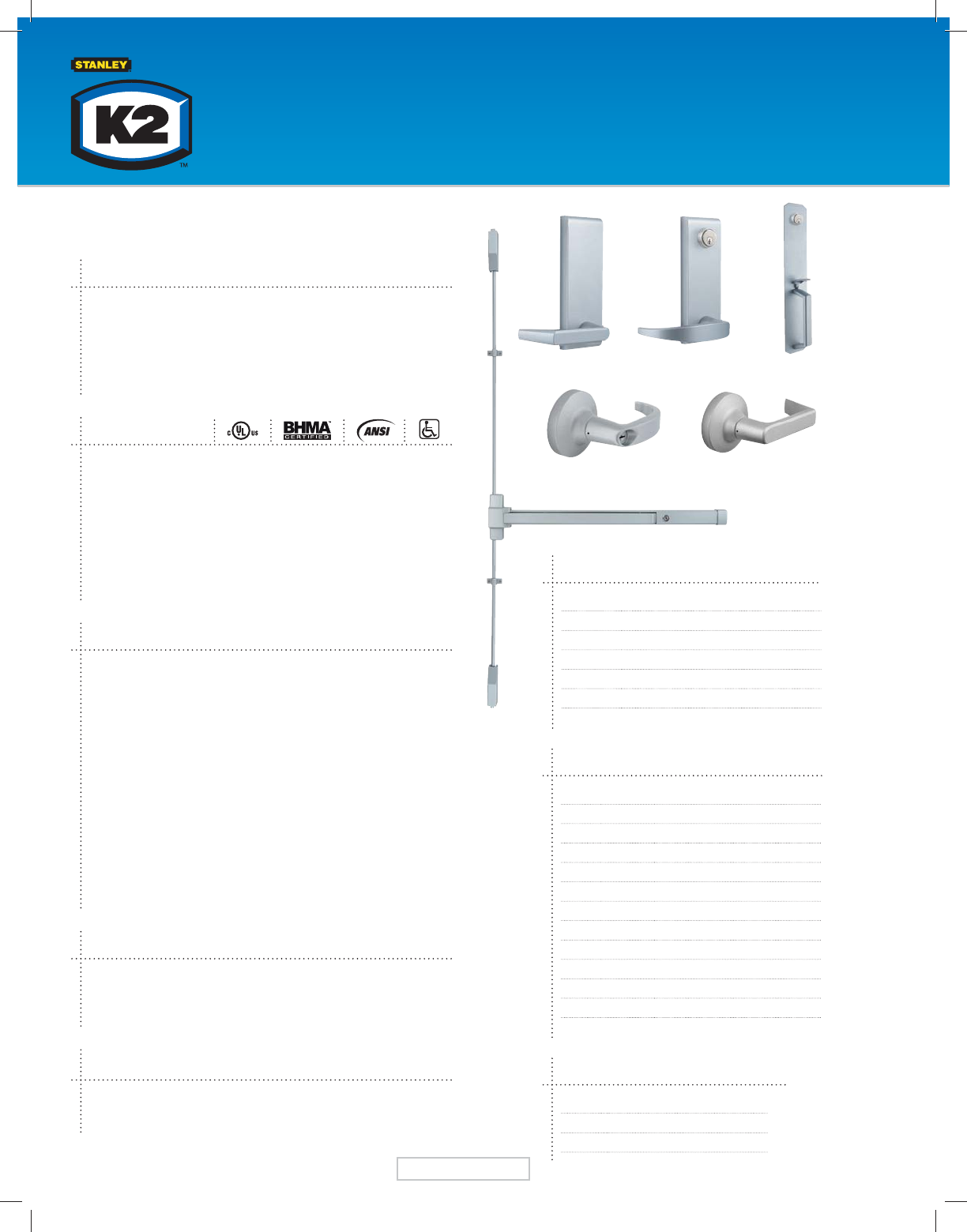

QED
100 Series Grade 1
Extra Heavy Duty Exit Devices
BHMA US Description
605 US3 Bright Brass
710 313AN Anodized Duranodic Bronze
626 US26D Satin Chrome
Finishes
ANSI K2 Description
02 QET120 Dummy Lever Escutcheon
02 QET125 Dummy Pull Plate
14 QET130 Passage Lever Escutcheon
08 QET160 Keyed Lever Escutcheon
05 QET165 Thumbpiece
02 QET167 Dummy Thumbpiece
09 QET170 Night Latch Lever Escutcheon
03 QET175 Night Latch Pull
01 QET190 Flat Plate
Exit Trim Offerings
Sierra (SIE) Summit (SUM) Thumbpiece Plate
QED115
K2 Description
QED114 SVR Hex Dog
QED115 SVR Cylinder Dog
QED116 SVR Fire Rated
QED117 SVR Less Bottom Rod Hex Dog
QED118 SVR Less Bottom Rod Cylinder Dog
QED119 SVR Less Bottom Rod – Fire Rated
Functions
Performance Features
t Tested and certified to significantly exceed 1,000,000 cycles—well above the
requirements for Grade 1 certification.
t Thru-bolted trim design for increased security and durability.
t Wide variety of trim options to fit any job.
t Consistent styling allows for suiting with other Stanley K2 Commercial
Hardware products.
Certifications
t ANSI/BHMA A156.13 - Grade 1
t UL/cUL listed (3 hours) for “A ” label single door applicatins (8’ x 8’)
(2.438mt x 2.438mt)
t UL10C/UBC 7-2 (1997) Positive Pressure Rated
t UL10B Pressure Rated
t ANSI A117.1 Accessibility Code (ADA Compliant).
t California State Reference Code (formerly Title 19 – Fire Marshall).
t Hurricane Compliant—Miami-DADE N.O.A. See page P-1 for more details.
Product Specifications
t Handing—All QED100 series exit devices are non-handed.
t Door Thickness – 1 34" standard (44.5mm).
t Door Height – 7' standard with 84" rods; 8' with 96" rods.
t Latchbolt – Stainless Steel 12" throw (12.7mm).
t Fasteners – Wood screws, machine screws and sex bolts standard.
t Head cap & end cap – Zinc die-cast.
t Trims – Sierra and Summit styles available.
Escutcheon offering – Dummy, passage, keyed, night latch.
Pull plate offering – Dummy, thumbpiece, night latch, flat plate.
t Stile width – 3 12" minimum (89mm).
t Dogging – Hex key dogging and cylinder dogging available.
t 36" field sizeable to 32" door.
48" field sizeable to 36" door.
t Standard backset: 2 78" (62mm) to face of door stop.
t Electrification options available.
t QED119 includes bottom fire latch.
Keying
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, BF-SFIC "F" & LC-Less Cylinder.
“Consult factory for other cylinder options and for details on Mortise and
Rim Cylinder requirements.”
Warranty
t Lifetime Mechanical, 3 year finish*, 1 year electrical
*(613/US10B carries no finish warranty)
Surface Vertical Rod (SVR) Type
K-3 K2 Product Catalog 1.866.590.2094

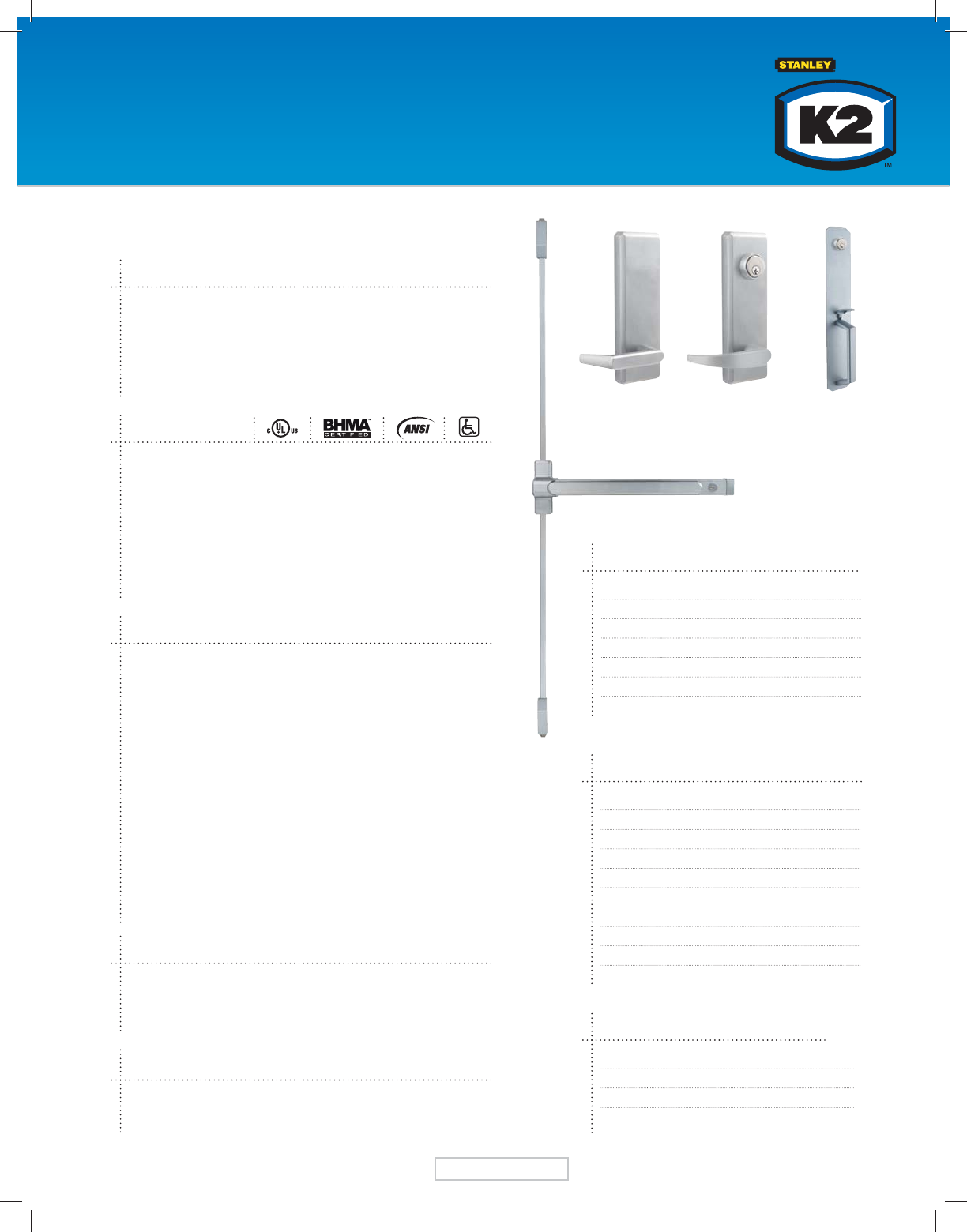

QED
100 Series Grade 1
Extra Heavy Duty Exit Devices
BHMA US Description
605 US3 Bright Brass
710 313AN Anodized Duranodic Bronze
626 US26D Satin Chrome
Finishes
ANSI K2 Description
02 QET120 Dummy Lever Escutcheon
02 QET125 Dummy Pull Plate
14 QET130 Passage Lever Escutcheon
08 QET160 Keyed Lever Escutcheon
05 QET165 Thumbpiece
02 QET167 Dummy Thumbpiece
09 QET170 Night Latch Lever Escutcheon
03 QET175 Night Latch Pull
01 QET190 Flat Plate
Exit Trim Offerings
Sierra (SIE) Summit (SUM) Thumbpiece Plate
QED111
K2 Description
QED124 CVR Hex Dog
QED125 CVR Cylinder Dog
QED126 CVR Fire Rated
QED127 CVR Less Bottom Rod Hex Dog
QED128 CVR Less Bottom Rod Cylinder Dog
QED129 CVR Less Bottom Rod – Fire Rated
Functions
Performance Features
t Tested and certified to significantly exceed 1,000,000 cycles—well above the
requirements for Grade 1 certification.
t Thru-bolted trim design for increased security and durability.
t Wide variety of trim options to fit any job.
t Consistent styling allows for suiting with other Stanley K2 Commercial
Hardware products.
Certifications
t ANSI/BHMA A156.13 - Grade 1
t UL/cUL listed (3 hours) for “A ” label single door applicatins (8’ x 8’)
(2.438mt x 2.438mt)
t UL10C/UBC 7-2 (1997) Positive Pressure Rated
t UL10B Pressure Rated
t ANSI A117.1 Accessibility Code (ADA Compliant).
t California State Reference Code (formerly Title 19 – Fire Marshall).
Product Specifications
t Handing—All QED100 series exit devices are non-handed.
t Door Thickness – 1 34" standard (44.5mm).
t Door Height – 7' standard with 84" rods; 8' with 96" rods.
t Latchbolt – Stainless Steel 12" throw (12.7mm).
t Fasteners – Wood screws, machine screws and sex bolts standard.
t Head cap & end cap – Zinc die-cast.
t Trims – Sierra and Summit styles available.
Escutcheon offering – Dummy, passage, keyed, night latch.
Pull plate offering – Dummy, thumbpiece, night latch, flat plate.
t Stile width – 3 12" minimum (89mm).
t Dogging – Hex key dogging and cylinder dogging available.
t 36" field sizeable to 32" door.
48" field sizeable to 36" door.
t Standard backset: 2 78" (62mm) to face of door stop.
t Electrification options available.
t QED129 includes bottom fire latch.
Keying
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, BF-SFIC "F" & LC-Less Cylinder.
“Consult factory for other cylinder options and for details on Mortise and
Rim Cylinder requirements.”
Warranty
t Lifetime Mechanical, 3 year finish*, 1 year electrical
*(613/US10B carries no finish warranty)
Concealed Vertical Rod (CVR) Type
K-4
K2 Product Catalog
www.k2commercialhardware.com

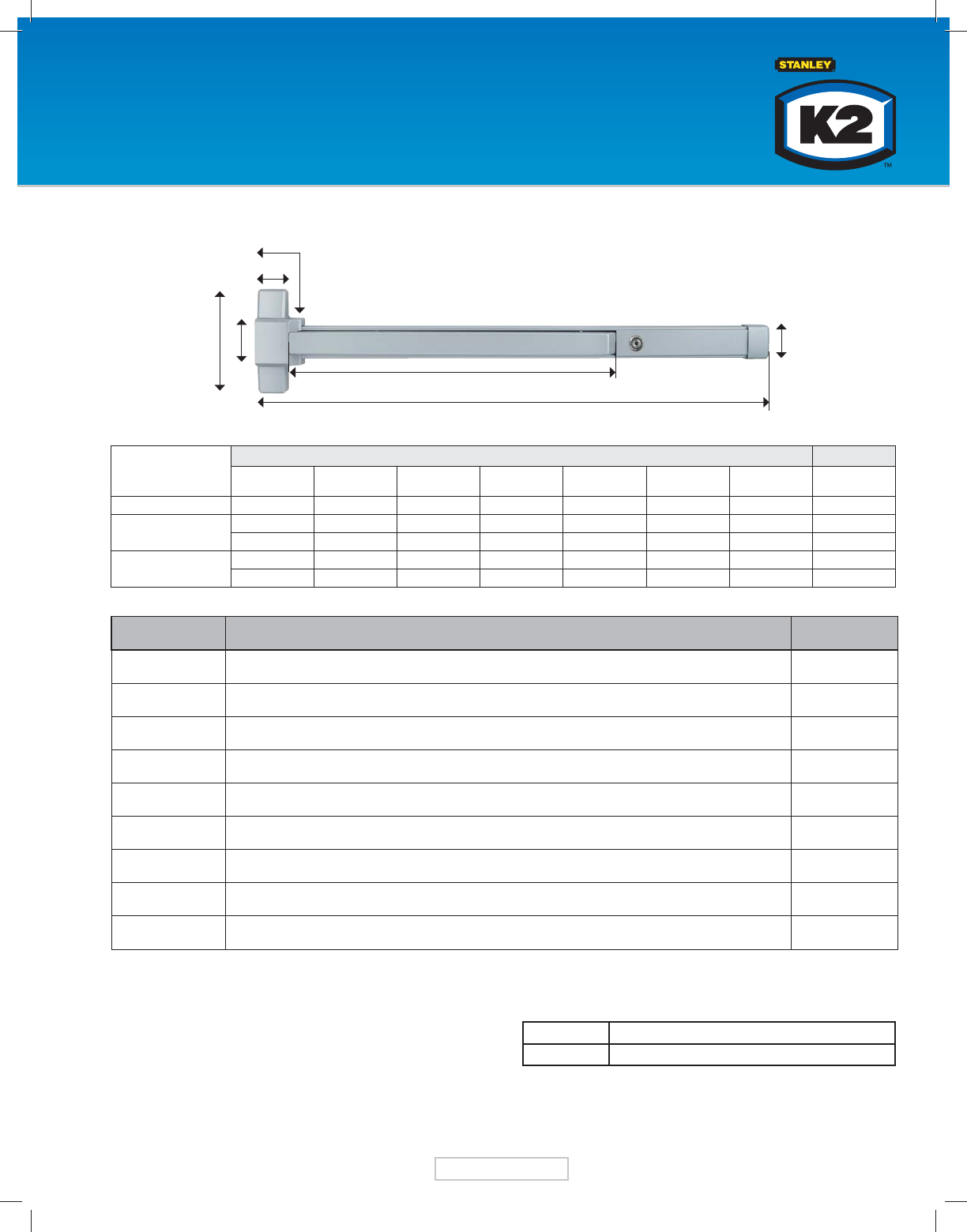

QED
100 Series Grade 1
Extra Heavy Duty Exit Devices
Model/Series Functions Style Case Qty
QED111 Rim – Hex Dog 1
QED112 Rim – Cylinder Dog 1
QED113 Rim – Fire Rated 1
QED114 SVR – Hex Dog 7FT 1
QED115 SVR – Cylinder Dog 7FT 1
QED116 SVR – Fire Rated 7FT 1
QED117 SVR Less Bottom Rod – Hex Dog 7FT 1
QED118 SVR Less Bottom Rod – Cylinder Dog 7FT 1
QED119 SVR Less Bottom Rod – Fire Rated 7FT 1
QED124 CVR – Hex Dog 7FT 1
QED125 CVR – Cylinder Dog 7FT 1
QED126 CVR – Fire Rated 7FT 1
QED127 CVR – LBR – Hex Dog 7FT 1
QED128 CVR – LBR – Cylinder Dog 7FT 1
QED129 CVR – LBR – Fire Rated 7FT 1
QED100 Series
36" Device 48" Device All QED100 Device
Minimum
Door Width
Device
Length
Pushpad
Length
Minimum
Door Width
Device
Length
Pushpad
Length
Head Cap
Length
Head Cap
Length
Head Cap
Width
Head Cap
Width
Measurement AB ABCDEF
Panic Rated
(with Dogging)
30" 33" 20.5" 36" 45" 24.5" 3.625" 2.75" 9" 2.5"
762mm 838.2mm 520.7mm 914.4mm 1143mm 622.3mm 92.1mm 69.9mm 228.6mm 63.5mm
Fire Rated or Panic with
Dogging Removed
29" 33" 20.5" 33" 45" 24.5" 3.625" 2.75" 9" 2.5"
736.6mm 838.2mm 520.7mm 838.2mm 1143mm 622.3mm 92.1mm 69.9mm 228.6mm 63.5mm
A
B
D
C
EF
Notes:
All LBR fire rated devices include a bottom fire latch.
Other Options
8FT Vertical rod kit for 8FT door application
48" 48" Device (Consult factory for lead-time)
HC Hurricane Compliant
K-5 K2 Product Catalog 1.866.590.2094
QED
100 Series Grade 1
Extra Heavy Duty Exit Devices
Model # Description
QED___LR Electrified Latch Retraction (LR) allows for the remote unlatching of exit devices. Continuous duty solenoids retract
latches momentarily or for extended periods of time. Requires the use of K2 power supply 8Q00312 or 8Q00313.
QED___ED
Electrified Dogging (ED) allows continuous latch retraction and dogging simultaneously. ED requires first time
mechanical activation after which the push bar will continuously hold the push bar and latch retracted. When
power is removed or interrupted from the device, the latch bolt will extend and push bar will release. Uses power
supply 8Q00314.
QED___X
Request to Exit (X) is an SPDT (Single Pole Double Throw) switch which monitors the push bar of the exit device.
The X switch can be used to activate a door alarm, control a magnetic locking device, shunt a door alarm or signal a
control console when the push bar is depressed.
QED___LRX Electrified Latch Retraction (LR) device with a Request to Exit (X) switch. Requires the use of K2 power supply
8Q00312 or 8Q00313.
QED___EDX Electrified Dogging (ED) device with a Request to Exit (X) switch. Uses power supply 8Q00314.
Model # Description
8Q00312 Power supply for Electronic Latch Retraction Devices (LR/LRX)
8Q00313 Power supply with Day/Night mode for Electronic Latch Retraction Devices (LR/LRX)
ELECTRIFIED OPTIONS (CONSULT FACTORY FOR LEAD TIMES)
POWER SUPPLY OPTIONS (CONSULT FACTORY FOR LEAD TIMES)
Electrified Product Specifications
t Consult Factory for lead times
t Electrification prices should be added to price of device
t Continuous duty solenoids
t Tie into alarm systems and electromagnetic locks
t 24V AC/DC with .150 amp current
t Lifetime warranty on exit device; 1 year warranty on electronic
components
t LR or LRX requires power supply 8Q00312 or 8Q00313
t Minimum door width 36”
t LR and ED requires the removal of mechanical dogging
mechanism
t Options can be used in any Hex Dog or Fire Rated QED 100
Series Device (How to order example: QED111LR 36” 626)
Power Supply Specifications (10” x 10” x 4.25”)
8Q00312
t provides power for up to two LR or LRX devices
t Supplied with wiring diagram in detailed instructions
t Automatic door operator interface
t Independent control of single exit devices (one or two single
doors) or sequential operation of two devices (pair of doors)
t Field adjustable latch retraction time delay
t 24VDC or 12 VDC auxiliary power, unfiltered and unregulated
8Q00313
t Same as 8Q00312 with the addtion of a day/night mode
t Provides seperate input for retracting one exit device or two exit
devices sequentially without activating the auto door operator.
While the latches are held retracted auto operator can be acti-
vated independently from a different output.
K-6
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QED 100 Series Grade 1
Extra Heavy Duty Exit Devices
Rim Hex Dog 11 CVR - Hex Dog 24
Rim Cylinder Dog 12 CVR - Cylinder Dog 25
Rim Fire Rated 13 CVR - Fire Rated 26
SVR - Hex Dog 14 CVR - LBR - Hex Dog 27
SVR - Cylinder Dog 15 CVR - LBR - Cylinder Dog 28
SVR - Fire Rated 16 CVR - LBR - Fire Rated 29
SVR - LBR - Hex Dog 17
SVR - LBR - Cylinder Dog 18
SVR - LBR - Fire Rated 19
Grade 1
Architectural
Exit Device
QED1xx
Bright Brass 605
Anodized
Duranotic Bronze 313AN
Brushed Chrome 626
Electrified Latch Retraction LR
Electrified Latch Retraction
with Request to Exit LRX
Electrified Dogging ED
Electrified Dogging
with Request to Exit EDX
Request to Exit X
Hurricane Compliant HC
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
BF SFIC “F”
LC Less Cylinder
Example
If you ordered: QED115 36" 7FT 313AN KW KD
You would get: Grade 1 Heavy Duty Architectural Surface Vertical Rod Exit Device with Cylinder
Dogging for a 7 Foot Door, in Anodized Duronotic Bronze finish. Kwikset Keyway, Keyed Different.
QED1 15 LR 36" 7FT 313AN KW KD XXXX
Series Function Options Size Height Finish Keyway** Keying** Notes
7 ft Rod 7FT
8 ft Rod 8FT
* Applies to Surface Vertical Rods only
** Applies to Cylinder Dogged only
36 36" Device
48 48" Device
K-7 K2 Product Catalog 1.866.590.2094

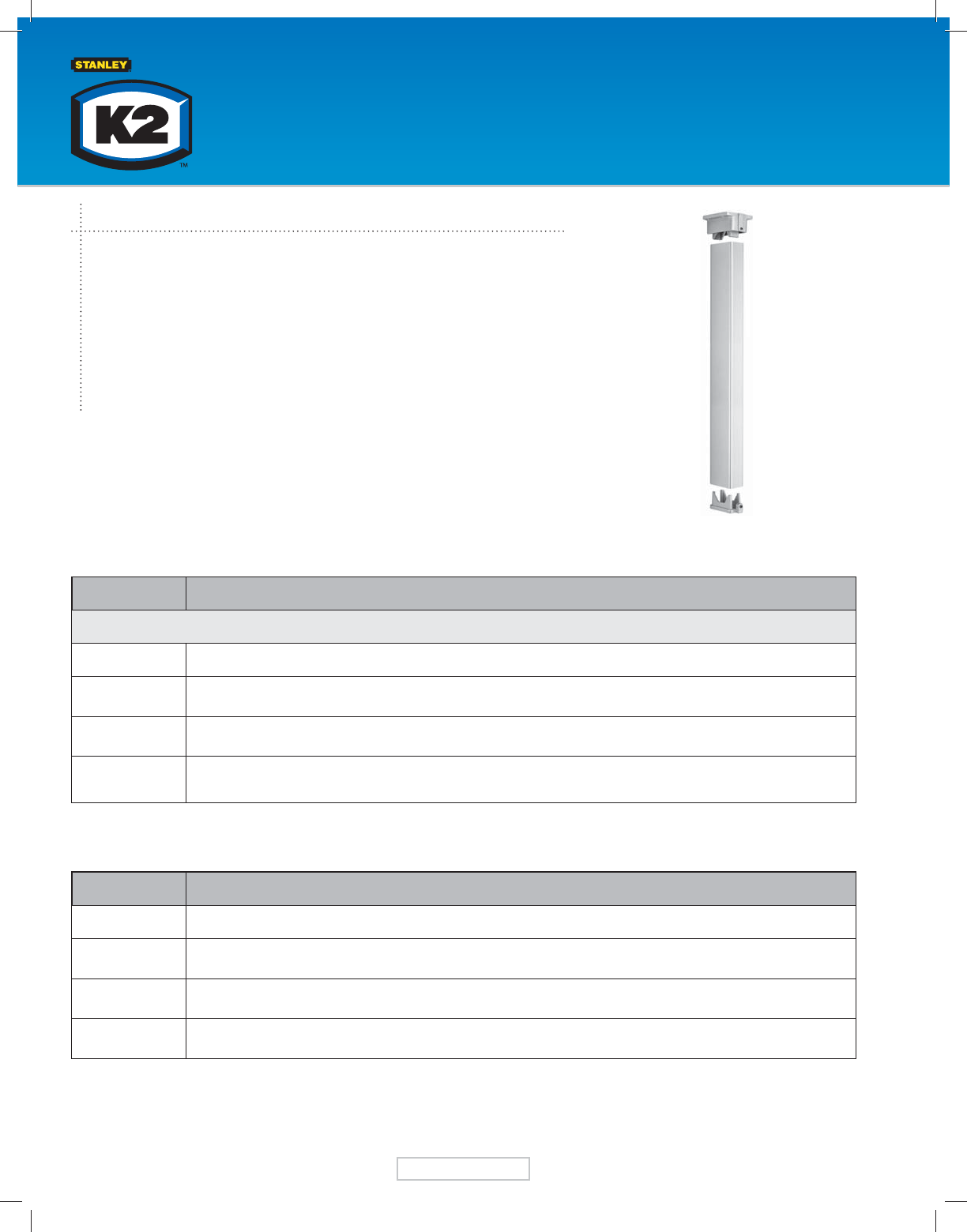

QRM
100 Series
Mullions
KEYED REMOVABLE MULLIONS (CONSULT FACTORY FOR MULLION LEAD TIMES)
REMOVABLE MULLIONS (CONSULT FACTORY FOR MULLION LEAD TIMES)
Order Description
Cylinder not included. Keyed removable mullions utilize standard rim cylinders. Reference cylinders, keys & keying section for more details.
QRM111 KR Keyed Removable Mullion. Includes: Mullion tube, cap, base, fasteners, & strike.
QRM111 HC KR Hurricane Compliant, Keyed Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike interlock.
QRM113 KR Fire Rated, Keyed Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike interlock.
QRM113 HC KR Fire Rated, Hurricane Compliant, Keyed Removable Mullion. Includes: Mullion tube, cap, base,
fasteners & strike interlock.
Order Description
QRM111 Removable Mullion. Includes: Mullion tube, cap, base, fasteners, & strike.
QRM111 HC Hurricane Compliant, Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike interlock.
QRM113 Fire Rated, Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike interlock.
QRM113 HC Fire Rated, Hurricane Compliant, Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike interlock.
Performance Features
t 2" x 3" steel mullion tube. 1/8" wall thickness.
t Hurricane: 2" x 3" steel mullion tube. 5/16" wall thickness.
t Head cap, bottom sill & hurricane mullion adapters: investment cast steel.
t Size: Standard for openings 8' 0" high, field sizeable for openings less than 8' 0".
9', 10', 11' & 12' also available and are field sizable.
t Mullion is pre-prepped for QED100 Series exit devices.
t Fire and Hurricane Rating 8' 0" high max.
t Available finishes: Primer (600), Aluminum (689) & Dark Bronze (695).
K-8
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QRM 100 Series
Mullions
Mullion Prepped for
QED100 Series QRM1
Standard 11
Fire Rated 13
600 Primer
689 Aluminum
695 Dark Bronze
8 FT Standard Height
9 FT
Not Available in Fire
Rated or Hurricane
Compliant Options
10 FT
11 FT
12 FT
Example
If you ordered: QRM111 HC KR 8' 600
You would get: Keyed Removable, Hurricane Compliant mullion, 8' height, with Primer finish.
Prepped for QED100 Series strike.
QRM1 11 HC KR 8 FT 600
Series Function Options Height Finish
HC Hurricane Compliant
KR Keyed Removable
K-9 K2 Product Catalog 1.866.590.2094

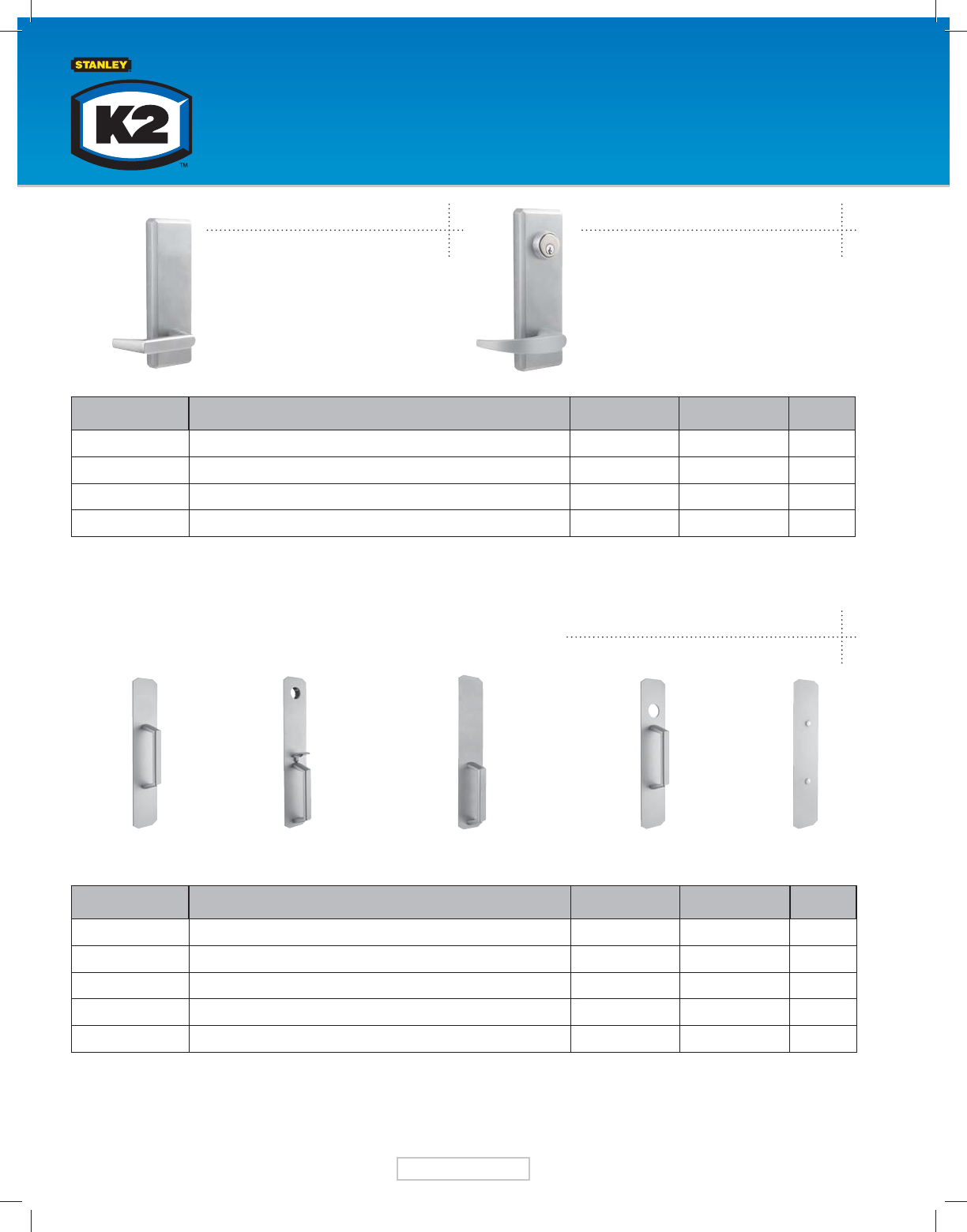

QET
100 Series Grade 1
Extra Heavy Duty Exit Trims
Model/Series Functions Style Cylinder Type Qty
QET120 Dummy Escutcheon Lever SIE / SUM - 6
QET130 Passage Escutcheon Lever SIE / SUM - 6
QET160 Keyed Escutcheon Lever (Classroom) SIE / SUM Mortise 6
QET170 Night Escutcheon Latch (Storeroom) SIE / SUM Rim 6
Available in: 605, 613*, 626 Available in: 605, 613*, 626
Available in: 605, 626, 690
NOTES:
CYLINDERS ORDERED SEPARATELY.
*613 Finish trims match 313 finish exit devices.
NOTES:
CYLINDERS ORDERED SEPARATELY.
Dummy Pull
QET125
Thumb Piece
QET165
Night Latch Pull
QET175
Flat Plate
QET190
Dummy Thumb Piece
QET167
Escutcheon Trims Sierra (SIE) Escutcheon Trims Summit (SUM)
Escutcheon Trims Pull & Flat Plates
Model/Series Functions Style Cylinder Type Qty
QET125 Dummy Escutcheon Pull PUL - 6
QET165 Thumbpiece Escutcheon Pull PUL Mortise 6
QET167 Dummy Thumbpiece Escutcheon Pull PUL - 6
QET175 Night Latch Escutcheon Pull PUL Rim 6
QET190 Flat Escutcheon Plate PUL - 6
K-10
K2 Product Catalog
www.k2commercialhardware.com
QET
100 Series Grade 1
Extra Heavy Duty Exit Trims
A B C D
9.78" 3.28" 14" 3"
(248.6mm) (83.31mm) (355.6mm) (76.2mm)
DIMENSIONS
B
A
D
C
Functions Description
QET120 Dummy Escutcheon Lever Used for door pull when device is dogged or as matching inactive trim.
No mechanical operation.
QET125 Dummy Escutcheon Pull Used for door pull when device is dogged or as matching inactive trim.
No mechanical operation.
QET130 Passage Escutcheon Lever Levers always unlocked and always free for immediate ingress.
QET160 Keyed Escutcheon Lever Key locks & unlocks lever (operates same as classroom function)
QET165 Thumbpiece Escutcheon Pull Key locks & unlocks thumbpiece (operates same as classroom
function)
QET167 Dummy Thumbpiece
Escutcheon Pull
Used for Door Pull when device is dogged or as matching inactive trim. No
mechanical operation. Matches QET165.
QET170 Night Latch Escutcheon Lever Lever always locked, key retracts latch for entrance (operates same as
storeroom function)
QET175 Night Latch Escutcheon Pull Outside always locked, key retracts latch for entrance (operates same as
storeroom function)
QET190 Blank Escutcheon Plate Blank trim plate —used to cover existing door prep for an exit only
application.
K-11 K2 Product Catalog 1.866.590.2094
How to Order
QET 100 Series Grade 1
Extra Heavy Duty Exit Trims
DL - Dummy Trim Lever 20
DP - Dummy Trim Pull 25
PL - Passage Lever 30
KL - Keyed Lever 60
TP - Thumbpiece 65
DT - Dummy Thumbpiece 67
NL - Night Latch Lever 70
NL - Pull 75
GW - Gull Wing 77
Flat Plate 90
Grade 1 Standard
Duty Exit Trim QET3xx
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
Kwikset “KW KW
Weiser “E” WE
Schlage “C” SC
Yale “GA GA
Sargent “LA LA
SFIC “F” BF
Less Cylinder LC
Example
If you ordered: QET360 PNN 689 KW KD
You would get: Grade 1 Escutcheon Trim Lever, Pinnacle design, Aluminum Finish Kwikset
Keyway, Keyed Different. This Trim Matches to the QED300 Series Exit Devices
QET3 60 PNN 689 KW KD XXXX
Series Function Design Finish Keyway Keying Notes
689 Painted
Aluminum
690
Painted
Duranodic
Bronze
Pull PUL
Pinnacle PNN
Pearce PEA
L-1
K2 Product Catalog
www.k2commercialhardware.com
QED
300 Series Grade 1
Heavy Duty Exit Trims
BHMA Description
689 Painted Aluminum
690 Painted Duranodic Bronze
Finishes
ANSI K2 Description
02 QET320 Dummy Lever Escutcheon
02 QET325 Dummy Pull Plate
14 QET330 Passage Lever Escutcheon
08 QET360 Keyed Lever Escutcheon
05 QET365 Thumbpiece
09 QET370 Night Latch Lever Escutcheon
03 QET374 Night Latch Pull
01 QET390 Flat Plate
02 QET320 Dummy Round Rose Lever
14 QRT330 Passage Round Rose Lever
08 QRT360 Keyed Round Rose Lever
09 QRT370 Night Latch Round Rose Lever
Exit Trim Offerings
K2 Description
QED311 Rim Hex Dog
QED312 Rim Cylinder Dog
QED313 Rim Fire Rated
Functions
Performance Features
t Tested and certified to significantly exceed 500,000 cycles required
for Grade 1 certification.
t Field sizeable. 36" to 32" door application (91.44cm)(81.28cm)
t Consistent styling allows for suiting with other Stanley K2 Commercial
Hardware products.
Certifications
t ANSI/BHMA A156.13 - Grade 1.
t UL/cUL listed (3 hours) for “A ” label single door applicatins (4’ x 8’)
(1.219mt x 2.438mt)
t UL10C/UBC 7-2 (1997) Positive Pressure Rated.
t UL10B Pressure Rated.
t UL305 for Panic Hardware.
t ANSI A117.1 Accessibility Code (ADA Compliant).
t California State Reference Code (formerly Title 19 – Fire Marshall).
Product Specifications
t Handing—All QED300 series exit devices are non-handed.
t Door Thickness – 1 34" standard (44.5mm).
t Latchbolt – Stainless Steel 34" throw (19mm).
t Strike—Stainless steel body with plated steel roller standard Fire Rated
staninless steel strike with stainless steel roller standard on QED313.
t Fasteners – Wood and machine screws standard. Sex bolts optional.
(Standard on Fire Rated device).
t Head cap & end cap – Zinc die-cast.
t Trims – Pinnacle and Pearce styles available.
Escutcheon offering – Dummy, passage, keyed, night latch.
Pull plate offering – Dummy, thumbpiece, night latch, flat plate.
t Stile width – 3 78" minimum (98mm).
t Dogging – Hex key dogging and cylinder dogging available.
t Standard backset: 2 14" (57mm) to face of door stop.
Keying
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, BF-SFIC "F" & LC-Less Cylinder.
“Consult factory for other cylinder options and for details on Mortise and
Rim Cylinder requirements.”
Warranty
t Lifetime Mechanical and 3 year finish*
*(613/US10B carries no finish warranty)
Rim Type QED311
Pinnacle (PNN)
QRT360 PEA
Pearce (PEA)
QRT320 PNN
Thumbpiece Plate
L-2 K2 Product Catalog 1.866.590.2094
BHMA Description
689 Painted Aluminum
690 Painted Duranodic Bronze
Finishes
ANSI K2 Description
02 QET320 Dummy Lever Escutcheon
02 QET325 Dummy Pull Plate
14 QET330 Passage Lever Escutcheon
08 QET360 Keyed Lever Escutcheon
05 QET365 Thumbpiece
09 QET370 Night Latch Lever Escutcheon
03 QET374 Night Latch Pull
01 QET390 Flat Plate
02 QET320 Dummy Round Rose Lever
14 QRT330 Passage Round Rose Lever
08 QRT360 Keyed Round Rose Lever
09 QRT370 Night Latch Round Rose Lever
Exit Trim Offerings
K2 Description
QED314 SVR Hex Dog
QED315 SVR Cylinder Dog
QED316 SVR Fire Rated
QED317 SVR Less Bottom Rod Hex Dog
QED318 SVR Less Bottom Rod Cylinder Dog
QED319 SVR Less Bottom Rod Fire Rated
Exit Device Functions
Performance Features
t Tested and certified to significantly exceed 500,000 cycles required
for Grade 1 certification.
t Field sizeable. 36" to 32" door application (91.44cm)(81.28cm).
t Thru-bolted trim design for increased security and durability.
t Consistent styling allows for suiting with other Stanley K2 Commercial
Hardware products.
Certifications
t ANSI/BHMA A156.13 - Grade 1.
t UL/cUL listed (3 hours) for “A ” label single door applicatins (8’ x 8’)
(2.438mt x 2.438mt)
t UL10C/UBC 7-2 (1997) Positive Pressure Rated.
t UL10B Pressure Rated.
t UL305 for Panic Hardware.
t ANSI A117.1 Accessibility Code (ADA Compliant).
t California State Reference Code (formerly Title 19 – Fire Marshall).
Product Specifications
t Handing—All QED300 series exit devices are non-handed.
t Door Thickness – 1 34" standard (44.5mm).
t Door Height – 7' standard with 84" rods; 8' optional with 96" rods (2.1336mt
x 2.438mt).
t Latchbolt – 12" (12.7mm) throw on top latch; 38" (9.53mm) on bottom latch.
t Fasteners – Wood and machine screws standard. Sex bolts optional.
(Standard on Fire Rated device).
t Head cap & end cap – Zinc die-cast.
t Trims – Pinnacle and Pearce styles available.
Escutcheon offering – Dummy, passage, keyed, night latch.
Pull plate offering – Dummy, thumbpiece, night latch, flat plate.
t Stile width – 3 12" minimum (89mm).
t Dogging – Hex key dogging and cylinder dogging available.
t Standard backset: 2 14" (57mm) to face of door stop.
t QED319 includes bottom fire latch.
Keying
t Offered with the following keyway options: KW-Kwikset, WE-Weiser, SC-Schlage,
GA-Yale, LA-Sargent, BF-SFIC "F" & LC-Less Cylinder.
“Consult factory for other cylinder options and for details on Mortise and
Rim Cylinder requirements.”
Warranty
t Lifetime Mechanical and 3 year finish*
*(613/US10B carries no finish warranty)
Surface Vertical Rod (SVR) Type
QED314
Pinnacle (PNN)
QRT360 PEA
Pearce (PEA)
QRT320 PNN
Thumbpiece Plate
QED
300 Series Grade 1
Heavy Duty Exit Devices
L-3
K2 Product Catalog
www.k2commercialhardware.com
A
B
D
C
EG
F
Model/Series Functions Case Qty
QED311 Rim – Hex Dog 4
QED312 Rim – Cylinder Dog 4
QED313 Rim – Fire Rated 4
QED314 SVR – Hex Dog 4
QED315 SVR – Cylinder Dog 4
QED316 SVR – Fire Rated 4
QED317 SVR Less Bottom Rod – Hex Dog 4
QED318 SVR Less Bottom Rod – Cylinder Dog 4
QED319 SVR Less Bottom Rod – Fire Rated (Includes Auxiliary Bottom Fire Latch) 4
QED300 Series
36" Device
Minimum
Door Width Device Length Pushpad
Length
Head Cap
Length
Head Cap
Length
Head Cap
Width
Head Cap
Width
End Cap
Length
Measurement ABCDEFG
Panic Rated
(with Dogging)
30" 27" 19" 2.75" 1.75" 6.25" 3" 2"
762mm 685.8mm 482.6mm 69.9mm 44.5mm 158.8mm 76.2mm 50.8mm
Fire Rated or Panic with
Dogging Removed
28" 25" 19" 2.75" 1.75" 6.25" 3" 2"
711.2mm 635mm 482.6mm 69.9mm 44.5mm 158.8mm 76.2mm 50.8mm
Other Options
8FT Vertical rod kit for 8FT door application
48" 48" Device
QED
300 Series Grade 1
Heavy Duty Exit Devices
L-4 K2 Product Catalog 1.866.590.2094
How to Order
QED 300 Series Grade 1
Heavy Duty Exit Devices
Rim Hex Dog 11
Rim Cylinder Dog 12
Rim Fire Rated 13
SVR Hex Dog 14
SVR - Cylinder Dog 15
SVR - Fire Rated 16
SVR - LBR - Hex Dog 17
SVR - LBR - Cylinder Dog 18
SVR - LBR - Fire Rated 19
Grade 1 Standard
Duty Exit Device QED3xx Painted Aluminum 689
Painted Duranodic Bronze 690
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
KW Kwikset “KW
WE Weiser “E”
SC Schlage “C”
GA Yale “GA
LA Sargent “LA
BF SFIC “F”
LC Less Cylinder
Example
If you ordered: QED315 36" 7FT 689 KW KD
You would get: Grade 1 Standard Duty Surface Vertical Rod Exit Device 36", with Cylinder Dogging
for a 7 Foot Door, in Painted Aluminum finish. Kwikset Keyway, Keyed Different.
QED3 15 36" 7FT 613 KW KD XXXX
Series Function Size Height Finish Keyway** Keying** Notes
7 ft Rod 7FT
8 ft Rod 8FT
36" Device 36"
48" Device 48"
* Applies to Surface Vertical Rods only
** Applies to Cylinder Dogged only
L-5
K2 Product Catalog
www.k2commercialhardware.com
QRM
300 Series
Mullions
KEYED REMOVABLE MULLIONS CONSULT FACTORY FOR MULLION LEAD TIMES
REMOVABLE MULLIONS CONSULT FACTORY FOR MULLION LEAD TIMES
Order Description
Cylinder not included. Keyed removable mullions utilize standard rim cylinders. Reference cylinders, keys & keying section for more details.
QRM311 KR Keyed Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike.
QRM313 KR Fire Rated, Keyed Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike interlock.
Order Description
QRM311 Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike.
QRM313 Fire Rated, Removable Mullion. Includes: Mullion tube, cap, base, fasteners & strike interlock.
Performance Features
t 2" x 3" steel mullion tube. 18" wall thickness.
t Size: Standard for openings 8' 0" high, field sizeable for openings less than 8' 0".
9', 10', 11' & 12' also available and are field sizable.
t Mullion is pre-prepped for QED300 Series exit devices.
t Fire Rating 8' 0" high max.
t Available finishes: Primer (600), Aluminum (689) & Dark Bronze (695).
L-6 K2 Product Catalog 1.866.590.2094
How to Order
QRM 300 Series
Mullions
Mullion Prepped for
QED300 Series QRM3
Standard 11
Fire Rated 13
600 Primer
689 Aluminum
695 Dark Bronze
8 FT Standard Height
9 FT
Not Available in
Fire Rated Option
10 FT
11 FT
12 FT
Example
If you ordered: QRM313 KR 8' 689
You would get: Keyed Removable, Fire Rated mullion, 8' height, with Aluminum finish. Prepped for
QED300 Series strike.
QRM3 13 KR 8 FT 689
Series Function Options Height Finish
KR Keyed Removable
L-7
K2 Product Catalog
www.k2commercialhardware.com

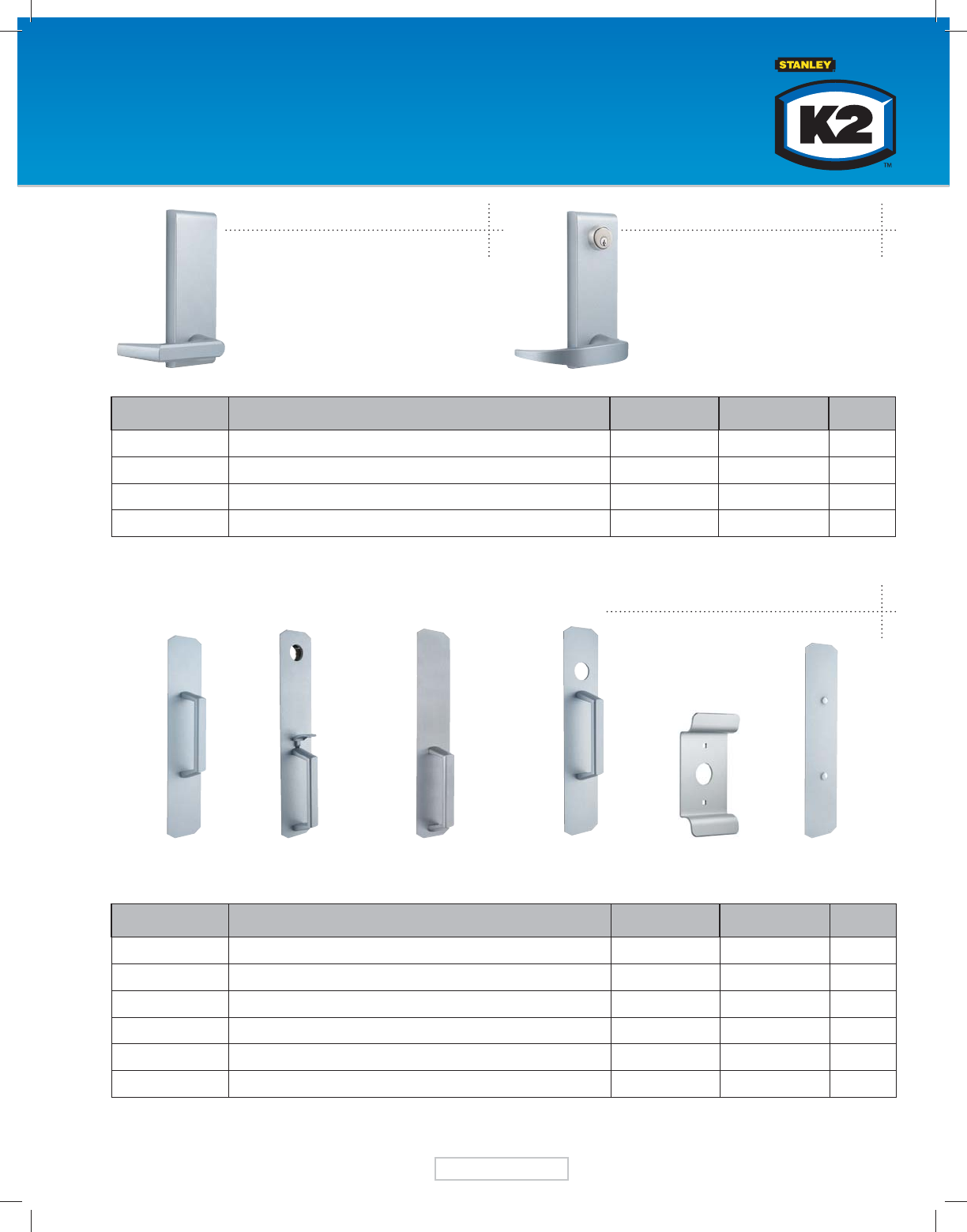

QET
300 Series Grade 1
Heavy Duty Exit Escutcheon Trims
Model/Series Functions Style Cylinder Type Qty
QET320 Dummy Escutcheon Lever PNN / PEA - 12
QET330 Passage Escutcheon Lever PNN / PEA - 12
QET360 Keyed Escutcheon Lever (Classroom) PNN / PEA Mortise 12
QET370 Night Escutcheon Latch (Storeroom) PNN / PEA Rim 12
Available in: 689, 690 Available in: 689, 690
Available in: 689, 690
NOTES:
CYLINDERS ORDERED SEPARATELY.
*613 Finish trims match 313 finish exit devices.
NOTES:
CYLINDERS ORDERED SEPARATELY.
*613 Finish trims match 313 finish exit devices.
Escutcheon Trims Pinnacle (PNN) Escutcheon Trims Pearce (PEA)
Escutcheon Trims Pull & Flat Plates
Model/Series Functions Style Cylinder Type Qty
QET325 Dummy Escutcheon Pull PUL - 12
QET365 Thumbpiece Escutcheon Pull PUL Mortise 12
QET367 Dummy Thumbpiece Escutcheon Pull PUL - 12
QET375 Night Latch Escutcheon Pull PUL Rim 12
QET377 Gull Wing Escutcheon Pull PUL Rim 12
QET390 Flat Escutcheon Plate PUL - 12
Dummy Pull
QET325
Thumb Piece
QET365
Gull Wing Pull
QET377
Flat Plate
QET390
Dummy Thumb Piece
QET367
Night Latch Pull
QET375
L-8 K2 Product Catalog 1.866.590.2094
QET
300 Series Grade 1
Heavy Duty Exit Escutcheon Trims
A B C D
8.0625" 2.625" 14" 3"
(204.79mm) (66.675mm) (355.6mm) (76.7mm)
DIMENSIONS
B
A
D
C
Model/Series Functions Description
QET320 Dummy Escutcheon Lever Used for door pull when device is dogged or as matching inactive trim.
No mechanical operation.
QET325 Dummy Escutcheon Pull Used for door pull when device is dogged or as matching inactive trim.
No mechanical operation.
QET330 Passage Escutcheon Lever Levers always unlocked and always free for immediate ingress.
QET360 Keyed Escutcheon Lever Key locks & unlocks lever (operates same as classroom function)
QET365 Thumbpiece Escutcheon Pull Key locks & unlocks thumbpiece (operates same as classroom
function)
QET367 Dummy Thumbpiece
Escutcheon Pull
Used for door pull when device is dogged or as matching inactive trim.
No mechanical operation. Matches QET365.
QET370 Night Latch Escutcheon Lever Lever always locked, key retracts latch for entrance (operates same as
storeroom function)
QET375 Night Latch Escutcheon Pull Outside always locked, key retracts latch for entrance (operates same as
storeroom function)
QET377 Gull Wing Escutcheon Pull Outside always locked, key retracts latch for entrance (operates same as
storeroom function)
QET390 Flat Escutcheon Plate Blank trim plate - used to cover existing door prep for an exit only
application.
L-9
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QET 300 Series Grade 1
Heavy Duty Exit Escutcheon Trims
DL - Dummy Trim Lever 20
DP - Dummy Trim Pull 25
PL - Passage Lever 30
KL - Keyed Lever 60
TP - Thumbpiece 65
DT - Dummy Thumbpiece 67
NL - Night Latch Lever 70
NL - Pull 75
GW - Gull Wing 77
Flat Plate 90
Grade 1 Standard
Duty Exit Trim QET3xx
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
Kwikset “KW KW
Weiser “E” WE
Schlage “C” SC
Yale “GA GA
Sargent “LA LA
SFIC “F” BF
Less Cylinder LC
Example
If you ordered: QET360 PNN 689 KW KD
You would get: Grade 1 Escutcheon Trim Lever, Pinnacle design, Aluminum Finish Kwikset
Keyway, Keyed Different. This Trim Matches to the QED300 Series Exit Devices
QET3 60 PNN 689 KW KD XXXX
Series Function Design Finish Keyway Keying Notes
689 Painted
Aluminum
690
Painted
Duranodic
Bronze
Pull PUL
Pinnacle PNN
Pearce PEA
L-10 K2 Product Catalog 1.866.590.2094
QET
300 Series Grade 1
Standard Duty Exit Rose Trims
Model/Series Functions Description Style Case
Qty
QRT320 Dummy Lever Used for door pull when device is dogged or as matching inactive
trim. No mechanical operation. PNN/PEA 12
QRT330 Passage Lever Levers always unlocked and always free for immediate ingress. PNN/PEA 12
QRT360/361 Keyed Lever
(Classroom)
Key locks & unlocks lever (operates same as classroom function).
Clutch feature disengages outside lever from latch when locked to
prevent vandalism.
PNN/PEA 12
QRT370/371 Keyed Lever
(Storeroom)
Lever always locked, key retracts latch for entrance (operates same
as storeroom function). Clutch feature disengages outside lever from
latch when locked to prevent vandalism.
PNN/PEA 12
ABCD
ABCD
Pinnacle 4.98" 3.15" 3.12" .52"
126.49mm 80.01mm 79.25mm 13.21mm
Pearce 4.95" 3.45" 3.12" .52"
125.73mm 87.63mm 79.25mm 13.21mm
DIMENSIONS
A
B
C
D
Available in: 689, 690 Available in: 689, 690
Round Rose Trims Pinnacle (PNN) Round Rose Trims Pearce (PEA)
L-11
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QRT 300 Series Grade 1
Standard Duty Exit Rose Trims
DL - Dummy Trim Lever 20
PL - Passage Lever 30
KL - Keyed Lever 60
KL - Keyed Lever SFIC 61
NL - Night Latch Lever 70
NL - Night Latch Lever SFIC 71
Standard Duty Rose
Exit Trim QRT3xx
KD Keyed Different
KA Keyed Alike
CK Construction Keyed
CMK Construction Master Keyed
MAIS Maison Keyed
MK Master Keyed
GMK Grand Master Keyed
GGMK Great Grand Master Keyed
ZB Zero Bitted
Kwikset “KW KW
Weiser “E” WE
Schlage “C” SC
Yale “GA GA
Sargent “LA LA
SFIC “F” BF
Less Cylinder LC
Example
If you ordered: QRT360 PNN 689 KW KD
You would get: Standard Duty Keyed Lever Round Rose Trim, Pinnancle Lever, Painted Aluminum
Finish, Kwikset Keyway, Keyed Different. This Trim Matches to the QED300 Series Exit Devices
QRT3 60 PNN 689 KW KD XXXX
Series Function Design Finish Keyway Keying Notes
689 Painted Aluminum
690 Painted Duranodic Bronze
Pinnacle PNN
Pearce PEA
M-1 K2 Product Catalog 1.866.590.2094
QDC
100 Series Grade 1
Extra Heavy Duty Door Closers
BHMA Description
689 Painted Aluminum
690 Painted Duranodic Bronze
696 Painted Satin Brass
Finishes
K2 Description
QDC111 Tri-Packed Arm, Non-Hold Open
QDC112 Hold Open Arm
QDC113 Dead Stop (Cush) Arm
QDC114 Dead Stop (Cush) Hold Open Arm
QDC115 Extra Duty Arm (EDA)
QDC116 Hold Open Extra Duty Arm (HEDA)
Door Closer Functions
Performance Features
t Tested to significantly exceed the performance requirements for
Grade 1 certification.
t Fully adjustable from 1–6 allowing for maximum flexibility.
t All weather oil insures optimal operational performance in multiple
climate conditions.
Certifications
t ANSI/BHMA A156.4 Series Grade 1.
t ANSI A117.1 Accessibility Code.
t UL/cUL listed (3-hour) for self closing.
t UL10C Positive Pressure Rated.
t UL10B Pressure Rated.
Warranty
t Lifetime Mechanical and 3 year finish*
*(613/US10B carries no finish warranty)
Product Specifications
t Handing—All QDC100 series closers are non-handed (QDC116 arms are
handed).
t Cast iron construction.
t All weather fluid.
t Stacked valves prevent oil leaks from screws being backed out too far.
t Cover – plastic cover standard.
t Arms & brackets – Tri-pack standard, additional arms optional.
t Arm material – Heat treated carbon steel.
t Springs – High impact hand drawn steel wires.
t Pinions – Heat treated chrome molybdenum steel.
t Cylinder construction – Heat treated free-cutting carbon steel.
t Fasteners – Wood and machine screws standard; sex nuts and self tapping
screws optional.
t Door Weights & Sizes:
Door Width Ranges
Size Applicable Door Weight Interior Exterior
1 33 ~ 55 LBS (15 ~ 30 Kg) 32" (0.81m) 28" (0.71m)
2 56 ~ 99 LBS (30 ~ 45 Kg) 36" (0.91m) 32" (0.81m)
3 99 ~ 143 LBS (45 ~ 55 Kg) 42" (1.07m) 36" (0.91m)
4 143 ~ 187 LBS (65 ~ 85 Kg) 48" (1.22m) 42" (1.07m)
5 187 ~ 264 LBS (85 ~ 120 Kg) 54" (1.37m) 48" (1.22m)
6 264 ~ 330 LBS (120 ~ 150 Kg) 58" (1.47m) 54" (1.32m)
QDC111
Cover
M-2
K2 Product Catalog
www.k2commercialhardware.com
Order with Closer Description Service Part #
SN Sex Nuts (Qty 4) (Specify Finish) 8Q00097
S/TAP Self Tapping Screws (Specify Finish) 8Q00547
QDC
100 Series Grade 1
Extra Heavy Duty Door Closers
A
B
C
A B C
3.50" 2.25" 12.1875"
(88.9mm) (57.15mm) (309.56mm)
DIMENSIONS
Model/
Series Functions Case
Qty
QDC111 Tri-Packed Arm, Non-Hold Open 3
QDC112 Hold-Open Arm 1
QDC113 Dead Stop (Cush) Arm 1
QDC114 Dead Stop (Cush) Hold-Open Arm 1
QDC115 Extra Duty Arm (EDA) 1
QDC116 Extra Duty Hold Open Arm (HEDA) – Handed 1
M-3 K2 Product Catalog 1.866.590.2094
How to Order
QDC 100 Series Grade 1
Extra Heavy Duty Door Closers
Tri-Packed Arm, Non-Hold Open 11
Hold Open Arm 12
Dead Stop (Cush) Arm 13
Dead Stop (Cush) Hold Open 14
Extra Duty Arm (EDA) 15
Extra Duty Hold Open Arm (HEDA) 16
Example
If you ordered: QDC111 SN 689
You would get: Grade 1 Extra Heavy Duty Non - Hold Open Door Closer - Full Adjustable
(Sized 1-6), Tri-packed Arms with Both Delayed Action & Back Check Standard, Painted
Aluminum finish, and Sex Nuts
QDC1 11 689
Series Function Finish Options Handing
689 Painted Aluminum
690 Painted Duranodic Bronze
696 Painted Brass
Grade 1 Extra Heavy
Duty Architectural QDC1xx
SN Sex Nuts
S/TAP Self Tapping Screws
DP Drop Plate
BF Barrier Free
Handing QDC 116 HEDA Arm Only
LH Left Hand
RH Right Hand
N-1
K2 Product Catalog
www.k2commercialhardware.com

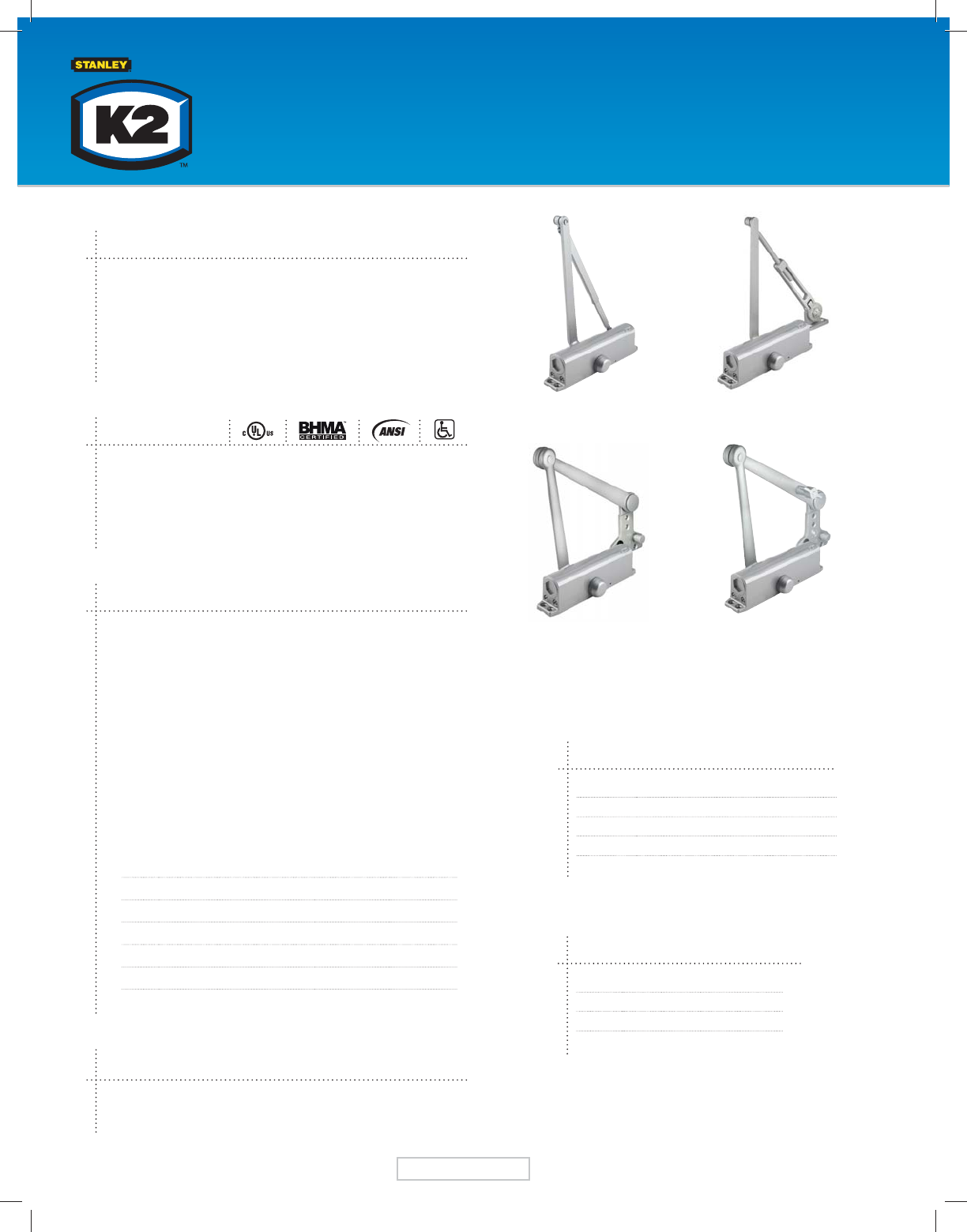

QDC
200 Series Grade 1
Heavy Duty Door Closers
BHMA Description
689 Painted Aluminum
690 Painted Duranodic Bronze
696 Painted Satin Brass
Finishes
K2 Description
QDC211 Tri-Packed Arm, Non-Hold Open
QDC212 Hold Open Arm
QDC213 Dead Stop (Cush) Arm
QDC214 Dead Stop (Cush) Hold Open Arm
Door Closer Functions
Performance Features
t Tested to significantly exceed the performance requirements
for Grade 1 certification.
t Fully adjustable from 1–6 allowing for maximum flexibility.
t Delayed Action and Backcheck are standard in the same door closer body.
t All weather oil insures optimal operational performance in multiple
climate conditions.
t Sized for interior doors to 5'0"; exterior doors to 4'6".
Certifications
t ANSI/BHMA A156.4 Series Grade 1.
t ANSI A117.1 Accessibility Code.
t UL/cUL listed (3-hour) for self closing doors without hold-open.
t UL10C Positive Pressure Rated.
t UL10B Pressure Rated.
Warranty
t Lifetime Mechanical and 3 Year Finish*
*(613/US10B carries no finish warranty)
Product Specifications
t Handing—All QDC200 series closers are non-handed.
t Material – Cast aluminum.
t All weather fluid.
t Cover – Slim-line plastic cover standard. Full, architectural plastic cover also
available.
t Arms & brackets – Tri-pack standard (regular, top jamb, parallel
configurations). Hold Open and Dead Stop arms also available.
t Arm material – Heat treated carbon steel.
t Springs – High impact hand drawn steel wires.
t Pinions – Heat treated chrome molybdenum steel.
t Cylinder construction – Heat treated free-cutting carbon steel.
t Fasteners – Wood and machine screws standard; sex nuts and self tapping
screws optional.
t Door Weights & Sizes:
Door Width Ranges
Size Applicable Door Weight Interior Exterior
1 33 ~ 55 LBS (15 ~ 30 Kg) 32" (0.81m) 28" (0.71m)
2 56 ~ 99 LBS (30 ~ 45 Kg) 36" (0.91m) 32" (0.81m)
3 99 ~ 143 LBS (45 ~ 55 Kg) 42" (1.07m) 36" (0.91m)
4 143 ~ 187 LBS (65 ~ 85 Kg) 48" (1.22m) 42" (1.07m)
5 187 ~ 264 LBS (85 ~ 120 Kg) 54" (1.37m) 48" (1.22m)
6 264 ~ 330 LBS (120 ~ 150 Kg) 58" (1.47m) 54" (1.32m)
Tri-Pack Arm
Cush Arm
Hold-Open Arm
Cush Hold-Open Arm
N-2 K2 Product Catalog 1.866.590.2094
Model/Series Functions Qty
QDC211 Tri-Packed Arm, Non-Hold Open 6
QDC212 Hold-Open Arm 6
QDC213 Dead Stop (Cush) Arm 3
QDC214 Dead Stop (Cush) Hold-Open Arm 3
Order with Closer Description Service Part #
FFull Size Cover (Specify Finish) 8Q00094
SSlim Cover (Specify Finish) 8Q00096
SN Sex Nuts (Qty 4) (Specify Finish) 8Q00097
S/TAP Self Tapping Screws (Qty 8) (Specify Finish) 8Q00436
How to Order
200 Series Grade 1
Heavy Duty Door Closers
C
B
A
A B C
2.05" 3.18" 12"
(52.2mm) (80.7mm) (305mm)
DIMENSIONS
N-3
K2 Product Catalog
www.k2commercialhardware.com
How to Order
QDC 200 Series Grade 1
Heavy Duty Door Closers
Tri-Packed Arm, Non-Hold Open 11
Hold Open Arm 12
Dead Stop (Cush) Arm 13
Dead Stop (Cush) Hold Open 14
Example
If you ordered: QDC211 F SN 689
You would get: Grade 1 Heavy Duty Slim line Non -Hold Open Door Closer - Full Adjustable
(Sized 1-6), Tri-packed Arms with Both Delayed Action & Back Check Standard, Full Sized cover,
Painted Aluminum finish, and Sex Nuts
QDC2 11 F 689
Series Function Trim Finish Options
689 Painted Aluminum
690 Painted Duranodic Bronze
696 Painted Brass
FFull Size Cover
SSlim Line Cover
Grade 1 Heavy
Duty Architectural QDC2xx SN Sex Nuts
DP Drop Plate
S/TAP Self Taping Screws
O-1 K2 Product Catalog 1.866.590.2094
QDC
300 Series Grade 1
Standard Duty Door Closers
BHMA Description
689 Painted Aluminum
690 Painted Duranodic Bronze
696 Painted Satin Brass
Finishes
K2 Description
QDC311 Tri-Packed Arm, Non-Hold Open
QDC312 Hold Open Arm
QDC313 Dead Stop (Cush) Arm
QDC314 Dead Stop (Cush) Hold Open Arm
Door Closer Functions
Performance Features
t Tested to significantly exceed the performance requirements
for Grade 1 certification.
t Fully adjustable from 1–6 allowing for maximum flexibility.
t Delayed Action and Backcheck are standard in the same door closer body.
t All weather oil insures optimal operational performance in multiple
climate conditions.
t Sized for interior doors to 4' 6"; exterior doors to 4' 0".
Certifications
t ANSI/BHMA A156.4 Series Grade 1.
t ANSI A117.1 Accessibility Code.
t UL/cUL listed (3-hour) for self-closing doors without hold-open.
t UL10C Positive Pressure Rated.
t UL10B Pressure Rated.
Warranty
t Lifetime Mechanical and 3 Year Finish*
*(613/US10B carries no finish warranty)
Product Specifications
t Handing—All QDC300 series closers are non-handed.
t Material – Cast aluminum.
t All weather fluid.
t Cover – Full, architectural plastic cover also available.
t Arms & brackets – Tri-pack standard (regular, top jamb, parallel
configurations). Hold Open and Dead Stop arms also available.
t Arm material – Heat treated carbon steel.
t Springs – High impact hand drawn steel wires.
t Pinions – Heat treated chrome molybdenum steel.
t Cylinder construction – Heat treated free-cutting carbon steel.
t Fasteners – Wood and machine screws standard; sex nuts and self tapping
screws optional.
t Door Weights & Sizes:
Door Width Ranges
Size Applicable Door Weight Interior Exterior
1 33 ~ 55 LBS (15 ~ 30 Kg) 32" (0.81m) 28" (0.71m)
2 56 ~ 99 LBS (30 ~ 45 Kg) 36" (0.91m) 32" (0.81m)
3 99 ~ 143 LBS (45 ~ 55 Kg) 42" (1.07m) 36" (0.91m)
4 143 ~ 187 LBS (65 ~ 85 Kg) 48" (1.22m) 42" (1.07m)
5 187 ~ 264 LBS (85 ~ 120 Kg) 54" (1.37m) 48" (1.22m)
6 264 ~ 330 LBS (120 ~ 150 Kg) 58" (1.47m) 54" (1.32m)
Tri-Pack Arm
Cush Arm
Hold-Open Arm
Cush Hold-Open Arm
O-2
K2 Product Catalog
www.k2commercialhardware.com
QDC
300 Series Grade 1
Standard Duty Door Closers
C
B
A
A B C
2.62" 3.08" 9.80"
(66.5mm) (78.1mm) (249mm)
DIMENSIONS
Model/Series Functions Qty
QDC311 Tri-Packed Arm, Non-Hold Open 6
QDC312 Hold-Open Arm 6
QDC313 Dead Stop (Cush) Arm 3
QDC314 Dead Stop (Cush) Hold-Open Arm 3
Order with Closer Description Service Part #
FFull Size Cover (Specify Finish) 8Q00094
SSlim Cover (Specify Finish) 8Q00096
SN Sex Nuts (Qty 4) (Specify Finish) 8Q00097
S/TAP Self Tapping Screws (Qty 8) (Specify Finish) 8Q00436
O-3 K2 Product Catalog 1.866.590.2094
How to Order
QDC 300 Series Grade 1
Standard Duty Door Closers
Tri-Pack Arm, Non-Hold Open 11
Hold Open Arm 12
Dead Stop (Cush) Arm 13
Dead Stop (Cush) Hold Open 14
Example
If you ordered: QDC311 F SN 689
You would get: Grade 1 Standard Duty Non-Hold Open Door Closer - Full Adjustable
(Sized 1-6), Tri-packed Arms with Both Delayed Action & Back Check Standard, Full Sized cover,
Painted Aluminum finish, and Sex Nuts
QDC3 11 F 689
Series Function Trim Finish Options
689 Painted Aluminum
690 Painted Duranodic Bronze
696 Painted Brass
FFull Size Cover
NC No Cover
Grade 1 Standard
Duty QDC3xx SN Sex Nuts
DP Drop Plate
BF Barrier Free
S/TAP Self Taping Screws
P-1
K2 Product Catalog
www.k2commercialhardware.com
Windstorm & Hurricane
Compliant Hardware Tests
Windstorm & Hurricane Compliant Hardware have passed structural tests as per South Florida Building Code Protocol. These tests are
designed to provide sufficient resistance to high wind forces and windborne debris. The hardware provides a high level of security for
door openings even if hurricane rated door components are not required. A brief description of the test is provided below.
Static Air Pressure Test
Test simulates wind loading by evenly distributing air pressure to the face of the door assembly in positive and negative
directions. The door assembly must not have excessive deflection or deformation and must remain secure in the chamber.
Missile Impact Test
Test simulates impacts created by wind driven debris by impacting the exterior face of the doors with a 2" x 4" x 9' board at
50 feet per second. The board must not pass through the doors and the doors must remain secure in the chamber.
Cyclic Wind Pressure Test
Test simulates wind gusts by repeating cycles of positive and negative air pressure to determine that the integrity of the
door assembly is not compromised with the Missile Impact Test. The door assembly must not have excessive deflection or
deformation and must remain secure in the chamber.
Component Approval
The hardware listed is approved as components to be used with any 18 gauge single or pair of hollow metal doors with 16 gauge
frames holding a current Notice of Acceptance (NOA). The lowest Design Pressure Rating of the doors or components shall apply.
Notice of Acceptance (NOA)
The Miami-Dade County Product Control Division has approved these devices to be used in Miami-Dade County and other areas
where allowed by the Authority Having Jurisdiction (AHJ). Product Control NOA Numbers 11-0325.04 (locking products) and 11-
0606.02 (exit devices) have been issued and expire on August 18, 2016.
To see the NOA documentation online, visit: http://www.miamidade.gov/buildingcode/pc-search_app.asp and type in the NOA
numbers referenced above under the Product Search Application link.
P-2 K2 Product Catalog 1.866.590.2094
Exit Devices
Product
Single Door Pair of Doors with Mullion
Opening Size Model # Max Design
Pressure (PSF) Opening Size Model #
Max Design
Pressure Rating
(PSF)
Grade 1 Heavy
Duty
4' 0" x 8' 0"
QED111
75 8' 0" x 8' 0"
QED111
75QED112 QED112
QED113 QED113
Pair of Doors with SVR
8' 0" x 8' 0"
QED114
68QED115
QED116
Windstorm & Hurricane
Compliant Hardware Charts
Locks & Deadbolts
Product
Single Door Pair of Doors with Mullion Pair of Doors with SVR
Opening
Size *Model #
Max
Design
Pressure
(PSF)
Opening
Size Model #
Max
Design
Pressure
Rating
(PSF)
Opening
Size Model #
Max
Design
Pressure
Rating
(PSF)
Grade 1
Cylindrical
with
Deadbolt
4' 0" x
8' 0"
QCL100 with
QDB100/200
75 8' 0" x
8' 0"
QCL100 with
QDB100/200 &
QED111/112/113
75 8' 0" x
8' 0"
QCL100 with
QDB100/200 &
QED114/115/116
68
Grade 2
Cylindrical
with
Deadbolt
QCL200 with
QDB100/200
QCL200 with
QDB100/200 &
QED111/112/113
QCL200 with
QDB100/200 &
QED114/115/116
Grade 2
Tubular
with
Deadbolt
QTL200 with
QDB100/200
QTL200 with
QDB100/200 &
QED111/112/113
QTL200 with
QDB100/200 &
QED114/115/116
* Dummy functions not included.
P-3
K2 Product Catalog
www.k2commercialhardware.com
Miscellaneous
Website
K2's best in class website has been designed from the ground up with you
in mind, and features unsurpassed ease-of-use, quick links to important
information, and features like these to help make your job easier.
General Features:
t Full product line with supporting image library.
t Competitive cross reference.
t Electronic versions of all literature.
Chamfer Design
The simplistic, yet attractive, chamfer
design of the K2 product illustrates the
product quality as well as its style niche
in the commercial hardware market.
This distinctive style reflects from the
K2 logo with its bold lines and beveled
edges and is carried throughout the
entire K2 product suite.
Finish / Paint Swatches
Packaging
Packaging designed with you, the customer
in mind.
General Features:
t Compartmental footprint allows for quick
and easy installation.
t Improved productivity.
t Clear inner tray provides quality control
with all parts being visible.
Jigs & Templates
Installation jigs and templates are another reason why K2 is trying to make
your job easier.
Mounts
Our merchandising displays are a great way to show our distinctive quality
designed products.
Visit K2 on the Web
www.k2commercialhardware.com
313 Anodize
Statuary Bronze
619 Satin Nickel
689 Aluminum
605 Polished Brass
625 Bright Chrome
690 Statuary Bronze
613 Oil Rubbed
Bronze
626 Satin Chrome
696 Satin Brass
P-4 K2 Product Catalog 1.866.590.2094
Auxiliary
Deadbolts Arrow Corbin
Russwin Sargent Yale Marks Schlage Falcon Hager Dorma
Grade 1 Deadbolt QDB100Series D60 Series DL3100 Series 480 Series 3600 Series 140 Series B600 Series D100 Series 3100 Series DB800 Series
Grade 2 Deadbolt QDB200 Series E60 Series DL2100 Series 470 Series 3500 Series --- BC100 Series D200 Series 3200 Series DB600 Series
Locksets Arrow Corbin
Russwin Sargent Yale Marks Schlage Falcon Hager Dorma
Grade 1 Mortise QML100 Series BW Series ML2000 Series 8200 Series 8800 Series --- L Series MA Series 3800 Series M9000 Series
Grade 1 Cylindrical QCL100 Series Q Series
W Series CL3300 Series 10 Line Series
11 Line Series 5400LN Series 95 Line
Series D Series T Series 3400 Series CL800 Series
Grade 2 Cylindrical QCL200 Series ML Series CL3800 Series 7 Line Series
6500 Line Series 5300LN Series 70 Line
Series AL Series B Series
W Series 3500 Series CL700 Series
Grade 2 Tubluar QTL200 Series C Series CL3700 Series DL Series 4300LN Series --- S Series Y Series 3600 Series CL600 Series
Exit Devices Arrow Corbin
Russwin Sargent Yale --- Von Duprin Falcon Hager Dorma
Grade 1 Heavy Duty
Architectural Pushbar QED100 Series 3000 Series ED5000 Series 80 Series 7000 Series --- 98/99 Series 18 Series 4500 Series 9000 Series
Grade 1 Economy
Standard Pushbar QED300 Series 1000 Series ED8000 Series 30 Series 2100 Series --- 22 Series 19 Series 4700 Series 8000 Series
Door Closers Arrow Corbin
Russwin Sargent Yale Norton LCN Falcon Hager Dorma
Grade 1 Extra
Heavy Duty QDC100 Series DC500 Series DC6200 Series 281 Series 4400 Series 7500 Series 4040 Series SC70 Series 5100 Series 8900 Series
Grade 1 Heavy Duty
(Slim Line) QDC200 Series 5000N Series DC3000 Series 1331 Series 3000 Series 8000 Series 1460 Series SC80 Series 5200 Series 8600 Series
Grade 1 Standard
Duty QDC300 Series 900N Series DC4600 Series 1130 Series 51 Series 1601 Series 1070 Series SC60 Series 5300 Series 7400 Series
Competetive Cross Reference
P-5
K2 Product Catalog
www.k2commercialhardware.com
XXXLDPNNFSDJBMIBSEXBSFDPN
&BTUUI4U*OEJBOBQPMJT*%
ª4UBOMFZ4FDVSJUZ4PMVUJPOT*ODtXXXTUBOMFZTFDVSJUZTPMVUJPOTDPN 17070-K2
“Stanley K2 Commercial Hardware is committed to delivering
distinct hardware solutions, while simplifying the customer
experience and being the easiest to do business with.

Navigation menu
