Star Computer Group C900 Mobile Phone User Manual
STAR COMPUTER GROUP INC. Mobile Phone
User Manual
1
Table of Contents
Mobile appearance picture .................................4
1.Foreword ..................................5
2.Quick start................................8
Icon Explain ...........................................................8
Knowing the Keys ..........................................9
Install SIM card......................................................9
Install T-flash card................................................10
Installing Battery ..................................................10
Battery Charging..................................................10
Switching on/off ................................................... 11
3.Call function...........................12
Dialing telephone.................................................12
Receiving telephone ............................................12
call in the menu ...................................................13
4.Phonebook.............................15
5.Multimedia..............................17
Image viewer .......................................................18
Video recorder .....................................................18
Video player.........................................................19
Audio player.........................................................19
Sound recorder....................................................20
FM radio ..............................................................21
6.Fun&Games ...........................23
7.Services..................................24
Homepage ...........................................................24
Bookmarks...........................................................24
Input address.......................................................24
2
Recent pages ......................................................24
Settings................................................................24
8.Settings ..................................26
Dual SIM switch...................................................26
Dual SIM settings ................................................26
Phone settings.....................................................26
Network settings ..................................................27
Security Settings..................................................27
Connectivity .........................................................30
Sound effects.......................................................30
Restore factory settings .......................................30
9.SNS .........................................31
10.Messages ...............................32
Write message.....................................................32
Inbox....................................................................33
Drafts ...................................................................34
Outbox .................................................................34
Sent messages....................................................34
11.Extra........................................38
Calculator ............................................................38
Currency converter ..............................................38
Stopwatch ............................................................38
Flashlight .............................................................38
Calendar ..............................................................38
Tasks ...................................................................39
Alarm ...................................................................39
World clock ..........................................................40
Notes ...................................................................40
Bluetooth .............................................................40
3
12.File manager ..........................42
13.Shortcuts................................43
14.User profiles...........................44
15.Call Center..............................46
Call history...........................................................46
Call settings .........................................................47
16.Input methods........................50
17.Phone maintenance ..............51
18.Accessories ...........................53
19.Environment...........................54
20.Technical Specifications.......55
4

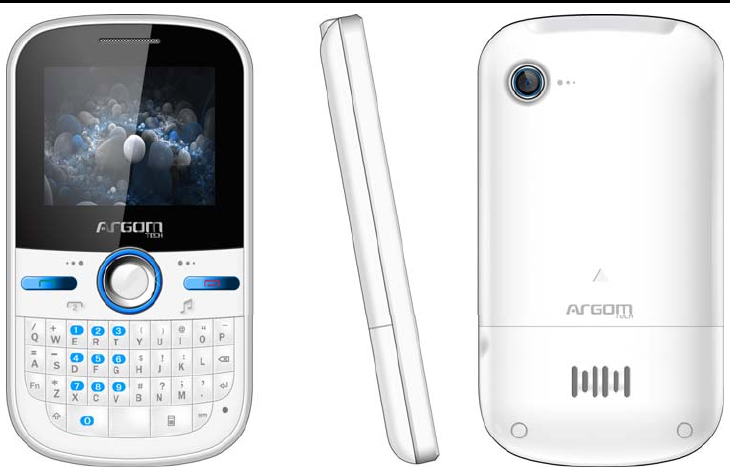

Mobile appearance picture
5
1. Foreword
Honorific mobile phones user, thank you for choosing our
mobile phone!
Our cellular phones is according with the communication
industry standards of PRC, and also according with the
standards of European, and are approved for GSM networks.
Your phone may be used internationally with various networks
depending on your roaming arrangements with your service
provider.
To use this phone you must subscribe to a GSM service from a
provider. We have included many features in this device but
their function depends on the features available with your
subscribed wireless network. Please contact your service
provider for more information.
We strongly recommend you carefully read and understand this
manual before using your phone in order to keep it under best
conditions for your effective usage and utmost satisfaction.
Safety
Never attempt to disassemble your phone. You alone are
responsible for how you use your phone and any
consequences of its use.
As a general rule, always switch off your phone wherever the
use of a phone is prohibited.
Use of your phone is subject to safety measures designed to
protect users and their environment.
Do not use your phone in damp areas (bathroom, swimming
pool…). Protect it from liquids and other moisture.
Do not expose your phone to extreme temperatures lower than
- 10°C and higher than + 55°C.
The physicochemical processes created by chargers impose
temperature limits when charging the battery. Your phone
automatically protects the batteries in extreme temperatures.
Do not leave your phone within the reach of small children
6
(certain removable parts may be accidentally ingested).
Electrical safety
Only use the chargers listed in the manufacturer’s catalogue.
Using any other charger may be dangerous; it would also
invalidate your warranty. Line voltage must be exactly the one
indicated on the charger’s serial plate.
Aircraft safety
When traveling by plane, you will need to switch your phone off
when so instructed by the cabin crew or the warning signs.
Using a mobile phone may be dangerous to the operation of
the aircraft and may disrupt the phone network.
Its use is illegal and you could be prosecuted or banned from
using cellular networks in the future if you do not abide by these
regulations.
Explosive materials
Please comply with warning signs at petrol station when
personnel asking you to switch your phone off. You will need to
comply with radio equipment usage restrictions in places such
as chemical plants, fuel depots and at any location where
blasting operations are under way.
Electronic equipment
To avoid the risk of demagnetization, do not let electronic
devices close to your phone for a long time.
Electronic medical equipment
Your phone is a radio transmitter which may interfere with
electronic medical equipment or implants, such as hearing aids,
pacemakers, insulin pumps, etc. It is recommended that a
minimum separation of 15cm be maintained between the
phone and an implant. Your doctor or the manufacturers of
such equipment will be able to give you any advice you may
need in this area.
Hospitals
Always make sure that your phone is switched off in hospitals
when so instructed by warning signs or by medical staff.
7
Road safety
Do not use your phone when driving. In order to give your full
attention to driving, stop and park safely before making a call.
You must comply with any current legislation.
Distance of operation
This phone model has been tested and meets radiofrequency
exposure guidelines when used
As follows:
·Against the ear: place or receive a phone call and hold the
phone as you would a wire line telephone.
·Body worn: when transmitting, place the phone in a carry
accessory that contains no metal and positions the phone a
minimum of 2.5cm form your body. Use of other accessories
may not ensure compliance with radiofrequency exposure
guidelines. If you do not use a body worn accessory and are
not holding the phone at the ear, position the phone a minimum
of 2.5 cm from your body,
·Data operation: when using a data feature, position the phone
a minimum of 2.5cm from your body for the whole duration of
the data transmission.
8
2. Quick start
Icon Explain
Icon Function description
Network signal strength:
number of the more stronger the signal;
Battery capacity
number of the more power the more full;
SMS
SIM1/SIM2 have unread SMS
Missed call
SIM1/SIM2 have missed calls
Used profiles
Different icons show different icon:
General, Silent, Meeting, Outdoor
Headset
Plug in headset
Alarm
Alarm function opened
Stopwatch
Stopwatch function turn on
Key lock
Show key and screen lock
9
Knowing the Keys
1. Left soft key/Right soft key: Implement the functions
shown in the lower left/right hand corner.
2. Call/Answer key (Green 1/2 key): Press the key to dialing,
Press if there is an incoming call to answer. Press from standby
to go to call records list.
3. End/Power key (Red key): Long press to switch phone
on/off; Press to end, reject call; or to exit a menu.
4. OK key: Confirm or accept selection in menu access.
Press from standby to enter the selected shortcuts list function.
5. Music key: Press from standby to enter the audio player
interface.
6. Navigator Keys: Press the up/down navigation key into the
shortcut function. In idle mode, press the left/right direction
keys to select the shortcut function showed on the bottom of
the screen, and then press the OK key to confirm.
7. 0-9 alphanumeric keys: Press corresponding keys to input
numbers when dialing or numbers and characters when editing.
From Standby: Long press “2” to “9” key to dial speed dial
numbers (as defined in the menu [Phonebook /Phonebook
settings / Speed dial]).
8. # Key: Press in standby to input “#” character; long press
from standby to activate or deactivate silent mode.
9.*（star）key: Press in standby to input “*” character, press the
left soft key + * key to lock or unlock the keypad in the idle
screen.
Install SIM card
This phone supports two GSM SIM cards. Find SIM card’s
10
groove in the back of the phone and slide it completely
there. During installation, please make sure the chip is
facing downwards and pay attention to slot direction.
Note：
1. Keep SIM card out of children’s touch.
2. Any abrasion or folding could easily damage SIM
card, so please be extremely careful when you insert,
Remove and preserve it.
3. Please make sure that you have cut off the power
supply and have taken out battery before you remove
SIM card.
Install T-flash card
1. First switch off the phone and remove the battery.
2. T card metal piece down, in accordance with the direction of
the logo on the cover of the phone, T-Flash card inserted in the
slot
Note:
1.To avoid damaging memory card, please do not plug
memory card fast or frequently.
2. Please regularly backup information in the cards on
other equipment when you use Cards like T-flash!
Improper use or other uncertain factors may cause the
damage or loss to the content in the cards.
Installing Battery
Align the battery chip with the metallic salient point in battery jar,
insert the battery until it is inserted into the battery jar. Slide
battery cover into back of the phone until it is locked.
Battery Charging
insert one end of the charger, i.e., the charging plug into
attachment mode and the other end into electrical outlet,
Screen will display the charging sign. After charging is finished,
just pull out the plug.
Note:
1. Please use the standard battery and charger, or may
11
explode.
2. If the battery is completely discharged, the battery
icon should be in charge after 2 to 3 minutes to appear.
Generally based on the current state of the phone (if
boot, call, etc.) of different charging time for 2 to 5
hours.
3. Please use the charger, charging as much as
possible to avoid using USB cable.
4. To ensure optimal battery performance, the
completion of two to three times the battery charge and
discharge cycles. Several new battery initial charge,
please charge more than 10 hours straight.
Switching on/off
Long press the Red key to switch your phone on or off.
1. If there is no SIM card, SIM card is defective, or SIM card
contact is loose, you will be prompt with a warning after
powering on, shut down and check your SIM and its installation.
2. If inserted one GSM SIM card only into the phone,
meanwhile phone code and PIN code is turn on. When
switched on, after entering the PIN code and phone code, the
phone enter the standby mode by the current SIM.
3. If inserted two GSM SIM cards, meanwhile phone code,
PIN1 code and PIN2 code are all turned on. When switched on,
you will be prompted to enter the code one by one. After
switched on, the phone will automatically search the network.
4. If the phone detected authorized network, the screen will
display network name and signal strength ；If there is no
authorized network is found ，the phone can only make
emergency calls or use non-communications features.
12
3. Call function
Dialing telephone
In standby mode, press the corresponding numeric keys to
enter the phone number that you want to dial, including
necessary area codes. Press the Clear key to delete
erroneous inputs; if inserted one GSM SIM card, press the
Call/Answer key to make a call when done to connect. If
inserted two GSM SIM card, press the call/answer key 1 use
the SIM1 to dial, press the Call/answer 2 use the SIM2 to dial.
1. Dialing Fixed/Land Line Extensions: You cannot directly get
through some fixed line extensions, and need to dial the
telephone exchange or trunk line first and then press [P] key to
switch until “P” appears on the screen. And then dial the
extension.
2. Making an International Call: To make an international call,
press the + key and number.
3. Dialing from Phonebook: Enter the Phonebook via the menu
to enter the phonebook list, use the Up/Down Navigator keys to
scroll to the desired contact, or press the first letter of the name
of the desired contact as saved in your phonebook for quick
access to names beginning with the letter then scroll to the
desired one.
4. Dialing from Call history: Enter the Call center (press the
Call/Answer key from standby or via the menu), use the
Up/Down navigator keys to scroll to the desired contact.
Receiving telephone
When there is an incoming call, the phone will give
corresponding alert, if your network supports caller ID, the
screen will display caller’s name or number (depending on
whether there is information of the caller in your phonebook).
1. Press the green key or press the Left soft key and confirm
[Answer] to answer the incoming call.
2. If function of [call center/call setting/Advanced setting/
13
Answer mode] is selected as [Any-key], press the any key to
answer the incoming call except the Right soft key or the Red
key.
3. If you do not want to answer an incoming call, press the Red
key or the Right soft key [Reject] to reject it.
You can also press the Red key to end a call.
4. During a call, you can press the Up/Down navigator key to
adjust receiver volume.
call in the menu
During a call, press the right soft key can also open / close the
hands-free function, press the left soft-key into the options:
- Swap*: Is maintained in the current call and switch between
calls
- Conference*:Into the multi-party conference call, you can
follow the prompts to answer the waiting call, to add
multi-session conference call will be maintained; and the party
conference in private conversation, the call to keep all other
parties; the parties to keep the party; the end of the current
Calls and all calls remain.
- Hold/Retrieve single call*: The current call on hold or
resume the call
- End single call*: end off the current call.
- End all calls*:end off the current call and the hold call
- Transfer*: the function need network support.
- New call: enter the dial-up interfaces.
- Phonebook: enter the phonebook list of interfaces.
- Messages: access to the message menu.
- Call history: access to call history list.
- Sound recorder: record the current call.
Note:
Recording of the call, in some countries is illegal.
Therefore, when you talk to Recording, should seek prior
approval from the other party's consent.
14
- Mute: mute on or off, open the case in the quiet do not send
local voice.
-DTMF: The dual tone multi-frequency switching operation ( a
call, you press the keys on the keyboard, the audio signal will
be sent to each other, for telephone banking, automatic
answering machine, etc.)
Note:
Denotes menu items only appear in specific circumstances.
Such as: [Swap] exist only in the state of the phone and
call the phone only appears to be suspended. At the same
time for the conferencing, you need to the appropriate
service provider to subscribe.
15
4. Phonebook
Stores and manages contacts that you often use.
There are two locations where you can store the names and
numbers that you regularly use, in the SIM memory and in the
phone memory. The volume of contacts can be saved in SIM
card depends on SIM capacity.
Enter the Phonebook list via the menu, including all records
saved in the phone and the SIM card. There are different icons
before different records indicating its memory location.
As you are browsing, you could enter a character, characters or
number and jump to contacts whose names (as saved in the
phonebook) starting with or most closely matching with the
characters entered.
After searching for the name, press the Call/Answer key to dial
the number of record, and press the Red key to end. Press the
OK key to view details of the record, press the Left soft key
[Options] to access the menu options:
·View: Display details of the currently recorded.
·Send text message: Send a text message to the currently
recorded.
·Send multimedia message: Send a multimedia message to
the currently recorded.
·Call: Dial the currently selected phone number.
·IP dial: If set and activated IP number in the [Call center/Call
settings/Advance settings/IP dial] option, you can dial the
currently selected phone number that adds IP number.
·Edit: Modify the currently selected contactor record.
·Delete: Delete the currently selected record.
·Copy: Copy this record to SIM card if it is saved in phone and
vice versa.
·Move: Move this record to SIM card if it is saved in phone and
vice versa.
·Add to Blacklist: Add the phone number to the black list.
16
·Phonebook settings
Speed dial: Set phone’s speed dial functions.
Use the OK key at ‘Enable speed dial’ option to turn speed dial
function on or off. Select ‘Set number’, scroll to a key number (8
available, from 2 to 9), press the OK key and select ‘Edit’, scroll
to the desired number to set as speed dial number for the key
and press the OK key.
When a number is set as speed dial and the function is enabled,
you can simply press and hold the corresponding numeric key
to the number for instant and automatic dialing.
Extra numbers: Save and view up to 2 own numbers (with
name)，service dialing number and SOS number.
Memory status: View the service condition of the SIM card and
phone’s phone book. The capacity of SIM card depends on
different SIM card.
Copy contacts: You can select ‘SIM to phone, phone to SIM’
option to copy the phone book you want.
Move contacts: You can select ‘SIM to phone, phone to SIM’
option to move the phone book you want.
Delete all contacts: Select to delete the contacts from SIM or
the phone memory and you must input the phone password.
Add new contact
This menu allows you to add the new record to the SIM card or
the Phone. Enter the phone number directly in standby mode,
then press the OK key to save the phone number in the SIM
card or the Phone.
First you need to select storage: To SIM or To Phone.
To SIM: New records added to the SIM, each name can only be
stored under a number.
To Phone: you can input name, number and set caller
ring-tone. This Records stored in your phone,.
17
5. Multimedia
Camera
Your phone is fitted with camera allows you to take photos
whenever possible. You can store the pictures in phone or
customize the wallpaper.
In the multimedia menu, select the camera into the camera
preview screen, press the following keys can be set for the
following cameras:
Press left/right navigation key to adjust [Exposal bias]
Press up/down navigation key to adjust [Focal distance]
Press “1” key to adjust [Image Size]
Press”2” key to adjust [Image Quality]
Press”4” key to adjust [White balance]
Press”6” key to adjust [Delay timer]
Press”7” key to adjust [Cont. shot]
Press the OK key to take photo, press the right soft key to
return, press the left soft key to option:
Photos: select the function into image viewer.
Camera settings: Press the left/right navigation key to adjust
the following options, including Shutter sound, Ev, Anti-flicker,
Contrast, Delay timer, Cont. shot, Profile that is complete, press
the left soft key or the OK key to confirm the current setting.
Image settings: can set the image quality and image size.
White balance: can set white balance
Scene mode: can set the photo mode as auto or night.
Effect settings: can set special effect
Storage: Can choose camera phone or memory card as the
storage location
Restore default: select the function and confirmed, the camera
parameters can be restored to the default location
After taking pictures, press the back button to return camera
preview screen, press the left soft key to enter options, can take
pictures to send or delete
18
Image viewer
This feature is convenient for users to view the photos
stored in albums, press the OK key to open the picture, press
the left soft key to open the option menu:
View: open the current image to view.
Image information: can display the current image
information.
Browse style: can set to list style or Matrix style.
Send：Pictures can be selected through the "MMS" or
"Bluetooth" method to send.
Use as: The selected picture set to phone wallpaper,
Screen saver, power on display, power off display.
Rename: Change the name of the selected picture.
Delete：Delete the select image.
Sort by：Can sort by name, Type, Time, Size, None
Delete all files：Delete all image files.
Storage：Can choose phone or memory card as the storage
location
Note:
When no pictures in Image viewer, the options menu
only displays the browse style and storage.
Video recorder
In the multimedia menu, select the video recorder into the video
preview screen, Press left/right navigation key to adjust
[Exposal bias], Press up/down navigation key to adjust [Focal
distance], press “2” key to adjust [video quality], press “3” key to
adjust [Night mode], press”4”key to adjust [white balance],
press the left soft key into options menu:
Camcorder settings: Press the left/right navigation key to
adjust the following options, including EV, Night mode,
Anti-flicker.
Video settings: Can set the image quality
White balance: Can set white balance
19
Effect settings: Can set special effect.
Storage: Can choose camera phone or memory card as the
storage location
Restore default: select the function and confirmed, the camera
parameters can be restored to the default location.
Press the OK key to start recorder, recording, press the OK key
to pause or resume recording; Press the right soft key to stop
recording, the screen will be auto save the video, press the OK
key can play the video, don’t operate the screen will auto return
to the preview screen.
Video player
This feature can be played stored in the mobile U disk or video
files, supported formats to 3gp, mp4, Avi file player.
In the multimedia menu, select the video player into the video
list, press left soft key open the option menu:
Play：Play the current video file
Send: can be selected video through the "MMS" or "Bluetooth"
method to send.
Rename：Change the name of the selected video.
Delete：Delete the select video.
Delete all files：Delete all video files.
Sort by：Can sort by name, Type, Time, Size, None
Storage：Can choose phone or memory card as the storage
location
In playing interface, press the OK key to start/pause the current
video, press the left/right navigation key to pull the progress bar
forward or backward; press “1” key to switch full screen, press
the */# key to adjust the volume, press the right soft key to stop
play.
Audio player
Play the audio files saved in the phone or memory card.
In playing interface, press the up navigation key to
start/pause the current song, press the down navigation key
20
to stop play, press the left/right navigation key to switch
previous/next song; press the */# key to adjust the volume,
In playing interface, press the red key or the right soft key to
exit player interface, Phone into the background playing mode,
while the idle screen shows the name of the music.
Press the left soft key into the play list, play the left soft key into
option menu:
Play：play the current song.
Details：can view the current song information, include song
size and time.
Refresh list: can refresh the play list.
Settings：
Pre. Play list: Press the left/right navigation key to switch phone
or memory card.
List auto gen.: Select this option enabled, each time the player
list will automatically update.
Repeat: You can choose play mode repeat all, repeat one or
off.
Shuffle: When you select on, the player will not play in order by
list.
Background play: Select ON when playing the exit music
player can continue playing.
Bluetooth settings: you can set BT output to stereo or mono.
Audio effect: can set sound effect
Sound recorder
Enter the recording screen, press the left key into options
menu:
New record: when you choose the function, start new record, In
recording, press the OK key or left soft key to pause/ continue
record, press the right soft key to stop record, the screen will be
auto to save record, press the down navigation key to play the
current record.
Play*: can play the current recording.
21
Rename *: Change the name of the current recorder file
Delete*: Delete the current recording.
List: Display recorder files list
Settings: you can set storage location and audio quality.
Use as*: you can set the current recorder as coming call
ring-tone.
Send*: Can be current recorder through the “MMS” or
“Bluetooth” method to send.
FM radio
FM radio is supported by the phone. Access the function only
when you have plugged the earphone.In FM radio interface,
press the down navigation key to open/close FM. press the up
navigation key to open/close auto tuning function, when open
this feature, press the left / right navigation key to move forward
/ backward auto search until the search to the channel so far.
when close the automatic search function, you can use the
manual to search for the channel, press the left / right
navigation key to move forward /backward 0.1MHZ. Press the
*/# key to adjust play volume. Press the right soft key or red key
to exit FM radio, and FM plays in the background. Press the left
soft key to the option menu:
Channel list：Display channel list
Manual input ：Manual enter frequency to identify, Radio
interface automatically skip to the frequency to listen.
Auto search：Can auto search channel and save channel
Settings:
Background play：Phone back to the idle screen after Select
the function, FM plays in the background.
Loudspeaker：Open (close) the function, Radio sound will play
outside/Handset mode.
Note: Quality of radio subscription is possible influenced by
environment like indoor or under shield. You can improve this
situation as following: stand closer to the window, adjust the
22
position of earphone line or adjust the channel manually
23
6. Fun&Games
Ebook reader
You can read the *.TXT format document by this function, after
you have copied the TXT document into folder [File
manager/Phone or Memory Card/Ebook]. Select any Ebook,
press the OK key to read. open the selected E-Book, press the
navigation keys to view the ebook, press the Left soft key into
options menu to related operation:
·Open ebook: Read the document.
·Clean up bookshelf: Refresh the E-book document list.
·Global settings: In this option, you can use the direction keys
to do the following operations: Font size, Scroll by, Auto scroll,
Scroll speed, Full screen, Encoding, Alignment, select storage
(if inserted the memory card).
·Book Info: View the details of E-Book document.
·Delete: Delete the selected E-Book document.
·Delete all files: Delete all E-Book documents.
·Sort by: Sort the E-Book document by name, type, time, size
or random.
·Apply global settings: Restore the system default setting.
·Help: Check helps information when you encounter difficulty.
Games
The phone provides one classic game.
For specific operations, please refer to the directions of the
game.
24
7. Services
The Internet is the combination of wireless communications
and Internet application platform that enables you to get rich
by phone and ecommerce and other Internet information
resources application.
Note:
1. Your ISP may not support some features, in order to
ensure the normal operation of the browser, make sure
your SIM card is supported and open Internet access.
2. If you browse the web, you need to charge fees
related to traffic.
Homepage
This is the WAP settings you set in the homepage address,
if you have no other set will have a direct connection to the
phone pre-set or the default home page.
Bookmarks
In this menu, the display has all the bookmarks in the bookmark,
you can add and save you frequently visit the site name and
address for future quick access.
Input address
Enter the need to access the WAP services, and URL
addresses, complete, can be connected to the WAP site you
want to connect. From the surface in the bookmarks, web
history, other than to provide you a flexible way to access the
network.
Recent pages
List of pages you have recently visited records to facilitate your
browsing history in selected cases, can directly select [Enter] to
access the page, the record could be deleted.
Settings
Homepage: Into the function, you can select default homepage
or user-defined.
Select profile: Into the function, you can set the mode to
25
access your account is always asked, SIM1 or SIM2.
Data account: Into the function, you can set correspond SIM
card data account.
Browser options: Clear the temporary buffer information and
cookie, it’s can avoid congestion and improve web browsing
speed, periodically clear.
Preferences: You can set the appropriate parameters,
including the display time, display pictures, cache and cookie.
.
26
8. Settings
Dual SIM switch
You can set manually selected by user or Automatically
decided by SIM cards
Dual SIM settings
You can choose dual-mode card, only SIM1 open or SIM2
open.
Phone settings
Time and date
Set home city: You can choose a phone provided in the city as
the current time zone of your location
Set time/date: Under this you can set the phone to the current
date and time. The phone allows you to set the date range of
calendar 2000 to 2030.
Set format: Under this you can set the time and date display
format
Schedule power on/off
There are four switch time for you to edit, including the
following items each time setting the timer on / off, power on /
off and timing of the time and so on. When turned on and set to
boot, set the time automatically when the power; when turned
on and set off, then set the time when you are prompted to shut
down.
Note: Time to set the same, can not be activated in order to
avoid conflict.
Language
Under this you can choose the language provided by the
phone.
Pref. input method
You can set default input method.
Display
Wallpaper: The standby interface is used to set the
background wallpaper.You can choose from the built-in
27
wallpaper can also be selected from File Manager image file.
Screen saver
Status: The following can be turned on or off the screen saver
function
Waiting: This screen saver can be set to start the waiting time
for 5S, 15S, 30S, 1minute
Select Screen Saver: This screen saver can choose the system
default can also choose from other document management as
a screen saver picture
Power on display: The animation can be set to boot, you can
choose preset animation for mobile phones, but also into the
File Manager, select the desired animation.
Power off display: The animation can be set to shutdown, set
with the power on display
Show date and time: You can set the idle screen time display
on or off.
Flight mode
This optional mode in which the phone is normal mode or flight
mode, flight mode if you choose, the phone can only use some
of the functions of non-communications
Misc. settings
Under this function can be left / right navigation key on the
backlight to adjust the time
Network settings
Can be set automatically or manually select the network, select
Automatic, the phone will be SIM card based on the network
where the first selection, select Manual, you need to select the
SIM card registered with the network operator can use the
same network
Security Settings
SIM security
You can use the PIN code, PIN2 code, set the boot password
and set security features to protect information security.
28
PIN password (PIN1) is the SIM card PIN. If the user don’t
changes the password ,the original password is 1234 or 0000.
If you enable the boot PIN code, then after each start 4-digit
PIN code is necessary to input, PIN code can be amended, to
protect their SIM card is not used by others. Note that, if the
input PIN code wrong three times, the phone card will
automatically lock and unlock prompted to enter PUK code, this
time close to the edge of danger, so if unauthorized
modification of the PIN code, we must bear in mind.
PUK password (PUK1) from consists of 8 digits, which users
can not change. PIN code when the phone is locked, and when
prompted enter the PUK password, do not act rashly, because
the PUK code input opportunities is only 10 times and if enter
the wrong words for 10 times, SIM card will be permanently
locked, that is scrapped. Part of the SIM card PUK code is
never used when the user comes with the card, while the other
part of the network operators will need to obtain the PIN code if
you do not know the PUK code locked, do not random input,
then the correct way is to call the SIM card hotline operators,
after a simple user data are verified, you can obtain the PUK
password to unlock the phone lock, the service is free of
charge.
Note：Please use this feature with caution, if forget PUK
password, please contact the network operator. If input
PUK code in error for 10 times consecutively , SIM card will
be scrapped.
PIN lock
Under this you can enable or disable PIN password, PIN code
on or off are required to enter the correct PIN password. When
open this feature, every time you turn the phone prompts you to
enter the PIN password.
Change PIN
If the current PIN password is already open, you can make
changes to the PIN password. First enter the old PIN password,
29
after repeated twice to determine and identify new password.
Change PIN2
PIN2（PersonalIdentificationNumber2）password is to enter a
particular function (such as setting a fixed number, set the call
billing, etc.) to enter the personal identification number.
Pin2 password is provided by suppliers for SIM card to another
password, used to qualify the dial personal identification
password, Mainly used to eliminate the call cost information,
set the phone calls and the billing currency unit, the cost limit
function, limited dial-up ("Security settings "---" limited dial-up"
can only be opened after the phone call which can be used to
set the number and do not call this). My phone's SIM card
predictive value is 12345. Pin2 after input error password 3 will
be locked, needed Puk2 to unlock.
PIN2 password is used to set the phone billing. If you enter
three times wrong, the phone will need PUK2 unlock password,
the process described in the previous PIN password, PUK
password the same. However, both the password and network
SIM card billing and modify the internal data, it will not open,
and even if PIN2 password locked, it will not affect the normal
use of mobile phones. Thus, PIN2 password, and not to
deliberately ignore PUK2 password.
Note:
Please use this feature with caution, If input PUK code
in error for 10 times consecutively, SIM card will be
scrapped.
Change operation with the PIN1.
Phone security
Under this password there you can set the phone to avoid
unauthorized use of your mobile phone
Phone lock
Under this you can enable or disable phone password, phone
password on or off are required to enter the correct phone
30
password. When open this feature, every time you turn the
phone prompts you to enter the phone password.
Change password
You can make changes to the phone password. First enter the
old phone password, after repeated twice to determine and
identify new password.
Auto keypad lock
Under this you can set the time to open or close the keyboard
lock keyboard lock feature. Set the keyboard lock time, the idle
screen, mobile phone within the set time the keyboard does not
perform any operation, it will be automatically locked, then you
can press the left soft key, then press the * key to unlock.
Note: Keyboard locked and the backlight is off, to be
selected button lights up the screen, then press the left
soft key, then press the * key to unlock
Connectivity
Data account
You can choose the Internet account. You can add Internet
accounts by yourself.
In the Internet interface, press [Options], you can do operations
as followed:
Edit: Edit selected network count.
Add PS account: Mobile support 6 maximum data account.
Every account to edit the information: account name, APN, user
name, password, auth type, SIM selection, advanced settings
etc.
Delete: delete the selected Internet account
Change default: select this function to restore default.
Sound effects
In this feature, you can set all audio equalizer.
Restore factory settings
Reset the parameter value mobile phone, make your phone
reset to default settings. Please enter a privacy password
(initial password is 1234), restore factory settings
31
9. SNS
MSN/Facebook/Yahoo/Skype/Twitter
Your phone has built-in a variety of chat tool, you can use these
function to chat with friends or others by connected the internet
site.
32
10. Messages
Message service is a network dependent function, which allows
you to send, receive and edit all kinds of messages. Please
contact the network operator for more details.
Write message
Text message
Edit a new message, save or send it to the recipient.
Note: To send SMS, you need to set the correct SMS
service center number which can be obtained from
network provider.
While composing, a text message can be up to 612 characters.
Press the OK Key, into add recipient interface, you can enter
number and add from phonebook, you can add one number or
more number, press the Left Soft key [Options] to select options
when editing:
- Send: Enter the destination number is sent, or press OK into
the address book to find the necessary records, you can select
the type of SIM card, confirmed, you can send
- Edit recipient: you can edit recipient number.
- Remove recipient: you can remove one recipient.
- Remove all recipients: you can remove all recipients
- Save to drafts: Save the edited message to the Drafts box
Multimedia message
It’s multimedia information, with the information service, you
can use the phone to send or receive text content. Including
color pictures, animation and music can be sent by MMS to
each other or receive their own phone.
Notice: To use this feature only when the network
operator is supported. And only those that with compatible
MMS-enabled mobile phone can receive and display
properly.
Into the editing interface, press left soft key to option:
33
-send to：You can enter number and add from phonebook, you
can add one number or more number, after number edit, you
can also remove number, change to CC or change to BCC.
-Input method：You can select input method, or insert symbol.
-Add picture：Insert picture in phone or memory card to MMS.
-Picture options*: can remove the current picture
-Add sound：Insert audio file in phone or memory card to
MMS.
-Sound options*: Can remove the current sound
-Add video：Insert video file in phone or memory card to MMS.
-Video options*: can remove the current video
-Add subject：Add MMS subject
-Preview MMS：Preview each page in turn.
-Slide options: Under this option adder to the next page, add
the page to the previous page and set the slide timing.
-Advanced: can select insert attachment and insert bookmark
option
-Save to Drafts：Save the MMS to the [Drafts], re-edit or send.
Inbox
Received SMS/MMS messages can be stored either in phone
or in SIM1/SIM2 memory, and are accessed here.
When you have received a message, the tones or vibration to
alert you and message mark will also be shown on the screen.
Press the Left soft key [Read] or the OK key to read the new
message, press the Right soft key [Back] to return, and you can
also access the inbox to read the new message.
If the message memory is full, the indication “Memory full” and
the message icon will be shown on the screen and flashed.
Before you can receive new messages, delete some of your old
messages in the inbox folder. If the capacity of new messages
is beyond the capacity of the inbox, the information will be lost
and incomplete.
In message list, press the OK key to read the selected
34
message, press the Left soft key [Options] to make the
following menu:
-View: view the current message
-Reply by SMS: Reply SMS to the message sender directly.
-Reply by MMS: Reply MMS to the message sender directly.
-Call Sender: Select to call the sender number
-Forward: forward the current message to other number.
-Delete: Delete the messages.
-Delete all: delete all messages in inbox.
-Save to phonebook: Save the information in the sender
number to the phonebook.
Drafts
Not send SMS and MMS, will be stored in the mail within, the
operation is the same with inbox
Outbox
Failed to send SMS and MMS, will be stored in the mail within,
the operation is the same with inbox.
Sent messages
If SMS or MMS is sent successfully, then be stored in the letter
box. Automatically save messages need to select in
[Message Settings ---Text message ---common
setting---save sent message ], other operation is the same with
inbox.
35
Delete messages
Select a different mailbox to delete all the information.
Broadcast messages
Broadcast message is sent by network operators, public
information, this function needs the network operator support,
please contact the network operator. Using the cell broadcast
service, you can receive from the network operator information
on various topics, such as weather, taxis, hospitals and so on.
For information on available topics, please consult your local
network operator.
Message settings
Text message
Profile settings: You can choose either of two modes, custom
different parameters.
SMSC address: you can set SMS center number, but you need
notice, if you set uncorrect center number, SMS can’t send and
receive, only you set correct number, SMS can natural use.
Delivery report: Open the function, after a successful send text
messages, the system will return to report.
Reply path: If the network allows, open the function, the
recipient receives a text message, the system will send a
confirmation message.
Preferred connection: You can select prefer connection: GPRS
or GSM.
Voicemail server: When you can not answer the phone,
automatically incoming calls to voice mail number, you can let
the other party to your message, a message stored in the
network's voice mail system, and afterwards, you can access
the voice mail system to listen to a message.
Into the voice mail sub-menu, you can see the current voice
message (up to the establishment of two voice mail)
Voice mail function needs the support of network operator, you
may need to subscribe to the service. For details, please
contact with the operator.
36
Validity period: you can set SMS validity period.
Memory status: can view the memory storage status.
Save sent message: open the function, After the success of
SMS will be automatically saved in the Outbox.
Preferred storage: you can choose to give priority to
messages stored in SIM card or mobile phone.
Multimedia message
Data account：Internet access account settings.
Common settings:
Compose: In the menu, you can set slide time, creation mode,
signature set act.
Sending:
Delivery report：Select [On], when the recipient receives and
download, the network will send a message to notify you
(subject to network support); You can also choose [Off]
Read report：Select [On], then when the recipient read the
MMS, you can choose to read the report sent to you(need
network support), you can also choose [Off].
Priority：Priority Setting MMS.
Delivery time ：you can set delivery time,immediate\1 hour
later\12 hours later\24 hours later.
Send and save: open the function, After the success of MMS
will be automatically saved in the Outbox.
Retrieval: In the menu, you can set home
network\Roaming\Filters\Read report\Delivery report
Preferred storage: you can select preferred storage as phone
or memory card.
Memory status: you can select phone or memory card to view
Used status.
Service messages
Enable push: you can select accept all push messages or
disable.
Enable service loading: you can select prompt, Auto launch
37
or disable.
38
11. Extra
Calculator
Into the calculator, the calculator interface:
Press 0 - 9 numeric keys to enter the number to be calculated,
Press the navigation key to select the location on the screen
corresponding to add, subtract, multiply and divide symbols for
computing
Press the . key for a decimal point.
Press the right soft key to clear the last bit can be input or the
result (no input figures, has withdrawn from the calculator
function) Press the left soft key or the OK button to display the
results.
Currency converter
Enter the exchange rate conversion interface, first enter the
exchange rate, determined to enter conversion interface, the
rate of switching bar, press the left / right navigation key to
switch the current exchange rate of the proportional method,
that is, the local currency to foreign currency rate or its
reciprocal, press the up/down navigation key to switch to local
currency field, enter the amount of domestic currency, the press
the left soft key, you can display in the foreign currency
translation results.
Stopwatch
The phone provide typical stopwatch and Nway stopwatch use
for you.
Flashlight
Into the flashlight interface, select on, torch light; select off,
torch dark.
Standby interface, long press the up navigation key Torch on or
off quickly.
Calendar
Choose to enter the calendar, the screen will display the
system date on the calendar month, and have a background
39
box marked the current date. Press the navigation key to select
the date, calendar information on the screen will be updated
accordingly.
Select any date, press the left soft key to enter options to the
following:
View: View the details of the selected schedule, and re-editing
of the operating schedule
View all: view all schedule
Add event: Create a calendar reminder, the default time is the
date where the calendar highlights.
Delete event: Delete calendar.
Jump to date: Jump the selected date.
Go to today: the date of the input query calendar information
Go to weekly/monthly view: can set the calendar display
mode through week or month
Tasks
This feature allows you to easily manage all tasks in working
life, arrange and record your do in the future matters. When you
scheduled a matter of time arrives, the phone will provide a
tone with you to complete these pre-arranged matters, the use
of the same calendar
Alarm
You can use the phone as alarm clock, this feature allows you
to set time arrives, make the phone ring or vibrate to remind
issue.
When the alarm is turned on state, the alarm symbol is
displayed in the top of the screen.
When the alarm clock for reminders, press the left soft key to
terminate the alarm reminder, press the right soft key is the
alarm clock to sleep.
The phone number of alarm clocks available, both in the off or
silent mode, set the alarm clock function has been effective.
Select any of the alarm clock, press the left soft key or OK key
to the following:
40
1, can be turned on or off the selected alarm to open before the
alarm clock icon will be displayed
2, set the alarm, reminder time
3, according to the time you need to set the alarm clock to
remind the period of a day, week or custom to be reminded of a
few days
4, the selected option when the alarm time to remind ring-tone
5, you can set the alarm time to remind the selected mode: ring
and vibration, ring, vibration
6, you can set sleep time
Set the required entry, press the right soft key to save and
return directly.
World clock
In this menu, press the left / right navigation key to view some
cities in the world relative to the current time the phone
correspond to time.
Notes
This is a Notepad, you can record important information in this
feature
Bluetooth
The phone supports Bluetooth, users can turn the feature on
according to demand.
Bluetooth technology can connect electronic devices wirelessly.
Because Bluetooth communicate by radio, so in your phone
and another Bluetooth device do not need to in the opposite
direction, please maintain the maximum distance that between
two devices is not more than 10 meters during communicating.
In some countries or regions may be developed within a
number of provisions restricting the use of Bluetooth devices,
please contact your local authorities.
Power: Press the OK key or the left soft key to open or close
the Bluetooth function. If close some function, then you will end
all the Bluetooth connection. Bluetooth connection will
consume battery power, reducing cell phone operation time,
41
when using the phone to perform other operations, please
consider this factor.
Visibility: Press the OK key or the left soft key to switch on or off,
if you select on, other Bluetooth devices can find the phone; if
you select off, other Bluetooth devices can’t find the phone.
My device: Select to add new equipment, search for Bluetooth
devices within range of the signal. After the Bluetooth device is
found, you can select the matching connections.
Search audio device: Search within signal range of Bluetooth
hands-free devices, such as Bluetooth headsets.
My name: Display the Bluetooth device name of the machine
can access to vies and edit.
Advanced:
Audio path: set the audio path, is leave in phone or forward to
Bluetooth headsets.
Storage: set storage location in phone or memory card.
My address: Display the Bluetooth device address.
42
12. File manager
In document management, you can open files in the Phone or
Memory card, you can select file or folder to press the left soft
key into [Options], you can do the following(Perform different
file operations are also different, depending on the specific
operation by the file):
- Open: open the file or folder.
- New Folder: the folder in the selected directory New Folder.
- Rename: you can rename the select folder.
- Delete: delete the selected file or folder.
- use as: if the selected file is audio files, can set the file use
as SIM1/SIM2 incoming call; if the selected file is image file,
can set the file use as wallpaper, Screen saver, Power on
display or Power off display.
- Search: memory card can be customized to find all the
documents.
- Sort by: can "name", “time” ,"size" , "type" or “none” .
- Send: the select file can send by MMS or Bluetooth.
- Copy: you can copy the select file to other folders.
- Move: you can move the select file to other folders.
- Details: you can view the select file information.
Note:
Memory card as the default save path, order to facilitate the
use of multimedia features, please copy the appropriate files
to Audio, My music, Photos, Videos etc. folders.
43
13. Shortcuts
Select this option to enter the functions directly that you often
want to use.
Scroll to a listed function and press the OK key or the Left soft
key to select [Add], scroll to a desired function from the list of
available functions, then use the Left/Right navigator keys to
select 1-6 order and press the OK key to replace.
You can also select [Add, Edit, Delete, Delete all, Change order]
options to set the function.
44
14. User profiles
The phone provides you with five profiles: general, silent,
meeting, outdoor and my style. It’s help you according to the
different events and environments in different custom ring
tones. according to different scenarios, choose a different
profile, then you only need to personalize your profile and
activate.
Note: The factory setting various modes set has been done
and has been the general pattern of the default start
Activate: Start the selected profile.
Customize: You can set all kinds of effects to your own needs.
In the Settings screen, press the down navigation key to move
the highlight to the item needs to be set.
Alert type: Press the left/right navigation key to select: vibrate
only, vibrate and ring, vibrate then ring or ring only.
Ring type: Press the left/right navigation key to select: Repeat,
Ascending, Beep once
Incoming call: There are ten built-in ring tones to choose for
you, and you may also to choose your favorite audio file as your
ring-tone from file management.
Ring-tone volume: Press the left/right navigation key to adjust
the ring-tone volume.
Message ring-tone: There are five built-in ring tones to choose
for you, and you may also to choose your favorite audio file as
your ring-tone from file management.
Message volume: Press the left/right navigation key to adjust
the ring-tone volume.
Keypad: Press the left/right navigation key to select click, or
tone.
Key-tone volume: Press the left/right navigation key to adjust
the key-tone volume.
Power on/off: Phone preset five tone to choose for you, you can
also choose silent to turn off the power on/off tone.
45
System alert: You can set whether to open system alert tone.
Reset: restore the default settings
46
15. Call Center
This phone can record all received, dialed and missed calls as
well as their call time. Only when related function is supported
by network and phone is switched on and in network service
area, it can record the answered and missed calls. Call records
may be accessed by pressing the Green key from standby or
accessing through the menu.
Access the Call Center menu using the normal menu path, the
submenus are as follow:
Call history
In the call history list ,press the left/right navigation key, switch
to Display list of all /dialed/missed/received calls.
Once on the call records list, press the Green key to make a
call; press the OK key to view the details of current call record;
press the left soft key to make the following options:
- View: View the details of current call record.
- Call: call current record.
- Send text message: send SMS to the select number
- Send multimedia message: send MMS to the select number.
- Save to phonebook: Store the number as a phonebook
entry.
- Add to blacklist: The phone number is set to refuse to
answer the phone, you can set the number after the [call center
→call setting →Advanced settings →blacklist] query to
- Edit before call: Edit number before the call history
- Delete: Delete the current call record.
- Delete all: Delete all call records.
Advanced:
Call timers
View all time for the Last call time; Total received time; Total
dialed time and all call time; and press the left soft key can
reset all time.
Text msg. counter
47
View SIM1/SIM2 sent and received Message quantity.
GPRS counter
View the GPRS data volume on the network.
Call settings
SIM call settings
Call waiting:
You can choose to Activate, Deactivate or Query status of this
feature.
Activate this feature, if you call any other incoming call, the
phone beeps, and the screen will display the caller number or
name and call waiting information.
Call divert:
This feature allows you to play to your phone calls transferred
to your voice mailbox or another phone number you specify.
This function needs the support of network operator, please
contact the network operator.
Transfer in the following ways, each way can be set to enable,
disable, and query status. When turned on, the on-screen
prompts to transfer the phone number.
Divert all voice call: Transfer all voice calls to your settings in
the phone number or voice mail
Divert if unreachable: When your phone is off or not on the
network service area, the transfer of all voice calls to your
phone number or set voice mail
Divert if no answer: No answer transfer all voice calls to your
phone number or set voice mail
Divert if busy: When the call is busy, the transfer of all voice
calls to your phone number or set voice mail
Divert all data calls: Transfer all the data calls to the phone
number you set, this function is supported by the network
operator, please contact the network operator.
Cancel all diverts: cancel all call forwarding type.
Call barring:
Set limits each case to answer or dial the phone. Network
48
operators must first apply for international calling features, and
limit access network password, to set the limit function.
This function needs the support of network operator, please
contact the network operator.
Call restrictions can be set for activate, deactivate and query
status
Line switching:
Can switch to Line 1 or Line 2, Line 1 is default, if you choose
line 2, then there may be no phone call.
- Advanced settings
Blacklist
You can on or off this feature to edit the blacklist number, up to
20 numbers can be edited. Open the function, the blacklist
numbers you call, the other shows you are on the phone, and
your phone is in a state of no response.
Auto redial
You can enable or disable this feature, the feature is turned on,
after the dial-up, then if the other party does not answer the
phone over a period of time will be automatically re-dial, redial
the number up to 10 times, in this period, the user can not call
any other phone , to end the re-dial, simply press the right soft
key to cancel.
IP dial
You can edit IP number with three at most.
Select one and press the OK key or press the Left soft key
[Options] to select ‘Edit’ option, then edit the IP number, press
the OK key or press the Left soft key to confirm and the current
IP number is both activated.
For the edit IP number, you can press the Left soft key [Options]
to select ‘Activate’ option.
Call time reminder
Can set the prompt type:
Off: When the phone call, no minutes of tone.
Single: Select 1-3000 seconds after the prompt enter either of
49
the time, when you call the phone at the time when prompted.
Periodic: Select 30-60 seconds after the input in any one time,
when you call for every minute the phone will be reminded of
the time.
Answer mode
Any key: Select the feature, all incoming calls, in addition to the
red key and right soft keys, all keys can answer the call
Auto answer when headset: Enable this feature, when the
phone is in headset mode, there are about 2 seconds after the
incoming call, the phone will automatically answer the call.
50
16. Input methods
This phone provides diversified input modes for you to enter
letter information when editing SMS and adding phonebook.
Use the key on the right of the phone to switch between
different input methods.
When editing the key controls:
The Left soft key: Generally represents confirmation.
The Right soft key / : Press to clear one character, long
press to clear all.
The End/Power key: Return to the idle interface.
[sym] key: In every input status, press this key to call out
punctuation and symbol input frame.
[Space] key: press the key to input blank once.
[Fn] key: press the key to shift character type on the keypad.
[] key: press the key on the left of the phone to shift lower or
capital case.
General input method
General input method include abc\es\pt three languages input,
Each key corresponding input one character, there is no
association function.
The Numeric input method
To input numerical values, press the respective numeric keys.
51
17. Phone maintenance
Mobile is a high-precision electronic products, please carefully
maintained. The following suggestions can help you maintain
phone, to extend the lifespan:
- Phone and its accessories should be placed out of the reach
of children.
- Keep the device dry. Rain, humidity or moisture will corrode
the circuit board. If the phone is accidentally flooded, shall
promptly remove the battery, and immediately sent to a local
authorized service center for processing.
- Do not place your phone in dusty places, this may affect the
normal use of mobile phones.
- LCD display is easily damaged cell phone parts, mobile phone
dropped onto the ground should be avoided or be strong
vibration; prohibit the use of sharp objects to touch the screen.
-Do not place the phone where the temperature is too high.
High temperatures can shorten the life of electronic devices,
damage batteries, and warp or melt plastic shell phone.
- Do not place the phone where the temperature is too low.
Otherwise, when the phone temperature to normal temperature,
moisture will be generated internally, could damage the device
electronic circuit boards.
- Do not drop, knock or severe shaking the phone, so as not to
damage the internal circuit boards and precision mobile
structure.
- Do not use chemicals, cleaning solvents or strong detergents
to clean the device, apply a soft cloth soaked in soapy water
and gently scrub.
- Do not use paint pigment cell phone to avoid moving parts
and be stuck to proper operation.
- Use a clean soft lens cleaning cloth. Such as: camera lens.
52
- Replacement antenna, use only the supplied or designated by
the antenna. Use of unauthorized antennas, cell phone
accessories or modifications, could damage the device and
may violate regulations governing radio devices.
53
18. Accessories
Use only batteries, chargers, and accessories approved by the
manufacturer with this device. Use of any other types will
invalidate the warranty and may be dangerous. Check with
your dealer for available accessories. You may opt to buy:
Extra Battery
Extra batteries of various capacities are available from our
company or through your dealer.
Charger Plug, charger cable
Charger plug used to connect with the charger cable for
charging on wall outlets. Also you can use the charger cable to
connect with the other devices such as the personal computers
to charge the phone.
Charging time is about 2 to 3 hours. The charging condition is
displayed on screen. You may use your phone while charging.
Earphone
A mini, practical, hands-free device; you can use its button to
answer and end calls. Some models may also come with a
volume control knob.
Do not plug or unplug the earphone when connecting dialed or
incoming calls.
Please to adjust the incoming call alert volume to the
felicitousness before you plug in the earphone.
54
19. Environment
Packaging
To facilitate the recycling of packaging materials, please obey
the sorting rules instituted locally for this type of waste.
Batteries
Spent batteries must be deposited at the designated collection
points.
The product
The crossed-out waste bin mark affixed to the product means
that it belongs to the family of electrical and electronic
equipment.
To promote the recycling and recovery of waste electrical and
electronic equipment (WEEE) and at the same time safeguard
the environment, European regulations require you to obey the
sorting rules instituted locally for this type of waste.
55
20. Technical Specifications
Weight: 79g (including the Battery and Battery cover)
Dimensions: 103.6*55.5*10.8mm
Battery: Li-ion Battery, 3.7V
Band: GSM 900/1800/850/1900MHz
Battery Capacity: 650mAh
Talk Time: about 2.5h
Standby Time: about 170 h
Note: Actual operating conditions depend on the local
network environment, SIM, and user behavior.
Warning: Any consequence caused by misuse, abuse, or not
following any and all of the above-written suggestions and
instructions shall not hold the producer in any way
responsible to any degree.
Announcement: The manufacturer reserves the right to
change or upgrade specifications or software versions
without prior or separate notice. Trade marks mentioned or
used in this material belong to their respective owners.
56
21. FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
57
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These
limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include
a substantial safety margin designed to assure the safety of all
persons, regardless of age and health. The exposure standard
for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with
the phone transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
58
station antenna, the lower the power output. Before a phone
model is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the limit established
by the government adopted requirement for safe exposure. The
tests are performed in positions and locations (e.g., at the ear
and worn on the body) as required by the FCC for each model.
The highest SAR value for this model phone when tested for
use at the ear is 0.923W/Kg and when worn on the body, as
described in this user guide, is 1.158W/Kg(Body-worn
measurements differ among phone models, depending upon
available accessories and FCC requirements). While there may
be differences between the SAR levels of various phones and
at various positions, they all meet the government requirement
for safe exposure. The FCC has granted an Equipment
Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RFexposure
guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of
http://www.fcc.gov/ oet/fccid after searching on
FCC ID: PRMC900 Additional information on Specific
Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Asso-ciation (CTIA) web-site at
http://www.wow-com.com. * In the United States and Canada,
59
the SAR limit for mobile phones used by the public is 1.6
watts/kg (W/kg) averaged over one gram of tissue. The
standard incorporates a sub-stantial margin of safety to give
additional protection for the public and to account for any
variations in measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To
comply with RF exposure requirements, a minimum separation
distance of 15mm must be maintained between the user’s body
and the handset, including the antenna. Third-party belt-clips,
holsters, and similar accessories used by this device should not
contain any metallic components. Body-worn accessories that
do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the
supplied or an approved antenna.
