Star Computer Group T9021 Tablet User Manual 12 T9021 V1 0 20130918
STAR COMPUTER GROUP INC. Tablet 12 T9021 V1 0 20130918
user manual
0
USER MANUAL
1
Content
1 Foreword....................................................................................................................3
1.1 Acknowledgements..................................................................................... 3
1.2 Announcements............................................................................................3
1.3 Safety Tips..................................................................................................... 3
1.4 Acronym/terms............................................................................................. 4
2 Brief Description of MID Series of Products..................................................... 5
2.1 MID Overall Drawing.................................................................................... 5
2.2 MID Accessories Introduction................................................................... 6
2.3 MID Use and preparation............................................................................ 6
2.4 MID State and information..........................................................................7
3 Quick start................................................................................................................. 9
3.1 Button function............................................................................................. 9
3.2 Boot and shut down.....................................................................................9
3.3 Screen of opening and closing............................................................... 10
3.4 The use of touch screen........................................................................... 10
3.5 Page interface............................................................................................. 11
3.6 Status bar describe....................................................................................12
3.7 Use touch panel..........................................................................................12

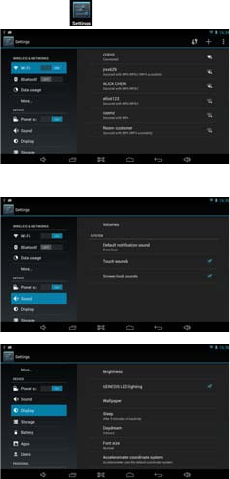

3.8 Equipment basic settings.........................................................................13

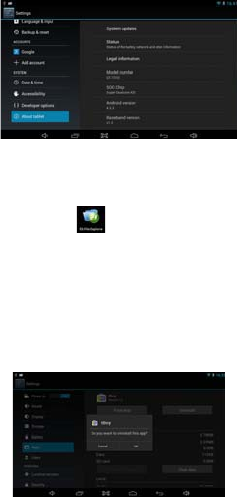

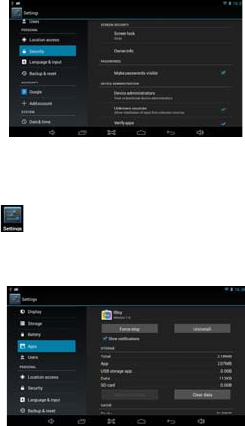

3.9 APPS install and uninstall........................................................................17
3.10 Input text.................................................................................................... 18
4 Establish connections..........................................................................................18
4.1 USB connection..........................................................................................18
4.2 WIFI connection..........................................................................................20
4.3 3G connection.......................................................................................... 21
5 Communication......................................................................................................21
5.1 E-MAIL...........................................................................................................21
6 Multimedia...............................................................................................................22
6.1 Support the file format.............................................................................. 22
6.2 Music............................................................................................................. 23
2
6.3 Camera..........................................................................................................24

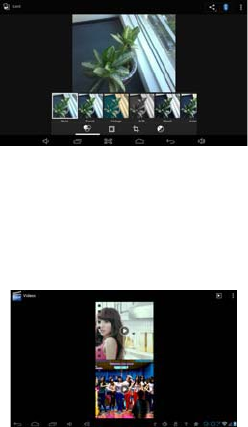

6.4 Gallery........................................................................................................... 25
6.5 HDMI.............................................................................................................. 27
7 Internet..................................................................................................................... 28
7.1 Browser........................................................................................................ 28
8 Other applications................................................................................................. 29
8.1 Alarm clock.................................................................................................. 29
8.2 Calculator..................................................................................................... 30
8.3 Explorer........................................................................................................ 30
9 Troubleshooting.................................................................................................... 32
Appendix 1 Specifications......................................................................................32
Appendix 2 The optional parts and models....................................................... 35
3
1 Foreword
1.1 Acknowledgements
Thank you for choosing our products. Product MID (Mobile Internet Device) is
a kind of mobile Internet equipment, delicate and cabinet, easy to carry.
Equipped with a high resolution 1024x600 capacitive 5- touch screen，
this MID
supports high-definition videos and images, installation of multiple Office Micro
Software, entertainment and other applications.
The dazzle cruel interface can provide you new user experience.
This manual introduces the various functions, using skills and announcements.
Please read the manual carefully before using MID.
1.2 Announcements
Packing List
Please keep MID dry. Keep the equipment and battery charger away from
water, vapor and wet hand in case of short circuit, corrosion or equipment
failure.
Keep the equipment, battery and charger away from strongly impact or
vibration in case of equipment/battery/charger fault, fire or explosion.
Keep the equipment, battery and charger away from very high/low
temperature region in case of equipment/battery/charger fault, fire or
explosion.
Do not hit, throw or acupuncture product MID, and avoid dropping,
extruding and bending MID.
Keep the equipment and accessories authorized，otherwise the equipment
and accessories would not be under our company warranty scope.
1.3 Safety Tips
Before you use the MID, please read this section of information and keep your
child aware of this information. For detailed information, please refer to the
safety guidelines.
Do not use MID during driving for safety.
4
In medical sites, please follow the relevant regulations by turning off your
MID when you are in medical sites.
Please turn off your MID or turn on planes mode when you are boarding, to
avoid wireless signals jamming aircraft control signal.
Please turn off your MID near the use of high precision electronic
equipment, otherwise it may lead to electronic equipment disability.
Do not take apart your MID or accessories without authorizing. Only
authorized institutions can repair this MID.
Please keep MID away from magnetic equipment. The radiation of MID will
erase the information of the magnetic storage device.
Please don’t use MID under high temperature or in flammable areas
(example: gas station).
Please keep your MID and accessories away from children without
supervising.
Please obey the relevant laws and regulations when you use your MID, and
respect others lawful rights and privacy.
Please obey the relevant specification of this manual when you use USB
cable. Otherwise it may damage your MID or personal computer.
Please don’t use your MID in the damp environment such as bathroom etc.
keep your MID from being soaked or flushed by the liquid.
Please choose the appropriate volume, use headphones should not be too
big voice, if feel tinnitus, lower the volume or stop using it.
1.4 Acronym/terms
Acronym/terms Full name Instruction
MID Mobile Internet Device Mobile Internet terminals
WIFI Wireless Fidelity Based on the IEEE 802.11B
standard wireless LAN
TF Trans Flash Also call ：Micro SD
5
HDMI High Definition Multimedia
Interface
High-resolution multimedia
interface
2 Brief Description of MID Series of Products
2.1 MID Overall Drawing
1
2
3
456 8
7 9 10
13
11 12
6
1. Front Camera
2. Speaker
3. Charger Indicator Light
4. Home Key
5. Charger Jack
6. TF Card Slot
7. Reset Key
8. HDMI port
9. Mic
10. Micro USB port
11. Earphone Jack
12. Power Key
13. Rear Camera
2.2 MID Accessories Introduction
Packing List
Your MID packing box includes the following items
MID complete machine
Power adapter
USB cable
OTG to Host Gender
Earphone
User manual
2.3 MID Use and preparation
Battery Management and charging
BeforeusingMID,pleasechargeupthebattery.
1. Use the AC adapter to charge up your MID battery.
This tablet adopt built-in lithium polymer battery, must be choose standard
adaptor for charging.
7
(Input: AC110~240V 50/60Hz 0.3A; Output: DC5.0V/2.0A).
2. The first two times charging please keep about 6 hours, after that please
charge for 4 hours at least.
Please charge in the following conditions:
A: The battery icons shows have no power.
B: The system automatically shut down, shut down after boot soon.
C: Press operation buttons have no response.
D: The top right corner of the device shows red icons.
【Remark】
1. If you haven’t use this tablet for a long time, in order to avoid power
consumption caused damage, please charge/play the battery once a month.
2. After low battery shut down, connect DC adaptor, device will remind low
battery, charging, need to wait some time until the battery is enough power
to enter into main menu.
3. Device charging should be in standby status for each normal charging time.
With device and screen consumption, it may cause longer charging time.
2.4 MID State and information
Notice Icon
Please click column frame and slide to right on the screen to unlock notice icon.
Click the requisite view options and check the detailed information. Later you
can click the information box and slide to shut up the information windows. The
icon illustration for status bar is as follows:
New instant messaging No SD card
8
New email Uploading/downloading
Matterstobehandled Download is completed
Use USB line to
connect computer with
MID
General notice (such as:
synchronization error)
Music playing Flight mode
Data synchronization Charging
Insufficient SD
card space More
WIFI service already
connected network
unavailable
Battery charging sign
Notice panel
Notice icon implies new messages, the settled alarm clock, schedule, and SD
card inserting etc. You can open the information panel to check specific
information.
Open notice panel
When new notice icons appear in notice bar, please hold notice bar and slide
down to open notice panel.
9
3 Quick start
3.1 Button function
Key functions illustration:
Power
key
Long press this button for booting
In booting condition, long press this button pop-up shutdown
options.
In booting condition, press this button to turn off the screen
Home
key
Press this button to return to the function interface from
arbitrary interface.
Reset
button
When the tablet is crash, use the small objects to short press
RESET button, tablet will force to shut down.
Suggest don’t use the RESET button unless tablet unable to
shut down normally. Otherwise, it will easy to damage the
tablet system.
3.2 Boot and shut down
Boot
After long pressing for 2 seconds on the power button, you can see the boot
logo.
The system access into screen locking status after opening, please press the
Power On/Off button to refresh, and slide up the unlock icon on the screen.
Power off
1. Long press the power On/Off button, then "Power off" options pop up.
2. There is silent mode in device options, Power off and Cancel.
3. Click Power off.
Reset
Press the reset button to reset the device. It will clear the all data, please be
careful with the function. (Note: you can’t restart your device after the current
10
reset function, your device can only be turned off. You need to press the power
button to restart the device after reset.)
3.3 Screen of opening and closing
It will be closed during the screen idling.
◆After idling period of time, screen will be automatically closed to save the
battery.
◆When the screen is on, you can press the power button to shut down the
screen immediately.
Tip:ifyouneedtofindouthowtosetthescreen timeout please refer to
chapter 3.8.1.
Opening in screen closed condition.
When the screen is off, you can long press Power On/Off button to activate it.
Enter locked condition after opening it, press "lock" icon and slide up for
unlocking.
3.4 The use of touch screen
MID operation mode
There are several ways you can browse screen, menu and application, etc on
the MID.
Click
When you want to use the screen keyboard for input, you can choose
applications on the homepage as long as you click a project with finger.
Press
If you want to open an available option (such as the text box or web link) or
11
move shortcut and main program menu on the homepage as long as you press
the items.
Fast sliding or sliding
Fast sliding or sliding said in his fingers making rapid vertical or horizontal drag
action.
Drag
Before you start to drag, you must use your finger to press strongly on it for a
short time. When dragging it to the position you want, you can loosen your
finger.
Rotating
For most pictures, you can only turn to MID then screen will translate from
lateral direction to straight. Such as in the input text, watch movies, etc.

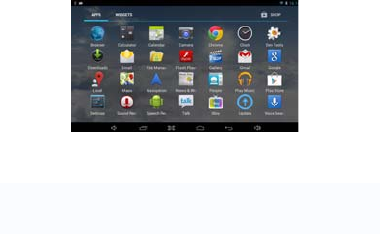

3.5 Page interface
The main menu screen shows all the applications. You can use the application,
set shortcuts and customize your homepage interface wallpaper, etc.
In the main interface, you can management main interface software ICONS:
long press the icons for 3 seconds, after the icons become bigger, then you
can drag anywhere in the interface and loosen your finger.

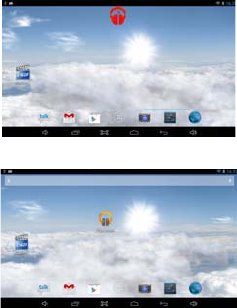

Delete icons
long press the icons for 3 seconds, drag the icons to the top of tablet PC while
the icon turns red, loosen your hand, after that you can delete icon.
12
3.6 Status bar describe
The status bar is on the bottom of the screen.
In the lower center, display main interface software, home key, files running in
the background, reduce volume, increase volume, back key, Screenshot
capture. In the upper left corner, display USB connected, USB debugging
connected, In the upper right corner, current time, Wi-Fi signal strength, and
battery charging sign etc.
3.7 Use touch panel
Device equipped with a 7 inch touch screen. Following the main touch screen
area is described and describes some of the tips for how to use the touch
screen. No matter which interface you are on the screen, can go back to
home page through pressing the soft home key on the bottom icons.
13
3.8 Equipment basic settings
Settings: Click settings icons , enter settings interface.
3.8.1 Silent mode, volume, notification, ringtone, audible selection,
screen lock sounds.
3.8.2 Application
Manage applications
14
Unknown sources: Click “Unknown Sources”, then click “OK”.
Manage application: manager and uninstall application.
Remark】: When you firmware upgrade, please close the USB connect.
How to uninstall?
1. Enter “Settings”>”Application”>”Manage application” and then
there will be installed the program list.
2. Click you want to uninstall icon, will enter the following interface.
3. Click Uninstall, then you can delete the application.

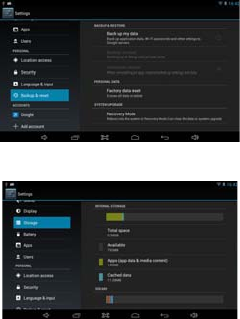

3.8.3 Privacy
Restore to factory settings
When there are great errors in your MID or you forget the passwords, you
can use Restore to factory Settings to restore them to Initial State.
15
Methods:
1. On the homepage interface, press Menu key.
2. Click Settings.
3. Click Backup & reset.
4. Click Factory data reset.
5. Wait for the system to restart.
3.8.4 Storage
Remove TF card, view of the available storage space.
【Remark】: Please touch option “delete SD card”, so that can remove SD
card safety.

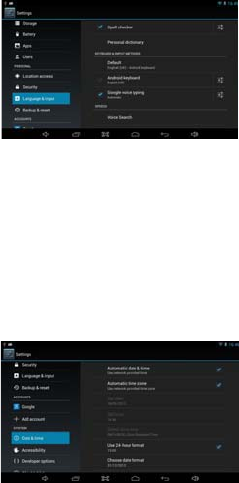

3.8.5 Language & Keyboard
16
Settings: Language, text input and automatic error correction options.
Select Language: 54 kinds of national languages are available.
Remark: Android system can support 54 kinds of languages, now menu
interface just support 14 kinds of languages.
Android keyboard: Android keyboard setting
Sound on Key-press
Auto-capitalization, Gesture keyboard
Show suggestions: Display suggested words while typing.
Auto-complete: Spec bar and punctuation automatically insert highlighted
word.
3.8.6 Date & time setting
Set date, set time, select time zone and select date format.
3.8.7 USB Mode Select
17
Choose USB work pattern: OTG/HOST/SLAVE……..
3.8.8 About tablet
3.9 APPS install and uninstall
3.9.1 APPS install
This Tablet can support Android APPS in market by third party, most APPS
can install in network, can copy to NAND FLASH or SD card.
Click ESFILEEXPLORE icon. It’s available for internal memory
disk and SD card disk. Select the APPS you would like to install, click
APPS icon and select “OK”, go back to main menu, it will display the
installed app you just selected.
Remark: Some 3rd APP must install properly by memory card, downloaded
3rd party app may not install properly on device.
3.9.2 APPS uninstall
Click Settings, choose Apps, select the Apps you would like to uninstall
then click “uninstall” ----click “OK” as follows:
18
3.10 Input text
Use the screen keyboard
When you start programs or select text edit box which needs to input text or
number, the screen keyboard will appear.
There is an optional input method of keyboard below:
1. Android keyboard
2.The third party input method（The user can install any input methods
independently）
Select the input method which you want to use.
For pre-installation, Android keyboard will be displayed when you want to input
word.
1. On the homepage interface, press menu button and click "Settings".
2. Click the Language& input.
3. List all installed input methods of MID in the text setup area.
4. Tick the input method you want.
Use and switch input method
1. On the text input interface, hold text edit box area until "edit text menu"
pop ups. Then click the input method.
2. Select the input method you want.
4 Establish connections

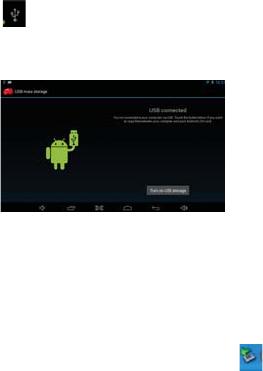

4.1 USB connection
1. Use USB cable to connect MID with computer. Notice massage will appear
19
in Notice bar.
2. Drag up the icon in the lower left corner.
3. In the notification panel, click on the USB connected, then click Turn on
USB storage.
4. Then the USB connection will be done successfully.
4.1.1 Copy files to memory cards.
1. Use a USB cable to connect MID with computer.
After setting the store setting, connect MID with computer
successfully.
2. Open My Computer of your computer, "portable disk (x)" can be
seen.
3. Select the intended files and copy to the "portable disk (x)".
4. After copying the files, click "safe deletion hardware"icon of
your computer task bar to unload.
4.1.2 Content of MID Storage Device
1. NAND FLASH storage device, MID itself has 4G storage space for
keeping files.
2. TF removable storage card.
3. The above mentioned two storage devices can connect your
computer by using USB.
Note: When you connect the USB cable with MID, enabling the USB
20
storage device, you will not get access to Internal Memory; If you
want to get access to Internal Memory, please disconnect the USB
device.
4.1.3 Storage card
Copy files to storage card
You can transfer files between MID and computer such as music and
pictures, etc. If you want to check the files, please click the file browser,
then you can browse the contents of the SD card.
Delete the files on the MID memory card.
1. Select the file you want to delete.
2. Click the file you need to delete, then the file menu will popup.
3. Click "delete"
4.2 WIFI connection
You can connect MID to Wi-Fi network:
1. In the homepage interface, click the MENU button, then settings menu will
pop up.
2. Click settings.
3. Click wireless and network.
4. Drag Wi-Fi to “ON”. MID will automatically scan available Wi-Fi networks.
5. Choose the Wi-Fi network you prefer. If it is private Wi-Fi network, then the
password having been set should be input.
21
4.3 3G connection
You can connect MID to network via 3G USB Dongle:
Insert a 3G USB Dongle.
5 Communication
5.1 E-MAIL
E-mail Settings
E-mail applications accompany with email settings guide, it can add the
common Web email service providers (e.g. Gmail, Yahoo, Hotmail etc) except
for POP3 or IMAP email account.
Note: Before setting the email, please ensure that the network has been
linked.
Mailbox setting guide
1. Click the E-mail icon, then the mailbox setup guide will appear.
2. Click the next step button.
3. Sign in your email account and password.
4. Click the next step button, and select your mailbox type: POP3 or IMAP.
5. Click next step button to check whether email server is available.
6. Input your account and click completion.
7. If the mail account is available, it will automatically enter your inbox.
Delete email accounts
You can delete the POP3 or IMAP email account having been set in your mobile
22
phone
1. Click E-mail
2. Enter to your E-mail box
3. Press Menu key
4. Click accounts
5. Hold the mail account you want to delete.
6. Menu list popping up, then click “Remove account”
7. Click "OK" to remove it.
Send E-mail messages
1. Click E-mail and get access to your inbox.
2. Click the inbox to enter in. With emails being refreshed automatically, emails
can be read from time to time.
3. Press the Menu button, menu interface will pop up.
4. Click "compose" to write a new mail.
5. Input the recipient in the recipient column.
6. Input the theme of your e-mail and the content of your e-mail.
7. If you want to add attachments, press the menu button, then the menu
options will pop up.
8. Click "add attachment"
9. Select attachments you want to send (e.g. video, images, etc.)
10. Click "Send" to send the e-mail.
Note: If you have more than one account, click that account title before you
click the main menu key to write an e-mail.
6 Multimedia
6.1 Support the file format
Your MID supports the following formats.
Music file format
MP3
AAC(AAC, AAC+ and AAC-LC)
23
OGG
WMA
WAV
Video format
AVI(H.264)
RMVB
MKV
WMV
MEPG4
MOV
VOB
FLV
3GP
6.2 Music
There are four default categories in music player: artist, album, songs and
playlist and now playing. Choose a category to check list contents. If you enter
a category, always choose until you have to play songs. For example, if you
choose the artist category, you will see a list of artist names arranging in
alphabetical order from A to Z. If you choose an artist, the list will be presented
with a list of the artist album songs.
Visit and broadcast music
1. Click music.
24
2. Click songs, also can click artist, album or song list.
3. Choose one song to play.
Add songs to the new playlist
1. Click music.
2. Click songs.
3. Hold the song you want to add to the playlist.
4. With music setting menu being pop up, click add to play lists.
5. Click New.
6. Input a name for the playlist.
7. Click Save.
Delete songs in the playlist
1. Click music.
2. Click songs.
3. Hold the song which you want to delete in the playlist.
4. With music setting menu being pop up, click "delete ".
6.3 Camera
Photo taking function
1. Click Camera.
2. The system enters the Camera interface.
3. Click Shoot button to have photos taken easily.
4. Other functions like sizes, storage locations, white balance and focusing
adjustment can be set as well.
5. After finishing taking a photo, flick left for photo preview.
25
Video recording functions
1. Drag up the switchover button to switch it into the video recording mode.
2. Click the red Video Record button to perform video recording.
3. Other functions like color effect, white balance and video quality can also be
set.
4. Click Video Record button again to stop video recording, with the previous
video being able to be seen.
6.4 Gallery
Using the Gallery application program, you can automatically search all photos
and video files in MID and in USB device (including TF card). Moreover, the
Gallery will classify such photos and video files by these folders. You can use
the Gallery program to view and edit photos, take photos as wallpapers as well
as viewing videos.
Check pictures
1. Click the intended folder to check pictures included.
2. Click the intended pictures that will be played in full screen mode.
3. Flick right/left for browsing all pictures
4. Pinch screen for zoom in/ out, when the pictures being able to be zoomed.
Skills: Gallery supports automatically rotating function. Rotating your MID, the
picture will automatically follow the direction according to the way you
rotate your MID.
26
Edit and set images
Press the menu button to display images in full screen mode, you can select
the intended image to edit and set the image according to your needs.
Slide presentation
Open the pictures and click slideshow. All the images can be shown in the
slide folder for broadcasting.
Sharing
1. Press the menu button and click "share".
2. The picture will be shared with your friends via Twitter, Facebook,
Messaging, Gmail or Email.
Rotating
1. Press the menu button and click "More".
2. Click Rotate Left or Rotate Right.
Crop
1. Press the menu button, click “More”andselect"Crop"
2. Click the image and drag a related region of the image you want,
3. Adjust the size you want, click "Save".
4. If you want to quit cropping the image without saving it, click "Discard" and
return to the Gallery.
Edit images
1. Press the edit icon on the lower left."..
27
2. Choose effect
3. Press save icon on upper left corner
Video preview and play
Operating the Gallery application, you can scan all video files in the MID and in
the USB device (including TF card), as well as previewing playable video files.
Click one of them to play.
In the video preview interface, press Menu button, with the function window
appearing for editing video files as is shown below
6.5 HDMI
HDMI high-definition video interface
Use a standard HDMI cable to connect MID with high definition television.
28
This interface supports GHEST 080P resolution.
1. MID is in boot state.
2. Use a standard HDMI cable to connect MID with high definition television.
3. The system interface on the MID can be synchronized with high resolution
TV pictures.
7Internet
7.1 Browser
Enter into homepage
The browser always habitually shows the last homepage visited by user, the
homepage will appear when it enters into the browser on boot.
Change your home page
1. Click browser.
2. Press the Menu button, menu of browser settings pops up.
3. Click more.
4. Click Settings.
5. Click settings home page.
6. Input website, and click "OK".
Browse website
You can slide the screen up and down to browse the webpage.
Enlarge or shrink pages
Opening a webpage and dragging it, the webpage enlarging and zoom-out
button will appear at the bottom of the webpage. You can click "enlarge" or
"reduce" to browse webpage.
Find the words in webpage
1. When browsing the web, press menu button and menu options pop up.
2. Click more.
3. Click a homepage you want to visit.
4. Enter your search projects.
29
5. When you input characters, words will change from white to green.
6. Click the arrow on search column to move on searching.
Management bookmarks
Settings webpage bookmarks
1. Go to a webpage in the browsing interface.
2. Press the menu button and click the bookmarks, then click add
bookmarks.
3. Edit bookmarks and click OK.
Opening bookmarks
1. Press the menu button and click the bookmarks in the browser interface.
2. Click the intended bookmarks to open the webpage.
Editing bookmarks
1. Press the menu button and click the bookmarks in the browser interface.
2. Click and hold the bookmarks to open the menu options.
3. Click the edit bookmarks to edit it, and click Ok.
Use the browser window
Open a new browser window
1. Open the browser window; click the menu button and click new window.
2. Input the website address in the new window.
Switch browser window
1 In the browser window, press the menu button and click windows.
2. Click the window you want to open.
Set browser
In the browser interface, press the menu button and click more, then click
Settings to set the browser.
8 Other applications
8.1 Alarm clock
1. Click the Clock program.
2. Enter into programming interface as the picture is shown below.
30
3. There were pictures, music, alarm clock and page buttons.
4. Pressing the Menu button, alarm setting menu will pop up.
8.2 Calculator
1. Click calculator.
2. Enter into the basic calculator panel.
3. Press the Menu button, and click the advanced panel.
4. Touch the digital panel or operators on the counter to calculate.
Skills: You can slide the screen to change basic panel to advanced panel.
8.3 Explorer
Browse the file
Slide the screen to look for the File Manager
You can use the file browser to manage editing/deleting files and folders and
establish file sharing and FTP servers to achieve resource sharing.
31
Cut and copy files
1. On the File Manager, press operation documents.
2. Operation menu pops up, including Copy Open As, Cut, Copy, Rename,
Delete, Select All and Shortcut.
Copy or Move the file
1. Use fingers to hold the intended file in the file browser.
2. Click "copy" or "Move".
3. Select the file you want to copy or Move to and click Paste.
Delete the file
1. Use fingers to hold the intended file in the file browser.
2. Click "delete".
3. Click "delete" to delete files or click "cancel" to return.
Quick search
1. On the file browser, press the menu button to popup menu.
2. Click "new".
3. Click "search".
4. When search panel pops up, input your keywords for searching.
5. Click "sure”, then search progress bar will appear in notice bar.
6. After the completion of the search, dialogue box will pop up to confirm
whether it’s necessary to show results.
7. Click "sure" to display search results.
32
9 Troubleshooting
1．
．
The first time you start MID, it takes rather a long time
After MID system upgrades, it takes about 2-3 minutes to install preloaded
application software when starting it at first time. It will be faster and faster later
when you start it.
2．
．
Disability to connect with WIFI
Check whether the wireless router is at work.
Check whether your MID is near the wireless router, whether there are
walls or other obstacles preventing you from wireless router.
Check whether the user name and the password are correct.
3．
．
You feel a little bit hot of your MID
If you operate many programs at the same time or the brightness of the screen
is very high, it is normal to feel a little bit hot of your MID because of costing
more electricity.
4．
．
The system is abnormal.
Installing the 3rd party program may result in failure operation, press RESET
(near power connector) to reset the system.
5．
．
Disability of setting an Email and program login
Check whether the network is normally connected with Internet
Check whether Email setting is appropriate.
Check whether the time of MID system is the same as the local time
Appendix 1 Specifications
Type Content Description
Basic
parameters
MID model T9021
CPU model Cortex A7 Dual Core 1.0 GHz + GPU
400MHz
33
CPU frequency 1.0GHz
DDR-RAM DDR3 512MB
NAND FLASH 8GB
Operation system Google Android 4.2 Jelly Bean
Network insertion Wi-Fi 802.11b/g/n
USB interface Micro USB OTG x 1
Camera 0.3MP(front), 1.3MP(rear)
Standard batteries Built-in lithium polymer battery,
2400mAh
Power adaptor
Input voltage at AC 110~240V
50/60Hz, 0.3A and output voltage at
Output: DC5.0V/2.0A)
SD card Supporting 32G maximum
Product
visual
appearance
Visual pattern Pad
Master screen
7.0-inch TFT liquid crystal touch
(Capacitance 5-touch) liquid crystal
screen at the resolution of 800x480
Product size 203mm x 119.5mm x 11.5mm
Application
programs Video playing
Supporting AVI, RMVB, MKV, FLV and
other formats, and supporting 1080P
high resolution playing
34
Music playing
Built-in music player supporting
playback in the MP3, WMA, WAV and
other formats
Games Supporting a third party program
Input method Android input method
Picture browsing
Supporting picture browsing in the
formatsofJPEG,BMP,PNGandGIF,
etc
OFFICE software
Supporting office (word, excel, Power
point reading and editing), and
supporting PDF browsing
35
Appendix 2 The optional parts and models
Data Dongle Vendor Model Name
HUAWEI
E173s-6
E153u-3
E180
E261
E122
ZTE
MF190
MF180
MF180S
NOKIA CS-15
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or
transmitter.
NOTE: This equipment has been tested and found to comply
with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to
try to correct the interference by one or more of the
followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician
for help.
