Star Sources Electronic Technology ST-BK05 BLUETOOTH KEYBOARD User Manual KB450USW manual
Shenzhen Star Sources Electronic Technology Co., Ltd. BLUETOOTH KEYBOARD KB450USW manual
User Manual
Bluetooth Keyboard User’s Manual
Thanks for purchasing this Bluetooth keyboard, it’s with standard 78 keys. This creative and
easy-to-use Bluetooth 3.0 keyboard will bring you a whole new wireless life experience.
1.0 System Requirement
iPad, Mac OS.
Windows OS(Windows XP,Windows Vista, Win7)
2.0 Installation Guide

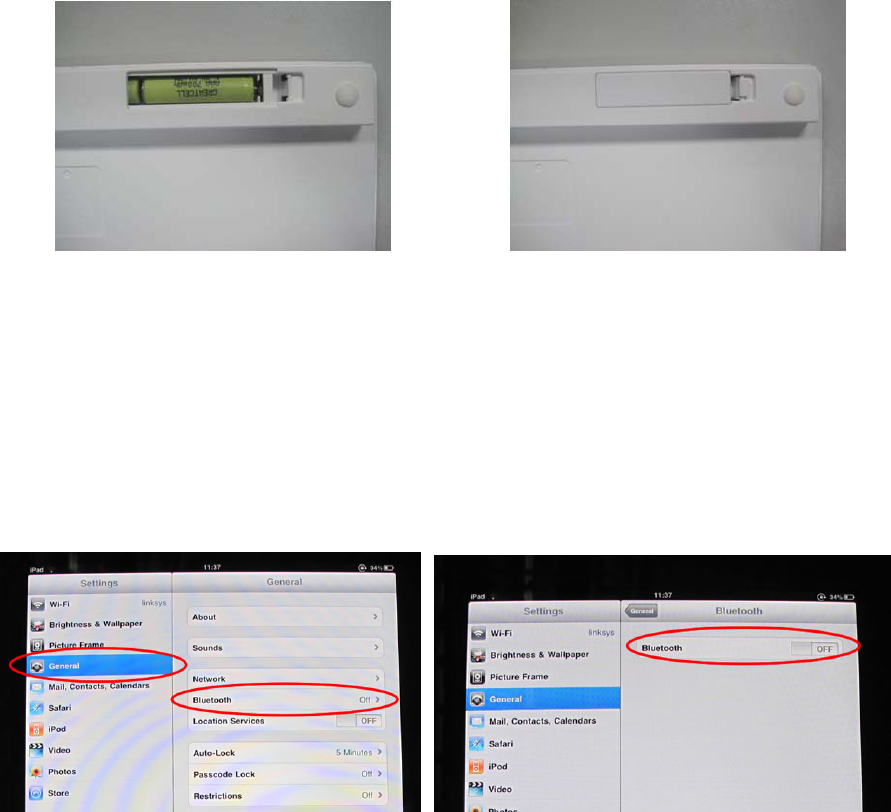

Before use the keyboard, please make sure the battery is installed well in the keyboard. Open the
cover of the battery slot and install two pieces of 1.5V AAA battery. Then cover the battery slot.
Make sure that the batteries’ poliarities are in accordance with the polarity marks in the battery slot.
Photo(1) Photo(2)
2.0.1 Connecto to Ipad
Step 1: Put the power switch on keyboard to “ON”, and press pairing key on the keyboard, the
Bluetooth Synch LED will wink, now the keyboard is in pairing mode.

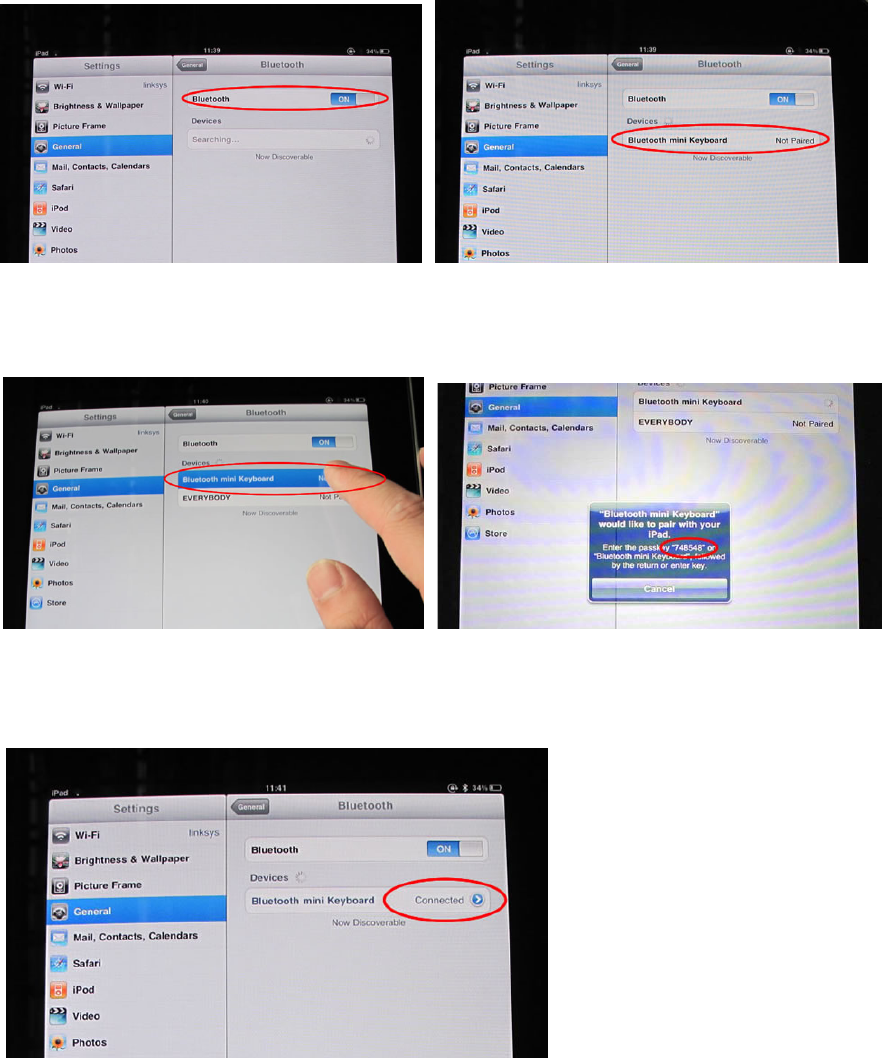

Step 2: On your iPad, enter "Setting"---"General", turn on the bluetooth:
Step 3: After turning on the bluetooth, it will search bluetooth devices automatically:
Step 4: After finding "Bluetooth Keyboard", press the device, it will start connecting, and there
will be a password displayed:
Step 5) Press the password in your Bluetooth mini Keyboard, and "Enter", it will connect with
your iPad, now you can use your Bluetooth mini Keyboard to input words for your iPad:
2.0.2 Connect to Computer
Step 1: Make sure the Bluetooth function has been activated in your computer(if not, you need to
buy a separate Bluetooth USB receiver to connect to the computer).

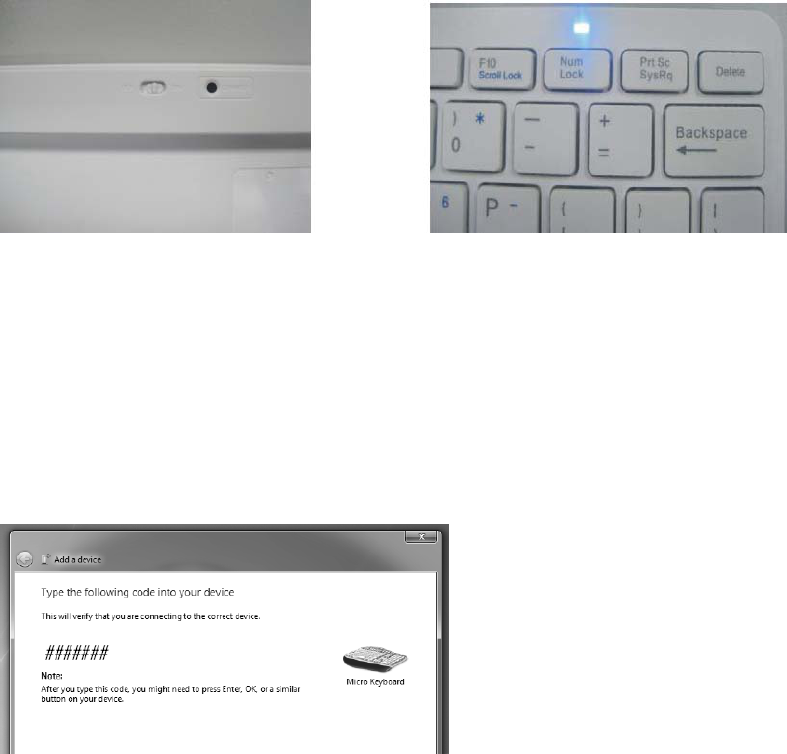

Step 2: Push the Power Switch to ON and then press the PAIR button. The Bluetooth Synch LED
will wink.
Step 3: The Bluetooth keyboard will automatically search for Bluetooth paired device after the
PAIR button was pressed. A corresponding dialog box will pop up on the screen of the PC or
Notebook. Input the security code which displays on the dialog box by the Bluetooth keyboard and
press Enter. When the Bluetooth Synch LED stop winking, it means the Bluetooth connection was
established successfully between the keyboard and the computer.

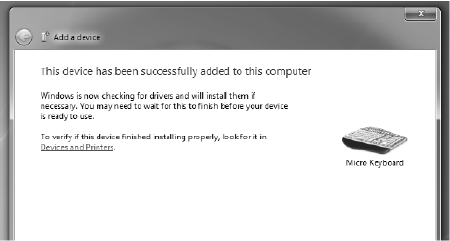

Step 4: It will take a few seconds for the computer to automatically install some drivers once the
Bluetooth connection has been established. Upon installation of the drivers, the Bluetooth keyboard
is ready to work.
As long as the PAIR button was not pressed again or the Paired device was not removed, users no
need to make pairing any more after the pairing process was accomplished, even the batteries were
took out from battery slot.
3.0 FAQ:
If unable to connect the Bluetooth Keyboard to the computer, or the keyboard works
unconventionally, please try the steps below:
1. Make sure that the computer is connected to the Bluetooth keyboard. If they are matched to each
other before, then under the standby state, just click the “Enter” key of the keyboard;
2. Make sure that the keyboard is within the effective range – 10M;
3. Make sure that there’s no change of the Bluetooth facility. If anything changed, please kindly
rematch;
4. If your Bluetooth facility is connected to other Bluetooth products, please kindly confirm that the
speed of the bluetooth facility is enough;
5. Please kindly check the batteries. If they’re short of power, replace them for new ones.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
