User manual
User Manual

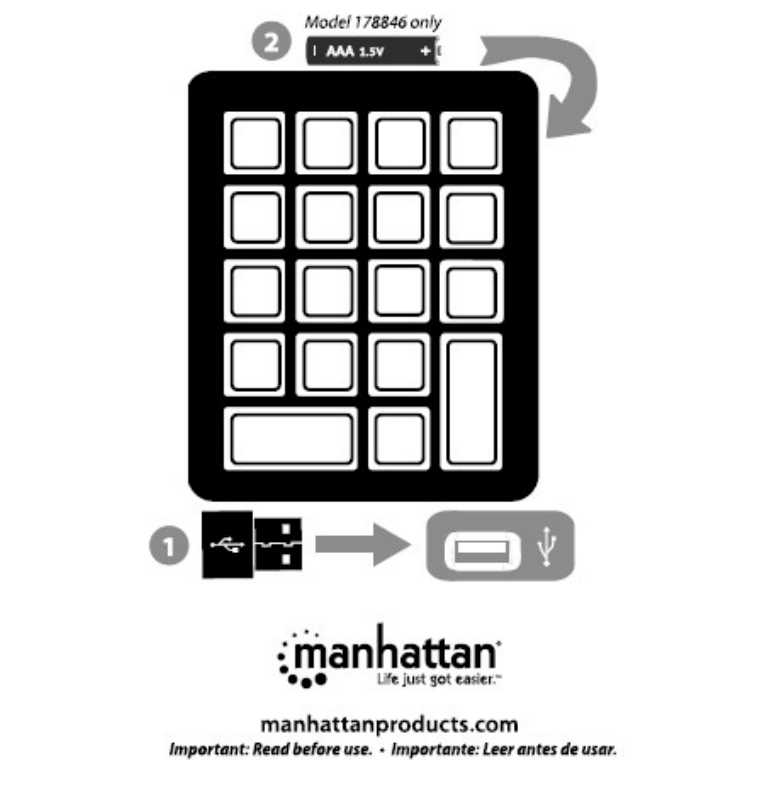

Model： 178846
Numeric Wireless Keypad is more and more popular in the digital age. It can greatly
reduce the work pressure especially for those person whose job is related with numbers
such as finance, accounting, auditing etc. The numeric keypad is the keyboard keys we deal
with mostly every day. What is more, more and more people are using laptops, It is in a very
awkward situation when entering numbers with "one finger". It is slow and makes people
anxious and irritable. It will make your finger and arm sore if working for long time.
*Now you will find this wireless numeric keypad is very helpful with common 2.4G wireless
technology, Scissor-end structure and chocolate buttons. This is stylish and its keys are
comfortable. It solves the needs of independent digital shorthand. Most of the numeric
keypad is wired type in the market. It is very tedious. The keys are traditional mechanical
type. It requires big force and with loud percussion. You will feel tired after long time and
resulted in erroneous input!
*Numeric Keypad which is compact, comfortable to use and easy to carry, help you to
handle with numbers more professional and efficiently wherever and whenever.
*This key pad uses "Scissor" key technology, so the key feels is very comfortable.
*With the growing popularity of tablet PCs, the users can not enter information with virtual
keyboard when doing bank transfer. This wireless numeric keypad can solve the problem.
Features:
Wireless transmission, fast and sensitive, up to 10-meter working range.
Support automatical hibernation mode, no power button needed.
Thin and compact design: 18-key wireless numeric keypad.
Specification:
Material: ABS
Number of Keys: 18 keys
Connection: 2.4G wireless
Power supply: 1 X AAA battery ( Not included )
Item Size: Approx. 13.8 * 8.5 * 2.2 cm / 5.43 * 3.34* 0.87 inch (L * W * H)
Item Weight: 75 g / 2.67 oz
Technical Specification:
Keyboard Type Scissor-end structure
Interface Wireless 2.4G
Structure fixed way Fastening buckle bit
Case Material ABS
Dimension 140.64*86.02*25.67mm
Weight with cable 95g
Working Temperature and Humidity5°C-50°C 10%-85%RH 25°C
Storage Temperature and Humidity
-20°C-70°C 5%~95% 25°C
Working Voltage DC 1.5±0.25V
Working Current <50mA
Master Chip HT82K629A-000N
PCB Version/Material KB-609UF V1.1 FR4
Fireproof Grade 94HB
Conductive Diaphragm(M/B) PET t=0.075mm
Key Core Structure Type Scissors Truss Structure
Symbol on the keypad Screen Print
Capstableforce >1.0 Kgf
Key Life 10 million times
Key Operation Force 60±20g
Standard Key Stroke 2.3±0.3mm
Key Resilience 60±20g
Effective Distance 10m
System Support Windows XP/7/8/VISTA etc., Android, MAC, LINUX
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: --Reorient or relocate the
receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
