REMOTE CONTROL
OPERATIONS MANUAL
32

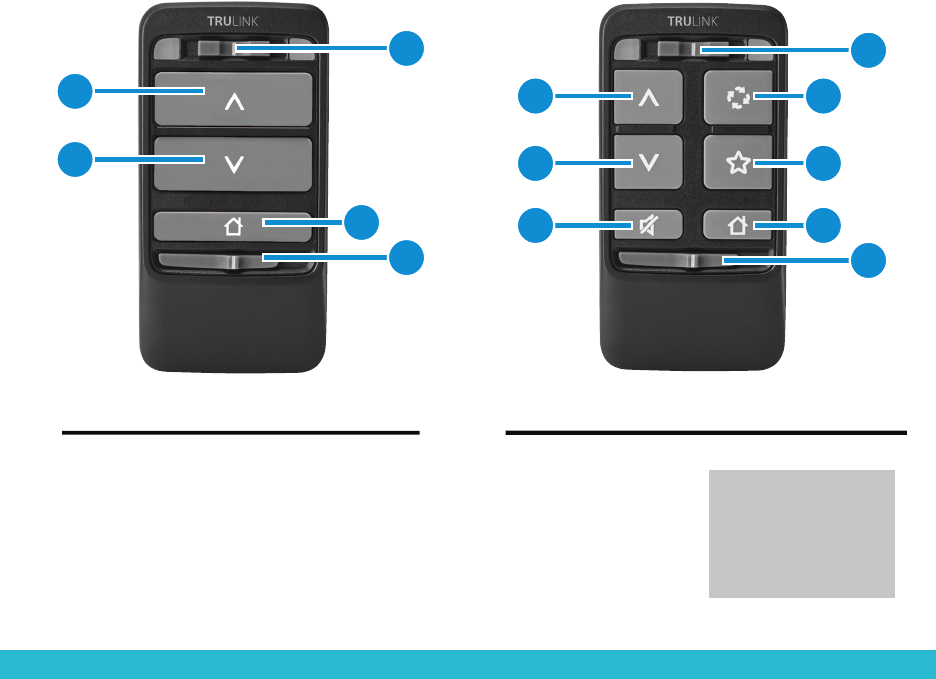

1. Ear Selection Switch
2. Volume Up
3. Volume Down
4. Home
5. Lock/Unlock
Advanced Model Only
6. Mute/Unmute
7. Memory Change
8. Favorite
1
5
2
3
6 4
7
8
1
5
2
3
4
ADVANCED MODELBASIC MODEL
TruLink® Remote allows for easy and discreet
adjustments to your hearing instruments.
With its long-life battery, your TruLink Remote
is always ready to work with your hearing
instruments.
54
Pairing Process
For TruLink Remote to interact with your hearing
instrument(s), you must first pair the Remote
with each hearing instrument. You only need to
pair TruLink Remote with a hearing instrument
one time, as they should automatically
recognize each other when both are powered
on and they are within wireless operating range.
You can pair TruLink Remote with a monaural
hearing instrument, or binaural hearing
instruments. For a binaural set, both hearing
instruments must be successfully paired during
the same pairing cycle. Trying to pair just one
binaural hearing instrument with the TruLink
Remote will result in failure. To cancel pairing
mode on TruLink Remote, simply move the
lower switch from Unlock (left) to Lock (right)
position.
To quickly start using TruLink Remote:

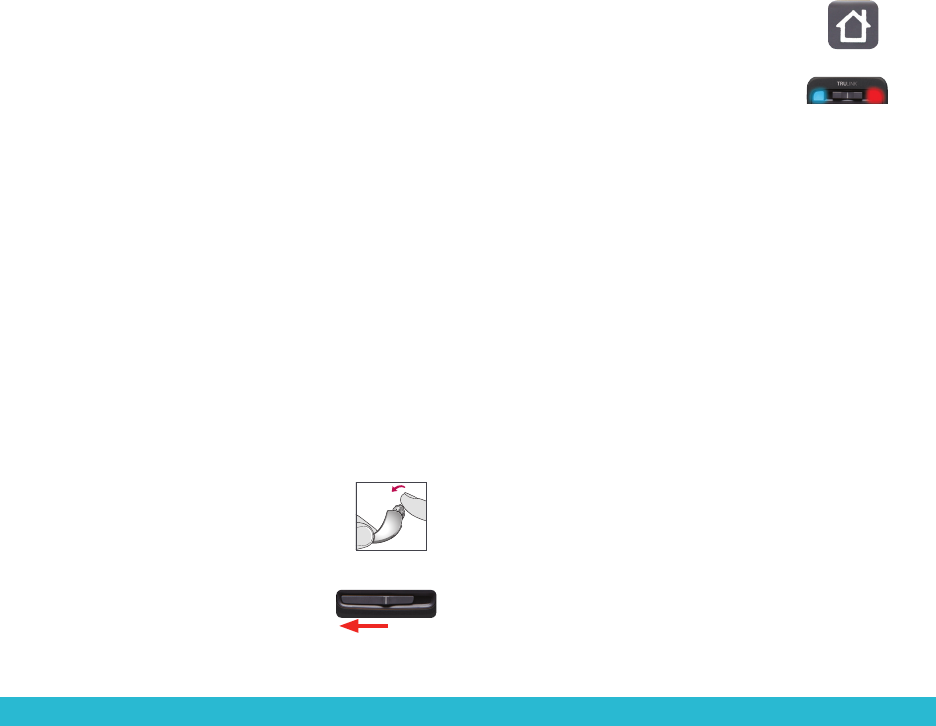

1. Insert battery and close door on
hearing instrument(s), and place
within 12 inches of TruLink
Remote
2. Move lower switch from Lock
(right) to Unlock (left) position
3. Press and hold the HOME
button for 5 seconds
4. After 5 seconds, both LEDs
start rapidly blinking
5. For Binaural Hearing Instruments,
• If the left LED becomes solid blue for
2+ seconds and right LED becomes
solid red for 2+ seconds, then the
binaural pairing was successful.
Otherwise, repeat steps 3 – 5.
For a Left Monaural Hearing Instrument,
• If the left LED becomes solid blue for
2 seconds, then the monaural pairing
was successful. Otherwise, repeat
steps 3 – 5.
For a Right Monaural Hearing Instrument,
• If the right LED becomes solid red for
2 seconds, then the monaural pairing
was successful. Otherwise, repeat
steps 3 – 5.
6. To verify your setup, pressing the Volume
Up or Volume Down button should cause
a hearing instrument volume adjustment.
76
TIP –
To extend its battery life, place the TruLink
Remote into a Locked state when not in use.

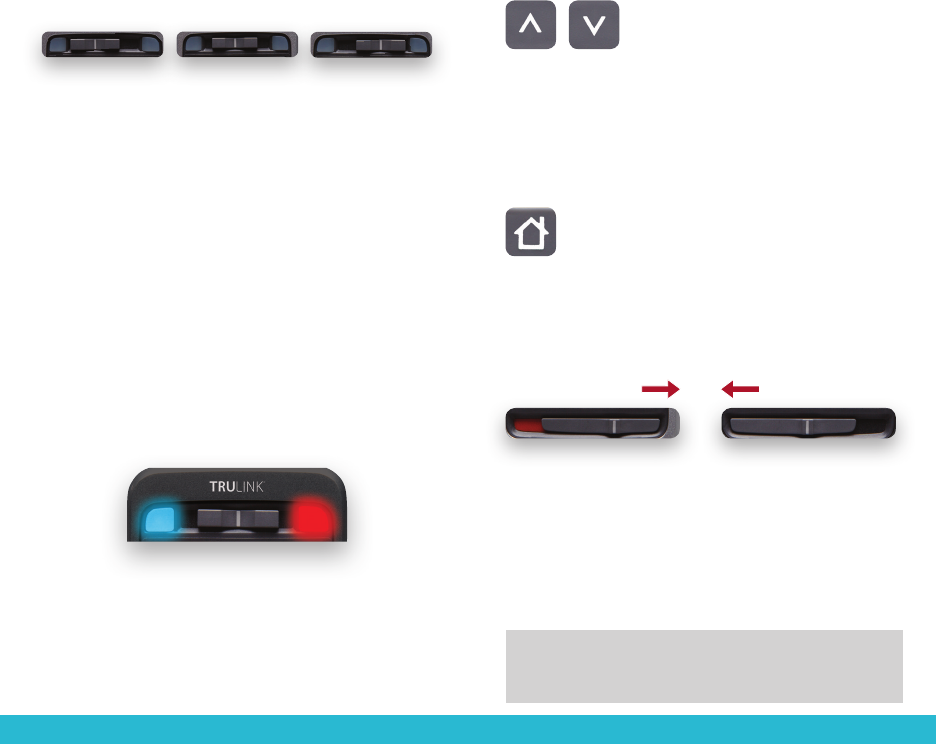

Left Both Right
Ear Selection Switch
The Ear Selection Switch controls whether
adjustments are made to a single hearing
instrument or both hearing instruments.
Binaural Hearing Instruments: To adjust
both hearing instruments at the same time, the
Ear Selection Switch should be positioned in the
center. To adjust a single hearing instrument,
place the Ear Selection Switch to the Left or
Right position indicating the hearing instrument
to be changed.
Monaural Hearing Instrument: The Ear
Selection Switch position does not apply.
LED
The blue LED blinks when a command is sent
to the left hearing instrument. Similarly, the red
LED blinks for the right hearing instrument.
Volume Up/Down
Each time you activate a Volume button, the
overall level of all sounds coming through your
hearing instrument changes in the requested
direction (either up or down).
Home
To reset your hearing instruments to memory
one and the powered-on volume level, press the
Home button.
Locked Unlocked
Lock/Unlock
To make adjustments to your hearing
instruments, the TruLink Remote should be in
the Unlock state. When not using your TruLink
Remote, you can Lock it to prevent inadvertent
hearing instrument changes.
98
ADVANCED MODEL ONLY
Mute/Unmute
To temporarily turn off all sounds presented in
the hearing instruments, press the Mute/Unmute
button. To unmute the hearing instruments,
press the button again.
NOTE: When the hearing instruments are muted, selecting
any button will unmute the hearing instruments as well as
perform the function of the button selected.
Memory Change
Your hearing professional may create multiple
memories within your hearing instrument.
These additional memories can be accessed by
pressing the Memory Change button, which will
cycle through the available memories.
ADVANCED MODEL ONLY
Favorite
Your hearing instruments have the following
Favorite button configuration:
None – Pressing this button has no effect
on hearing instruments.
Noise Control Boost – Pressing this button
reduces noise while optimizing sound quality
in noisy environments. Press button again to
deactivate this feature.
Jump to Memory 4 – Pressing this button
moves the hearing instrument to memory
four.
Tinnitus Stimulus On/Off — Pressing this
button starts (or stops) playing a tinnitus
stimulus through your hearing instruments.
NOTE: Some of these features may not be available in
all hearing instruments.
1110
Lanyard (optional)

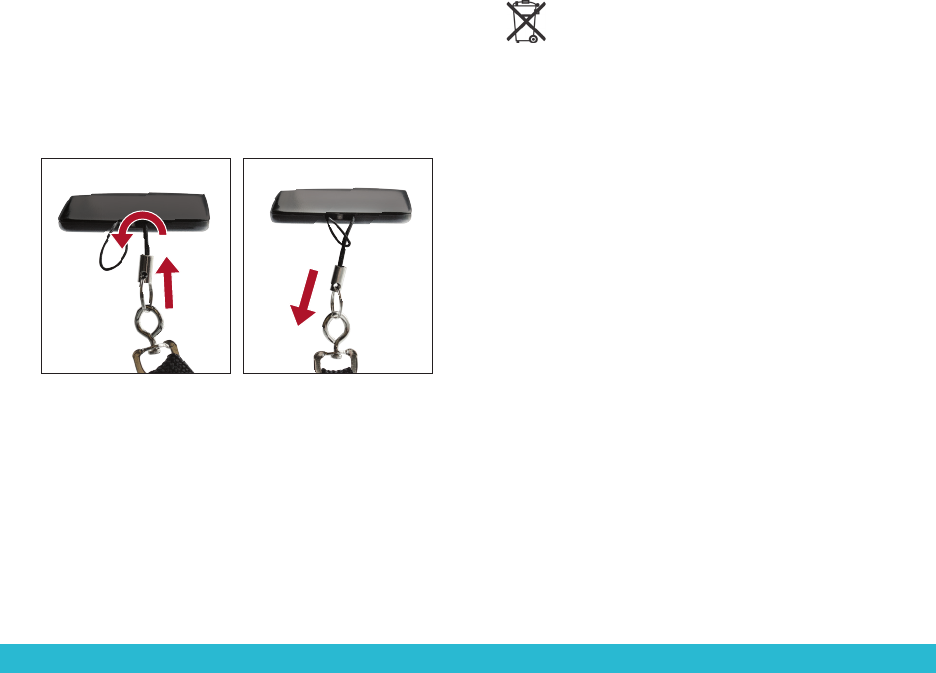

1. Insert thin cord into end of TruLink Remote
housing until loop is exposed.
2. Thread lanyard through loop and pull lanyard.
Lanyards can be obtained from your hearing
professional (ask for part #90974-000).
Regulatory Notices
Required Information
Waste from electronic equipment must be
handled according to local regulations.
Instructions for Disposal of Old Electronics
Paradigm encourages, and your local community laws may
require, that your TruLink Remote be disposed of via your
local electronics recycling/disposal process.
The below instructions are provided for the benefit of
disposal/recycling personnel. Please include this manual
with your device when disposing of your TruLink Remote.
For Disposal/Recycling Personnel Only
This product contains a Lithium Ion Polymer battery.
To remove this battery:
• Pry apart the housing halves with a small screwdriver.
• Unplug the battery connector from the circuit board
to prevent accidental shorting.
• Pry the battery away from the housing using a wide
flat blade.
Intended Use
The TruLink Remote is an accessory to a wireless air
conduction hearing instrument. It is intended to let a user
remotely make volume and program adjustments to an air
conduction hearing instrument.
1 2
1312
TruLink Remote is classified as a Type B applied part under
the IEC 60601-1 medical instrument standard.
TruLink Remote is designed to comply with the most
stringent Standards of International Electromagnetic
Compatibility. However, it is still possible that you may
experience interference caused by power line disturbances,
airport metal detectors, electromagnetic fields from other
medical devices, radio signals and electrostatic discharges.
TruLink Remote is designed to be cleaned with a damp
cloth moistened with soapy water.
If you use other medical devices or wear implantable
medical devices such as defibrillators or pacemakers and
are concerned that your TruLink Remote might cause
interference with your medical device, please contact your
physician or the manufacturer of your medical device for
information about the risk of disturbance. TruLink Remote
should not be used during an MRI procedure.
Use on Aircrafts
TruLink Remote should not be used on aircrafts
unless specifically permitted by the flight personnel.
International Use
TruLink Remote is approved to operate at radio frequencies
that are specific to your country or region and might not be
approved for use outside your country or region.
Be aware that operation during international travel may
cause interference with other electronic devices, or other
electronic devices may cause interference with your TruLink
Remote.
The battery in your TruLink Remote is not replaceable.
Do not attempt to replace the battery.
The TruLink Remote is designed to the following
temperature ranges:
• Operating: -20 to +60 degrees C (-4 to 140 F),
humidity < 95% non-condensing
• Storage: -40 to +60 degrees C (-40 to 140 degrees F)
We are required by regulations to provide the following
warnings:
WARNING: Use of the TruLink Remote directly next to
other electronic equipment should be avoided because
it could result in improper performance. If such use is
necessary, note as to whether your hearing aids and the
other equipment are operating normally.
WARNING: Use of accessories, components or
replacement parts other than those provided by the
manufacturer of the TruLink Remote could result in
increased electromagnetic emissions and decreased
electromagnetic immunity and could result in degradation
of performance.
WARNING: If Portable Radio Frequency communications
equipment is used closer than 30 cm (12 inches) from your
TruLink Remote, degradation of the performance of your
hearing aid could result. If this occurs, move away from the
communications equipment.
WIRELESS TECHNICAL
DESCRIPTION
The TruLink
Remote
operates
in the 2.4-2.4835
GHz
band with a
maximum effected radiated
power of 3
dBm
with
transmission modulation
type of
1M06F1W.
The
receiver section
of the radio
has
a
bandwidth
of 2 MHz.
The TruLink Remote has been
tested to, and
has
passed,
the following
emissions
and
immunity
tests:
•
IEC 60601-1-2 radiated immunity requirements
for a
Group
1
Class
B
device as stated
in
CISPR
11.
•
RF
radiated immunity
at a field
level
of 10 V/m between
80
MHz
and 2.7
GHz as
well
as higher
field
levels
from
communications devices as stated
in
Table
9 of IEC
60601-1-2.
•
Immunity
to power
frequency magnetic fields
at a field
level
of 30 A/m.
•
Immunity
to
ESD levels
of +/- 8
kV conducted
discharge
and +/- 15
kV air
discharge.
FCC/IC Information
FCC
ID: EOA-24WR
IC: 6903A-24WR
(Model
600)
FCC/IC
Notice
This device complies
with part 15 of the
FCC rules
and
with
Industry Canada’s license-exempt
RSS
standard(s).
Operation is subject
to the following two
conditions:
(1)
This device may
not
cause harmful interference,
and
(2)
this
device must accept any interference received,
including
interference
that
may cause undesired operation
of the
device.
NOTE: The manufacturer is
not
responsible
for
any
radio
or
TV interference caused
by
unauthorized
modifications
to
this equipment. Such modifications
could void the
user’
s
authority
to
operate
the equipment.
Note FCC/IC
Cet
appareil est conforme
à la partie 15
des règles
de la
FCC
et
avec les normes
RSS
de
licence d’Industrie
Canada.
Le fonctionnement est soumis
à
deux conditions:
(1)
Cet
appareil
ne doit
pas causer d’interférences nuisibles
et
(2)
cet
appareil
doit
accepter
toute
interference
reçue,
y
compris les interférences
qui
peuvent causer
des
fonctionnements
du dispositif.
NOTE:
Le manufacturier n’est pas responsable
de
l’interférence créée
par la
modification
de cet équipement
lors
de
l’écoute
du
téléviseur
ou de la
radio.
De telles
modifications pourraient entrainer
la
révocation
de l’autorité
de
l’utilisateur
à
opérer
cet équipement.
14
15
Notes
The TruLink Remote operates
in the 2.4 -
2.4835 GHz
band
with a
maximum effective radiated
power of
3
dBm.
Hereby, Paradigm declares
that the
TruLink Remote is
in
compliance
with the
essential requirements
and other
relevant provisions
of
Directive 2014/53/EU.
A copy of
the
Declaration
of
Conformity can
be obtained from the
addresses
below.
Paradigm,
Inc.
6600 Washington Ave.
South
Eden Prairie,
MN
55344
USA
Paradigm, Inc. European
Headquarters
Wm. F. Austin House, Bramhall Technology
Park
Pepper Road, Hazel Grove, Stockport SK7
5BX
United
Kingdom
The
following
symbols are used
in
this
document
and on the
TruLink
Remote:
This device produces
and receives
radio
frequency energy.
Interference
may occur
in the
vicinity
of equipment
marked
with the following symbol.
Dispose
of properly
16
17
1918
Notes Notes
© 2017 Paradigm, Inc. All Rights Reserved. 2/17 85363-007 BKLT2931-00-EE-XX
