User Manual

MEDIA
2 3
SurfLink Media Controls Overview
Power Streaming Activation
Control
Volume Control
Microphone RCA Jacks Optical S/PDIF Monaural/Binaural Power
TOSLINK Selection

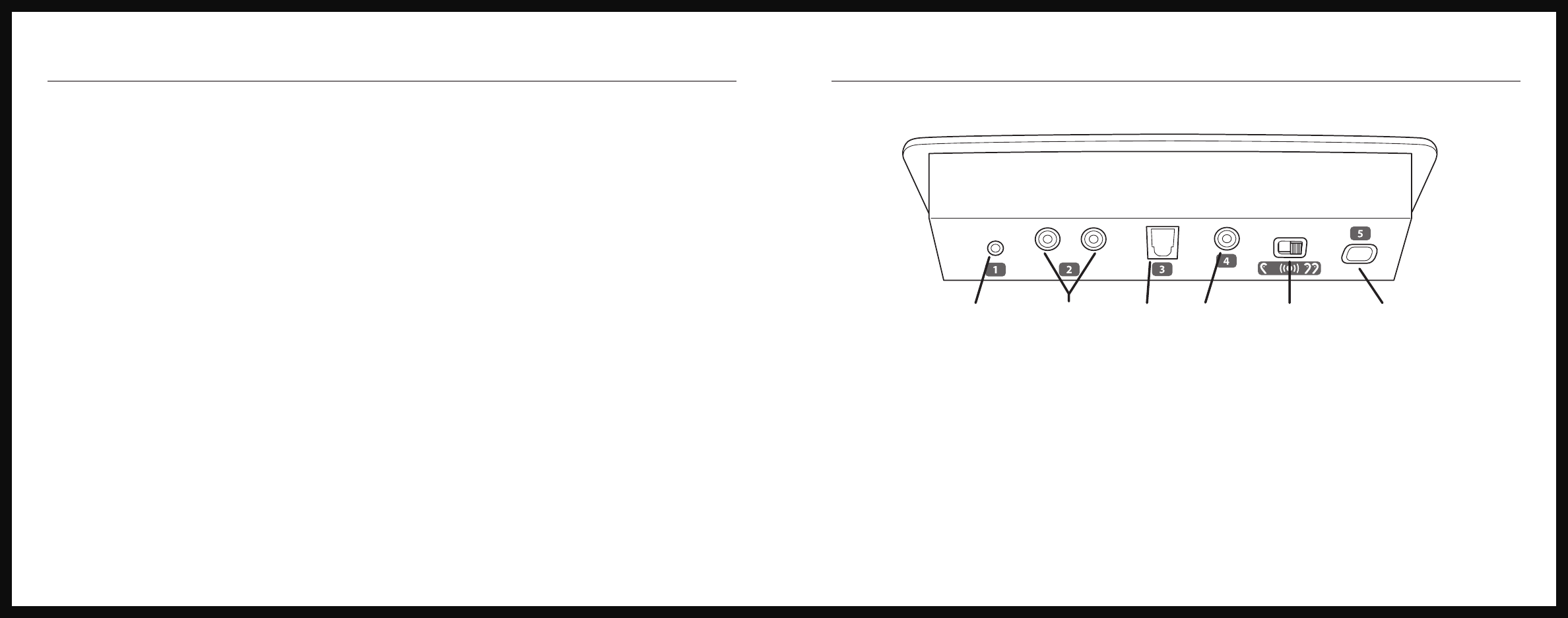

Back View
Read This First
SurfLink Media can be connected to most media sources, including televisions, radios,
and MP3 players. This guide provides easy step-by-step instructions for connecting and
using SurfLink Media.
SurfLink Media must be powered on and connected to the desired media input before
your hearing instruments can receive a signal.
Only ONE of the following connection setups needs to be followed to begin the
use of SurfLink Media.
A variety of cables are included in this package to allow streaming from virtually any media
source. Select the appropriate cable for your connection and store any unused cables.
Package Contents
•SurfLinkMedia
•PowerAdaptor
•RCACable
Microphone (1)
RCA Jacks (2)
AnRCAaudiocableissupplied.
Optical TOSLINK Jack (3)
A TOSLINK cable is not supplied.
TOSLINK cables are available at
most consumer electronic stores.
S/PDIF Jack (4)
An S/PDIF digital audio cable is not
supplied. S/PDIF digital audio cables are
available at most consumer electronic stores.
Power (5)
A micro-USB power cable is supplied.
Insert the micro-USB connector into the
Power port on SurfLink Media and connect
the opposite end to the power outlet.
4 5

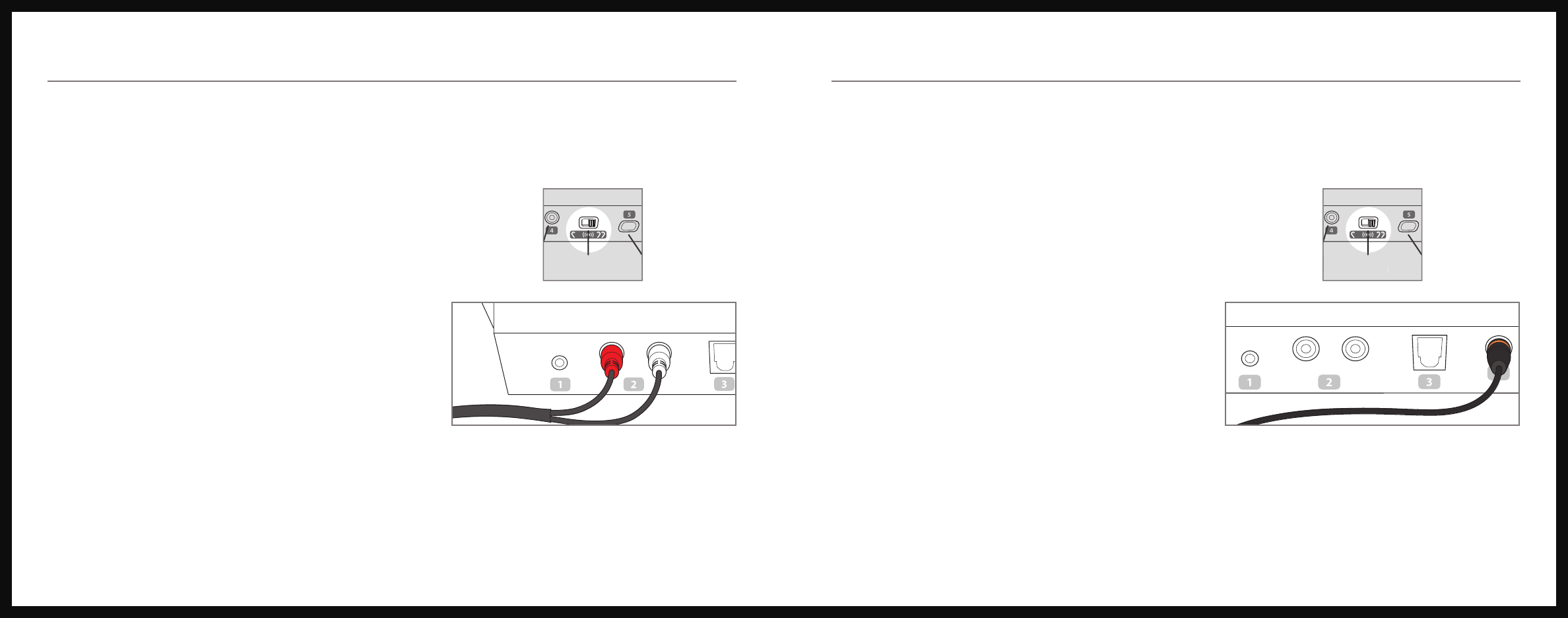

Connecting SurfLink Media and Media Source
RCA Cable Installation (most common connection option)
1. ConnecttheredandwhiteRCAcableplugsintothecorresponding
redandwhiteRCAjacks(labeled2)onSurfLinkMedia.
2. SelectthesignaltypeasMonauralorBinauralaudio
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. Connecttheoppositeendoftheredand
whiteRCAcablejacksintothecorresponding
redandwhiteRCA“AUDIOOUT”jackson
the media source.
4. Place SurfLink Media in a desired location
that is in close proximity to the media source.
Once SurfLink Media has been turned on it will begin to stream the audio signal.
Connecting SurfLink Media and Media Source
S/PDIF Installation
1. ConnecttheorangeS/PDIFcableintotheorangeS/PDIF“AUDIOOUT”port(labeled4)
on the media source.
2. SelectthesignaltypeasMonauralorBinauralaudio
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. Connecttheoppositeendoftheorange
S/PDIF cable into the orange S/PDIF port
on the back of SurfLink Media.
4. Place SurfLink Media in a desired location
that is in close proximity to the media
source.
Once SurfLink Media has been turned on it will begin to stream the audio signal.
Power Streaming Activation
Control
Volume Control
Microphone RCA Jacks Optical S/PDIF Monaural/Binaural Power
TOSLINK Selection
Optical S/PDIF Monaural/Binaural Power
SLINK Selection
Power Streaming Activation
Control
Volume Control
Microphone RCA Jacks Optical S/PDIF Monaural/Binaural Power
TOSLINK Selection
Optical S/PDIF Monaural/Binaural Power
SLINK Selection
6 7

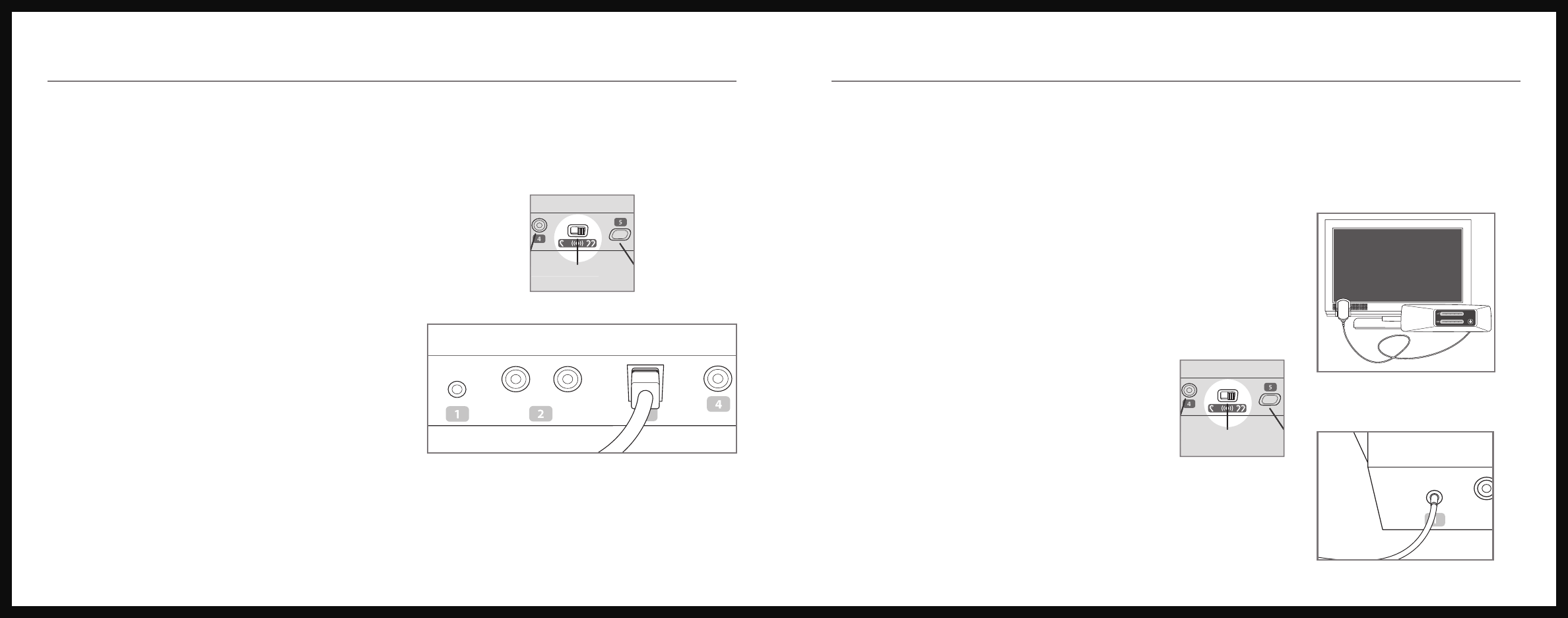

Connecting SurfLink Media and Media Source
Optical/TOSLINK Installation
1. Connecttheoptical/TOSLINKcableintotheoptical/TOSLINK
“AUDIOOUT”port(labeled3)onthemediasource.
2. SelectthesignaltypeasMonauralorBinauralaudio
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. Connecttheoppositeendoftheoptical/
TOSLINK cable into the optical/TOSLINK
port on the back of SurfLink Media.
4. Place SurfLink Media in a desired
location that is in close proximity to
the media source.
Once SurfLink Media has been turned on
it will begin to stream the audio signal.
Connecting SurfLink Media and Media Source
External Microphone Installation
In the instance your television does not support the cable installation options listed
on the previous pages, an external microphone can be used.
1. Connectthemicrophonecableintothemicrophone
port(labeled1)onthebackofSurfLinkMedia.
2. SelectthesignaltypeasMonauralorBinauralaudio
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. Place the microphone as close as
possibletothespeaker(s)ofthe
desired media source.
Once SurfLink Media has been turned on on
it will begin to stream the audio signal.
Television with External
Microphone Confi guration
Power Streaming Activation
Control
Volume Control
Microphone RCA Jacks Optical S/PDIF Monaural/Binaural Power
TOSLINK Selection
Optical S/PDIF Monaural/Binaural Power
SLINK Selection
Optical S/PDIF Monaural/Binaural Power
SLINK Selection
8 9

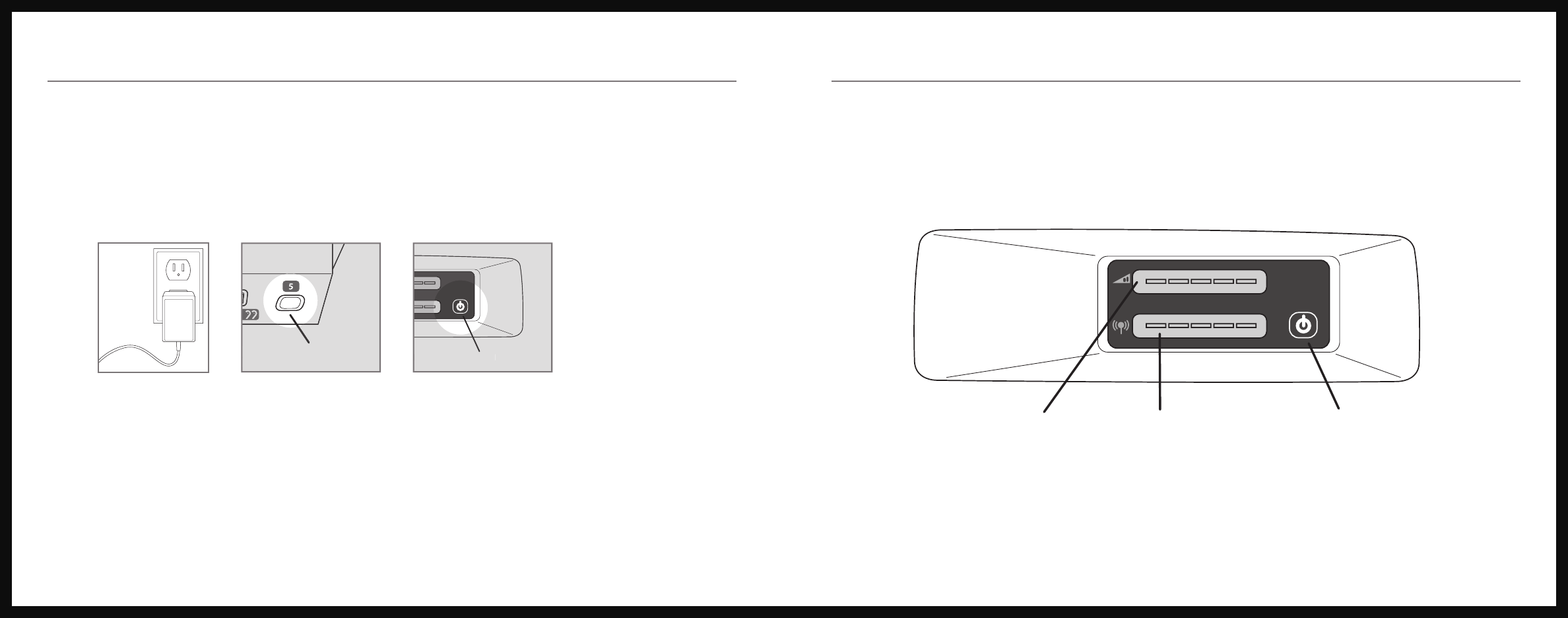

Turning On SurfLink Media
1. Plug the power adaptor into the wall socket or other power source.
2. ConnectthepowercordusingthePowerport(labeled5)onthebackofSurfLinkMedia.
3. Press the power button on the front of SurfLink Media. The power button glows blue
when the device is on.
Power Streaming Activation
Control
Volume Control
Microphone RCA Jacks Optical S/PDIF Monaural/Binaural Power
TOSLINK Selection
Optical S/PDIF Monaural/Binaural Power
SLINK Selection
Power
Streaming Activation
Control
Volume Control
Microphone RCA Jacks Optical S/PDIF Monaural/Binaural Power
TOSLINK Selection
Power
Activation
SurfLink Media Controls Overview
Power Streaming Activation
Control
Volume Control
Microphone RCA Jacks Optical S/PDIF Monaural/Binaural Power
TOSLINK Selection
Front View
Regulatory
Notices
SurfLink
Media
Contr
ols
Overview
Volume Control
The volume of the media source streaming to your hearing instruments can be adjusted by
using the Volume Control. Slide your finger to the right to increase the volume and to the left to
decrease the volume. The blue light indicates the volume control position of SurfLink Media. A
longer bar means increased volume.
FCC ID: EOA-TVG722
IC: 6903A-TVG722
Model: 210
FCC/IC Notice
This device complies with part 15 of the FCC rules and with Industry Canada licence-exempt RSS
standards. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Hereby, Paradigm declares that SurfLink Media is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be
obtained from the following addresses.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Paradigm, Inc.
6600 Washington Ave. South
Eden Prairie, MN USA
Paradigm, Inc.
European Headquarters
Wm. F. Austin House, Bramhall Technology Park
Pepper Road, Hazel Grove, Stockport SK7 5BX
United Kingdom
Streaming Activation Control
The streaming activation range of the SurfLink Media can be increased or decreased to adjust the
distance where a streaming session begins. Slide your finger to the right to increase the distance
between the location of the SurfLink Media and where you want to be able to start streaming. The
blue light indicates the range position of SurfLink Media. A longer bar means increased distance.
10
11
© 2010 Paradigm, Inc. All Rights Reserved. 84720-007 11/10 BKLT0230-01-EE-XX Rev. B
