Starkey Laboratories ZSERIES-HI Hearing Aid User Manual RIC Operations Manual
Starkey Laboratories Inc Hearing Aid RIC Operations Manual
User Manual
RIC
(Receiver-In-Canal)
OPERATIONS MANUAL
Table of Contents
Size 13 Battery - Orange

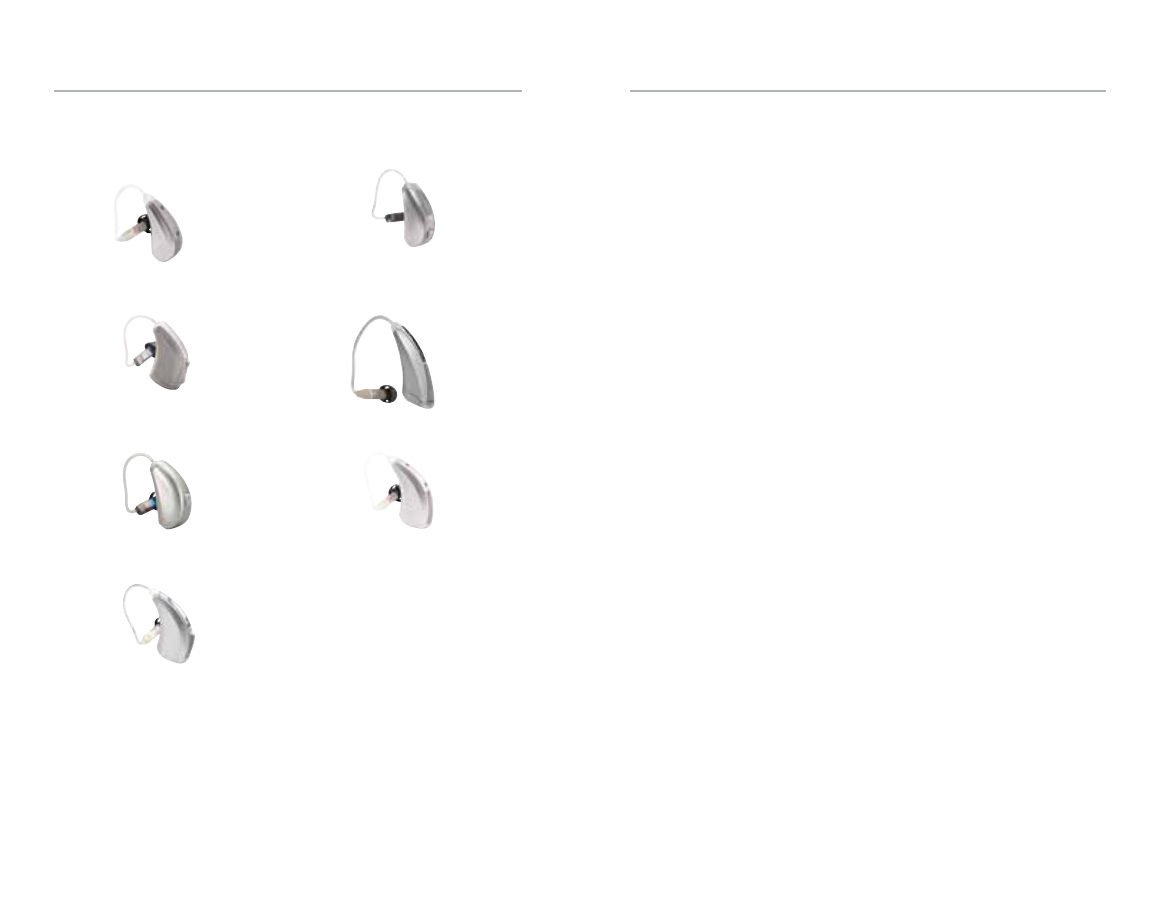

Select Hearing Instrument
Size 10 Battery - Yellow
Size 312 Battery - Brown
Size 312 Battery - Brown
Size 13 Battery - Orange
Size 312 Battery - Brown
Size 312 Battery - Brown
Select Instrument Controls
Automatic Volume Control p. 16
Adjustable Volume Control p. 16-17
Multimemory p. 18
Combined Volume and Multimemory Control p. 18
Overview
RIC 10 Overview .................................................... 4
RIC 312 Overview ................................................... 5
RIC 13 Overview ..................................................... 8
Preparation
Batteries ................................................................ 10
Battery Indicators .................................................. 12
Tamper Resistant Battery Compartment ............... 12
Insertion and Removal ........................................... 14
Operation
On & Off ................................................................ 16
Volume Control
...................................................... 16
Volume Settings ....................................................... 1
7
Multimemory ........................................................ 18
Telephone Use ...................................................... 19
Manual Switching ................................................. 20
Direct Audio Input (DAI) ........................................ 22
Accessories
Wireless Accessories ............................................. 24
Hearing System Care
Instrument Care ..................................................... 25
Hear Clear ............................................................ 25
Service and Repair ................................................. 26
Troubleshooting Guide ......................................... 27
Tips for Better Communication
For You .................................................................. 28
For Your Family and Friends .................................. 29
Safety Information ........................................................ 30
FDA Information ........................................................... 32

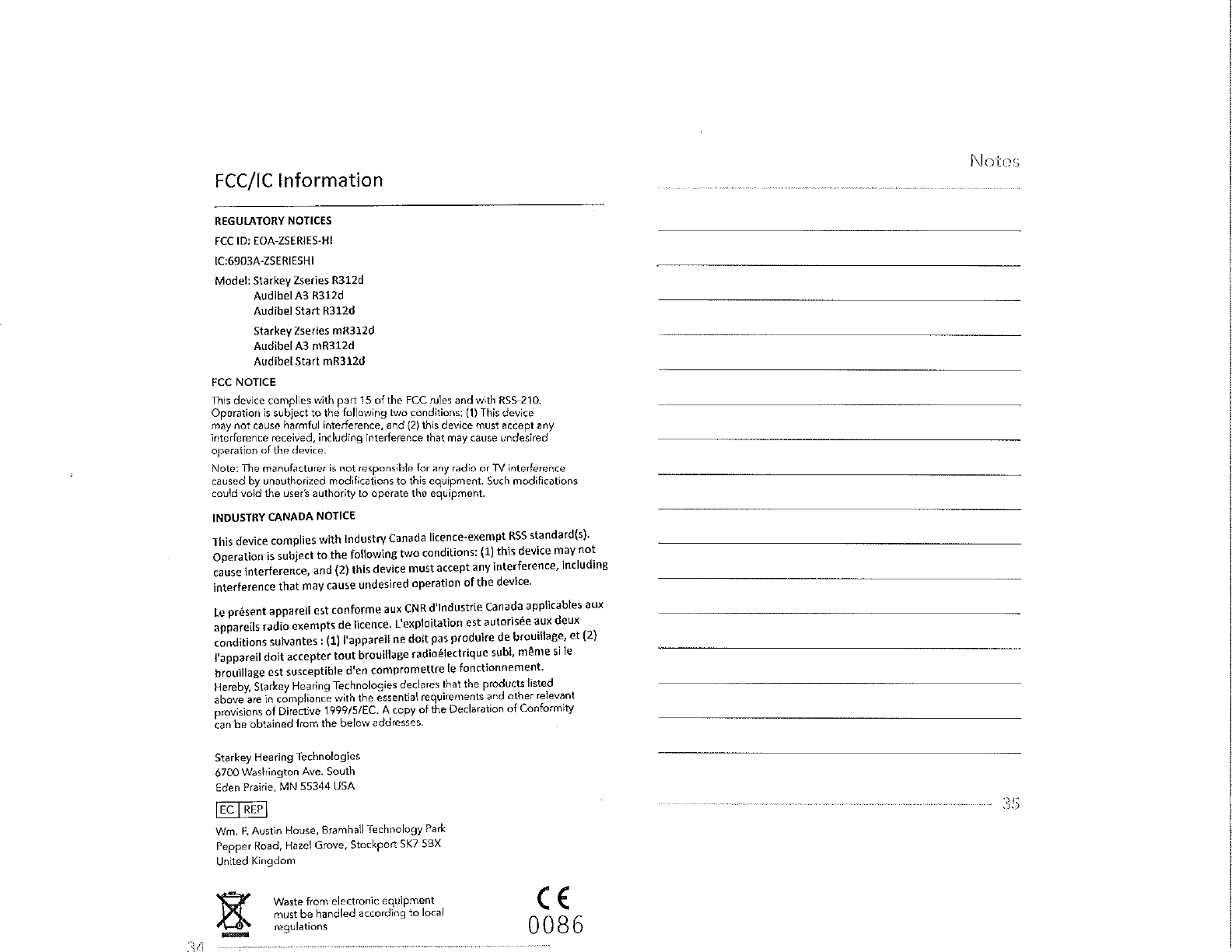

FCC Information ........................................................... 34
45

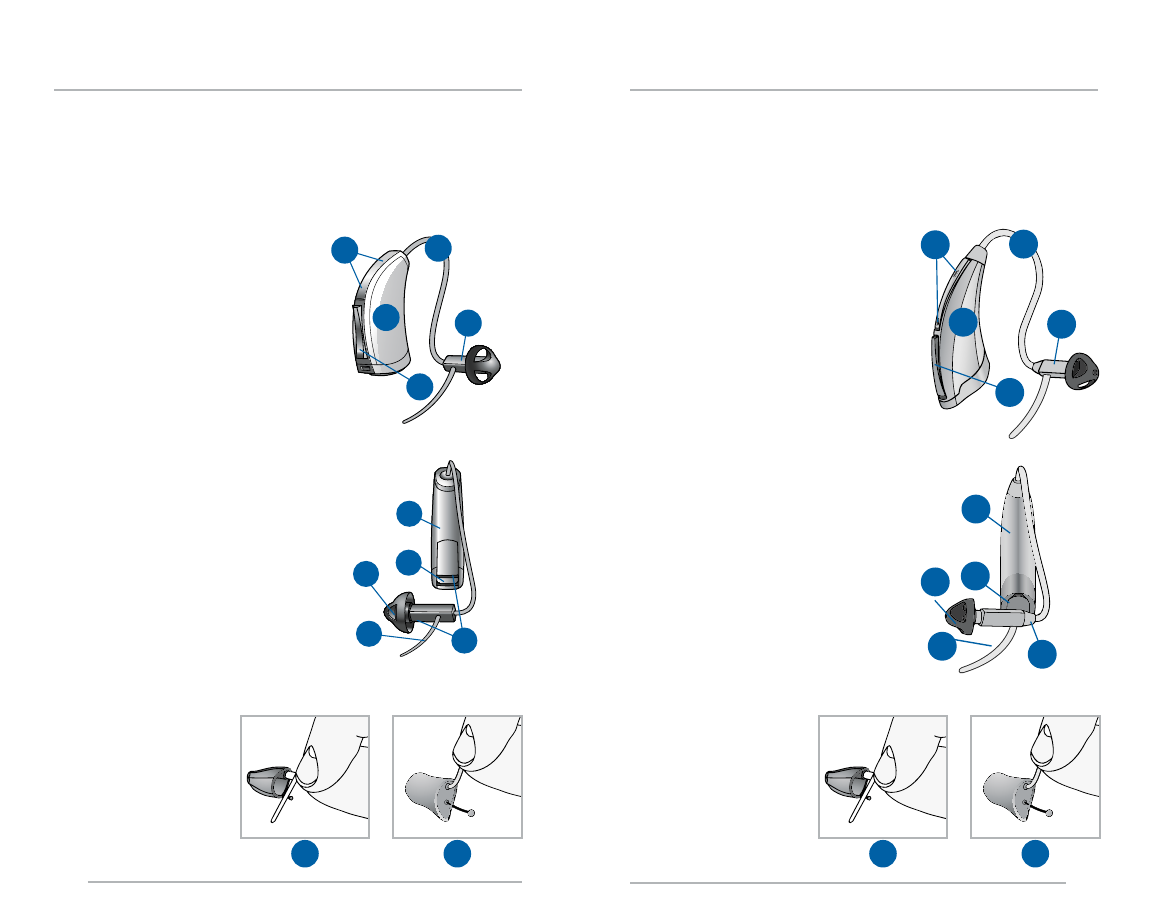

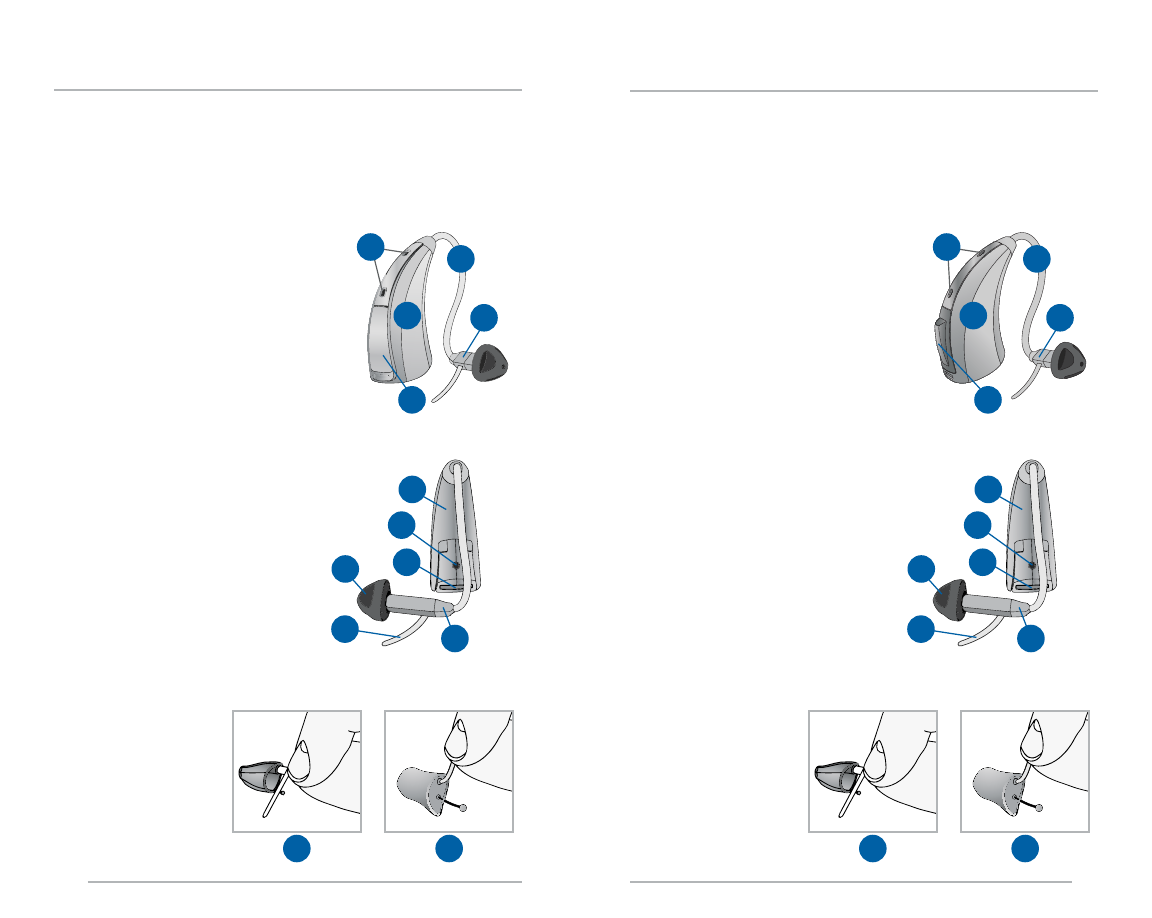

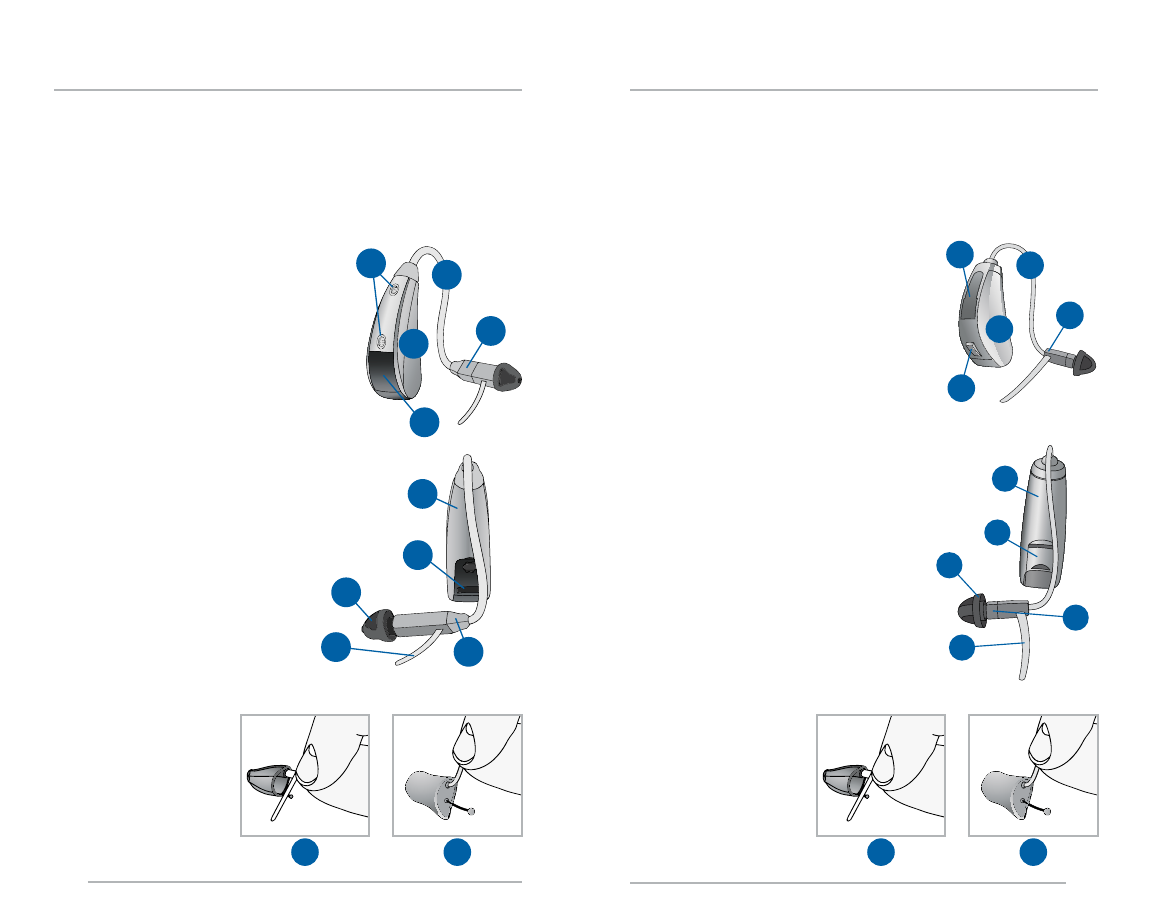

Features, Controls and Identification
Your hearing system controls include:
Features, Controls and Identification
Your hearing system controls include:
1. Hearing Instrument
2. Cable
3. Receiver
4. Microphones
5. Control Surface Switch
6. Battery Compartment
(on/off control), Location of
serial number, Location of left/
right side device indicator
7. Retention Lock
8. Location of manufacturer’s
name and model name
9. Location of left/right side
receiver indicator
10. Instant Fit Earbud
11. Custom Earmold (optional)
12. RIC Custom Power Earmold
(optional)
1. Hearing Instrument
2. Cable
3. Receiver
4. Microphones*
5. Push Button Switch or Rotary
Volume Control
6. Battery Compartment
(on/off control), Location of
serial number, Location of left/
right side device indicator
7. Retention Lock
8. Location of manufacturer’s
name and model name
9. Location of left/right side
receiver indicator
10. Instant Fit Earbud
11. Custom Earmold (optional)
12. RIC Custom Power Earmold
(optional)
RIC 10 Overview RIC 312 Overview
*Look may vary
42
13
5
7
10
6
8
9
11 1112 12
42
13
5
7
10
6
8
9
67
RIC 312 OverviewRIC 312 Overview
Features, Controls and Identification
Your hearing system controls include:
Features, Controls and Identification
Your hearing system controls include:
1. Hearing Instrument
2. Cable
3. Receiver
4. Microphones
5. Push Button Switch
6. Battery Compartment
(on/off control),
Location of serial number
7. Retention Lock
8. Location of manufacturer’s
name and model name
9. Location of left/right side
receiver indicator
10. Instant Fit Earbud
11. Custom Earmold (optional)
12. RIC Custom Power Earmold
(optional)
1. Hearing Instrument
2. Cable
3. Receiver
4. Microphones
5. Rocker Switch
6. Battery Compartment
(on/off control),
Location of serial number,
Location of left/right side
device indicator
7. Retention Lock
8. Location of manufacturer’s
name and model name
9. Location of left/right side
receiver indicator
10. Instant Fit Earbud
11. Custom Earmold (optional)
12. RIC Custom Power Earmold
(optional)
42
13
5
7
10 6
8
9
7
10 6
8
9
42
13
5
1111 1212
89
Overview
Features, Controls and Identification
Your hearing system controls include:
RIC 13 Overview
1. Hearing Instrument
2. Cable
3. Receiver
4. Microphones
5. Control Surface Switch
6. Battery Compartment
(on/off control),
Location of serial number
7. Retention Lock
8. Location of manufacturer’s
name and model name
9. Location of left/right side
receiver indicator
10. Instant Fit Earbud
11. Location of left/right side
device indicator
12. Custom Earmold (optional)
13. RIC Custom Power Earmold
(optional)
42
13
5
12 13
7
10 6
8
9
11
Features, Controls and Identification
Your hearing system controls include:
RIC 13 Overview
1. Hearing Instrument
2. Cable
3. Receiver
4. Microphones
5. Push Button Switch
6. Battery Compartment
(on/off control),
Location of serial number
7. Retention Lock
8. Location of manufacturer’s
name and model name
9. Location of left/right side
receiver indicator
10. Instant Fit Earbud
11. Location of left/right side
device indicator
12. Custom Earmold (optional)
13. RIC Custom Power Earmold
(optional)
42
13
5
12 13
7
10 6
8
9
11
10 11
Preparation Preparation
1 2
34
5
Batteries
Your hearing system uses a battery as its power source.
This battery size can be identified by the orange
(13), brown (312), or yellow (10) color code on the
packaging.

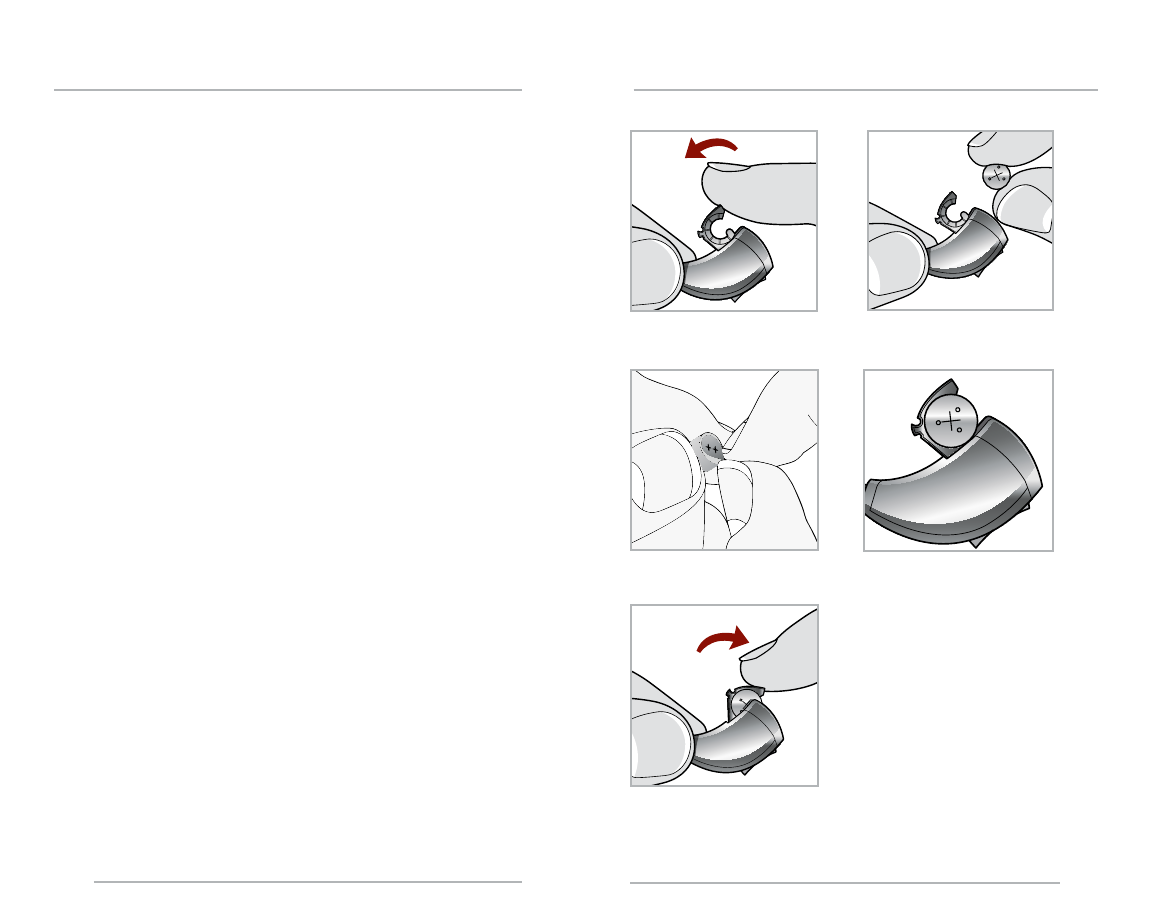

To insert or replace the battery:
1. Use the nail grip on the battery door.
2. Open the battery door gently and remove
the old battery.
3. Remove the tab from the new battery.
4. Line up the battery’s “+” sign (flat side of the battery)
with the “+” on the battery door.
5. Close the battery door.
12 13
Preparation Preparation
Helpful Hints
• NEVER FORCE THE BATTERY DOOR SHUT;
this could result in serious damage; if the door
will not close securely, check that the battery
is inserted correctly.
• Do not open the battery door too far or damage is
likely to occur.
• Dispose of used batteries immediately in the proper
waste or recycling container.
• Batteries vary in size and performance. Your hearing
care professional is your best source for lifespan
estimates and verification that you are using the
proper size and type.
Battery Indicators
An indicator will sound when the battery voltage is low.
You have approximately five minutes* to replace the
battery. An indicator will sound just before the battery
stops working.
* Actual time between low battery indicator and shut down
will vary depending on environmental noise levels and
brand of battery used.

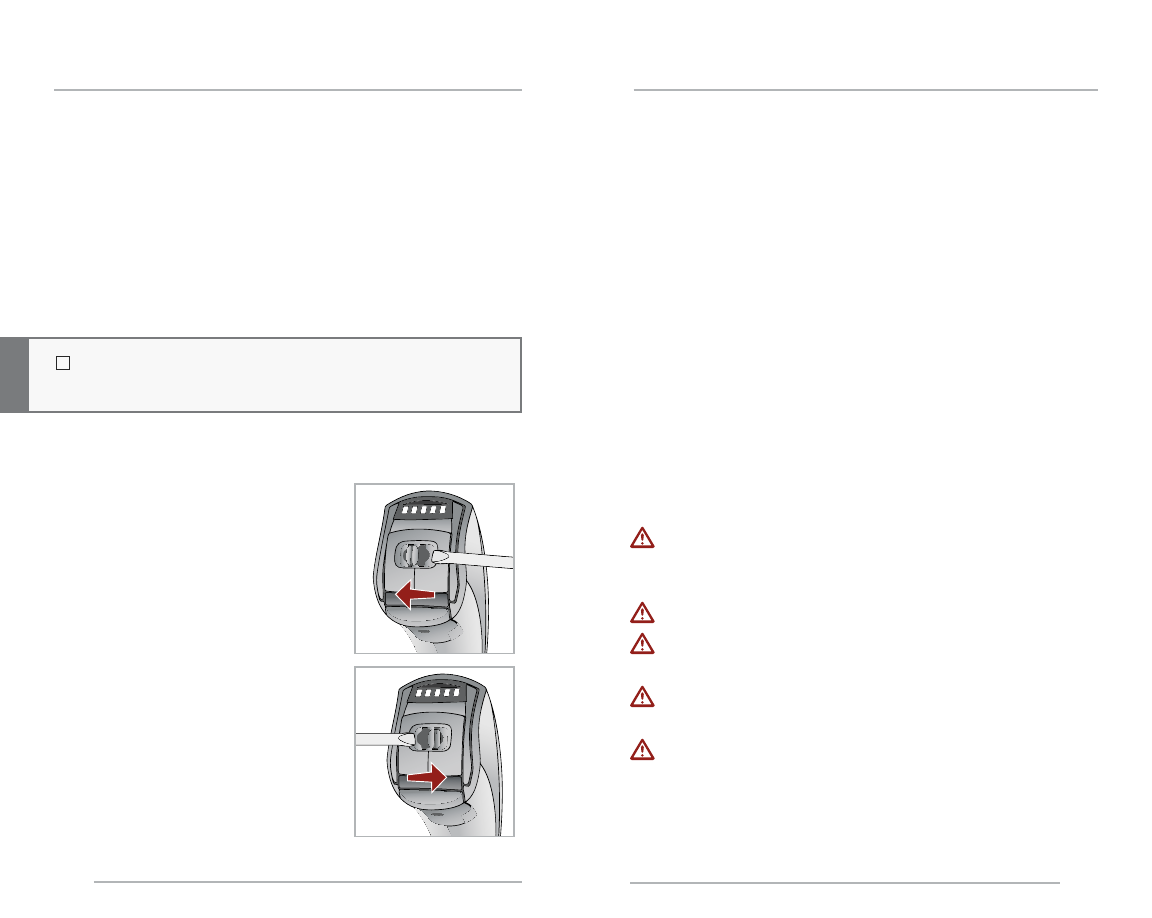

Tamper Resistant Battery Compartment
To lock the battery door:
Use an appropriate tool to slide
the recessed switch to the left
until it “clicks” and the colored
mark is visible.
To unlock the battery door:
Slide the recessed switch to the
right until it “clicks” and the
colored mark disappears.
Locking the door is not required
for operation.
My hearing instrument has a tamper resistant
battery compartment. See below.
Warnings
Batteries are dangerous if swallowed. To help
prevent the accidental ingestion of batteries:
Keep out of reach of children and pets
Check your medications before taking them –
batteries have been mistaken for pills
Never put batteries in your mouth, as they can
easily be swallowed
National Button Battery Ingestion Hotline:
202-625-3333
14 15
Preparation Preparation
Helpful Hints
• Minor irritation and inflammation may occur as your
ear becomes accustomed to having an object in it;
if so, please contact your hearing care professional.
• If an actual allergic reaction occurs, alternative
earmold materials are available; contact your
hearing care professional.
• Severe swelling, discharge from the ear, excessive
wax or other unusual conditions warrant immediate
consultation with a physician.

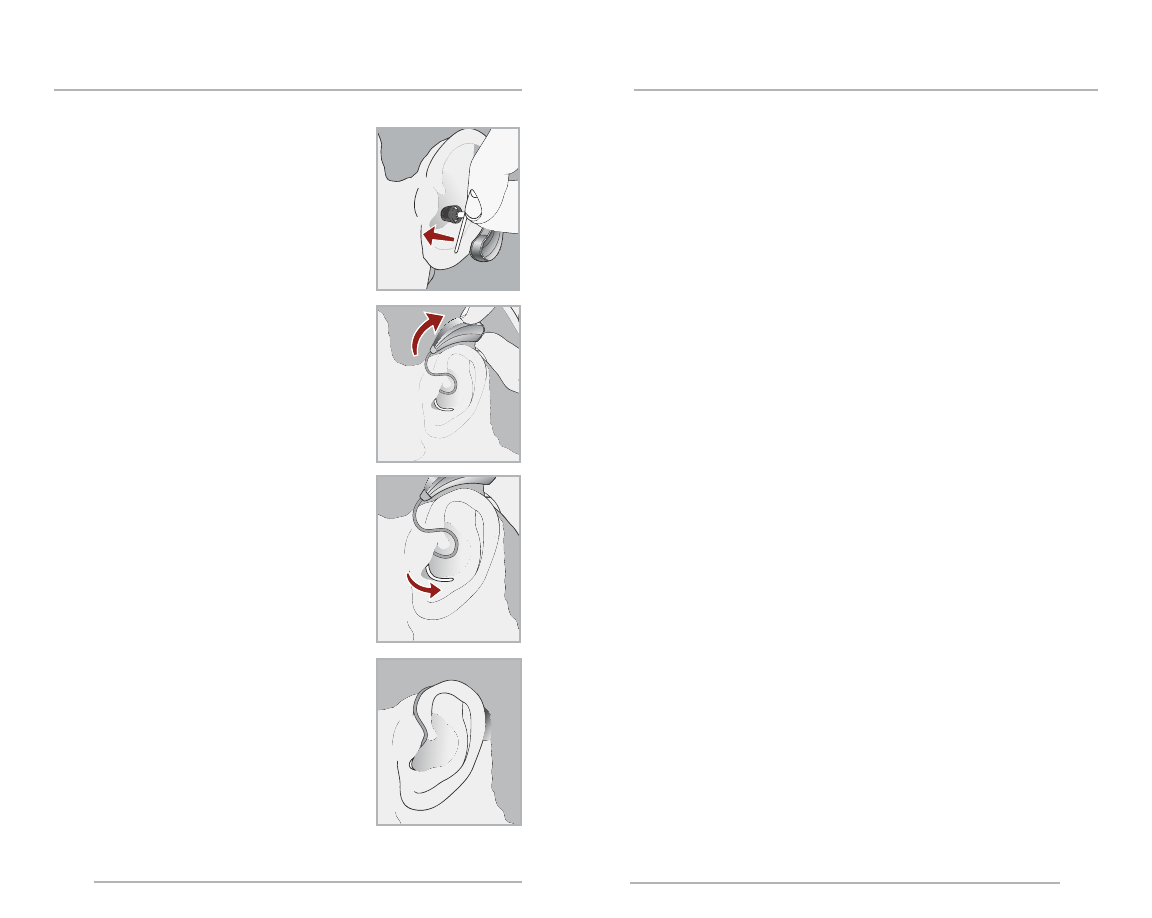

Insertion and Removal
To insert the earbud or earmold:
1. Hold the cable at the bend in front
of the receiver with your thumb and
forefinger. Gently insert the receiver
into your ear canal (fig. 1).
2. Wrap the hearing instrument over
the top of your ear, carefully placing
it behind your ear (fig. 2).
3. Place the retention lock inside the
bowl of your ear (fig. 3).
To remove the earbud
or earmold:
1. Remove the retention lock from the
bowl of your ear.
2. Remove the hearing instrument
from behind your ear.
3. Grasp the receiver with your thumb
and forefinger. Gently pull out of
your ear canal.
Do not pull with the hearing
instrument case as this may damage
the connection.
Figure 1
Figure 2
Figure 3
16 17
Operation Operation
On & Off
To turn ON: Insert a battery and completely close
the battery door.
To turn OFF:
Open the battery door until the battery is
no longer touching the battery contacts.
Your instrument has a Power-On delay and may require
a few seconds to power on. You may hear a tone series
indicating that your device is fully powered on.
Volume Control
Automatic Volume Control
Your hearing system has been set to a specific volume
level by your hearing care professional. If sounds are
generally too loud or too soft, please contact your
hearing care professional for advice and adjustment.
Adjustable Volume Control

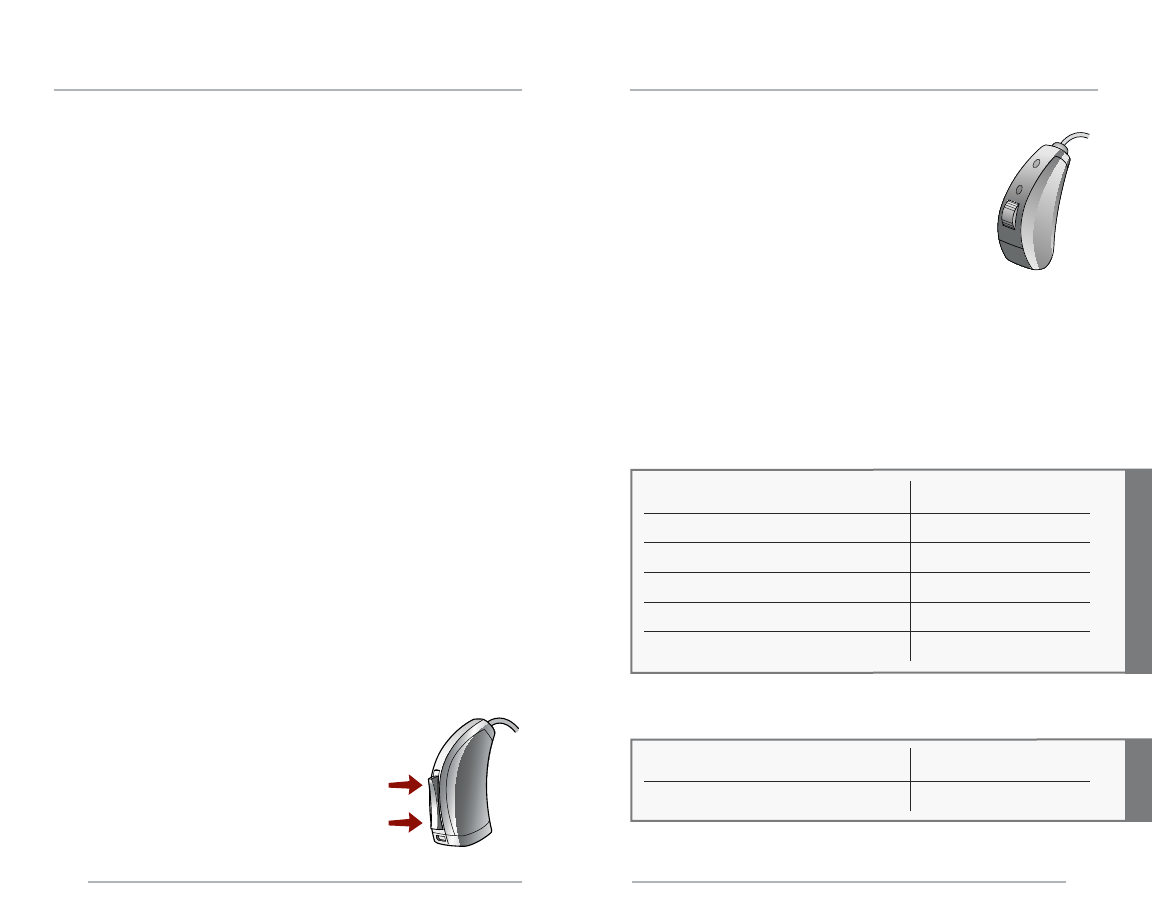

Push Button/Control Surface Volume Control
Your hearing system uses the control surface/push button
to control volume. To change volume, press then release
the control surface/push button.
Rocker Switch Volume Control
Your hearing system uses the rocker switch
to control volume. To increase volume,
press then release the top part of the
switch. To decrease volume, press then
release the bottom part of the switch.
Volume Level Tone
Level 5 (More volume) Five beeps plus tone
Level 4 Four beeps
Level 3 (Power on volume level) Three beeps
Level 2 Two beeps
Level 1 (Less volume) One beep plus tone
Volume Level Tone
Optimal volume setting One beep
Rotary Volume Control
Your hearing system uses a rotary volume
control to adjust volume.Turn the wheel
up (higher number) to increase volume.
Turn the wheel down (lower number) to
decrease volume.
Volume Settings
Some hearing systems can be set for the Right device
to increase the volume and the Left device to decrease
the volume. Ask your hearing care professional if this
setting would benefit you.
Push Button/Rocker Switch/Control Surface Volume Control
Rotary Volume Control
18 19
Operation Operation
My hearing instruments have the following
telephone setting(s):
Automatic Telephone. See below.
Automatic Telecoil. See below.
Telecoil and Manual Switching.
(Program # ____________________ ).
None
Telephone Use
Some hearing instruments are equipped with
tools to help you effectively communicate on
the telephone. Ask your hearing professional about
your telephone solution.
Automatic Telephone and Automatic Telecoil
These options activate the telephone response
automatically when used with a hearing aid compatible
telephone. To use, place the telephone receiver
on your ear as you normally would and the hearing
instrument will select the telephone setting. It might
be necessary to move the telephone receiver slightly
to find the best reception.
Once the telephone is removed from the ear, the
hearing instrument will switch back to the normal
listening mode.
NOTE: Consult with your hearing professional if
your device does not seem to switch to the telephone
setting automatically.
Multimemory
Your hearing care professional may be able to set up
to four hearing programs for you. These additional
programs are accessed by pressing the control surface/
push button/rocker switch.
When you press the control surface/push button/rocker
switch, you may hear an alert indicating the device
has changed to the next program. Ask your hearing
professional about your specific hearing programs.
Combined Volume and Multimemory Control
Your hearing device is set up to adjust volume and
programs. To adjust volume, press then release the
switch. To change programs, press and hold the switch.
The hearing aid will cycle through the programs and
present indicators. Release the switch when you are at
the desired program.
20 21
Operation Operation
DISCLAIMER – Some hearing aid users have reported
a buzzing sound in their hearing aids when they are
using cell phones, indicating that the cell phone and
hearing aid may not be compatible. According to the
ANSI C63.19 standard (ANSI C63.19-2007 American
National Standard Methods of Measurement of
Compatibility Between Wireless Communications
Devices and Hearing Aids), the compatibility of a
particular hearing aid and cell phone can be predicted
by adding the rating for the hearing aid immunity to
the rating for the cell phone emissions. For example,
the sum of a hearing aid rating of 2 (M2) and a
telephone rating of 3 (M3) would result in a combined
rating of 5. Any combined rating that equals at least 5
would provide “normal use;” a combined rating of 6 or
greater would indicate “excellent performance.”
The immunity of this hearing aid is at least M2/T2.
The equipment performance measurements, categories
and system classifications are based upon the best
information available but cannot guarantee that all
users will be satisfied.
NOTE: The performance of individual hearing aids
may vary with individual cell phones. Therefore, please
try this hearing aid with your cell phone or, if you are
purchasing a new phone, be sure to try it with your
hearing aid prior to purchase. For additional guidance,
please ask your cell phone provider for the booklet
entitled “Hearing Aid Compatibility with Digital
Wireless Cell Phones.”
Manual Switching
Manual switching allows you to
switch the devices to telephone
mode when needed.
Ask your hearing professional
which program you should access
for manual telephone use.

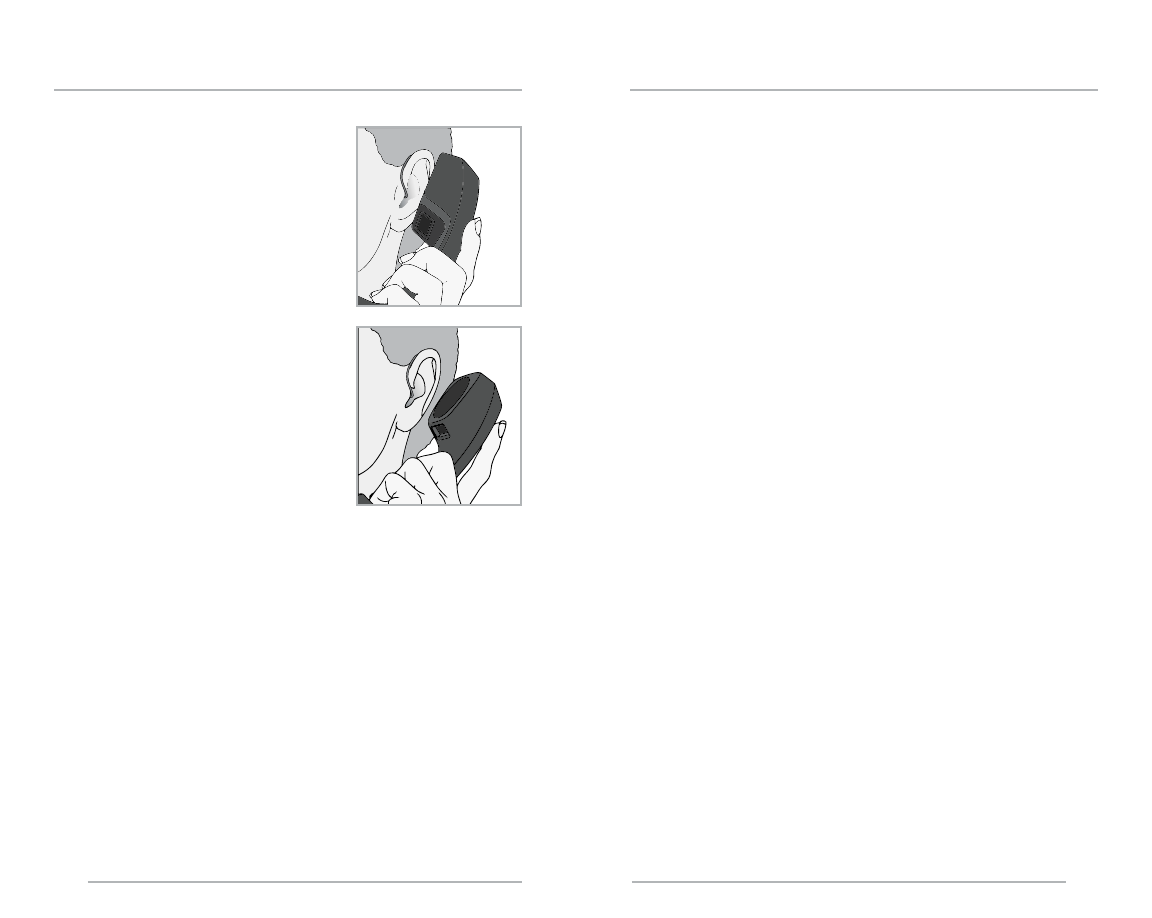

General Telephone Use
Some hearing instruments work
best by holding the phone close
to, but not fully covering your
ear. In some instances, if you
encounter whistling (feedback),
tilt the receiver at an angle until
the whistling stops. Additionally,
the hearing instrument in the
non-phone ear (ear opposite the phone) may switch
to a telephone setting to reduce background sounds.
Your hearing professional can provide instructions and
techniques for your specific needs.
22 23
Operation Operation
My hearing system is set up for DAI use.
My hearing system is not set up for DAI use.
See page 24.

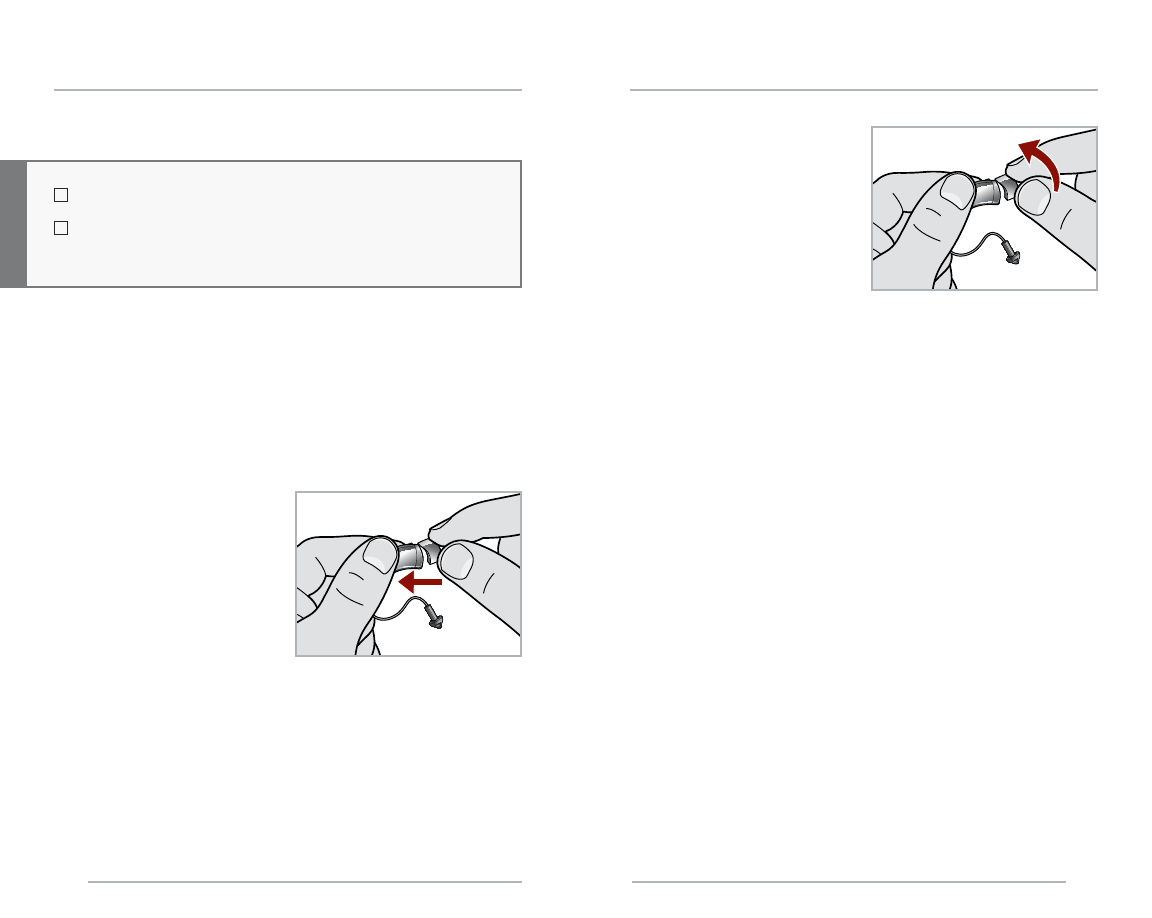

To access the
battery with the
DAI shoe attached:
Hold the RIC and DAI shoe
and press the lower part of
the DAI shoe, then open
the battery door.
To remove the DAI shoe:
Turn the RIC on the side. Grasp the RIC in one hand
and the DAI shoe in the other. Gently bend at the seam
between the DAI shoe and the hearing aid.
There are many FM systems available to help improve
communication in challenging environments. Ask your
hearing care professional about personal
FM systems.
Direct Audio Input (DAI)
Your hearing system has full direct audio input (DAI)
capability. This allows you to connect your hearing
system to an electronic sound source such as a wireless
FM system, computer audio or an MP3 player. DAI
can improve communication and sound quality when
reverberation, distance and background noise compete
with what you want to hear.
To attach the DAI shoe:
Snap the DAI shoe on the
bottom of the RIC.
25
Hearing System Care
24
Accessories
*Wireless accessories are only compatible with hearing aids that have wireless technology.
80
Starkey offers various methods of wax protection for your hearing instruments.
The following is a brief description of some of our wax protection options:
WAX PROTECTION GUIDE

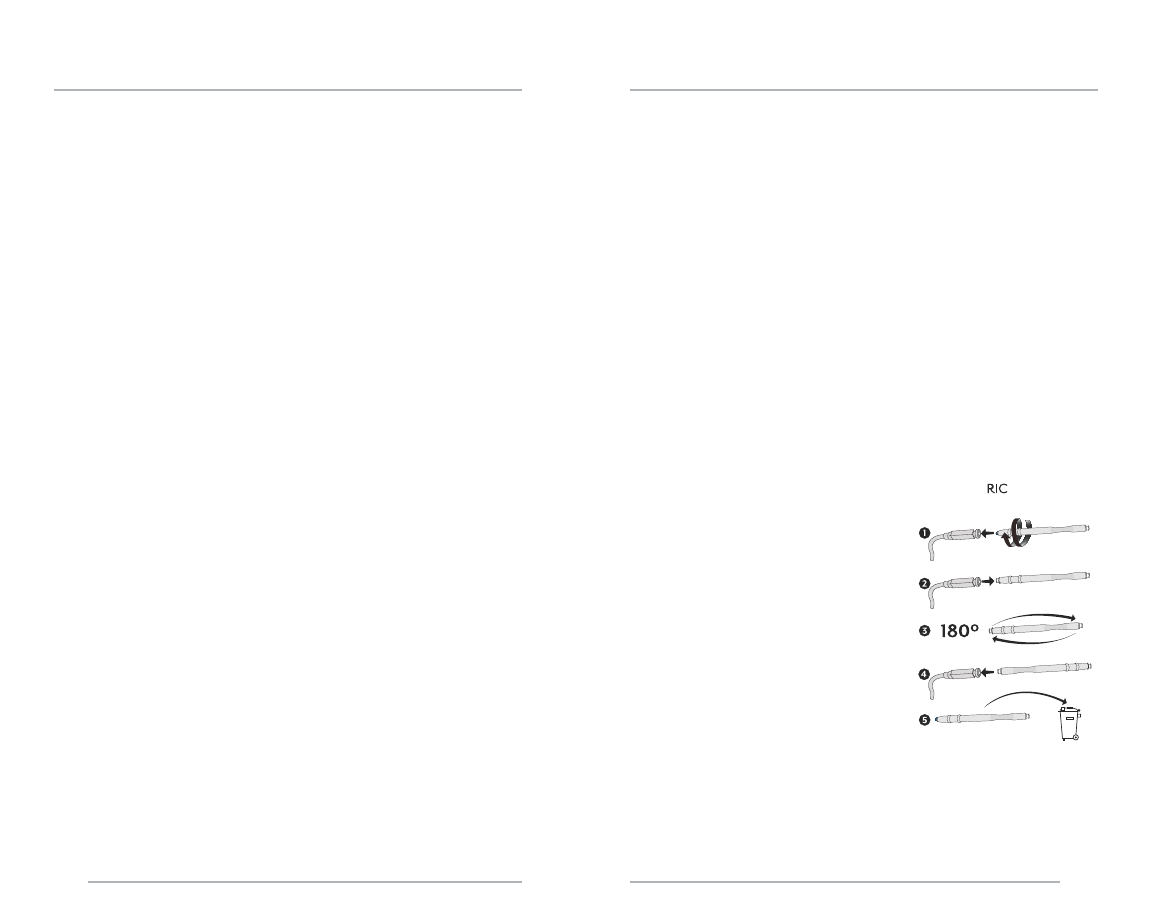

HearClear™*
The Hear Clear exclusive earwax
protection system uses disposable
wax guards. The innovative wax
guards prevent earwax accumulation
in the hearing aid receiver. The Hear
Clear is incompatible with Extended
Receiver Tube, Biconic Wax Guard
and Canal Bell.
Biconic Wax Guard (Wax Spring)
The Biconic Wax Guard is a small coil basket inserted into the
receiver tubing of the hearing aid to prevent wax from reaching
the receiver. The wax spring is typically removed and replaced by a
hearing professional.
Extended Receiver Tubing
The Extended Receiver Tubing increases the distance wax must travel
before reaching the receiver. It potentially allows the user to visualize
the presence of wax before it enters the receiver of the hearing aid.
The Extended Receiver Tubing is incompatible with Waxceptor.
Canal Bell
The Canal Bell recesses the receiver of the hearing aid, making
it more difficult for wax to reach the receiver. The Canal Bell is
incompatible with the Waxceptor.
Instrument Care
Do your best to keep your hearing instrument clean at
all times. Heat, moisture and foreign substances can
result in poor performance.
• Use a cleaning brush or soft cloth to clean debris
from around the switches, microphone and battery
compartment; inspect the receiver, earbud or eartip
and Wax Guard regularly.
• Never use water, solvents, cleaning fluids or oil to
clean your instrument.
Your hearing care professional can provide further
information on additional maintenance procedures for
your hearing system if needed.
Hear Clear™
The Hear Clear exclusive
earwax protection system
uses disposable wax guards.
The innovative wax guards
prevent earwax accumulation
in the hearing aid receiver.
Wireless Accessories*
There are several wireless accessories that allow you to
control and maximize the full potential of your hearing
system. These include a remote control as well as wireless
connection to your cell phone and entertainment system.
Consult with your hearing professional to determine if
your hearing aids have wireless capabilities and which
accessories may be best for you.
26 27
Hearing System Care Hearing System Care
Troubleshooting Guide
SYMPTOM POSSIBLE
CAUSES
SOLUTIONS
Not Loud
Enough
Low battery Replace battery
Blocked
earmold/tubing/
earbud
Clean or replace Wax
Guard as needed
Hearing change Contact your hearing
care professional
Debris buildup Clean both microphone
and receiver with brush
Inconsistent
Performance
Low battery Replace battery
Blocked
earmold/tubing/
earbud
Clean or replace Wax
Guard as needed
Unclear,
Distorted
Performance
Low battery Replace battery
Blocked
earmold/tubing/
earbud
Clean or replace Wax
Guard as needed
Defective hearing
instrument
Contact your hearing
care professional
Dead
Low battery Replace battery
Blocked
earmold/tubing
Clean or replace Wax
Guard as needed
Crimped tubing Contact your hearing
care professional
Helpful Hints
• When not wearing your hearing system, open the
battery door to allow any moisture to evaporate.
• When not in use, remove the batteries completely;
place your hearing system in the storage container
and store:
– In a dry, safe place
– Away from direct sunlight or heat to
avoid extreme temperatures
– Where you can easily find them
– Safely out of reach from pets and children
• Do not take apart your hearing instruments or
insert the cleaning tools inside them.
Service and Repair
If, for any reason, your hearing system does not operate
properly, do NOT attempt to fix it yourself. Not only
are you likely to violate any applicable warranties or
insurance, you could easily cause further damage.
Should your hearing system fail or perform poorly,
check the guide on the next page for possible
solutions. If problems continue, contact your
hearing care professional for advice and assistance.
Many common problems may be solved right in
your hearing care professional’s office or clinic.
28 29
Tips for Better Communication Tips for Better Communication
For Your Family and Friends
Your family and friends are also affected by your
hearing loss. Request that they:
• Get your full attention before beginning
to speak
• Look at you or sit face-to-face in a quiet room
• Speak clearly and at a normal rate and level;
shouting can actually make understanding
more difficult
• Rephrase rather than repeat the same words;
different words may be easier to understand
• Minimize distractions while speaking
Your hearing care professional will recommend an
appropriate schedule to help you adapt to your new
hearing system. It will take practice, time and patience
for your brain to adapt to the new sounds that your
hearing system provides. Hearing is only part of how
we share thoughts, ideas and feelings. Reading lips,
facial expressions and gestures can help the learning
process and add to what amplification alone may miss.
Please review the following simple
communication tips:
For You
• Move closer to and look at the speaker
• Sit face-to-face in a quiet room
• Try different locations to find the best place
to listen
• Minimize distractions
• Background noises may be frustrating at first;
remember, you have not heard them for a while
• Let others know what you need; keep in mind that
people cannot “see” your hearing loss
• Develop realistic expectations of what your hearing
instruments can and cannot do
• Better hearing with hearing instruments
is a learned skill combining desire, practice
and patience
30 31
Safety Information Safety Information
*Applies to wireless hearing instruments only
Your hearing instruments should be stored within the
temperature and humidity ranges of -40oC (-40oF) to
+60oC (140oF) and 10%-95% rH.
Your hearing instruments are designed to operate
beyond the range of temperatures comfortable to
you, from very cold up to 50oC (122oF).
Use on Aircrafts*
The optional wireless capabilities that may be featured
in your hearing instruments should not be used on
an aircraft unless specifically permitted by the flight
personnel. Your hearing care professional can enable
a special program that allows your hearing aids to work
without wireless functionality.
International Use*
Your hearing instruments are approved to operate
at a radio frequency that is specific to your country
or region and might not be approved for use outside
your country or region. Be aware that operation during
international travel may cause interference to other
electronic devices, or other electronic devices may
cause interference to your hearing instruments.
Safety Information
INTENDED USE: An air conduction hearing aid is a
wearable sound-amplifying device that is intended
to compensate for impaired hearing. Hearing aids
are available in multiple gain/output levels appropriate
to treat hearing losses ranging from mild to profound.
Your hearing instruments are designed to comply
with the most stringent Standards of International
Electromagnetic Compatibility. However, it is still
possible that you may experience interference caused
by power line disturbances, airport metal detectors,
electromagnetic fields from other medical devices,
radio signals and electrostatic discharges.
If you use other medical devices or wear implantable
medical devices such as defibrillators or pacemakers
and are concerned that your hearing instruments might
cause interference with your medical device, please
contact your physician or the manufacturer of your
medical device for information about the risk
of disturbance.
Your hearing instruments should not be worn
during an MRI procedure or in a hyperbaric chamber.
Your hearing instruments are not formally certified
to operate in explosive atmospheres such as may
be found in coal mines or certain chemical factories.
Your hearing instruments are classified as a Type B
applied part under the IEC 60601-1 medical
device standard.
32 33
FDA Information FDA Information
The audiologist or hearing aid dispenser will conduct a hearing aid
evaluation to assess your ability to hear with and without a hearing aid. The
hearing aid evaluation will enable the audiologist or dispenser to select and
fit a hearing aid to your individual needs.
If you have reservations about your ability to adapt to amplification, you
should inquire about the availability of a trial-rental or purchase-option
program. Many hearing aid dispensers now offer programs that permit
you to wear a hearing aid for a period of time for a nominal fee after
which you may decide if you want to purchase the hearing aid.
Federal law restricts the sale of hearing aids to those individuals who
have obtained a medical evaluation from a licensed physician. Federal
law permits a fully informed adult to sign a waiver statement declining
the medical evaluation for religious or personal beliefs that preclude
consultation with a physician. The exercise of such a waiver is not in your
best health interest and its use is strongly discouraged.
A hearing aid will not restore normal hearing and will not prevent or
improve a hearing impairment resulting from organic conditions. Use
of a hearing aid is only part of hearing habilitation and may need to be
supplemented by auditory training and instruction in lip reading. In most
cases infrequent use of a hearing aid does not permit a user to attain full
benefit from it.
CHILDREN WITH HEARING LOSS. In addition to seeing a physician for
a medical evaluation, a child with a hearing loss should be directed to an
audiologist for evaluation and rehabilitation since hearing loss may cause
problems in language development and the educational and social growth
of a child. An audiologist is qualified by training and experience to assist in
the evaluation and rehabilitation of a child with a hearing loss.
Required Information
The following additional information is provided in compliance with U.S.
Food and Drug Administration (FDA) regulations:
WARNING TO HEARING AID DISPENSERS. A hearing aid dispenser
should advise a prospective hearing aid user to consult promptly with
a licensed physician (preferably an ear specialist) before dispensing a
hearing aid if the hearing aid dispenser determines through inquiry, actual
observation, or review of any other available information concerning
the prospective user, that the prospective user has any of the following
conditions:
i. Visible congenital or traumatic deformity of the ear.
ii. History of active drainage from the ear within the previous 90 days.
iii. History of sudden or rapidly progressive hearing loss within the
previous 90 days.
iv. Acute or chronic dizziness.
v. Unilateral hearing loss of sudden or recent onset within the previous
90 days.
vi. Audiometric air-bone gap equal to or greater than 15 decibels at
500 Hertz (Hz), 1,000 Hz and 2,000 Hz.
vii. Visible evidence of significant cerumen accumulation or a foreign
body in the ear canal.
viii. Pain or discomfort in the ear.
IMPORTANT NOTICE FOR PROSPECTIVE HEARING AID USERS.
Good health practice requires that a person with a hearing loss have a
medical evaluation by a licensed physician (preferably a physician who
specializes in diseases of the ear) before purchasing a hearing aid. Licensed
physicians who specialize in diseases of the ear are often referred to as
otolaryngologists, otologists, or otorhynolaringologists. The purpose of the
medical evaluation is to assure that all medically treatable conditions that
may affect hearing are identified and treated before the hearing aid
is purchased.
Following the medical evaluation, the physician will give you a written
statement that states that your hearing loss has been medically evaluated
and that you may be considered a candidate for a hearing aid. The
physician will refer you to an audiologist or hearing aid dispenser, as
appropriate, for a hearing aid evaluation.
36 37
Notes Notes
38 39
Notes Notes
0086
© 2013 Starkey Hearing Technologies. All Rights Reserved.
85476-007 9/13 BKLT0331-02-EE-XX Rev. C
