ROLLTS DOMINO S1 User guide
Checklist before using the device
Federal Communications Commission statement
NOTE : Change or modification not expressly approved by the party responsible for Compliance could
void the user’s authority to operate the equipment.
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio, TV technician for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the
grantee or manufacturer could void the user’s authority to operate such equipment,
NOTE : Exposure to Radio Frequency Radiation. Antenna shall be mounted in such a manner to
minimize the potential for human contact during normal operation.
The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC
radio frequency exposure limit.
NOTE : This device complies with part 15 of the FCC Rules.
NOTE : Operation is subject to the following two Conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation
NOTE : This appliance and its antenna must not be co-located or operated in conjunction with any
other antenna or transmitter.

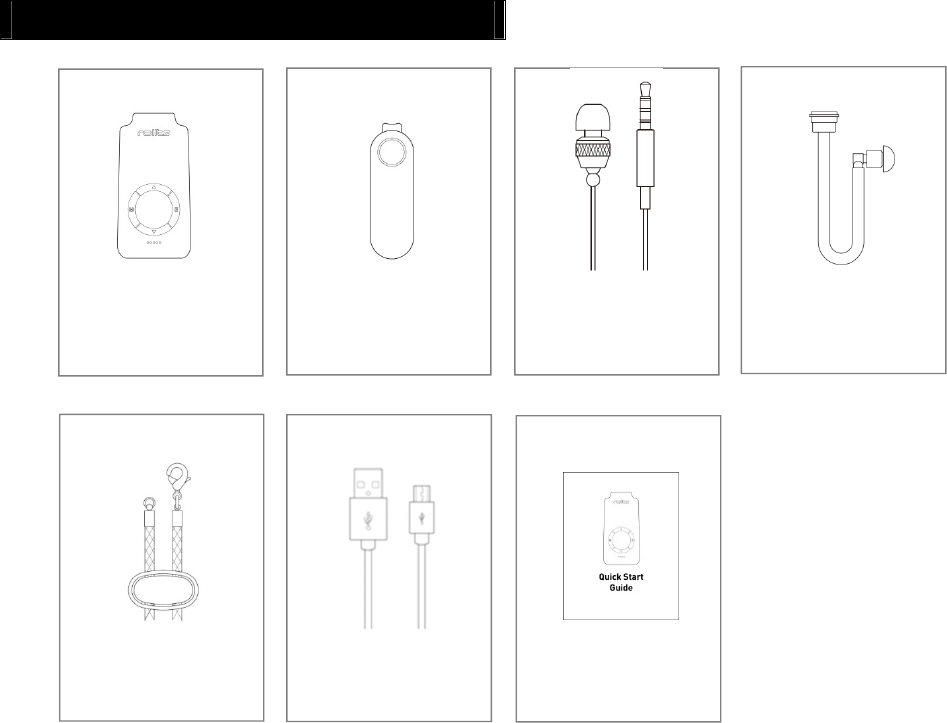

Airtube
Clip
Device
Quick start guide
Earset
(Including extra ear caps)
Charging cable
Necklace
(Length adjustable)
Industry Canada statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two Conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.”
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire
de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Component

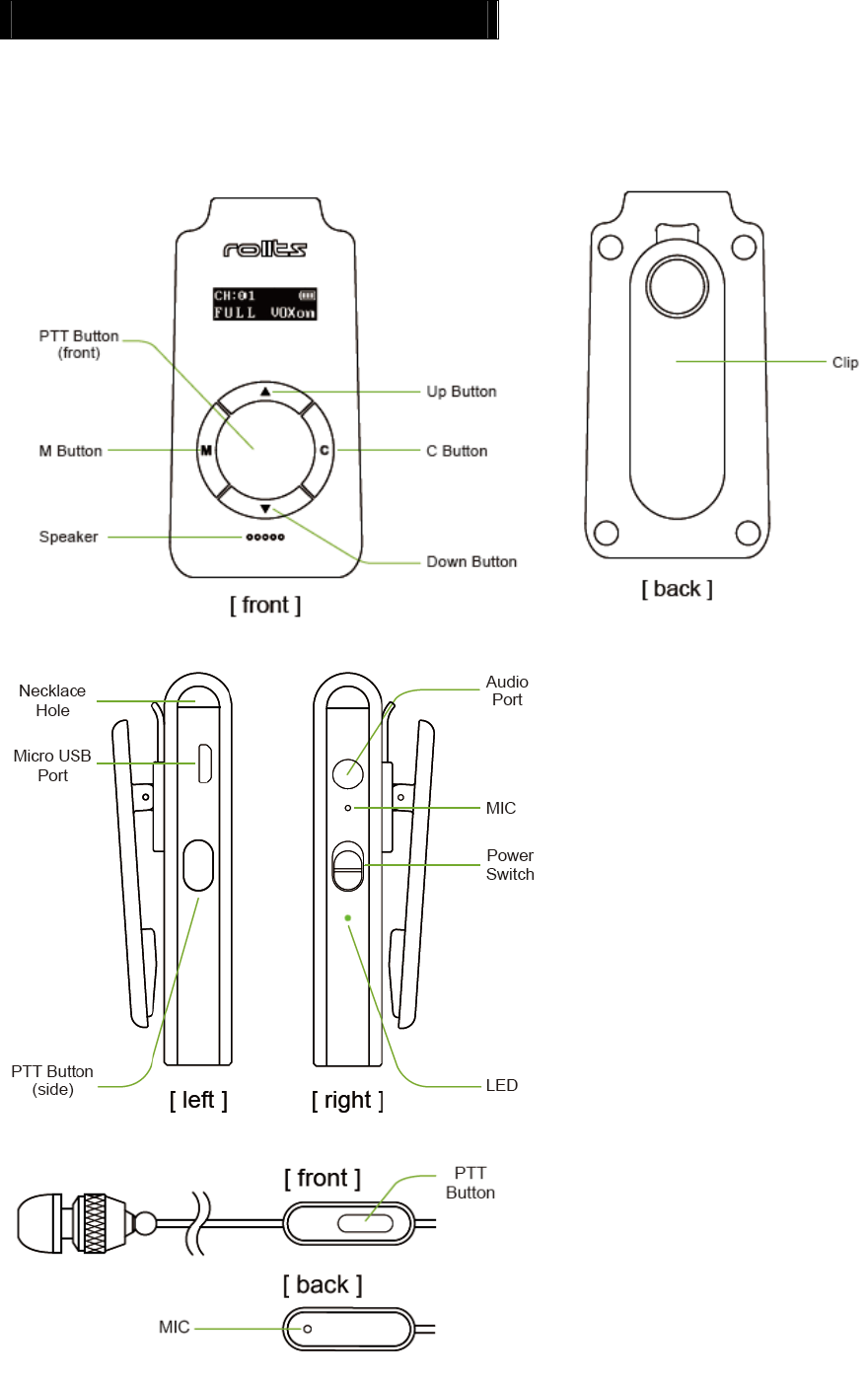

Component names
1. ROLLTS DOMINO S1
2. LCD
Use
1. Charge
Type LED LCD
When charging is in
progress,
Red Each one of three white
cells pops up over time.
When charging is complete,
Green Full with three white cells.

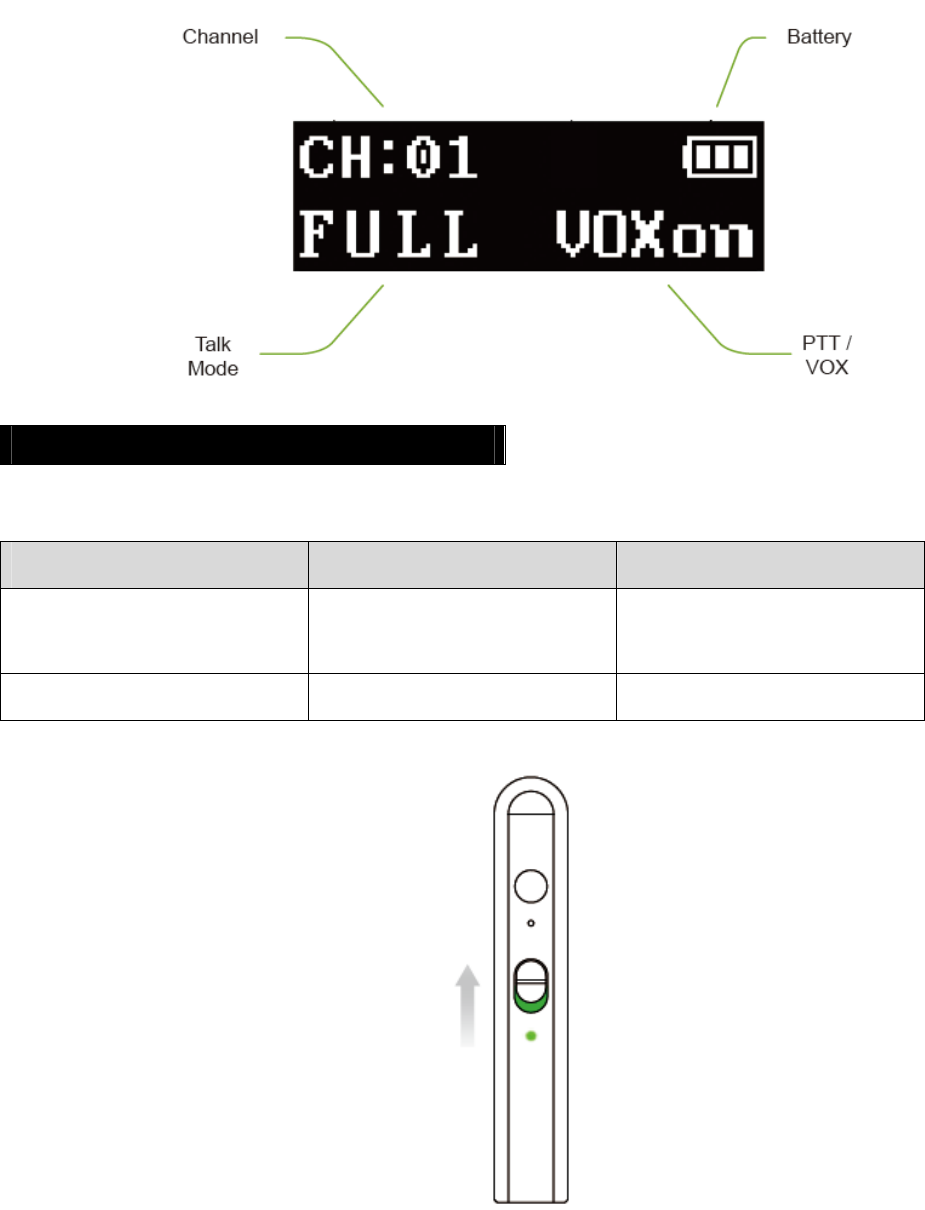

2. Turn on
The power switch is on
3. Earset connection

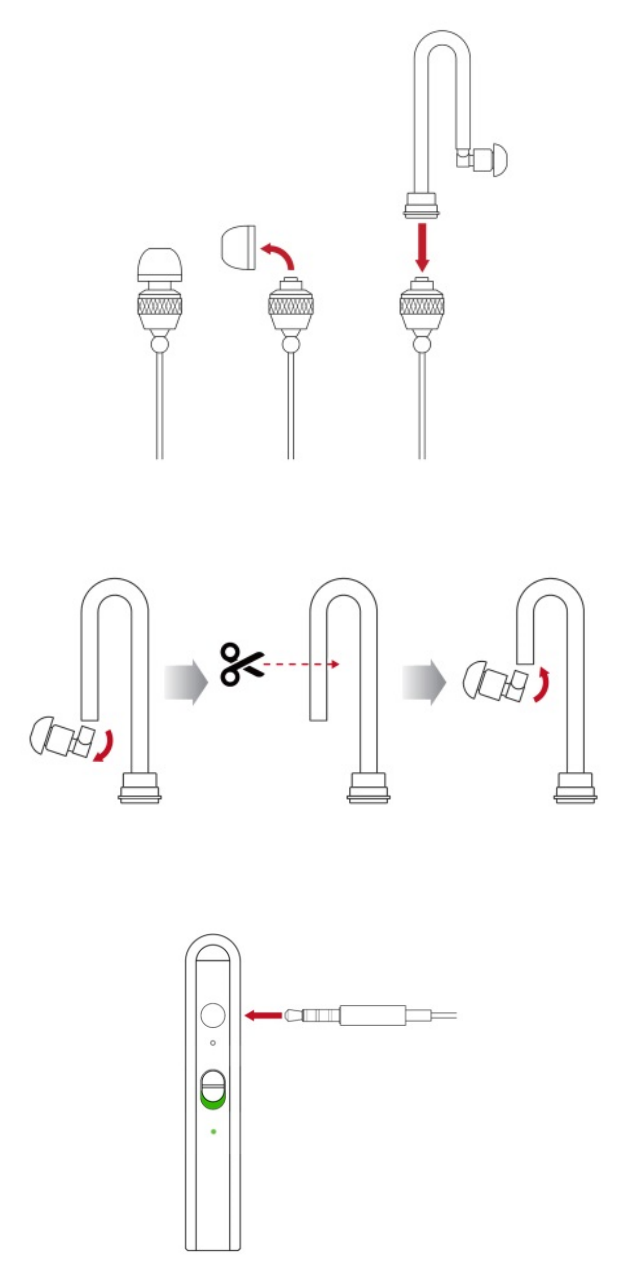

Selecting an ear cap
The adjustment of airtube length
Connecting to the device
4. Using the speaker system
5. Volume up/down
The volume goes up by one notch as you push the ‘UP’ button one time.
The volume goes down by one notch as you push the ‘DOWN’ button one time.
6. Button lock
+ more than 2 seconds.
7. Communication (default setup)
① Talk to the device while pushing the PTT button to send your voice to a person on the other device.
Stop pushing the button when you stop talking.
② The earset or the speaker enable you to hear what the other person says if there is a response.
8. Vibration call
more than 2 seconds.
9. Emergency call
Push PTT button repeatedly at a fast speed (3 times within one second).
Select how to wear device

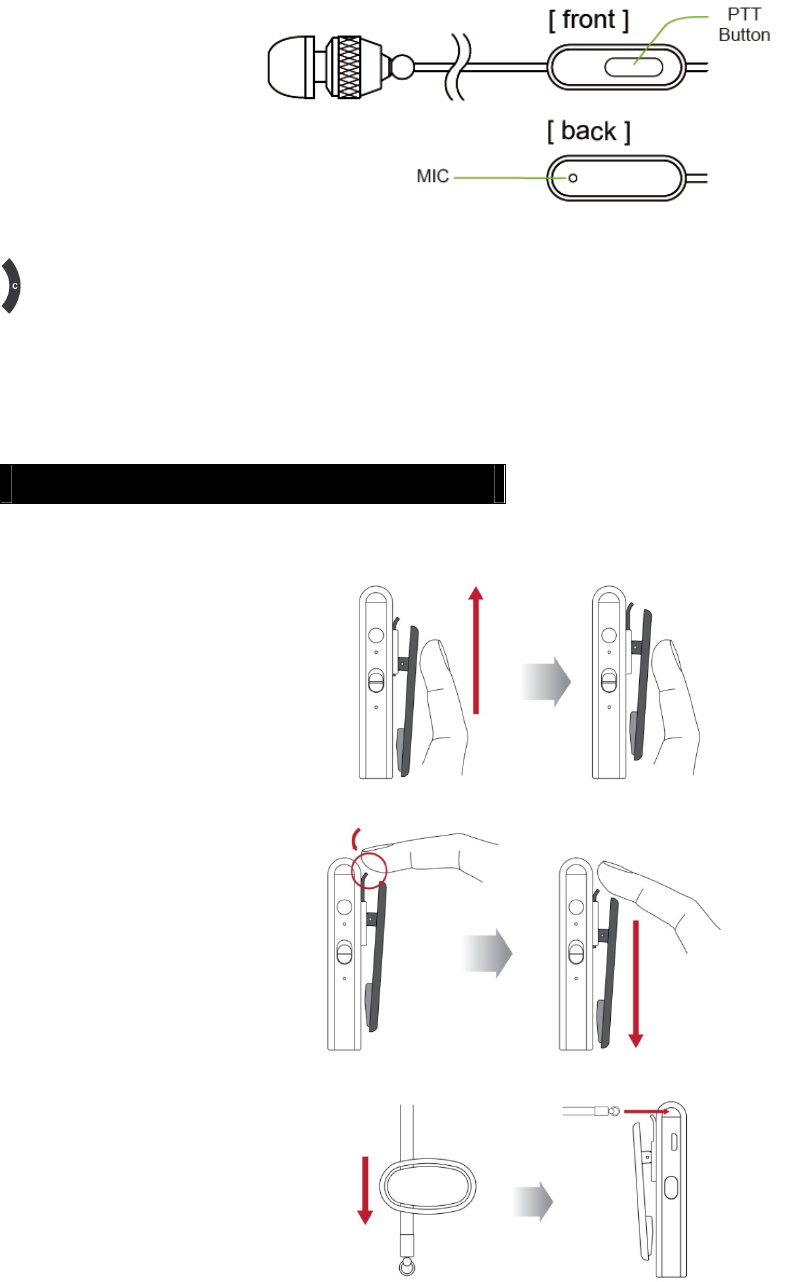

1. Clip
How to put the clip onto the device
How to detach it
2. Necklace
Checklist for setting up the menu
1. Enter the menu
Enter the menu by pushing the ‘M’ button for more than 2 seconds.
2. Move to a menu item
In the menu, move to an item from another item by pushing the ‘M’ or ‘C’ buttons.
3. Select an item
An item in the menu can be selected by pushing the PTT button (front).
4. Adjust and Move to a value
Adjust it by pushing the ‘UP’ or ‘DOWN’ buttons.
Move to a value from another value by pushing the ‘M’ or ‘C’ buttons.
5. Complete
When the set value blinks, user presses the PTT button (front) the blinking stops and the setting is
complete.
6. Leave the menu
Push the ’M’ button for more than 2 seconds to leave it. You will automatically leave the menu if
you stay there for more than 10 seconds.
Menu items
Optionally, you can use the Bluetooth Functionality. ROLLTS DOMINO can be used by
connecting with a device that supports Bluetooth function.
1. TALK MODE: Every kind of communication is viable between devices whose ‘TALK MODE’ and
‘CHANNEL’ match each other. Hi-fi half and hi-fi full are high-quality voice modes that are best used
for short-range communications.
Half-duplex -> Not available for simultaneous ‘transmit’ & ‘receive’ functions. Talking and listening
available by taking turns. It works in the same way as other typical radios. Only one radio in the group
is allowed to talk.
Full-duplex -> Available for simultaneous ‘transmit’ & ‘receive’ functions. Able to listen while talking.
Two radios in the group are allowed to talk at the same time.
Tri full-duplex -> Available for three-way simultaneous ‘transmit’ & ‘receive’ functions. Three radios in
the group are allowed to talk at the same time.
Hi-fi half -> Using the same communication method as the half-duplex mode, this mode allows for
high-quality voice communications.
Hi-fi full -> Using the same communication method as the full-duplex mode, this mode allows for
high-quality voice communications.
Repeater user -> It is a function that can improve communications status by using ROLLTS DOMINO
Repeater (Optional) in inners spaces with bad connection.
2. CHANNEL: Every kind of communication is viable between devices with a ‘TALK MODE’ and
‘CHANNEL’ that match each other.
3. GROUP: If the line is mixed up or the ‘CHANNEL’ is already taken by other people, set the ‘GROUP’.
By doing so, communication becomes viable between devices whose ‘GROUP’ matches each other.
4. ENCRYPTION: You can talk with people only if their encryption code is identical to yours.
5. PTT/VOX: Voice communication can be sent while pushing the PTT button. And, the radio will
recognize your voice and then send it automatically. ‘VOX’ sends all of the voices that it recognizes.
6. VOX LEVEL: The ‘VOX LEVEL’ enables you to control the sensitivity levels of recognized voices when
the ‘VOX’ function is turned on.
7. EMERGENCY: ‘EMERGENCY CALL’ is a function to make a call in an emergency. For example, if you
are in an emergency, this function helps you send an emergency call to others on a regular basis, no
matter which channel is being used. Those who receive the signal can respond to you through the
ROLLTS DOMINO.
Sending an emergency call
A person in an emergency pushes PTT button (front) repeatedly at a fast speed (3 times within one
second) to send an emergency call to other devices.
8. SIDE TONE: With the ‘SIDE TONE’ on, a voice message can be heard through the earset, making it
possible for you to check if it has been sent.
9. MIC GAIN: The MIC GAIN allows you to adjust the microphone volume.
10. ROGER BEEP: Setting the "ROGER BEEP" value to "On" generates a beep at the end of each
reception.
11. RF POWER: The RF POWER allows you to adjust the strength of the transmission signal.
12. DEFAULT SET: All of the values that have been tuned or changed to meet the needs of the user
will be returned to their default settings.
13. VERSION: It is used to check the version of your product.
Features
Size (H x W x D): 77 x 39 x 13 mm (3.0 x 1.5 x 0.5 inches)
Weight: 42 g (1.48 oz)
Multi-party call: Tri full-duplex
Range (Line of Sight): Up to 3 km (1.86 miles)
Stand-by: One month
Usable time: 7 days
(1day (24h) = 8h talk time + 16h stand-by)
(Talk time: 5-5-90 duty cycle)
(Usable time can be longer by setting RF POWER)
Encryption: AES-256
Frequency hopping: 902-928 MHz ISM band, 50 channels, 1,000 groups/channel
<NOTE>
The maximum range is 3 km with a clear line of sight. The indoor range may be
less if there are any obstacles, such as steel or concrete structures.
The ‘Stand-by’ features our unique low-power technology. It can remain on
standby for the maximum hour.
The ‘Talk time’ features our unique low-power technology. Based on the
estimated standard usage (5:5:90, i.e., a usage ratio of 5% reception, 5%
transmission and 90% standby), it can be used for the maximum hour.
Frequency hopping applied ROLLTS DOMINO ensures clearer and more secure
communication by eliminating any frequency interference between systems. (The
radio transmits a limited number of data packets over multiple channels and
hops through each in a set pattern.)
