Strata Proximity Systems
Surface Display with Integral Silent Zone Transmitter
Users Manual v1.0
2011
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 2 of 7
Strata Proximity Systems Surface Display with Silen Zone Users Manual v1.0
Confidential and Proprietary
October 19, 2011
Table of Contents
1 Overview .............................................................................................................................3
1.1 Theory of Operation ......................................................................................................3
1.2 Frequency of Operation ................................................................................................4
1.3 Label Information..........................................................................................................4
1.4 FCC Information ............................................................................................................5
2 Operation ............................................................................................................................5
2.1 Installation Information ................................................................................................5
2.1.1 Interoperability Warning ........................................................................................6
2.2 Charging ........................................................................................................................6
2.3 Alerts ............................................................................................................................6
2.4 Maintenance .................................................................................................................6
3 Warranty .............................................................................................................................6
4 Revision History ...................................................................................................................7
4.1 Version 1.0 – October 6, 2011 .......................................................................................7
Strata Proximity Systems, LLC
1769 Jeff Road
Huntsville, AL 35806
1.800.691.6601
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 3 of 7
Strata Proximity Systems Surface Display with Silen Zone Users Manual v1.0
Confidential and Proprietary
October 19, 2011
1 Overview
The Surface Display with Silent Zone Transmitter is part of a complete HazardAvert proximity
warning system from Strata Proximity Systems which provides warnings to both individuals and
to machinery to alert them that the individual has entered too close to an operating piece of
equipment and is in a dangerous situation or that vehicles or machinery are getting close
enough that a collision possibility exists. The Surface Display with Silent Zone Transmitter is
mounted on a vehicle or piece of machinery and is connected to a central control unit.
1.1 Theory of Operation
The functions of the Surface Display with Silent Zone Transmitter are:
To transmit a 73 kHz “Silent Zone” field around a small portion of the vehicle or piece of
machinery in which the operator is allowed to safely work or enter as part of his normal
activities.
To provide a visual and audable indication to the operator as to the status of the HazardAvert
system in relation to this particular vehicle or piece of machinery.
The Surface Display with Silent Zone Transmitter is connected to the HazardAvert Central
Controller, which under the control of a microcontroller, generates a 73 kHz signal for
creating a Silent Zone around the area of a machine where the Display and Operator are
located. This 73 kHz signal is connected to the Surface Display with Silent Zone Transmitter
along with other signals via a wire bundle connected to a bulkhead connector on the
housing of the Surface Display. Inside the Surface Display with Silent Zone Transmitter
housing is a wire / ferrite radiator element to which the 73 kHz signal is connected. The 73
kHz signal passing through this wire / ferrite radiator element generates a 73kHz “Silent
Zone” electromagnetic field which encompasses only the small area of the vehicle or
machine in which the operator can safely be during operation. The operator is required to
wear a Personal Alarm Device (PAD) which is another component of the HazardAvert
system which detects and responds to the presence of 73 kHz fields. As long as the
operator is within this “Silent Zone” his PAD will know he is within a safe area. If the
operator exits this Silent Zone safe area, his PAD will function to alert him and other
machines or vehicles equipped with the HazardAvert system of his proximity to dangerous
conditions due to his distance from machine or vehicle hazards. The Surface Display with
Silent Zone Transmitter also indicates to the operator the status of the system via a series
of LEDs. There is an LED which indicates that the system is powered, an LED that indicates if
there is an individual or other machinery close enough to warrant a “Warning” condition
and another LED that indicates if there is an individual or other machinery close enough to
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 4 of 7
Strata Proximity Systems Surface Display with Silen Zone Users Manual v1.0
Confidential and Proprietary
October 19, 2011
warrant a “Danger” condition. The Surface Display also has a LED to indicate if there is a bus
communication failure with the Central Controller. The Surface Display also has 4 LEDS
which in the case or a Warning or Danger condition, indicate which Surface Proximity
Modules (another component of the HazardAvert System) are detecting the Warning or
Danger condition.
There is also a sounder on the Surface Display with Silent Zone Transmitter which creates
audible alerts to the operator of a Warning or Danger condition.
The Surface Display with Silent Zone Transmitter also contains a Bluetooth Transceiver
which is FCC approved as an integratable module for transferring logged data from the
HazardAvert system to an external Personal Computer for analysis.
1.2 Frequency of Operation
The Silent Zone Transmitter will transmit on a frequency of 73 kHz.
1.3 Label Information

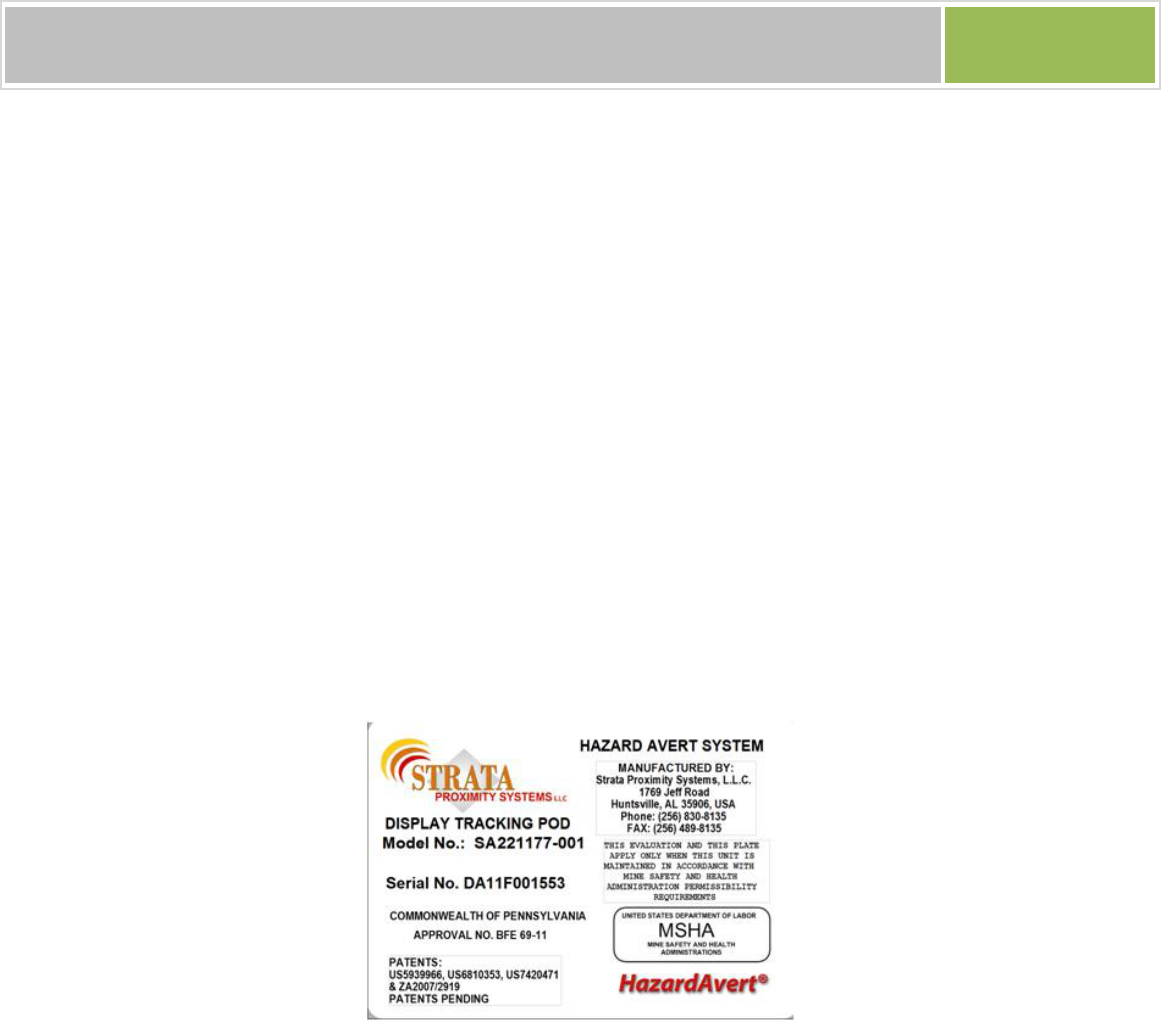

The Surface Display label is located on the face of the unit. A picture of the Strata label is below:
The Strata label defines the model and serial number of the Surface Proximity Module also
MSHA and Commonwealth of Pennsylvania information.
1.3.1.1 MSHA Blasting Distance
MSHA has published Program Policy Letter P11-V-07 concening Two Way Communications and
Blasting Circuits.
SPS magnetic field generators produce a magnetic field that at 100 kHz or .1000 MHz does not
achieve the Critical H Field until 1.42 m with a blasting cap having a pickup area of 10 sq.
meters.
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 5 of 7
Strata Proximity Systems Surface Display with Silen Zone Users Manual v1.0
Confidential and Proprietary
October 19, 2011
SPS magnetic field generators are safe to 1.42 m from the blasting caps. SPS does recommend
a minimum distance of 25’ as a precaution.
1.3.1.2 Pennsylvania Blasting Distance
At this date, Pennsylvania has not made a recommendation or statement concerning surface
systems.
1.4 FCC Information
The FCC ID for the Surface Display with Silent Zone is ZQ3-SPS-SDMOD. When configured by
Strata for underground use, the device complies with Part 15 of the FCC Rules. Operation is
subject to the following conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference that may
cause undesired operation.
Any intentional or unintentional changes or modifications to the configuration of the Surface
Display with Silent Zone not expressly approved by Strata Proximity Systems LLC could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
2 Operation
2.1 Installation Information
The Surface Display with Silent Zone is mounted on a vehicle or piece of machinery. Metal near
the Surface Proximity Module may impact performance. After installing the Surface Display
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 6 of 7
Strata Proximity Systems Surface Display with Silen Zone Users Manual v1.0
Confidential and Proprietary
October 19, 2011
with Silent Zone on the machine, performance of the unit should be verified by calibration and
test.
2.1.1 Interoperability Warning
The Surface Display with Silent Zone may experience erratic responses when in very close
proximity to some electronic devices. Electrical devices may transmit an electrical field and
noise from these fields may cause interference with the Surface Proximity Module. A safe
guideline is to keep the Surface Proximity Generator at least 75 mm away from any electrical
devices included but not limited to methane monitor, radio, mobile phone, GPS, PDA, battery
charger and laptop computers.
2.2 Charging
The Surface Display with Silent Zone is directly powered from the controller board and requires
no internal battery or charging.
2.3 Alerts
The Surface Display also has 4 LEDS which in the case or a Warning or Danger condition,
indicate which Surface Proximity Modules (another component of the HazardAvert System) are
detecting the Warning or Danger condition.
There is also a sounder on the Surface Display with Silent Zone Transmitter which creates
audible alerts to the operator of a Warning or Danger condition.
2.4 Maintenance
The Surface Dislay Unit with Silent Zone should be regularly cleaned to reduce buildup of dust
and dirt.
3 Warranty
Initial system hardware components will be warranted to be free of defects for a period of one
(1) year from in service date. Subsequent component purchases will be warranted one (1) year
from receipt acknowledgement. Warranted replacement or repair is not applicable in cases of
physical damage or abuse as determined at the time of return or inspection.
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 7 of 7
Strata Proximity Systems Surface Display with Silen Zone Users Manual v1.0
Confidential and Proprietary
October 19, 2011
4 Revision History
4.1 Version 1.0 – October 19, 2011
Original release. No revision history
