SurfacePADModelHA‐S‐2200‐S

UsersManualv1.0



September1,2011 Page2of6

StrataProximitySurfacePADmodelHA‐S‐2200‐SUsersManualv1.02011



TableofContents



1Overview.................................................................................................................................3

1.1TheoryofOperation.........................................................................................................3

1.2FrequencyofOperation...................................................................................................4

1.3LabelInformation.............................................................................................................4

1.4FCCInformation...............................................................................................................4

2Operation................................................................................................................................5

2.1InstallationInformation...................................................................................................5

2.1.1InteroperabilityWarning..........................................................................................5

2.2Alerts................................................................................................................................5

2.3Maintenance....................................................................................................................5

3Warranty.................................................................................................................................6

4RevisionHistory......................................................................................................................6

4.1Version1.0–September1,2011.....................................................................................6



September1,2011 Page3of6

StrataProximitySurfacePADmodelHA‐S‐2200‐SUsersManualv1.02011

1 Overview

TheSurfacePADispartofacompleteHazardAvertproximitywarningsystemfromStrata

ProximitySystemswhichprovideswarningstobothindividualsandtovehiclesandmachinery

toalertthemthattheindividualwearingthePADhasenteredtooclosetoanoperatingpieceof

equipmentandisinadangeroussituationorthatvehiclesormachineryaregettingclose

enoughthatacollisionpossibilityexists.

1.1 TheoryofOperation

TheSurfacePADiswornbyanindividual.ThefunctionsoftheSurfacePADare:

 Todetectthepresenceofa73kHzelectromagneticfieldgeneratedbyvehiclesormachinery

equippedwiththeHazardAvertsystemandtodetermineifthefieldstrengthleveldetected

indicatesthattheindividualisinorisapproachingadangeroussituation.

 ToprovideanaudibleandvisualindicationtotheweareroftheSurfacePADthattheyare

approachingorareinadangerouslocationasaresultofthe73kHzfieldstrengthlevel.

 Totransmita916.48MHzRFsignaltovehiclesormachineryequippedwiththeHazardAvert

systemsignalingthattheindividualisenteringorhasenteredintoadangerousarearelativeto

thevehicleormachinery.

TheSurfacePADhasa73kHzreceiverthatisconstantlyonandmonitoringthestrengthof

fieldsemittedbyvehiclesandmachineryequippedwiththeHazardAvertproximityandcollision

avoidancesystem.TheSurfacePADmonitorsthestrengthofthe73kHzfieldsinthreeaxesand

determinesifthefieldstrengthhasrisentoalevelthatwouldindicatethattheindividualis

approachinga“WarningZone”orisina“DangerZone”duetobeingtooclosetothevehicleor

machinery.IftheSurfacePADdeterminesthattheindividualistooclosetothevehicleor

machinery,itgivestheindividualbothavisualandaudibleindication.Atthesametime,the

PADtransmitsa916.48MHzRFsignaltoinformthevehicleormachinerythattheindividualis

approachingtooclose.IftheSurfacePADdeterminesthatthefieldstrengthindicatesthatthe

individualisnotinaWarningorDangerZonearea,itwilltransmitadatapacketevery10

secondsviathe916.48MHzwithitsstatuscondition.



TheSurfacePadisanassemblycomprisedoffoursystemseachonaseparateprintedcircuit

board.ThePADSystemBoardcontainsthreemagneticfieldpick‐upcoilseachinaphysically

diferentaxisplace90degreesfromeachother.Thesepick‐upcoilsalongwiththeirfixedvalue

capacitorsandamplifiersforma73kHzreceiverforreceptionoffieldsgeneratedbyvehiclesor

machineryequipedwiththeHazardAvertsystem.TheSystemBoardalsohasaPIC

microcontrollerwhichreceivestheinputsfromthreedetectorswhichindependantlydetectthe

inputsfromthethree73kHxpick‐upcoils.ThePICthroughaninternalalgorithm,determinesif

the73kHzfiledisaboveapre‐programmedthreshold.



IfthePICdeterminesthatthereceivedfieldisabovethethresholdlivel,itsendsalogicsignal

anddatatoaninternalRFTransmitterBoard.TheRFTransmitterBoardcontainsaLINXTXM‐



September1,2011 Page4of6

StrataProximitySurfacePADmodelHA‐S‐2200‐SUsersManualv1.02011

916‐EStransmitterIntegratedCircuit.TheTXM‐916‐ESgeneratesandfrequencymodulatesa

916.48MHzcarrierwiththedatasentfromthePICmicrocontrolleronthePADSystemBoard.

TheRFTransmitterboardhasnoalignmentprocedureastheTXM‐916‐EStreanmitterhasaself

containedcrystalcontrolledPLLoscillator.Thistransmitted916.48MHzsignalwillalertthe

vehicleormachinerythatgeneratedthe73kHzfieldthatwasreceived,thatthisparticular

SurfacePADunitiscomingwithinanunsafedistanceofthevehicleormachinery.IfthePIC

determinesthatthe73kHzfieldstrengthisbelowthethresholdlevel,itwillcausetheRF

Transmittertotransmitttheunit’sstatusandIdentificationdataonceevery10seconds.



AlongwithgeneratingtheRFsignaltoalertthemachineryordevice,theSurfacePADwillalso

alertthepersonwearingthePADwithbothanaudiblesoundandavisualindicatorthatthey

areinanareathatistoclosetothevehicleormachinery.Theaudibleandvisualindicatoraare

locatedonaWarningUnitBoardwhichisalsowithintheSurfacePAD.

1.2 FrequencyofOperation

ThePADwilltransmitasafrequencyof916.48MHzintheISMBand.

1.3 LabelInformation

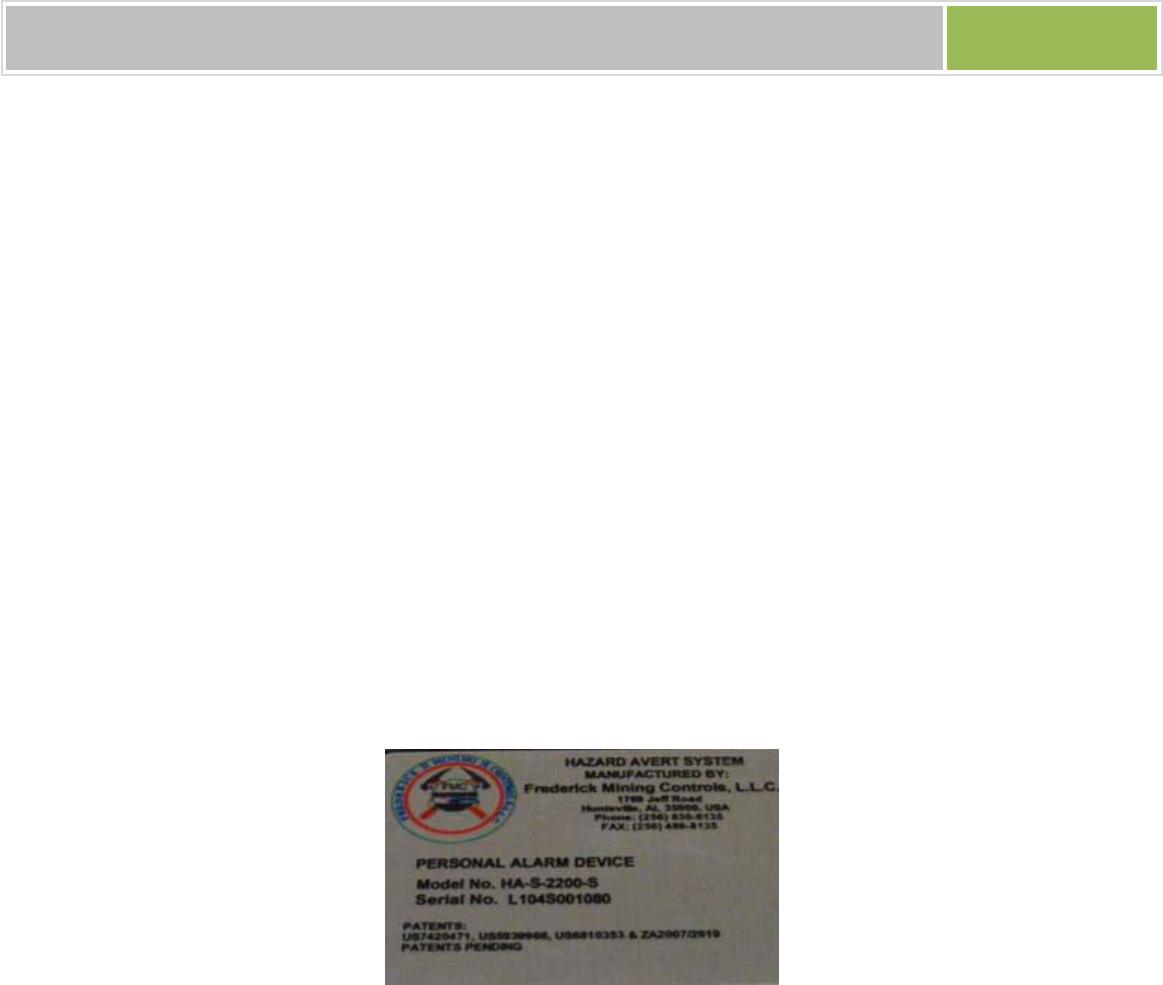

TheStrataProximityPADlabelislocatedonthefrontcenteroftheunit.ApictureoftheStrata

labelisbelow:



TheStratalabeldefinedthemanufacturingaddress,modelnumberandserialnumberofthe

PAD.MSHABlastingDistance

1.4 FCCInformation

TheFCCIDfortheStrataSurfacePADisZQ3‐SPS‐SPAD1.WhenconfiguredbyStrataforbelow‐

grounduse,thedevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe

followingconditions:(1)Thisdevicemaynotcauseharmfulinterference.(2)Thisdevicemust

acceptanyinterferencereceivedincludinginterferencethatmaycauseundesiredoperation.



AnyintentionalorunintentionalchangesormodificationstotheconfigurationoftheStrata

ProximitySurfacePADnotspecificallydetailedinthisdocument,couldvoidtheuser’sauthority

tooperatetheequipement.



September1,2011 Page5of6

StrataProximitySurfacePADmodelHA‐S‐2200‐SUsersManualv1.02011

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

2 Operation

2.1 InstallationInformation

ThePADistobewornontheprotectivehelmetsofworkers.ThePADshouldbeatleast3”or

75mmfromallotherelectronicdevicessuchasSpotters,COsensors,trackingdevices,etc.

AfterplacingthePADontheoperatorship,performanceoftheunitshouldbeverifiedatthe

StrataProximitycheck‐outstation.

2.1.1 InteroperabilityWarning

TheStrataProximityPADmayexperienceerraticresponseswheninverycloseproximityto

someelectronicdevices.Electricaldevicesmaytransmitanelectricalfieldandnoisefromthese

fieldsmaycauseinterferencewiththePAD’sreception.AsafeguidelineistokeepPADatleast

75mmawayfromanyelectricaldevicesincludedbutnotlimitedtomethanemonitor,radio,

mobilephone,PDA,batterychargerandlaptop.

2.2 Alerts

WhenthePADisconnectedtotheStrataBatteryandsoundingpack,thePADwillalerttheuser

withbothanaudiblesoundandavisualindicatorthattheyareinanareathatistoclosetothe

vehicleormachinery.OncethePADhasdeterminedthattheuseristooclosetothemachine,

itwillbegintowarntheuser.Mulitplelevelsofwarningareprovided.TheTypicalsettingisto

giveawarningthattheuserisenterstheWarningZoneandthen,asthemachineaprroaches

closerandthePADcrossesintotheDangerZone.



2.3 Maintenance

ThePADshouldbecleanedaftereachusetoensureallbuttonsandconnectorsarefreeofall

dustanddirt.



September1,2011 Page6of6

StrataProximitySurfacePADmodelHA‐S‐2200‐SUsersManualv1.02011

3 Warranty

Initialsystemhardwarecomponentswillbewarrantedtobefreeofdefectsforaperiodofone

(1)yearfrominservicedate.Subsequentcomponentpurchaseswillbewarrantedoneyear

fromreceiptacknowledgement.Warrantedreplacementorrepairisnotapplicableincasesof

physicaldamageorabuseasdeterminedatthetimeofreturnorinspection.

4 RevisionHistory

4.1 Version1.0–September1,2011

Originalrelease.Norevisionhistory


