Strata Proximity Systems
Surface Silent Zone Assembly
Users Manual v1.0
2011
Strata Proximity Systems, LLC
1769 Jeff Road
Huntsville, AL 35806
1.800.691.6601
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 2 of 6
Strata Proximity Systems Surface Silent Zone Assembly Users Manual v1.0
Confidential and Proprietary
December 19,
2011
Table of Contents
1 Overview ................................................................................................................................. 3
1.1 Theory of Operation ......................................................................................................... 3
1.2 Frequency of Operation ................................................................................................... 3
1.3 Label Information ............................................................................................................. 4
1.4 FCC Information ............................................................................................................... 4
2 Operation ................................................................................................................................ 5
2.1 Installation Information ................................................................................................... 5
2.1.1 Interoperability Warning .......................................................................................... 5
2.2 Charging............................................................................................................................ 5
2.3 Alerts ................................................................................................................................ 5
2.4 Maintenance .................................................................................................................... 6
3 Warranty ................................................................................................................................. 6
4 Revision History ...................................................................................................................... 6
4.1 Version 1.0 December 19, 2011 .................................................................................... 6
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 3 of 6
Strata Proximity Systems Surface Silent Zone Assembly Users Manual v1.0
Confidential and Proprietary
December 19,
2011
1 Overview
The Surface Silent Zone Assembly is part of a complete HazardAvert™ Proximity Warning
System from Strata Proximity Systems which provides warnings to both individuals and to
machinery to alert them that the individual has entered too close to an operating piece of
equipment and is in a dangerous situation or that vehicles or machinery are getting close
enough that a collision possibility exists. The Surface Silent Zone Assembly is mounted on a
vehicle or piece of machinery and is connected by an interface cable to a Surface Proximity
Module. The Surface Silent Zone Generator is mounted on the vehicle or machinery in an area
near where the operator would normally be while operating the vehicle or machinery.
1.1 Theory of Operation
The function of the Surface Silent Zone Assembly is:
To transmit a 73 kHz “Silent Zone” field around a small portion of the vehicle or piece of
machinery in which the operator is allowed to work or enter as part of his normal activities.
The Surface Silent Zone Assembly is connected to a HazardAvert™ Surface Proximity Module,
which under the control of a microcontroller, generates a 73 kHz signal for creating a Silent
Zone around the area of a machine where the operator is located. This 73 kHz signal is
connected to the Surface Silent Zone Module via a wire bundle. Inside the Surface Silent Zone
Assembly is a wire/ferrite radiator element to which the 73 kHz signal is connected. The 73 kHz
signal passing through this wire/ferrite radiator element generates a 73 kHz “Silent Zone”
electromagnetic field which encompasses only the small area of the vehicle or machine in
which the operator can be during operation. The operator is required to wear a Personal Alarm
Device (PAD) which is another component of the HazardAvert™ system which detects and
responds to the presence of 73 kHz fields. As long as the operator is within this “Silent Zone” his
PAD will know he is within an area and not alarm. If the operator exits this Silent Zone safe
area, his PAD will function to alert him and other machines or vehicles equipped with the
HazardAvert™ system of his proximity to dangerous conditions due to his distance from
machine or vehicle hazards.
1.2 Frequency of Operation
The Silent Zone Assembly will transmit on a frequency of 73 kHz.
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 4 of 6
Strata Proximity Systems Surface Silent Zone Assembly Users Manual v1.0
Confidential and Proprietary
December 19,
2011
1.3 Label Information

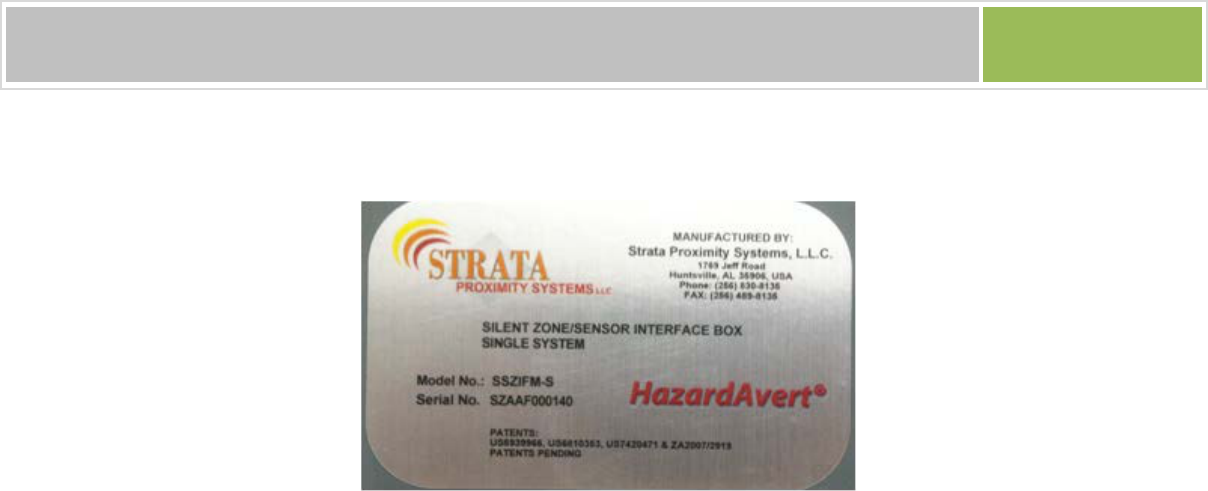

The Surface Display label is located on the face of the unit. A picture of the Strata label is below:
The Strata label defines the model and serial number of the Surface Silent Zone Assembly also
MSHA and Commonwealth of Pennsylvania information.
1.3.1.1 MSHA Blasting Distance
MSHA has published Program Policy Letter P11-V-07 concening Two Way Communications and
Blasting Circuits.
SPS magnetic field generators produce a magnetic field that at 100 kHz or .1000 MHz does not
achieve the Critical H Field until 1.42 m with a blasting cap having a pickup area of 10 sq.
meters.
SPS magnetic field generators are safe to 1.42 m from the blasting caps. SPS does recommend
a minimum distance of 25’ as a precaution.
1.3.1.2 Pennsylvania Blasting Distance
At this date, Pennsylvania has not made a recommendation or statement concerning surface
systems.
1.4 FCC Information
The FCC ID for the Surface Silent Zone Assembly is ZQ3-SPS-SSZON. When configured by Strata
for surface use, the device complies with Part 15 of the FCC Rules. Operation is subject to the
following conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference that may
cause undesired operation.
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 5 of 6
Strata Proximity Systems Surface Silent Zone Assembly Users Manual v1.0
Confidential and Proprietary
December 19,
2011
Any intentional or unintentional changes or modifications to the configuration of the Surface
Silent Zone Assembly not specifically detailed in this document could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
2 Operation
2.1 Installation Information
The Surface Silent Zone Assembly is mounted on a vehicle or piece of machinery. Metal near
the Surface Zone Assembly may impact performance. After installing the SurfaceSilent Zone
Assembly on the machine, performance of the unit should be verified by calibration and test.
2.1.1 Interoperability Warning
The Surface Silent Zone Assembly may experience erratic responses when in very close
proximity to some electronic devices. Electrical devices may transmit an electrical field and
noise from these fields may cause interference with the Surface Proximity Module. A safe
guideline is to keep the Surface Silent Zone Assembly at least 75 mm away from any electrical
devices included but not limited to methane monitor, radio, mobile phone, GPS, PDA, battery
charger and laptop computers.
2.2 Charging
The Surface Silent Zone Assembly is directly powered from the controller board and requires no
internal battery or charging.
2.3 Alerts
The Surface Silent Zone Assembly has no alert system.
Confidential
Patent #’s 7,420,471
5,939,986 and 6,810,353
Patent Pending
Page 6 of 6
Strata Proximity Systems Surface Silent Zone Assembly Users Manual v1.0
Confidential and Proprietary
December 19,
2011
2.4 Maintenance
The Surface Silent Zone Assembly should be regularly cleaned to reduce buildup of dust and
dirt.
3 Warranty
Initial system hardware components will be warranted to be free of defects for a period of one
(1) year from in service date. Subsequent component purchases will be warranted one (1) year
from receipt acknowledgement. Warranted replacement or repair is not applicable in cases of
physical damage or abuse as determined at the time of return or inspection.
4 Revision History
4.1 Version 1.0 December 19, 2011
Original release. No revision history
