Strategic Vista Technologies Inc. 2400-24183.5MHz WIRELESS CAMERA-TX RTMSV 03 CAM InstructionManual
users manual
ACCESSORY 2.4 GHz 4 CHANNEL COLOR
WIRELESS CAMERA SYSTEM
QUICK SET UP GUIDE

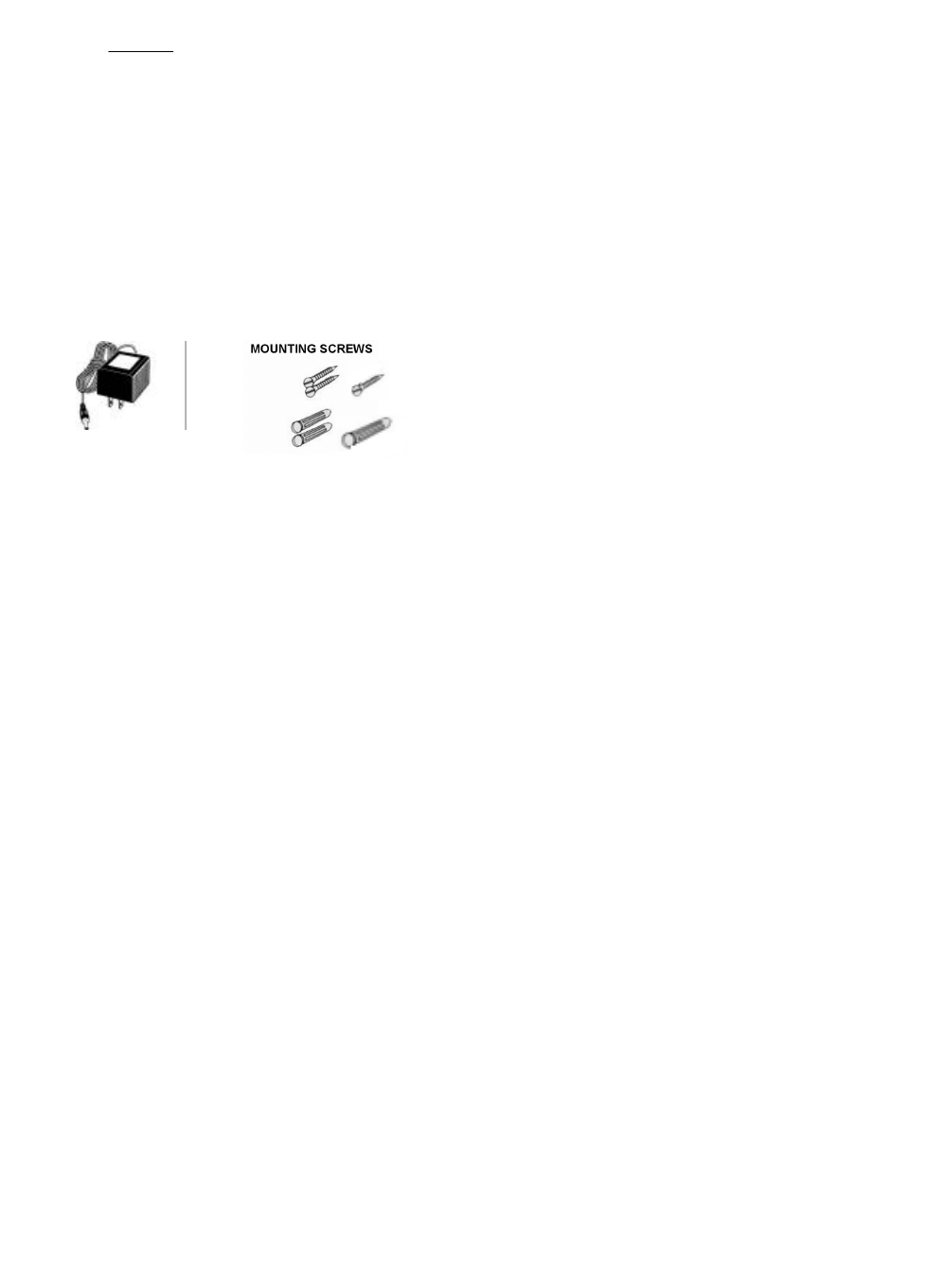

•Wireless Color Camera
•Power Adapter
•Metal Mounting Bracket and Screws
1. UNPACK SYSTEM CONTENTS FROM THE
GIFTBOX
2. CAMERA CONTROLS & FUNCTIONS
1. Attach the stand base to the wall or ceiling where you want to install the camera. Locate a wall stud or ceiling joist and s ecure
bracket using the three supplied screws.
2. Attach the camera to the stand and firmly tighten the swivel..
3. Attach the camera with the stand to the stand base and firmly tighten the joint knob on the stand base.
4. Connect the supplied 9V 300mA DC adapter to the DC IN jack at the rear of the camera and plug it into the electrical outlet.
Your wireless camera has both AC or battery option. When using the AC option with rechargeable batteries, your camera will
automatically switch to back up battery feature during a pow er outage providing you with uninterrupted power to the camera. The
battery option also provides you the flexibility to move the camera from room to room.
WIRELESS CAMERA -AC OPTION ONLY
1. Ensure the power switch on the camera is turned OFF.
2. Connect one end of the power supply to the DC IN jack located at the back of the camera. Plug the other end into an electrical outlet
WIRELESS CAMERA -USING RECHARGEABLE BATTERIES
1. Insert 8 rechargeable ‘AA’batteries (not included) into the camera battery compartment. WARNING: TO PREVENT INJURY
AND/OR DAMAGE TO THE UNIT, ENSURE THE BATTERIES ARE ALIGNED PROPERLY AND BATTERY TYPES ARE NOT
MIXED.
2. Ensure the slide switch labeled Recharge/Alkaline is set to the ‘Rechargeable’setting.
3. Carefully slide the batter compartment into the camera
4. Ensure the power switch on the camera is turned OFF.
5. Connect one end of the power supply to the DC IN Jack located at the back of the
camera. Plug the other end into an electrical outlet.
BATTERY COMPARTMENT
POWER ADAPTER
WIRELESS COLOR CAMERA
SLIDE IN
1. LENS
2. MICROPHONE
Built-in condenser microphone provides
audio capability from camera to monitor
television
3. 2.4 GHz ANTENNA
High gain directional dipole antenna
sends Audio and Video signals to the
monitor.
5. STAND MOUNTING SOCKET
Reinforcement lock for camera stand.
6. CHANNEL SELECTOR SWITCH
Slide switch for the channel 1-4
selection.
7. ON/OFF POWER SWITCH
Controls power to the camera. Note:
Please ensure you set the switch to the
OFF position before plugging the
AC adapter into the unit.
8. DC IN JACK
Plug the 9V(300mA) AC Adapter in
here.
WIRELESS CAMERA –BATTERY OPTION
3. WIRELESS CAMERA –INSTALLATION
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
Image sensor
Lens
Picture element
Scanning system
Battery Life (assume 1300mAH)
Current Consumption
Scanning frequency
Sync. system
Resolution
Min. illuminations
Video Output
Gamma characteristics
Auto Iris
Microphone
Transmitting frequency
Modulation
RF out level
Video Input level
Audio input level
Antenna
Oper. temperature
Power source
Dimensions
Weight
Color CMOS
F2.0/f 3.7mm, 92°wide-angle lens
510 x 492 (Color)
2:1 interlace
3 Hours (Color)
300mA typ. (color)
15.734 KHz(H) 59.9Hz(V) ,EIA
Internal Synchronization
380 Lines (Color)
2Lux (Color)
1.0Vp-p/75 Ohm
r=0.45
Electrical Auto Iris
Shutter sensitivity :1/60-1/100,000
Condenser
2.4 GHz-2.4835 GHz
FM
90dBu/V, 3m
1.0Vp-p/75 Ohm
2.0Vp-p/600 Ohm
Directional high dipole antenna
-14ºto + 122ºF or (-10ºC to + 50 ºC)
DC12V 500mA DC Adapter
7.3 (W) x4.7 (H) x 11(D) cm or
2.8’(W) x 1.85’(H) x 4.3’(D)
118 grams or 3.79 Oz
ACCESSORY 2.4 GHz 4 CHANNEL COLOR
WIRELESS CAMERA SYSTEM
QUICK SET UP GUIDE
Because our product is subject to continuous improvement, SVC re serves the right to modify product designs and specifications without notice and
without incurring any obligation. E&OE
4. WIRELESS CAMERA -SPECIFICATIONS
